Illidan Stormrage 3D Printing Figurine | Assembly

(20)
cm: 37.6 w x 29 d x 34.5 h
in: 14.803 w x 11.417 d x 13.583 h

Source Files

|

Description

|

Printing Details

This 3D Figurine consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

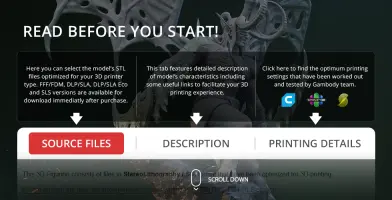

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

Illidan Stormrage 3D Printing Figurine comes in 7 versions for each 3D printer type (FFF/FDM, DLP/SLA and SLS). Files for each version are available for download after the purchase.

Detailed information about this 3D printing figurine is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

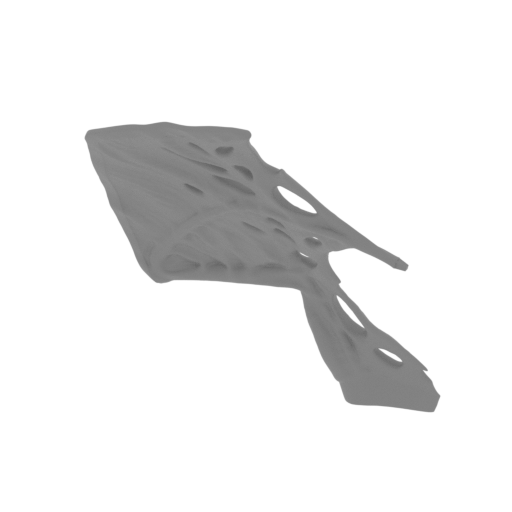

1_wing_R.stl
10.08 MiB 18 h 45 min 11 m 198 x 182 x 165 Download
2_wing_L.stl
10.08 MiB 18 h 34 min 11 m 190 x 193 x 163 Download

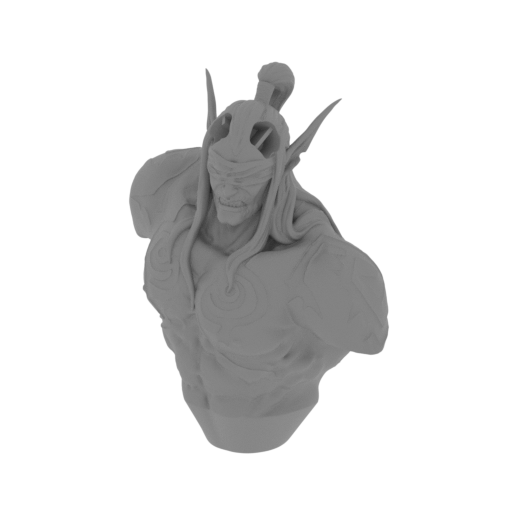

3_body.stl
19.34 MiB 11 h 22 min 7 m 100 x 68 x 88 Download

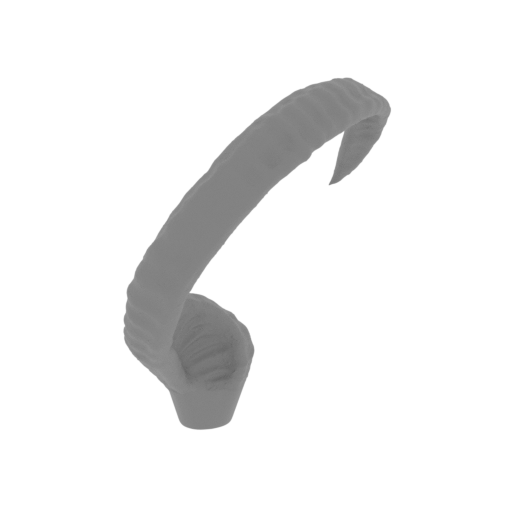

4_horn_R.stl
2.51 MiB 55 min <1 m 18 x 46 x 35 Download

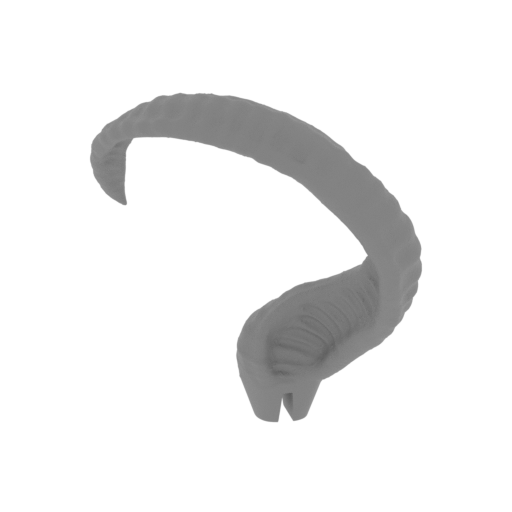

5_horn_L.stl
2.50 MiB 56 min <1 m 15 x 46 x 36 Download
6_GE_Connector_B_1.stl
0.04 MiB 8 min <1 m 20 x 6 x 6 Download
7_arm_1_R.stl
14.84 MiB 10 h 14 min 7 m 27 x 73 x 167 Download
8_GE_Connector_B_2.stl
0.04 MiB 8 min <1 m 20 x 6 x 6 Download

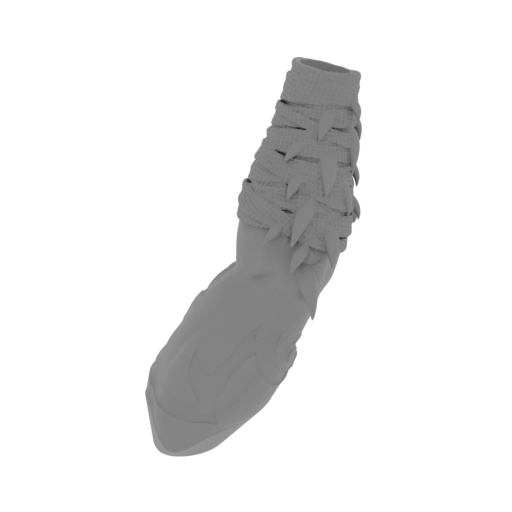

9_arm_1_L.stl
14.55 MiB 11 h 16 min 8 m 48 x 81 x 162 Download
10_GE_Connector_B_4.STL
0.04 MiB 8 min <1 m 20 x 6 x 6 Download
11_GE_Connector_B_3.stl
0.04 MiB 8 min <1 m 20 x 6 x 6 Download
12_belt.stl
11.27 MiB 3 h 32 min 2 m 64 x 45 x 67 Download
12_belt.stl
11.27 MiB 3 h 32 min 2 m 64 x 45 x 67 Download

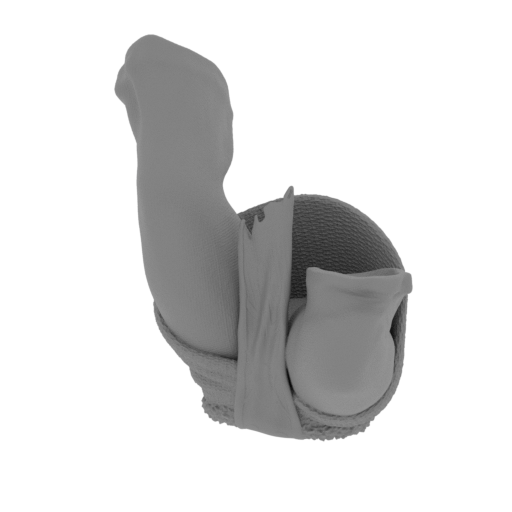

13_legs.stl
14.18 MiB 12 h 19 min 8 m 99 x 70 x 122 Download
14_platform.STL
40.61 MiB 38 h 5 min 30 m 148 x 102 x 106 Download

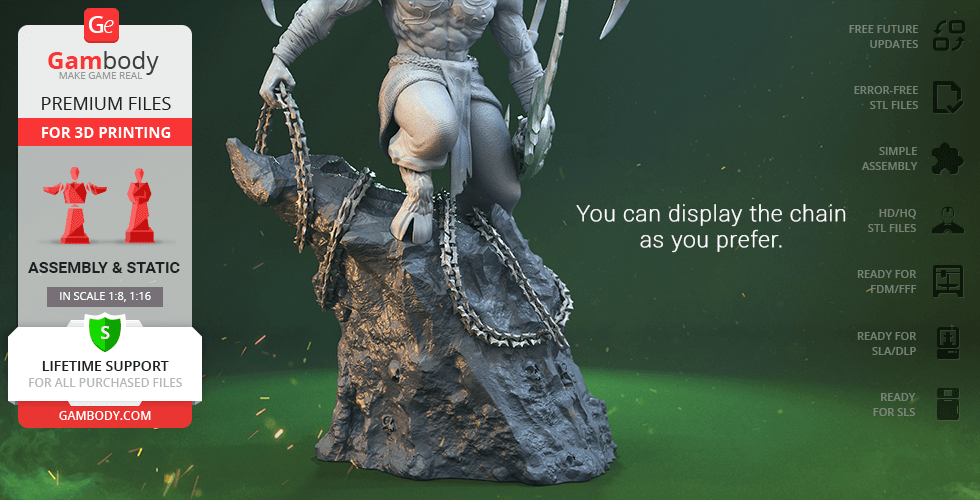

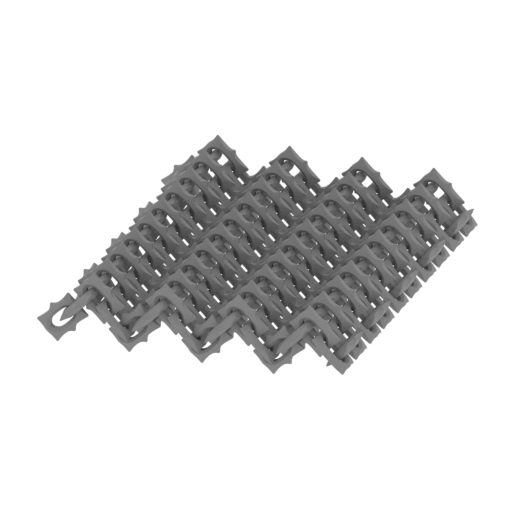

15_chain.stl
16.21 MiB 6 h 6 min 2 m 57 x 67 x 14 Download
16_arm_2_L.stl
4.28 MiB 1 h 10 min 1 m 18 x 19 x 47 Download
17_arm_2_R.stl
4.51 MiB 1 h 13 min 1 m 19 x 21 x 50 Download

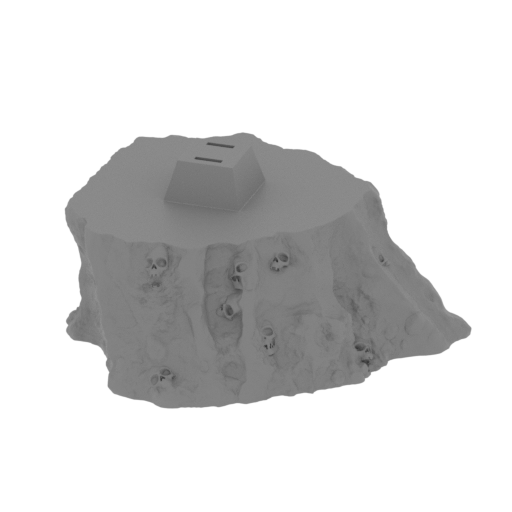

18_platform_2.stl
76.59 MiB n.a.
n.a.
205 x 158 x 178 Download
19_platform_bot (repaired ).stl
38.81 MiB 41 h 7 min 16 m 167 x 158 x 66 Download
20_platform_top (repaired ).stl
39.00 MiB 50 h 23 min 32 m 157 x 120 x 112 Download
21_Ge_lock_10H_x5 (repair ed).stl
0.03 MiB 4 min <1 m 10 x 18 x 2 Download
...

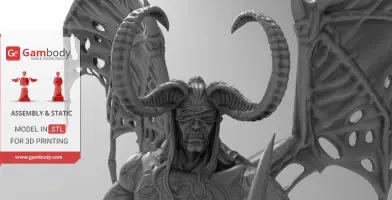

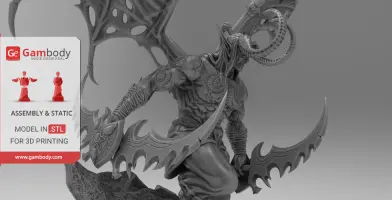

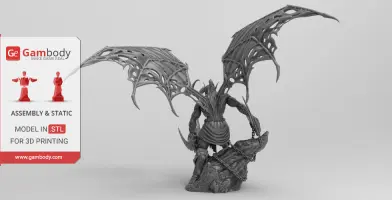

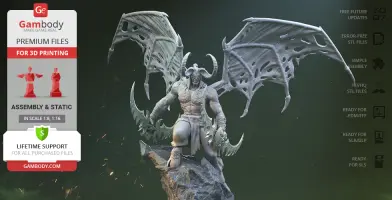

ABOUT THIS 3D FIGURINE

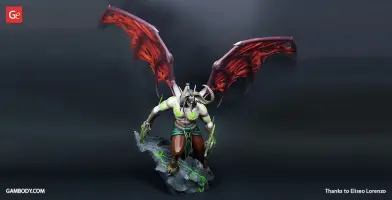

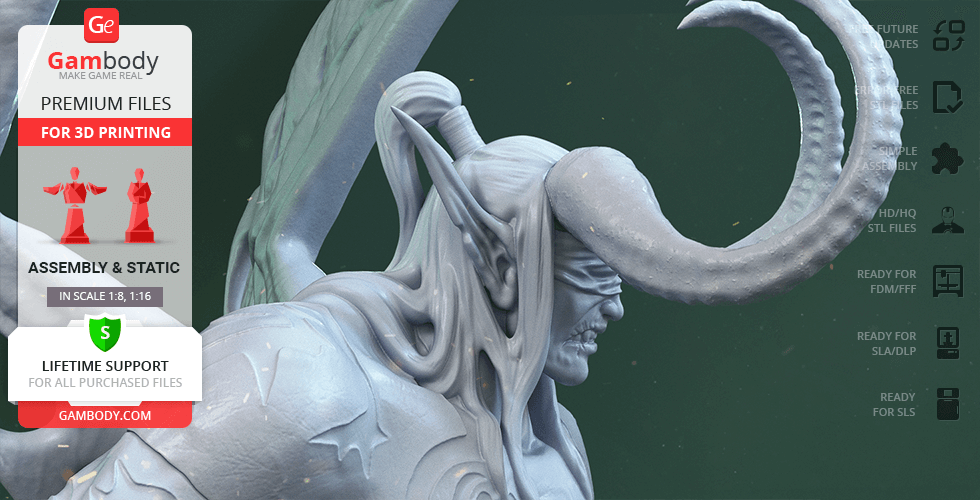

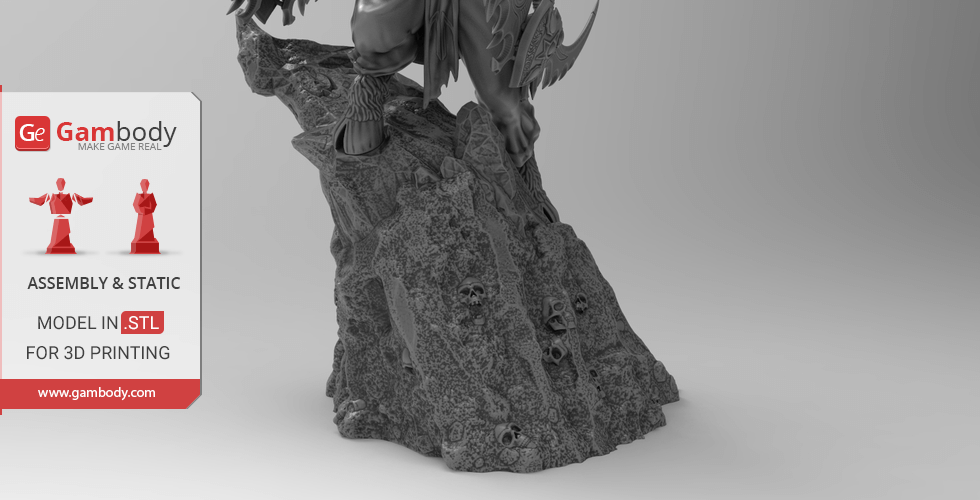

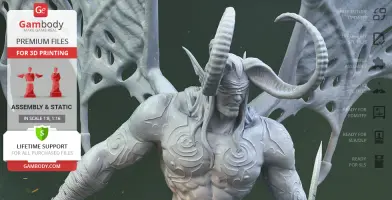

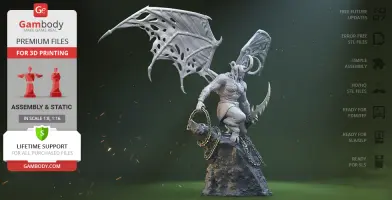

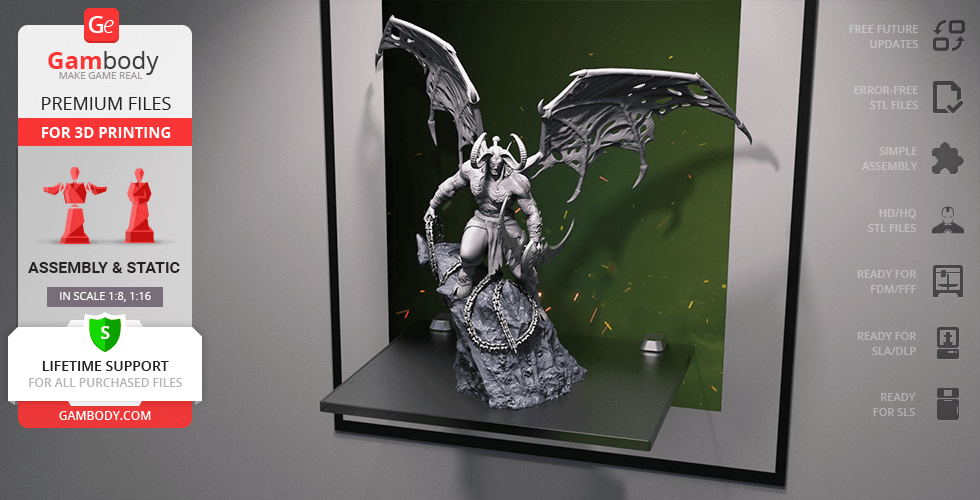

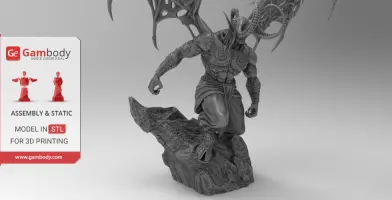

Illidan Stormrage, a night elf born Demon Hunter who became neither night elf nor demon, but something more, is the legendary character of the World of Warcraft franchise. Having committed horrific acts against the races of Azeroth in pursuit of power, Illidan Stormrage was imprisoned for ten thousand years, until his release during the Third War. After his release from prison, he went through many obstacles and now appeared for all WoW enthusiasts in the guise of a model for 3D printing. As mentioned the author of the beautiful Illidan Stormrage 3D printing figurine, the inspiration for the creation of this model came after reading the story about the character’s acquisition of “The Skull of Gul'dan”. The 3D artist paid meticulous attention to the smallest details of the iconic hero’s appearance, carving Illidan’s signature Fel tattoos all over the figurine’s body. The 3D printing figurine comes with a set of interchangeable hands to hold The Twin Blades of Azzinoth that can also be replaced with empty hands holding a long chain. The Betrayer for 3D printing is depicted standing on a large rocky platform showcasing the wide wing-spread and angry facial expression. As expected, the burned-out eyes of the Illidan Stormrage figurine are concealed with the Cursed Vision of Sargeras and the character’s horns, hooves and spikes perfectly reveal the hero’s demonic nature.

ADAPTATION FOR 3D PRINTING (FFF/FDM 2.0, DLP/SLA 1.0, DLP/SLA Eco 1.0, SLS 2.0)

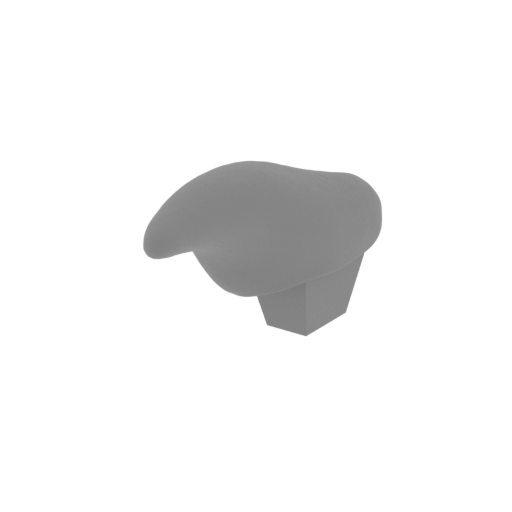

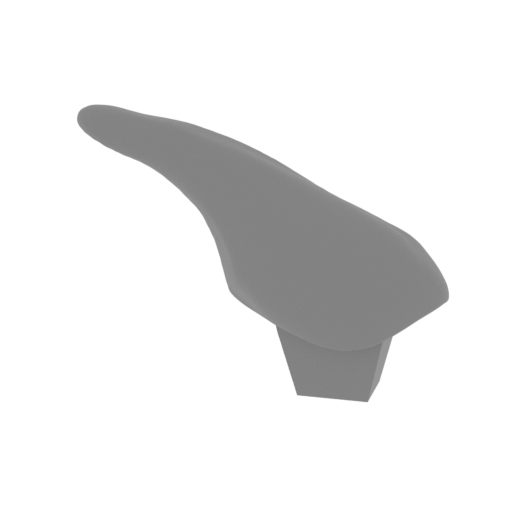

Illidan Stormrage figurine for 3D printing is a static assembly model and its updating and adaptation for different types of 3D printers took Gambody team 58 hours in total. Due to the fact that this figurine was first released on Gambody in 2017 as a model with solid and large wings, for all the WoW fans to print the cleanest figurine possible the model was cut into assembly parts and adapted for different types of 3D printers taking into account the present-day technology advancements. Illidan’s anatomy, facial features, and body proportions were thoroughly reviewed during the moderation process for the figurine to be depicted harmoniously in the intended pose. For the Illidan Stormrage figurine to excel in the level of detail, our team made sure to enhance the tattoo patterns all over the demon’s body and worked on the textures of the rocky platform, the model’s clothes, horns, and wings. The model’s cutting was chosen by our team to minimize the amount of filament needed for generated support and some of the parts were hollowed out for you in the model’s Eco version to save resin. In order to ensure the smooth 3D printed result, Illidan’s large wings were split up, the wing claws were separated, and such parts as The Twin Blades of Azzinoth, figurine’s hooves, horns, and hands, etc. are now provided as separate STL files as well. Once printed the model’s chain is going to be loose for you to display it as you prefer. All the assembly parts are provided in STL files in recommended positions that were worked out so to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any figurine's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format.

The figurine is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

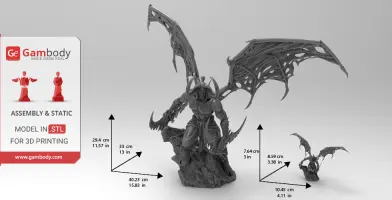

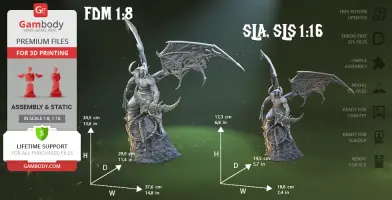

The model's scale was calculated from Illidan's actual height that is 2130 mm. The 3D printing figurine's chosen scale is 1/8 for the FFF/FDM version and 1/16 for the DLP/SLA/SLS versions.

VERSIONS' SPECIFICATIONS

FFF/FDM 1.0 version features:
- Contains 21 parts;
- A printed model is 294 mm tall, 402 mm wide, 330 mm deep
- Made with two variants of the platform that differ in size;
- Assembly kit includes connectors to attach the model's parts securely without glue, as well as lock 21_Ge_lock_10H_x5 to assemble the larger platform that needs to be printed 5 times;
- The scale of the figurine is indeterminate.

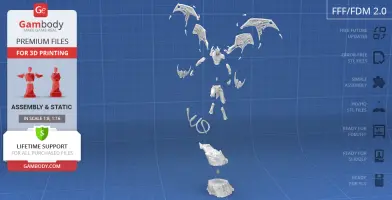

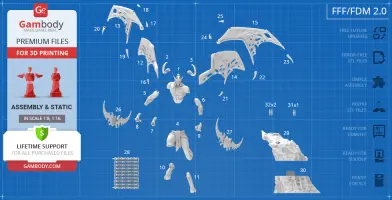

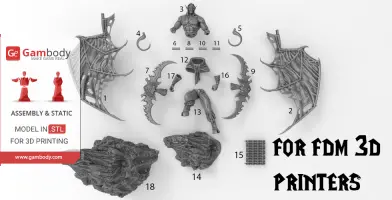

FFF/FDM 2.0 version features:
- Contains 32 parts;
- A printed model is 345 mm tall, 376 mm wide, 290 mm deep;
- The figurine is significantly improved in accordance with anatomy and body and face proportions rules;
- Introduced new cutting and enhanced level of detail;
- Made with two variants of the platform that differ in size;

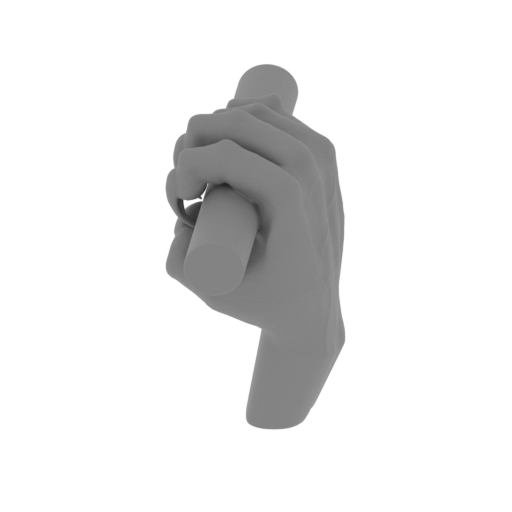

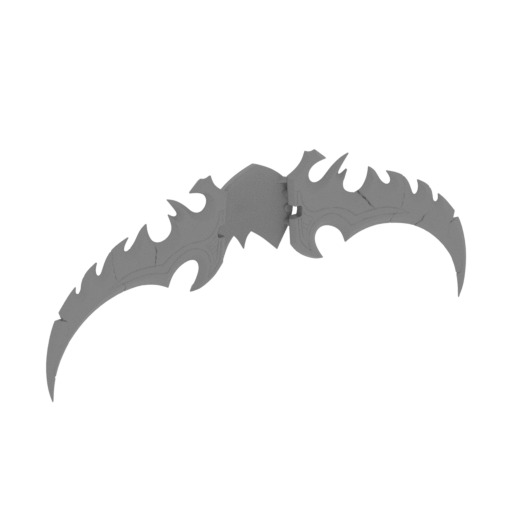

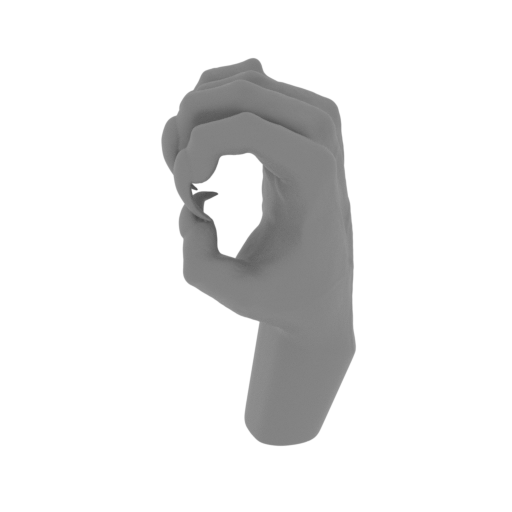

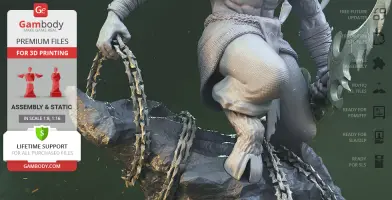

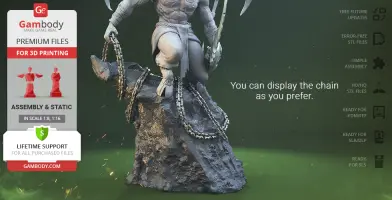

- Comes with 2 variants of the right hand for Illidan to hold either The Twin Blade of Azzinoth or the chain;

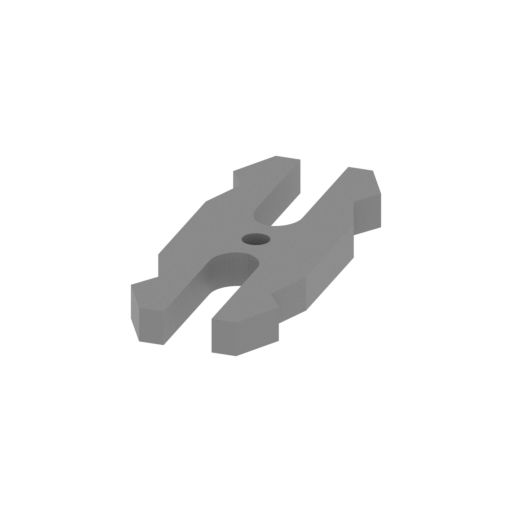

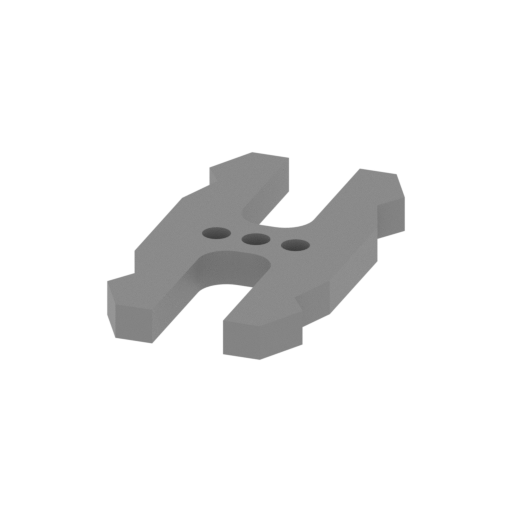

- Assembly kit includes locks to attach the model's parts securely without glue. Lock 31_ge_lock_S7(x1) needs to be printed once; lock 32_ge_lock_10H(x2) needs to be printed twice;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

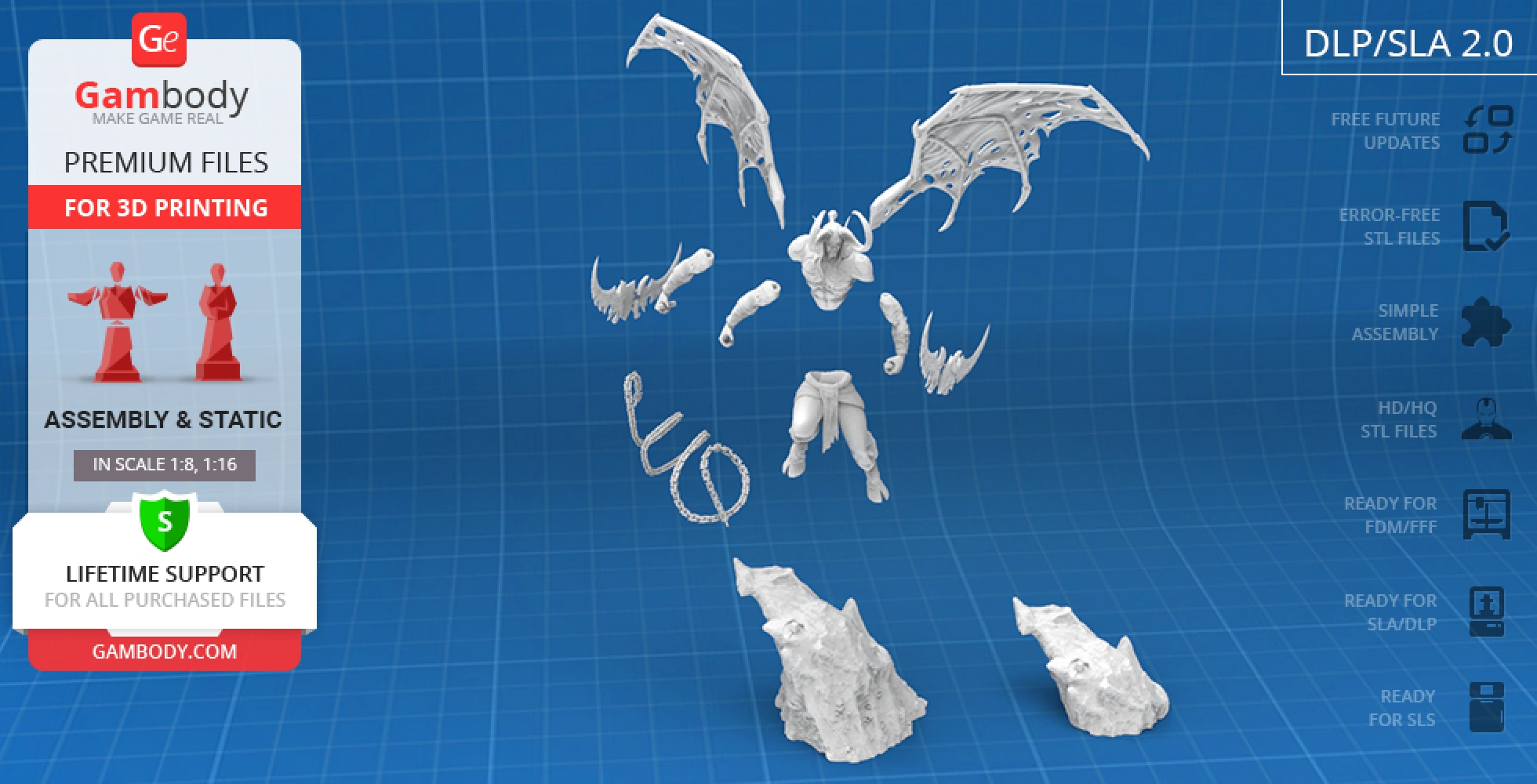

DLP/SLA 1.0 version features:
- Contains 12 parts;
- A printed model is 173 mm tall, 188 mm wide, 145 mm deep;
- Made with two variants of the platform that differ in size;
- Comes with 2 variants of the right hand for Illidan to hold either The Twin Blade of Azzinoth or the chain;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

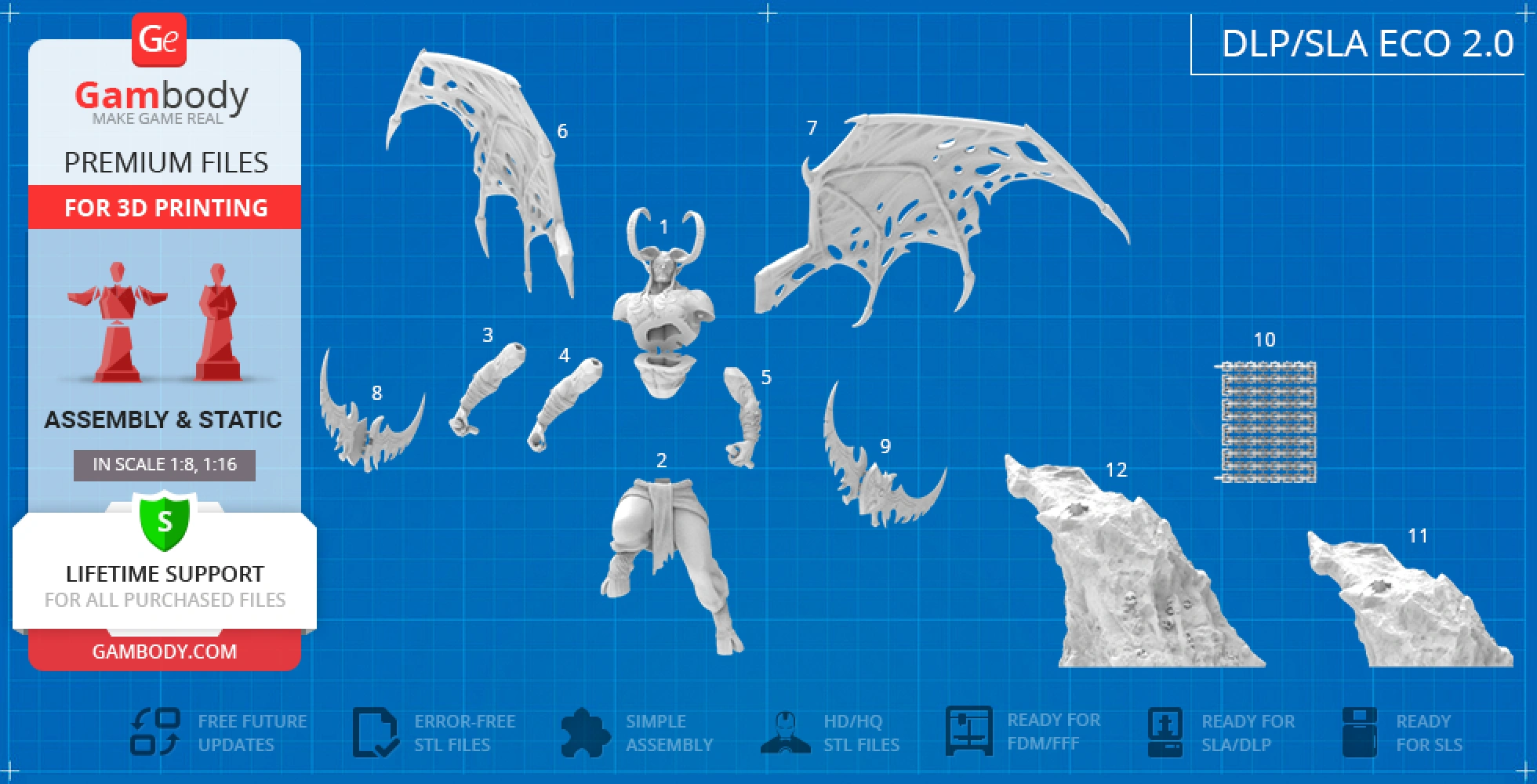

DLP/SLA Eco 1.0 version features:
- Contains 12 parts;
- A printed model is 173 mm tall, 188 mm wide, 145 mm deep;
- Made with two variants of the platform that differ in size;
- Comes with 2 variants of the right hand for Illidan to hold either The Twin Blade of Azzinoth or the chain;
- Contains some hollowed out parts to save resin.

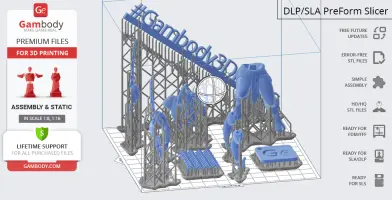

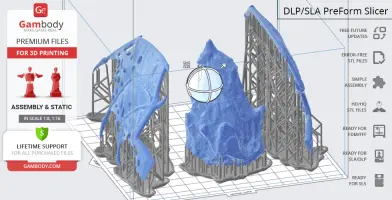

DLP/SLA Pre-supported 1.0 version features:
- Contains 12 parts;
- A printed model is 173 mm tall, 188 mm wide, 145 mm deep;
- The STL files that this version comprises are pre-supportedhollowed out, and have drain holes where needed;
- You may choose to print the STL files one by one or several at once, depending on the dimensions of your resin 3D printer's build plate;
- When slicing several STL files at once, the attachment layers (Platform Touch Shape) may overlap, but the supports must not come into contact.

SLS 1.0 version features:
- Contains 1 part;
- A printed model is 76 mm tall, 104 mm wide, 85 mm deep;
- The scale of the figurine is indeterminate.

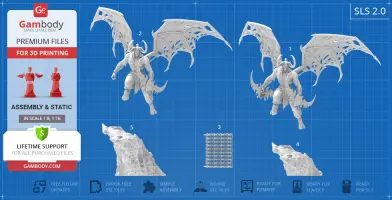

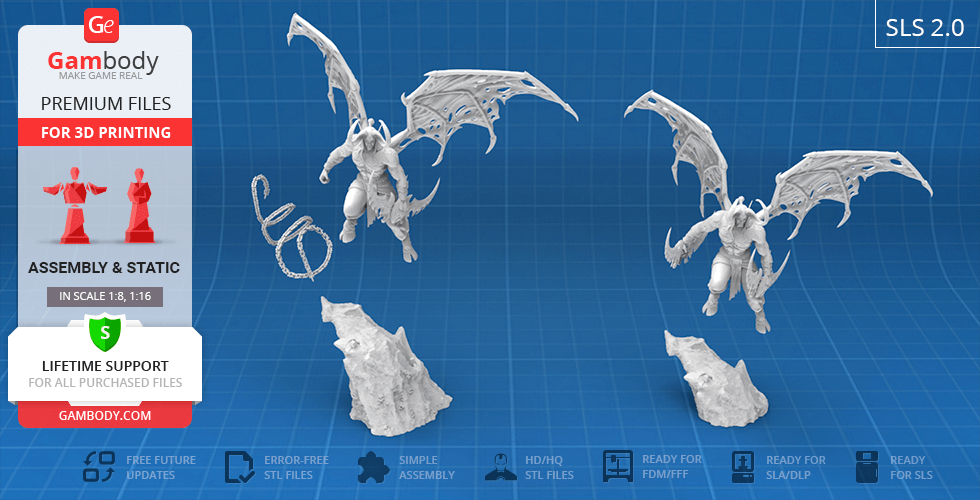

SLS 2.0 version features:
- Made as a solid one-piece figurine;
- A printed model is 173 mm tall, 188 mm wide, 145 mm deep;
- The figurine is significantly improved in accordance with anatomy and body and face proportions rules;
- Introduced new cutting and enhanced level of detail;
- Contains 5 parts - two variants of the one-piece figurine (to hold The Twin Blade of Azzinoth or the chain), the chain, and two variants of the platform.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Illidan Stormrage​ 3D Figurine for 3D printing which consist of 95 parts;
- 7 versions of files for this model for FFF/FDM, DLP/SLA, DLP/SLA Eco and SLS;
- High-poly detailed figurine of Illidan Stormrage​;
Assembly Manual for FFF/FDM 2.0 and DLP/SLA 1.0 versions in PDF format;
- Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get the figurine of Illidan Stormrage​ for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Illidan Stormrage​ 3D Printing Figurine at Gambody YouTube channel.

Also, you may like another Illidan The Demon Hunter 3D Printing Figurine as well as other WoW 3D Printing Figurines.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

  • You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

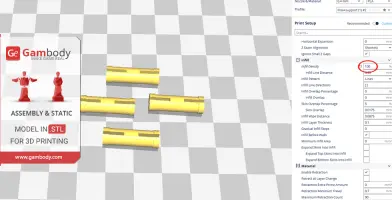

  • All connectors should be printed at 100% Infill.

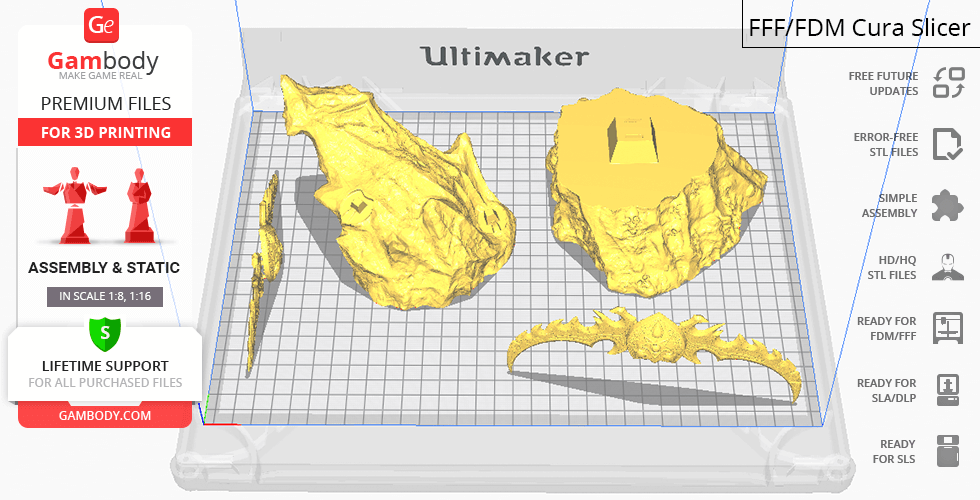

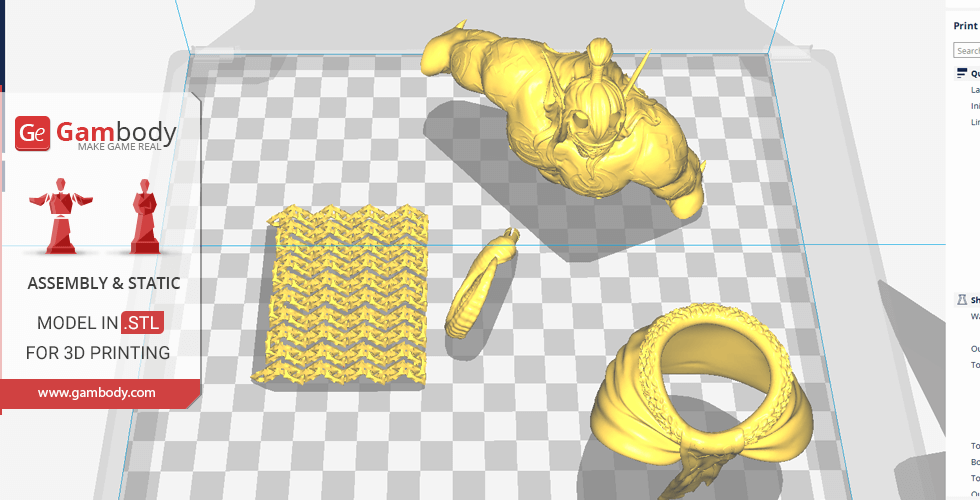

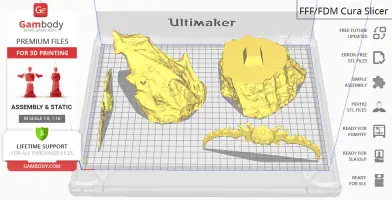

Cura printing recommendations:

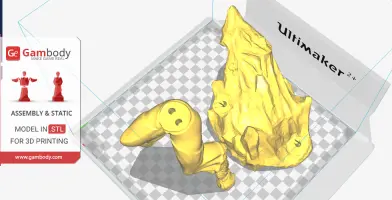

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
