Anycubic Photon Mono 2 3D Printer + Sauron + Aragorn + Lord Nazgul + Treebeard

(1)
cm: 0.1 w x 0.1 d x 0.1 h
in: 0.039 w x 0.039 d x 0.039 h

Source Files

|

Description

|

Printing Details

This bundle consists of Anycubic Photon Mono 2 Resin 3D Printer, Aragorn 3D Printing Figurine, Sauron 3D Printing Figurine, Treebeard 3D Printing Figurine and Nazgul 3D Printing Figurine The 3D printing models come in the form of digital files in StereoLithography (.STL) format that is optimized for DLP/SLA 3D printing.

WHAT WILL YOU GET AFTER PURCHASE?

- High-resolution Photon Mono 2 Resin 3D Printer by Anycubic

- 1 versions of Aragorn STL files - DLP/SLA DLP/SLA version - files are available for download immediately after purchase

- 1 versions of Nazgul STL files - DLP/SLA DLP/SLA version - files are available for download immediately after purchase

- 1 versions of Sauron STL files - DLP/SLA DLP/SLA version - files are available for download immediately after purchase

- 1 versions of Treebeard STL files - DLP/SLA DLP/SLA version - files are available for download immediately after purchase

- Printing settings that we provide as a recommendation for Anycubic Photon Mono 2 Resin 3D Printer

- Full technical support from the Gambody Support Team

Detailed information about this bundle is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)
1_body_SLA_PreSuP(repaire d).stl
74.21 MiB 17 h 33 min 6 m 81 x 43 x 95 Download
2_body_with_cloak_PreSup_ SLA(repaired).stl
94.88 MiB n.a.
n.a.
71 x 56 x 95 Download
3_legs_SLA_PreSuP(repaire d).stl
75.78 MiB 21 h 35 min 7 m 93 x 49 x 102 Download
4_arm_R_PreSup_SLA(repair ed).stl
43.53 MiB 4 h 60 min 1 m 26 x 36 x 48 Download
5_arm_L_PreSup_SLA(repair ed).stl
59.81 MiB 7 h 55 min 2 m 47 x 50 x 46 Download
5_v2_arm_L_with_mace_SLA_ presup (repaired).stl
47.73 MiB 17 h 10 min 4 m 46 x 72 x 111 Download
6_hand_R_SLA_PreSuP(repai red).stl
21.34 MiB 57 min <1 m 35 x 18 x 29 Download
7_hand_R_with_mace_SLA_Pr eSuP(repaired).stl
36.48 MiB 7 h 14 min 2 m 46 x 25 x 95 Download
8_shoulder_strap_R_SLA_Pr eSuP(repaired).stl
24.63 MiB 3 h 20 min 1 m 46 x 25 x 40 Download
9_shoulder_strap_L_SLA_Pr eSuP(repaired).stl
24.96 MiB 3 h 24 min 1 m 46 x 25 x 42 Download
10_shoulder_strap_R_on_cl oak_SLA_PreSuP(repaired). stl
25.01 MiB 3 h 26 min 1 m 46 x 25 x 42 Download
11_shoulder_strap_L_on_cl oak_SLA_PreSuP(repaired). stl
25.35 MiB 3 h 6 min 1 m 46 x 25 x 40 Download
12_armor_on_leg_R_SLA_Pre SuP(repaired).stl
21.36 MiB 1 h 14 min <1 m 35 x 18 x 34 Download
13_armor_on_leg_L_SLA_Pre SuP(repaired).stl
19.86 MiB 1 h 1 min <1 m 35 x 18 x 39 Download
14_cloak_1_SLA_PreSuP(rep aired).stl
40.64 MiB 15 h 10 min 6 m 116 x 50 x 78 Download
15_cloak_2_SLA_PreSuP(rep aired).stl
61.63 MiB n.a.
n.a.
67 x 108 x 121 Download
16_cloak_3_SLA_PreSuP(rep aired).stl
55.76 MiB 38 h 7 min 14 m 115 x 63 x 115 Download
17_platform_SLA_PreSuP(re paired).stl
75.12 MiB n.a.
n.a.
118 x 73 x 147 Download
18_platform_1_SLA(repaire d).stl
64.08 MiB n.a.
n.a.
67 x 119 x 94 Download
19_platform_2_SLA(repaire d).stl
51.90 MiB 34 h 21 min 12 m 67 x 115 x 44 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download
...

ABOUT THIS BUNDLE

Provided by the terms of Gambody & Anycubic Collaboration, this bundle offer allows you to purchase a high-resolution Photon Mono 2 Resin 3D Printer by Anycubic together with several high-quality, highly detailed 3D printing models by Gambody contributing 3D artists.

IMPORTANT: After the purchase, your shipping information will be delivered to Anycubic 3D printer manufacturer, who will take care of the Photon Mono 2 printer’s shipping and provide the tracking number. All updates will be provided by Gambody Team from support@gambody.com. The delivery of the Photon Mono 2 3D printer is expected approximately within 3 weeks after placing the order.

ABOUT THE 3D PRINTER

The Anycubic Photon Mono 2 is the ideal option for beginners venturing into resin 3D printing. Geared towards enhancing the user experience and increasing printing success rates, this printer features a 6.6-inch monochrome LCD screen boasting a resolution of 4096x2560. This high resolution facilitates the display of intricate details in 3D models.

To ensure the durability of the device, the Photon Mono 2 incorporates an ultra-large scratch-resistant screen protector. This protector not only prevents screen scratches but also acts as a barrier against resin penetration, contributing to the long-term reliability of the printer.

A detailed description of the 3D printer and main specs are provided on Anycubic's Official Website

ABOUT 3D PRINTING MODELS

Sauron, Aragorn, Lord Nazgul, and Treebeard models for 3D Printing were carefully designed by our talented contributing 3D artists and thoroughly moderated and adapted for 3D printing by Gambody team. This bundle comprises the DLP/SLA version that are specifically adapted to be printed on resin 3D printers such as the Anycubic Photon Mono 2. The process of adaptation presupposes that practical aspects of printing the model using the DLP/SLA/LCD technology are taken into account, and the model's scale and cutting are chosen to ensure an optimum result of printing.

3D PRINTING MODELS' SPECIFICATIONS

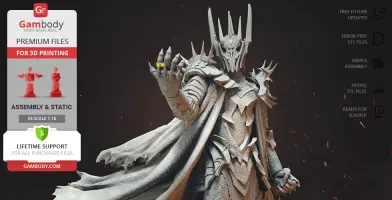

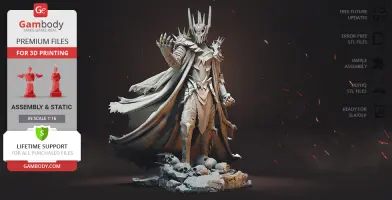

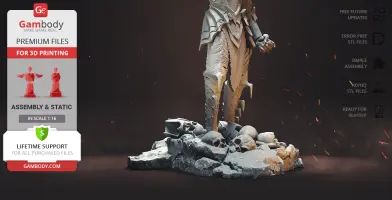

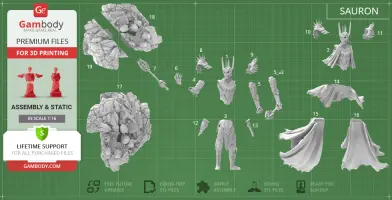

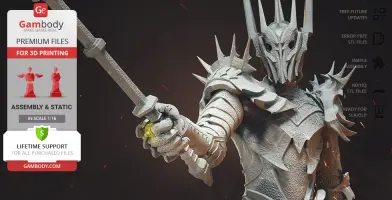

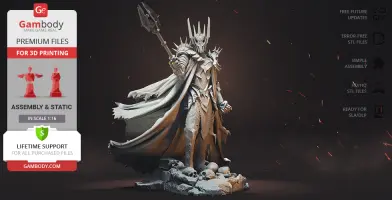

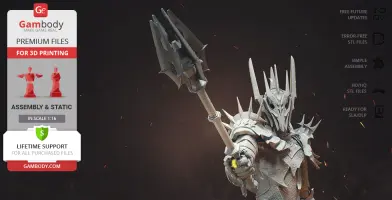

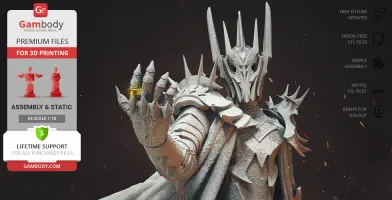

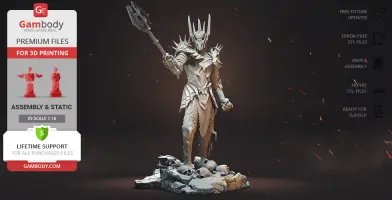

Sauron 3D Printing Figurine:

DLP/SLA/SLS Pre-supported 1.0 version features:

  • Contains 19 parts;
  • A printed model is 190 mm tall, 157 mm wide, 172 mm deep;
  • The STL files that this version comprises are pre-supportedhollowed out, and have drain holes where needed;
  • You may choose to print the STL files one by one or several at once, depending on the dimensions of your resin 3D printer's build plate;
  • When slicing several STL files at once, the attachment layers (Platform Touch Shape) may overlap, but the supports must not come into contact.

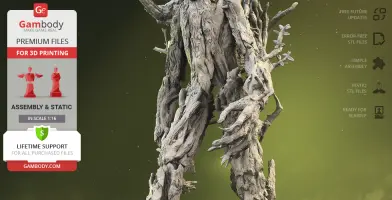

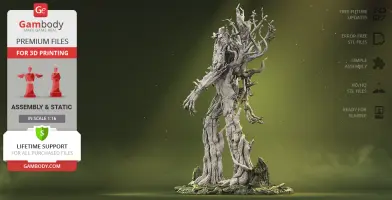

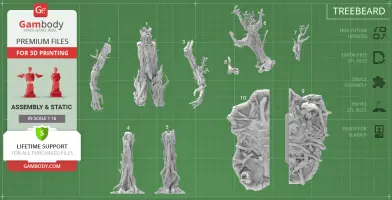

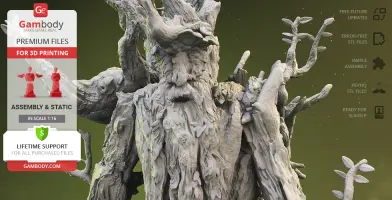

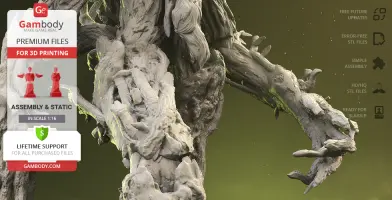

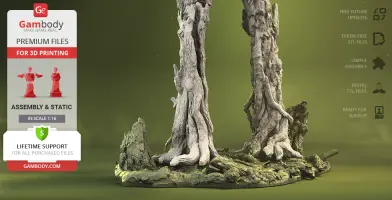

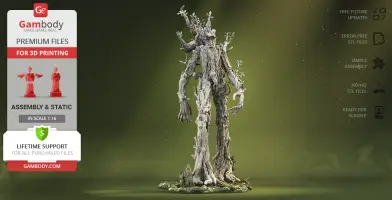

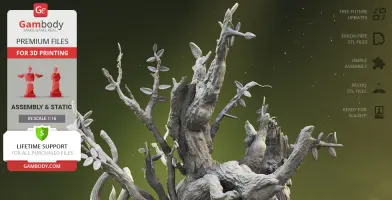

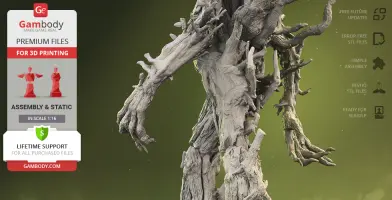

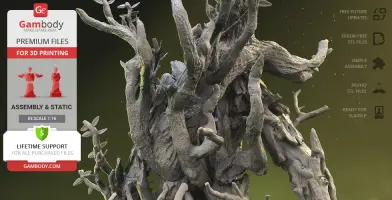

Treebeard 3D Printing Figurine:

DLP/SLA Pre-supported 1.0 version features:

  • Contains 10 parts;

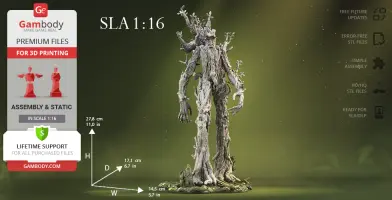

  • A printed model is 278 mm tall, 145 mm wide, 171 mm deep;
  • The STL files that this version comprises are pre-supportedhollowed out, and have drain holes where needed;
  • You may choose to print the STL files one by one or several at once, depending on the dimensions of your resin 3D printer's build plate;
  • When slicing several STL files at once, the attachment layers (Platform Touch Shape) may overlap, but the supports must not come into contact.

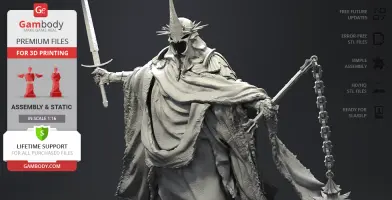

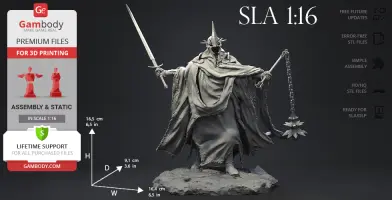

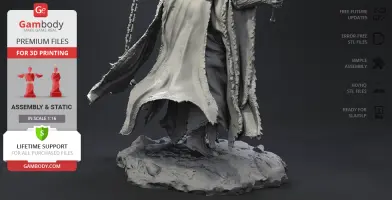

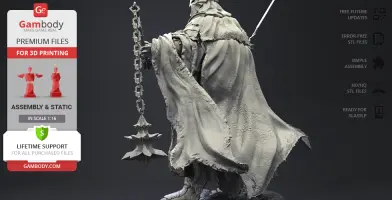

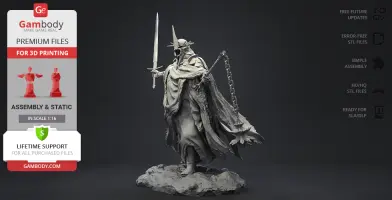

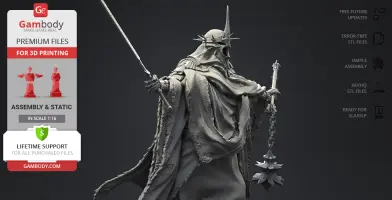

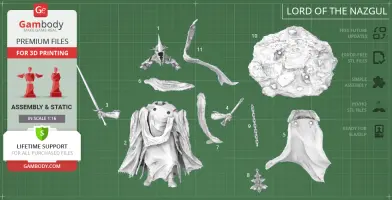

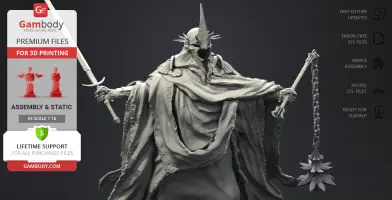

Nazgul 3D Printing Figurine:

DLP/SLA Pre-supported 1.0 version features:

  • Contains 11 parts;
  • A printed model is 165 mm tall, 164 mm wide, 91 mm deep;
  • The STL files that this version comprises are pre-supportedhollowed out, and have drain holes where needed;
  • You may choose to print the STL files one by one or several at once, depending on the dimensions of your resin 3D printer's build plate;
  • When slicing several STL files at once, the attachment layers (Platform Touch Shape) may overlap, but the supports must not come into contact.

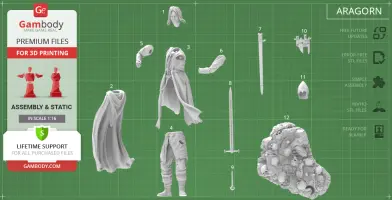

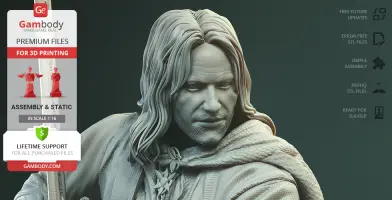

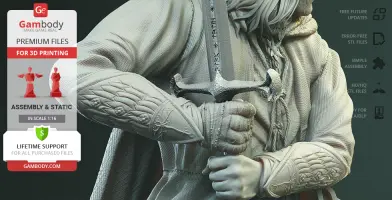

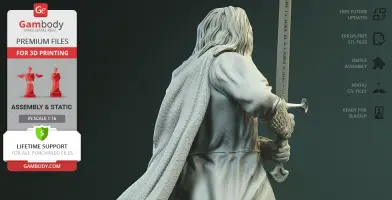

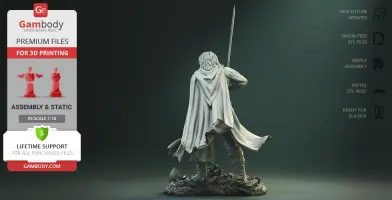

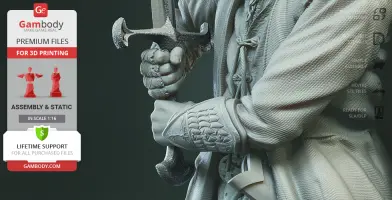

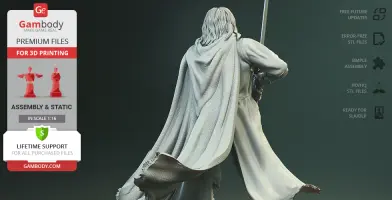

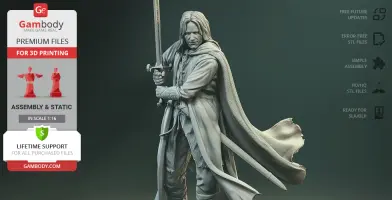

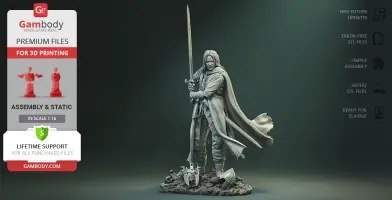

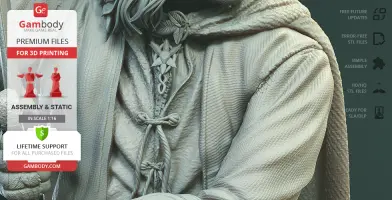

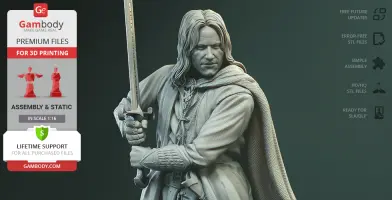

Aragorn 3D Printing Figurine:

DLP/SLA Pre-supported 1.0 version features:

  •  Contains 12 parts;

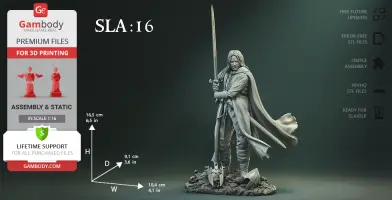

  • A printed model is 165 mm tall, 104 mm wide, 91 mm deep;
  • The STL files that this version comprises are pre-supportedhollowed out, and have drain holes where needed;
  • You may choose to print the STL files one by one or several at once, depending on the dimensions of your resin 3D printer's build plate;
  • When slicing several STL files at once, the attachment layers (Platform Touch Shape) may overlap, but the supports must not come into contact.

To purchase the bundle comprising Anycubic Photon Mono 2 Resin 3D Printer, Sauron 3D Printing Figurine, Aragorn 3D Printing Figurine, Lord Nazgul 3D Printing Figurine, and Treebeard 3D Printing Figurine , click the green Buy button in the top-right corner of the model’s page.

Go to the pages of Sauron 3D Printing Figurine, Aragorn 3D Printing Figurine, Lord Nazgul 3D Printing Figurine, and Treebeard 3D Printing Figurine to find more details and additional illustrative material!

Generic

Disclaimer: Printing settings for the Anycubic Photon Mono 2 3D printer should be compiled individually depending on the colour, type and brand of resin you are using.

Before getting down to the 3D printing of the intended project, make sure that your machine is set up in accordance with the manufacturer's instructions and properly levelled. Use test models to configure the perfect parameters for your 3D printer and resin.

When adjusting the printing settings for particular resin, pay close attention to the UV wavelength required for its curing. The higher the required wavelength is - the higher your printing parameters should be.

If you are using the official Photon Workshop slicer, we recommend starting off with the default recommended settings for the Anycubic Photon Mono 2 3D printer. For that, open the Photon Workshop application > click on the "Settings" button > choose Photon Mono 2 in the list of 3D printers. Try tweaking the printing parameters to improve your 3D printing results - lower and increase the settings by 20% and compare the test prints. Choose the best configuration and proceed to the 3D printing of your chosen model!

If you are using a different slicer, you may use the following list of custom parameters from the Photon Workshop slicer prepared by Gambody engineers as a guide for your printing settings:

Layer Thickness: 0.030 mmNormal Exposure Time: 1.600 sOff Time: 1.000 sBottom Exposure Time: 20.000 sBottom Layers: 3Anti-alias: 2Gray Level: 0Image Blur: 2

Advanced settingsBottom Layers Control Steps:Z Lift Height [0]: 0.50 mmZ Lift Step [0] Speed: 0.50 mm/sZ Retract Step [0] Speed: 0.50 mm/s

Z Lift Height [1]: 4.50 mmZ Lift Step [1] Speed: 0.50 mm/sZ Retract Step [1] Speed: 0.50 mm/s

Transition Layer Count: 0

Normal Layer Control Steps:Z Lift Height [0]: 0.50 mmZ Lift Step [0] Speed: 0.50 mm/sZ Retract Step [0] Speed: 0.50 mm/s

Z Lift Height [1]: 4.50 mmZ Lift Step [1] Speed: 0.50 mm/sZ Retract Step [1] Speed: 0.50 mm/s

Note: If you would like to speed up the 3D printing process without losing the printing quality, you can increase the Layer Thickness to 0.05 mm. In that event, the Exposure Time for all layers should be increased accordingly.
