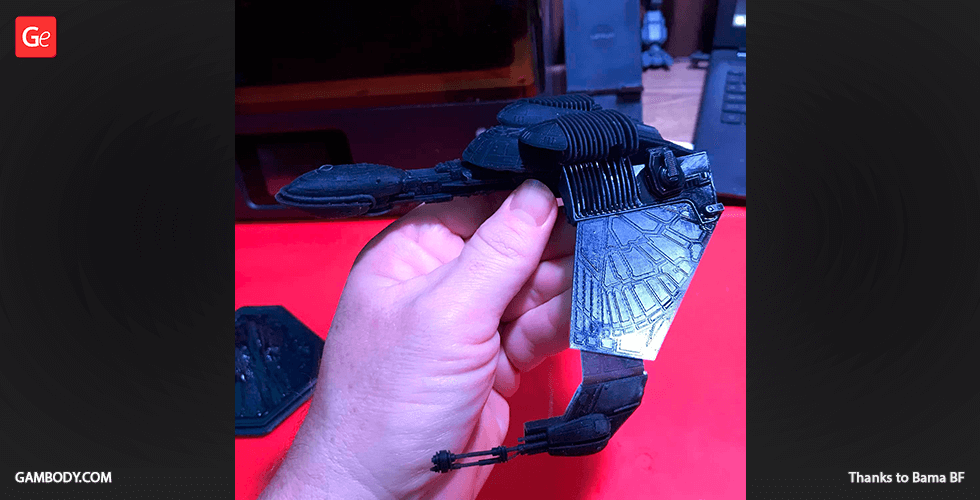

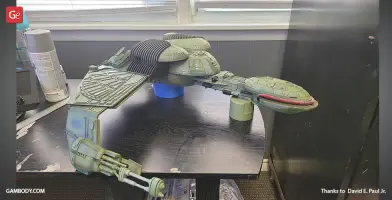

Klingon Bird-of-Prey 3D Printing Model | Assembly + Action

(15)
cm: 41.6 w x 31.2 d x 15.2 h
in: 16.378 w x 12.283 d x 5.984 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

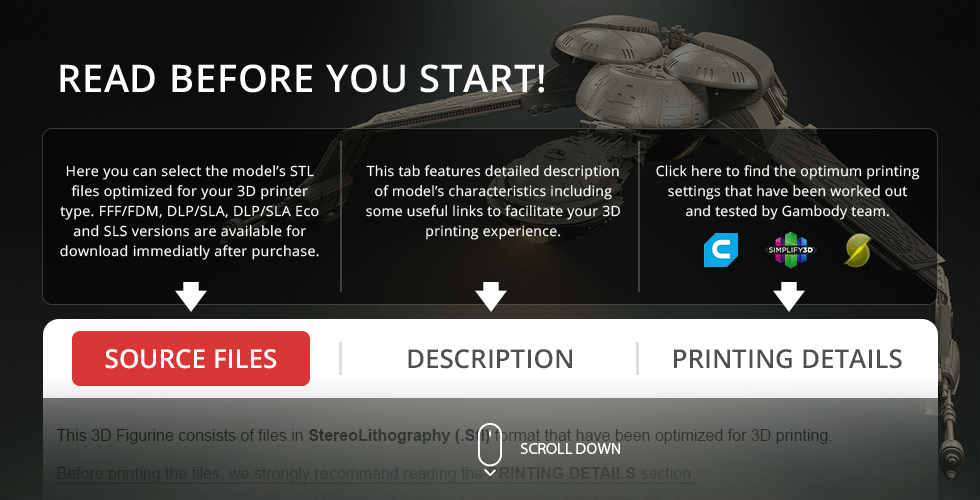

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

- 2 versions of Klingon Bird-of-Prey STL files for FFF/FDM and DLP/SLA/SLS - files for all versions are available for download after the purchase

- STL files of high-poly Bird-of-Prey ship 3D Model for 3D printing consist of 77 parts

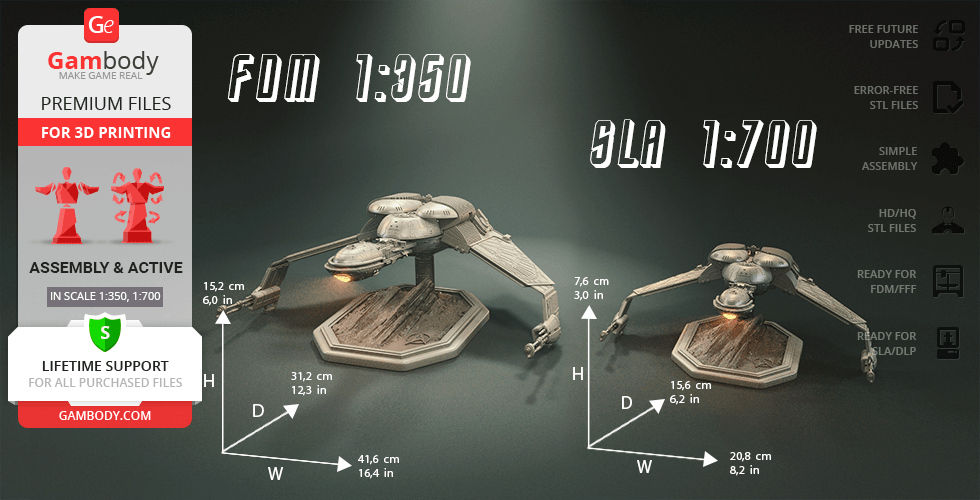

- Sizes:
FFF/FDM: 152 mm tall, 416 mm wide, 312 mm deep
DLP/SLA/SLS: 76 mm tall, 208 mm wide, 156 mm deep

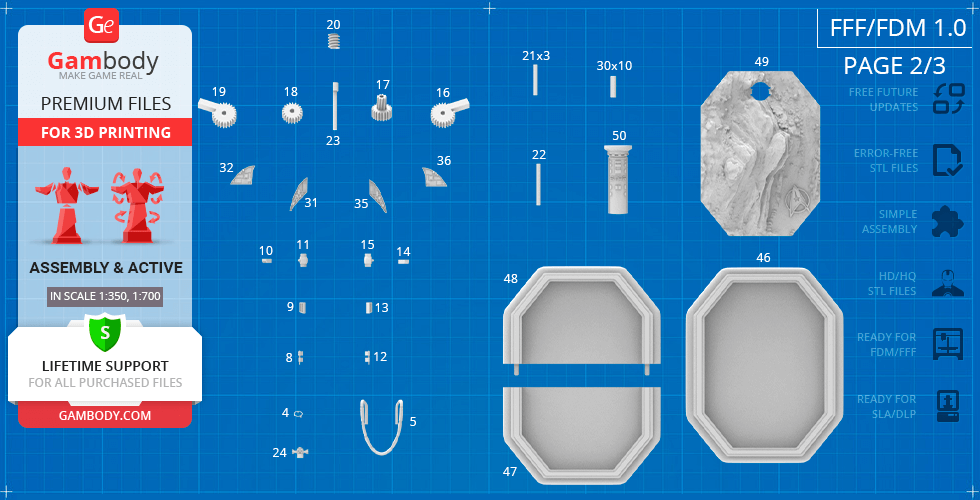

Assembly Manual for FFF/FDM 1.0 and DLP/SLA/SLS 1.0 versions in PDF format
- Detailed settings that we provide as a recommendation for Cura, Simplify3D and Slic3r for the best print
- Full technical support from the Gambody Support Team

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

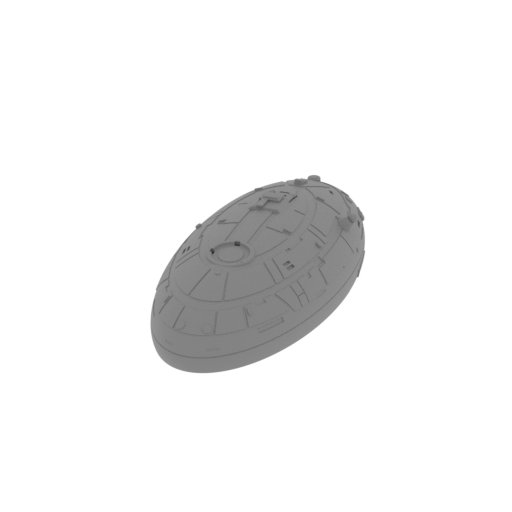

_1_head_top_FDM (repaired ).stl
26.64 MiB 3 h 13 min 2 m 36 x 83 x 19 Download

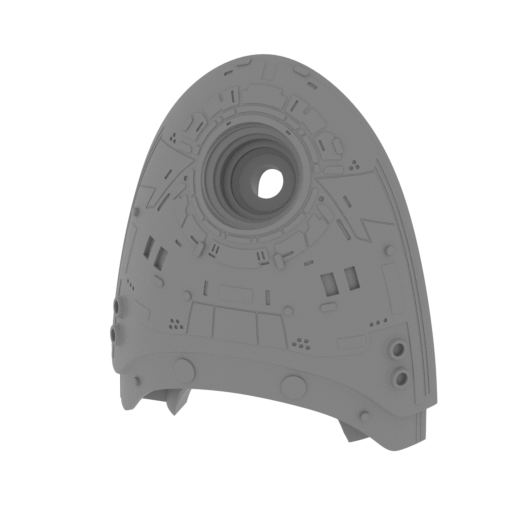

_2_1_head_bot_FDM (repair ed).stl
25.69 MiB 3 h 49 min 2 m 52 x 18 x 59 Download

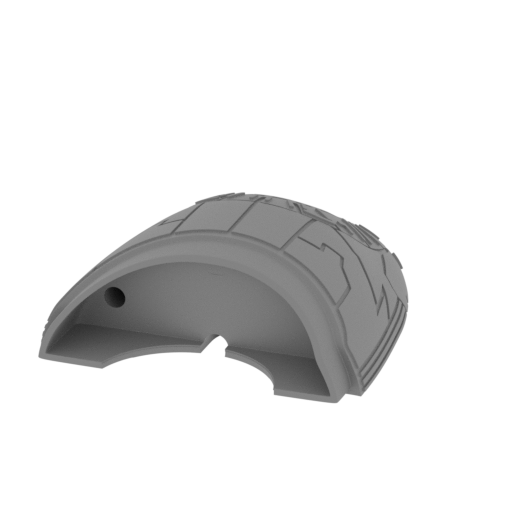

_2_2_head_bot_v2_FDM (rep aired).stl
34.99 MiB 3 h 15 min 2 m 52 x 59 x 18 Download

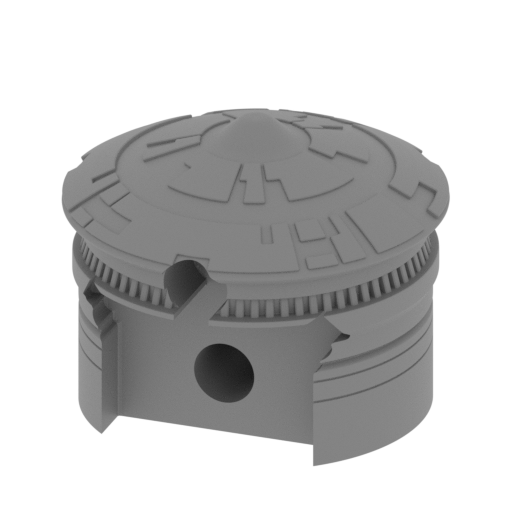

_3_head_hutch_FDM (repair ed).stl
3.03 MiB 1 h 54 min 1 m 31 x 32 x 25 Download

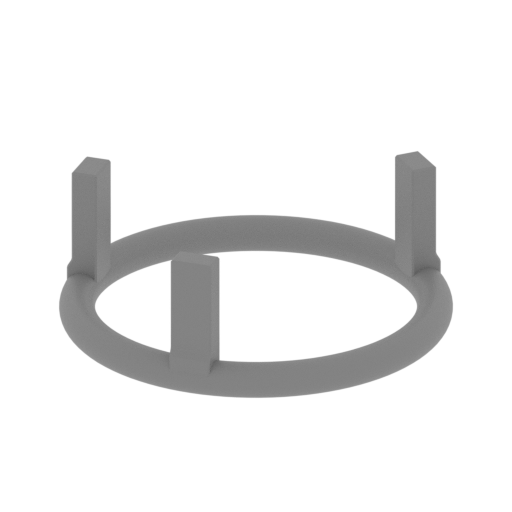

_4_head_pipe_1_FDM (repai red).stl
0.99 MiB 2 min <1 m 9 x 9 x 3 Download

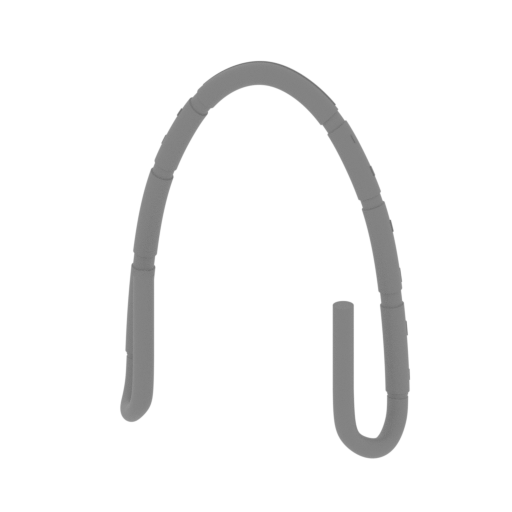

_5_head_pipe_2_FDM (repai red).stl
9.43 MiB 1 h 19 min 1 m 46 x 14 x 60 Download

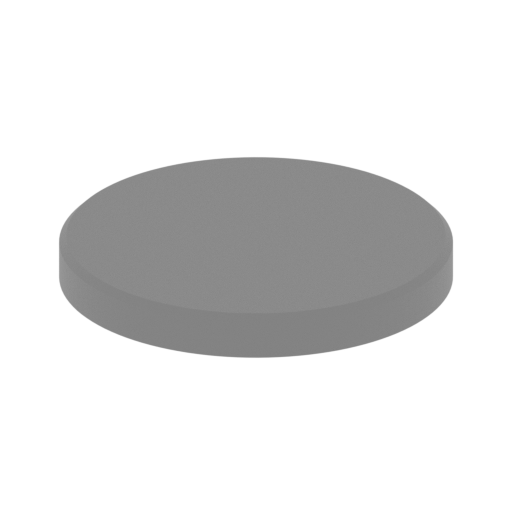

_6_1_head_window_FDM (rep aired).stl
0.06 MiB 3 min <1 m 12 x 12 x 1 Download

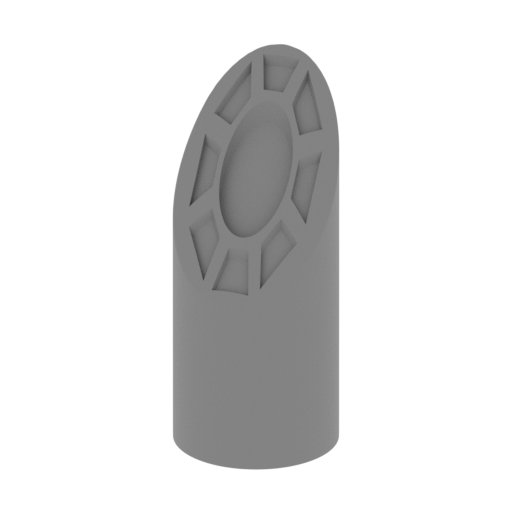

_6_2_head_window_v2_FDM ( repaired).stl
2.10 MiB 28 min <1 m 12 x 12 x 28 Download

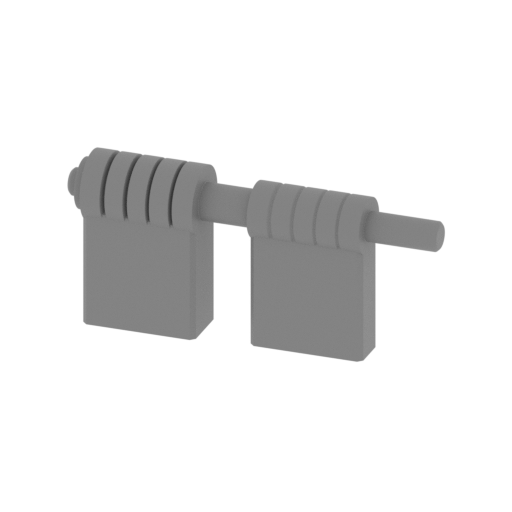

_8_neck_part_1_R_FDM (rep aired).stl
1.19 MiB 7 min <1 m 15 x 3 x 7 Download

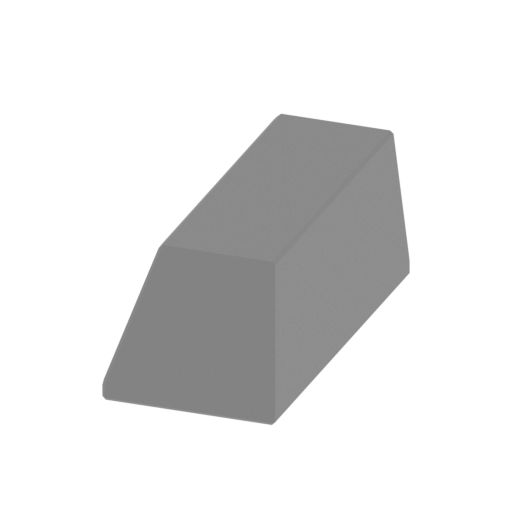

_9_neck_part_2_R_FDM (rep aired).stl
0.05 MiB 5 min <1 m 6 x 12 x 6 Download

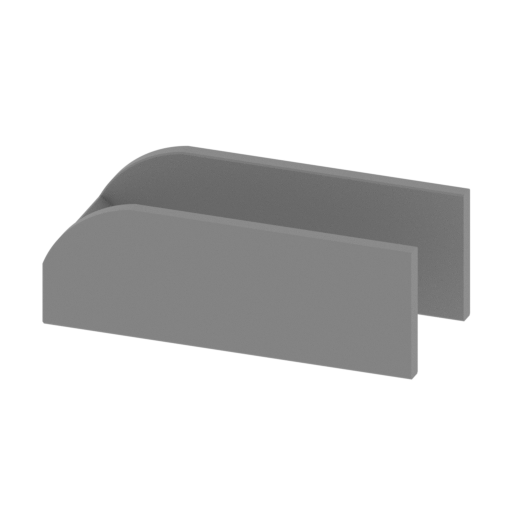

_10_neck_part_3_R_FDM (re paired).stl
0.05 MiB 5 min <1 m 13 x 6 x 5 Download

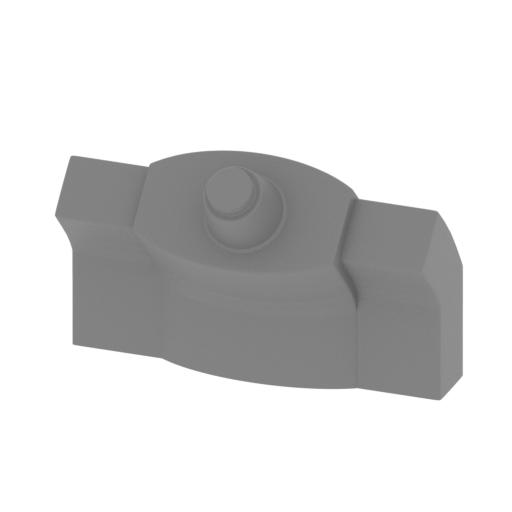

_11_neck_part_4_R_FDM (re paired).stl
0.32 MiB 8 min <1 m 14 x 8 x 9 Download

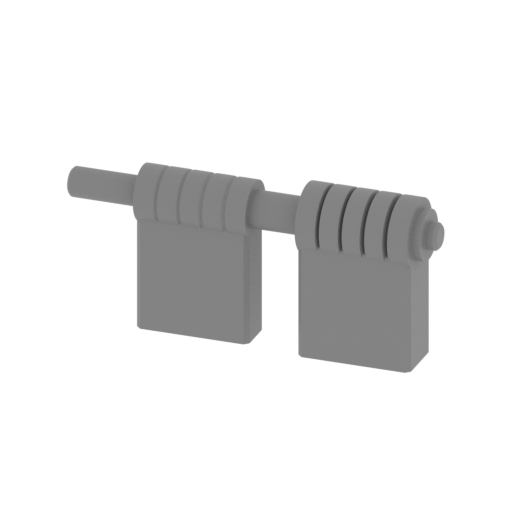

_12_neck_part_1_L_FDM (re paired).stl
1.19 MiB 7 min <1 m 15 x 3 x 7 Download

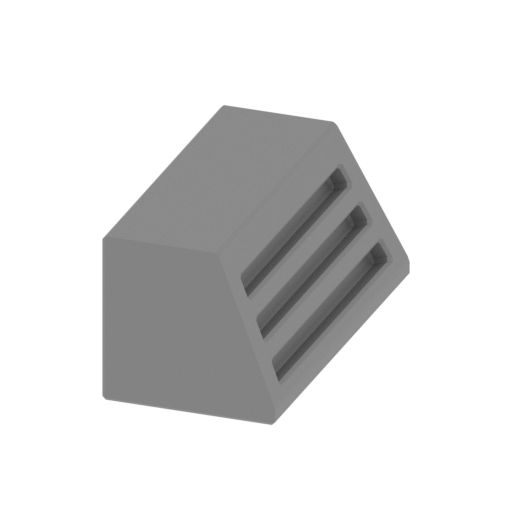

_13_neck_part_2_L_FDM (re paired).stl
0.05 MiB 5 min <1 m 6 x 12 x 6 Download

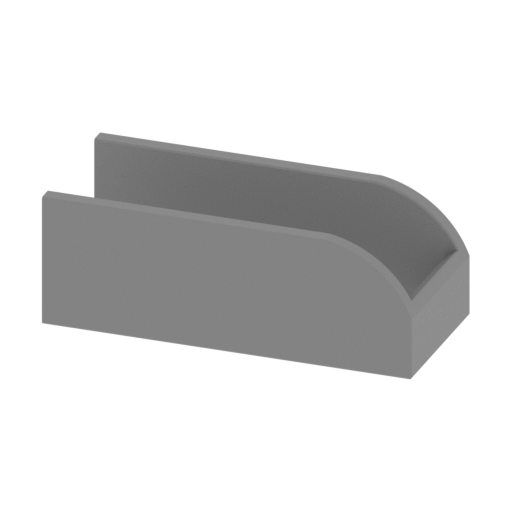

_14_neck_part_3_L_FDM (re paired).stl
0.05 MiB 5 min <1 m 13 x 6 x 5 Download

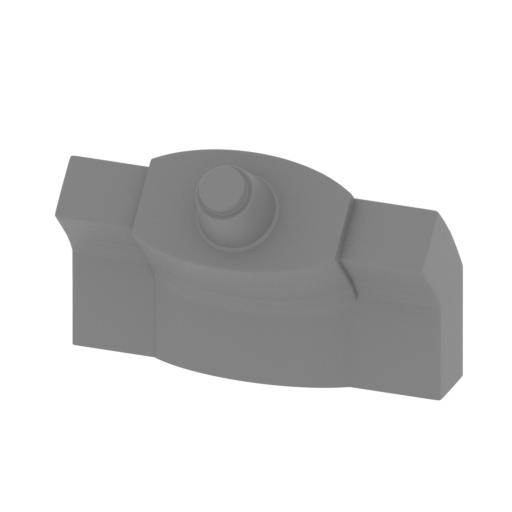

_15_neck_part_4_L_FDM (re paired).stl
0.32 MiB 8 min <1 m 14 x 8 x 9 Download

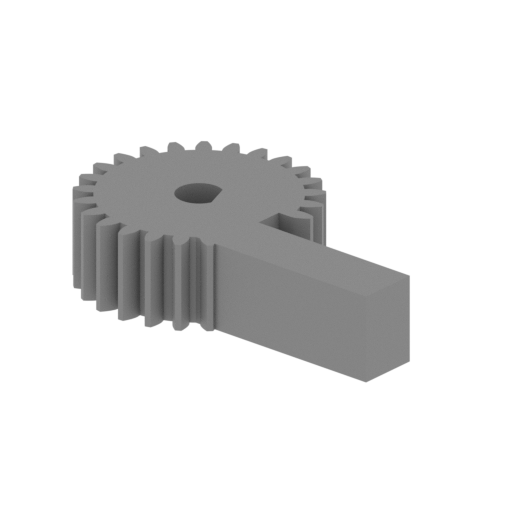

_16_gear_1_FDM (repaired) .stl
0.32 MiB 53 min <1 m 42 x 32 x 10 Download

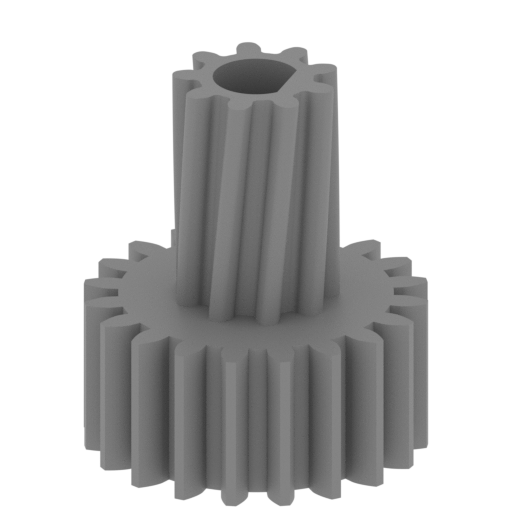

_17_gear_2_FDM (repaired) .stl
3.97 MiB 50 min <1 m 22 x 22 x 25 Download

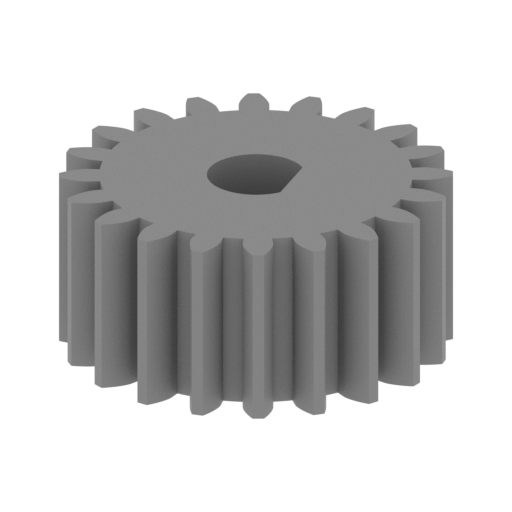

_18_gear_3_FDM (repaired) .stl
0.54 MiB 29 min <1 m 22 x 22 x 10 Download

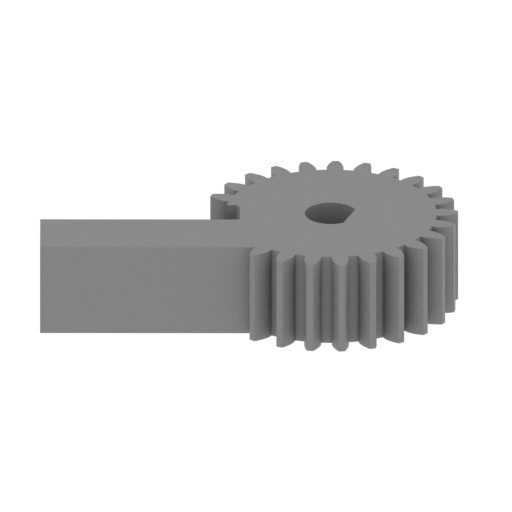

_19_gear_4_FDM (repaired) .stl
0.31 MiB 53 min <1 m 42 x 32 x 10 Download

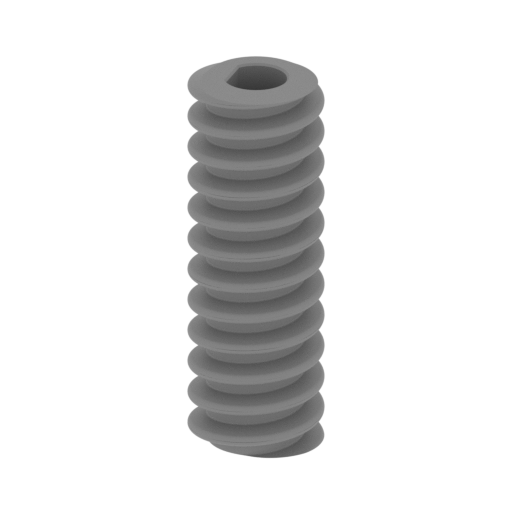

_20_gear_5_FDM (repaired) .stl
11.77 MiB 24 min <1 m 13 x 13 x 15 Download
_21_gear_beam_a_x3_FDM (r epaired).stl
0.08 MiB 8 min <1 m 33 x 5 x 5 Download
_22_gear_beam_b_FDM (repa ired).stl
0.08 MiB 11 min <1 m 45 x 5 x 5 Download

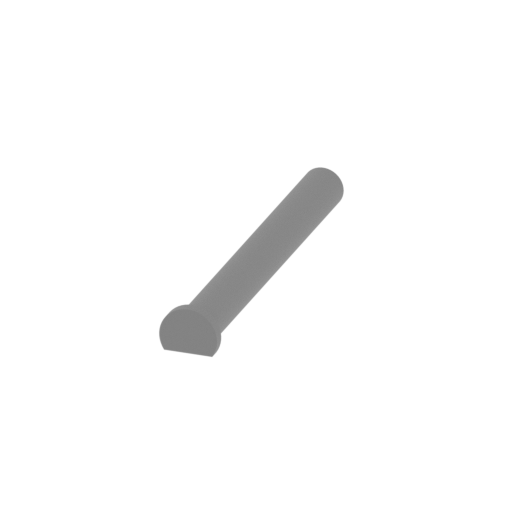

_23_gear_beam_c_FDM (repa ired).stl
0.10 MiB 14 min <1 m 8 x 51 x 6 Download

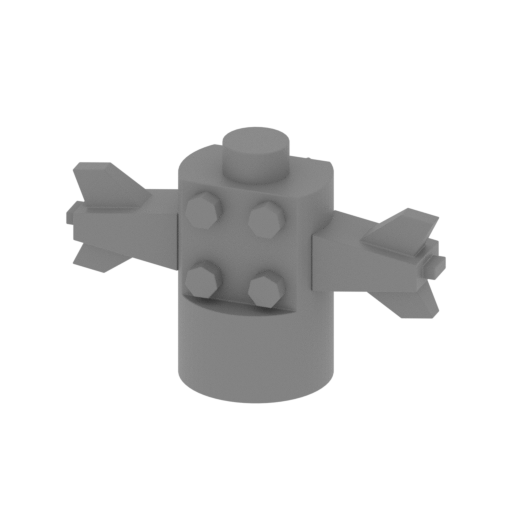

_24_gear_key_FDM (repaire d).stl
0.32 MiB 14 min <1 m 18 x 7 x 12 Download

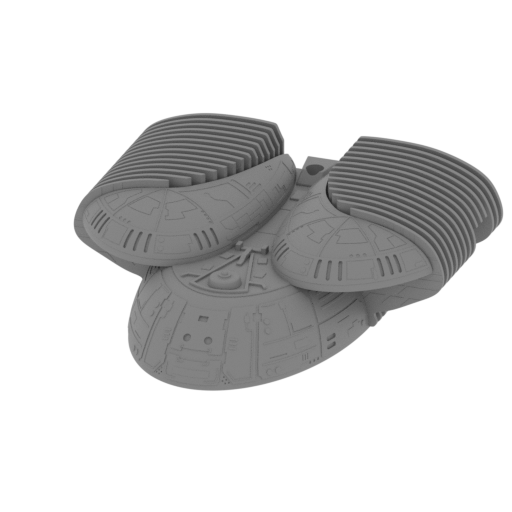

_25_body_top_FDM (repaire d).stl
81.13 MiB 25 h 40 min 15 m 115 x 114 x 37 Download

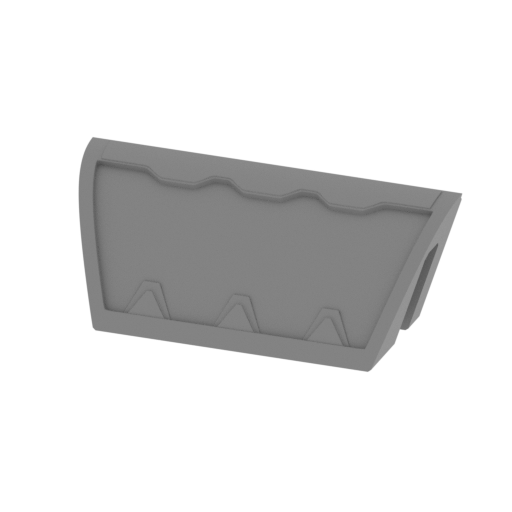

_28_body_back_window_1_FD M (repaired).stl
1.67 MiB 1 h 19 min 1 m 47 x 17 x 18 Download

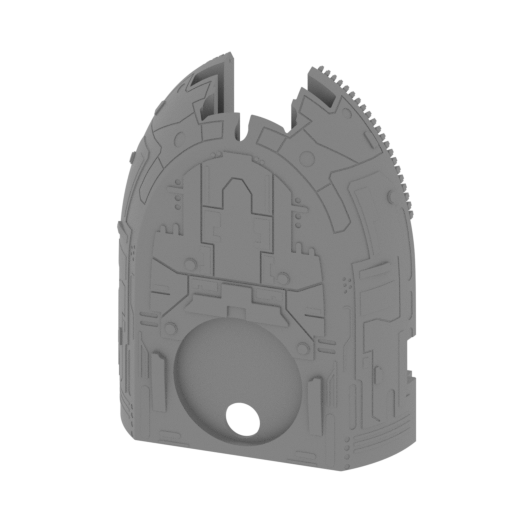

_26_body_bot_FDM (repaire d).stl
27.36 MiB 11 h 26 min 6 m 68 x 26 x 87 Download

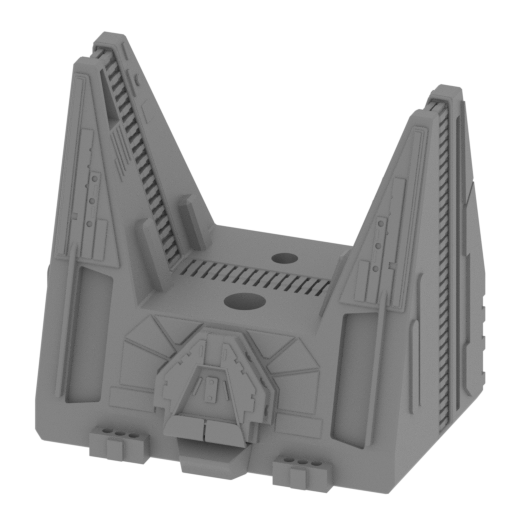

_27_body_back_FDM (repair ed).stl
4.09 MiB 13 h 36 min 7 m 73 x 54 x 69 Download

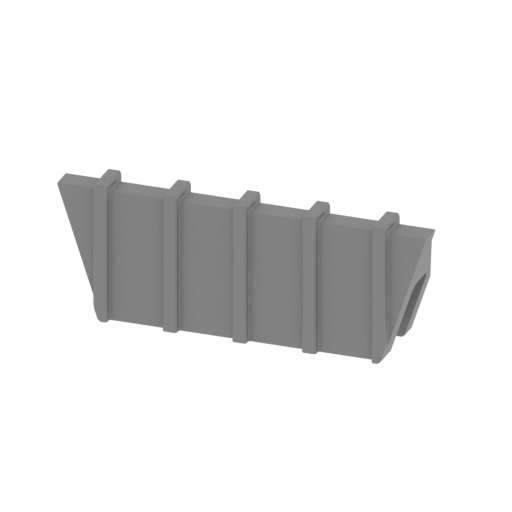

_29_body_back_window_2_FD M (repaired).stl
0.81 MiB 1 h 11 min 1 m 46 x 11 x 17 Download

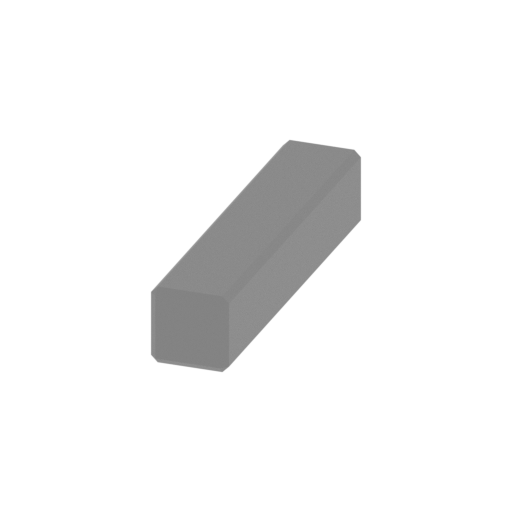

_30_body_beams_x10_FDM (r epaired).stl
0.01 MiB 7 min <1 m 5 x 23 x 5 Download

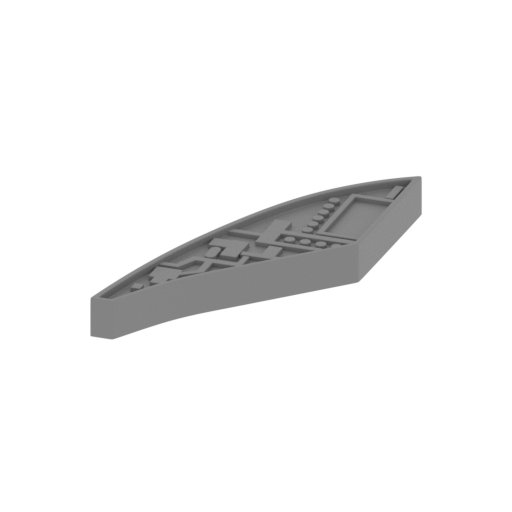

_31_body_panel_1_R_FDM (r epaired).stl
1.20 MiB 12 min <1 m 19 x 36 x 4 Download

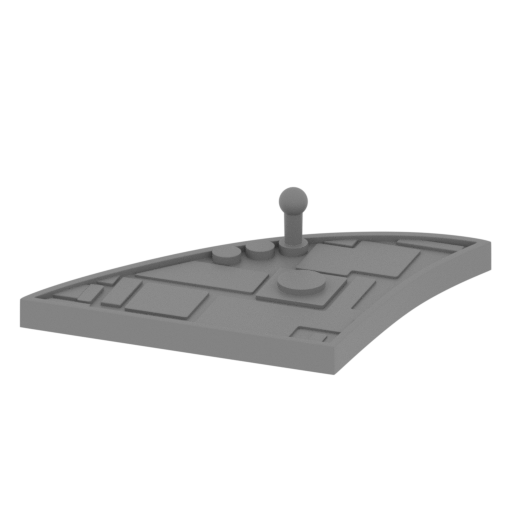

_32_body_panel_2_R_FDM (r epaired).stl
1.56 MiB 11 min <1 m 27 x 21 x 6 Download

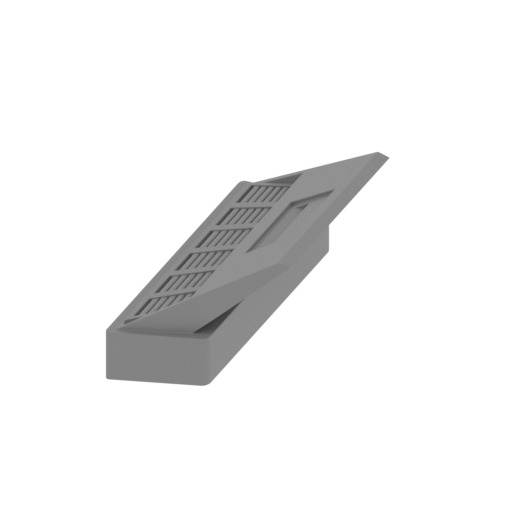

_33_body_panel_3_R_FDM (r epaired).stl
0.32 MiB 17 min <1 m 12 x 26 x 8 Download

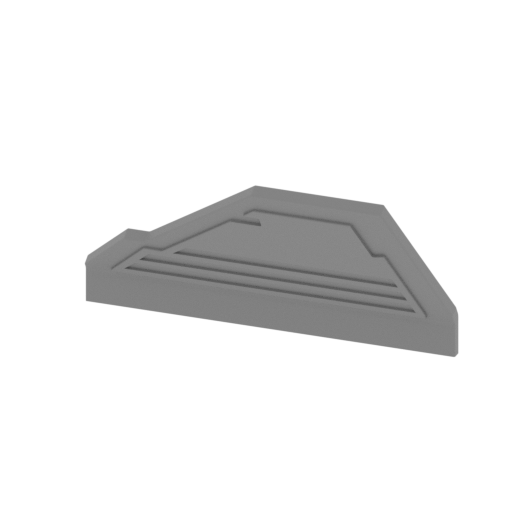

_34_body_panel_wing_R_FDM (repaired).stl
0.22 MiB 1 h 6 min 1 m 60 x 16 x 30 Download

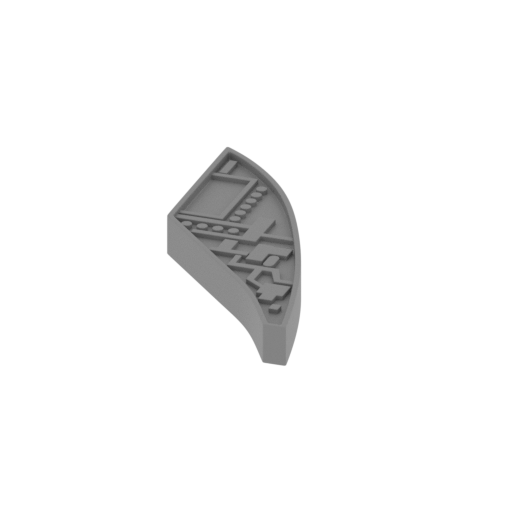

_35_body_panel_1_L_FDM (r epaired).stl
1.20 MiB 13 min <1 m 19 x 36 x 4 Download

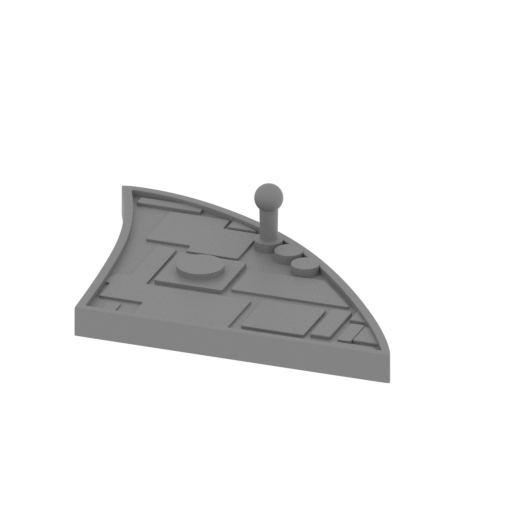

_36_body_panel_2_L_FDM (r epaired).stl
1.56 MiB 11 min <1 m 27 x 21 x 6 Download

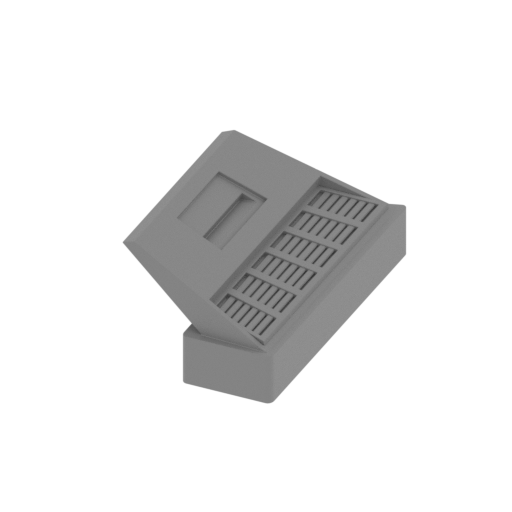

_37_body_panel_3_L_FDM (r epaired).stl
0.32 MiB 17 min <1 m 12 x 26 x 8 Download

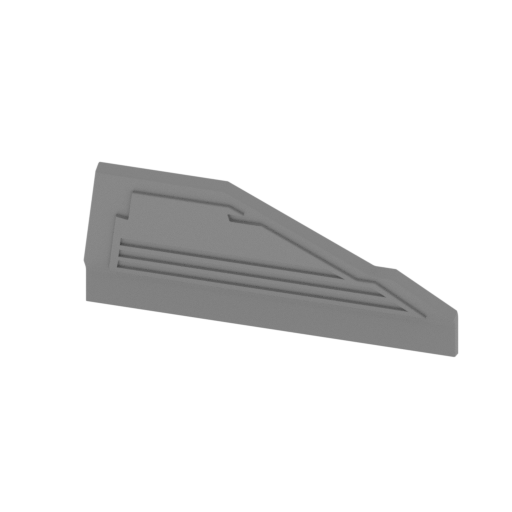

_38_body_panel_wing_L_FDM (repaired).stl
0.22 MiB 1 h 6 min 1 m 60 x 16 x 30 Download

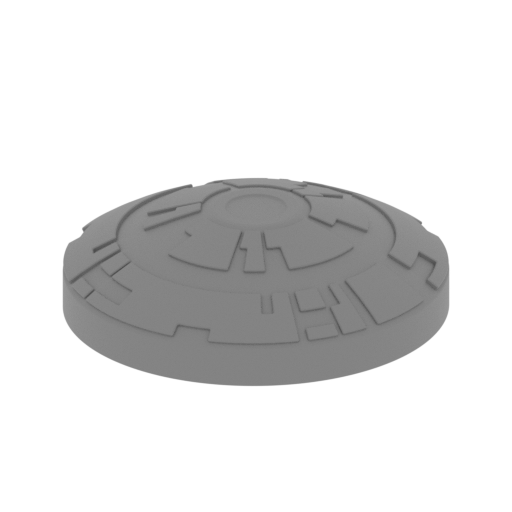

_39_body_panel_cap_FDM (r epaired).stl
1.02 MiB 33 min <1 m 30 x 31 x 8 Download

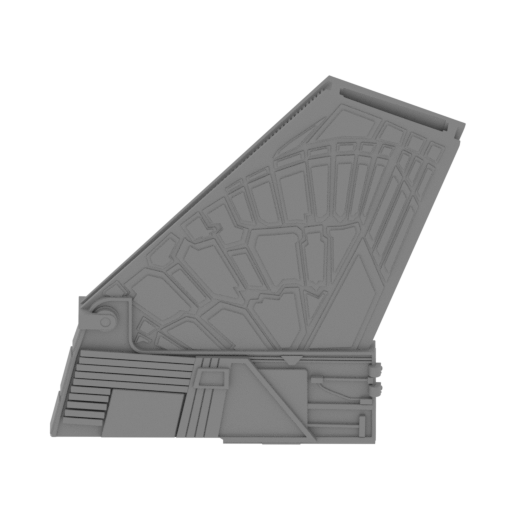

_40_wing_1_R_FDM (repaire d).stl
7.23 MiB 26 h 12 m 137 x 62 x 138 Download

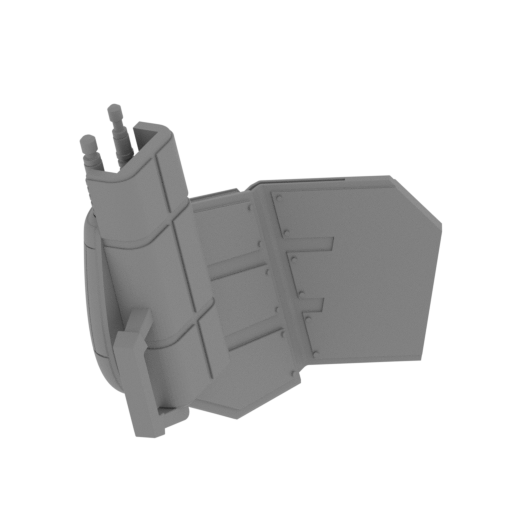

_41_wing_2_R_FDM (repaire d).stl
4.21 MiB 5 h 29 min 3 m 50 x 74 x 72 Download

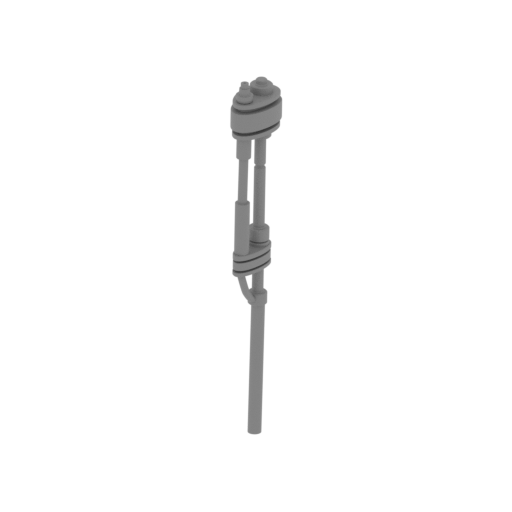

_42_wing_gun_R_FDM (repai red).stl
4.27 MiB 1 h 34 min 1 m 10 x 14 x 86 Download

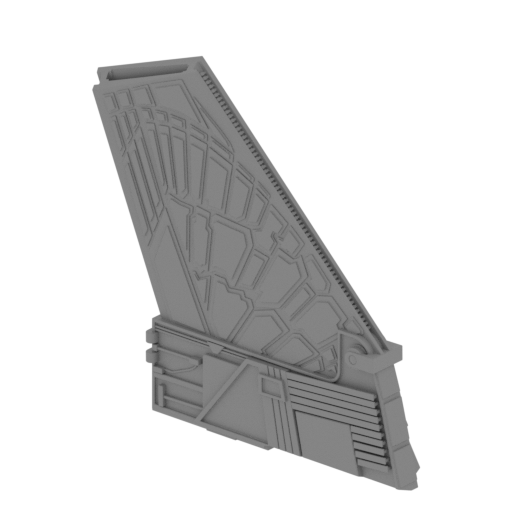

_43_wing_1_L_FDM (repaire d).stl
7.13 MiB 26 h 1 min 12 m 137 x 62 x 138 Download

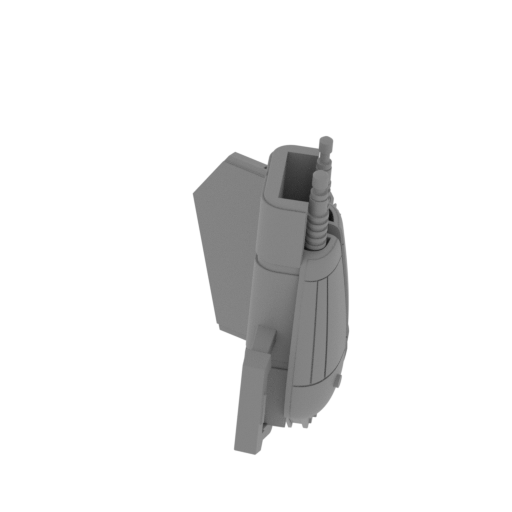

_44_wing_2_L_FDM (repaire d).stl
4.21 MiB 5 h 16 min 3 m 50 x 74 x 72 Download

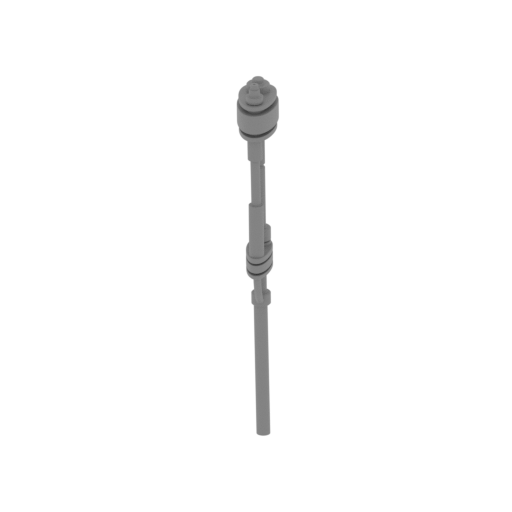

_45_wing_gun_L_FDM (repai red).stl
4.28 MiB 1 h 33 min 1 m 10 x 14 x 86 Download

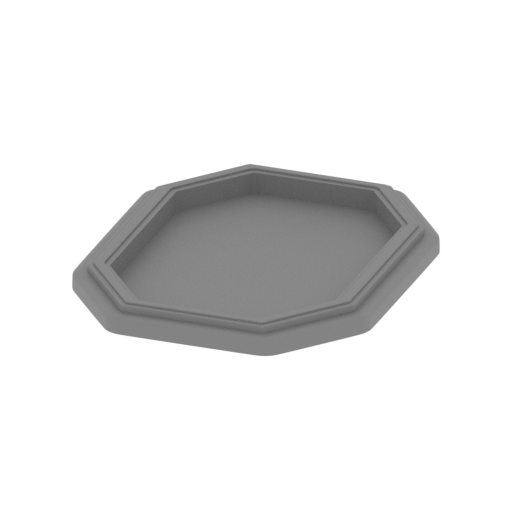

_46_platform_base_full_FD M (repaired).stl
1.59 MiB 21 h 24 min 12 m 170 x 211 x 15 Download

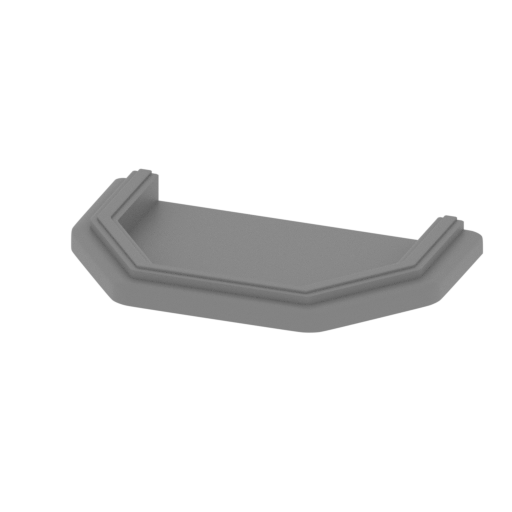

_47_platform_base_cut_1_F DM (repaired).stl
0.83 MiB 10 h 58 min 6 m 170 x 105 x 15 Download

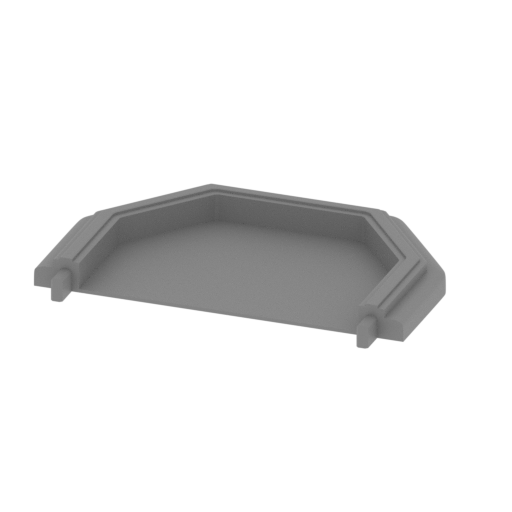

_48_platform_base_cut_2_F DM (repaired).stl
0.84 MiB 10 h 55 min 6 m 170 x 118 x 15 Download

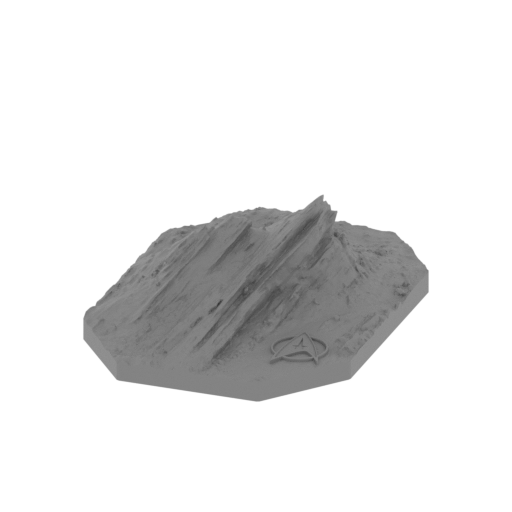

_49_platform_mount_FDM (r epaired).stl
2.82 MiB 31 h 27 min 17 m 129 x 178 x 58 Download

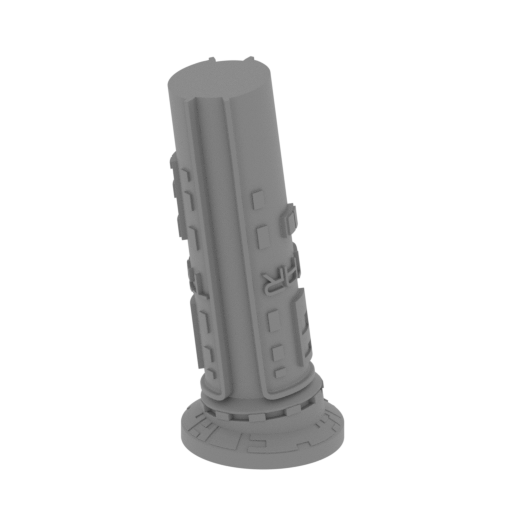

_50_platform_ladder_FDM ( repaired).stl
6.16 MiB 3 h 28 min 2 m 33 x 30 x 74 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download

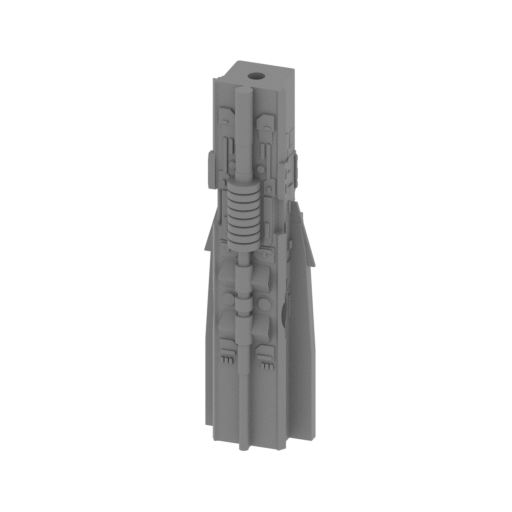

_7_neck_FDM (repaired).st l
7.83 MiB 8 h 35 min 4 m 34 x 30 x 114 Download

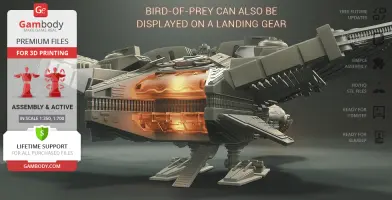

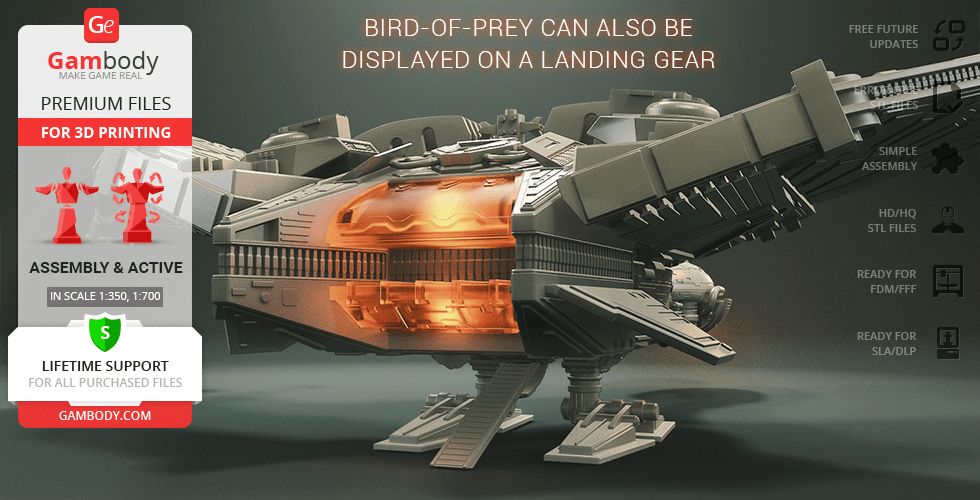

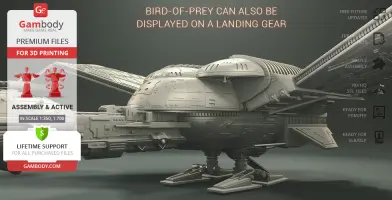

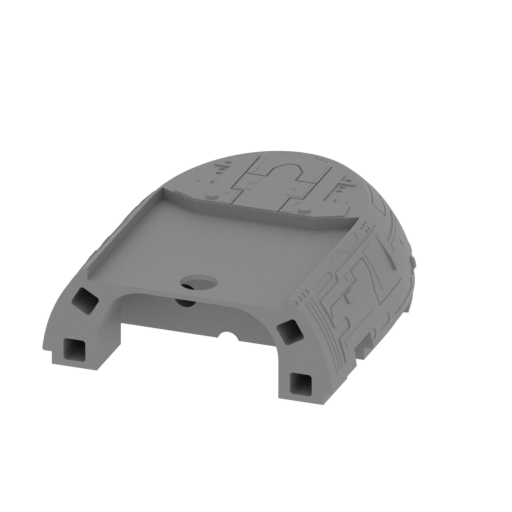

_26_body_bot_FDM_v2_for_l anding_gear (repaired).st l
24.68 MiB 10 h 16 min 6 m 68 x 87 x 25 Download

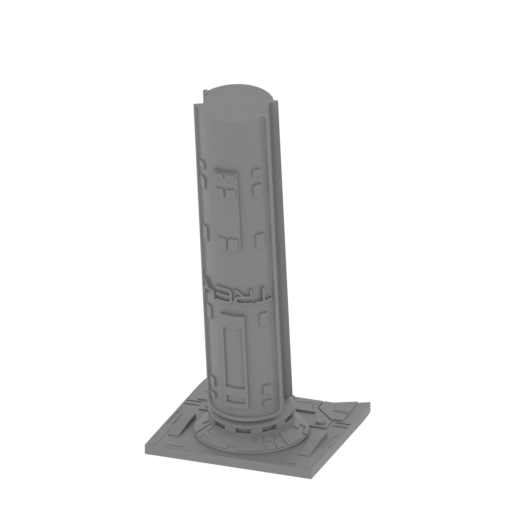

_50_platform_ladder_FDM_v 2 (repaired).stl
8.99 MiB 5 h 50 min 3 m 47 x 50 x 104 Download

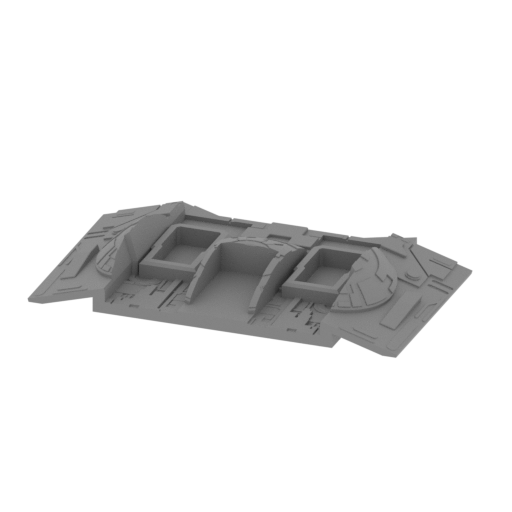

_51_new_chassis_1_FDM (re paired).stl
9.07 MiB 2 h 25 min 1 m 72 x 46 x 10 Download

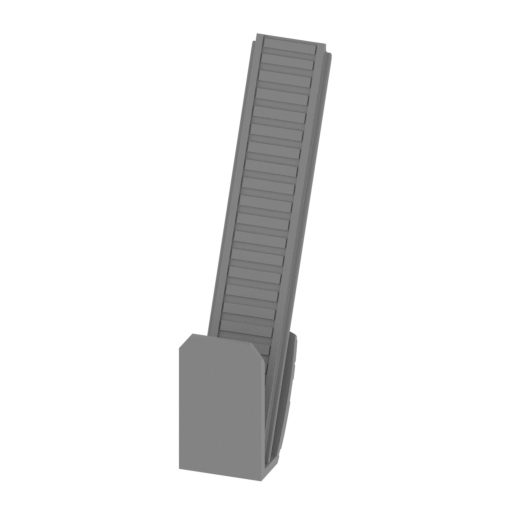

_52_new_chassis_2_FDM (re paired).stl
0.58 MiB 42 min <1 m 11 x 26 x 50 Download

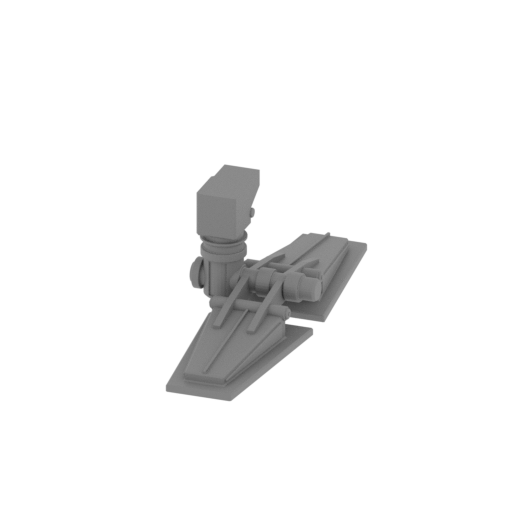

_53_new_chassis_3_FDM (re paired).stl
0.84 MiB 1 h 42 min 1 m 27 x 79 x 28 Download

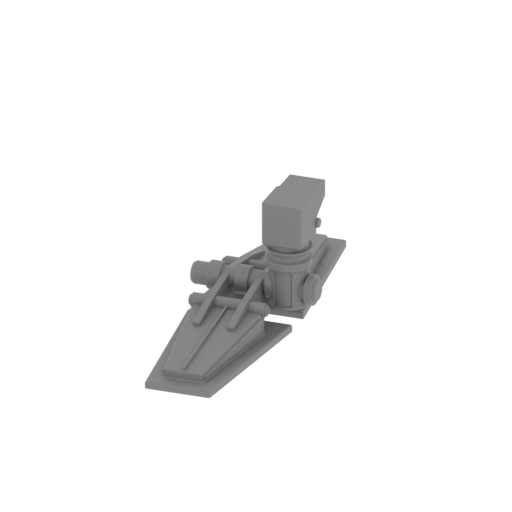

_54_new_chassis_4_FDM (re paired).stl
0.84 MiB 1 h 41 min 1 m 27 x 79 x 28 Download
...

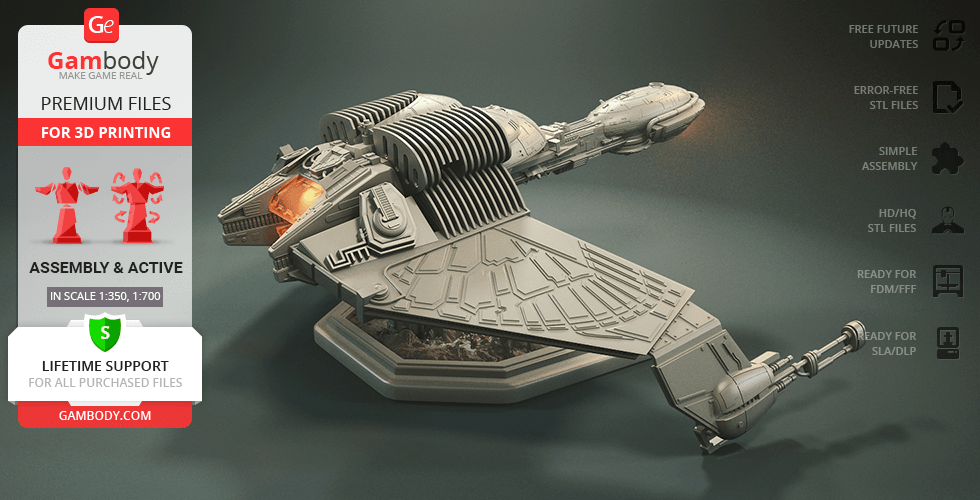

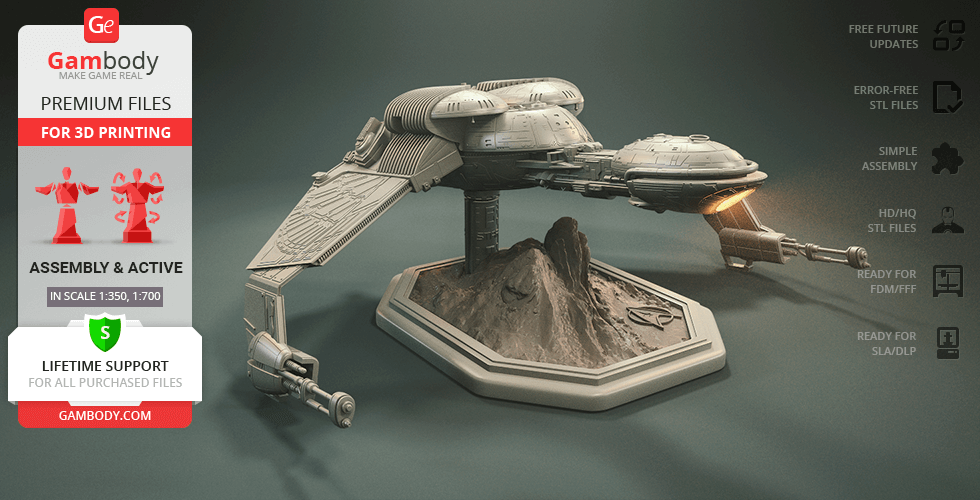

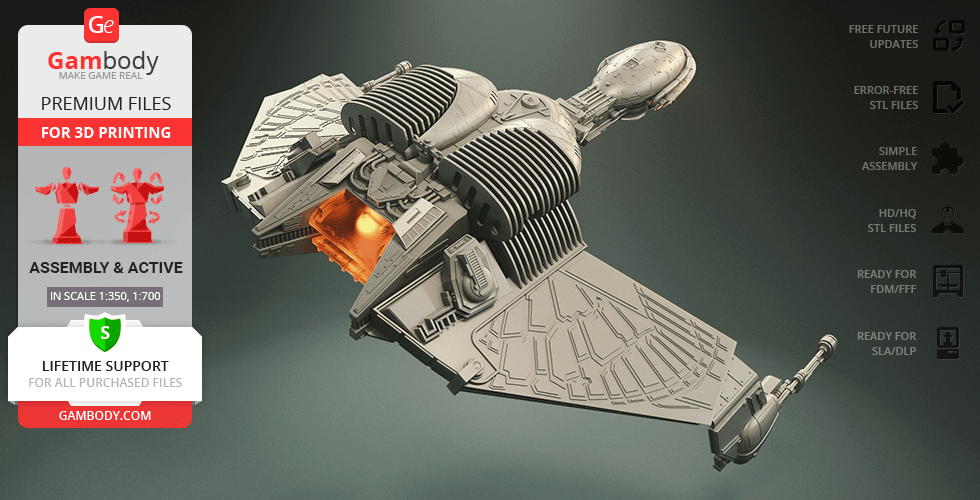

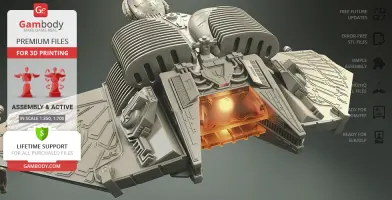

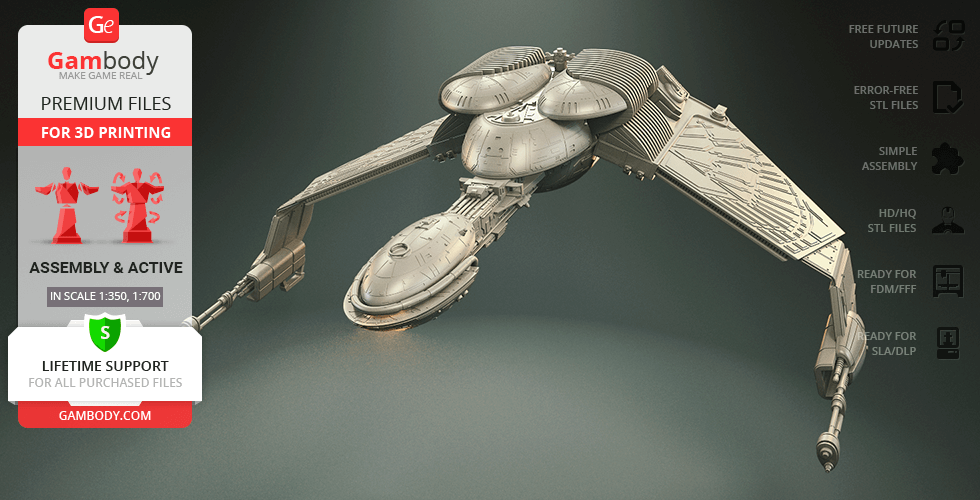

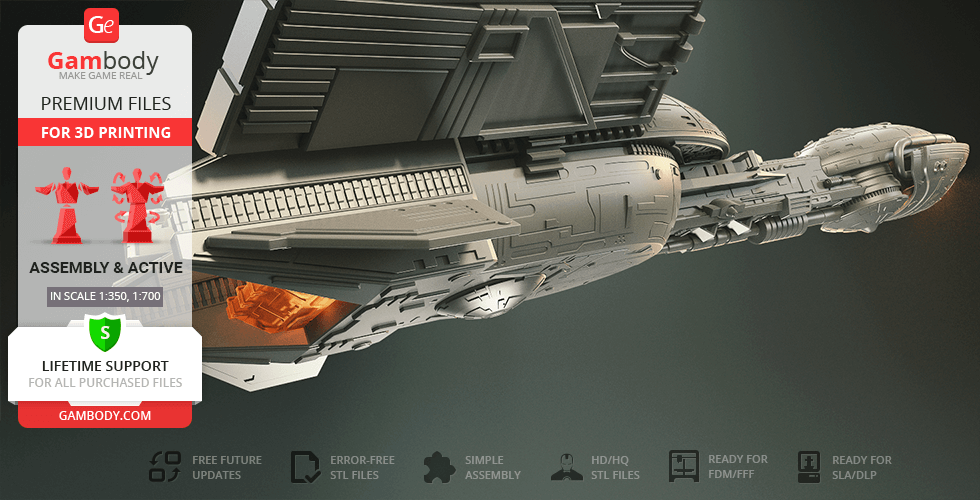

ABOUT THIS 3D MODEL

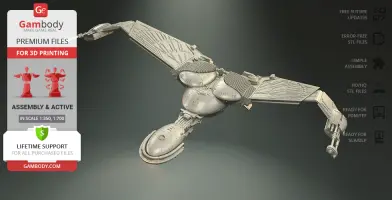

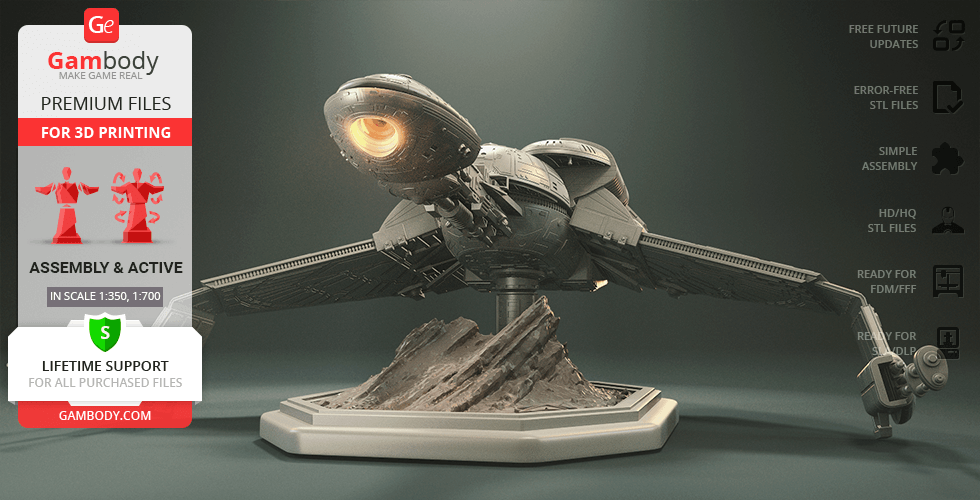

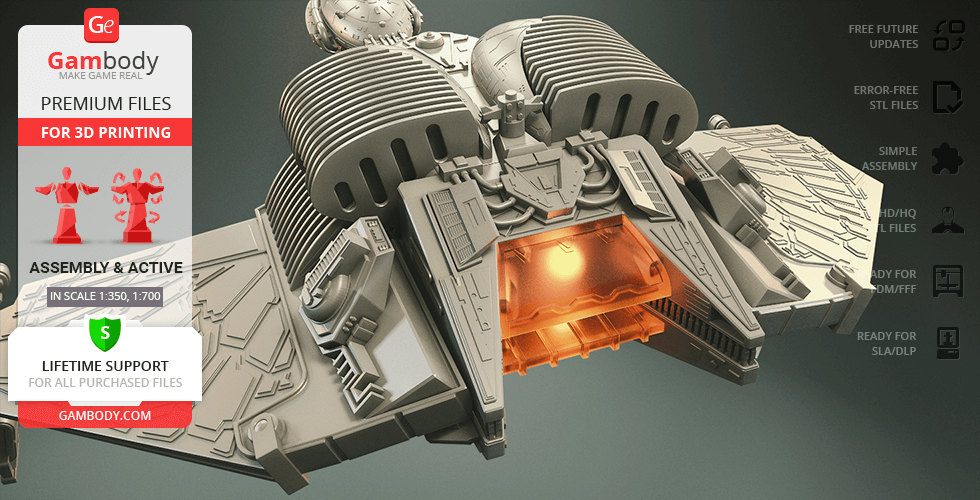

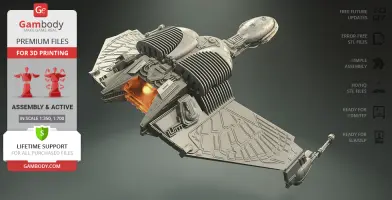

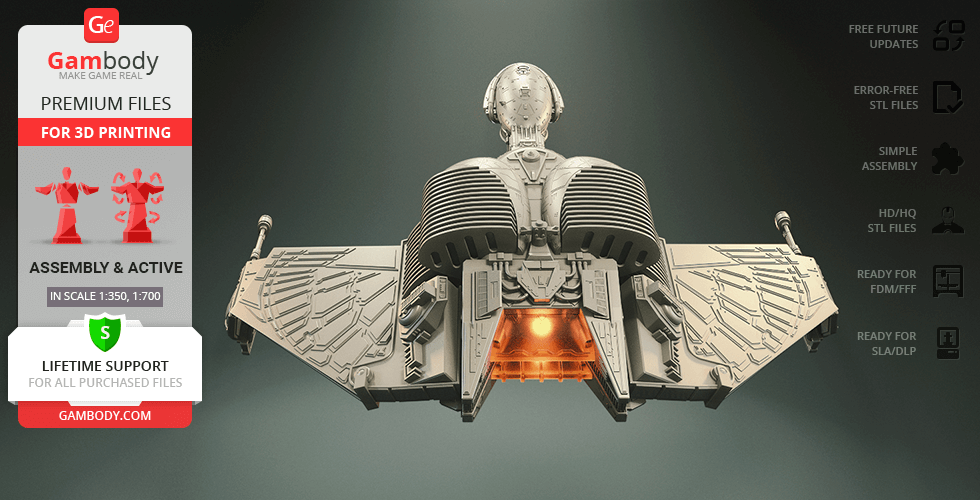

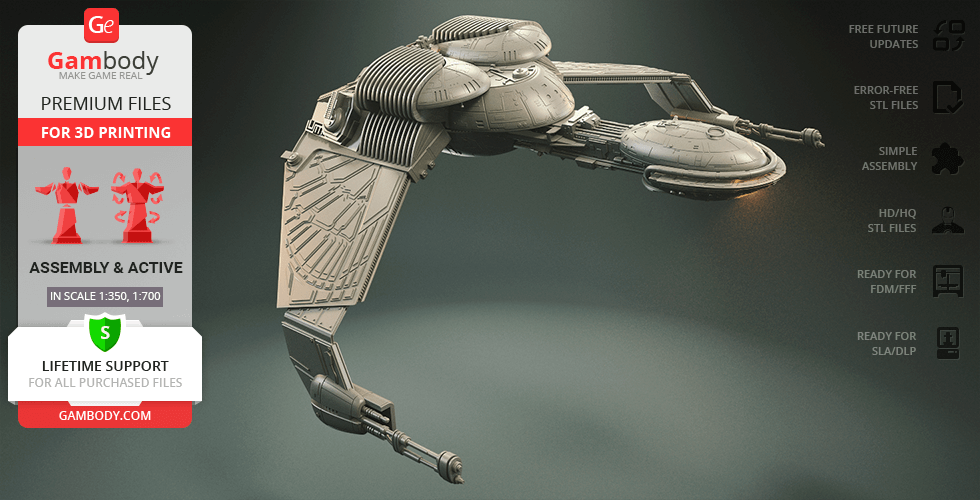

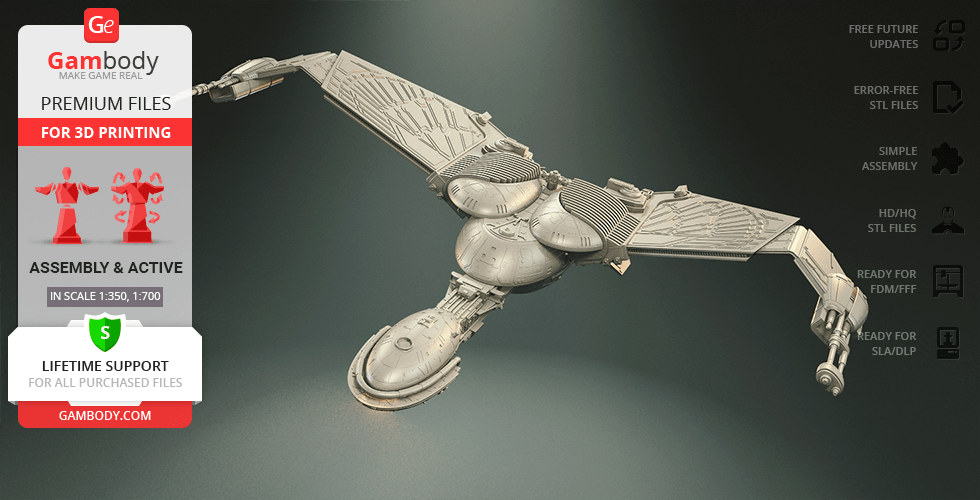

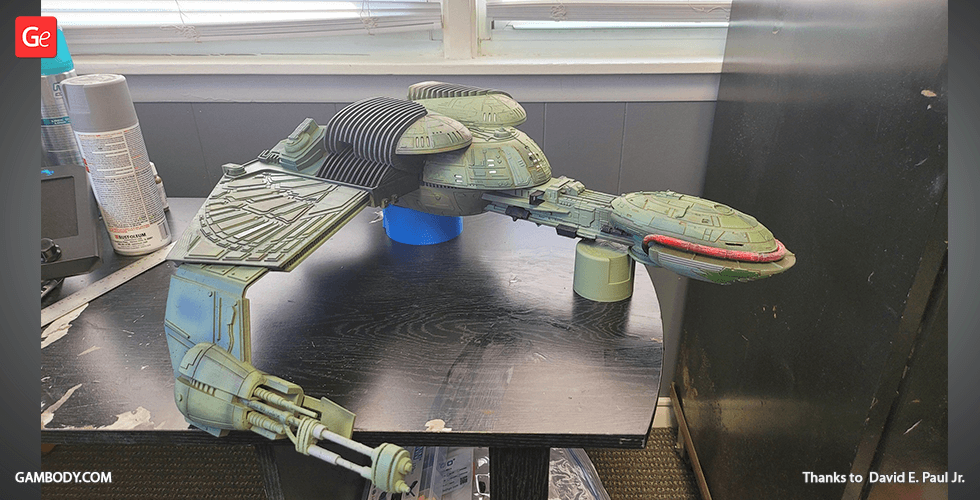

The gem of the Klingon Defense Forces and the Star Trek franchise, the Bird-of-Prey warship is as majestic as it is highly functional. Thanks to its great agility and the cutting-edge set of weapons, it was able to out-live various contemporaries and earn the status of a fearsome front-liner. Naturally, as an adventurist at heart willing to rival the merciless Klingons and a modeller deeply inspired by their advanced craft, our contributing 3D artist decided to recreate the Bird-of-Prey in the form of a model that can be simply 3D printed and added to your out-of-this-world diorama!

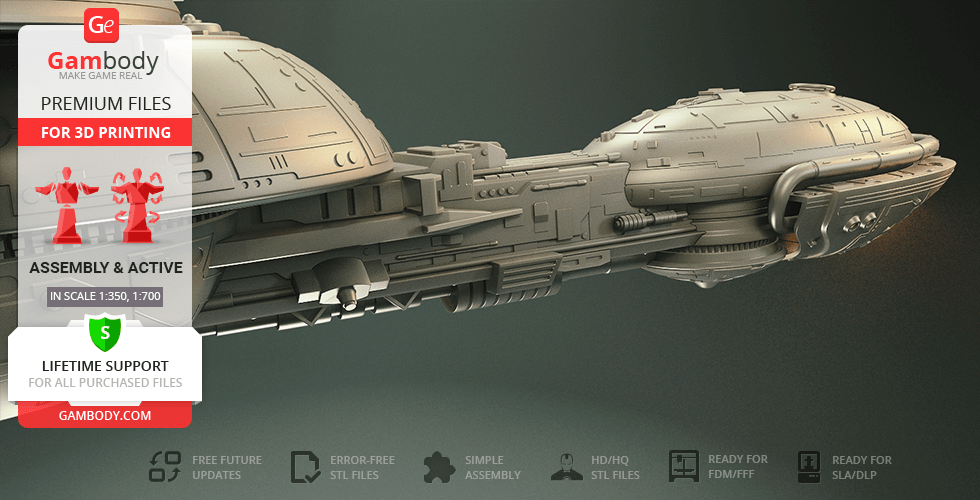

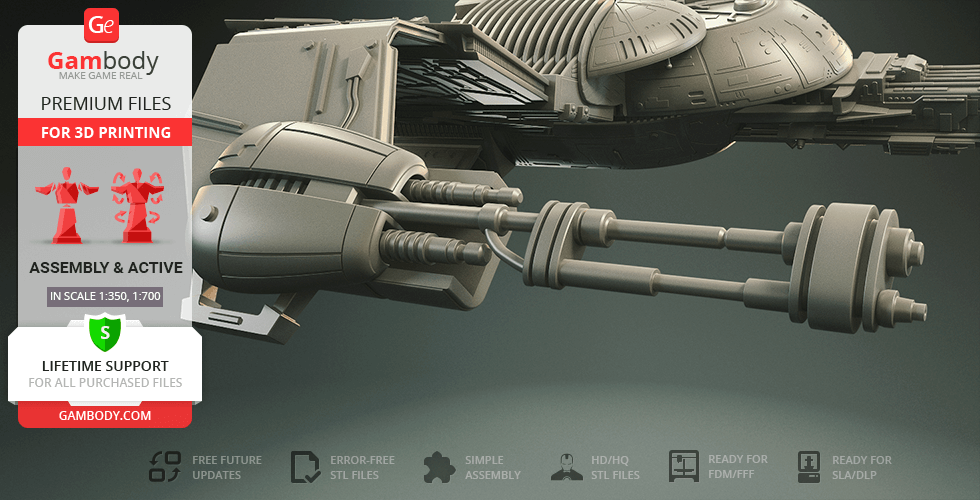

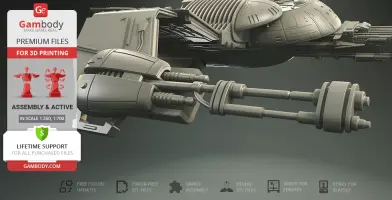

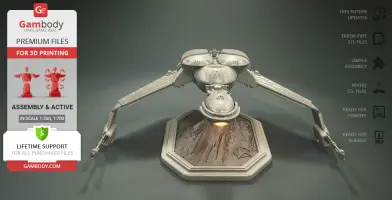

As opposed to the pristine and futuristic USS Enterprise, the Klingon Bird-of-Prey for 3D printing appears ominous and clunky. Its avian design and highly detailed feather-like hull plating emphasise the prestige and prowess of the ship. The craft has its trademark forward-firing wing-mounted disruptor cannons and the photon torpedo launcher on standby, waiting for commands of a tenacious captain. And for you to showcase the Klingon Bird-of-Prey as an invaluable trophy, the 3D printing model is provided with an elaborate platform resembling the landscape of a distant planet with the Star Trek insignia engraved on it.

ADAPTATION FOR 3D PRINTING

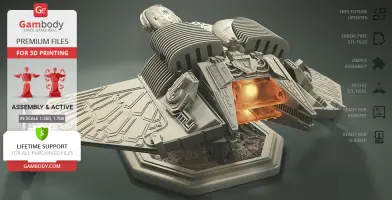

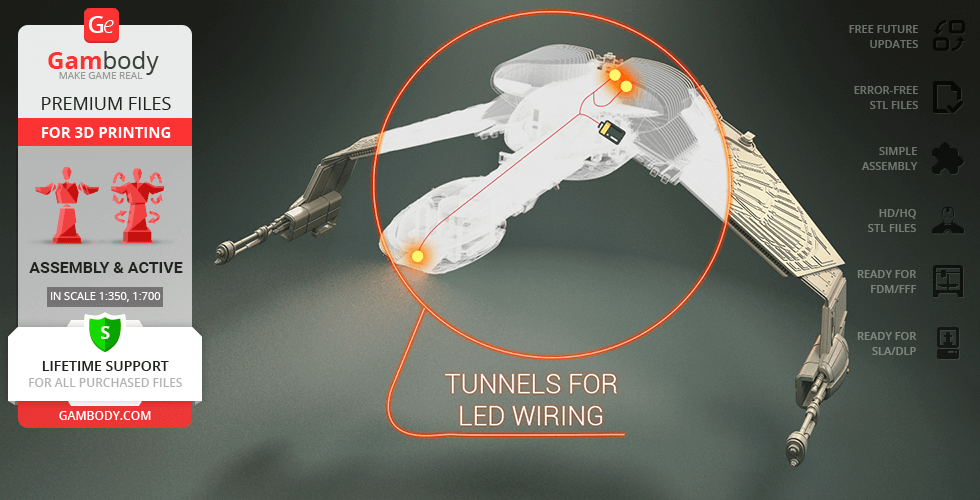

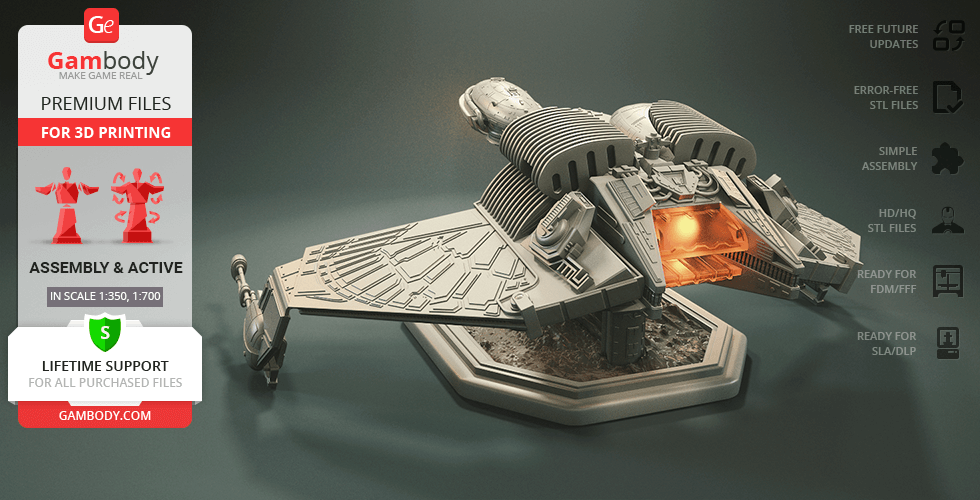

Klingon Bird-of-Prey for 3D printing is an active assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 40 hours in total. For you to receive the cleanest 3D printing result possible and to minimize the amount of filament needed for generated support, the famous ship was divided into many assembly parts that are provided as separate STL files. For you to impress the spectators with your 3D printed piece, the special articulation mechanism was designed to fit inside the ship and set the Bird-of-Prey's wings into motion. Moreover, special tunnels throughout the ship were introduced for LED wiring and further enhancement of your display.

All assembly parts are provided in STL files of FFF/FDM version in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won’t face difficulties when placing the parts on a build plate. When downloading any model’s file you will also receive “Assembly Manual” for FFF/FDM 1.0 and DLP/SLA/SLS 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly video” and “Assembly Manual” before getting down to the Klingon Bird-of-Prey model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model’s scale was calculated from the length of the Klingon Bird-of-Prey which is 109000 mm. The 3D printing model’s chosen scale is 1:350 for the FFF/FDM version and 1:700 for the DLP/SLA/SLS version.

VERSIONS' SPECIFICATIONS

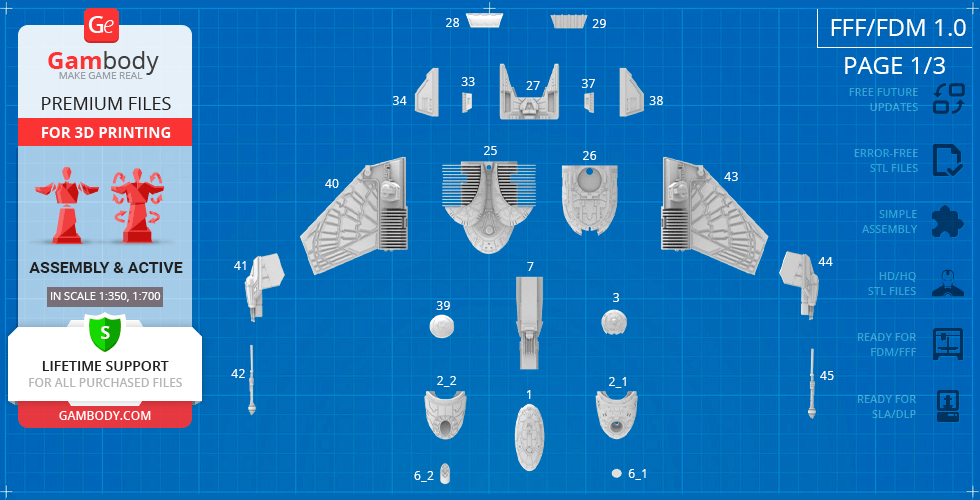

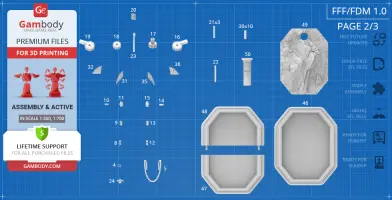

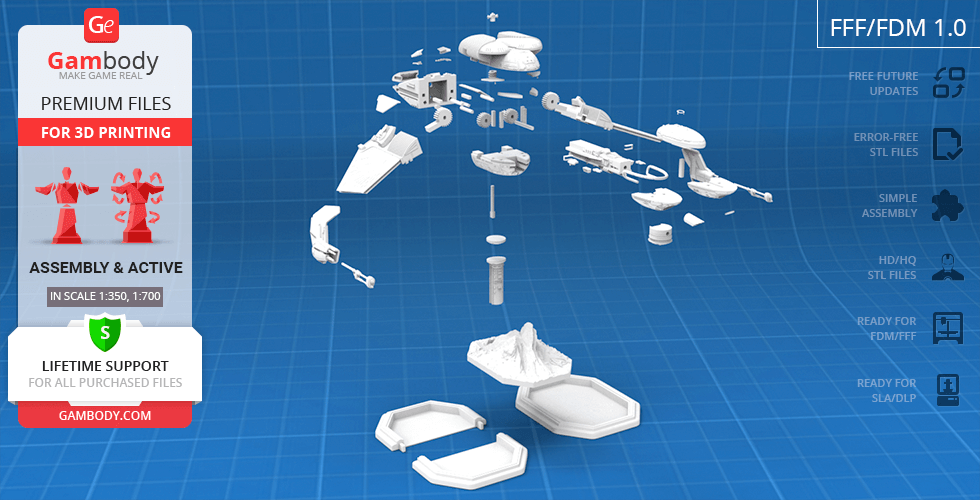

FFF/FDM 1.0 version features:
- Contains 50 parts;
- A printed model is 152 mm tall, 416 mm wide, 312 mm deep;

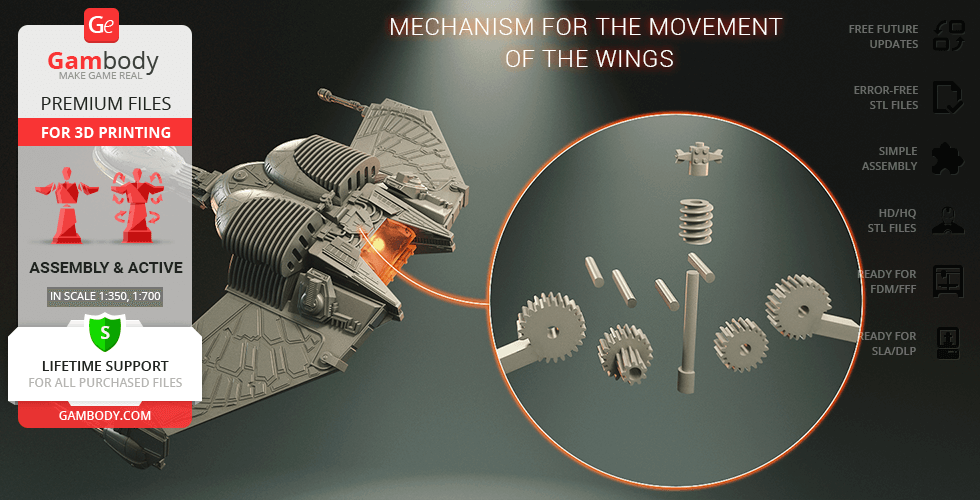

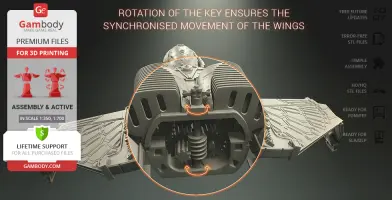

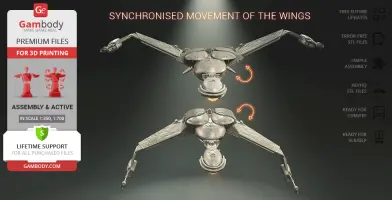

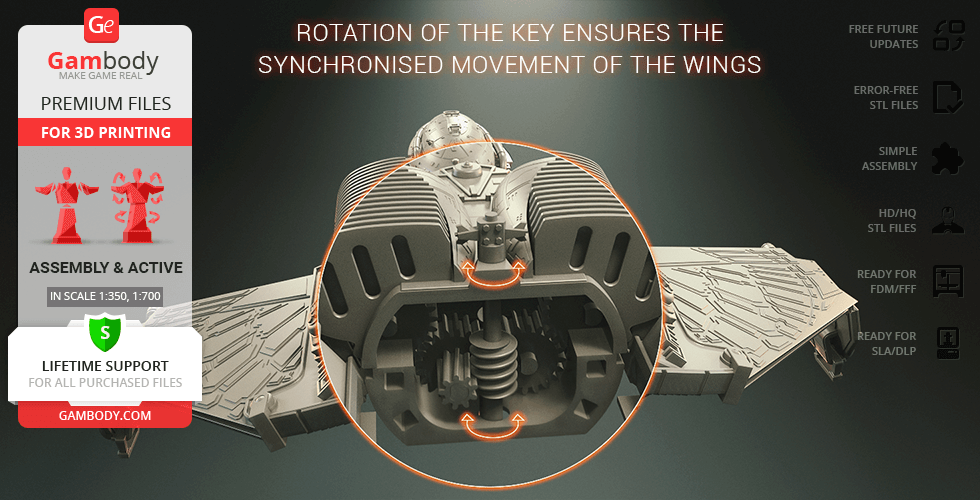

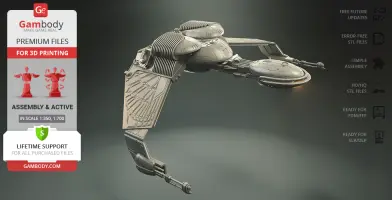

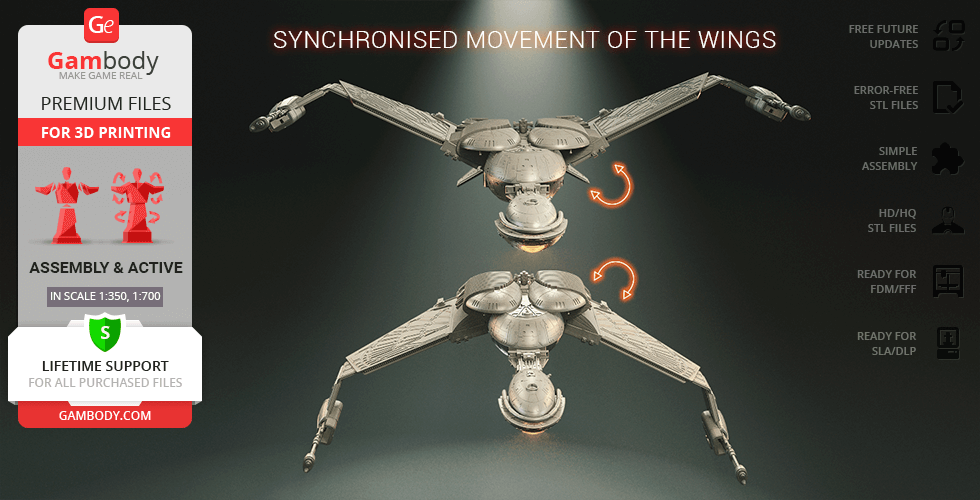

- There is a mechanism inside the ship that allows simultaneous movement of the wings up and down;
- The assembly kit includes a special key that ensures the simultaneous movement of the wings;

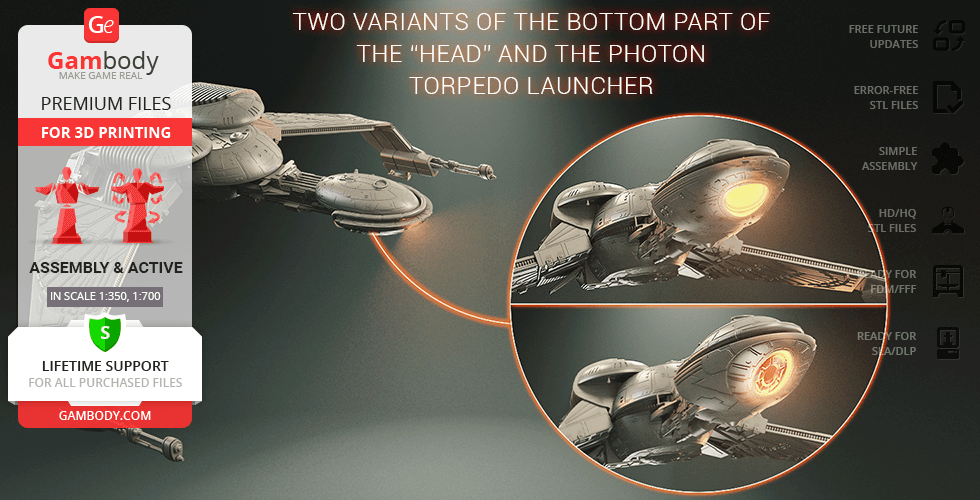

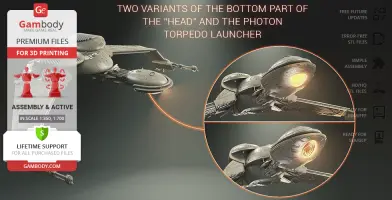

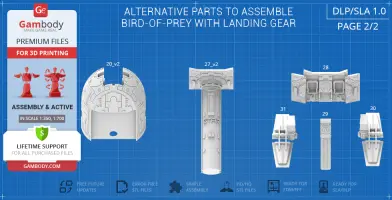

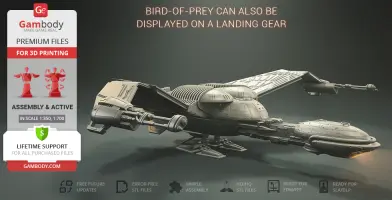

- There are two variants of the bottom part of the “head” and the photon torpedo launcher for you to choose from;

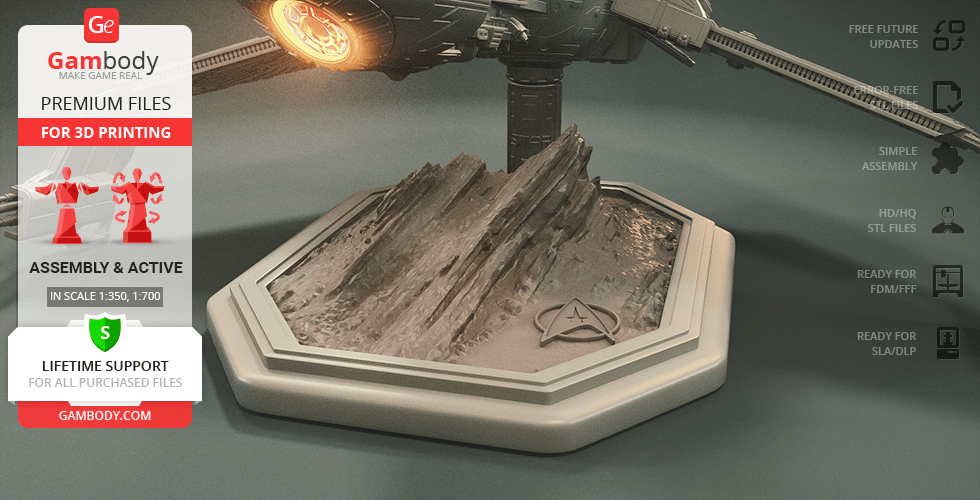

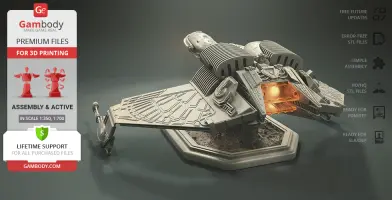

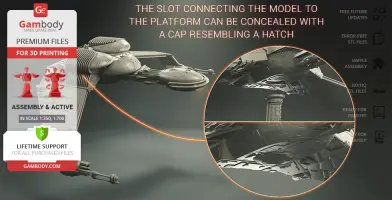

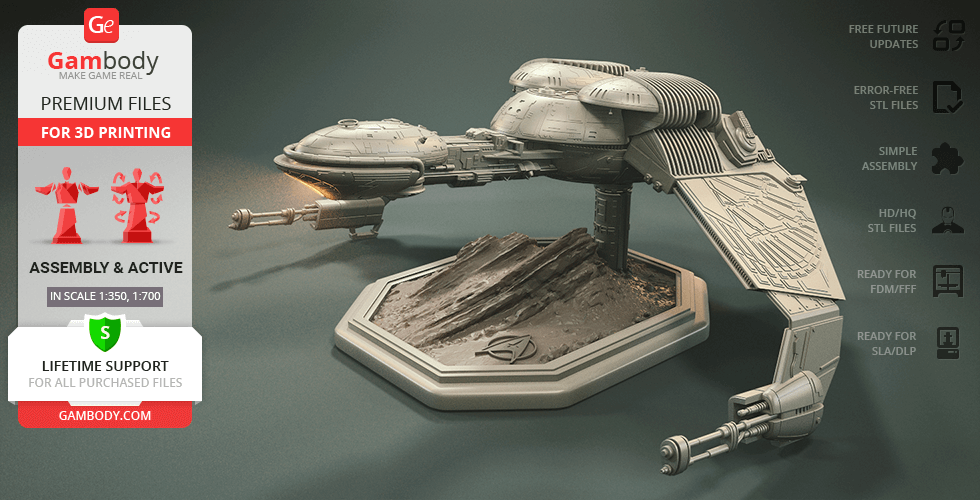

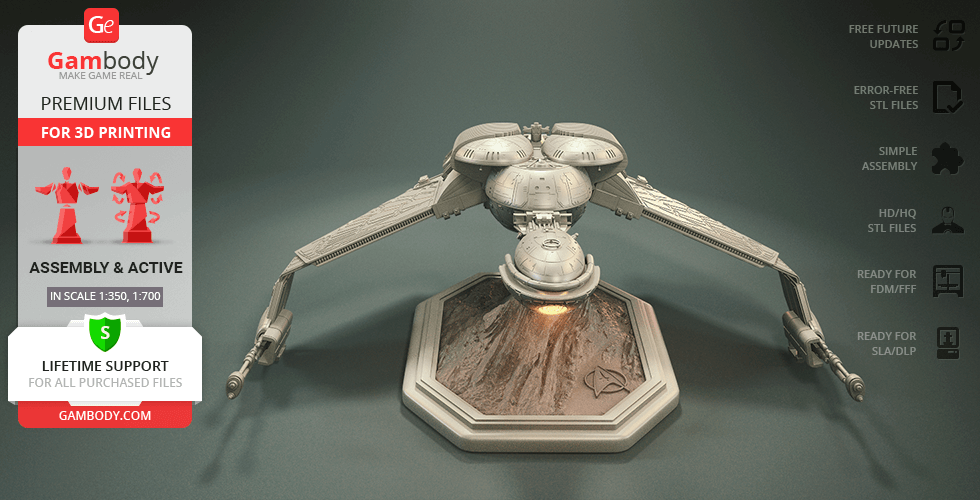

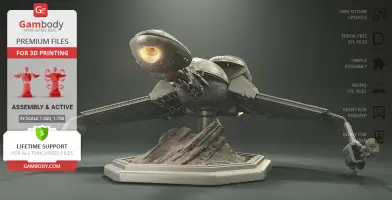

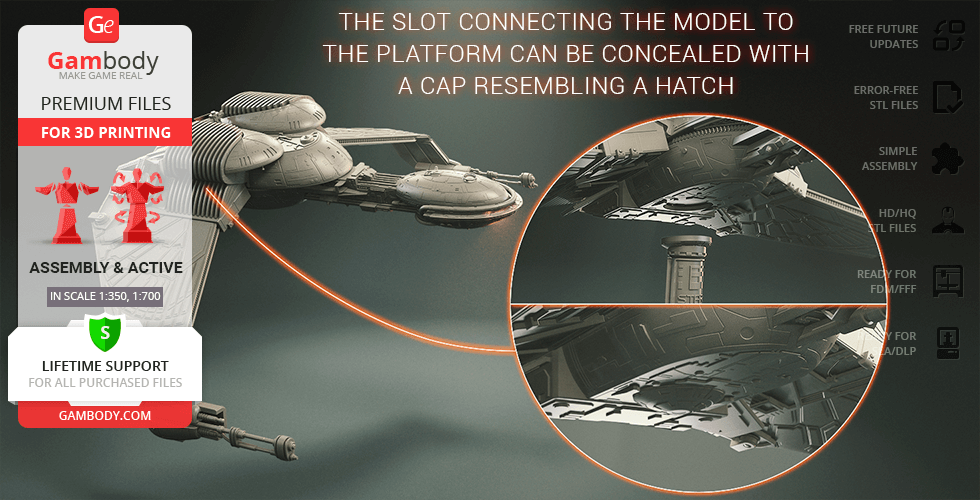

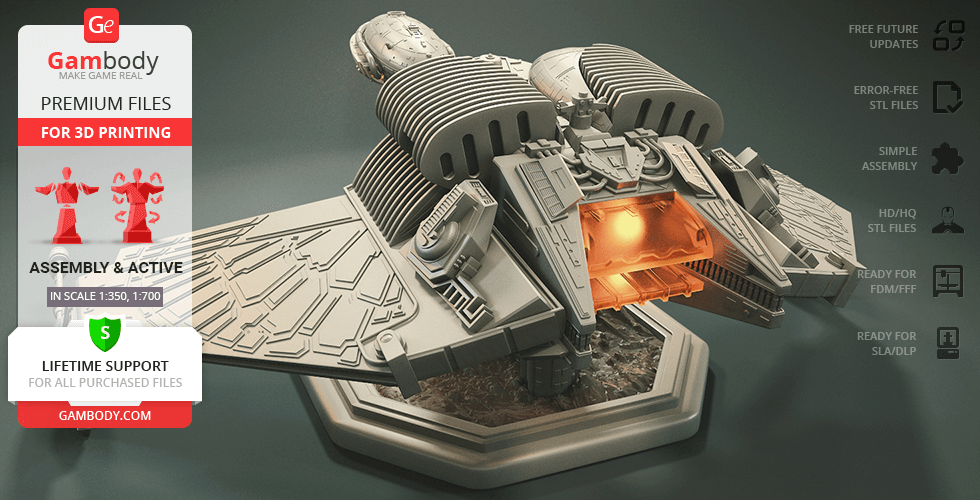

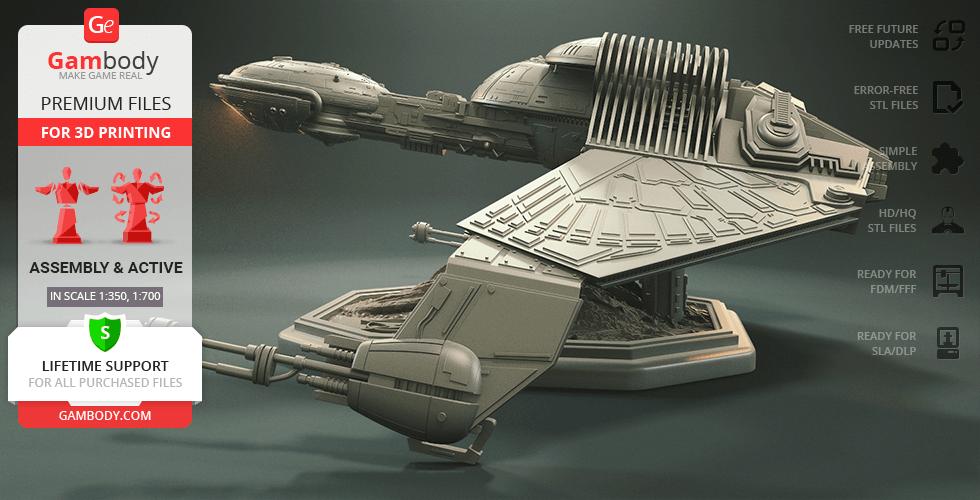

- You can display the model on a decorative platform or conceal the slot with a cap resembling a hatch + there is an optional landing gear;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

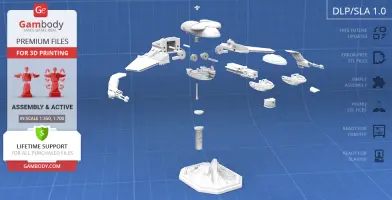

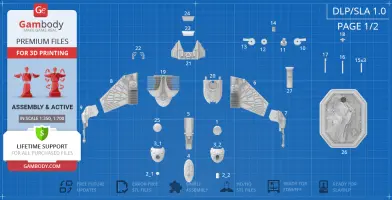

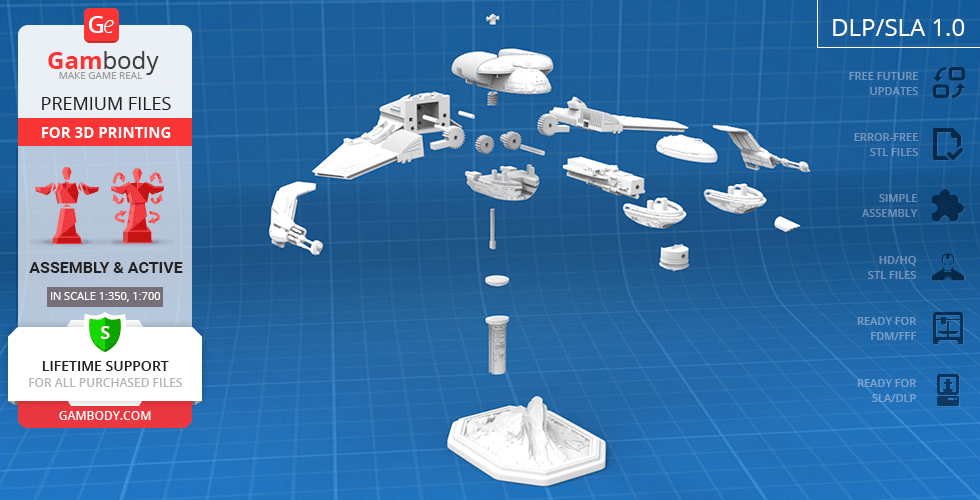

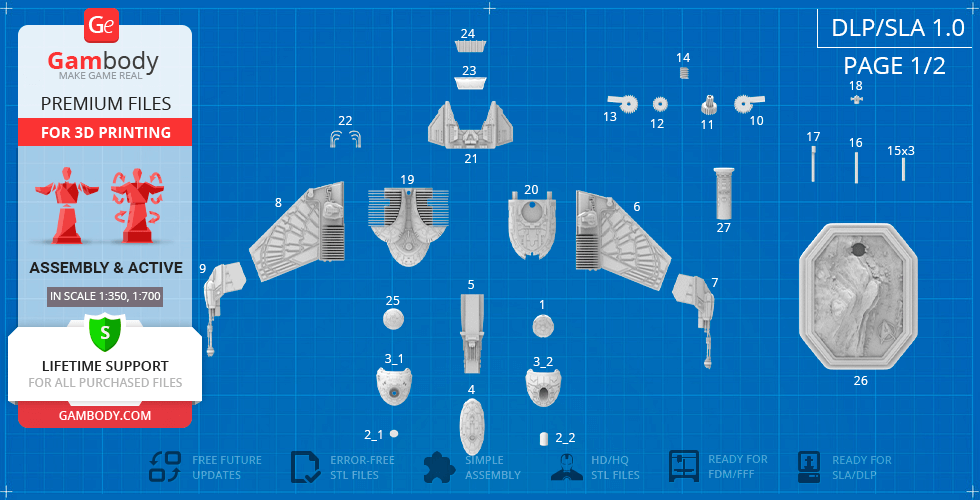

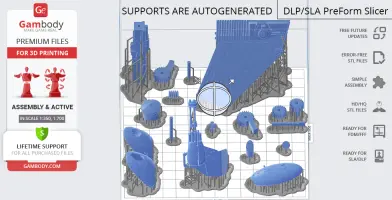

DLP/SLA/SLS 1.0 version features:
- Contains 27 parts;
- A printed model is 76 mm tall, 208 mm wide, 156 mm deep;
- There is a mechanism inside the ship that allows simultaneous movement of the wings up and down;
- The assembly kit includes a special key that ensures the simultaneous movement of the wings;
- There are two variants of the bottom part of the “head” and the photon torpedo launcher for you to choose from;
- You can display the model on a decorative platform or conceal the slot with a cap resembling a hatch + there is an optional landing gear;

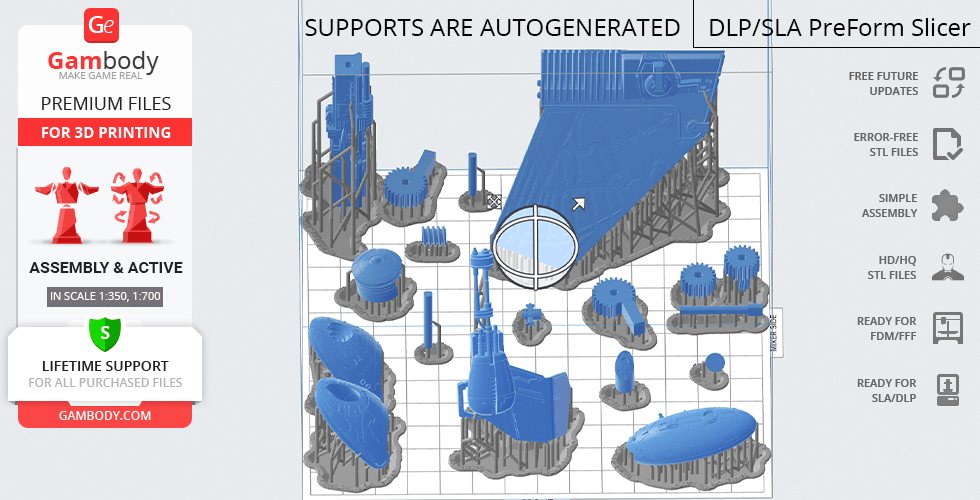

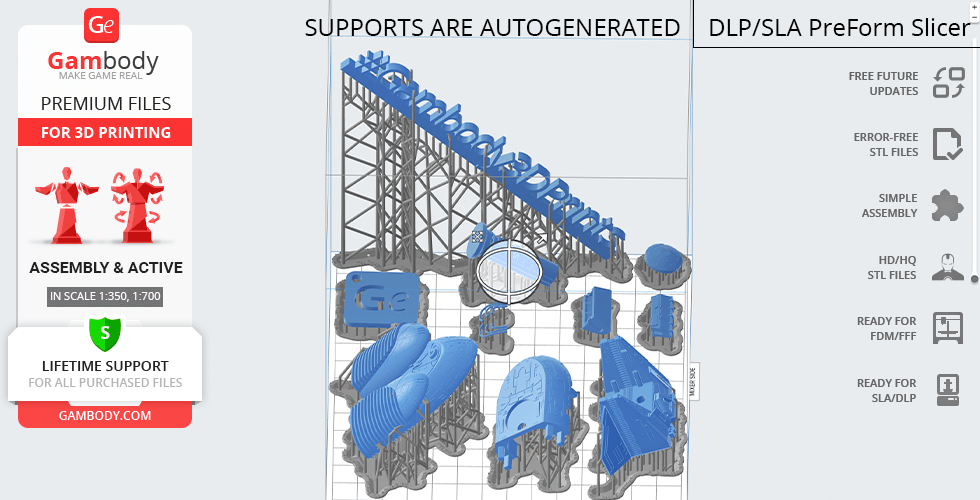

- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

You can get the model of Klingon Bird-of-Prey for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Klingon Bird-of-Prey 3D Printing Model at Gambody YouTube channel.

Also, you may like USS Enterprise NCC-1701 3D Printing Model and Spock 3D Printing Figurine, as well as other Space Ships 3D Printing Models.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

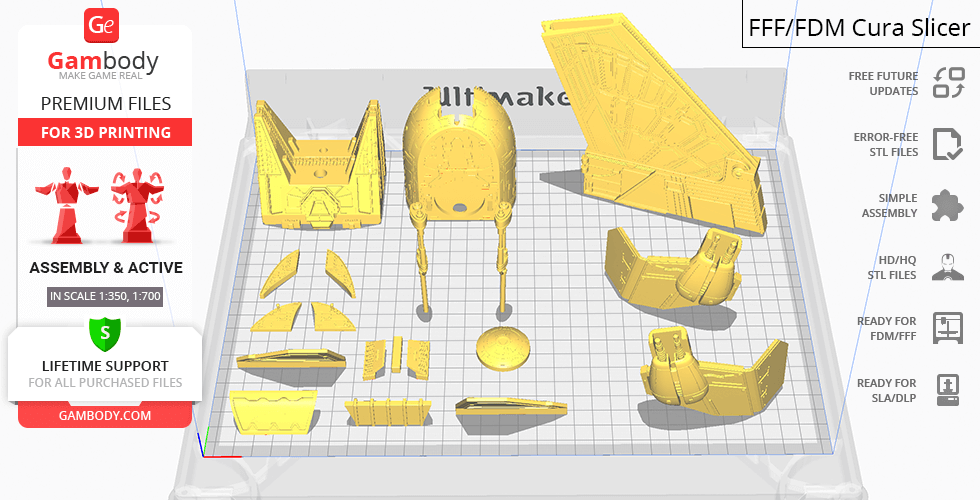

Below you can find printing recommendations for CuraSimplify3D and Slic3r software.

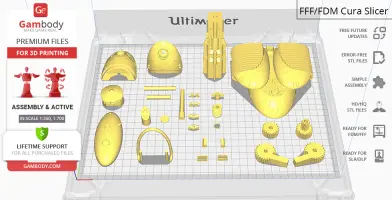

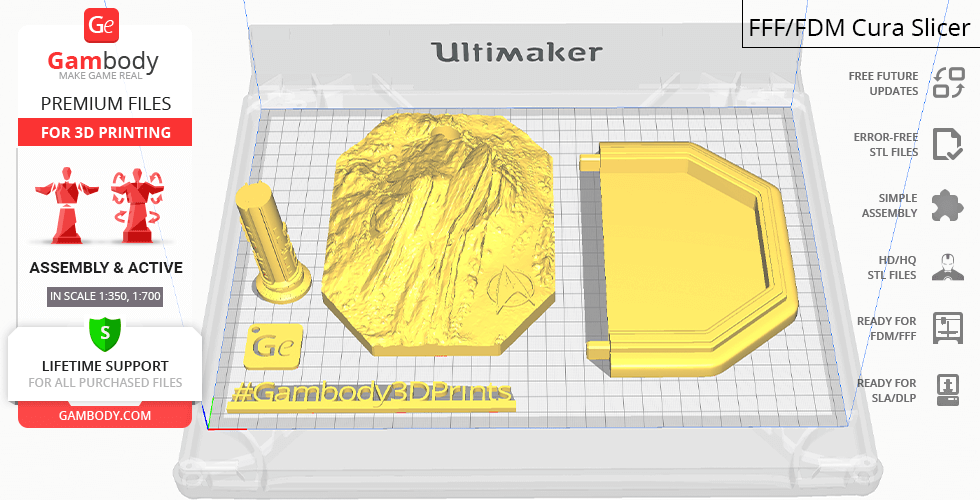

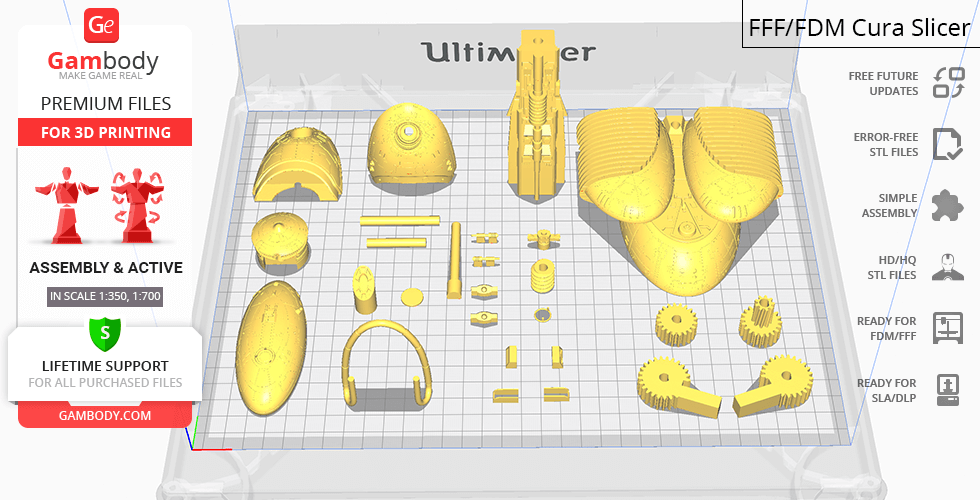

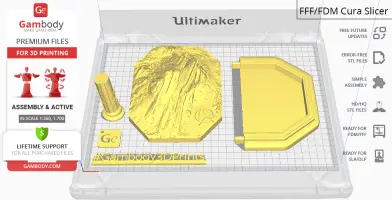

Cura printing recommendations:

These are basic settings that were tested in Cura 4.8.0 slicer.

The test models were printed on Ultimaker 2, Creality Ender 3, Creality CR-10S Pro V2, Anycubic I3 Mega, Anycubic I3 MegaS 3D printers with PLA and PETG filaments.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use and especially the particular assembly part at hand. Each part that any model comprises often needs preliminary review and you are free to tweak the settings the way you find suitable.

Note:
- You can scale up the model (downscaling is not recommended!);
- All connectors should be printed at 100% Infill;
- For all parts of locks (“ge_lock” in “Source files”) you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

Quality
Layer Height: 0.12 mm (you can also set Layer Height at 0.16 or 0.2mm for 0.4mm nozzles)
Initial Layer Height: 0.2 mm (carefully level the print bed and keep your Initial Layer Height the same as the main Layer Height)

Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2

Outer Wall Wipe Distance: 0.3 mm
Top Surface Skin Layers: 0

Top/Bottom Thickness: 0.6 mm
Top Thickness: 0.6 mm
Top Layers: 5
Bottom Thickness: 0.6 mm
Bottom Layers: 5
Initial Bottom Layers: 5

Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Optimize Wall Printing Order: Check

Compensate Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check

Minimum Wall Flow: 0%
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Hole horizontal expansion: 0

Z Seam Alignment: User Specified
Z Seam Position: Back
Z Seam X: Average length of your printer’s plate (e.g.”150” if your plate is 300mm on the X-axis)
Z Seam Y: A value higher than the length of your plate on the Y-axis (e.g. 700)

Seam Corner Preference: Hide Seam
Extra Skin Wall Count: 1
Skin Overlap Percentage: 10%
Skin Overlap 0.04 mm

Infill
Infill Density: 20% (for all smaller parts and for all parts of connectors use 100% Infill)
Infill Pattern: Triangles
Connect Infill Lines: Check
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Line Multiplier: 1
Extra Infill Wall Count: 0

Infill Overlap Percentage: 10-20%
Infill Overlap: 0.04 mm

Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm

Infill Wipe Distance: 0 mm
Infill Layer Thickness: 0.24 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm

Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8

Maximum Skin Angle for Expansion: 90Ëš
Minimum Skin Width for Expansion: 0.0
Skin Edge Support Thickness: 0
Skin Edge Support Layers: 0

Material
Initial Layer Flow: 100%
Printing Temperature: See your filament settings
Initial Printing Temperature: Your filament settings
Final Printing Temperature: Your filament settings
Build Plate Temperature: Your filament settings
Build Plate Temperature Initial Layer: Your filament settings + 5°
Flow: 100% (Important! If you face difficulty printing the model, you may need to adjust the Flow parameter. You may research the topic using the Internet or seek assistance at our Customer Support Team at support@gambody.com)

Speed

You can increase the printing Speed by 20% when you print simple objects. For small/thin parts you need to decrease the Speed by 25% - 50%.

Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 25 mm/s
          Outer Wall Speed:25 mm/s
          Inner Wall Speed: 50 mm/s

Top/Bottom Speed: 25mm/s
Support Speed: 25 mm/s
          Support Infill Speed: 45 mm/s
          Support Interface Speed: 25 mm/s
                Support Roof Speed: 25 mm/s
                Support Floor Speed: 25 mm/s

Travel Speed: 80 mm/s
Initial Layer Speed: 80 mm/s
Initial Layer Print Speed: 20 mm/s
Initial Layer Travel Speed: 80 mm/s

Skirt/Brim Speed: 20 mm/s
Z  Hop Speed: 5 mm/s
Number of Slower Layers: 2
Enable Acceleration Control: Check

When printing simple objects, you need to set all Acceleration parameters at 500 mm/s. For small/thin parts you need to decrease the Acceleration by 50% - 70%.

Travel
Enable Retraction: Check
Retraction Distance: 4-8 mm, 1-3 mm for Direct Extruder (This is the most important retraction parameter. You can find your optimal value of Retraction Distance by printing any test object, e.g. bridges, towers etc.)

Retraction Speed: 25mm/s
Retraction Retract Speed: 25 mm/s
Retraction Prime Speed: 25 mm/s

Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 1.5 mm
Maximum Retraction Count: 100
Minimum Extrusion Distance Window: 6,5 - 10 mm
Limit Support Retractions: Check
Combing Mode: All
Max Comb Distance With No Retract: 30 mm
Retract Before Outer Wall: Check
Avoid Printed Parts When Travelling: Check
Avoid Supports When Travelling: Check
Travel Avoid Distance: 1 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm
Z Hop When Retracted: Check
Z Hop Height: 0,3 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%

Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.36 mm
Regular Fan Speed at Layer: 3

Minimum Layer Time: 10 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Structure: Normal (you can try using Tree Support Structure if you have difficulty printing any particular assembly part)
Support Placement: Everywhere
Support Overhang Angle: 60° (this parameter can range from 30° to 70° depending on the part at hand)
Support Pattern: Zig Zag
Support Wall Line Count: 1 (stronger support that might be more difficult to remove) 0 (less strong support but is easier to remove)

Support Density: 15%
Support Line Distance: 2.6667 mm
Initial layer support line distance: 2.667 mm

Support Z Distance: 0.12 mm
Support Top Distance: 0.12 mm
Support Bottom Distance: 0.12 mm

Support X/Y Distance: 0.8-1 mm
Support Distance Priority: Z overrides X/Y
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Stair Step Minimum Slope Angle: 10°
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.2 mm
Gradual Support Infill Steps: 0
Minimum Support Area: 2 mm

Enable Support Interface: Check (generates additional “pillow” on the support structure that leads to a more even surface, but can be difficult to remove in hard-to-reach areas)
Enable Support Roof: Check
Enable Support Floor: Check

Support Interface Thickness: 0.8 mm
Support Roof Thickness: 0.8 mm
Support Floor Thickness: 0.8 mm

Support Interface Resolution 0.2 mm
Support Interface Density: 50-100%
        Support Roof Density: 50-100%
Support Roof Line Distance: 0.8 mm
        Support Floor Density: 50-100%
Support Floor line Distance:  0.4mm

Support Interface Pattern: Grid
Support Roof Pattern: Grid (this parameter should differ from Bottom Pattern Initial Layer in “Shell” section)
Support Floor Pattern: Grid

Minimum Support Interface Area: 10mm
Minimum Support Roof Area: 10 mm
Minimum Support Floor Area: 10 mm

Support Interface Horizontal Expansion: 0.0 mm
Support Roof Horizontal Expansion: 0.0 mm
Support Floor Horizontal Expansion: 0.0 mm

Fan Speed Override: Check
Supported Skin Fan Speed: 100%
Use Towers: Check
Tower Diameter: 4 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Skirt/Brim (For unsteady parts, and those parts that may come unstuck use “Brim”. For bigger assembly parts that have large adhesion area and for all parts of locks and claws that you want to come out clean use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
       Brim Line Count: 10
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments

comments powered by Disqus

Similar items

Browse more newly listed 3D printings
