You will get instant access to the STL files of Interstellar Ranger 3D Printing Model | Assembly after completing your purchase. Simply add the model to your cart and check out using PayPal, credit or debit card, Apple Pay, Google Pay, Alipay, or other available payment methods.
Watch the assembly video for Interstellar Ranger 3D Printing Model | Assembly, and explore more tutorials, behind-the-scenes content, 3D printing timelapses, and painting guides on the official Gambody YouTube channel.
This 3D Model of Interstellar Ranger consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

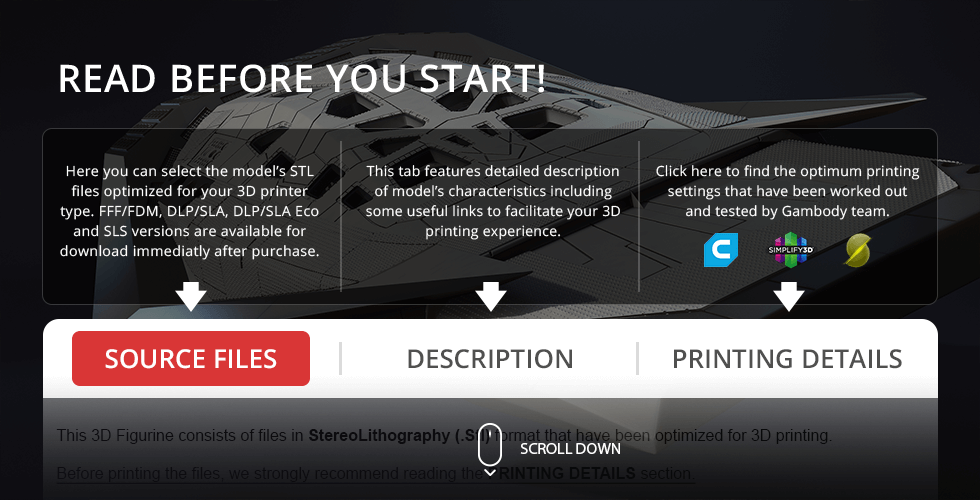

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.
WHAT WILL YOU GET AFTER PURCHASE?
- 4 versions of Interstellar Ranger STL files for FFF/FDM and DLP/SLA - files for all versions are available for download after the purchase;
- STL files of high-poly Interstellar Ranger 3D Model for 3D printing consist of 282 files;

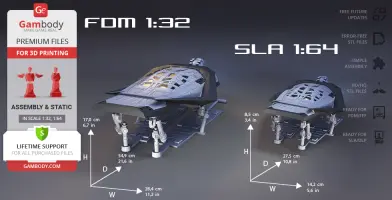

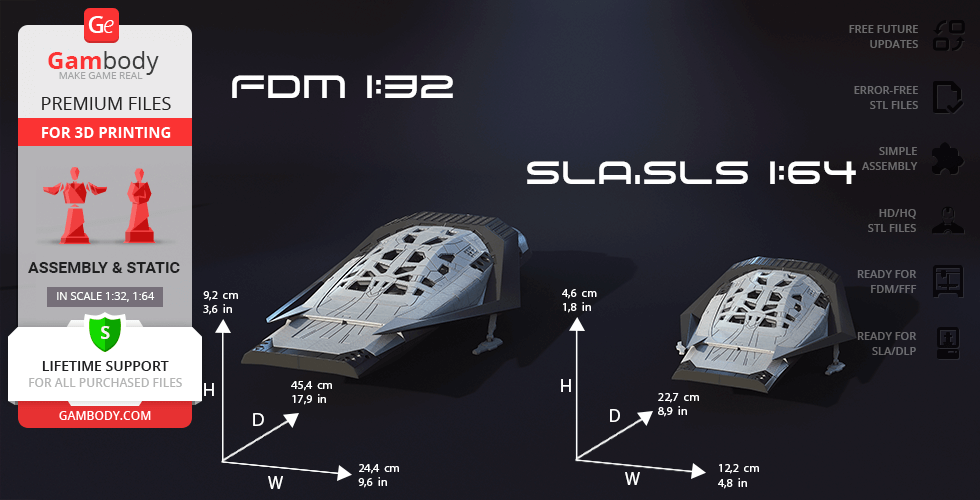

- Sizes for:
- FFF/FDM on the platform: 149 mm tall, 244 mm wide, 552 mm deep;
- FFF/FDM on the landing struts: 92 mm tall, 244 mm wide, 454 mm deep;
- DLP/SLA on the platform: 75 mm tall, 122 wide, 276 mm deep;
- DLP/SLA on the landing struts: 46 mm tall, 122 wide, 227 mm deep;
- Assembly Manual for FFF/FDM 2.0 and DLP/SLA 2.0 versions in PDF and video formats;

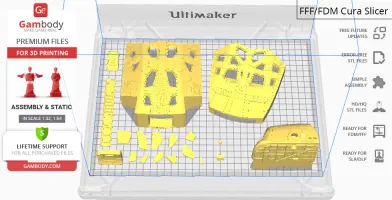

- Detailed settings that we provide as a recommendation for Cura, Simplify3D, Slic3r and PrusaSlicer for the best print;
- Full technical support from the Gambody Support Team.
Detailed information about this 3D printing model is available in the DESCRIPTION section.
Before printing, take a look at Printing Details for recommended settings and tips to achieve better results.

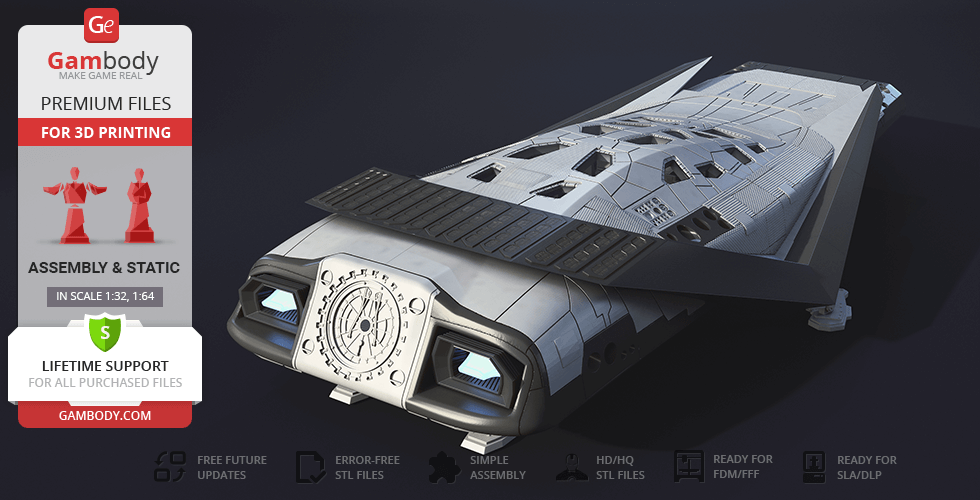

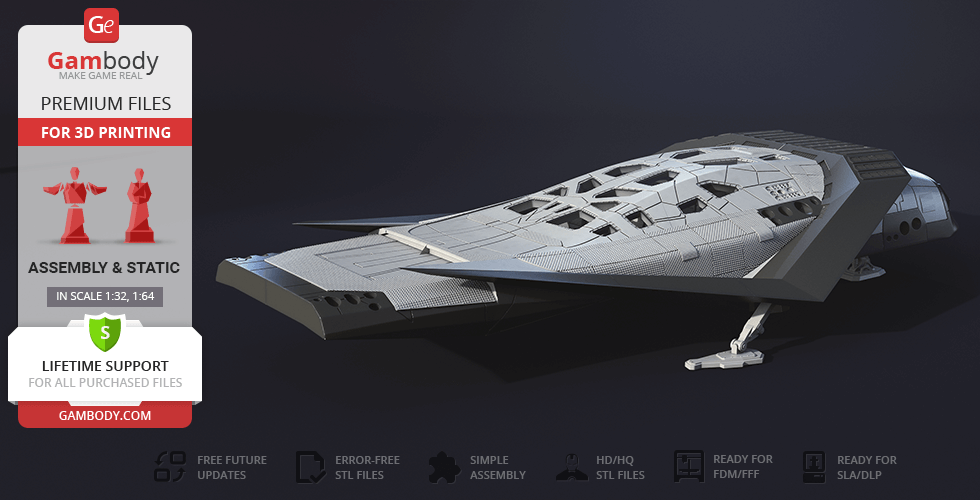

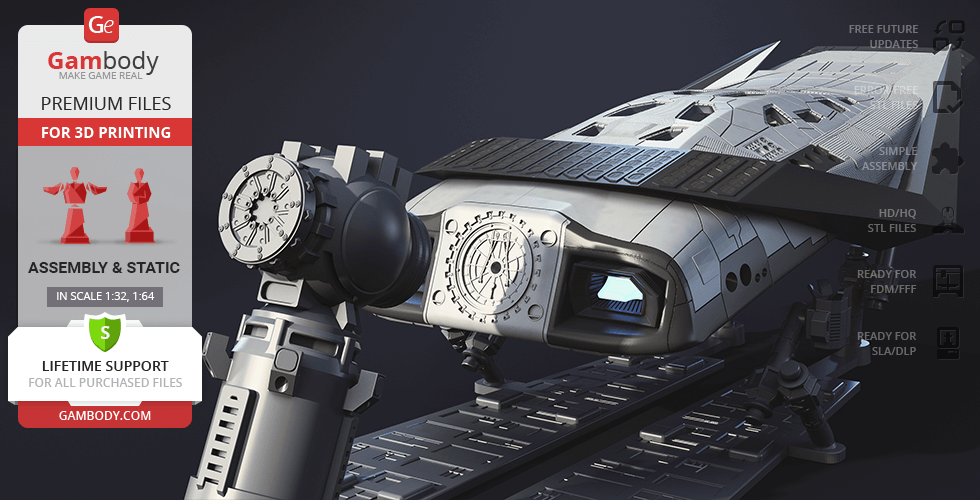

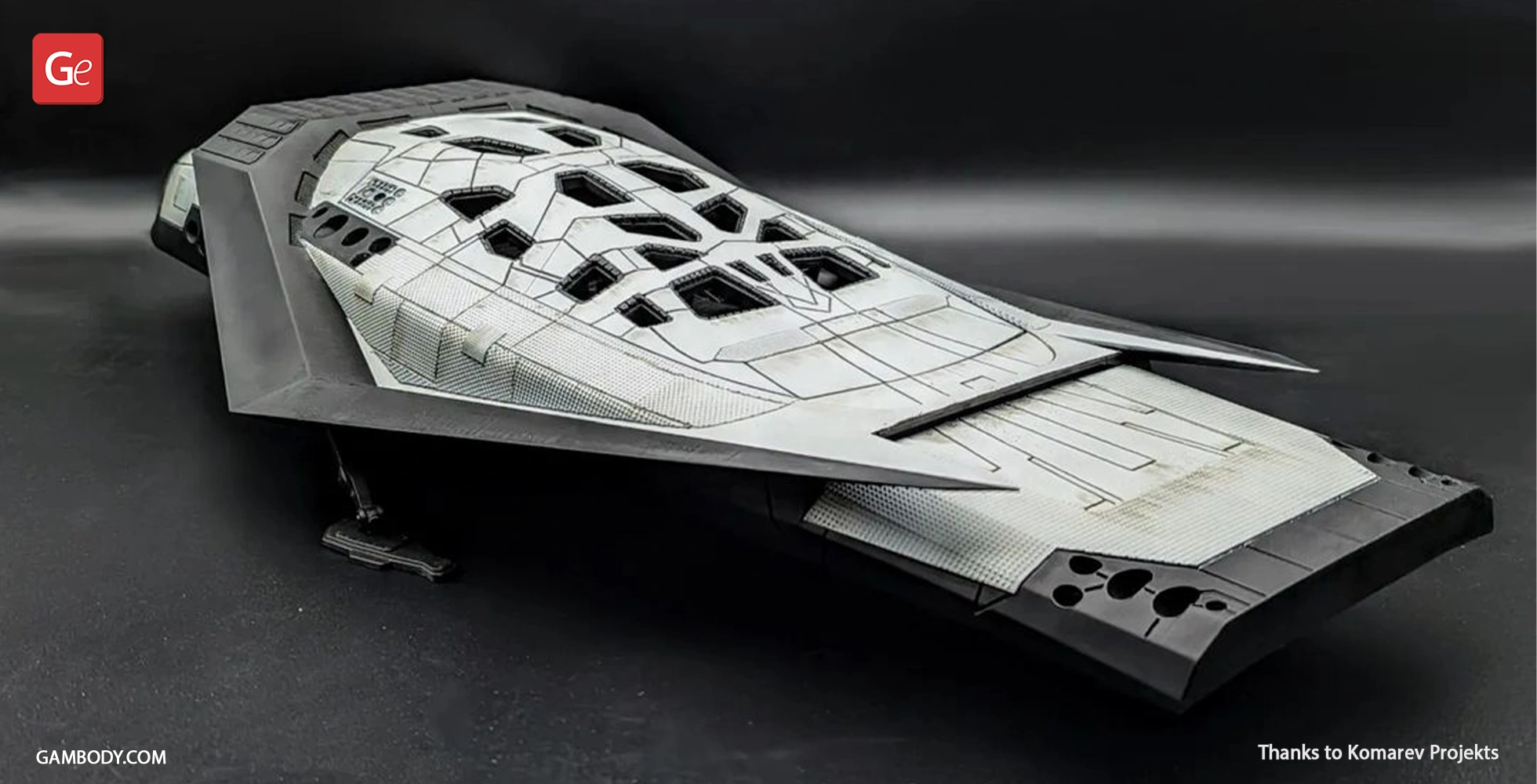

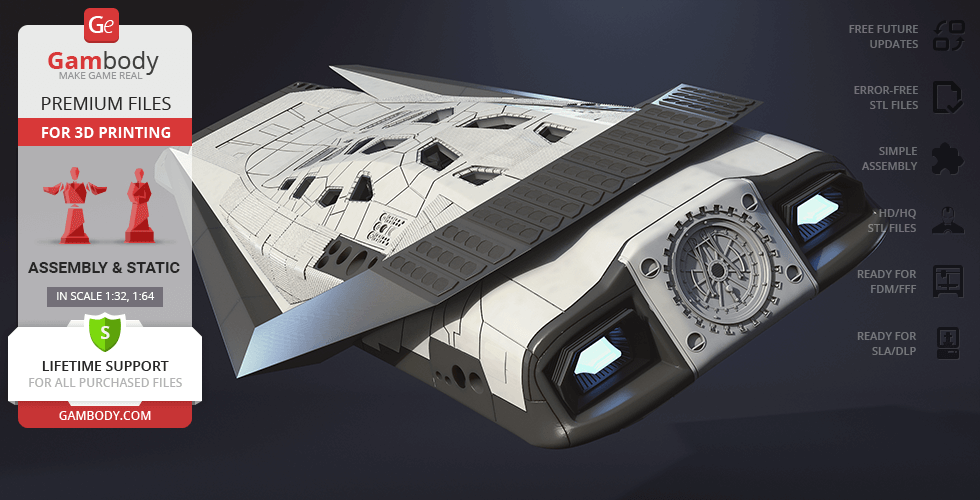

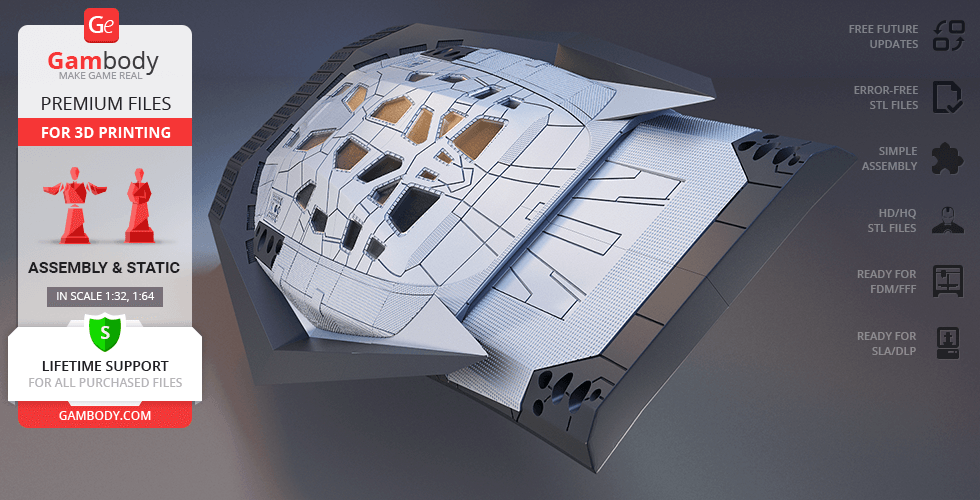

ABOUT THIS 3D MODEL
Sometimes the destiny of the whole human race can depend on a small group of astronauts roaming the endless void of space, looking for a new place we all can call home. The captivating plot of Interstellar (2014) along with breathtaking special effects leaves you in deep awe, wondering about the future of Earth and things that are beyond us. Inspired by the visually challenging storytelling and intricate technology design, our contributing 3D artist decided to recreate one of the major spacecraft used in the movie’s space exploration mission - SSTO called Ranger. The Ranger for 3D printing looks just as sleek and futuristic as its movie counterpart. The artist adorned the lifting body with the distinctive patterns across its upper and lower fuselage. The iconic canted wings contribute to additional lift and stability. Peek through the window frames or open the rear panel to take a look at the highly-detailed interior of the cockpit.
The new, updated version of Interstellar Ranger will definitely get your praise! The version 2.0 of the spacecraft is 15% narrower and lower, its form is closer to canonical. The better, high-poly design of Interstellar Ranger ensures very detailed, intricate printing results. The hollowed parts of the model give the option to illuminate the Ranger using LED lights. Another impressive feature is a completely redesigned interior with a mobile support robot. Be the first to enjoy the Interstellar Ranger at a completely higher level!
ADAPTATION FOR 3D PRINTING
Interstellar Ranger for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 48 hours in total. For you to receive the cleanest 3D printing result possible and to minimize the amount of filament needed for generated support the spacecraft model was divided into many assembly parts, e.g. its thruster nozzles, entry hatch, interior compartments, landing feet, support robot, rear venting panel, etc. are provided as separate STL files. The windows on the upper fuselage are also provided as separate files for you to print them using transparent filament or access the highly detailed interior of the cockpit. There can also be found special tunnels throughout the hollow body of the Ranger that were designed by our team for you to easily introduce LED wiring for illumination of the cockpit and twin plasma engines. For you to display the Ranger model among your Space Ships collection there is a platform provided, though its usage is optional - you can also assemble the spacecraft with landing gear that can optionally be concealed with caps. All assembly parts are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 2.0 and DLP/SLA/SLS 2.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly Video” and "Assembly Manual" before getting down to the Ranger model.
The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.
The model's scale was calculated from the actual length of the Interstellar Ranger that is 14 000 mm. The 3D printing model's chosen scale is 1/32 for the FFF/FDM version and 1/64 for DLP/SLA/SLS version.

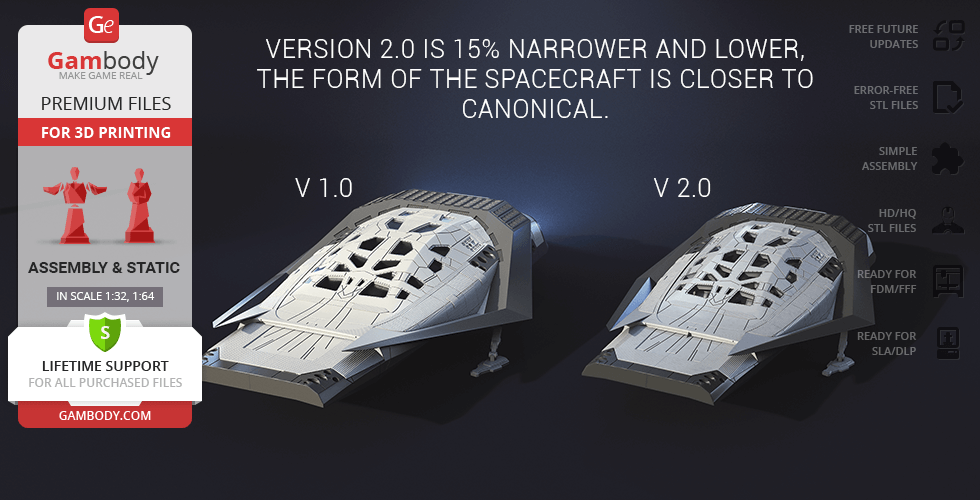

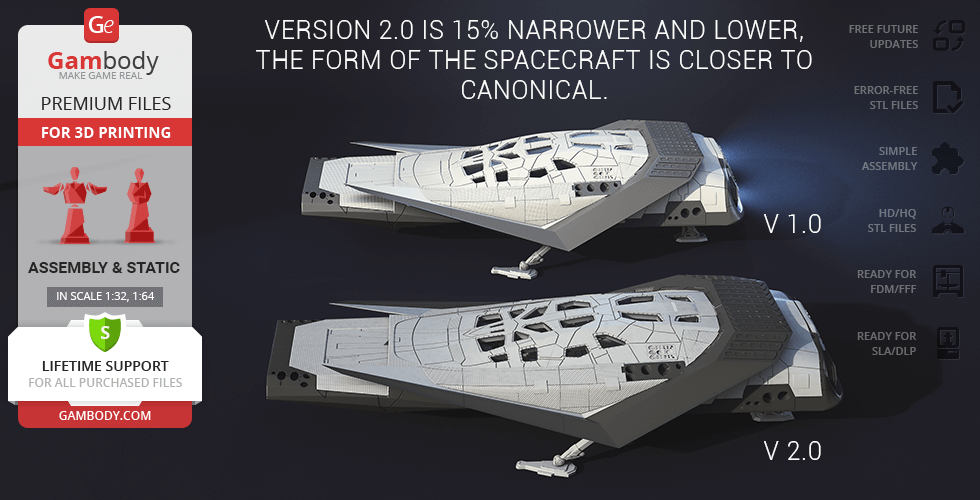

VERSIONS’ SPECIFICATIONS

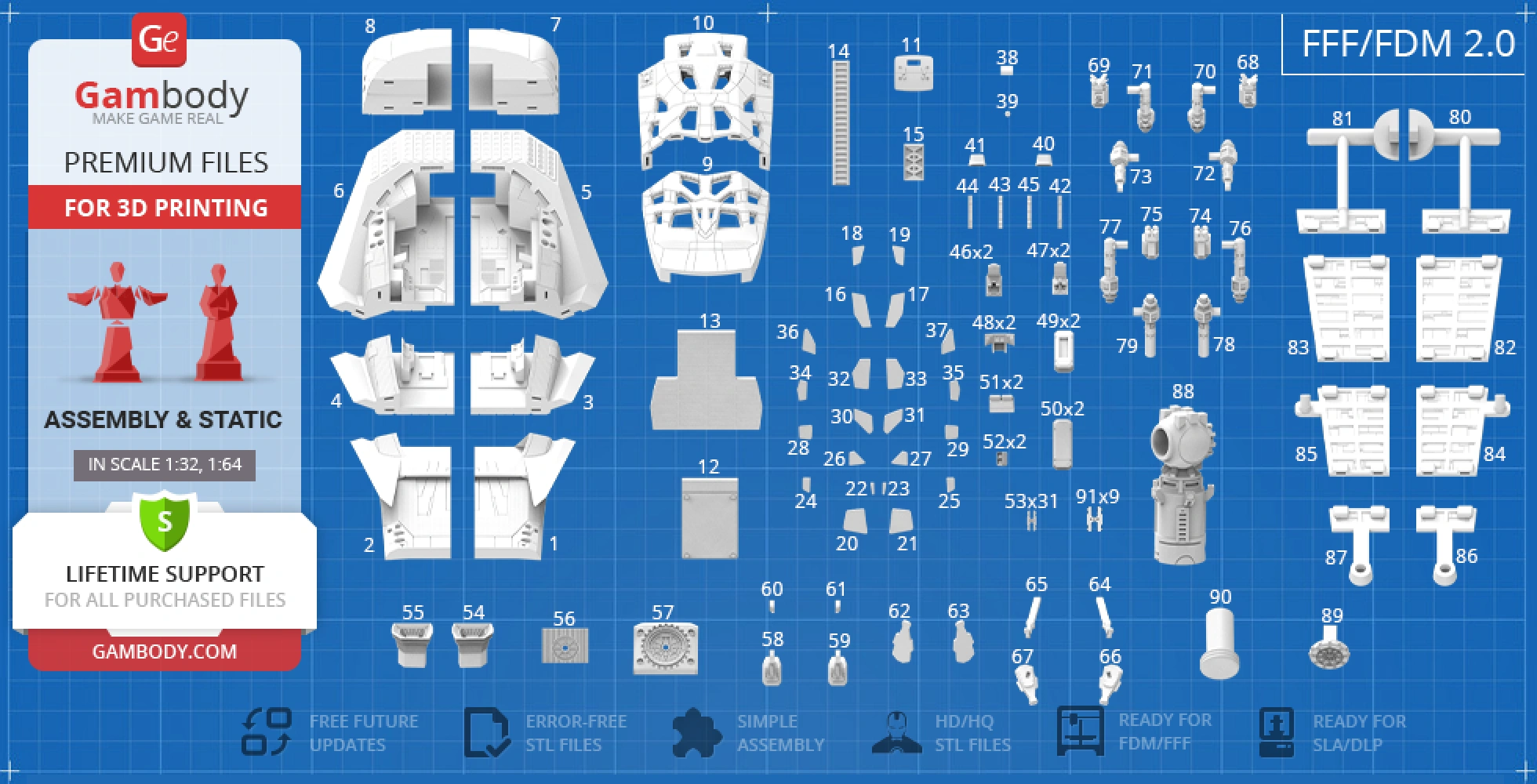

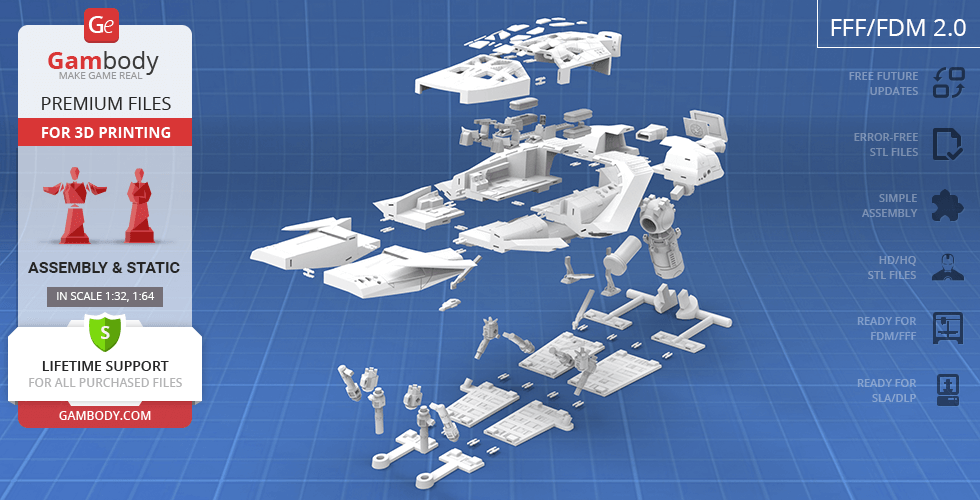

FFF/FDM 2.0 version features:
- Contains 91 parts;

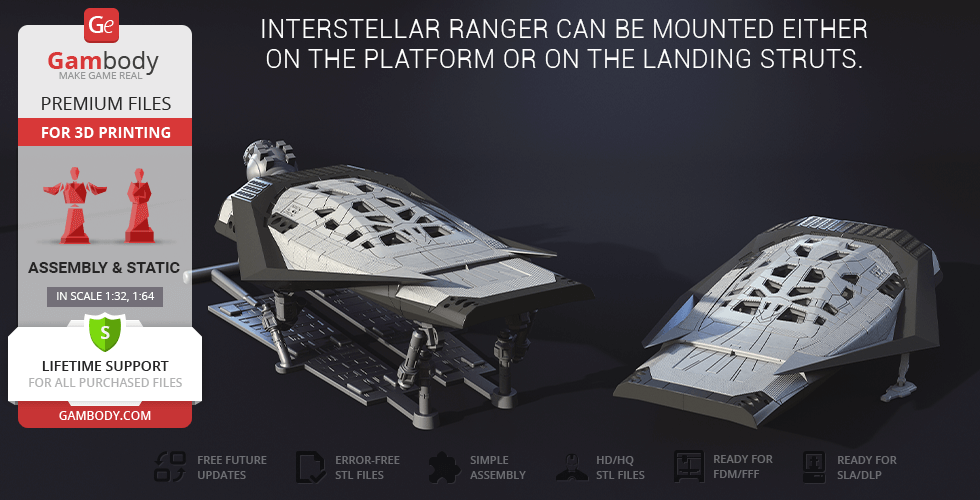

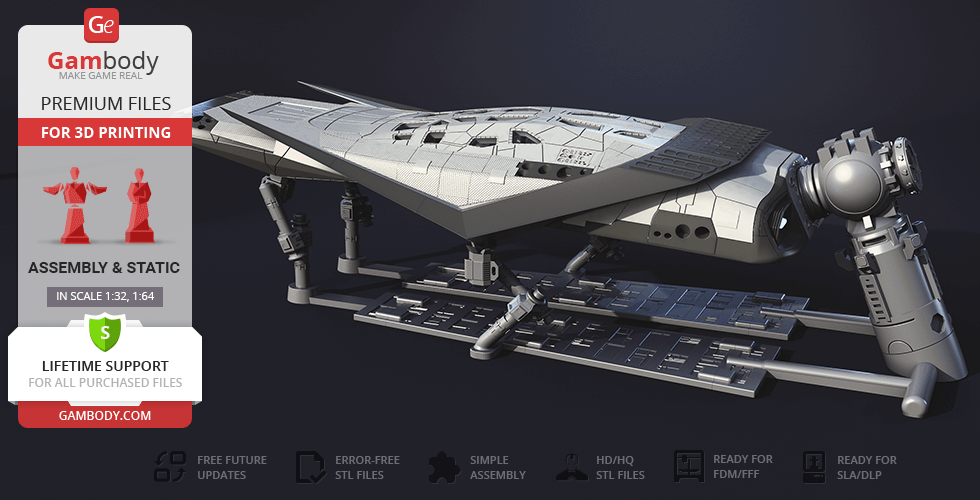

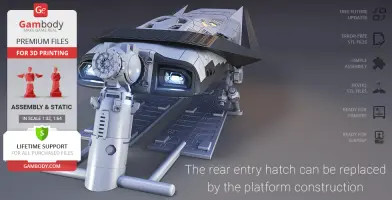

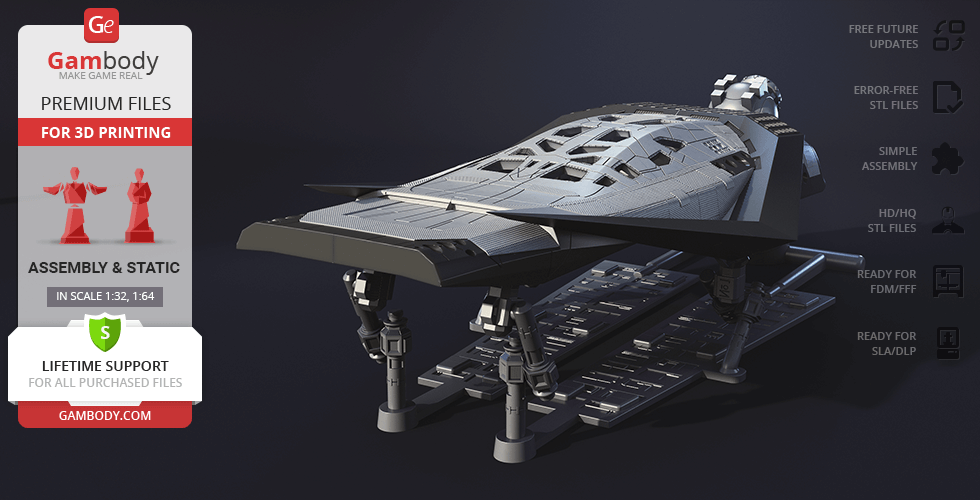

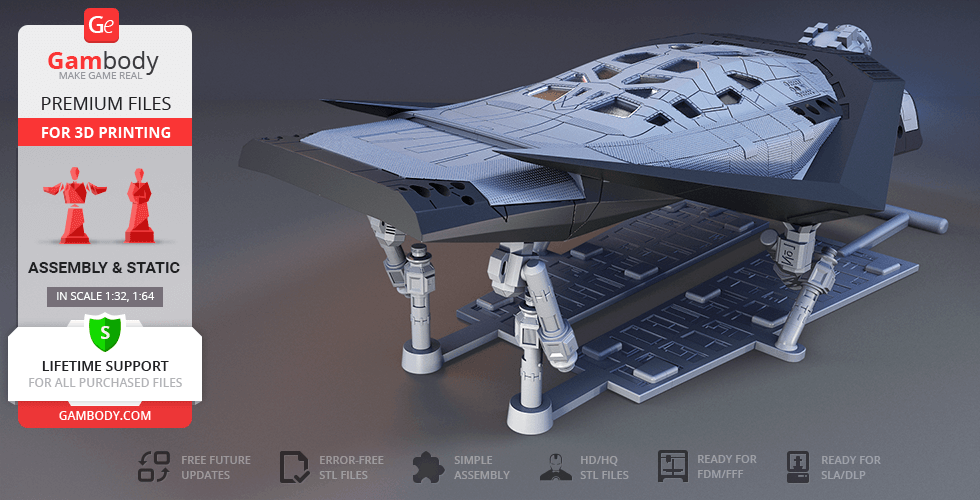

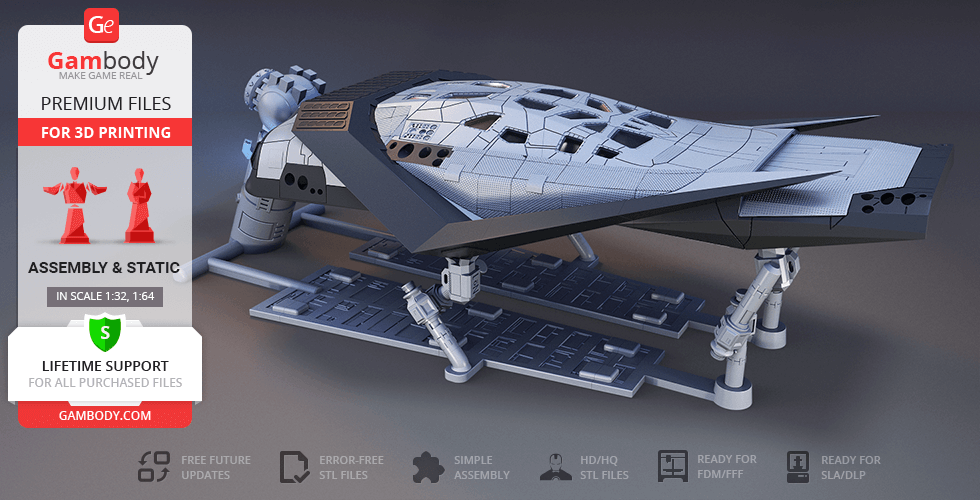

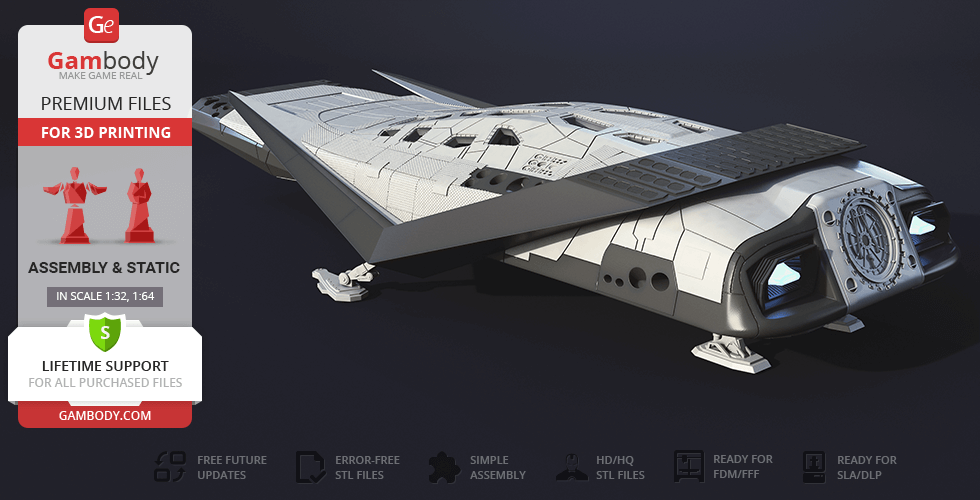

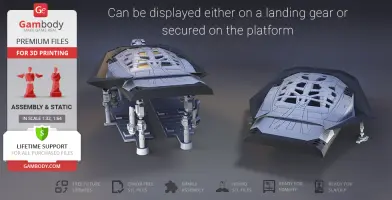

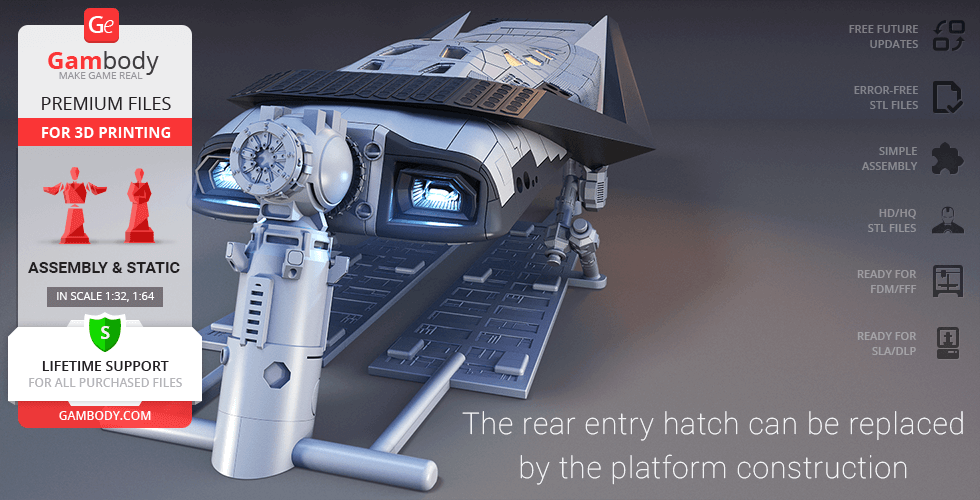

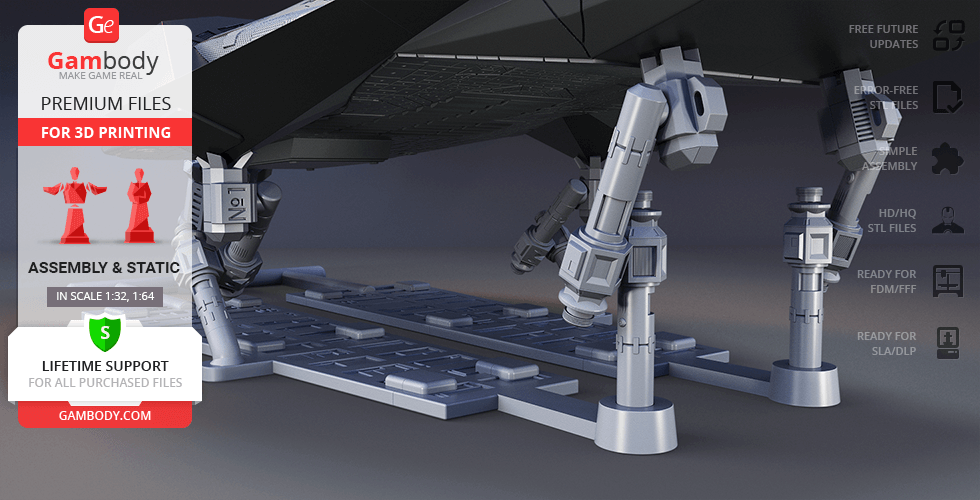

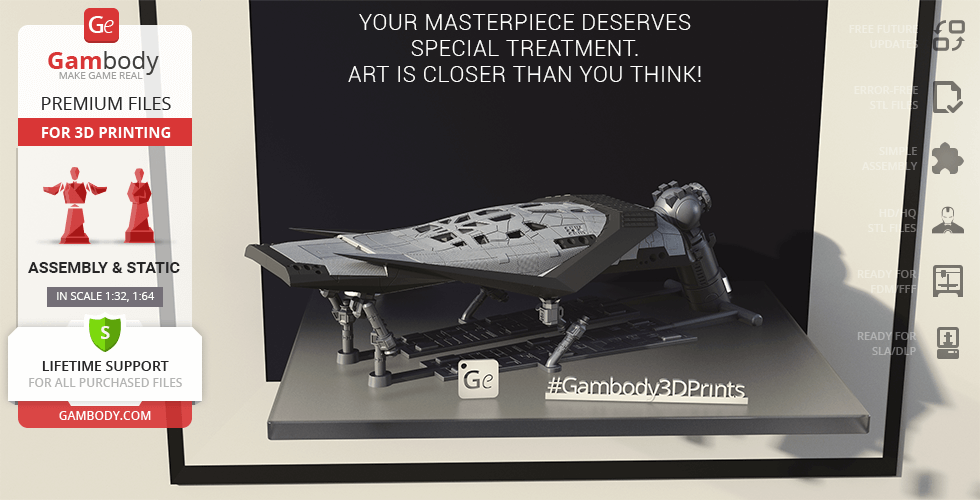

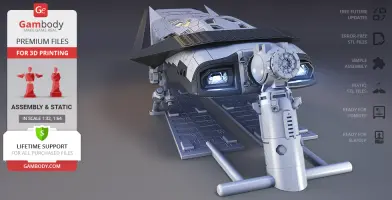

- Interstellar Ranger can be mounted either on the platform or on the landing struts;
- A printed ship on the platform is 149 mm tall, 244 mm wide, 552 mm deep;
- A printed ship on the landing struts is 92 mm tall, 244 mm wide, 454 mm deep;

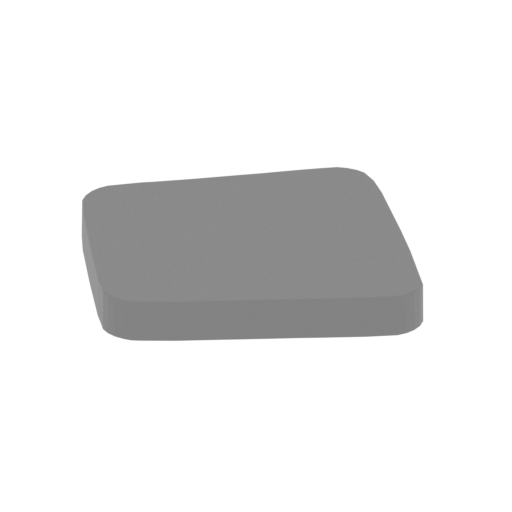

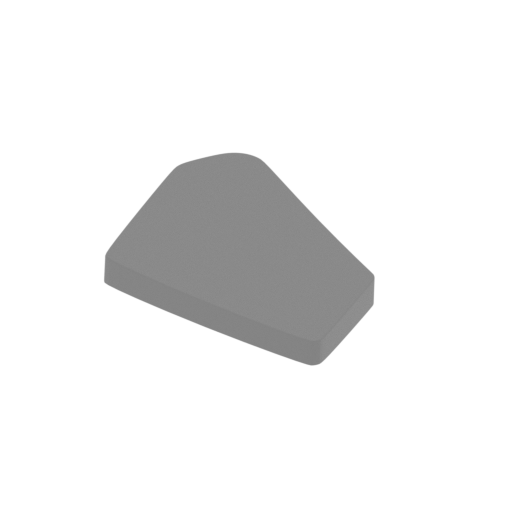

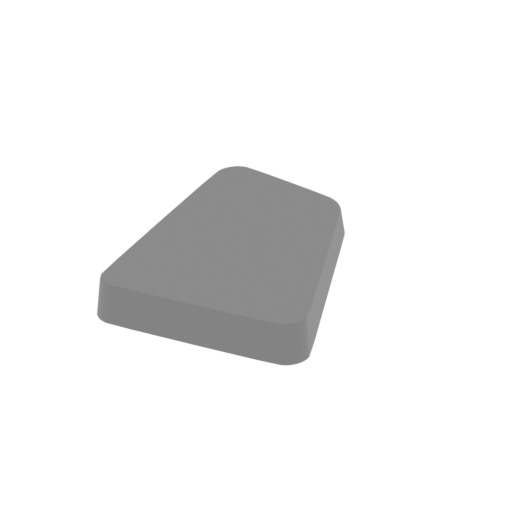

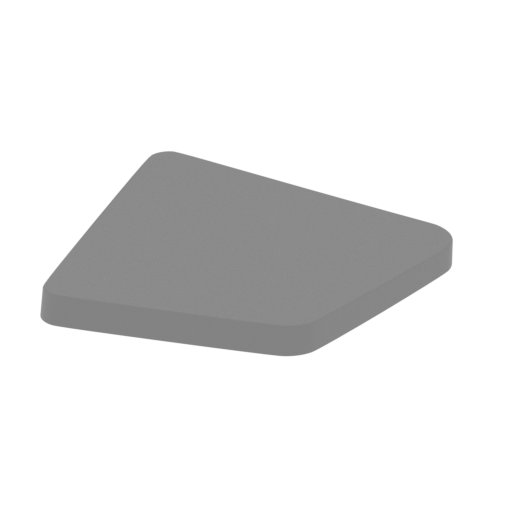

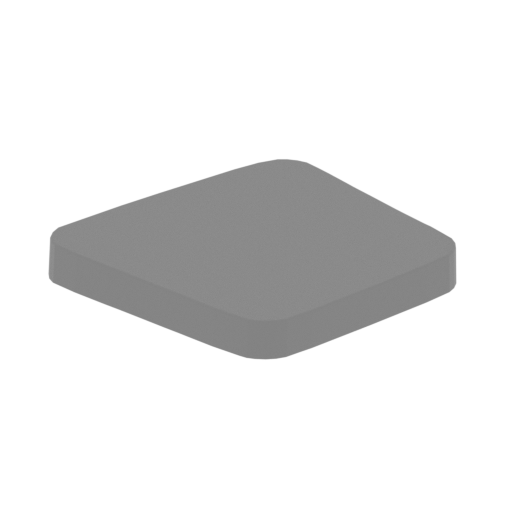

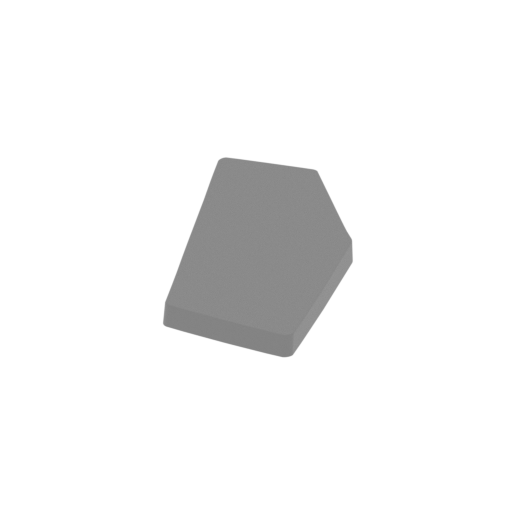

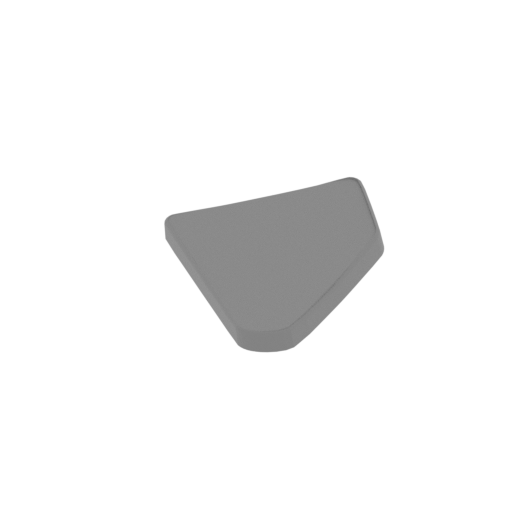

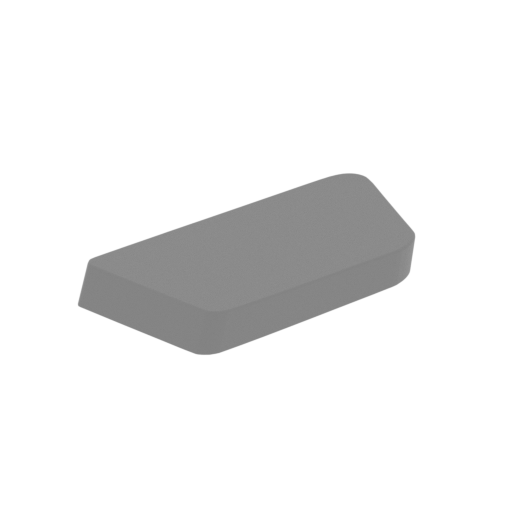

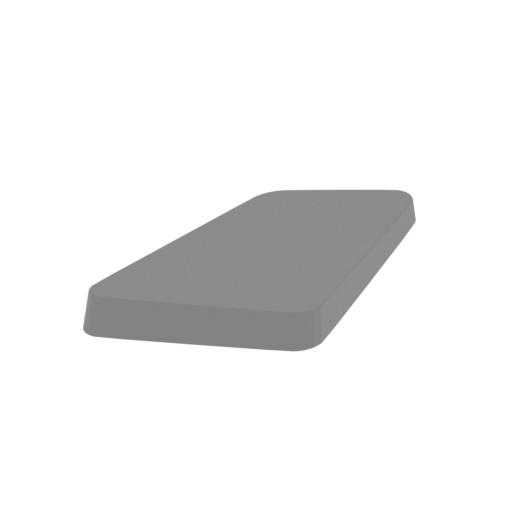

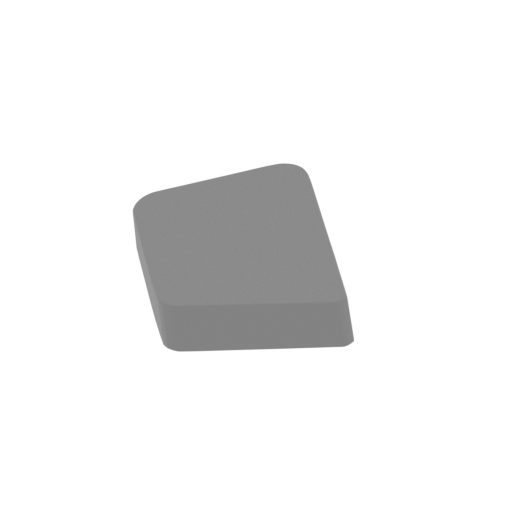

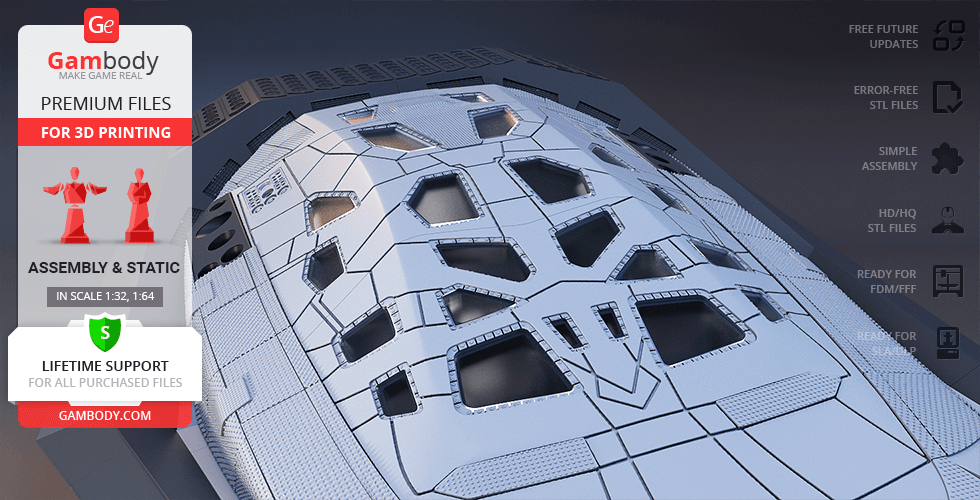

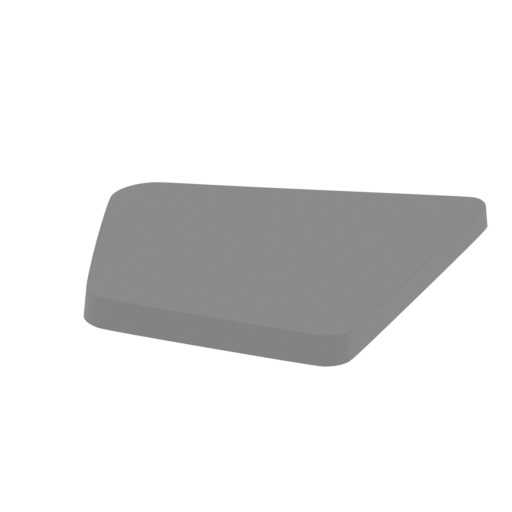

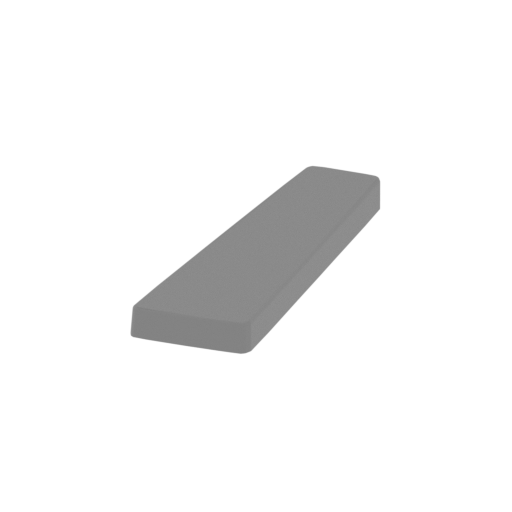

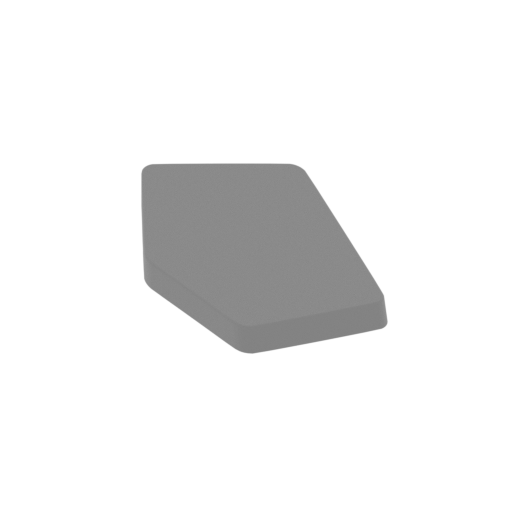

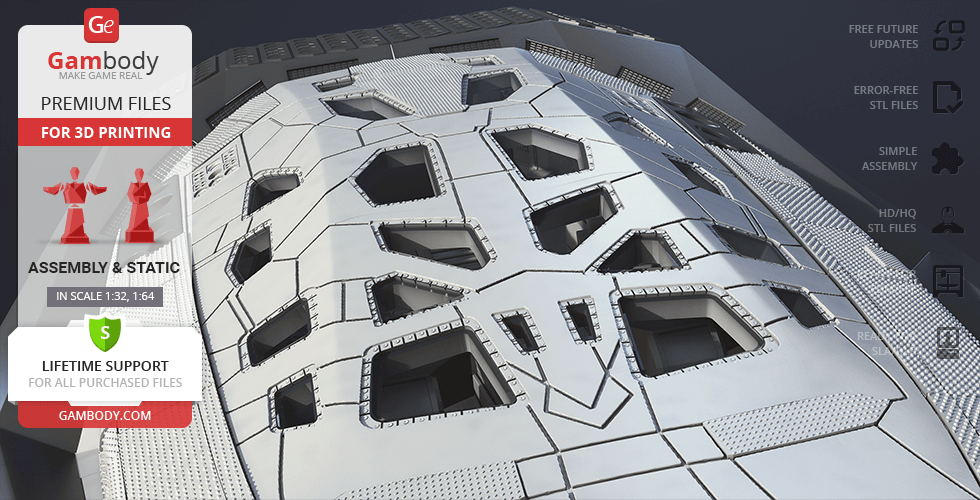

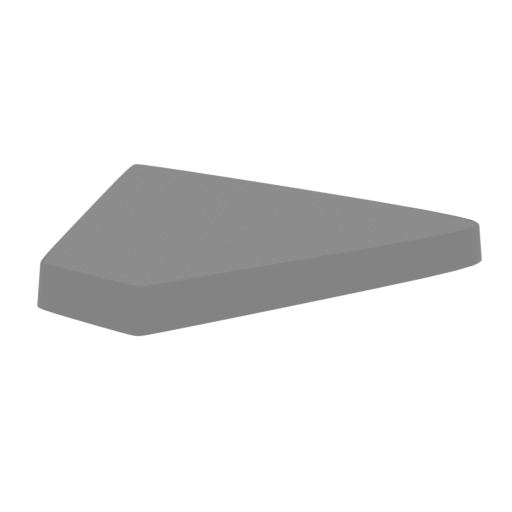

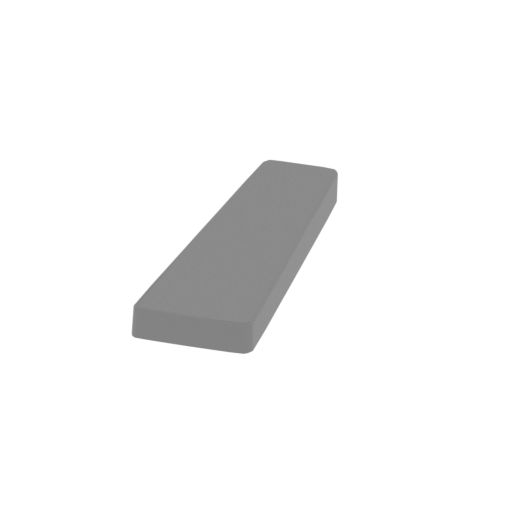

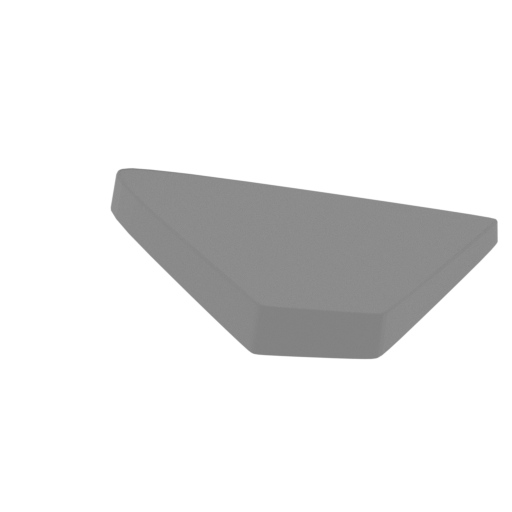

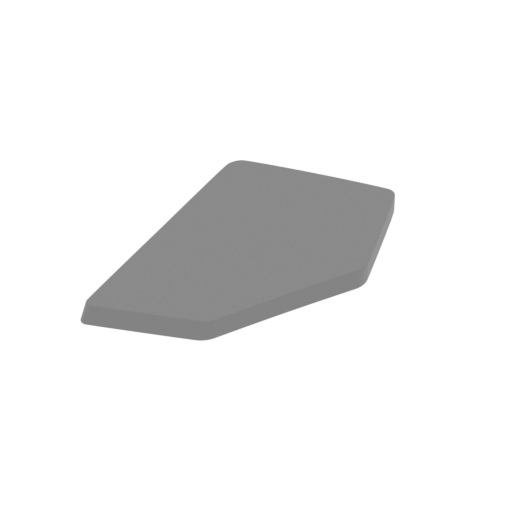

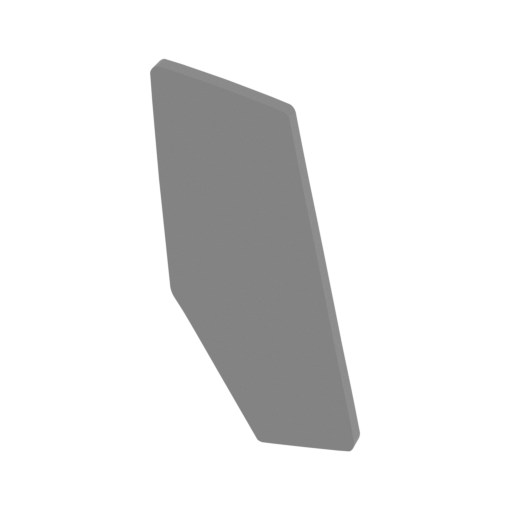

- Windows on the upper fuselage and the glass parts on the thrusters are provided separately to be printed with the transparent filament;

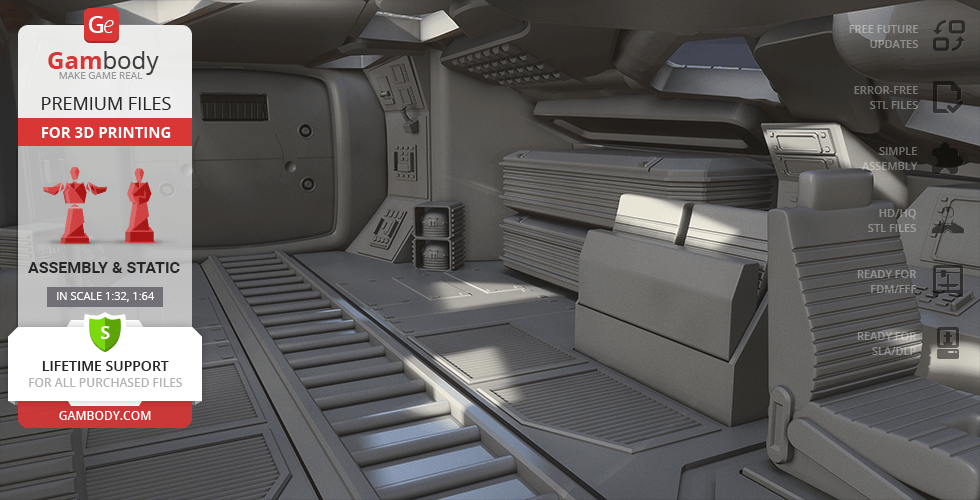

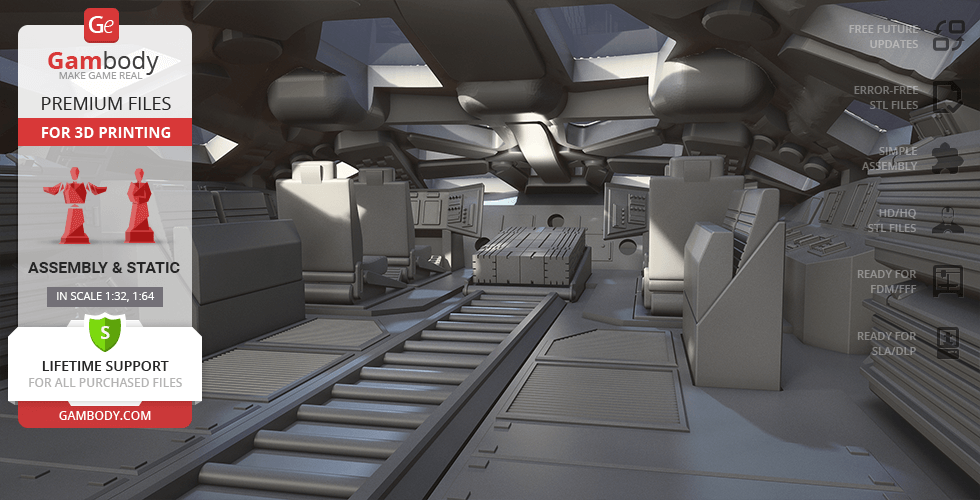

- Completely redesigned interior;

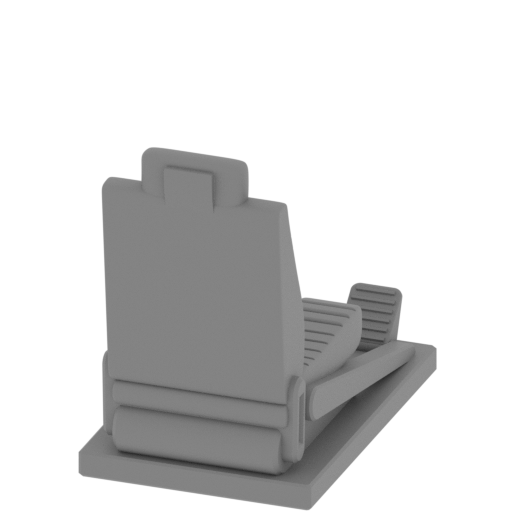

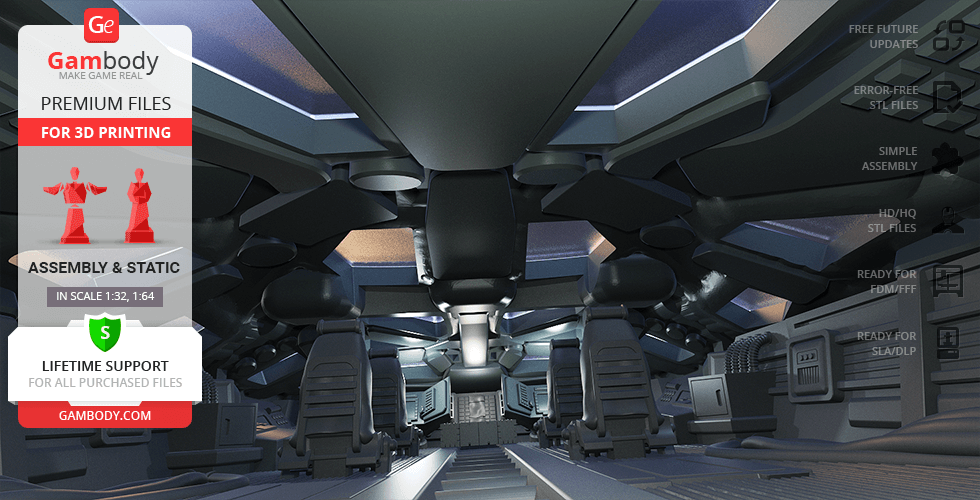

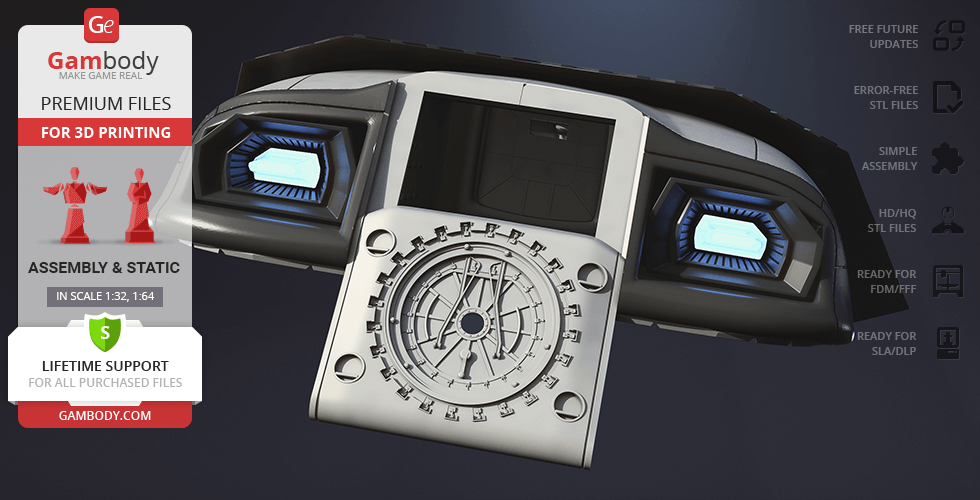

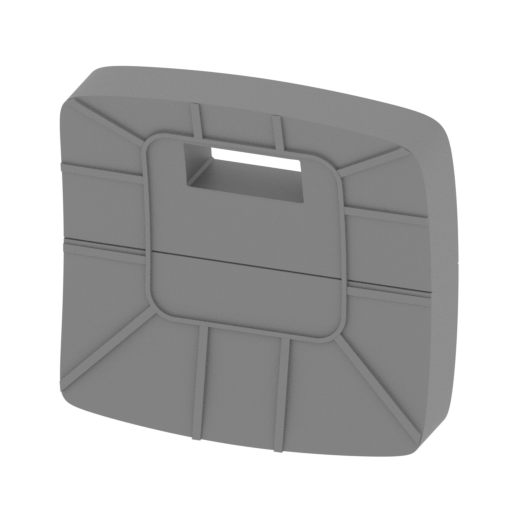

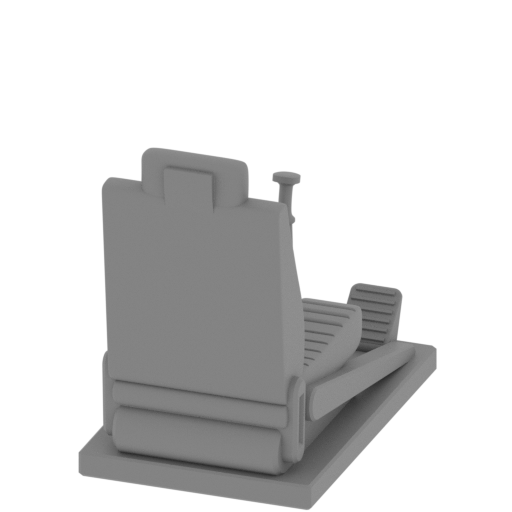

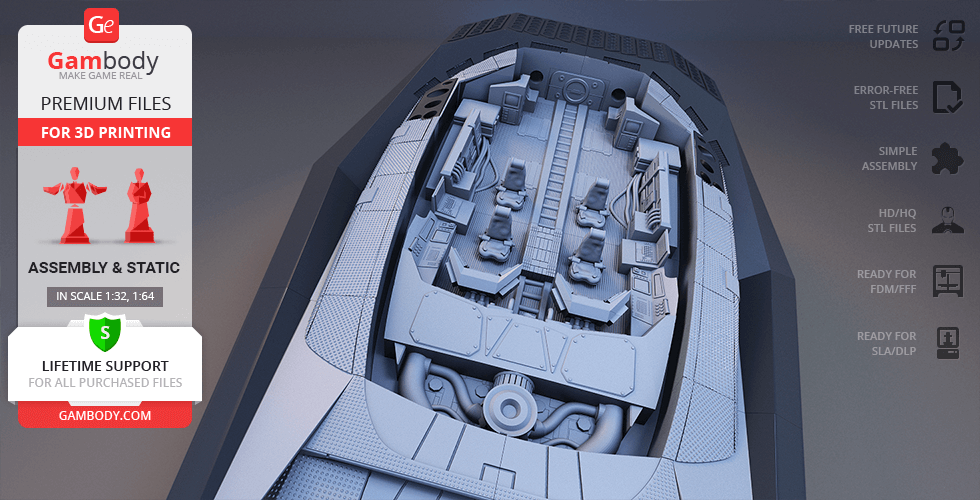

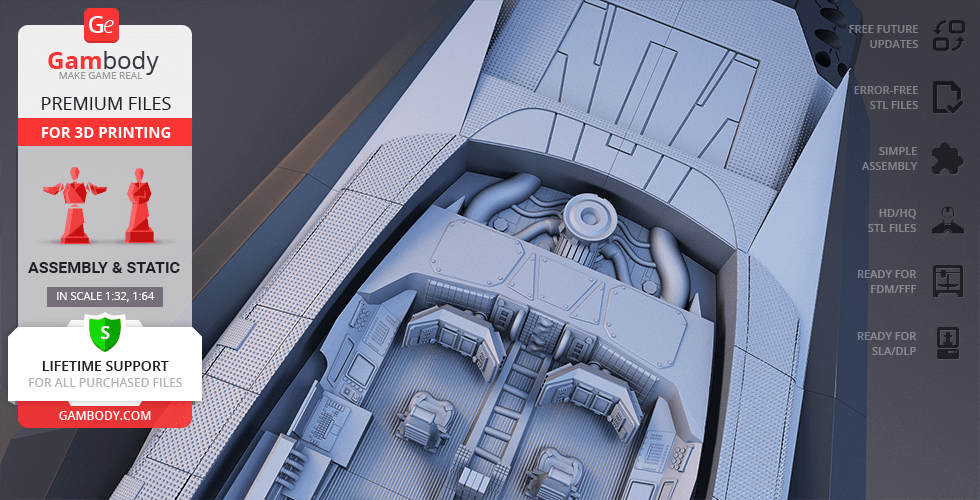

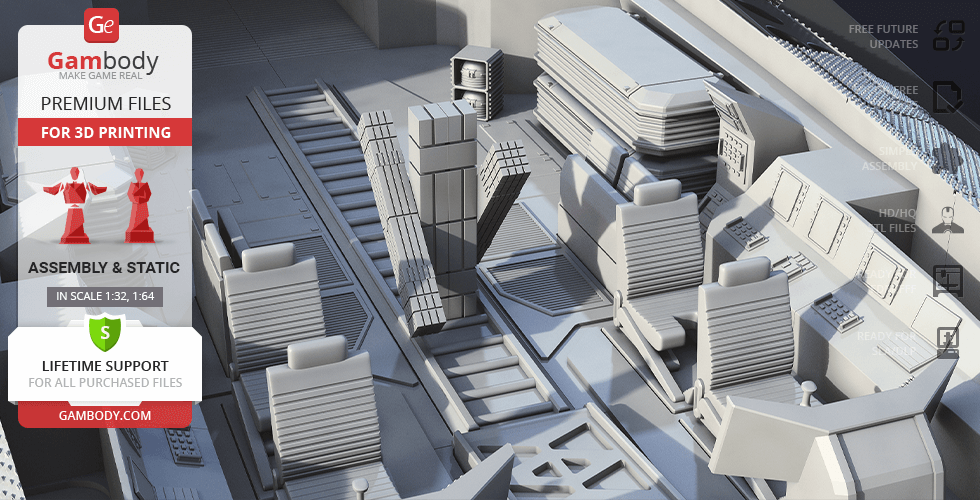

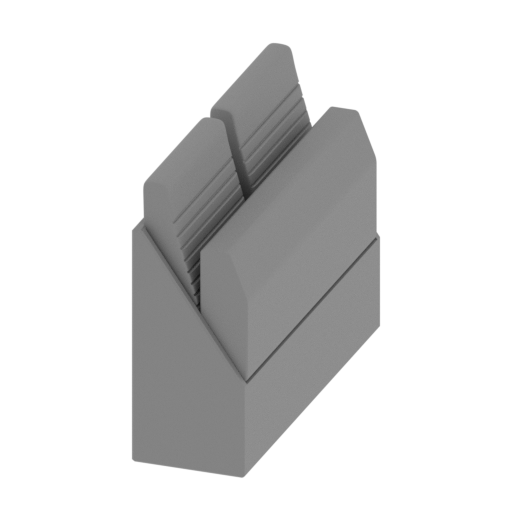

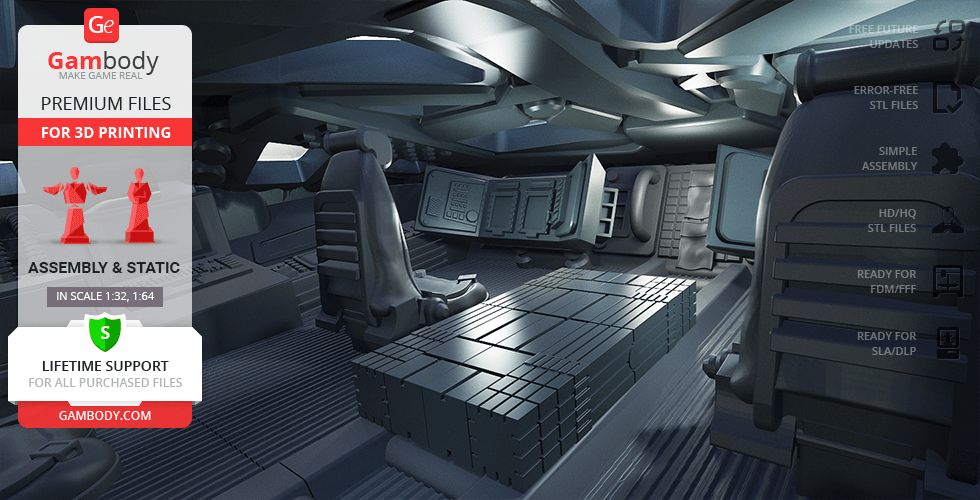

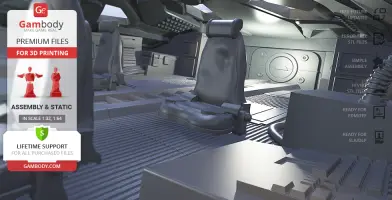

- The model features the highly-detailed cockpit with crew seats and detailed aft compartment that can be accessed via opening entry hatch;

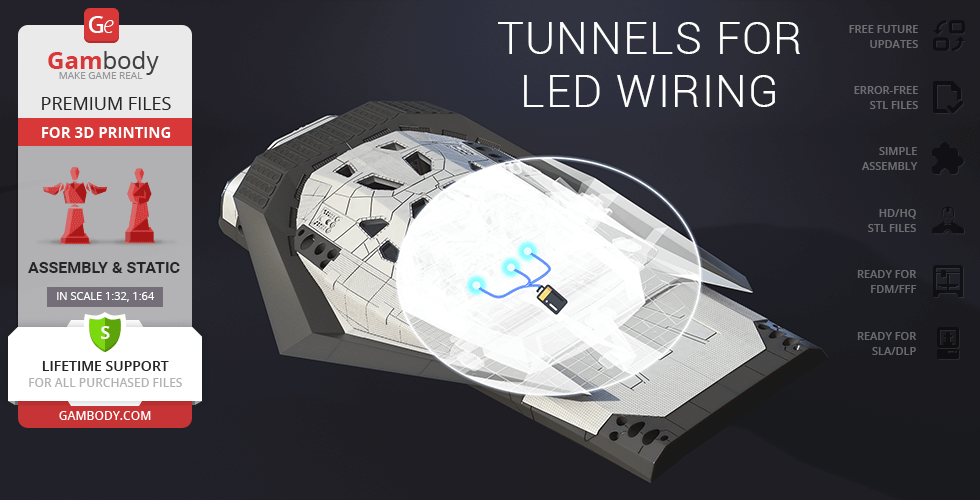

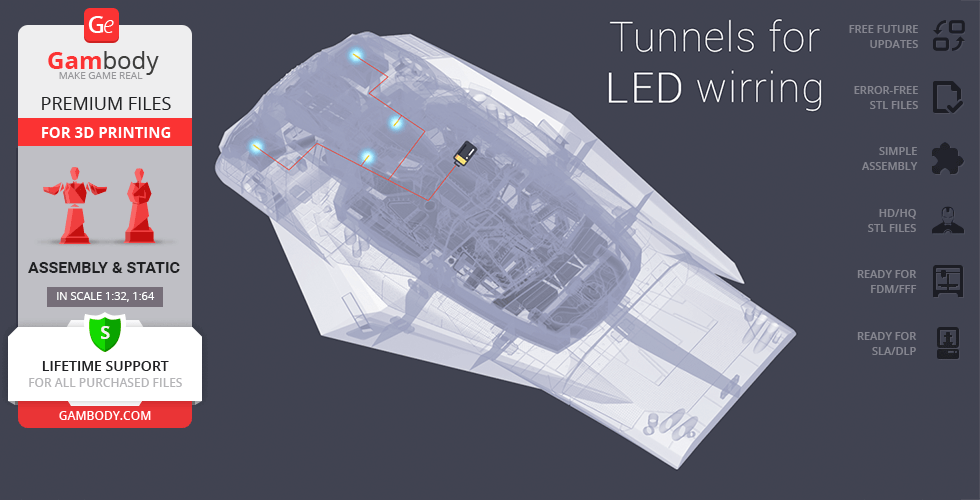

- Tunnels throughout the Ranger's body are provided for LED wiring to light up the cockpit and thrusters;

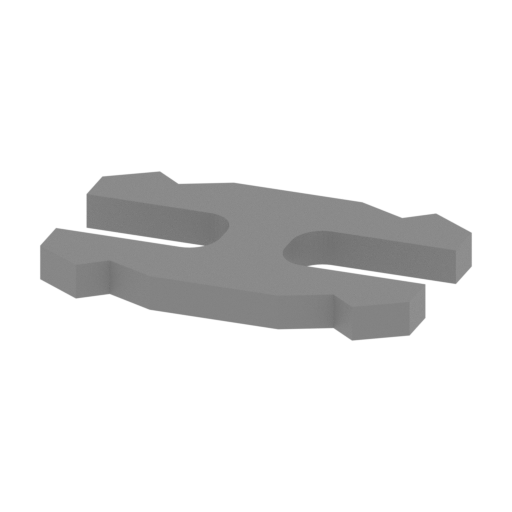

- Assembly kit includes lock 53_lock_x32_fdm to attach the model's parts securely without glue that needs to be printed 32times and the lock 91_lock_m2_x8_fdm that needs to be printed 8 times.

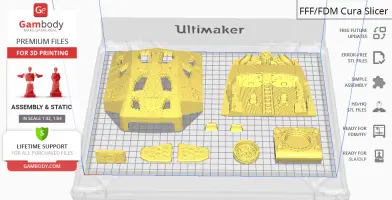

- All parts are divided in such a way that you will print them with the smallest number of support structures.

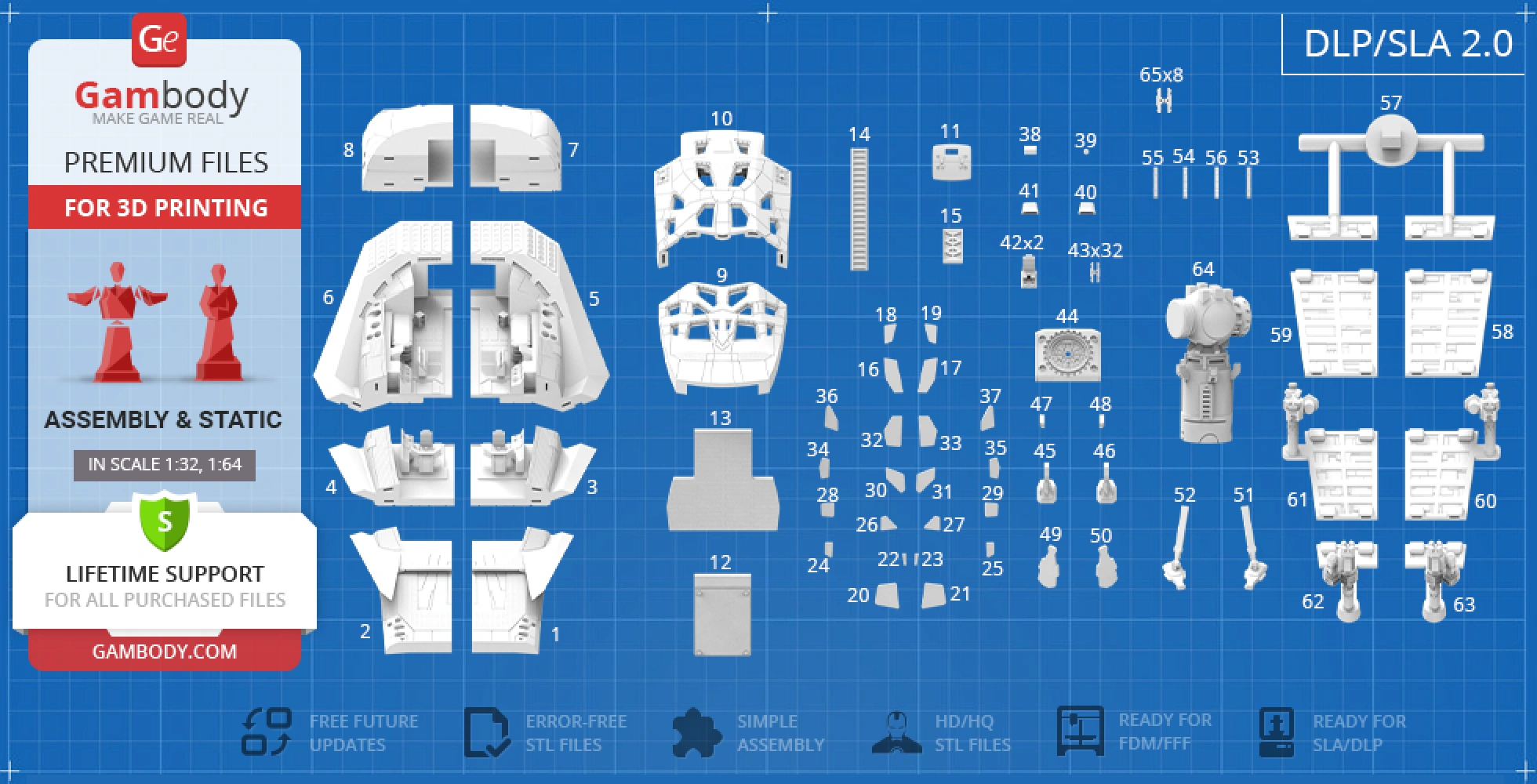

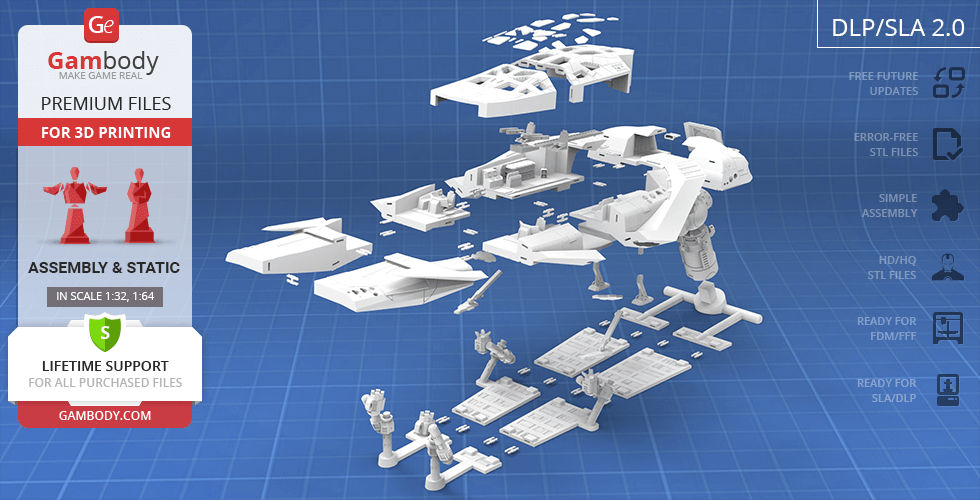

DLP/SLA/SLS 2.0 version features:
- Contains 65 parts;
- Interstellar Ranger can be mounted either on the platform or on the landing struts;
- A printed ship on the platform is 75 mm tall, 122 wide, 276 mm deep;
- A printed ship on the landing struts is 46 mm tall, 122 wide, 227 mm deep;
- Completely redesigned interior;
- The model features the highly-detailed cockpit with crew seats and detailed aft compartment that can be accessed via opening entry hatch;
- Tunnels throughout the Ranger's body are provided for LED wiring to light up the cockpit and thrusters;
- Assembly kit includes lock 43_lock_x32_sla to attach the model's parts securely without glue that needs to be printed 32times and the lock 65_lock_m2_x8_sla that needs to be printed 8 times.

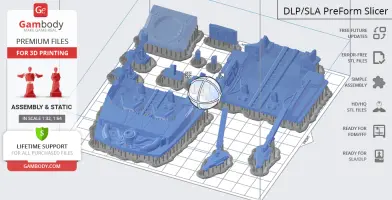

- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

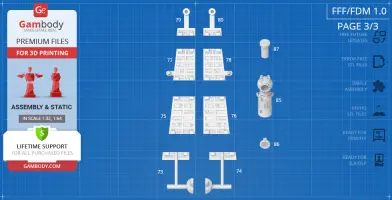

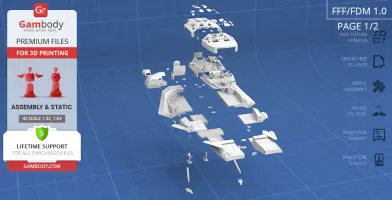

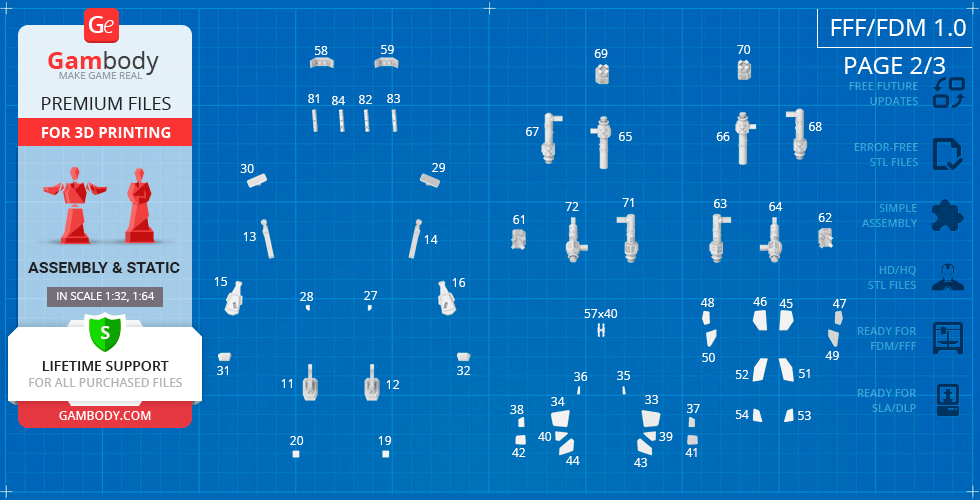

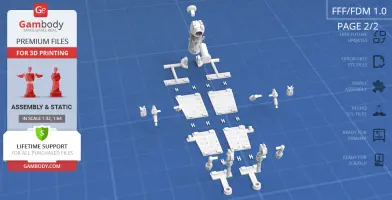

FFF/FDM 1.0 version features:
- Contains 87 parts;
- A printed ship is 170 mm tall, 284 mm wide, 549 mm deep;
- Assembly kit includes lock 57_Ge_lock_x40 to attach the model's parts securely without glue that needs to be printed 40 times;
- Windows on the upper fuselage and the glass parts on the thrusters are provided separately to be printed with the transparent filament;
- The model features the highly-detailed cockpit with crew seats and detailed aft compartment that can be accessed via opening entry hatch;
- The model can be optionally displayed with landing gear or mounted on a platform with the landing gear slots concealed with special caps;
- Tunnels throughout the Ranger's body are provided for LED wiring to light up the cockpit and thrusters;

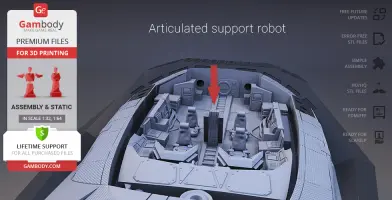

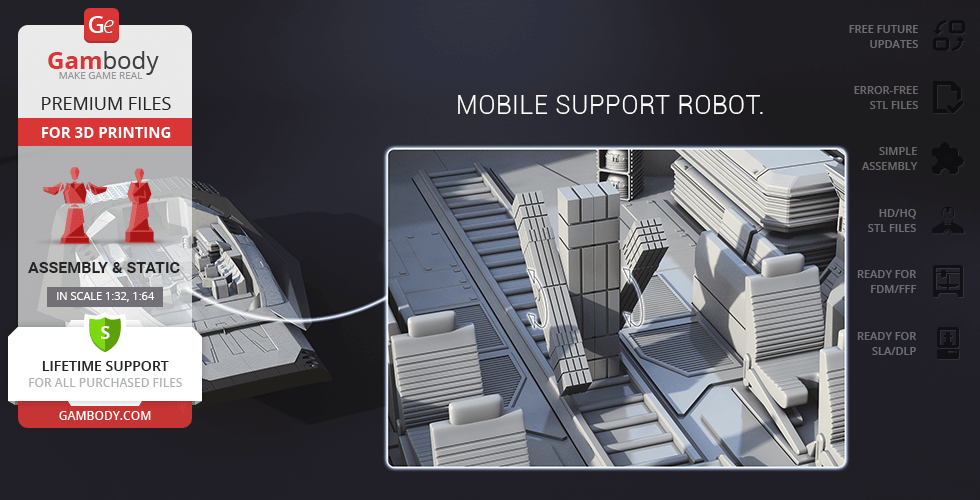

- The assembly of the articulated segments of robot TARS requires additional “pins”. These pins do not come in STL files but can be made out of short pieces of regular 1.75 PLA;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

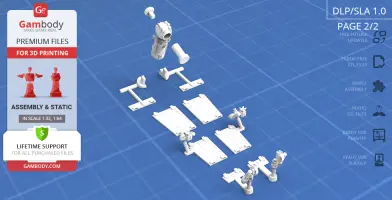

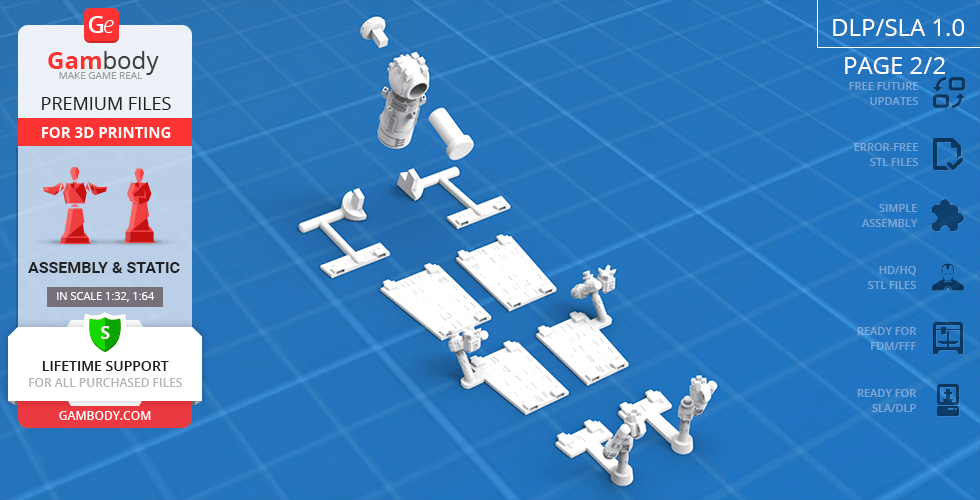

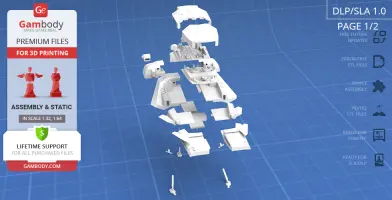

DLP/SLA/SLS 1.0 version features:
- Contains 39 parts;
- A printed model is 85 mm tall, 142 mm wide, 275 mm deep;
- The model features the highly-detailed cockpit with crew seats and detailed aft compartment that can be accessed via opening entry hatch;
- The model can be optionally displayed with landing gear or mounted on a platform with the landing gear slots concealed with special caps;
- Tunnels throughout the Ranger's body are provided for LED wiring to light up the cockpit and thrusters;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.
You can get the model of Interstellar Ranger for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.
Watch the tutorial on how to assemble Interstellar Ranger 3D Printing Model at Gambody YouTube channel.
Also, you may like otherSpaceships3D Printing Models.
_______
FAQ:
Average customer rating (14 reviews)
4.3
Ratings breakdown
Click a star rating to filter reviews
Overall experience
Level of detail in the model
4.3
Model cut quality and assembly guide
4.3
Clarity and accuracy of the model page
4.3
Verified purchase Level of detail in the model
4.7
Model cut quality and assembly guide
4.6
Clarity and accuracy of the model page
4.8
Community Support Team If possible, we would be very grateful if you could provide reference images of the lower front area, clearly indicating which details are missing and their exact placement. At the moment, we’ve only been able to find a rather general reference, which makes precise adjustments difficult.
Input like this is very valuable and helps guide future refinements and updates by our moderation team in cooperation with William Adams, the model’s author. Thank you again for contributing to the improvement of the models.
Verified purchase Level of detail in the model
5
Model cut quality and assembly guide
5
Clarity and accuracy of the model page
5
This feedback is from a user who hasn't purchased this model Level of detail in the model
5
Model cut quality and assembly guide
5
Clarity and accuracy of the model page
5
This feedback is from a user who hasn't purchased this model Level of detail in the model
5
Model cut quality and assembly guide
5
Clarity and accuracy of the model page
5
This feedback is from a user who hasn't purchased this model Level of detail in the model
5
Model cut quality and assembly guide
5
Clarity and accuracy of the model page
5
Verified purchase Level of detail in the model
5
Model cut quality and assembly guide
5
Clarity and accuracy of the model page
5
Verified purchase Level of detail in the model
5
Model cut quality and assembly guide
5
Clarity and accuracy of the model page
5
This feedback is from a user who hasn't purchased this model Level of detail in the model
5
Model cut quality and assembly guide
5
Clarity and accuracy of the model page
5
Verified purchase Level of detail in the model
5
Model cut quality and assembly guide
5
Clarity and accuracy of the model page
5
Verified purchase Level of detail in the model
5
Model cut quality and assembly guide
5
Clarity and accuracy of the model page
5
This feedback is from a user who hasn't purchased this model Level of detail in the model
2
Model cut quality and assembly guide
2
Clarity and accuracy of the model page
2
This feedback is from a user who hasn't purchased this model Level of detail in the model
1
Model cut quality and assembly guide
1
Clarity and accuracy of the model page
1
This feedback is from a user who hasn't purchased this model Level of detail in the model
5
Model cut quality and assembly guide
5
Clarity and accuracy of the model page
5
Community Support Team Level of detail in the model
2
Model cut quality and assembly guide
2
Clarity and accuracy of the model page
2

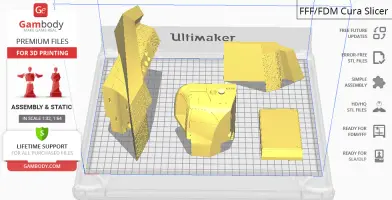

Below you'll find detailed slicing settings for Bambu Studio 2.0+, Orca Slicer 2.0+, UltiMaker Cura 5.0+, PrusaSlicer 2.0+, Slic3r 1.3+, Simplify3D 5.0+ to help you get the best results when printing this model. These settings are optimized specifically for this 3D model, but please note they may need slight adjustments depending on your printer or filament. When in doubt, refer to your printer's user manual.
To avoid printing issues and achieve the best quality, we highly recommend applying the following settings:
Bambu Studio 2.0+ For better quality use 0.12 mm layer height, for fast printing use 0.2 mm layer height. For pins and the Ge connectors, use 0.2 layer height.
120-150% of your Layer Height
But you can paint the seam if you want.
You have to calibrate this parameter
You have to calibrate this parameter
You have to calibrate this parameter
For pins and power elements of the structure, such as the vehicle frame, use 3 loop
Disabled for vehicles and enabled for characters
For 0,2 Layer Height
The parameters in this tab vary greatly, it all depends on the quality of your printer. For example, if you have a classic Ender3, stick to the minimum parameters, but if you have a newer printer, for example Anycubic cobra 3 v2, you can select the maximum recommended values
Settings for advanced users, change these parameters only if you have sufficient 3D printing expertise
Enable this parameter if your model requires supports
We also recommend placing and removing supports manually in some places using special button
1-2 loops for more thick support
Top Z distance = 1-1.3 layer Height. If the supports are hard to remove, try increasing this setting by 0.1-0,4 mm
Bottom Z distance = 1-1.3 layer Height. If the supports are hard to remove, try increasing this setting by 0.1-0,4 mm
You have to calibrate this parameter which one is better for your filament
Increase this parameter if the supports are hard to remove from walls
For PLA and PETG filament types
5-8 mm is optional for small prints that have bad adhesion to the build plate
You have to calibrate this parameter
Read the description on your filament roll
Read the description on your filament roll and increase this parameter for fast printers
Read the description on your filament roll and increase this parameter for fast printers
Orca Slicer 2.0+ For better quality use 0.12 mm layer height, for fast printing use 0.2 mm layer height. For pins and the Ge connectors, use 0.2 layer height.
120-150% of your Layer Height
But you can paint the seam if you want.
0.01-0.05 You have to calibrate this parameter
0.01-0.05 You have to calibrate this parameter
0.1-0.2 You have to calibrate this parameter
For pins and power elements of the structure, such as the vehicle frame, use 3 loop
Disabled for vehicles and ships, enabled for characters
For 0,2 Layer Height
For 0,2 Layer Height
The parameters in this tab vary greatly, it all depends on the quality of your printer. For example, if you have a classic Ender3, stick to the minimum parameters, but if you have a newer printer, for example, Anycubic Kobra 3 Or Bambulab A1, you can select the maximum recommended values.
Settings for advanced users, change these parameters only if you have sufficient 3D printing expertise
Enable this parameter if your model requires supports
We also recommend placing and removing supports manually in some places using special button
Top Z distance = 1-1.3 layer Height. If the supports are hard to remove, try increasing this setting by 0.1-0,4 mm
Bottom Z distance = 1-1.3 layer Height. If the supports are hard to remove, try increasing this setting by 0.1-0,4 mm
Increase this parameter if the supports are hard to remove from walls
For PLA and PETG filament types
5-8 mm is optional for small prints that have bad adhesion to the build plate
Read the description on your filament roll
Read the description on your filament roll and increase this parameter for fast printers
You have to calibrate this parameter
Read the description on your filament roll and increase this parameter for fast printers
Read the description on your filament roll
This field is filled in according to your printer specifications when you add it to the slicer.
You can add custom G-code here for the start and end of the print. However, be careful - this is for advanced users only!
You have to calibrate your printer using Ge retraction test models
Retraction Length: For direct-drive setups use 0.5 mm to 2.5 mm; for Bowden extruders use 5 to 7 mm
This is how fast the filament is pulled back—40-60 mm/s for direct drive and 30-50 mm/s for Bowden setups.
You have to calibrate this parameter: Reduce it until the printer starts to hit the parts with the nozzle during printing, then increase it by 0.2.

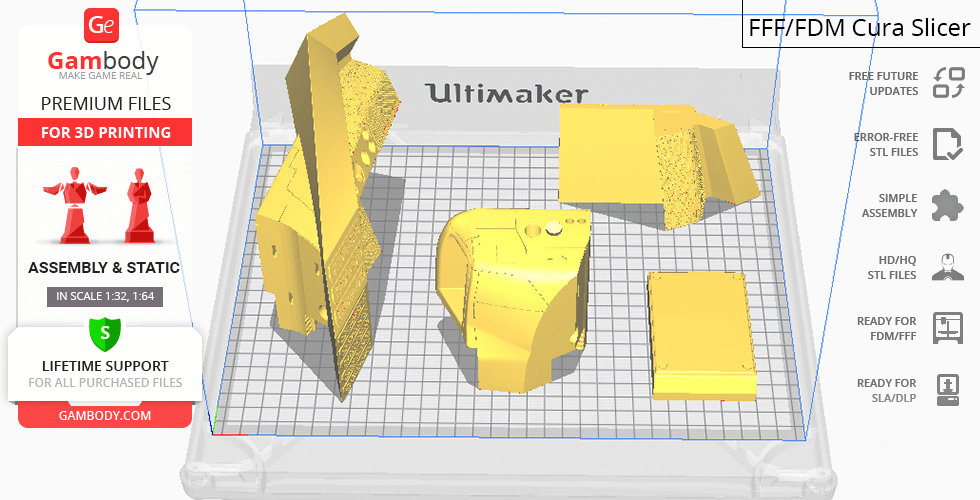

UltiMaker Cura 5.0+ For better quality use 0.12 mm layer height, for fast printing use 0.2 mm layer height. For pins and the Ge connectors, use 0.2 layer height.
120-150% of your Layer Height
To increase the strength of the print parts, use wall line count: 3
For pins and connectors use 50% Infill
These parameters are for standard PLA plastic. If you are using a different type of plastic, check the printing temperature recommended by the manufacturer. Also, read the description on your filament spool. For fast printers, add +30 °C to the current parameters.
The parameters in this tab vary greatly, it all depends on the quality of your printer. For example, if you have a classic Ender3, stick to the minimum parameters, but if you have a newer printer, for example Anycubic cobra 3 v3, you can select the maximum recommended values
Settings for advanced users, change these parameters only if you have sufficient 3D printing expertise.
You need to calibrate this parameter using Gambody test models. These values are average values for a Direct Drive extruder; for a Bowden extruder, the values should be increased.
You need to calibrate this parameter using Gambody test models. These values are average values for a Direct Drive extruder; for a Bowden extruder, the values should be increased.
Use this value other than 0 if your nozzle catches on the internal infill during travel moves. Try to keep this value as low as possible in height.
Use normal supports to support large, straight surfaces (most mechanical or technical parts).
You have to calibrate this parameter according to the capabilities of your printer and your filament, using a Gambody test models.
Use 1 instead of 0 if your supports are thin and tall. They will be harder to remove, but much stronger.
Top Z distance = 1-1.3 layer Height. If the supports are hard to remove, try increasing this setting by 0.1-0,4 mm
Increase this parameter if the supports are hard to remove from walls
Use tree supports to support complex objects, such as characters.
You have to calibrate this parameter according to the capabilities of your printer and your filament, using a Gambody test models.
Top Z distance = 1-1.3 layer Height. If the supports are hard to remove, try increasing this setting by 0.1-0,4 mm
Increase this parameter if the supports are hard to remove from walls
Use a skirt for all parts when printing on outdated printers.
Use a brim when printing thin but tall parts, as well as parts with a small bed adhesion area.
PrusaSlicer 2.0+ For better quality use 0.12 mm layer height, for fast printing use 0.2 mm layer height. For pins and the Ge connectors, use 0.2 layer height.
120-150% of your Layer Height
for 0.2 Layer Height
But you can paint the seam if you want.
(for PLA and PETG)
(5-8 mm is optional for small prints that have bad adhesion to the build plate)
Enable this parameter if your model requires supports
(45-50 degree)You have to calibrate this parameter according to the capabilities of your printer
and your filament, using a Gambody test models.
Top contact Z distance = 1-1.3 layer Height. If the supports are hard to remove, try
increasing this setting by 0.1-0,4 mm
Top contact Z distance = 1-1.3 layer Height. If the supports are hard to remove, try
increasing this setting by 0.1-0,4 mm
Increase this parameter if the supports are hard to remove from walls
The parameters in this tab vary greatly, it all depends on the quality of your printer. For example, if you have a classic Ender3, stick to the minimum parameters, but if you have a newer printer, for example Anycubic cobra 3 v3, you can select the maximum recommended values
Settings for advanced users, change these parameters only if you have sufficient 3D printing expertise. Use the minimum value for outdated printers without acceleration calibration, and the maximum value for modern printers if you need it.
These settings only work for 3D printers with multiple extruders
You can try setting all parameters in this section, except the First layer, to values between 0.75% of your nozzle diameter and 1.25% of your nozzle diameter. Adjusting them will help you work out the optimal parameters for the best quality for your print. As for the First layer, you can set it to 150% of the diameter of your nozzle for better adhesion to the build plate (for a nozzle with a diameter of 0.4 mm, the First layer extrusion width can be from 0.3 mm to 0.5 mm)
For better printing quality you have to calibrate this parameter using Gambody test model.
Check your filament manufacturer's temperature recommendations on the spool.
Cooling parameters depends on the material you use for printing.
*for PLA
Slic3r 1.3+ For better quality use 0.12 mm layer height, for fast printing use 0.2 mm layer height. For pins and the Ge connectors, use 0.2 layer height.
120-150% of your Layer Height
For 0.12 Layer Height
For 0.12 Layer Height
For pins and connectors use 50% Infill
Use skirt for outdated 3d printers
(5-8 mm is optional for small prints that have bad adhesion to the build plate)
Enable this parameter if your model requires supports
(45-60 degree)You have to calibrate this parameter according to the capabilities of your printer and your filament, using a Gambody test models
Contact Z distance = 1-1.3 layer Height. If the supports are hard to remove, try increasing this setting by 0.1-0,4 mm
The parameters in this tab vary greatly, it all depends on the quality of your printer. For example, if you have a classic Ender3, stick to the minimum parameters, but if you have a newer printer, for example Anycubic cobra 3 v3, you can select the maximum recommended values
Settings for advanced users, change these parameters only if you have sufficient 3D printing expertise. Use the minimum value for outdated printers without acceleration calibration, and the maximum value for modern printers if you need it.
You have to calibrate this parameter from 0.9 to 1.1 according to the capabilities of your printer and your filament, using a Gambody test models.
Check your filament manufacturer's temperature recommendations on the spool.
Cooling parameters depends on the material you use for printing.
Calibrate this value if you need to reduce or improve the adhesion between the plastic and the heat bed
Your current nozzle diameter
You need to calibrate this parameter using Gambody test models. These values are average values for a Direct Drive extruder; for a Bowden extruder, the values should be increased.
Simplify3D 5.0+ Your current nozzle diameter
You have to calibrate this parameter using Gambody test models.
You need to calibrate this parameter using Gambody test models. These values are average values for a Direct Drive extruder; for a Bowden extruder, the values should be increased.
For better quality use 0.12 mm layer height, for fast printing use 0.2 mm layer height. For pins and the Ge connectors, use 0.2 layer height.
For 0,2 Layer Height
For 0,2 Layer Height
To increase the strength of the print parts, use Outline Perimeters: 3
You can enable this parameter to print rounded or spherical models, as well as character models.
Use this option only if your parts are too tight. but better calibrate your printer extrusion
Use this option only if your parts are too tight. but better calibrate your printer extrusion
Use 2 and more if you want to create skirt instead brim
1-2 for skirt and 10-20 for brim
Use for wipe nozzle if you need
Use For ABS filament
For pins and connectors use 50% Infill
Top Z distance = 1-1.3 layer Height. If the supports are hard to remove, try increasing this setting by 0.1-0,4 mm
Calibrate your filament and detect optimal temperature for it
Average temperature for PLA filament
The parameters in this tab vary greatly, it all depends on the quality of your printer. For example, if you have a classic Ender3, stick to the minimum parameters, but if you have a newer printer, for example Anycubic cobra 3 v3, you can select the maximum recommended values
Settings for advanced users, change these parameters only if you have sufficient 3D printing expertise.
