White Star 3D Printing Model | Assembly

(7)
cm: 31.8 w x 68 d x 15.2 h
in: 12.52 w x 26.772 d x 5.984 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

  • 2 versions of White Star STL files for FFF/FDM and DLP/SLA/SLS - files for both versions are available for download after the purchase
  • STL files of high-poly White Star 3D Model for 3D printing consist of 76 parts
  • Sizes: FFF/FDM: 152 mm tall, 318 mm wide, 680 mm deep​, DLP/SLA/SLS: 76 mm tall, 159 mm wide, 340 mm deep
  • Assembly Manual for FFF/FDM 1.0 and DLP/SLA/SLS 1.0 versions in PDF format
  • Detailed settings that we provide as a recommendation for Cura, Simplify3D and Slic3r for the best print
  • Full technical support from the Gambody Support Team

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

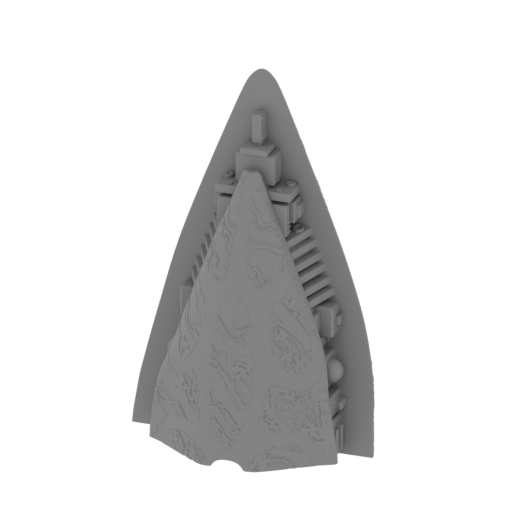

_1_hull_cabine_front_1_FD M (repaired).stl
17.49 MiB 17 h 20 min 9 m 87 x 59 x 134 Download

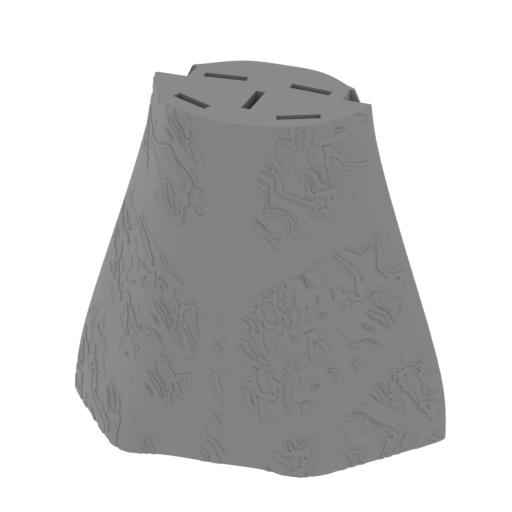

_2_hull_cabine_front_2_FD M (repaired).stl
13.89 MiB 13 h 52 min 8 m 87 x 57 x 77 Download

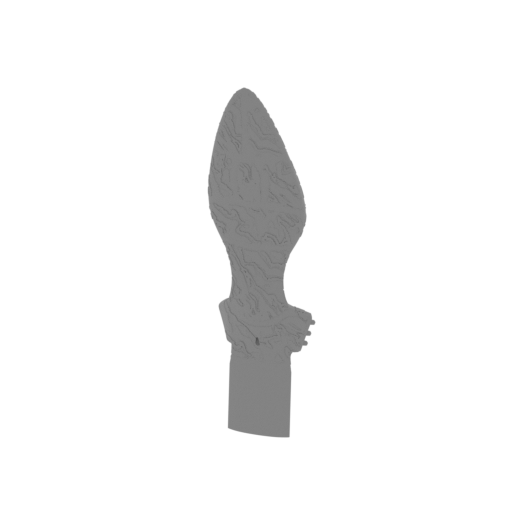

_3_hull_cabine_top_1_FDM (repaired).stl
11.68 MiB 5 h 14 min 3 m 41 x 28 x 158 Download

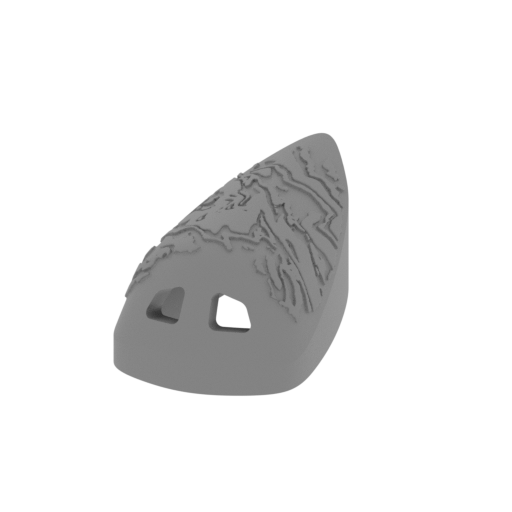

_4_hull_cabine_top_2_FDM (repaired).stl
4.57 MiB 34 min <1 m 16 x 32 x 11 Download

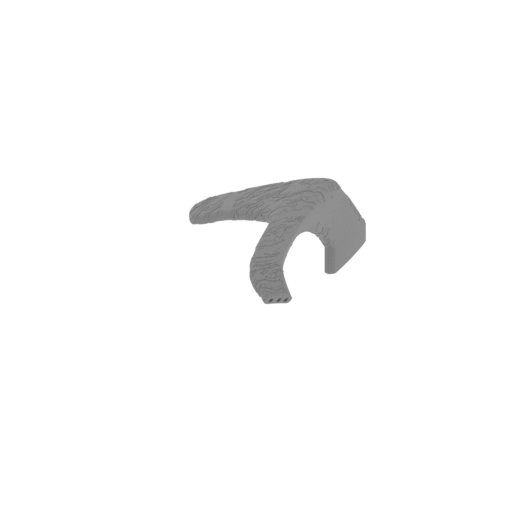

_5_hull_cabine_top_3_R_FD M (repaired).stl
10.56 MiB 8 h 53 min 7 m 75 x 152 x 44 Download

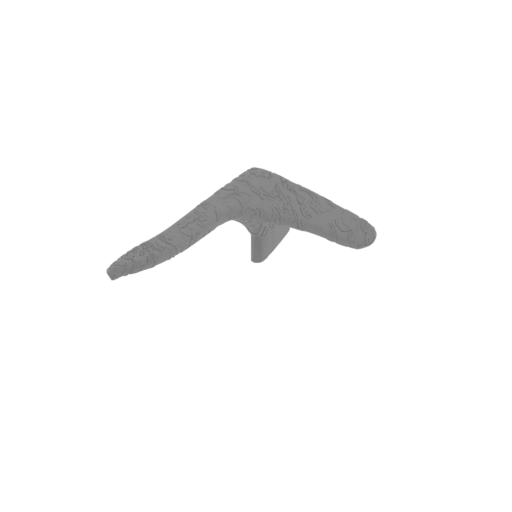

_6_hull_cabine_top_3_L_FD M (repaired).stl
10.56 MiB 8 h 56 min 7 m 75 x 152 x 44 Download

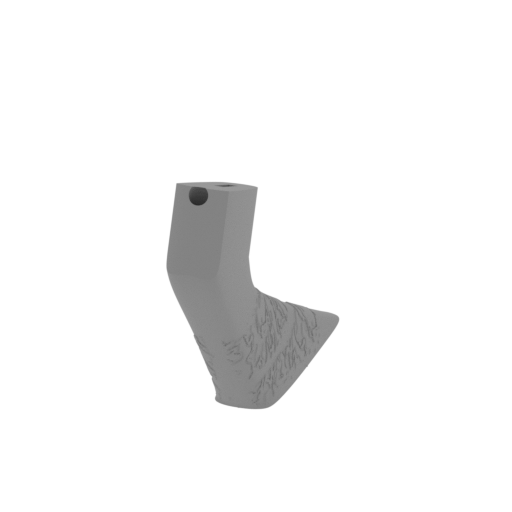

_7_hull_bot_1_FDM (repair ed).stl
3.02 MiB 2 h 20 min 1 m 14 x 83 x 61 Download

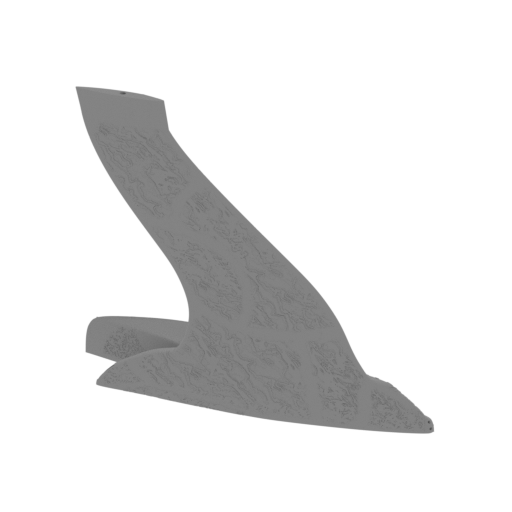

_8_hull_bot_2_R_FDM (repa ired).stl
24.36 MiB 16 h 8 min 9 m 184 x 46 x 144 Download

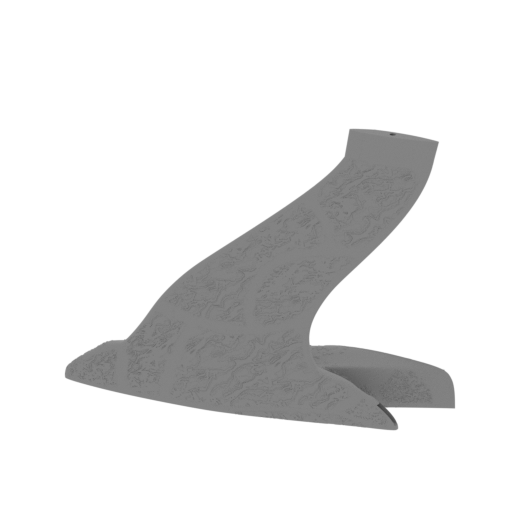

_9_hull_bot_2_L_FDM (repa ired).stl
24.35 MiB 16 h 28 min 9 m 184 x 46 x 144 Download

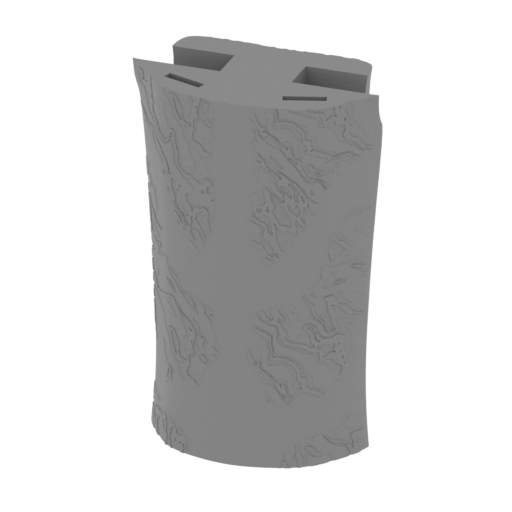

_10_hull_center_1_FDM (re paired).stl
6.72 MiB 8 h 5 min 5 m 58 x 33 x 87 Download

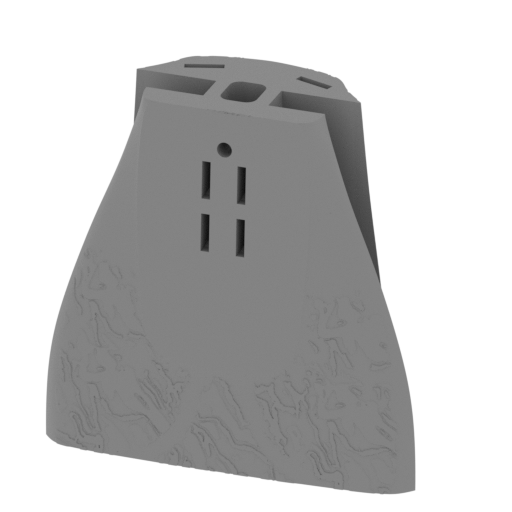

_11_hull_center_2_FDM (re paired).stl
9.55 MiB 15 h 58 min 9 m 96 x 51 x 95 Download

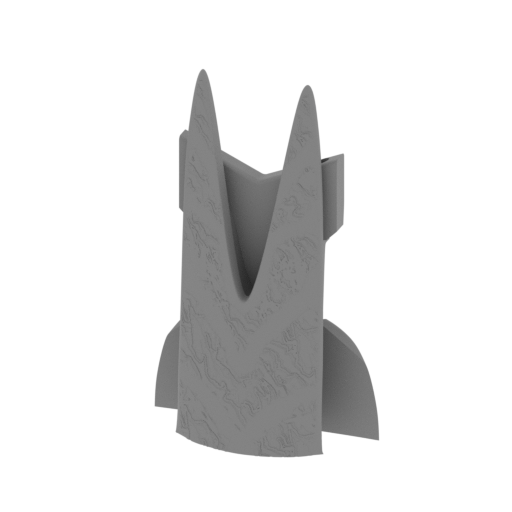

_12_hull_tail_FDM (repair ed).stl
11.70 MiB 15 h 32 min 9 m 96 x 39 x 158 Download

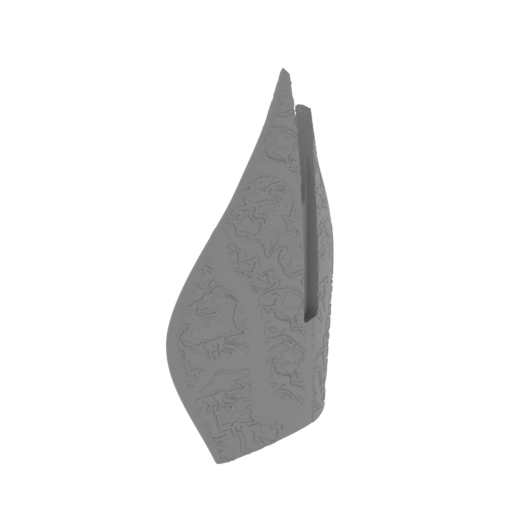

_13_hull_tail_wing_1_R_FD M (repaired).stl
21.17 MiB 5 h 30 min 3 m 27 x 92 x 124 Download

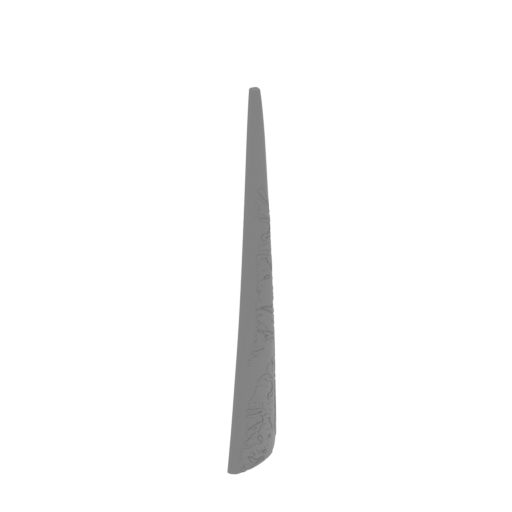

_14_hull_tail_wing_2_R_FD M (repaired).stl
9.33 MiB 2 h 51 min 2 m 19 x 61 x 125 Download
_15_hull_tail_wing_1_L_FD M (repaired).stl
21.17 MiB 5 h 31 min 3 m 27 x 92 x 124 Download

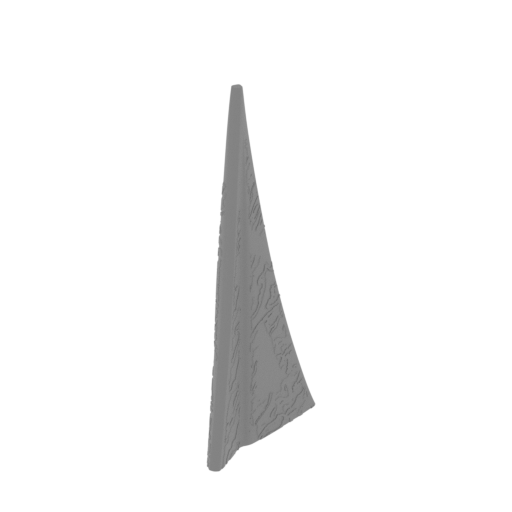

_16_hull_tail_wing_2_L_FD M (repaired).stl
9.32 MiB 2 h 50 min 2 m 19 x 61 x 125 Download

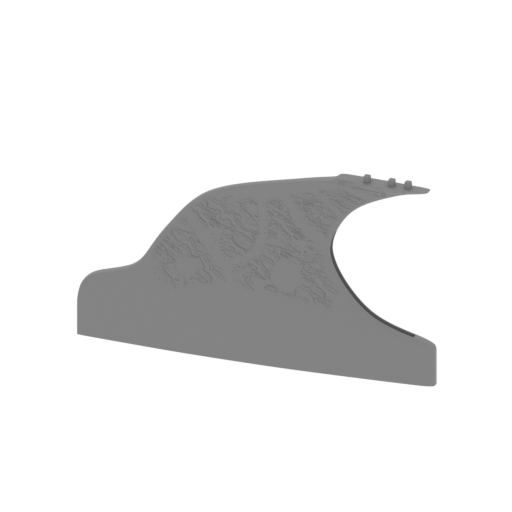

_17_hull_wing_1_R_FDM (re paired).stl
27.05 MiB 21 h 34 min 15 m 199 x 43 x 124 Download
_18_hull_wing_2_R_FDM (re paired).stl
12.69 MiB 6 h 7 min 3 m 112 x 23 x 30 Download

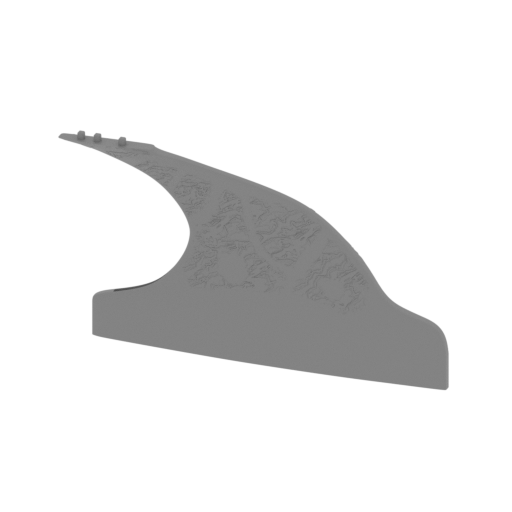

_19_hull_wing_1_L_FDM (re paired).stl
27.05 MiB 21 h 17 min 15 m 199 x 43 x 124 Download

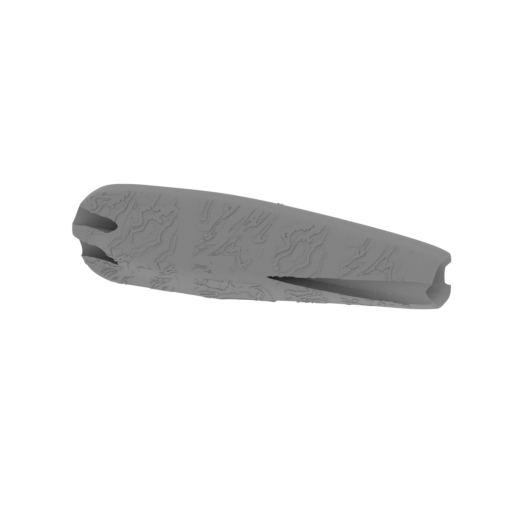

_20_hull_wing_2_L_FDM (re paired).stl
12.69 MiB 6 h 1 min 3 m 112 x 23 x 30 Download

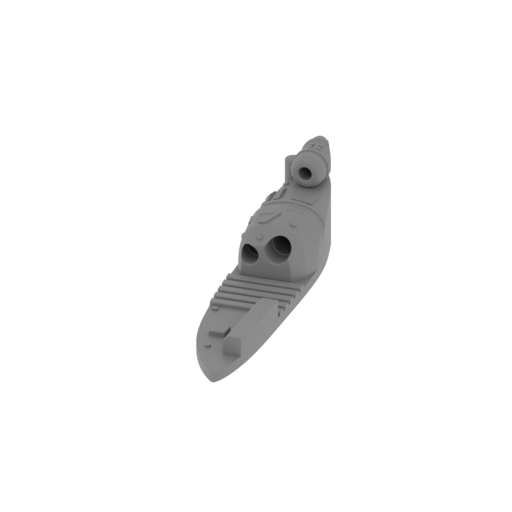

_21_gun_cabine_a_R_FDM (r epaired).stl
2.33 MiB 39 min <1 m 13 x 58 x 15 Download

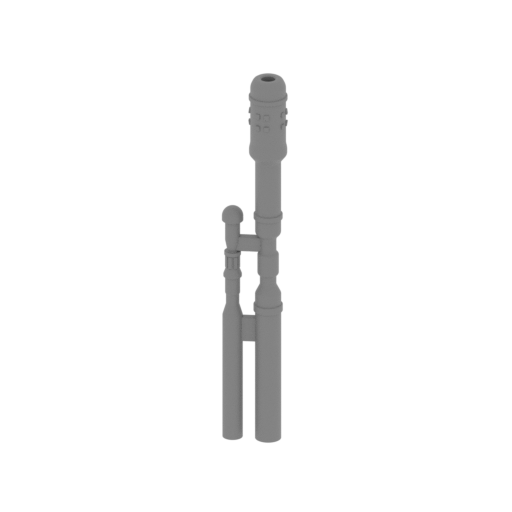

_22_gun_cabine_b_R_FDM (r epaired).stl
1.12 MiB 32 min <1 m 8 x 5 x 50 Download

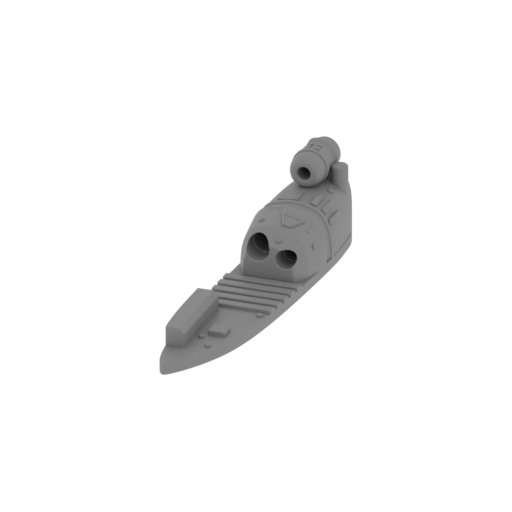

_23_gun_cabine_a_L_FDM (r epaired).stl
2.33 MiB 39 min <1 m 13 x 58 x 15 Download

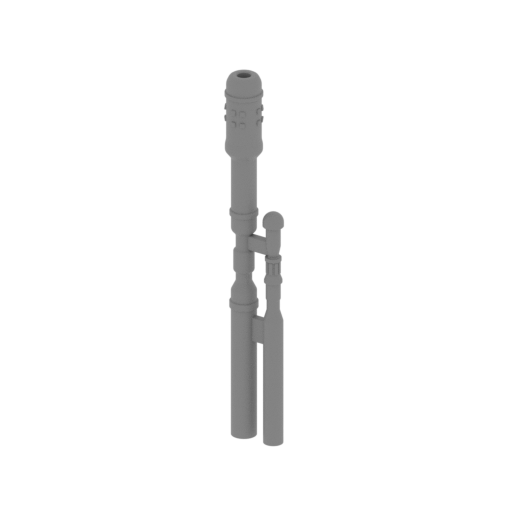

_24_gun_cabine_b_L_FDM (r epaired).stl
1.12 MiB 40 min <1 m 8 x 5 x 50 Download

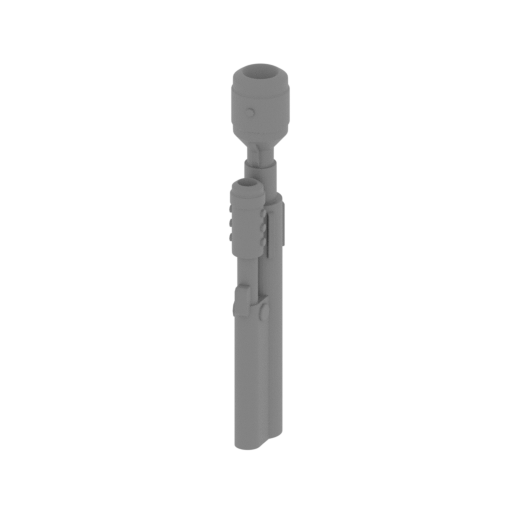

_25_gun_wing_1_R_FDM (rep aired).stl
1.07 MiB 47 min <1 m 8 x 12 x 54 Download

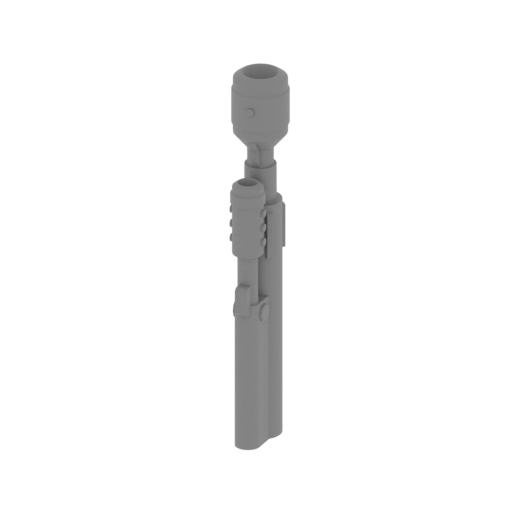

_26_gun_wing_2_R_FDM (rep aired).stl
1.07 MiB 45 min <1 m 8 x 12 x 54 Download

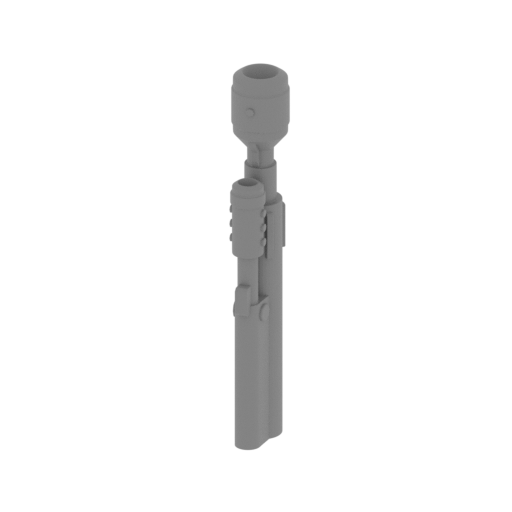

_27_gun_wing_1_L_FDM (rep aired).stl
1.07 MiB 51 min <1 m 8 x 12 x 54 Download
_28_gun_wing_2_L_FDM (rep aired).stl
1.07 MiB 47 min <1 m 8 x 12 x 54 Download
_29_arrow_wing_1_R_FDM (r epaired).stl
1.67 MiB 36 min <1 m 8 x 139 x 7 Download
_30_arrow_wing_2_R_FDM (r epaired).stl
1.67 MiB 36 min <1 m 8 x 139 x 7 Download

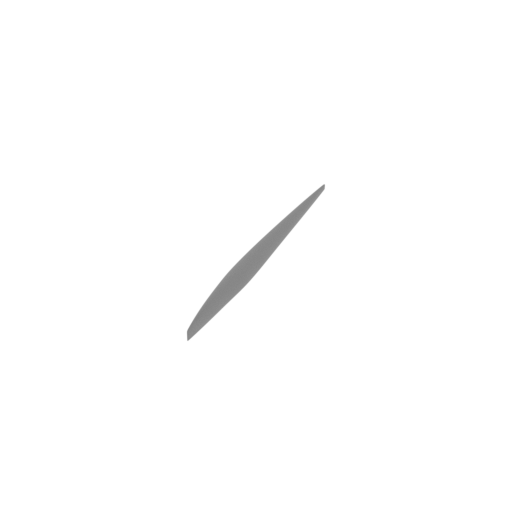

_31_arrow_wing_1_L_FDM (r epaired).stl
1.67 MiB 36 min <1 m 8 x 139 x 7 Download
_32_arrow_wing_2_L_FDM (r epaired).stl
1.67 MiB 36 min <1 m 8 x 139 x 7 Download

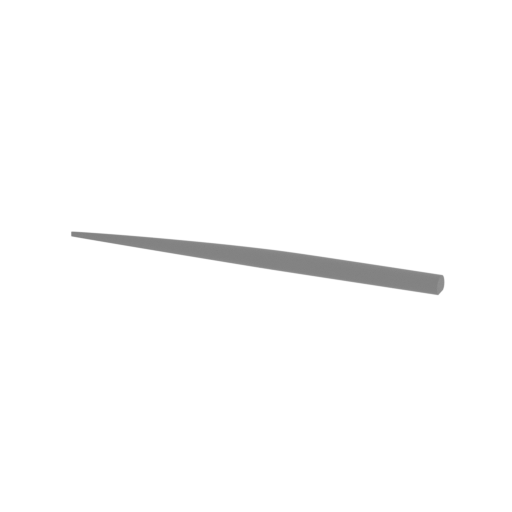

_33_arrow_tail_c_R_FDM (r epaired).stl
1.19 MiB 23 min <1 m 111 x 6 x 5 Download

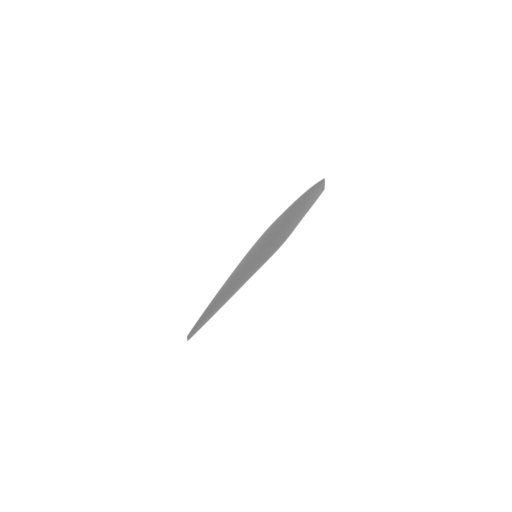

_34_arrow_tail_b_R_FDM (r epaired).stl
1.67 MiB 36 min <1 m 8 x 139 x 7 Download

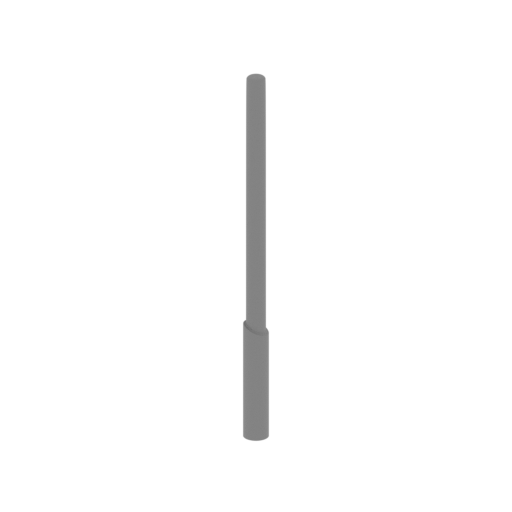

_35_arrow_tail_a_R_FDM (r epaired).stl
0.35 MiB 33 min <1 m 5 x 5 x 78 Download

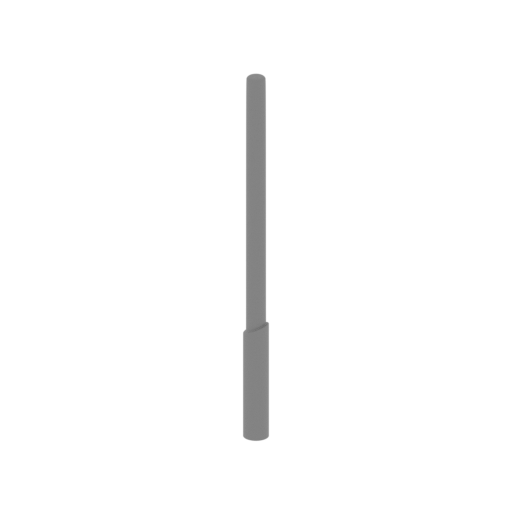

_36_arrow_tail_a_L_FDM (r epaired).stl
0.35 MiB 33 min <1 m 5 x 5 x 78 Download
_37_arrow_tail_b_L_FDM (r epaired).stl
1.67 MiB 36 min <1 m 8 x 139 x 7 Download
_38_arrow_tail_c_L_FDM (r epaired).stl
1.19 MiB 24 min <1 m 111 x 6 x 5 Download

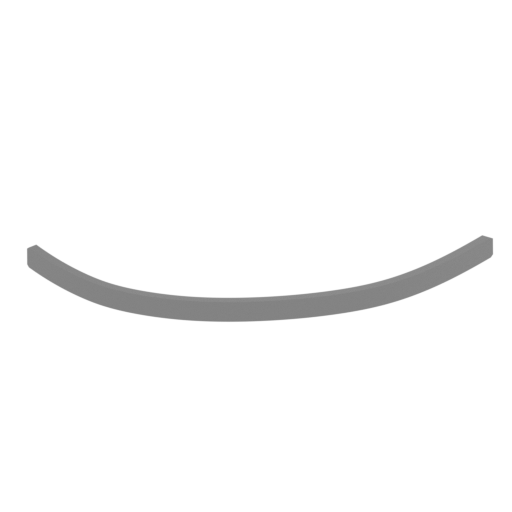

_39_window_wing_R_FDM (re paired).stl
0.08 MiB 12 min <1 m 57 x 45 x 10 Download

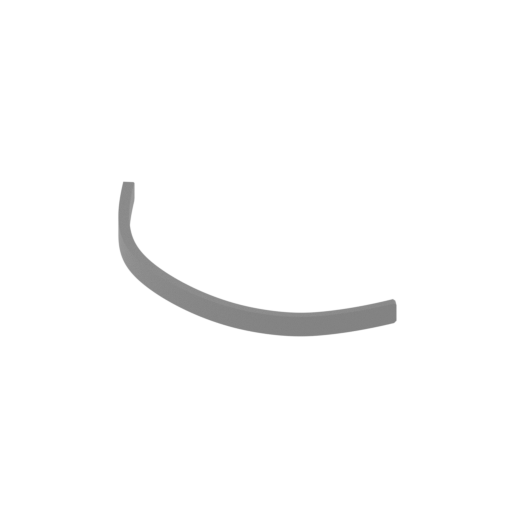

_40_window_wing_L_FDM (re paired).stl
0.08 MiB 12 min <1 m 57 x 45 x 10 Download

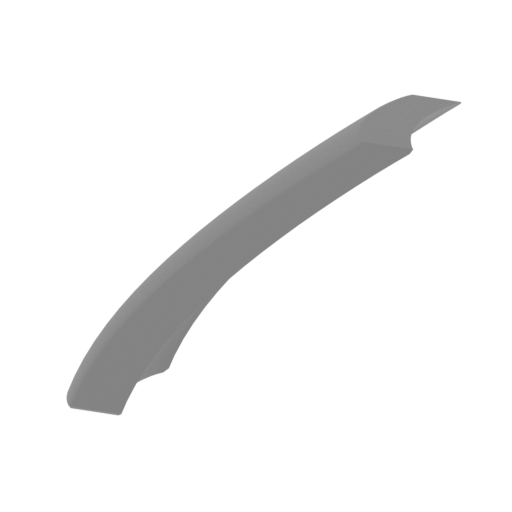

_41_window_tail_R_FDM (re paired).stl
0.10 MiB 5 min <1 m 11 x 4 x 10 Download

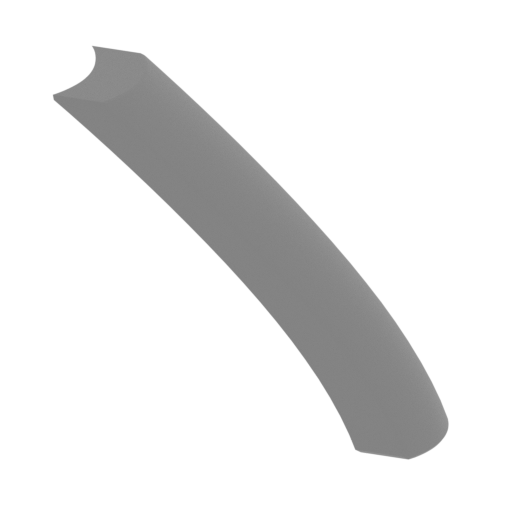

_42_window_tail_L_FDM (re paired).stl
0.10 MiB 5 min <1 m 11 x 4 x 10 Download
_43_Ge_lock_10H_x35_FDM ( repaired).stl
0.03 MiB 4 min <1 m 10 x 18 x 2 Download

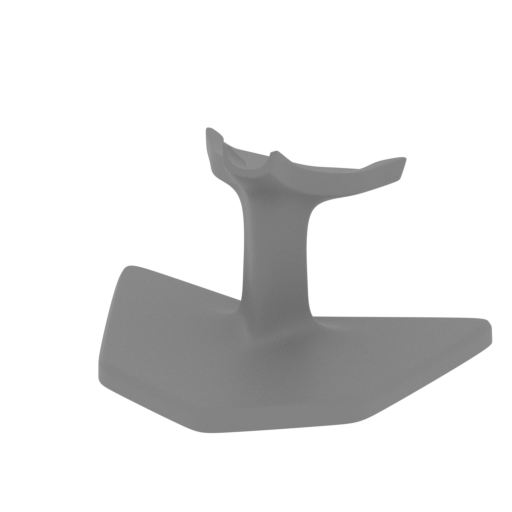

_44_platform_front_FDM (r epaired).stl
4.66 MiB 10 h 53 min 7 m 115 x 91 x 74 Download

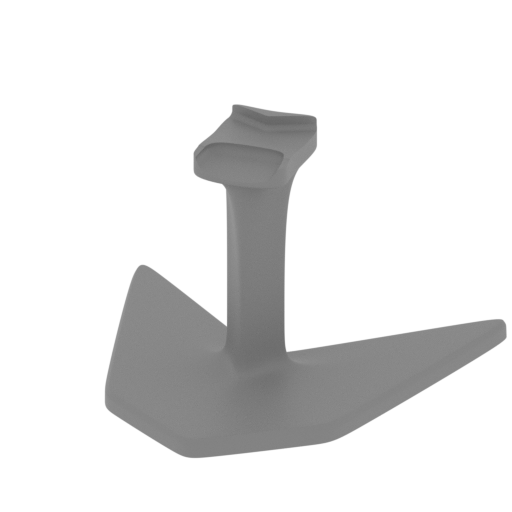

_45_platform_back_FDM (re paired).stl
2.91 MiB 14 h 53 min 10 m 143 x 141 x 101 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download

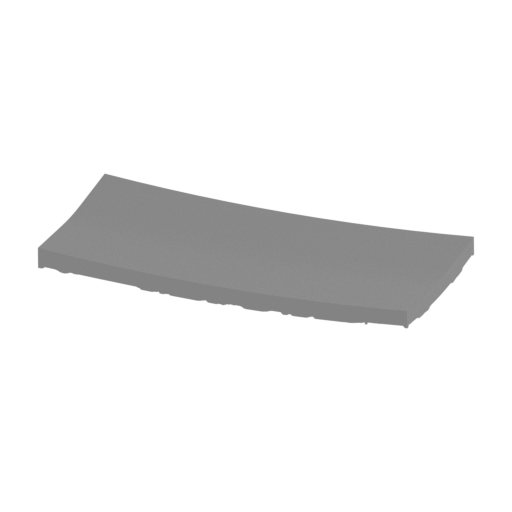

_46_hull_cap_FDM (repired ).stl
1.07 MiB 36 min <1 m 42 x 20 x 4 Download

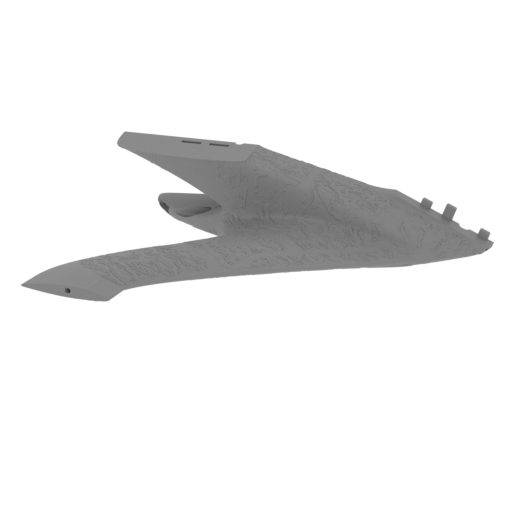

_47_v2_hull_bot_2_L_FDM ( repaired).stl
24.09 MiB 28 h 23 min 19 m 184 x 144 x 45 Download

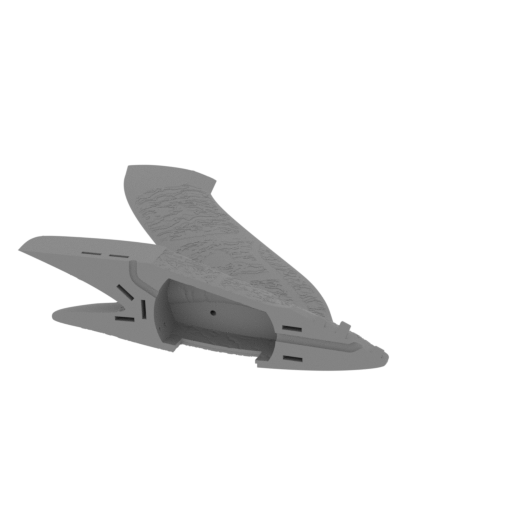

_48_v2_hull_bot_2_R_FDM ( repaired).stl
24.03 MiB 28 h 22 min 19 m 184 x 144 x 45 Download
...

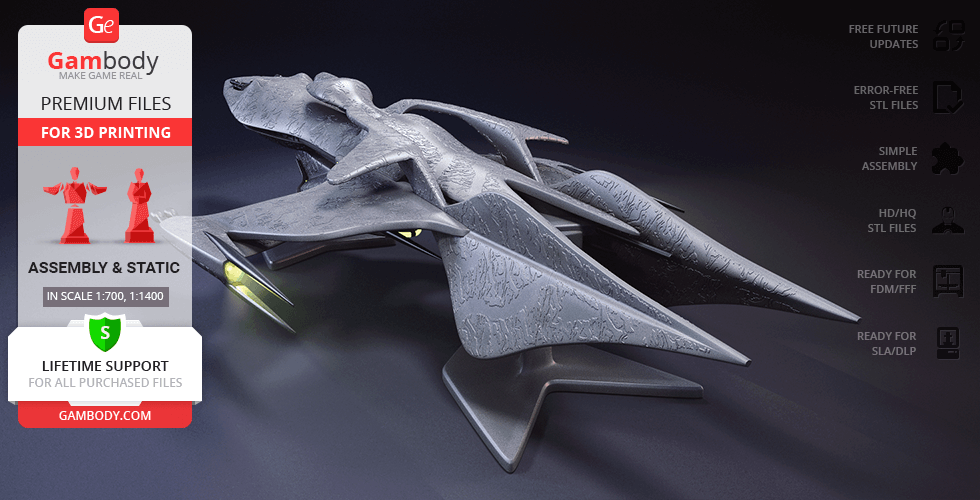

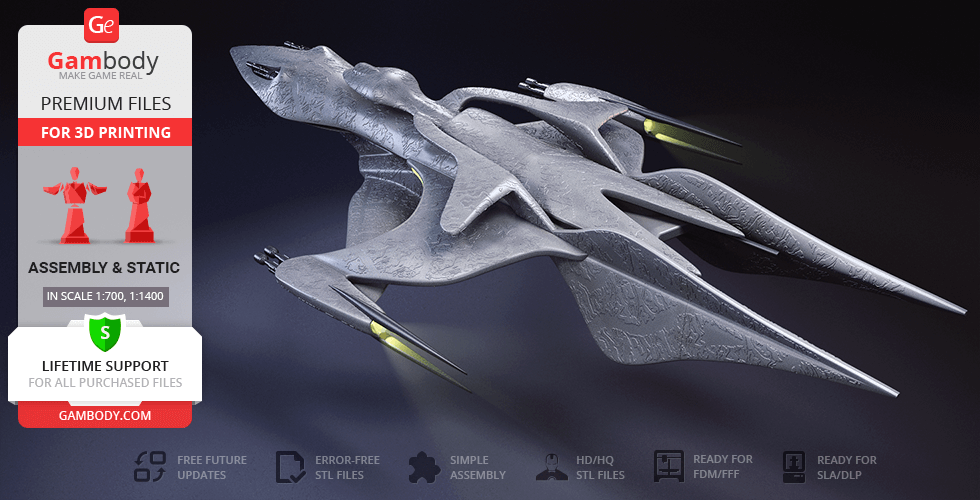

ABOUT THIS 3D MODEL

Babylon 5 encompasses not only breathtaking sci-fi adventures and inter-species wars but also profound love for every character and spaceship that make up the complex canvas of its universe and turn it into something special. Among them is, of course, the majestic White Star warship that helps the Interstellar Alliance hold the line against the ancient race of Shadows and other hidden dangers in hopes to foster peace.

It is no secret that our contributing 3D modeller was fascinated by the magnetic pelican-like design of the White Star-class ships that he was willing to recreate on his own. The author put a lot of work into perfecting the elegant flowing lines of the White Star 3D Printing Model, as well as the authentic fractal patterns embellishing the ship’s hull. Seems like the White Star model is just about to create a jump point to appear on the build plate of your 3D printer!

ADAPTATION FOR 3D PRINTING

White Star for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 40 hours in total. For you to receive the cleanest 3D printing result possible and to minimize the amount of filament needed for generated support the spacecraft model was divided into many assembly parts, e.g. its cockpit, thrusters, wings, “fins”, beam and neutron cannons, twin fusion cannons, etc. are provided as separate STL files. Also, special tunnels throughout the ship were prepared for you to light up the Babylon 5 star.

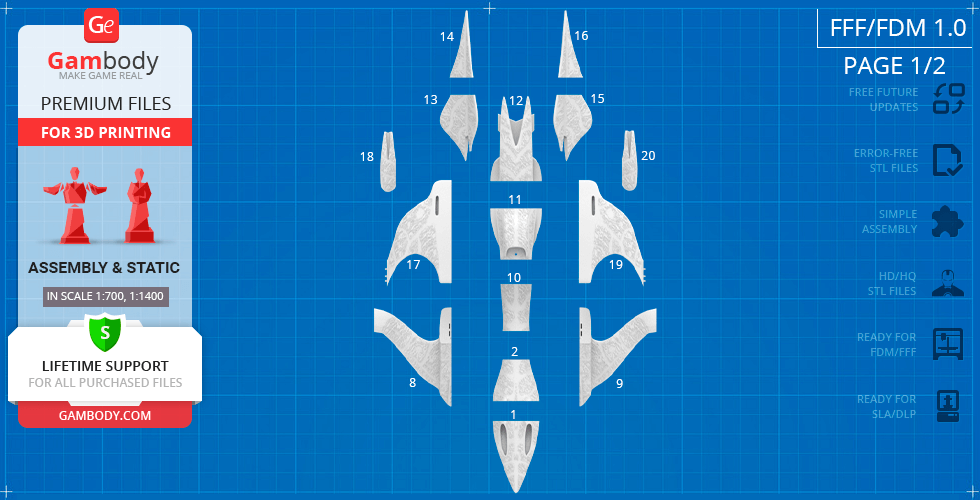

All assembly parts are provided in STL files of FFF/FDM version in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA/SLS 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly video” and "Assembly Manual" before getting down to the White Star model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from the length of the White Star which is 475000 mm. The 3D printing model's chosen scale is 1:700 for the FFF/FDM version and 1:1400 for the DLP/SLA/SLS version.

VERSIONS' SPECIFICATIONS

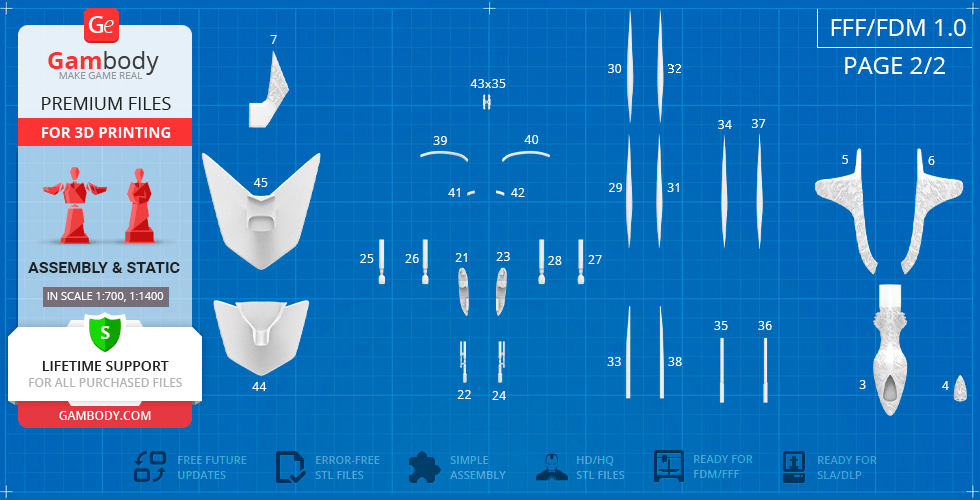

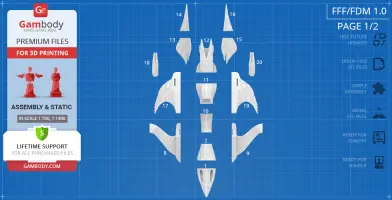

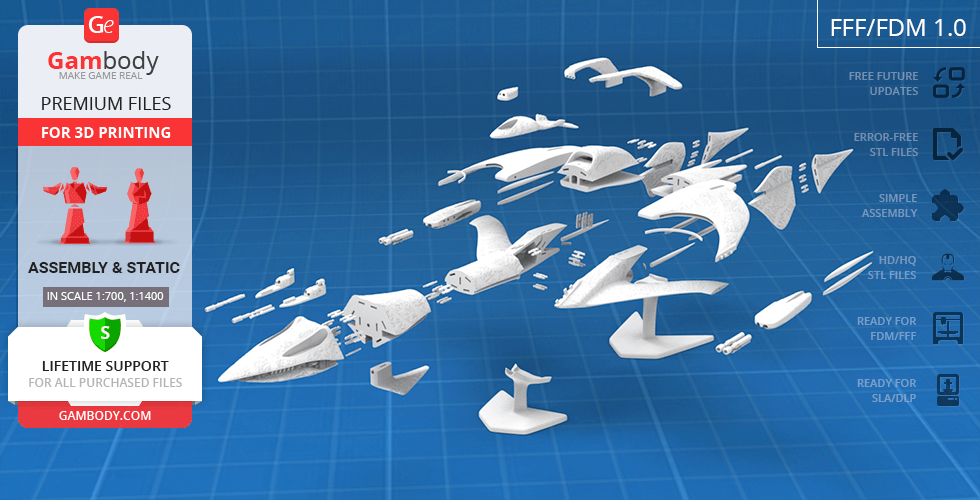

FFF/FDM 1.0 version features:

  • Contains 48 parts;

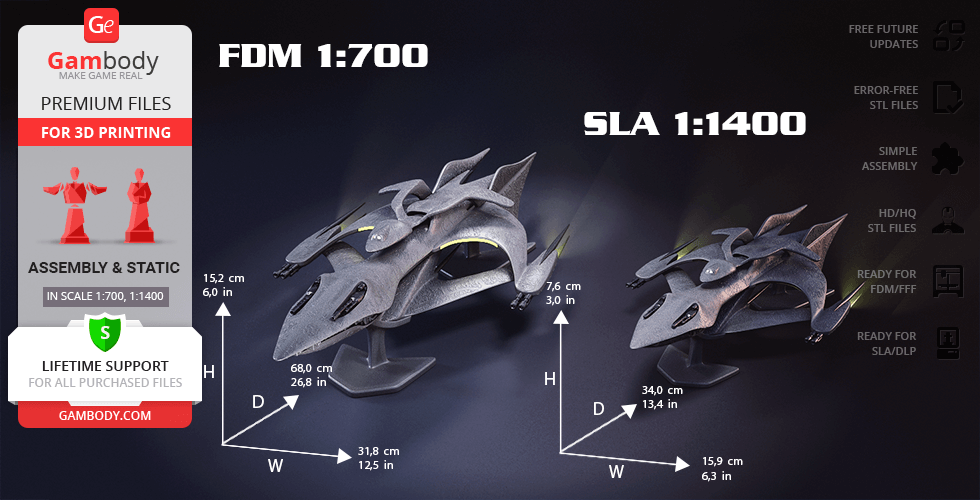

  • A printed ship is 152 mm tall, 318 mm wide, 680 mm deep;
  • Assembly kit includes lock 43_Ge_lock_10H_x35 to connect parts securely without glue that needs to be printed 35 times;

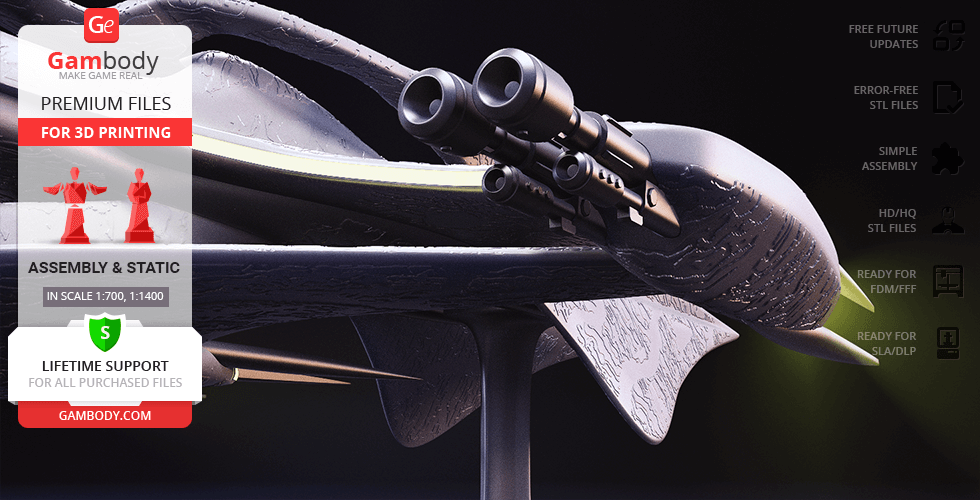

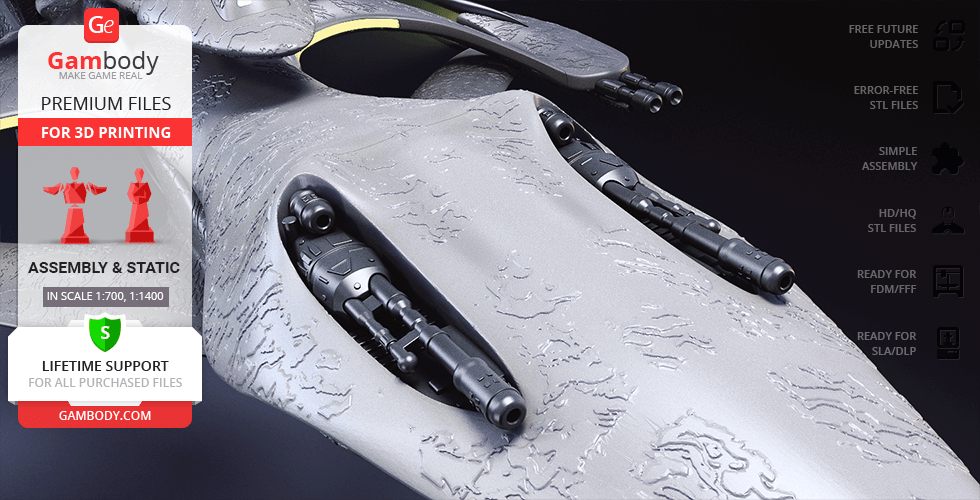

  • Highly-detailed exterior of the craft with authentic patterns;

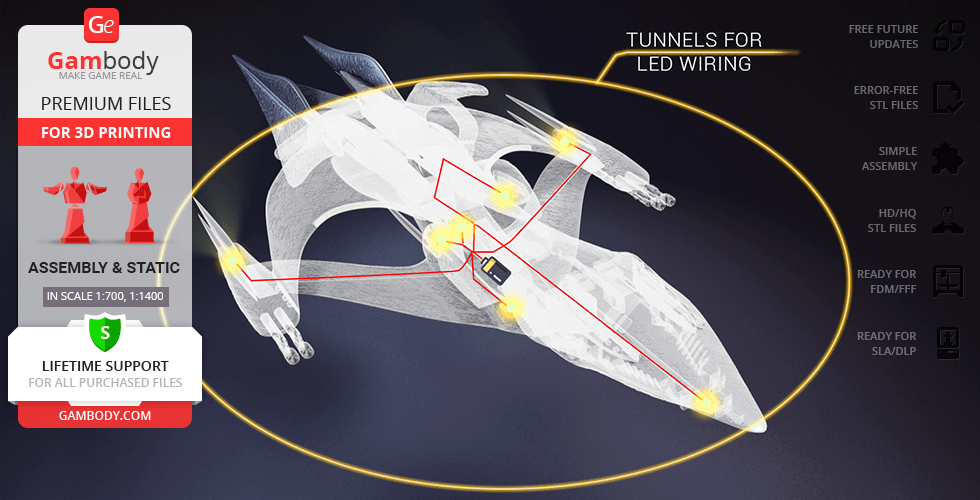

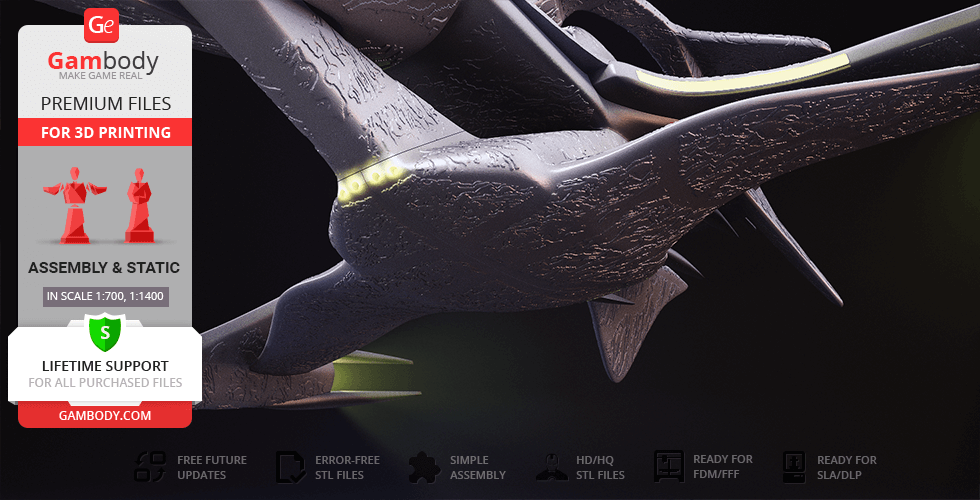

  • Model is made hollow for you to introduce LED wiring and light up the "eye", "nose", "neck", wing edges, thrusters, and "tail";
  • spot to hide the battery is provided inside the main body ("in the belly area");
  • Additional hull parts with the added lid for easy access to the battery;
  • Glass elements on wing edges and on the tail were separated to be printed with transparent material;

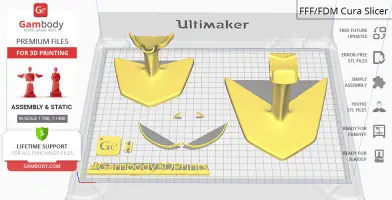

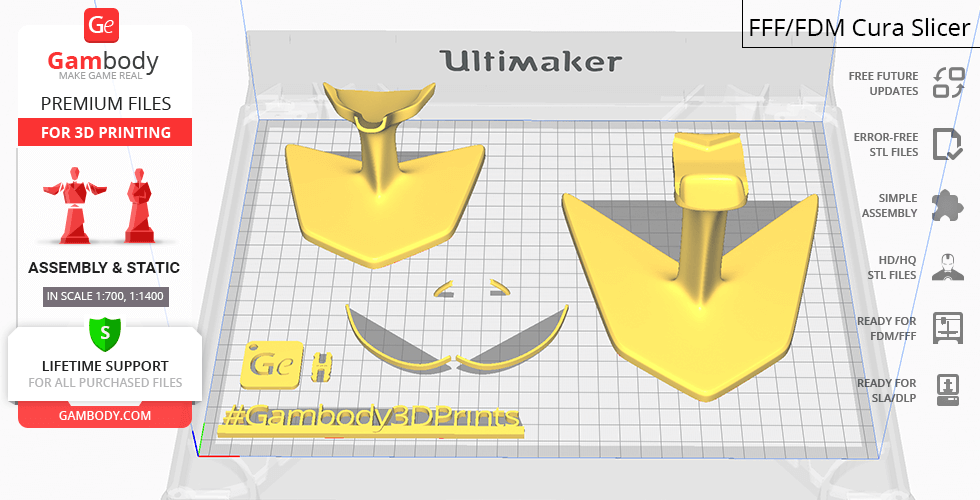

  • Made with a special two-piece platform for you to conveniently display the ship among the Space Ships fleet;
  • All parts are divided in such a way that you will print them with the smallest number of support structures.

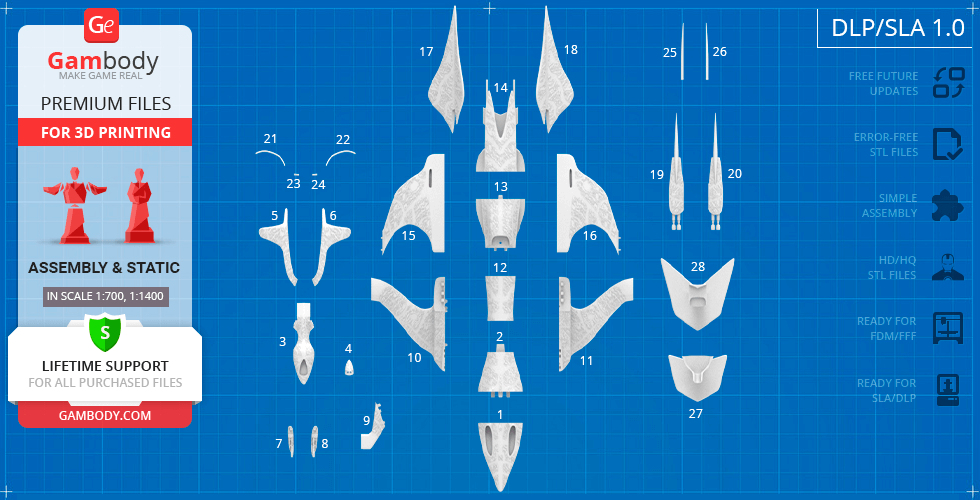

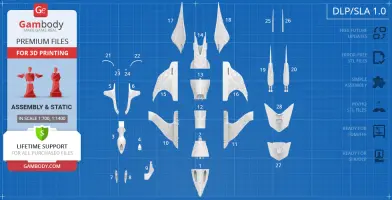

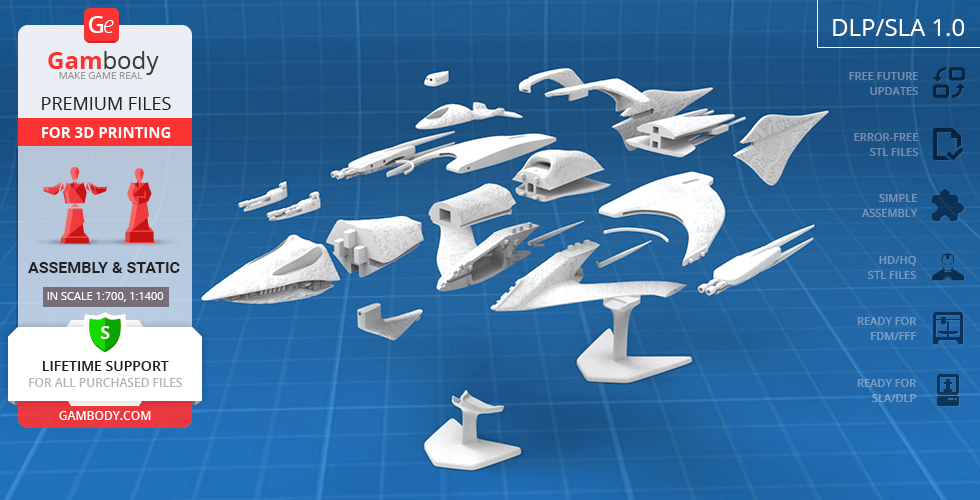

DLP/SLA/SLS 1.0 version features:

  • Contains 28 parts;
  • A printed ship is 76 mm tall, 159 mm wide, 340 mm deep;
  • Highly-detailed exterior of the craft with authentic patterns;
  • Model is made hollow for you to introduce LED wiring and light up the "eye", "nose", "neck", wing edges, thrusters, and "tail";
  • spot to hide the battery is provided inside the main body ("in the belly area");
  • Glass elements on wing edges and on the tail were separated to be printed with transparent material;
  • Made with a special two-piece platform for you to conveniently display the ship among the Space Ships fleet;
  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

You can get the model of White Star for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble White Star 3D Printing Model at Gambody YouTube channel.

Also, you may like other Space Ships 3D Printing Models.

_______FAQ: Where can I print a model if I have no printer?How to get started with 3D printing?How to set up my 3D printer?How to choose right 3D model print bed positioning? How to paint printed figurine?

Generic

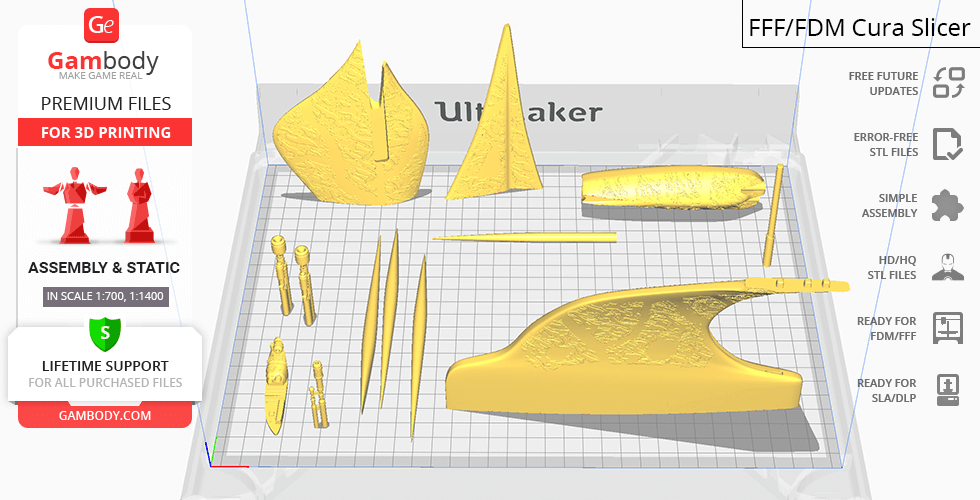

Below you can find printing recommendations for CuraSimplify3D and Slic3r software.

Cura printing recommendations:

These are basic settings that were tested in Cura 4.8.0 slicer.

The test models were printed on Ultimaker 2, Creality Ender 3, Creality CR-10S Pro V2, Anycubic I3 Mega, Anycubic I3 MegaS 3D printers with PLA and PETG filaments.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use and especially the particular assembly part at hand. Each part that any model comprises often needs preliminary review and you are free to tweak the settings the way you find suitable.

Note:
- You can scale up the model (downscaling is not recommended!);
- All connectors should be printed at 100% Infill;
- For all parts of locks (“ge_lock” in “Source files”) you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

Quality
Layer Height: 0.12 mm (you can also set Layer Height at 0.16 or 0.2mm for 0.4mm nozzles)
Initial Layer Height: 0.2 mm (carefully level the print bed and keep your Initial Layer Height the same as the main Layer Height)

Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2

Outer Wall Wipe Distance: 0.3 mm
Top Surface Skin Layers: 0

Top/Bottom Thickness: 0.6 mm
Top Thickness: 0.6 mm
Top Layers: 5
Bottom Thickness: 0.6 mm
Bottom Layers: 5
Initial Bottom Layers: 5

Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Optimize Wall Printing Order: Check

Compensate Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check

Minimum Wall Flow: 0%
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Hole horizontal expansion: 0

Z Seam Alignment: User Specified
Z Seam Position: Back
Z Seam X: Average length of your printer’s plate (e.g.”150” if your plate is 300mm on the X-axis)
Z Seam Y: A value higher than the length of your plate on the Y-axis (e.g. 700)

Seam Corner Preference: Hide Seam
Extra Skin Wall Count: 1
Skin Overlap Percentage: 10%
Skin Overlap 0.04 mm

Infill
Infill Density: 20% (for all smaller parts and for all parts of connectors use 100% Infill)
Infill Pattern: Triangles
Connect Infill Lines: Check
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Line Multiplier: 1
Extra Infill Wall Count: 0

Infill Overlap Percentage: 10-20%
Infill Overlap: 0.04 mm

Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm

Infill Wipe Distance: 0 mm
Infill Layer Thickness: 0.24 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm

Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8

Maximum Skin Angle for Expansion: 90˚
Minimum Skin Width for Expansion: 0.0
Skin Edge Support Thickness: 0
Skin Edge Support Layers: 0

Material
Initial Layer Flow: 100%
Printing Temperature: See your filament settings
Initial Printing Temperature: Your filament settings
Final Printing Temperature: Your filament settings
Build Plate Temperature: Your filament settings
Build Plate Temperature Initial Layer: Your filament settings + 5°
Flow: 100% (Important! If you face difficulty printing the model, you may need to adjust the Flow parameter. You may research the topic using the Internet or seek assistance at our Customer Support Team at support@gambody.com)

Speed

You can increase the printing Speed by 20% when you print simple objects. For small/thin parts you need to decrease the Speed by 25% - 50%.

Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 25 mm/s
          Outer Wall Speed:25 mm/s
          Inner Wall Speed: 50 mm/s

Top/Bottom Speed: 25mm/s
Support Speed: 25 mm/s
          Support Infill Speed: 45 mm/s
          Support Interface Speed: 25 mm/s
                Support Roof Speed: 25 mm/s
                Support Floor Speed: 25 mm/s

Travel Speed: 80 mm/s
Initial Layer Speed: 80 mm/s
Initial Layer Print Speed: 20 mm/s
Initial Layer Travel Speed: 80 mm/s

Skirt/Brim Speed: 20 mm/s
Z  Hop Speed: 5 mm/s
Number of Slower Layers: 2
Enable Acceleration Control: Check

When printing simple objects, you need to set all Acceleration parameters at 500 mm/s. For small/thin parts you need to decrease the Acceleration by 50% - 70%.

Travel
Enable Retraction: Check
Retraction Distance: 4-8 mm, 1-3 mm for Direct Extruder (This is the most important retraction parameter. You can find your optimal value of Retraction Distance by printing any test object, e.g. bridges, towers etc.)

Retraction Speed: 25mm/s
Retraction Retract Speed: 25 mm/s
Retraction Prime Speed: 25 mm/s

Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 1.5 mm
Maximum Retraction Count: 100
Minimum Extrusion Distance Window: 6,5 - 10 mm
Limit Support Retractions: Check
Combing Mode: All
Max Comb Distance With No Retract: 30 mm
Retract Before Outer Wall: Check
Avoid Printed Parts When Travelling: Check
Avoid Supports When Travelling: Check
Travel Avoid Distance: 1 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm
Z Hop When Retracted: Check
Z Hop Height: 0,3 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%

Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.36 mm
Regular Fan Speed at Layer: 3

Minimum Layer Time: 10 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Structure: Normal (you can try using Tree Support Structure if you have difficulty printing any particular assembly part)
Support Placement: Everywhere
Support Overhang Angle: 60° (this parameter can range from 30° to 70° depending on the part at hand)
Support Pattern: Zig Zag
Support Wall Line Count: 1 (stronger support that might be more difficult to remove) 0 (less strong support but is easier to remove)

Support Density: 15%
Support Line Distance: 2.6667 mm
Initial layer support line distance: 2.667 mm

Support Z Distance: 0.12 mm
Support Top Distance: 0.12 mm
Support Bottom Distance: 0.12 mm

Support X/Y Distance: 0.8-1 mm
Support Distance Priority: Z overrides X/Y
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Stair Step Minimum Slope Angle: 10°
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.2 mm
Gradual Support Infill Steps: 0
Minimum Support Area: 2 mm

Enable Support Interface: Check (generates additional “pillow” on the support structure that leads to a more even surface, but can be difficult to remove in hard-to-reach areas)
Enable Support Roof: Check
Enable Support Floor: Check

Support Interface Thickness: 0.8 mm
Support Roof Thickness: 0.8 mm
Support Floor Thickness: 0.8 mm

Support Interface Resolution 0.2 mm
Support Interface Density: 50-100%
        Support Roof Density: 50-100%
Support Roof Line Distance: 0.8 mm
        Support Floor Density: 50-100%
Support Floor line Distance:  0.4mm

Support Interface Pattern: Grid
Support Roof Pattern: Grid (this parameter should differ from Bottom Pattern Initial Layer in “Shell” section)
Support Floor Pattern: Grid

Minimum Support Interface Area: 10mm
Minimum Support Roof Area: 10 mm
Minimum Support Floor Area: 10 mm

Support Interface Horizontal Expansion: 0.0 mm
Support Roof Horizontal Expansion: 0.0 mm
Support Floor Horizontal Expansion: 0.0 mm

Fan Speed Override: Check
Supported Skin Fan Speed: 100%
Use Towers: Check
Tower Diameter: 4 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Skirt/Brim (For unsteady parts, and those parts that may come unstuck use “Brim”. For bigger assembly parts that have large adhesion area and for all parts of locks and claws that you want to come out clean use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
       Brim Line Count: 10
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments

comments powered by Disqus

Similar items

Browse more newly listed 3D printings
