Fireball XL5 3D Printing Model | Assembly

(3)
cm: 24.7 w x 60 d x 20.4 h
in: 9.724 w x 23.622 d x 8.031 h

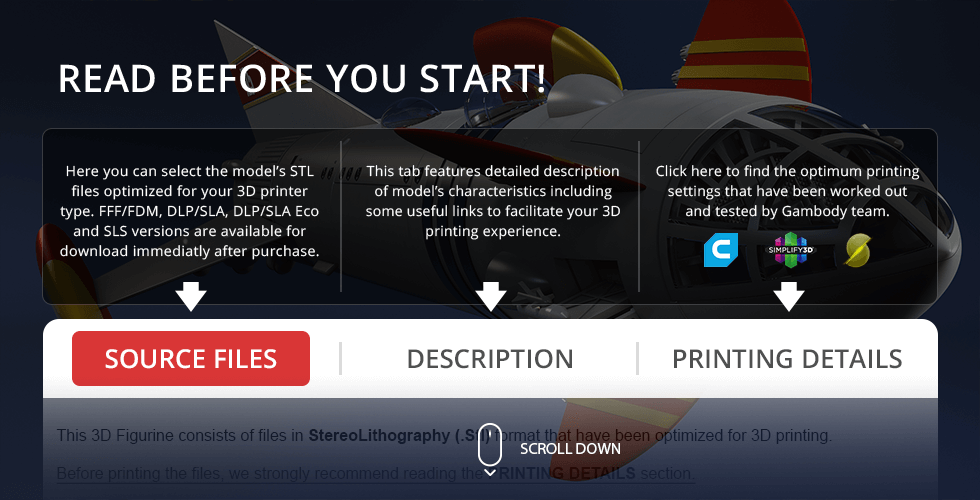

Source Files

|

Description

|

Printing Details

This 3D model of Fireball XL5 consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

  • 2 versions of Fireball XL5 STL files for FFF/FDM and DLP/SLA - files for all versions are available for download after the purchase;
  • STL files of high-poly Fireball XL5 Model for 3D printing consist of 123 files;
  • Sizes for:
  • FFF/FDM: 135 mm tall, 247 mm wide, 600 mm deep;
  • FFF/FDM on the platform is 204 mm tall, 247 mm wide, 600 mm deep;
  • DLP/SLA: 57 mm tall, 124 mm wide, 300 mm deep;
  • DLP/SLA on the platform 102 mm tall, 124 mm wide, 300 mm deep;
  • Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats;
  • Detailed settings that we provide as a recommendation for Cura, Simplify3D, Slic3r and PrusaSlicer for the best print;
  • Full technical support from the Gambody Support Team.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

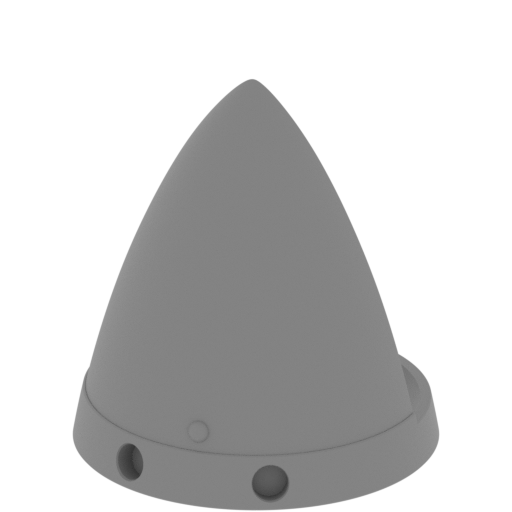

_01_bodyPart_a_FDM (repai red).stl
3.99 MiB 1 h 51 min 1 m 43 x 43 x 46 Download

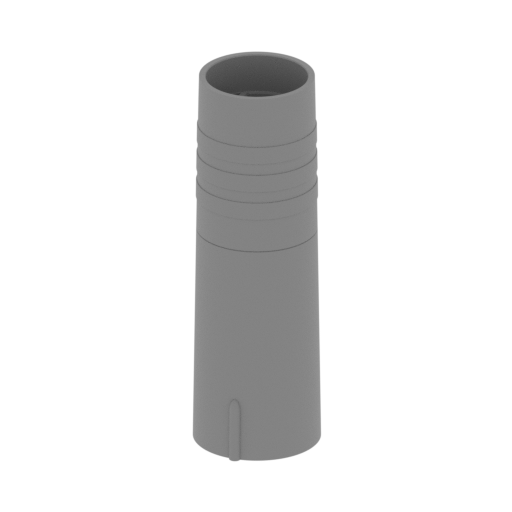

_02_bodyPart_b_FDM (repai red).stl
5.46 MiB 22 h 14 min 13 m 56 x 59 x 173 Download

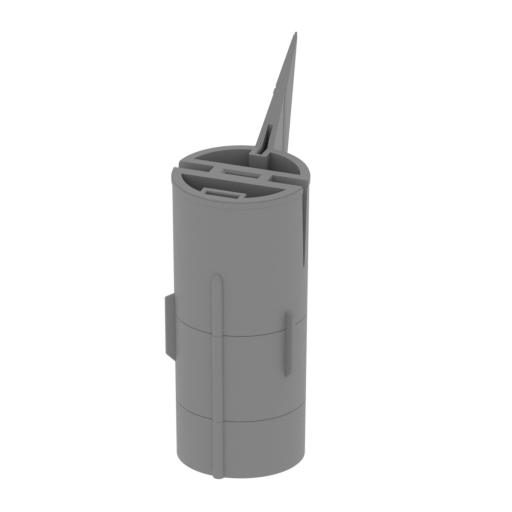

_03_bodyPart_c_FDM (repai red).stl
3.51 MiB 22 h 11 min 12 m 61 x 103 x 174 Download

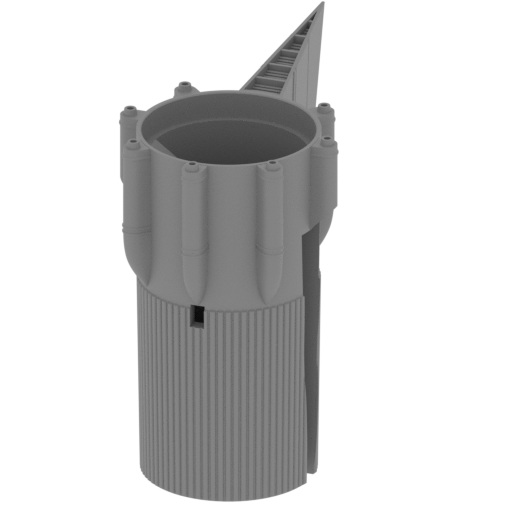

_04_bodyPartClear_d_FDM ( repaired).stl
19.65 MiB 32 h 9 min 18 m 81 x 135 x 137 Download
_05_bodyPartWithText_d_FD M (repaired).stl
19.70 MiB 32 h 18 min 18 m 81 x 135 x 137 Download

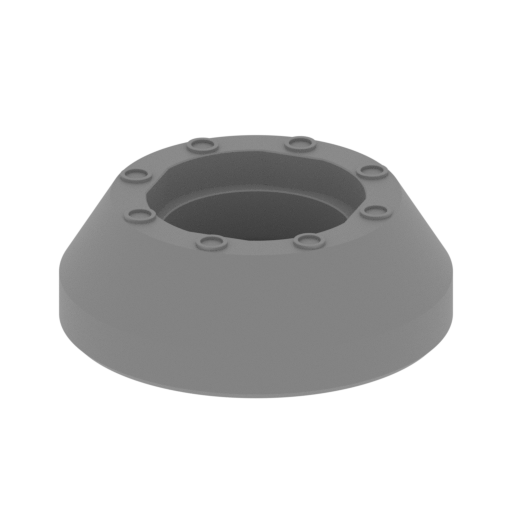

_06_bodyPart_e_FDM (repai red).stl
2.58 MiB 1 h 47 min 1 m 45 x 45 x 16 Download

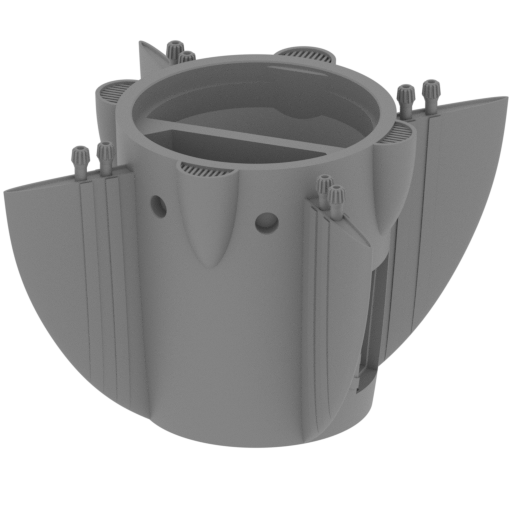

_07_bodyPartWithText_f_FD M (repaired).stl
15.78 MiB 10 h 2 min 5 m 71 x 71 x 57 Download
_08_bodyPartClear_f_FDM ( repaired).stl
15.63 MiB 10 h 2 min 5 m 71 x 71 x 57 Download

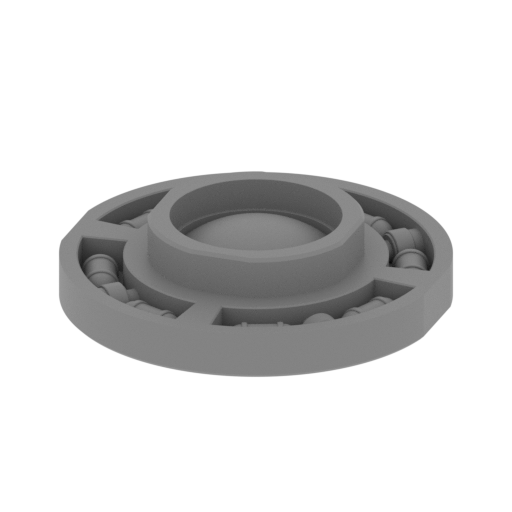

_09_bodyCap_FDM (repaired ).stl
11.14 MiB 1 h 40 min 1 m 44 x 45 x 10 Download

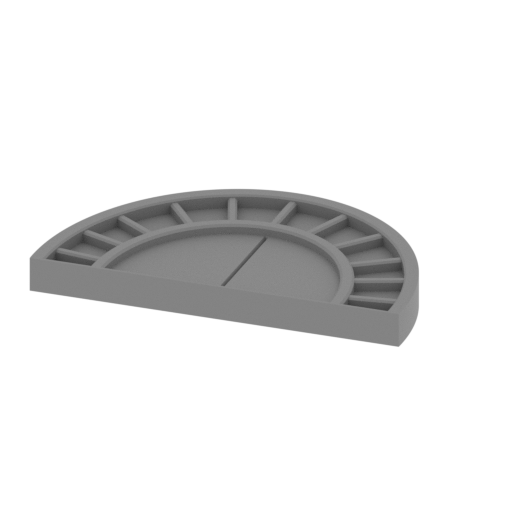

_10_bodyPartIneerDecorPar t_a_FDM (repaired).stl
0.24 MiB 20 min <1 m 34 x 21 x 3 Download

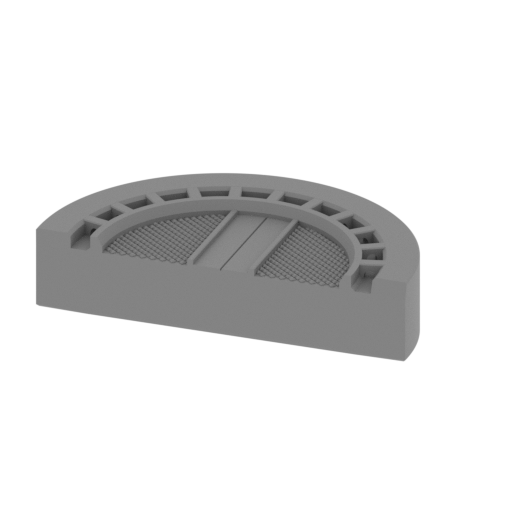

_11_bodyPartIneerDecorPar t_b_FDM (repaired).stl
1.97 MiB 37 min <1 m 38 x 20 x 8 Download

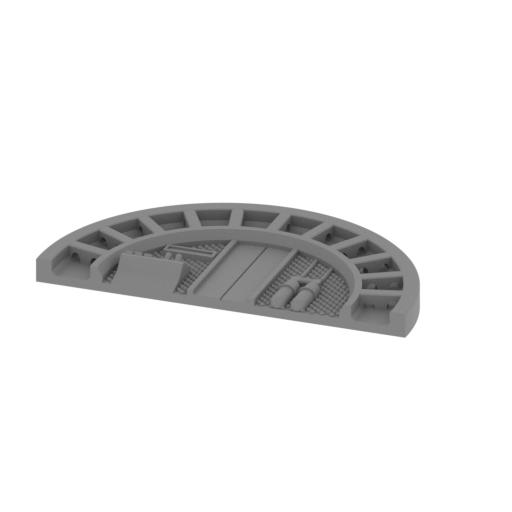

_12_bodyPartIneerDecorPar t_c_FDM (repaired).stl
4.38 MiB 20 min <1 m 38 x 20 x 3 Download

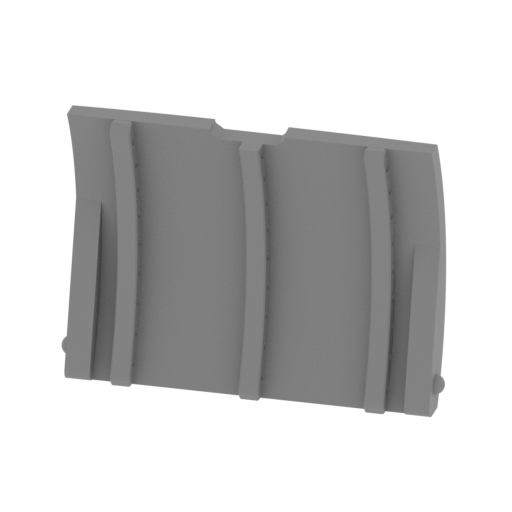

_13_bodyPartDoor_FDM (rep aired).stl
2.08 MiB 27 min <1 m 30 x 8 x 22 Download

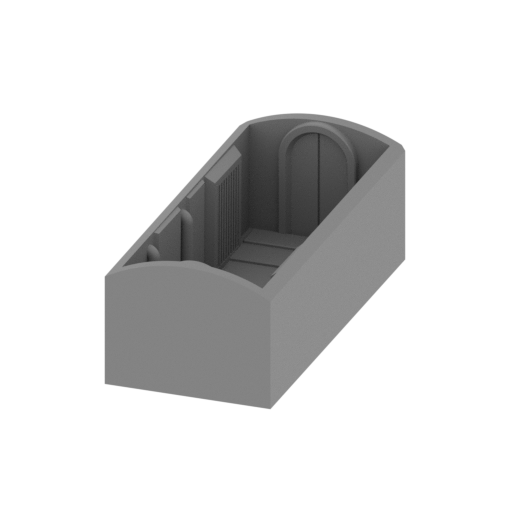

_14_astrodomeInterior_FDM (repaired).stl
1.79 MiB 1 h 38 min 1 m 21 x 48 x 17 Download

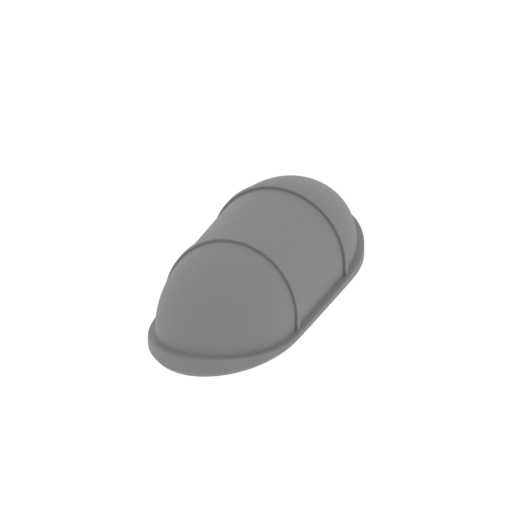

_15_astrodomeInteriorGlas s_FDM (repaired).stl
11.06 MiB 29 min <1 m 16 x 43 x 11 Download

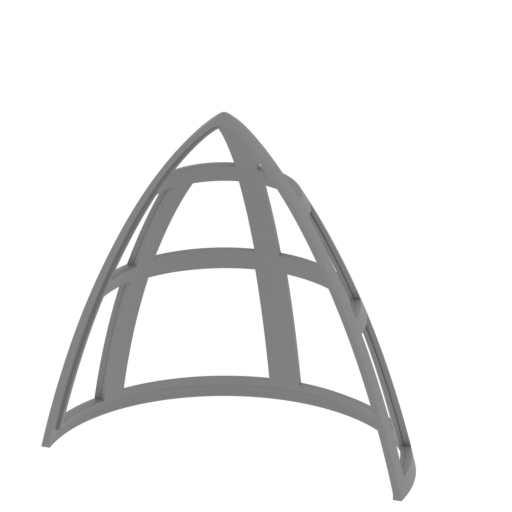

_16_cockpitGlassFrame_FDM (repaired).stl
6.85 MiB 1 h 1 min <1 m 40 x 21 x 41 Download

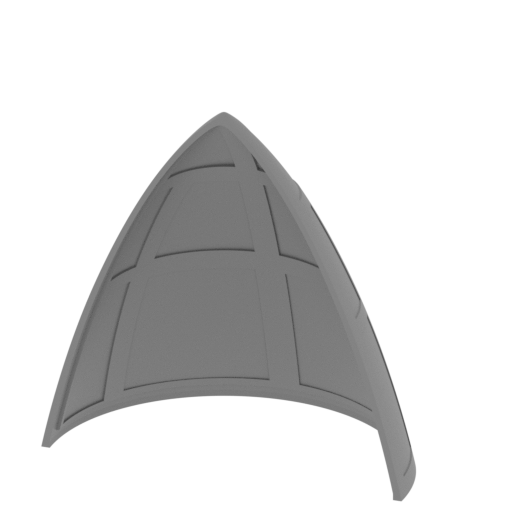

_17_cockpitGlassFull_FDM (repaired).stl
9.46 MiB 48 min <1 m 40 x 21 x 41 Download

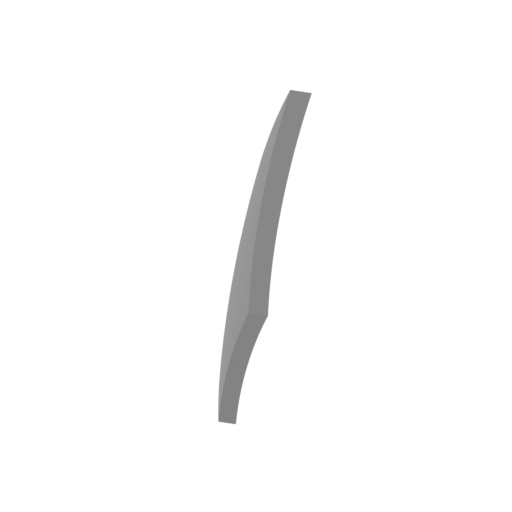

_18_cockpitGlass_a_FDM (r epaired).stl
0.14 MiB 4 min <1 m 7 x 15 x 7 Download

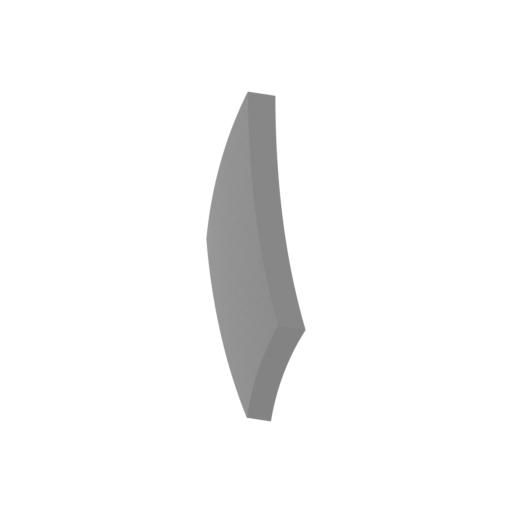

_19_cockpitGlass_b_FDM (r epaired).stl
0.13 MiB 2 min <1 m 7 x 11 x 5 Download

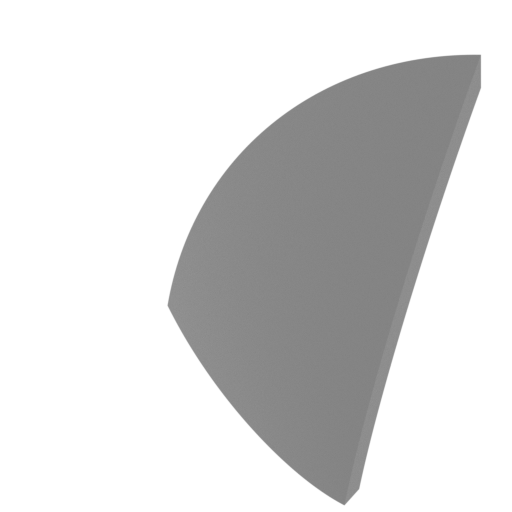

_20_cockpitGlass_c_FDM (r epaired).stl
0.49 MiB 3 min <1 m 7 x 8 x 7 Download

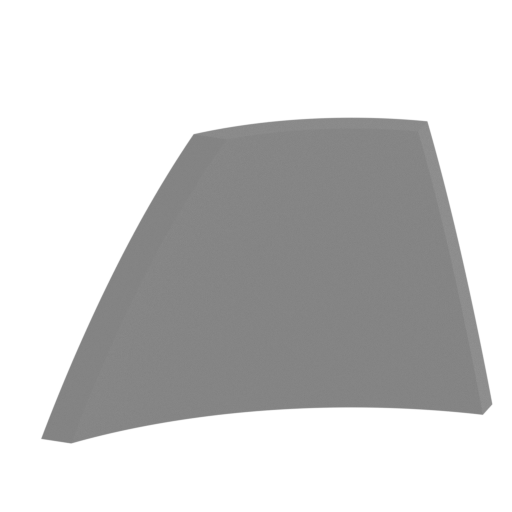

_21_cockpitGlass_d_FDM (r epaired).stl
0.29 MiB 4 min <1 m 11 x 8 x 11 Download

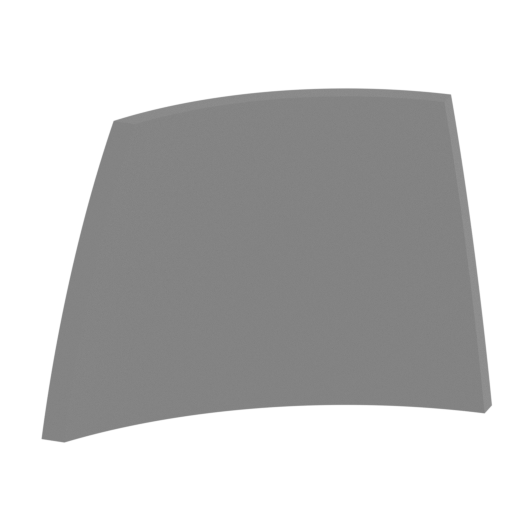

_22_cockpitGlass_e_FDM (r epaired).stl
0.34 MiB 9 min <1 m 16 x 12 x 15 Download

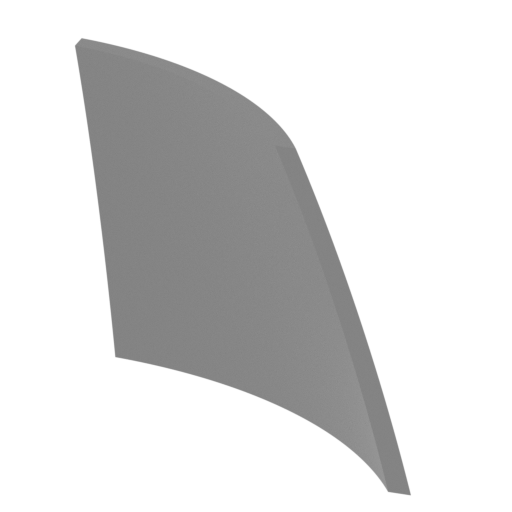

_23_cockpitGlass_f_FDM (r epaired).stl
0.34 MiB 9 min <1 m 16 x 12 x 15 Download

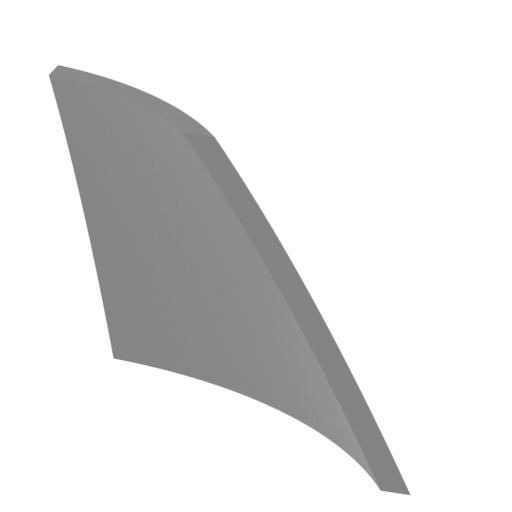

_24_cockpitGlass_g_FDM (r epaired).stl
0.29 MiB 4 min <1 m 11 x 8 x 11 Download

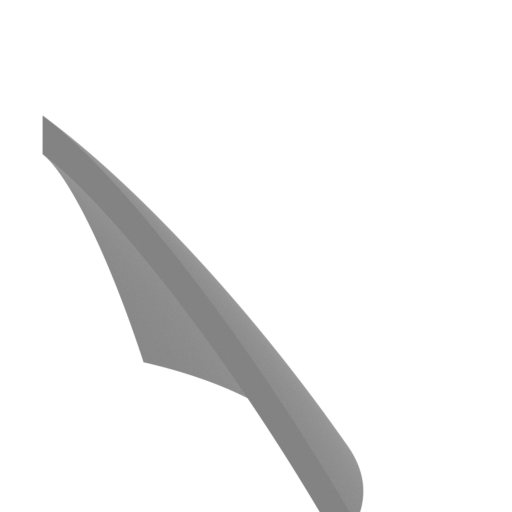

_25_cockpitGlass_h_FDM (r epaired).stl
0.49 MiB 2 min <1 m 7 x 7 x 8 Download

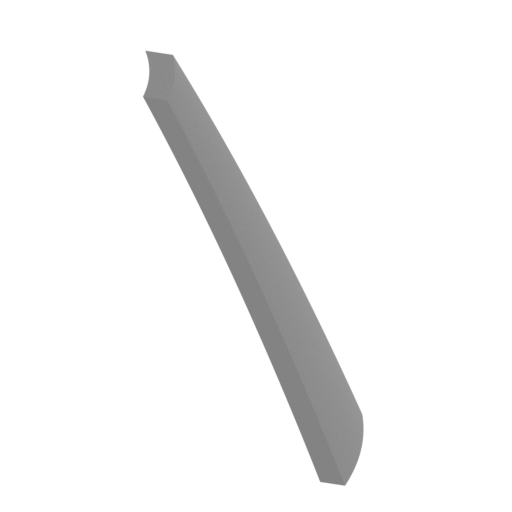

_26_cockpitGlass_i_FDM (r epaired).stl
0.13 MiB 2 min <1 m 7 x 5 x 11 Download

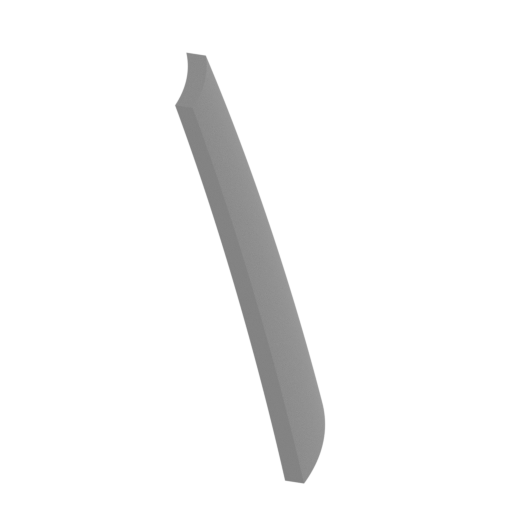

_27_cockpitGlass_j_FDM (r epaired).stl
0.14 MiB 4 min <1 m 7 x 7 x 15 Download

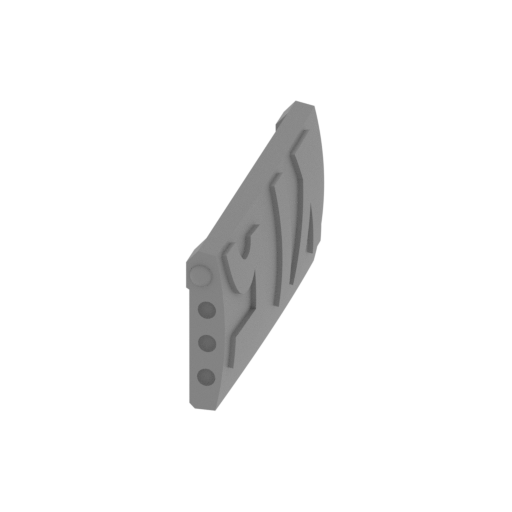

_28_noseRocketLaucherDoor WithText_a_L_FDM (repaire d).stl
0.39 MiB 11 min <1 m 5 x 25 x 11 Download

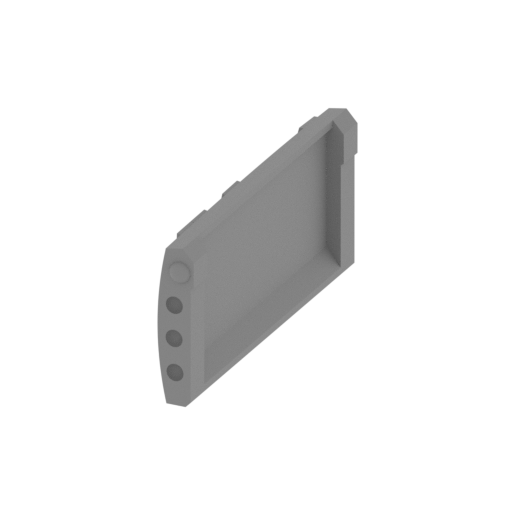

_29_noseRocketLaucherDoor WithText_b_R_FDM (repaire d).stl
0.40 MiB 11 min <1 m 5 x 25 x 11 Download

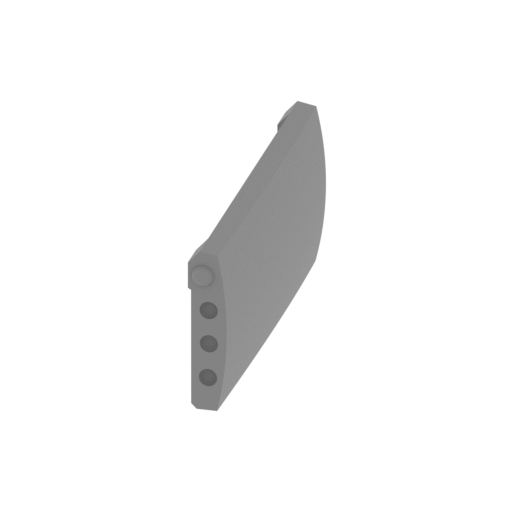

_30_noseRocketLaucherDoor Clear_X2_FDM (repaired).s tl
0.29 MiB 11 min <1 m 5 x 25 x 11 Download

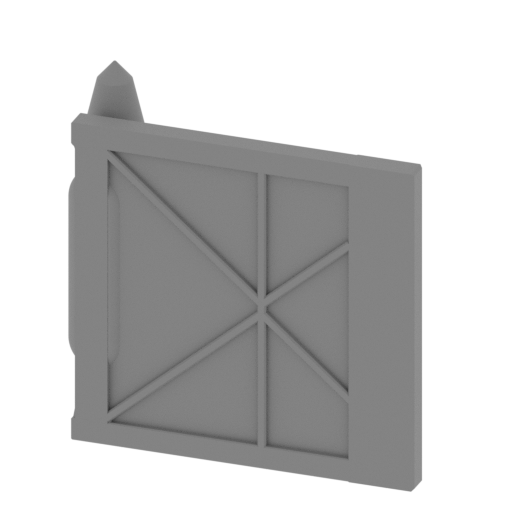

_31_noseRocketLauncher_a_ R_FDM (repaired).stl
1.18 MiB 23 min <1 m 21 x 8 x 21 Download

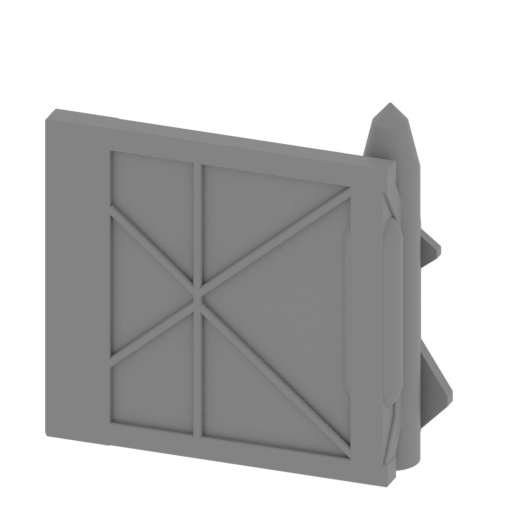

_32_noseRocketLauncher_b_ L_FDM (repaired).stl
1.19 MiB 22 min <1 m 21 x 8 x 21 Download

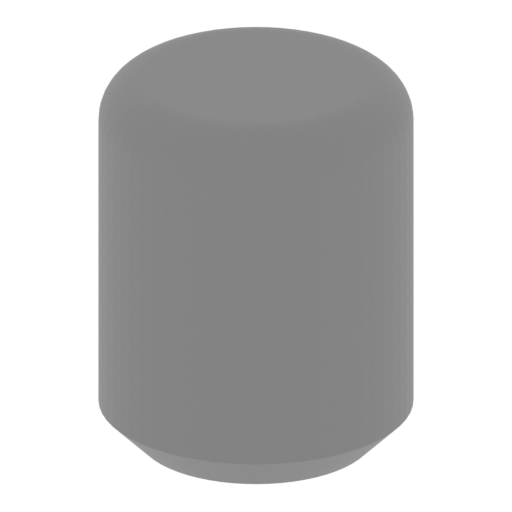

_34_bodyWindowGlass_X14_F DM (repaired).stl
0.10 MiB 2 min <1 m 4 x 4 x 5 Download

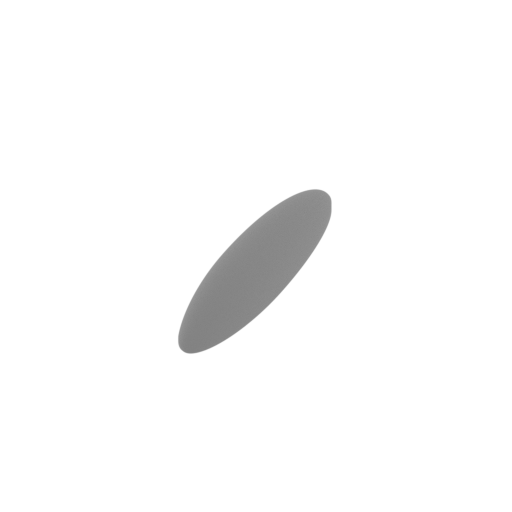

_35_sensorTopGlass_FDM (r epaired).stl
1.90 MiB 28 min <1 m 11 x 61 x 7 Download

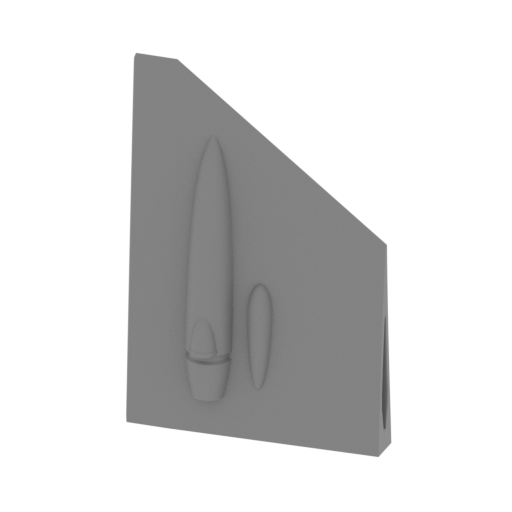

_36_wing_a_L_FDM (repaire d).stl
6.42 MiB 9 h 27 min 6 m 94 x 28 x 137 Download

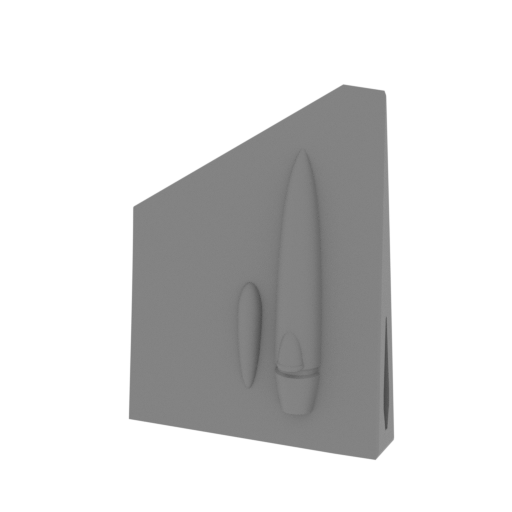

_37_wing_b_R_FDM (repaire d).stl
6.42 MiB 9 h 22 min 6 m 94 x 28 x 137 Download

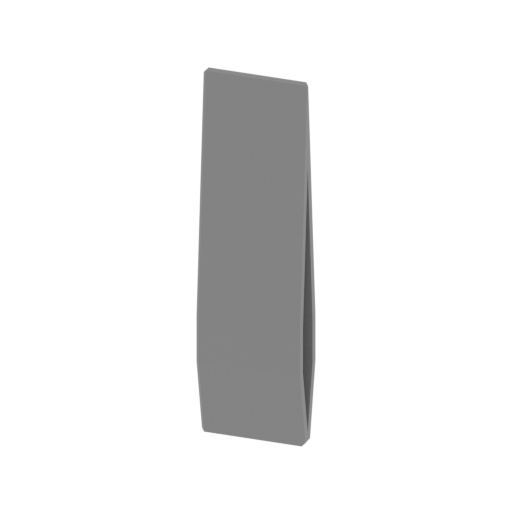

_38_wingFinConnector_X2_F DM (repaired).stl
0.01 MiB 35 min <1 m 12 x 5 x 42 Download

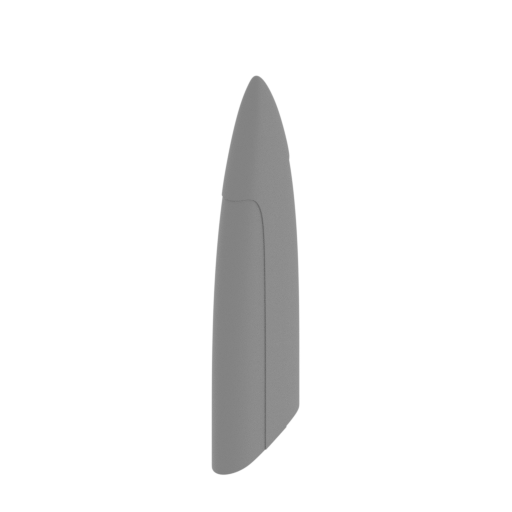

_39_wingFinClear_a_L_FDM (repaired).stl
3.98 MiB 9 h 5 min 6 m 16 x 77 x 149 Download

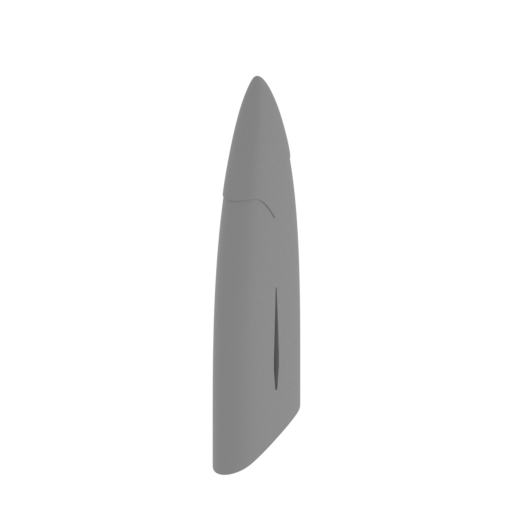

_40_wingFinClear_b_R_FDM (repaired).stl
3.98 MiB 8 h 56 min 6 m 16 x 77 x 149 Download

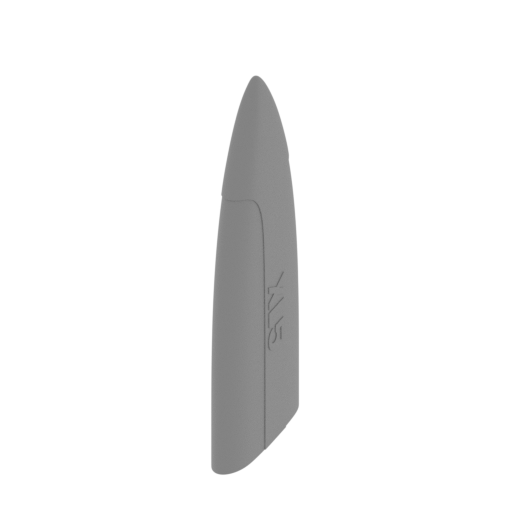

_41_wingFinWithText_a_L_F DM (repaired).stl
4.03 MiB 9 h 6 min 6 m 17 x 77 x 149 Download

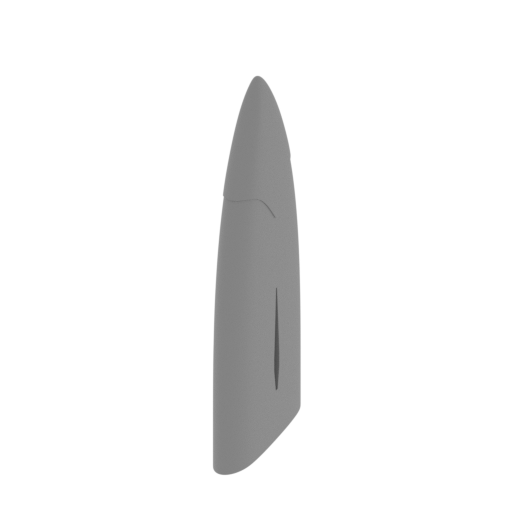

_42_wingFinWithText_b_R_F DM (repaired).stl
4.03 MiB 9 h 3 min 6 m 17 x 77 x 149 Download

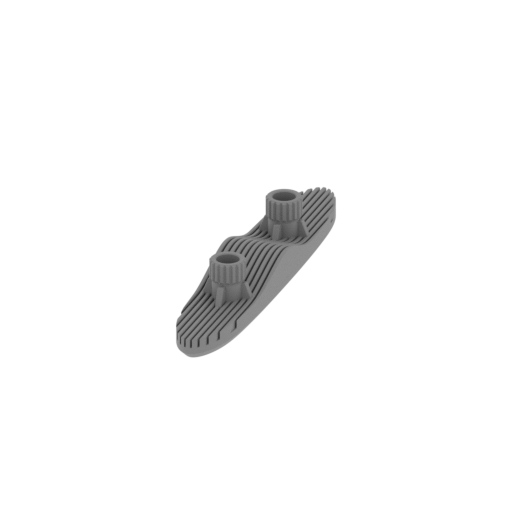

_43_wingFinGrid_X2_FDM (r epaired).stl
1.25 MiB 58 min <1 m 13 x 73 x 12 Download

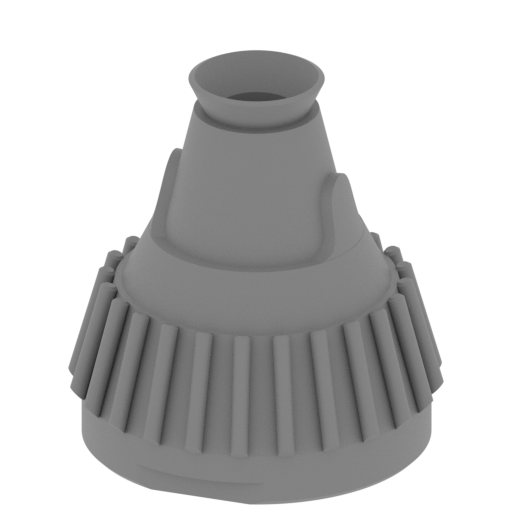

_44_engineBody_FDM (repai red).stl
7.95 MiB 6 h 49 min 3 m 65 x 65 x 68 Download

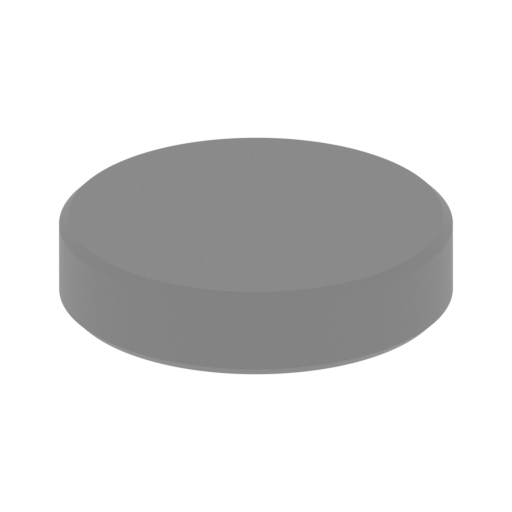

_45_engineGlass_FDM (repa ired).stl
0.18 MiB 5 min <1 m 13 x 13 x 3 Download

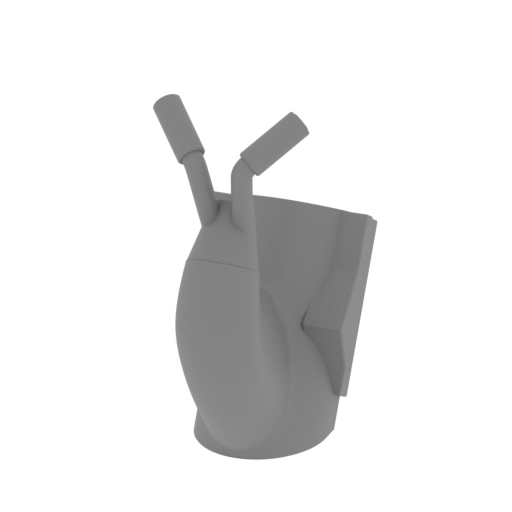

_46_pilotSeatPart_X2_FDM (repaired).stl
1.21 MiB 6 min <1 m 5 x 8 x 11 Download

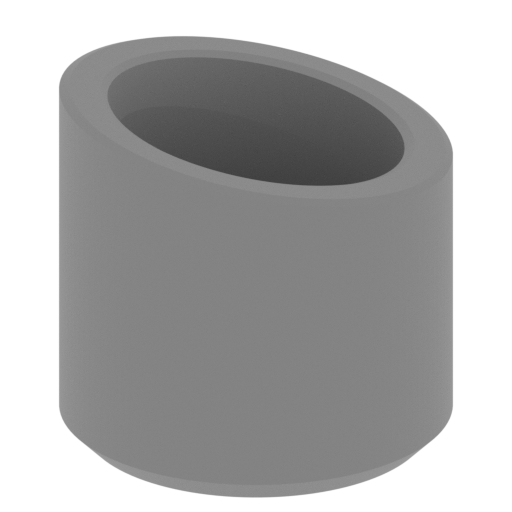

_47_nosePartEngineExhaust _X4_FDM (repaired).stl
0.21 MiB 2 min <1 m 4 x 4 x 4 Download

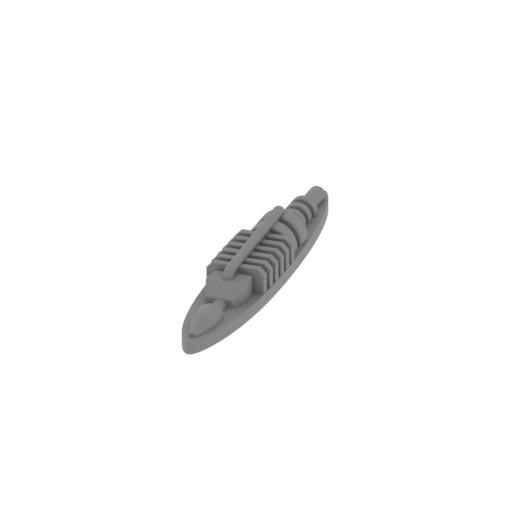

_48_sensorAntenna_FDM (re paired).stl
1.48 MiB 27 min <1 m 10 x 59 x 8 Download

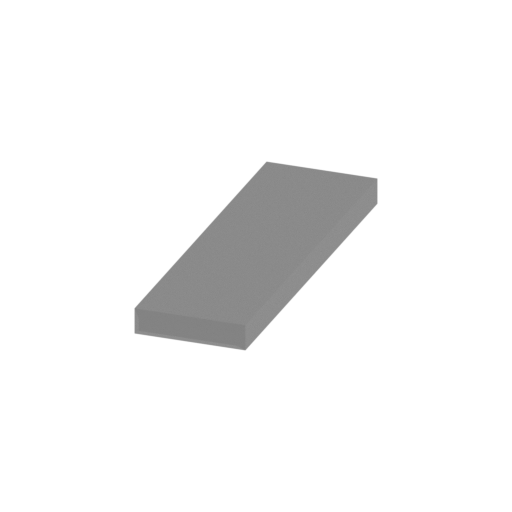

_49_bodyPin_a_X5_FDM (rep aired).stl
0.00 MiB 25 min <1 m 15 x 50 x 4 Download
_50_bodyPin_b_FDM (repair ed).stl
0.00 MiB 20 min <1 m 50 x 15 x 2 Download

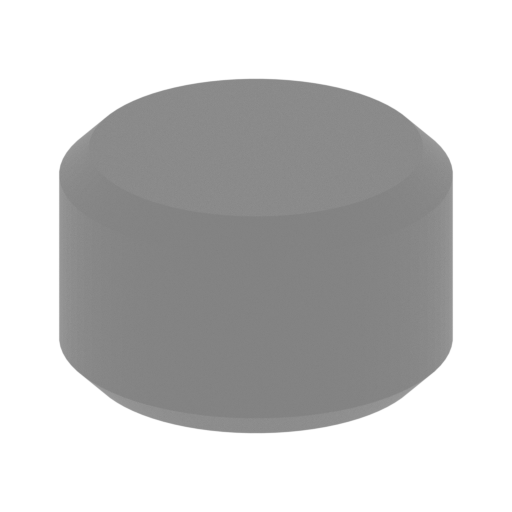

_51_wingFinGridGlass_X4_F DM (repaired).stl
0.03 MiB 1 min <1 m 4 x 4 x 3 Download

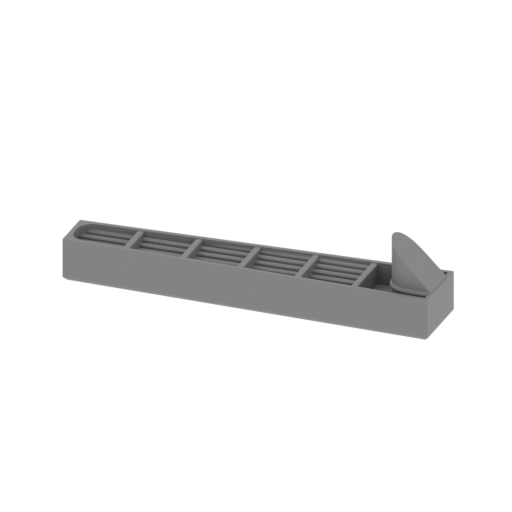

_52_wingGrid_a_L_FDM (rep aired).stl
1.15 MiB 1 h 13 min 1 m 70 x 13 x 17 Download

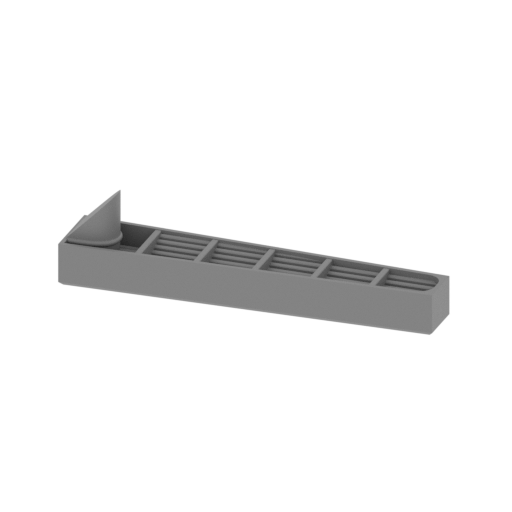

_53_wingGrid_b_R_FDM (rep aired).stl
1.15 MiB 1 h 14 min 1 m 70 x 13 x 17 Download

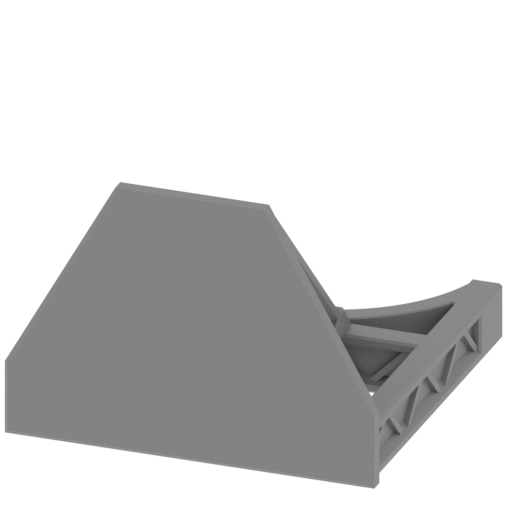

_54_standPart_a_FDM (repa ired).stl
0.44 MiB 6 h 40 min 3 m 71 x 71 x 52 Download

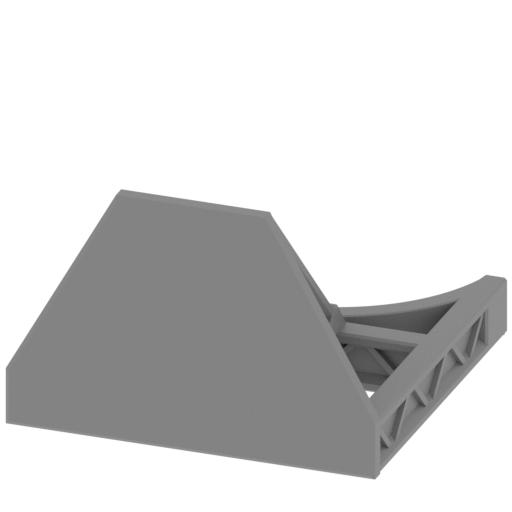

_55_standPart_b_FDM (repa ired).stl
0.52 MiB 6 h 22 min 3 m 71 x 70 x 48 Download

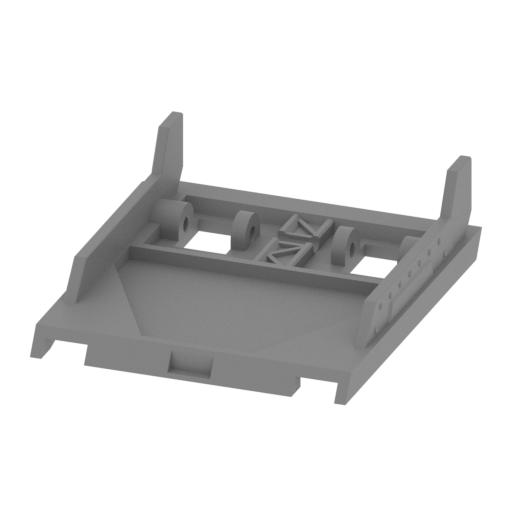

_56_standPart_c_FDM (repa ired).stl
0.89 MiB 6 h 38 min 3 m 82 x 96 x 26 Download

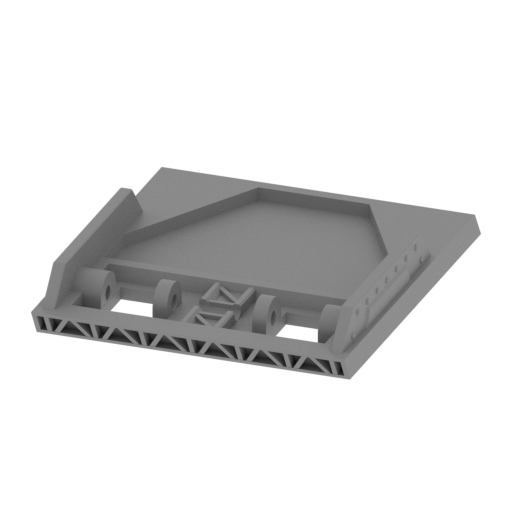

_57_standPart_d_FDM (repa ired).stl
1.02 MiB 6 h 29 min 3 m 82 x 96 x 16 Download

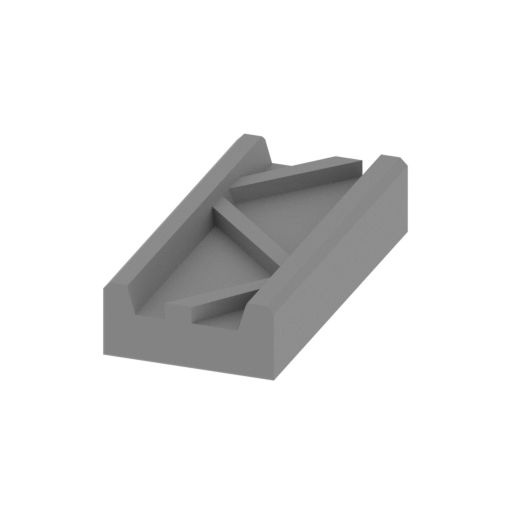

_58_standPart_e_FDM (repa ired).stl
0.02 MiB 13 min <1 m 11 x 23 x 5 Download

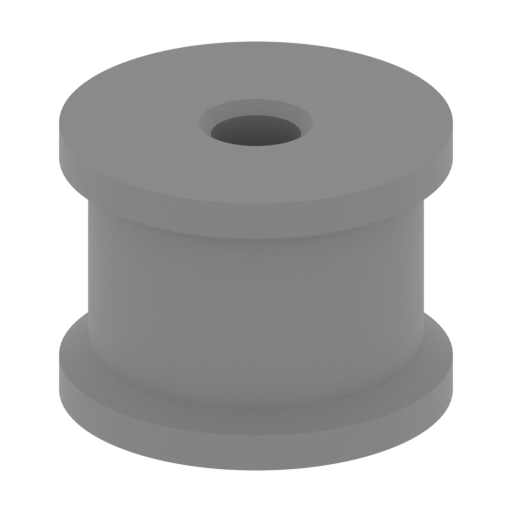

_59_standWheels_X4_FDM (r epaired).stl
0.17 MiB 23 min <1 m 16 x 16 x 12 Download

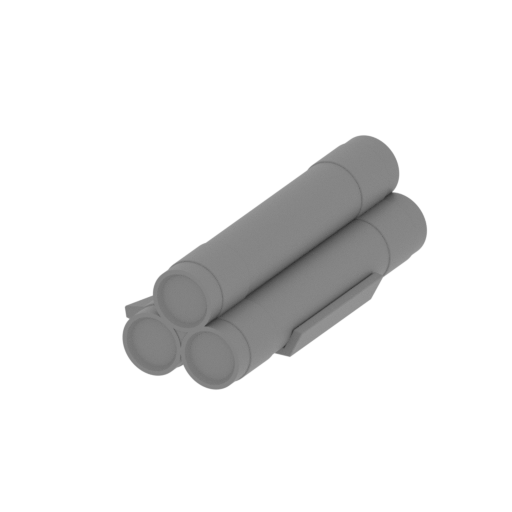

_60_standRockets_a_L_FDM (repaired).stl
0.86 MiB 11 h 55 min 6 m 72 x 120 x 38 Download

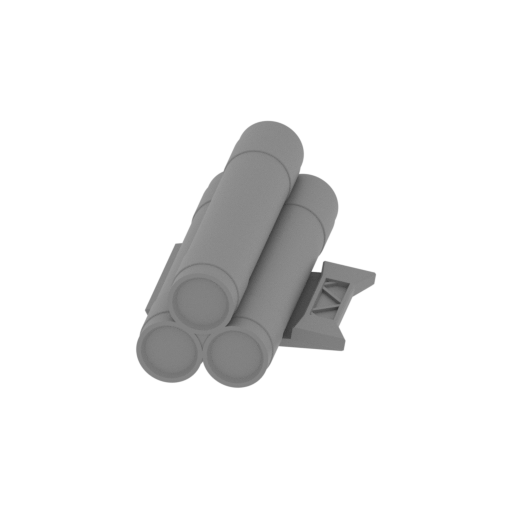

_61_standRockets_b_R_FDM (repaired).stl
0.86 MiB 11 h 51 min 6 m 72 x 120 x 38 Download
_62_standWheelsAxis_X4_FD M (repaired).stl
0.14 MiB 3 min <1 m 21 x 3 x 3 Download

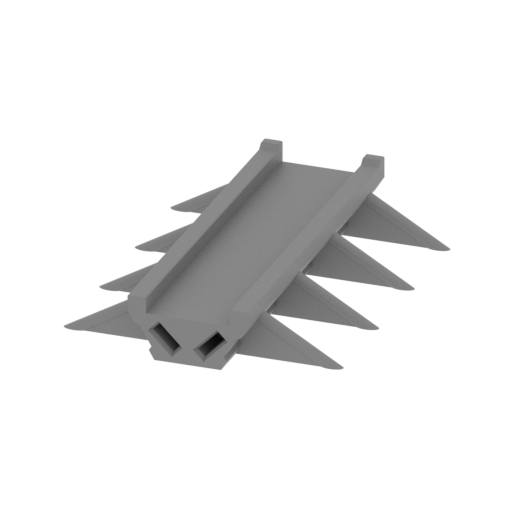

_63_standRail_X2_FDM (rep aired).stl
1.15 MiB 15 h 3 min 8 m 118 x 156 x 29 Download

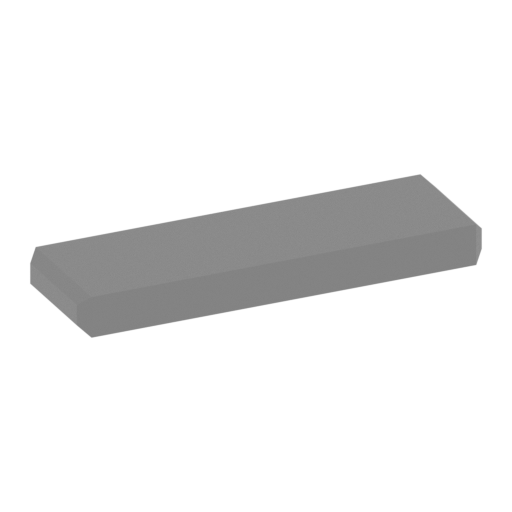

_64_standRailPin_X2_FDM ( repaired).stl
0.00 MiB 18 min <1 m 35 x 35 x 4 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download

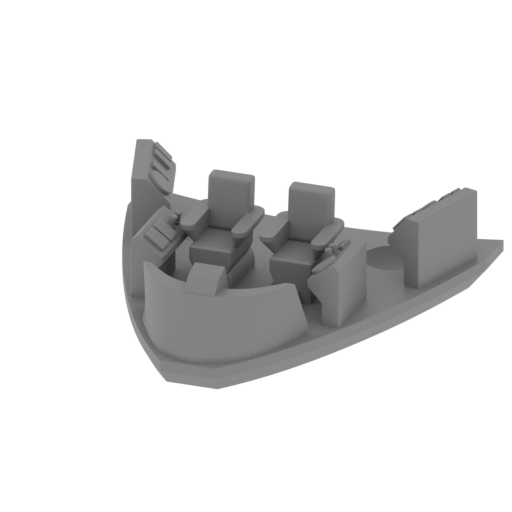

_33_cockpitInterior_FDM ( repaired).stl
6.61 MiB 41 min <1 m 33 x 34 x 11 Download
...

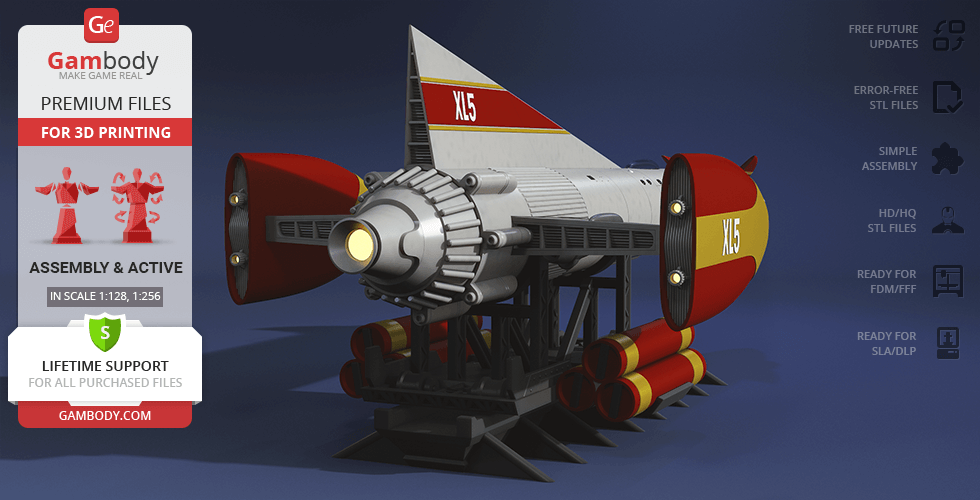

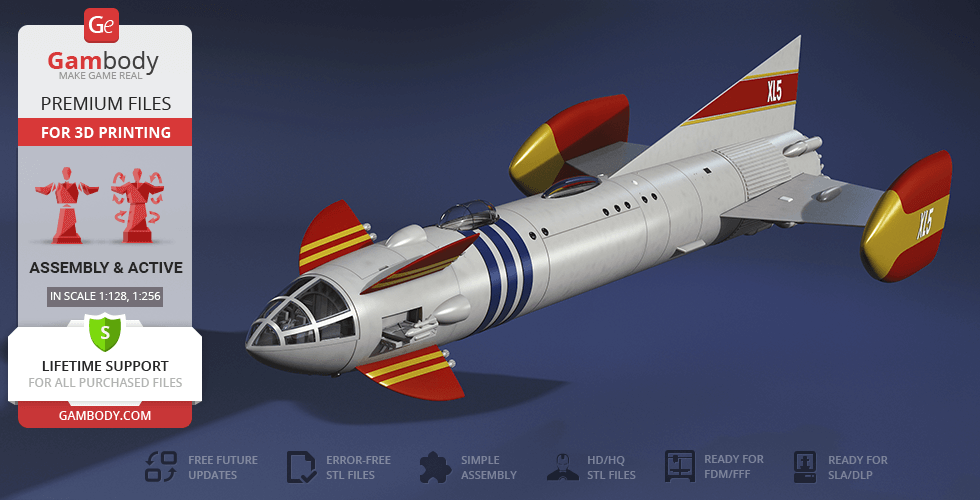

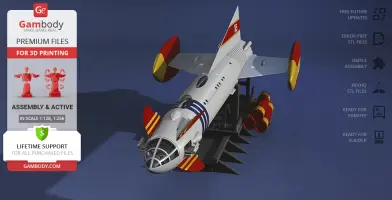

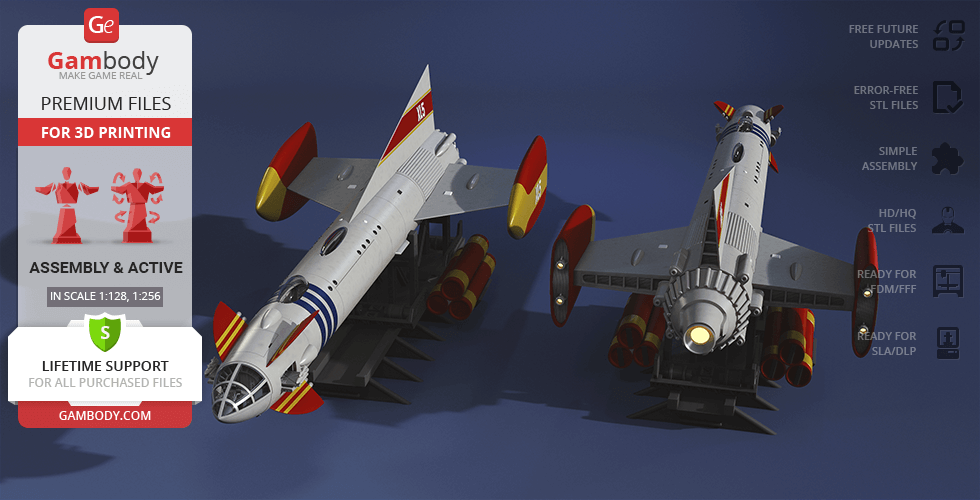

ABOUT THIS 3D MODEL

Gerry Anderson is famous for his futuristic television programs, in the 1960s and 1970s he filmed his well-known series including Thunderbirds, Space: 1999, UFO, Supercar, Fireball XL5, Stingray, Joe 90. Fireball XL5 is a science fiction television series showing the missions of Earth Spaceship Fireball XL5 commanded by Colonel Steve Zodiac. The patrol ship, belonging to the World Space Patrol is used by the Zodiac's crew and serves for defending Earth from interstellar threats.

Our contributing 3D artist put a lot of effort and dedication into the creation of this multi-functional spaceship. The design is made following the original appearance of the patrol boat in the television series. Fireball XL 5 has the shape of a rocket, the nose houses the cockpit, the hull contains several sections, and interstellar travel is enabled through the rocket motors. The craft is equipped with missiles hidden in the missile launchers; there is an option to install LEDs to light up the model. This iconic spaceship will bring a special charm to collections of all sci-fi lovers!

ADAPTATION FOR 3D PRINTING

The Fireball XL5 model for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 93 hours in total.

For you to receive the cleanest 3D printing result possible, minimize the amount of filament needed for generated support, and make use of the active elements designed by Gambody Engineers, the vessel was divided into convenient assembly parts.

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won’t face difficulties when placing the parts on a build plate. When downloading any model’s file you will also receive “Assembly Manual” for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats. We highly recommend that you get acquainted with the “Assembly Video” and “Assembly Manual” before getting down to the Fireball XL 5 3D printing model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model’s scale was calculated from the length of the Fireball XL5 which is 91440 mm. The 3D printing model’s chosen scales are 1:128 for the FFF/FDM version and 1:256 for the DLP/SLA version.

VERSIONS’ SPECIFICATIONS

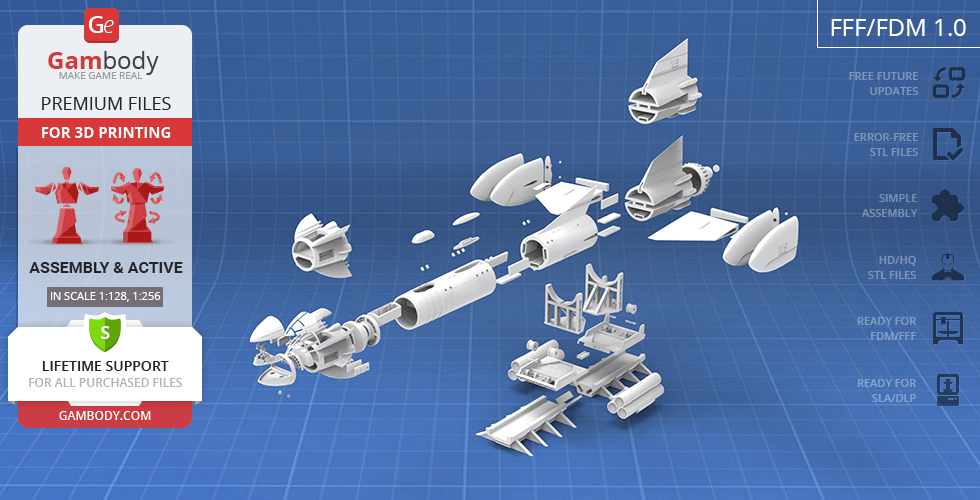

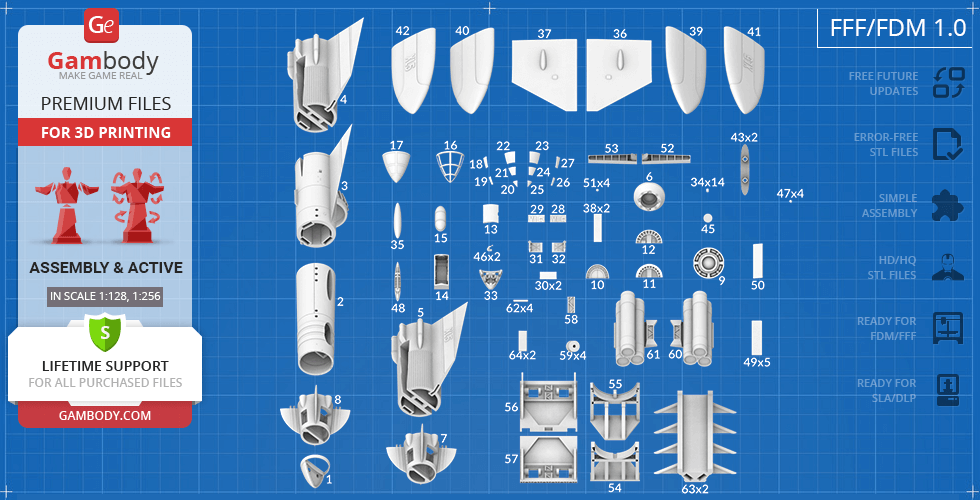

FFF/FDM 1.0 version features:

  • Contains 64 parts;

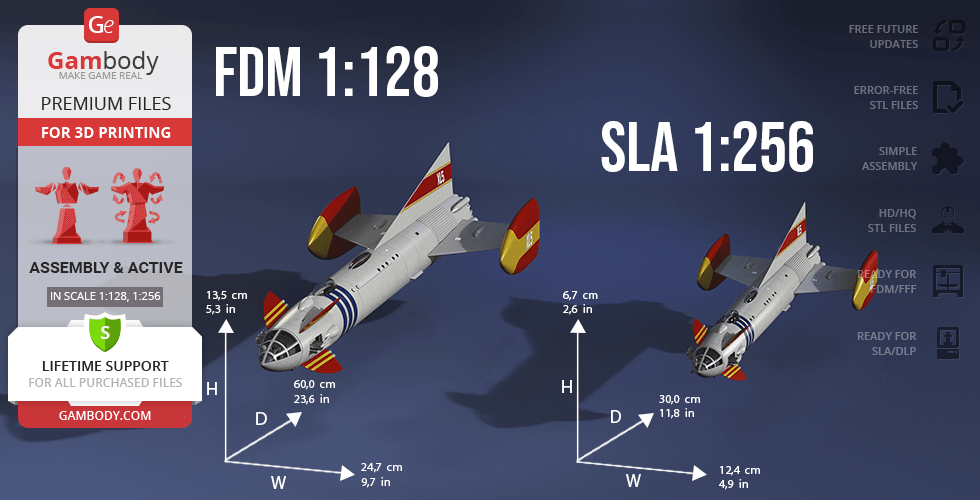

  • A printed model is 135 mm tall, 247 mm wide, 600 mm deep;
  • A printed model on the platform is 204 mm tall, 247 mm wide, 600 mm deep;

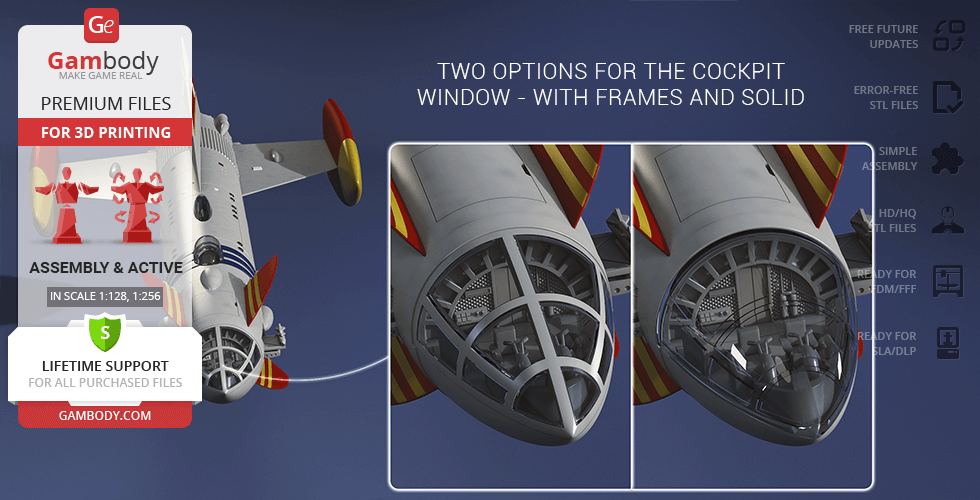

  • Two options for the cockpit window - with frames and solid;

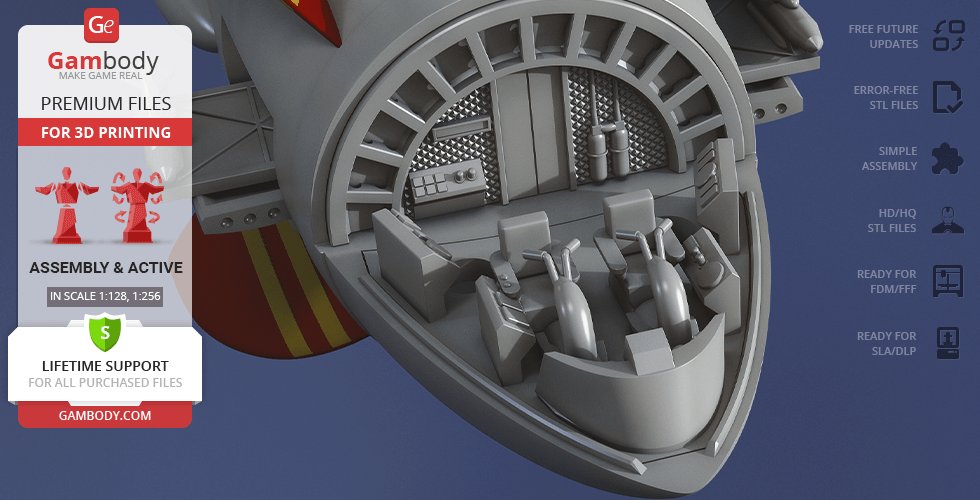

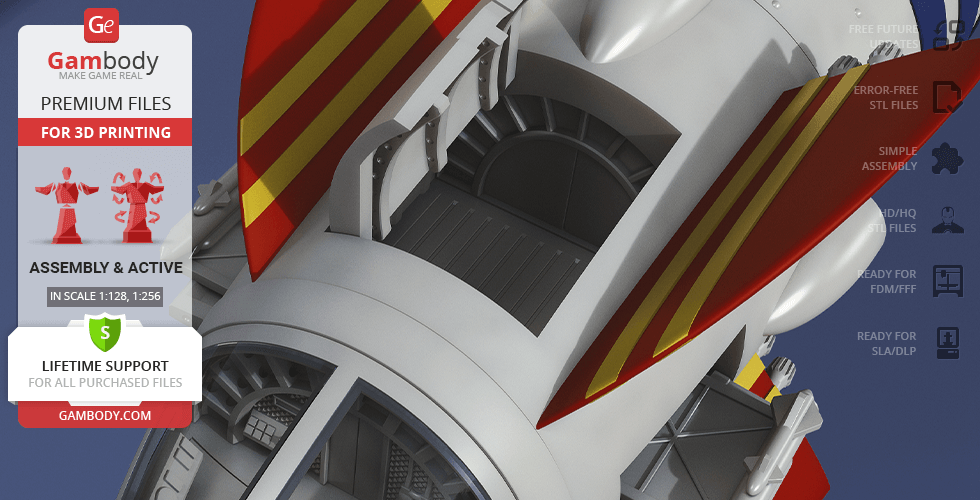

  • Highly-detailed cockpit interior;

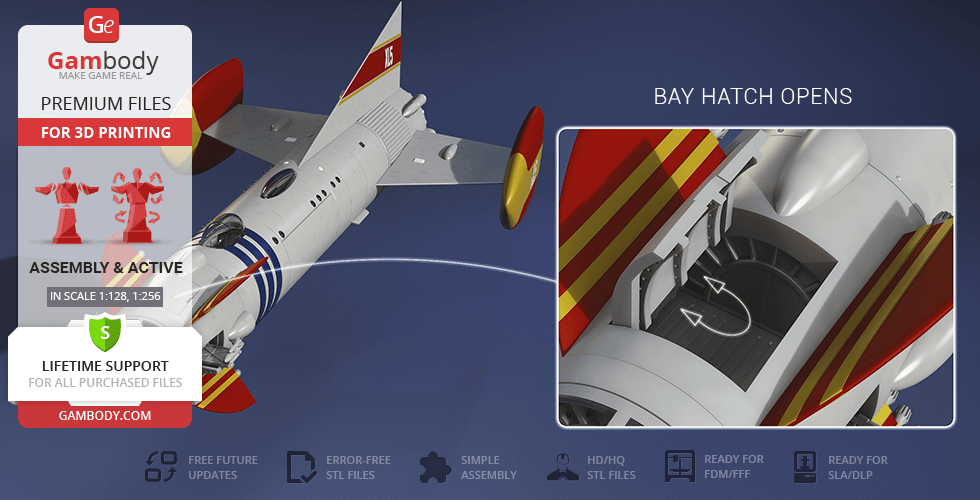

  • Bay hatch opens;
  • Two options for hull design - with and without the lettering;

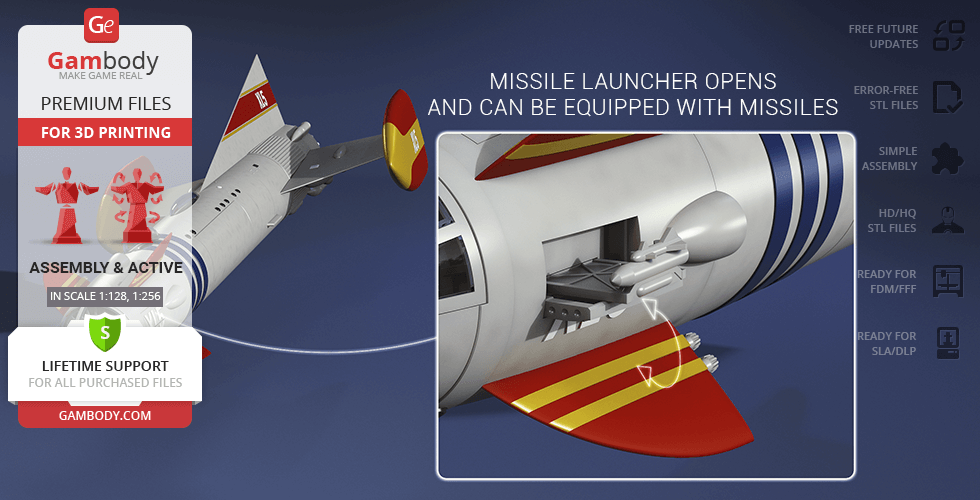

  • Missile launcher opens and can be equipped with missiles;

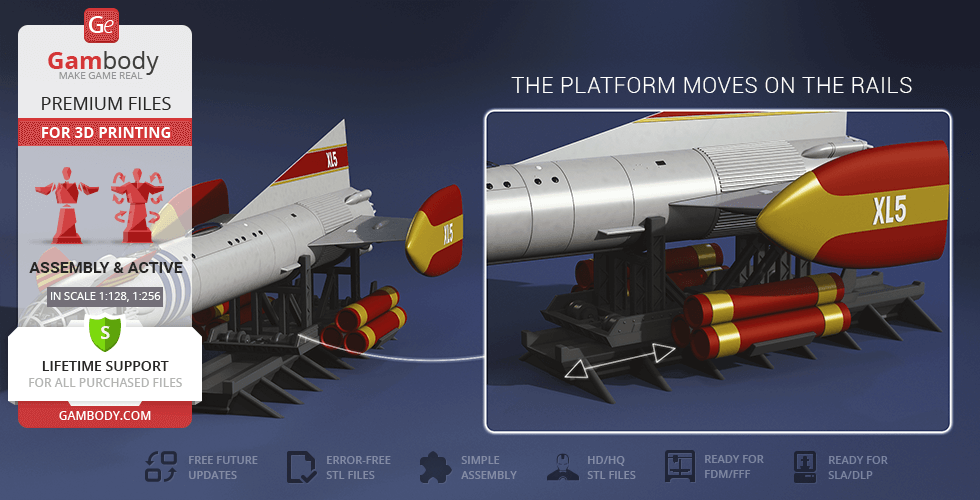

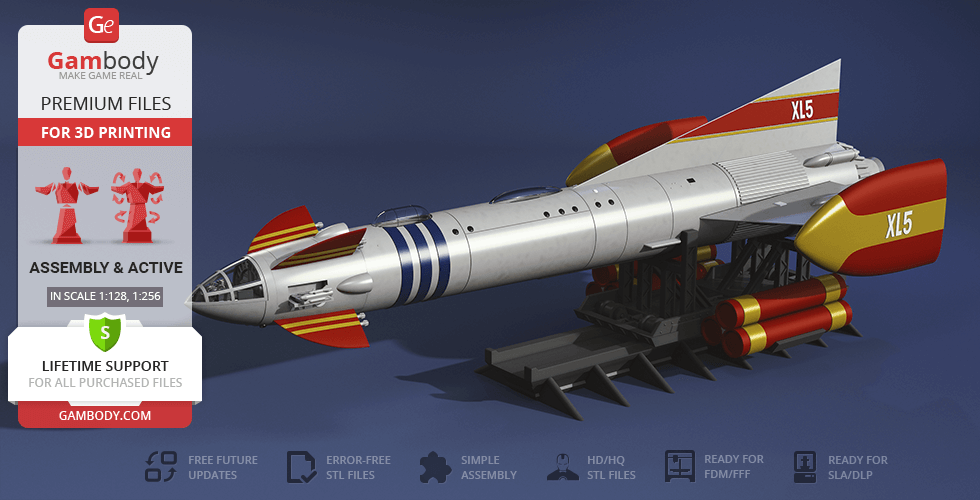

  • The platform moves on the rails;

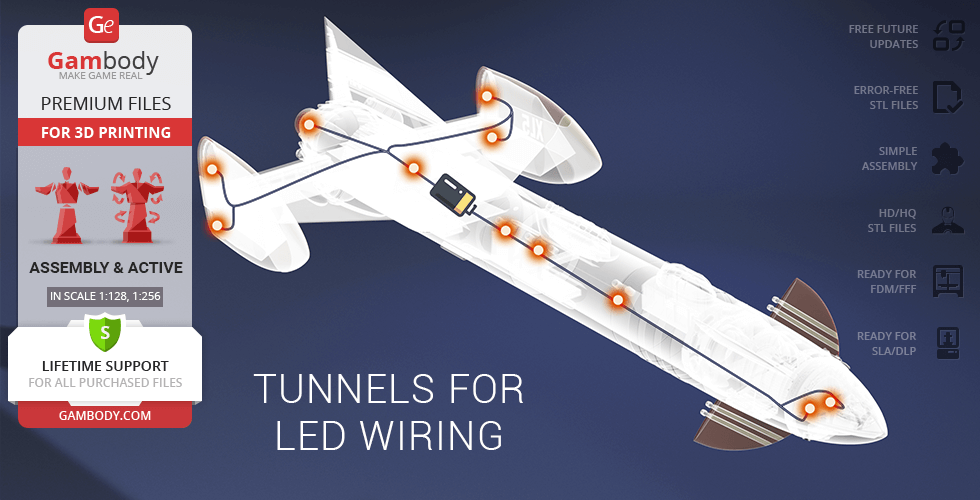

  • Tunnels for the wiring to install LEDs;
  • All parts are divided in such a way that you will print them with the smallest number of support structures.

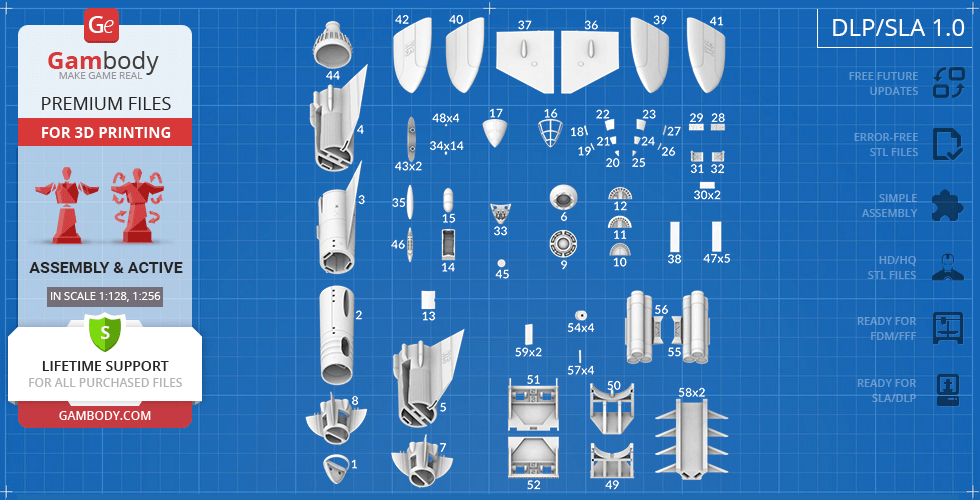

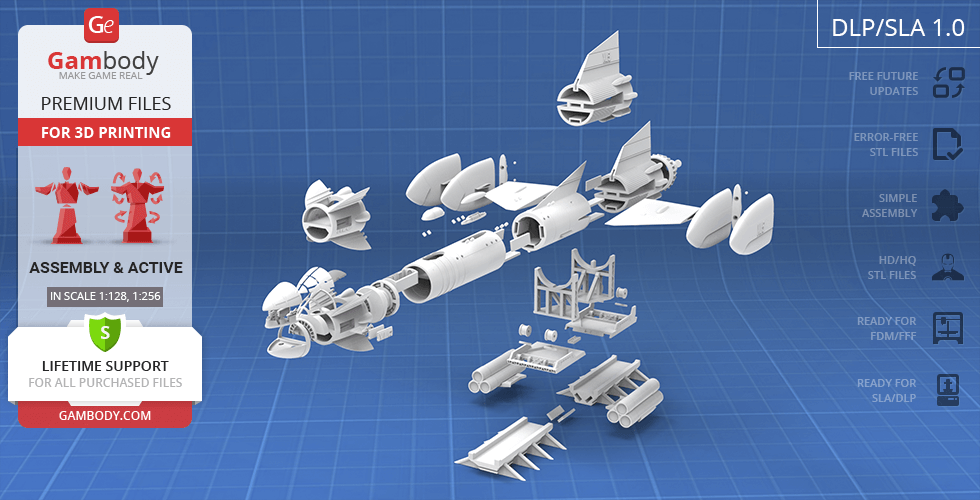

DLP/SLA 1.0 version features:

  • Contains 59 parts;
  • A printed model is 57 mm tall, 124 mm wide, 300 mm deep;
  • A printed model on the platform is 102 mm tall, 124 mm wide, 300 mm deep;
  • Two options for the cockpit window - with frames and solid;
  • Highly-detailed cockpit interior;
  • Bay hatch opens;
  • Two options for hull design - with and without the lettering;
  • Missile launcher opens and can be equipped with missiles;
  • The platform moves on the rails;
  • Tunnels for the wiring to install LEDs;
  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

You can get the Fireball XL5 model for 3D printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble a Fireball XL5 3D Printing Model on Gambody YouTube channel.

Also, you may like Thunderbird 1 3D Printing Model and other Spacecraft 3D Printing Models.

________

FAQ

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

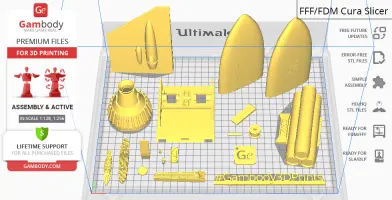

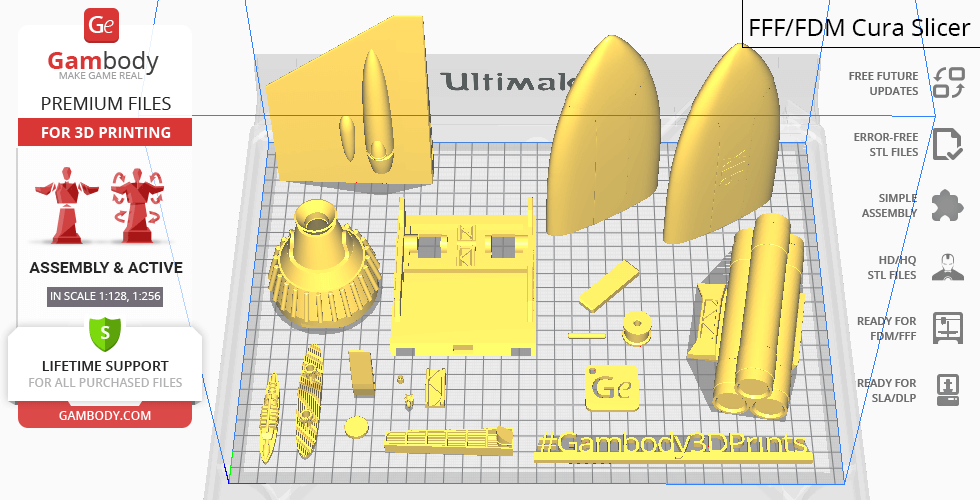

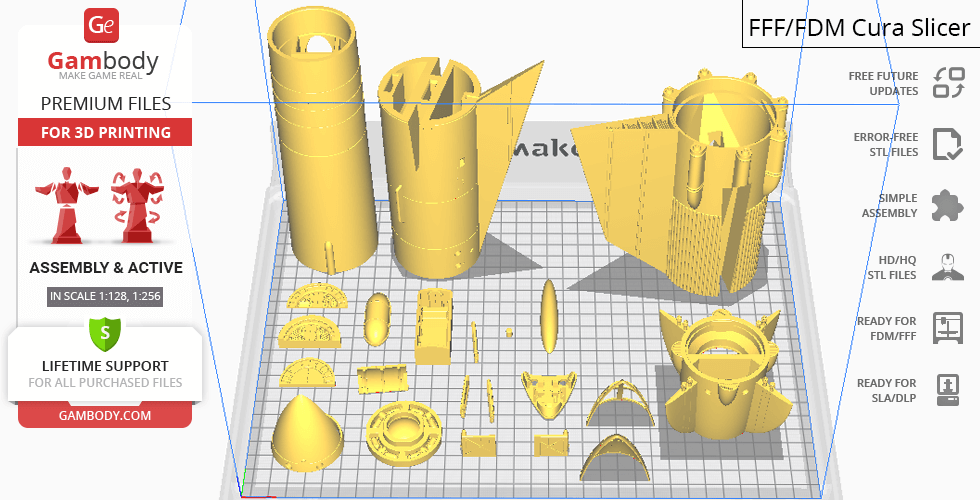

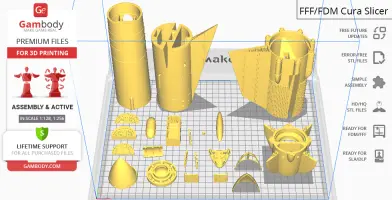

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
