Narcissus 3D Printing Model | Assembly

(12)
cm: 25.4 w x 32.8 d x 14.4 h
in: 10 w x 12.913 d x 5.669 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

Narcissus 3D Printing Model comes in 2 versions for FFF/FDM and DLP/SLA/SLS 3D printers. STL files of both versions are available for download after the purchase.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)
_1_Wing_L_Fdm (repaired). stl
6.29 MiB 13 h 40 min 9 m 112 x 62 x 132 Download
_4_Nose_R_Fdm (repaired). stl
5.00 MiB 1 h 56 min 1 m 31 x 32 x 43 Download

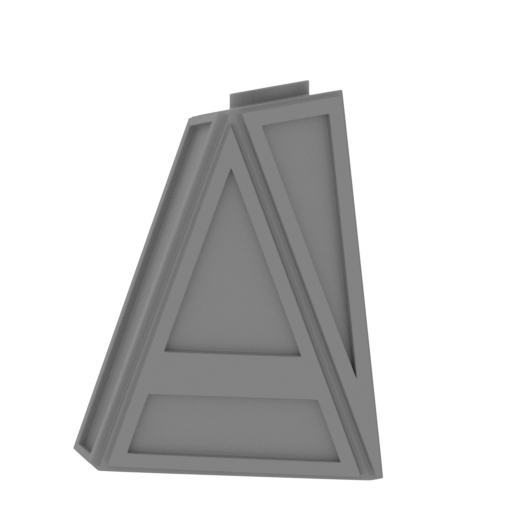

_5_Nose_L_Fdm (repaired). stl
5.00 MiB 1 h 52 min 1 m 34 x 31 x 43 Download
_6_Nose_M_Fdm (repaired). stl
7.00 MiB 1 h 22 min 1 m 12 x 31 x 32 Download
_7_Body_Bot_Fdm (repaired ).stl
9.46 MiB 28 h 31 min 19 m 153 x 59 x 133 Download
_8_Body_R_Fdm (repaired). stl
1.15 MiB 9 h 44 min 6 m 106 x 85 x 40 Download
_9_Body_L_Fdm (repaired). stl
1.13 MiB 10 h 5 min 6 m 106 x 85 x 40 Download

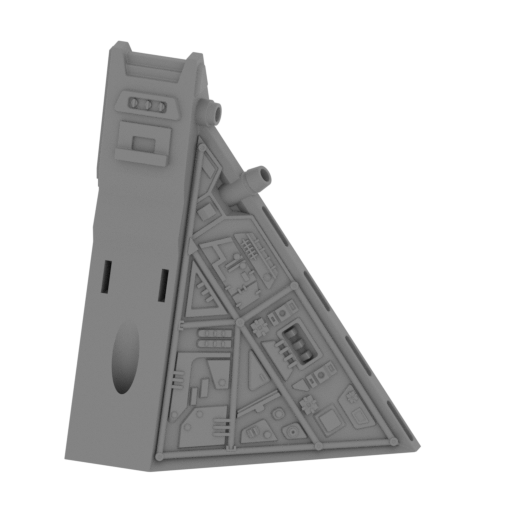

_11_Tail_L_Fdm (repaired) .stl
30.17 MiB 20 h 4 min 10 m 97 x 71 x 117 Download
_12_Tail_R_Fdm (repaired) .stl
30.12 MiB 19 h 10 min 10 m 97 x 71 x 117 Download
_13_Tail_1_Fdm (repaired) .stl
8.57 MiB 6 h 21 min 4 m 59 x 60 x 37 Download
_14_Bot_Plug_Fdm (repaire d).stl
1.81 MiB 4 h 58 min 3 m 70 x 35 x 26 Download
_15_Engine_Bot_Fdm_ (repa ired).stl
26.20 MiB 2 h 7 min 1 m 40 x 76 x 10 Download
_16_Plate_Bot_R_Fdm (repa ired).stl
3.30 MiB 3 h 16 min 2 m 57 x 155 x 4 Download
_17_Plate_Bot_L_Fdm (repa ired).stl
3.30 MiB 3 h 17 min 2 m 57 x 155 x 4 Download

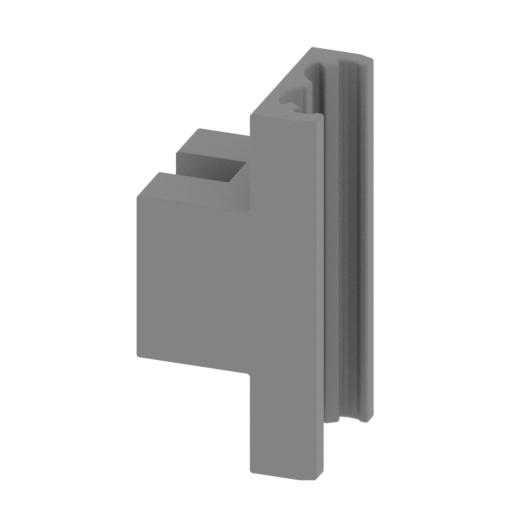

_18_Plug_L (repaired).stl
0.25 MiB 51 min <1 m 17 x 16 x 35 Download
_19_Plug_R (repaired).stl
0.25 MiB 51 min <1 m 17 x 16 x 35 Download

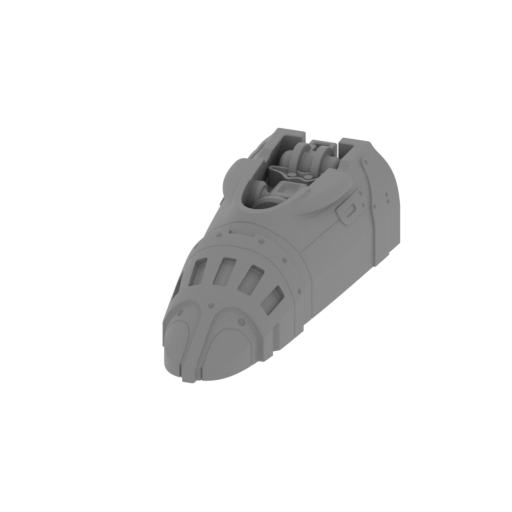

_20_Engine_B_2_R_Fdm (rep aired).stl
17.75 MiB 1 h 36 min 1 m 25 x 60 x 17 Download
_21_Engine_B_2_L_Fdm (rep aired).stl
17.74 MiB 1 h 36 min 1 m 25 x 60 x 17 Download

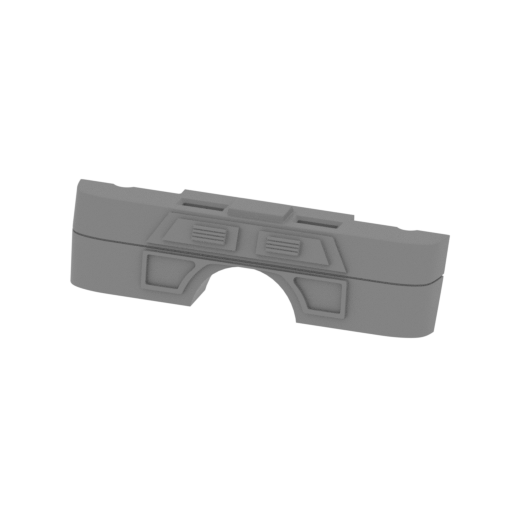

_22_Body_Tail_Fdm (repair ed).stl
5.84 MiB 2 h 39 min 2 m 98 x 20 x 24 Download
_23_Engine_B_1_L_Fdm (rep aired).stl
25.38 MiB 5 h 47 min 3 m 35 x 30 x 99 Download
_24_Engine_B_1_R_Fdm (rep aired).stl
25.38 MiB 5 h 52 min 3 m 35 x 30 x 99 Download

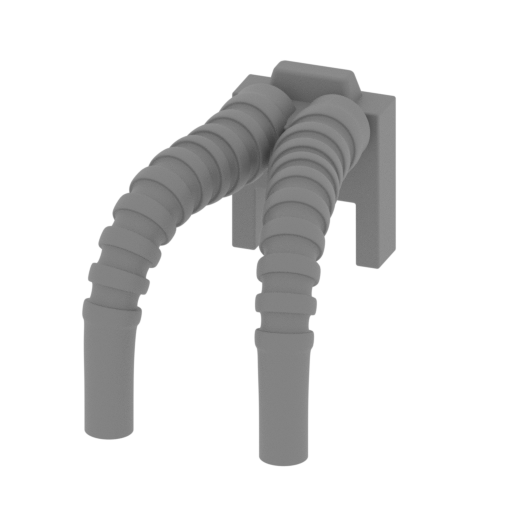

_25_Engine_Pipe_L_Fdm (re paired).stl
26.22 MiB 14 min <1 m 10 x 16 x 11 Download
_26_Engine_Pipe_R_Fdm (re paired).stl
26.22 MiB 13 min <1 m 10 x 16 x 11 Download
_27_Engine_A_L_Fdm (repai red).stl
26.27 MiB 4 h 13 min 2 m 35 x 30 x 76 Download
_28_Engine_A_R_Fdm (repai red).stl
26.29 MiB 4 h 12 min 2 m 35 x 30 x 76 Download
_29_Cabin_M_1_Fdm (repair ed).stl
26.95 MiB 5 h 13 min 3 m 103 x 77 x 29 Download
_30_Cabin_F_Fdm (repaired ).stl
9.77 MiB 3 h 52 min 2 m 49 x 35 x 55 Download
_31_Cabin_M_2_Fdm (repair ed).stl
17.11 MiB 7 h 3 min 3 m 70 x 70 x 40 Download
_32_Cabin_B_Fdm (repaired ).stl
62.00 MiB 15 h 45 min 7 m 146 x 125 x 43 Download
_33_Luke_1_Fdm (repaired) .stl
0.12 MiB 25 min <1 m 30 x 37 x 4 Download

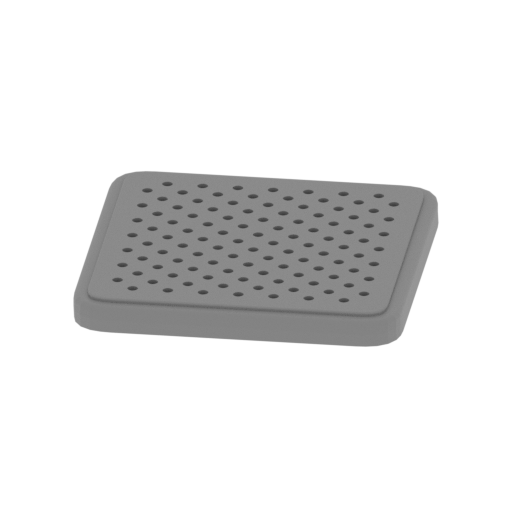

_34_Luke_2_Fdm (repaired) .stl
1.20 MiB 4 min <1 m 14 x 14 x 1 Download

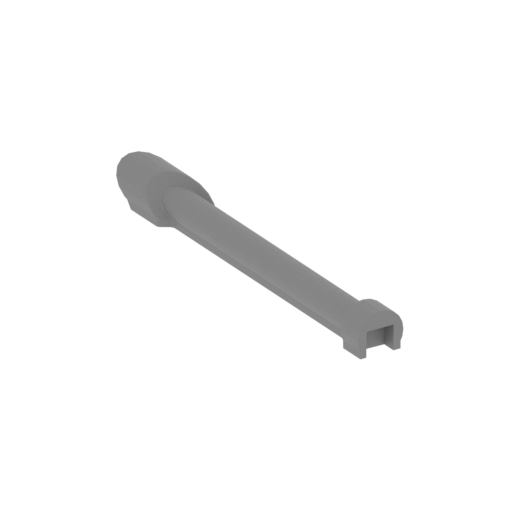

_35_Pipe_Fdm (repaired).s tl
0.06 MiB 4 min <1 m 25 x 19 x 3 Download
_36_Computer_L_Fdm (repai red).stl
0.68 MiB 15 min <1 m 7 x 6 x 20 Download
_37_Computer_R_Fdm (repai red).stl
0.68 MiB 14 min <1 m 7 x 6 x 20 Download

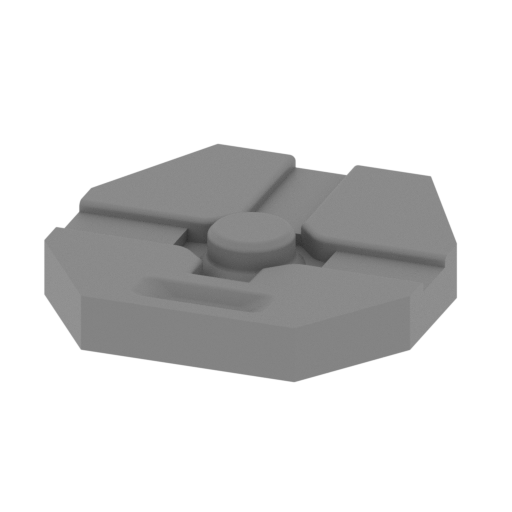

_38_Door_Fdm (repaired).s tl
0.36 MiB 23 min <1 m 26 x 27 x 5 Download
_39_Window_Cabin_R_Fdm (r epaired).stl
0.35 MiB 24 min <1 m 14 x 7 x 30 Download
_40_Window_Cabin_L_Fdm (r epaired).stl
0.35 MiB 24 min <1 m 14 x 7 x 30 Download
_41_Engine_Window_B_R_Fdm (repaired).stl
0.70 MiB 8 min <1 m 17 x 17 x 3 Download
_42_Engine_Window_B_L_Fdm (repaired).stl
0.70 MiB 8 min <1 m 17 x 17 x 3 Download
_43_Engine_Window_A_R_Fdm (repaired).stl
0.70 MiB 8 min <1 m 17 x 17 x 3 Download
_44_Engine_Window_A_L_Fdm (repaired).stl
0.70 MiB 8 min <1 m 18 x 17 x 3 Download
_45_Window_3_L_Fdm (repai red).stl
0.02 MiB 4 min <1 m 13 x 27 x 1 Download
_46_Window_2_L_Fdm (repai red).stl
0.03 MiB 5 min <1 m 12 x 30 x 1 Download
_47_Window_1_L_Fdm (repai red).stl
0.03 MiB 4 min <1 m 9 x 28 x 1 Download
_48_Window_3_R_Fdm (repai red).stl
0.02 MiB 4 min <1 m 13 x 27 x 1 Download

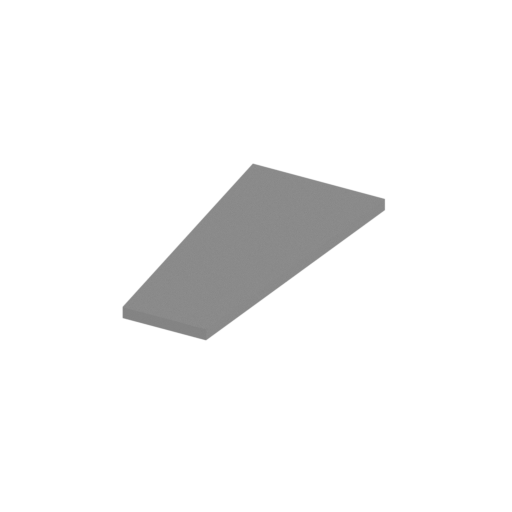

_49_Window_2_R_Fdm (repai red).stl
0.03 MiB 5 min <1 m 12 x 30 x 1 Download
_50_Window_1_R_Fdm (repai red).stl
0.03 MiB 4 min <1 m 9 x 28 x 1 Download
_51_Alien_Fdm (repaired). stl
24.58 MiB 53 min <1 m 56 x 26 x 24 Download
_52_Tail_2_Fdm (repaired) .stl
4.36 MiB 1 h 14 min 1 m 45 x 19 x 18 Download
_53_Tail_3_Fdm (repaired) .stl
12.63 MiB 4 h 58 min 3 m 45 x 78 x 22 Download
_54_Door_M_Fdm (repaired) .stl
2.60 MiB 34 min <1 m 28 x 29 x 7 Download

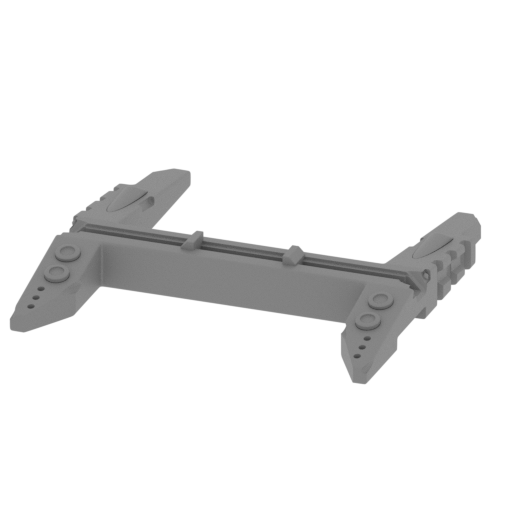

_55_Stand_1_Fdm (repaired ).stl
12.94 MiB 4 h 3 min 2 m 100 x 103 x 15 Download
_56_Stand_3_Fdm (repaired ).stl
23.95 MiB 7 h 28 min 4 m 103 x 67 x 101 Download
_57_Stand_2_Fdm (repaired ).stl
35.88 MiB 9 h 30 min 5 m 123 x 71 x 76 Download
_58_Lock_x57_Fdm (repaire d).stl
0.03 MiB 4 min <1 m 10 x 18 x 2 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 16 min 1 m 150 x 18 x 5 Download

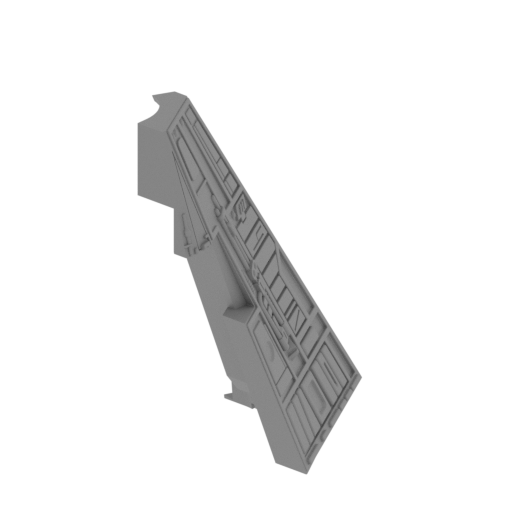

_2_Wing_R_Fdm (repaired). stl
6.60 MiB 14 h 25 min 9 m 55 x 115 x 132 Download
_10_Body_Plug_fdm (repair ed).stl
0.57 MiB 1 h 53 min 1 m 28 x 47 x 16 Download

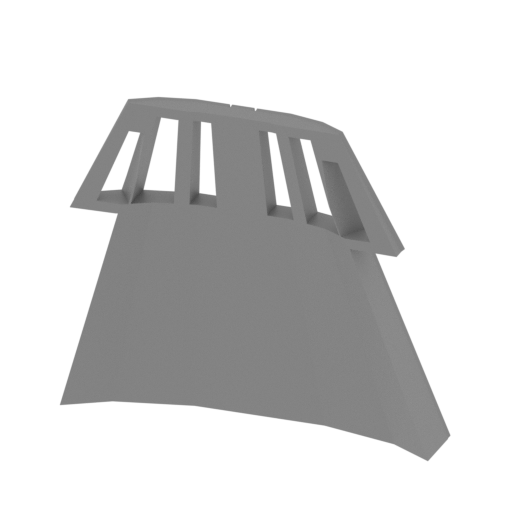

_3_Center_plate_fdm (repa ired).stl
8.33 MiB 9 h 49 min 5 m 98 x 32 x 89 Download
...

ABOUT THIS 3D MODEL

The Narcissus is a shuttlecraft and lifeboat of the interstellar towing vehicle USCSS Nostromo. Designed to aid in case of emergencies, the Narcissus was stored on the underside of the Nostromo, waiting for its chance to help the crew. In an unfortunate turn of events, the hostile Alien Xenomorph was able to infiltrate the Nostromo and the ship was destroyed in an attempt to kill the creature. The last remaining crew member, courageous Warrant Officer Ellen Ripley, boarded the Narcissus with the sole hope of surviving the disaster, only to discover that the violent monster hid in a small crevice of the shuttle. To pay homage to the game-changing Narcissus lifeboat and the final battle that kept us on the edge of our seats, our contributing 3D artist decided to create the Narcissus 3D Printing Model that can now become a part of your movie fleet! This model for 3D printing explores the ship’s streamlined forms and the plethora of little details with overwhelming attention. The shuttle’s exterior is covered with complex patterns that make it look extremely true to life. Equipped with two forward or four rearward thrust tunnels, the shuttle will be able to navigate in whichever direction you require. Beneath the ship’s outer body, lies the elaborate single internal cabin created by the 3D modeller. The interior perfectly reflects the numerous cryotubes, lockers and storage space for supplies and equipment that the original ship had, as well as the central control unit that Ripley used to blast the threatening creature into space. Last but not least, the Xenomorph itself is hiding in one of the walls of the Narcissus 3D Printing Model. However, do not fear, all of it will only help you create a fantastic piece for your collection!

ADAPTATION FOR 3D PRINTING

Narcissus for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 55 hours in total. For you to receive the cleanest 3D printing result possible and to minimize the amount of filament needed for generated support the spacecraft model was divided into many assembly parts, e.g. its Airlock, engine thrusters, the covers of thrusters, the Xenomorph, rear thrust tunnels, Hypersleep Chambers, cockpit windows, etc. are provided as separate STL files. The covers of the four Rear Thrust Tunnels, windows of the cockpit and two Hypersleep Chambers are provided separately and can be printed with transparent filament. Tunnels throughout the ship’s body are provided for LED wiring to light up the interior of the shuttle and the four Rear Thrust Tunnels. A spot to hide the battery is provided inside the Central Control Unit. For you to display the Narcissus model among your Space Ships collection there is a special stand provided. All assembly parts are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA/SLS 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly video” and "Assembly Manual" before getting down to the Narcissus model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from the actual length of the Narcissus that is 16300 mm. The 3D printing model's chosen scale is 1/50 for FFF/FDM version and 1/100 for DLP/SLA/SLS version.

VERSIONS' SPECIFICATIONS

FFF/FDM 1.0 version features:
- Contains 58 parts;
- A printed ship is 144 mm tall, 254 mm wide, 328 mm deep;
- Assembly kit includes lock 58_Lock_x57 to connect the model's parts securely without glue that needs to be printed 57 times;
Highly-detailed exterior of the craft and elaborate interior design;
- The Airlock opens to reveal the highly-detailed interior of the ship;
- Model is made hollow for you to introduce LED wiring and light up the interior of the shuttle and the four Rear Thrust Tunnels;
- Inside the cockpit, the Xenomorph is hidden;
- The covers of the four Rear Thrust Tunnels, windows of the cockpit and two Hypersleep Chambers are provided separately and can be printed with transparent filament;
- Made with a special stand to conveniently display the ship among your spacecraft fleet;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

DLP/SLA 1.0 version features:
- Contains 26 parts;
- A printed ship is 72 mm tall, 127 mm wide, 164 mm deep;
Highly-detailed exterior of the craft and elaborate interior design;
- The Airlock opens to reveal the highly-detailed interior of the ship;
- Model is made hollow for you to introduce LED wiring and light up the interior of the shuttle and the four Rear Thrust Tunnels;
- Inside the cockpit, the Xenomorph is hidden;
- The covers of the four Rear Thrust Tunnels and windows of the two Hypersleep Chambers are provided separately and can be printed with transparent material;
- Made with a special stand to conveniently display the ship among your spacecraft fleet;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Narcissus​​ Model for 3D printing which consist of 84 parts;
- 2 versions of files for this model for FFF/FDM and DLP/SLA/SLS printers;
- High-poly detailed model of Narcissus;
- Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get the model of Narcissus for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble the Narcissus​​ 3D Printing Model at Gambody YouTube channel.

Also, you may like USCSS Nostromo 3D Printing Model, as well as other Space Ships 3D Printing Models, or Alien vs Predator 3D Printing Figurines.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

  • You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);
  • All connectors should be printed at 100% Infill.

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
