USCSS Nostromo 3D Printing Model | Assembly

(11)
cm: 41.2 w x 64.4 d x 21 h
in: 16.22 w x 25.354 d x 8.268 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

USCSS Nostromo 3D Printing Model comes in 2 versions for FFF/FDM and DLP/SLA/SLS 3D printers. STL files of both versions are available for download after the purchase.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

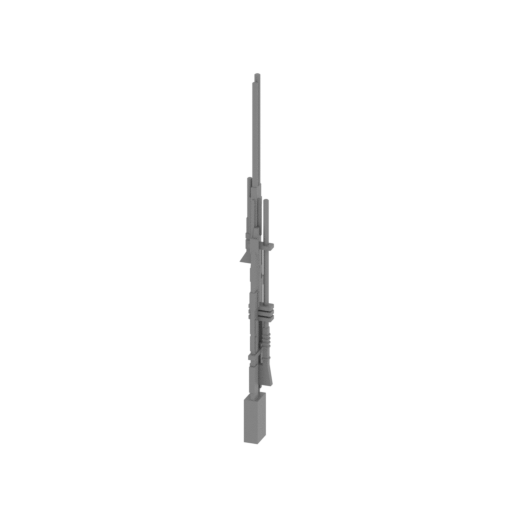

_1_anten_front_FDM (repai red).stl
0.54 MiB 2 h 28 min 1 m 13 x 16 x 143 Download

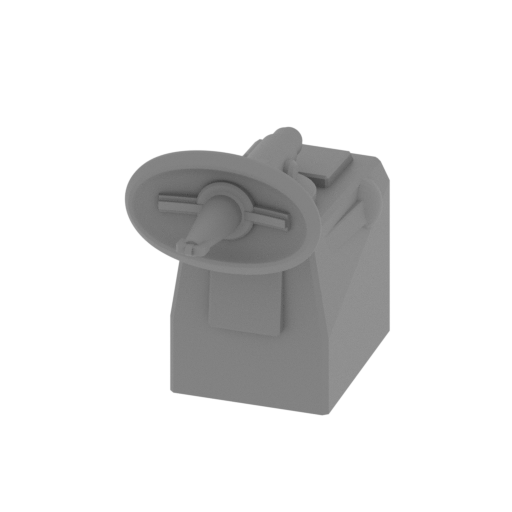

_2_anten_radar_FDM (repai red).stl
1.43 MiB 19 min <1 m 12 x 22 x 17 Download
_3_anten_side_a_L_FDM (re paired).stl
0.44 MiB 1 h 9 min <1 m 6 x 17 x 83 Download

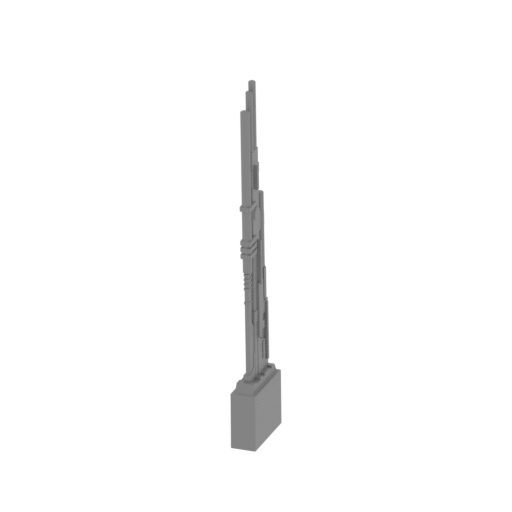

_4_anten_side_b_L_FDM (re paired).stl
0.44 MiB 1 h 11 min <1 m 6 x 16 x 83 Download

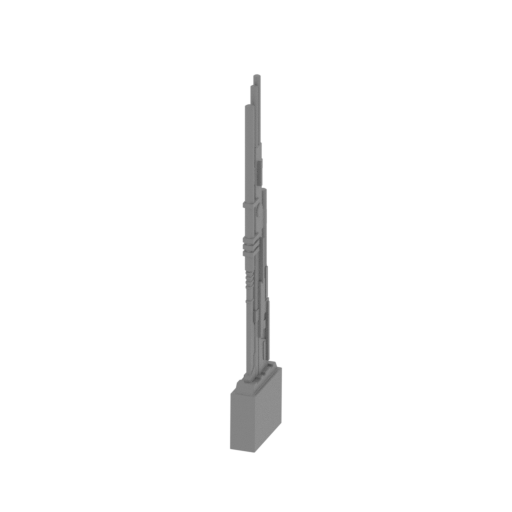

_5_anten_side_c_L_FDM (re paired).stl
0.44 MiB 1 h 5 min <1 m 6 x 17 x 83 Download

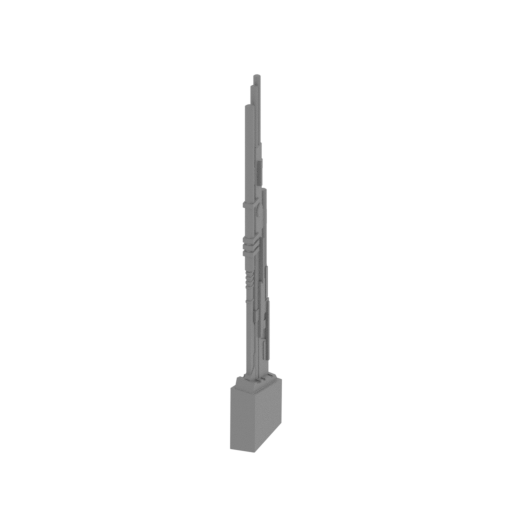

_6_anten_side_a_R_FDM (re paired).stl
0.44 MiB 1 h 6 min <1 m 6 x 17 x 83 Download
_7_anten_side_b_R_FDM (re paired).stl
0.44 MiB 1 h 7 min <1 m 6 x 16 x 83 Download
_8_anten_side_c_R_FDM (re paired).stl
0.44 MiB 1 h 10 min <1 m 6 x 17 x 83 Download

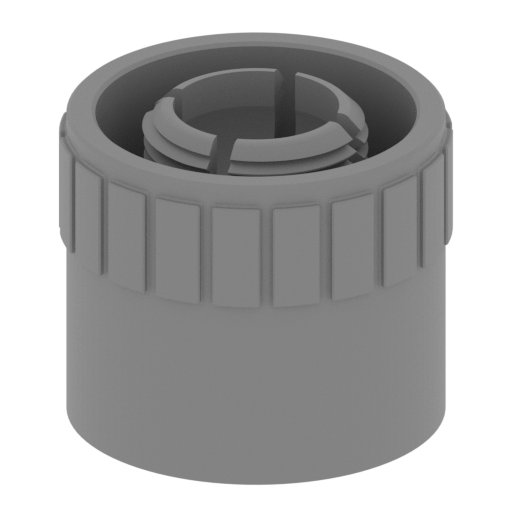

_9_gun_1_R_FDM (repaired) .stl
1.70 MiB 25 min <1 m 15 x 15 x 13 Download

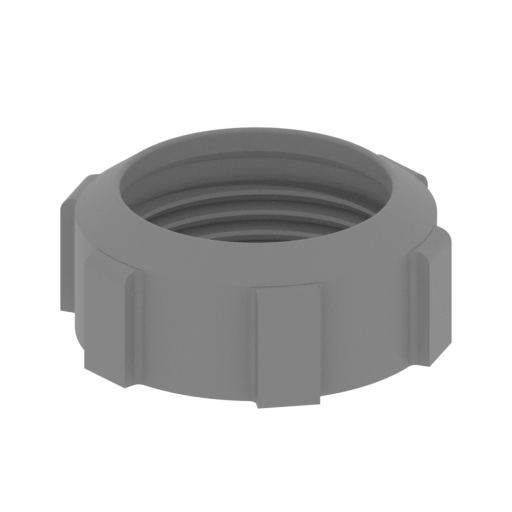

_10_gun_2_R_FDM (repaired ).stl
0.99 MiB 6 min <1 m 11 x 11 x 4 Download

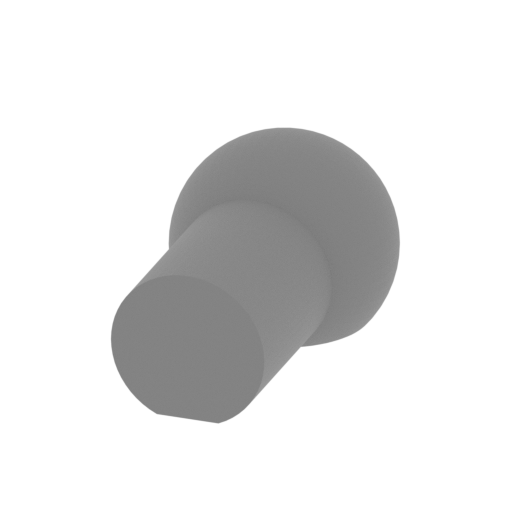

_11_gun_3_R_FDM (repaired ).stl
0.24 MiB 5 min <1 m 7 x 11 x 5 Download

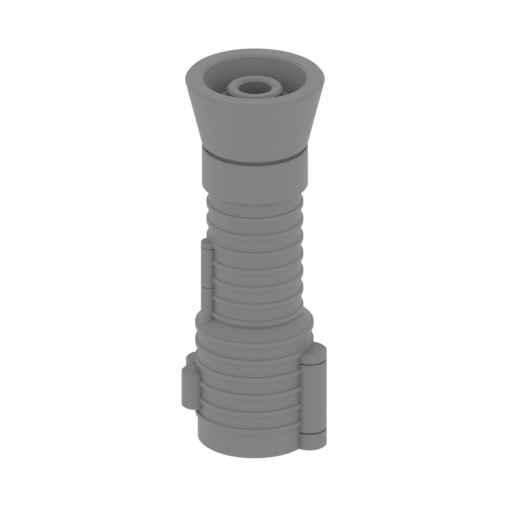

_12_gun_4_R_FDM (repaired ).stl
1.22 MiB 29 min <1 m 10 x 10 x 28 Download

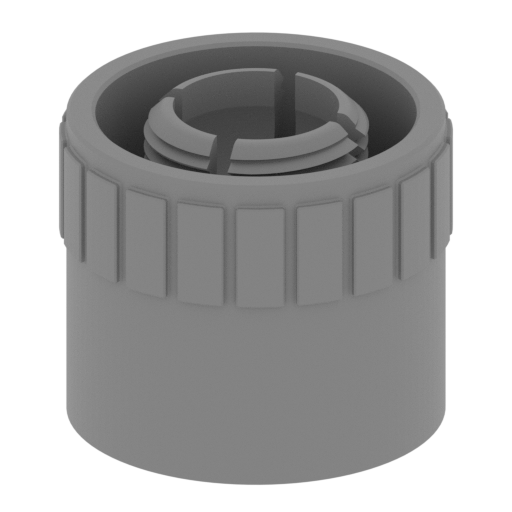

_13_gun_1_L_FDM (repaired ).stl
1.70 MiB 25 min <1 m 15 x 15 x 13 Download

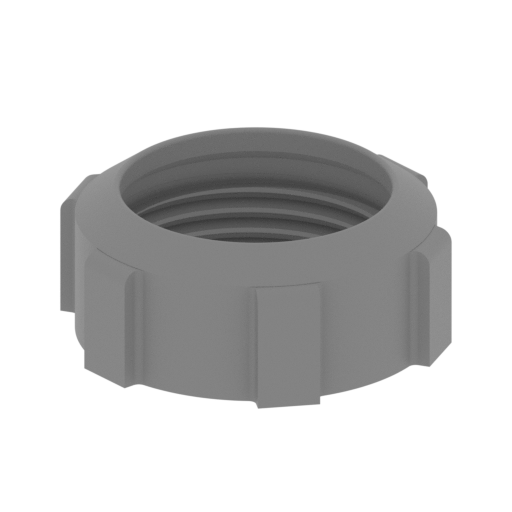

_14_gun_2_L_FDM (repaired ).stl
0.99 MiB 6 min <1 m 11 x 11 x 4 Download

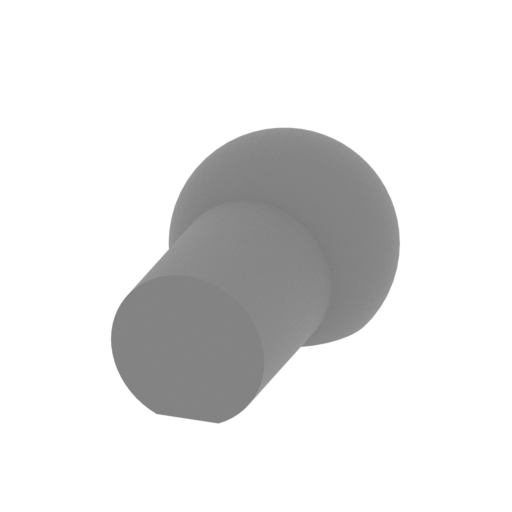

_15_gun_3_L_FDM (repaired ).stl
0.24 MiB 5 min <1 m 7 x 11 x 5 Download

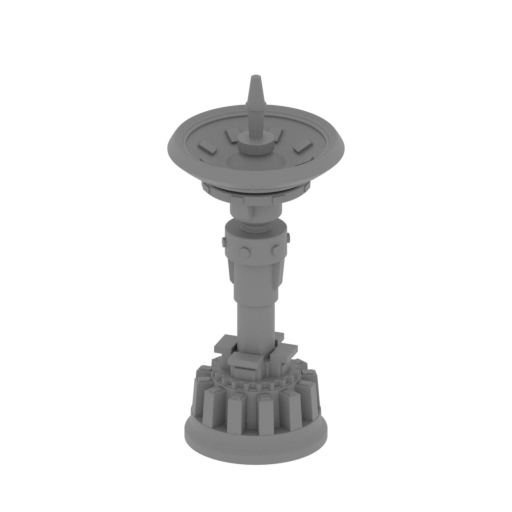

_16_gun_4_L_FDM (repaired ).stl
1.55 MiB 33 min <1 m 14 x 14 x 30 Download

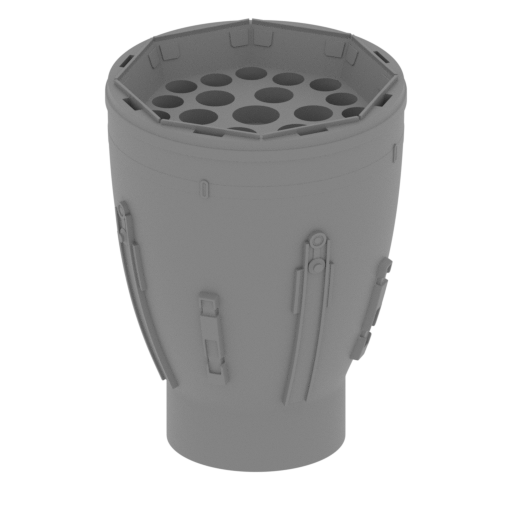

_17_turbine_center_1_FDM (repaired).stl
8.77 MiB 23 h 54 min 17 m 76 x 76 x 100 Download

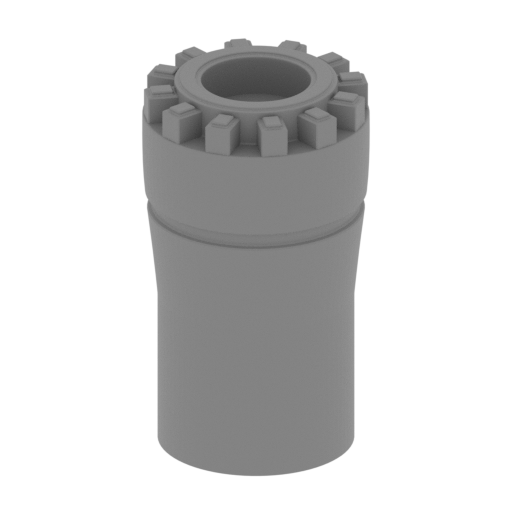

_18_turbine_center_2_x16_ FDM (repaired).stl
0.78 MiB 15 min <1 m 9 x 9 x 16 Download

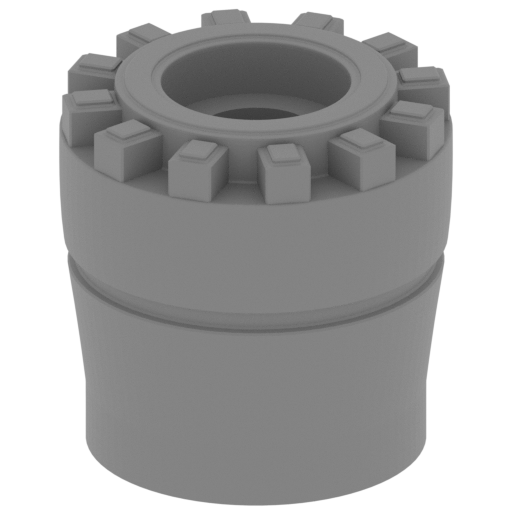

_19_turbine_center_3_x6_F DM (repaired).stl
0.73 MiB 12 min <1 m 11 x 11 x 11 Download

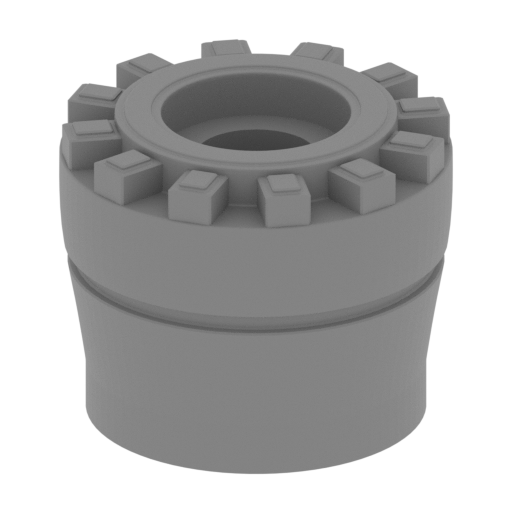

_20_turbine_center_4 (rep aired).stl
0.73 MiB 13 min <1 m 14 x 14 x 11 Download

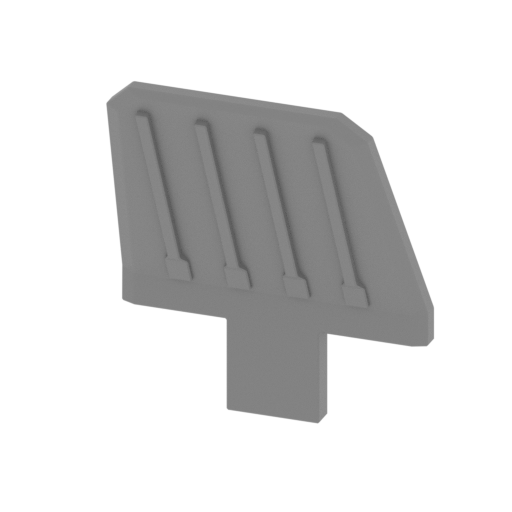

_21_turbine_center_flaps_ x8_FDM (repaired).stl
0.06 MiB 31 min <1 m 26 x 12 x 31 Download

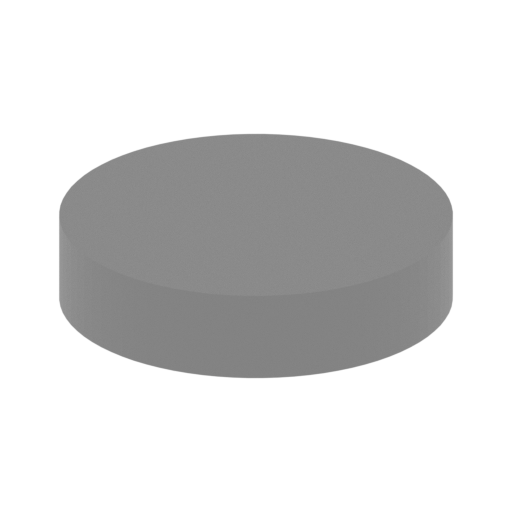

_22_turbine_center_glass_ a_x16_FDM (repaired).stl
0.04 MiB 1 min <1 m 4 x 4 x 1 Download

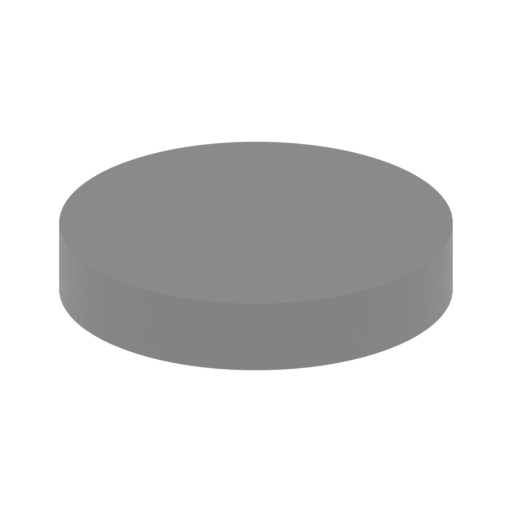

_23_turbine_center_glass_ b_x6_FDM (repaired).stl
0.04 MiB 1 min <1 m 5 x 5 x 1 Download

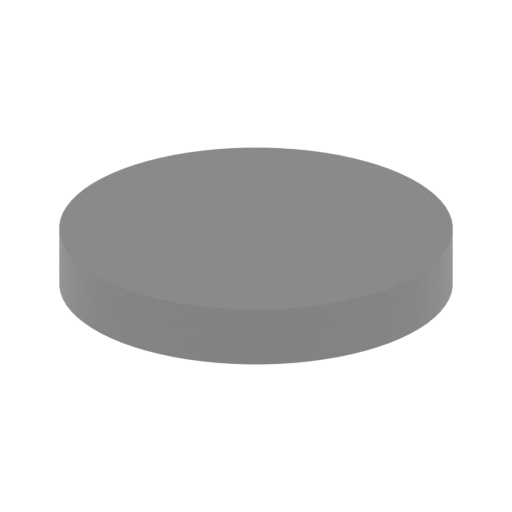

_24_turbine_center_glass_ c_FDM (repaired).stl
0.04 MiB 1 min <1 m 6 x 6 x 1 Download

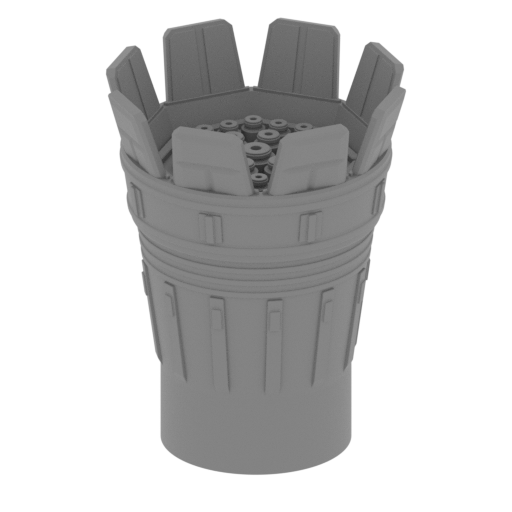

_25_turbine_top_R_FDM (re paired).stl
2.71 MiB 5 h 3 m 42 x 42 x 55 Download

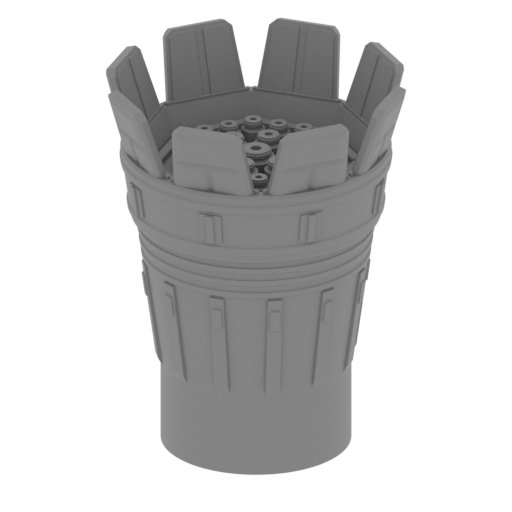

_26_turbine_top_L_FDM (re paired).stl
2.71 MiB 5 h 3 m 42 x 42 x 55 Download

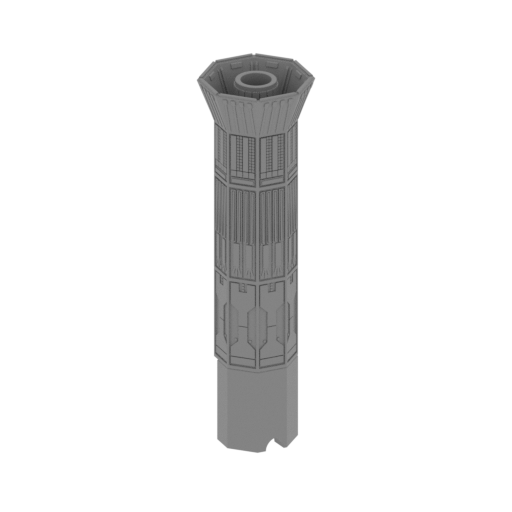

_27_turbine_bot_R_FDM (re paired).stl
20.00 MiB 17 h 4 min 9 m 48 x 48 x 172 Download

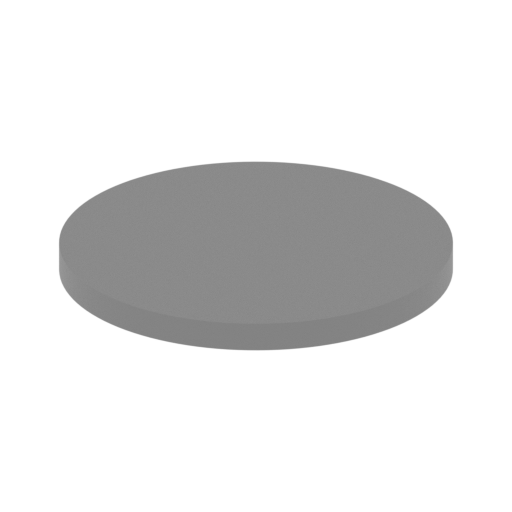

_28_turbine_bot_glass_R_F DM (repaired).stl
0.06 MiB 3 min <1 m 14 x 14 x 1 Download

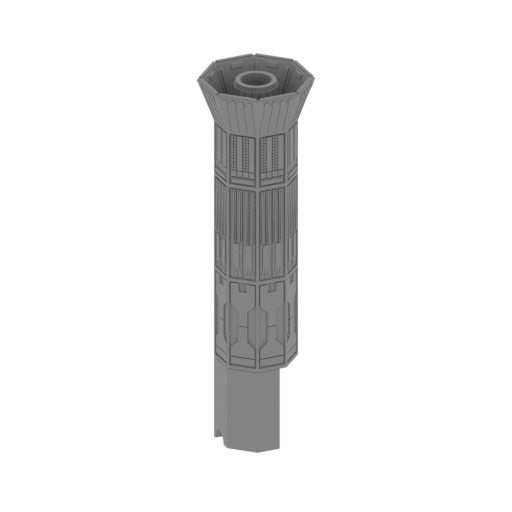

_29_turbine_bot_L_FDM (re paired).stl
20.00 MiB 17 h 1 min 9 m 48 x 48 x 172 Download

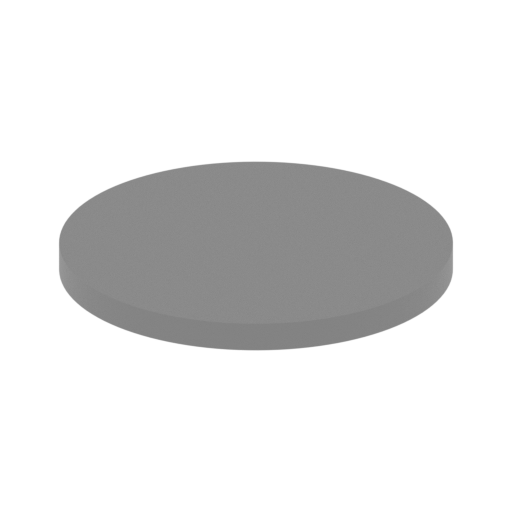

_30_turbine_bot_glass_L_F DM (repaired).stl
0.06 MiB 3 min <1 m 14 x 14 x 1 Download

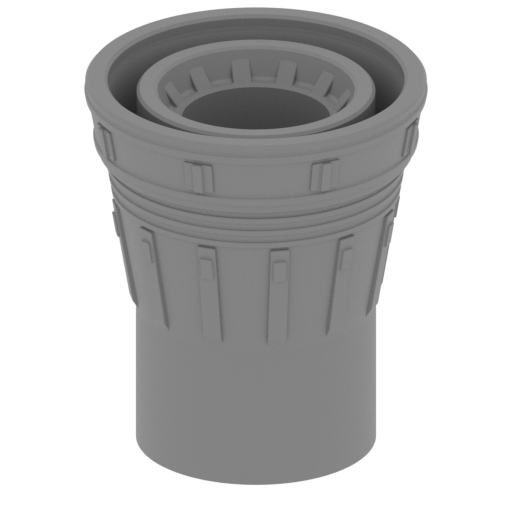

_31_turbine_front_x3_FDM (repaired).stl
1.04 MiB 29 min <1 m 18 x 18 x 21 Download

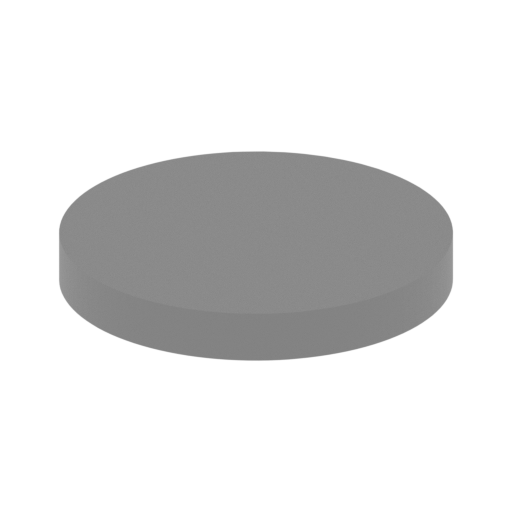

_32_turbine_front_glass_F DM (repaired).stl
0.06 MiB 1 min <1 m 8 x 8 x 1 Download

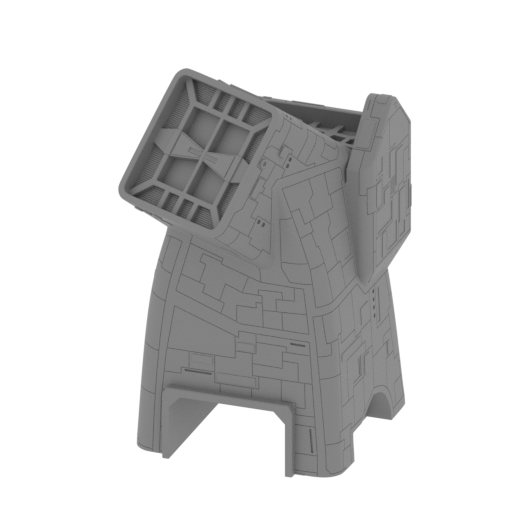

_33_wing_1_R_FDM (repaire d).stl
32.80 MiB 64 h 41 m 96 x 114 x 158 Download

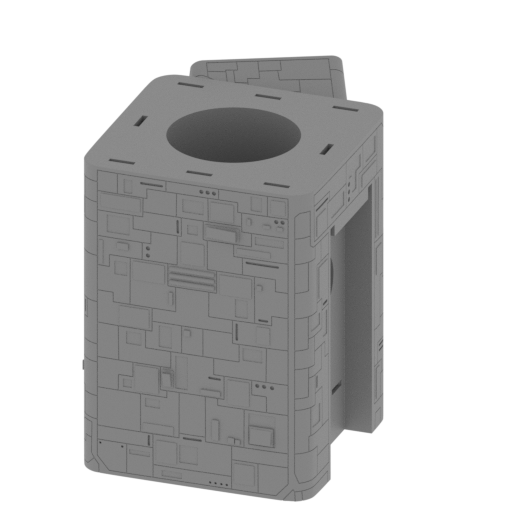

_34_wing_2_R_FDM (repaire d).stl
25.48 MiB 74 h 15 min 52 m 91 x 142 x 125 Download

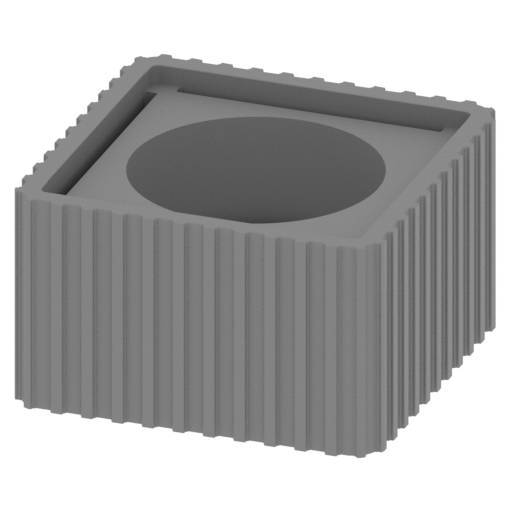

_35_wing_3_R_FDM (repaire d).stl
0.67 MiB 17 h 38 min 10 m 86 x 84 x 50 Download
_36_wing_flaps_R_x4_FDM ( repaired).stl
0.11 MiB 4 h 36 min 3 m 62 x 18 x 91 Download

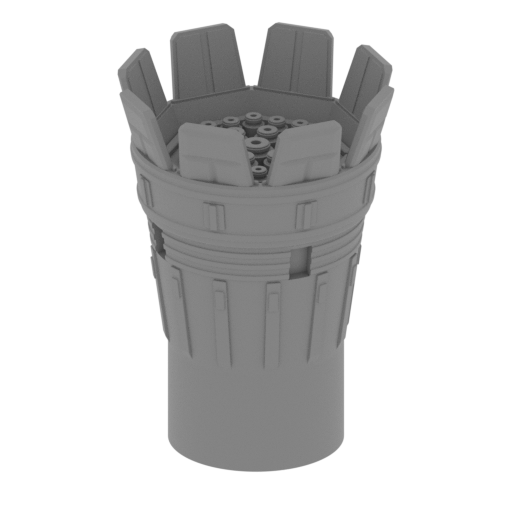

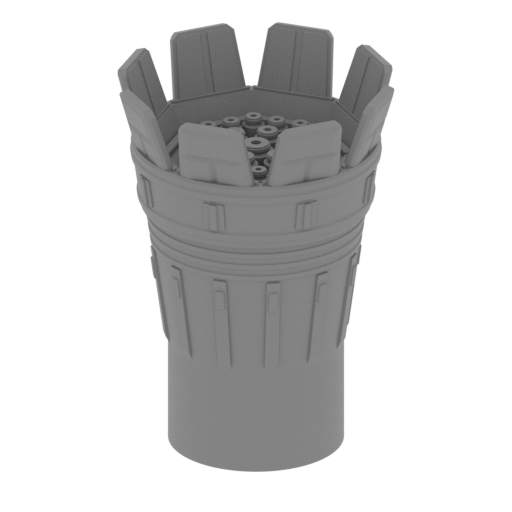

_37_wing_turbine_R_FDM (r epaired).stl
2.74 MiB 36 h 21 min 29 m 88 x 88 x 127 Download

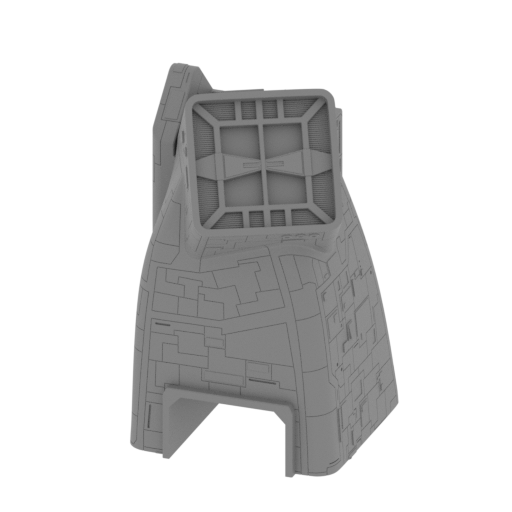

_38_wing_1_L_FDM (repaire d).stl
32.80 MiB 64 h 3 min 41 m 96 x 114 x 158 Download

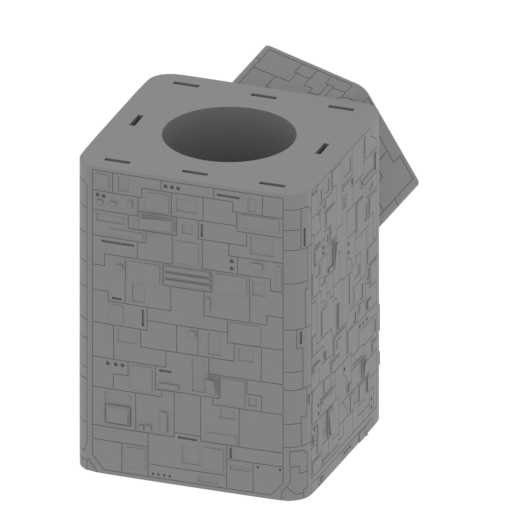

_39_wing_2_L_FDM (repaire d).stl
25.47 MiB 74 h 5 min 52 m 91 x 142 x 125 Download

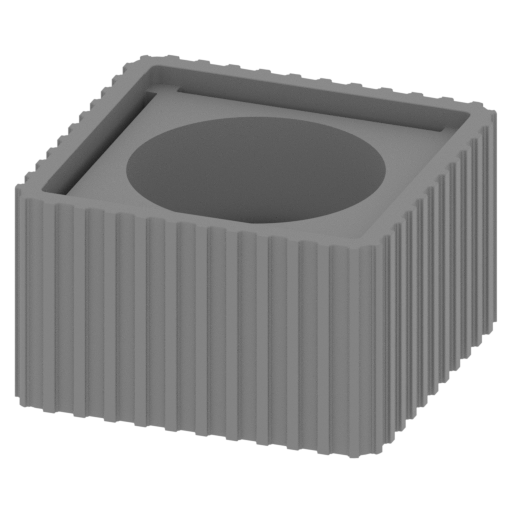

_40_wing_3_L_FDM (repaire d).stl
0.67 MiB 17 h 41 min 10 m 86 x 84 x 50 Download

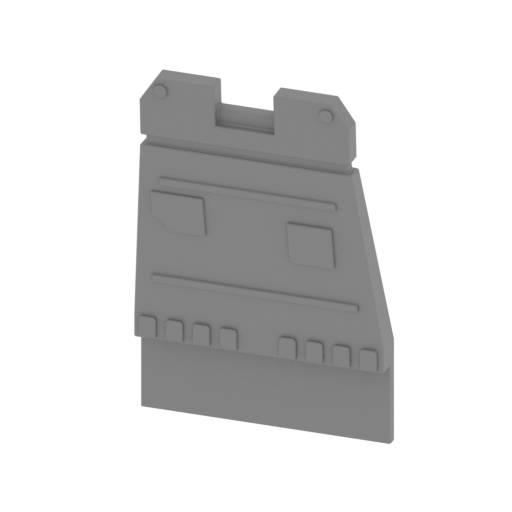

_41_wing_flaps_L_x4_FDM ( repaired).stl
0.11 MiB 4 h 38 min 3 m 62 x 18 x 91 Download

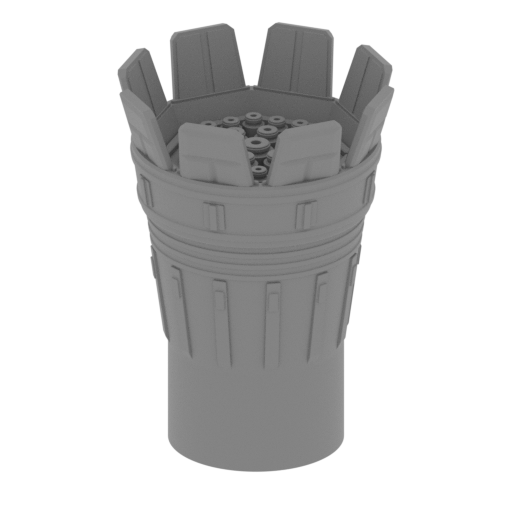

_42_wing_turbine_L_FDM (r epaired).stl
2.74 MiB 36 h 20 min 29 m 88 x 88 x 127 Download

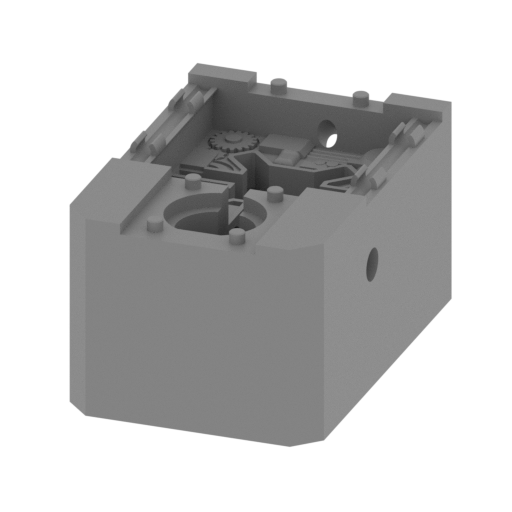

_43_leg_wing_box_FDM (rep aired).stl
1.97 MiB 9 h 31 min 5 m 50 x 72 x 40 Download

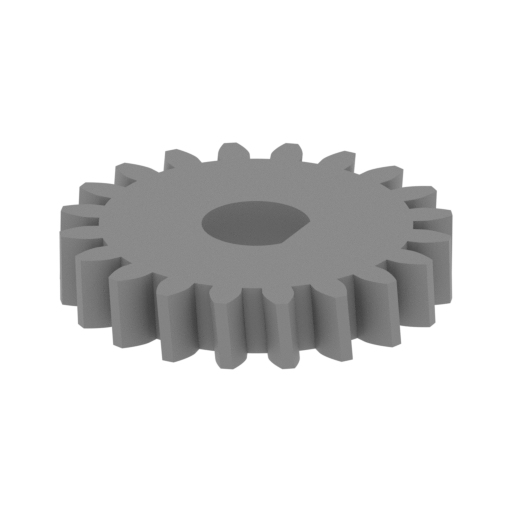

_44_leg_front_gear_FDM (r epaired).stl
0.39 MiB 15 min <1 m 22 x 22 x 4 Download

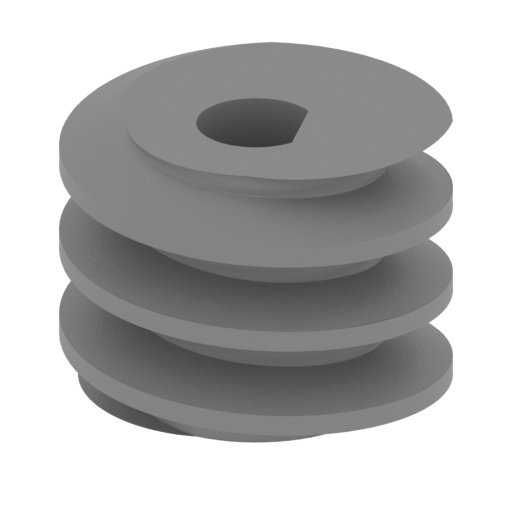

_45_leg_front_coil_FDM (r epaired).stl
3.07 MiB 17 min <1 m 13 x 13 x 10 Download

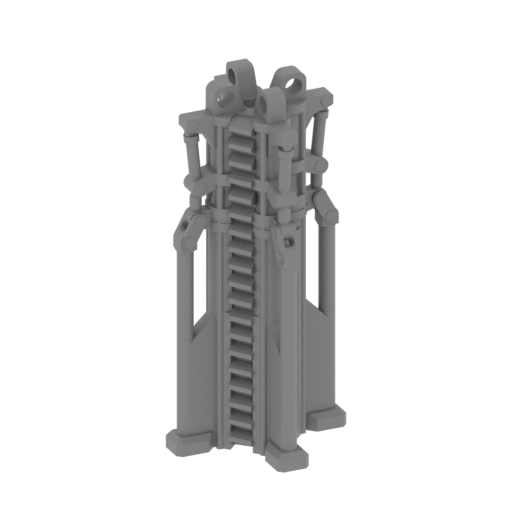

_46_leg_front_leg_x4_FDM (repaired).stl
5.99 MiB 4 h 8 min 2 m 25 x 25 x 66 Download

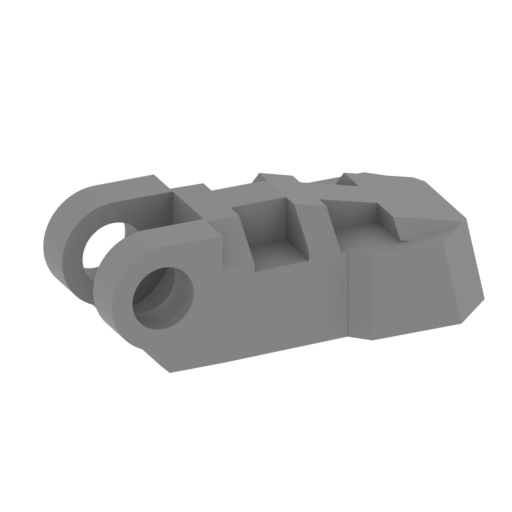

_47_leg_front_fingers_x6_ FDM (repaired).stl
0.05 MiB 9 min <1 m 17 x 17 x 6 Download

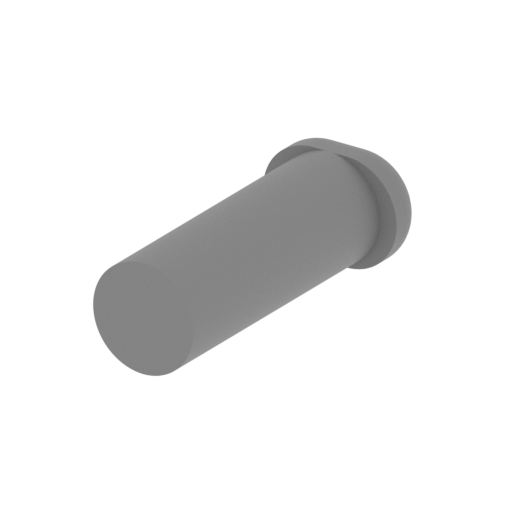

_48_leg_front_pins_FDM (r epaired).stl
0.17 MiB 2 min <1 m 6 x 10 x 3 Download

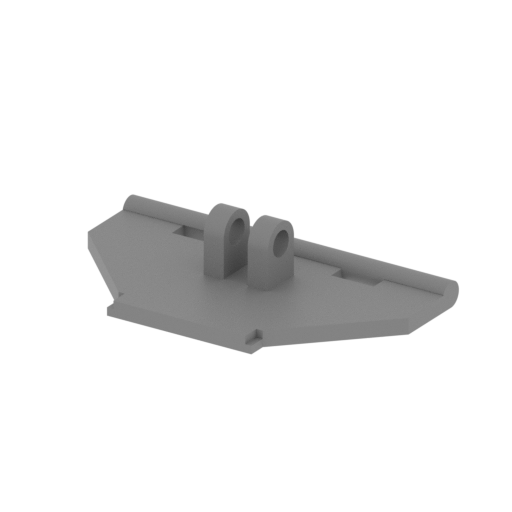

_49_leg_front_cap_1_FDM ( repaired).stl
0.14 MiB 26 min <1 m 41 x 29 x 9 Download

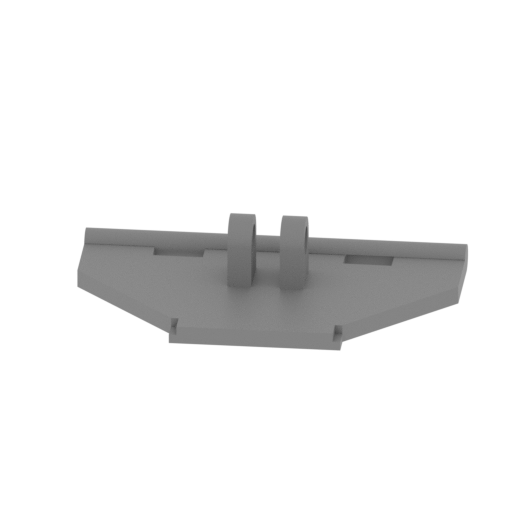

_50_leg_front_cap_2_FDM ( repaired).stl
0.14 MiB 26 min <1 m 41 x 29 x 9 Download

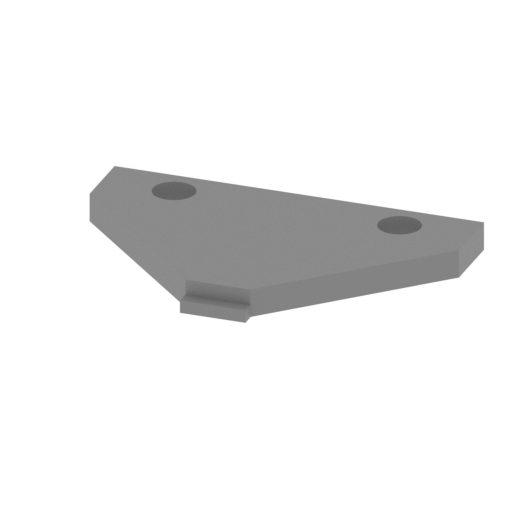

_51_leg_front_cap_3_FDM ( repaired).stl
0.05 MiB 8 min <1 m 26 x 17 x 2 Download

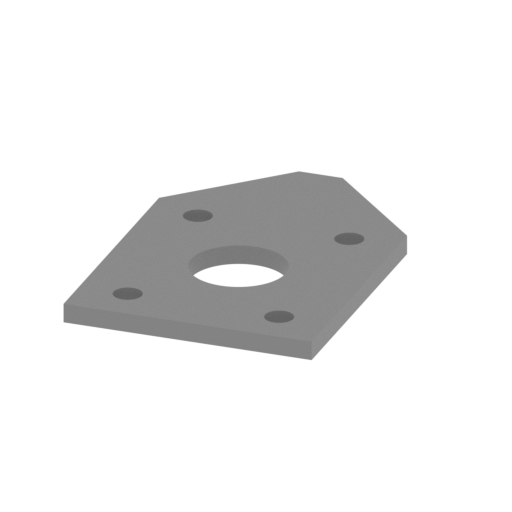

_52_leg_front_cap_4_FDM ( repaired).stl
0.09 MiB 21 min <1 m 26 x 39 x 2 Download
_53_leg_front_beam_1_FDM (repaired).stl
0.12 MiB 14 min <1 m 48 x 6 x 5 Download

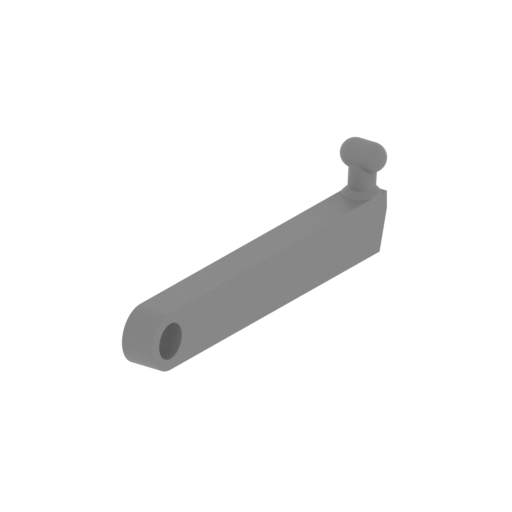

_54_leg_front_beam_2_FDM (repaired).stl
0.38 MiB 9 min <1 m 12 x 32 x 9 Download

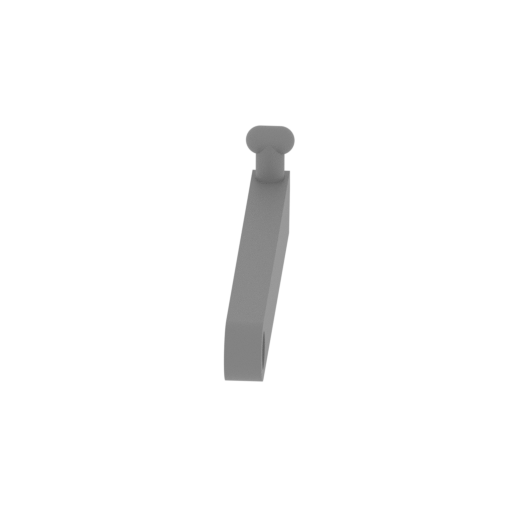

_55_leg_front_beam_3_FDM (repaired).stl
0.32 MiB 8 min <1 m 12 x 32 x 9 Download

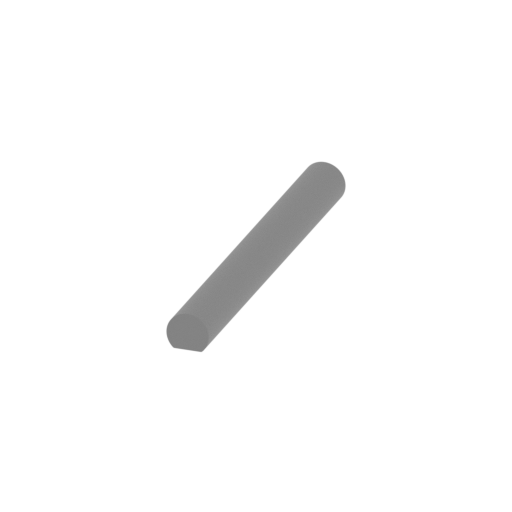

_56_leg_front_screw_1_FDM (repaired).stl
0.19 MiB 6 min <1 m 4 x 35 x 3 Download

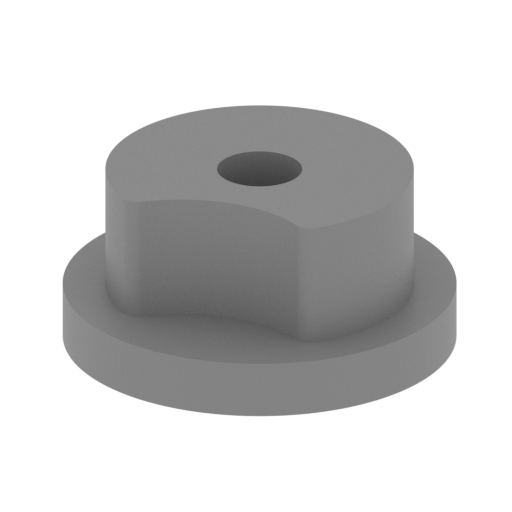

_57_leg_front_screw_2_FDM (repaired).stl
0.11 MiB 14 min <1 m 19 x 18 x 9 Download

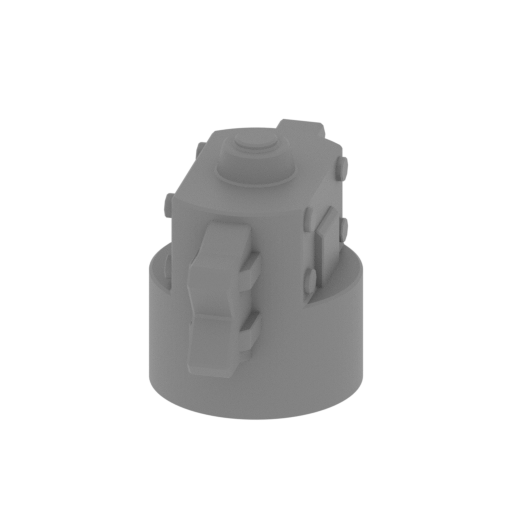

_58_leg_front_screw_3_FDM (repaired).stl
0.24 MiB 12 min <1 m 10 x 18 x 12 Download

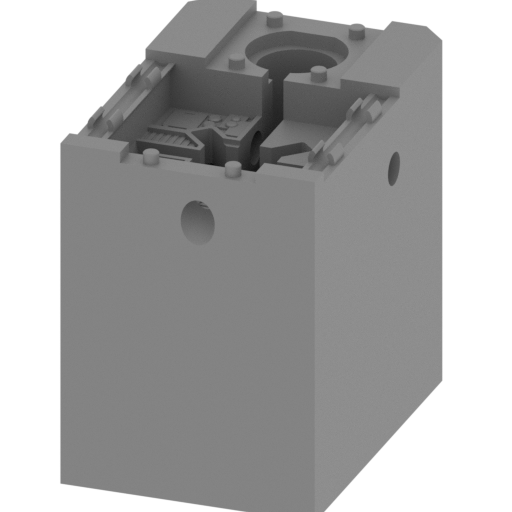

_59_leg_wing_box_R_FDM (r epaired).stl
1.99 MiB 16 h 5 min 9 m 50 x 72 x 69 Download

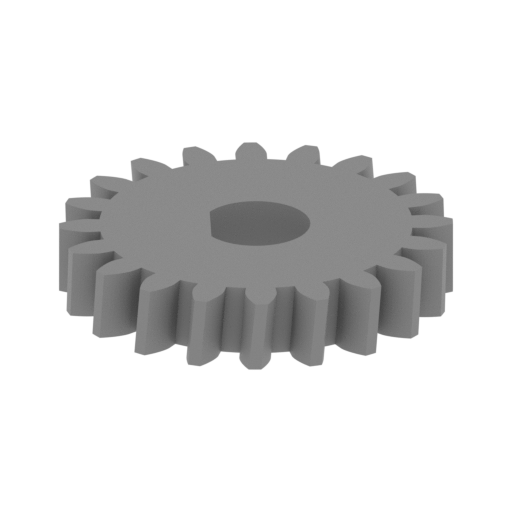

_60_leg_wing_gear_R_FDM ( repaired).stl
0.39 MiB 15 min <1 m 22 x 22 x 4 Download

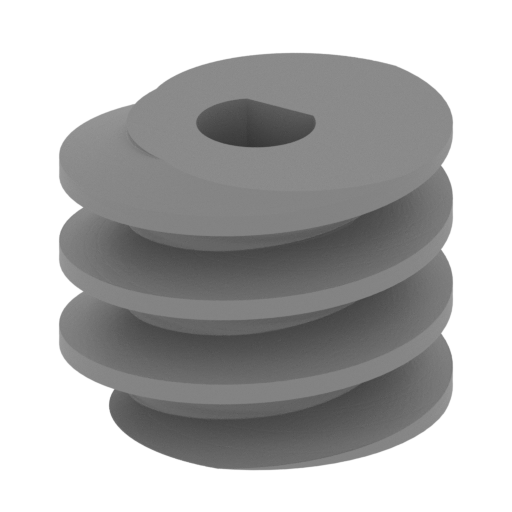

_61_leg_wing_coil_R_FDM ( repaired).stl
3.07 MiB 17 min <1 m 13 x 13 x 10 Download

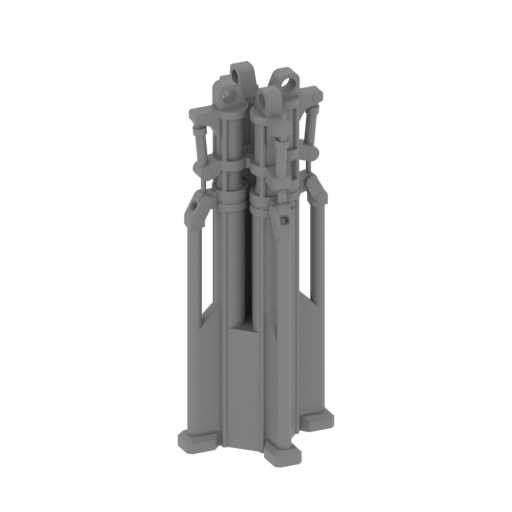

_62_leg_wing_leg_R_FDM (r epaired).stl
6.59 MiB 5 h 9 min 2 m 25 x 25 x 76 Download

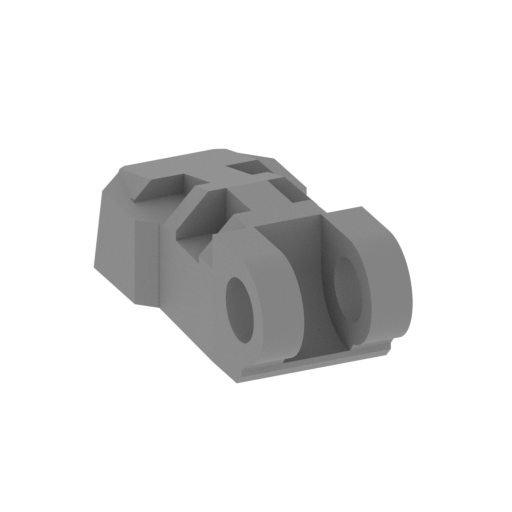

_63_leg_wing_fingers_R_x4 _FDM (repaired).stl
0.05 MiB 9 min <1 m 17 x 17 x 6 Download

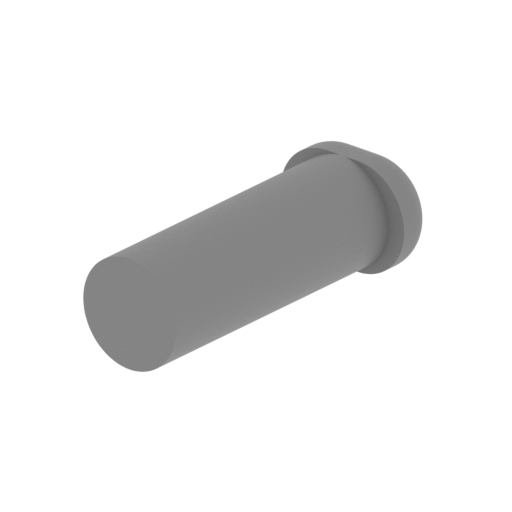

_64_leg_wing_pins_R_x6_FD M (repaired).stl
0.17 MiB 2 min <1 m 6 x 10 x 3 Download

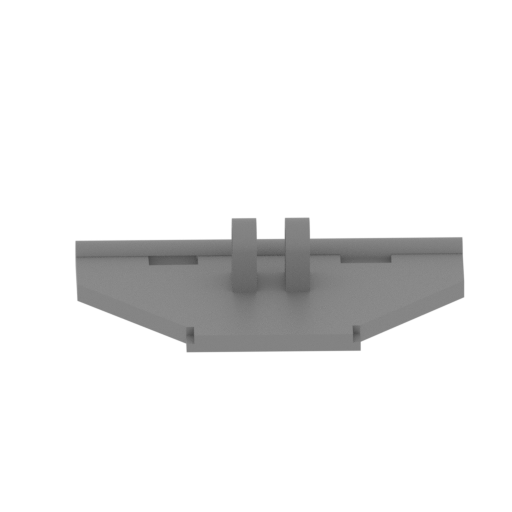

_65_leg_wing_cap_1_R_FDM (repaired).stl
0.14 MiB 26 min <1 m 41 x 32 x 9 Download

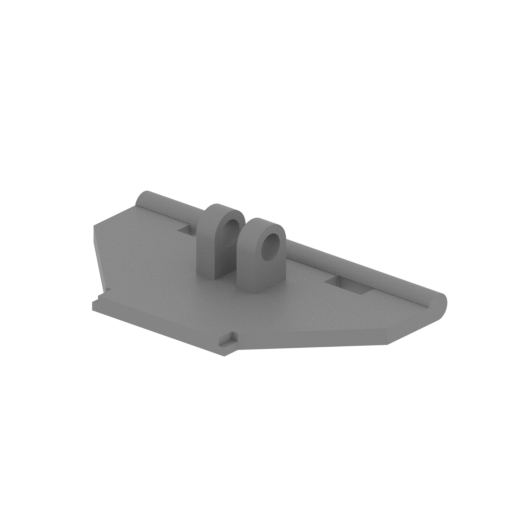

_66_leg_wing_cap_2_R_FDM (repaired).stl
0.14 MiB 26 min <1 m 41 x 31 x 9 Download

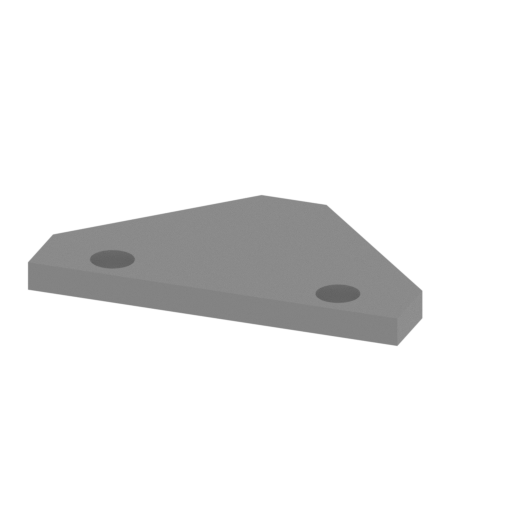

_67_leg_wing_cap_3_R_FDM (repaired).stl
0.05 MiB 8 min <1 m 26 x 17 x 2 Download
_68_leg_wing_cap_4_R_FDM (repaired).stl
0.09 MiB 21 min <1 m 26 x 39 x 2 Download
_69_leg_wing_beam_1_R_FDM (repaired).stl
0.12 MiB 14 min <1 m 48 x 6 x 5 Download

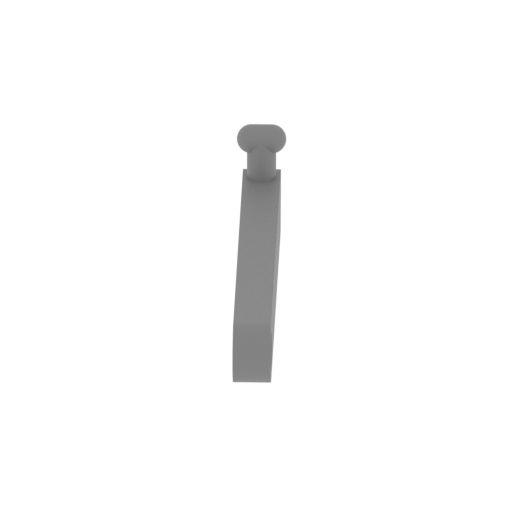

_70_leg_wing_beam_2_R_FDM (repaired).stl
0.32 MiB 8 min <1 m 13 x 31 x 9 Download

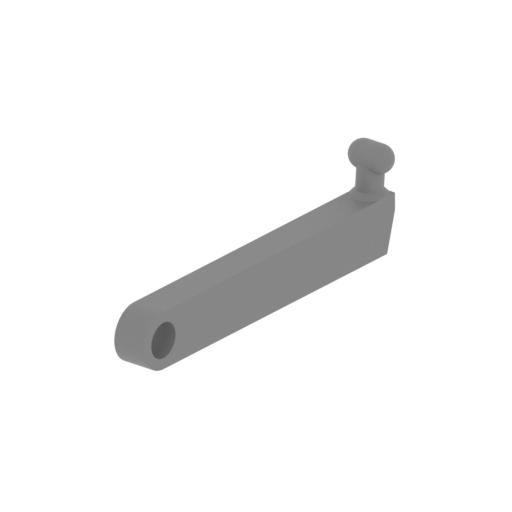

_71_leg_wing_beam_3_R_FDM (repaired).stl
0.38 MiB 9 min <1 m 13 x 31 x 9 Download

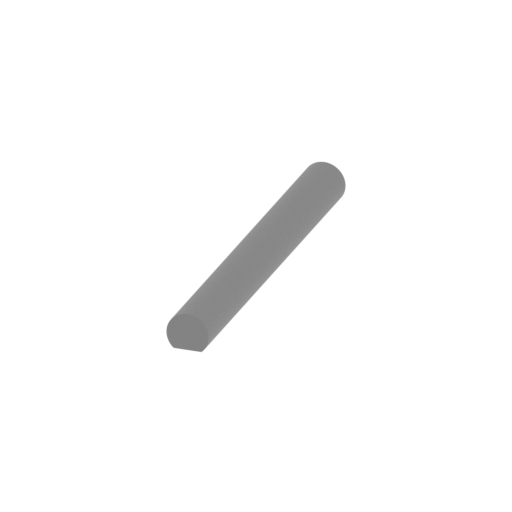

_72_leg_wing_screw_1_R_FD M (repaired).stl
0.19 MiB 6 min <1 m 4 x 35 x 3 Download

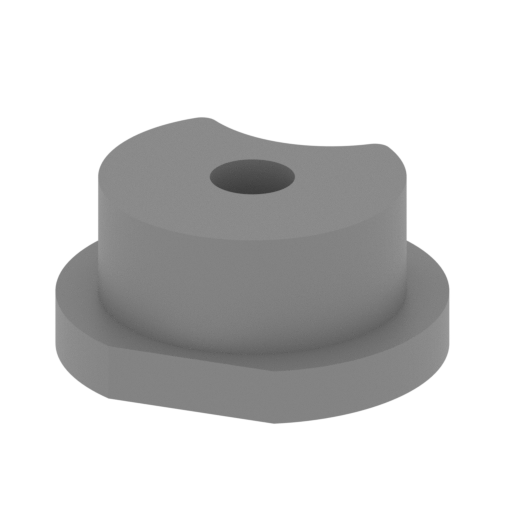

_73_leg_wing_screw_2_R_FD M (repaired).stl
0.11 MiB 14 min <1 m 19 x 18 x 9 Download

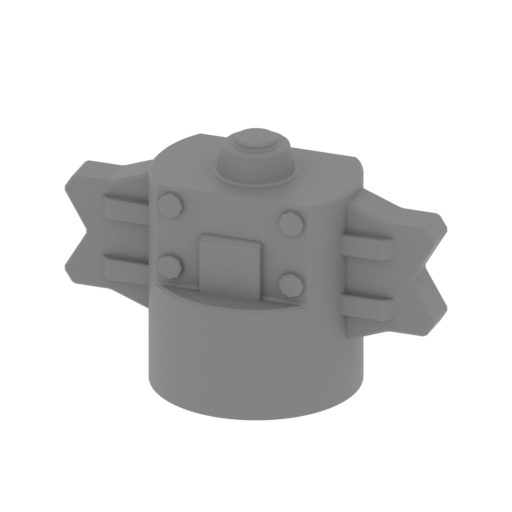

_74_leg_wing_screw_3_R_FD M (repaired).stl
0.24 MiB 12 min <1 m 18 x 10 x 12 Download

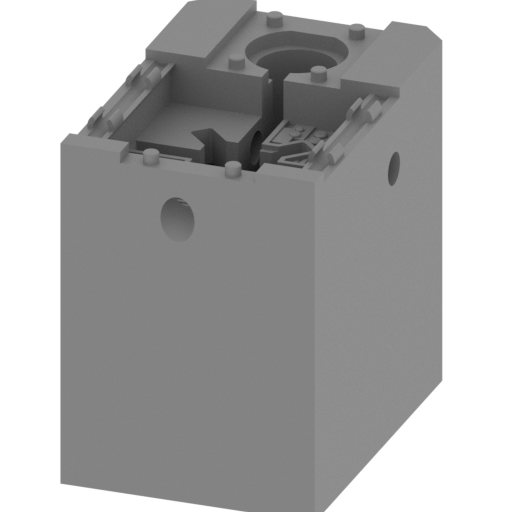

_75_leg_wing_box_L_FDM (r epaired).stl
1.99 MiB 16 h 6 min 9 m 50 x 72 x 69 Download

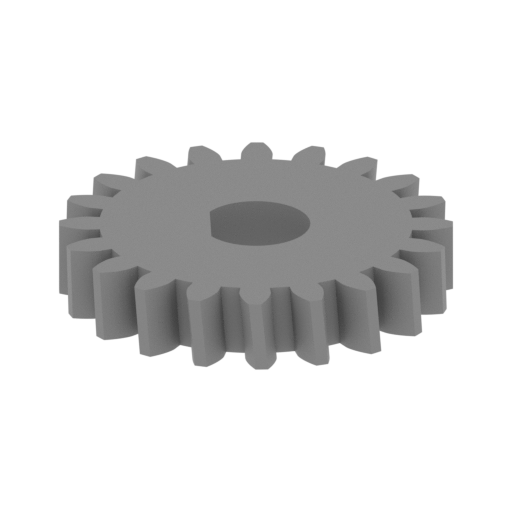

_76_leg_wing_gear_L_FDM ( repaired).stl
0.39 MiB 15 min <1 m 22 x 22 x 4 Download

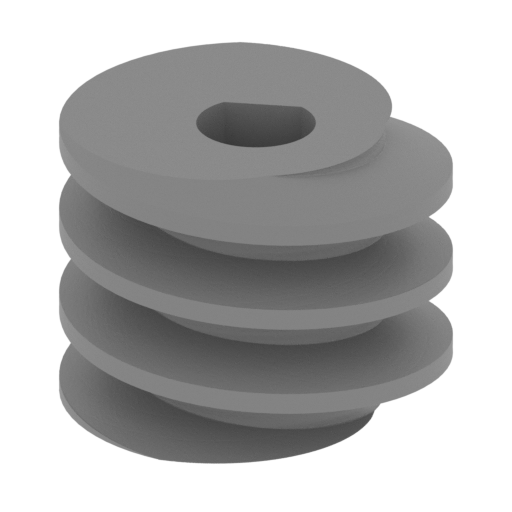

_77_leg_wing_coil_L_FDM ( repaired).stl
3.07 MiB 17 min <1 m 13 x 13 x 10 Download
_78_leg_wing_leg_L_FDM (r epaired).stl
6.59 MiB 5 h 7 min 2 m 25 x 25 x 76 Download

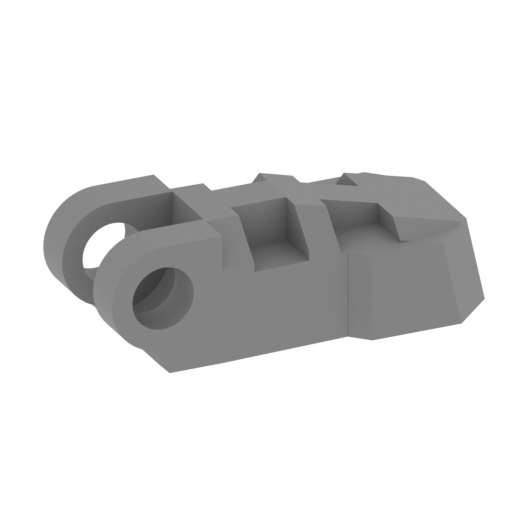

_79_leg_wing_fingers_L_x4 _FDM (repaired).stl
0.05 MiB 9 min <1 m 17 x 17 x 6 Download

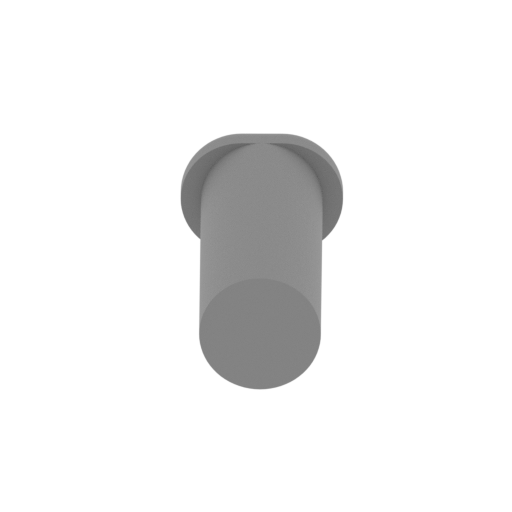

_80_leg_wing_pins_L_x6_FD M (repaired).stl
0.17 MiB 2 min <1 m 6 x 10 x 3 Download

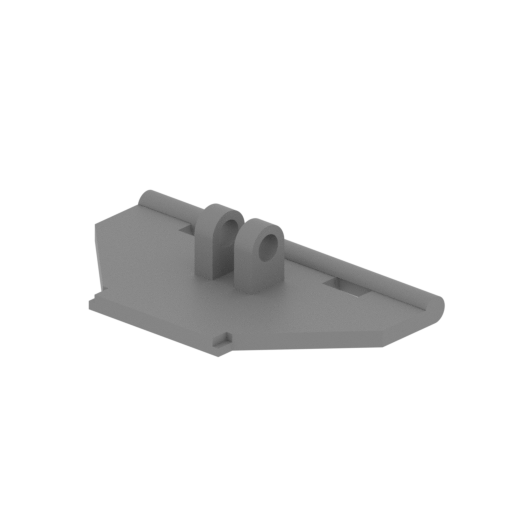

_81_leg_wing_cap_1_L_FDM (repaired).stl
0.14 MiB 26 min <1 m 41 x 32 x 9 Download

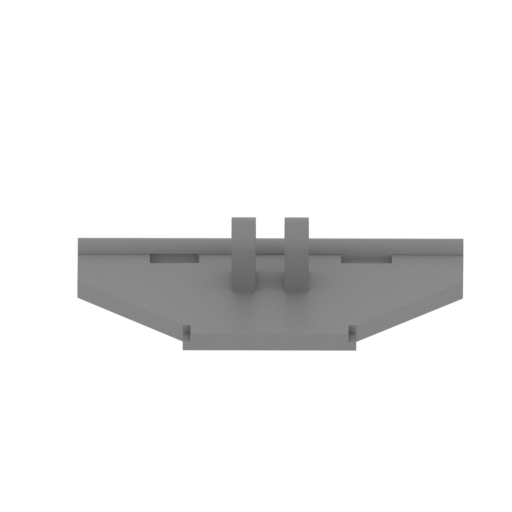

_82_leg_wing_cap_2_L_FDM (repaired).stl
0.14 MiB 26 min <1 m 41 x 31 x 9 Download

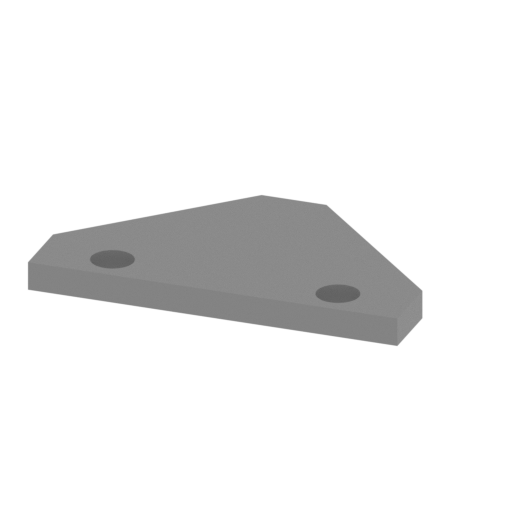

_83_leg_wing_cap_3_L_FDM (repaired).stl
0.05 MiB 8 min <1 m 26 x 17 x 2 Download

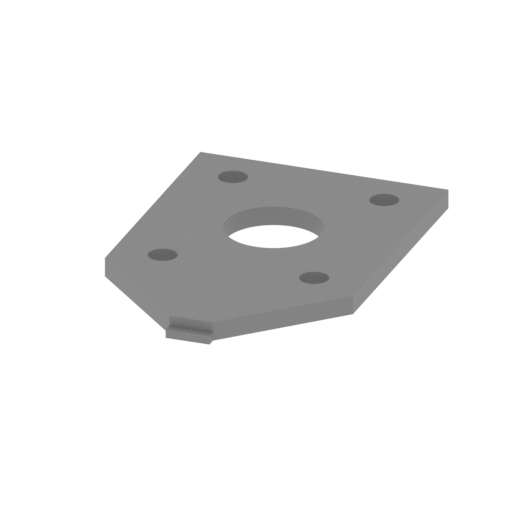

_84_leg_wing_cap_4_L_FDM (repaired).stl
0.09 MiB 21 min <1 m 26 x 39 x 2 Download
_85_leg_wing_beam_1_L_FDM (repaired).stl
0.12 MiB 14 min <1 m 48 x 6 x 5 Download

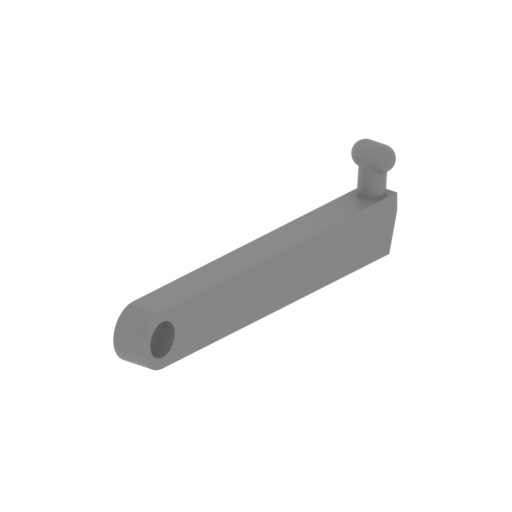

_86_leg_wing_beam_2_L_FDM (repaired).stl
0.32 MiB 7 min <1 m 13 x 31 x 9 Download

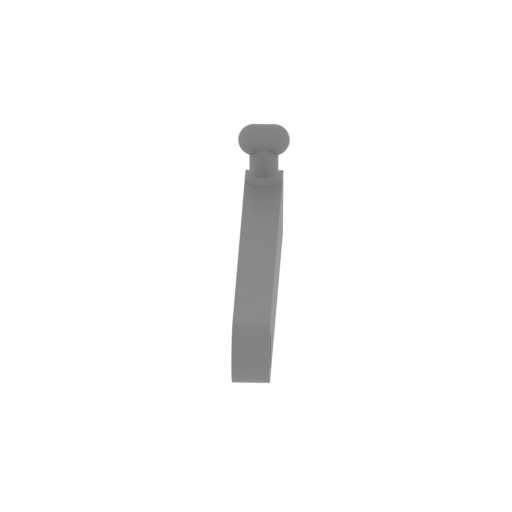

_87_leg_wing_beam_3_L_FDM (repaired).stl
0.38 MiB 9 min <1 m 13 x 31 x 9 Download

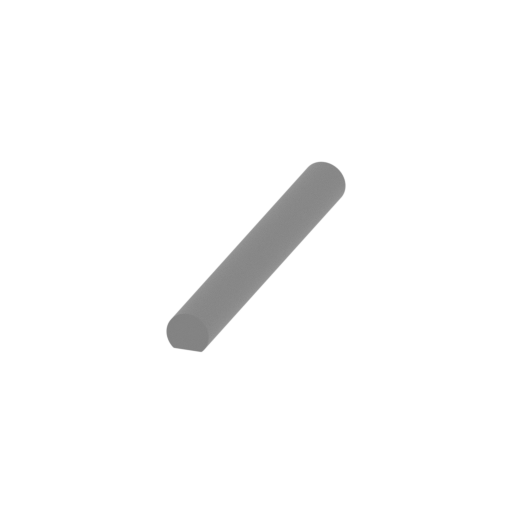

_88_leg_wing_screw_1_L_FD M (repaired).stl
0.19 MiB 6 min <1 m 4 x 35 x 3 Download

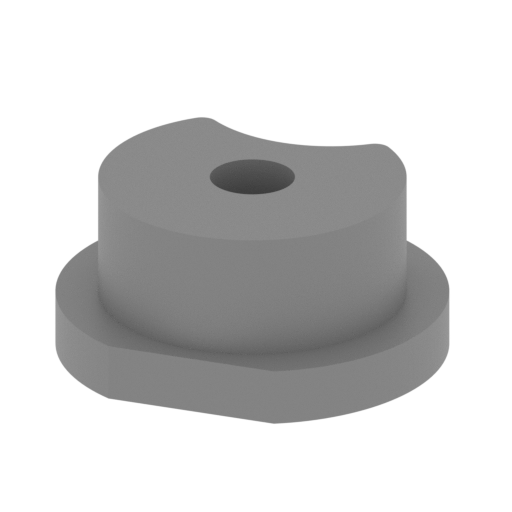

_89_leg_wing_screw_2_L_FD M (repaired).stl
0.11 MiB 14 min <1 m 19 x 18 x 9 Download
_90_leg_wing_screw_3_L_FD M (repaired).stl
0.24 MiB 12 min <1 m 18 x 10 x 12 Download

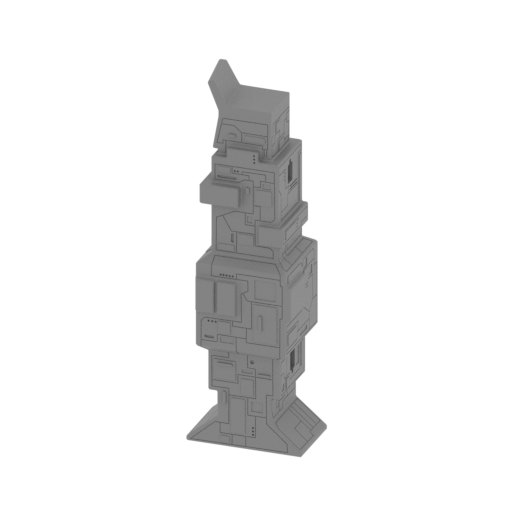

_91_platform_column_front _R_FDM (repaired).stl
31.19 MiB 11 h 50 min 7 m 44 x 37 x 142 Download

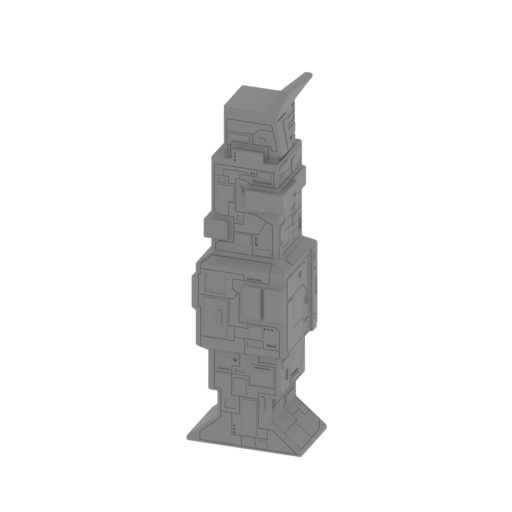

_92_platform_column_front _L_FDM (repaired).stl
31.18 MiB 11 h 43 min 7 m 44 x 37 x 142 Download

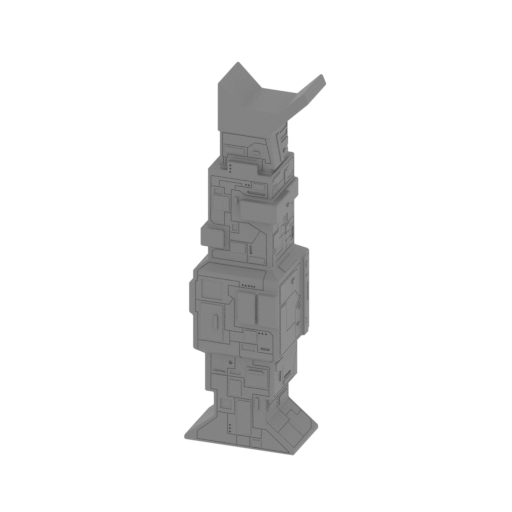

_93_platform_column_back_ R_FDM (repaired).stl
30.79 MiB 12 h 14 min 7 m 49 x 37 x 149 Download

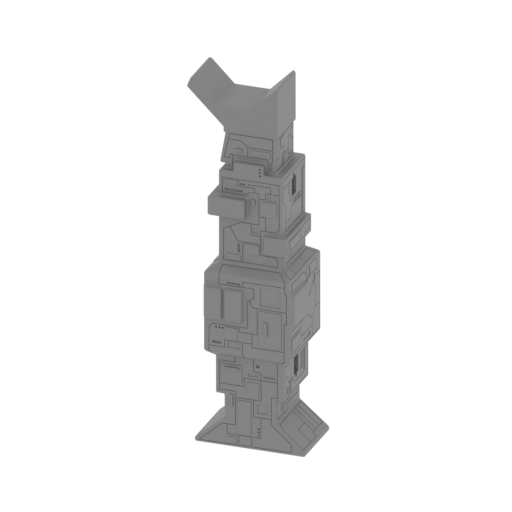

_94_platform_column_back_ L_FDM (repaired).stl
30.79 MiB 12 h 15 min 7 m 49 x 37 x 149 Download
_95_platform_beam_front_1 _FDM (repaired).stl
2.42 MiB 29 min <1 m 81 x 5 x 9 Download
_96_platform_beam_front_2 _FDM (repaired).stl
2.42 MiB 29 min <1 m 81 x 5 x 9 Download
_97_platform_beam_back_1_ FDM (repaired).stl
1.16 MiB 32 min <1 m 97 x 5 x 9 Download
_98_platform_beam_back_2_ FDM (repaired).stl
1.16 MiB 32 min <1 m 97 x 5 x 9 Download
_99_platform_beam_1_R_FDM (repaired).stl
4.23 MiB 1 h 19 min 1 m 170 x 170 x 9 Download

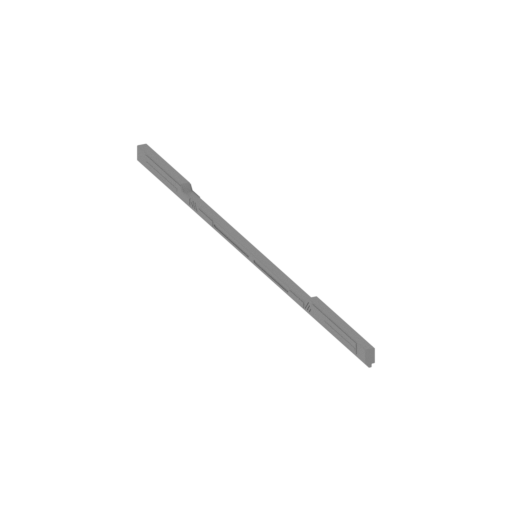

_100_platform_beam_2_R_FD M (repaired).stl
4.23 MiB 1 h 18 min 1 m 170 x 170 x 9 Download

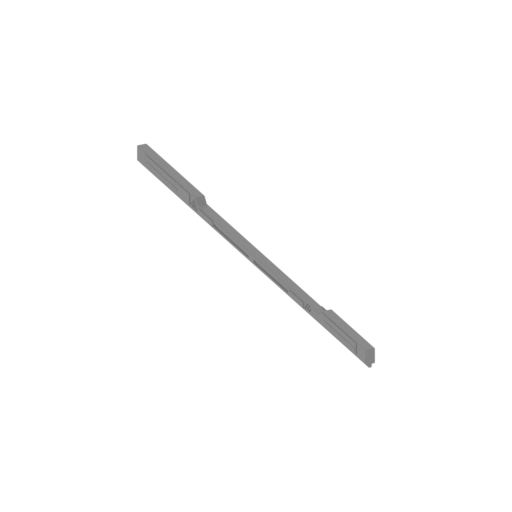

_101_platform_beam_1_L_FD M (repaired).stl
4.23 MiB 1 h 19 min 1 m 170 x 170 x 9 Download
_102_platform_beam_2_L_FD M (repaired).stl
4.23 MiB 1 h 18 min 1 m 170 x 170 x 9 Download

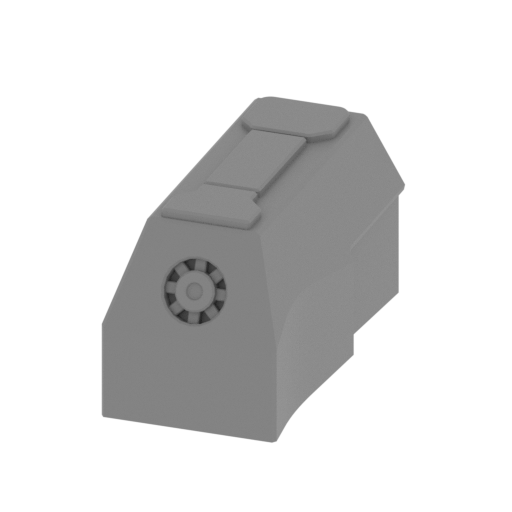

_103_box_a_R_FDM (repaire d).stl
0.12 MiB 19 min <1 m 11 x 23 x 12 Download
_104_box_a_L_FDM (repaire d).stl
0.12 MiB 19 min <1 m 11 x 23 x 12 Download

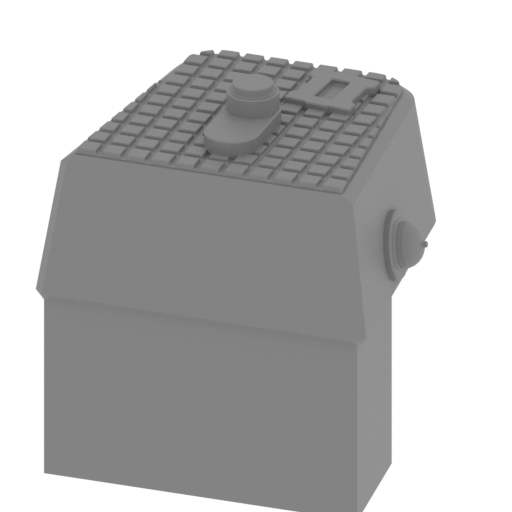

_105_box_b_FDM (repaired) .stl
0.57 MiB 5 min <1 m 7 x 6 x 7 Download

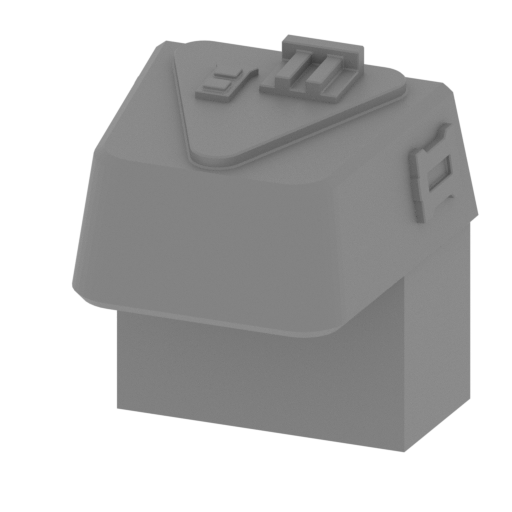

_106_box_c_FDM (repaired) .stl
0.12 MiB 5 min <1 m 6 x 6 x 7 Download

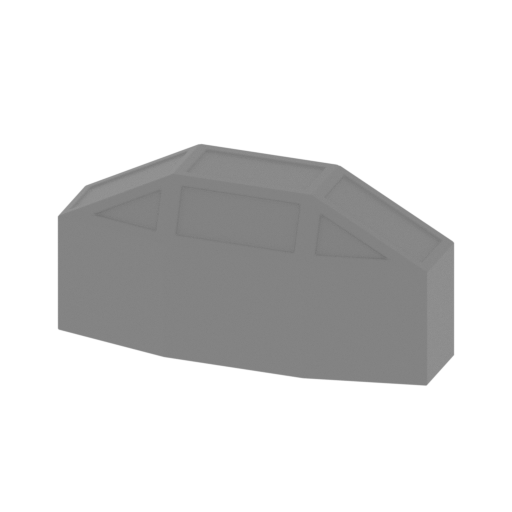

_107_window_R_FDM (repair ed).stl
0.04 MiB 4 min <1 m 10 x 3 x 5 Download

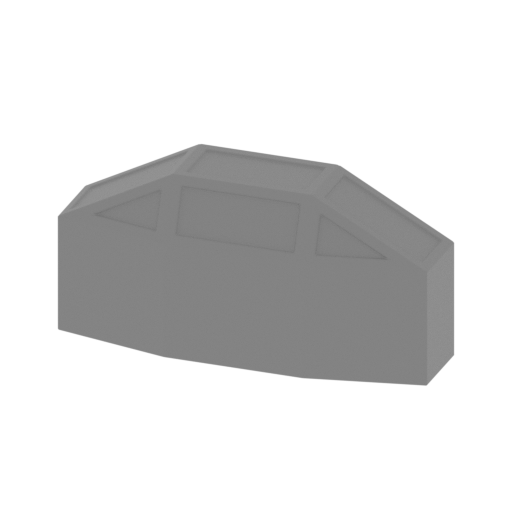

_108_window_L_FDM (repair ed).stl
0.04 MiB 4 min <1 m 10 x 3 x 5 Download

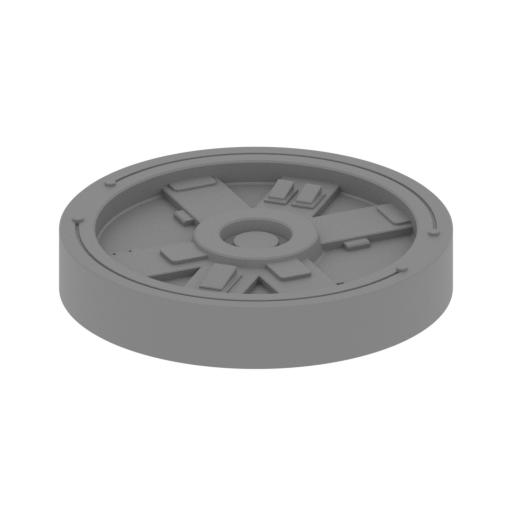

_109_luke_FDM (repaired). stl
1.50 MiB 3 h 22 min 2 m 68 x 68 x 12 Download

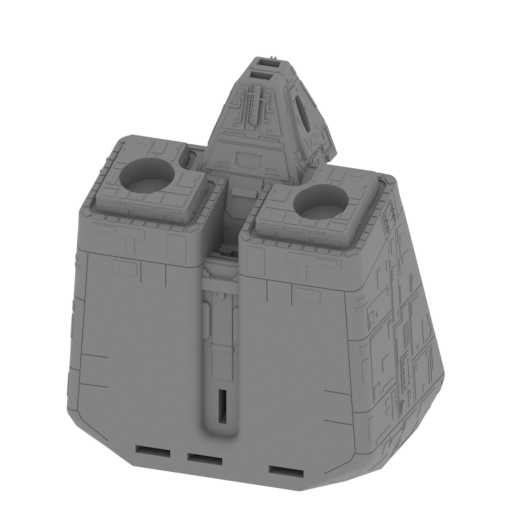

_110_hull_cabine_a_FDM (r epaired).stl
21.51 MiB 21 h 53 min 14 m 87 x 60 x 103 Download

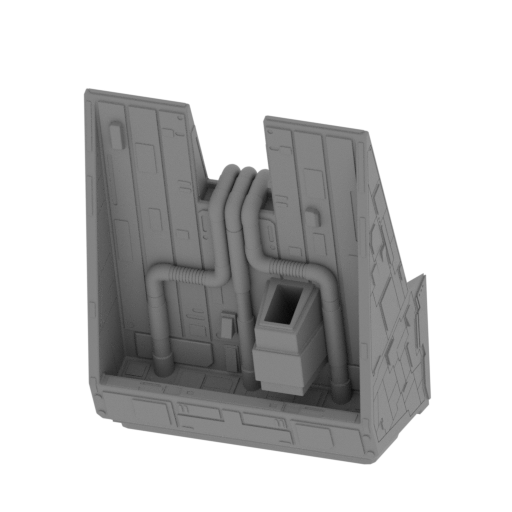

_111_hull_cabine_b_FDM (r epaired).stl
16.63 MiB 8 h 42 min 4 m 61 x 36 x 78 Download

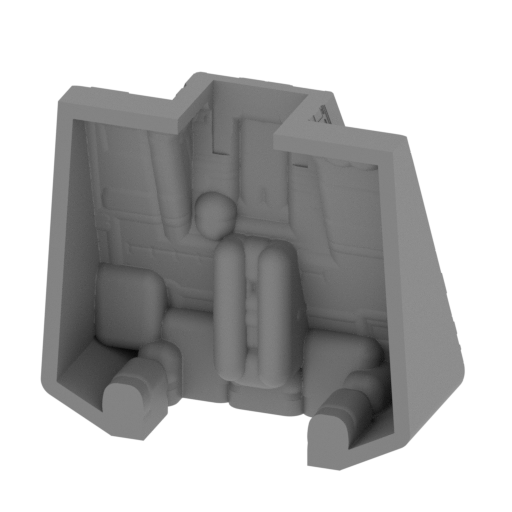

_112_hull_cabine_cap_a_FD M (repaired).stl
7.60 MiB 11 h 38 min 7 m 82 x 37 x 75 Download

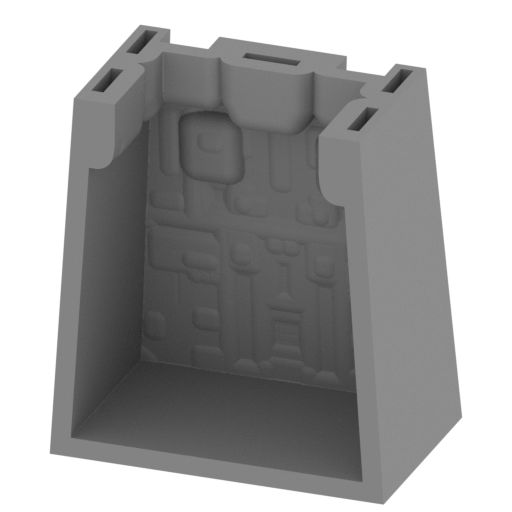

_113_hull_cabine_cap_b_FD M (repaired).stl
3.66 MiB 7 h 42 min 5 m 60 x 38 x 66 Download

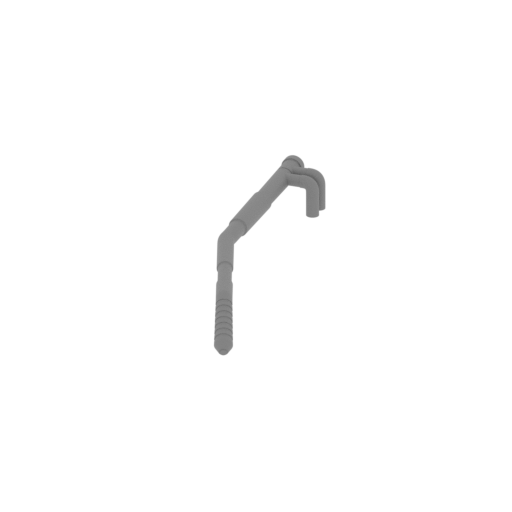

_114_hull_cabine_pipe_a_F DM (repaired).stl
1.04 MiB 11 min <1 m 11 x 52 x 6 Download

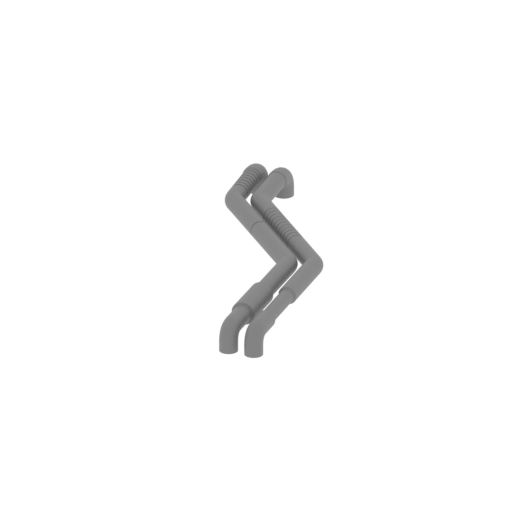

_115_hull_cabine_pipe_b_F DM (repaired).stl
2.44 MiB 37 min <1 m 30 x 76 x 7 Download

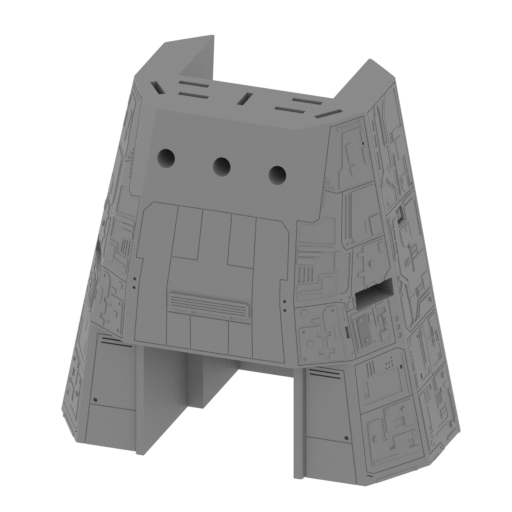

_116_hull_center_a_FDM (r epaired).stl
29.32 MiB 44 h 42 min 29 m 123 x 85 x 116 Download

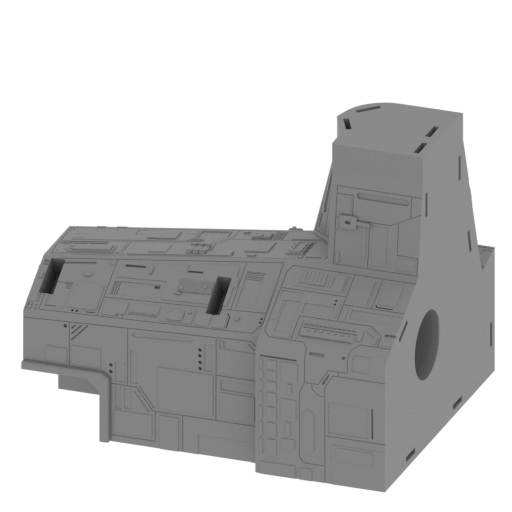

_118_hull_center_b_L_FDM (repaired).stl
23.91 MiB 65 h 7 min 39 m 147 x 120 x 119 Download

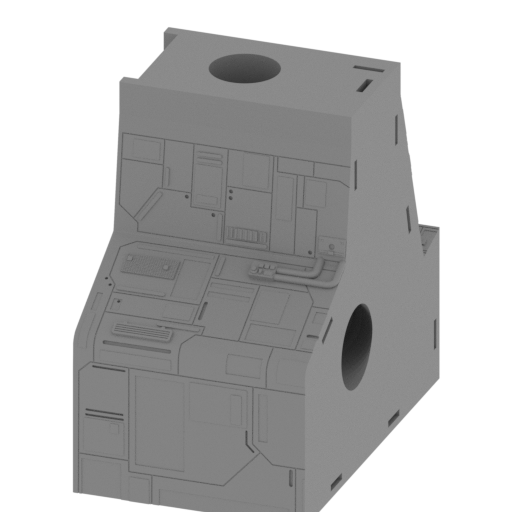

_119_hull_center_c_R_FDM (repaired).stl
9.62 MiB 47 h 4 min 28 m 75 x 118 x 119 Download

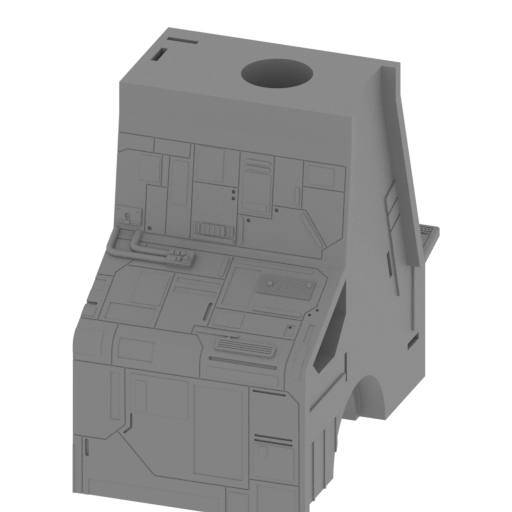

_120_hull_center_c_L_FDM (repaired).stl
9.62 MiB 47 h 10 min 28 m 75 x 118 x 119 Download

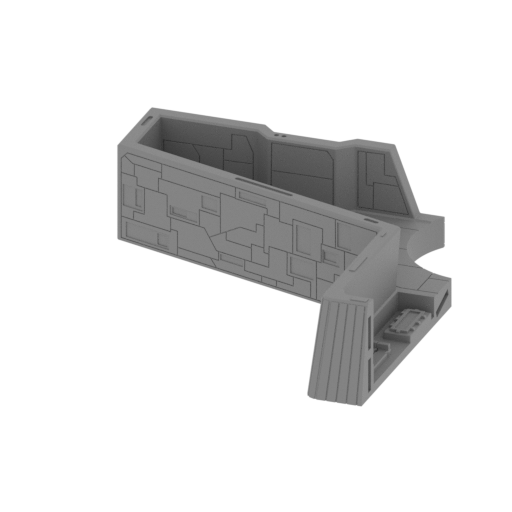

_121_hull_back_R_FDM (rep aired).stl
8.48 MiB 7 h 23 min 4 m 101 x 107 x 29 Download

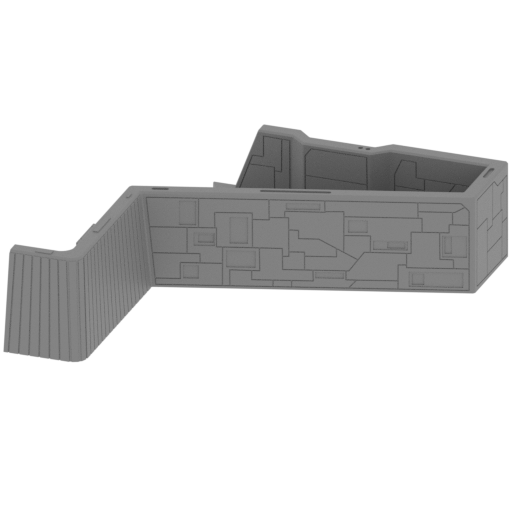

_122_hull_back_L_FDM (rep aired).stl
8.58 MiB 7 h 47 min 4 m 107 x 107 x 29 Download

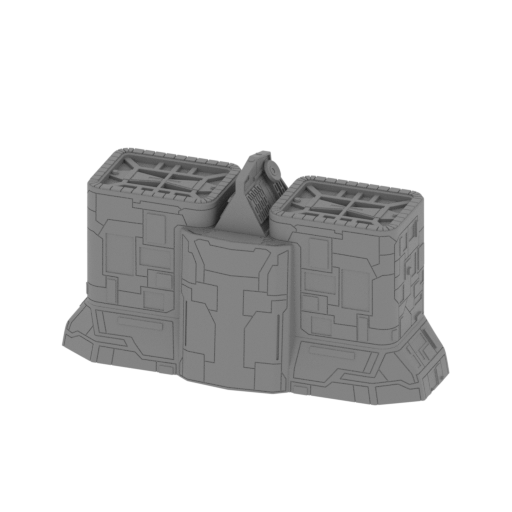

_123_hull_top_a_FDM (repa ired).stl
15.07 MiB 13 h 60 min 8 m 111 x 45 x 63 Download

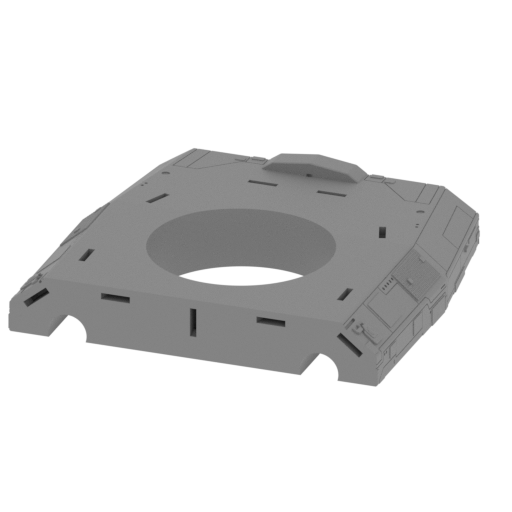

_124_hull_top_b_FDM (repa ired).stl
5.97 MiB 17 h 22 min 10 m 126 x 115 x 23 Download

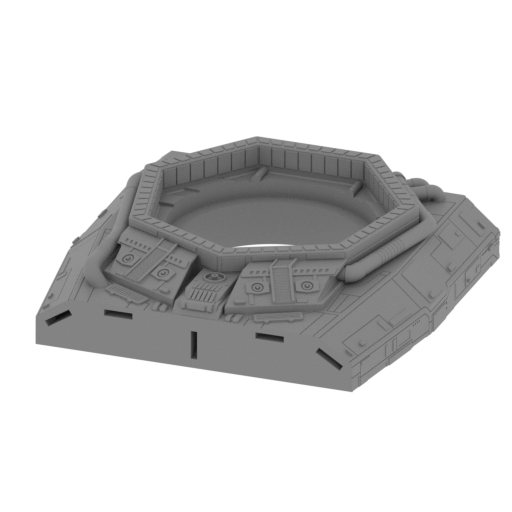

_125_hull_top_c_FDM (repa ired).stl
8.43 MiB 20 h 37 min 11 m 127 x 115 x 30 Download

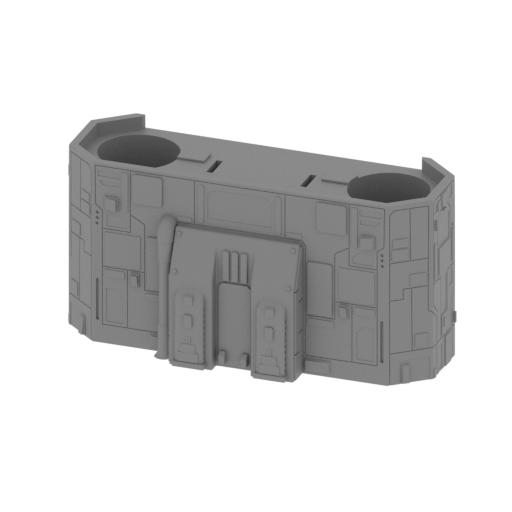

_126_hull_top_d_FDM (repa ired).stl
7.61 MiB 21 h 58 min 12 m 127 x 52 x 63 Download

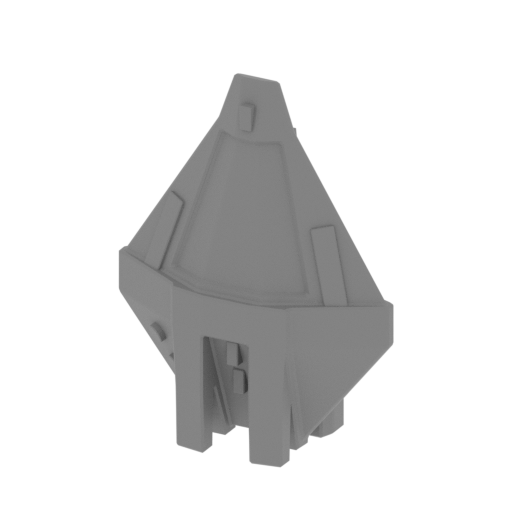

_127_ship_FDM (repaired). stl
0.17 MiB 6 min <1 m 9 x 4 x 12 Download

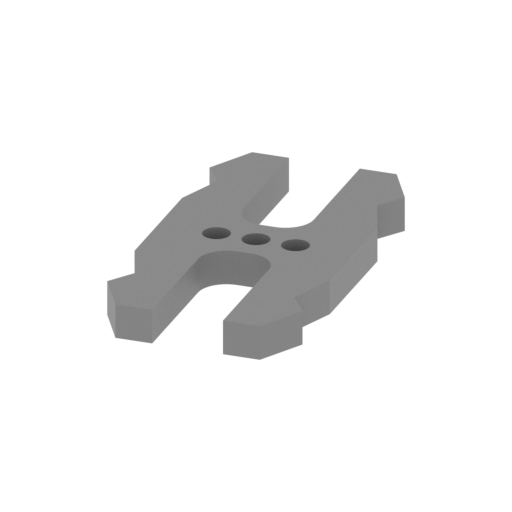

_128_Ge_lock_10H_x147_FDM (repaired).stl
0.03 MiB 4 min <1 m 10 x 18 x 2 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 16 min 1 m 150 x 18 x 5 Download
_117_hull_center_b_R_FDM (repaired).stl
24.24 MiB 67 h 41 min 40 m 147 x 120 x 119 Download
_42_2_wing_turbine_L_FDM (repaired).stl
2.79 MiB 36 h 22 min 26 m 90 x 90 x 127 Download
_37_2_wing_turbine_R_FDM (repaired).stl
2.79 MiB 36 h 17 min 26 m 88 x 88 x 127 Download
_129_wingTurbineTube_X8_F DM (repaired).stl
0.86 MiB 26 min <1 m 21 x 21 x 51 Download
...

ABOUT THIS 3D MODEL

The United States Cargo Star Ship Nostromo, or simply USCSS Nostromo, is a ship that took the viewers and the crew of seven that operated it on a blood-curdling mission after intercepting a distress beacon from an uncharted planetoid LV-426. In the depths of the Zeta II Reticuli system, the vicious confrontation of humans and the Xenomorph species took place and resulted in the ship’s eventual destruction. But who could’ve thought that the USCSS Nostromo was destined to make an epic comeback on the pages of Gambody catalogue! Meticulously modelled by our contributing 3D artist, the ship took its most authentic guise and awaits to join your 3D printing collection! Despite being a work-class towing vehicle, the Nostromo fascinates with its brutally beautiful forms and enormous scale. The author of the model adorned the ship’s exterior with immensely detailed exterior graphics that one cannot help but want to unriddle. On the sides, the interstellar cruiser is equipped with two massive nacelles that are almost the size of the ship’s body, while the docking module is mounted on top of it. On the ship's nose and in numerous spots across its hull, communication antennas and comms dishes are installed to keep in touch with the distant lands while slowly drifting through space. Our modeller did not forget to add the super-powerful Yutani J38 auxiliary thruster, two Weylan L46 thrusters, three Forward Pitch Thrusters and other engines to the craft to help you propel this monster of a tow and its valuable cargo. Last but not least, should you need a break throughout the lengthy journey, you can always rest your ship on a special stand and display it with pride. Get ready to 3D print your very own USCSS Nostromo, we are taking off soon!

ADAPTATION FOR 3D PRINTING

USCSS Nostromo for 3D printing is an active assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 65 hours in total. For you to receive the cleanest 3D printing result possible and to minimize the amount of filament needed for generated support the spacecraft model was divided into many assembly parts, e.g. its undercarriages, engine thrusters, the covers of thrusters, various doors, docking module hatch, the Nose Antenna, the Docking Tube, etc. are provided as separate STL files. The covers of the Yutani J38 auxiliary thruster, two Weylan L46 thrusters, three Forward Pitch Thrusters are provided separately and can be printed with transparent filament. There can be found special tunnels throughout the body of the Nostromo that were designed by our team for you to easily introduce LED wiring for illumination of the starfreighter. For you to display the Nostromo model among your Space Ships collection there is a two-part stand provided. All assembly parts are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA/SLS 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly video” and "Assembly Manual" before getting down to the USCSS Nostromo model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from the actual length of the USCSS Nostromo that is 243800 mm. The 3D printing model's chosen scale is 1/400 for FFF/FDM version and 1/800 for DLP/SLA/SLS version.

VERSIONS' SPECIFICATIONS

FFF/FDM 1.0 version features:
- Contains 128 parts;
- A printed ship without the platform is 210 mm tall, 412 mm wide, 644 mm deep;
- A printed ship with the platform is 294 mm tall, 412 mm wide, 644 mm deep;
- Assembly kit includes lock 128_Ge_lock_10H_x147 to connect the model's parts securely without glue that needs to be printed 147 times;
- Highly-detailed exterior of the craft;
- Removable hatch on the docking module;
- USCSS Nostromo's undercarriages can be displayed extended or concealed behind the doors;
- Elaborate gear mechanism and rotation of the key allows the extension and retraction of the undercarriages;
- When the undercarriage extends or retracts, the doors open and close automatically;
- The Docking Tube and the Nose Antenna are assembled with rotating adjustable grip connector that allows them to fully rotate;
- The covers of the Yutani J38 auxiliary thruster, two Weylan L46 thrusters, three Forward Pitch Thrusters are provided separately and can be printed with transparent filament;
- Model is made hollow for you to introduce LED wiring throughout the spaceship's body;
- Made with a two-part stand to conveniently display the ship among your spacecraft fleet;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

DLP/SLA 1.0 version features:
- Contains 53 parts;
- A printed ship without the platform is 105 mm tall, 206 mm wide, 322 mm deep;
- A printed ship with the platform is 147 mm tall, 206 mm wide, 322 mm deep;
- Highly-detailed exterior of the craft;
- Removable hatch on the docking module;
- USCSS Nostromo's static undercarriages can be displayed extended or concealed behind the doors;
- The Docking Tube and the Nose Antenna of the ship are static;
- The covers of the Yutani J38 auxiliary thruster, two Weylan L46 thrusters, three Forward Pitch Thrusters are provided separately and can be printed with transparent filament;
- Model is made hollow for you to introduce LED wiring throughout the spaceship's body.
- Made with a two-part stand to conveniently display the ship among your spacecraft fleet;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of USCSS Nostromo​​ Model for 3D printing which consist of 181 parts;
- 2 versions of files for this model for FFF/FDM and DLP/SLA/SLS printers;
- High-poly detailed model of USCSS Nostromo;
Assembly Manual for FFF/FDM 1.0 and DLP/SLA/SLS 1.0 versions in PDF format;
- Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get the model of USCSS Nostromo for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble the USCSS Nostromo​​ 3D Printing Model at Gambody YouTube channel.

Also, you may like other Space Ships 3D Printing Models as well as Alien vs Predator 3D Printing Figurines.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

This model was tested in Cura 3.4.1 and printed on an Ultimaker 2 in PLA material. Below you can find printing recommendations for CuraSimplify3D and Slic3r softwares.

Cura printing recommendations:

Recommendations: For all parts of Locks you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
 Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
 Top/Bottom Line Width: 0.4 mm
 Infill Line Width: 0.4 mm
 Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
    Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill
Infill Density: 20%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 1
Gradual Infill Steps Height: 1.5 mm
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90Ëš
    Minimum Skin Width for Expansion: 0.0

Material
Initial Layer Flow: 100%
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 45 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
Travel Speed: 45 mm/s
Initial Layer Speed: 22.5 mm/s
  Initial Layer Print Speed: 22.5 mm/s
  Initial Layer Travel Speed: 30 mm/s
Skirt/Brim Speed: 30 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 50°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 3 mm
Support Z Distance: 0.1 mm
    Support Top Distance: 0.1 mm
    Support Bottom Distance: 0.1 mm
Support X/Y Distance: 1 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.25 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Gradual Support Infill Steps: 0
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim (for all parts of locks use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments

comments powered by Disqus

Similar items

Browse more newly listed 3D printings
