Class D Crew Escape Module 3D Printing Model | Assembly + Action

ABOUT THIS 3D MODEL

Developed by Weyland Corporation specializing in advanced technologies, the Class D crew escape module was an evacuation vehicle for the scientific exploratory vessel USCSS Prometheus. This craft, complete with independent navigation and piloting controls was used by Meredith Vickers to escape the Prometheus' destruction.

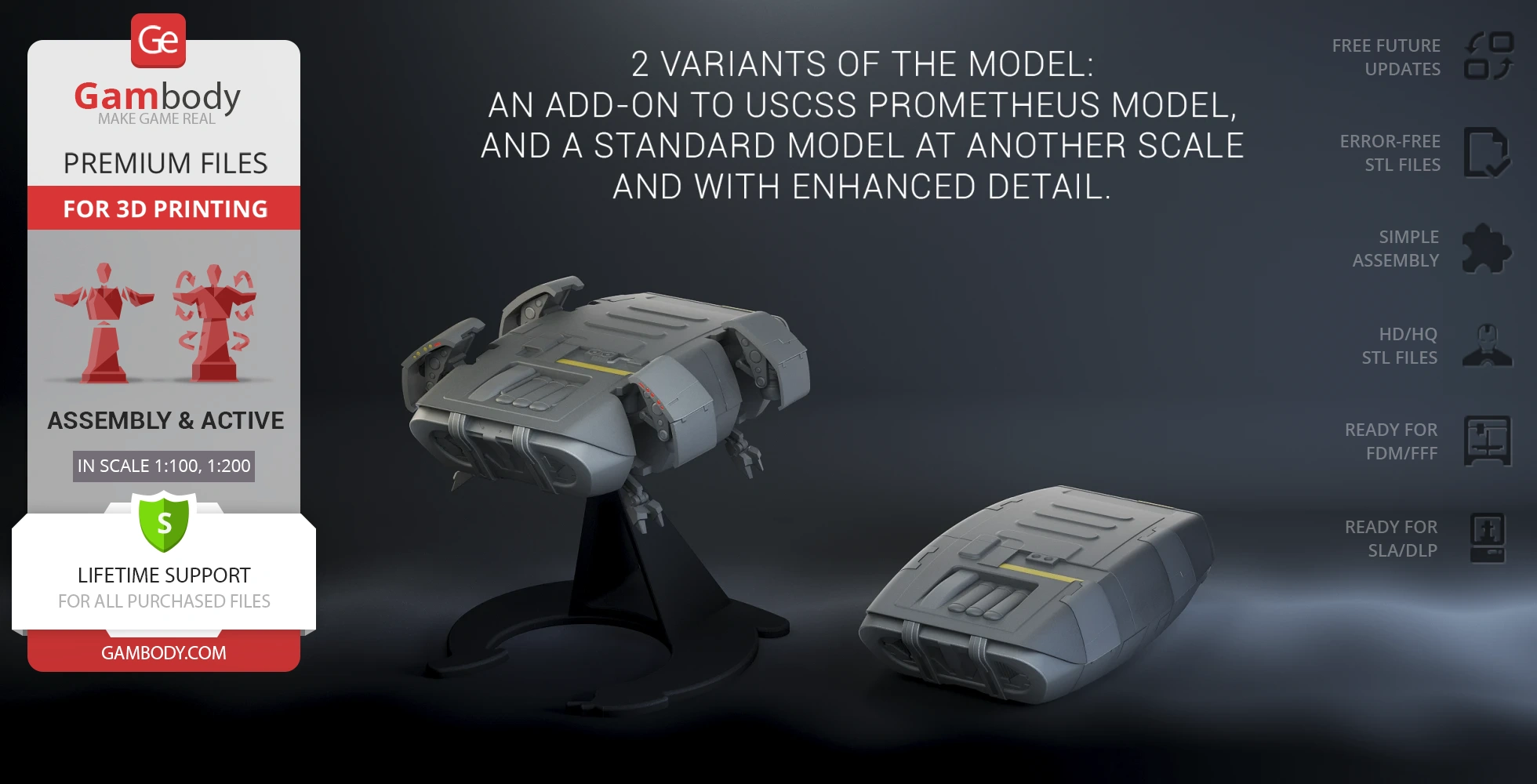

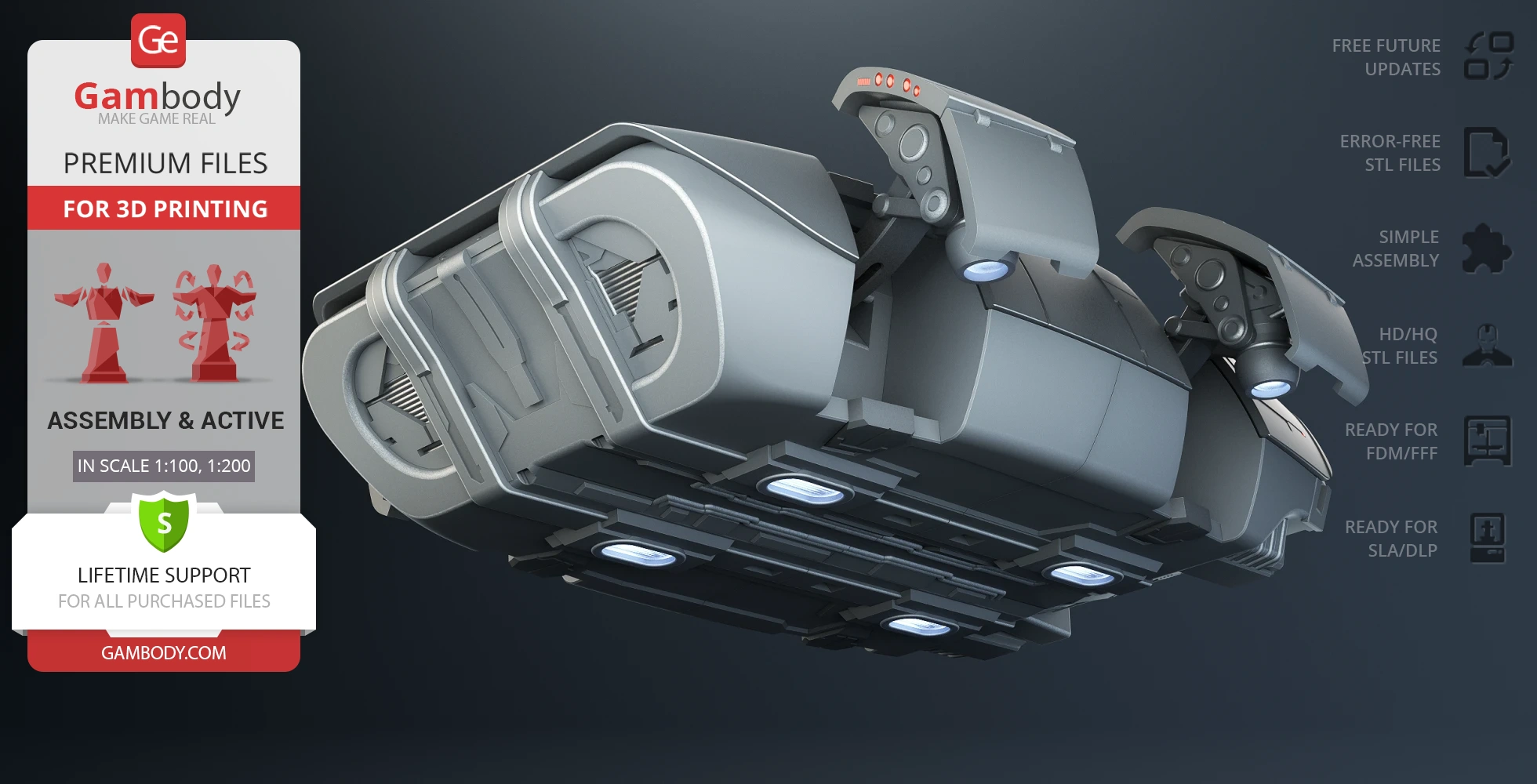

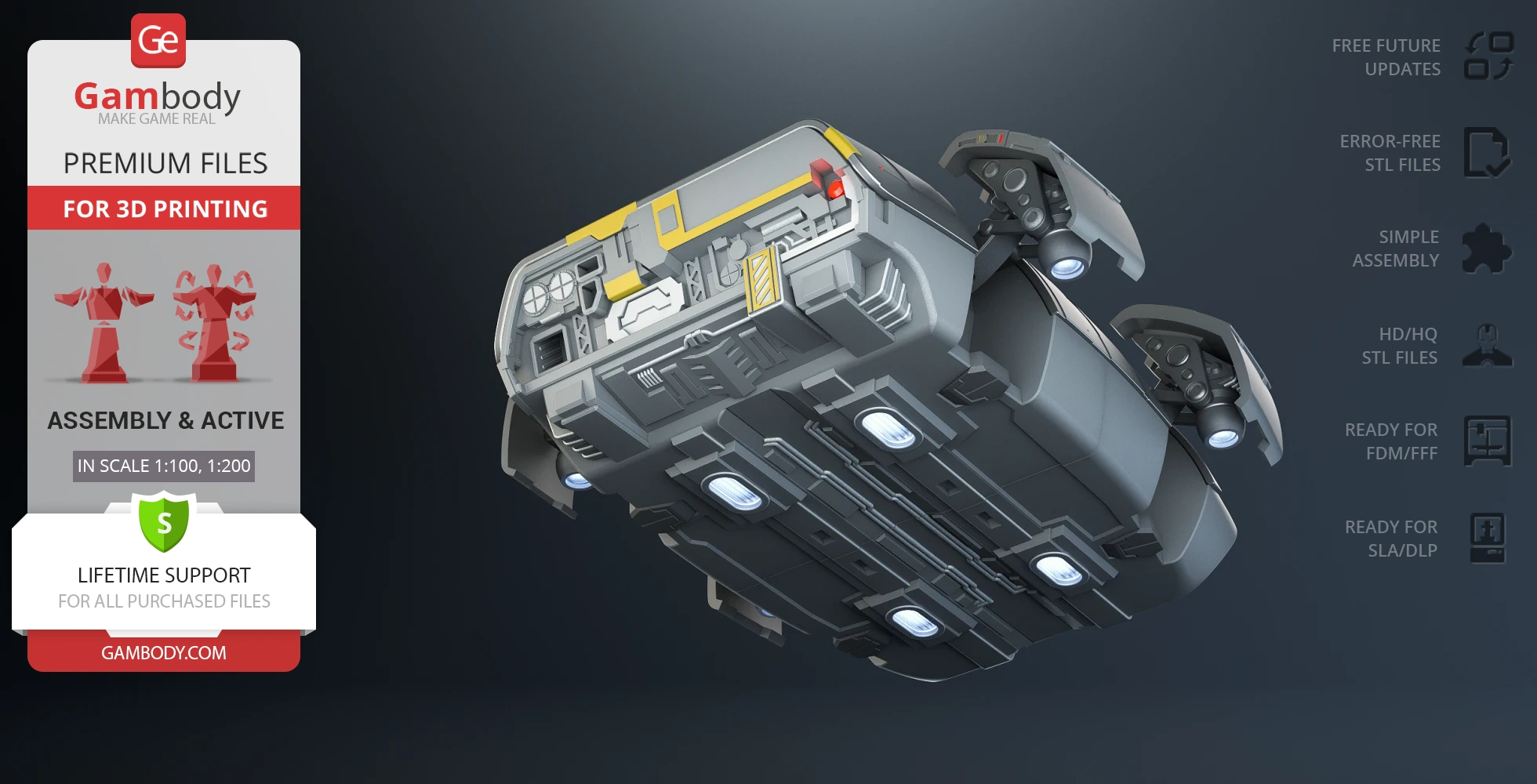

Our contributing 3D artist was inspired by the functionality and design of the escape module and spent many hours recreating its build in the form of a 3D printing model. Class D Crew Escape Module is a unique model that comes in two variants and can be displayed both as a self-sufficient collectible and as an Add-On to the USCSS Prometheus 3D printing model. The author incorporated articulating elements and prepared the files for the installation of LED lighting for better demonstration options. Just imagine the opportunities these STLs open, every 3D printing enthusiast will be thrilled!

ADAPTATION FOR 3D PRINTING

Class D Crew Escape Module model for 3D printing is an active assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 86 hours in total.

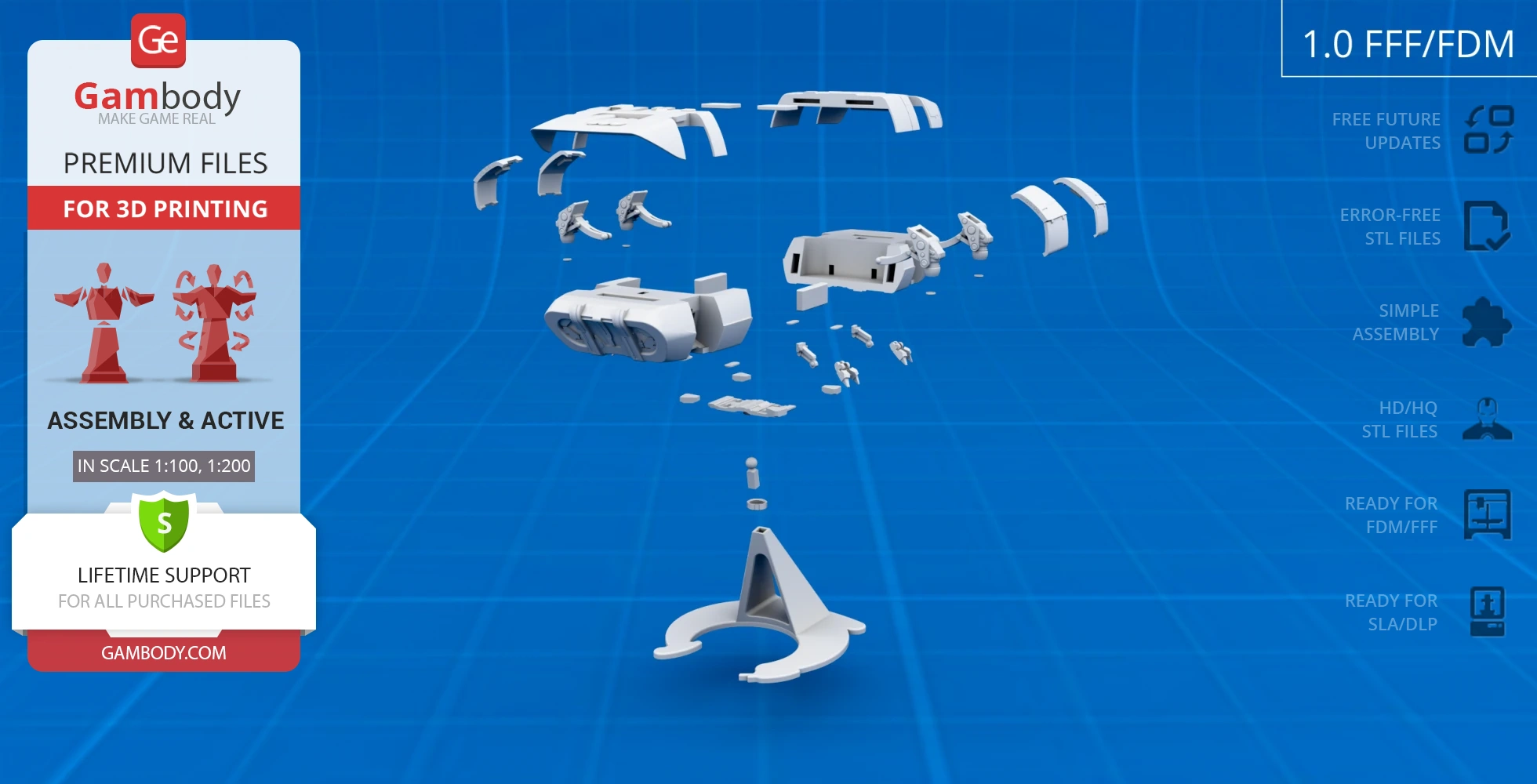

For you to receive the cleanest 3D printing result possible, minimize the amount of filament needed for generated support, and make use of the active elements designed by Gambody Engineers, the evacuation vehicle was divided into convenient assembly parts.

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won’t face difficulties when placing the parts on a build plate. When downloading any model’s file you will also receive “Assembly Manual” for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats. We highly recommend that you get acquainted with the “Assembly Video” and “Assembly Manual” before getting down to the Class D Crew Escape Module 3D printing model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model’s scale was calculated from the length of the Class D Crew Escape Module. The 3D printing model’s chosen scales are 1:100 for the FFF/FDM version and 1:200 for the DLP/SLA version.

VERSIONS’ SPECIFICATIONS

FFF/FDM 1.0 version features:

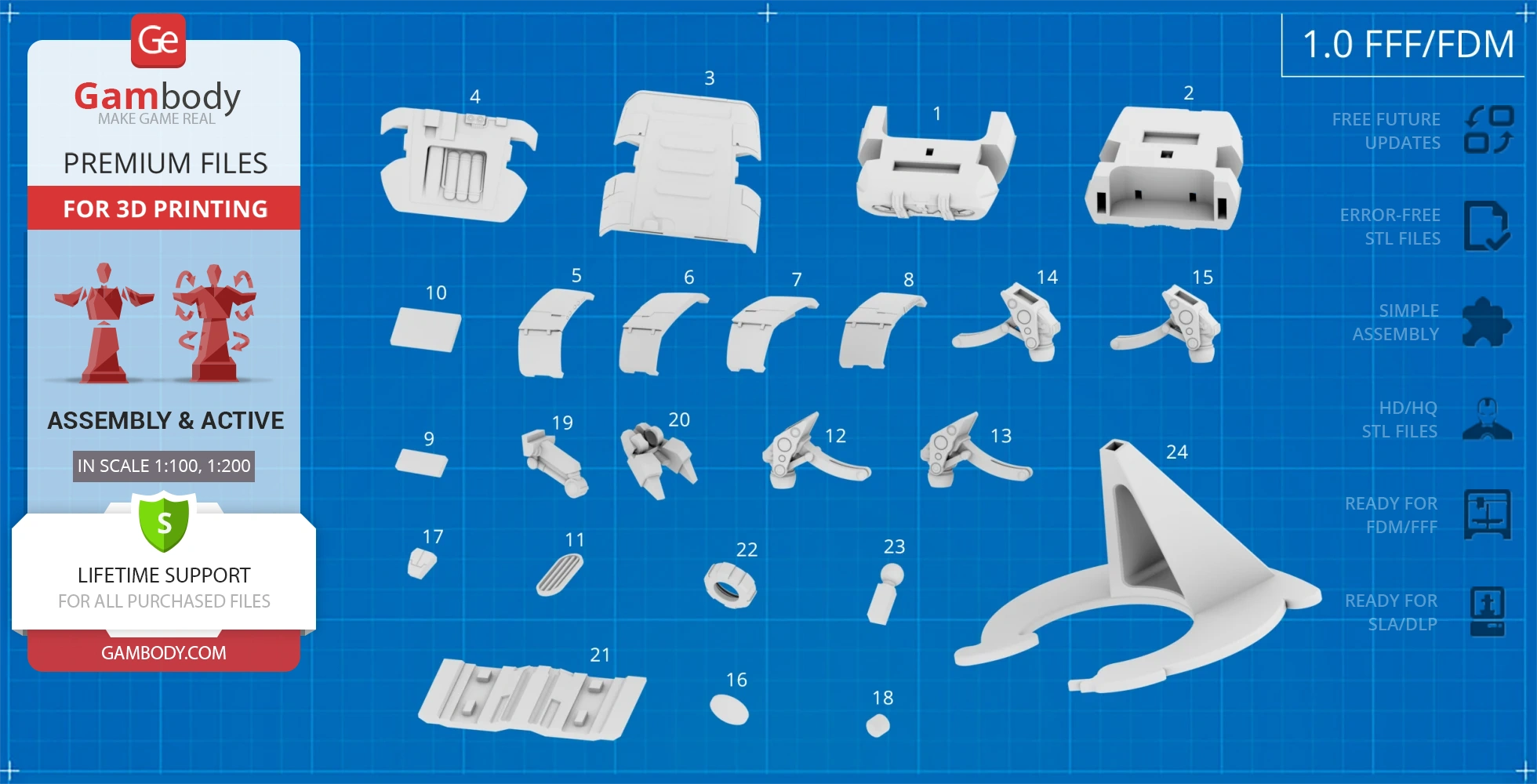

• Contains 24 parts;

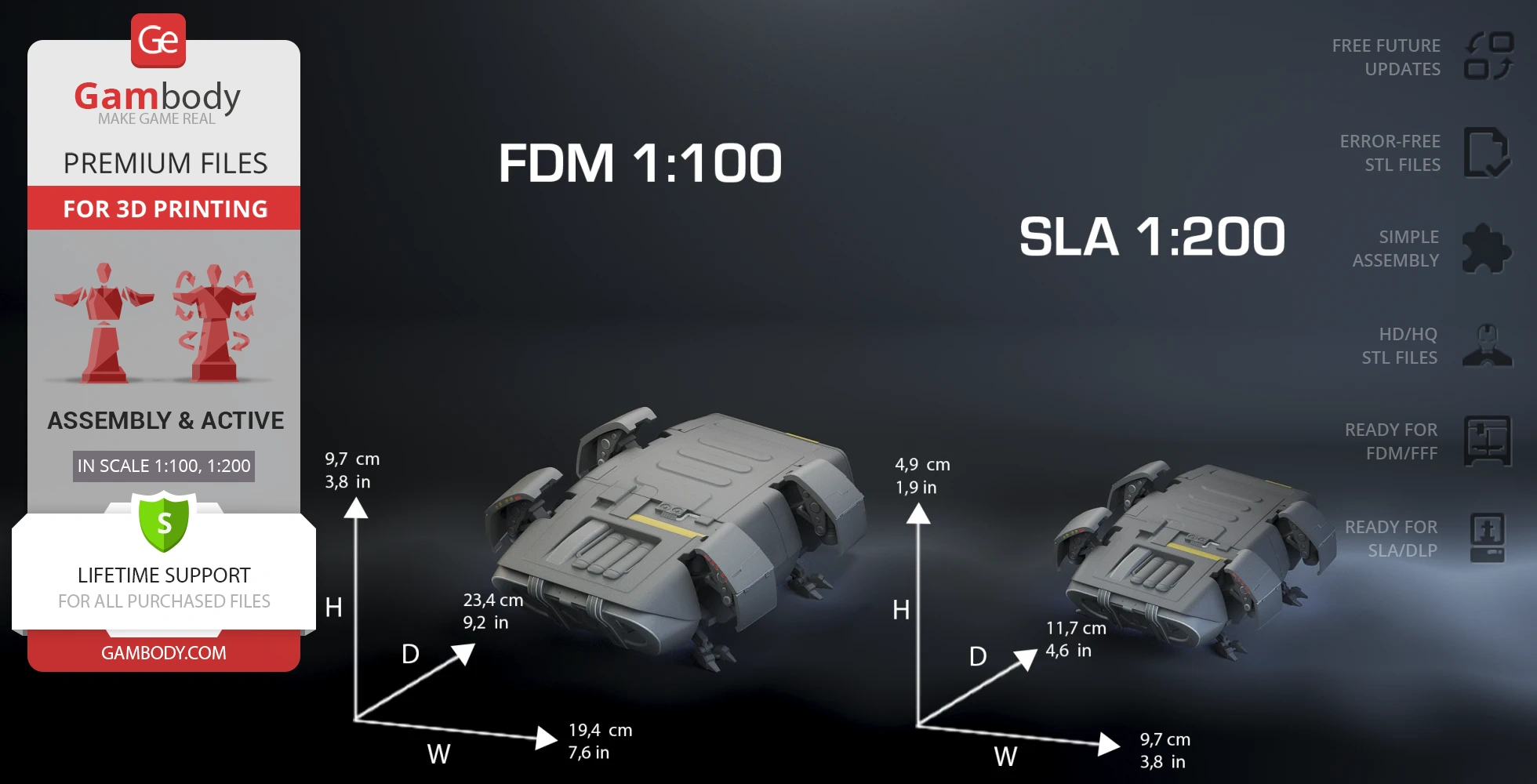

• A printed model is 97 mm tall, 194 mm wide, 234 mm deep;
• A printed model on the stand is 197 mm tall, 194 mm wide, 234 mm deep;

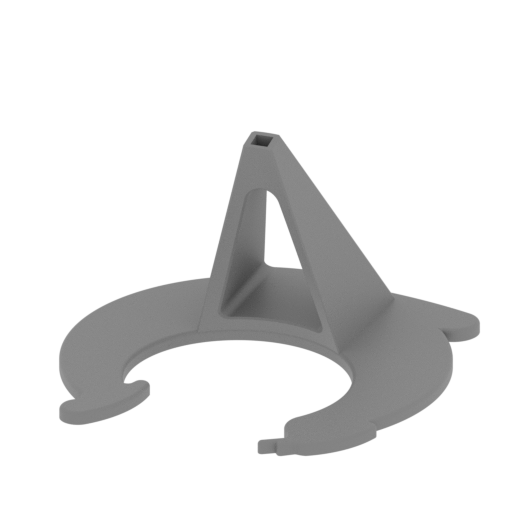

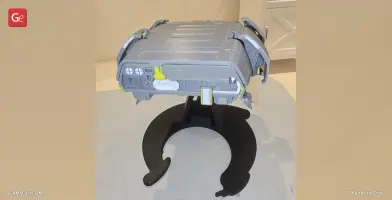

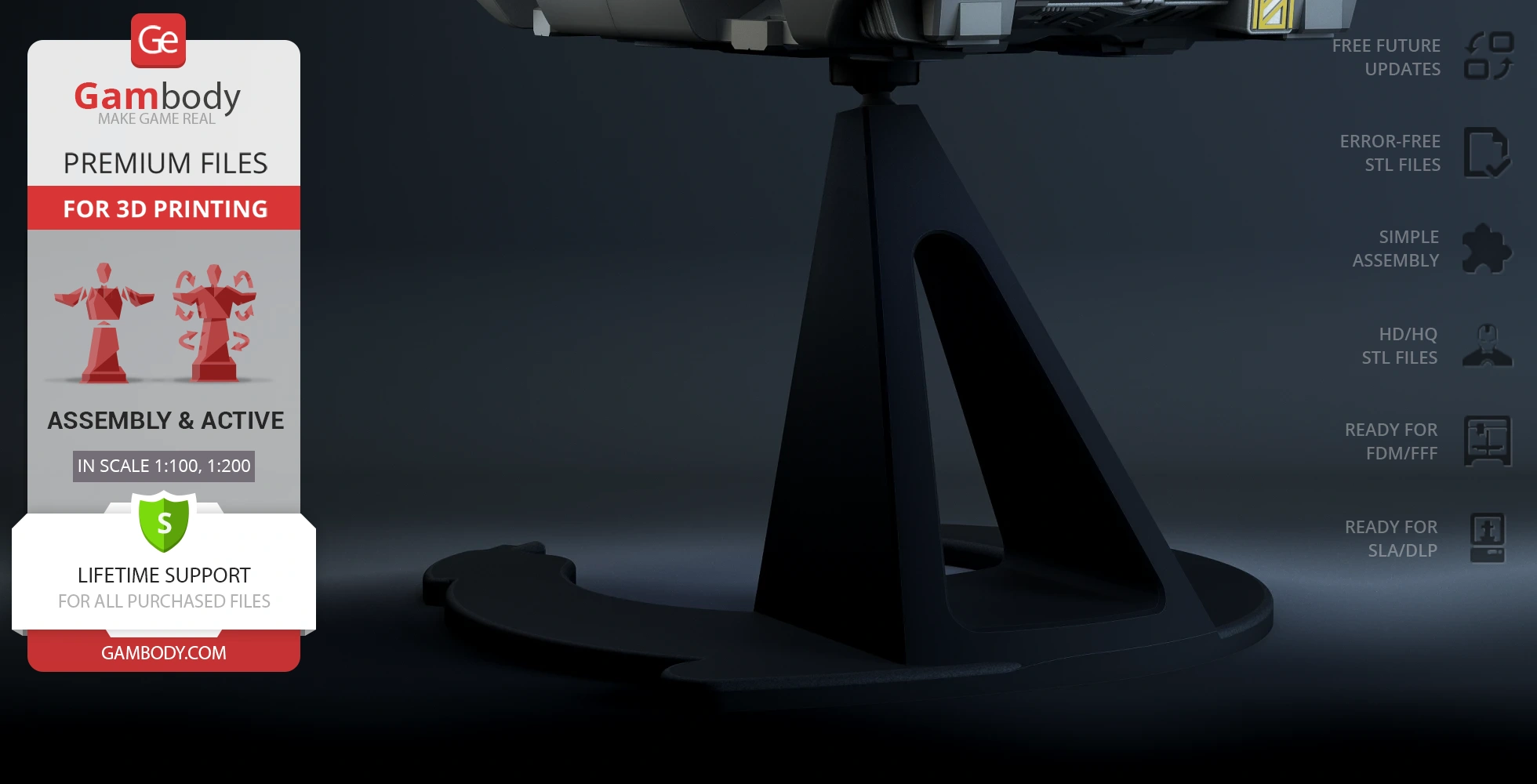

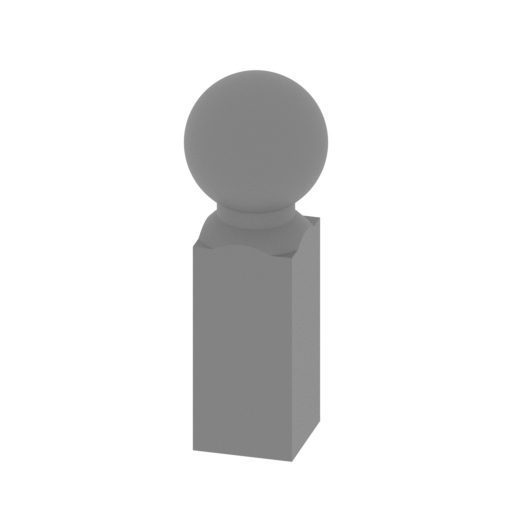

• The stand features a ball joint to attach the module;
• Retractable engine thrusters;

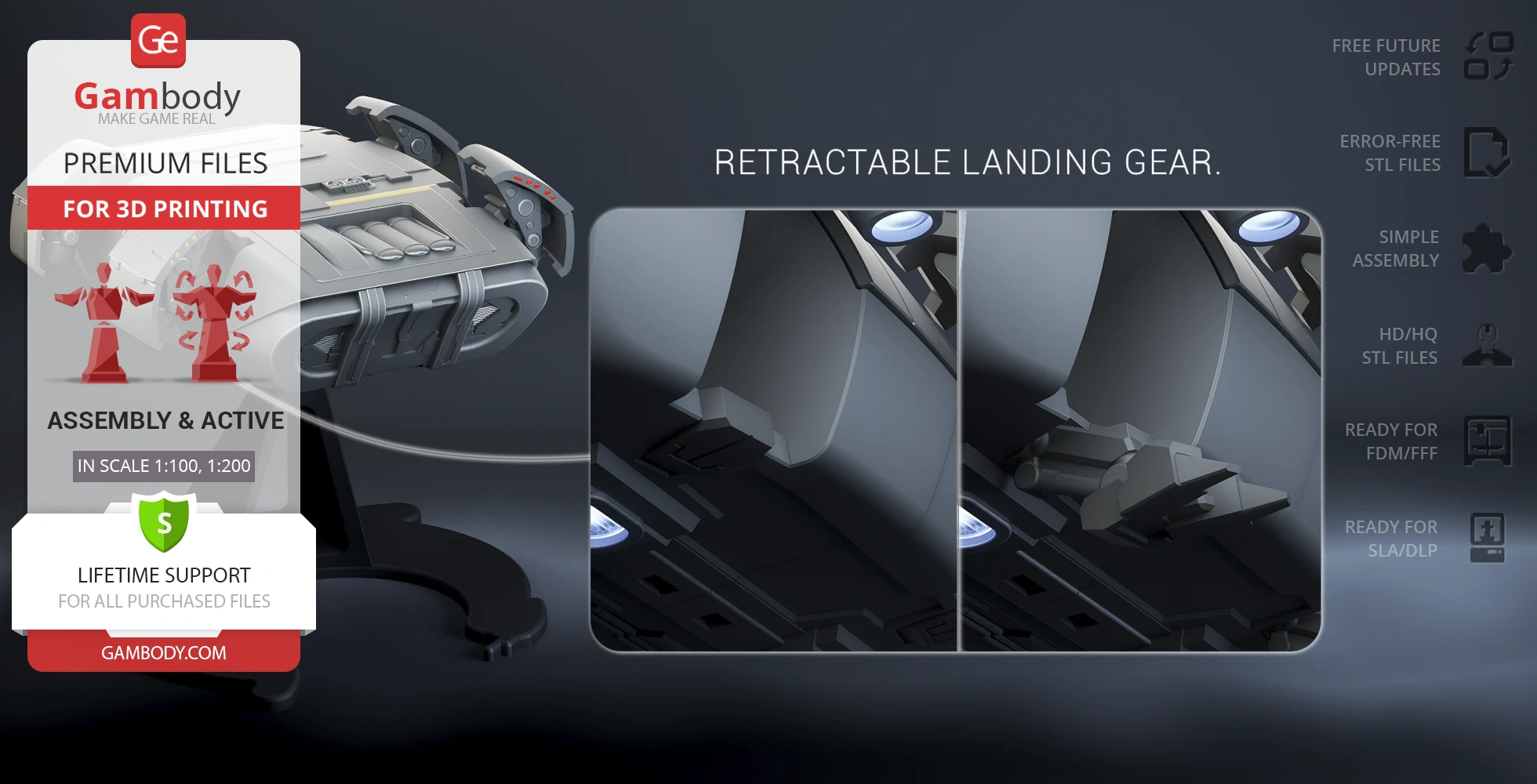

• Retractable landing gear;

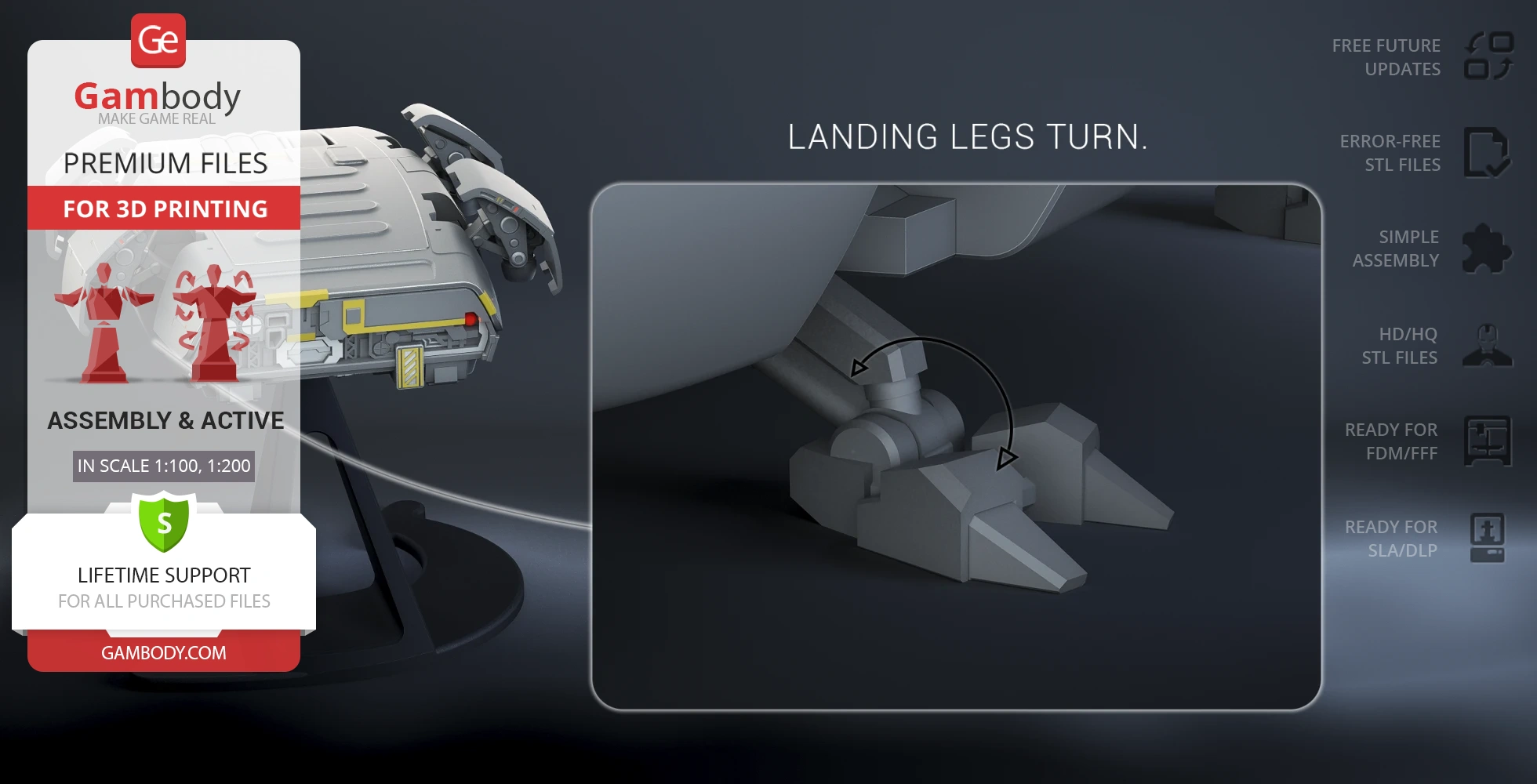

• Landing legs turn;
• The standard model features enhanced detail;
• The standard model printed at 1/200 is compatible with USCSS Prometheus;

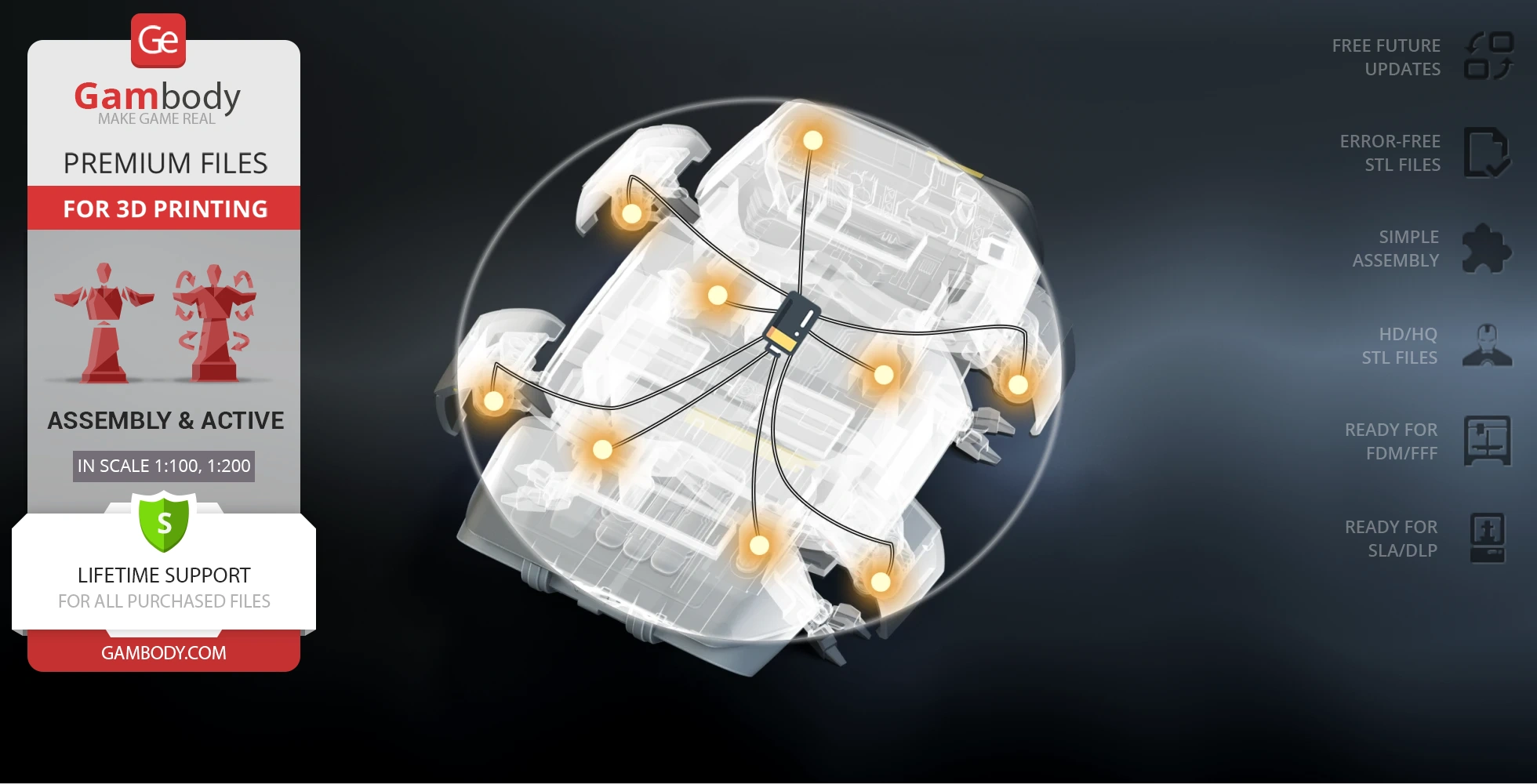

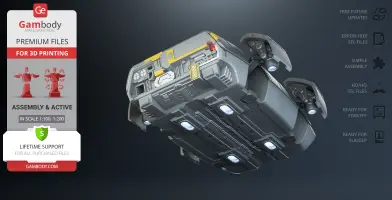

• There are tunnels for LED wiring to illuminate the bottom engines and the rear-maneuvering thrust engines;
• All parts are divided in such a way that you will print them with the smallest number of support structures.

FFF/FDM Add-On 1.0 version features:

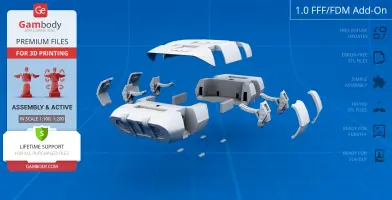

• Contains 13 parts;
• A printed model is 32 mm tall, 71 mm wide, 117 mm deep;
• Add-On is designed to be assembled with the USCSS Prometheus 3D printing model. USCSS Prometheus is sold separately;
• Retractable engine thrusters;
• There are tunnels for LED wiring to illuminate the bottom engines;
• All parts are divided in such a way that you will print them with the smallest number of support structures.

DLP/SLA 1.0 version features:

• Contains 22 parts;
• A printed model is 49 mm tall, 97 mm wide, 117 mm deep;
• A printed model on the stand is 99 mm tall, 97 mm wide, 117 mm deep;
• The stand features a ball joint to attach the module;
• Retractable engine thrusters;
• Retractable landing gear;
• Landing legs turn;
• The standard model features enhanced detail;
• The standard model printed at 1/200 is compatible with USCSS Prometheus;
• There are tunnels for LED wiring to illuminate the bottom engines and the rear-maneuvering thrust engines;
• All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

DLP/SLA Add-On 1.0 version features:

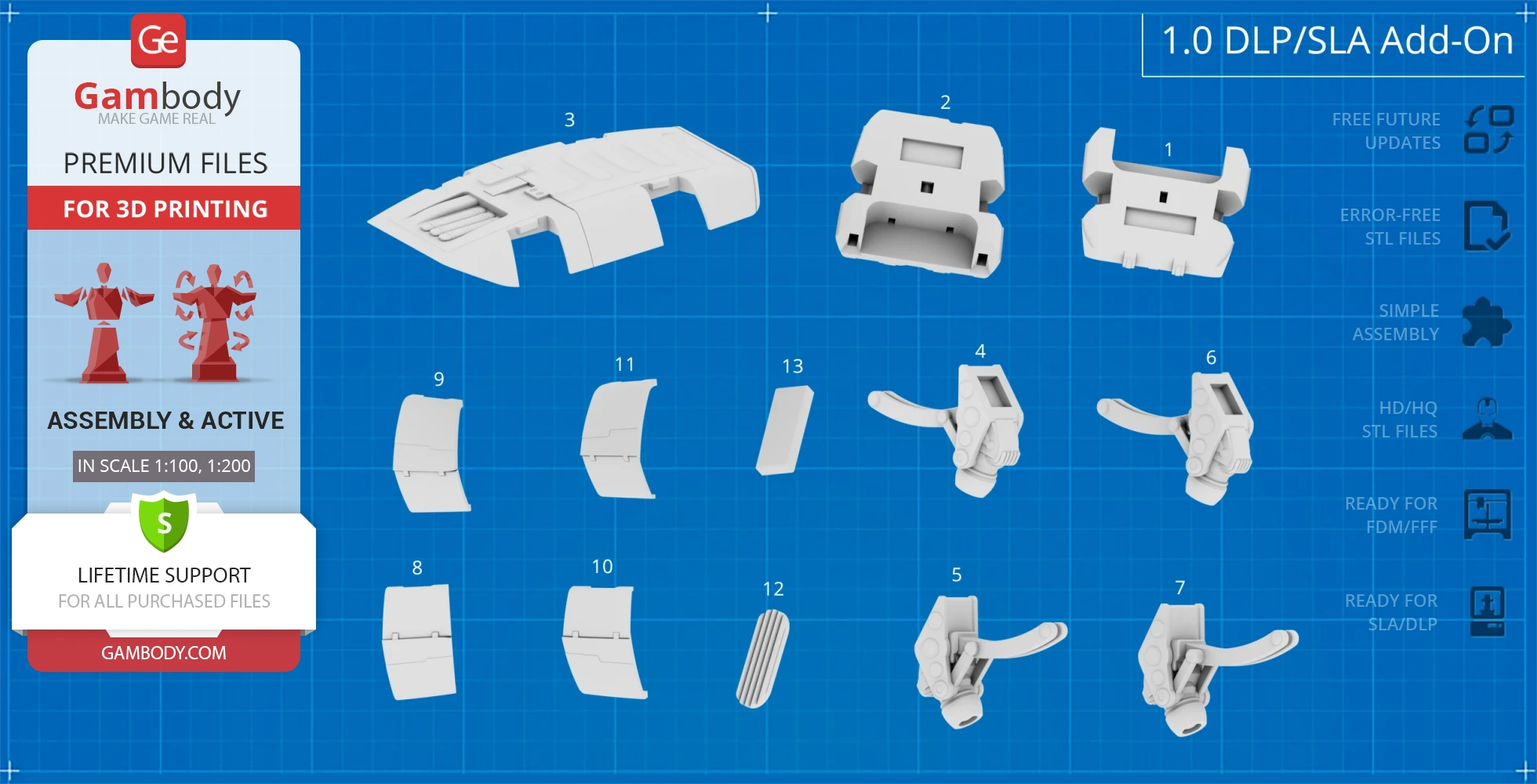

• Contains 13 parts;
• A printed model is 16 mm tall, 36 mm wide, 59 mm deep;
• Add-On is designed to be assembled with the USCSS Prometheus 3D printing model. USCSS Prometheus is sold separately;
• Retractable engine thrusters;
• There are tunnels for LED wiring to illuminate the bottom engines;
• All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

You can get the Class D Crew Escape Module model for 3D printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble a Class D Crew Escape Module 3D Printing Model on Gambody YouTube channel.

Also, you may like USCSS Prometheus and other Spacecraft 3D Printing Models.
