This 3D printing design of Ripley Underwear consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

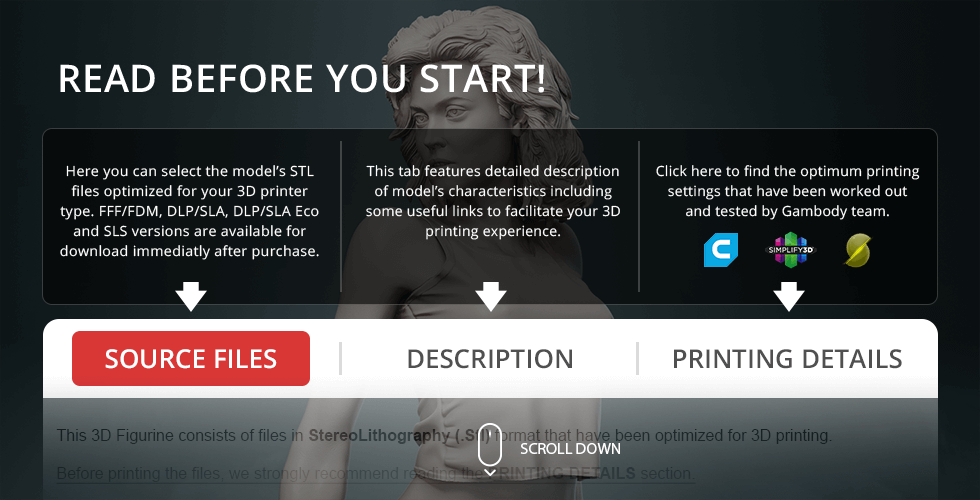

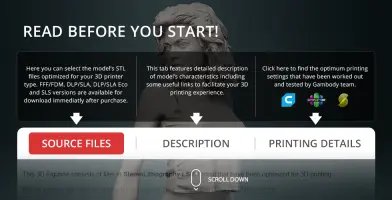

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

4 versions of Ripley Underwear STL files for FFF/FDM, DLP/SLA, DLP/SLA Eco, and SLS — files for all versions are available for download after the purchase;
STL files of high-poly Ripley Underwear model for 3D printing consist of 34 files;
Sizes for:
FFF/FDM: 240 mm tall, 156 mm wide, 153 mm deep;
DLP/SLA/SLS: 120 mm tall, 78 mm wide, 77 mm deep;
Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats;
Detailed settings that we provide as a recommendation for Cura, Bambu Studio, Simplify3D, Slic3r and PrusaSlicer for the best print;
Full technical support from the Gambody Support Team.

Detailed information about these 3D printer STL files is available in the DESCRIPTION section.


	File Name	File Size	Time / Filament	Object Size (x/y/z mm)

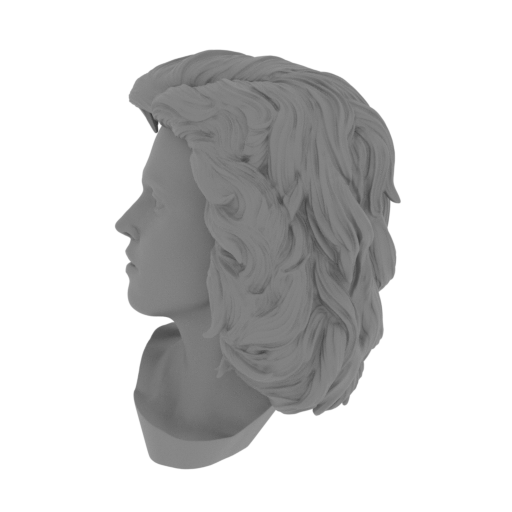

	1_head_FDM(repaired).stl	21.45 MiB	4 h 11 min 2 m	35 x 39 x 49	Download

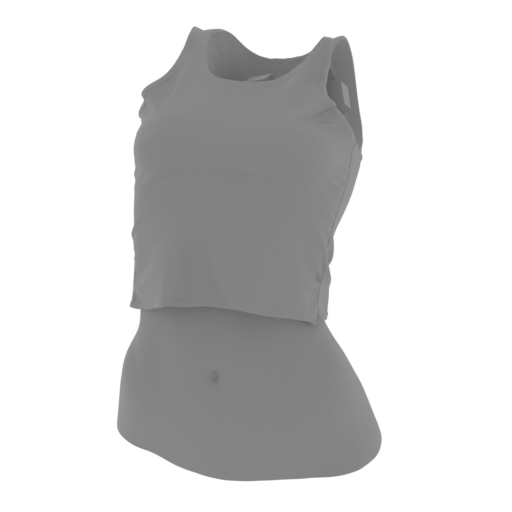

	2_body_FDM(repaired).stl	26.33 MiB	6 h 38 min 4 m	46 x 52 x 67	Download
	3_legs_FDM(repaired).stl	22.75 MiB	4 h 44 min 3 m	61 x 46 x 109	Download

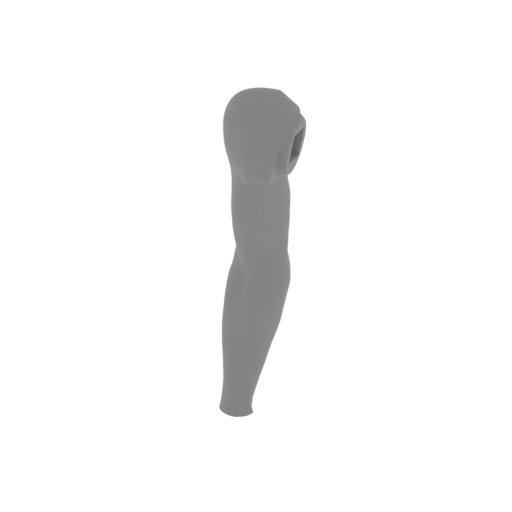

	4_arm_R_FDM(repaired).stl	16.75 MiB	1 h 38 min 1 m	23 x 34 x 76	Download

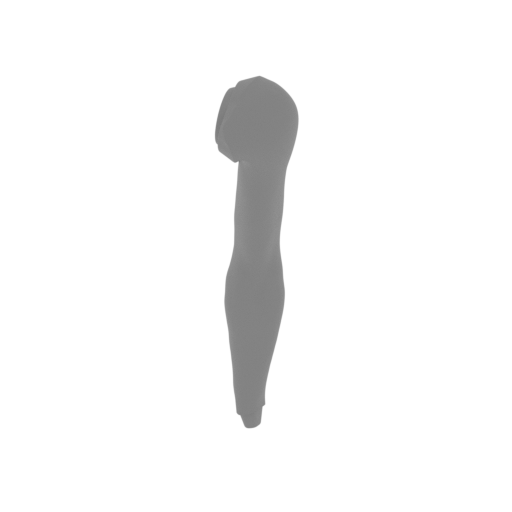

	5_arm_L_FDM(repaired).stl	15.25 MiB	1 h 25 min 1 m	18 x 27 x 81	Download

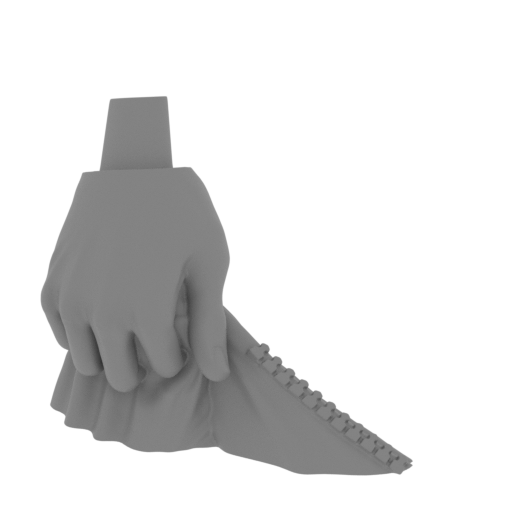

	6_hand_R_FDM(repaired).st l	17.45 MiB	34 min <1 m	30 x 26 x 25	Download

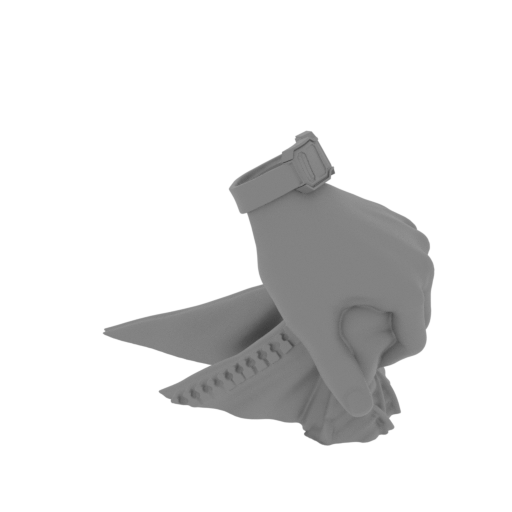

	7_hand_L_FDM(repaired).st l	14.96 MiB	43 min <1 m	33 x 20 x 25	Download

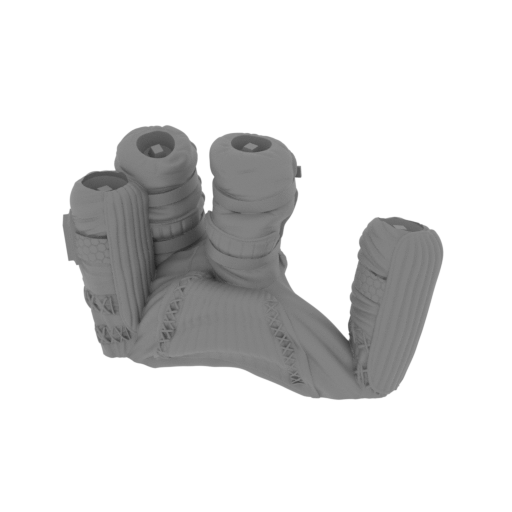

	8_overalls_FDM(repaired). stl	30.30 MiB	16 h 55 min 10 m	125 x 57 x 77	Download

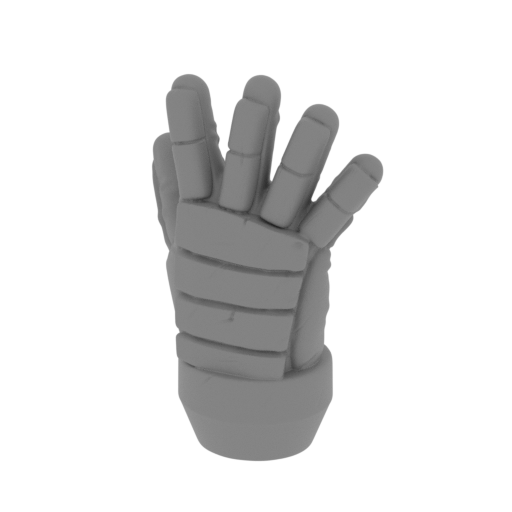

	9_glove_R_FDM(repaired).s tl	13.92 MiB	51 min <1 m	26 x 16 x 39	Download

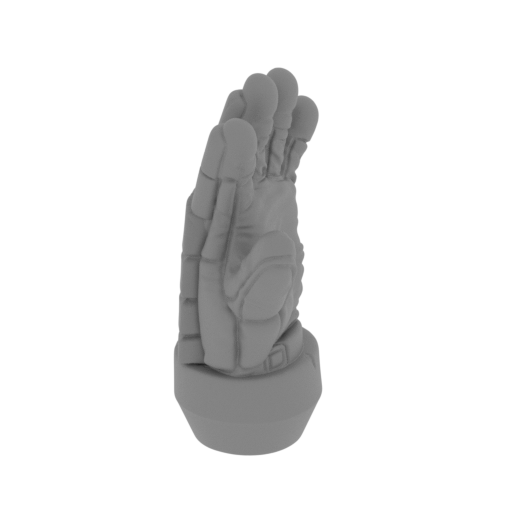

	10_glove_L_FDM(repaired). stl	14.20 MiB	54 min <1 m	16 x 26 x 39	Download

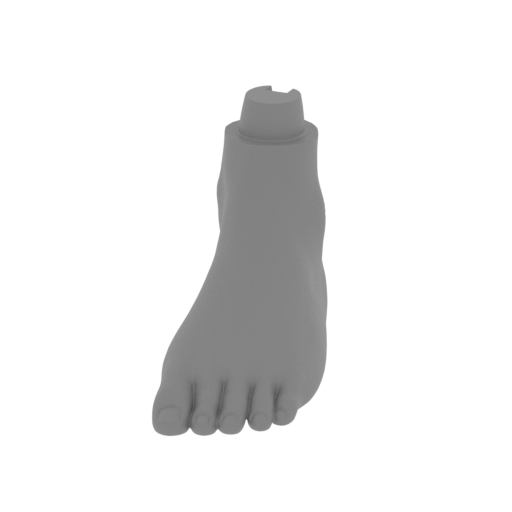

	11_foot_L_FDM(repaired).s tl	12.08 MiB	28 min <1 m	15 x 36 x 22	Download

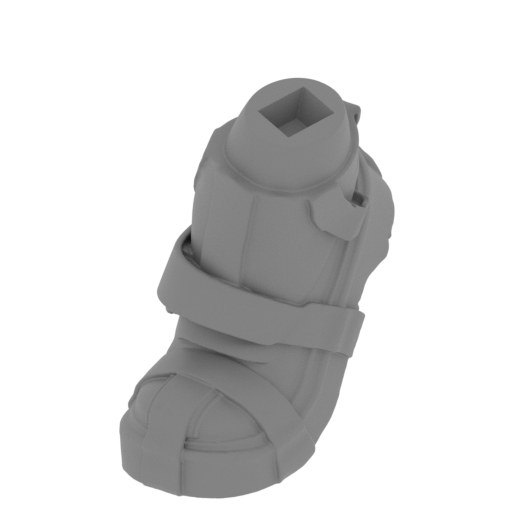

	12_boot_R_FDM(repaired).s tl	13.61 MiB	1 h 29 min 1 m	23 x 35 x 41	Download

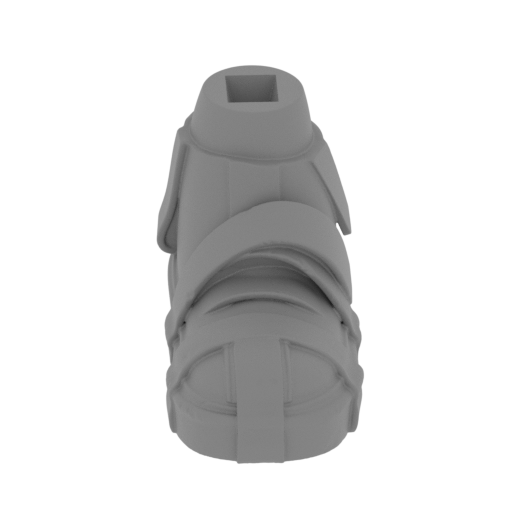

	13_boot_L_FDM(repaired).s tl	13.99 MiB	1 h 11 min 1 m	28 x 40 x 28	Download

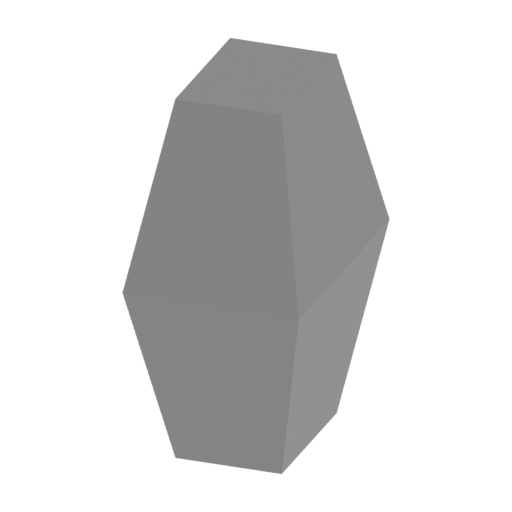

	14_connector_1_FDM(repair ed).stl	1.57 MiB	6 min <1 m	5 x 7 x 10	Download

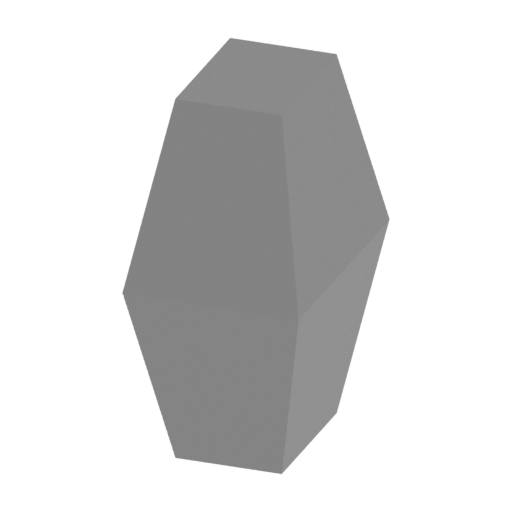

	15_connector_2_FDM(repair ed).stl	1.57 MiB	6 min <1 m	5 x 7 x 10	Download

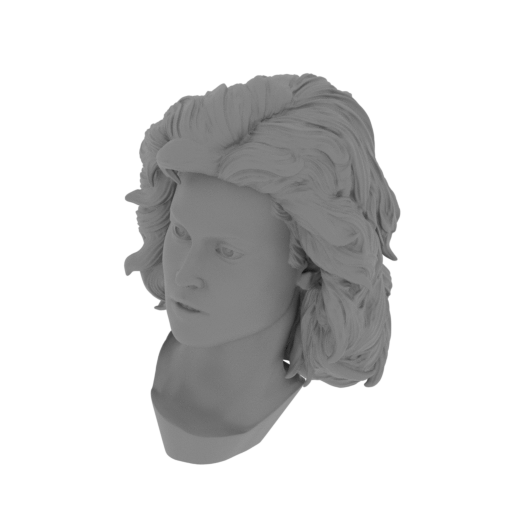

	1_head_v2_FDM(repaired).s tl	25.43 MiB	4 h 14 min 2 m	38 x 35 x 51	Download

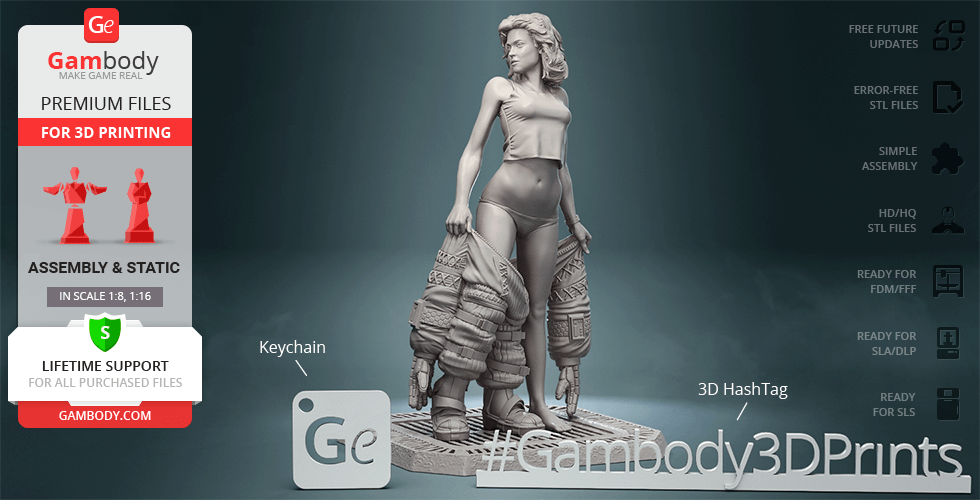

	Keychain (repaired).stl	0.35 MiB	23 min <1 m	30 x 30 x 2	Download
	Tag (repaired).stl	1.70 MiB	1 h 16 min 1 m	150 x 18 x 5	Download

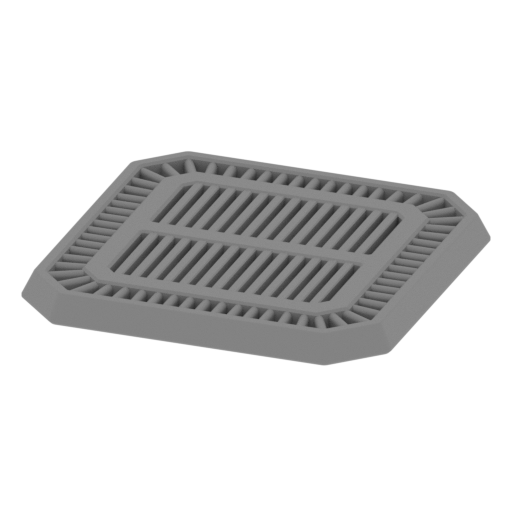

	16_platform_FDM(repaired) .stl	10.82 MiB	22 h 52 min 13 m	155 x 155 x 12	Download
...

3D MODEL HISTORY

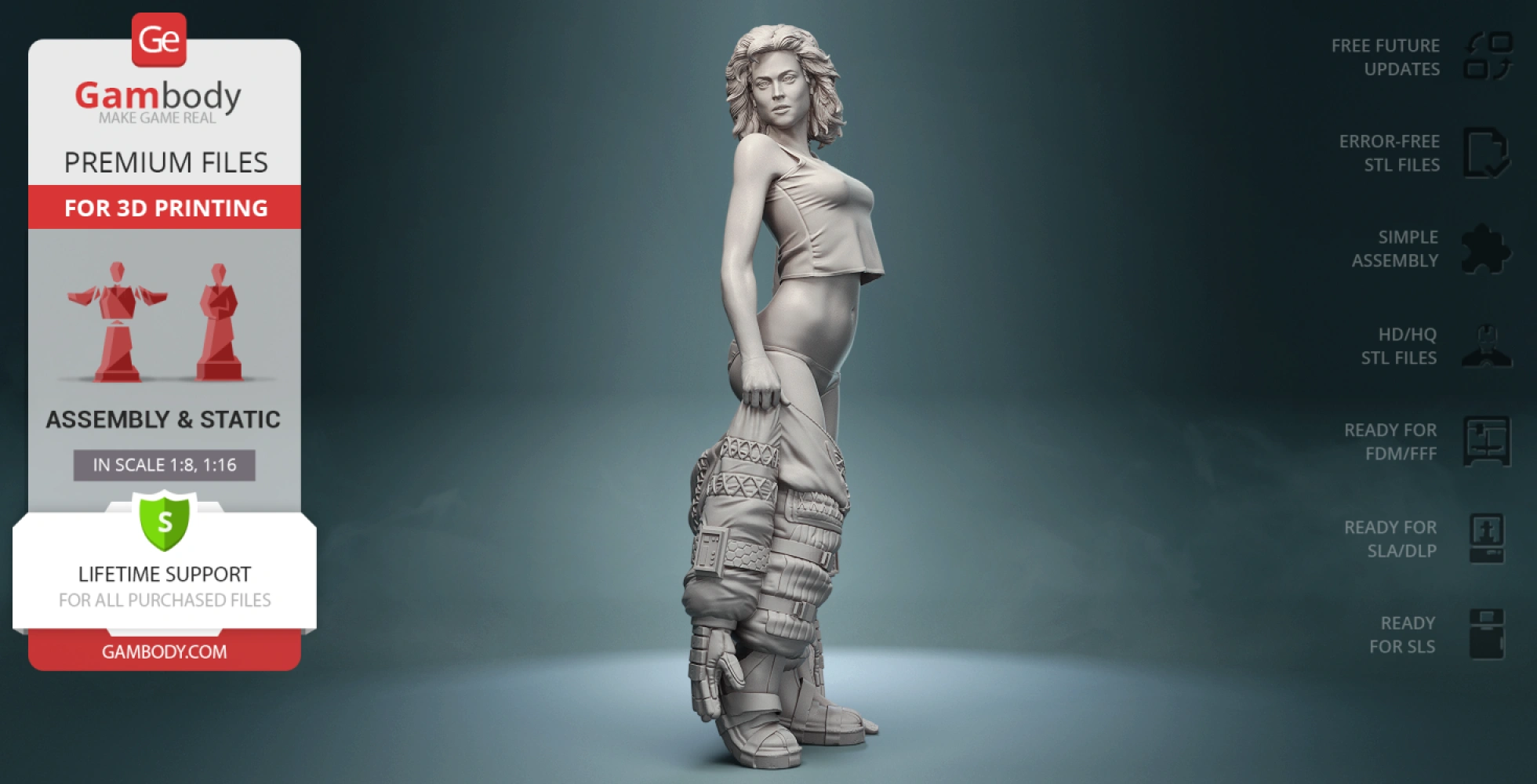

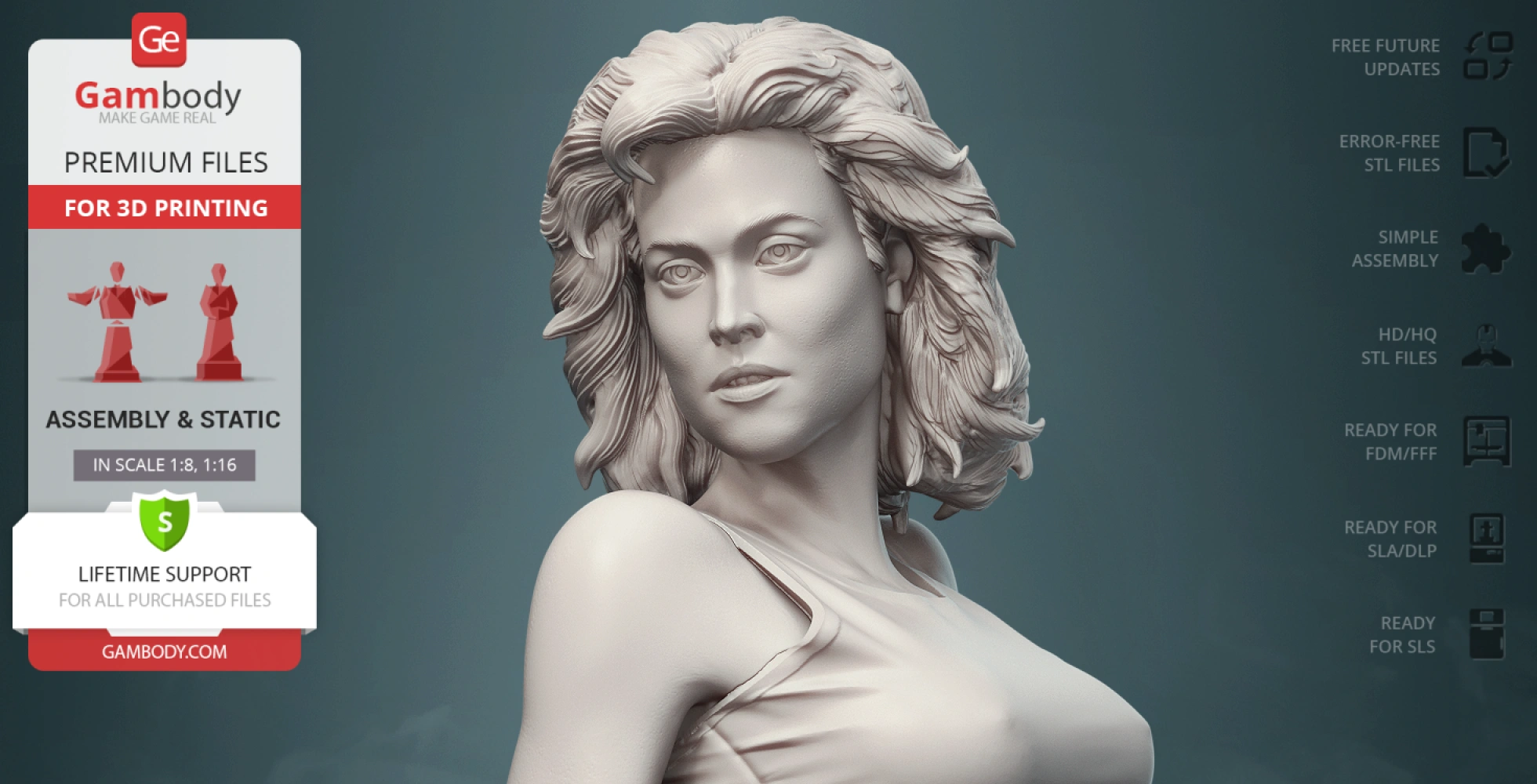

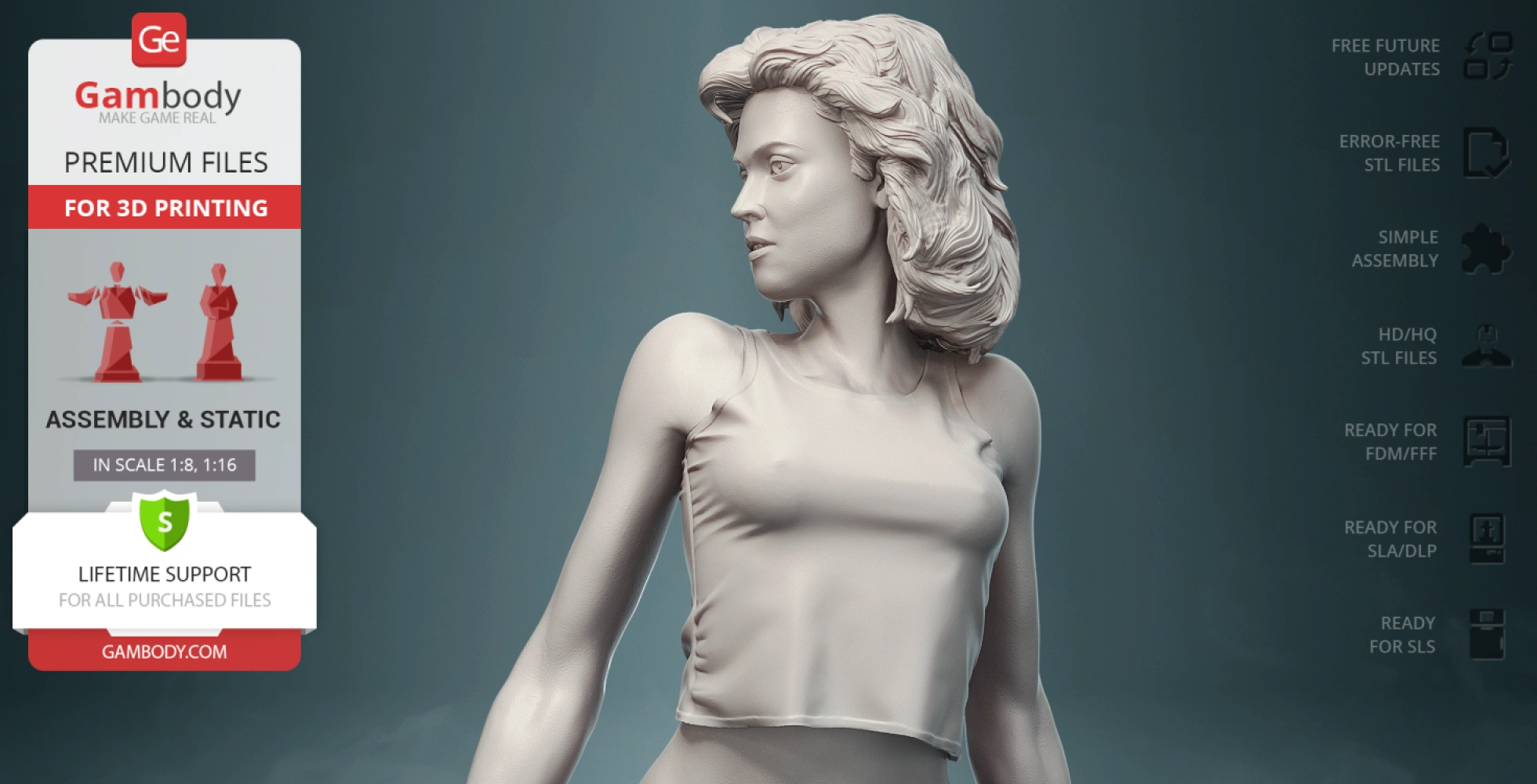

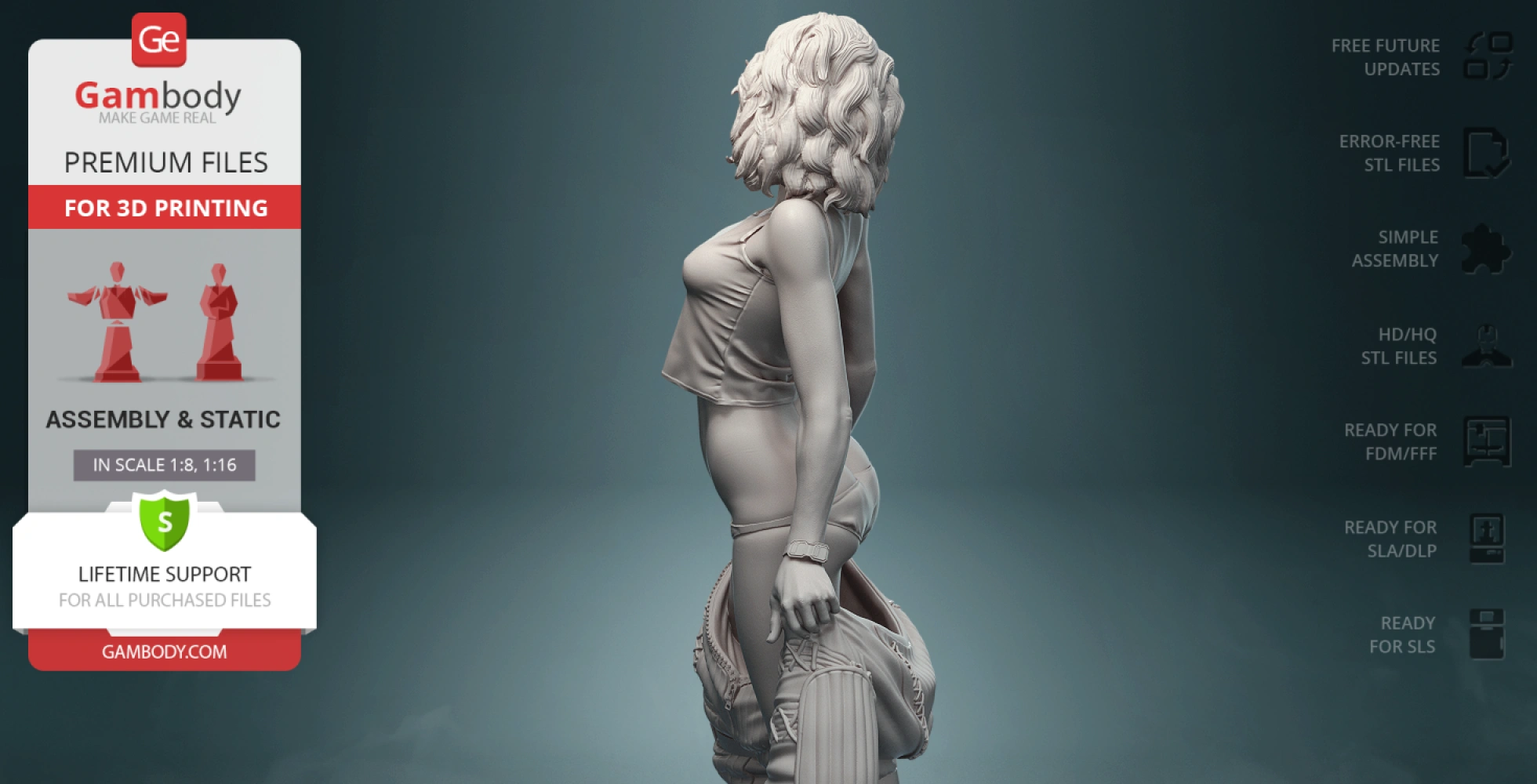

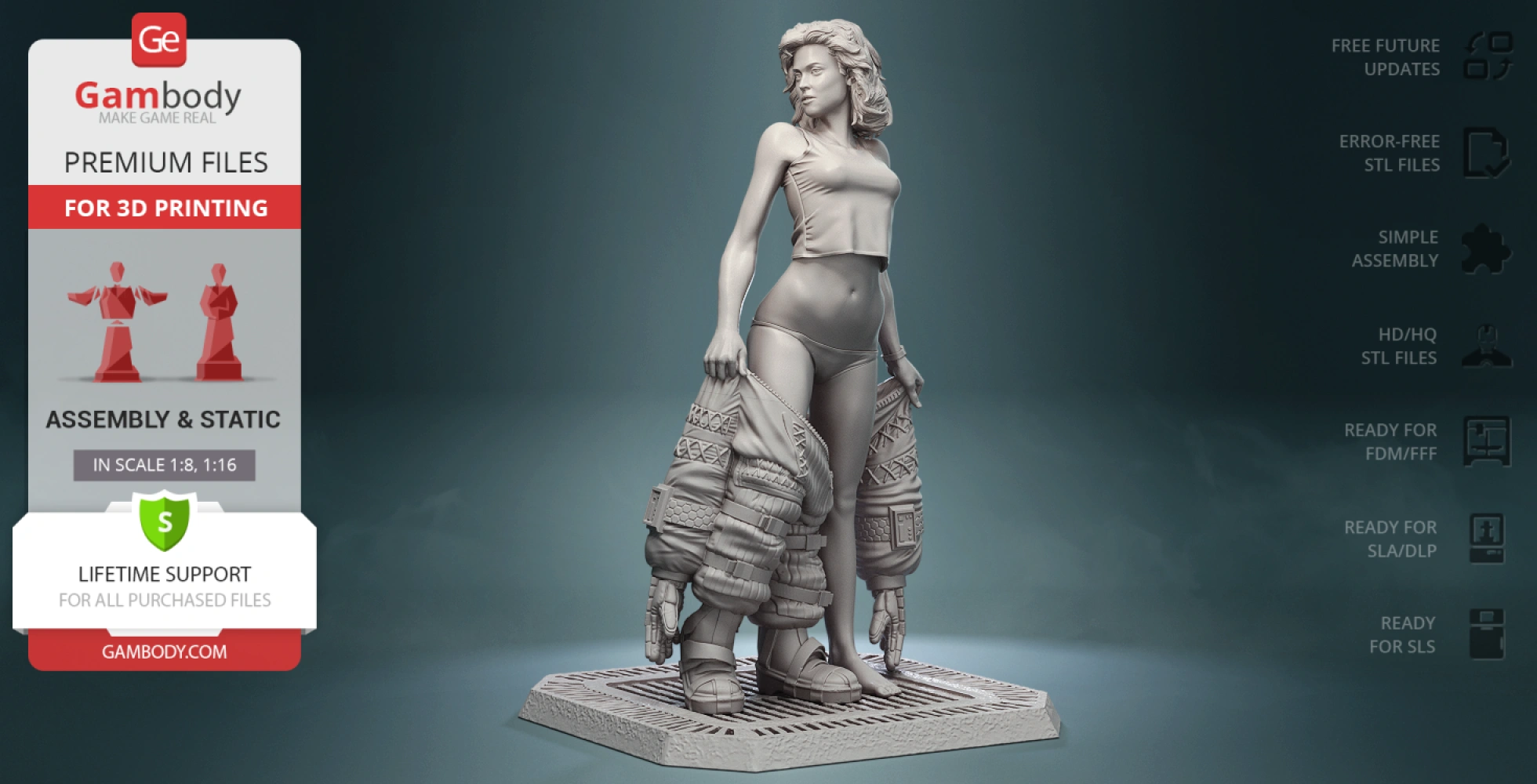

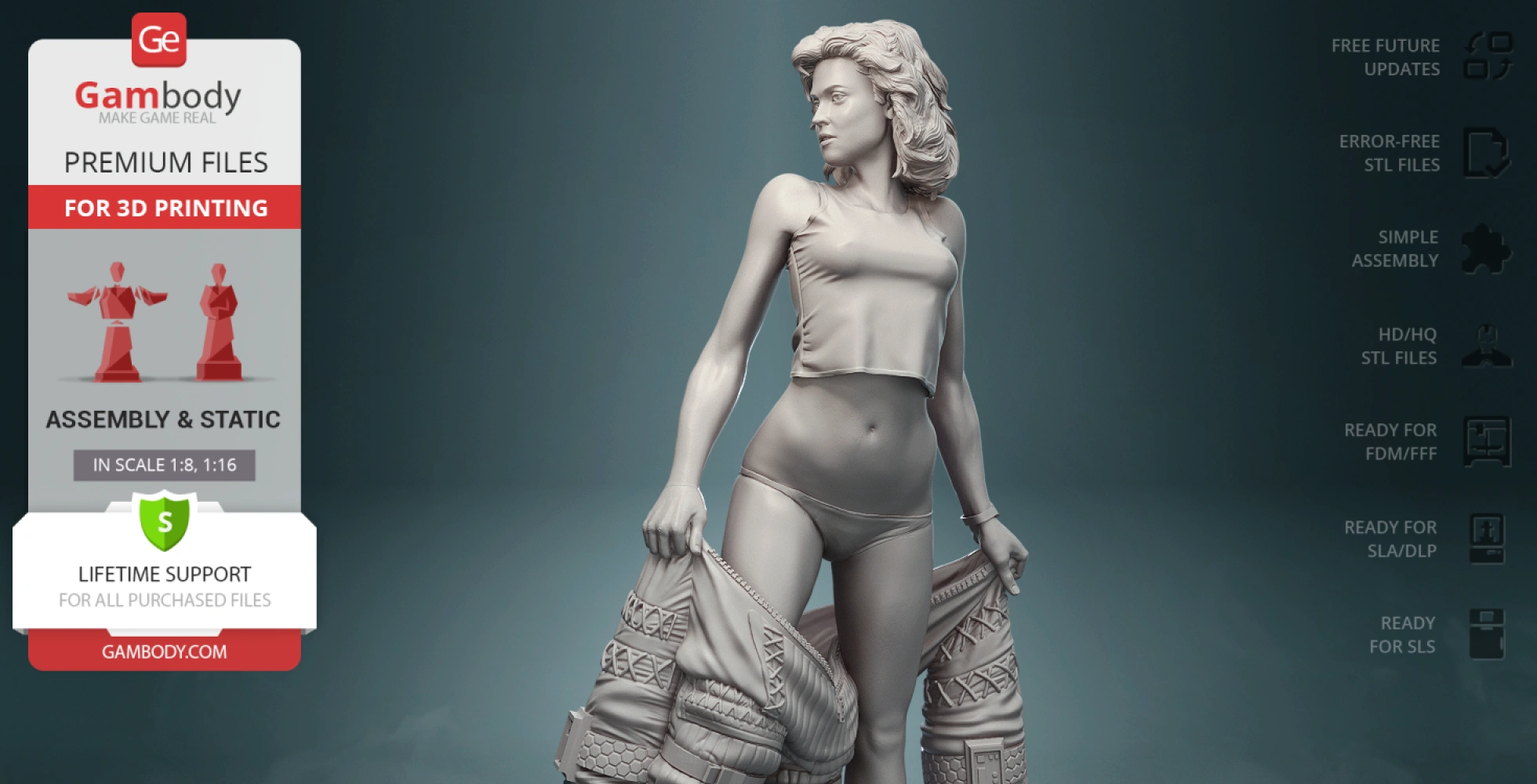

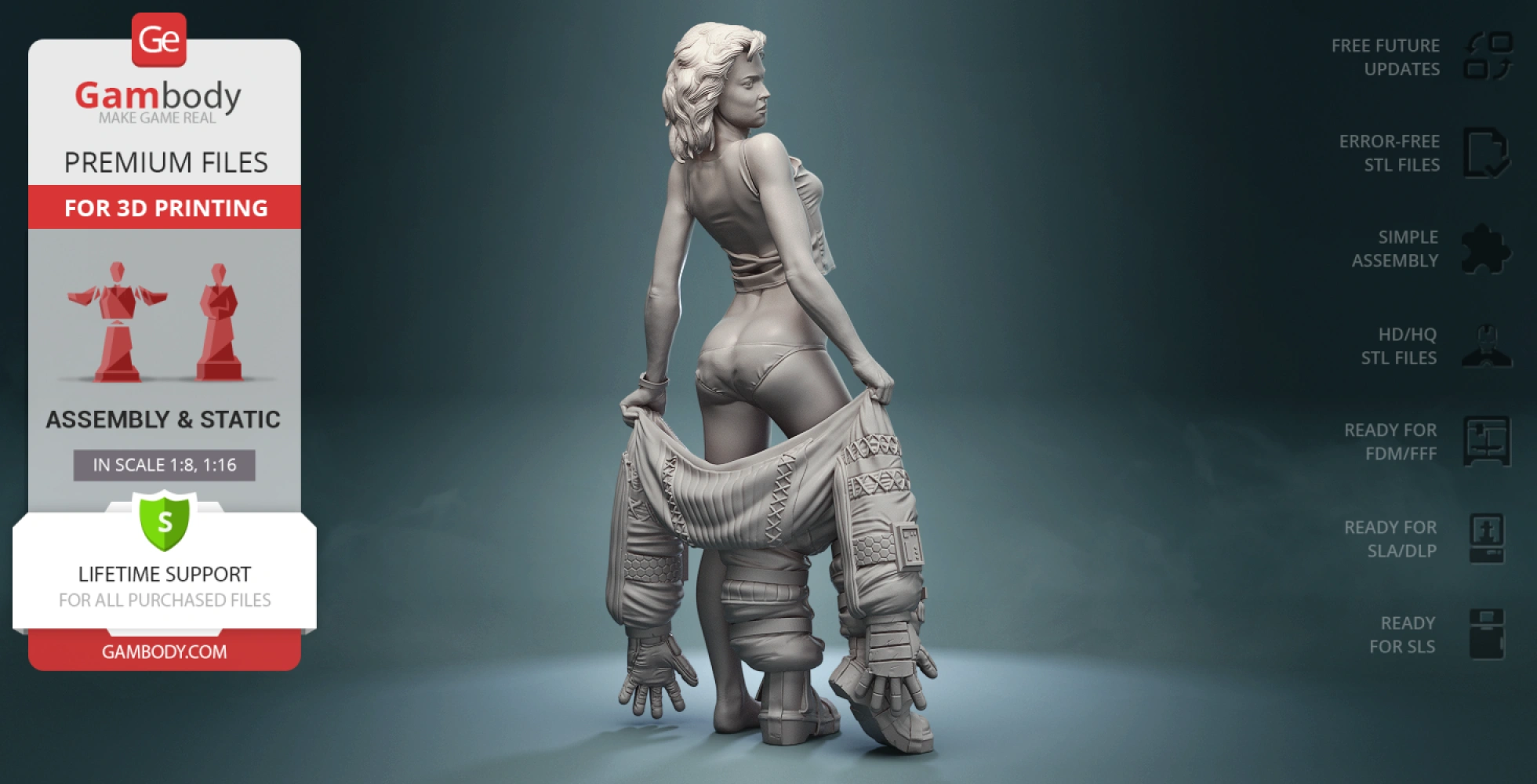

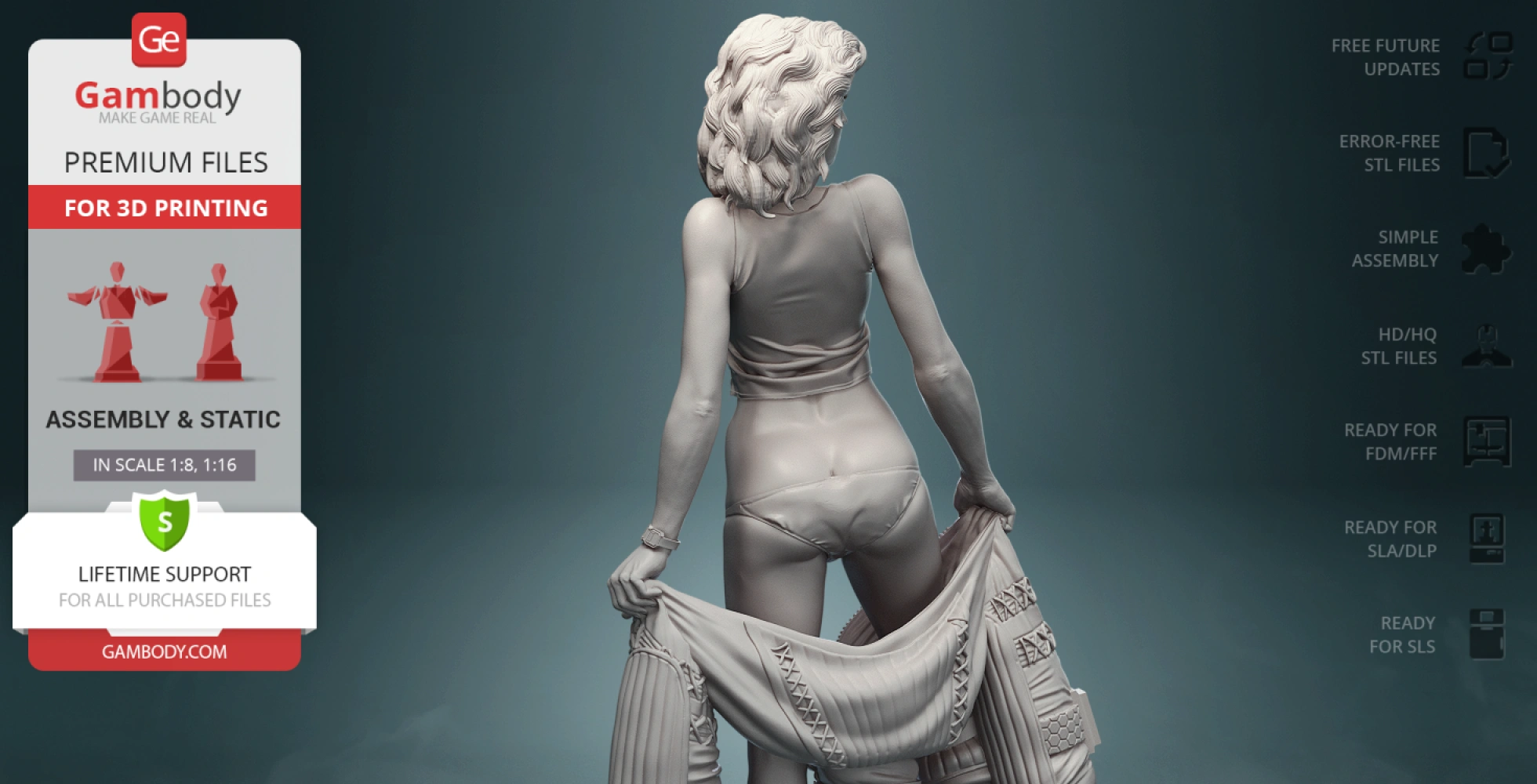

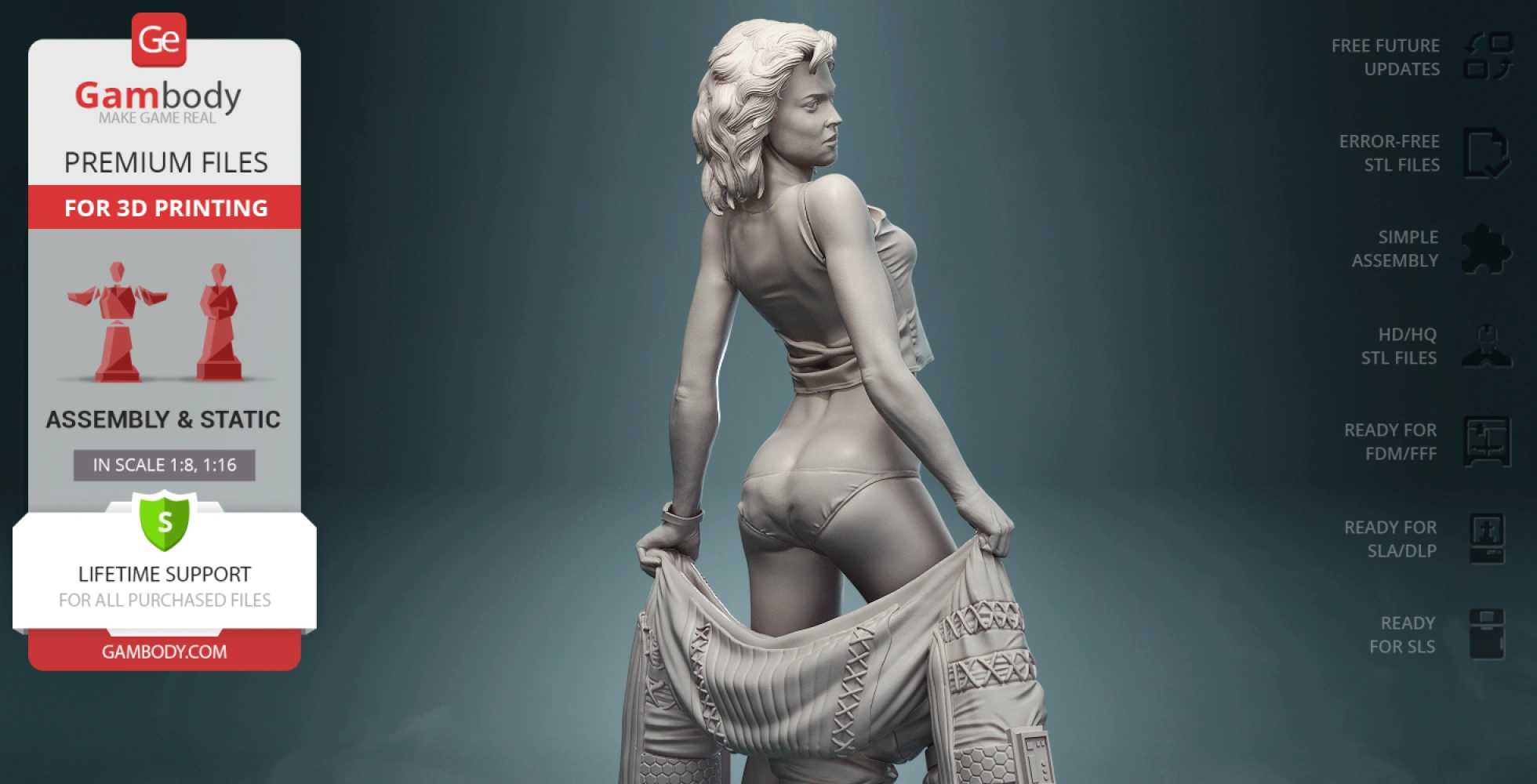

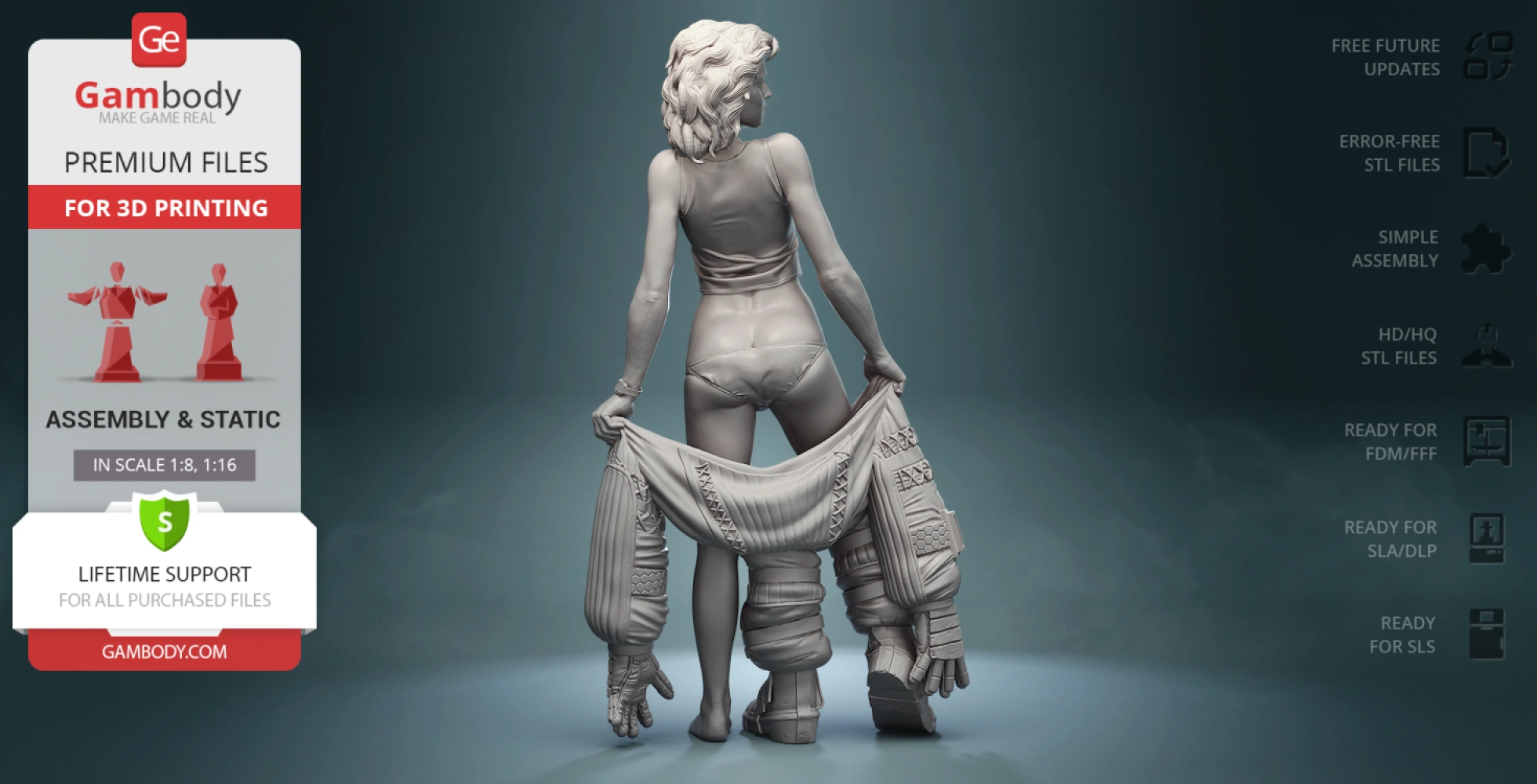

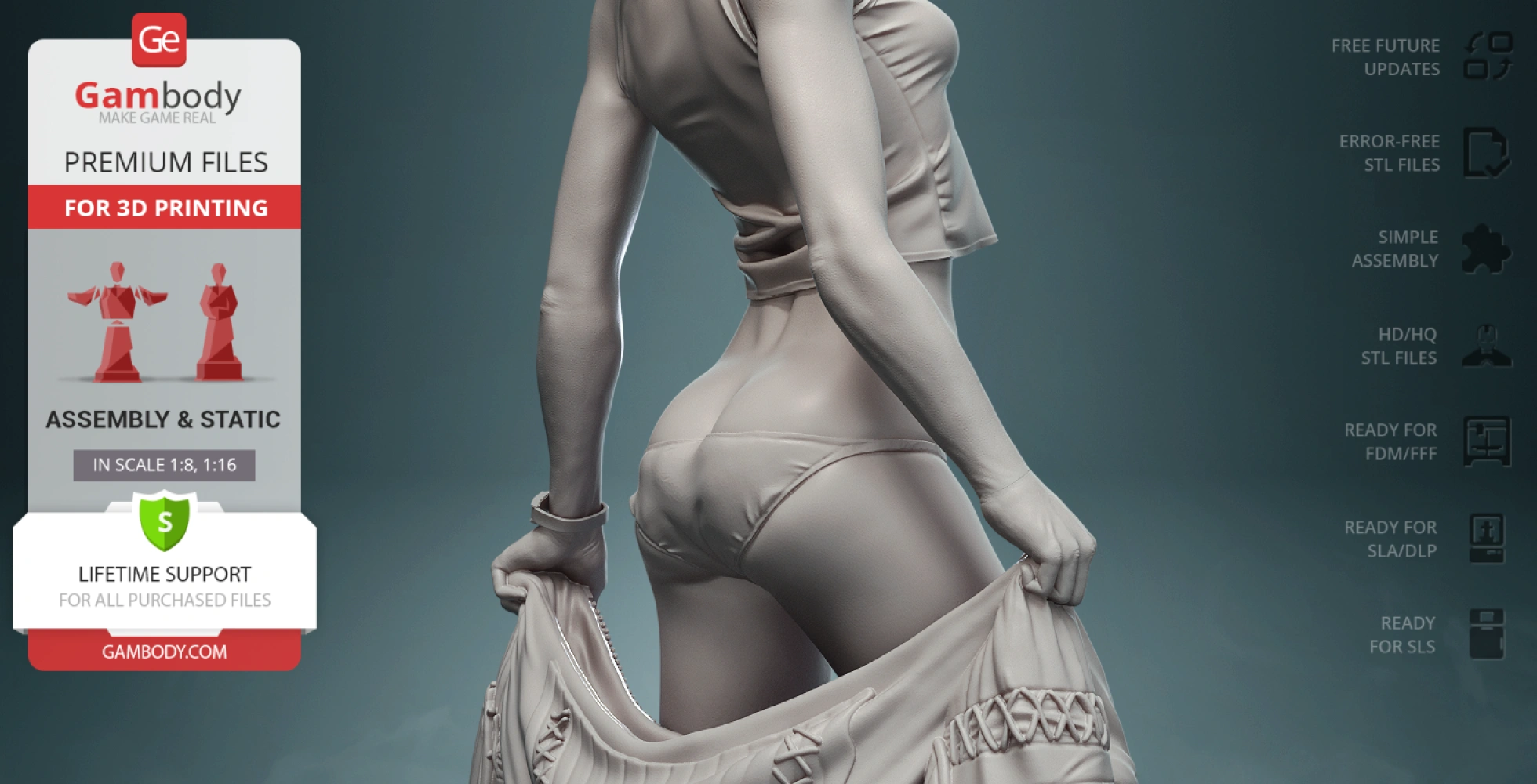

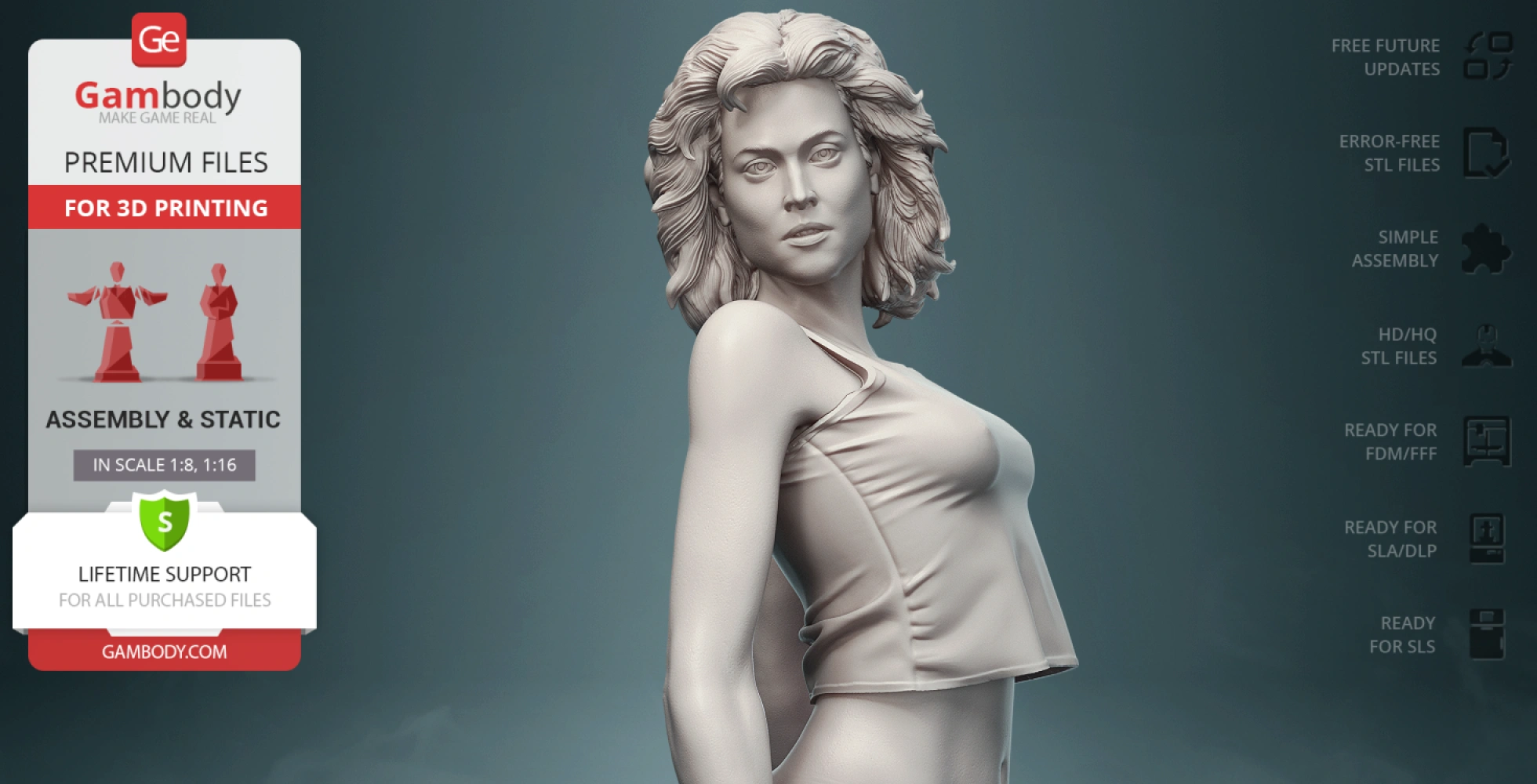

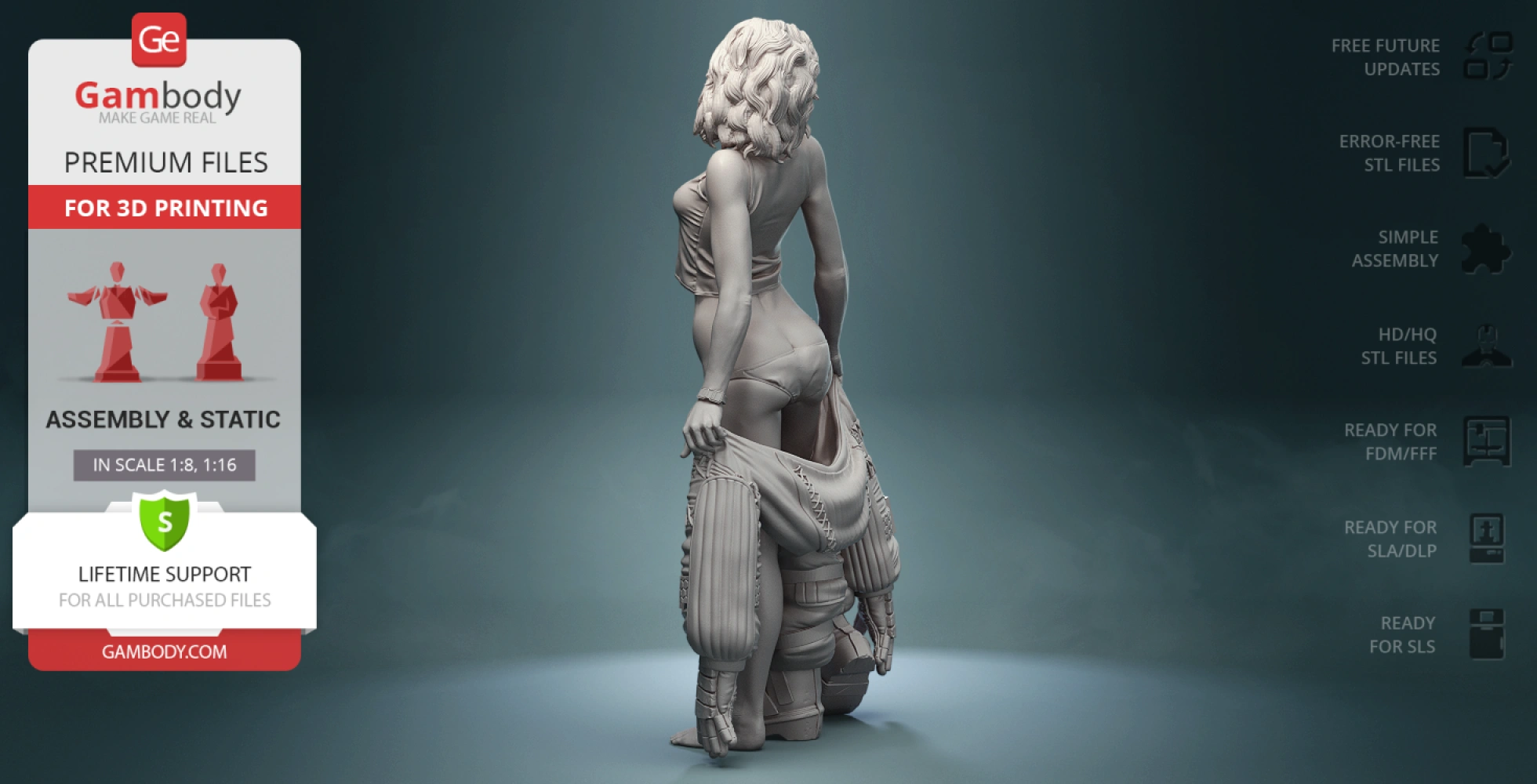

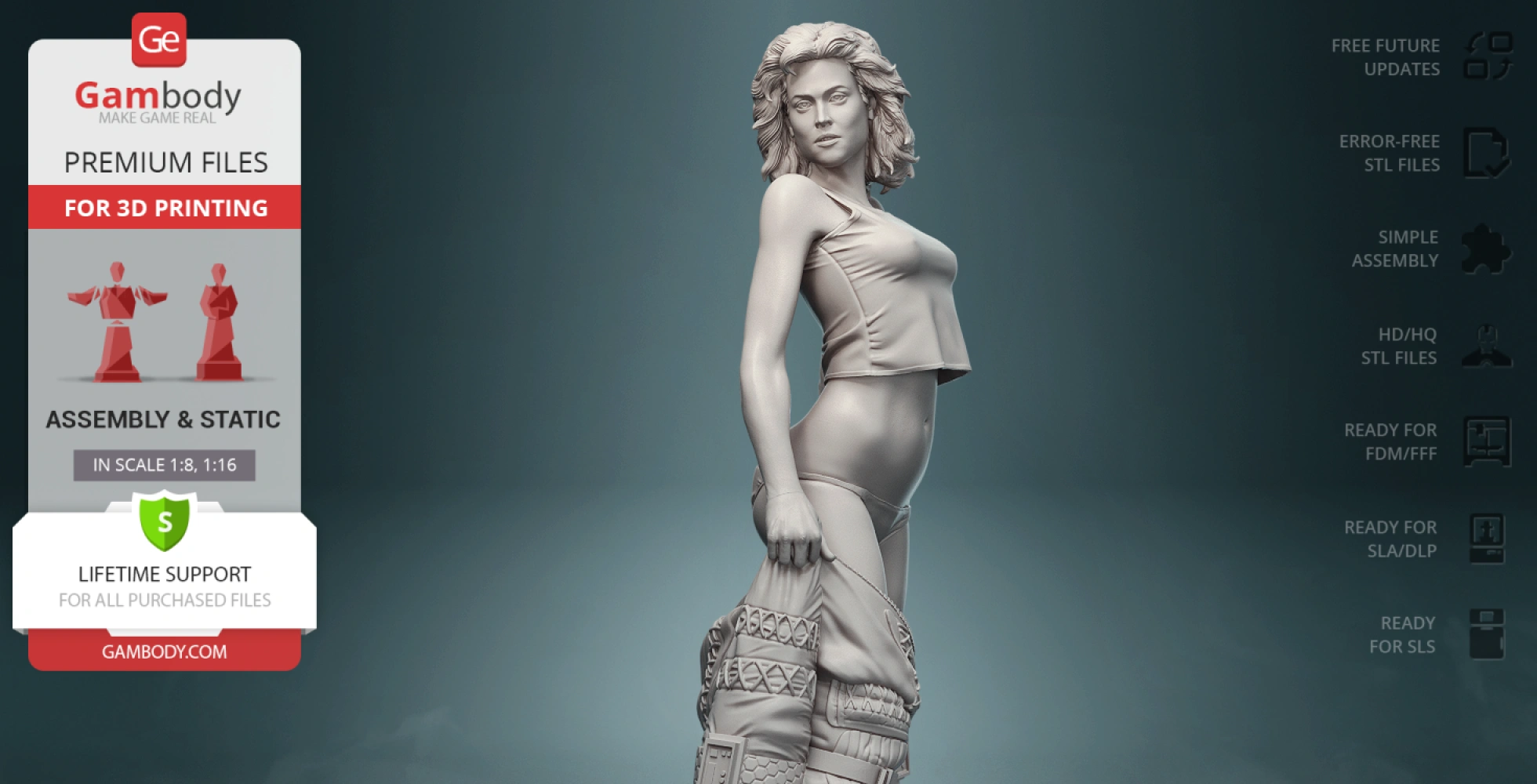

Ellen Ripley is the generally acknowledged first female action hero whose internal drive and ferocity displayed in the Alien franchise films broke all stereotypes. Some may argue that the iconic Alien scene aboard the escape shuttle Narcissus is a classic example of a body objectification, others would say that it perfectly conveys the vulnerability of the human form especially when trapped in such an abnormal situation. The 3D artist decided to depict the resourceful and brave heroine at her most vulnerable, dropping her gear after the horrors the warrant office faced minutes before. The project took the author 135 hours to complete and now all Alien fans have a chance to enrich their 3D printed collections with a strong, intelligent and beautiful protagonist of the extraterrestrial universe. As expected, the Ellen Ripley 3D model is depicted with her trademark wavy hair, in a thin tank top and ill-fitting underwear. The lady is captured amid shedding her battle-worn flight suit—something that she was definitely relieved to do after several days of fighting for life. Ellen Ripley is immensely tired but she collects her strength to prepare the shuttle for her journey home to Earth. The heroine doesn’t yet know what lay in store for her but thankfully this very moment of serenity can be immortalised by means of 3D printing!

3D PRINTING MODEL FEATURES

Model-specific features:

The model's anatomy and proportions were thoroughly reviewed during the moderation process for the brave lady to be depicted harmoniously in the intended pose;

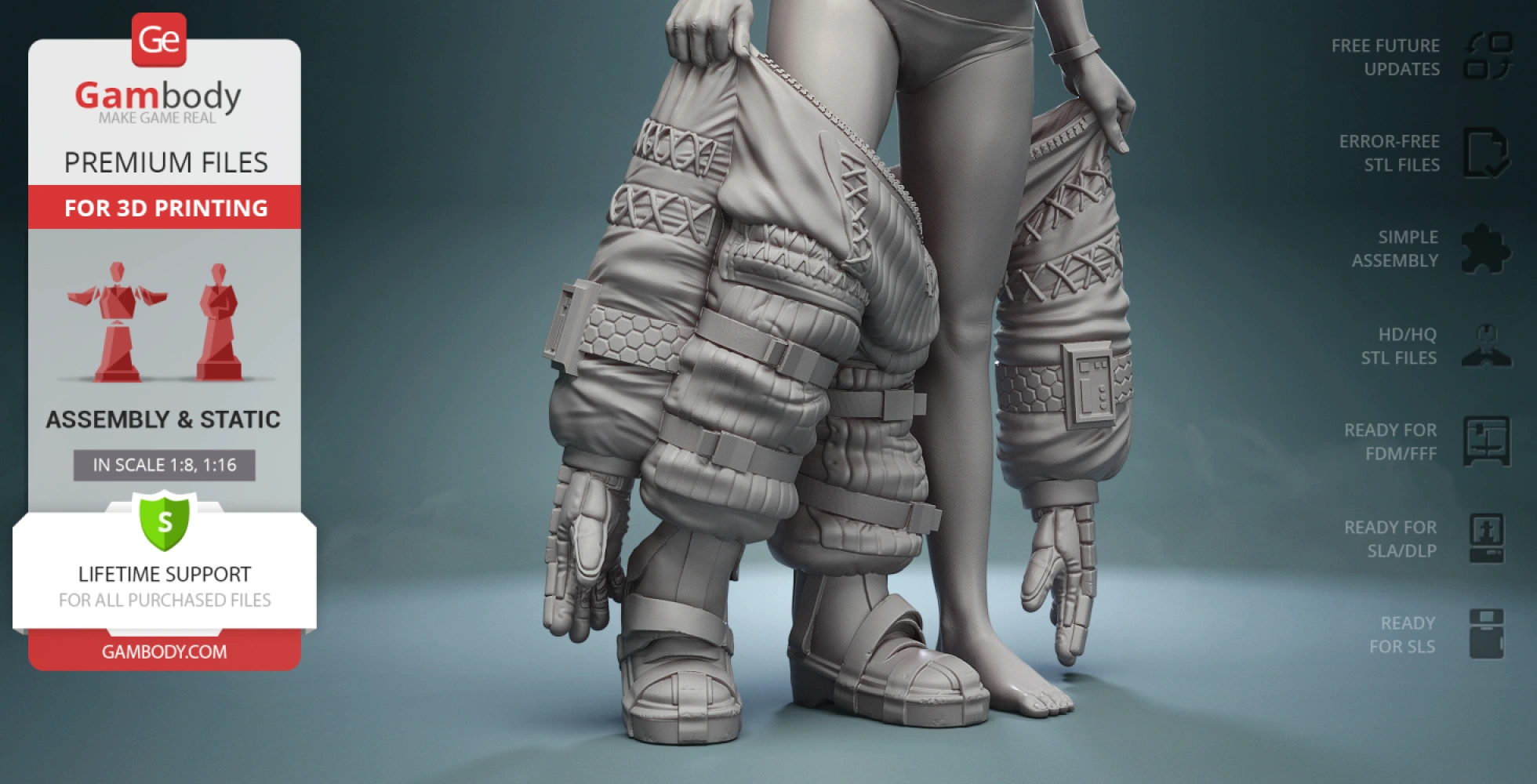

Model's boots, foot, gloves, hands etc. are provided as separate assembly pieces;
To conceal the places where assembly parts of the model must be connected, the model was cut along the contour of Ripley’s clothes seams;

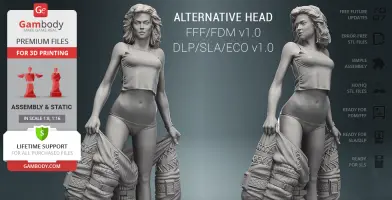

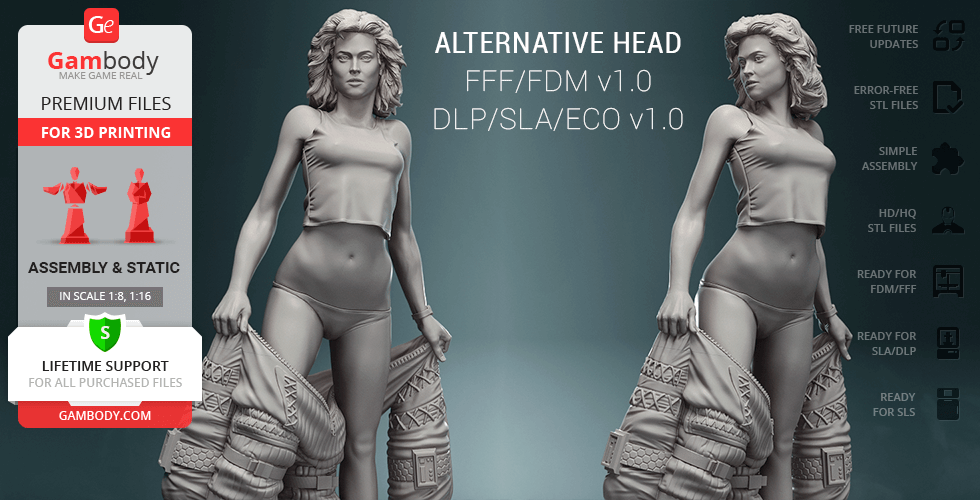

Two versions of the Ripley's head.

Printing & assembly details:

Provided as error-free STL files compatible with most 3D printers;
Optimized part division minimizes support material and ensures smooth surface detail;

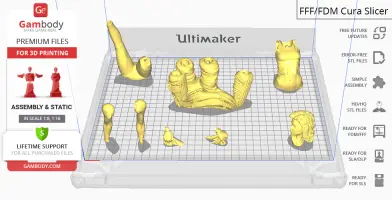

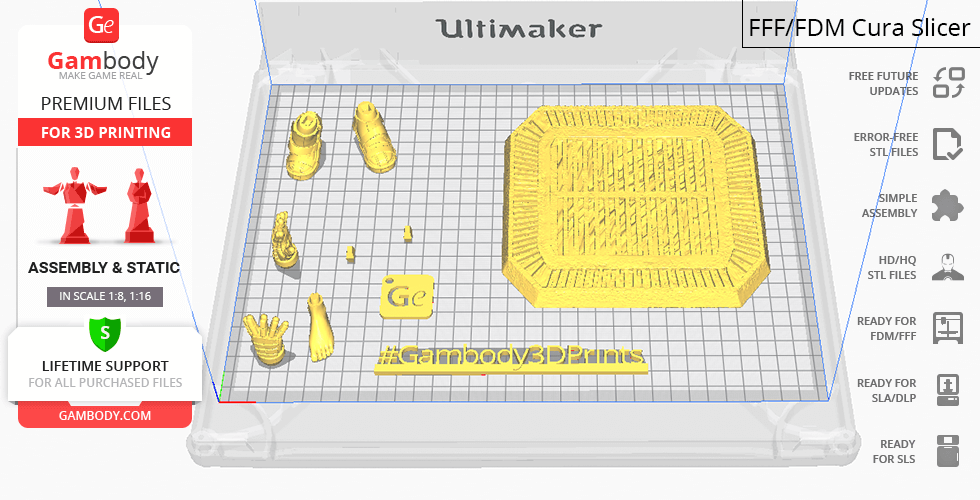

The assembly parts in the FFF/FDM version come in the recommended print orientations for easy bed placement;
Assembly manual in PDF and video formats is included for both FFF/FDM and DLP/SLA versions;

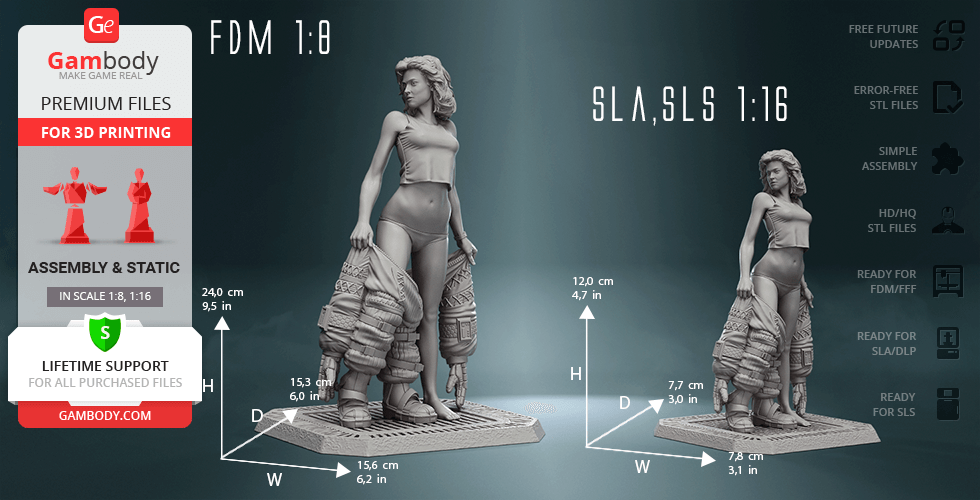

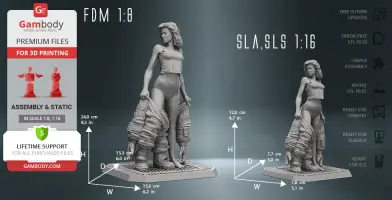

The model is available in recommended scales of 1:8 for the FFF/FDM version and 1:16 for the DLP/SLA/SLS versions, based on the height of Ellen Ripley (1750 mm).

VERSIONS' SPECIFICATIONS

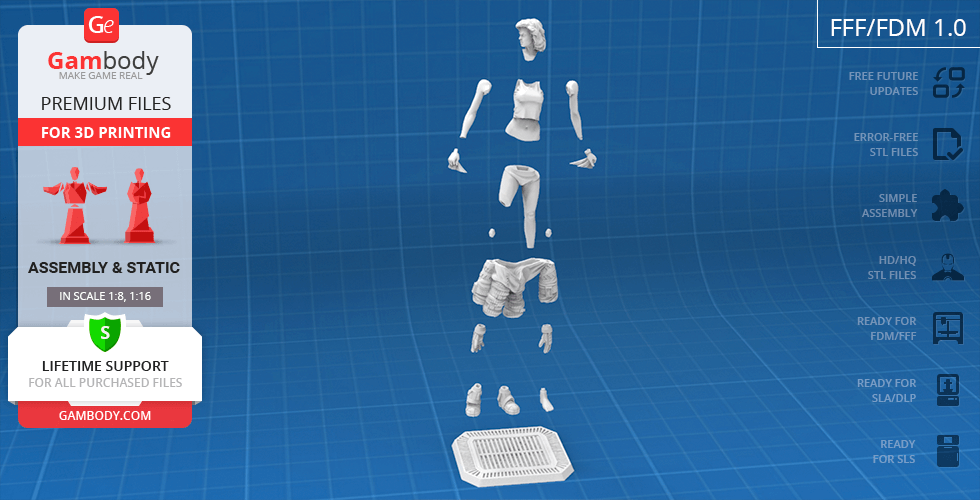

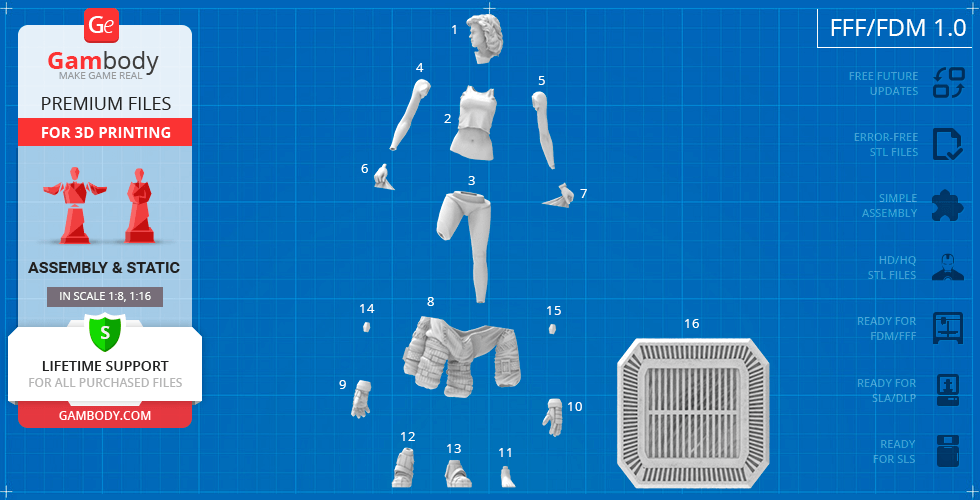

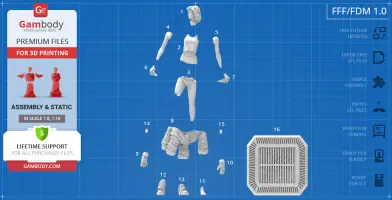

1.0 FFF/FDM

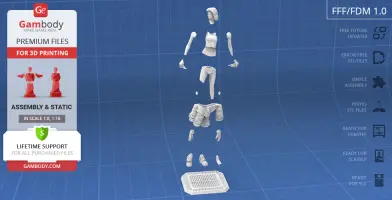

Parts: 17
Eco parts: 0
Scale: 1:8
Printed model size (w/h/d, mm): 156 x 240 x 153;
Assembly: Connectors
Features: The assembly parts are connected using specially designed integrated connectors that fit securely into the corresponding slots. Optionally, for added strength and rigidity, the static assembly joints can be glued together.

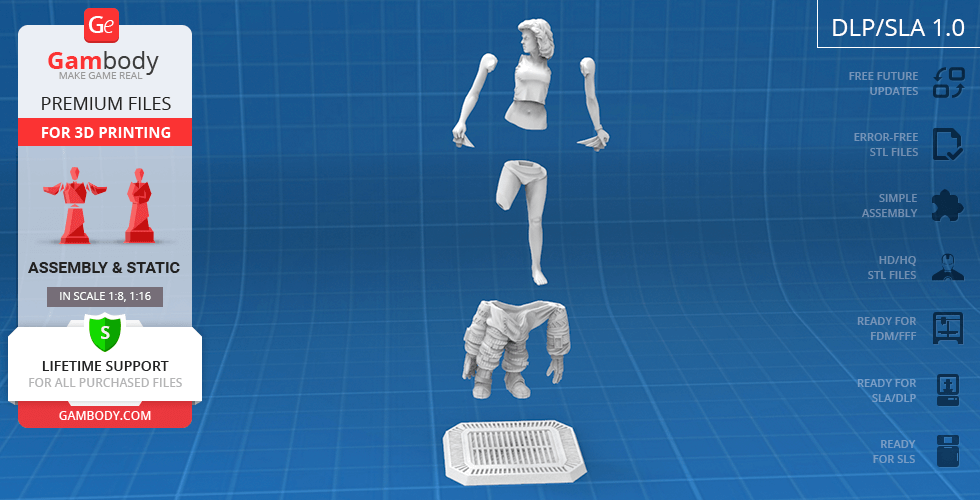

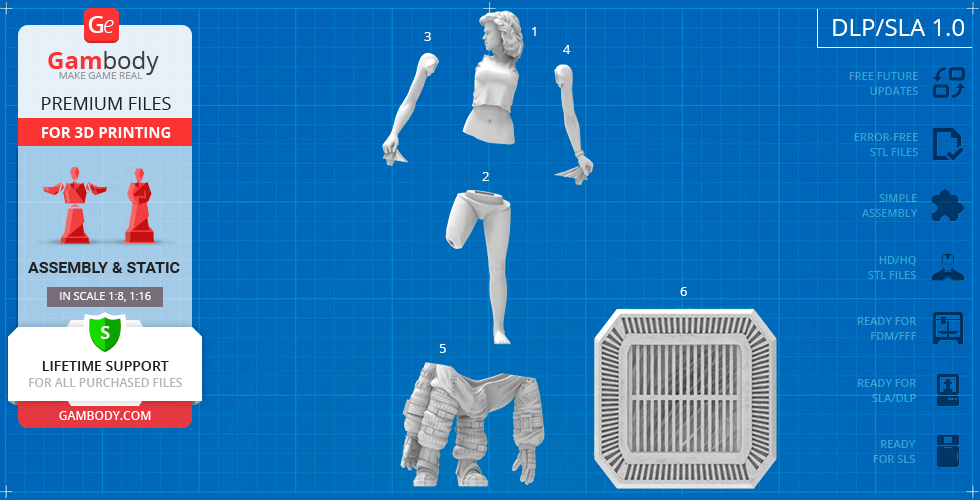

1.0 DLP/SLA

Parts: 7
Eco parts: 0
Scale: 1:16
Printed model size (w/h/d, mm): 78 x 120 x 77;
Assembly: Connectors
Features: The assembly parts are connected using specially designed integrated connectors that fit securely into the corresponding slots. Optionally, for added strength and rigidity, the static assembly joints can be glued together.

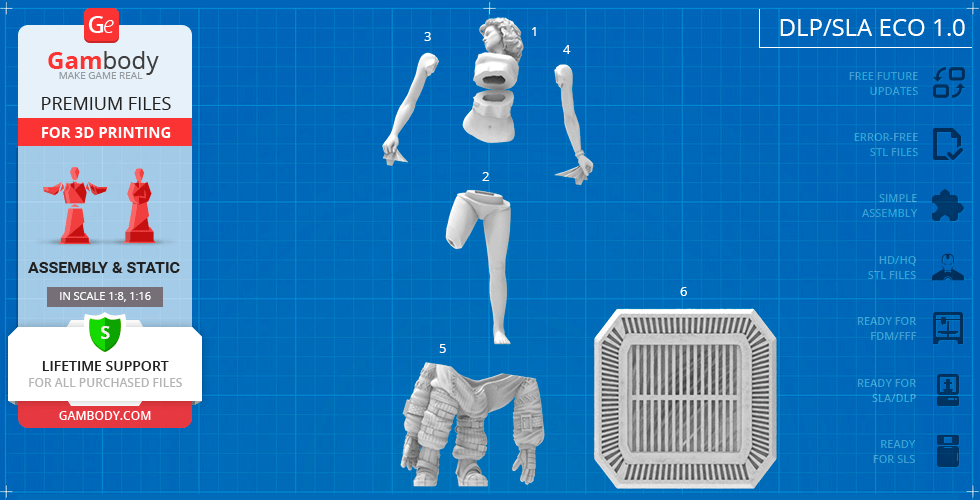

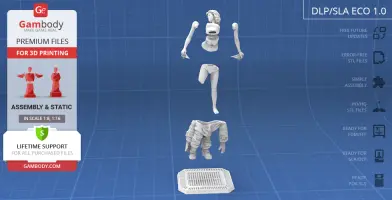

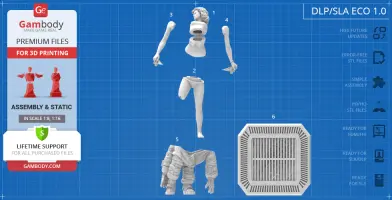

1.0 DLP/SLA Eco

Parts: 7
Eco parts: 4
Scale: 1:16
Printed model size (w/h/d, mm): 78 x 120 x 77;
Assembly: Connectors
Features: Contains some hollowed out parts to save resin; The assembly parts are connected using specially designed integrated connectors that fit securely into the corresponding slots. Optionally, for added strength and rigidity, the static assembly joints can be glued together.

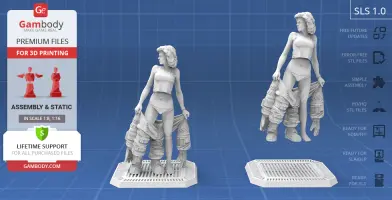

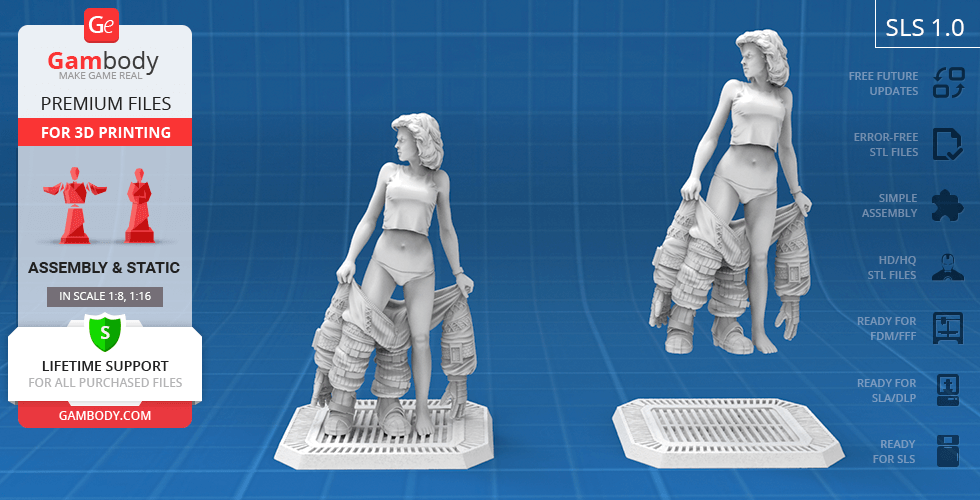

1.0 SLS

Parts: 3
Eco parts: 0
Scale: 1:16
Printed model size (w/h/d, mm): 78 x 120 x 77;
Assembly: Connectors

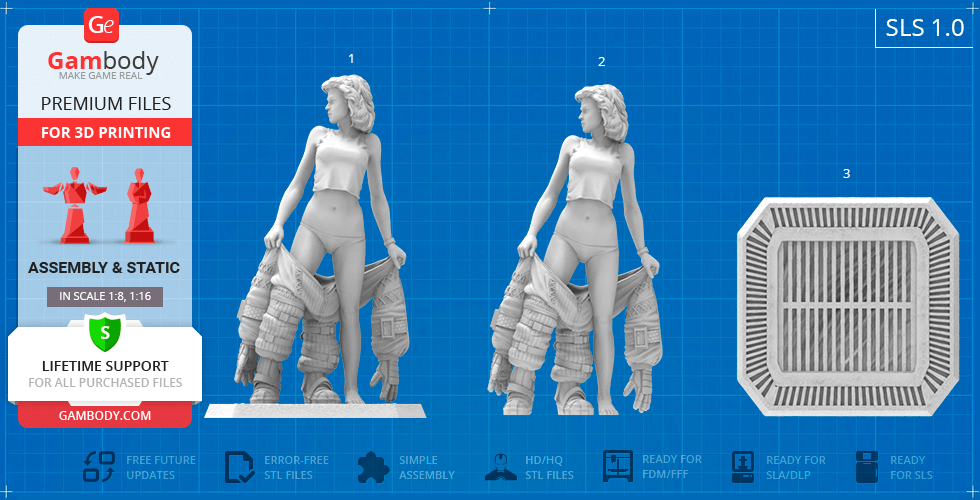

Features: Contains 3 parts: a solid, merged Ellen Ripley separately from the platform, and a merged Ellen Ripley with the platform; The assembly parts are connected using specially designed integrated connectors that fit securely into the corresponding slots. Optionally, for added strength and rigidity, the static assembly joints can be glued together.

HELPFUL EXTRAS

You can get the STL files of Ripley Underwear model immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble the 3D Printed Ripley Underwear model from the provided 3D Print Files at Gambody YouTube channel.

Also, you may like another Ellen Ripley 3D Print Model, her Power Loader 3D Printing Design as well as other Alien vs Predator 3D Printer Models.

_______

FAQ:

Generic

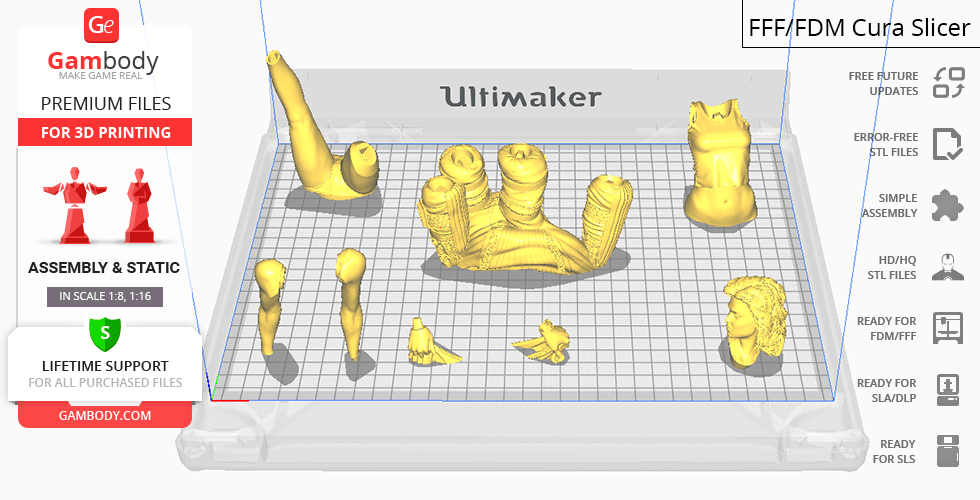

Below you can find printing recommendations for Cura, Bambu Studio, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

Bambu Lab printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Bambu Studio 1.9.1. Test models were printed on the Bambu Lab A1, Bambu Lab A1 Mini, Creality Ender 3 S1, Anycubic Kobra 2, and Anycubic Vyper using PLA and PETG filaments.
