Lynel 3D Printing Miniature | Assembly

(3)
cm: 20.7 w x 17.7 d x 34.8 h
in: 8.15 w x 6.969 d x 13.701 h

Source Files

|

Description

|

Printing Details

This 3D Miniature consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

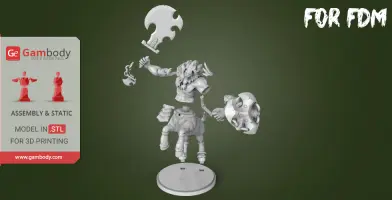

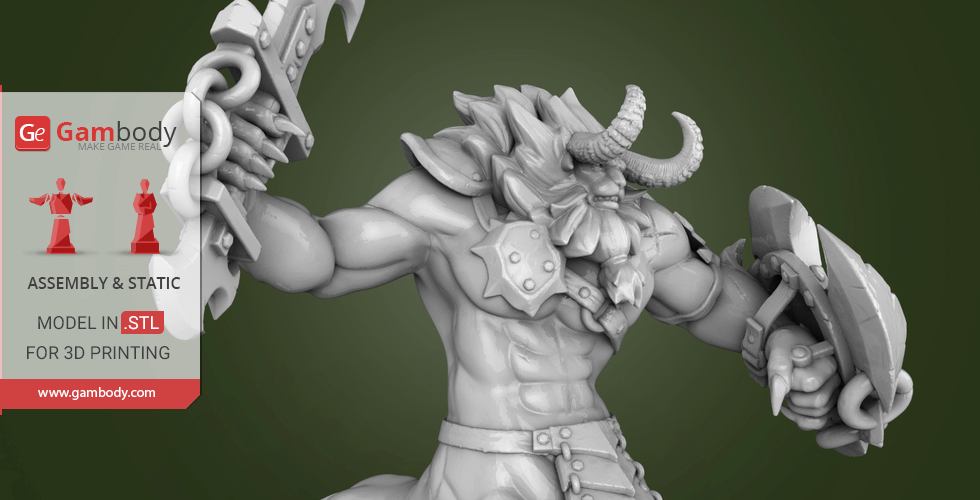

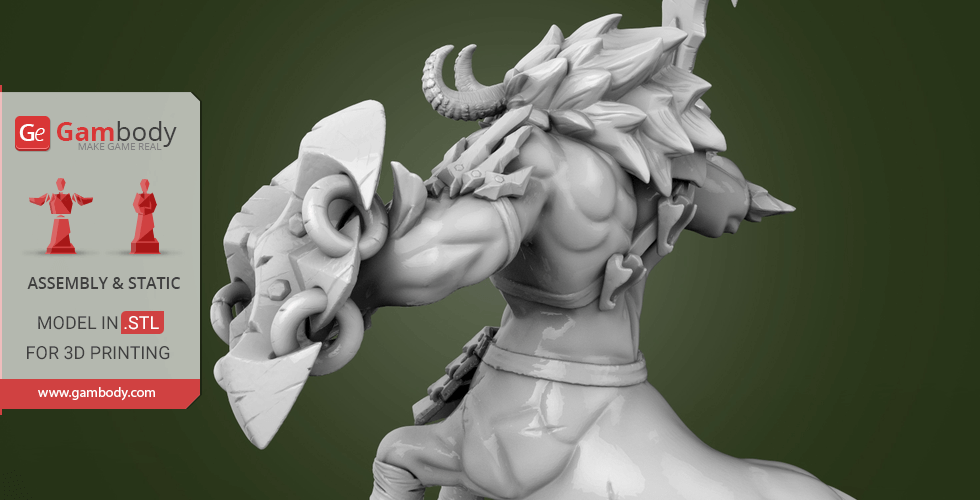

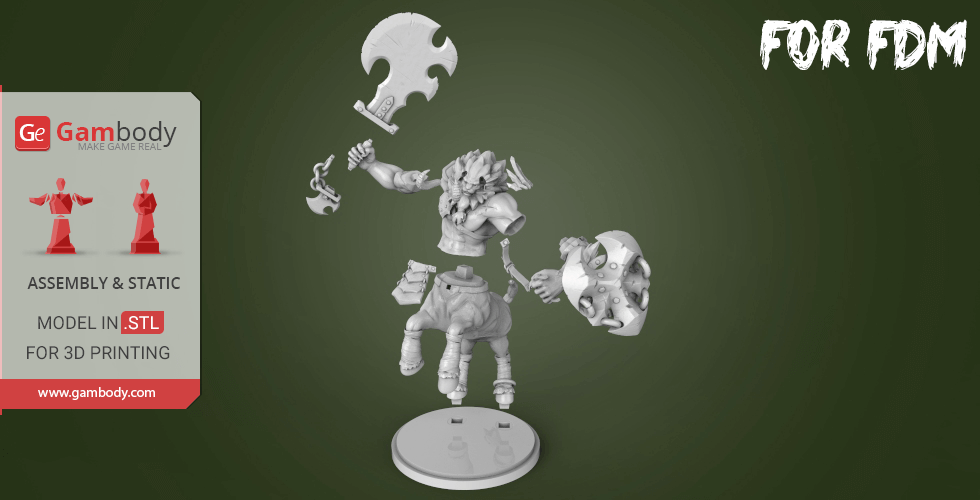

Version 1 and Version 2 are the files for Lynel 3D Miniature optimized for 3D printing, the preview pictures of which you see above.

It is recommended:

  • to print Version 1 STL files on FDM/FFF 3D printers;
  • to print Version 2 STL files on DLP/SLA/SLS 3D printers.
File Name File Size Time / Filament Object Size
(x/y/z mm)

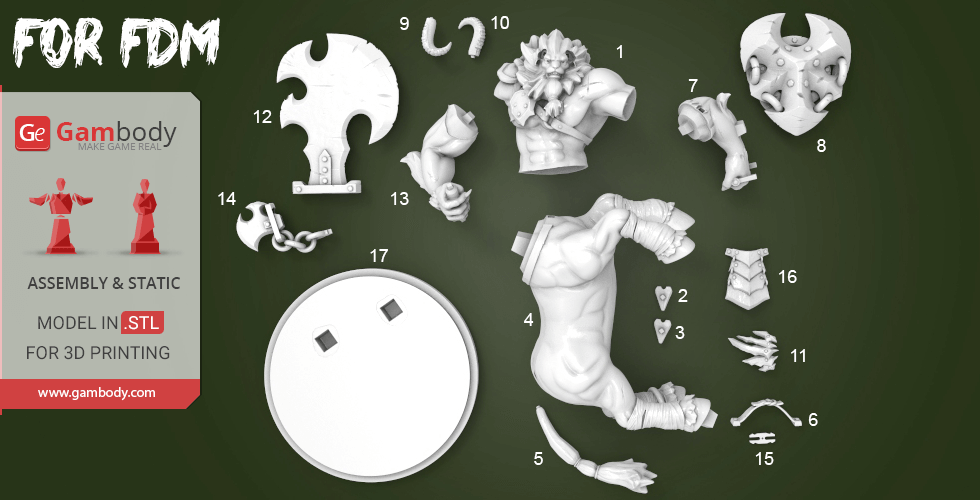

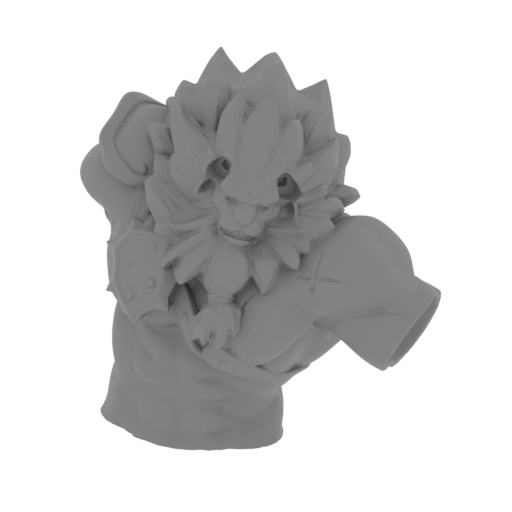

1_body_top.stl
15.46 MiB 21 h 34 min 14 m 100 x 76 x 97 Download

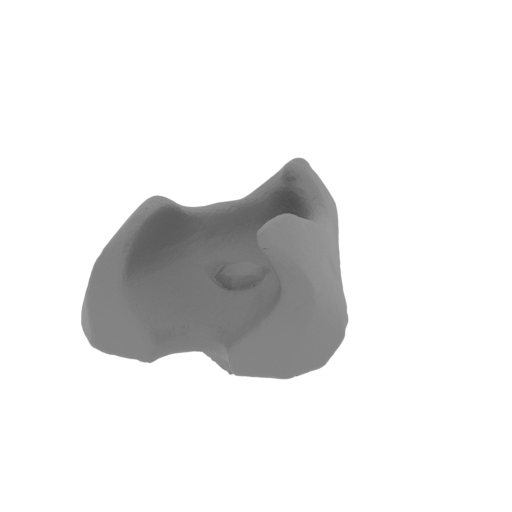

2_body_top_fitt_1.stl
0.48 MiB 10 min <1 m 12 x 17 x 9 Download

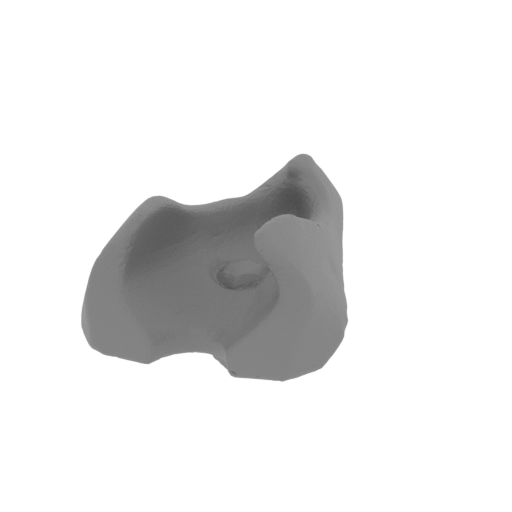

3_body_top_fitt_2.stl
0.49 MiB 10 min <1 m 12 x 17 x 9 Download

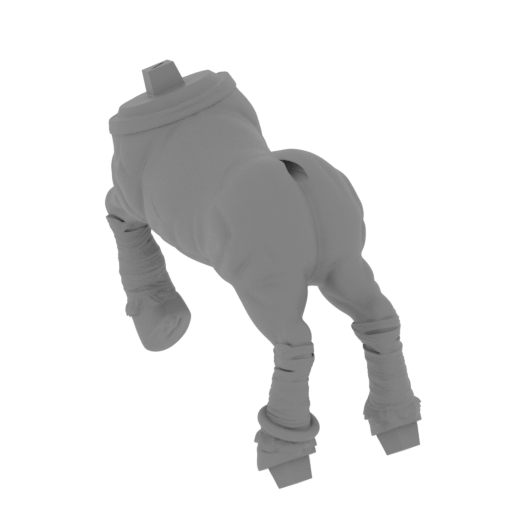

4_body_down.stl
7.15 MiB 43 h 26 min 32 m 148 x 148 x 125 Download

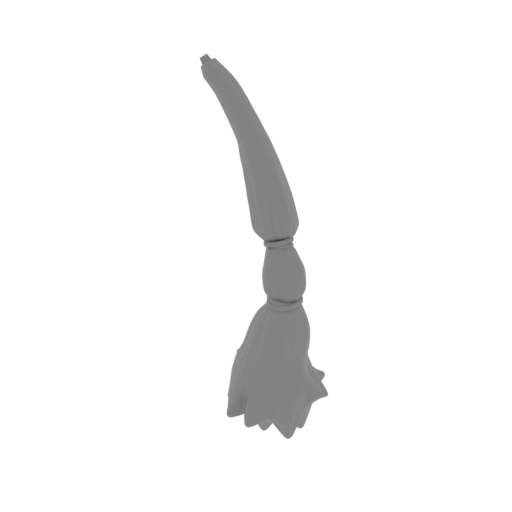

5_tail.stl
1.77 MiB 2 h 3 min 1 m 35 x 23 x 96 Download

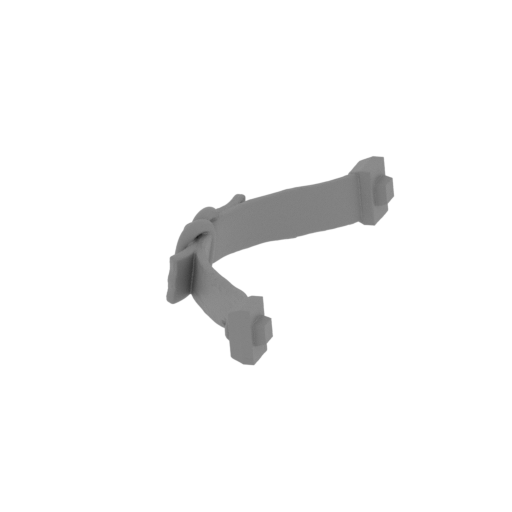

6_shield_belt.stl
1.70 MiB 19 min <1 m 20 x 49 x 10 Download

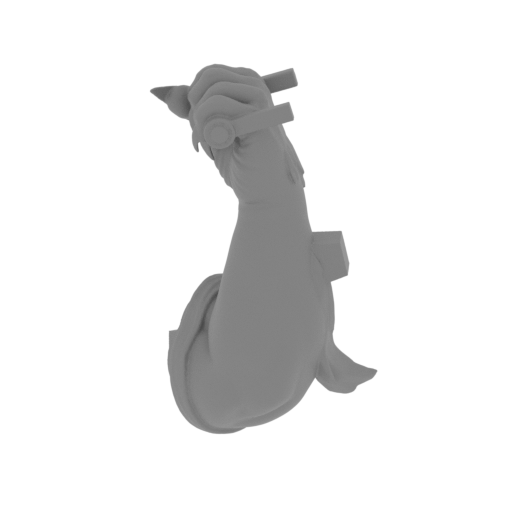

7_arm_L.stl
4.41 MiB 4 h 8 min 2 m 41 x 30 x 76 Download

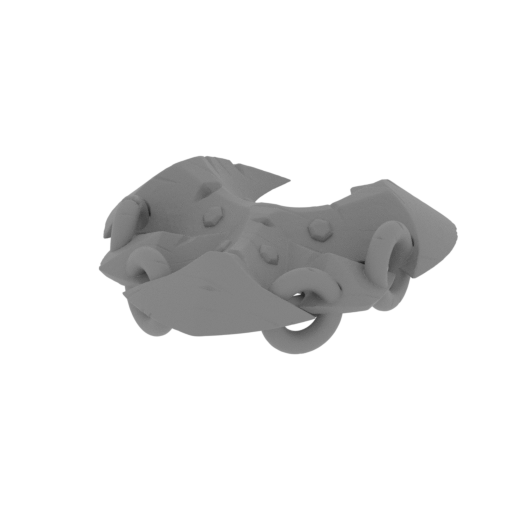

8_shield.stl
5.93 MiB 7 h 39 min 5 m 79 x 87 x 24 Download

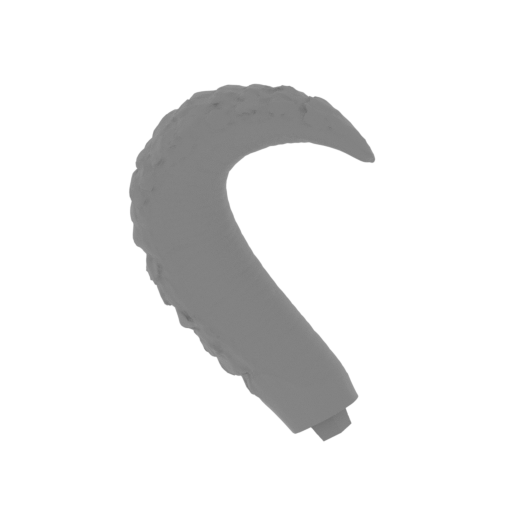

9_horn_R.stl
2.11 MiB 30 min <1 m 19 x 9 x 29 Download

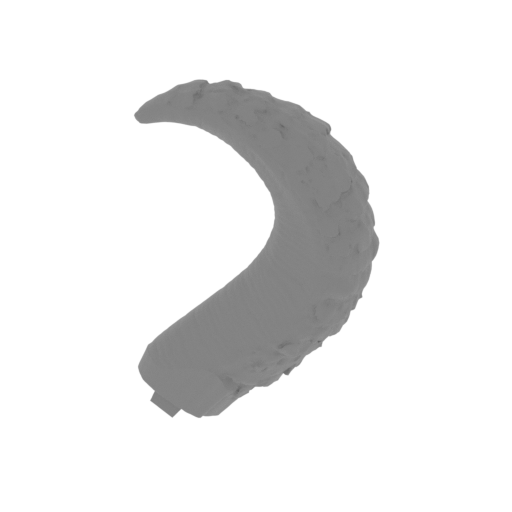

10_horn_L.stl
2.02 MiB 30 min <1 m 19 x 10 x 28 Download

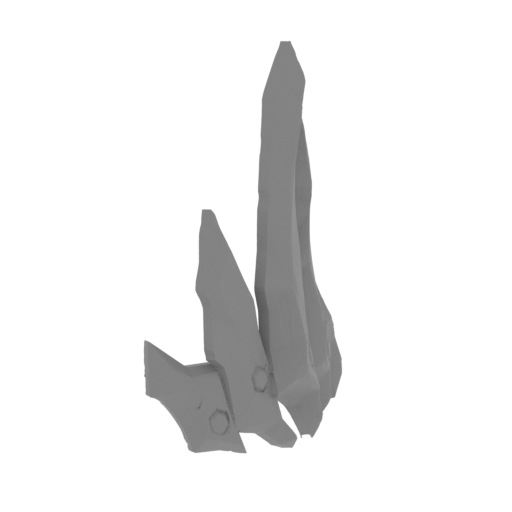

11_arm_L_shell.stl
1.37 MiB 38 min <1 m 12 x 28 x 36 Download

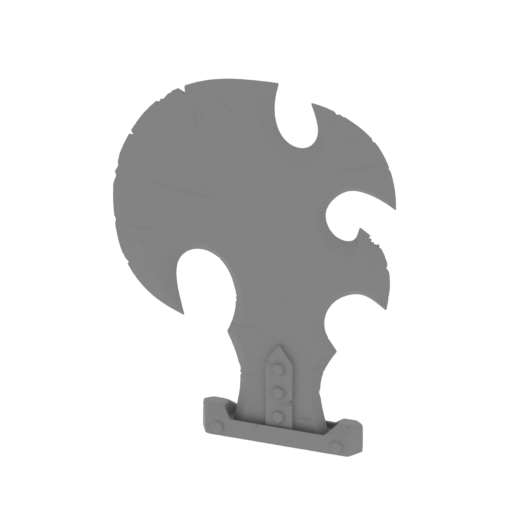

12_sword.stl
3.45 MiB 4 h 31 min 2 m 87 x 13 x 113 Download

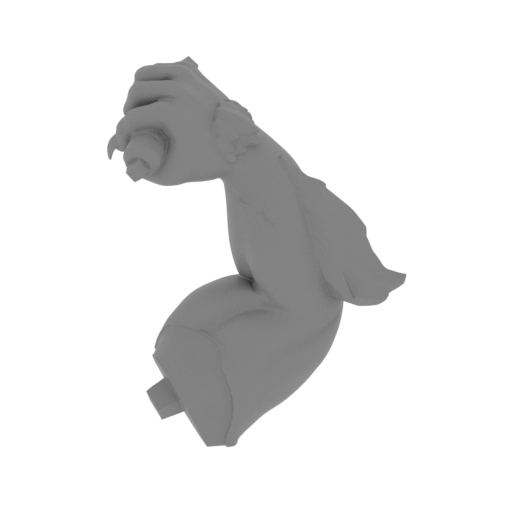

13_arm_R.stl
3.00 MiB 5 h 29 min 4 m 61 x 42 x 82 Download

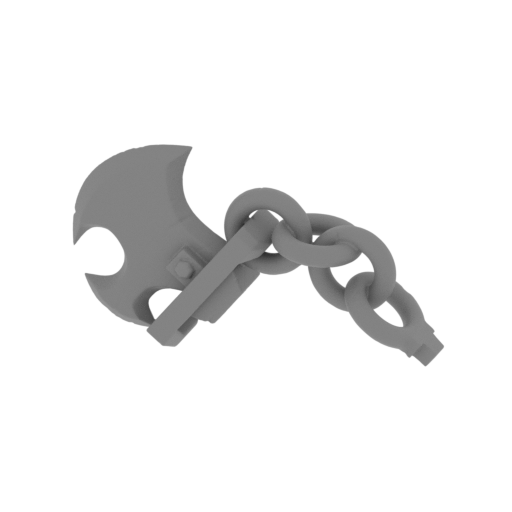

14_sword_chain.stl
2.52 MiB 1 h 51 min 1 m 64 x 15 x 35 Download

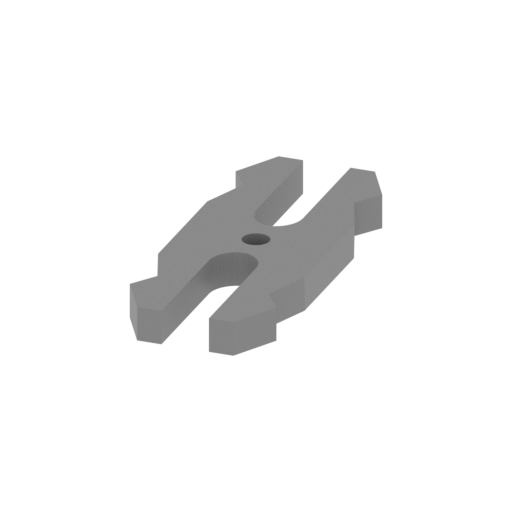

15_Ge_lock_7S.STL
0.02 MiB 3 min <1 m 7 x 18 x 2 Download

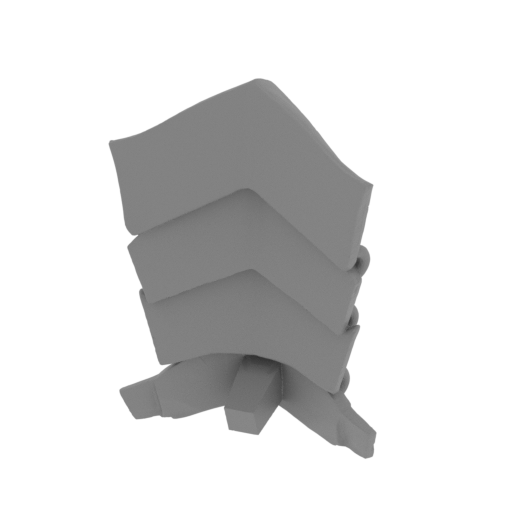

16_pelvis_armour.stl
2.03 MiB 1 h 11 min 1 m 32 x 13 x 44 Download

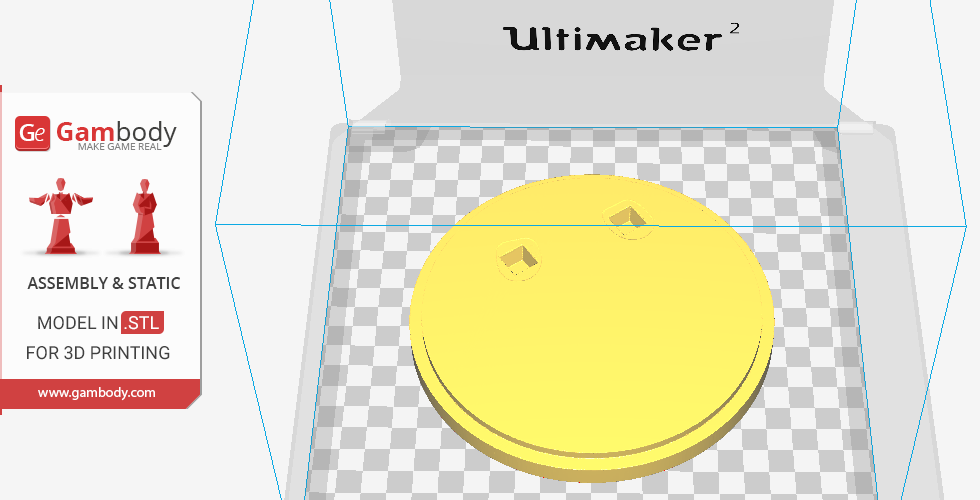

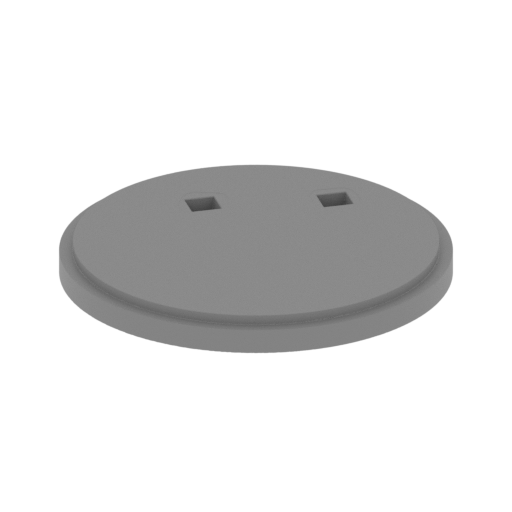

17_platform.stl
1.53 MiB 17 h 5 min 10 m 151 x 151 x 13 Download
...

HISTORY OF THE LYNEL

Lynel is the enemie in the Legend of Zelda series. They are usually shown as centaur-like beasts, with the body of a horse, the torso of a human and the head of a lion, complete with a mane of long hair. Lynels inhabit the mountainous terrain surrounding Death Mountain. They come in two variants, red and blue, with the latter being stronger. Lynels are depicted as wielding a sword and a shield, however, the in-game sprites appear to dual-wield swords. They can shoot beams from their swords in the same way Link can at full health. One specific blue Lynel is found guarding the cave where the Old Man who gives Link the White Sword resides.

ABOUT THIS 3D MINIATURE

The model is saved in STL files, a format supported by most 3D printers

FDM version features:

- Contain 17 parts.

- Made using Lock in body-top for good fixing.

- Made with platform.
- All parts are divided in such way that you will print them with the smallest amount of supports.

SLS/SLA version features:

- Same as FDM but smaller and made as 1 part.

All STL files for 3D printing have been checked in Netfabb and no errors were shown.

Note: Before starting 3D printing the model, read the Printing Details for CURA 3.1.0. Software.

There are 17 parts for FFF/FDM version and 1 part for SLS/SLA version.

Scale: For the basis of calculations, was taken, 3x size of Link. Model made as 1/8 scale in FDM version and 1/16 in SLS/SLA version.

FDM version dimensions:

After being printed will stand - 348 mm tall, 207 mm wide, 177 mm deep;

SLS/SLA version dimensions:

After being printed will stand - 174 mm tall, 103 mm wide, 89 mm deep;

- Has only 1 detail, to keep printing costs down.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Lynel for 3D printing which consist of 18 parts;
- 2 versions of files for this model for FFF/FDM and SLS/SLA;
- Made with platform;
- Made with lock for better fixing in FDM version;
- High-poly detailed miniature of Lynel;
- Detailed settings that we provide for Cura 3.1.0. for the best print;
- Full technical support from the Gambody Support Team.

Watch the tutorial video on how to assemble Lynel 3D Printing Miniature at Gambody YouTube channel.

You can get Model of Lynel for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Also, you may like Link 3D Figurine for 3D Printing from LOZ.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

This model was tested in Cura 3.1.0. and printed on an Ultimaker 2 in PLA material.

Recommendations: For all parts of Locks you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

To avoid printing problems, we recommend the following settings:

Quality

Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Slicing Tolerance: Middle
Line Width: 0.4 mm
Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
   Top/Bottom Line Width: 0.4 mm
   Infill Line Width: 0.4 mm
   Skirt/Brim Line Width: 0.4 mm
   Support Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell

Wall Thickness: 0.8 mm
Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill

Infill Density: 20%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
    Minimum Skin Width for Expansion: 0.0

Material

Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed

Print Speed: 45 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
    Support Speed: 45 mm/s
      Support Infill Speed: 45 mm/s
Travel Speed: 80 mm/s
Initial Layer Speed: 15 mm/s

    Initial Layer Print Speed: 15 mm/s
    Initial Layer Travel Speed: 26.6667 mm/s
Skirt/Brim Speed: 15 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel

Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm
Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support

Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 60°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 1.3333 mm
Support Z Distance: 0.3 mm
    Support Top Distance: 0.3 mm
    Support Bottom Distance: 0.3 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion

Build Plate Adhesion Type: Brim (for all parts of locks use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes

Union Overlapping Volumes: Check
Maximum Resolution: 0.01 mm
Merged Meshes Overlap: 0.15 mm

Special Modes

Print Sequence: All at Once
Surface Mode: Normal

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
