Darth Malgus 3D Printing Figurine | Assembly

(5)
cm: 14.8 w x 26.4 d x 21.3 h
in: 5.827 w x 10.394 d x 8.386 h

Source Files

|

Description

|

Printing Details

This 3D model consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

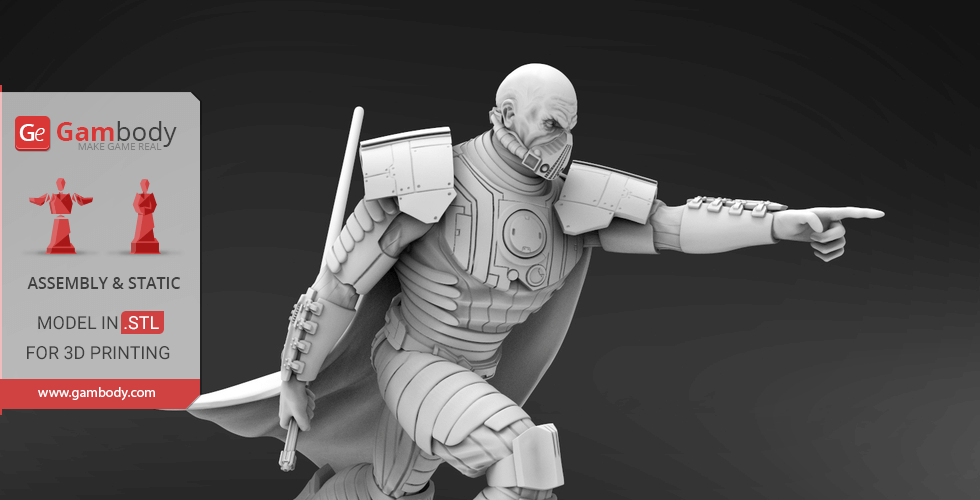

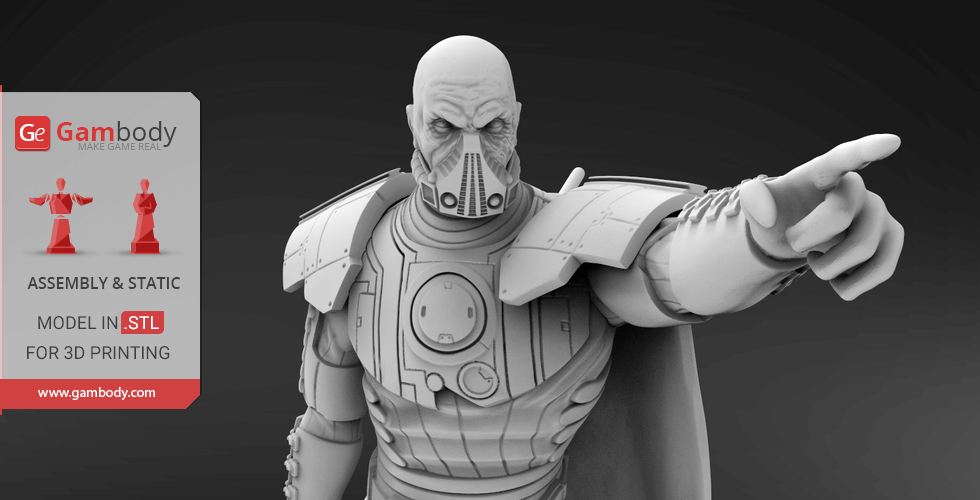

Version 1 and Version 2 are the files for Darth Malgus 3D Model optimized for 3D printing, the preview pictures of which you see above.

It is recommended:

  • to print Version 1 STL files on FDM/FFF 3D printers;
  • to print Version 2 STL files on DLP/SLA/SLS 3D printers.
File Name File Size Time / Filament Object Size
(x/y/z mm)

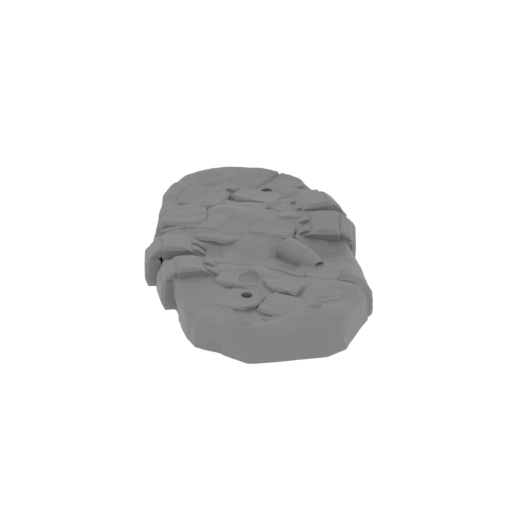

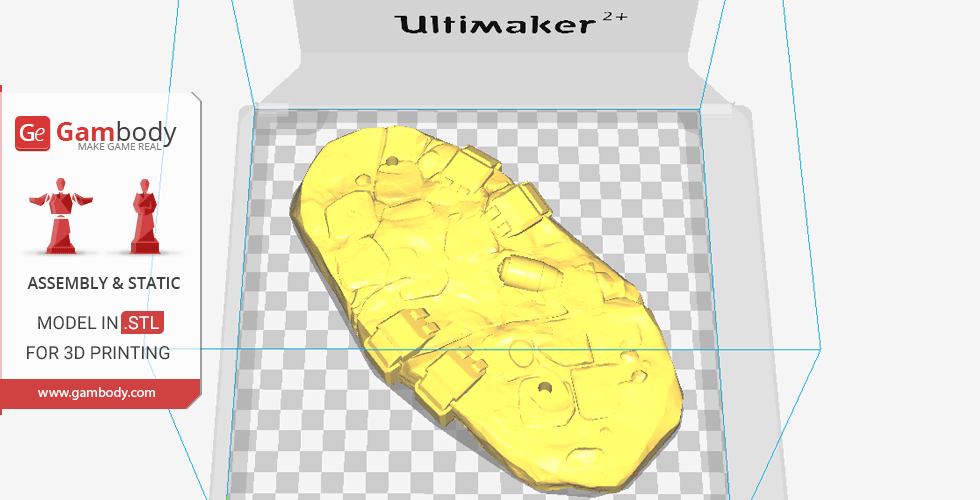

1_platform.stl
25.24 MiB 30 h 18 min 22 m 154 x 210 x 26 Download

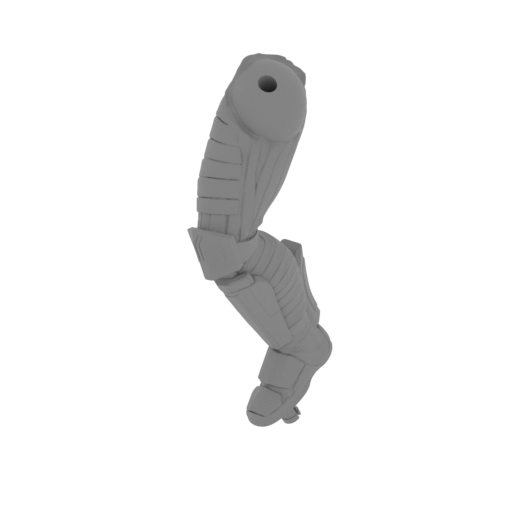

2_leg_R.stl
11.86 MiB 9 h 25 min 6 m 36 x 61 x 132 Download

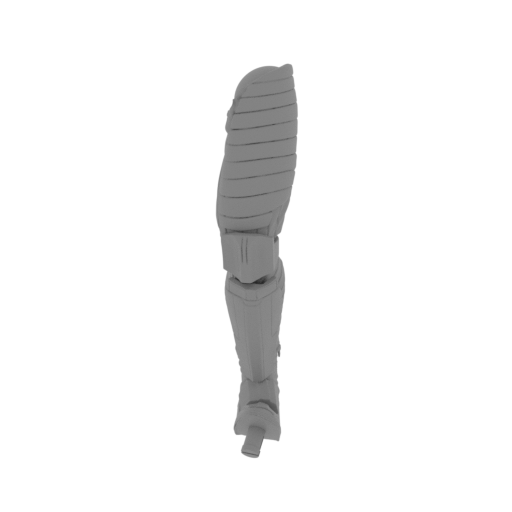

3_leg_L.stl
16.62 MiB 7 h 22 min 4 m 27 x 45 x 136 Download

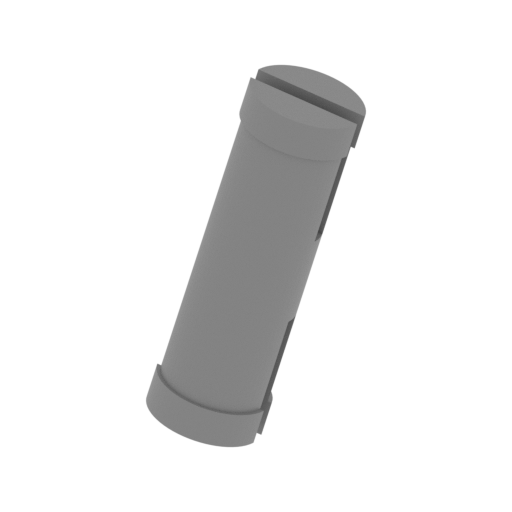

4_GE_Connector_B_1.stl
0.04 MiB 18 min <1 m 12 x 7 x 21 Download

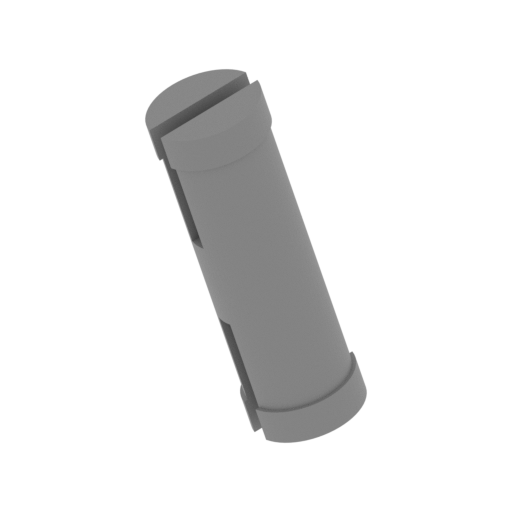

5_GE_Connector_B_2.stl
0.04 MiB 18 min <1 m 11 x 11 x 21 Download

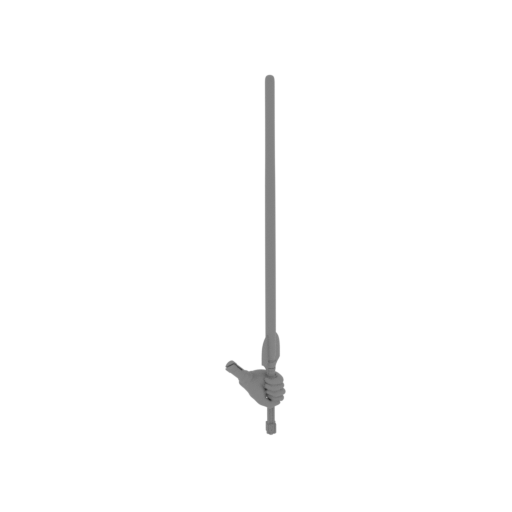

6_lightsaber.stl
2.10 MiB 1 h 47 min 1 m 24 x 21 x 176 Download

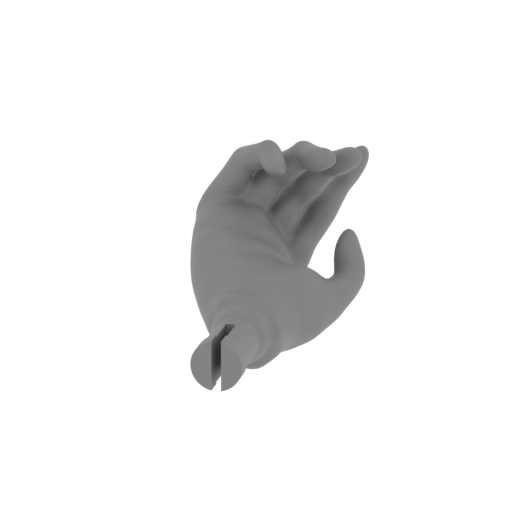

7_no_lightsaber.stl
0.84 MiB 33 min <1 m 17 x 39 x 18 Download

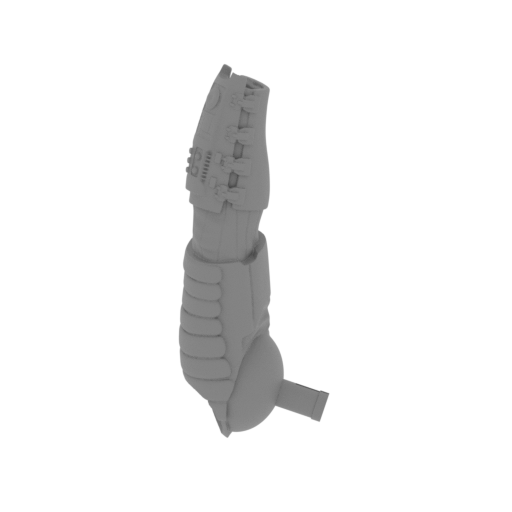

8_arm_R.stl
3.35 MiB 2 h 39 min 1 m 31 x 28 x 84 Download

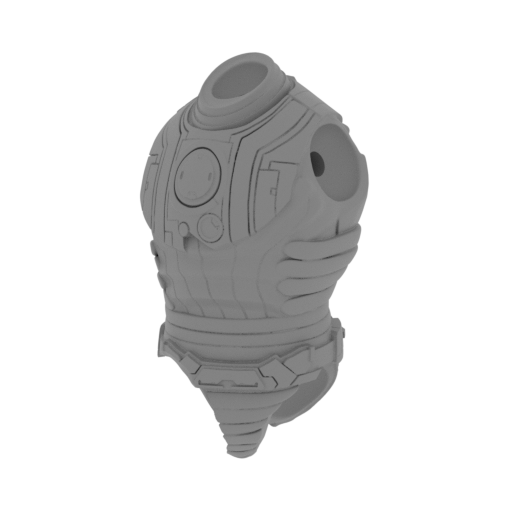

9_body.stl
10.40 MiB 13 h 28 min 9 m 56 x 56 x 96 Download

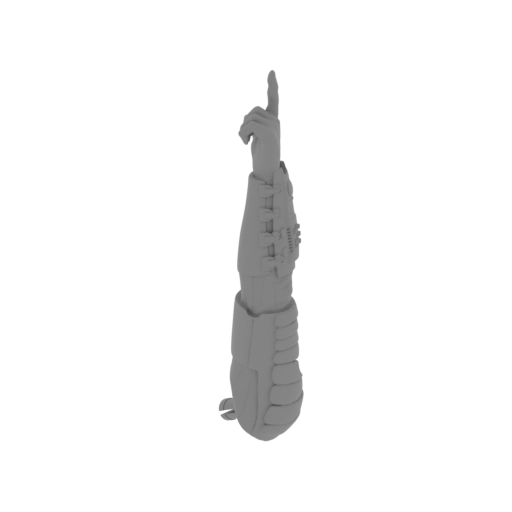

10_arm_L.stl
4.01 MiB 3 h 9 min 2 m 27 x 24 x 115 Download

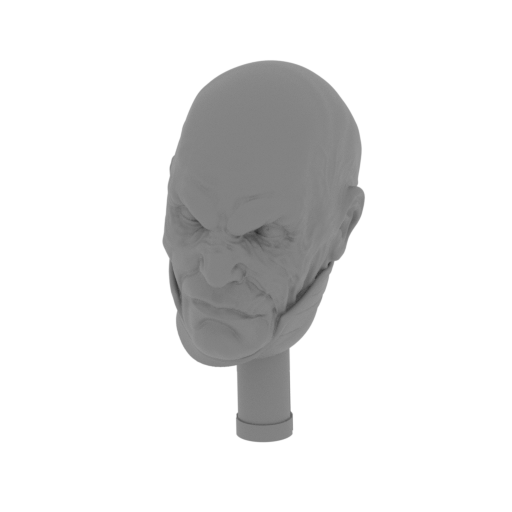

11_head_1.stl
4.65 MiB 1 h 44 min 1 m 23 x 31 x 44 Download

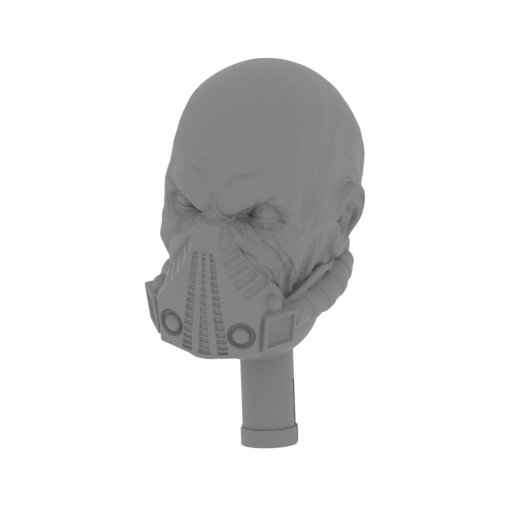

12_head_2.stl
5.86 MiB 1 h 56 min 1 m 23 x 32 x 44 Download

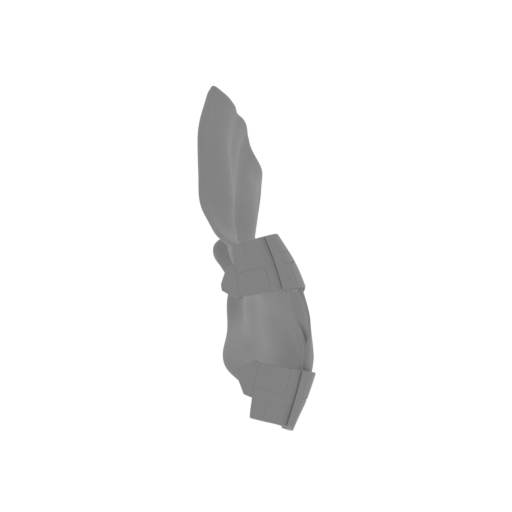

13_shoulders_cloak.stl
12.39 MiB 19 h 17 min 12 m 112 x 198 x 122 Download

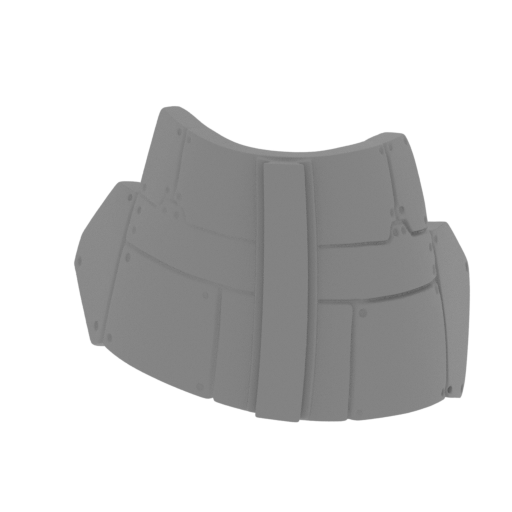

14_shoulder_R.stl
3.09 MiB 1 h 19 min 1 m 42 x 31 x 33 Download

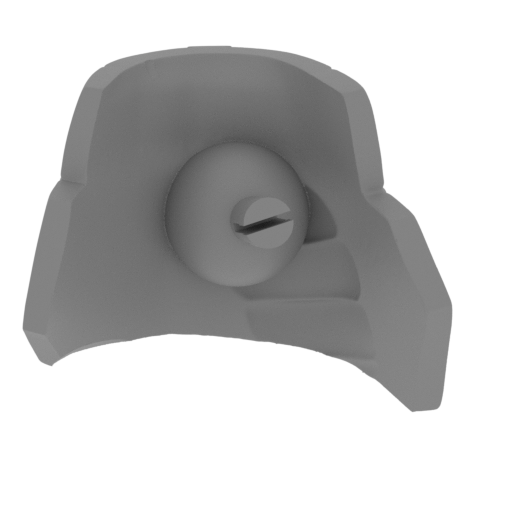

15_shoulder_L.stl
3.07 MiB 1 h 22 min 1 m 40 x 35 x 35 Download
...

"I fight because that is what I was made to do and the Empire is the instrument through which I realize my purpose. The Empire is war made manifest. That is why it is perfect."
                                                                                                                   ―Darth Malgus

HISTORY OF THE DARTH MALGUS

Darth Malgus was a Human male Sith Lord of the Sith Empire during the Great Galactic War. He was born under the name Veradun within Imperial space, and raised by his adoptive father. While still young, Veradun killed a Twi'lek servant on his father's estate, revealing the dark will behind his sensitivity to the Force. The young boy was subsequently sent to the Sith Academy on the Imperial capital of Dromund Kaas, where he became a Sith Warrior and a successful commander of the Imperial Military. Veradun later eschewed his birth name and adopted the Sith moniker of Darth Malgus.

ABOUT THIS MODEL

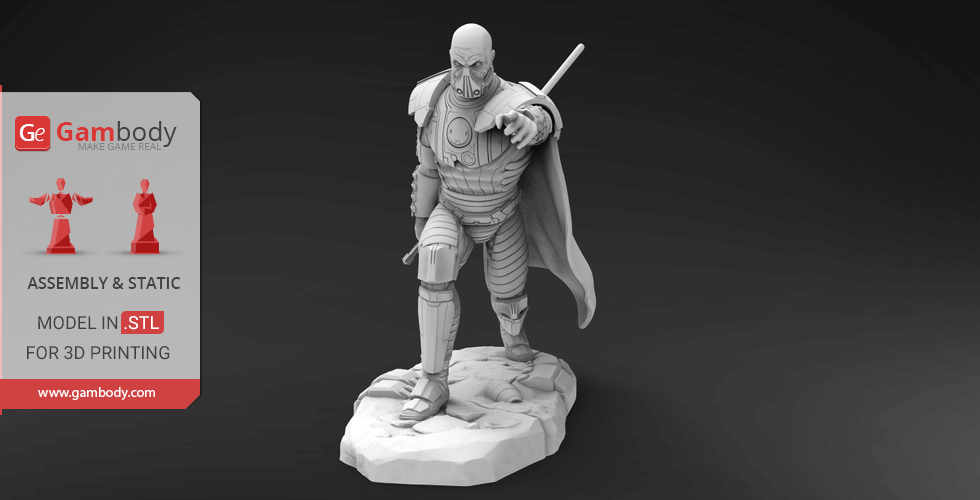

Darth Malgus 3D model for printing was created in Autodesk 3DS Max. The model is saved in STL files, a format supported by most 3D printers

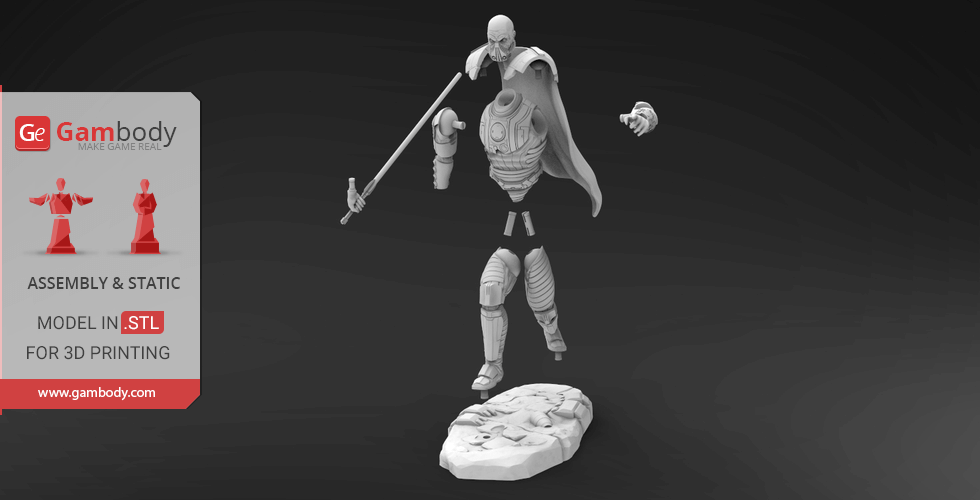

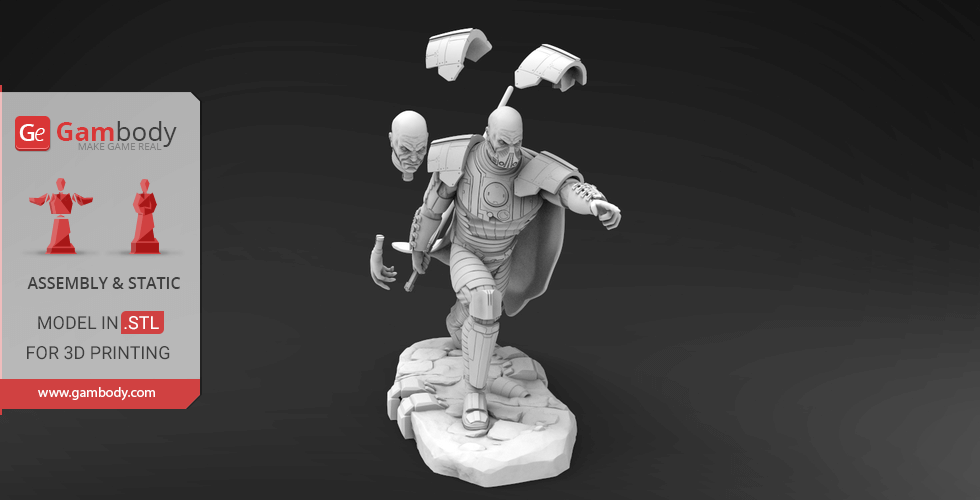

FDM version contain changeable:
- Hands - with lightsaber or without;
- Face - with respirator or without;
- Shoulders - with cloak or without.

SLS version less then FDM and made as one part, for economy your material.

All .STL files for 3D printing have been checked in Netfabb no errors were shown.

Note: Before starting 3D printing the model, read the Printing Details for CURA 2.7.0. software.

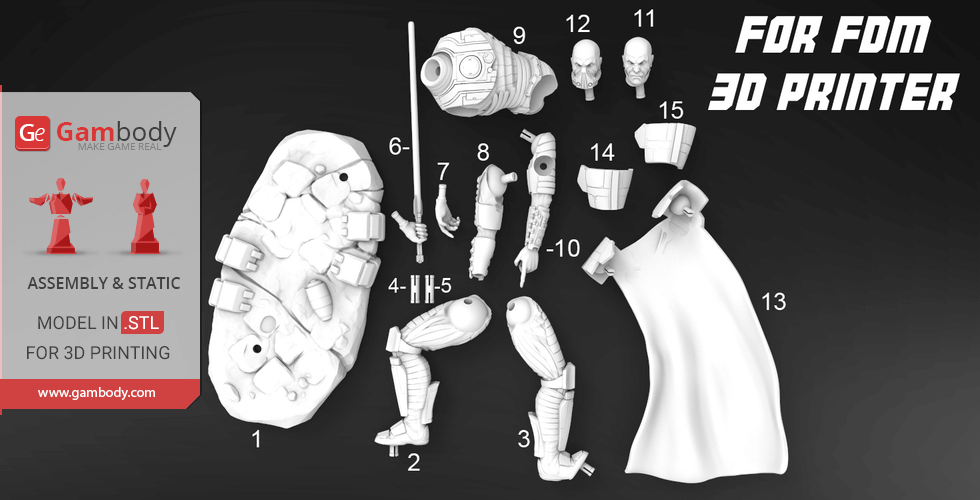

There are 15 parts for FDM version and only 1 part for SLS.

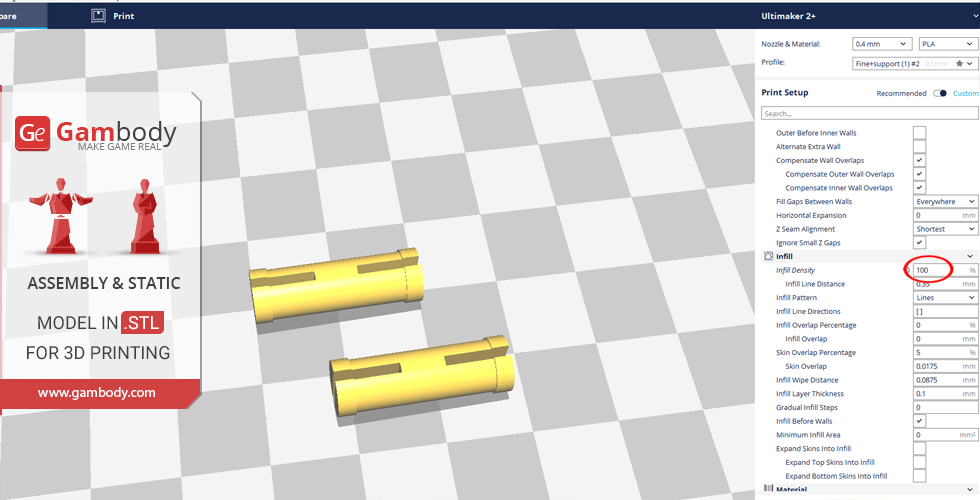

All parts of connectors should be printed at 100% infill.

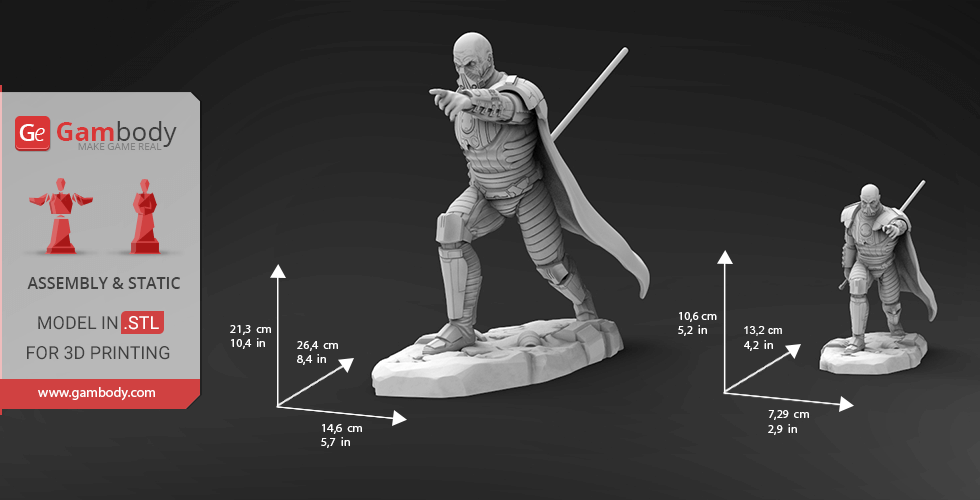

Scale:
His tall in real life is 1880 mm with bent knees. Model made as 1/9 scale in FDM version and 1/18 in SLS/SLA version.

FDM version:
- After being printed will stand 213 mm tall, 146 mm wide, 264 mm deep;
- Connectors should be printed at 100% infill to make them solid.

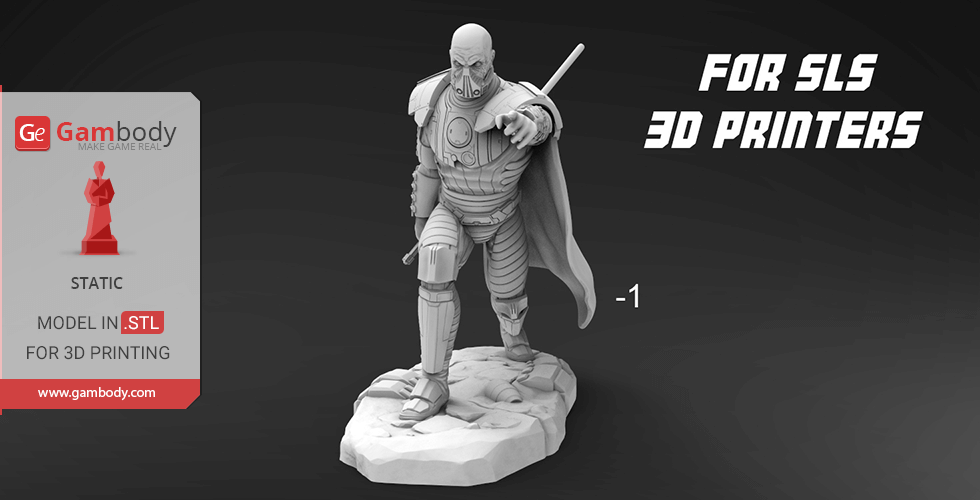

SLS/SLA version:
- After being printed will stand 106 mm tall, 72.9 mm wide, 106.5 mm deep.
- Has only one detail to keep printing costs down.

WHAT WILL YOU GET AFTER PURCHASE?

- .STL files of Darth Malgus for printing which consist of 16 parts.
- Changeable lightsaber/hand/shoulders and face with respirator/without it.
- Removable model of cloak which you can print with flexible materials.
- Made in scale 1/9 of his real size.
- Detailed settings that we provide for Cura 2.7.0 for the best print.

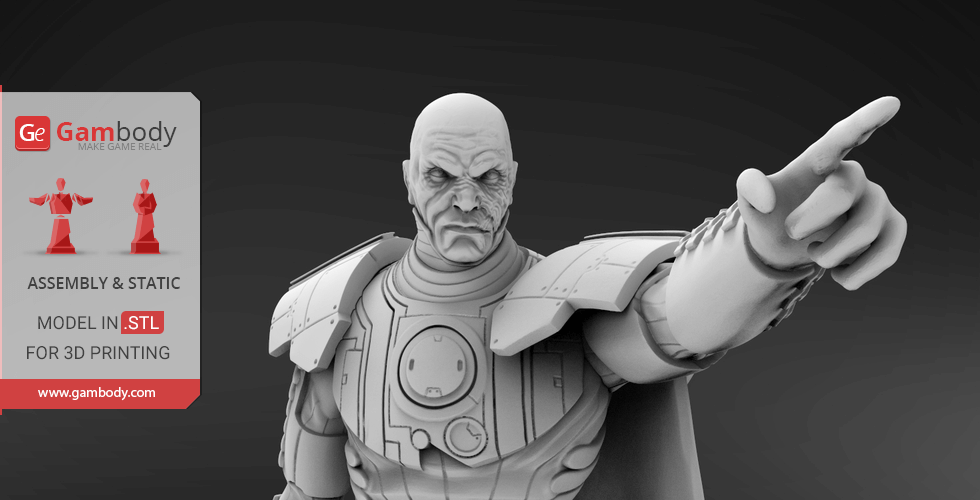

- High-poly detailed model of Darth Malgus.
- Full technical support from the Gambody Support Team.

Watch the tutorial video on how to assemble SpaceWar Darth Malgus 3D Printing Miniature at Gambody YouTube channel

You can get Space War Darth Malgus 3D Printing Model right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Also, you may like other Villains 3D Miniatures as well as Space War 3D models. A powerful Emperor needs a good ship in your collection.



_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?

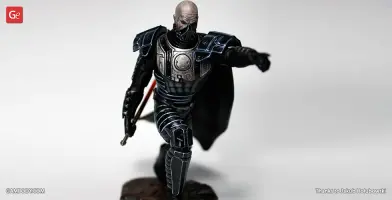

How to paint printed figurine?

Generic

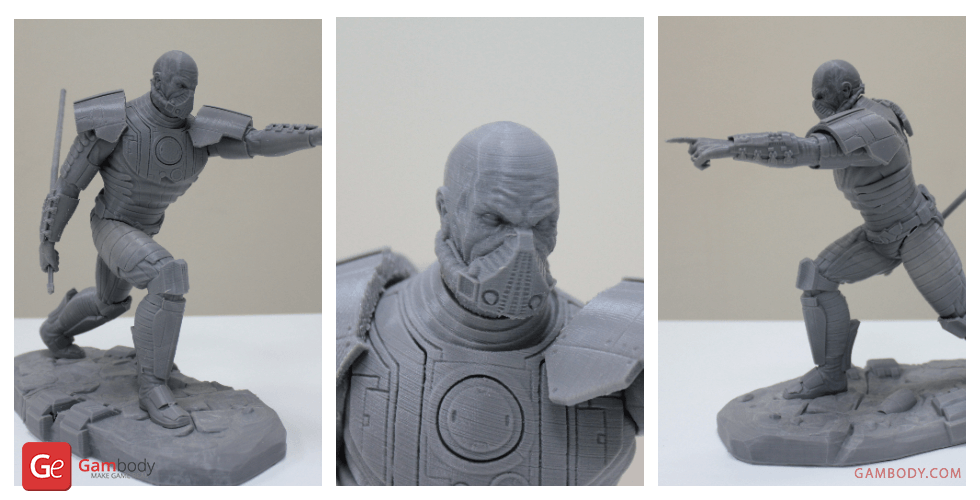

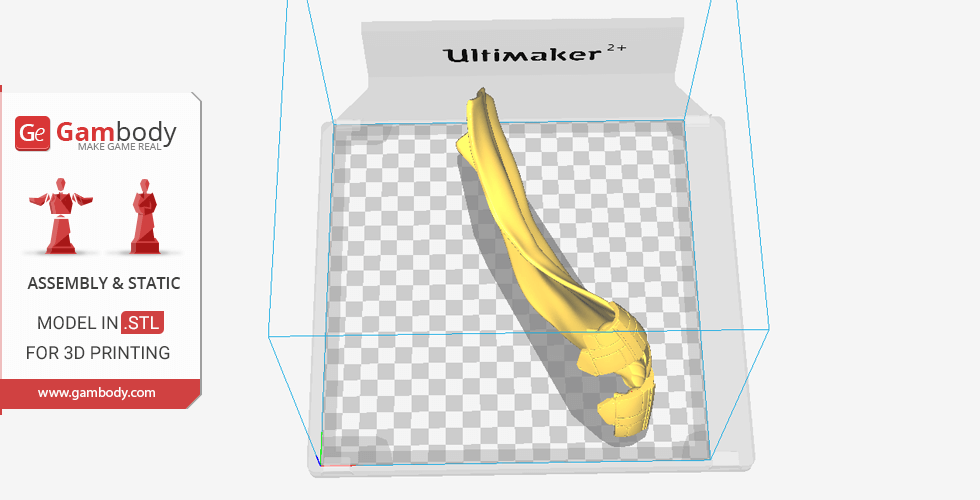

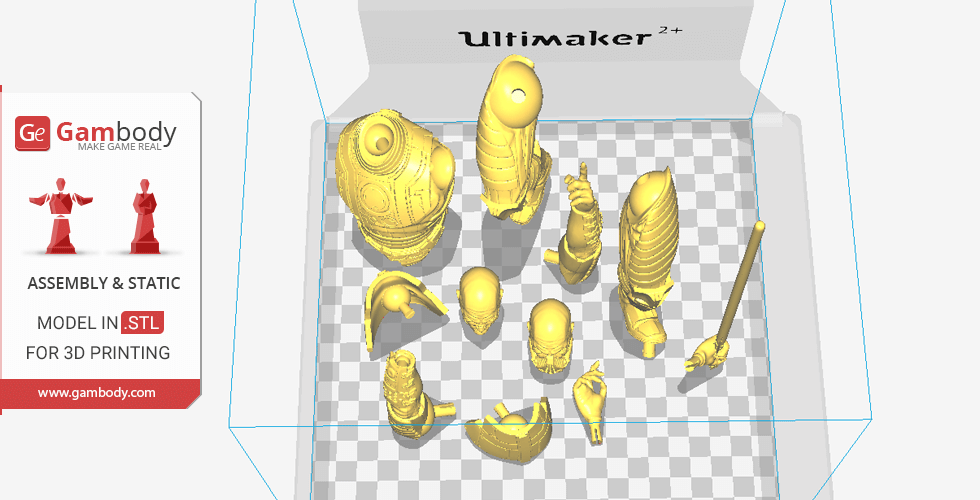

This model was tested in Cura 2.7.0. and printed on an Ultimaker 2 in PLA material.

Note: To maintain model quality, do not try to increase or decrease the size, since the connectors may not fit and the model will not be assemble after scale changes.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.27 mm
Line Width: 0.35 mm
Wall Line Width: 0.35 mm
   Outer Wall Line Width: 0.35 mm
   Inner Wall(s) Line Width: 0.35 mm
   Top/Bottom Line Width: 0.35 mm
   Infill Line Width: 0.35 mm
   Skirt/Brim Line Width: 0.35 mm
   Support Line Width: 0.35 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 1.05 mm
Wall Line Count: 3
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0.025 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Shortest
Ignore Small Z Gaps: Check

Infill
Infill Density: 20% (all parts of the connectors should be printed at 100% infill)
Infill Line Distance: 3.5 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill Overlap Percentage: 10%
    Infill Overlap: 0.035 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.0175 mm
Infill Wipe Distance: 0.0875 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Material
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.7 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 20 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 45 mm/s
    Wall Speed: 36 mm/s
      Outer Wall Speed: 26 mm/s
      Inner Wall Speed: 36 mm/s
    Top/Bottom Speed 20 mm/s
    Support Speed: 26 mm/s
      Support Infill Speed: 26 mm/s
Travel Speed: 90 mm/s
Initial Layer Speed: 27 mm/s

    Initial Layer Print Speed: 27 mm/s
    Initial Layer Travel Speed: 54 mm/s
Skirt/Brim Speed: 27 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.6562 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.27 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Enable Support: Check
Support Placement: Everywhere
Support Overhang Angle: 50°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 2.3333 mm
Support Z Distance: 0.1 mm
    Support Top Distance: 0.1 mm
    Support Bottom Distance: 0.1 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 23
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Extra Skin Wall Count: 0

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
