You will get instant access to the STL files of Darth Malgus Bust 3D Model | Static after completing your purchase. Simply add the model to your cart and check out using PayPal, credit or debit card, Apple Pay, Google Pay, Alipay, or other available payment methods.
Watch the assembly video for Darth Malgus Bust 3D Model | Static, and explore more tutorials, behind-the-scenes content, 3D printing timelapses, and painting guides on the official Gambody YouTube channel.
This 3D model consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.
Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

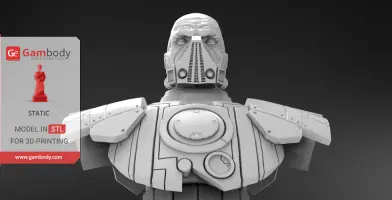

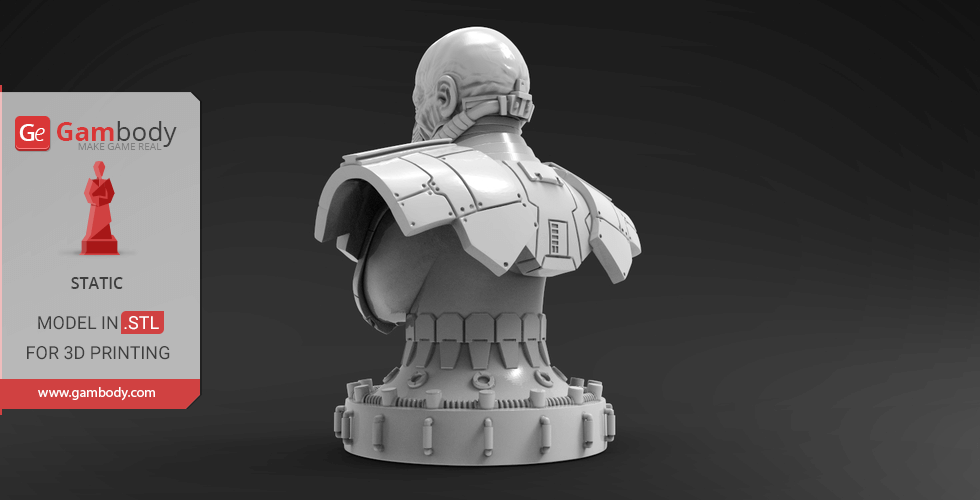

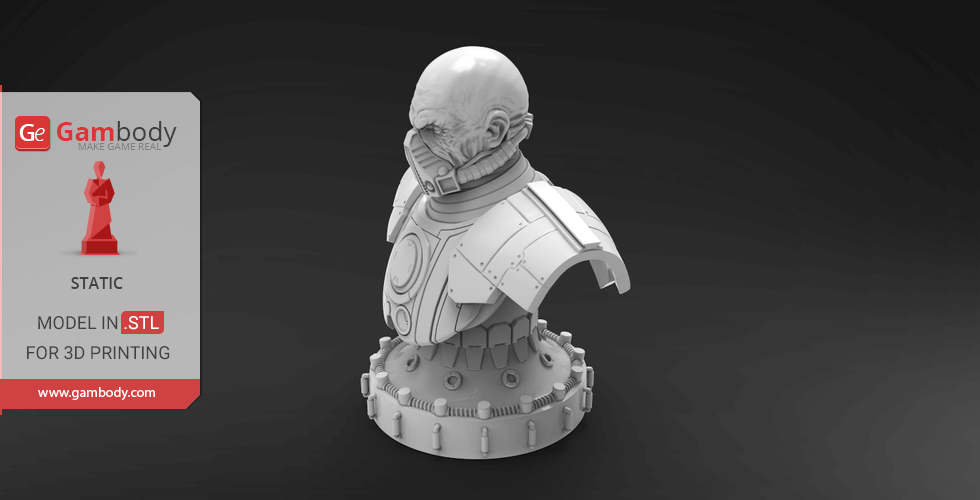

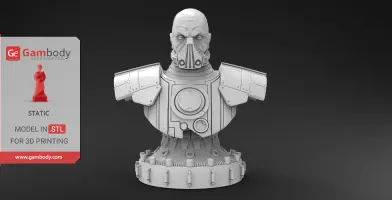

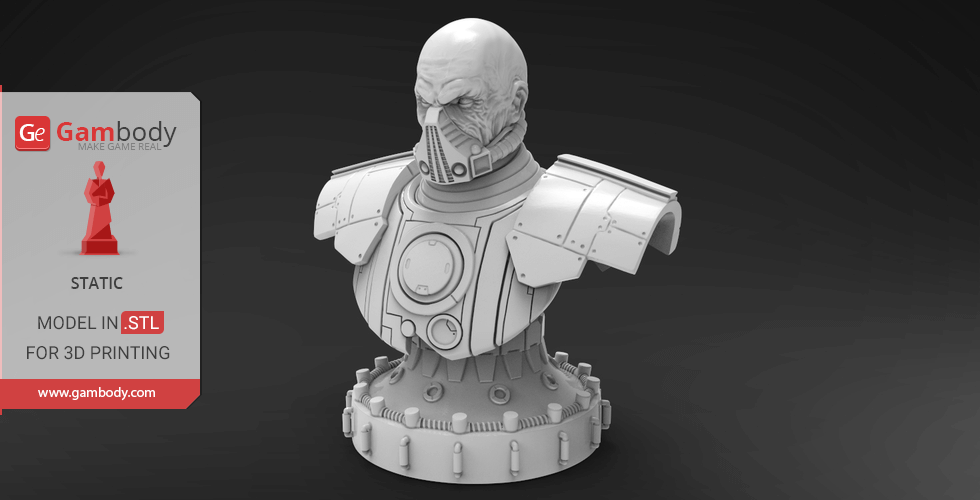

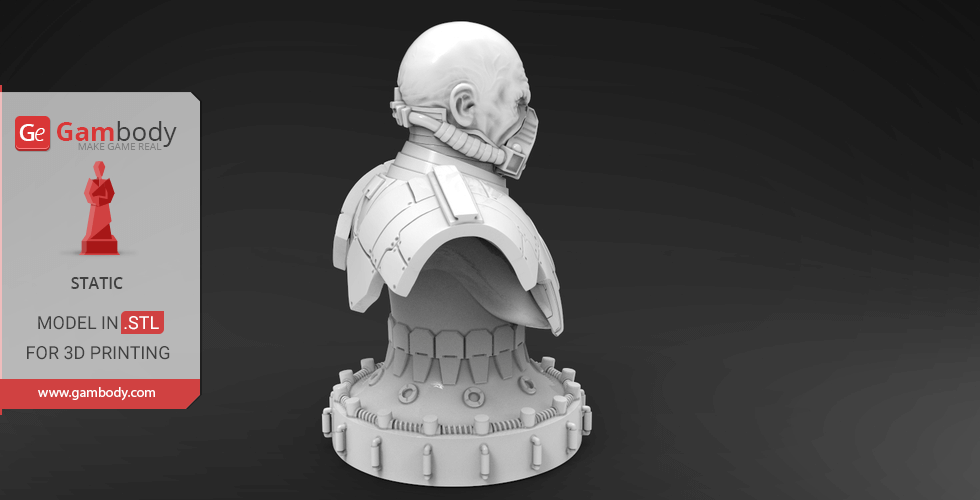

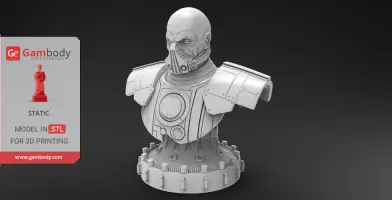

Version 1 and Version 2 are the files for Darth Malgus Bust 3D Model optimized for 3D printing, the preview pictures of which you see above.
It is recommended:
- to print Version 1 STL files on FDM/FFF 3D printers;
- to print Version 2 STL files on DLP/SLA/SLS 3D printers.
Before printing, take a look at Printing Details for recommended settings and tips to achieve better results.
HISTORY OF THE DARTH MALGUS
Great Lord of Sith also known as Darth Malgus. His name is Veradun. When Veradun was young he killed a Twi'lek servant on his father's estate and after this he open the dark side of his power. This young boy was sent to the Sith Academy and after that he became a great Sith Warrior and formidable commander. And he was one of the strongest creatures. His only weakness was his beloved Eleena Daru. Because he loved her too much, he had to kill her. Jedi Knight Erin Lenir wanted to avenge the death of her master. She know about the relationship between Malgus and Daru and decided to kill her and give Malgus a taste of lost which she experienced. But Erin left life to Daru after their meeting at the spaceport. Soon, between Erin and Malgus, was a battle, during which he defeated, but did not kill Erin and released her to Coruscant. But after that, Malgus finally became convinced that Eleena Daru was his weakness. He could no longer afford this weakness. He killed his only friend and freed himself from the chains of emotion.
ABOUT THIS 3D MODEL
The model is saved in STL files, a format supported by most 3D printers.
This model contain only 1 part and executed in the form of the solid figure therefore, it is available for all types of printers FFF/FDM, SLS/SLA. You can reduce its size and will not lose its quality of print. SLS/SLA version made x3 smaller for economy your material.
All .STL files for 3D printing have been checked in Netfabb and no errors were shown.
Note: Before starting 3D printing the model, read the Printing Details for CURA 2.7.0. software.

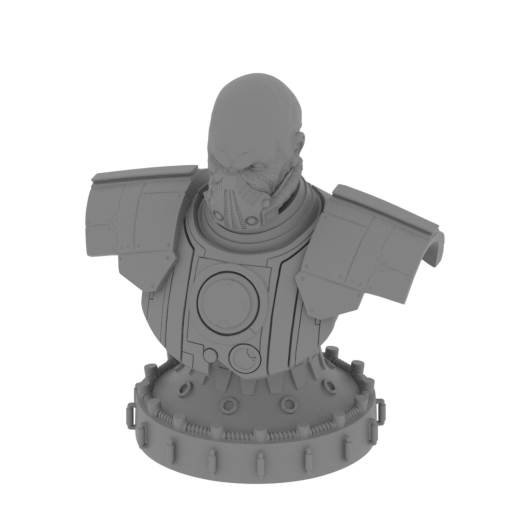

There are 1 part for FDM version and 1 part for SLS.
Scale: His tall in life is 2200 mm. This bust made as 1/3 in tall of character + his platform. 1/3 size made in scale 1/6 in FDM version and 1/18 in SLS/SLA version.

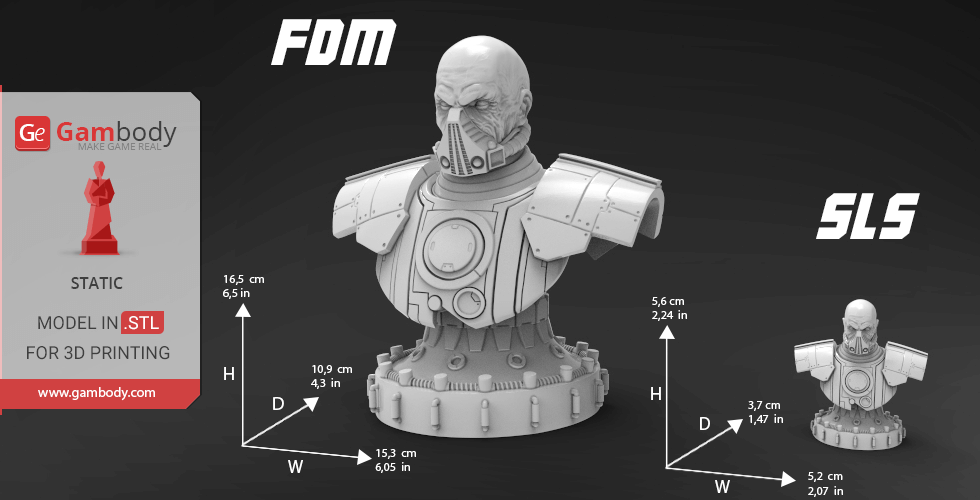

FDM version dimension:
- After being printed will stand 165 mm(6.49 in.) tall, 153 mm(6.02 in.) wide, 109 mm(4.29 in.) deep;
SLS/SLA version dimension:
- After being printed will stand 56 mm(2.2 in.) tall, 52 mm(2.04 in.) wide, 37 mm(1.45 in.) deep.
WHAT WILL YOU GET AFTER PURCHASE?
- .STL files of Darth Malgus Bust for printing which consist of 2 parts.
- Made in scale 1/6 and 1/18 of his real size.
- Available for all types of printers FFF/FDM and SLS/SLA.
- Detailed settings that we provide for Cura 2.7.0 for the best print.
- High-poly detailed model of Darth Malgus Bust in two versions.
- Full technical support from the Gambody Support Team.
Watch the video about Darth Malgus Bust for 3D Printing at Gambody YouTube channel.
You can get Darth Malgus Bust for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.
Also you may like Darth Malgus 3D model as well as 3D Miniatures of Villains.
_______
FAQ:
Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?
Average customer rating (4 reviews)
4.8
Ratings breakdown
Click a star rating to filter reviews
Overall experience
Level of detail in the model
4.8
Model cut quality and assembly guide
4.8
Clarity and accuracy of the model page
4.8
Level of detail in the model
4
Model cut quality and assembly guide
4
Clarity and accuracy of the model page
4
This feedback is from a user who hasn't purchased this model Level of detail in the model
5
Model cut quality and assembly guide
5
Clarity and accuracy of the model page
5
This feedback is from a user who hasn't purchased this model Level of detail in the model
5
Model cut quality and assembly guide
5
Clarity and accuracy of the model page
5
Verified purchase
Level of detail in the model
5
Model cut quality and assembly guide
5
Clarity and accuracy of the model page
5
This feedback is from a user who hasn't purchased this model To avoid printing issues and achieve the best quality, we highly recommend applying the following settings:
Generic

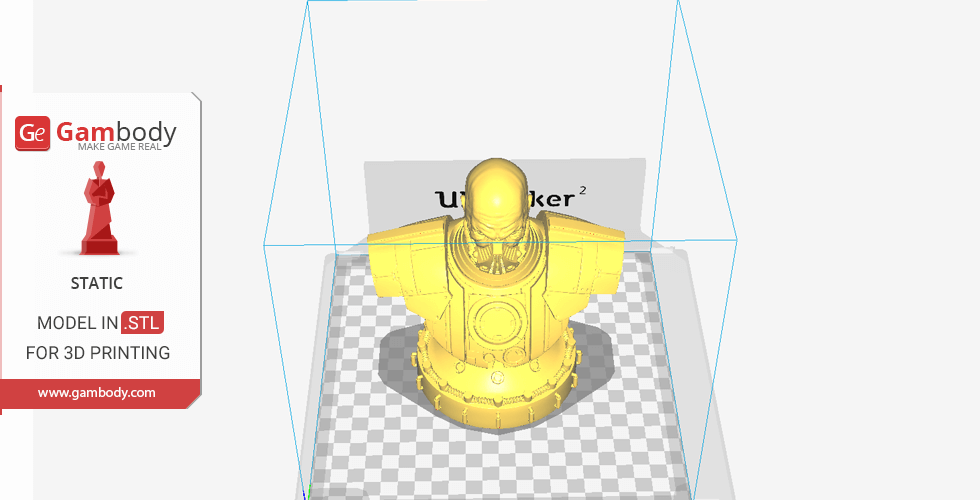

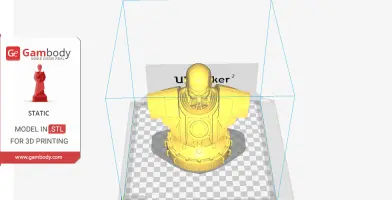

This model was tested in Cura 2.7.0. and printed on an Ultimaker 2 in PLA material.
Note: This model does not contain connectors and can be increased or decreased in your program at will.
To avoid printing problems, we recommend the following settings:
Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.27 mm
Line Width: 0.35 mm
Wall Line Width: 0.35 mm
Outer Wall Line Width: 0.35 mm
Inner Wall(s) Line Width: 0.35 mm
Top/Bottom Line Width: 0.35 mm
Infill Line Width: 0.35 mm
Skirt/Brim Line Width: 0.35 mm
Support Line Width: 0.35 mm
Initial Layer Line Width: 100%
Shell
Wall Thickness: 1.05 mm
Wall Line Count: 3
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
Top Thickness: 0.8 mm
Top Layers: 8
Bottom Thickness: 0.8 mm
Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0.025 mm
Compensate Wall Overlaps: Check
Compensate Outer Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Shortest
Ignore Small Z Gaps: Check
Infill
Infill Density: 20%
Infill Line Distance: 3.5 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill Overlap Percentage: 10%
Infill Overlap: 0.035 mm
Skin Overlap Percentage: 5%
Skin Overlap: 0.0175 mm
Infill Wipe Distance: 0.0875 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Material
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.7 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 20 mm
Nozzle Switch Retraction Speed: 20 mm/s
Nozzle Switch Retract Speed: 20 mm/s
Nozzle Switch Prime Speed: 20 mm/s
Speed
Print Speed: 45 mm/s
Infill Speed: 45 mm/s
Wall Speed: 36 mm/s
Outer Wall Speed: 26 mm/s
Inner Wall Speed: 36 mm/s
Top/Bottom Speed 20 mm/s
Support Speed: 26 mm/s
Support Infill Speed: 26 mm/s
Travel Speed: 90 mm/s
Initial Layer Speed: 27 mm/s
Initial Layer Print Speed: 27 mm/s
Initial Layer Travel Speed: 54 mm/s
Skirt/Brim Speed: 27 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2
Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.6562 mm
Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.27 mm
Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s
Support
Enable Support: Check
Support Placement: Everywhere
Support Overhang Angle: 50°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
Support Line Distance: 2.3333 mm
Support Z Distance: 0.1 mm
Support Top Distance: 0.1 mm
Support Bottom Distance: 0.1 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°
Build Plate Adhesion
Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
Brim Line Count: 23
Brim Only on Outside: Check
Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm
Special Modes
Print Sequence: All at Once
Surface Mode: Normal
Experimental
Extra Skin Wall Count: 0
Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
