Porgs 3D Printing Figurines | Assembly

(4)
cm: 15 w x 11.64 d x 10.93 h
in: 5.906 w x 4.583 d x 4.303 h

Source Files

|

Description

|

Printing Details

This 3D model consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

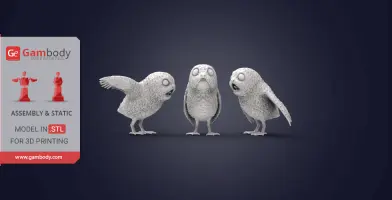

Version 1 and Version 2 are the STL files for Porgs 3D Models optimized for 3D printing, the preview pictures of which you see above.

It is recommended:

  • to print Version 1 STL files on FDM/FFF 3D printers;
  • to print Version 2 STL files on DLP/SLA/SLS 3D printers.
File Name File Size Time / Filament Object Size
(x/y/z mm)

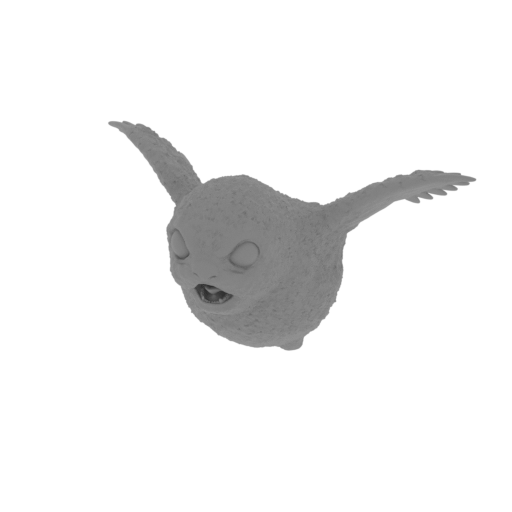

1.STL
24.22 MiB 32 h 12 min 24 m 150 x 116 x 86 Download

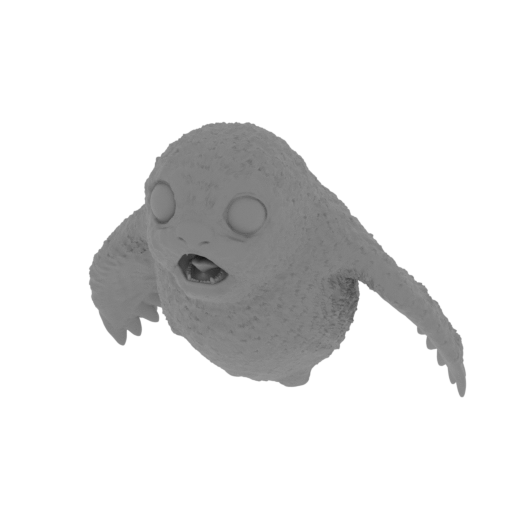

2.STL
24.22 MiB 28 h 21 min 20 m 114 x 106 x 99 Download

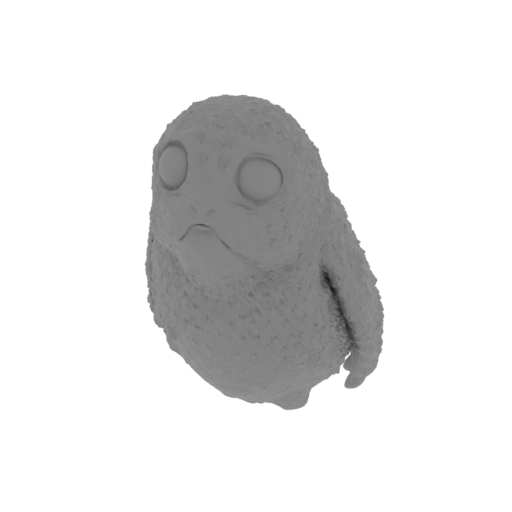

3.STL
21.46 MiB 22 h 18 min 15 m 67 x 91 x 107 Download

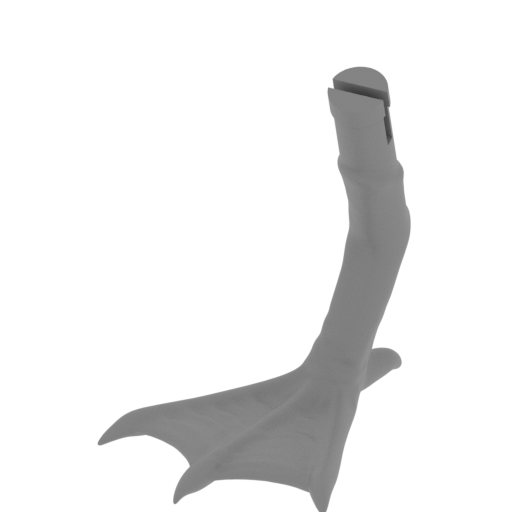

4_feet_R.stl
1.05 MiB 34 min <1 m 24 x 34 x 33 Download

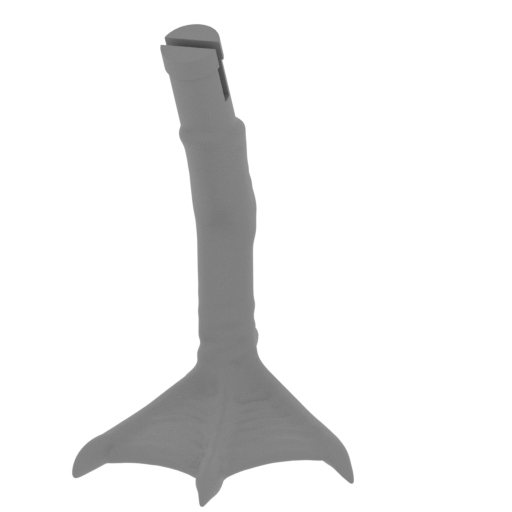

5_feet_L.stl
1.04 MiB 35 min <1 m 24 x 34 x 34 Download

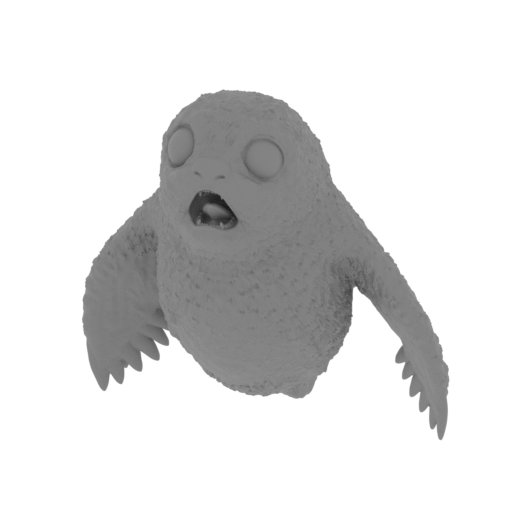

2_up.STL
21.07 MiB 25 h 6 min 17 m 114 x 81 x 115 Download

HISTORY OF THE PORGS

Porgs are the sea birds that lived on the planet Ahch-To, where the Master Jedi Luke Skywalker was in exile a lot of years after the Battle of Endor. These animals, inhabiting on the rocks of the island where Skywalker lived. They build nests and can fly. Males of Porgs a little larger in size than females. These cuties conquered the hearts of all fans and our too. People even talk about their special importance in the plot. But we will not spread rumors and better just to present you the pretty Porgs who is now available for purchase on Gambody.

ABOUT THIS 3D MODEL

Porgs 3D models for printing was created in ZBrush. The models are saved in STL files, a format supported by most 3D printers.
Models of Porgs is available in 3 variants for each version (FDM/FFF, SLS/SLA):

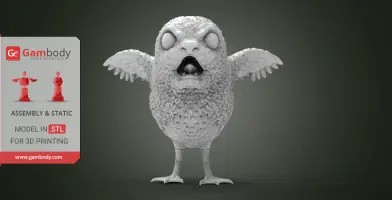

1. Angry
2. Impressed

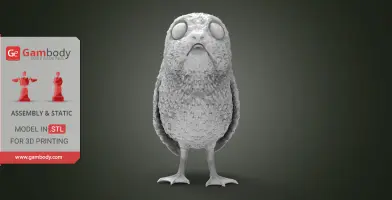

3. Cute

FDM version features:
Each variant made as one piece with divided legs. Both files of feet (4_feet_R.stl) and (5_feet_L.stl) will fit for each variant of Porgs.

SLS/SLA version features:
 Less than FDM and made as one piece in each variant of Porgs.

All .STL files for 3D printing have been checked in Netfabb and no errors were shown.

Note: Before starting 3D printing the model, read the Printing Details for CURA 2.7.0. software.

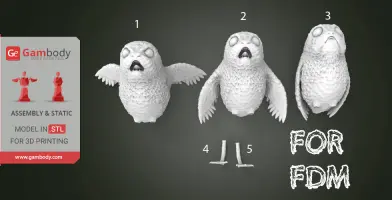

There are 5 parts for FDM version and 3 parts for SLS/SLA.
All parts of feet should be printed at 100% infill.

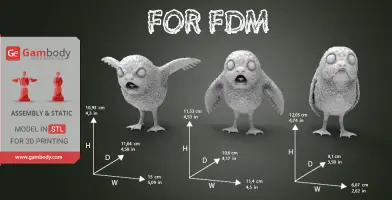

FDM version dimensions:


- After being printed will stand:
109.3 mm tall, 150 mm wide, 116.4 mm deep - In Angry Variant.

115.3 mm tall, 114 mm wide, 106 mm deep - In Impressed Variant.

120.5 mm tall, 66.7 mm wide, 91 mm deep - In Cute Variant.

- Feet should be printed at 100% infill to make them solid.

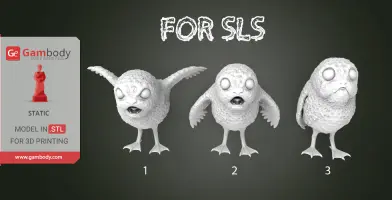

SLS/SLA version dimensions:

- After being printed will stand:
54.7 mm tall, 75 mm wide, 58.2 mm deep - In Angry Variant.

57.7 mm tall, 53 mm wide, 52.9 mm deep - In Impressed Variant.

60.3 mm tall, 33.3 mm wide, 45.5 mm deep - In Cute Variant.

WHAT WILL YOU GET AFTER PURCHASE?

- .STL files of Porgs for printing which consist of 8 parts.

- 3 variants of Porgs: Angry, Impressed, Cute.

- Divided feet in FDM version which fit to each variant.

- Detailed settings that we provide for Cura 2.7.0 for the best print.

- High-poly detailed models of Porgs.

- Full technical support from the Gambody Support Team.

Watch the video about Porgs 3D Printing Miniature at Gambody YouTube channel.

You can get Porgs Models for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Also, you may like another Space War 3D models.

________________________

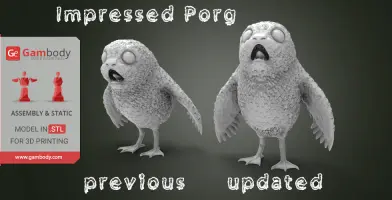

On 12.01.2018 the new body was added for the impressed variant of the Porg. Now he is impressed looking up. The STL files are already available for purchase and download in “Source files” tab for both versions. You can find them at the end of the list.

Here are the names of these files:

  • 2_up.STL - in Version 1 for FDM/FFF 3D printers;
  • 2_up_sls.STL - in Version 2 for DLP/SLA/SLS 3D printers.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

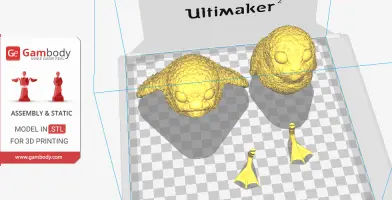

This model was tested in Cura 2.7.0. and printed on an Ultimaker 2 in PLA material.

Note: All parts of feet should be printed at 100% infill.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.27 mm
Line Width: 0.35 mm
Wall Line Width: 0.35 mm
   Outer Wall Line Width: 0.35 mm
   Inner Wall(s) Line Width: 0.35 mm
   Top/Bottom Line Width: 0.35 mm
   Infill Line Width: 0.35 mm
   Skirt/Brim Line Width: 0.35 mm
   Support Line Width: 0.35 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 1.05 mm
Wall Line Count: 3
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0.025 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Shortest
Ignore Small Z Gaps: Check

Infill
Infill Density: 20% (all parts of the feet should be printed at 100% infill)
Infill Line Distance: 3.5 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill Overlap Percentage: 10%
    Infill Overlap: 0.035 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.0175 mm
Infill Wipe Distance: 0.0875 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Material
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.7 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 20 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 45 mm/s
    Wall Speed: 36 mm/s
      Outer Wall Speed: 26 mm/s
      Inner Wall Speed: 36 mm/s
    Top/Bottom Speed 20 mm/s
    Support Speed: 26 mm/s
      Support Infill Speed: 26 mm/s
Travel Speed: 90 mm/s
Initial Layer Speed: 27 mm/s

    Initial Layer Print Speed: 27 mm/s
    Initial Layer Travel Speed: 54 mm/s
Skirt/Brim Speed: 27 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.6562 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.27 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Enable Support: Check
Support Placement: Everywhere
Support Overhang Angle: 50°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 2.3333 mm
Support Z Distance: 0.1 mm
    Support Top Distance: 0.1 mm
    Support Bottom Distance: 0.1 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 23
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Extra Skin Wall Count: 0

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
