T.I.E. Crawler for 3D Printing | Assembly

(4)
cm: 29.16 w x 26.75 d x 12.61 h
in: 11.48 w x 10.531 d x 4.965 h

Source Files

|

Description

|

Printing Details

This 3D model consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Download parts SW_(1)cabin and SW_(6)transition for free to check the printability and test the quality before buying all STL files of the 3D model.

Download Free Samples

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

File Name File Size Time / Filament Object Size
(x/y/z mm)
SW_(1)cabin (repaired).st l
9.07 MiB 28 h 3 min 22 m 114 x 89 x 89 Download

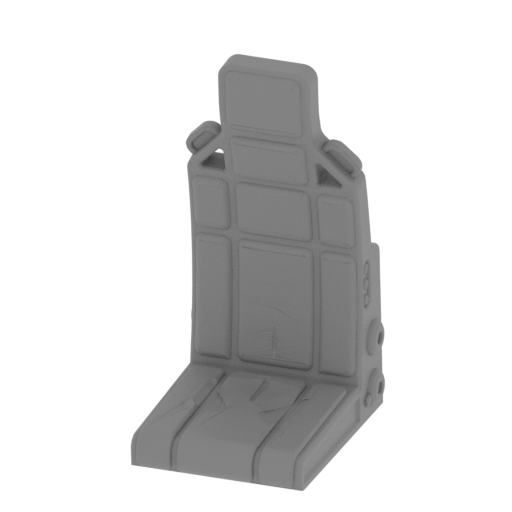

SW_(2)seat (repaired).stl
0.32 MiB 35 min <1 m 19 x 19 x 27 Download
SW_(3)panel (repaired).st l
1.30 MiB 2 h 40 min 2 m 77 x 24 x 42 Download
SW_(4)grid (repaired).stl
1.34 MiB 1 h 19 min 1 m 63 x 63 x 14 Download
SW_(5)trapdoor (repaired) .stl
2.74 MiB 1 h 15 min 1 m 43 x 43 x 10 Download
SW_(6)transition (repaire d).stl
1.42 MiB 4 h 2 min 2 m 63 x 63 x 33 Download

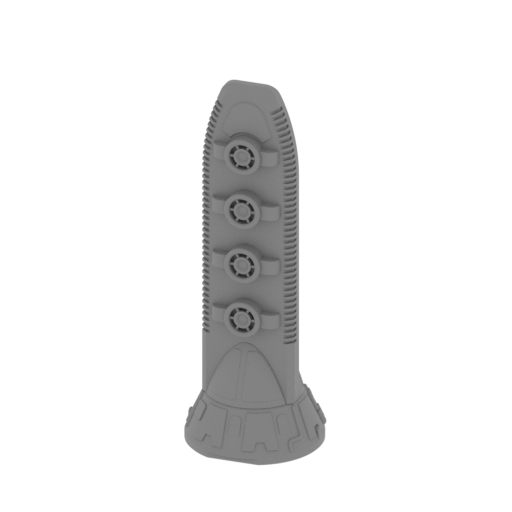

SW_(7)tail (repaired).stl
2.98 MiB 6 h 2 min 3 m 38 x 39 x 138 Download
SW_(8)larboard (repaired) .stl
7.37 MiB 9 h 34 min 6 m 64 x 60 x 69 Download
SW_(9)starboard (repaired ).stl
7.37 MiB 9 h 30 min 6 m 64 x 60 x 70 Download
SW_(10)the right rear whe el (repaired).stl
21.11 MiB 36 h 27 min 22 m 140 x 41 x 126 Download
SW_(11) the left rear whe el(repaired).stl
21.09 MiB 36 h 32 min 22 m 140 x 41 x 126 Download
SW_(12)left front wheel ( repaired).stl
23.33 MiB 39 h 21 min 24 m 59 x 134 x 126 Download
SW_(13)the right front wh eel (repaired).stl
23.34 MiB 39 h 7 min 24 m 59 x 134 x 126 Download
...

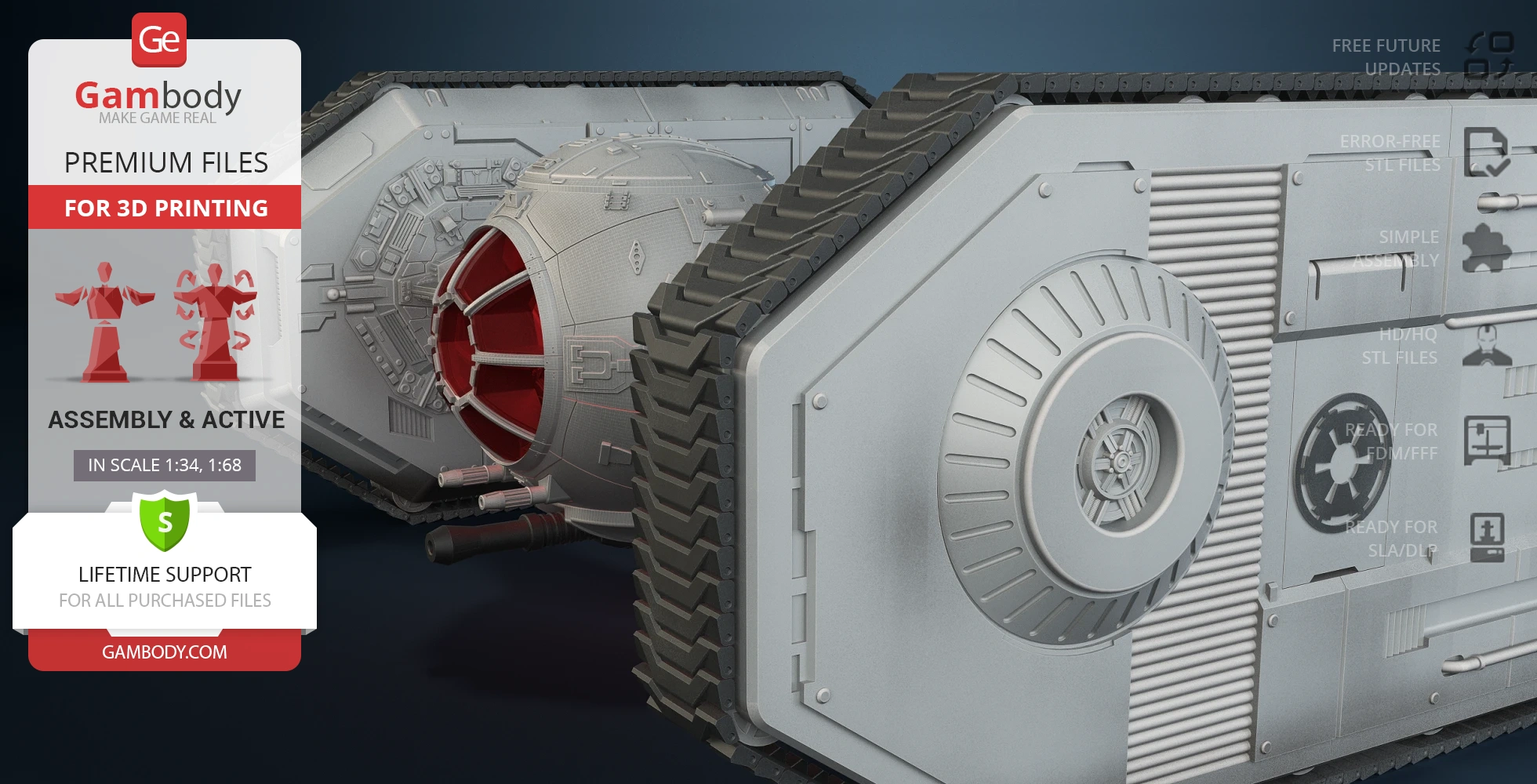

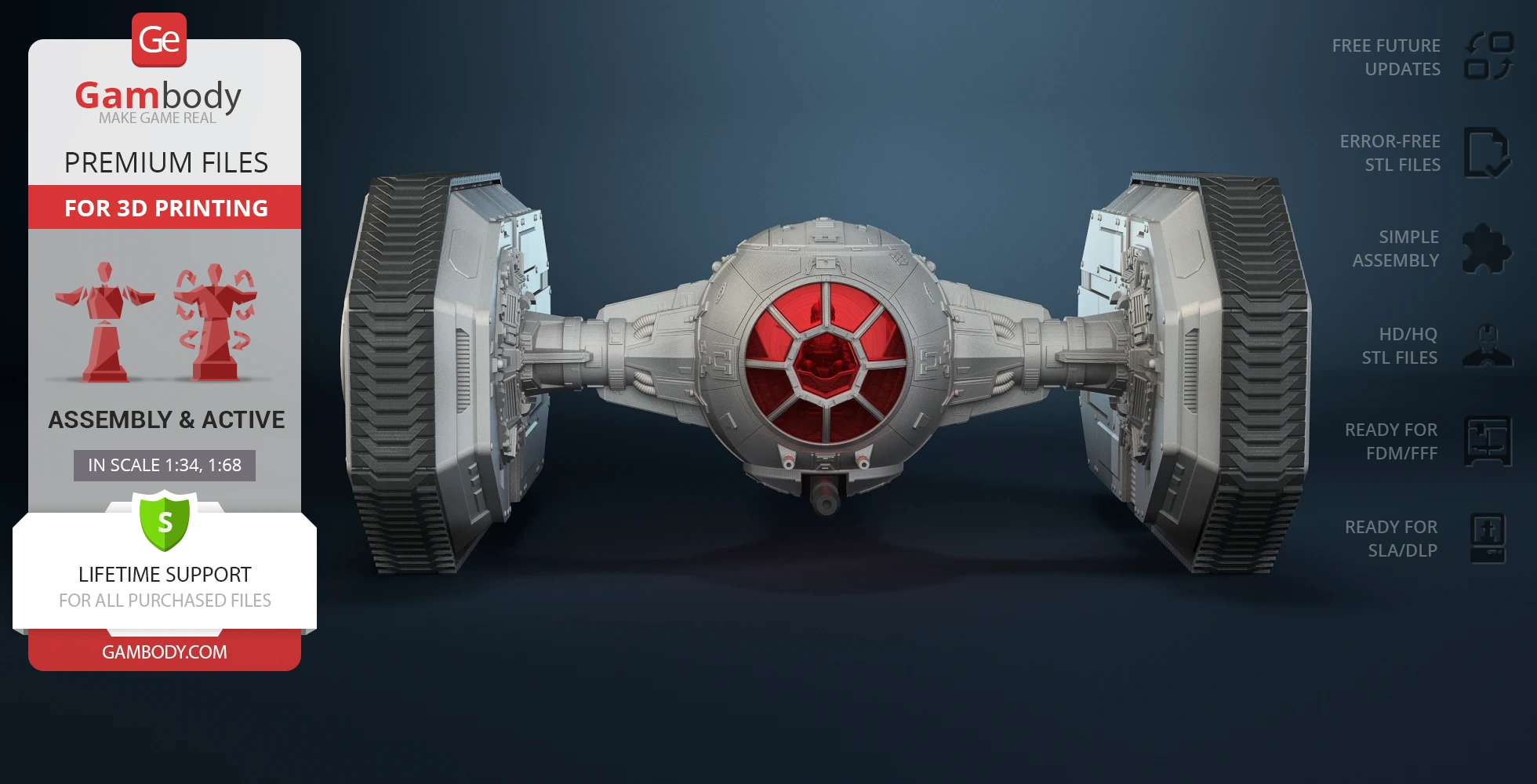

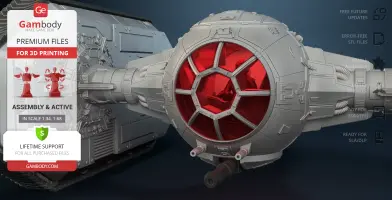

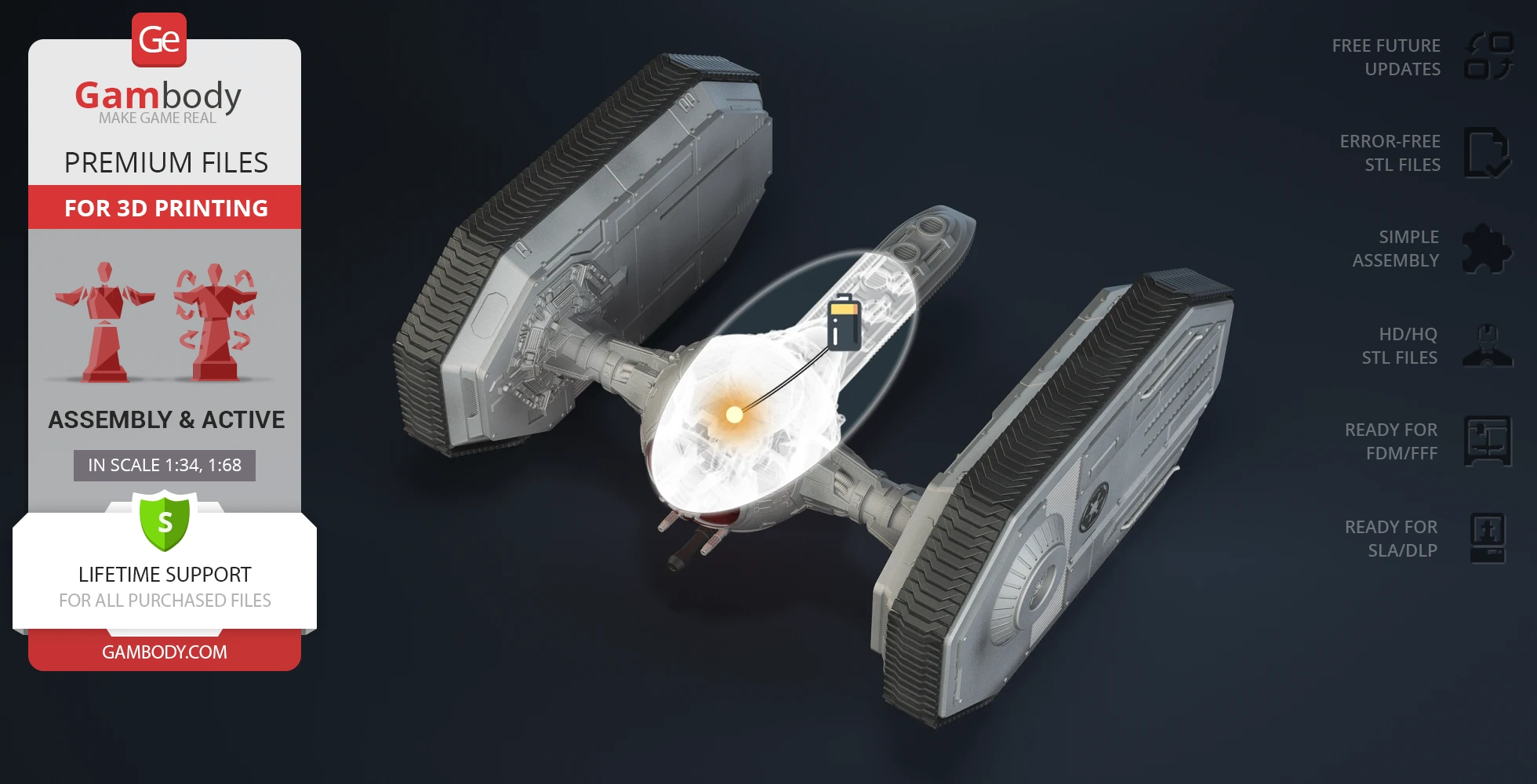

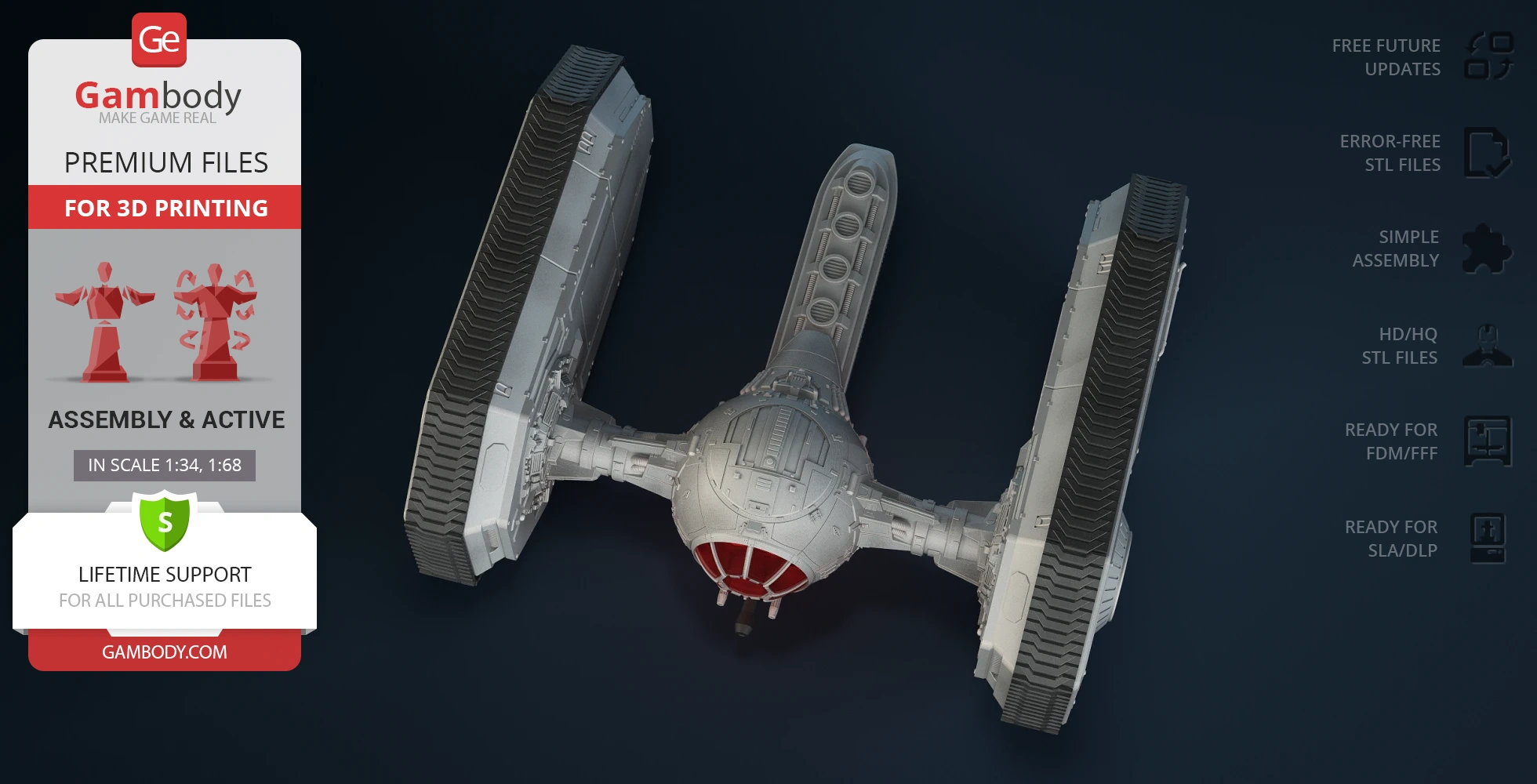

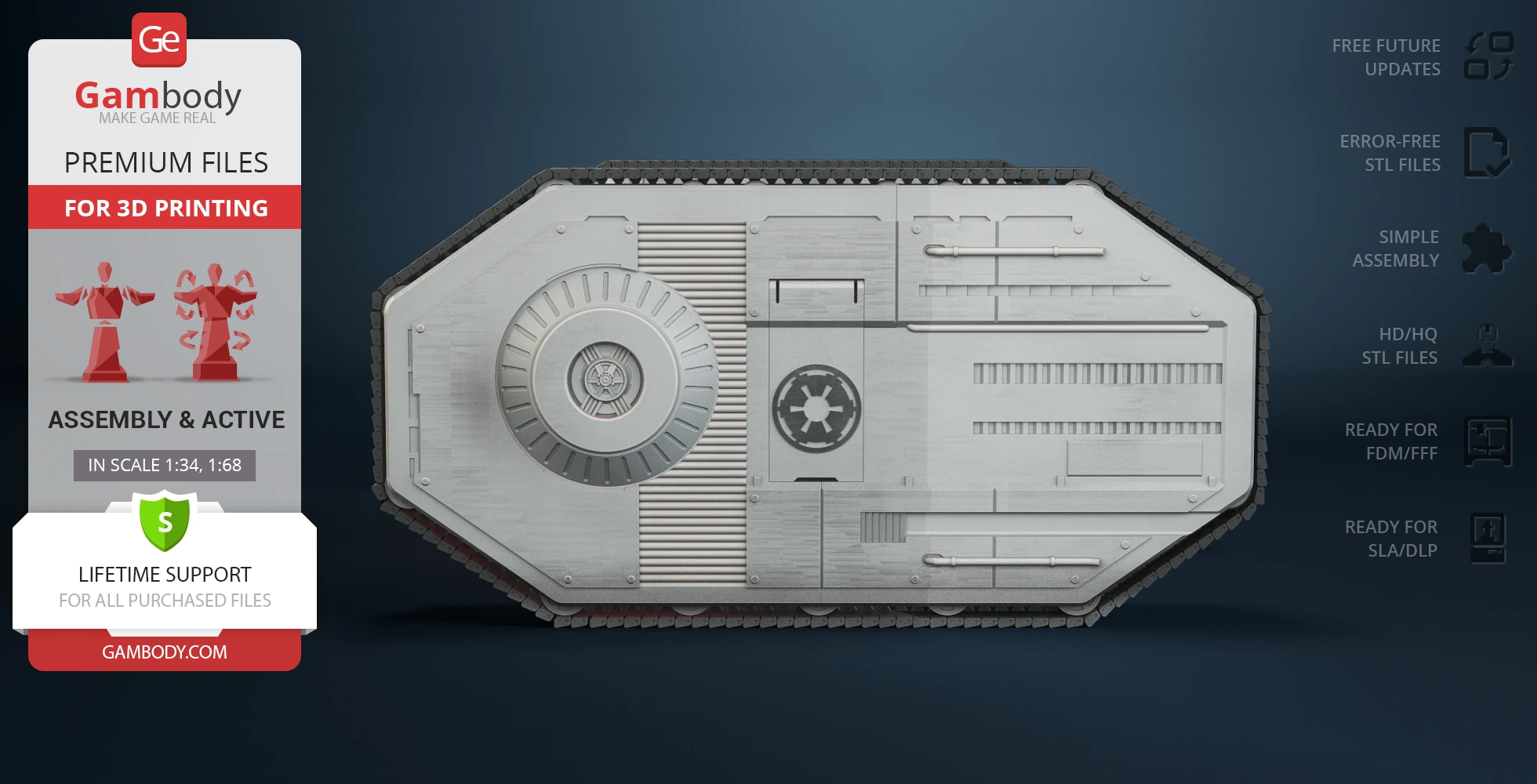

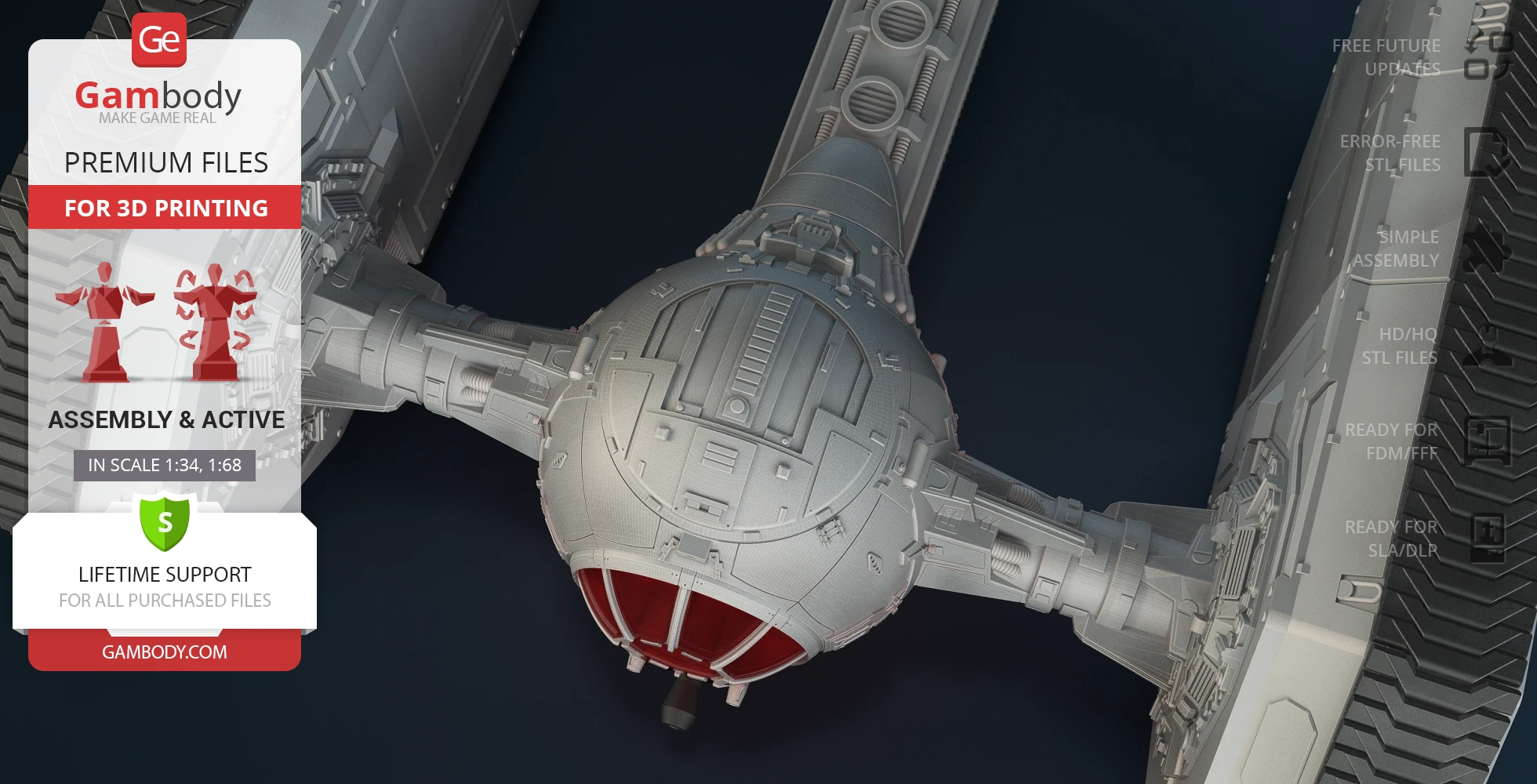

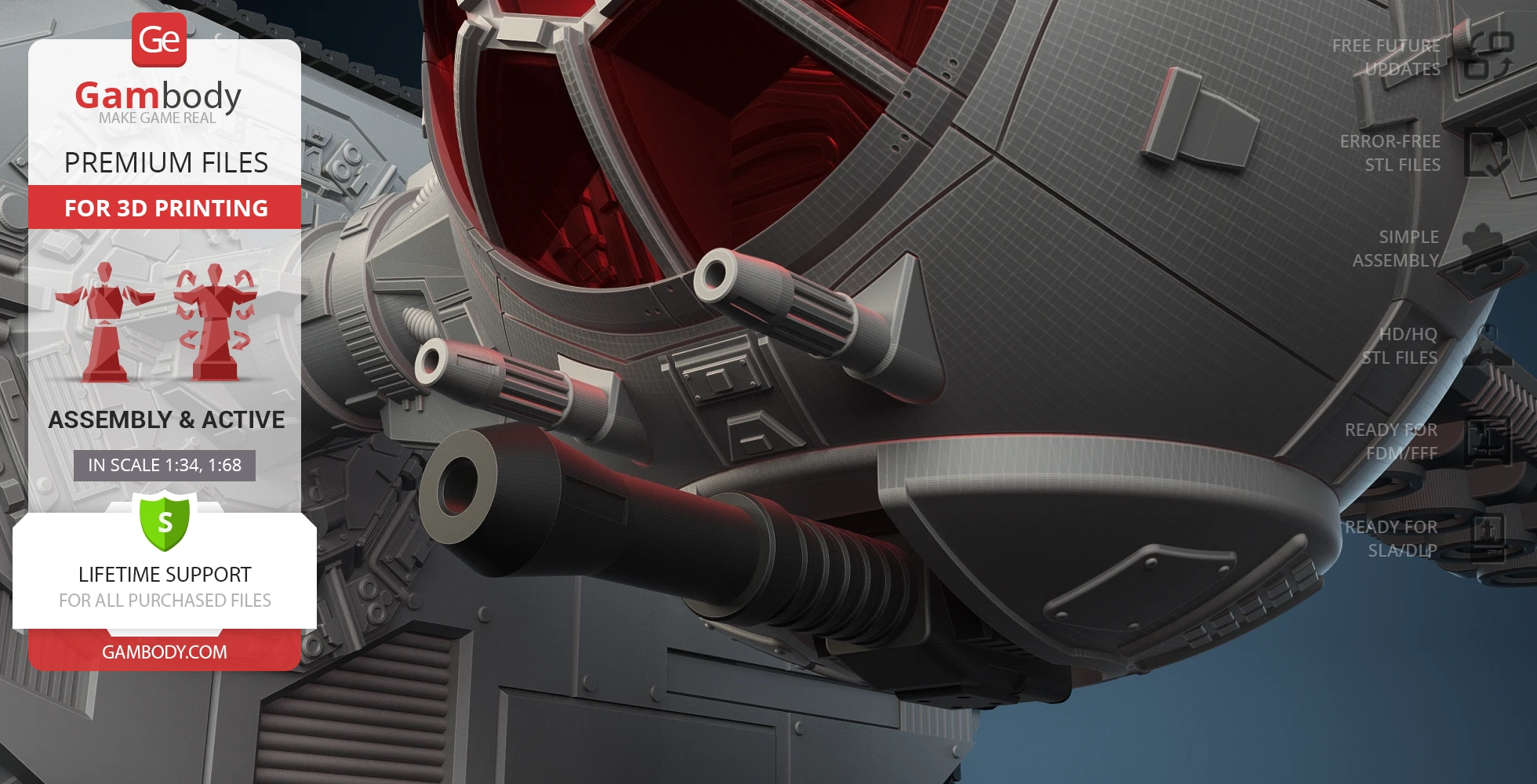

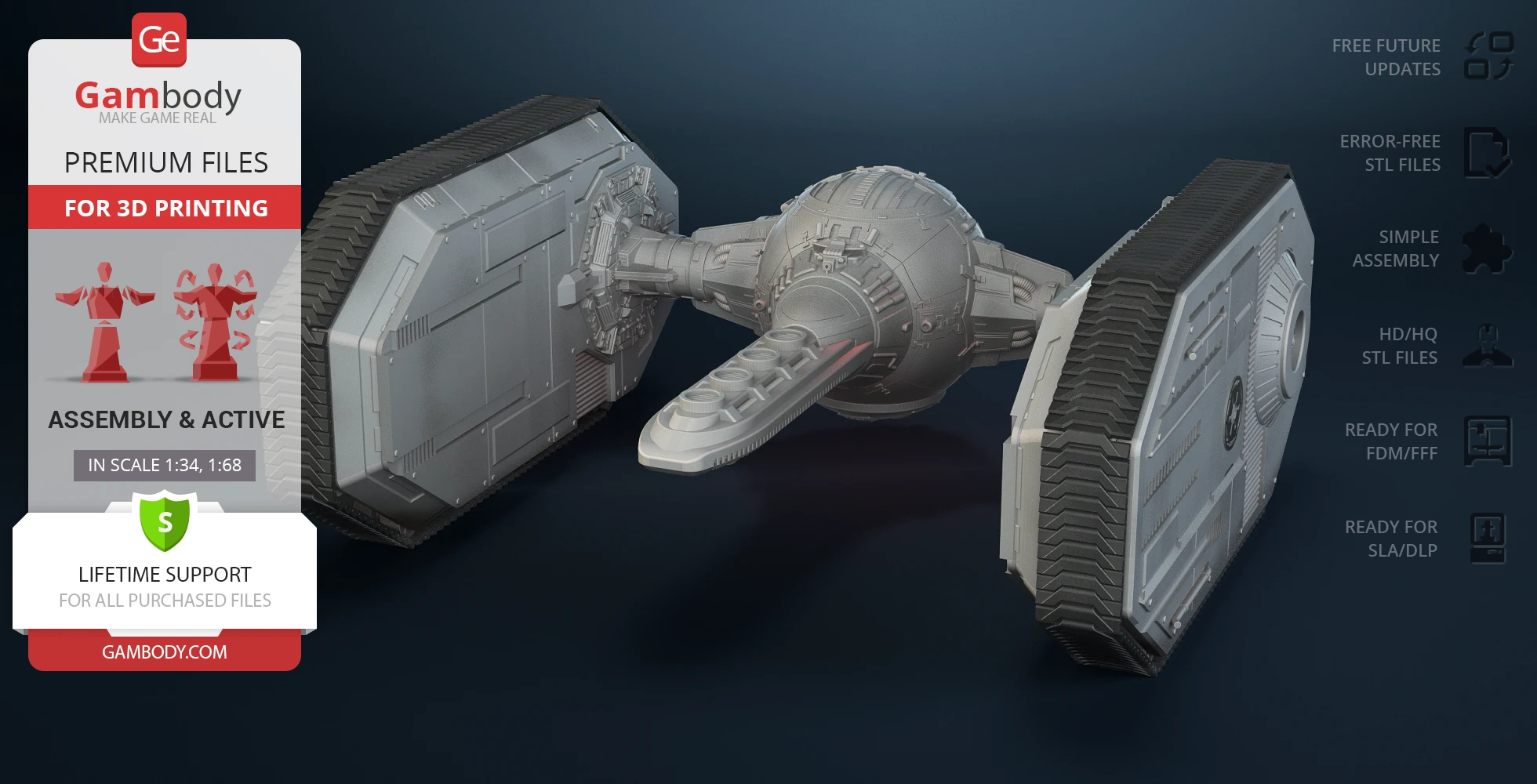

T.I.E. Crawler 3D model is a vehicle type like any other. It is the fusion of two different vehicles: a spaceship and a tank. It takes the cockpit from the spaceship and the tank treads. The vehicle is driven by a single pilot and can develop a speed of up to 90 km/h. The century tank is equipped with medium blaster cannons and a turbolaser, positioned under the cockpit.

The T.I.E. Crawler 3D model is inspired by the vehicle that has known some action during the Galactic Civil War. The 3D model created for 3D printing captures the assault vehicle’s design lines.

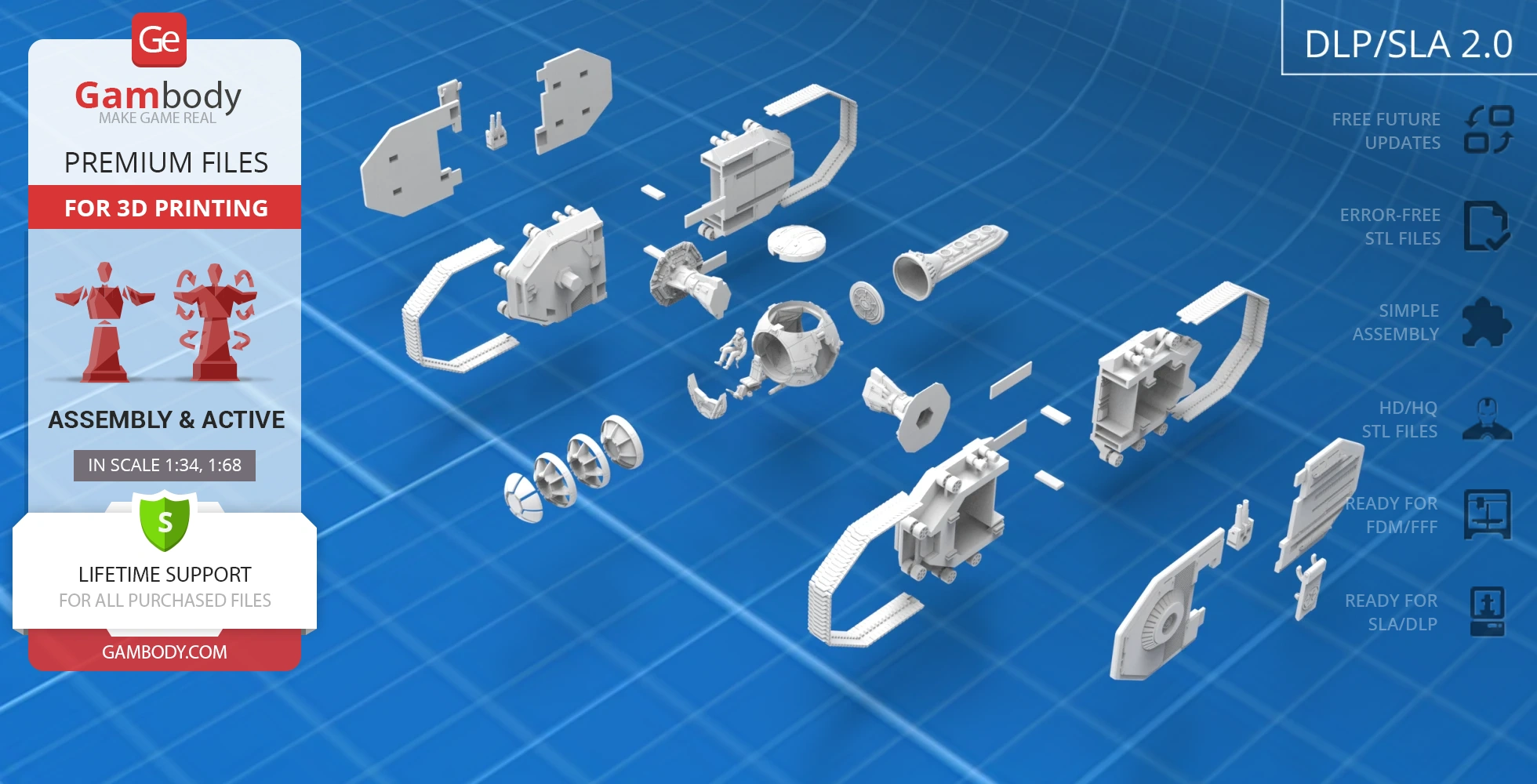

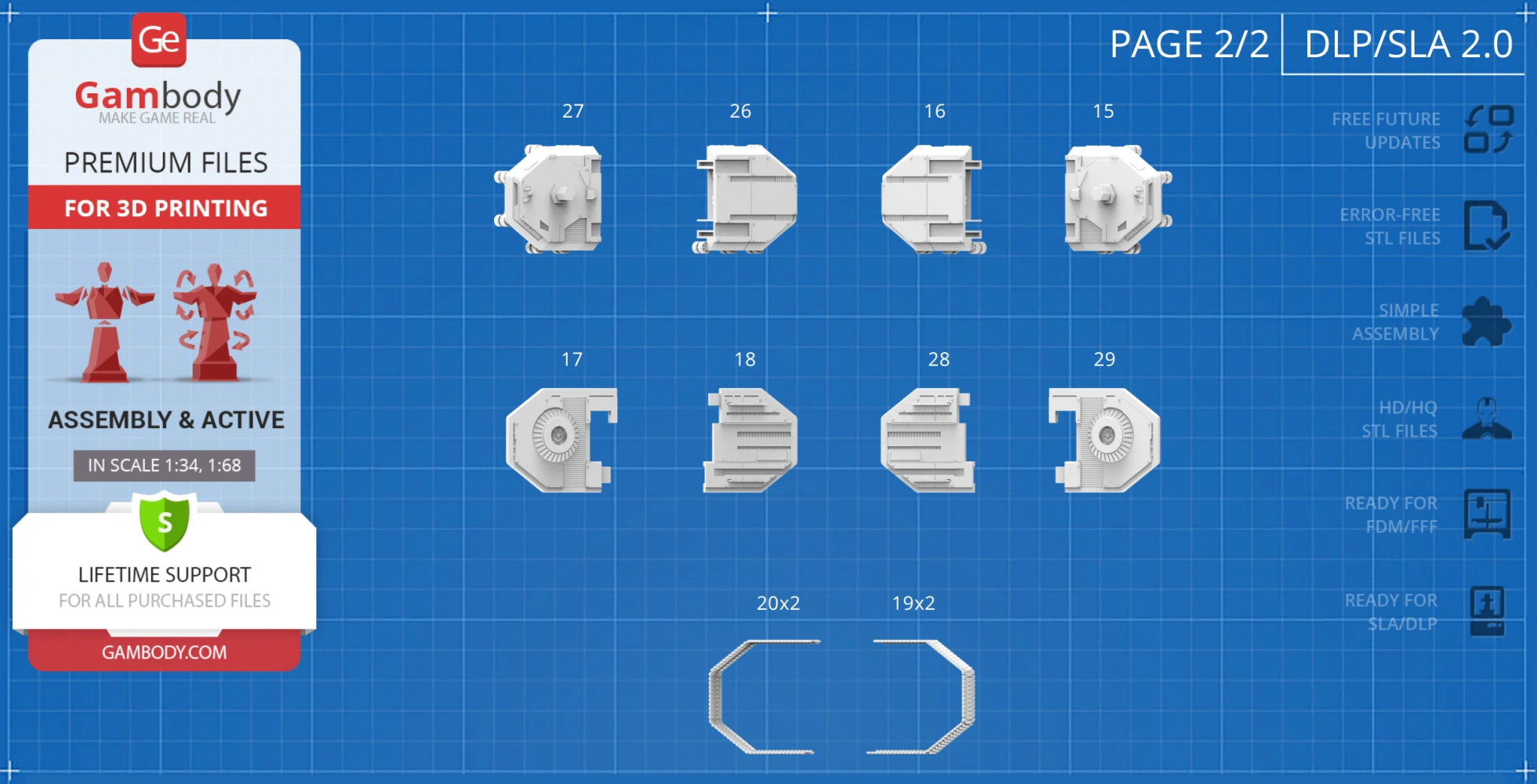

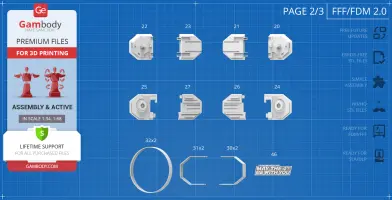

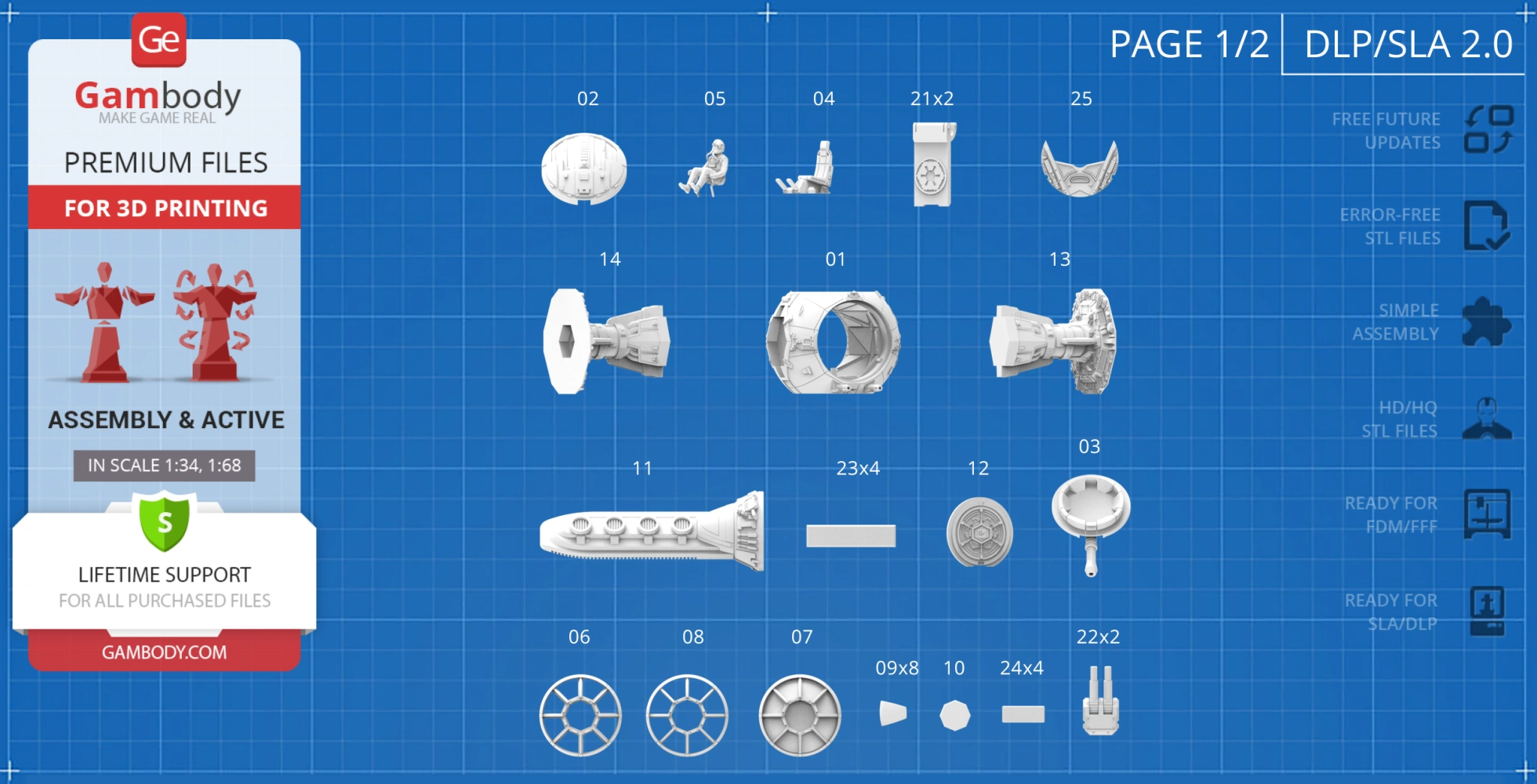

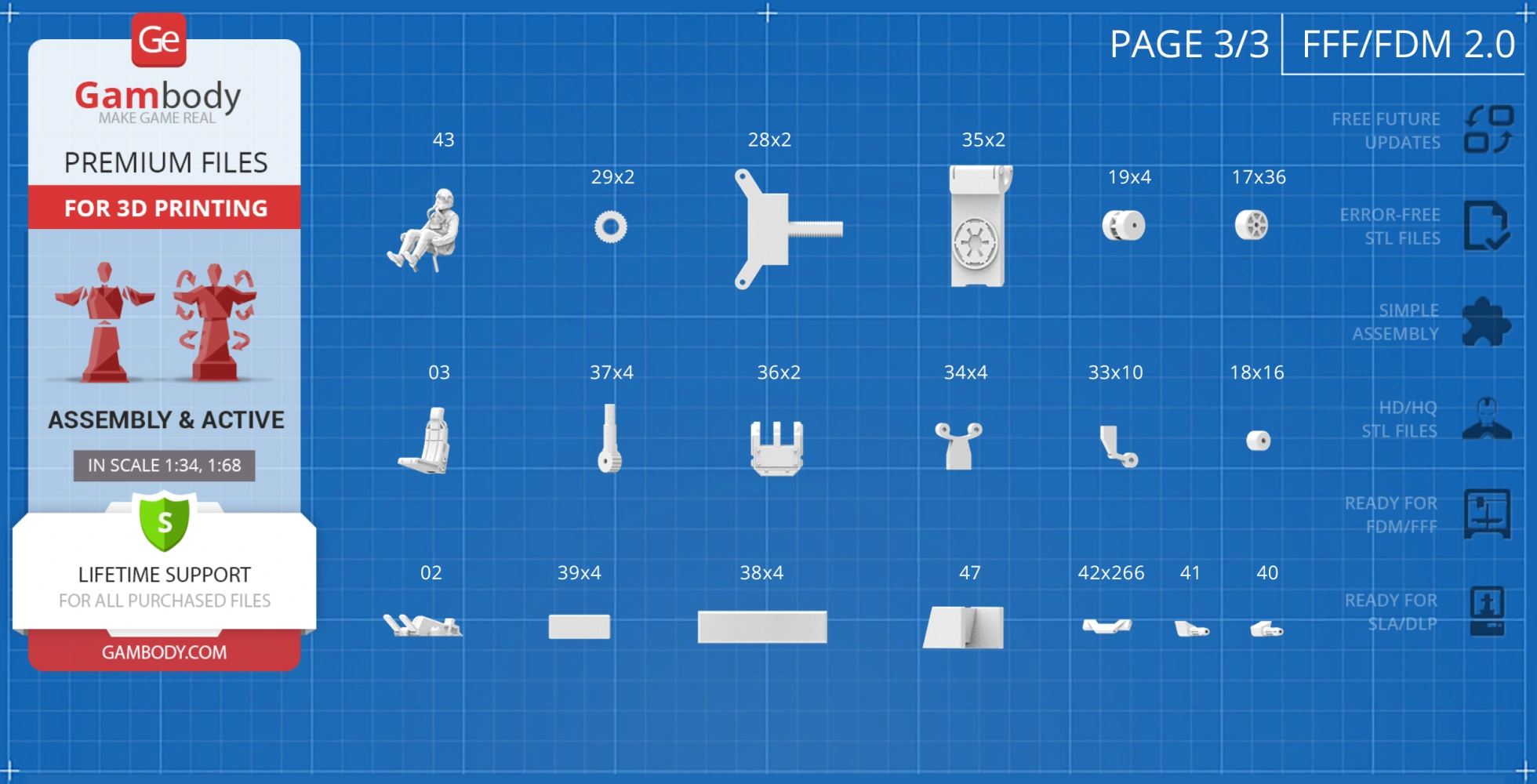

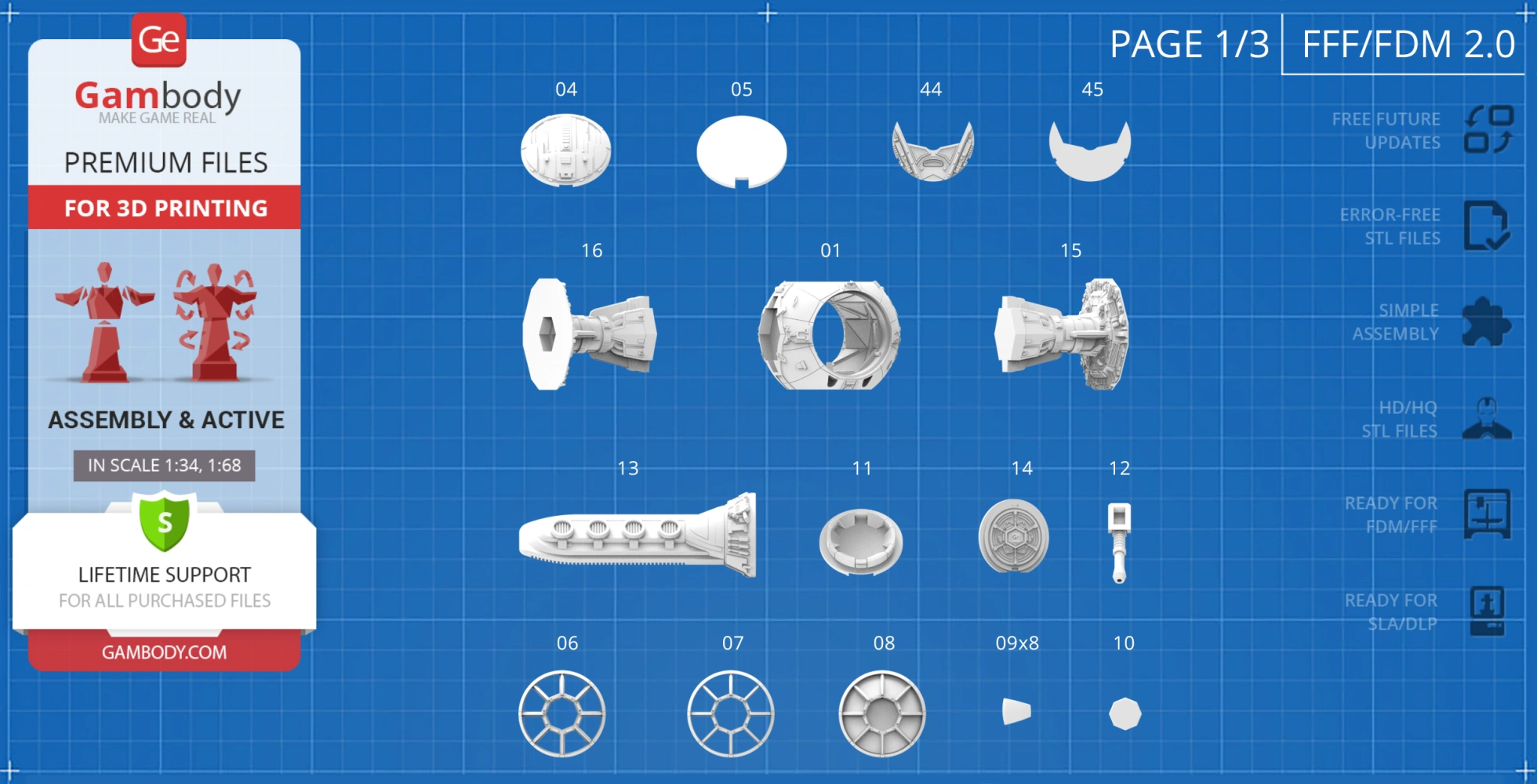

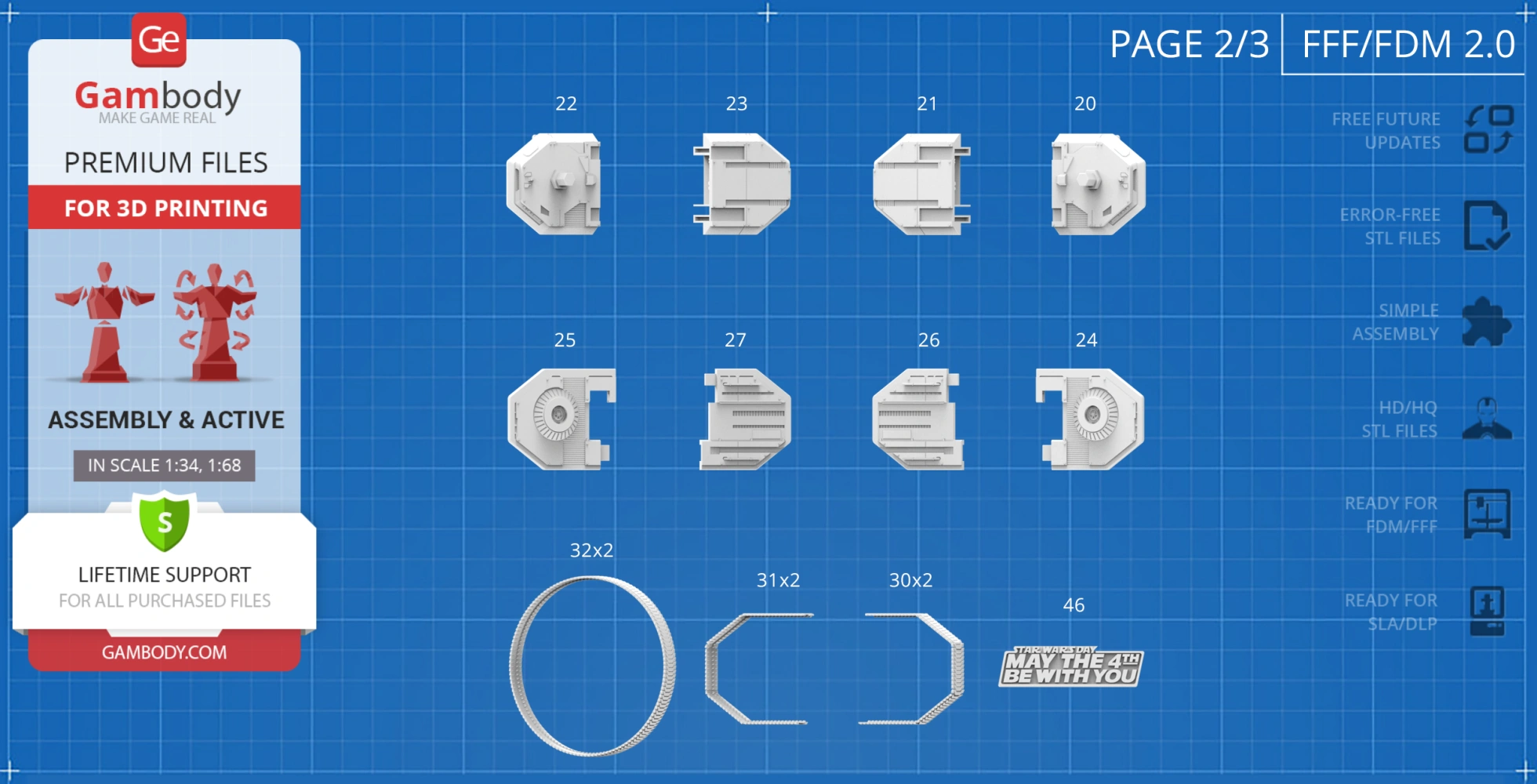

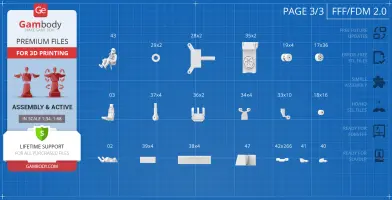

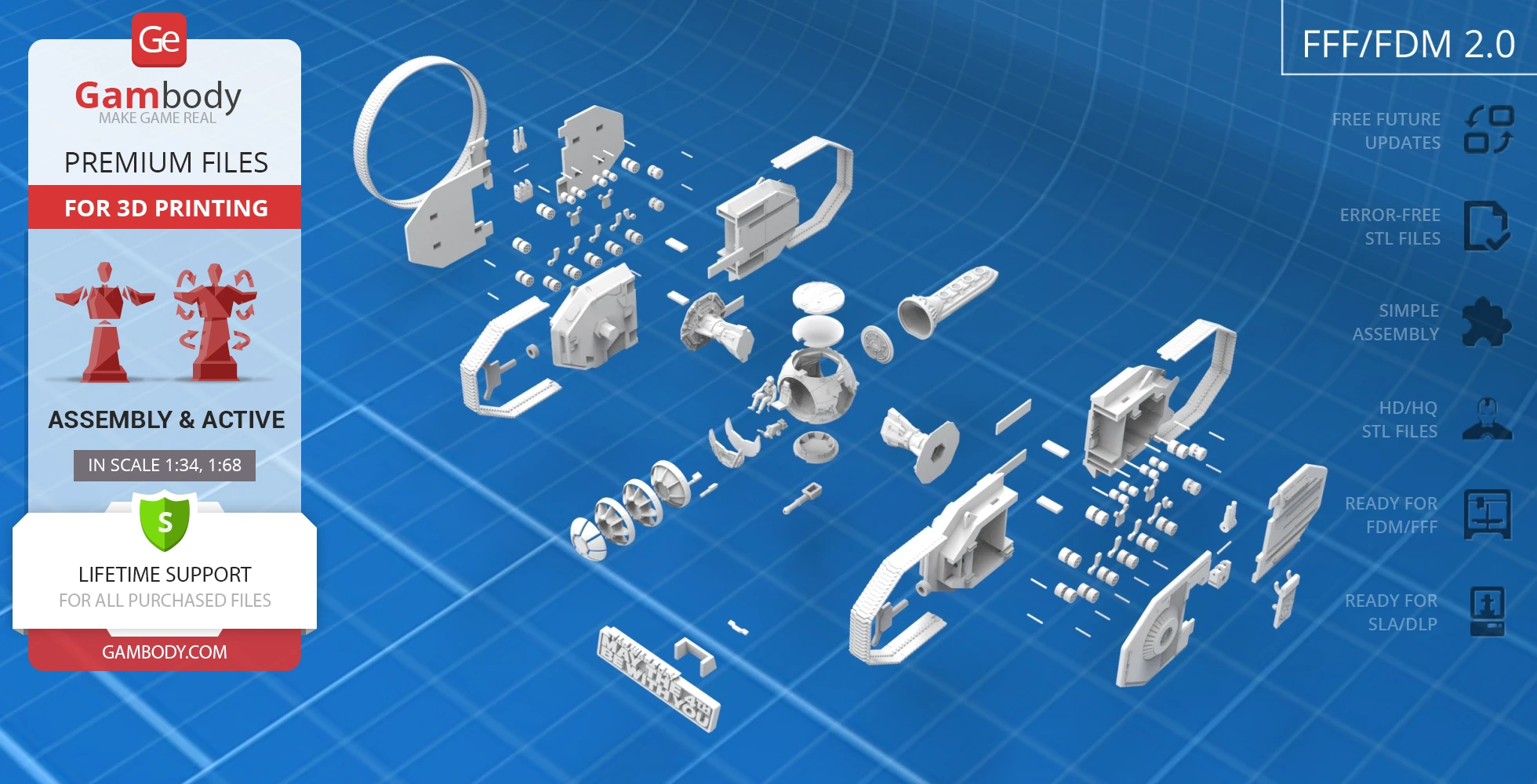

The 3D printing model is created in Autodesk Maya and ZBrush and features intricate details and smooth outer shell. The 3D model is split into 13 separate parts, all converted to STL files. All STL files are checked and corrected in Netfabb. The 3D model is made solid and you can easily handle it in any slicing program. This 3D model was tested in CURA 2.3.1. slicer.

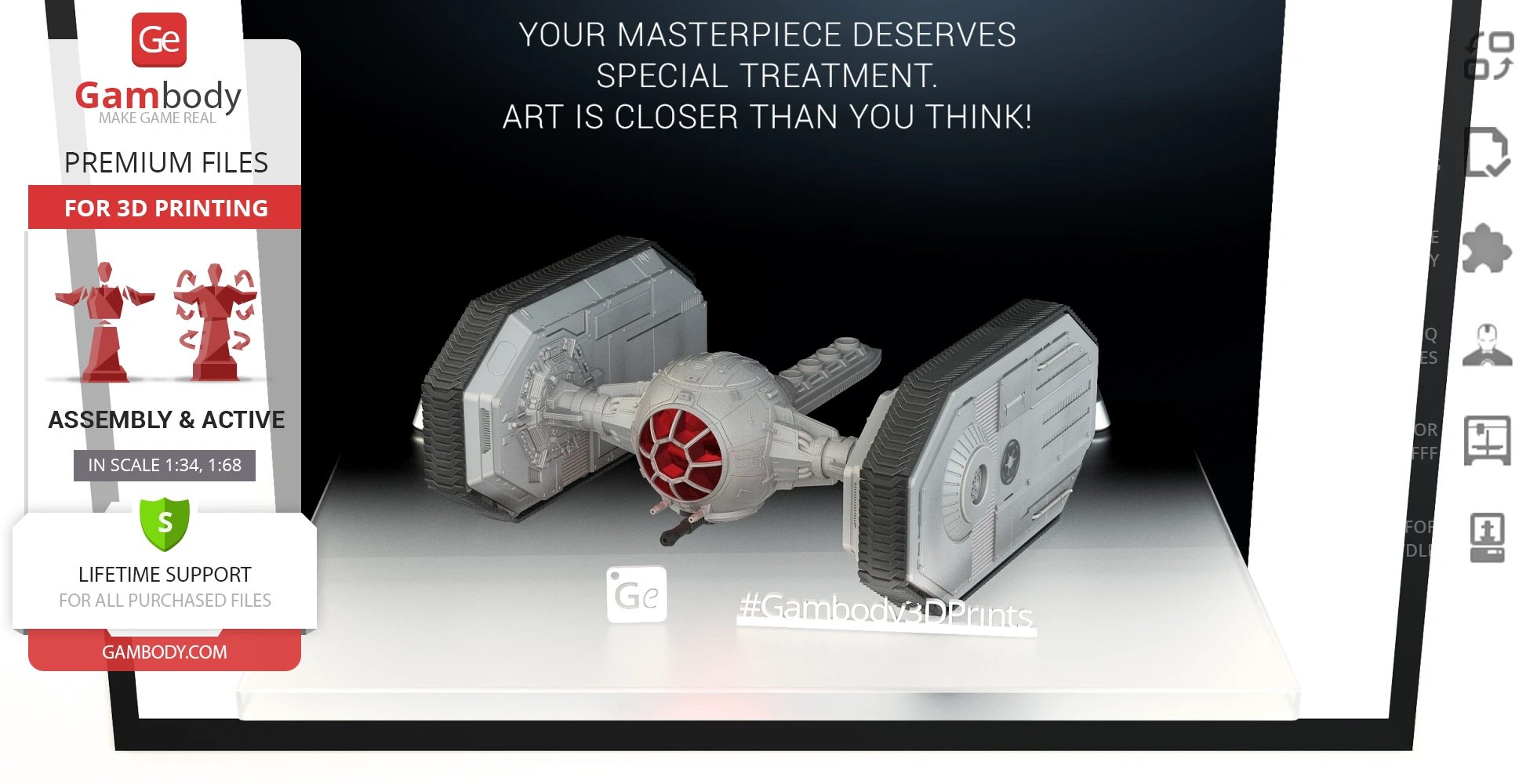

After being 3D printed, the T.I.E. Crawler 3D model will stand 291 mm wide, 126 mm tall and 267 mm deep. There’s a detailed assembly video instruction. See the video icon in the far right of the 3D model’s picture carousel.

Buy T.I.E. Crawler 3D model STL files by clicking the green Buy button in the top-right corner of the 3D model’s page. Continue to checkout. Enter your credit card or PayPal details and download the STL files in a .zip folder.

Before proceeding to 3D printing the 3D model we highly recommend reading the Printing Details tab information.

If you don’t own a 3D printer, you can 3D print the files with our partners, 3DHubs or Treatstock directly from our website.

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

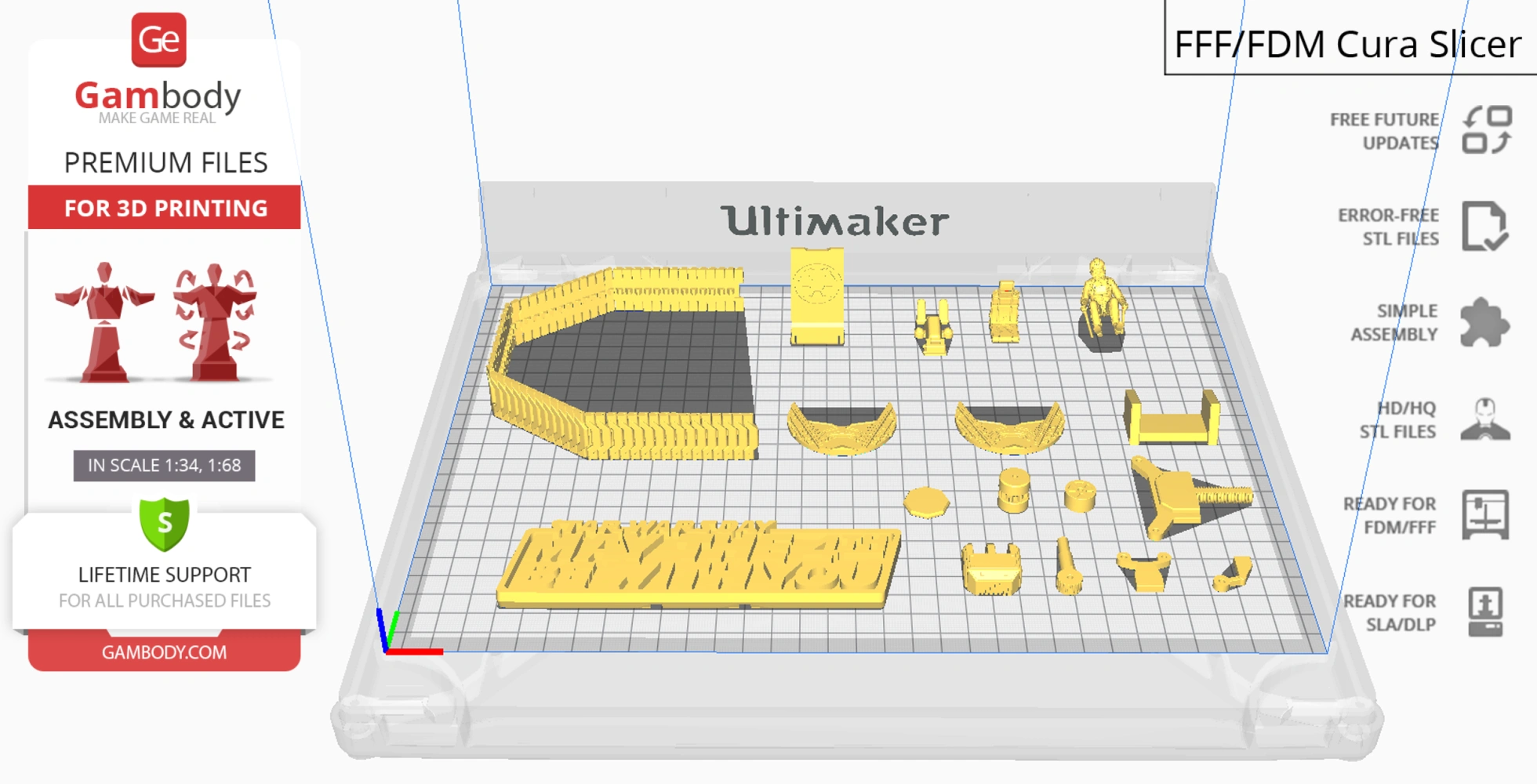

Cura printing recommendations:

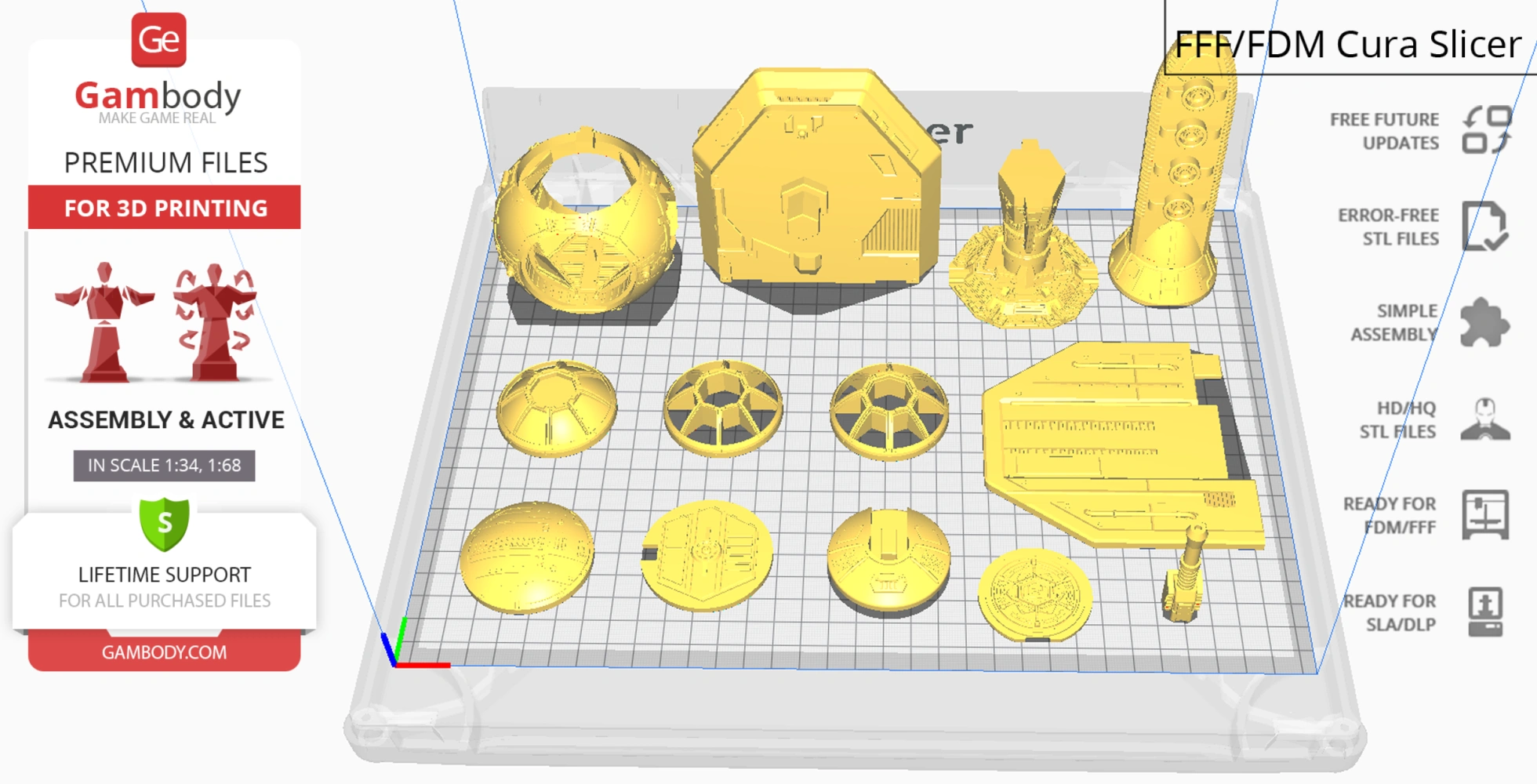

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
