Vault Boy: Spy and Carry Weight 3D Print Files | Static Figures

(3)
cm: 5.413 w x 6.8 d x 10.146 h
in: 2.131 w x 2.677 d x 3.994 h

Source Files

|

Description

|

Printing Details

These 3D models consist of files in StereoLithography (.Stl) format that have been optimized for 3d printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

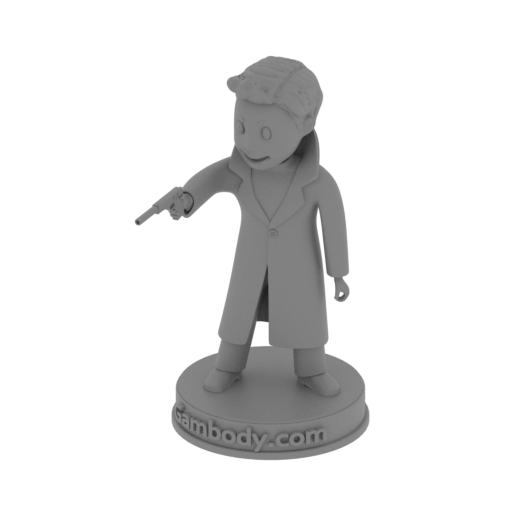

perkboy_spy.STL
13.00 MiB 7 h 48 min 4 m 51 x 72 x 101 Download

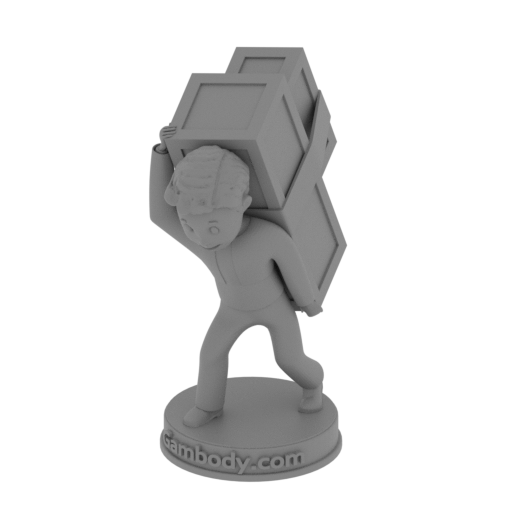

perkboy_weight.STL
8.57 MiB 17 h 16 min 11 m 53 x 84 x 110 Download

Another pair of Vault Boy Perks, from the famous and popular video game, are made ready for 3D printing. If you’re one of this funny guy’s fan, you will definitely appreciate these Vault Boy 3D models and will want to add them to your collection.

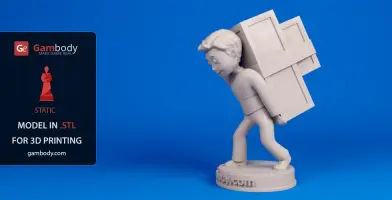

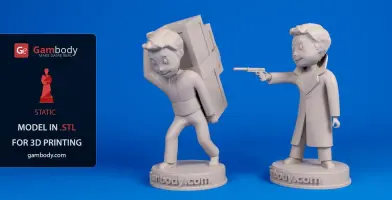

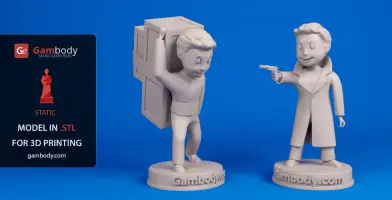

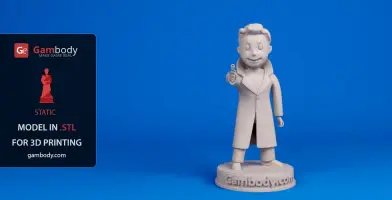

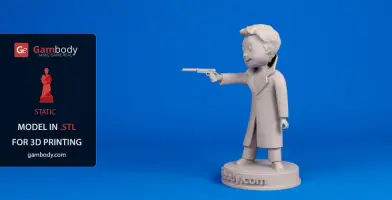

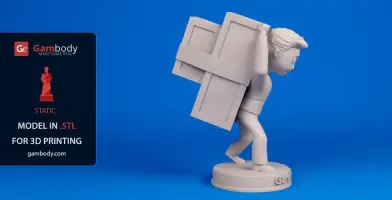

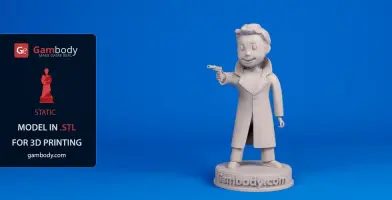

The 3D models represent the Vault Boy in his Spy and Carry Weight perks. The Spy perk holds a and points a gun, while the Carry Weight perk features the Vault Boy carrying a heavy box.

The Vault Boy 3D models are static. Both 3D models are provided with a support base, which facilitates their display on the desk or shelf.

The Vault Boy 3D models are created in Autodesk Maya 3D modeling program. The files are saved in STL format. There’s one file for each 3D model. Both files are checked and corrected in Netfabb to ensure error-free printing experience.

After 3D printing, Vault Boy Spy 3D model will stand 101mm tall, 54mm wide and 68mm deep, and Vault Boy Carry Weight 3D model will stand 110mm tall, 67mm deep, and 71mm wide.

Purchase Vault Boy Spy and Carry Weight 3D print files by clicking the green Buy button. Provide your PayPal or credit card details. Download accurate STL files and print them on any type of 3D printer.

Generic

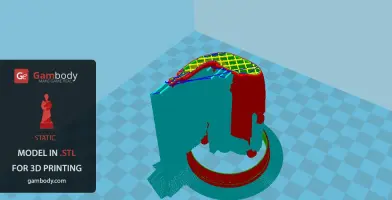

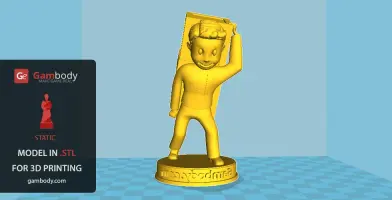

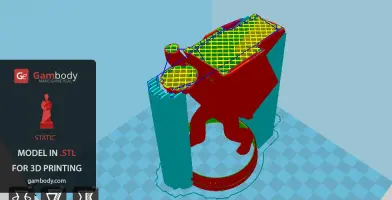

These models were tested in Cura 15.06. To avoid printing problems, we recommend the following settings:

Quality:

  • Layer height: 0.1mm*
  • Initial layer thickness: 0.3mm
  • Bottom/top pattern: lines
  • Horizontal expansion: 0.04mm (when entering 0.04mm index, the 3D printer
  • *Layer Height 0.1mm is recommended for a better quality for the printed model. However, the printing time will double.

Check this Simplify3D User Guidelines to avoid any 3D printing problems with this software.

The models have been tested and printed out in PLA.

Speed setups:

  • Infill speed: 50mm/s
  • Outer shell speed: 30mm/s
  • Inner shell speed: 20mm/s
  • Top/Bottom Speed: 20mm/s
  • Support speed: 50mm/s
  • Travel speed: 150mm/s
  • Skirt speed: 30mm/s
  • Amount of slower layers: 4

Infill:

  • Infill pattern: Grid
  • Line distance: 3mm
  • Infill overlap: 20%
  • Infill layers: 0

Support:

  • Enable support: check
  • Placement: Everywhere
  • Overhang angle: 30°
  • X/Y distance: 0.7mm
  • Top distance: 0.2mm
  • Bottom distance: 0.2mm
  • Stair step height: 0.5mm
  • Join distance: 0.7mm
  • Area smoothing: 0.6mm
  • Use towers: check
  • Pattern: Grid
  • Line distance: 1.5mm

Platform Adhesion:

  • Type: Brim
  • Brim line count: 10 (up to 20, depending on the model’s height)

Other 3D printing recommendations

Outer Shell Speed - 20mm/s and Support Speed - 40mm/s settings apply to avoid model deformation. Use other settings by default.

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
