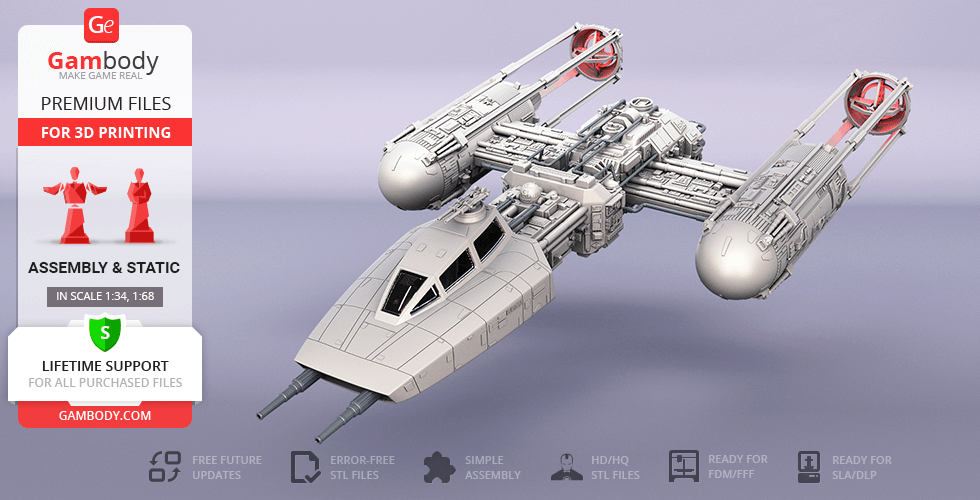

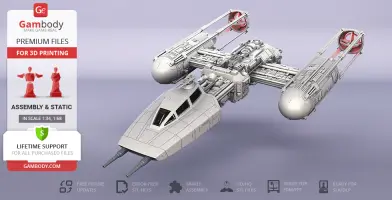

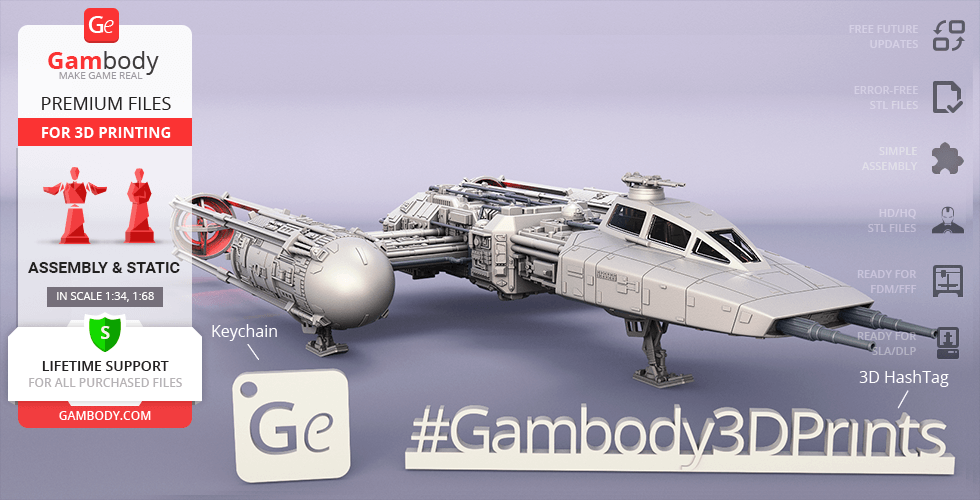

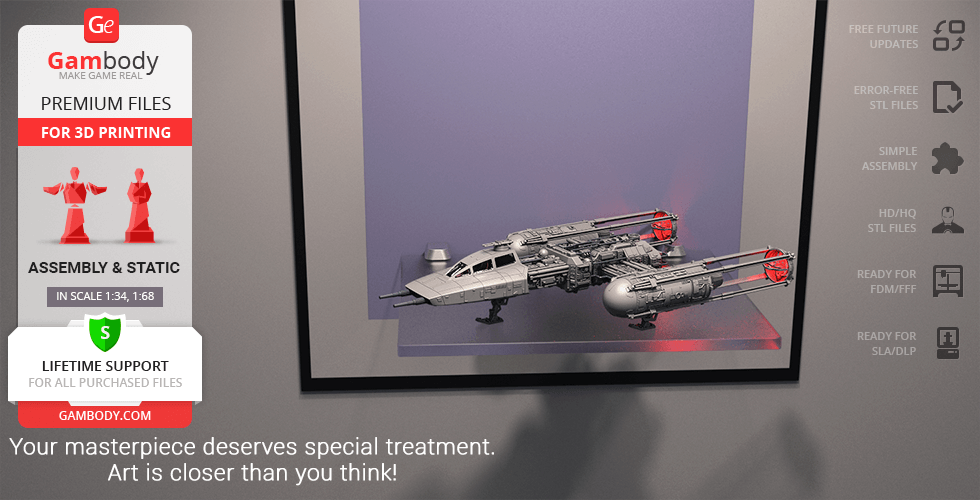

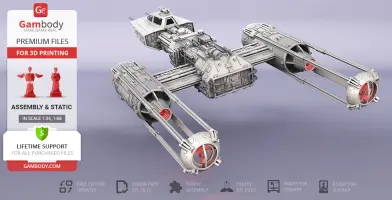

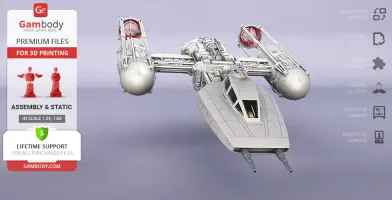

Y-wing Starfighter 3D Printing Model | Assembly

(24)
cm: 39.7 w x 71.9 d x 19.1 h
in: 15.63 w x 28.307 d x 7.52 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

Y-wing Starfighter 3D Printing Model comes in 4 versions for each 3D printer type (FFF/FDM and DLP/SLA/SLS). Files for each version are available for download after the purchase.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

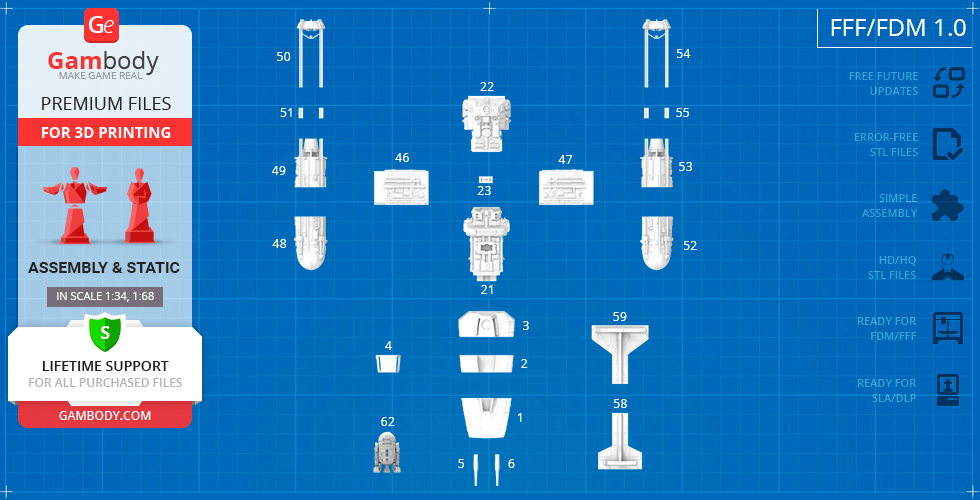

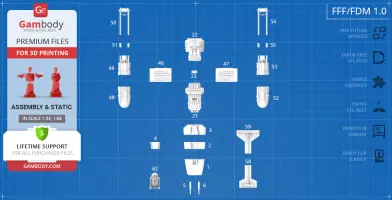

File Name File Size Time / Filament Object Size
(x/y/z mm)
1_nose_1_FDM (repaired).s tl
23.33 MiB 20 h 1 min 12 m 119 x 58 x 95 Download
2_nose_2_FDM (repaired).s tl
5.96 MiB 12 h 26 min 7 m 128 x 47 x 41 Download
3_nose_3_FDM (repaired).s tl
18.03 MiB 26 h 57 min 17 m 133 x 86 x 61 Download

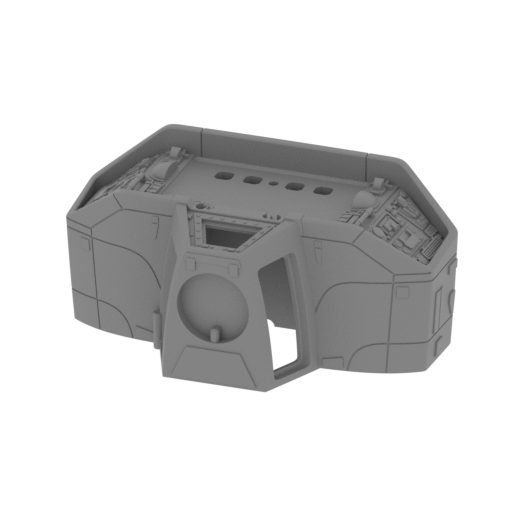

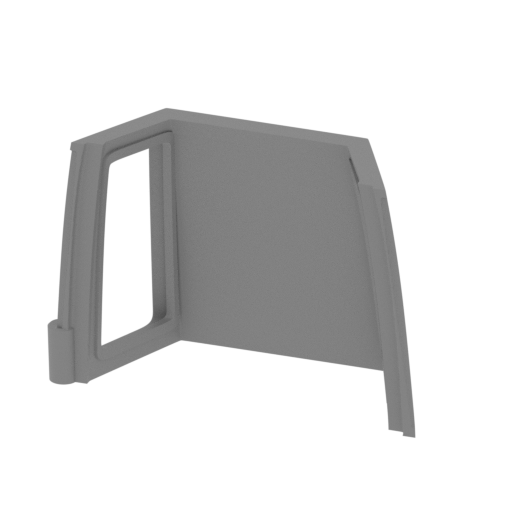

4_cabine_FDM (repaired).s tl
4.83 MiB 1 h 57 min 1 m 59 x 27 x 41 Download

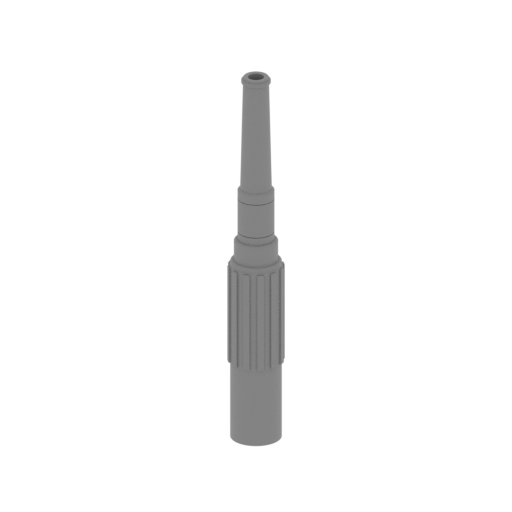

5_gun_front_R_FDM (repair ed).stl
0.48 MiB 58 min <1 m 11 x 11 x 74 Download
6_gun_front_L_FDM (repair ed).stl
0.48 MiB 58 min <1 m 11 x 11 x 74 Download

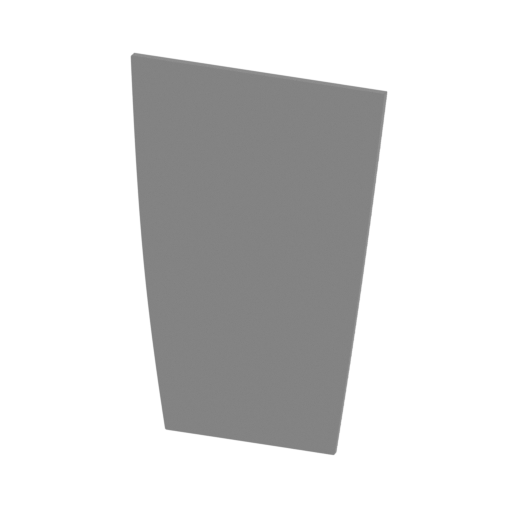

7_window_front_FDM (repai red).stl
2.19 MiB 31 min <1 m 25 x 2 x 36 Download
8_window_1_R_FDM (repaire d).stl
1.48 MiB 8 min <1 m 11 x 28 x 10 Download
9_window_2_R_FDM (repaire d).stl
2.10 MiB 18 min <1 m 11 x 37 x 16 Download

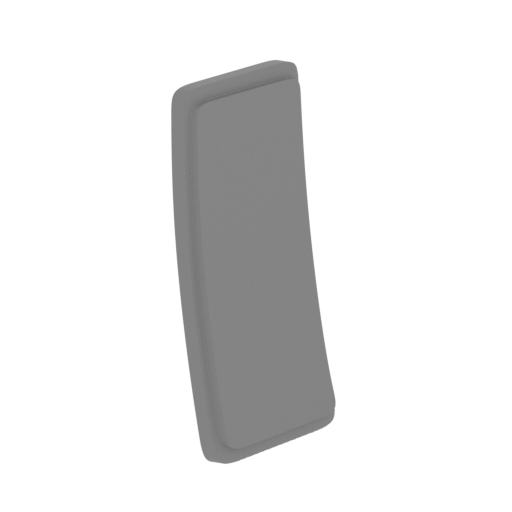

10_window_3_R_FDM (repair ed).stl
2.40 MiB 23 min <1 m 14 x 42 x 16 Download

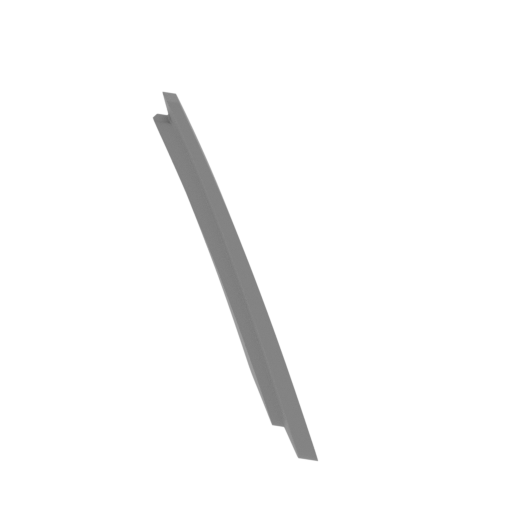

11_window_1_L_FDM (repair ed).stl
1.48 MiB 8 min <1 m 11 x 28 x 10 Download
12_window_2_L_FDM (repair ed).stl
2.10 MiB 18 min <1 m 11 x 37 x 16 Download

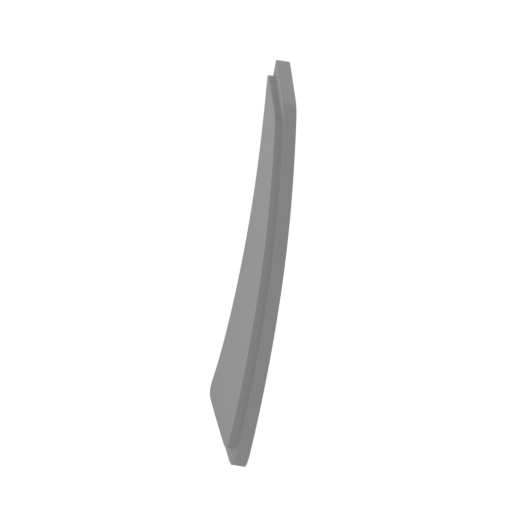

13_window_3_L_FDM (repair ed).stl
2.38 MiB 23 min <1 m 14 x 42 x 16 Download

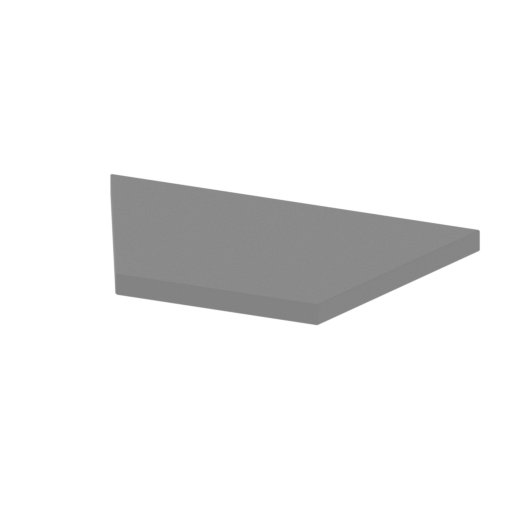

14_window_back_FDM (repai red).stl
0.01 MiB 11 min <1 m 22 x 1 x 13 Download
15_gun_top_base_FDM (repa ired).stl
2.04 MiB 36 min <1 m 26 x 26 x 13 Download
16_gun_top_FDM (repaired) .stl
1.50 MiB 1 h 5 min <1 m 16 x 10 x 56 Download

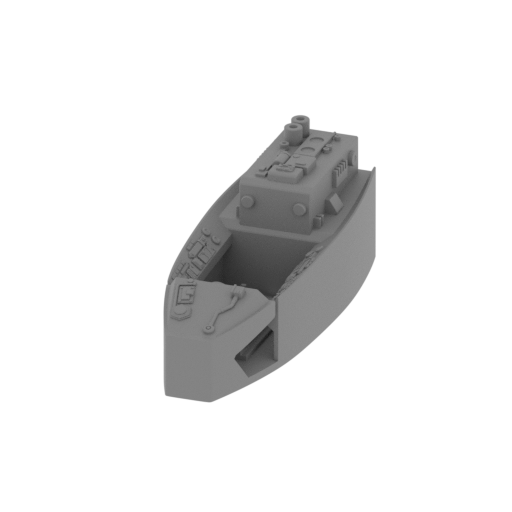

17_cockpit_base_FDM (repa ired).stl
4.11 MiB 9 h 21 min 5 m 43 x 119 x 45 Download
18_cockpit_pedals_FDM (re paired).stl
0.02 MiB 10 min <1 m 15 x 8 x 9 Download

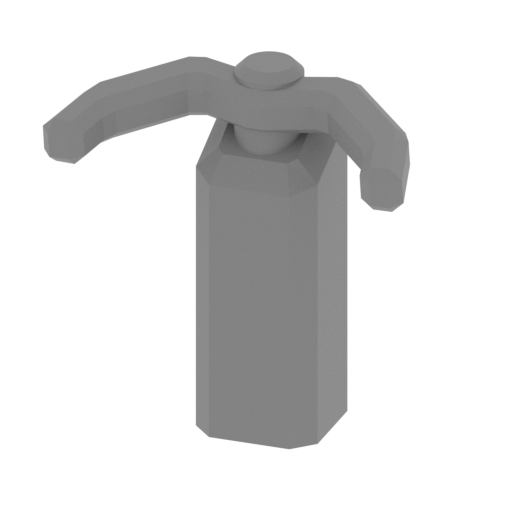

19_cockpit_wheel_FDM (rep aired).stl
0.05 MiB 16 min <1 m 15 x 9 x 16 Download
20_cockpit_seat_FDM (repa ired).stl
5.41 MiB 1 h 2 min 1 m 25 x 39 x 34 Download

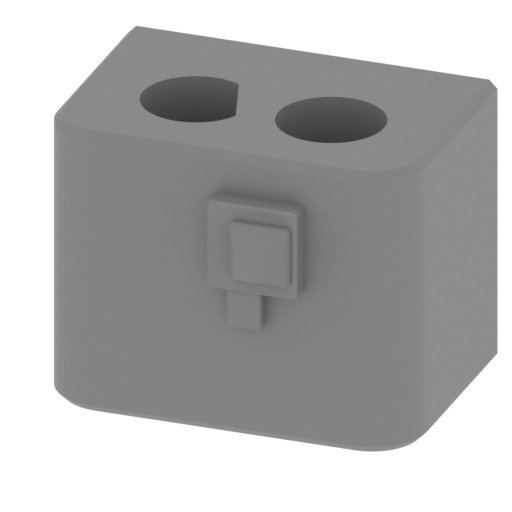

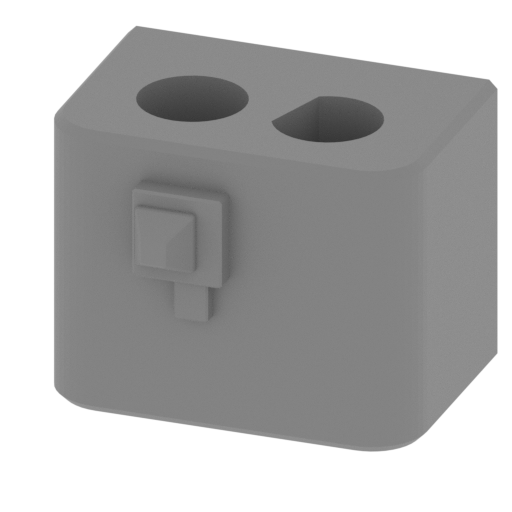

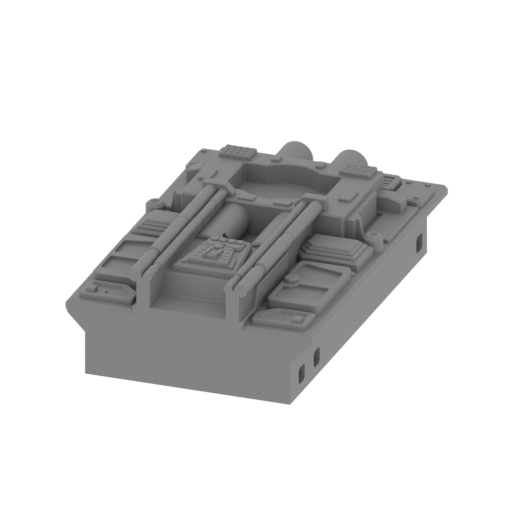

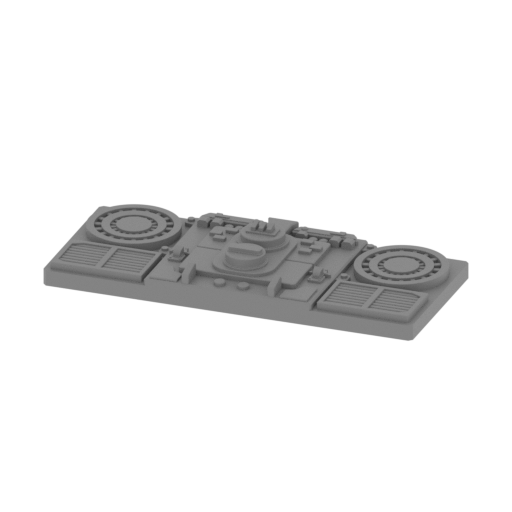

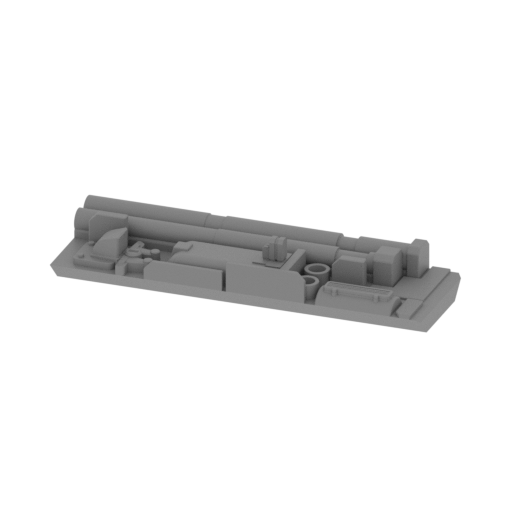

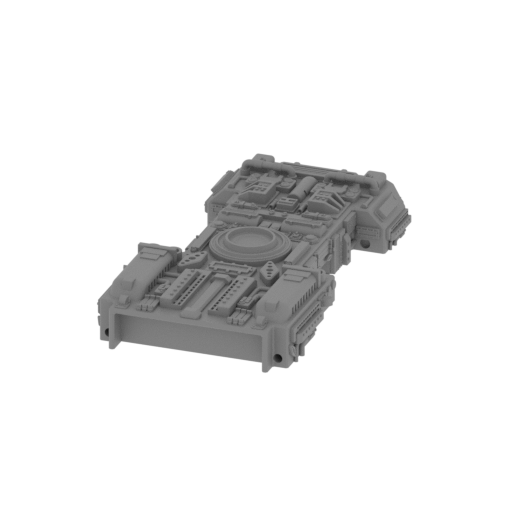

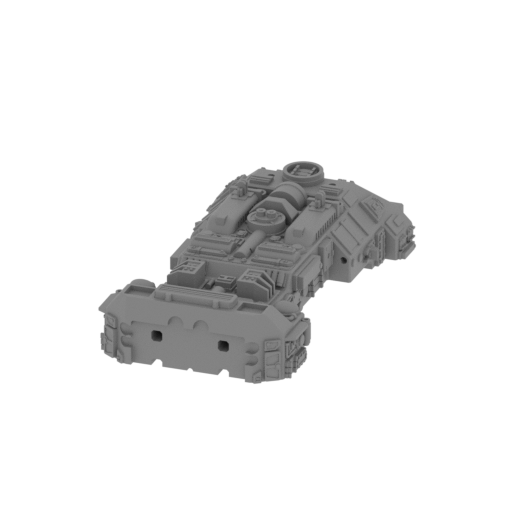

21_hull_1_FDM (repaired). stl
25.09 MiB 68 h 54 min 46 m 109 x 77 x 174 Download
22_hull_2_FDM (repaired). stl
21.07 MiB 73 h 16 min 52 m 115 x 80 x 133 Download
23_hull_connector_FDM (re paired).stl
0.02 MiB 1 h 15 min 1 m 32 x 16 x 24 Download
24_Ge_lock_10H_x62 (repai red).stl
0.03 MiB 4 min <1 m 10 x 18 x 2 Download

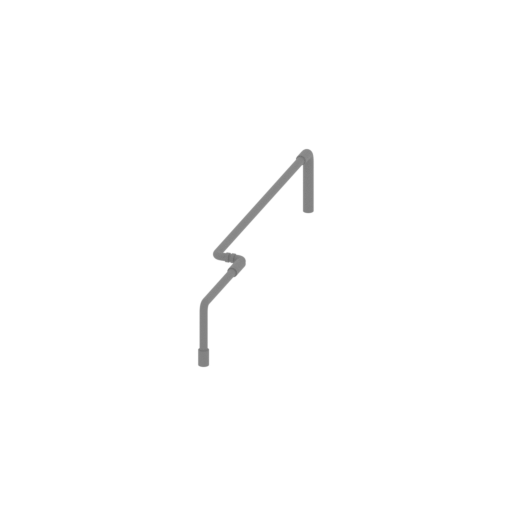

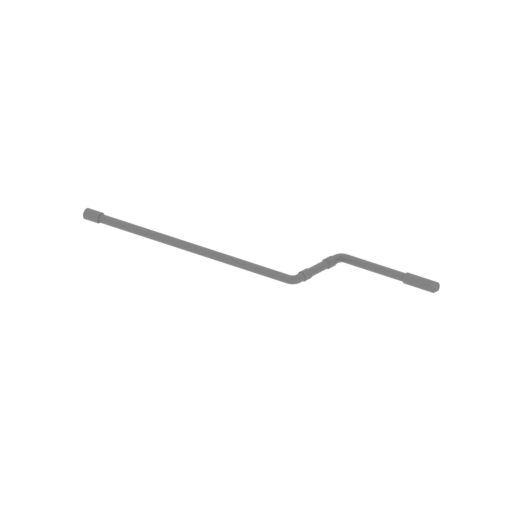

25_pipe_1_R_FDM (repaired ).stl
0.36 MiB 15 min <1 m 7 x 52 x 5 Download

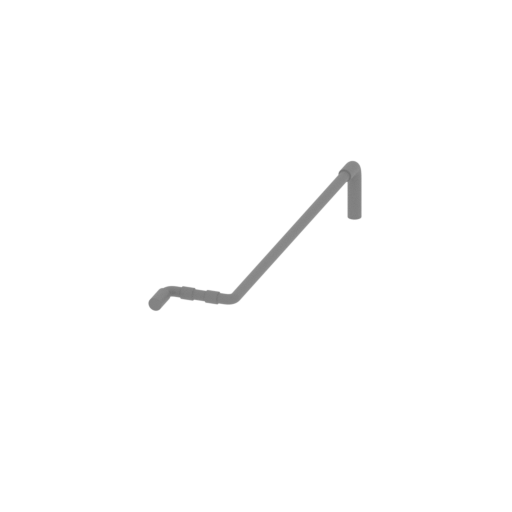

26_pipe_2_R_FDM (repaired ).stl
0.30 MiB 16 min <1 m 21 x 96 x 10 Download
27_pipe_3_R_FDM (repaired ).stl
0.37 MiB 24 min <1 m 13 x 127 x 21 Download

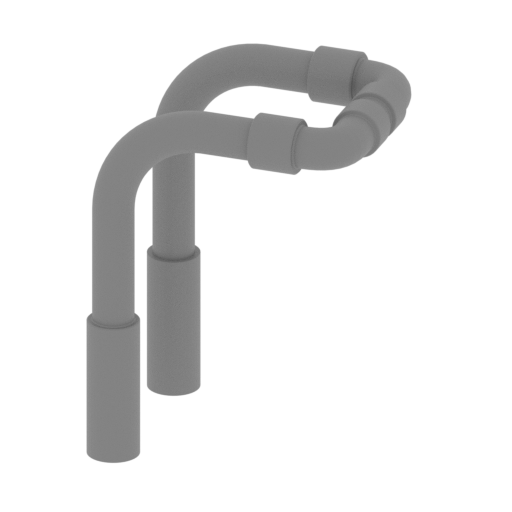

28_pipe_4_R_FDM (repaired ).stl
0.23 MiB 17 min <1 m 110 x 25 x 4 Download

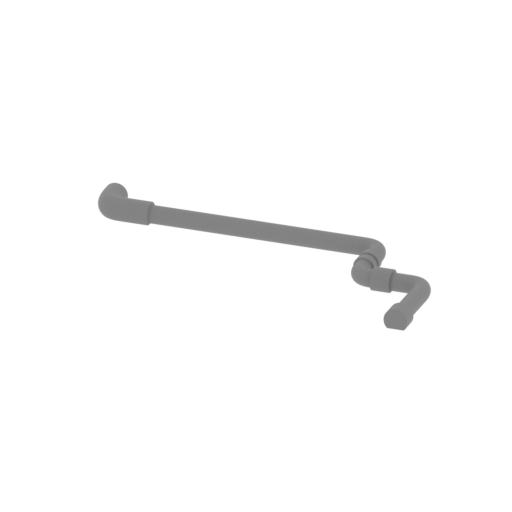

29_pipe_5_R_FDM (repaired ).stl
0.37 MiB 24 min <1 m 81 x 39 x 5 Download
30_pipe_6_R_FDM (repaired ).stl
0.42 MiB 45 min <1 m 25 x 20 x 30 Download

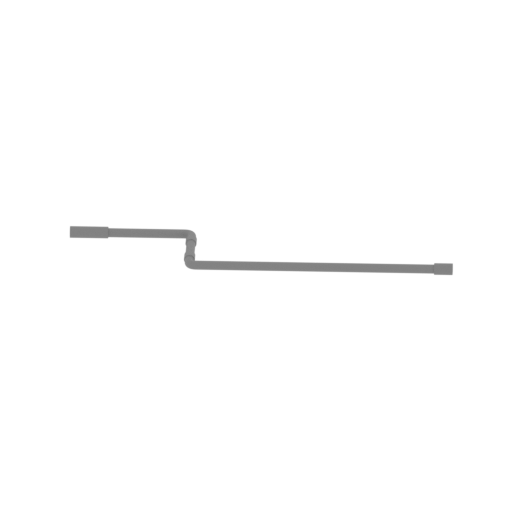

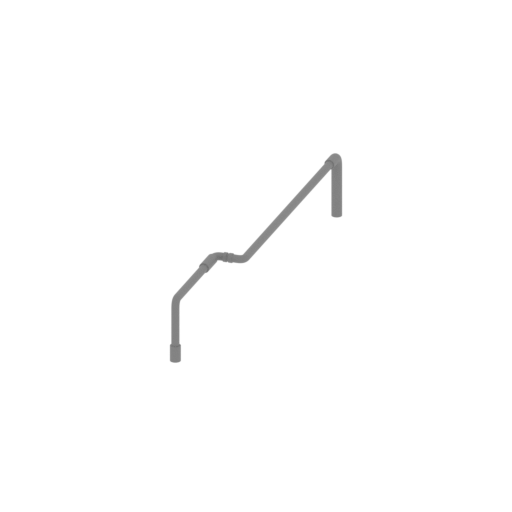

31_pipe_1_L_FDM (repaired ).stl
0.36 MiB 15 min <1 m 7 x 52 x 5 Download

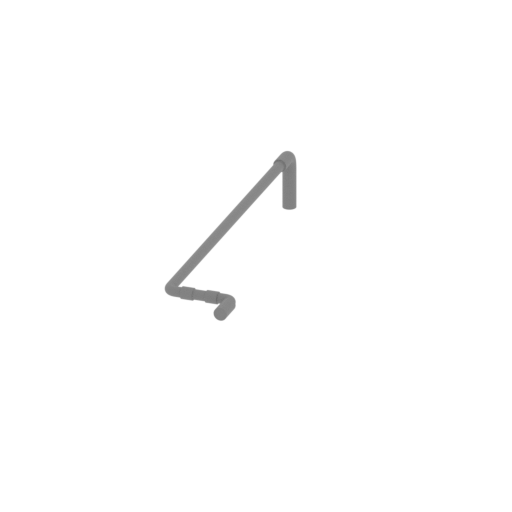

32_pipe_2_L_FDM (repaired ).stl
0.30 MiB 16 min <1 m 21 x 96 x 10 Download
33_pipe_3_L_FDM (repaired ).stl
0.37 MiB 23 min <1 m 13 x 127 x 21 Download

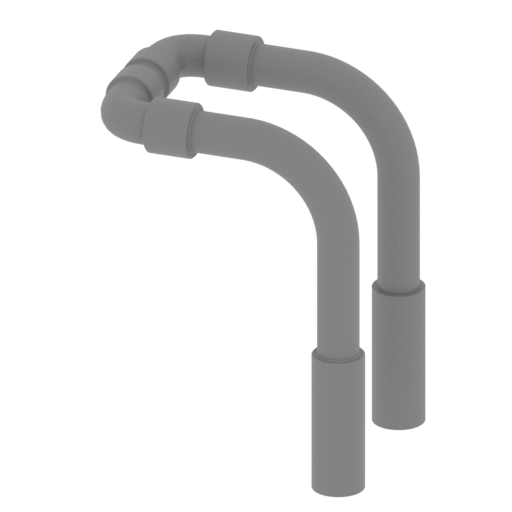

34_pipe_4_L_FDM (repaired ).stl
0.23 MiB 17 min <1 m 110 x 25 x 4 Download
35_pipe_5_L_FDM (repaired ).stl
0.37 MiB 24 min <1 m 81 x 39 x 5 Download
36_pipe_6_L_FDM (repaired ).stl
0.42 MiB 46 min <1 m 25 x 20 x 30 Download

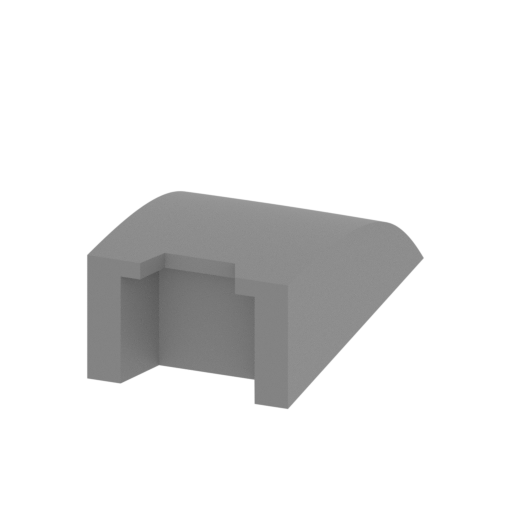

37_front_chassis_cap_FDM (repaired).stl
0.31 MiB 44 min <1 m 20 x 36 x 13 Download

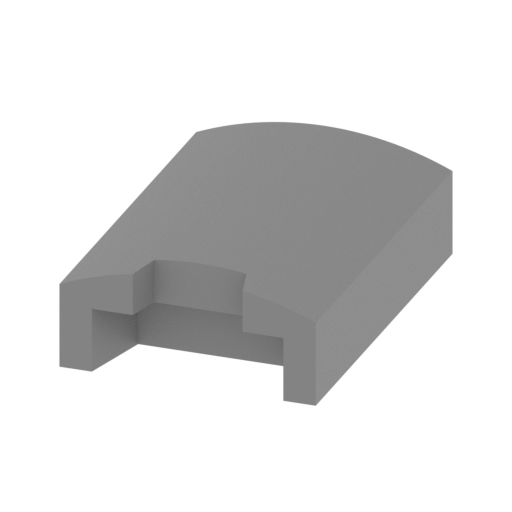

38_chassis_cap_R_FDM (rep aired).stl
0.03 MiB 1 h 1 min 1 m 26 x 38 x 11 Download

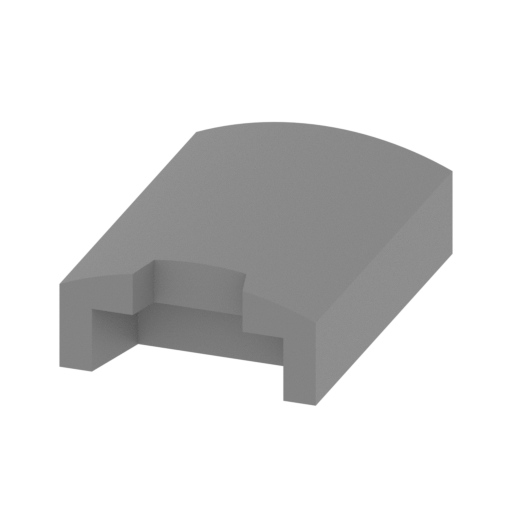

39_chassis_cap_L_FDM (rep aired).stl
0.03 MiB 1 h 1 min 1 m 26 x 38 x 11 Download
40_chassis_front_base_FDM (repaired).stl
0.11 MiB 1 h 8 min 1 m 20 x 37 x 25 Download
41_chassis_front_FDM (rep aired).stl
1.06 MiB 2 h 18 min 1 m 20 x 55 x 53 Download

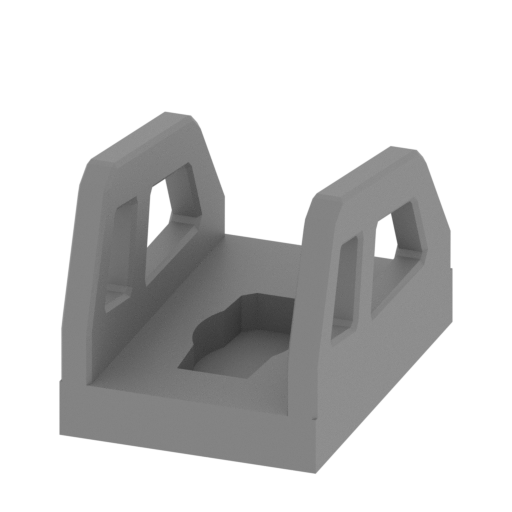

42_chassis_base_R_FDM (re paired).stl
0.06 MiB 1 h 19 min 1 m 26 x 38 x 26 Download
43_chassis_R_FDM (repaire d).stl
1.13 MiB 1 h 44 min 1 m 20 x 49 x 38 Download
44_chassis_base_L_FDM (re paired).stl
0.06 MiB 1 h 19 min 1 m 26 x 38 x 26 Download

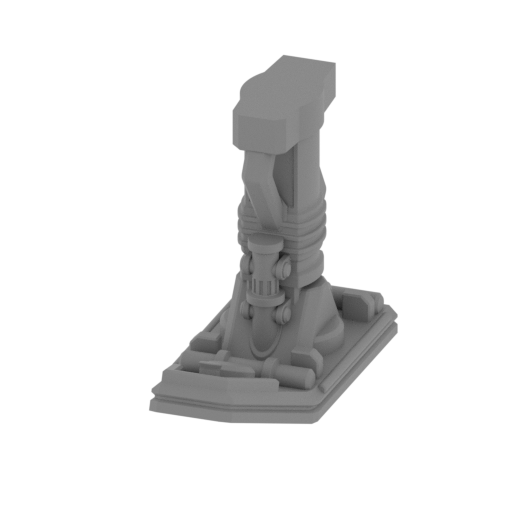

45_chassis_L_FDM (repaire d).stl
1.13 MiB 1 h 44 min 1 m 20 x 49 x 38 Download

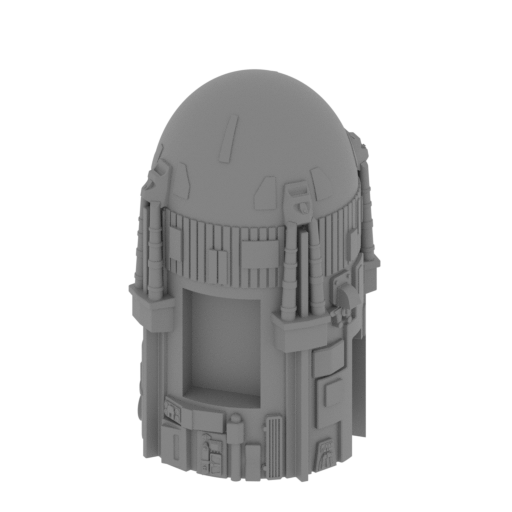

48_turbine_1_R_FDM (repai red).stl
15.67 MiB 36 h 8 min 21 m 78 x 75 x 126 Download

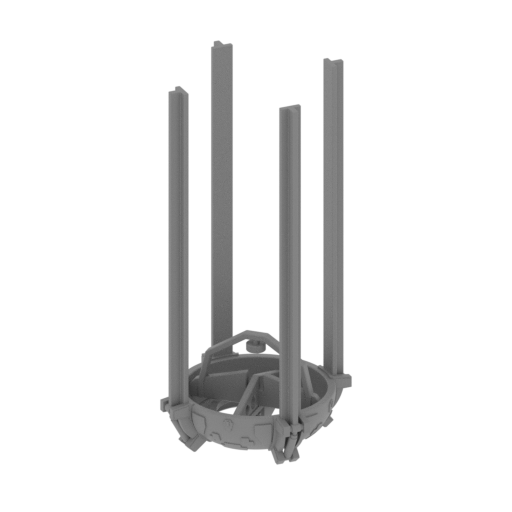

49_turbine_2_R_FDM (repai red).stl
5.07 MiB 28 h 47 min 16 m 77 x 76 x 114 Download
50_turbine_3_R_FDM (repai red).stl
13.22 MiB 11 h 24 min 6 m 67 x 67 x 160 Download

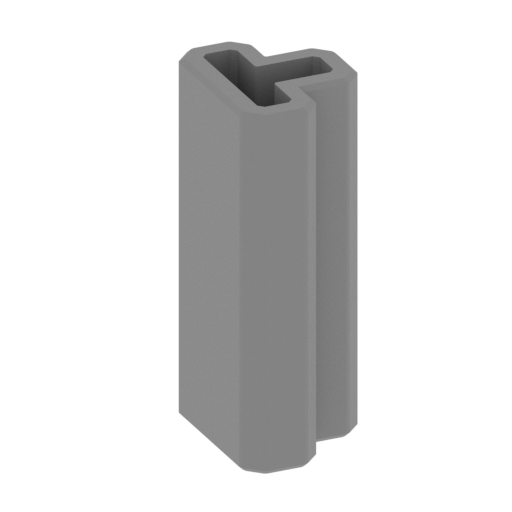

51_turbine_connector_R_FD M (repaired).stl
0.09 MiB 2 h 41 min 1 m 59 x 59 x 25 Download

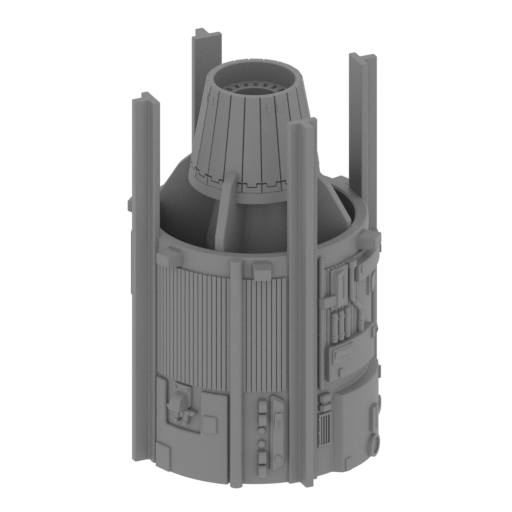

52_turbine_1_L_FDM (repai red).stl
15.66 MiB 35 h 57 min 21 m 78 x 75 x 126 Download
53_turbine_2_L_FDM (repai red).stl
5.07 MiB 28 h 50 min 16 m 77 x 76 x 114 Download

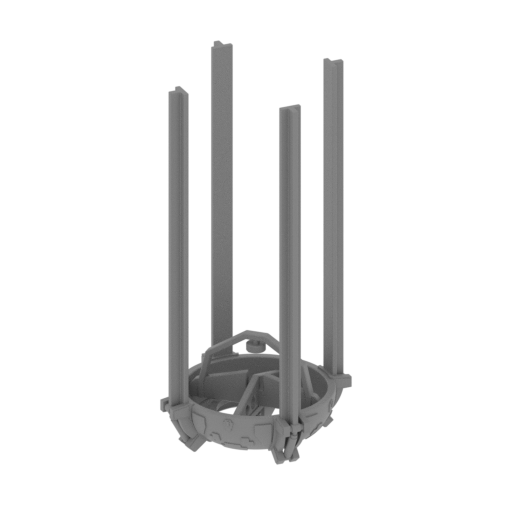

54_turbine_3_L_FDM (repai red).stl
13.22 MiB 11 h 24 min 6 m 67 x 67 x 160 Download

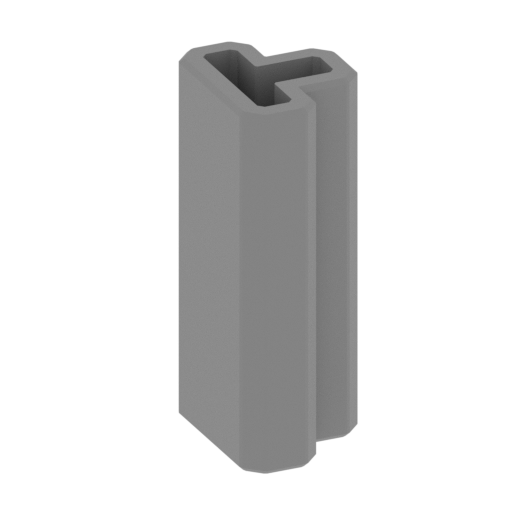

55_turbine_connector_L_FD M (repaired).stl
0.09 MiB 2 h 43 min 1 m 59 x 59 x 25 Download
56_hull_grid_R_FDM (repai red).stl
0.13 MiB 14 min <1 m 9 x 33 x 6 Download
57_hull_grid_L_FDM (repai red).stl
0.12 MiB 14 min <1 m 9 x 33 x 6 Download

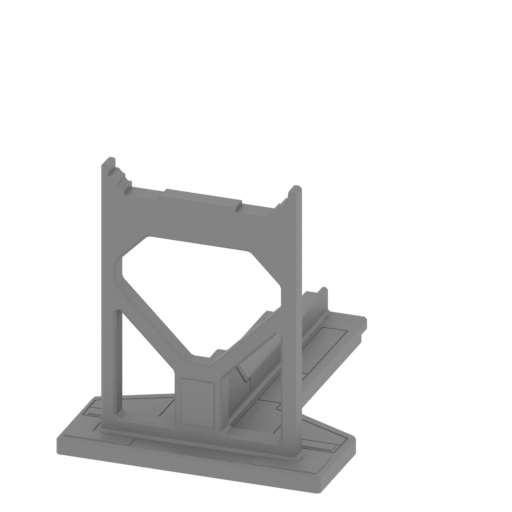

58_platform_1_FDM (repair ed).stl
2.63 MiB 12 h 15 min 7 m 103 x 132 x 115 Download

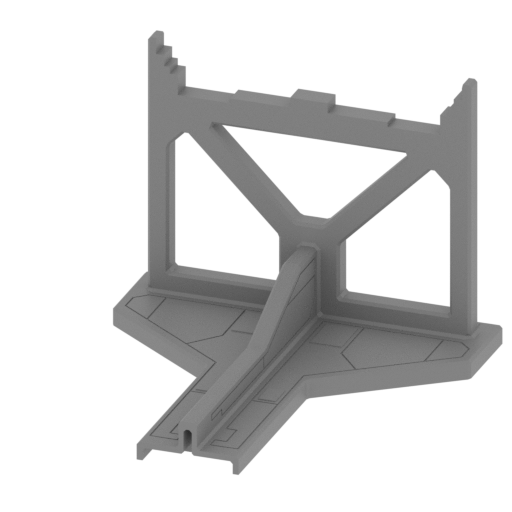

59_platform_2_FDM (repair ed).stl
3.69 MiB 14 h 46 min 8 m 134 x 138 x 105 Download

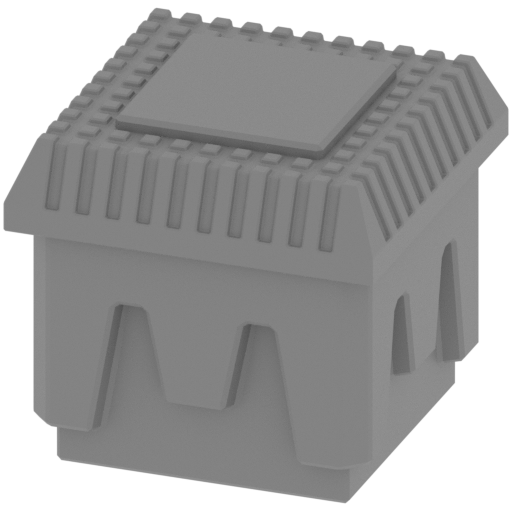

60_box_FDM (repaired).stl
0.43 MiB 1 h 37 min 1 m 26 x 26 x 24 Download

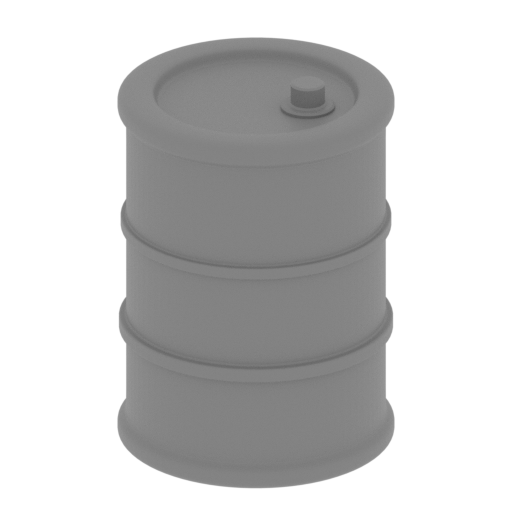

61_barrel_FDM (repaired). stl
0.77 MiB 26 min <1 m 16 x 16 x 23 Download

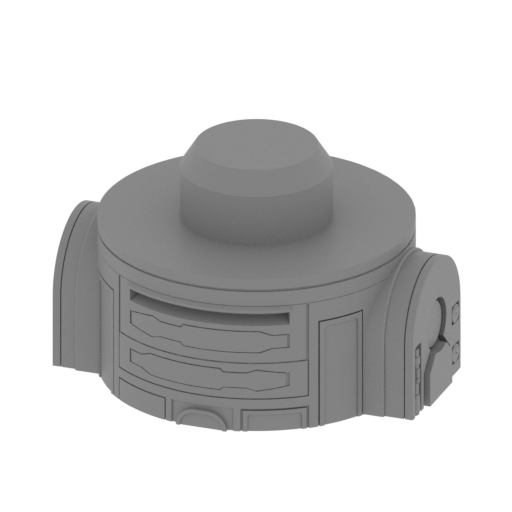

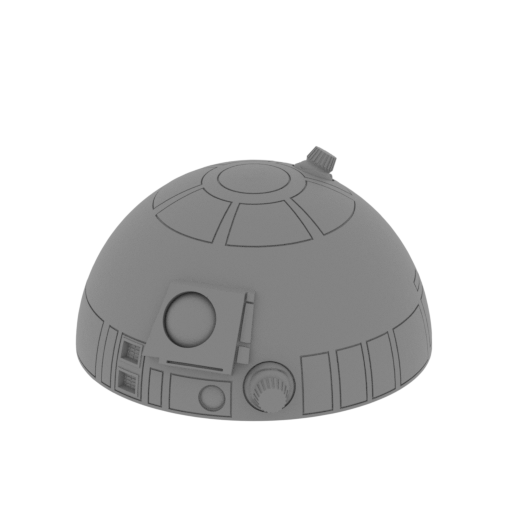

62_R2D2_FDM (repaired).st l
14.58 MiB 1 h 46 min 1 m 27 x 19 x 40 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 16 min 1 m 150 x 18 x 5 Download

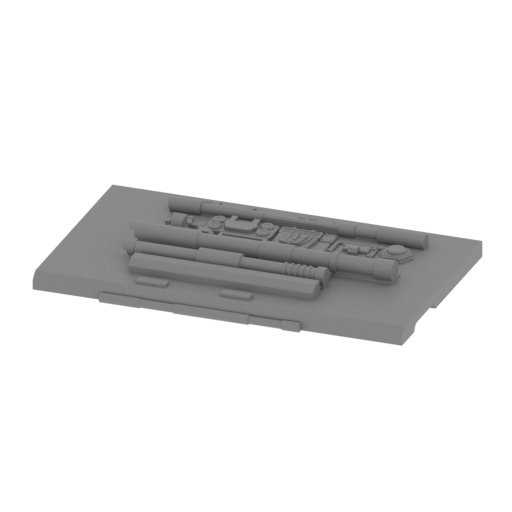

46_wing_R_FDM (repaired). stl
4.63 MiB 24 h 30 min 12 m 83 x 31 x 128 Download

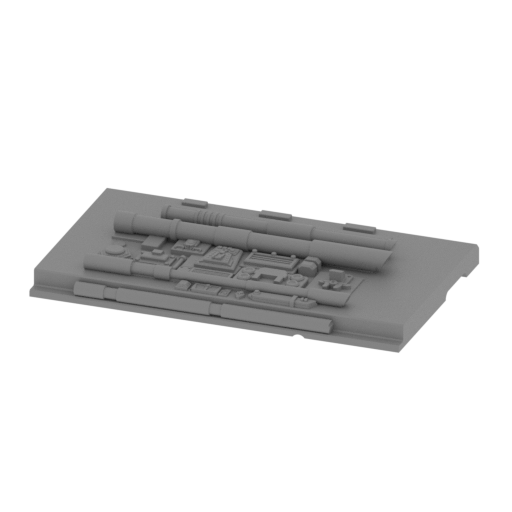

47_wing_L_FDM (repaired). stl
4.63 MiB 24 h 15 min 12 m 83 x 31 x 128 Download
...

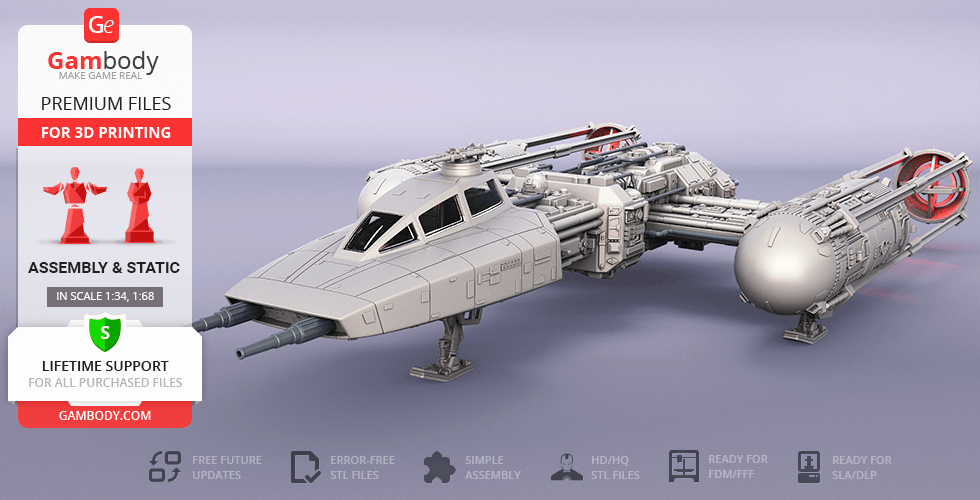

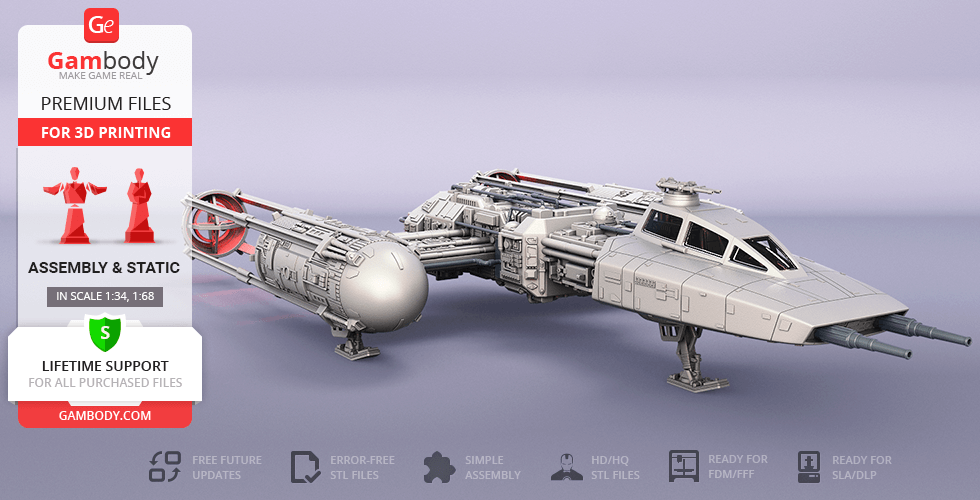

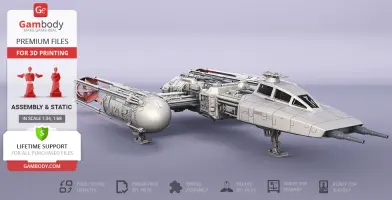

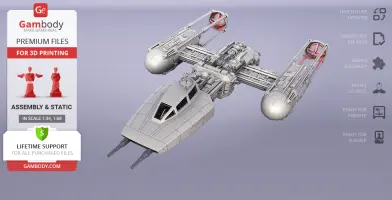

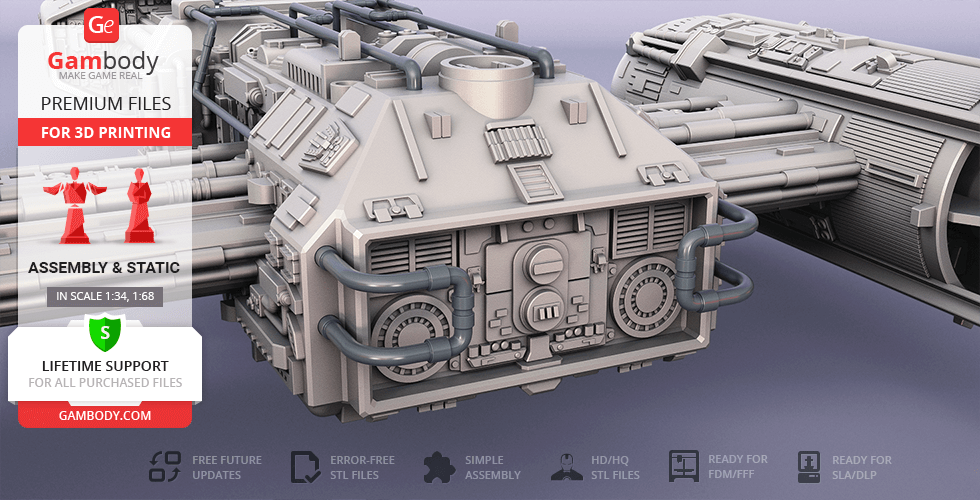

ABOUT THIS 3D MODEL

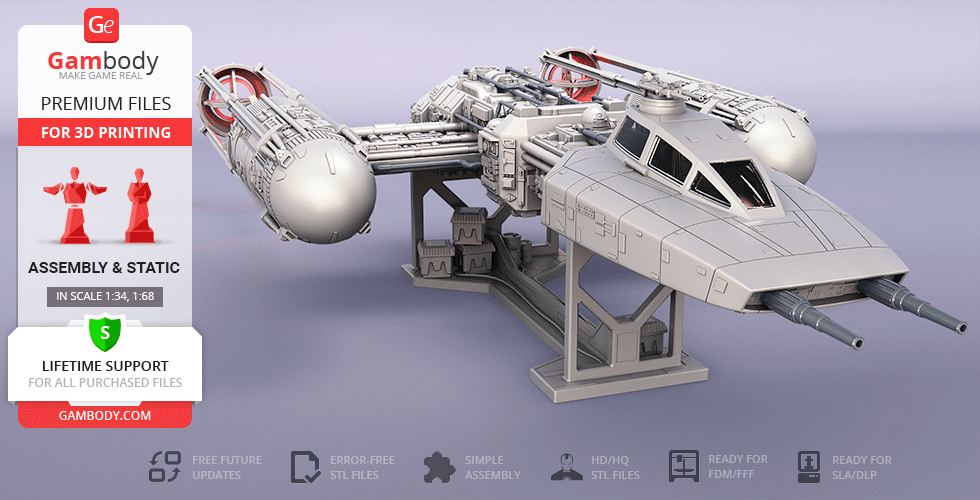

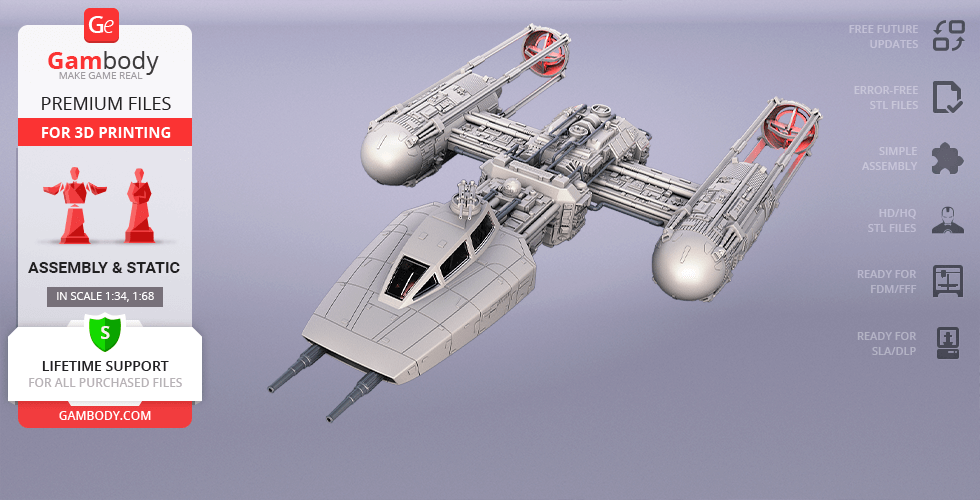

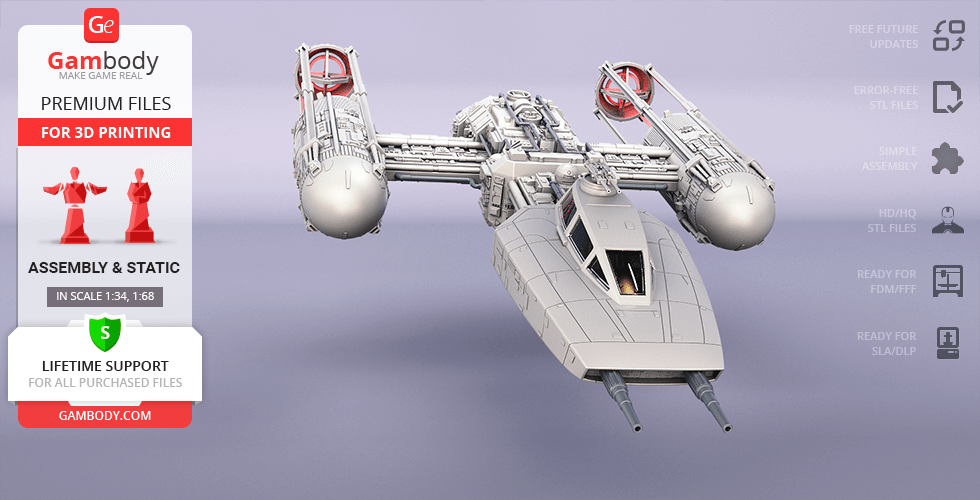

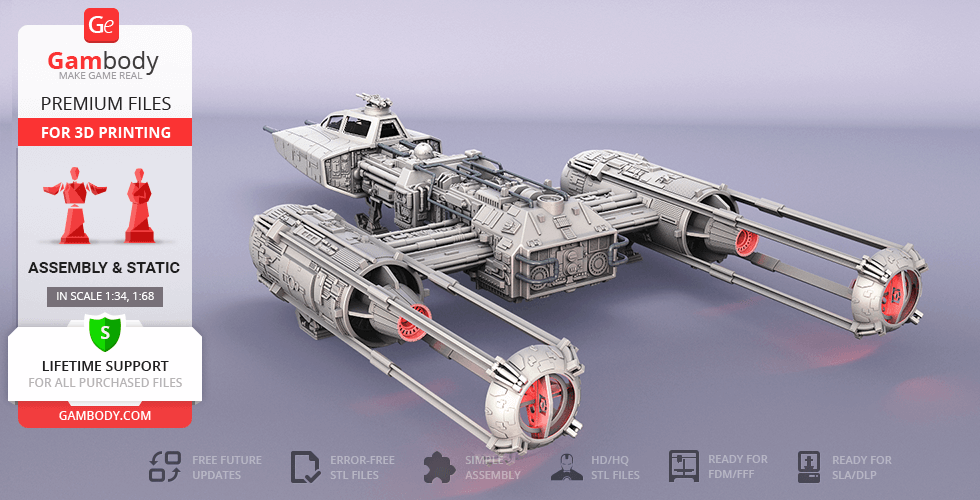

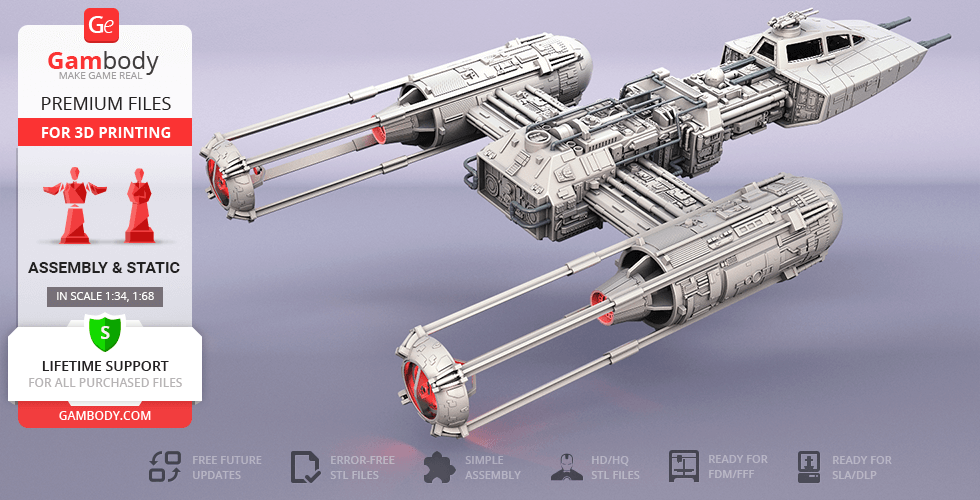

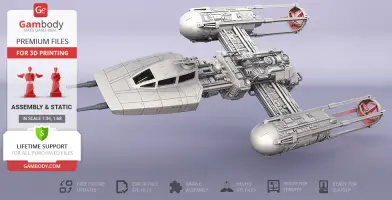

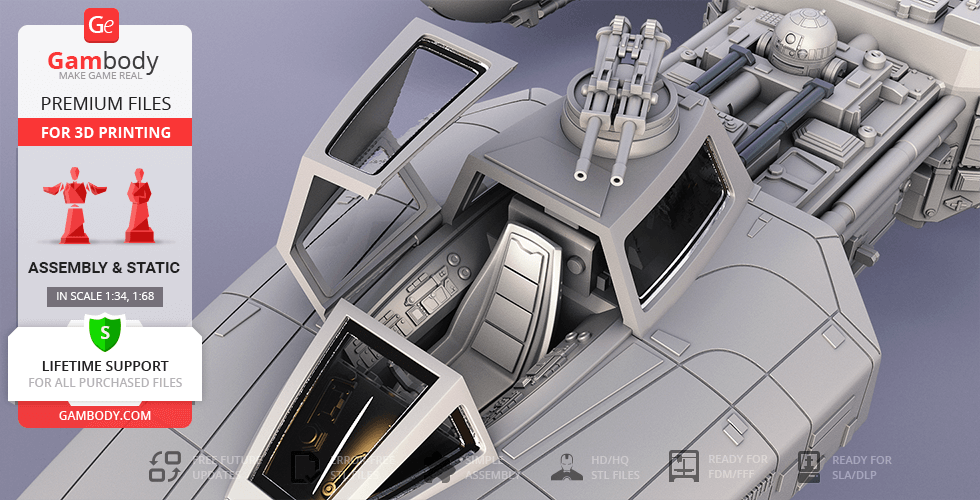

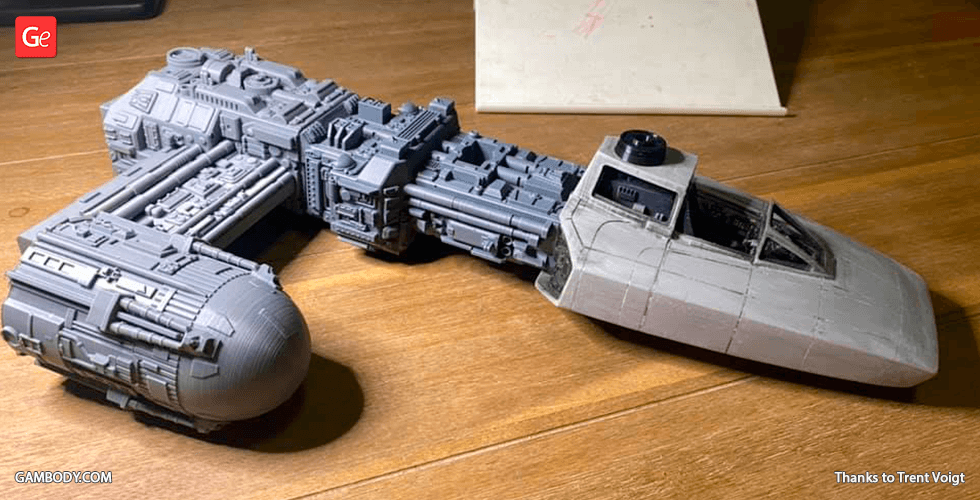

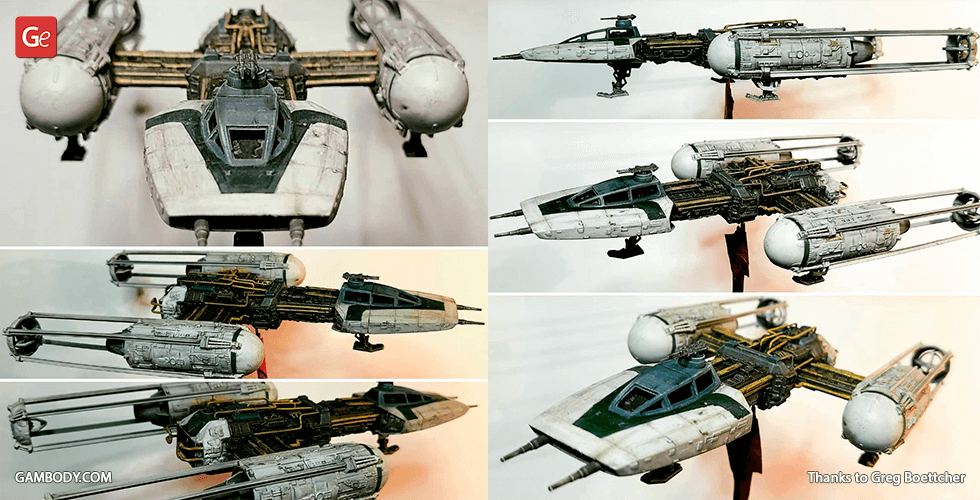

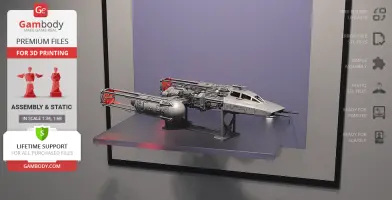

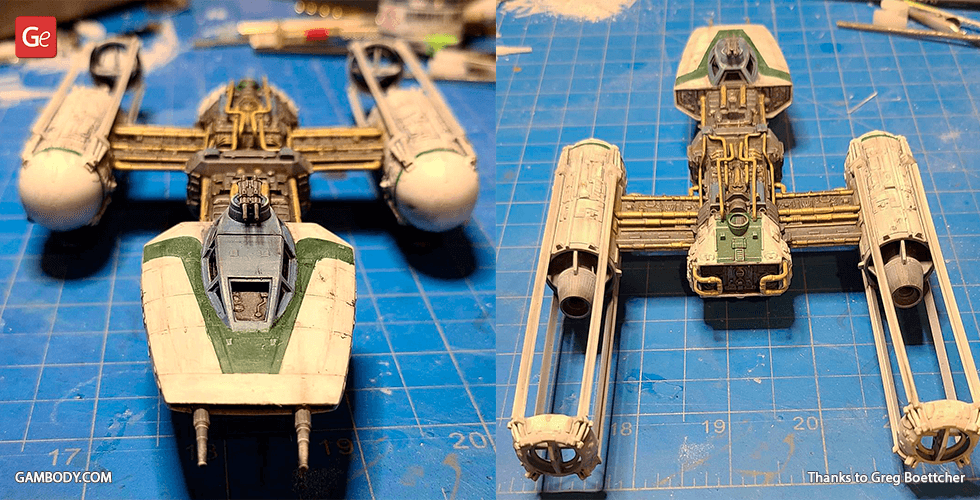

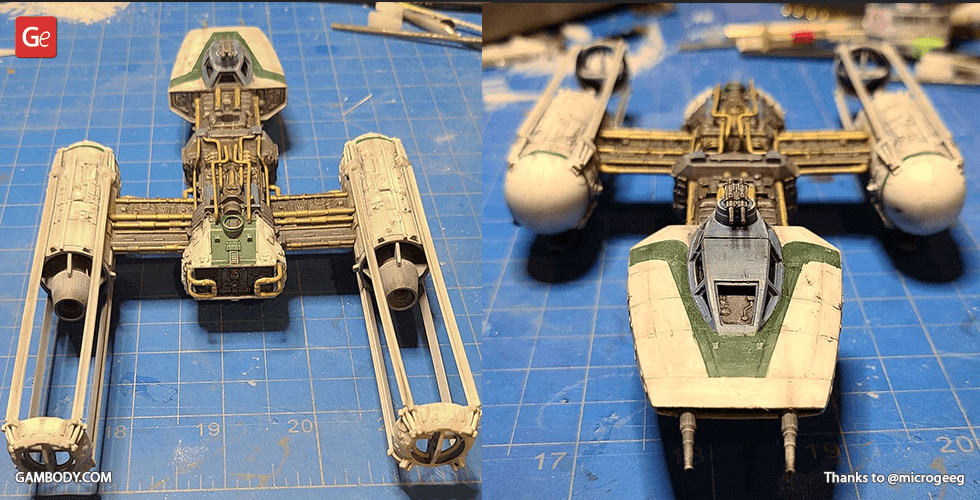

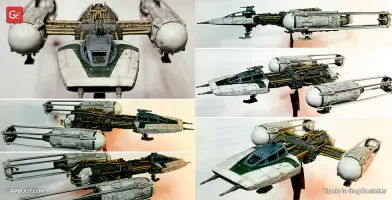

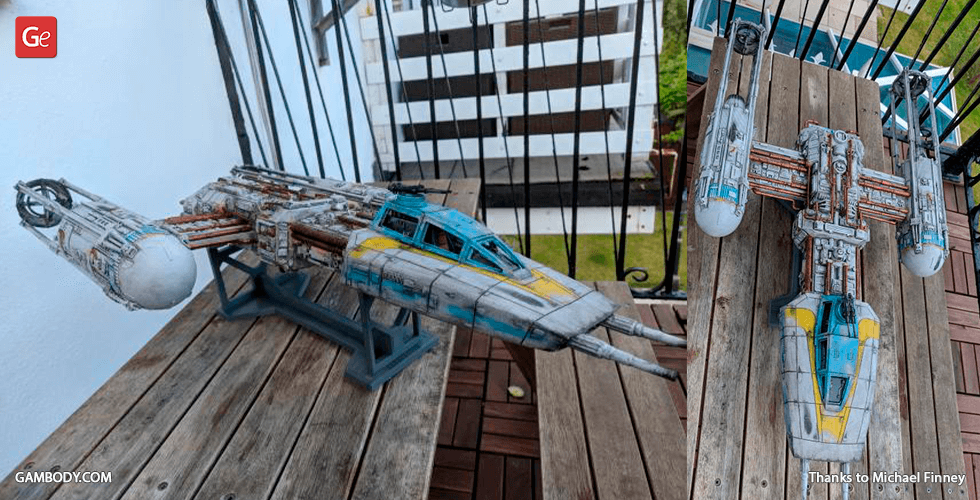

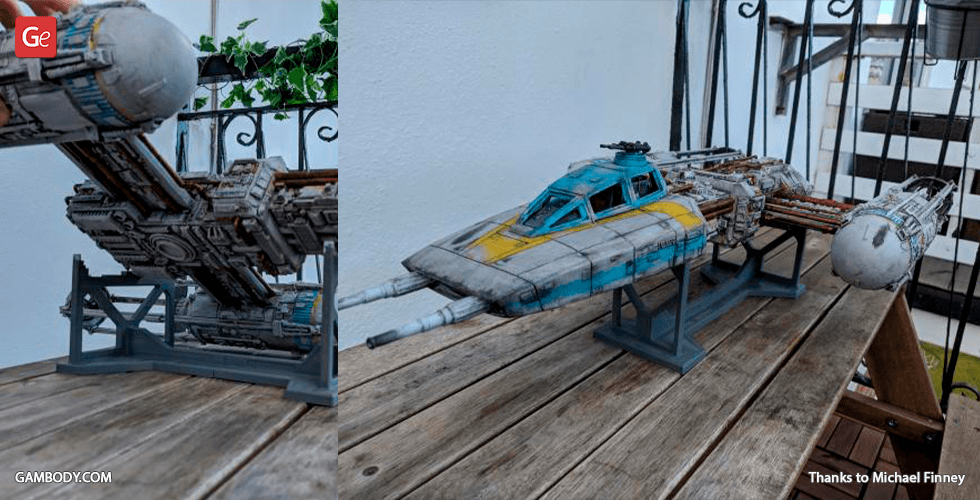

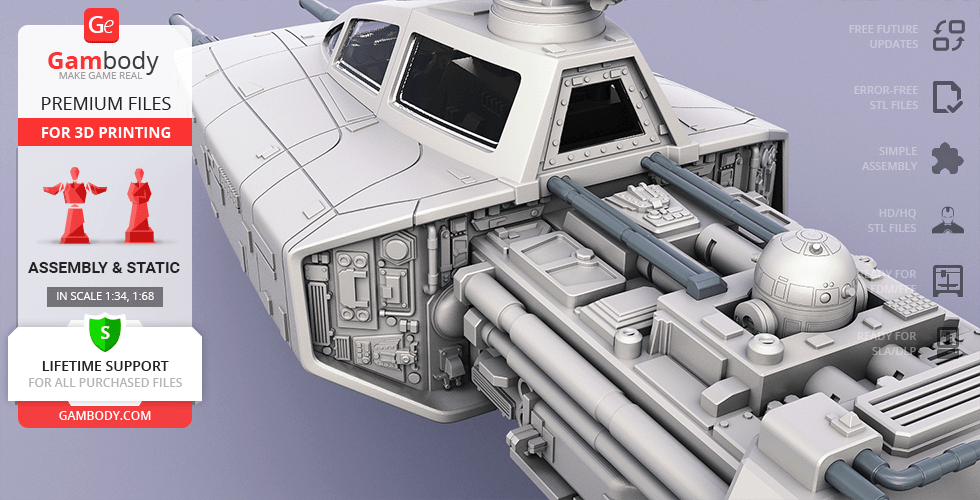

BTL-A4 Y-wing assault starfighter-bomber simply referred to as Y-wing, is the remarkable asset to the Rebel Alliance space combat fleet and a prominent representative of spacecraft of the Star Wars franchise. Being a well-known space opera fan, our contributing 3D artist spent circa 150 hours and came up with yet another great creation and presented his stunning version of BTL-A4 Y-wing starfighter for 3D printing. The model boasts of the spectacular level of detail, carrying heavy laser cannons, Koensayr hyperdrive and jet engines, impressive support and engine pylons and even a rotating cannon turret! The author of the model did his best to make sure that you’ll receive a great Y-wing Starfighter that is interesting to print, assemble and paint. Thus, the 3D printing Y-wing model is equipped with a highly-detailed cockpit that can be accessed through the opening canopy. Moreover, there is a socket to fit a navigating astromech droid located behind the cockpit and the 3D printing model comes with a tiny R2-D2 to occupy the slot! There is also a box and a barrel in the star fighter’s assembly kit that you can print as many times as you prefer in order to recreate the fan-loved docking bay scenes from Star Wars: Episode IV – A New Hope. Being a combination of a starfighter and a light bomber, Y-wing impresses with its devastating firepower and definitely a one-of-a-kind design. We are absolutely sure that Y-wing Starfighter is the perfect gem in your 3D printed Star Wars fleet that has been missing!

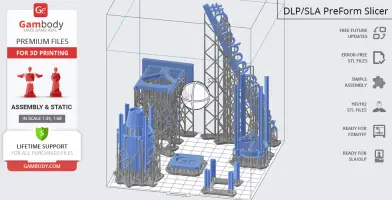

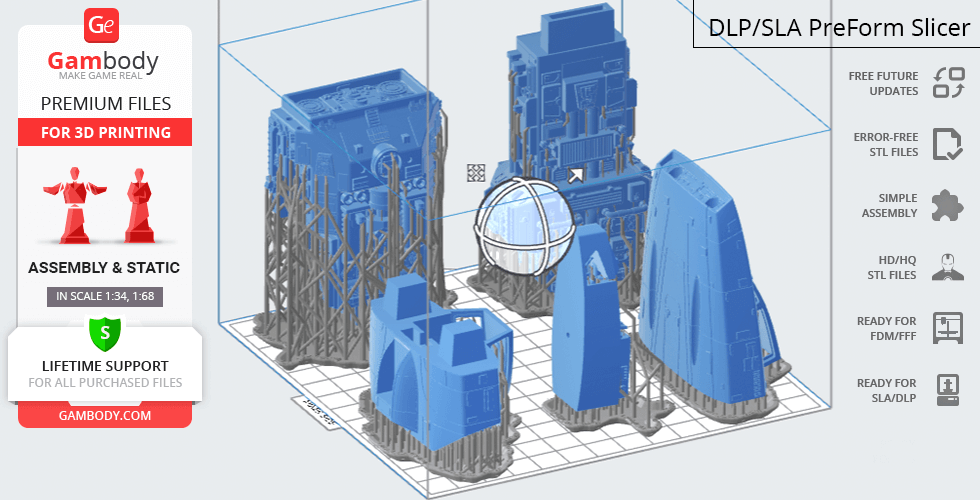

ADAPTATION FOR 3D PRINTING

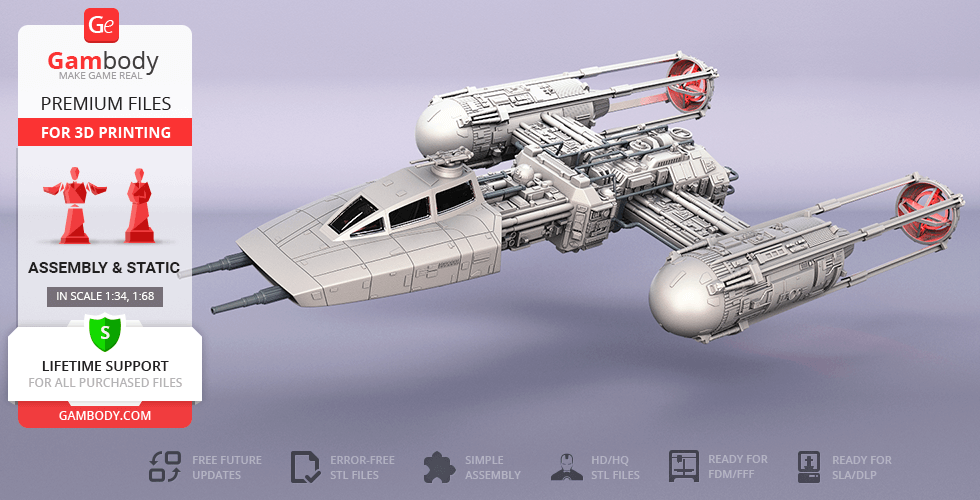

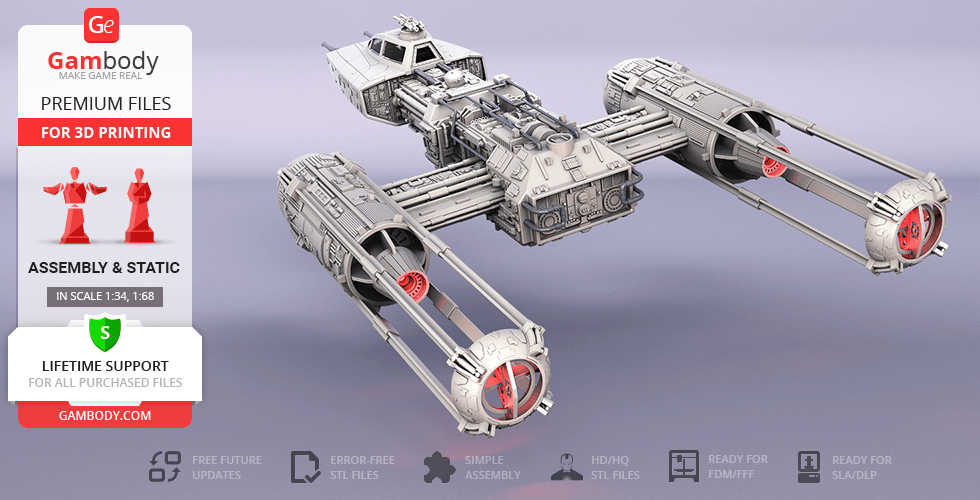

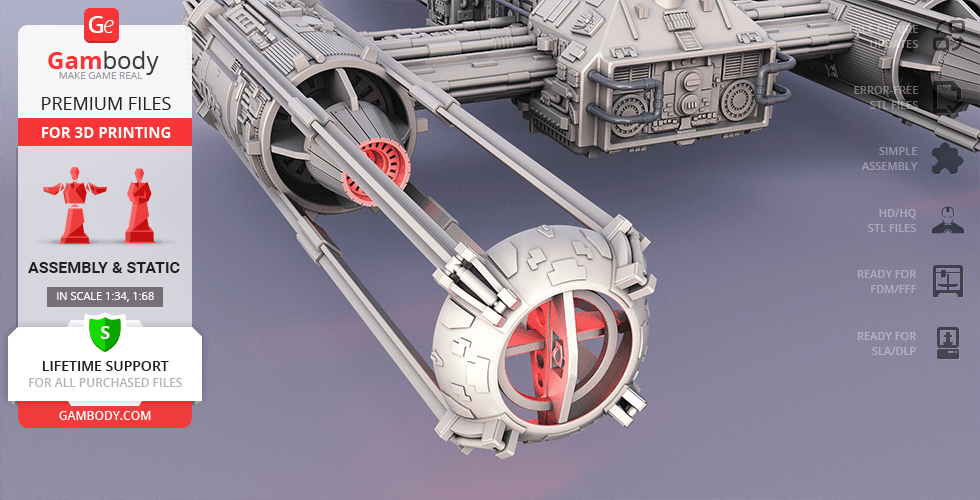

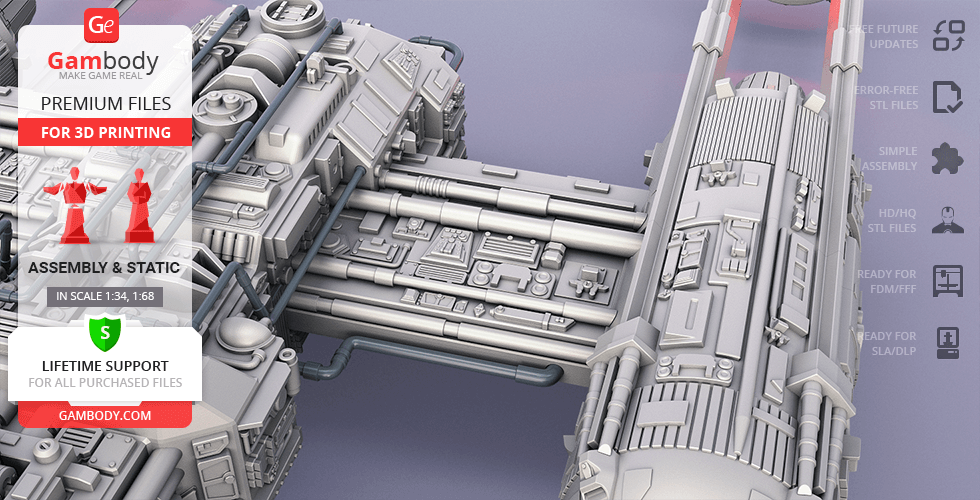

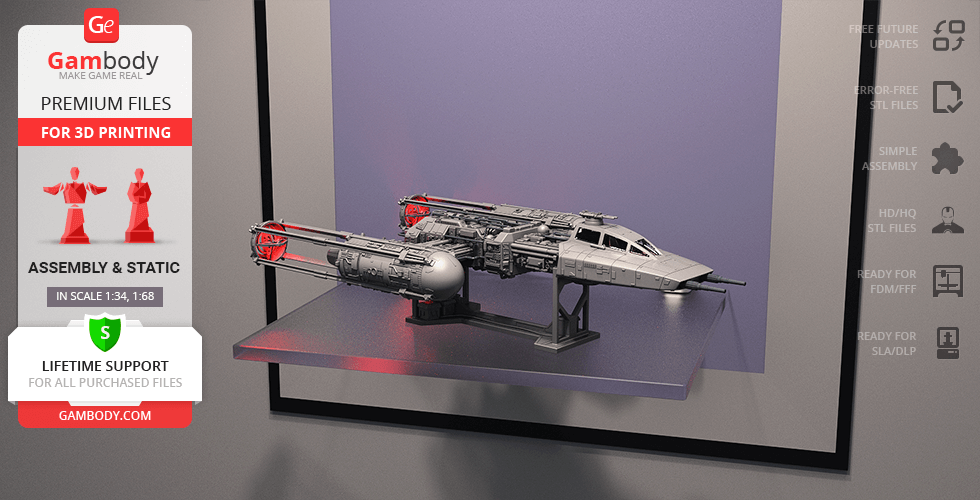

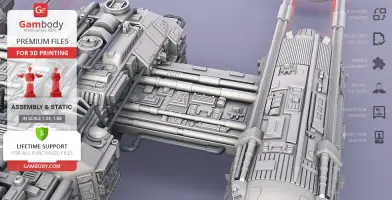

Y-wing Starfighter model for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 34 hours in total. For you to receive the cleanest printing result possible and to minimize the amount of filament needed for generated support the starfighter model was divided into many assembly parts, e.g. its support pylons, engine pylons, heavy-ion jet turbines, retractable landing gear, ejection seat, astromech droid, Koensayr hyperdrive, ion cannon turret, various pipes, etc. are provided as separate STL files. The windows on the canopy are also provided as eight separate files for you to print them using transparent filament or access the highly detailed interior of a single-pilot cockpit. There can also be found special tunnels throughout the body of the Y-wing Starfighter that were designed by our team for you to easily introduce LED wiring for illumination of the cockpit and exhaust nozzles. For you to display the Y-wing model among your spaceship collection there is a stand provided, though its usage is optional - you can also assemble the fighter with extractable landing gear that can otherwise be concealed with caps. All assembly parts are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA/SLS 1.0 versions in PDF format.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from the actual length of Y-wing Starfighter that is 23400 mm. The 3D printing model's chosen scale is 1/34 for the FFF/FDM version and 1/68 for the DLP/SLA/SLS version.

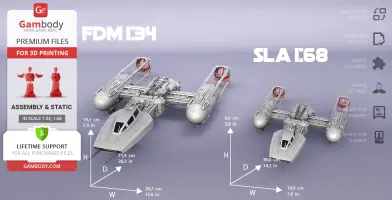

VERSIONS' SPECIFICATIONS

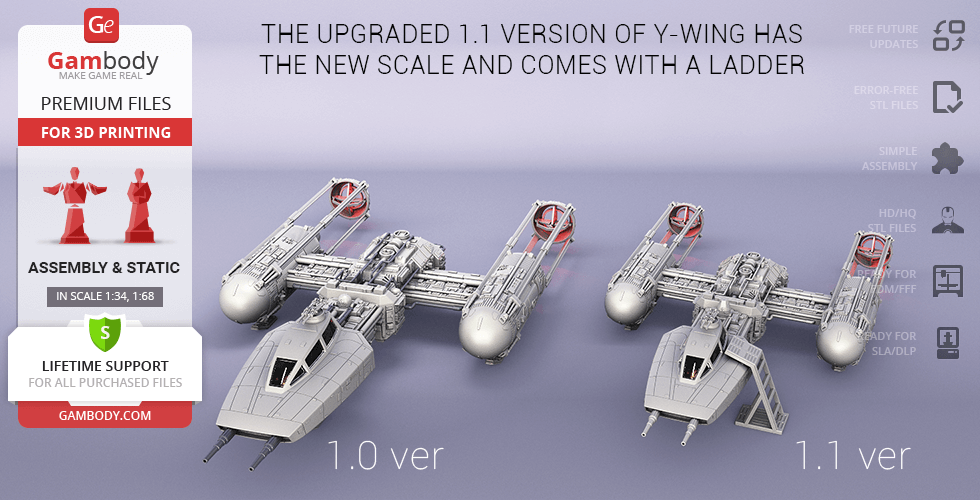

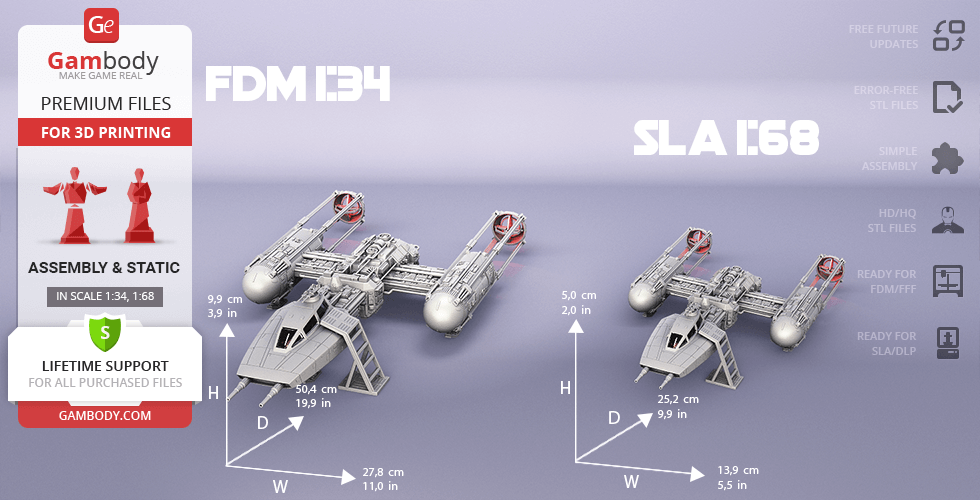

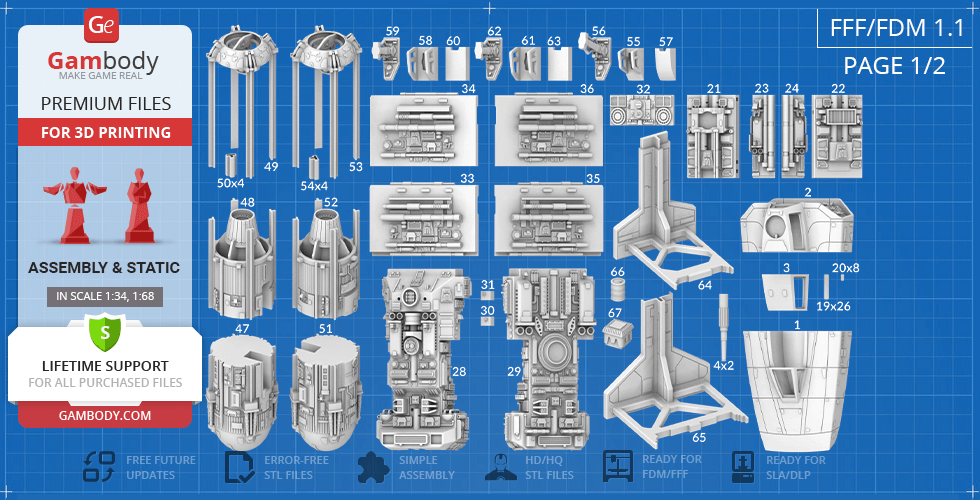

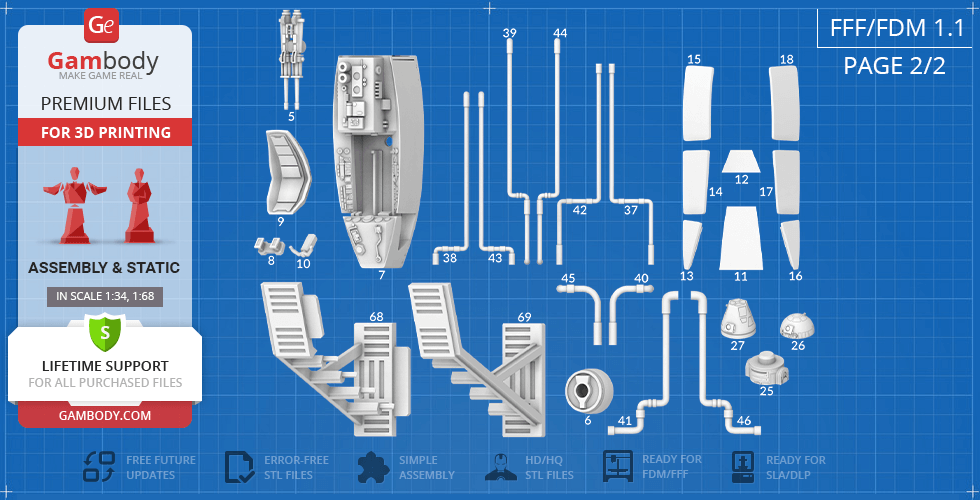

FFF/FDM 1.1 version features:

  • Contains 69 parts;
  • A printed model is 99 mm tall, 278 mm wide, 504 mm deep;
  • The upgraded version comes in a new scale;

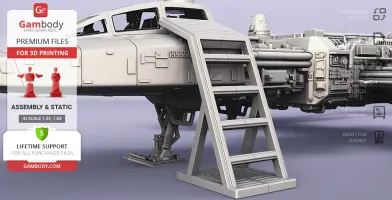

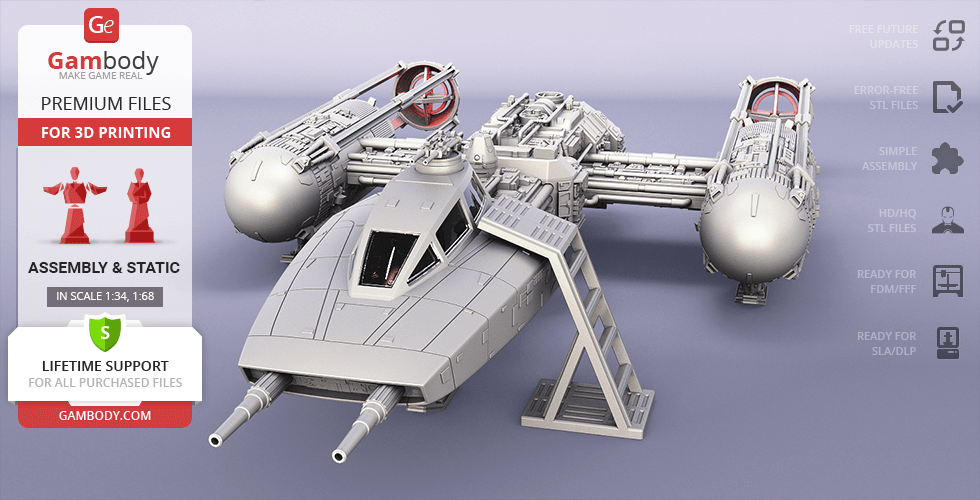

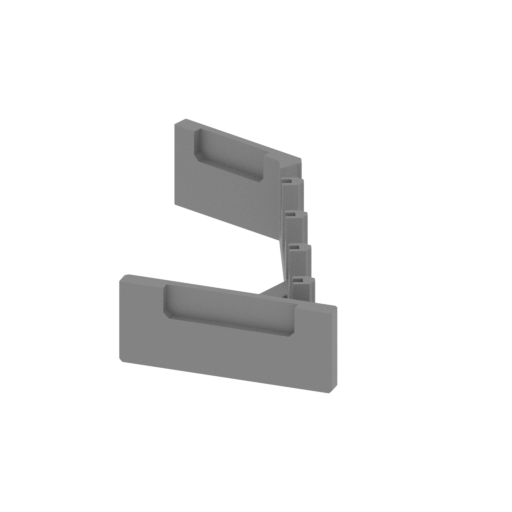

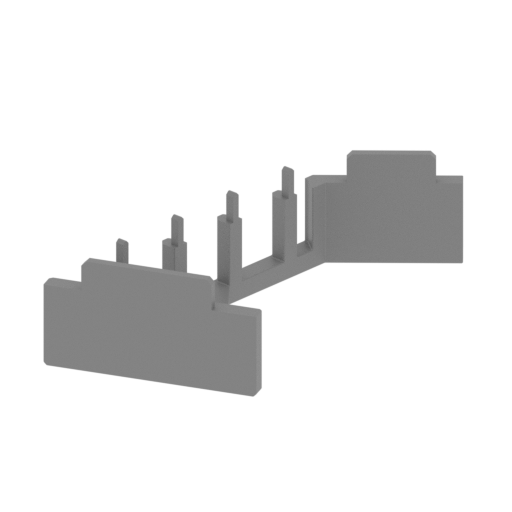

  • There is a ladder to access the cockpit;
  • All parts are divided in such a way that you will print them with the smallest number of support structures.

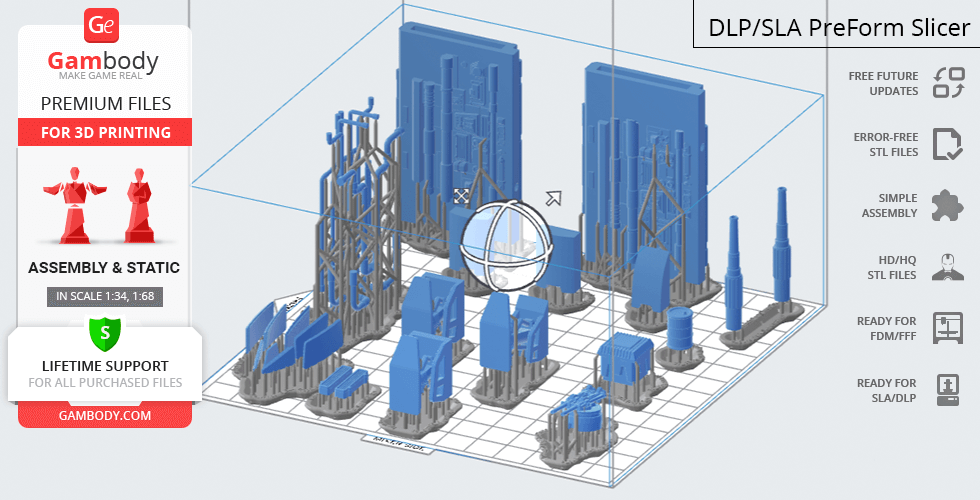

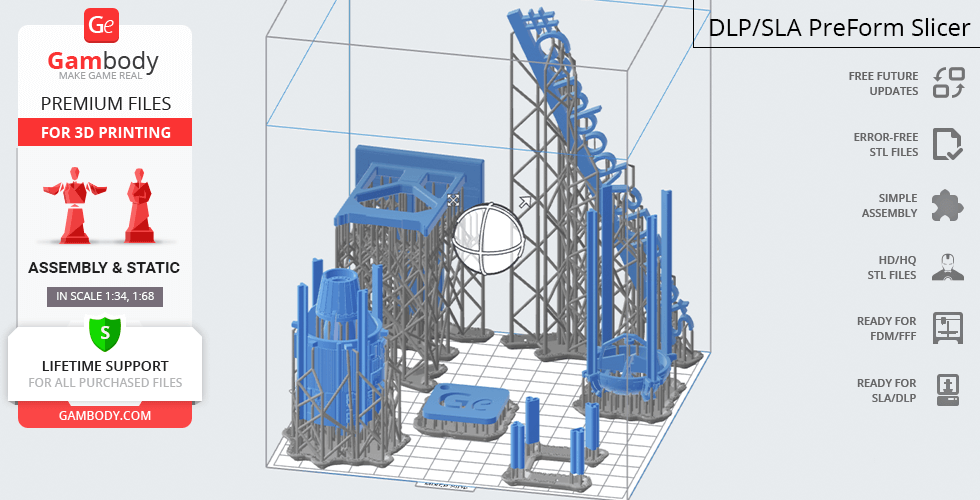

DLP/SLA 1.1 version features:

  • Contains 53 parts;
  • A printed model is 50 mm tall, 139 mm wide, 252 mm deep;
  • The upgraded version comes in a new scale;
  • There is a ladder to access the cockpit;
  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

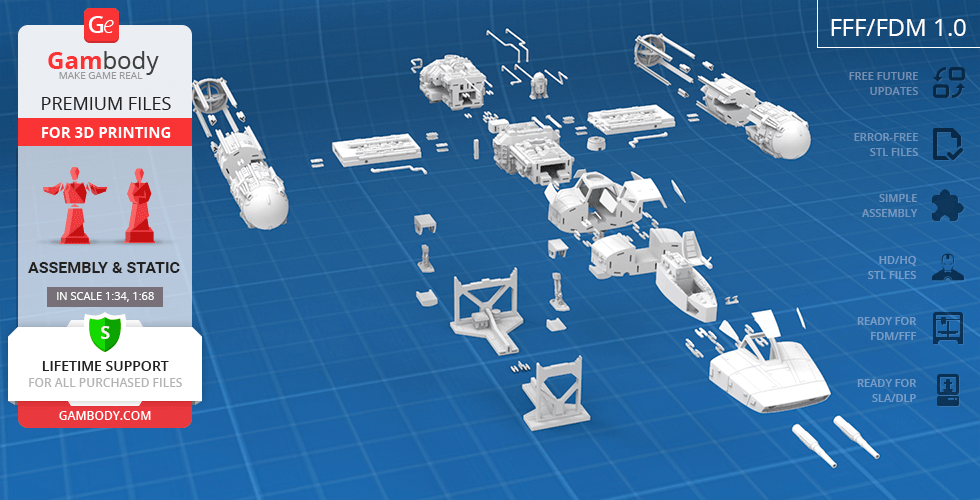

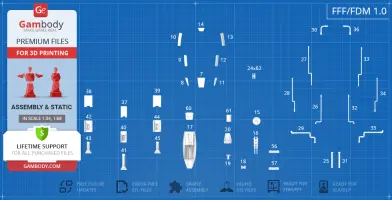

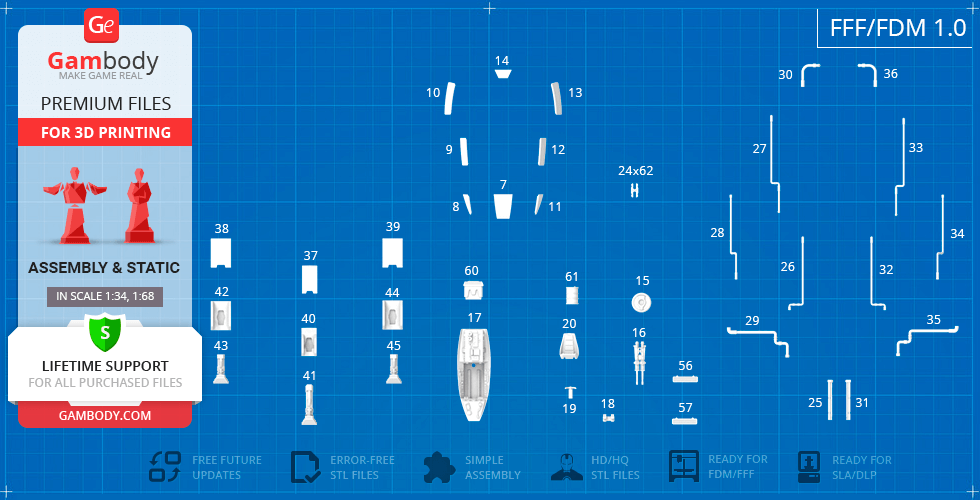

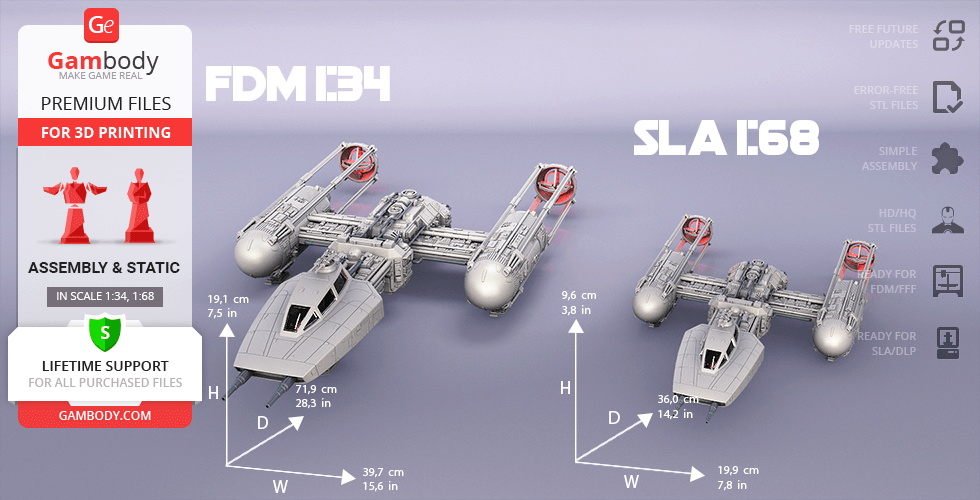

FFF/FDM 1.0 version features:

  • Contains 62 parts;
  • A printed model is 191 mm tall, 397 mm wide, 719 mm deep;
  • Assembly kit includes lock 24_Ge_lock_10H_x62 to connect the model's parts securely without glue that needs to be printed 62 times;
  • Windows on the canopy are provided separately to be printed with the transparent filament for you to access the highly-detailed cockpit;

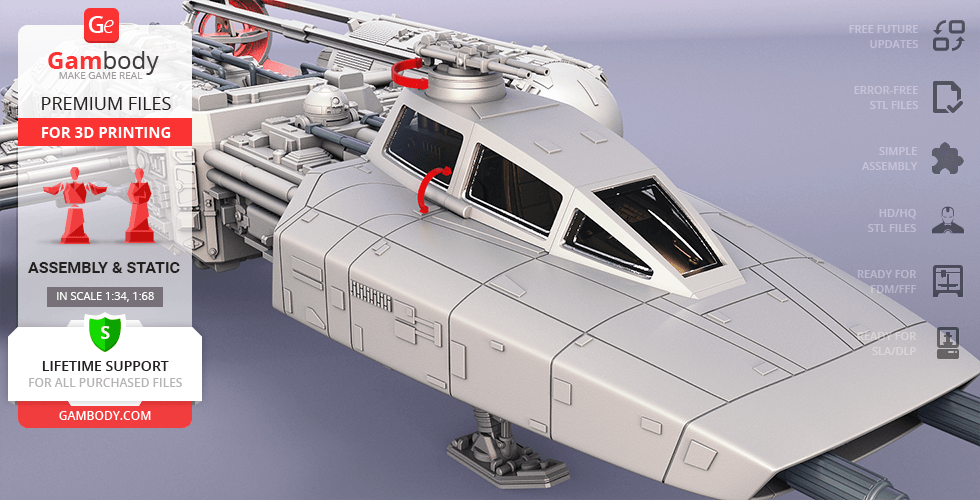

  • Ion cannon turret on top of the cockpit is rotating, the position of the pilot seat is adjustable;

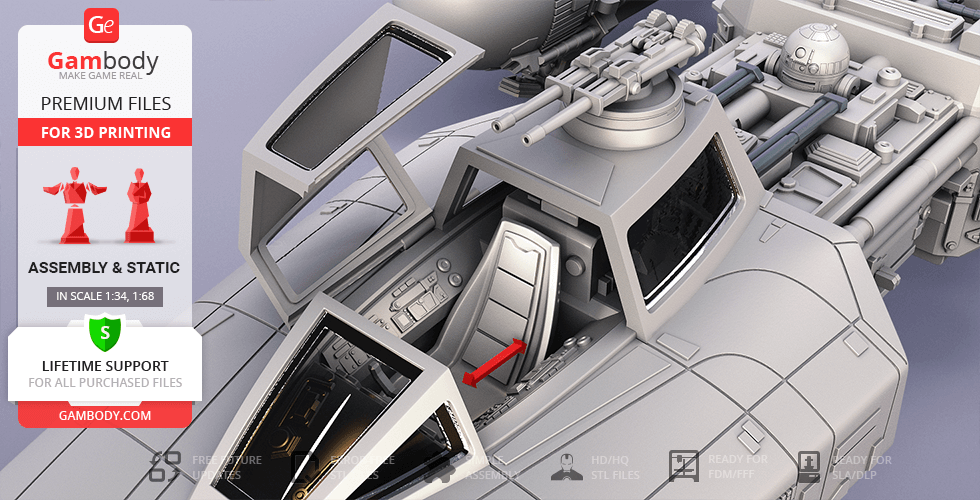

  • Fighter's canopy can be opened with the help of 1.75mm PLA filament pin that does not come in STL files;
  • Has an astromech droid socket to fit R2-D2;

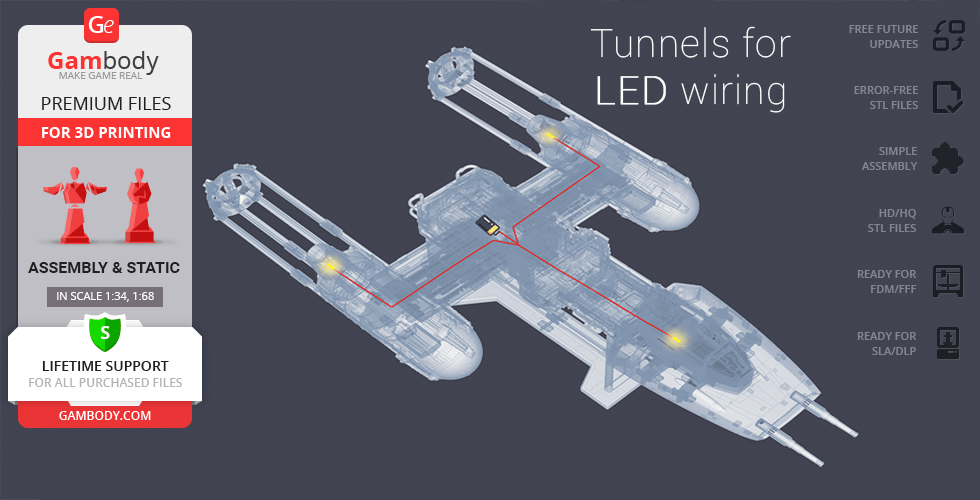

  • There are tunnels throughout the fighter's body for you to introduce LED wiring into the cockpit and into the heavy-ion jet turbines;
  • All parts are divided in such a way that you will print them with the smallest number of support structures;
  • The initial version of the model is saved in 1:24 scale.

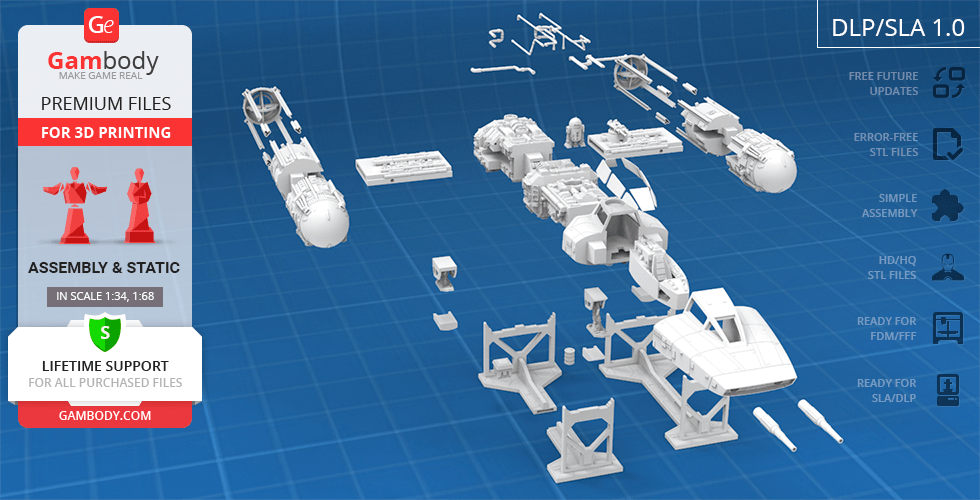

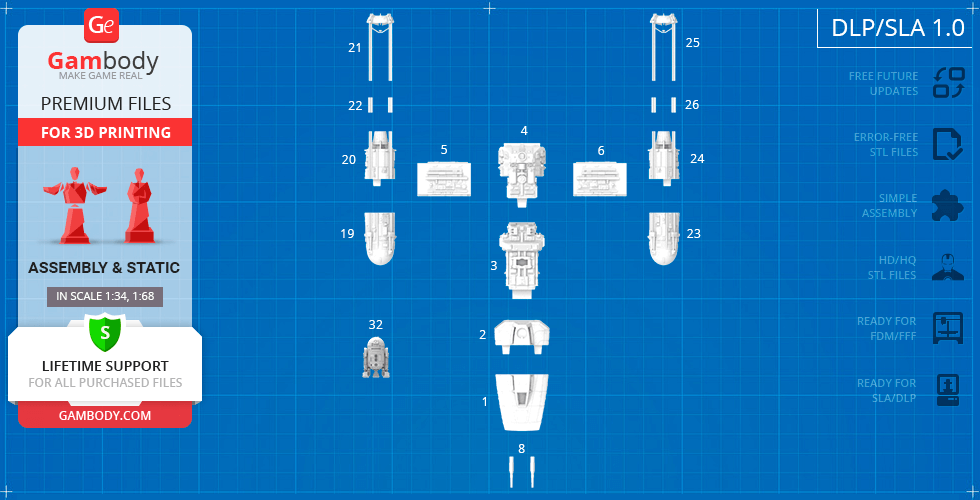

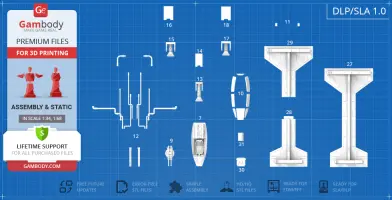

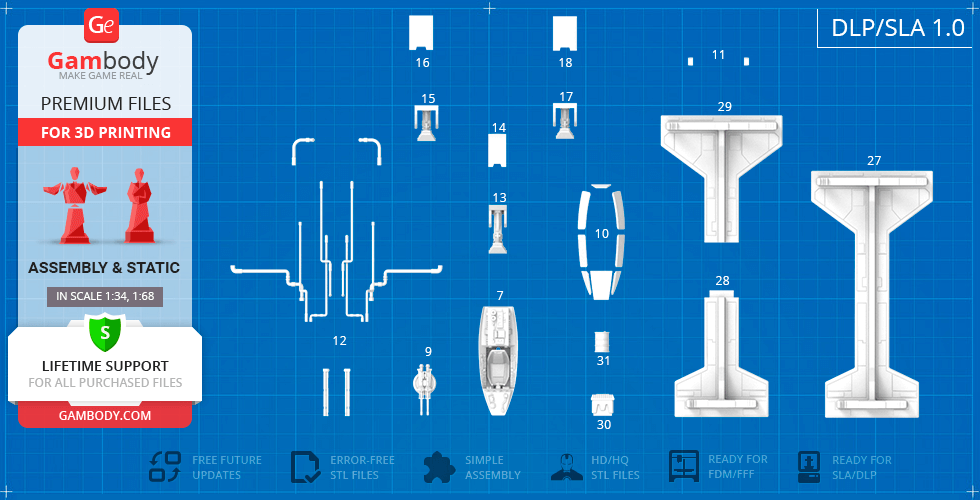

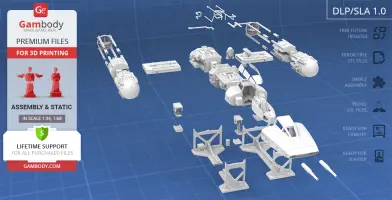

DLP/SLA/SLS 1.0 version features:

  • Contains 32 parts;
  • A printed model is 96 mm tall, 199 mm wide, 360 mm deep;
  • Windows on the canopy are provided separately to be printed with the transparent filament for you to access the highly-detailed cockpit;
  • Has an astromech droid socket to fit R2-D2;

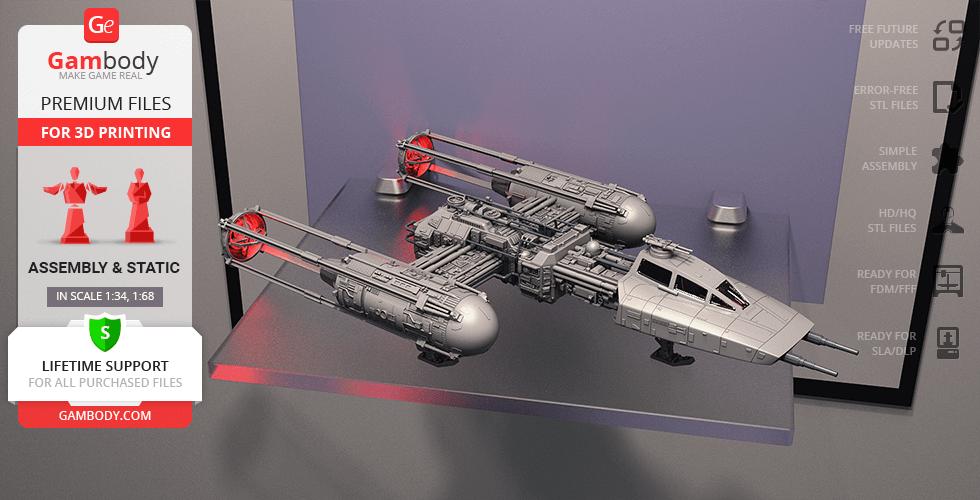

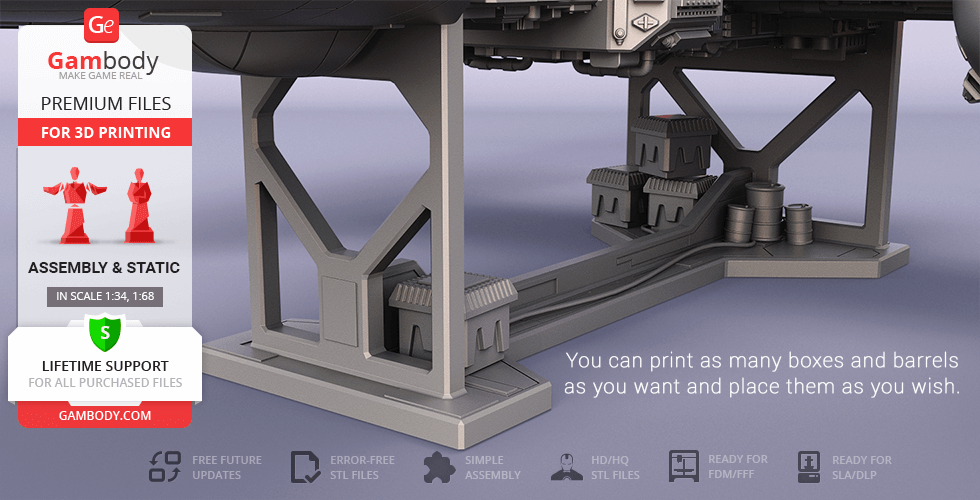

  • Comes with two variants of the platform - a solid and a two-piece one;
  • There are tunnels throughout the fighter's body for you to introduce LED wiring into the cockpit and into the heavy-ion jet turbines;
  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed;
  • The initial version of the model is saved in 1:48 scale.

WHAT WILL YOU GET AFTER PURCHASE?

  • STL files of Y-wing Starfighter​ Model for 3D printing which consist of 216 parts;
  • 4 versions of files for this model for FFF/FDM and DLP/SLA/SLS printers;
  • High-poly detailed model of Y-wing Starfighter​​;
  • Assembly Manual for FFF/FDM 1.0 and DLP/SLA/SLS 1.0 versions in PDF format;
  • Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
  • Full technical support from the Gambody Support Team.

You can get the model of Y-wing Starfighter​​ for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Y-wing Starfighter​​ 3D Printing Model at Gambody YouTube channel.

Also, you may like other Starfighter Models for 3D Printing as well as other Star Wars 3D Printing Models.

_______

FAQ:

Generic

Below you can find printing recommendations for CuraSimplify3D and Slic3r software.

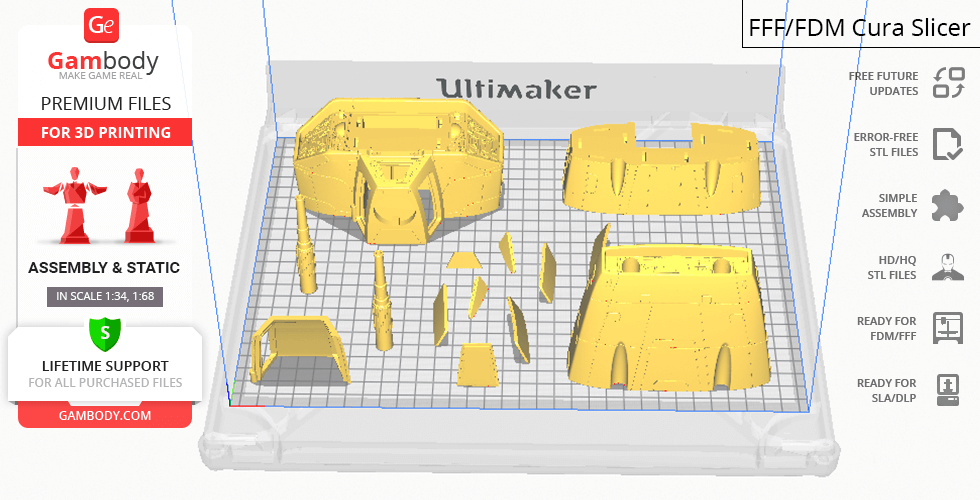

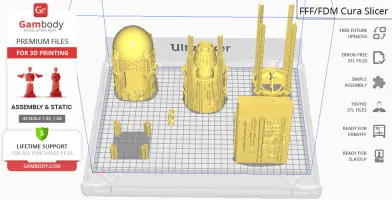

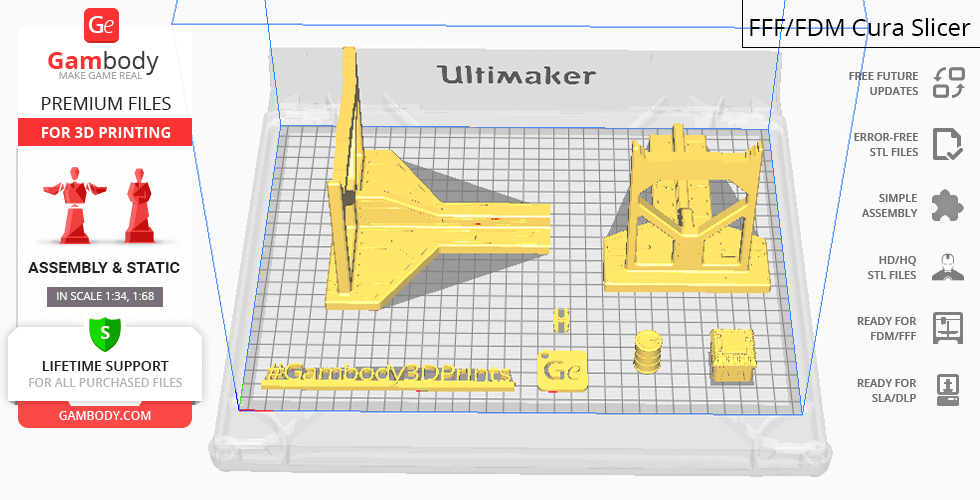

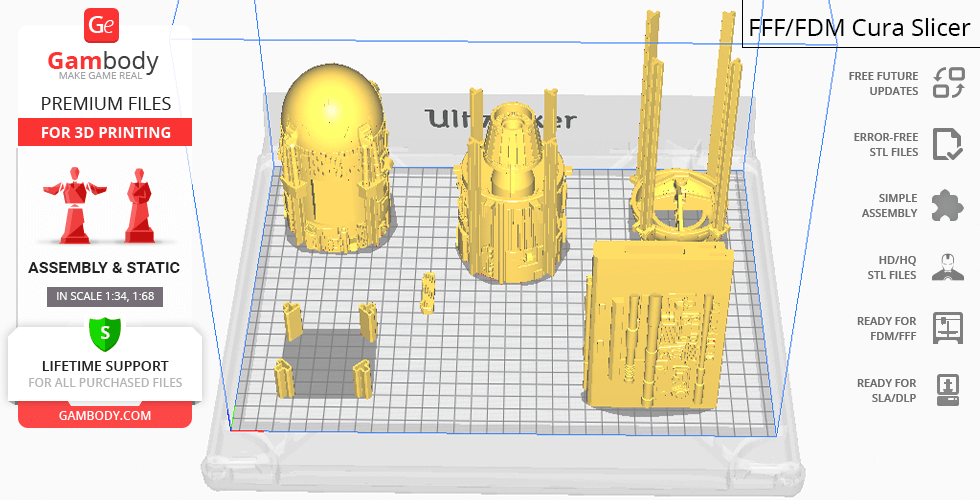

Cura printing recommendations:

These are basic settings that were tested in Cura 4.8.0 slicer.

The test models were printed on Ultimaker 2, Creality Ender 3, Creality CR-10S Pro V2, Anycubic I3 Mega, Anycubic I3 MegaS 3D printers with PLA and PETG filaments.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use and especially the particular assembly part at hand. Each part that any model comprises often needs preliminary review and you are free to tweak the settings the way you find suitable.

Note:
- You can scale up the model (downscaling is not recommended!);
- All connectors should be printed at 100% Infill;
- For all parts of locks (“ge_lock” in “Source files”) you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

Quality
Layer Height: 0.12 mm (you can also set Layer Height at 0.16 or 0.2mm for 0.4mm nozzles)
Initial Layer Height: 0.2 mm (carefully level the print bed and keep your Initial Layer Height the same as the main Layer Height)

Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2

Outer Wall Wipe Distance: 0.3 mm
Top Surface Skin Layers: 0

Top/Bottom Thickness: 0.6 mm
Top Thickness: 0.6 mm
Top Layers: 5
Bottom Thickness: 0.6 mm
Bottom Layers: 5
Initial Bottom Layers: 5

Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Optimize Wall Printing Order: Check

Compensate Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check

Minimum Wall Flow: 0%
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Hole horizontal expansion: 0

Z Seam Alignment: User Specified
Z Seam Position: Back
Z Seam X: Average length of your printer’s plate (e.g.”150” if your plate is 300mm on the X-axis)
Z Seam Y: A value higher than the length of your plate on the Y-axis (e.g. 700)

Seam Corner Preference: Hide Seam
Extra Skin Wall Count: 1
Skin Overlap Percentage: 10%
Skin Overlap 0.04 mm

Infill
Infill Density: 20% (for all smaller parts and for all parts of connectors use 100% Infill)
Infill Pattern: Triangles
Connect Infill Lines: Check
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Line Multiplier: 1
Extra Infill Wall Count: 0

Infill Overlap Percentage: 10-20%
Infill Overlap: 0.04 mm

Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm

Infill Wipe Distance: 0 mm
Infill Layer Thickness: 0.24 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm

Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8

Maximum Skin Angle for Expansion: 90Ëš
Minimum Skin Width for Expansion: 0.0
Skin Edge Support Thickness: 0
Skin Edge Support Layers: 0

Material
Initial Layer Flow: 100%
Printing Temperature: See your filament settings
Initial Printing Temperature: Your filament settings
Final Printing Temperature: Your filament settings
Build Plate Temperature: Your filament settings
Build Plate Temperature Initial Layer: Your filament settings + 5°
Flow: 100% (Important! If you face difficulty printing the model, you may need to adjust the Flow parameter. You may research the topic using the Internet or seek assistance at our Customer Support Team at support@gambody.com)

Speed

You can increase the printing Speed by 20% when you print simple objects. For small/thin parts you need to decrease the Speed by 25% - 50%.

Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 25 mm/s
          Outer Wall Speed:25 mm/s
          Inner Wall Speed: 50 mm/s

Top/Bottom Speed: 25mm/s
Support Speed: 25 mm/s
          Support Infill Speed: 45 mm/s
          Support Interface Speed: 25 mm/s
                Support Roof Speed: 25 mm/s
                Support Floor Speed: 25 mm/s

Travel Speed: 80 mm/s
Initial Layer Speed: 80 mm/s
Initial Layer Print Speed: 20 mm/s
Initial Layer Travel Speed: 80 mm/s

Skirt/Brim Speed: 20 mm/s
Z  Hop Speed: 5 mm/s
Number of Slower Layers: 2
Enable Acceleration Control: Check

When printing simple objects, you need to set all Acceleration parameters at 500 mm/s. For small/thin parts you need to decrease the Acceleration by 50% - 70%.

Travel
Enable Retraction: Check
Retraction Distance: 4-8 mm, 1-3 mm for Direct Extruder (This is the most important retraction parameter. You can find your optimal value of Retraction Distance by printing any test object, e.g. bridges, towers etc.)

Retraction Speed: 25mm/s
Retraction Retract Speed: 25 mm/s
Retraction Prime Speed: 25 mm/s

Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 1.5 mm
Maximum Retraction Count: 100
Minimum Extrusion Distance Window: 6,5 - 10 mm
Limit Support Retractions: Check
Combing Mode: All
Max Comb Distance With No Retract: 30 mm
Retract Before Outer Wall: Check
Avoid Printed Parts When Travelling: Check
Avoid Supports When Travelling: Check
Travel Avoid Distance: 1 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm
Z Hop When Retracted: Check
Z Hop Height: 0,3 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%

Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.36 mm
Regular Fan Speed at Layer: 3

Minimum Layer Time: 10 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Structure: Normal (you can try using Tree Support Structure if you have difficulty printing any particular assembly part)
Support Placement: Everywhere
Support Overhang Angle: 60° (this parameter can range from 30° to 70° depending on the part at hand)
Support Pattern: Zig Zag
Support Wall Line Count: 1 (stronger support that might be more difficult to remove) 0 (less strong support but is easier to remove)

Support Density: 15%
Support Line Distance: 2.6667 mm
Initial layer support line distance: 2.667 mm

Support Z Distance: 0.12 mm
Support Top Distance: 0.12 mm
Support Bottom Distance: 0.12 mm

Support X/Y Distance: 0.8-1 mm
Support Distance Priority: Z overrides X/Y
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Stair Step Minimum Slope Angle: 10°
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.2 mm
Gradual Support Infill Steps: 0
Minimum Support Area: 2 mm

Enable Support Interface: Check (generates additional “pillow” on the support structure that leads to a more even surface, but can be difficult to remove in hard-to-reach areas)
Enable Support Roof: Check
Enable Support Floor: Check

Support Interface Thickness: 0.8 mm
Support Roof Thickness: 0.8 mm
Support Floor Thickness: 0.8 mm

Support Interface Resolution 0.2 mm
Support Interface Density: 50-100%
        Support Roof Density: 50-100%
Support Roof Line Distance: 0.8 mm
        Support Floor Density: 50-100%
Support Floor line Distance:  0.4mm

Support Interface Pattern: Grid
Support Roof Pattern: Grid (this parameter should differ from Bottom Pattern Initial Layer in “Shell” section)
Support Floor Pattern: Grid

Minimum Support Interface Area: 10mm
Minimum Support Roof Area: 10 mm
Minimum Support Floor Area: 10 mm

Support Interface Horizontal Expansion: 0.0 mm
Support Roof Horizontal Expansion: 0.0 mm
Support Floor Horizontal Expansion: 0.0 mm

Fan Speed Override: Check
Supported Skin Fan Speed: 100%
Use Towers: Check
Tower Diameter: 4 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Skirt/Brim (For unsteady parts, and those parts that may come unstuck use “Brim”. For bigger assembly parts that have large adhesion area and for all parts of locks and claws that you want to come out clean use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
       Brim Line Count: 10
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments

comments powered by Disqus

Similar items

Browse more newly listed 3D printings
