Luke Skywalker 3D Printing Miniature | Assembly

(9)
cm: 19.2 w x 16 d x 24.2 h
in: 7.559 w x 6.299 d x 9.528 h

Source Files

|

Description

|

Printing Details

This 3D model consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

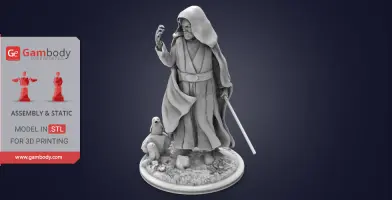

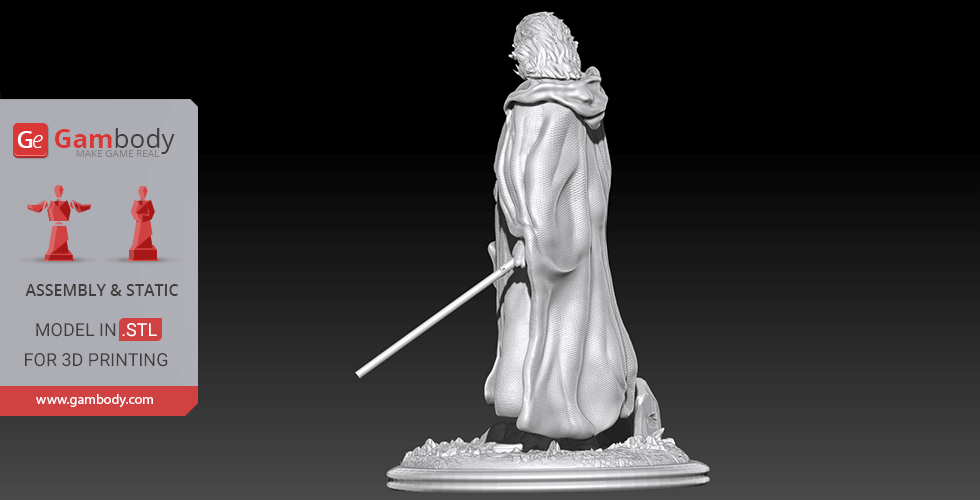

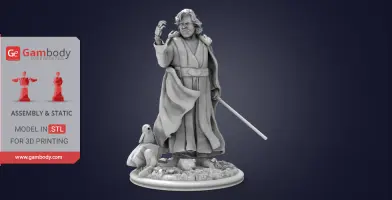

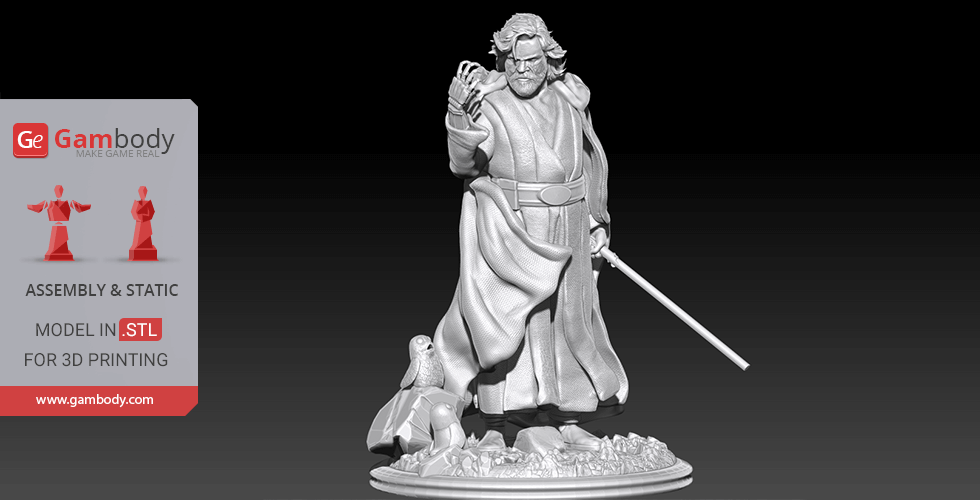

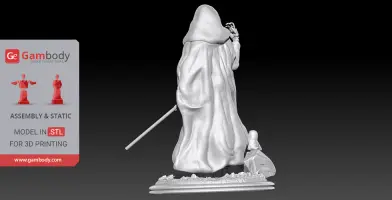

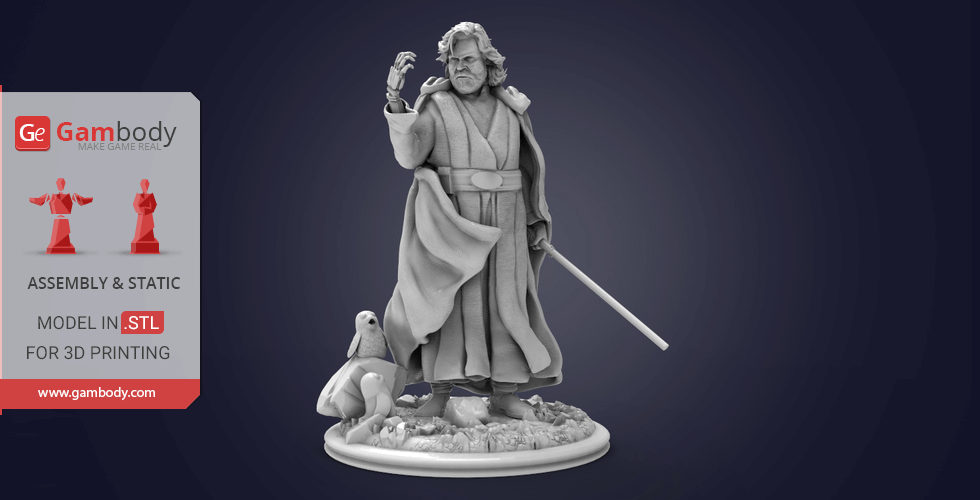

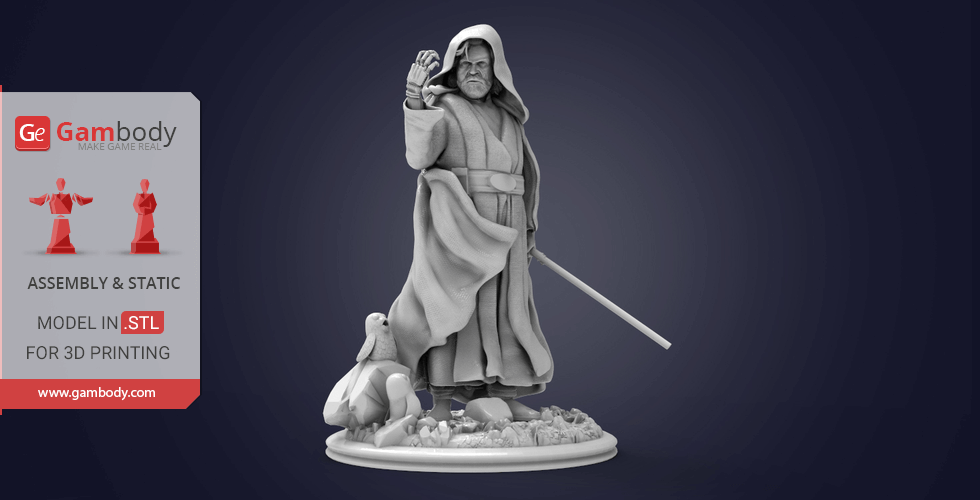

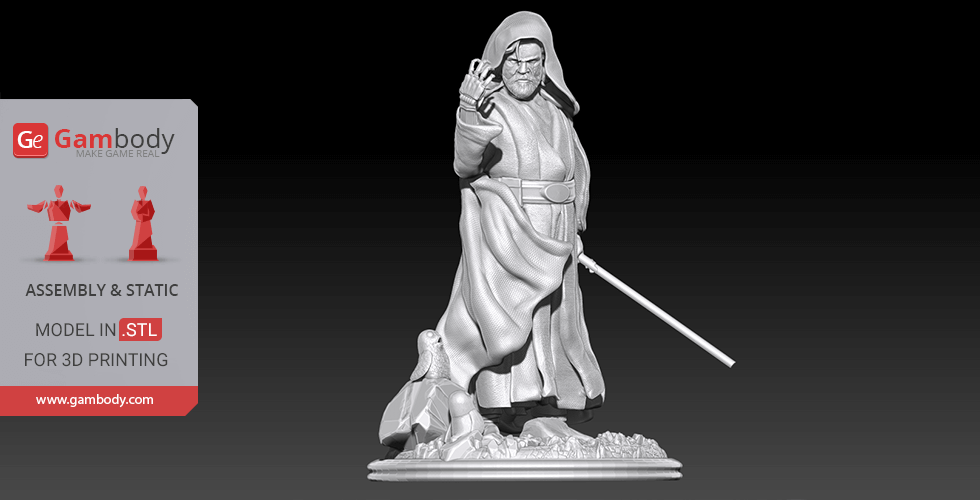

Version 1 and Version 2 are the files for Luke Skywalker 3D Model optimized for 3D printing, the preview pictures of which you see above.

It is recommended:

  • to print Version 1 STL files on FDM/FFF 3D printers;
  • to print Version 2 STL files on DLP/SLA/SLS 3D printers.
File Name File Size Time / Filament Object Size
(x/y/z mm)
1_Ge_lock_7S (x4).STL
0.02 MiB 3 min <1 m 18 x 7 x 2 Download

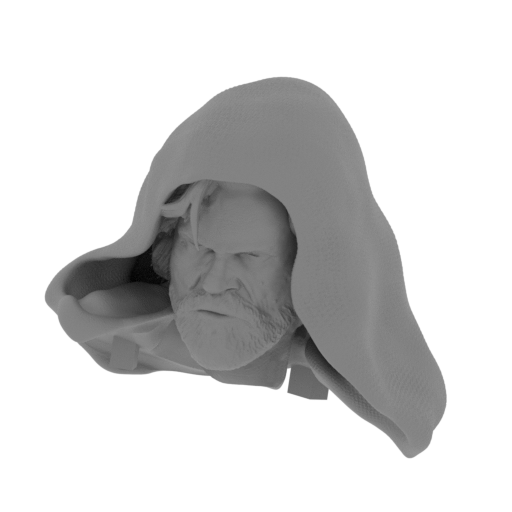

2_head_1.stl
30.43 MiB 7 h 9 min 4 m 60 x 49 x 58 Download

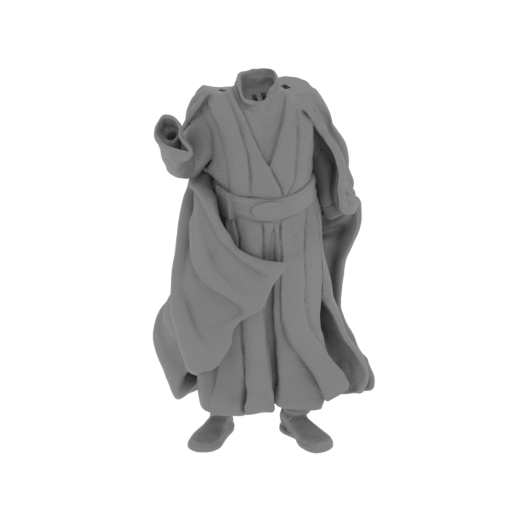

3_body.stl
44.06 MiB 50 h 31 min 29 m 97 x 93 x 190 Download

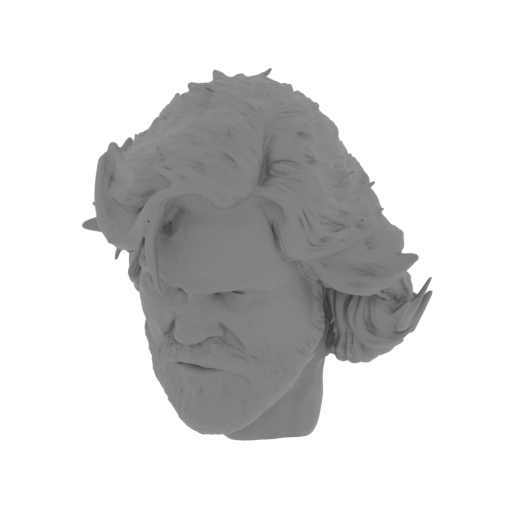

4_head_2.stl
13.07 MiB 3 h 42 min 2 m 39 x 40 x 46 Download

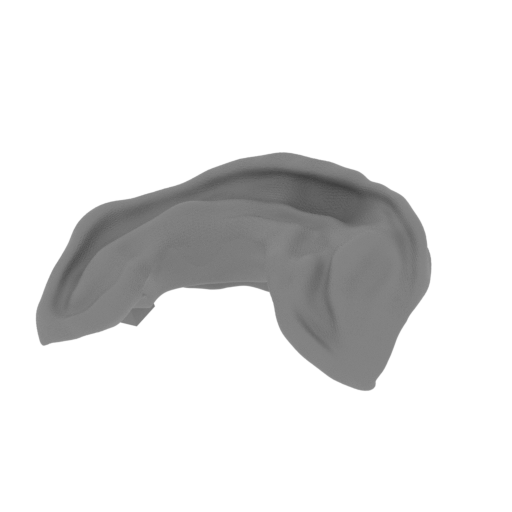

5_hood.stl
15.03 MiB 3 h 12 min 2 m 64 x 43 x 26 Download

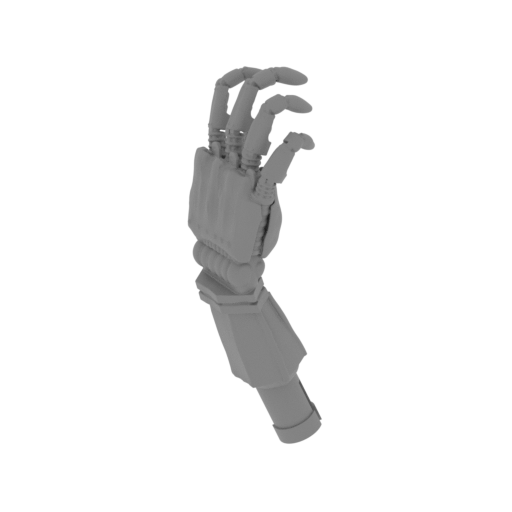

6_arm_R.stl
4.79 MiB 1 h 2 min 1 m 15 x 19 x 44 Download

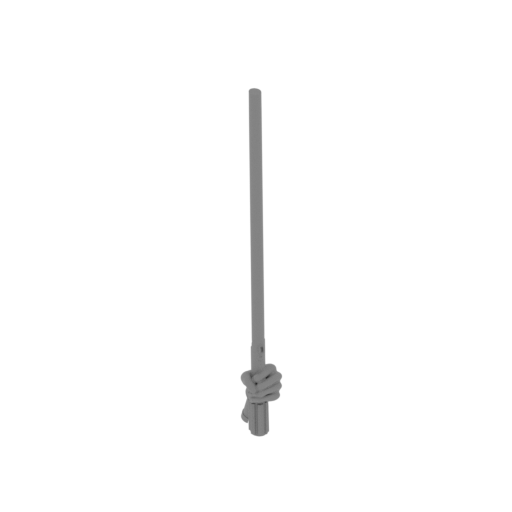

7_arm_L.stl
3.88 MiB 1 h 5 min <1 m 16 x 24 x 121 Download

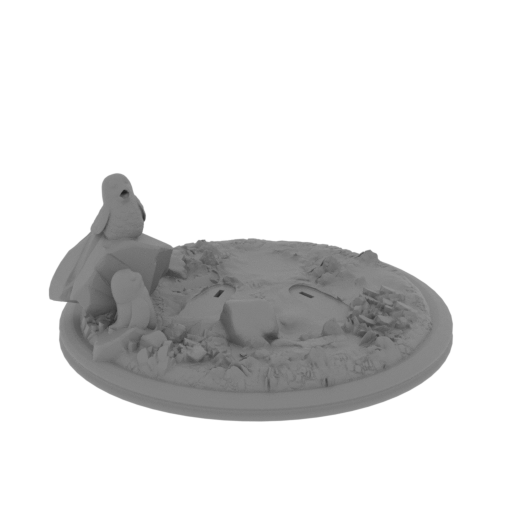

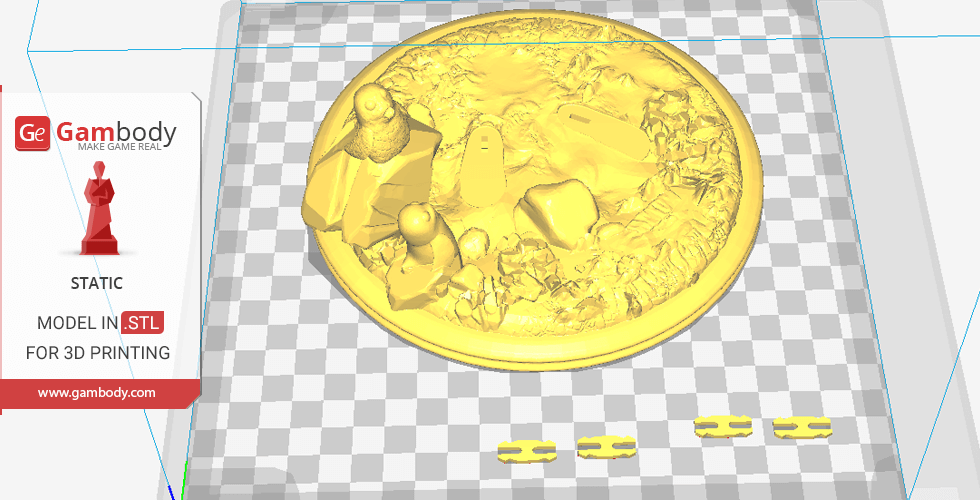

8_platform_1.stl
12.32 MiB 29 h 14 min 16 m 160 x 160 x 77 Download

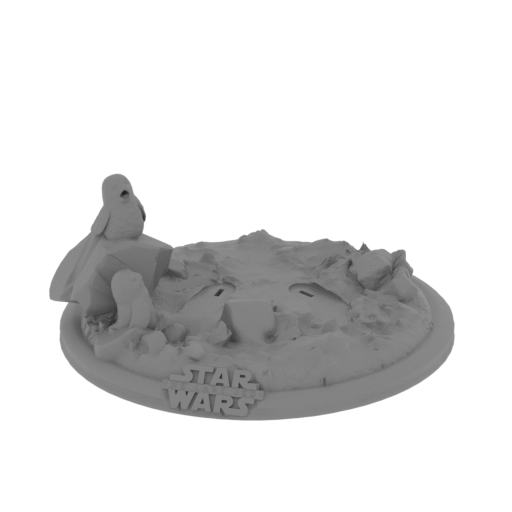

9_platform_2.stl
11.77 MiB 29 h 6 min 16 m 160 x 161 x 76 Download

HISTORY OF LUKE SKYWALKER

Luke Skywalker is a Master-Jedi and Grand-Master of the New Jedi Order, the son of a senator Padme Amidala and the Knight-Jedi Anakin Skywalker. The elder twin brother of the Leia Organa Solo. He was born on the day of the Empire creation. His mother died after the birth of Luke and he was sent to Tatooine to hide from Emperor Palpatine. On this planet, under the supervision of the Master-Jedi Obi-Wan Kenobi, Luke spent his childhood. Skywalker dreamed of adventures outside of Tatooine and all started when his family acquired two droids C-3PO and R2-D2 which carried important information for the rebels. After the death of the foster parents of whom the imperial stormtroopers were killed, Luke was forced to abandon his former life to become a Jedi and join the Alliance for the restoration of the Republic. He participated in the battle of Yavin 4 and destroyed the first Death Star, becoming the hero of the Rebellion. Three years after the defeat at Hoth, Luke flew to Dagobah to meet with Grand Master Yoda and learn the knowledge of the Jedi. He had to fight with Darth Vader. And the Darth Vader told him "Luke, I am Your Father”. Because of Luke's love and faith in good that could awaken warm feelings in his father, Darth Vader destroyed his teacher - Emperor Palpatine aboard the second Death Star, which led to the almost complete collapse of the Empire. After the defeat of the Empire and the formation of the New Republic, Luke, become the greatest hero of the Alliance for the Restoration of the Republic, was promoted to General but then left the troops and became a member of the New Republic.

ABOUT THIS 3D MODEL

The model is saved in STL files, a format supported by most 3D printers

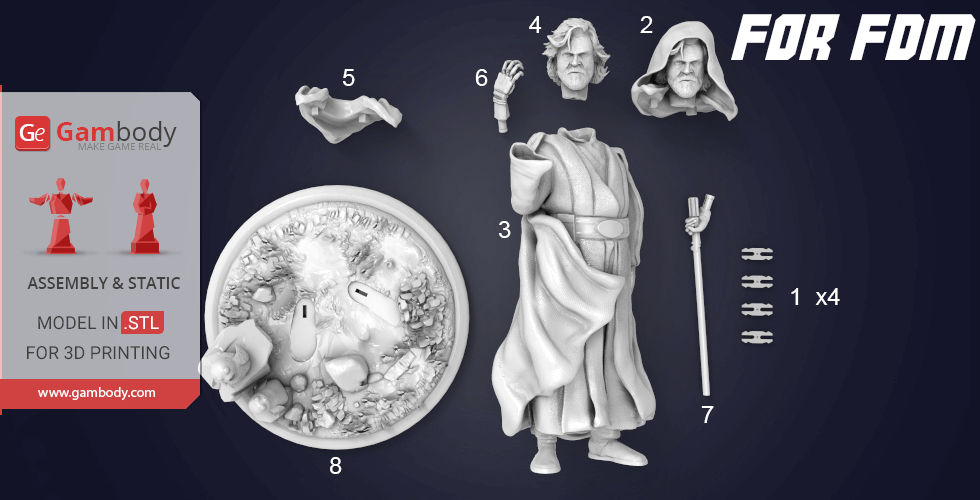

FDM version features:

- Contain 8 parts. One part of Lock (1_Ge_lock_7S (x4)) you need to print 4 times;

- Made with locks;

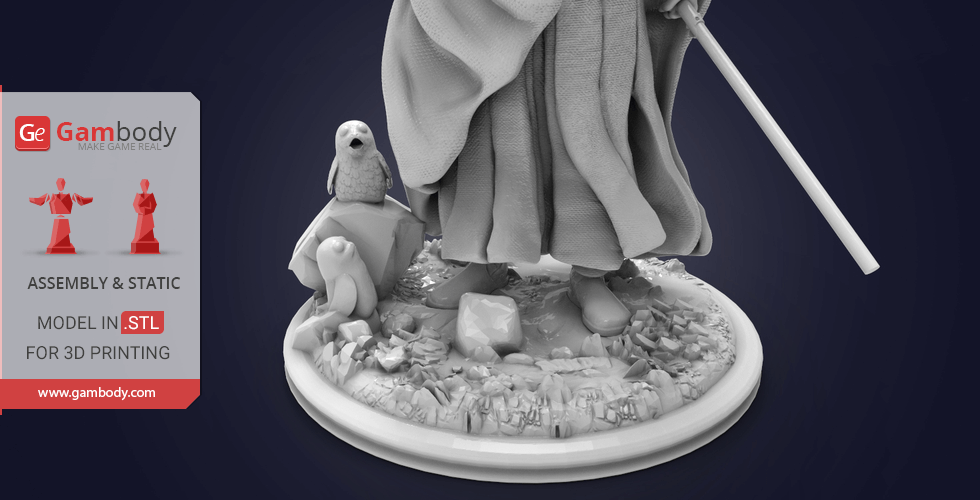

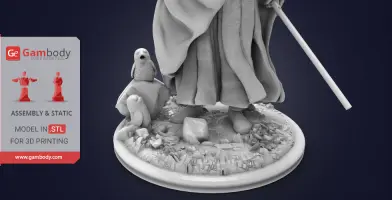

- Made with platform that stylized under the Ahch-To nature.

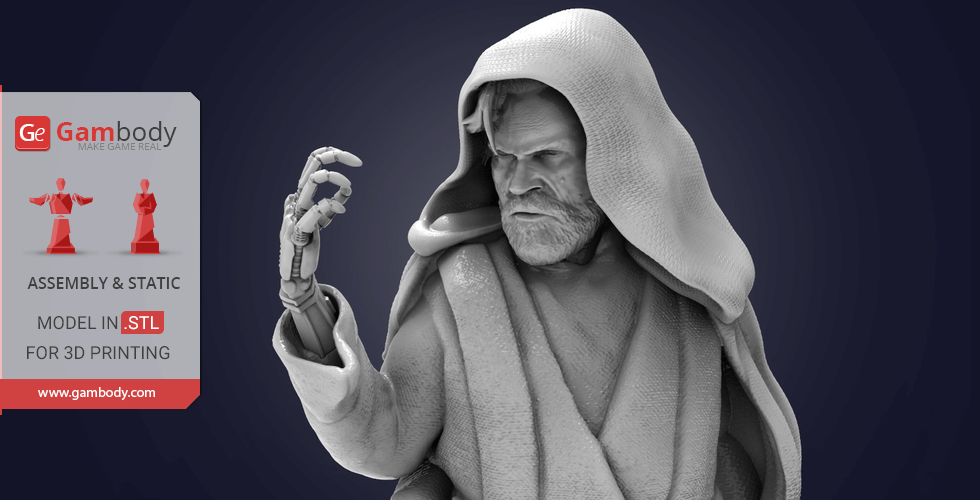

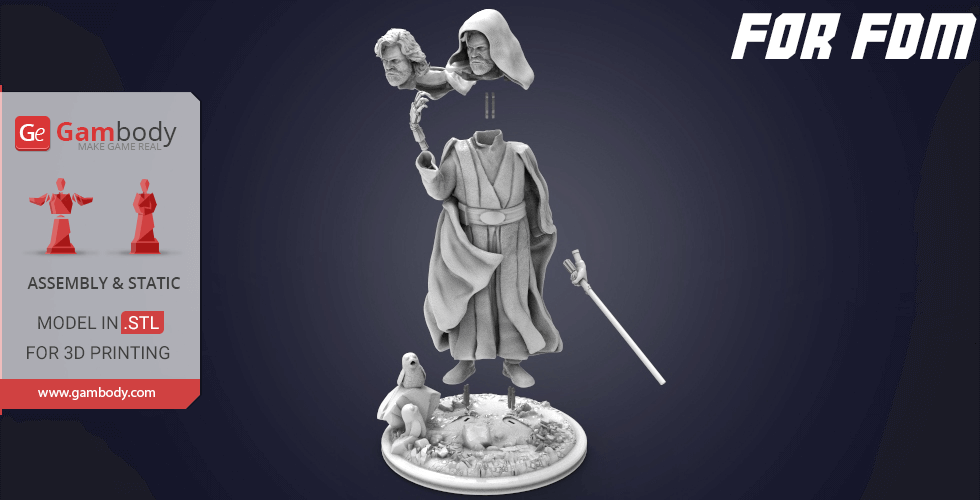

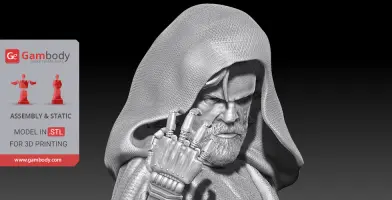

- Contain changeable heads. With hood and without it;
- All parts are divided in such way that you will print them with the smallest amount of supports.

SLS/SLA version features:

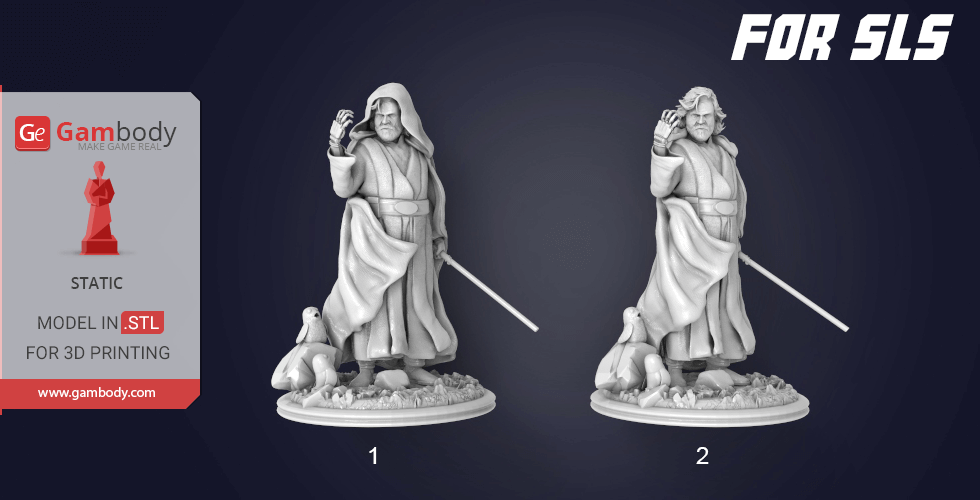

- Same as FDM but smaller and made as 2 parts. With hood and without it;

All STL files for 3D printing have been checked in Netfabb and no errors were shown.

Note: Before starting 3D printing the model, read the Printing Details for CURA 3.1.0. Software.

There are 9 parts for FFF/FDM version and 2 parts for SLS/SLA version.

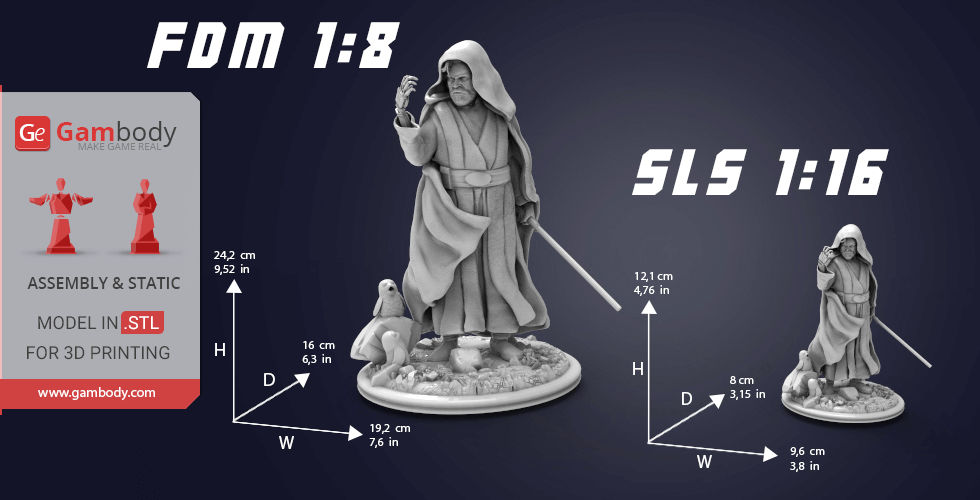

Scale: His tall in life is 1730 mm. Model made as 1/8 scale in FDM version and 1/16 in SLS/SLA version.

FDM version dimensions:

After being printed will stand - 242 mm tall, 192 mm wide, 160 mm deep;

SLS/SLA version dimensions:

After being printed will stand - 121 mm tall, 96 mm wide, 80 mm deep;

- Has only 2 details, to keep printing costs down.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Luke Skywalker for 3D printing which consist of 11 parts;
- 2 versions of files for this model for FFF/FDM and SLS/SLA;
- Removable part of platform in FDM version, that stylized under the Ahch-To nature;
- Changeable heads. With hood and without it;
- Made with locks for better fixing in FDM version;

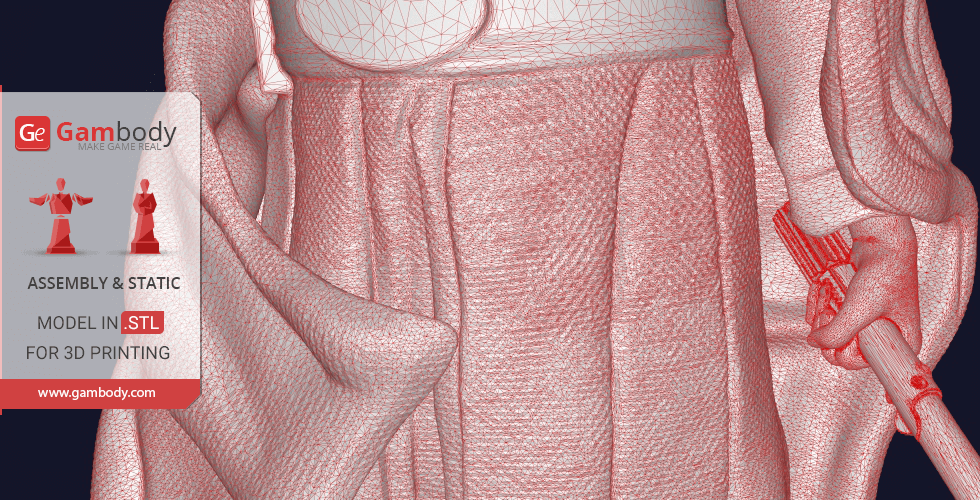

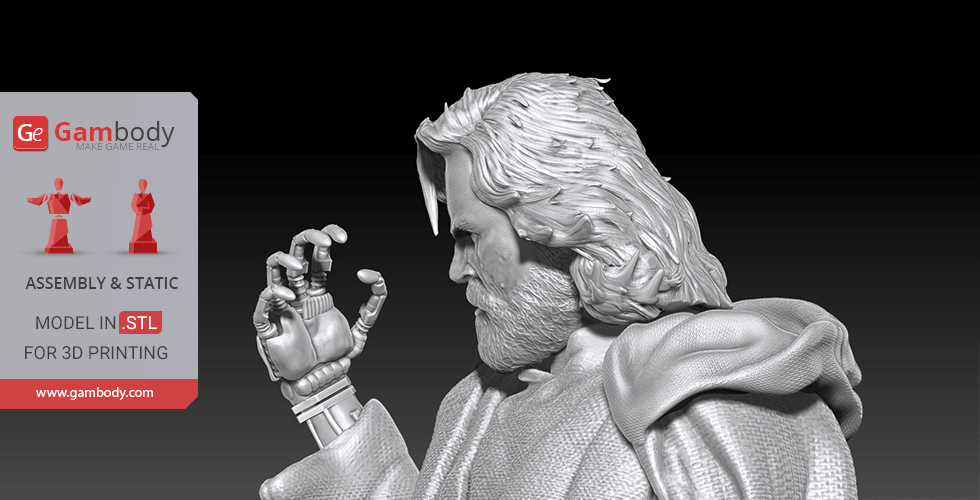

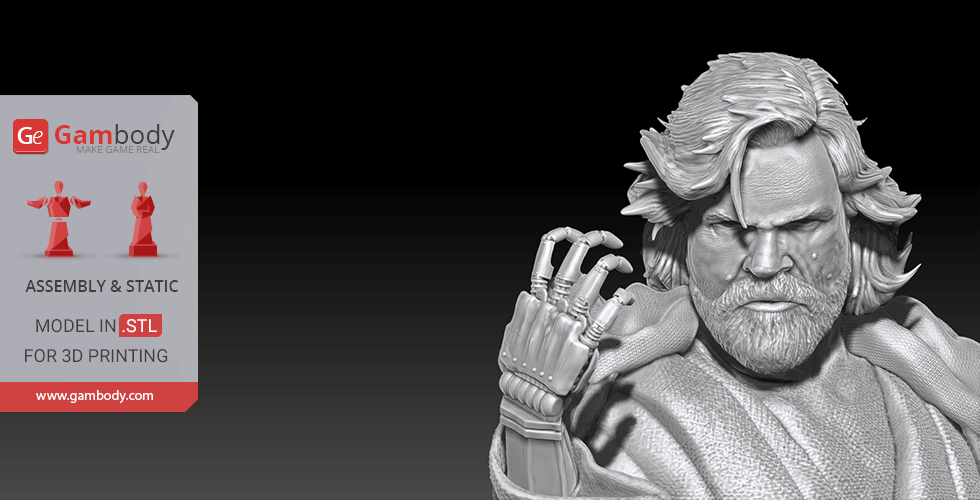

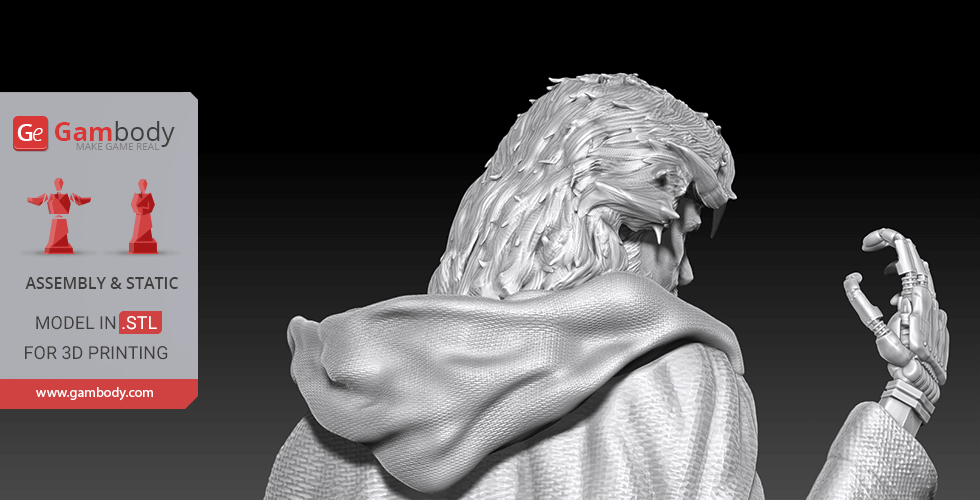

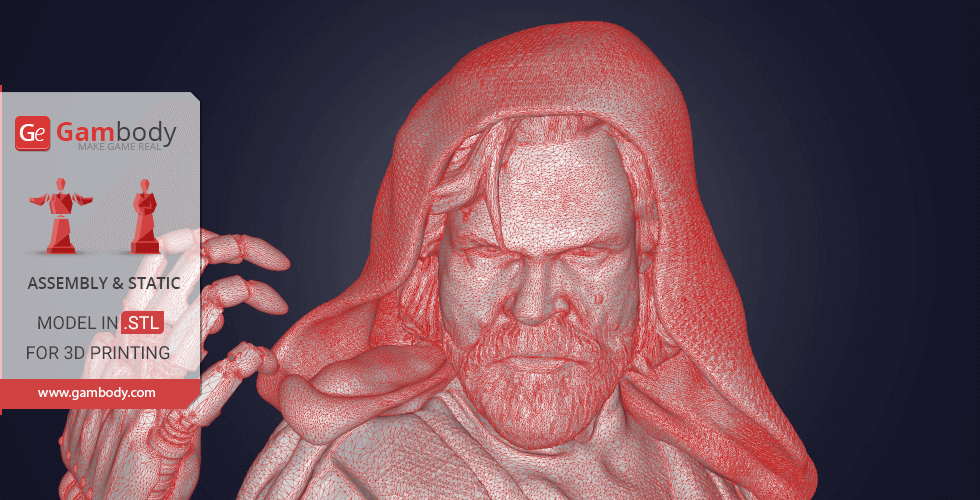

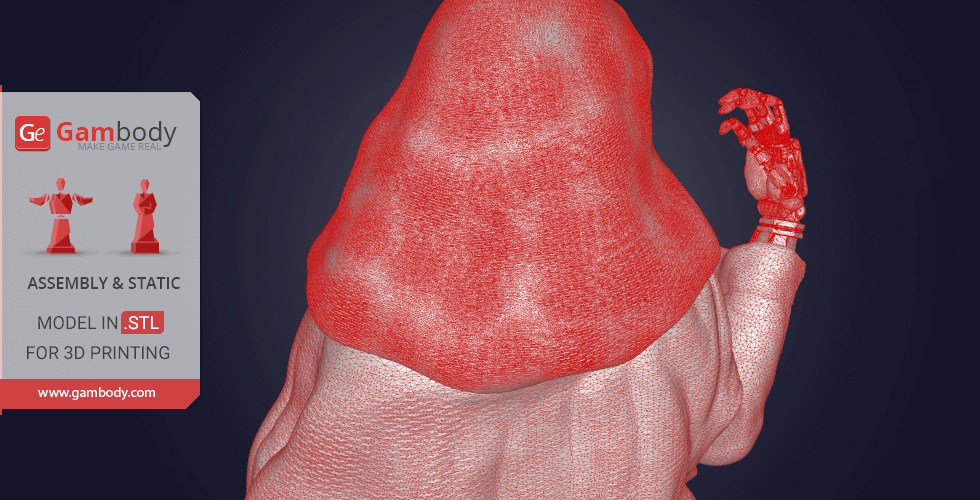

- High-poly detailed model of Luke Skywalker;
- Detailed settings that we provide for Cura 3.1.0. for the best print;
- Full technical support from the Gambody Support Team.

Watch the tutorial video on how to assemble Luke Skywalker 3D Printing Miniature at Gambody YouTube channel.

You can get Model of Luke Skywalker for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Also, you may like another Space War 3D models.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

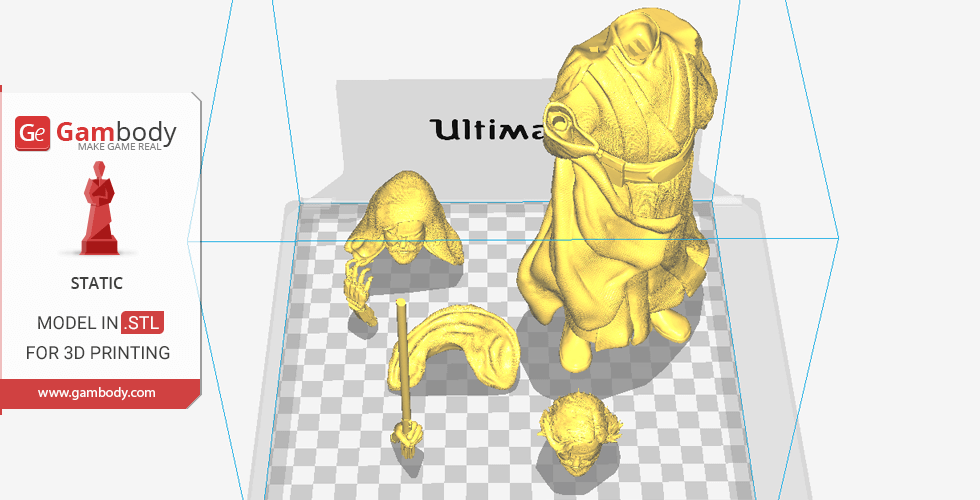

This model was tested in Cura 3.1.0. and printed on an Ultimaker 2 in PLA material.

Recommendations: For all parts of Locks you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

To avoid printing problems, we recommend the following settings:

Quality

Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Slicing Tolerance: Middle
Line Width: 0.4 mm
Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
   Top/Bottom Line Width: 0.4 mm
   Infill Line Width: 0.4 mm
   Skirt/Brim Line Width: 0.4 mm
   Support Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell

Wall Thickness: 0.8 mm
Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill

Infill Density: 20%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
    Minimum Skin Width for Expansion: 0.0

Material

Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed

Print Speed: 45 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
    Support Speed: 45 mm/s
      Support Infill Speed: 45 mm/s
Travel Speed: 80 mm/s
Initial Layer Speed: 15 mm/s

    Initial Layer Print Speed: 15 mm/s
    Initial Layer Travel Speed: 26.6667 mm/s
Skirt/Brim Speed: 15 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel

Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm
Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support

Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 60°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 1.3333 mm
Support Z Distance: 0.3 mm
    Support Top Distance: 0.3 mm
    Support Bottom Distance: 0.3 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion

Build Plate Adhesion Type: Brim (for all parts of locks use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes

Union Overlapping Volumes: Check
Maximum Resolution: 0.01 mm
Merged Meshes Overlap: 0.15 mm

Special Modes

Print Sequence: All at Once
Surface Mode: Normal

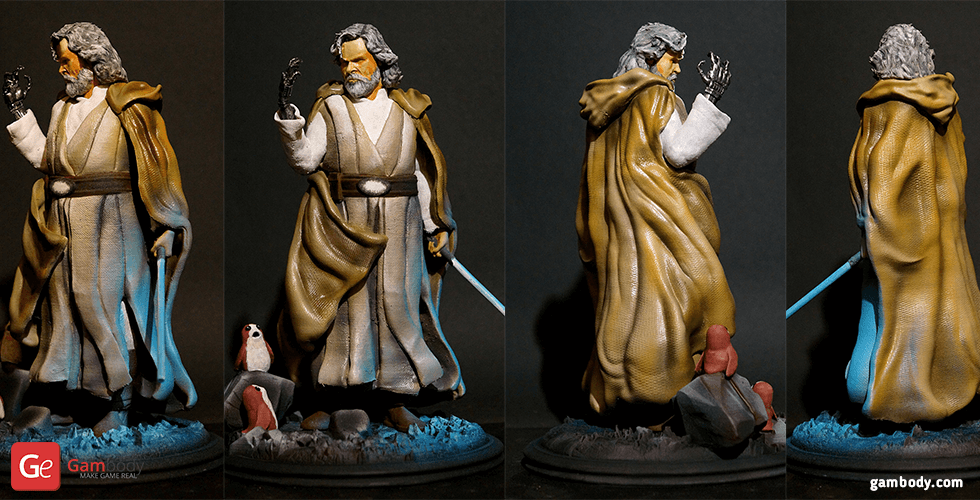

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
