Power Loader 3D Printing Model | Assembly + Action

(16)

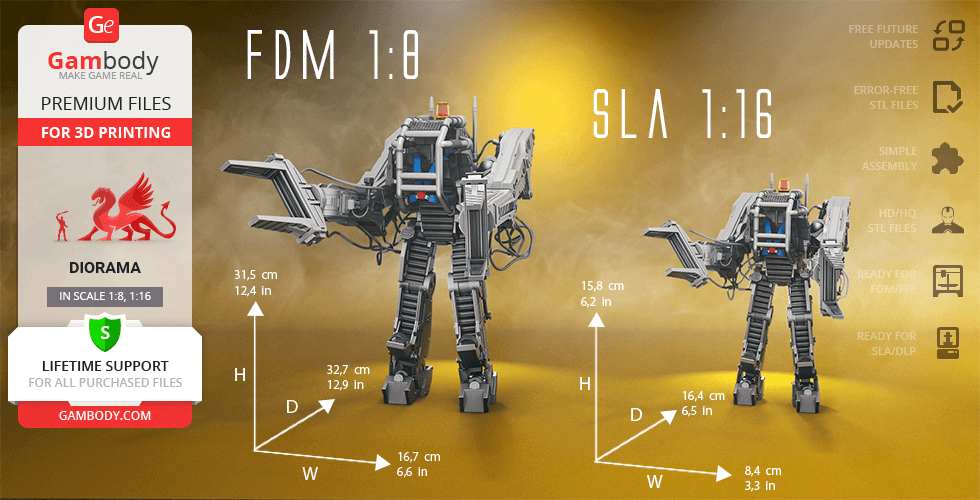

cm: 16.7 w x 32.7 d x 31.5 h
in: 6.575 w x 12.874 d x 12.402 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

Power Loader 3D Printing Model comes in 2 updated and 2 older versions for FFF/FDM and DLP/SLA/SLS 3D printers. Files for each version are available for download after purchase.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)
1_foot_R_FDM (repaired).s tl
0.89 MiB 5 h 58 min 3 m 36 x 81 x 41 Download
2_foot_cap_1_R_FDM (repai red).stl
0.29 MiB 9 min <1 m 18 x 17 x 5 Download
3_foot_cap_2_R_FDM (repai red).stl
0.29 MiB 9 min <1 m 18 x 17 x 5 Download
4_foot_claw_R_FDM (repair ed).stl
0.16 MiB 10 min <1 m 15 x 16 x 8 Download
5_foot_joint_R_FDM (repai red).stl
0.35 MiB 32 min <1 m 12 x 12 x 30 Download
6_foot_piston_out_1_R_FDM (repaired).stl
0.25 MiB 12 min <1 m 13 x 4 x 21 Download
7_foot_piston_in_1_R_FDM (repaired).stl
0.07 MiB 2 min <1 m 25 x 6 x 2 Download
8_foot_piston_pin_1_R_FDM (repaired).stl
0.06 MiB 5 min <1 m 4 x 4 x 10 Download
9_foot_piston_out_2_R_FDM (repaired).stl
0.25 MiB 12 min <1 m 13 x 4 x 21 Download
10_foot_piston_in_2_R_FDM (repaired).stl
0.07 MiB 2 min <1 m 25 x 6 x 2 Download
11_foot_piston_pin_2_R_FD M (repaired).stl
0.06 MiB 5 min <1 m 4 x 4 x 10 Download
12_shin_R_FDM (repaired). stl
5.41 MiB 14 h 17 min 8 m 31 x 95 x 107 Download
13_shin_strap_R_FDM (repa ired).stl
4.36 MiB 19 min <1 m 21 x 7 x 15 Download
14_ship_cap_1_R_FDM (repa ired).stl
0.32 MiB 14 min <1 m 21 x 21 x 6 Download
15_ship_cap_2_R_FDM (repa ired).stl
0.32 MiB 14 min <1 m 21 x 21 x 6 Download
16_shin_piston_out_R_FDM (repaired).stl
0.27 MiB 41 min <1 m 14 x 8 x 45 Download
17_shin_piston_in_R_FDM ( repaired).stl
0.07 MiB 9 min <1 m 46 x 8 x 4 Download
18_shin_piston_pin_R_FDM (repaired).stl
0.06 MiB 15 min <1 m 8 x 8 x 15 Download
19_shin_connector_R_FDM ( repaired).stl
0.51 MiB 1 h 10 min 1 m 17 x 24 x 40 Download
20_leg_R_FDM (repaired).s tl
3.27 MiB 6 h 3 min 4 m 31 x 62 x 64 Download
21_leg_joint_R_FDM (repai red).stl
0.36 MiB 31 min <1 m 12 x 12 x 30 Download
22_leg_claw_R_FDM (repair ed).stl
0.16 MiB 10 min <1 m 15 x 15 x 8 Download
23_foot_L_FDM (repaired). stl
0.89 MiB 5 h 57 min 3 m 36 x 81 x 41 Download
24_foot_cap_1_L_FDM (repa ired).stl
0.29 MiB 9 min <1 m 18 x 17 x 5 Download
25_foot_cap_2_L_FDM (repa ired).stl
0.29 MiB 9 min <1 m 18 x 17 x 5 Download
26_foot_claw_L_FDM (repai red).stl
0.16 MiB 10 min <1 m 15 x 16 x 8 Download
27_foot_joint_L_FDM (repa ired).stl
0.35 MiB 32 min <1 m 12 x 12 x 30 Download
28_foot_piston_out_1_L_FD M (repaired).stl
0.25 MiB 12 min <1 m 13 x 4 x 21 Download
29_foot_piston_in_1_L_FDM (repaired).stl
0.07 MiB 2 min <1 m 25 x 6 x 2 Download
30_foot_piston_pin_1_L_FD M (repaired).stl
0.06 MiB 3 min <1 m 4 x 4 x 10 Download
31_foot_piston_out_2_L_FD M (repaired).stl
0.25 MiB 12 min <1 m 13 x 4 x 21 Download
32_foot_piston_in_2_L_FDM (repaired).stl
0.07 MiB 2 min <1 m 25 x 6 x 2 Download
33_foot_piston_pin_2_L_FD M (repaired).stl
0.06 MiB 6 min <1 m 4 x 4 x 10 Download
34_shin_L_FDM (repaired). stl
5.42 MiB 14 h 19 min 8 m 31 x 95 x 107 Download
35_shin_strap_L_FDM (repa ired).stl
4.36 MiB 19 min <1 m 21 x 7 x 15 Download
36_ship_cap_1_L_FDM (repa ired).stl
0.32 MiB 14 min <1 m 21 x 21 x 6 Download
37_ship_cap_2_L_FDM (repa ired).stl
0.32 MiB 14 min <1 m 21 x 21 x 6 Download
38_shin_piston_out_L_FDM (repaired).stl
0.27 MiB 41 min <1 m 14 x 8 x 45 Download
39_shin_piston_in_L_FDM ( repaired).stl
0.08 MiB 9 min <1 m 46 x 8 x 4 Download
40_shin_piston_pin_L_FDM (repaired).stl
0.06 MiB 15 min <1 m 8 x 8 x 15 Download
41_shin_connector_L_FDM ( repaired).stl
0.51 MiB 1 h 10 min 1 m 17 x 24 x 40 Download
42_leg_L_FDM (repaired).s tl
3.30 MiB 6 h 4 m 31 x 62 x 64 Download
43_leg_joint_L_FDM (repai red).stl
0.36 MiB 31 min <1 m 12 x 12 x 30 Download
44_leg_claw_L_FDM (repair ed).stl
0.16 MiB 10 min <1 m 15 x 15 x 8 Download
45_body_top_1_FDM (repair ed).stl
1.19 MiB 3 h 52 min 2 m 66 x 36 x 51 Download
46_body_top_2_FDM (repair ed).stl
0.41 MiB 37 min <1 m 44 x 16 x 18 Download
47_body_bot_1_FDM (repair ed).stl
50.94 MiB 23 h 31 min 15 m 83 x 64 x 117 Download
48_body_bot_2_FDM (repair ed).stl
1.05 MiB 4 h 18 min 3 m 28 x 64 x 54 Download
49_belt_top_R_FDM (repair ed).stl
6.45 MiB 17 min <1 m 47 x 44 x 10 Download
50_belt_bot_R_FDM (repair ed).stl
5.86 MiB 14 min <1 m 23 x 45 x 12 Download
51_belt_top_L_FDM (repair ed).stl
6.45 MiB 17 min <1 m 47 x 44 x 10 Download
52_belt_bot_L_FDM (repair ed).stl
5.86 MiB 14 min <1 m 23 x 45 x 12 Download
53_belt_snap_FDM (repaire d).stl
0.20 MiB 4 min <1 m 8 x 8 x 4 Download
54_cage_frame_FDM (repair ed).stl
2.09 MiB 7 h 45 min 5 m 63 x 94 x 59 Download
55_cage_grid_FDM (repaire d).stl
5.37 MiB 1 h 1 min 1 m 40 x 39 x 8 Download
56_cage_claw_a_x11_FDM (r epaired).stl
0.06 MiB 2 min <1 m 9 x 9 x 2 Download
57_cage_claw_b_x2_FDM (re paired).stl
0.18 MiB 18 min <1 m 9 x 9 x 20 Download
58_cage_claw_c_x2_FDM (re paired).stl
0.09 MiB 9 min <1 m 9 x 9 x 9 Download
59_cage_claw_d_x2_FDM (re paired).stl
0.09 MiB 8 min <1 m 9 x 9 x 9 Download
60_cage_flamethrower_conn ector_FDM (repaired).stl
0.08 MiB 5 min <1 m 12 x 5 x 5 Download
61_cage_flamethrower_FDM (repaired).stl
1.42 MiB 40 min <1 m 9 x 19 x 38 Download
62_anten_R_FDM (repaired) .stl
0.17 MiB 17 min <1 m 9 x 64 x 6 Download
63_anten_L_FDM (repaired) .stl
0.17 MiB 17 min <1 m 9 x 64 x 6 Download
64_lamp_FDM (repaired).st l
0.45 MiB 30 min <1 m 15 x 15 x 22 Download
65_arm_joint_R_FDM (repai red).stl
0.53 MiB 1 h 9 min 1 m 20 x 20 x 45 Download
66_arm_claw_R_FDM (repair ed).stl
0.17 MiB 30 min <1 m 27 x 26 x 14 Download
67_arm_R_FDM (repaired).s tl
2.52 MiB 13 h 1 min 8 m 44 x 66 x 118 Download
68_arm_piston_claw_R_FDM (repaired).stl
0.15 MiB 7 min <1 m 13 x 14 x 7 Download
69_arm_piston_in_a_R_FDM (repaired).stl
0.30 MiB 10 min <1 m 10 x 10 x 10 Download
70_arm_piston_in_b_R_FDM (repaired).stl
0.06 MiB 14 min <1 m 5 x 74 x 4 Download
71_arm_piston_out_R_FDM ( repaired).stl
0.82 MiB 1 h 44 min 1 m 14 x 11 x 78 Download
72_arm_piston_joint_R_FDM (repaired).stl
0.29 MiB 19 min <1 m 9 x 9 x 23 Download
75_elbow_R_FDM (repaired) .stl
0.36 MiB 44 min <1 m 27 x 31 x 16 Download
76_hand_piston_out_R_FDM (repaired).stl
0.31 MiB 1 h 10 min 1 m 10 x 16 x 55 Download
77_hand_piston_in_R_FDM ( repaired).stl
0.08 MiB 12 min <1 m 61 x 9 x 4 Download
78_hand_joystick_rail_R_F DM (repaired).stl
0.04 MiB 15 min <1 m 29 x 7 x 10 Download
79_hand_joystick_R_FDM (r epaired).stl
1.00 MiB 16 min <1 m 13 x 33 x 9 Download
80_hand_joystick_wire_for _flexible_R_FDM (repaired ).stl
1.93 MiB 6 min <1 m 18 x 16 x 5 Download
82_wrist_2_R_FDM (repaire d).stl
0.58 MiB 4 h 48 min 3 m 22 x 97 x 33 Download
83_wrist_connector_R_FDM (repaired).stl
0.08 MiB 14 min <1 m 30 x 7 x 7 Download
84_wrist_fork_rail_a_1_R_ FDM (repaired).stl
0.03 MiB 12 min <1 m 4 x 80 x 3 Download
85_wrist_fork_rail_a_2_R_ FDM (repaired).stl
0.03 MiB 12 min <1 m 4 x 80 x 3 Download
86_wrist_fork_rail_b_R_FD M (repaired).stl
0.03 MiB 34 min <1 m 7 x 76 x 8 Download
87_wrist_fork_1_R_FDM (re paired).stl
0.11 MiB 1 h 5 min 1 m 17 x 76 x 11 Download
88_wrist_fork_2_R_FDM (re paired).stl
0.11 MiB 1 h 6 min 1 m 17 x 76 x 11 Download
89_wrist_grip_1_R_FDM (re paired).stl
0.16 MiB 10 min <1 m 9 x 23 x 5 Download
90_wrist_grip_2_R_FDM (re paired).stl
0.16 MiB 10 min <1 m 9 x 23 x 5 Download
91_arm_joint_L_FDM (repai red).stl
0.53 MiB 1 h 7 min 1 m 20 x 20 x 45 Download
92_arm_claw_L_FDM (repair ed).stl
0.17 MiB 31 min <1 m 27 x 26 x 14 Download
93_arm_L_FDM (repaired).s tl
2.52 MiB 13 h 8 m 44 x 66 x 118 Download
94_arm_piston_claw_L_FDM (repaired).stl
0.15 MiB 7 min <1 m 13 x 14 x 7 Download
95_arm_piston_in_a_L_FDM (repaired).stl
0.30 MiB 10 min <1 m 10 x 10 x 10 Download
96_arm_piston_in_b_L_FDM (repaired).stl
0.06 MiB 14 min <1 m 4 x 74 x 4 Download
97_arm_piston_out_L_FDM ( repaired).stl
0.82 MiB 1 h 53 min 1 m 14 x 11 x 78 Download
98_arm_piston_joint_L_FDM (repaired).stl
0.29 MiB 21 min <1 m 9 x 9 x 23 Download
101_elbow_L_FDM (repaired ).stl
0.36 MiB 44 min <1 m 27 x 31 x 16 Download
102_hand_piston_out_L_FDM (repaired).stl
0.31 MiB 1 h 10 min 1 m 10 x 16 x 55 Download
103_hand_piston_in_L_FDM (repaired).stl
0.08 MiB 12 min <1 m 61 x 9 x 4 Download
104_hand_joystick_rail_L_ FDM (repaired).stl
0.04 MiB 15 min <1 m 29 x 7 x 10 Download
105_hand_joystick_L_FDM ( repaired).stl
1.00 MiB 17 min <1 m 13 x 33 x 9 Download
106_hand_joystick_wire_fo r_flexible_L_FDM (repaire d).stl
1.93 MiB 6 min <1 m 18 x 16 x 5 Download
108_wrist_2_L_FDM (repair ed).stl
0.58 MiB 4 h 49 min 3 m 22 x 97 x 33 Download
109_wrist_connector_L_FDM (repaired).stl
0.08 MiB 14 min <1 m 30 x 7 x 7 Download
110_wrist_fork_rail_a_1_L _FDM (repaired).stl
0.03 MiB 12 min <1 m 4 x 80 x 3 Download
111_wrist_fork_rail_a_2_L _FDM (repaired).stl
0.03 MiB 12 min <1 m 4 x 80 x 3 Download
112_wrist_fork_rail_b_L_F DM (repaired).stl
0.03 MiB 34 min <1 m 7 x 76 x 8 Download
113_wrist_fork_1_L_FDM (r epaired).stl
0.11 MiB 1 h 6 min 1 m 17 x 76 x 11 Download
114_wrist_fork_2_L_FDM (r epaired).stl
0.11 MiB 1 h 6 min 1 m 17 x 76 x 11 Download
115_wrist_grip_1_L_FDM (r epaired).stl
0.16 MiB 10 min <1 m 9 x 23 x 5 Download
116_wrist_grip_2_L_FDM (r epaired).stl
0.16 MiB 10 min <1 m 9 x 23 x 5 Download
74_hand_R_FDM (repaired). stl
3.59 MiB 8 h 17 min 5 m 40 x 39 x 98 Download
100_hand_L_FDM (repaired) .stl
3.59 MiB 8 h 20 min 5 m 40 x 39 x 98 Download
73_hand_connector_R_FDM ( repaired).stl
0.57 MiB 1 h 48 min 1 m 21 x 29 x 45 Download
81_wrist_1_R_FDM (repaire d).stl
2.34 MiB 2 h 1 min 1 m 32 x 32 x 40 Download
99_hand_connector_L_FDM ( repaired).stl
0.57 MiB 1 h 49 min 1 m 21 x 29 x 45 Download
107_wrist_1_L_FDM (repair ed).stl
2.33 MiB 2 h 1 m 32 x 32 x 40 Download
16_shin_piston_out_R_v2_F DM (repaired).stl
0.37 MiB 49 min <1 m 14 x 13 x 45 Download
28_1_foot_piston_out_x4_v 2_FDM (repaired).stl
0.49 MiB 5 min <1 m 7 x 20 x 4 Download
28_2_foot_piston_out_x4_v 2_FDM (repaired).stl
0.28 MiB 6 min <1 m 5 x 5 x 15 Download
38_shin_piston_out_L_v2_F DM (repaired).stl
0.37 MiB 49 min <1 m 14 x 13 x 45 Download
47_1_body_bot_1_v2_FDM (r epaired).stl
44.37 MiB 22 h 21 min 14 m 83 x 64 x 102 Download
47_2_body_bot_1_v2_FDM (r epaired).stl
6.87 MiB 50 min 1 m 48 x 13 x 31 Download
48_body_bot_2_v2_FDM (rep aired).stl
1.47 MiB 4 h 23 min 3 m 28 x 64 x 54 Download
29_1_foot_piston_in_x4_v2 _FDM (repaired).stl
0.14 MiB 4 min <1 m 12 x 7 x 4 Download
29_2_foot_piston_in_x4_v2 _FDM (repaired).stl
0.33 MiB 6 min <1 m 6 x 6 x 24 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 16 min 1 m 150 x 18 x 5 Download
...

ABOUT THIS 3D MODEL

P-5000 Powered Work Loader, simply known as the Power Loader is an industrial mechanised exoskeleton that was utilised by fearless Ellen Ripley in the course of her desperate combat with the Xenomorph Queen. Surprisingly flexible and capable of lifting and handling heavy cargo, this power frame is equipped with hydraulic "claws" that easily manipulate and rotate loads of all kinds and shapes. In the course of the second in franchise 1986 Aliens movie, warrant officer Ripley proved that the cargo (or opponent, for that matter) doesn’t necessarily need to be inanimate for the Loader to fend it off with ease. The author of the Power Loader for 3D printing spent 178 hours working on the model for your 3D printed Ellen Ripley figurine to have a reliable and extremely detailed exoskeleton to fight in. The iconic scene of brave Ripley conquering the extraterrestrial Xenomorph Queen aboard USS Sulaco ship leaves no sci-fi admirer indifferent and the 3D artist made sure you receive a Power Loader with the finest elements taken care of. Rotating warning light, huge claws, bulky limbs and massive cage with safety belts provided - your 3D printed Loader will only lack a pilot though can be easily displayed separately. We are pretty sure that anyone who watched the Aliens film especially back in the 80s dreamt of having their very own Power Loader. Thanks to the 3D printing technology, it is now made available to everyone - STL files for 3D printing are just a click away!

ADAPTATION FOR 3D PRINTING

Power Loader model for 3D printing is a highly articulated action assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 66 hours in total. In order to ensure multidirectional movement of the exoskeleton, it was divided into many assembly parts and special mechanisms were introduced into all model’s joints to give you an opportunity to display the loader in a variety of positions, i.e. its elbows, wrists, knees, feet etc. are movable and the "claws" are rotatable and can even clench to hold objects (or xenomorphs, for that matter). The Loader’s cage can be opened for you to place there Ellen Ripley figurine that can be secured with the safety belts that also come as separate assembly pieces. For you to introduce wires that connect the Loader’s arms to the body we recommend that you use 2.85mm flexible filament or even simple 2.85/1.75mm PLA plastic and insert its pieces into designated holes that are designed to securely fit either diameter. All assembly parts are provided in STL files in recommended positions that were worked out so to ensure the smoothness of the details’ surfaces after printing and so that the 3D printing beginners won't face difficulties when placing the parts on a build plate. The joints that ensure the robot’s movability are provided as separate files as well for you to be able to print them again if the joints' friction happens to lose rigidity. We highly recommend that you watch "Assembly video" in the photo preview section before assembling the Loader.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from the actual height of the Power Loader that is 2520 mm. The 3D printing model's chosen scale is 1/8 for the FFF/FDM version and 1/16 for the DLP/SLA/SLS versions.

VERSION SPECIFICATIONS

FFF/FDM 1.1 version features:
- Contains 71 parts;
- A printed model is 315 mm tall, 167 mm wide, 327 mm deep;
- Optimised cutting and fully reworked joints;
- Each loader's joint is articulated which allows the model's movability;
- Wires that connect the Loader’s arms to the body are not provided with STL files. We recommend that you use 2.85mm flexible filament or even simple 2.85/1.75mm PLA plastic and insert its pieces into designated holes that are designed to securely fit either diameter;
- Rotating warning light on top of the Loader can be printed with fluorescent filament;
- Rings that are to be threaded on the cage are movable and can be placed as you prefer;
- Power Loader can be displayed with Ellen Ripley behind the controls;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

DLP/SLA/SLS 1.1 version features:
- Contains 27 parts;
- A printed model is 158 mm tall, 84 mm wide, 164 mm deep;
- Optimised cutting and fully reworked joints;
- Power Loader is articulated thanks to the introduced movable connecting elements;
- This version comes with two variants of legs - to display the Loader solo and to showcase with Ellen Ripley behind the controls;
Wires that connect the Loader’s arms to the body are not provided with STL files. We recommend that you use 1.75mm flexible filament or simple PLA plastic of the same diameter and insert its pieces into designated holes;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

FFF/FDM 1.0 and DLP/SLA/SLS 1.0 versions’ features:
- Older versions with outdated joints;
- FFF/FDM 1.0 version contains 116 parts;
- DLP/SLA/SLS 1.0 version contains 34 parts;
- The rest of the features are the same.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Power Loader​​​​ Model for 3D printing which consist of 150 parts;
- High-poly detailed model of Power Loader​​​​;
- Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get the model of Power Loader​​​​​ for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble the Power Loader​​​​​ 3D Printing Model at Gambody YouTube channel.

Also, you may like Ellen Ripley 3D Printing Figurine that completes the diorama as well as other Alien vs Predator 3D Printing Models.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

This model was tested in Cura 3.4.1 and printed on an Ultimaker 2 in PLA material. Below you can find printing recommendations for CuraSimplify3D and Slic3r softwares.

Cura printing recommendations:

Recommendations: Use ABS or PLA Plus filament to print more durable and friction resistant details.

It is recommended to print all parts of joints with lower Support Overhang Angle: 30°.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
 Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
 Top/Bottom Line Width: 0.4 mm
 Infill Line Width: 0.4 mm
 Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
    Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill
Infill Density: 80%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 1
Gradual Infill Steps Height: 1.5 mm
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90Ëš
    Minimum Skin Width for Expansion: 0.0

Material
Initial Layer Flow: 100%
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 45 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
Travel Speed: 45 mm/s
Initial Layer Speed: 22.5 mm/s
  Initial Layer Print Speed: 22.5 mm/s
  Initial Layer Travel Speed: 30 mm/s
Skirt/Brim Speed: 30 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 50°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 3 mm
Support Z Distance: 0.1 mm
    Support Top Distance: 0.1 mm
    Support Bottom Distance: 0.1 mm
Support X/Y Distance: 1 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.25 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Gradual Support Infill Steps: 0
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim (for all parts of locks use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 80%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill density: 80%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments

comments powered by Disqus

Similar items

Browse more newly listed 3D printings
