Enclave Power Armor 3D Miniature | Static

(2)
cm: 14.3 w x 15 d x 17 h
in: 5.63 w x 5.906 d x 6.693 h

Source Files

|

Description

|

Printing Details

This 3D model consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

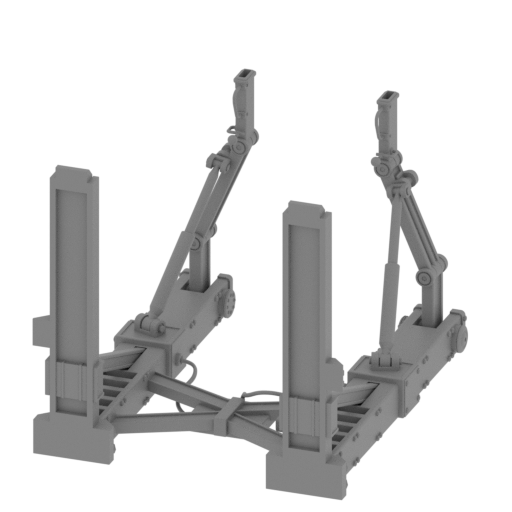

boom platforms (repaired) .stl
12.01 MiB 32 h 36 min 18 m 143 x 170 x 137 Download

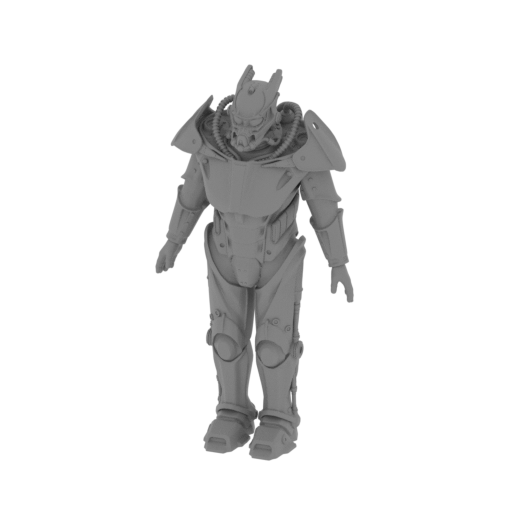

Enclave Power Armor (repa ired).stl
34.67 MiB 17 h 36 min 11 m 74 x 42 x 139 Download

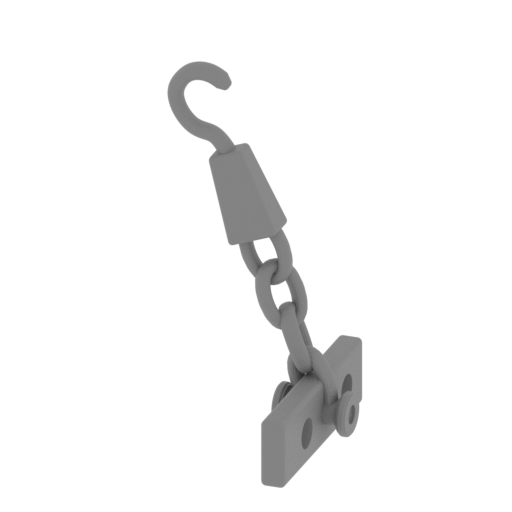

hook_left (repaired).stl
0.99 MiB 40 min <1 m 22 x 25 x 44 Download

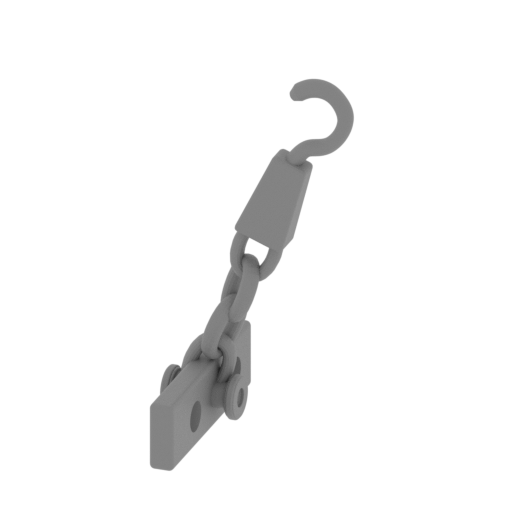

hook_right (repaired).st l
0.99 MiB 40 min <1 m 22 x 25 x 44 Download

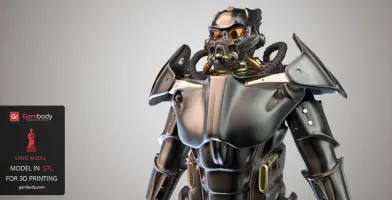

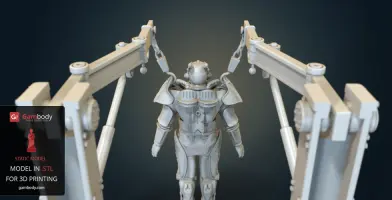

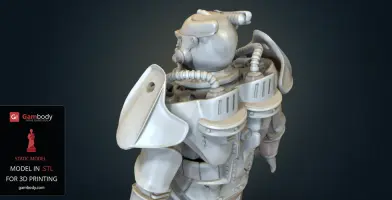

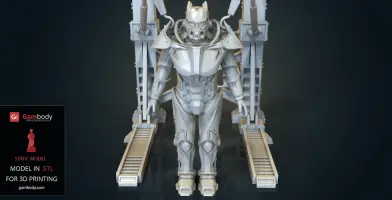

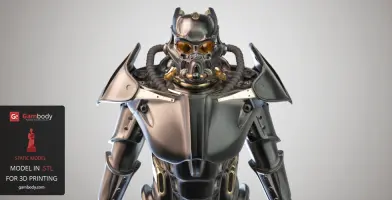

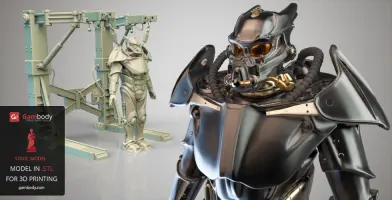

Enclave Power Armor 3D model is inspired by the popular video game’s armor suit. The in-game power armor is used by the Enclave Army. It is a light-weight suit, built from special composites, other than the usual metal and plates that other power armors are built.

The Enclave Power Armor consists of the Enclave power helmet and the armor itself. The body suit is significantly more advanced than any other armor design, being bulletproof.

Enclave Power Armor 3D model depicts the in-game armor with the utmost resemblance. Nevertheless, the 3D model bears differences due to being optimized and adjusted for 3D printing.

It is a high-poly model, with hundreds of thousands of polygons creating the superb outer shell of the model and ensuring the accurate 3D printing result.

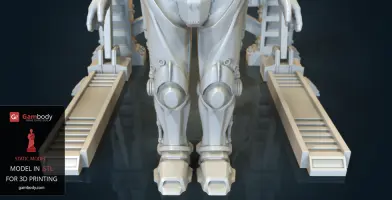

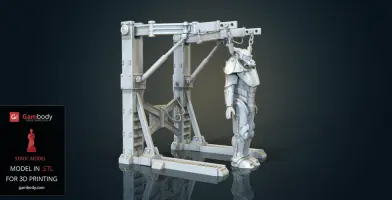

As Tesla Armor model for 3D printing, Enclave Power Armor 3D model is made up of 4 separate parts: right and the left hooks, the platform for the power armor, and the power armor itself. The files of the 3D model are created in Autodesk Maya modeling program. The files are provided in STL format and are downloadable in a ZIP folder. You can extract easily the files and handle them without any difficulty in various slicing programs, such as Cura 15.06 or Simplify3D.

Pay attention to the Printing Details and follow them strictly for an incredible result.

All 4 STL files are corrected in Netfabb and are absolutely free of any error.

After printing, the model will be 17cm tall with the platform support, or 14cm tall for only the armor, 15cm deep, and 14cm wide.

Buy Enclave Power Armor 3D model by clicking the green Buy button in the top right corner of the page. Download the files, print them on your home 3D printer, or with 3DHubs and add Enclave Power Armor 3D model to your power armor collection.

________________________

On 28.11.2016 the model files have been optimized and made solid. They now are adapted to be 3D printed using any slicing program. 3D model files are already available for purchase and download.

Generic

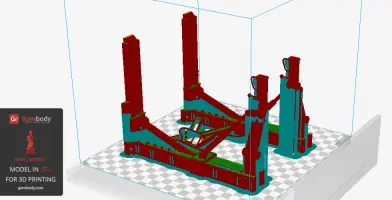

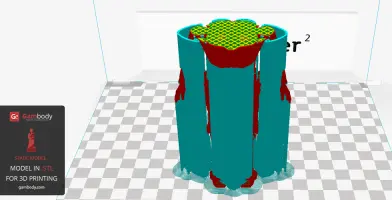

This model was tested in Cura 15.06. To avoid printing problems, we recommend the following settings:

Quality

  • Layer height: 0.1mm*
  • Initial layer thickness: 0.3mm
  • Bottom/top pattern: lines
  • Skin perimeter line count: 0
  • Horizontal expansion: 0.04mm (when entering 0.04mm index, the 3D printer perceives the model as monolith, i.e. as having no hidden layers).

*Layer Height 0.1mm is recommended for a better quality for the printed model. However, the printing time will double.

Check this **Simplify3D User Guidelines to avoid any 3D printing problems with this software.
**On 28.11.2016, the 3D model files have been optimized. You can print them without following these Simplify3D guidelines, as the model is solid.

The model has been tested and printed in PLA. In case you need advice where to get your filaments from, check our partner's website.

Speed setups:

  • Infill speed: 50mm/s
  • Outer shell speed : 30mm/s
  • Inner shell speed: 20mm/s
  • Top/bottom speed: 20mm/s
  • Support speed: 50mm/s
  • Travel speed: 150mm/s
  • Skirt speed: 30mm/s
  • Amount of slower layers: 4

Infill:

  • Infill pattern: Grid
  • Line distance: 3mm
  • Infill overlap: 20%
  • Infill layers: 0

Support:

  • Enable support: Check
  • Placement: Everywhere
  • Overhang angle: 30°
  • X/Y distance: 0.7mm
  • Top distance: 0.2mm
  • Bottom distance: 0.2mm
  • Stair step height: 0.5mm
  • Join distance: 0.7mm
  • Area smoothing: 0.6mm
  • Use towers: check
  • Pattern: Lines
  • Line distance: 1.5mm

Platform adhesion:

  • Type: Brim
  • Brim line count: 10 (up to 20, depending on the model’s height)

Other 3D printing recommendations:

Outer Shell Speed - 20mm/s and Support Speed - 40mm/s settings apply to avoid model deformation.  Apply other settings by default.

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
