Harley 3D Printing Figurine | Static

(13)
cm: 7.6 w x 15.3 d x 18 h
in: 2.992 w x 6.024 d x 7.087 h

Source Files

|

Description

|

Printing Details

This 3D model consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

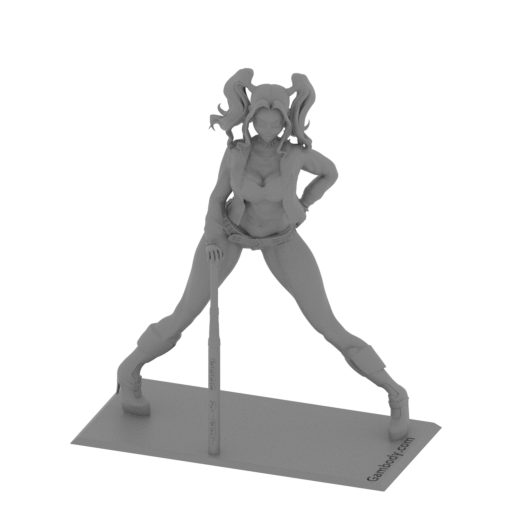

harley quinn 2 (repaired) .stl
72.04 MiB n.a.
n.a.
153 x 76 x 180 Download

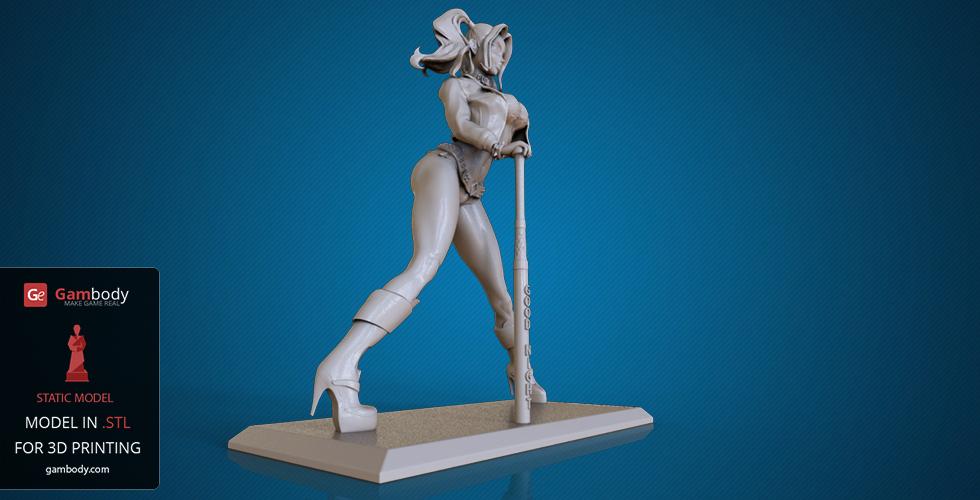

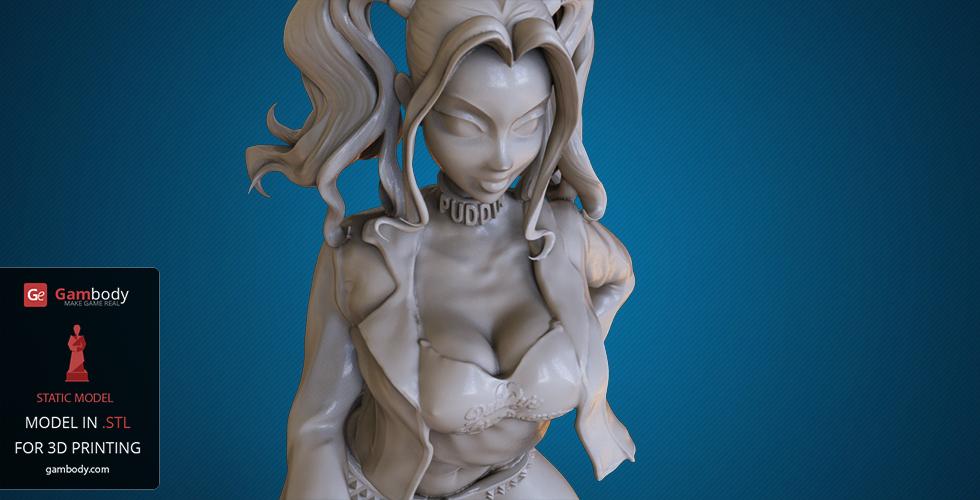

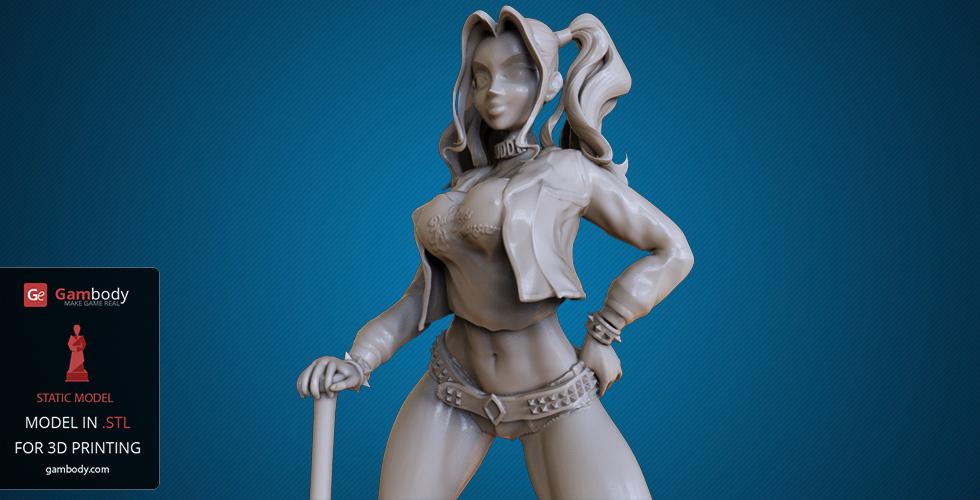

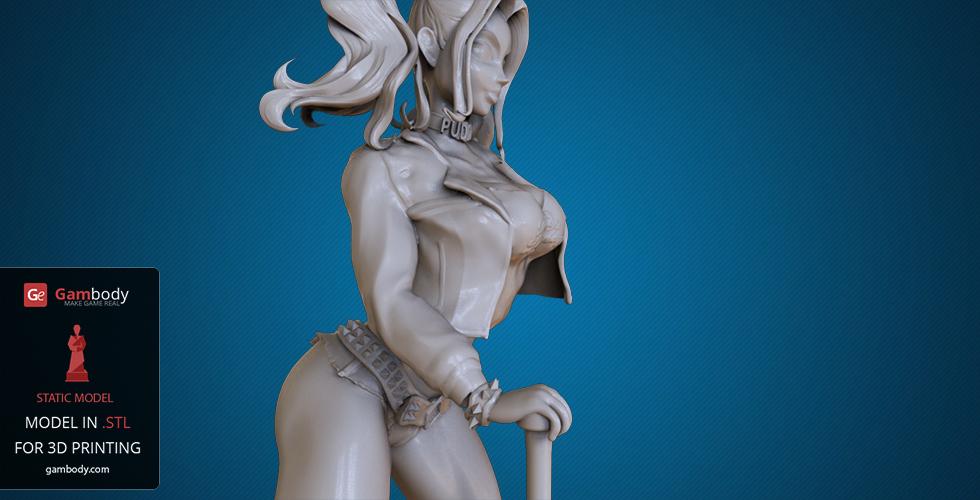

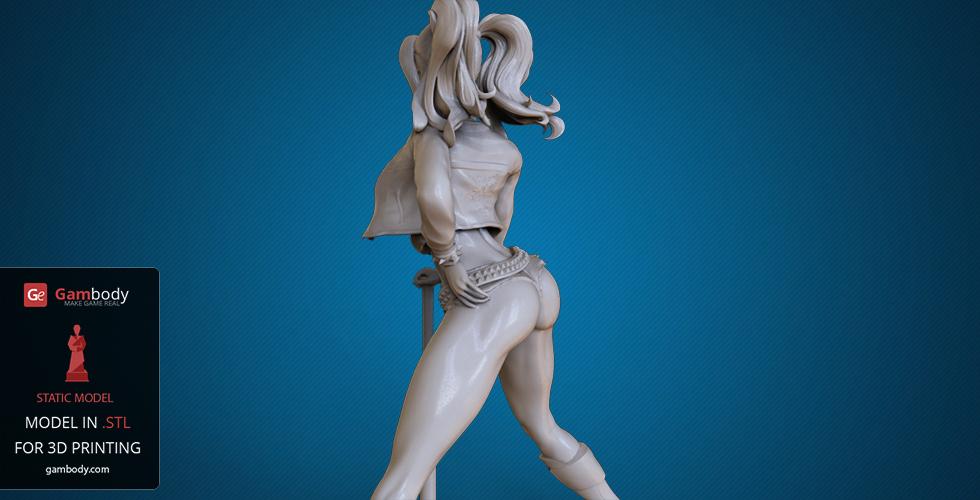

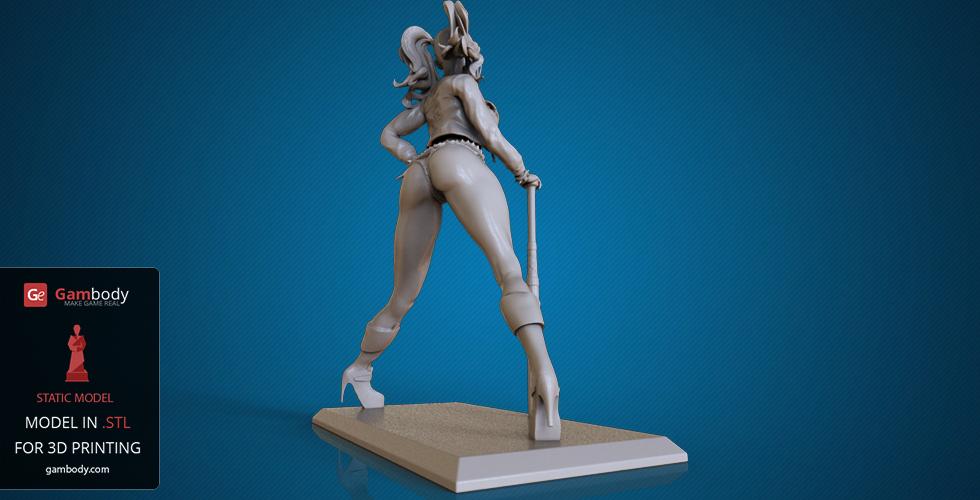

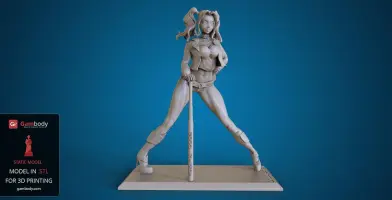

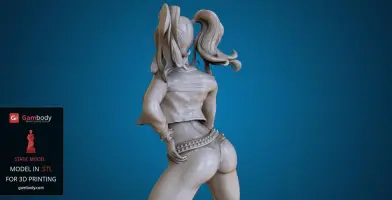

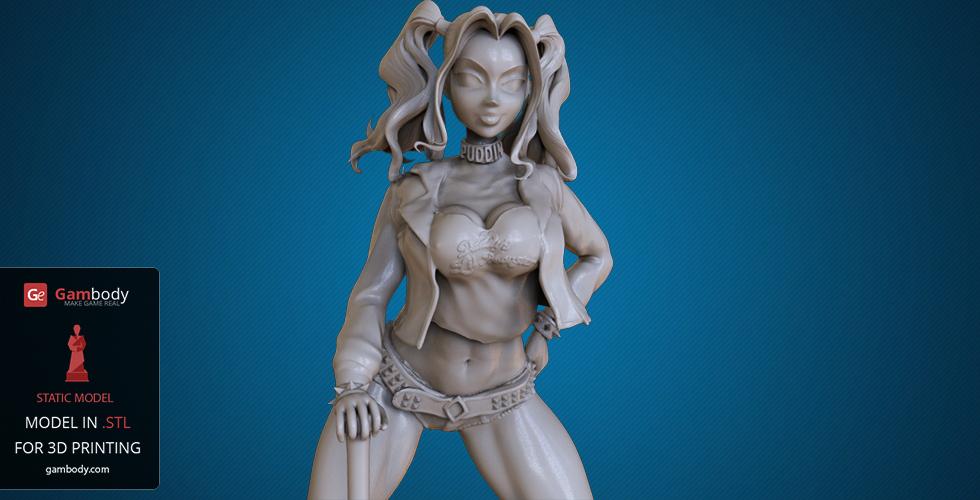

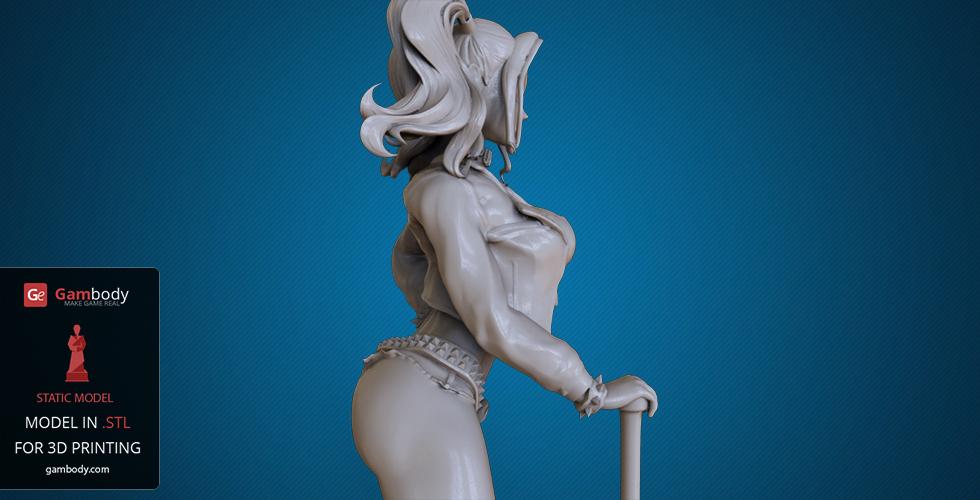

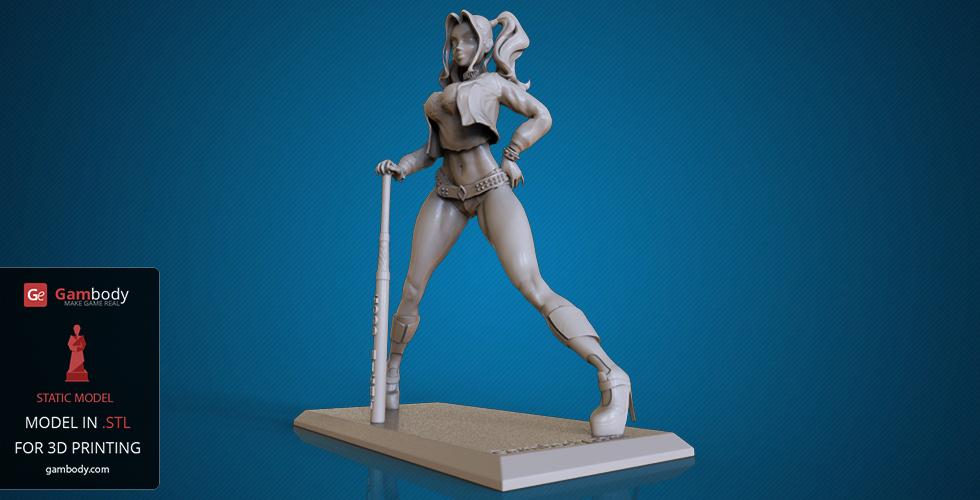

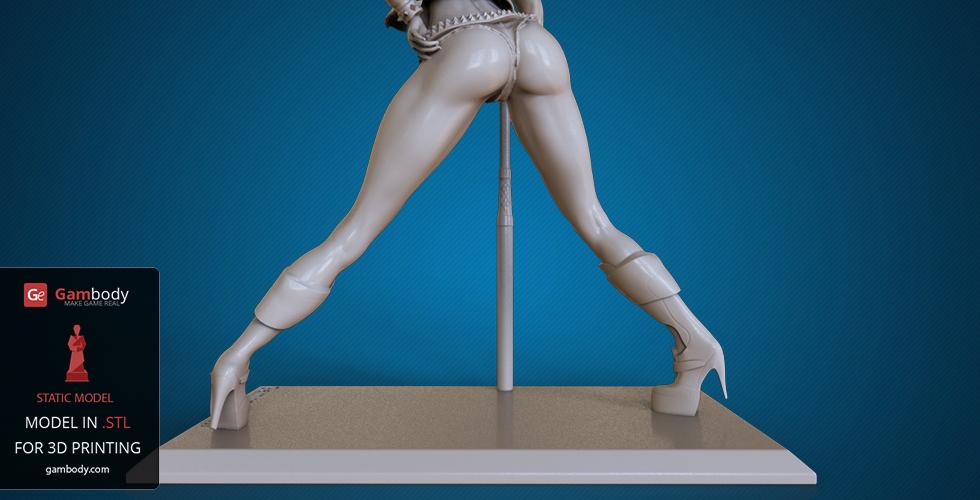

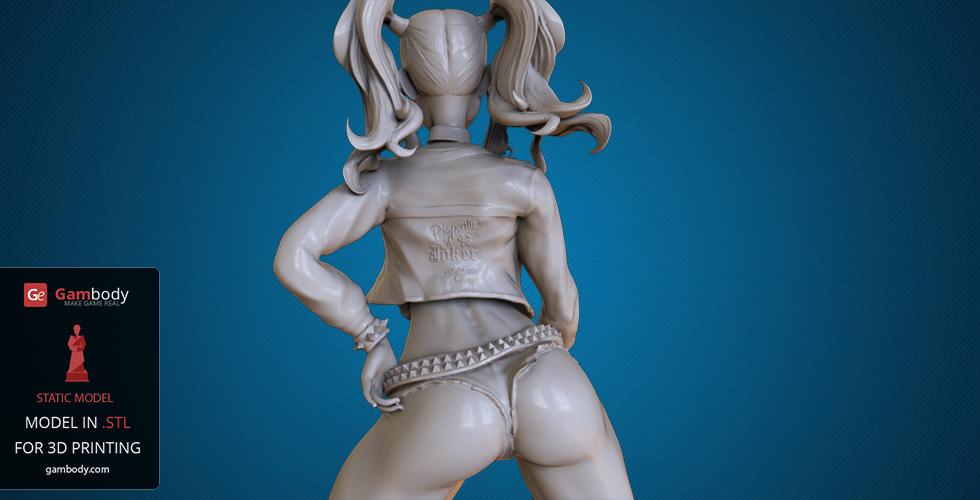

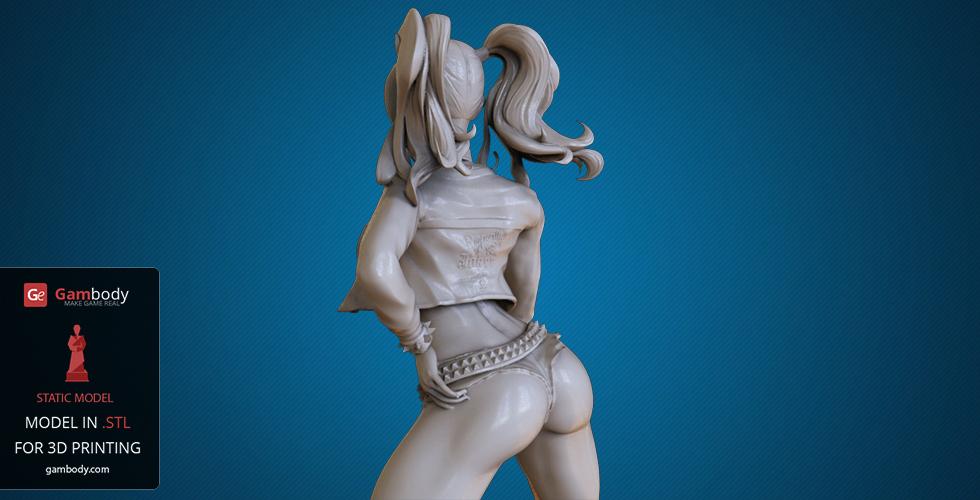

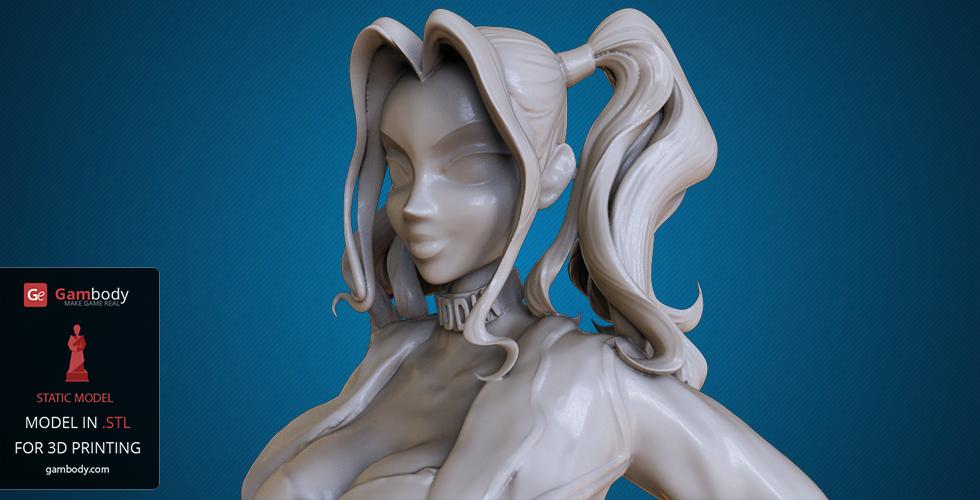

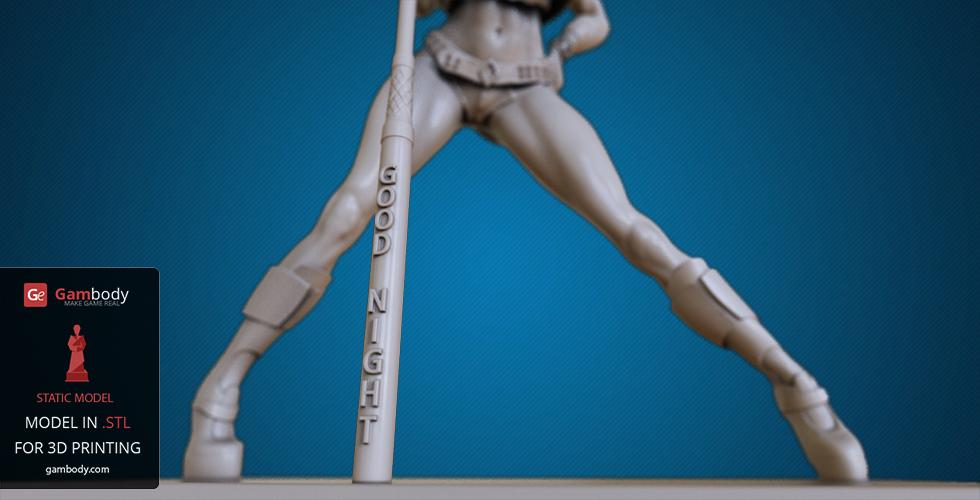

Harley 3D model is inspired by the comic book character. The 3D model shows the character in a sexy outfit and with killer curves.

Dressed in a crop top and in excessively short shorts, Harley 3D printing model will be a great addition to your collection of 3D prints.

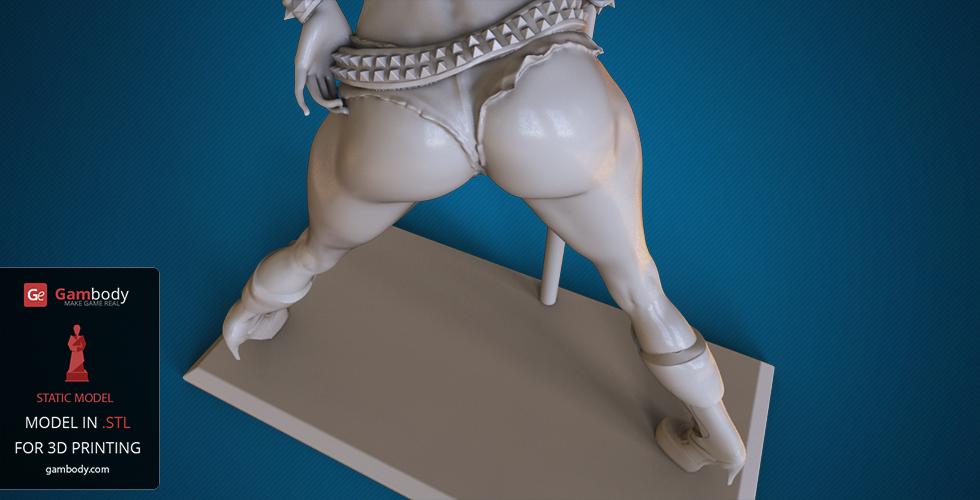

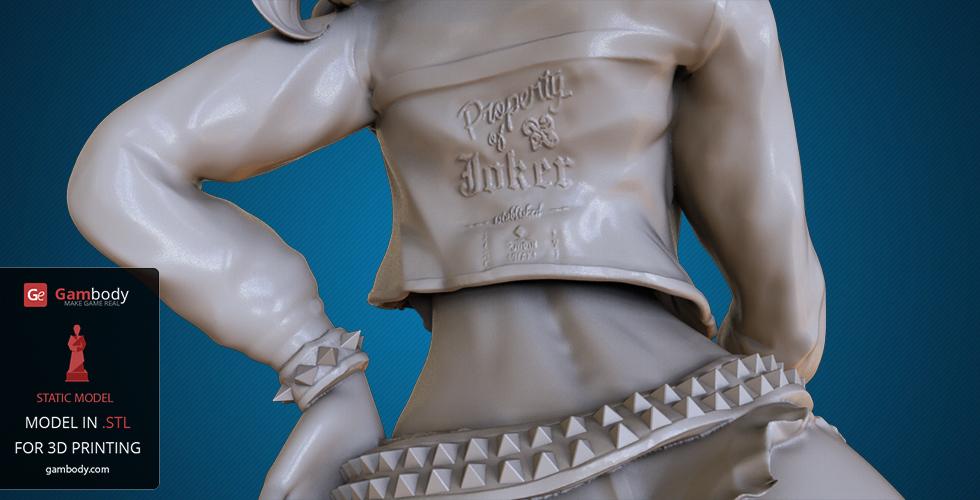

The STL file for the 3D model is created in Autodesk Maya and ZBrush. It is a high-poly model, showcasing intricate details and smooth lines. The STL file is checked and corrected in Netfabb and is made in a solid mesh, which will facilitate its handling in the slicing program of your 3D printer.

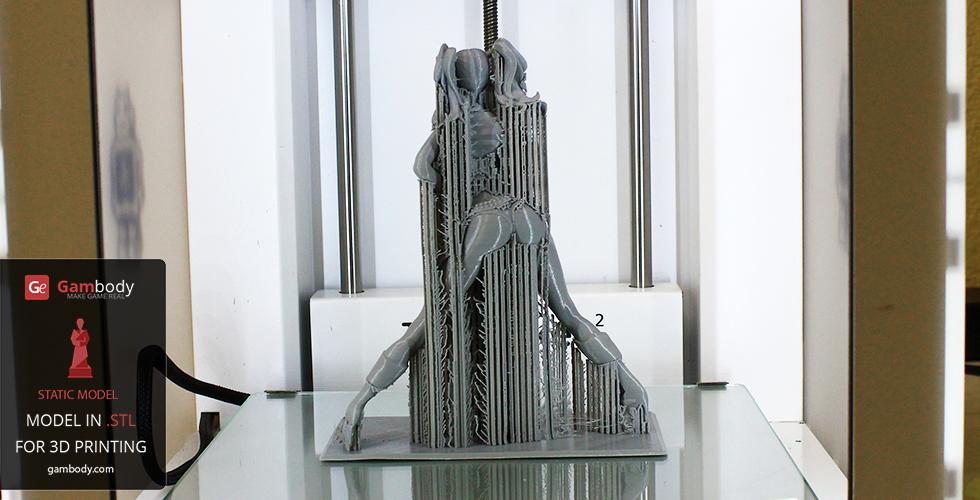

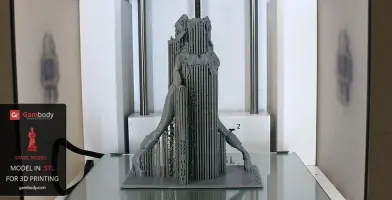

Harley 3D model is available for 3D printing in a single STL file. Support is required for overhangs.

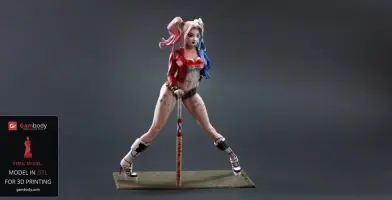

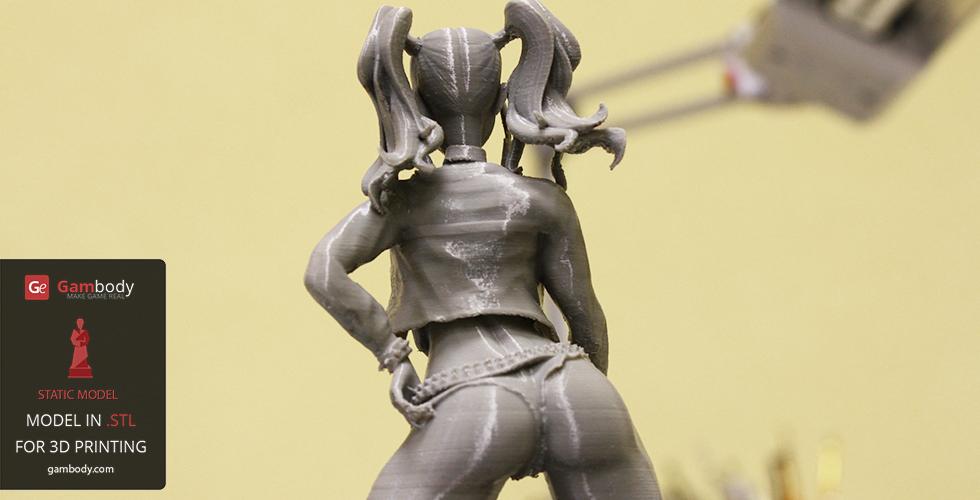

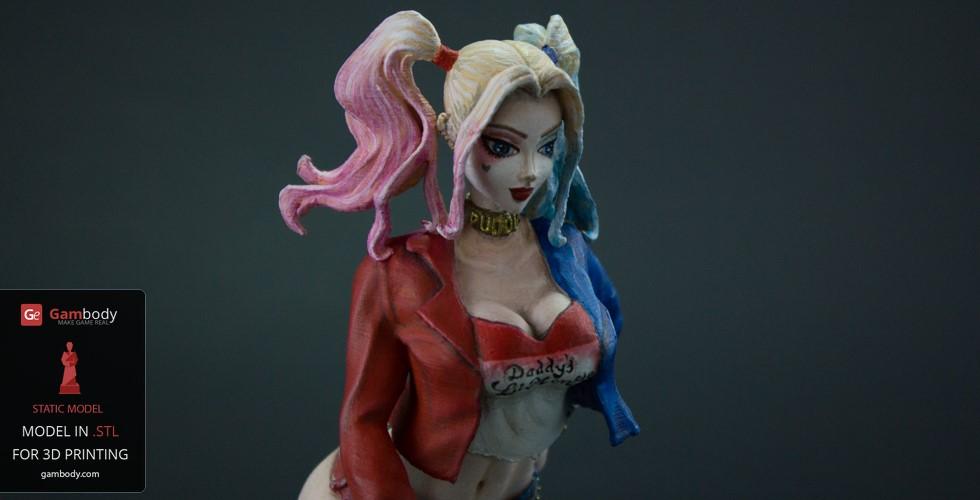

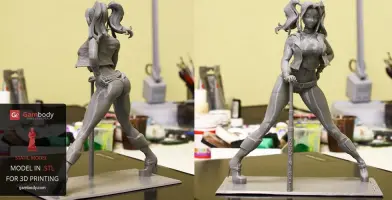

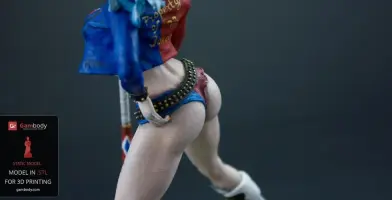

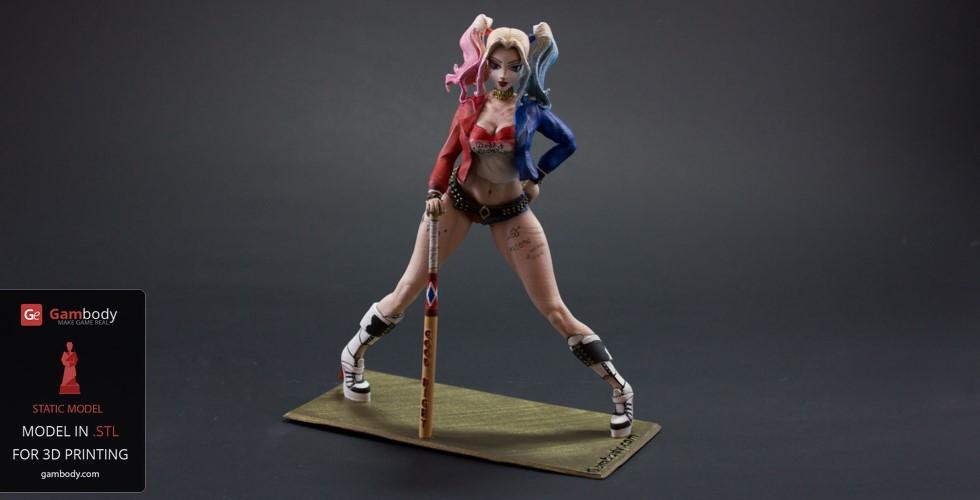

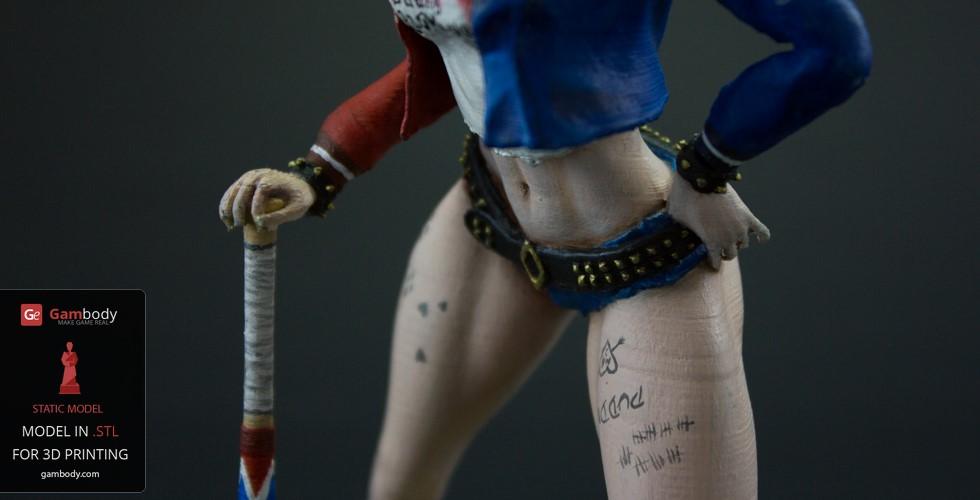

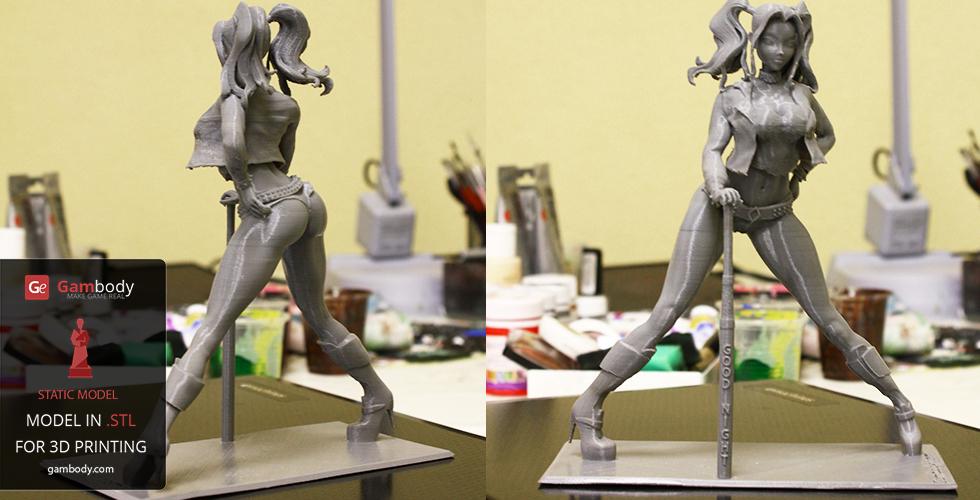

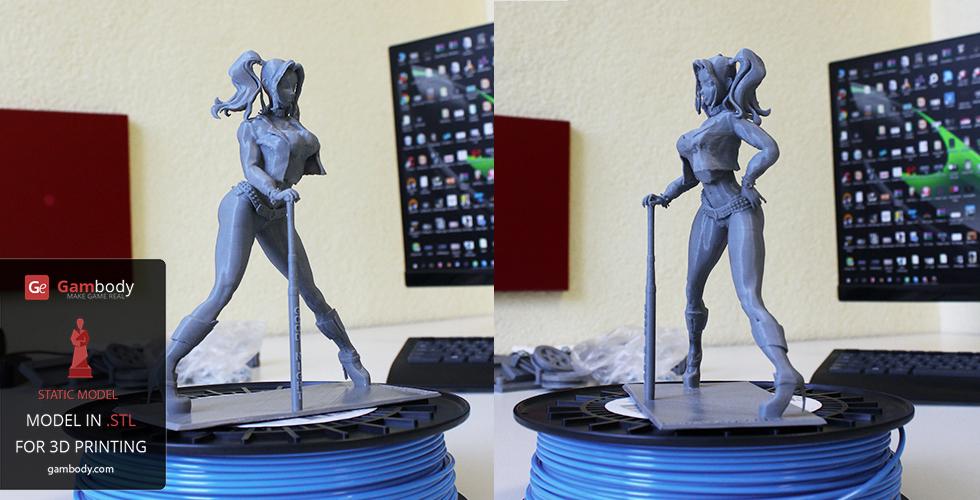

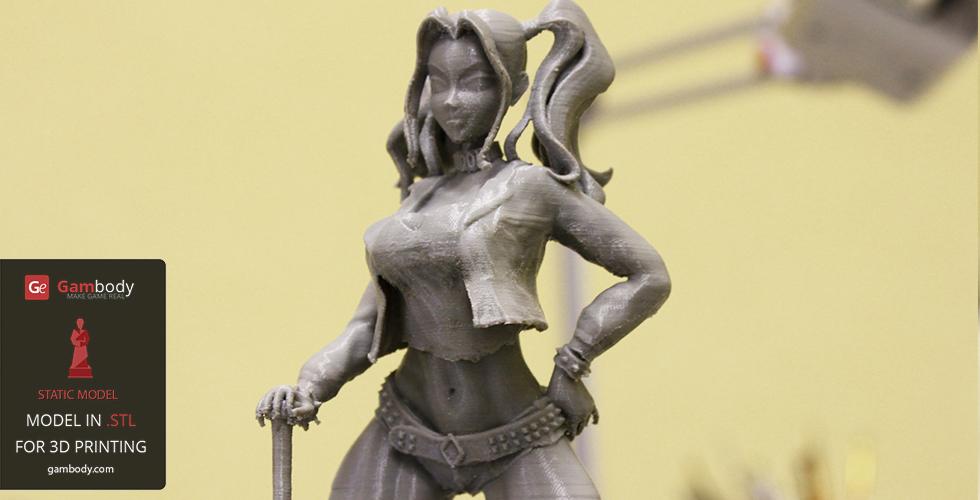

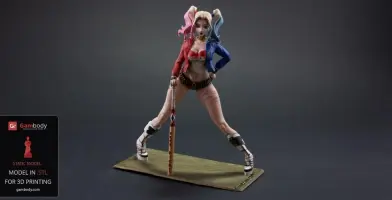

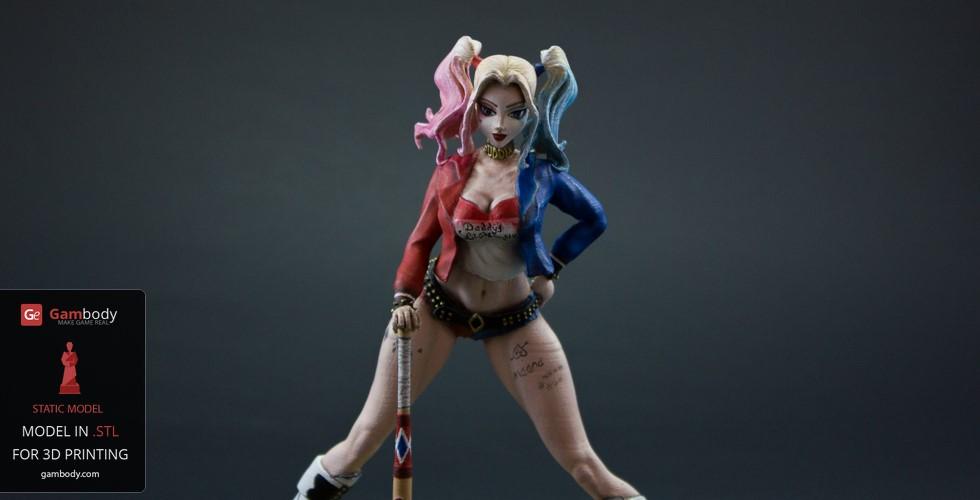

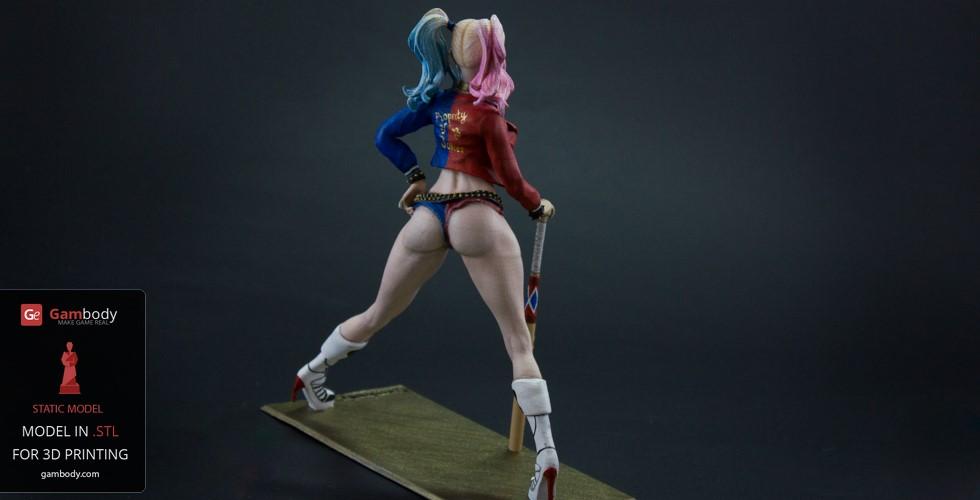

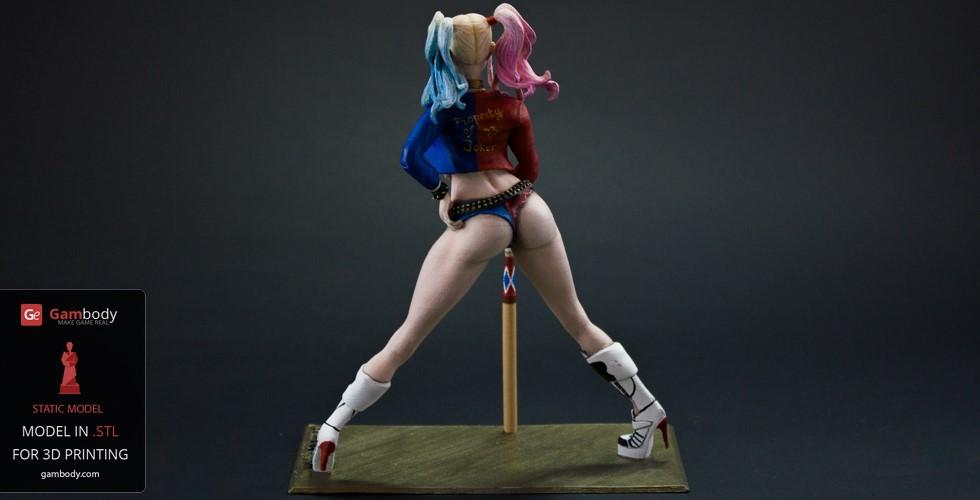

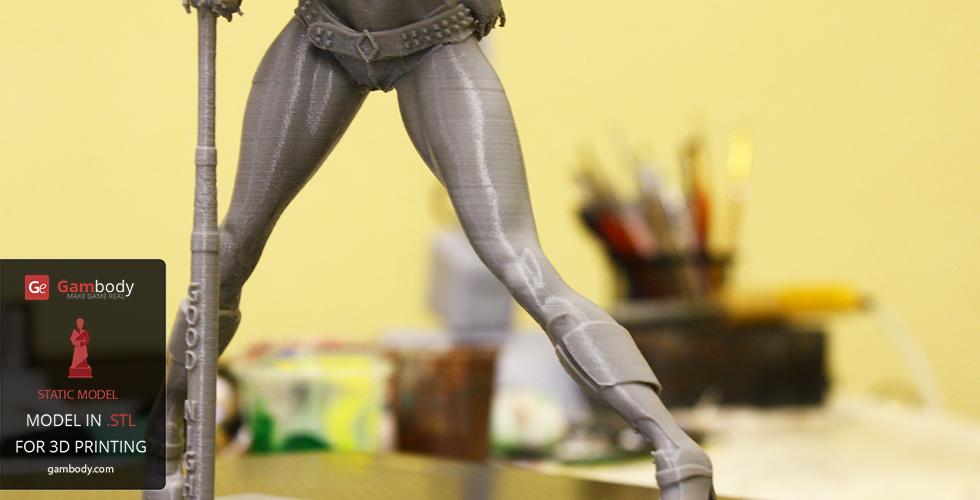

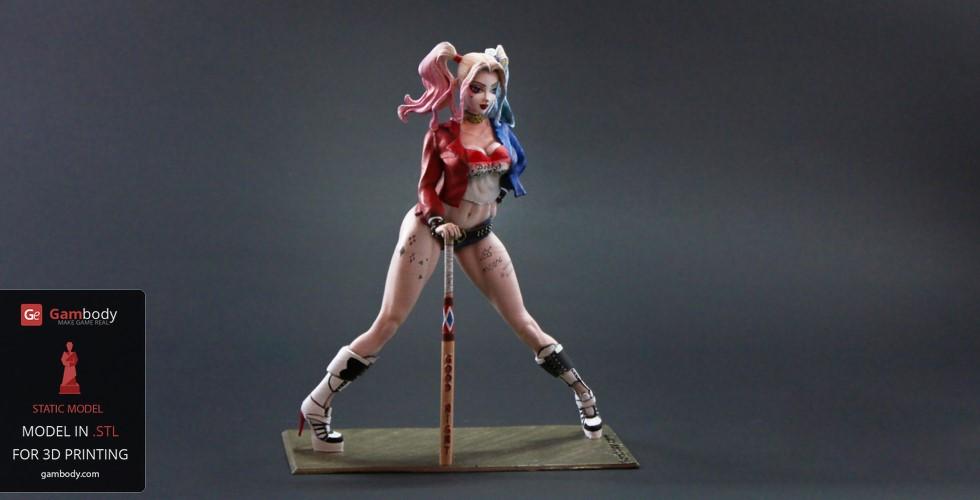

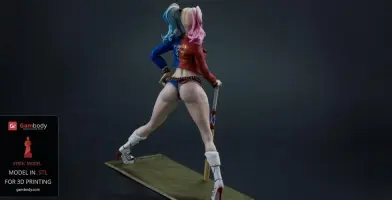

Note: Check the pictures in the photo slider to see the printing result. The 3D model is printed at its 100% scale size.

The 3D printed Harley 3D model stands 76 mm wide, 180 mm tall and 153 mm deep and features a support base.

Buy Harley 3D model STL file by clicking the green Buy button in the top-right corner of the 3D model’s page. Continue to checkout. Provide your PayPal or credit card details and download the file in a .zip folder with a file for printing recommendations for CURA slicer.

Also, you may like another DC 3D Miniatures as well as 3D Miniatures of Villains.

If you don’t have a 3D printer at home, but you do want to have the 3D model 3D printed, use the services of our partners – 3DHubs and Treatstock. Click the Print with 3DHubs or Print with Treatstock button. You will get redirected to their website, where you can choose the material you want the 3D model to be printed in and make other arrangements regarding its shipping to your home address and etc.

Also, you may like other DC Comics or Villains 3D Miniatures.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

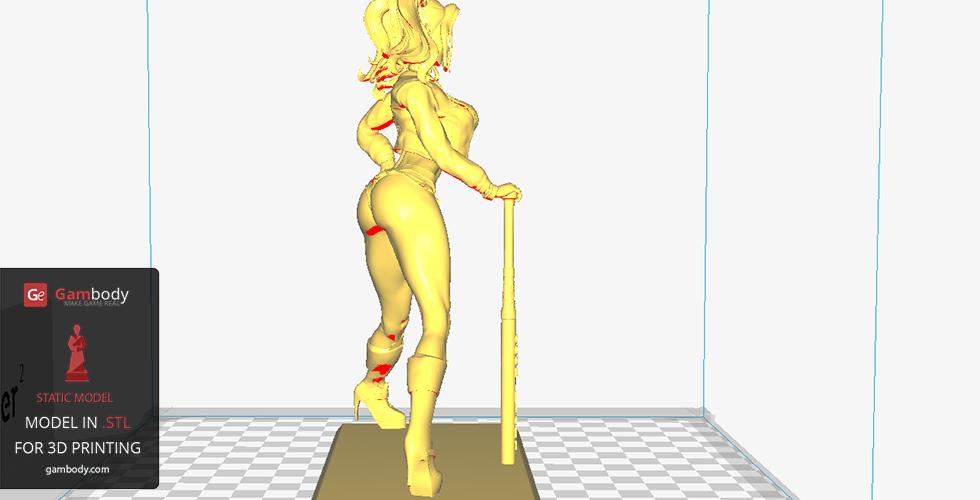

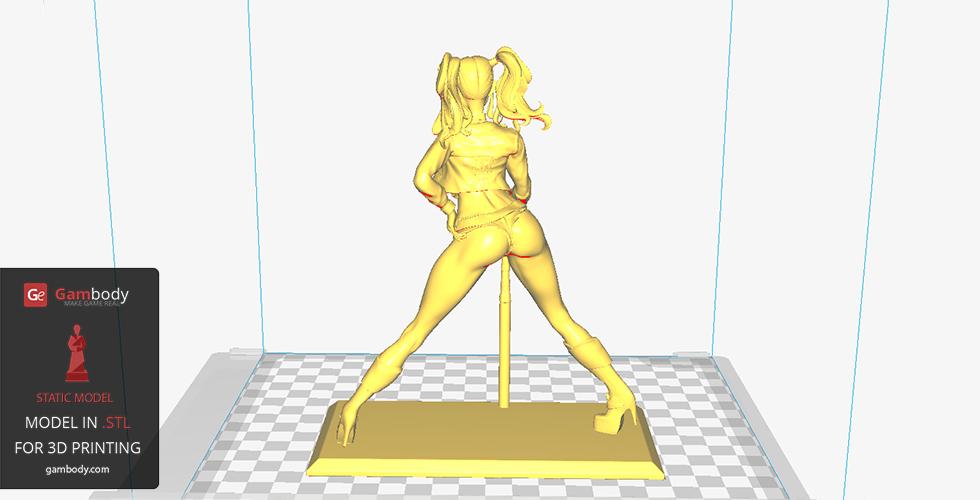

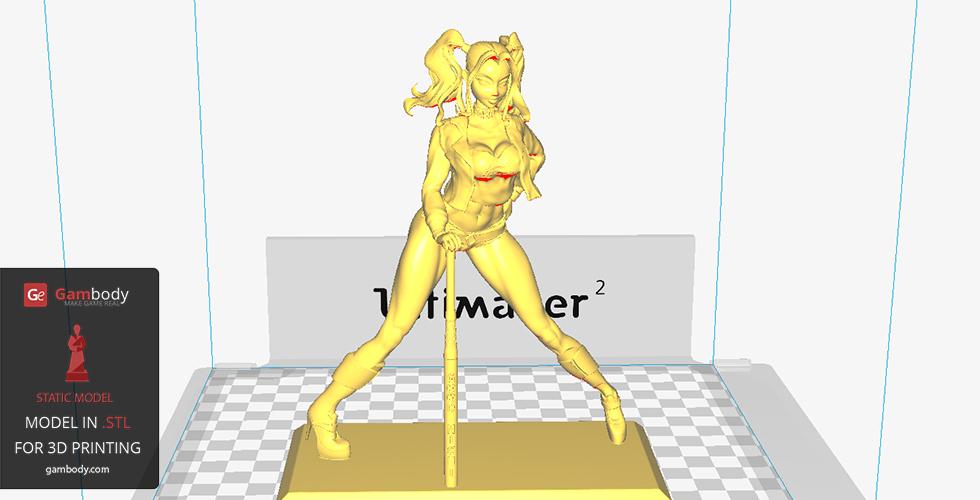

This model was tested in Cura 15.06. To avoid printing problems, we recommend the following settings:

Quality

  • Layer height: 0.1mm*
  • Initial layer thickness: 0.3mm
  • Bottom/top pattern: lines
  • Skin perimeter line count: 0
  • Horizontal expansion: 0.04mm (when entering 0.04mm index, the 3D printer perceives the model as monolith, i.e. as having no hidden layers).

*Layer Height 0.1mm is recommended for a better quality for the printed model. However, the printing time will double.

As a STL file provider, our goal is to ensure that the files are error-free and printable in the most accurate way. This is why we only test print the most difficult segments of the model’s parts.

The model's parts have been tested and printed in PLA. In case you need advice where to get your filaments from, check our partner's website.

Speed setups:

  • Infill speed: 30mm/s
  • Outer shell speed : 30mm/s
  • Inner shell speed: 20mm/s
  • Top/bottom speed: 20mm/s
  • Support speed: 50mm/s
  • Travel speed: 150mm/s
  • Skirt speed: 30mm/s
  • Amount of slower layers: 4

Infill:

  • Infill pattern: Grid
  • Line distance: 1.5mm
  • Infill overlap: 20%
  • Infill layers: 0

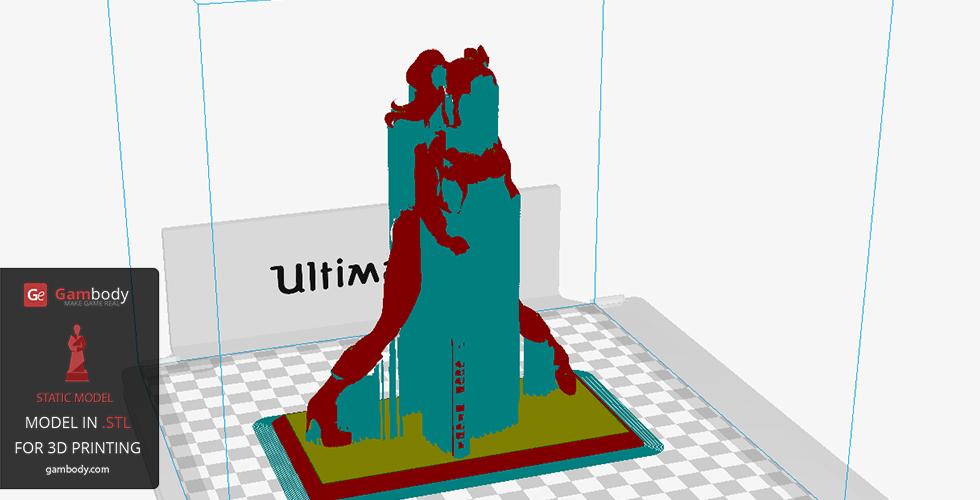

Support:

  • Enable support: Check
  • Placement: Everywhere
  • Overhang angle: 30°
  • X/Y distance: 0.7mm
  • Top distance: 0.2mm
  • Bottom distance: 0.2mm
  • Stair step height: 0.5mm
  • Join distance: 0.7mm
  • Area smoothing: 0.6mm
  • Use towers: check
  • Pattern: Grid
  • Line distance: 1.5mm

Platform adhesion:

  • Type: Brim
  • Brim line count: 10 (up to 20, depending on the model’s height)

Other 3D printing recommendations:

Outer Shell Speed - 20mm/s and Support Speed - 40mm/s settings apply to avoid model deformation.  Apply other settings by default.

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
