Harley Quinn 3D Printing Figurine | Assembly

(7)
cm: 17.5 w x 14.4 d x 23.5 h
in: 6.89 w x 5.669 d x 9.252 h

Source Files

|

Description

|

Printing Details

This 3D Figurine consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

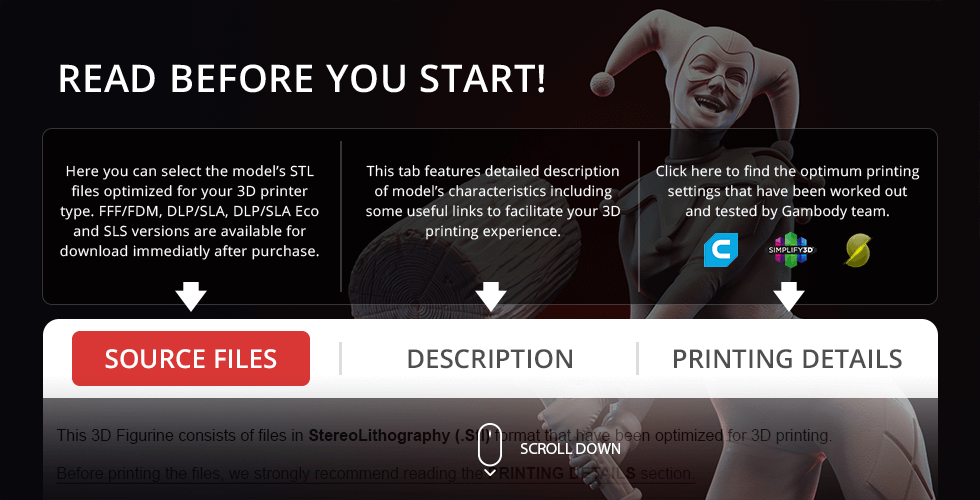

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

- 5 versions of Harley Quinn STL files for FFF/FDMDLP/SLA and SLS - files for each version are available for download after the purchase

- STL files of high-poly Harley Quinn 3D Figurine for 3D printing consist of 43 parts
- Sizes:
FFF/FDM: 235 mm tall, 175 mm wide, 144 mm deep​
​DLP/SLA/SLS: 118 mm tall, 87 mm wide, 72 mm deep

Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format​
​- Detailed settings that we provide as a recommendation for Cura, Simplify3D and Slic3r for the best print
- Full technical support from the Gambody Support Team

Detailed information about this 3D printing figurine is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

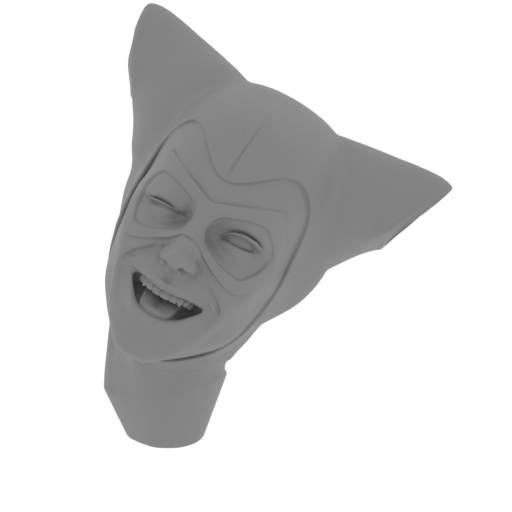

1_head_FDM(repaired).stl
41.77 MiB 1 h 45 min 1 m 33 x 31 x 39 Download

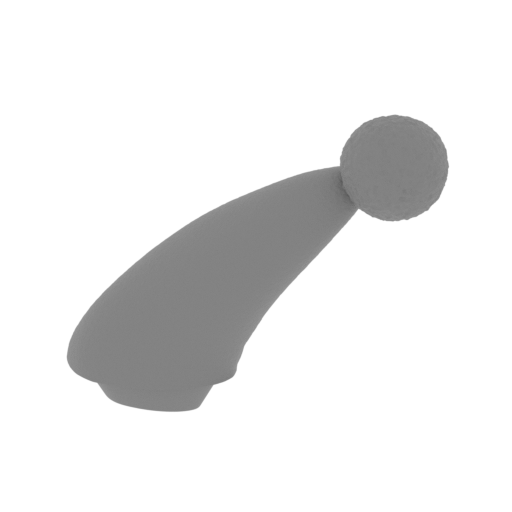

2_hat_1_FDM(repaired).stl
9.51 MiB 17 min <1 m 22 x 8 x 19 Download

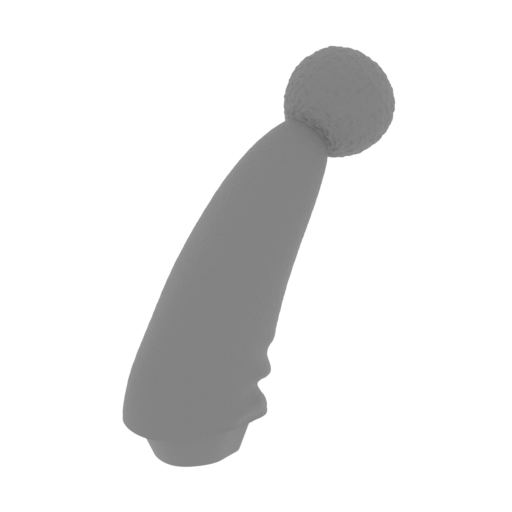

3_hat_2_FDM(repaired).stl
9.62 MiB 18 min <1 m 10 x 21 x 18 Download

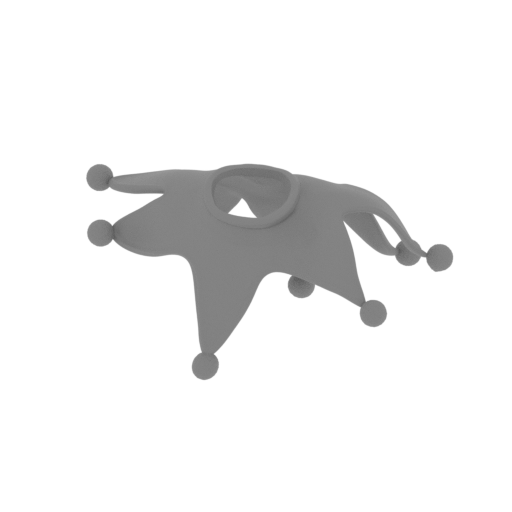

4_collar_FDM(repaired).st l
17.76 MiB 2 h 5 min 1 m 61 x 39 x 27 Download

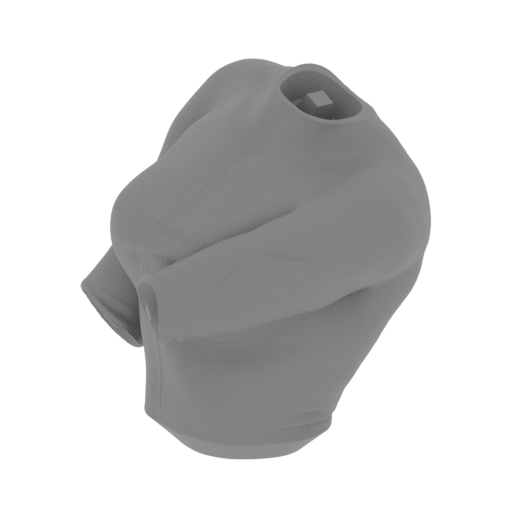

5_body_FDM(repaired).stl
39.08 MiB 3 h 50 min 2 m 52 x 48 x 48 Download

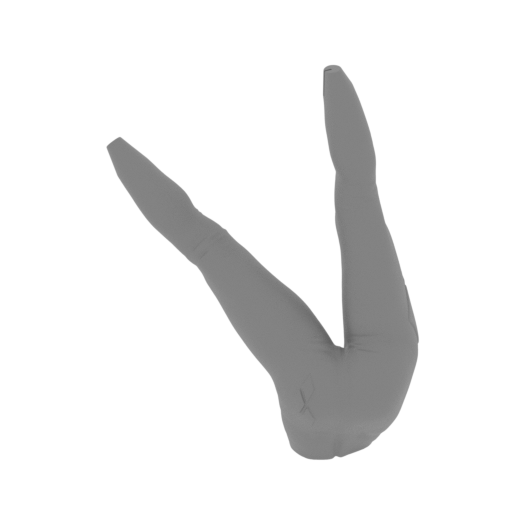

6_legs_FDM(repaired).stl
36.47 MiB 8 h 8 min 5 m 105 x 44 x 127 Download

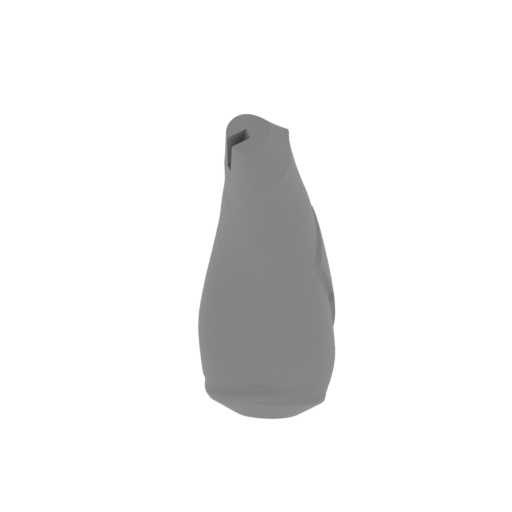

7_arm_R_FDM(repaired).stl
14.99 MiB 31 min <1 m 13 x 22 x 36 Download

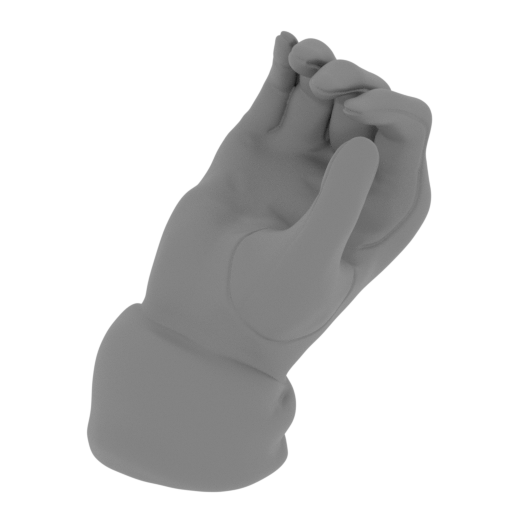

8_hand_R_FDM(repaired).st l
17.23 MiB 23 min <1 m 13 x 16 x 18 Download

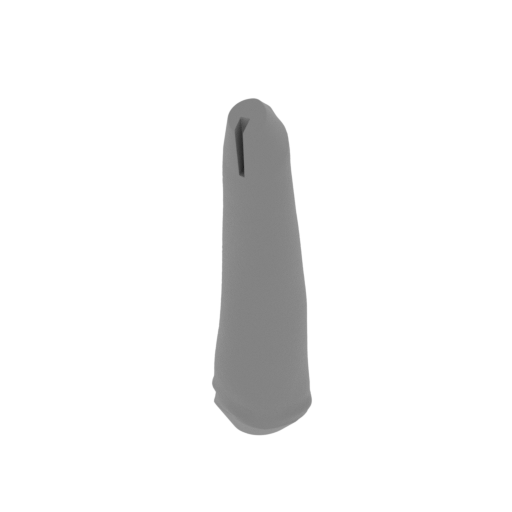

9_arm_L_FDM(repaired).stl
15.38 MiB 28 min <1 m 10 x 16 x 37 Download

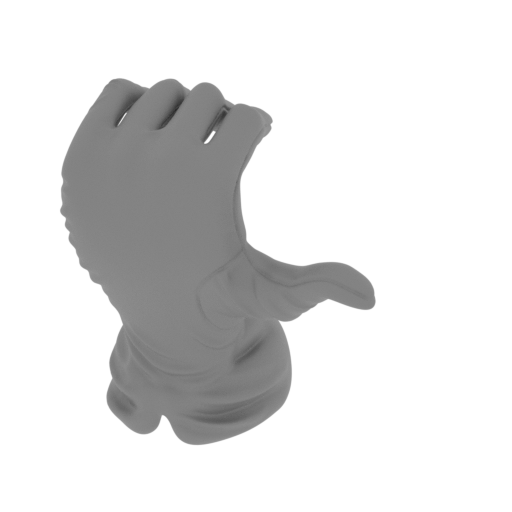

10_hand_L_FDM(repaired).s tl
12.49 MiB 26 min <1 m 18 x 14 x 20 Download

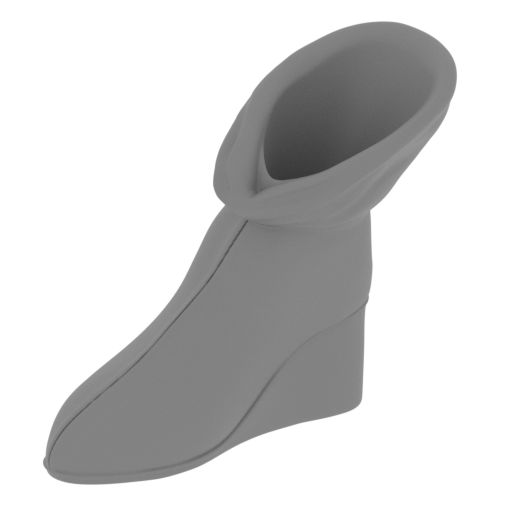

11_foot_R_FDM(repaired).s tl
17.99 MiB 53 min <1 m 28 x 29 x 32 Download

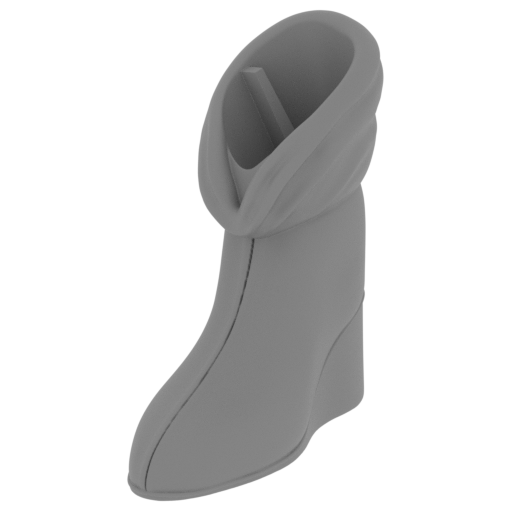

12_foot_L_FDM(repaired).s tl
17.72 MiB 47 min <1 m 15 x 32 x 33 Download

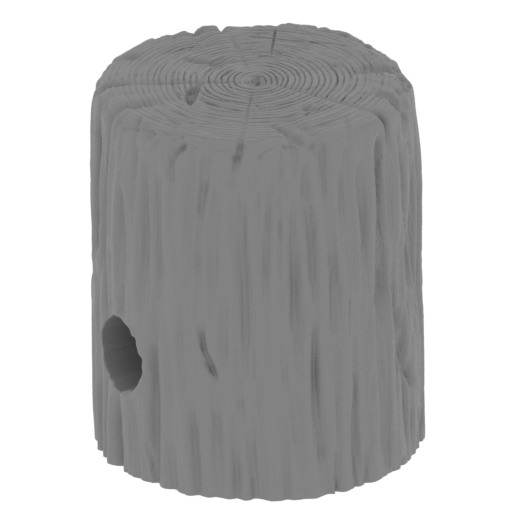

13_hammer_1_FDM(repaired) .stl
20.54 MiB 3 h 26 min 2 m 36 x 36 x 43 Download

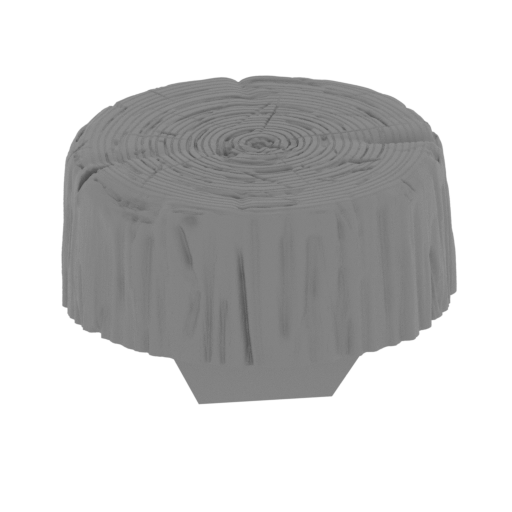

14_hammer_2_FDM(repaired) .stl
16.91 MiB 1 h 56 min 1 m 35 x 35 x 23 Download

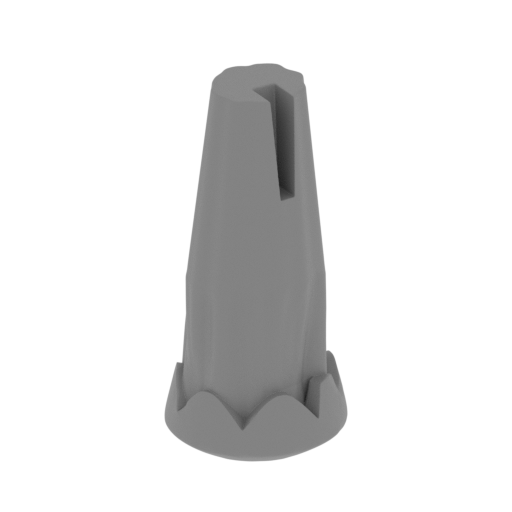

15_hammer_handle_1_FDM(re paired).stl
4.09 MiB 21 min <1 m 11 x 11 x 24 Download

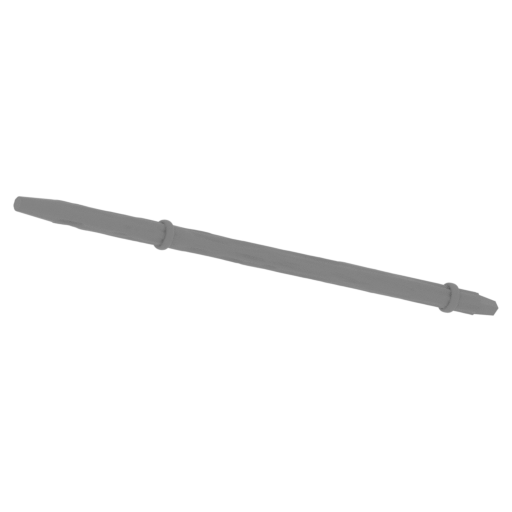

16_hammer_handle_2_FDM(re paired).stl
13.57 MiB 2 h 30 min 2 m 100 x 104 x 62 Download

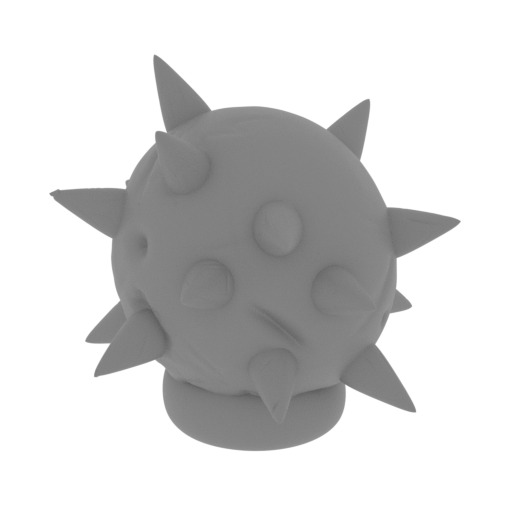

17_hammer_handle_3_FDM(re paired).stl
3.50 MiB 28 min <1 m 19 x 18 x 18 Download

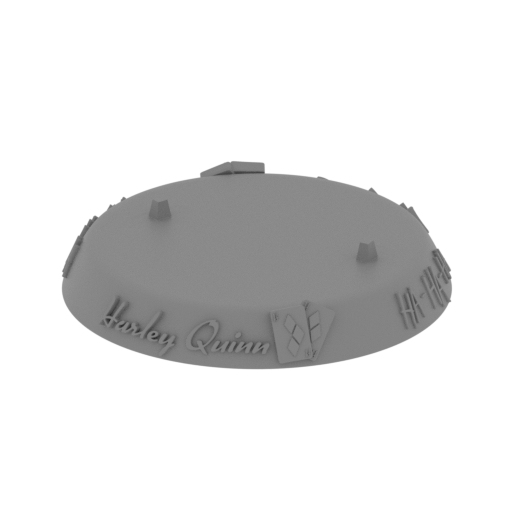

18_platform_FDM(repaired) .stl
47.78 MiB 21 h 53 min 12 m 144 x 144 x 26 Download
19_ge_lock_7S(x2)_FDM(rep aired).stl
0.02 MiB 3 min <1 m 18 x 7 x 2 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download

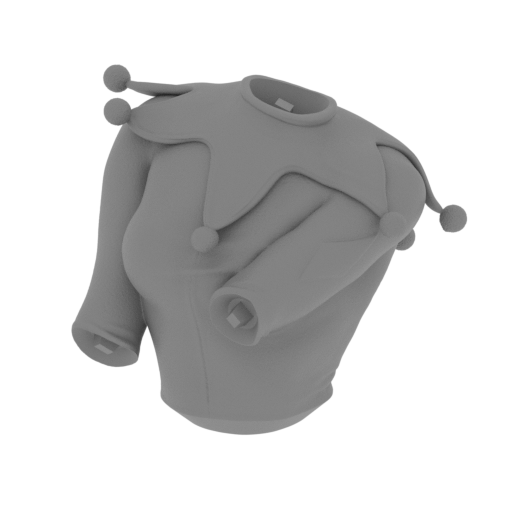

5_v2_body_FDM(repaired).s tl
50.52 MiB 5 h 25 min 3 m 59 x 43 x 50 Download

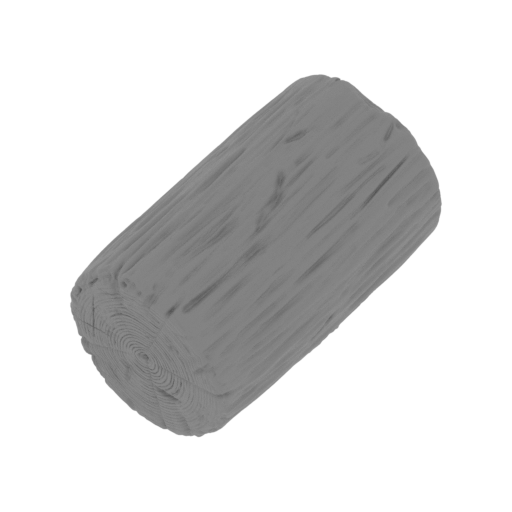

_hammer_2_FDM(repaired).s tl
22.58 MiB 6 h 26 min 4 m 52 x 65 x 51 Download
...

ABOUT THIS 3D FIGURINE

Harley Quinn went from an exemplary psychiatrist at Arkham Asylum to Joker's sidekick and finally to a cool antihero in her own right! Over the years, the fashion icon of DC Comics has changed her appearance, affiliation and equipment, but has never ceased to fascinate the loyal comic book fans.

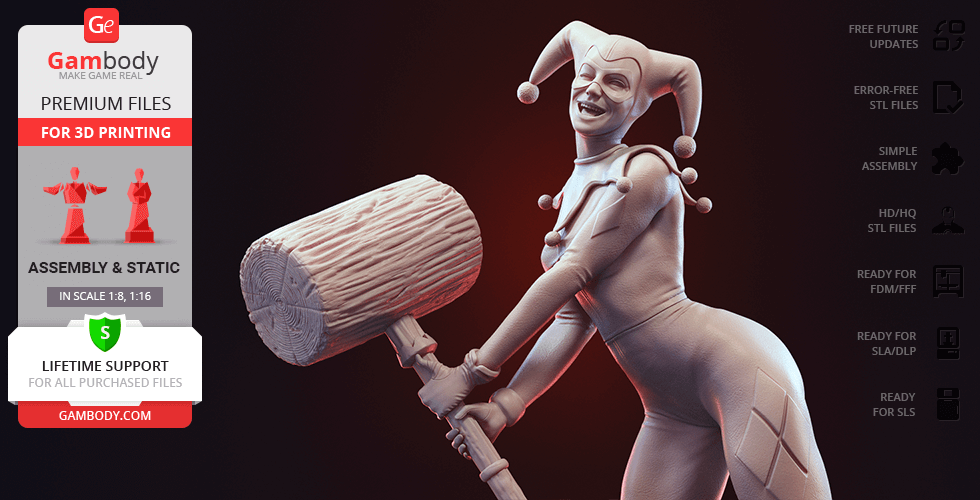

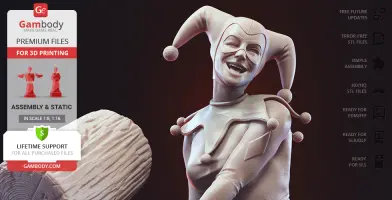

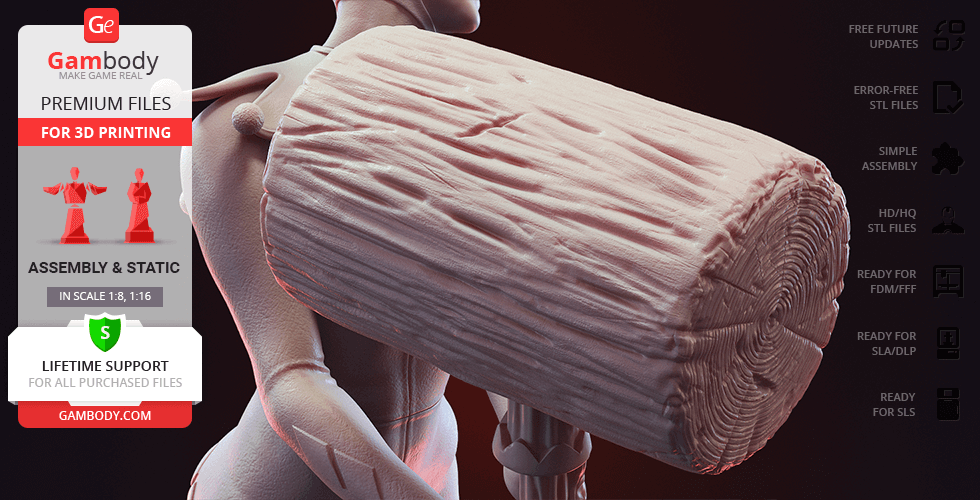

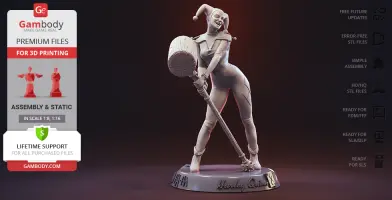

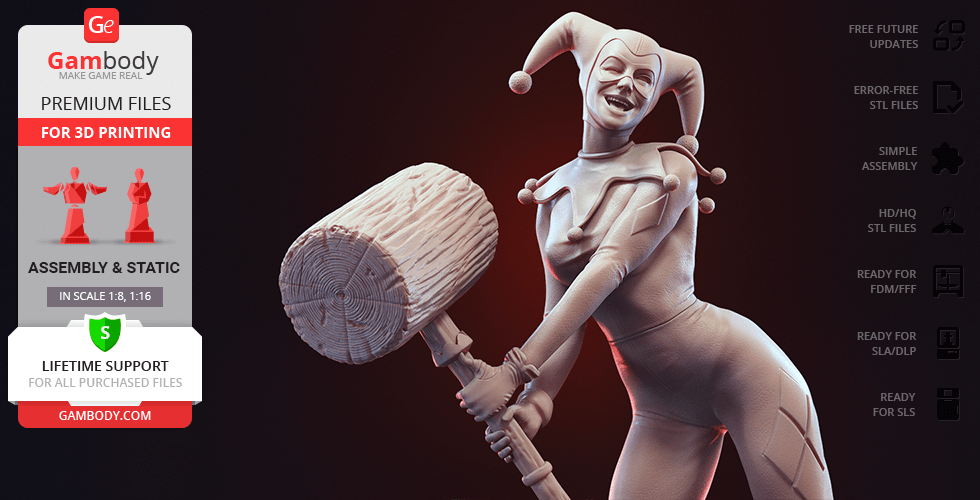

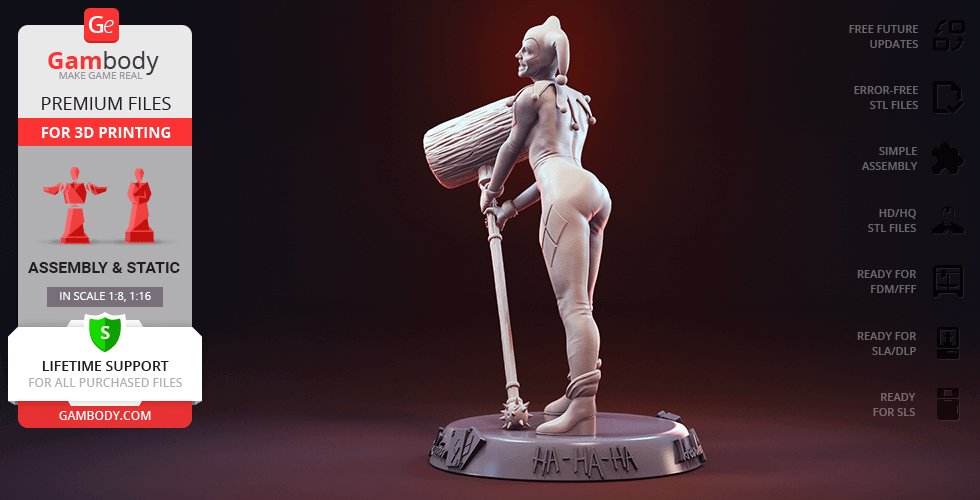

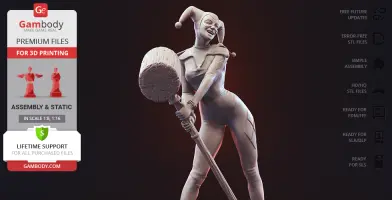

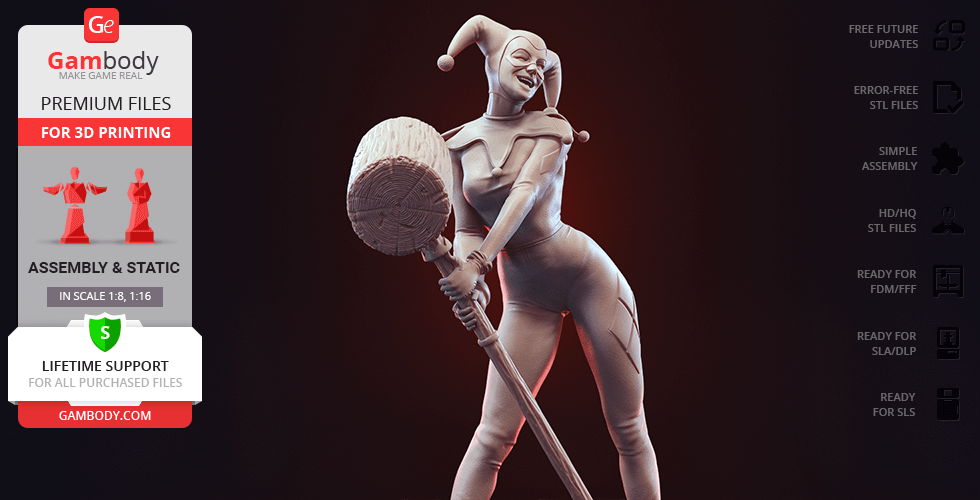

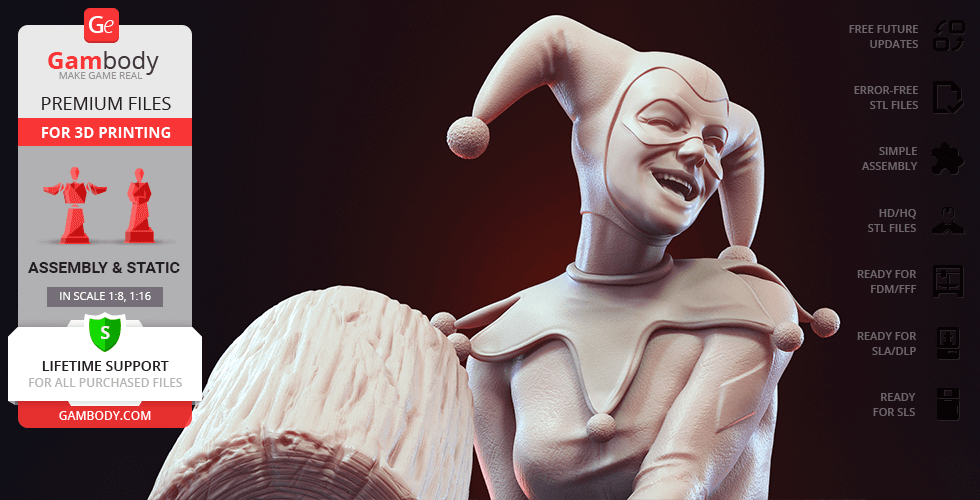

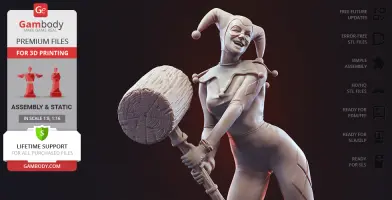

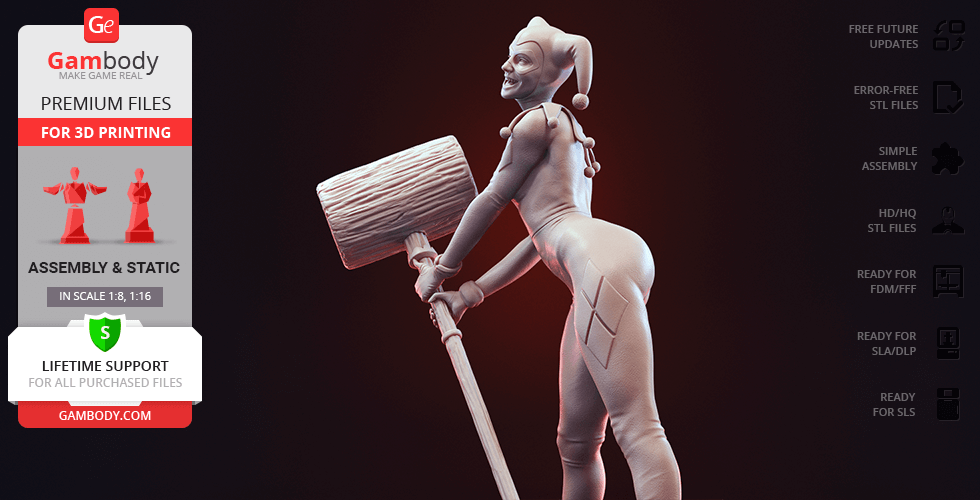

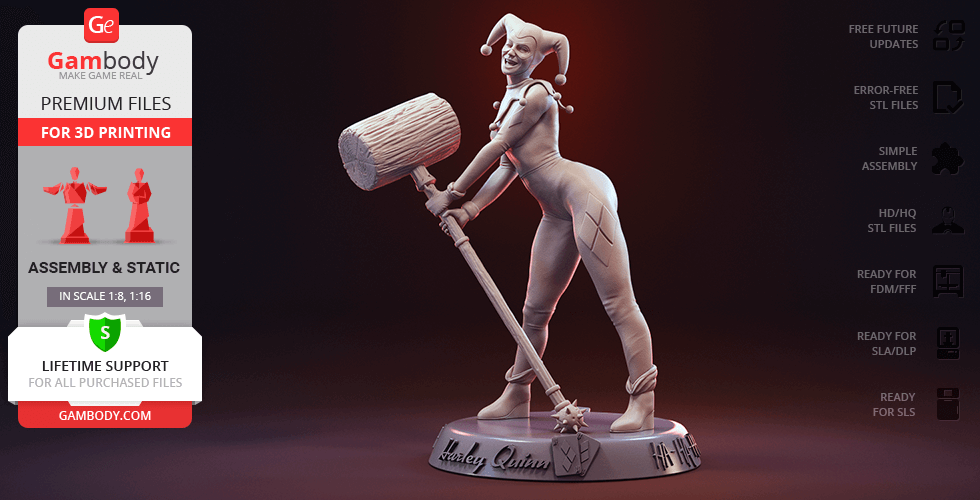

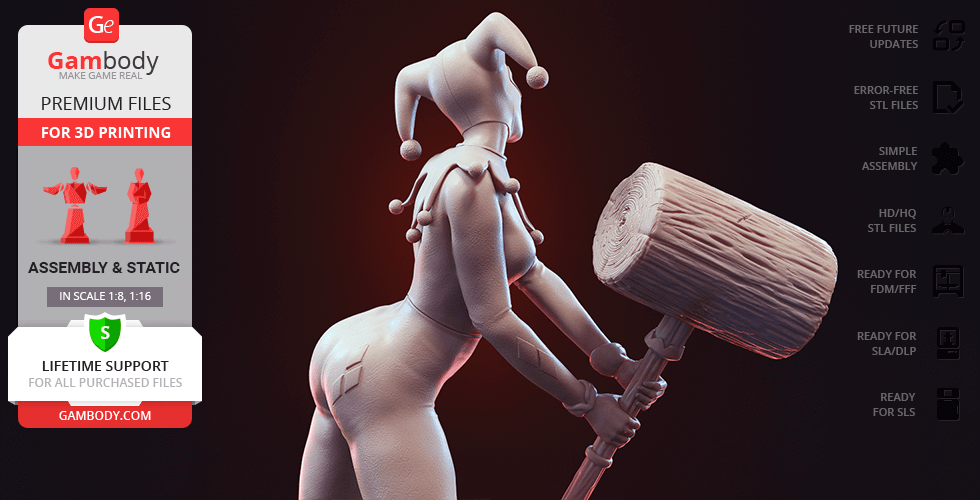

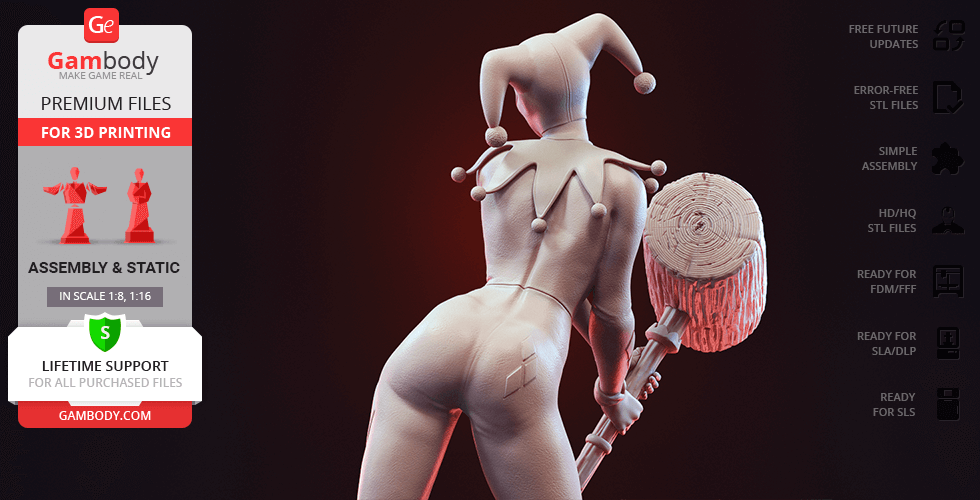

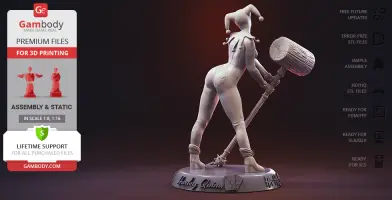

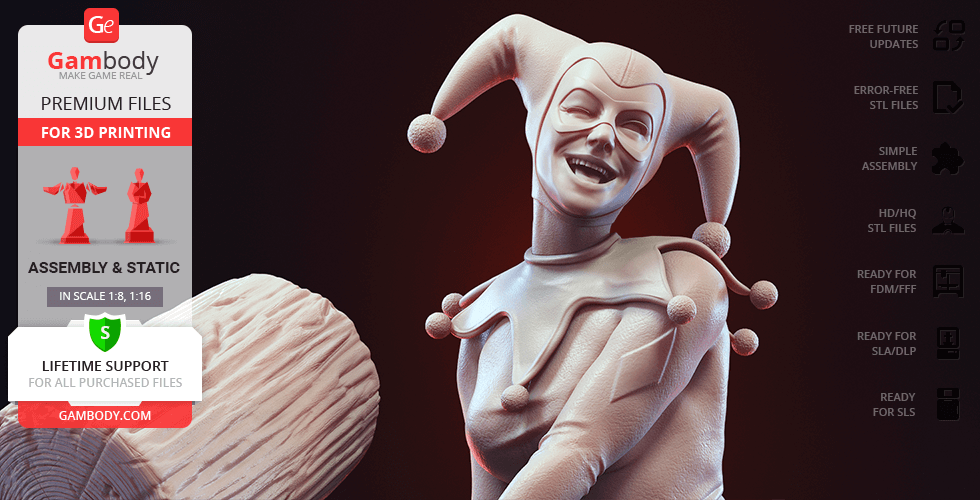

The author of the playful Harley Quinn figurine mentioned that the inspiration for this 3D printing project was Harley's signature look from Batman: The Animated Series where she popped up for the first time. The Clown Princess of Crime sports an extremely form-fitting jester jumpsuit, complete with a pair of gloves, large collar and harlequin cowl with a mask that perfectly conceals Quinzel’s identity. The clown-themed antihero for 3D printing wields an oversized wooden mallet and flashes her most infectious smile. The Maiden of Mischief must have wormed out that it is about to join your villainous display shelf!

ADAPTATION FOR 3D PRINTING

Harley Quinn figurine for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 27 hours. The figurine’s anatomy and proportions were thoroughly reviewed during the moderation process for The Maiden of Mischief to be depicted harmoniously in the intended pose.

The model’s cutting was chosen by our team to minimise the amount of generated support and some of the parts were hollowed out for you to save resin in the Eco and Pre-supported versions. In order to conceal the places where the assembly parts of the model must be connected, the figurine was cut along the contour of the harlequin outfit seams

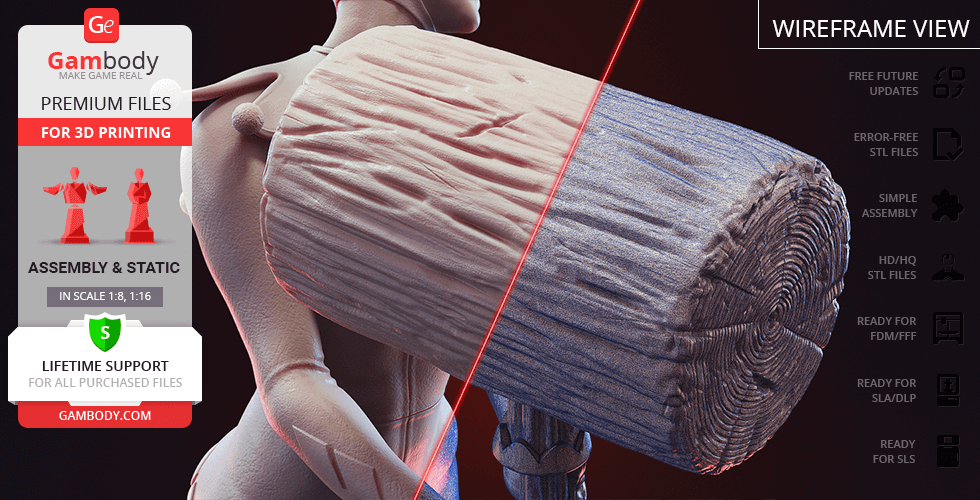

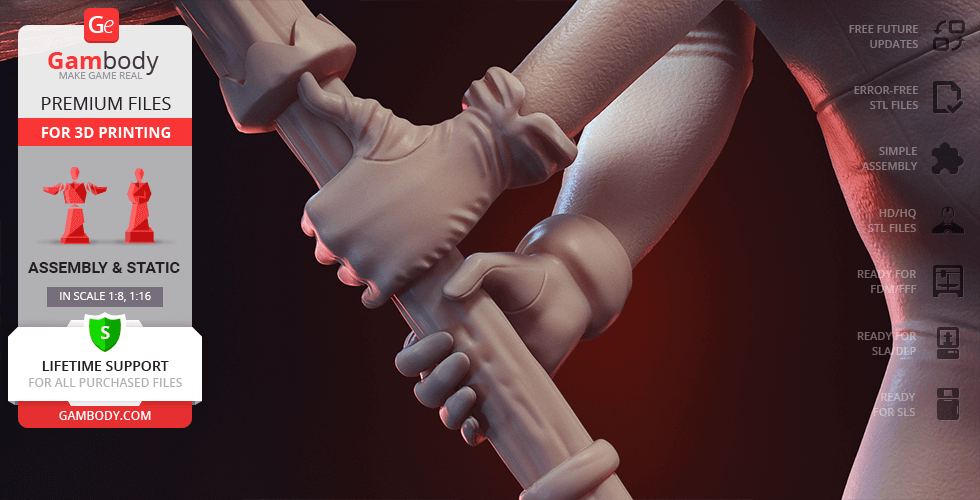

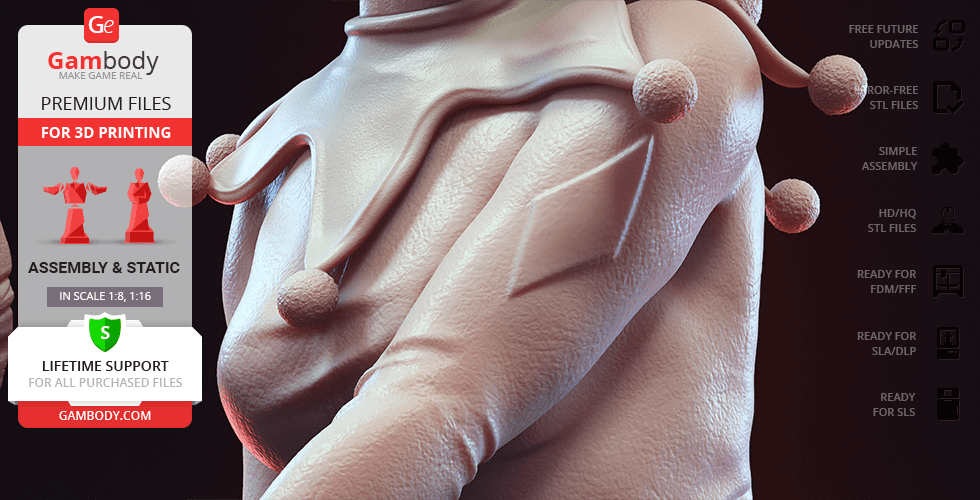

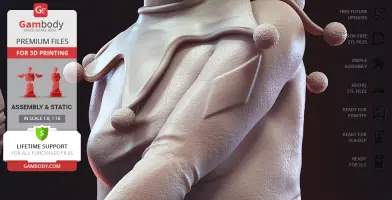

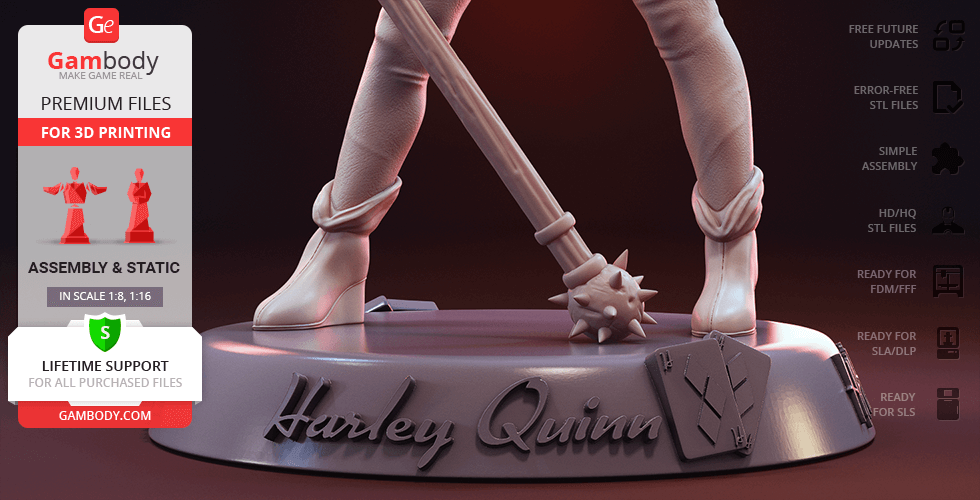

For you to achieve the cleanest 3D printed result, the collar, cowl horns, boots, both hands, mallet, etc. are provided as separate assembly parts, while the split mallet handle is extracted from the harlequin’s hold.

All assembly parts of the FFF/FDM version come in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and so that the 3D printing beginners won't face difficulties when placing the parts on a build plate.

The figurine is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

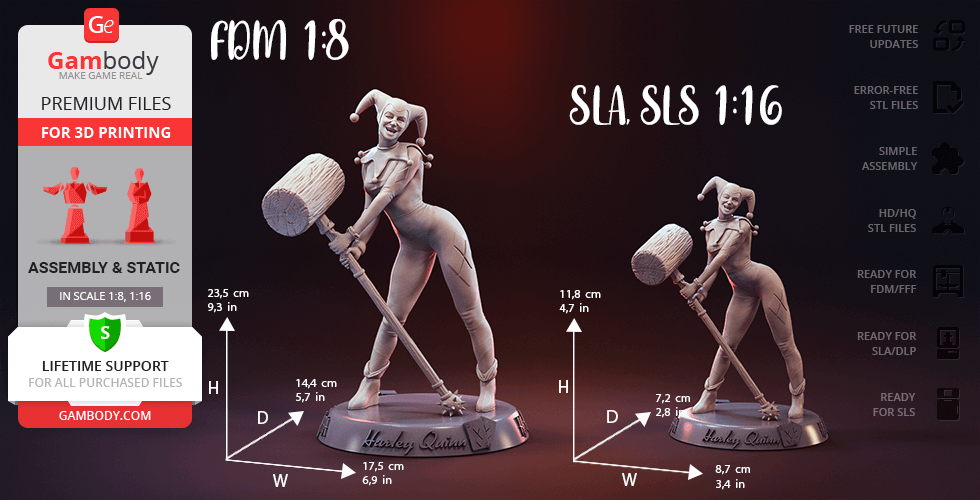

The model's scale was calculated from the height of Harley Quinn which is 1700 mm. The 3D printing figurine's chosen scale is 1:8 for the FFF/FDM version and 1:16 for the DLP/SLA/SLS versions.

VERSIONS' SPECIFICATIONS

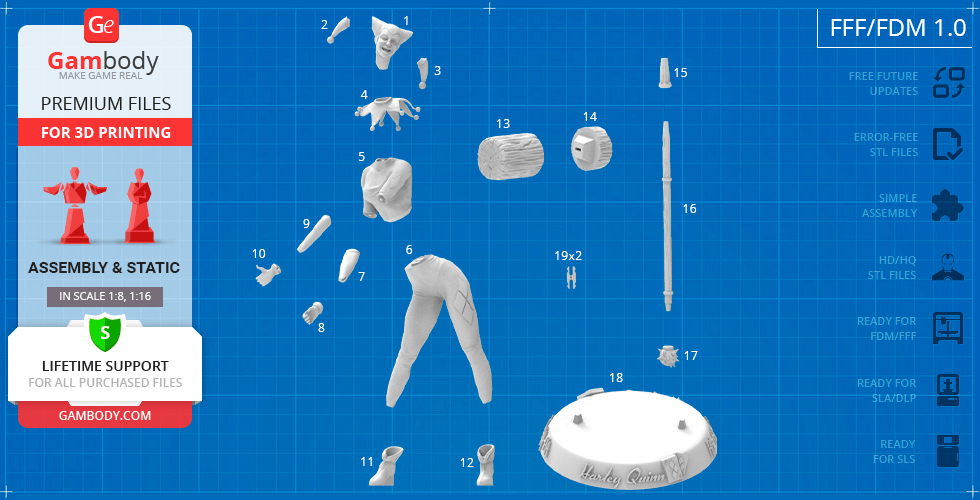

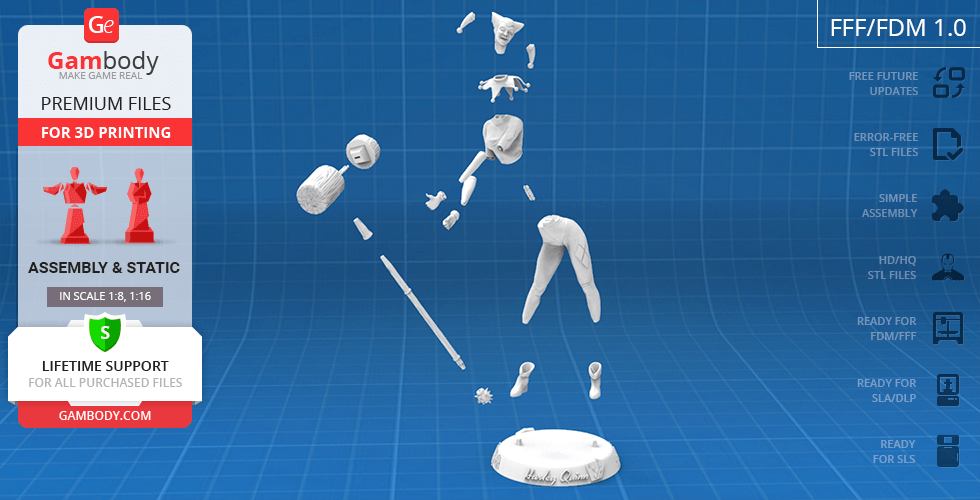

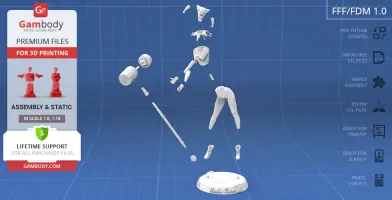

FFF/FDM 1.0 version features:
- Contains 19 parts;
- A printed model is 235 mm tall, 175 mm wide, 144 mm deep​;
- The assembly kit includes lock 19_ge_lock_7S(x2) to attach the model's parts securely without glue that needs to be printed twice;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

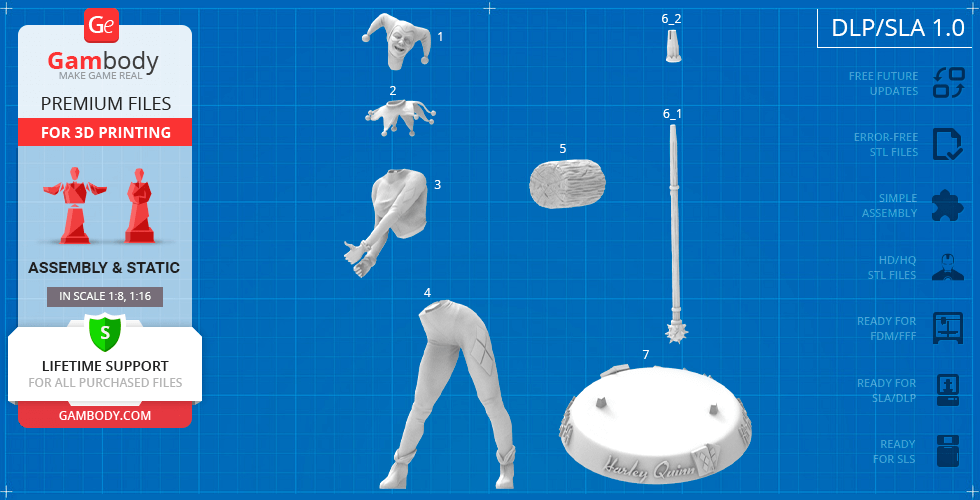

DLP/SLA 1.0 version features:
- Contains 7 parts;
- A printed model is 118 mm tall, 87 mm wide, 72 mm deep;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

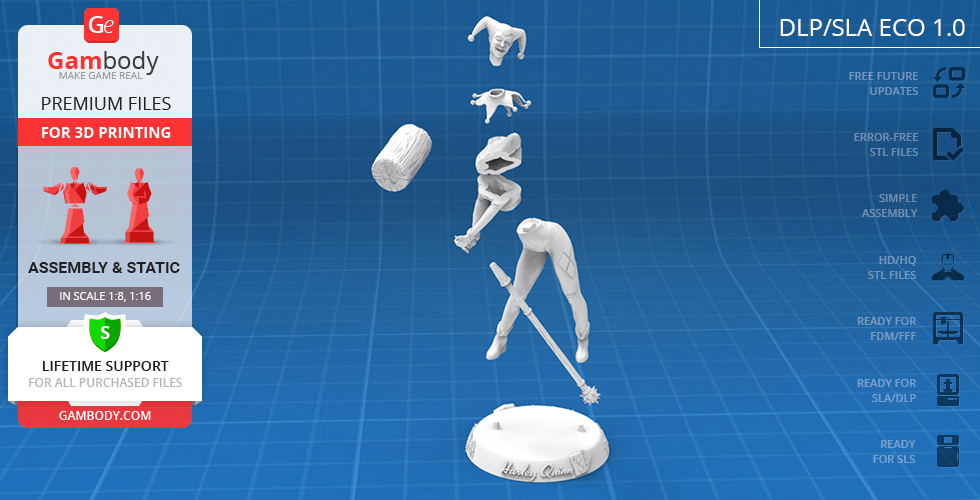

DLP/SLA Eco 1.0 version features:
- Contains 7 parts;
- A printed model is 118 mm tall, 87 mm wide, 72 mm deep;
- Some parts are manually hollowed out to save resin.

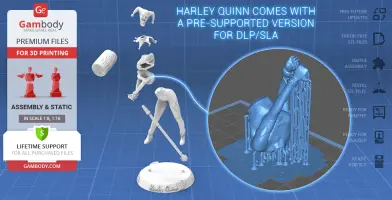

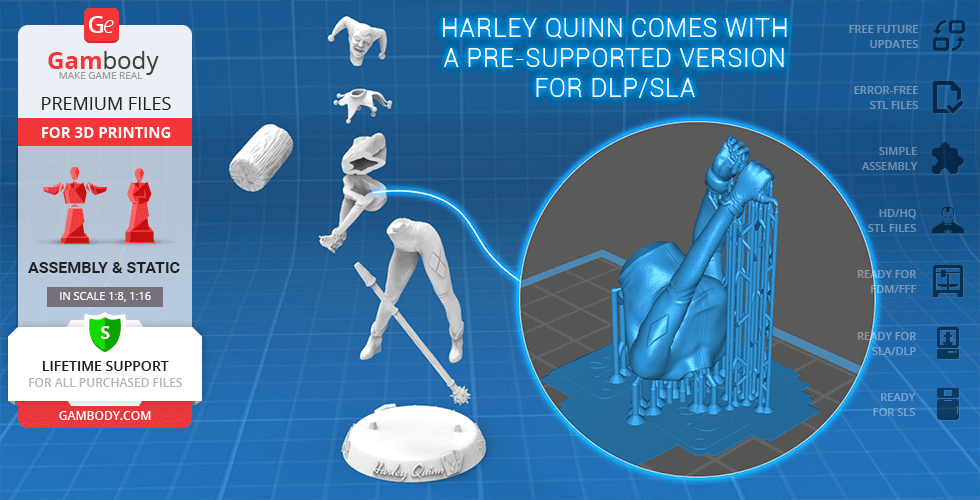

DLP/SLA Pre-supported 1.0 version features:
- Contains 7 parts;
- A printed model is 118 mm tall, 87 mm wide, 72 mm deep;

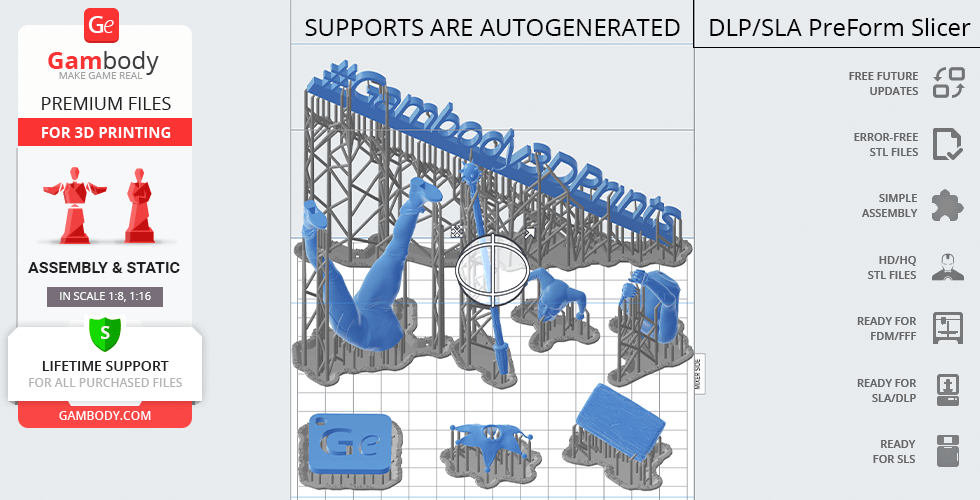

- The STL files that this version comprises are pre-supportedhollowed out, and have drain holes where needed;
- You may choose to print the STL files one by one or several at once, depending on the dimensions of your resin 3D printer's build plate;
- When slicing several STL files at once, the attachment layers (Platform Touch Shape) may overlap, but the supports must not come into contact.

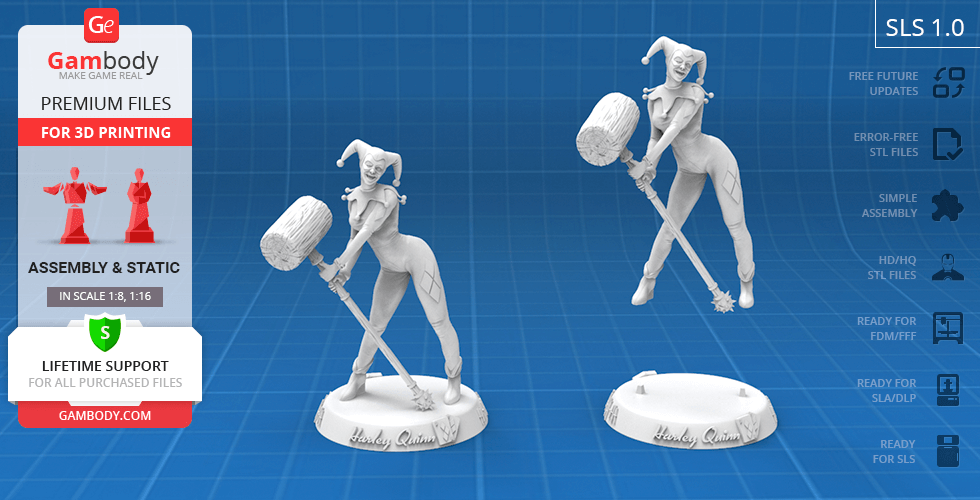

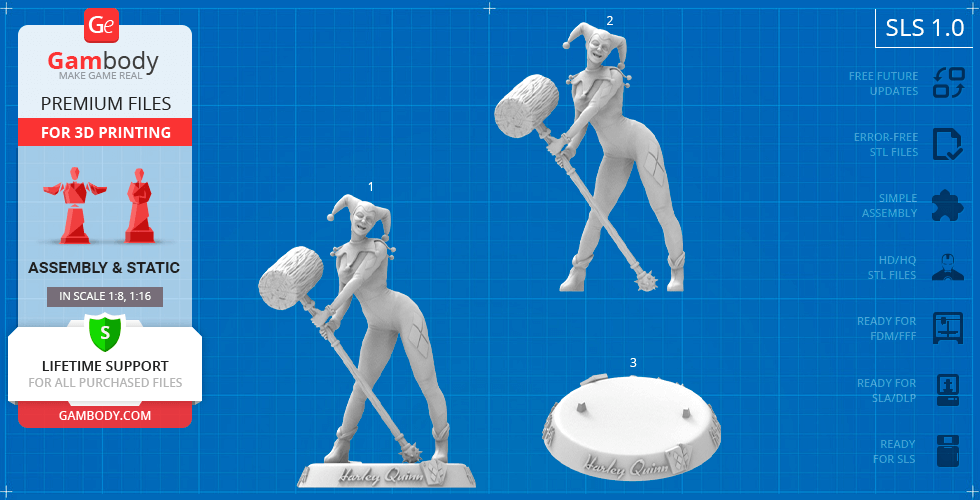

SLS 1.0 version features:
- Made as a solid one-piece Harley Quinn figurine;
- A printed model is 118 mm tall, 87 mm wide, 72 mm deep;
- Contains 3 parts - a solid Harley Quinn model and the figurine separated from its stylised base.

You can get the figurine of Harley Quinn for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Harley Quinn 3D Printing Figurine at Gambody YouTube channel.

Also, you may like other Harley 3D Printing Models, as well as other DC 3D Printing Figurines.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

Below you can find printing recommendations for Cura, Bambu Lab, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

Bambu Lab printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Bambu Studio 1.9.1. Test models were printed on the Bambu Lab A1, Bambu Lab A1 Mini, Creality Ender 3 S1, Anycubic Kobra 2, and Anycubic Vyper using PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download

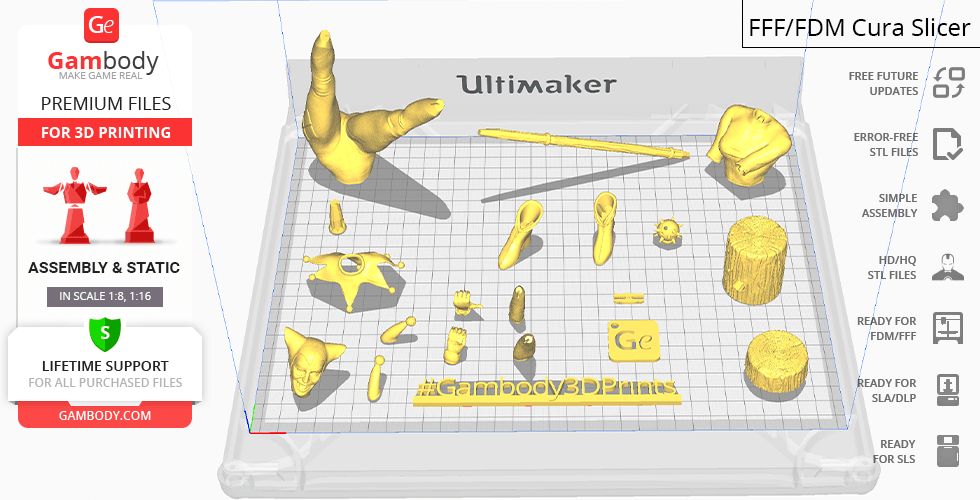

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
