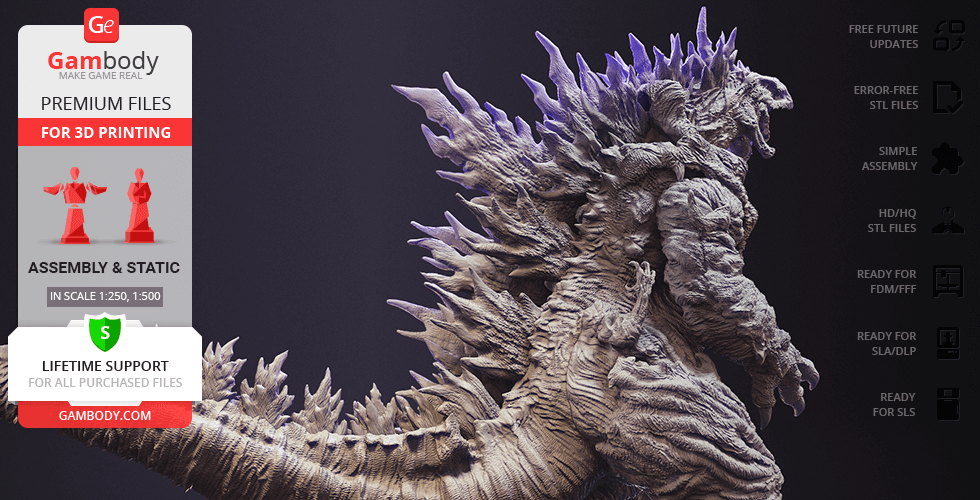

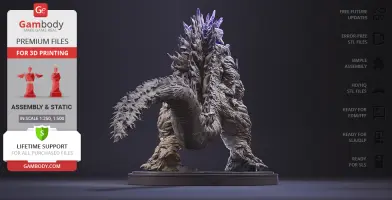

Mutant Shin Godzilla 3D Printing Figurine | Assembly

(6)
cm: 43.1 w x 85.2 d x 53.5 h
in: 16.969 w x 33.543 d x 21.063 h

Source Files

|

Description

|

Printing Details

This 3D Figurine consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

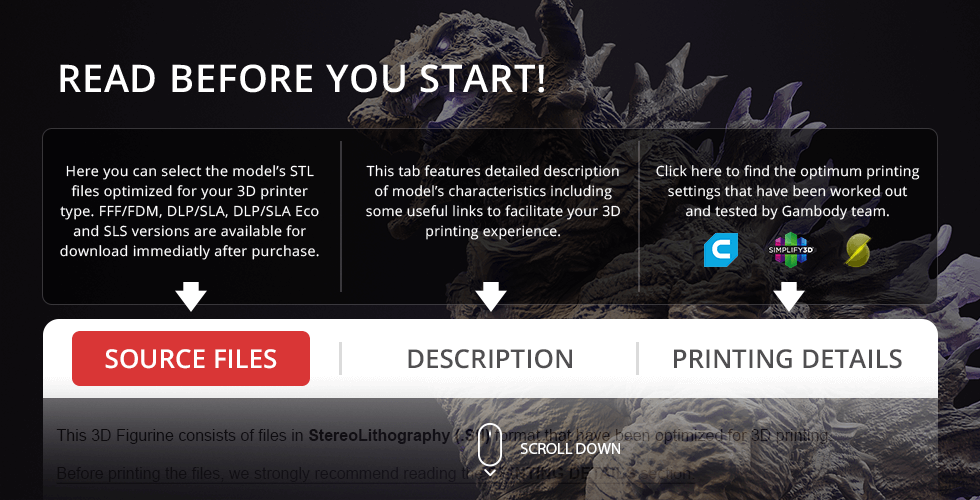

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

- 4 versions of Mutant Shin Godzilla STL files for FFF/FDMDLP/SLA, DLP/SLA Eco, and SLS - files for each version are available for download after the purchase

- STL files of high-poly Mutant Shin Godzilla 3D Figurine for 3D printing consist of 132 parts

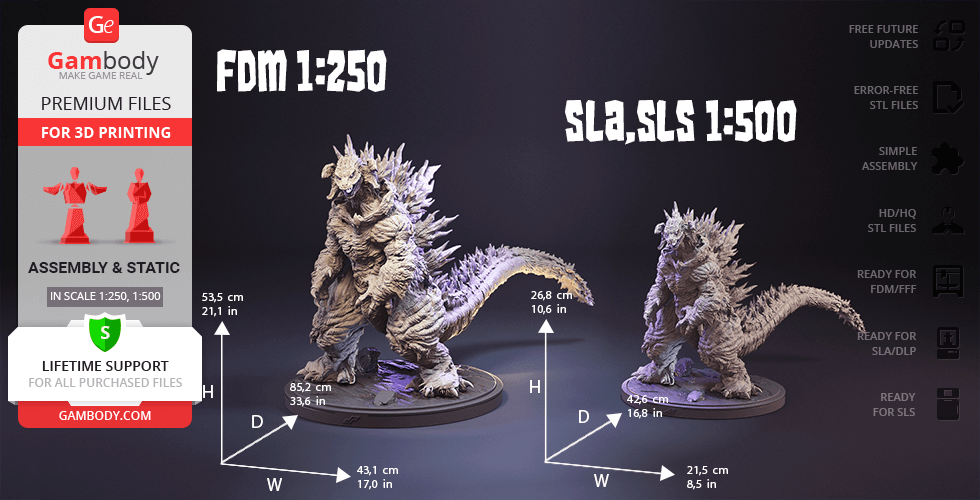

- Sizes:
FFF/FDM: 535 mm tall, 431 mm wide, 852 mm deep​
DLP/SLA/SLS: 268 mm tall, 215 mm wide, 426 mm deep

Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format
- Detailed settings that we provide as a recommendation for Cura, Simplify3D and Slic3r for the best print
- Full technical support from the Gambody Support Team

Detailed information about this 3D printing figurine is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

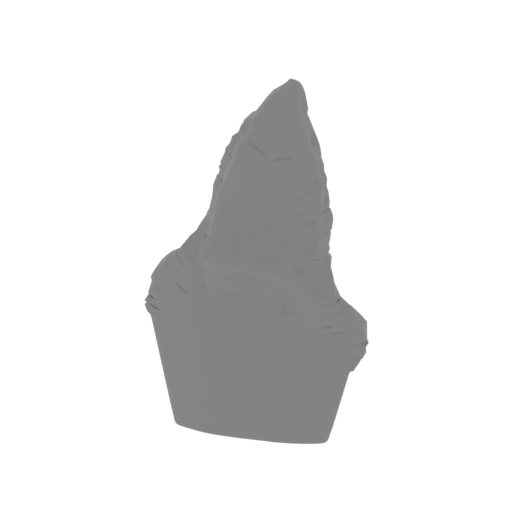

2_tongue_FDM(repaired).st l
9.01 MiB 42 min <1 m 25 x 12 x 43 Download

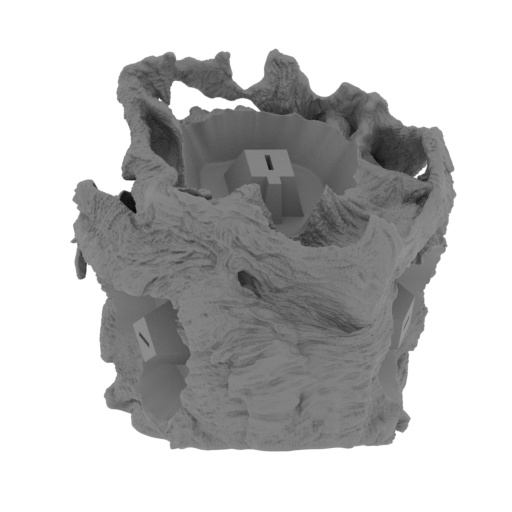

3_body_1_FDM(repaired).st l
46.19 MiB 122 h 6 min 76 m 150 x 157 x 140 Download

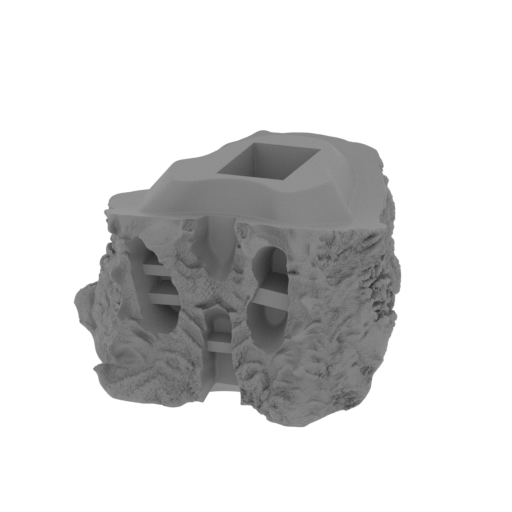

4_body_2_FDM(repaired).st l
39.69 MiB 62 h 4 min 36 m 125 x 149 x 84 Download

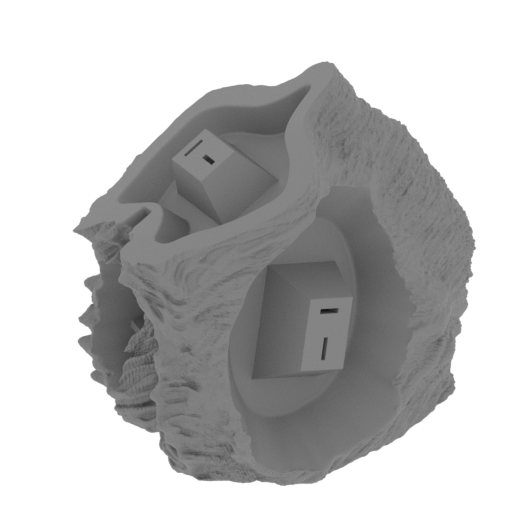

5_body_3_FDM(repaired).st l
56.13 MiB 99 h 45 min 61 m 150 x 150 x 164 Download

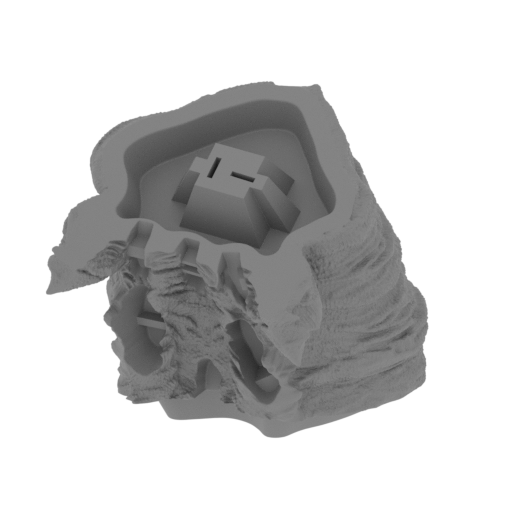

6_tail_1_FDM(repaired).st l
38.23 MiB 75 h 55 min 49 m 127 x 150 x 127 Download

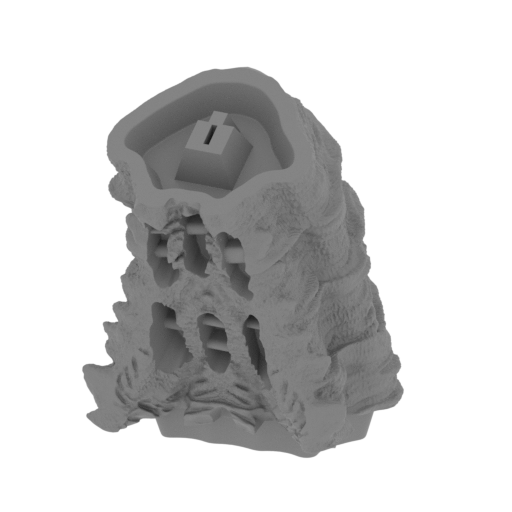

7_tail_2_FDM(repaired).st l
37.02 MiB 64 h 29 min 40 m 106 x 124 x 145 Download

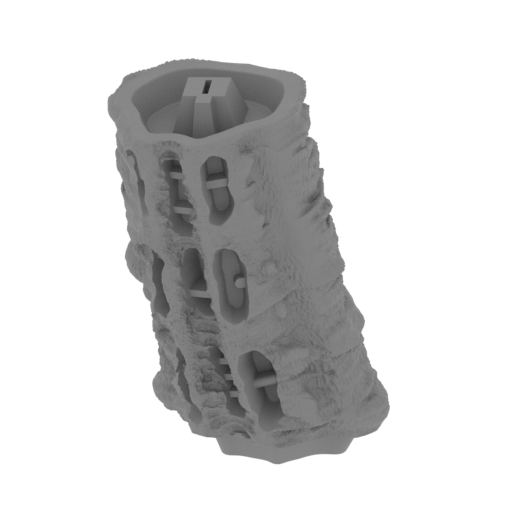

8_tail_3_FDM(repaired).st l
42.93 MiB 41 h 53 min 25 m 99 x 92 x 137 Download

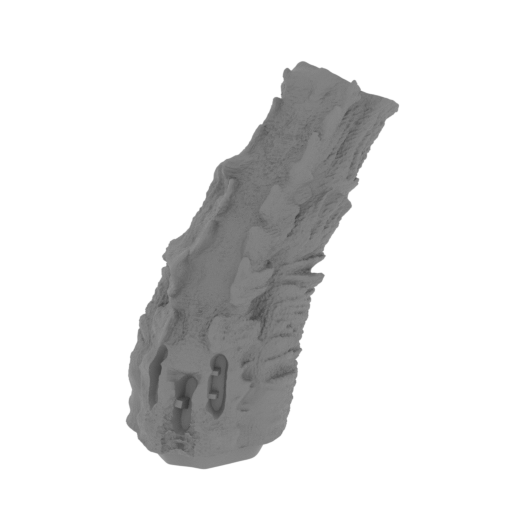

9_tail_4_FDM(repaired).st l
42.95 MiB 39 h 60 min 27 m 94 x 98 x 156 Download

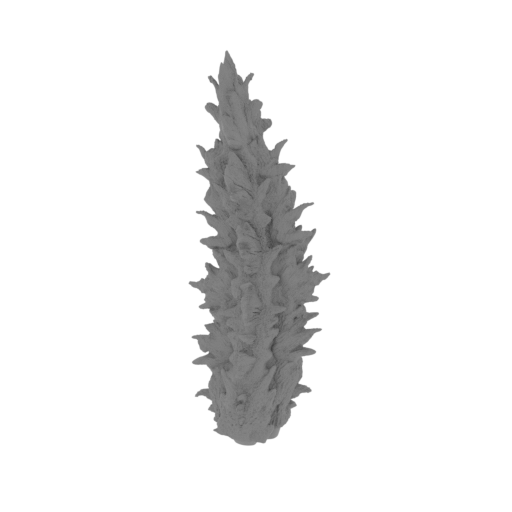

10_tail_5_FDM(repaired).s tl
32.62 MiB 30 h 2 min 19 m 79 x 68 x 206 Download

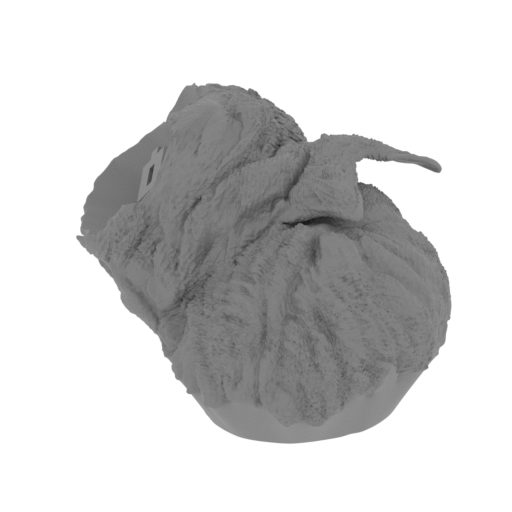

11_arm_R_FDM(repaired).st l
43.46 MiB 22 h 5 min 13 m 98 x 81 x 75 Download

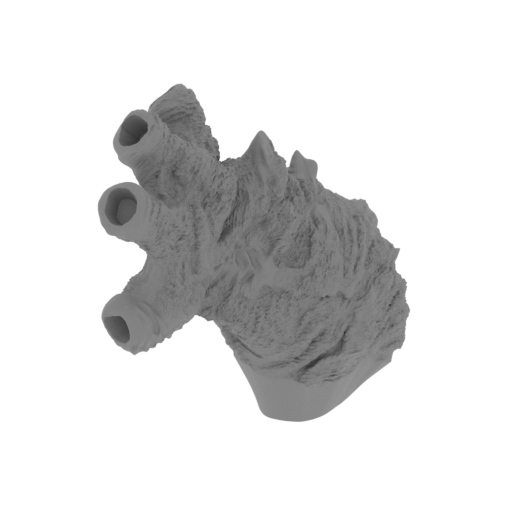

12_hand_R_FDM(repaired).s tl
35.15 MiB 25 h 16 min 16 m 70 x 117 x 109 Download

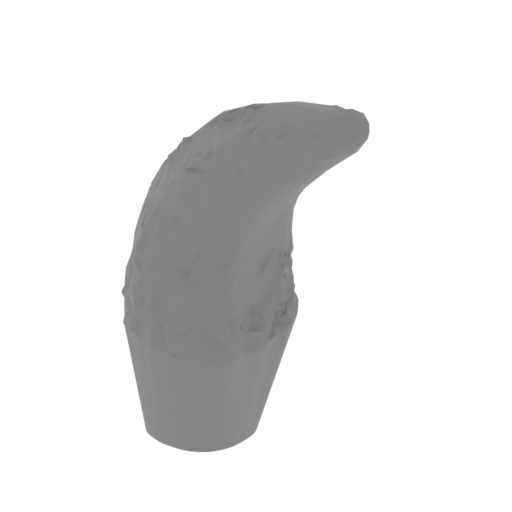

13_claw_1_hand_R_FDM(repa ired).stl
0.91 MiB 22 min <1 m 16 x 11 x 23 Download

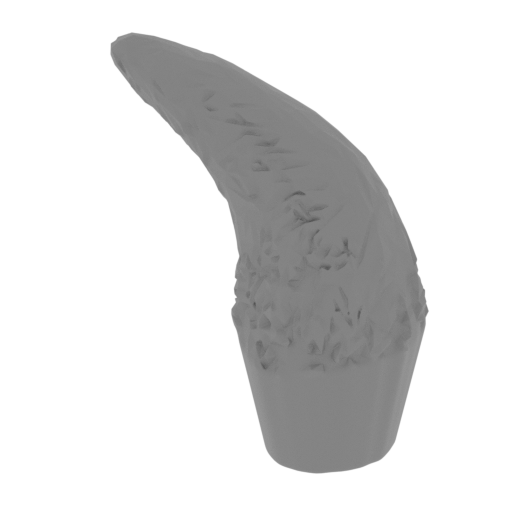

14_claw_2_hand_R_FDM(repa ired).stl
1.71 MiB 22 min <1 m 19 x 12 x 21 Download

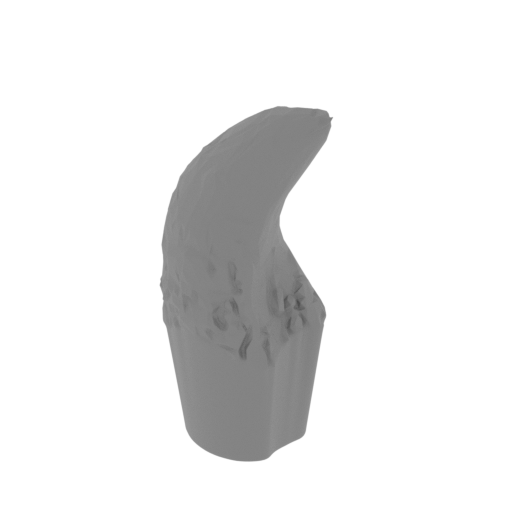

15_claw_3_hand_R_FDM(repa ired).stl
1.27 MiB 20 min <1 m 13 x 12 x 25 Download

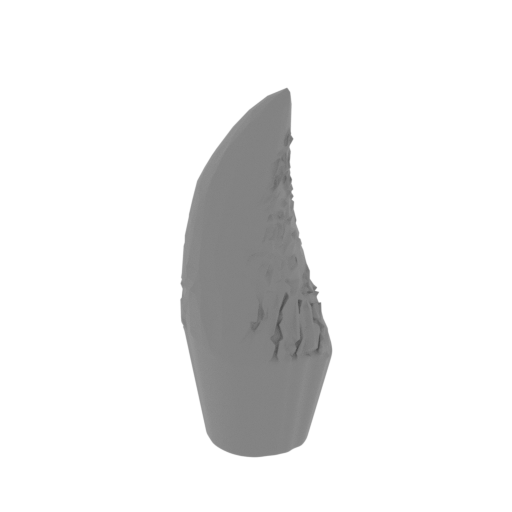

16_claw_4_hand_R_FDM(repa ired).stl
1.17 MiB 17 min <1 m 10 x 10 x 26 Download

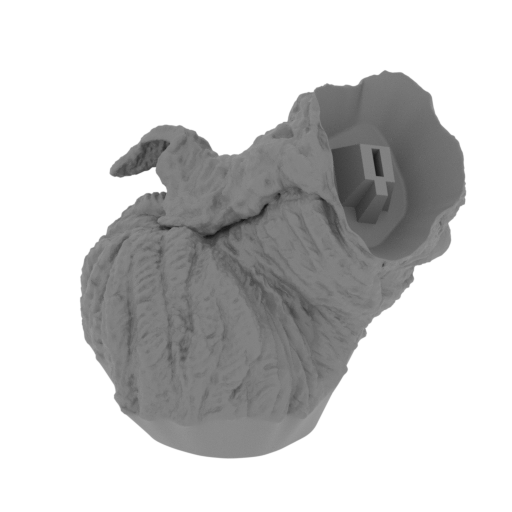

17_arm_L_FDM(repaired).st l
40.83 MiB 20 h 43 min 12 m 94 x 80 x 83 Download

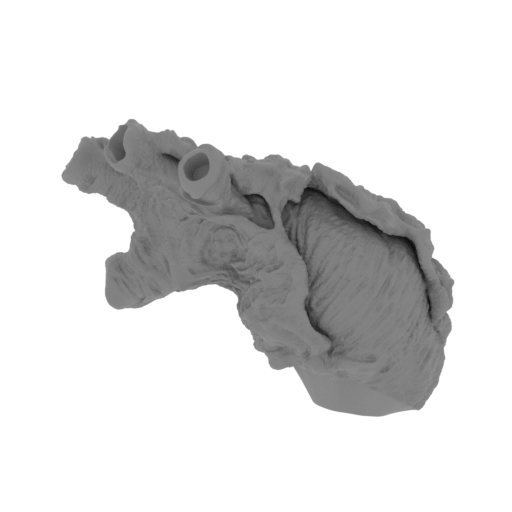

18_hand_L_FDM(repaired).s tl
33.30 MiB 25 h 38 min 16 m 124 x 67 x 96 Download

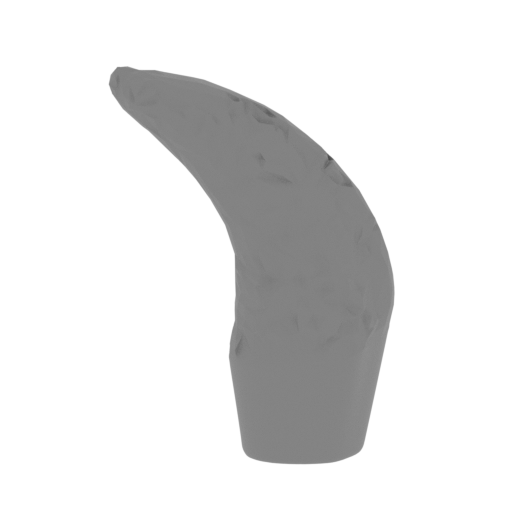

19_claw_1_hand_L_FDM(repa ired).stl
0.79 MiB 22 min <1 m 17 x 10 x 23 Download

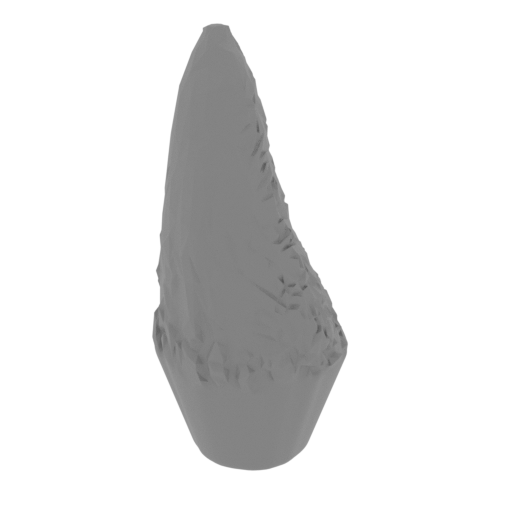

20_claw_2_hand_L_FDM(repa ired).stl
1.84 MiB 22 min <1 m 12 x 15 x 23 Download

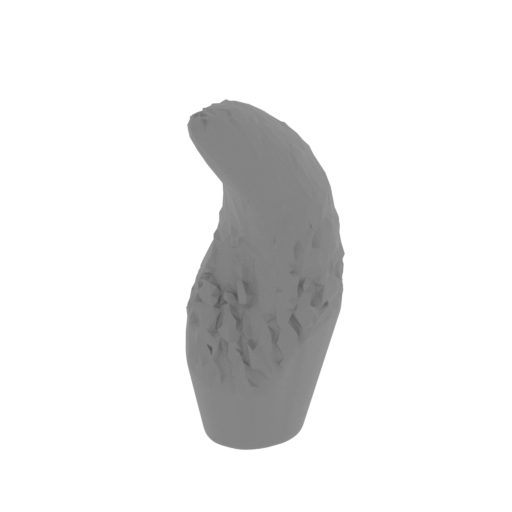

21_claw_3_hand_L_FDM(repa ired).stl
0.94 MiB 20 min <1 m 10 x 16 x 25 Download

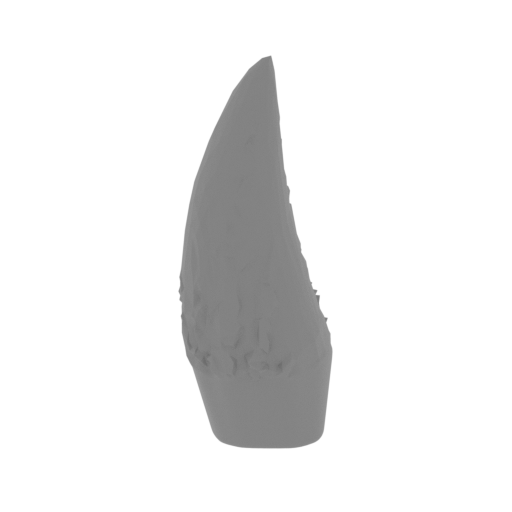

22_claw_4_hand_L_FDM(repa ired).stl
1.20 MiB 16 min <1 m 9 x 10 x 25 Download

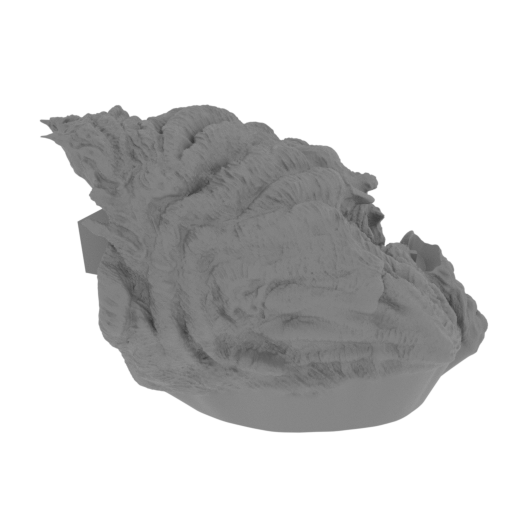

23_leg_R_FDM(repaired).st l
45.09 MiB 87 h 55 min 55 m 154 x 155 x 138 Download

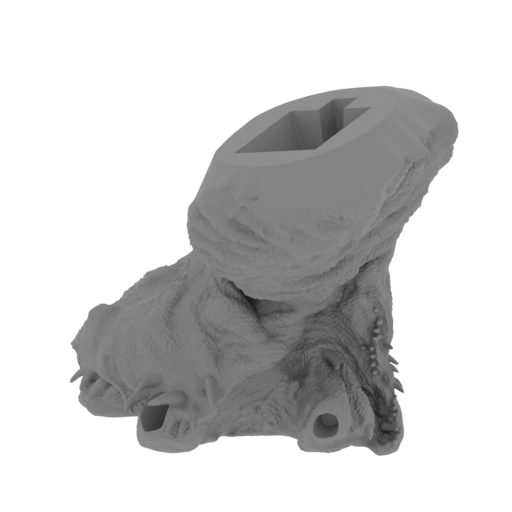

24_foot_R_FDM(repaired).s tl
48.68 MiB 60 h 48 min 42 m 129 x 114 x 123 Download

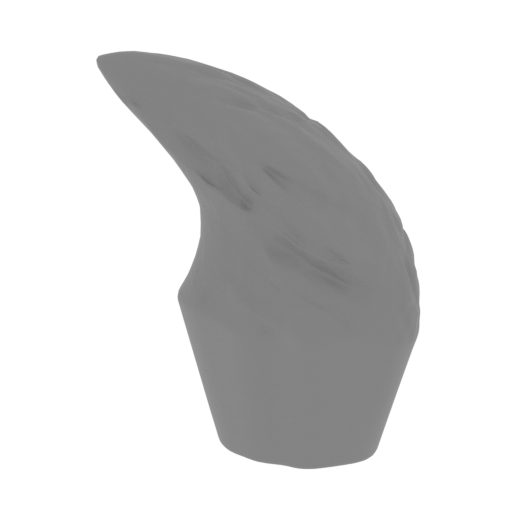

25_claw_1_foot_R_FDM(repa ired).stl
0.94 MiB 21 min <1 m 21 x 12 x 23 Download

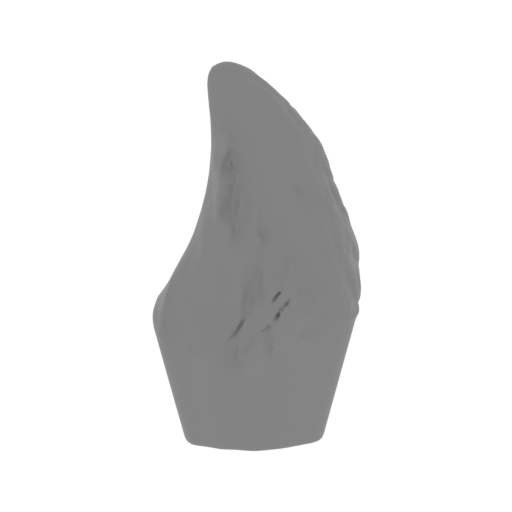

26_claw_2_foot_R_FDM(repa ired).stl
1.02 MiB 23 min <1 m 16 x 11 x 30 Download

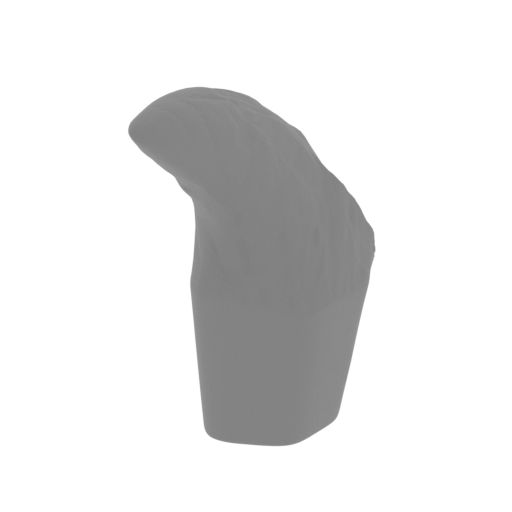

27_claw_3_foot_R_FDM(repa ired).stl
0.94 MiB 27 min <1 m 12 x 21 x 27 Download

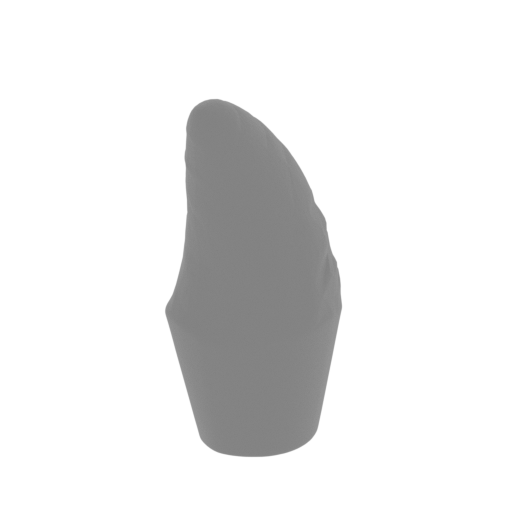

28_claw_4_foot_R_FDM(repa ired).stl
1.05 MiB 13 min <1 m 8 x 10 x 21 Download

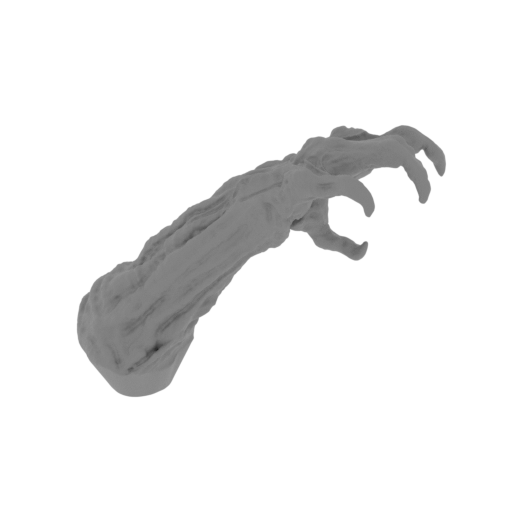

29_arm_from_leg_R_FDM(rep aired).stl
17.92 MiB 1 h 59 min 1 m 54 x 25 x 44 Download

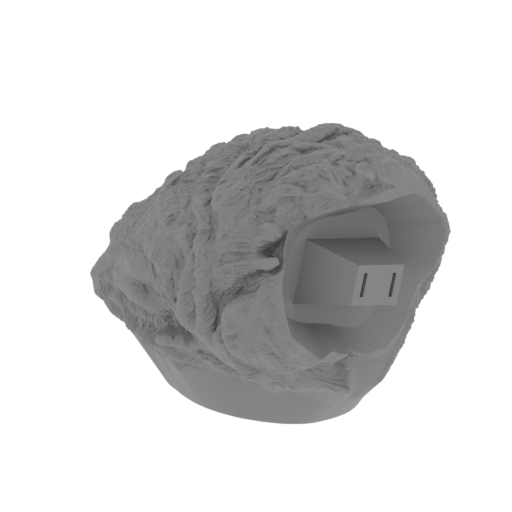

30_leg_L_FDM(repaired).st l
44.87 MiB 93 h 20 min 59 m 155 x 155 x 133 Download

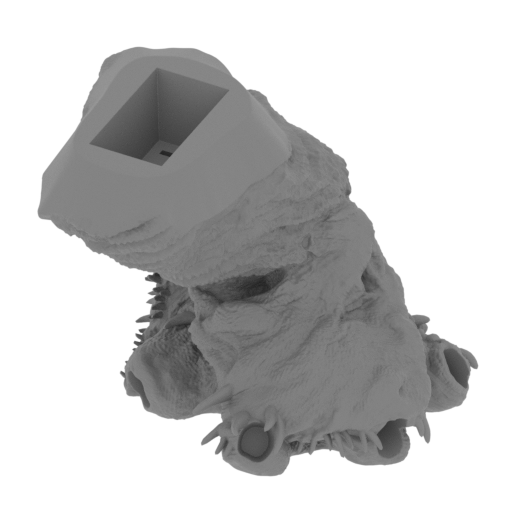

31_foot_L_FDM(repaired).s tl
49.12 MiB 61 h 16 min 41 m 123 x 127 x 120 Download

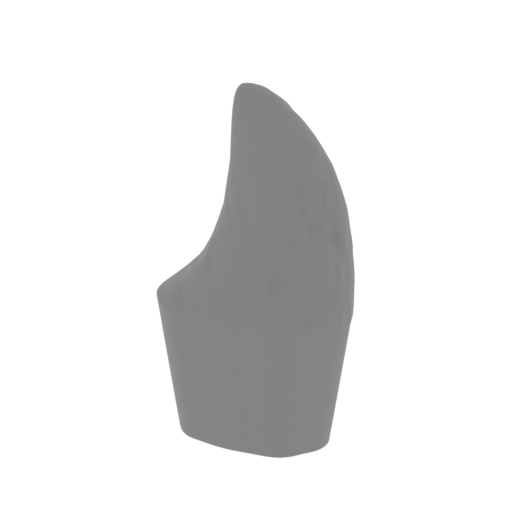

32_claw_1_foot_L_FDM(repa ired).stl
0.94 MiB 20 min <1 m 14 x 9 x 27 Download

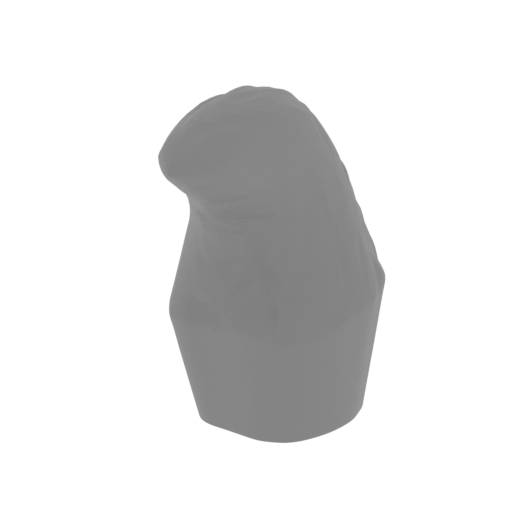

33_claw_2_foot_L_FDM(repa ired).stl
1.21 MiB 23 min <1 m 11 x 21 x 22 Download

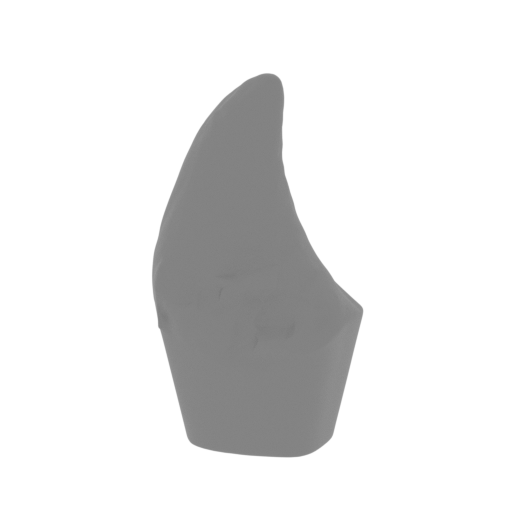

34_claw_3_foot_L_FDM(repa ired).stl
1.31 MiB 24 min <1 m 16 x 12 x 31 Download

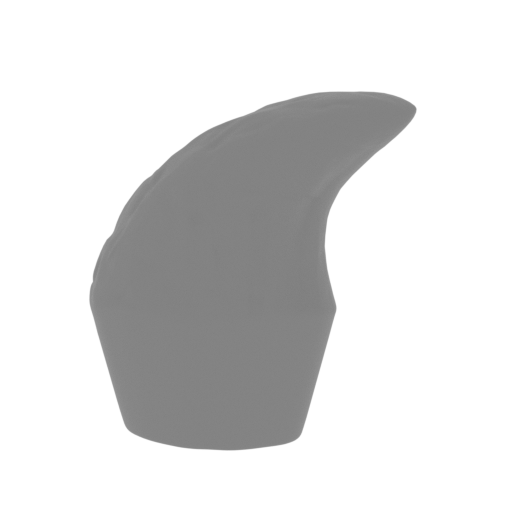

35_claw_4_foot_L_FDM(repa ired).stl
1.01 MiB 21 min <1 m 20 x 9 x 24 Download

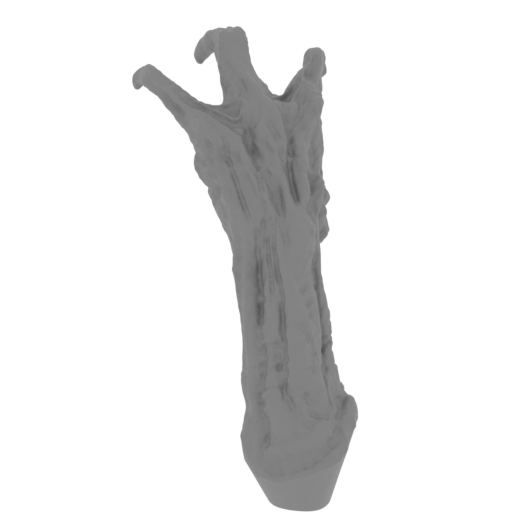

36_arm_from_leg_L_FDM(rep aired).stl
18.45 MiB 1 h 41 min 1 m 35 x 43 x 45 Download

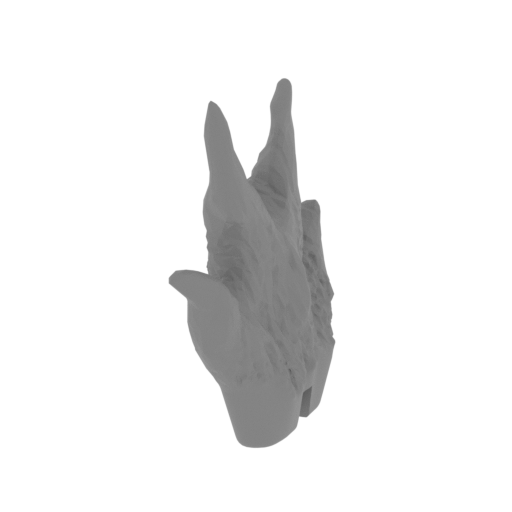

37_plate_1_FDM(repaired). stl
1.16 MiB 1 h 11 min 1 m 13 x 39 x 52 Download

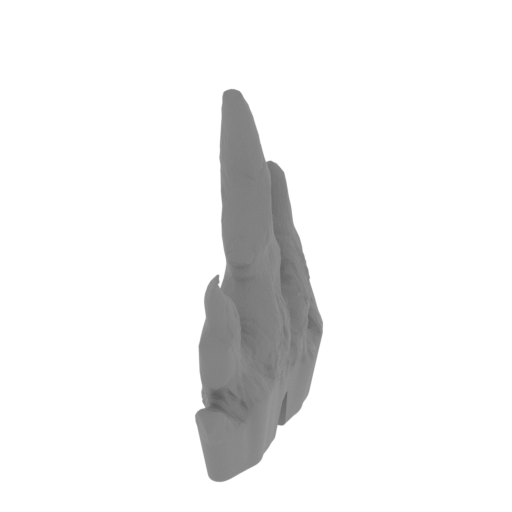

38_plate_2_FDM(repaired). stl
0.73 MiB 1 h 43 min 1 m 14 x 54 x 66 Download

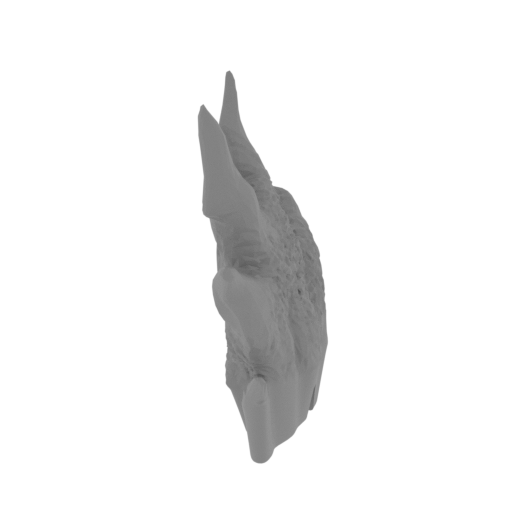

39_plate_3_FDM(repaired). stl
1.36 MiB 1 h 17 min 1 m 15 x 40 x 57 Download

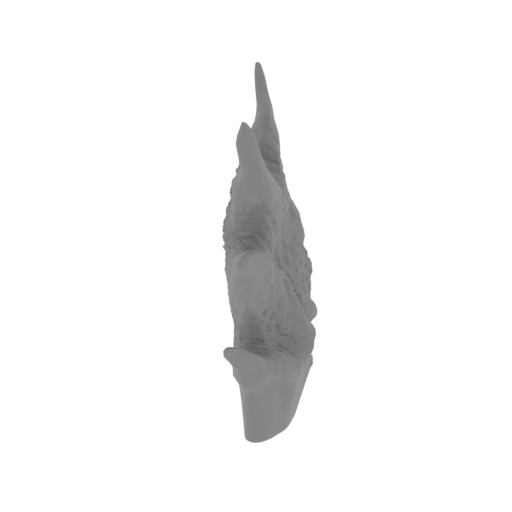

40_plate_4_FDM(repaired). stl
1.74 MiB 2 h 17 min 1 m 17 x 46 x 70 Download

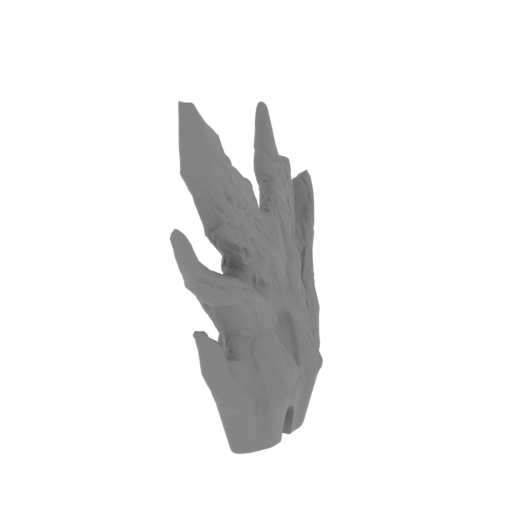

41_plate_5_FDM(repaired). stl
1.26 MiB 2 h 19 min 1 m 20 x 49 x 75 Download

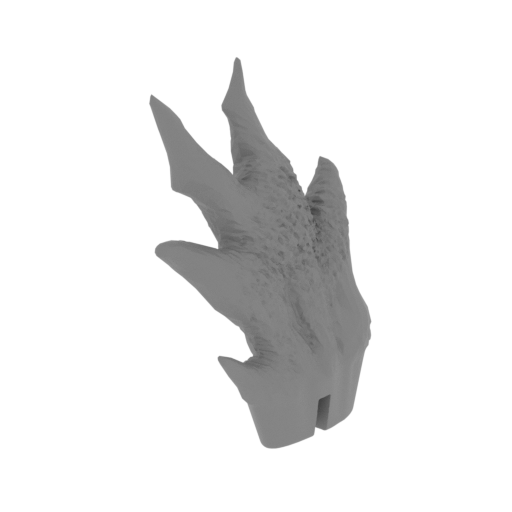

42_plate_6_FDM(repaired). stl
1.74 MiB 2 h 7 min 1 m 29 x 42 x 67 Download

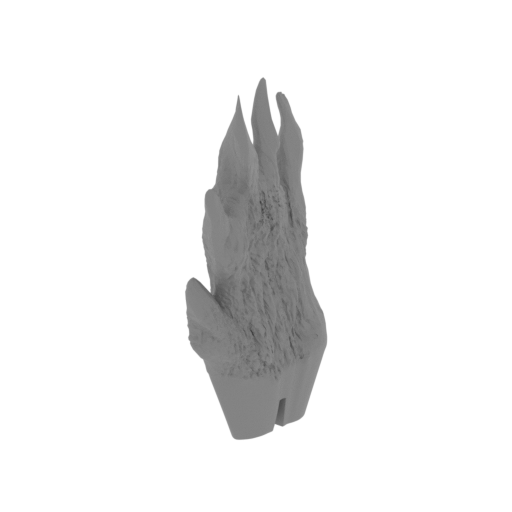

43_plate_7_FDM(repaired). stl
3.53 MiB 4 h 4 min 2 m 24 x 54 x 96 Download

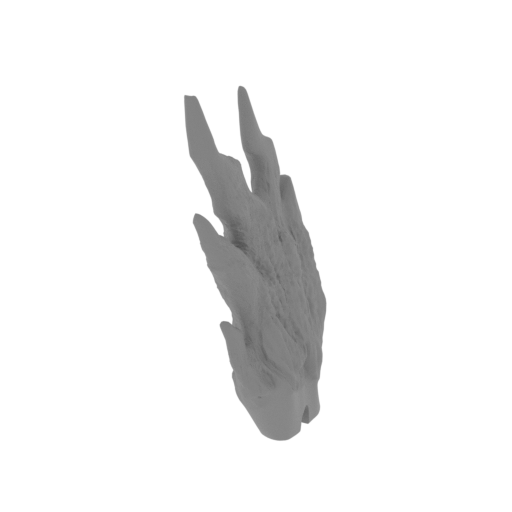

44_plate_8_FDM(repaired). stl
1.74 MiB 6 h 21 min 3 m 35 x 68 x 129 Download

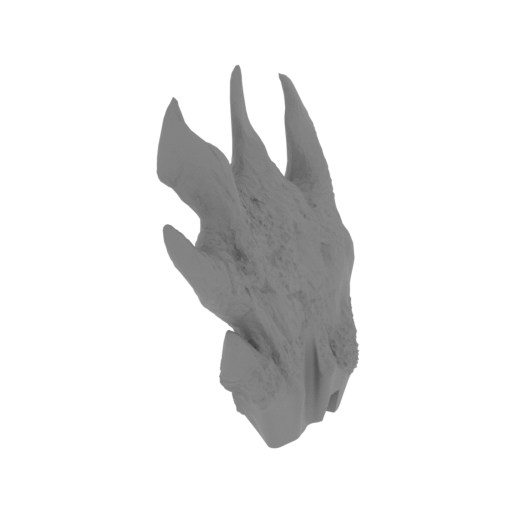

45_plate_9_FDM(repaired). stl
1.52 MiB 3 h 48 min 2 m 30 x 55 x 79 Download

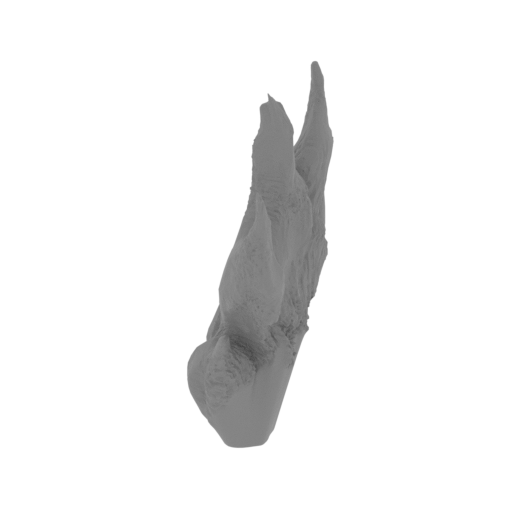

46_plate_10_FDM(repaired) .stl
1.91 MiB 5 h 31 min 3 m 30 x 62 x 100 Download

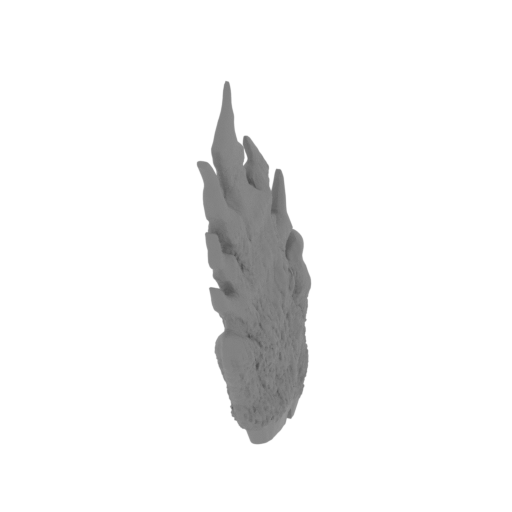

47_plate_11_FDM(repaired) .stl
2.94 MiB 16 h 22 min 9 m 33 x 84 x 196 Download

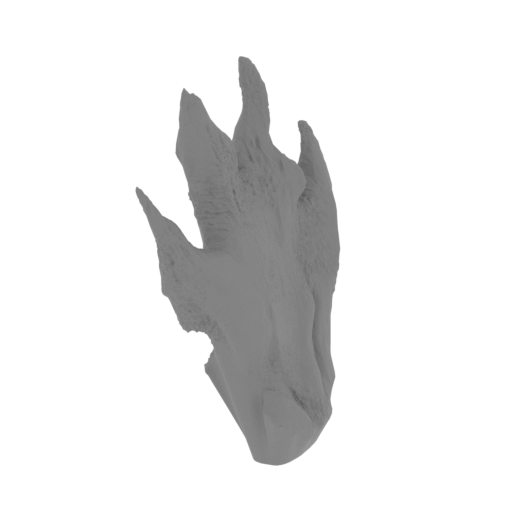

48_plate_12_FDM(repaired) .stl
1.73 MiB 5 h 54 min 3 m 38 x 68 x 96 Download

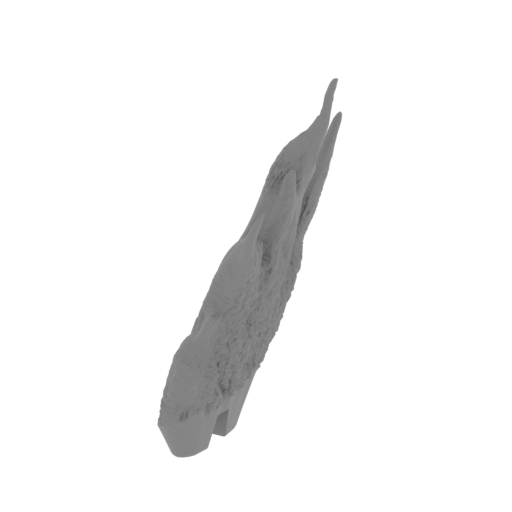

49_plate_13_FDM(repaired) .stl
1.40 MiB 6 h 49 min 4 m 50 x 66 x 125 Download

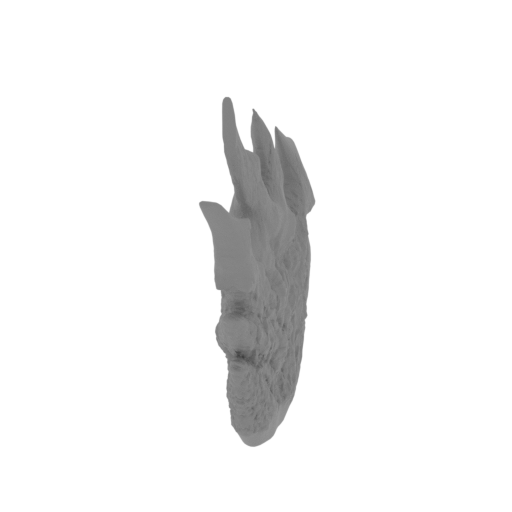

50_plate_14_FDM(repaired) .stl
1.50 MiB 10 h 5 min 5 m 24 x 98 x 136 Download

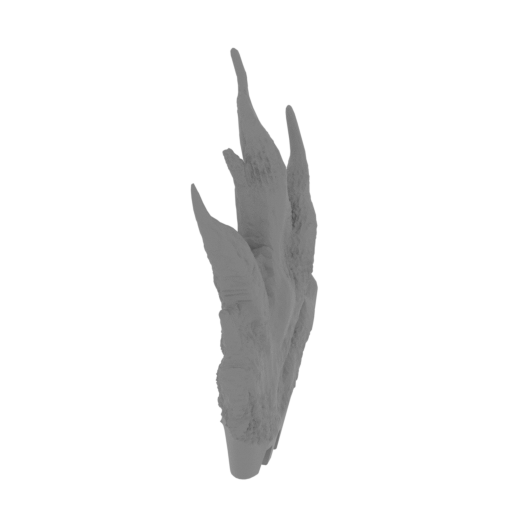

51_plate_15_FDM(repaired) .stl
1.49 MiB 6 h 50 min 4 m 30 x 74 x 124 Download

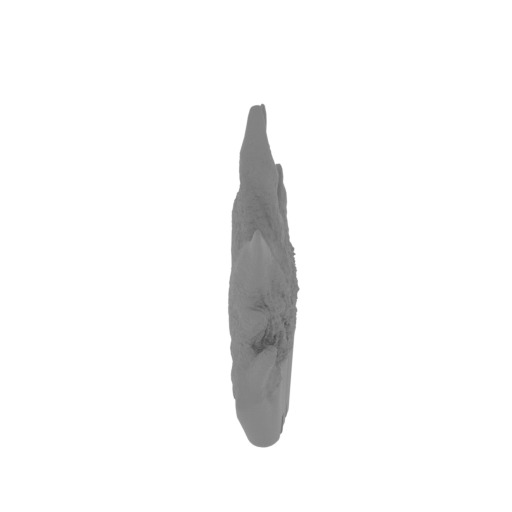

52_plate_16_FDM(repaired) .stl
1.54 MiB 7 h 18 min 4 m 34 x 81 x 124 Download

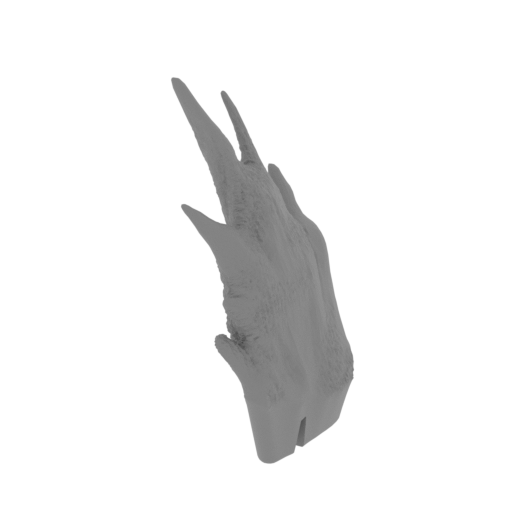

53_plate_17_FDM(repaired) .stl
1.59 MiB 7 h 54 min 5 m 50 x 71 x 124 Download

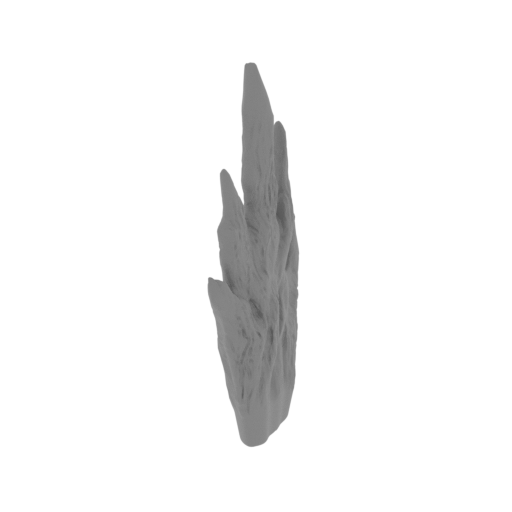

54_plate_18_FDM(repaired) .stl
1.58 MiB 2 h 54 min 1 m 16 x 55 x 97 Download

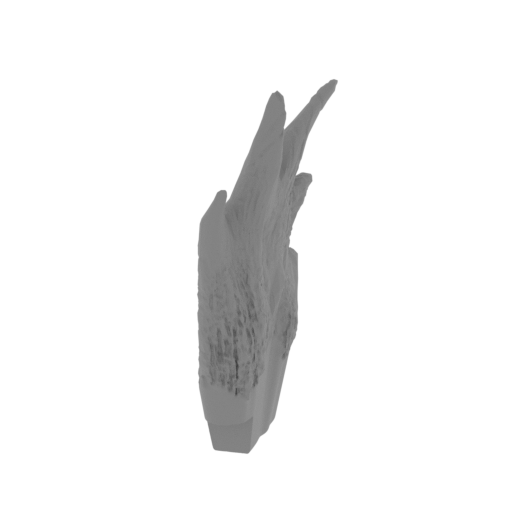

55_plate_19_FDM(repaired) .stl
2.79 MiB 2 h 34 min 1 m 22 x 45 x 78 Download

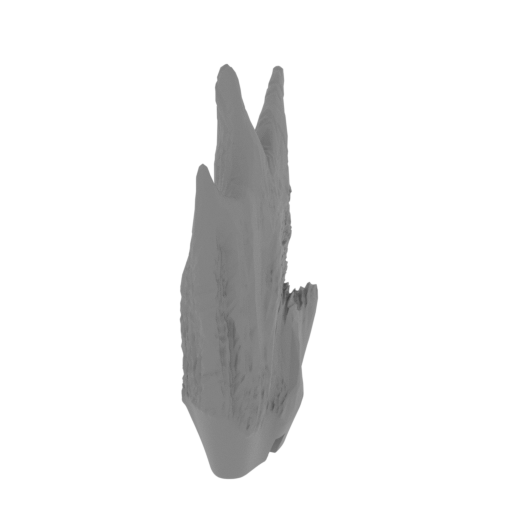

56_plate_20_FDM(repaired) .stl
2.60 MiB 2 h 38 min 1 m 20 x 51 x 71 Download

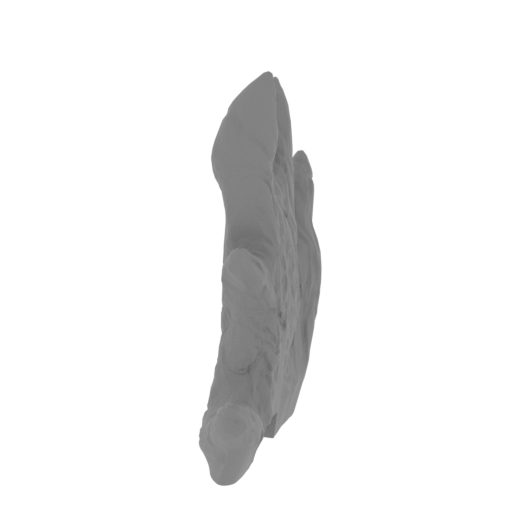

57_plate_21_FDM(repaired) .stl
1.45 MiB 1 h 10 min 1 m 13 x 44 x 54 Download

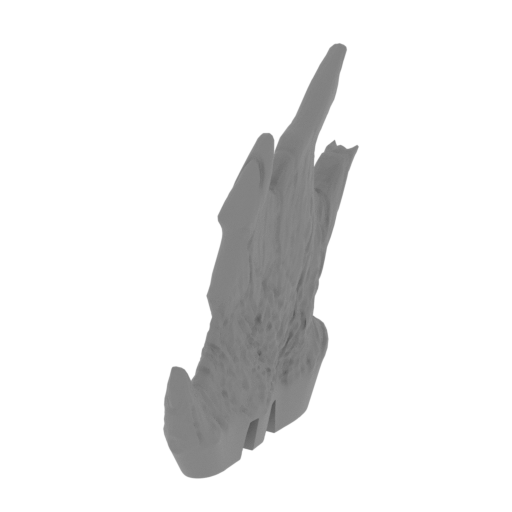

58_plate_22_FDM(repaired) .stl
2.08 MiB 1 h 13 min 1 m 17 x 47 x 57 Download

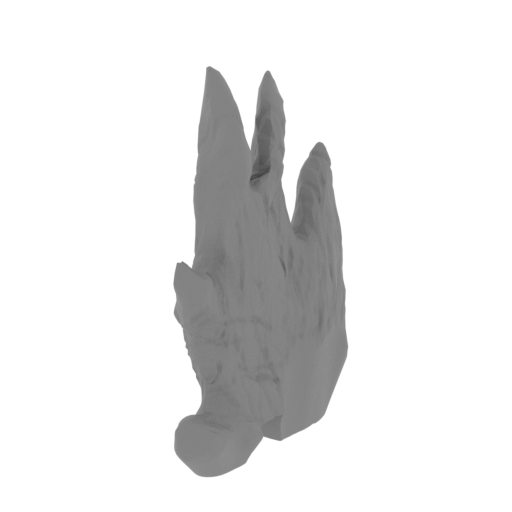

59_plate_23_FDM(repaired) .stl
0.98 MiB 1 h 1 min 1 m 17 x 38 x 52 Download

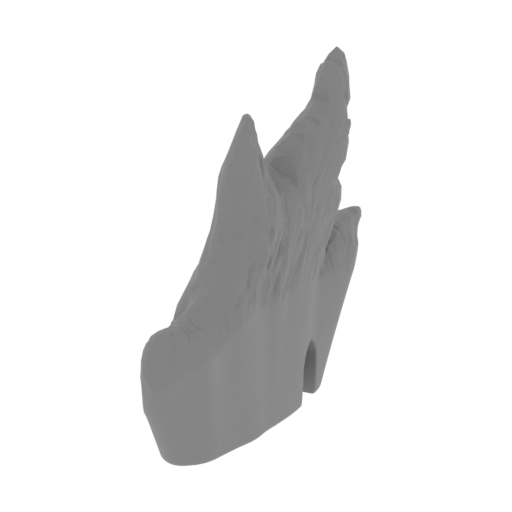

60_plate_24_FDM(repaired) .stl
0.74 MiB 1 h 2 min 1 m 13 x 44 x 40 Download

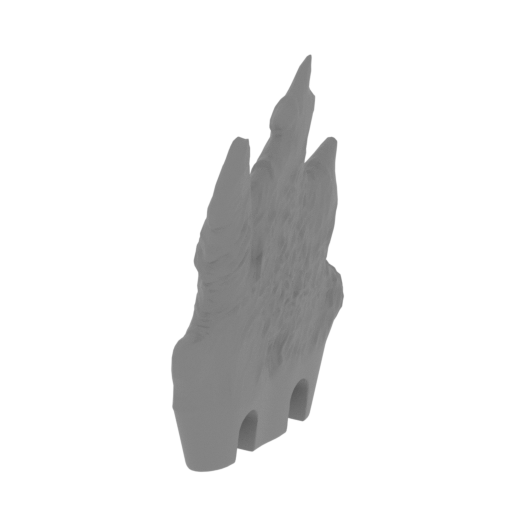

61_plate_25_FDM(repaired) .stl
1.51 MiB 1 h 19 min 1 m 16 x 38 x 56 Download

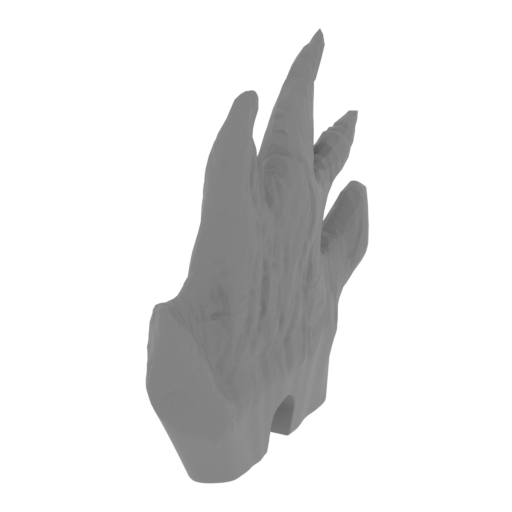

62_plate_26_FDM(repaired) .stl
0.81 MiB 1 h 7 min 1 m 14 x 45 x 42 Download

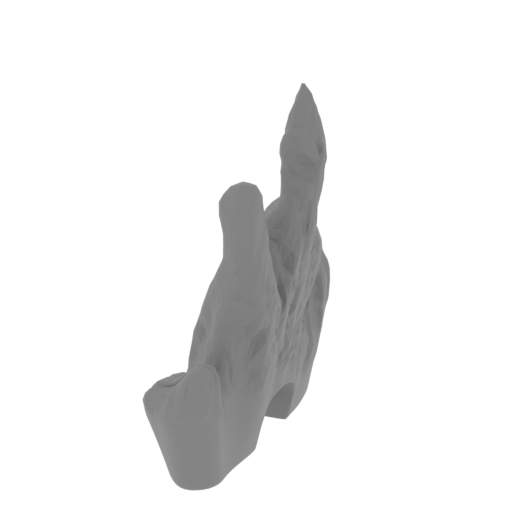

63_plate_27_FDM(repaired) .stl
0.68 MiB 43 min <1 m 15 x 36 x 40 Download

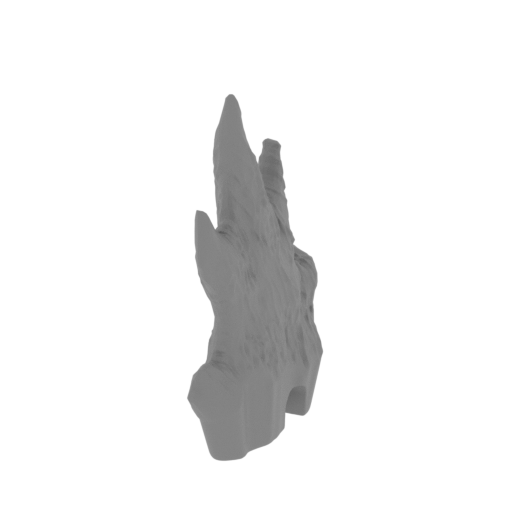

64_plate_28_FDM(repaired) .stl
1.49 MiB 1 h 7 min 1 m 12 x 37 x 59 Download

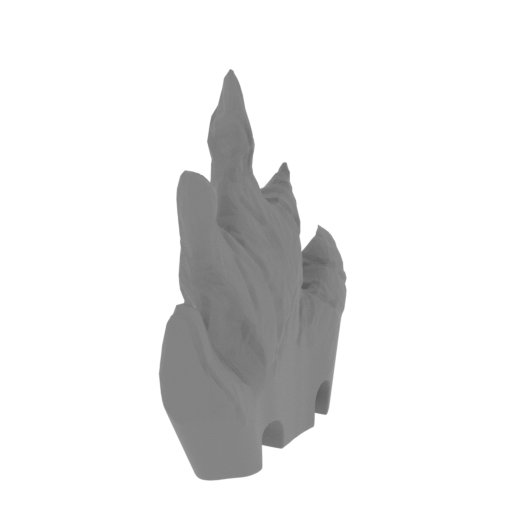

65_plate_29_FDM(repaired) .stl
0.71 MiB 47 min <1 m 13 x 36 x 42 Download

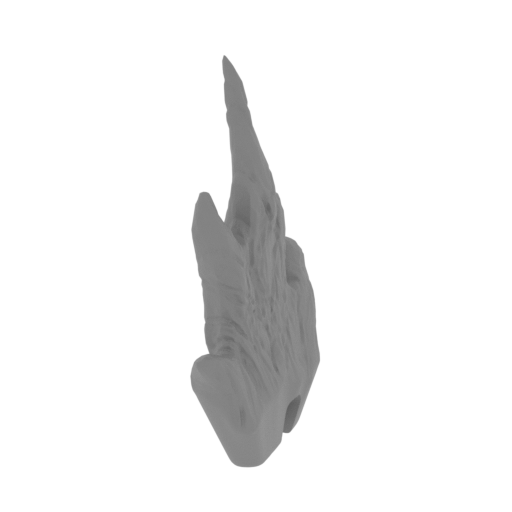

66_plate_30_FDM(repaired) .stl
1.92 MiB 54 min <1 m 13 x 40 x 51 Download

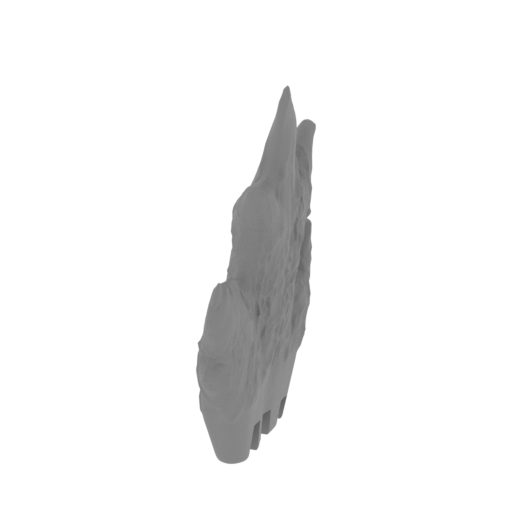

67_plate_31_FDM(repaired) .stl
3.28 MiB 1 h 21 min 1 m 13 x 41 x 62 Download

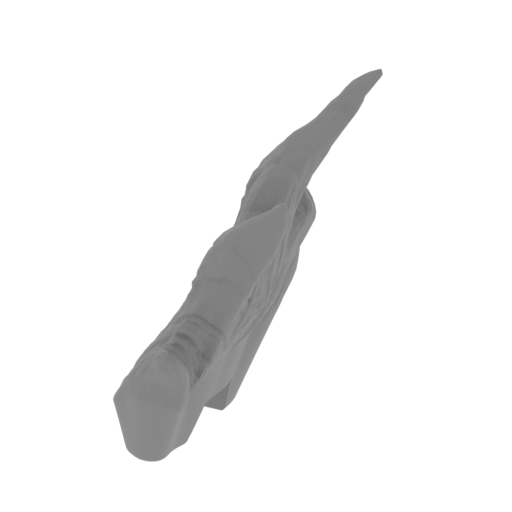

68_plate_32_FDM(repaired) .stl
1.30 MiB 53 min <1 m 26 x 39 x 45 Download

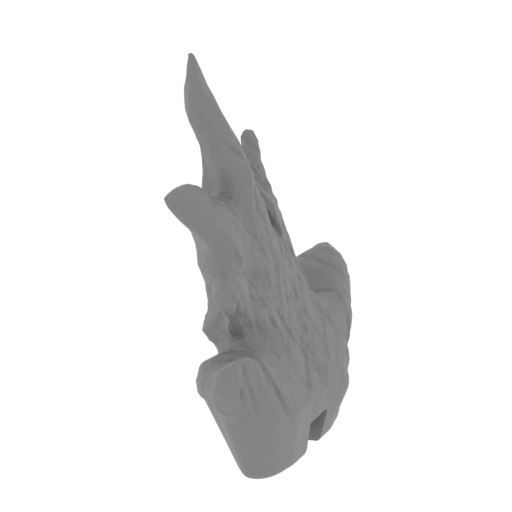

69_plate_33_FDM(repaired) .stl
1.41 MiB 57 min <1 m 18 x 37 x 43 Download

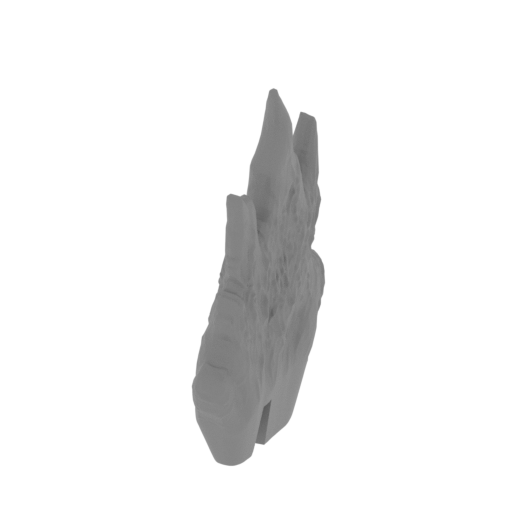

70_plate_34_FDM(repaired) .stl
2.87 MiB 1 h 5 min 1 m 12 x 37 x 56 Download

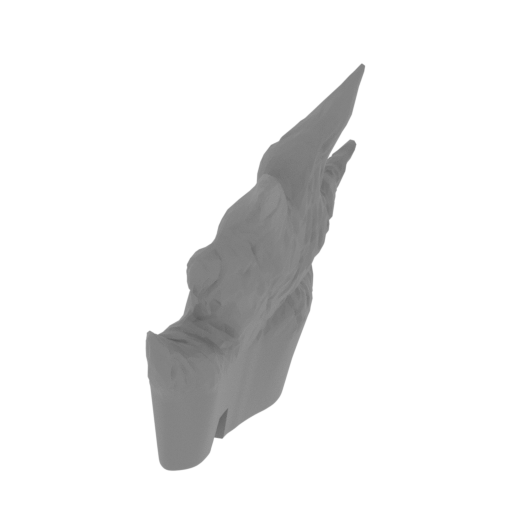

71_plate_35_FDM(repaired) .stl
1.37 MiB 58 min <1 m 20 x 36 x 43 Download

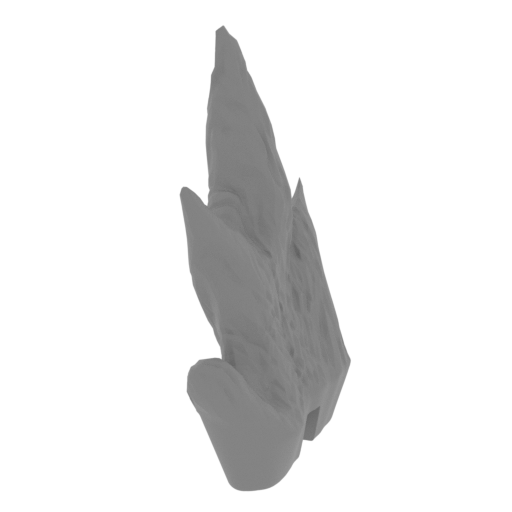

72_plate_36_FDM(repaired) .stl
1.02 MiB 41 min <1 m 16 x 35 x 40 Download

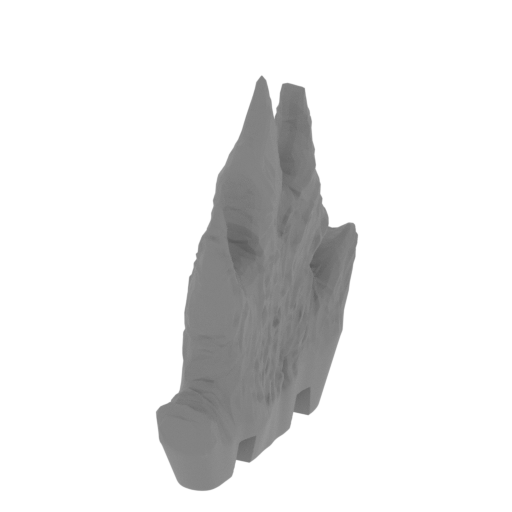

73_plate_37_FDM(repaired) .stl
1.82 MiB 52 min <1 m 12 x 37 x 43 Download

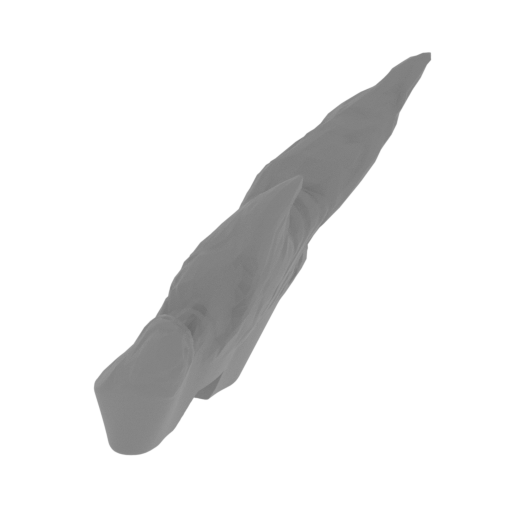

74_plate_38_FDM(repaired) .stl
0.93 MiB 42 min <1 m 23 x 36 x 31 Download

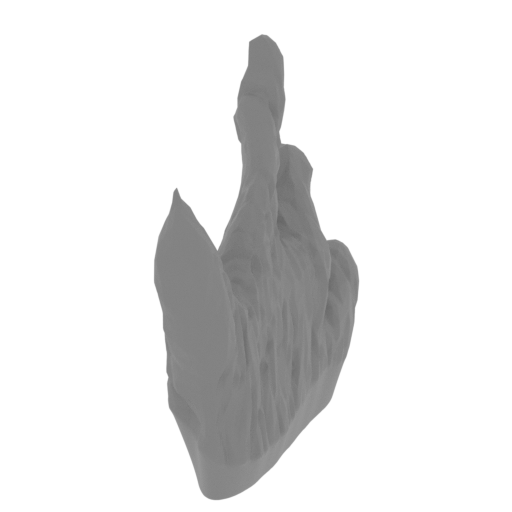

75_plate_39_FDM(repaired) .stl
2.74 MiB 31 min <1 m 9 x 29 x 30 Download

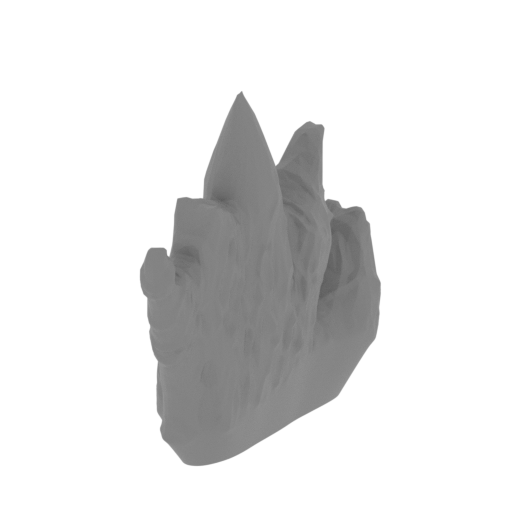

76_plate_40_FDM(repaired) .stl
3.35 MiB 41 min <1 m 14 x 31 x 35 Download

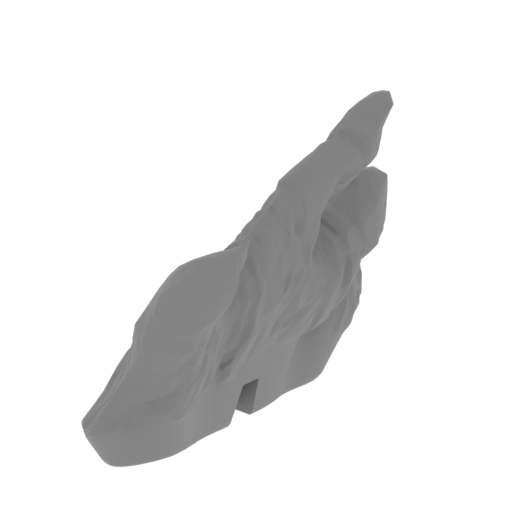

77_plate_41_FDM(repaired) .stl
2.59 MiB 31 min <1 m 19 x 29 x 27 Download

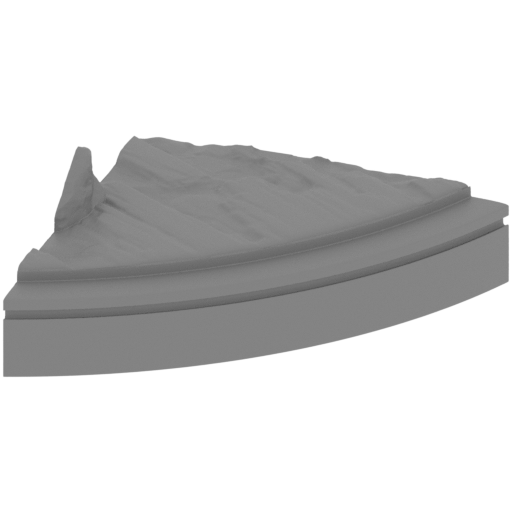

78_platform_1_FDM(repaire d).stl
19.65 MiB 26 h 46 min 15 m 131 x 131 x 54 Download

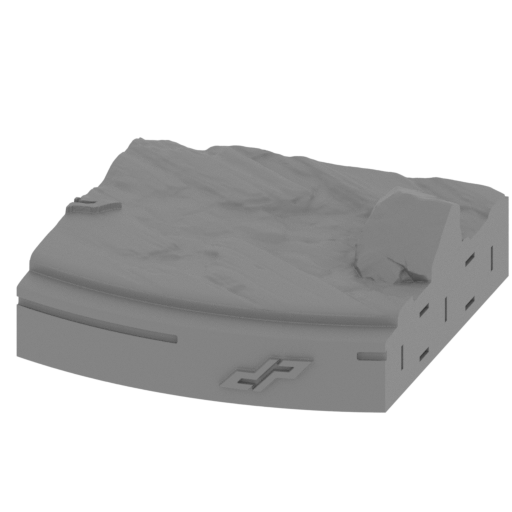

79_platform_2_FDM(repaire d).stl
20.45 MiB 47 h 35 min 27 m 144 x 144 x 55 Download

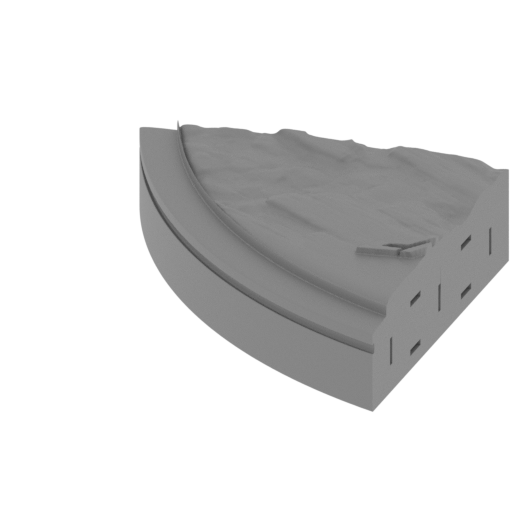

80_platform_3_FDM(repaire d).stl
19.59 MiB 26 h 16 min 15 m 131 x 130 x 38 Download

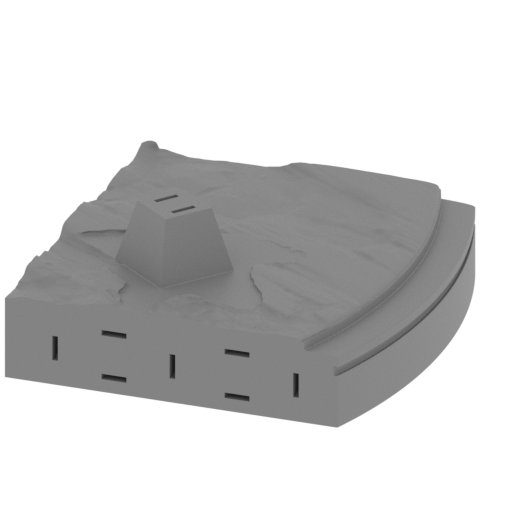

81_platform_4_FDM(repaire d).stl
20.45 MiB 46 h 55 min 27 m 144 x 145 x 59 Download

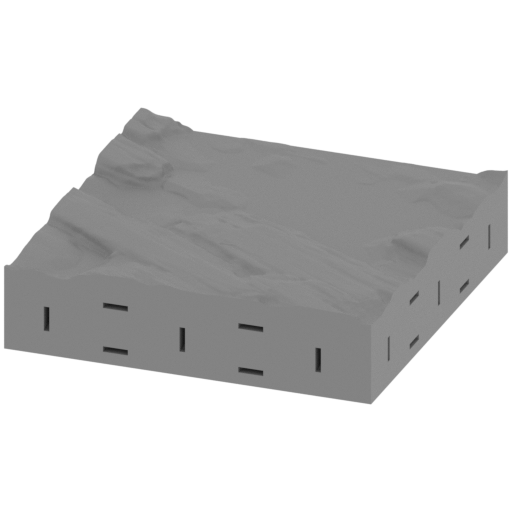

82_platform_5_FDM(repaire d).stl
21.82 MiB 47 h 23 min 27 m 144 x 145 x 36 Download

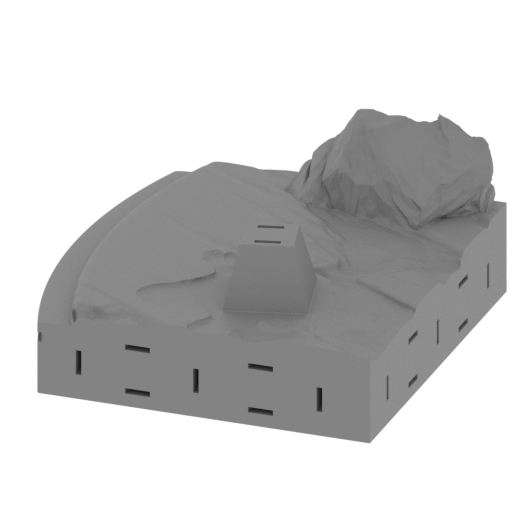

83_platform_6_FDM(repaire d).stl
18.59 MiB 48 h 46 min 28 m 143 x 145 x 68 Download

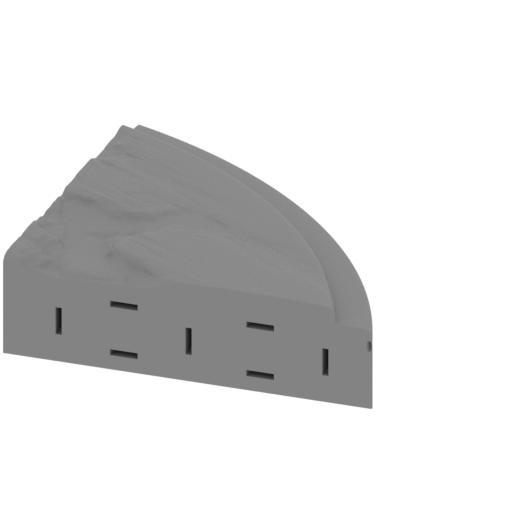

84_platform_7_FDM(repaire d).stl
19.54 MiB 26 h 6 min 15 m 131 x 131 x 36 Download

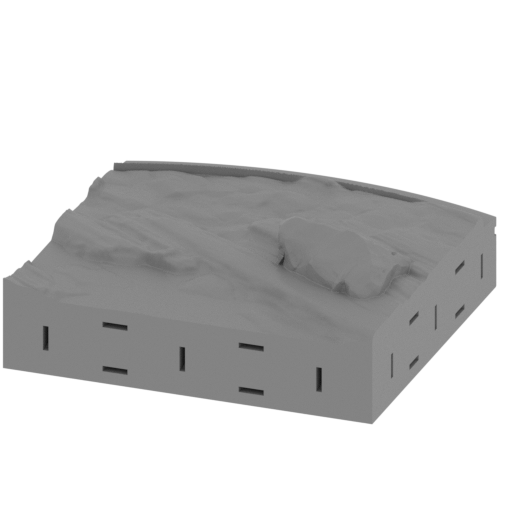

85_platform_8_FDM(repaire d).stl
20.60 MiB 46 h 35 min 26 m 144 x 144 x 52 Download

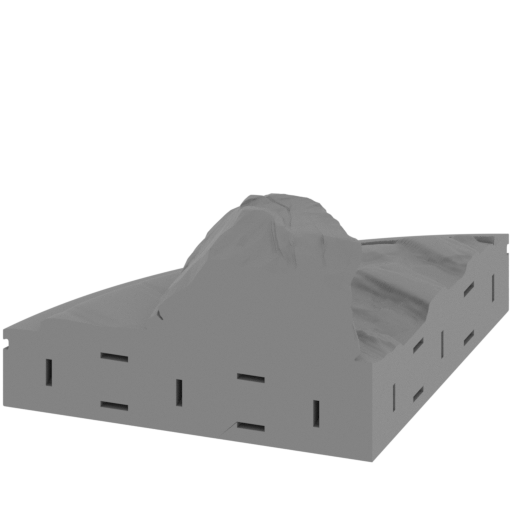

86_platform_9_FDM(repaire d).stl
20.68 MiB 31 h 38 min 18 m 131 x 131 x 75 Download

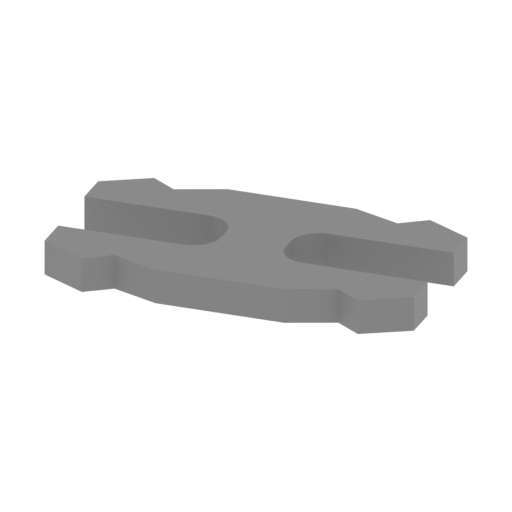

87_ge_lock_10H(x110)_FDM( repaired).stl
0.03 MiB 4 min <1 m 18 x 10 x 2 Download

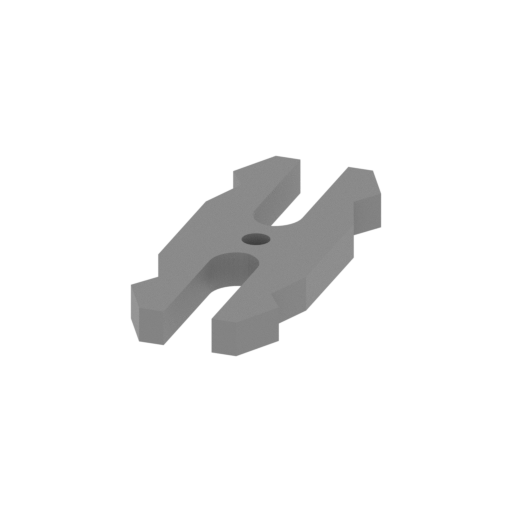

88_ge_lock_7S(x2)_FDM(rep aired).stl
0.02 MiB 3 min <1 m 7 x 18 x 2 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download

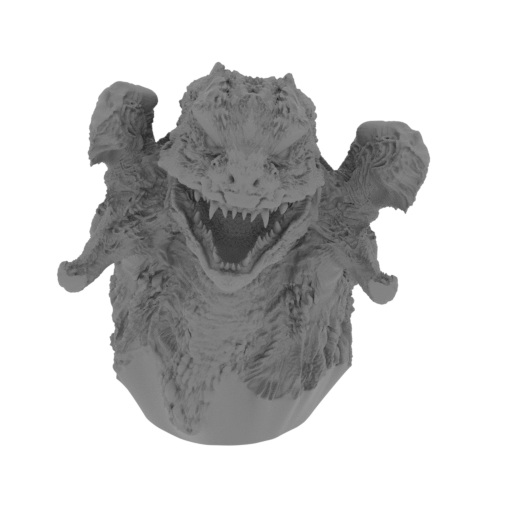

1_head_FDM(repaired).stl
58.62 MiB 53 h 13 min 33 m 109 x 96 x 124 Download
...

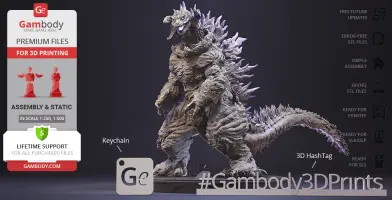

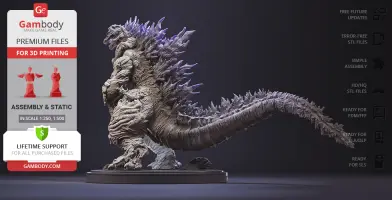

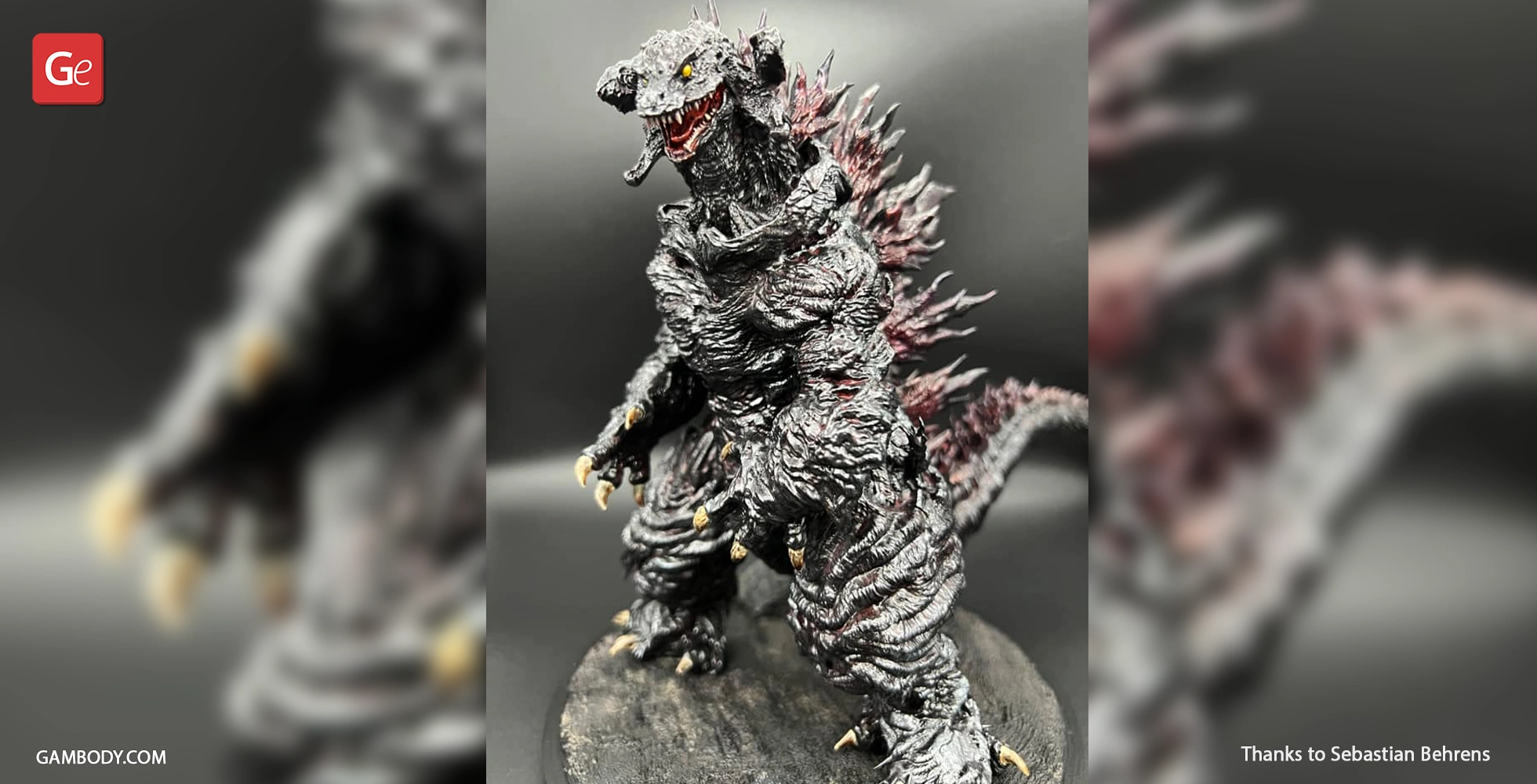

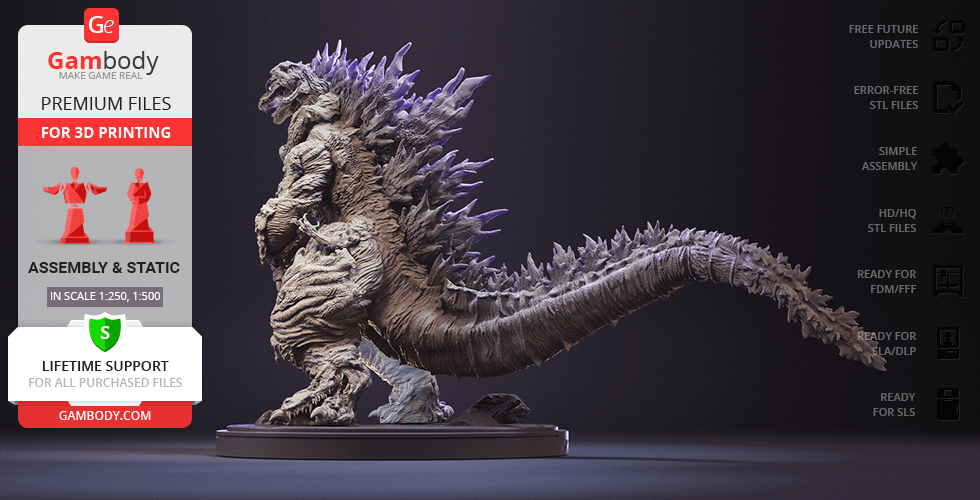

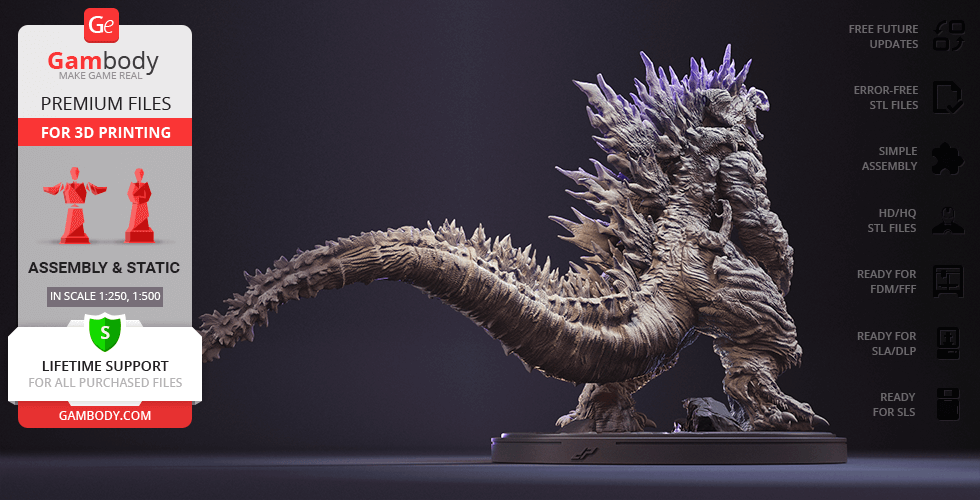

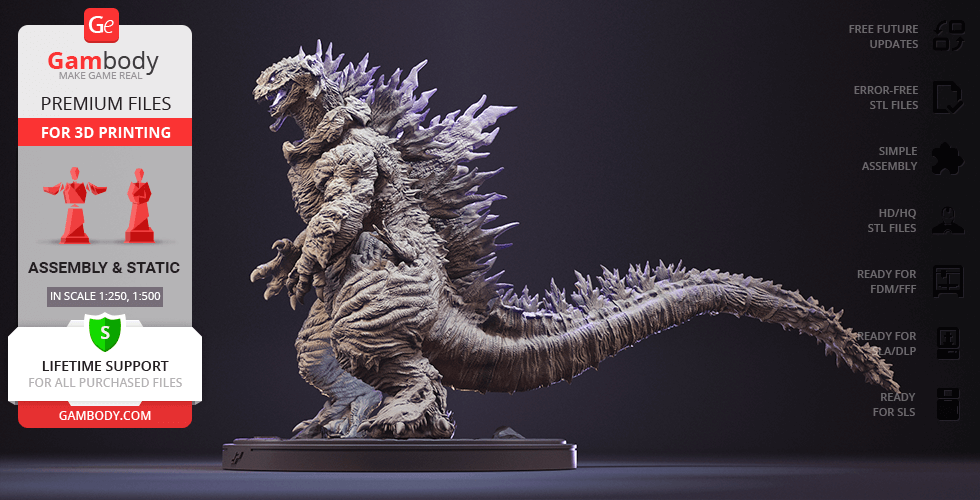

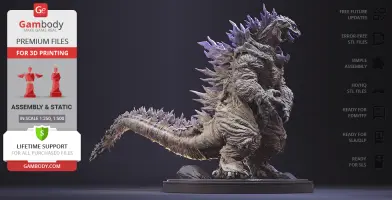

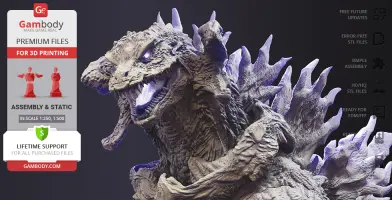

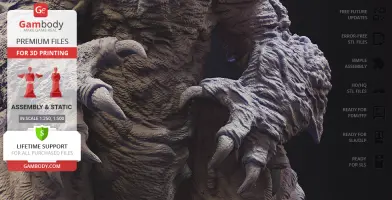

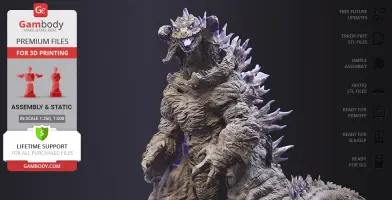

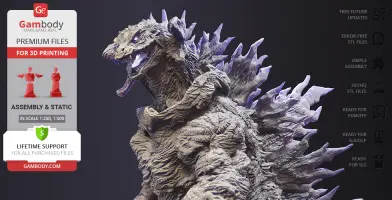

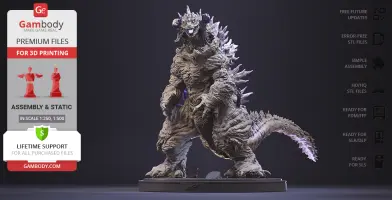

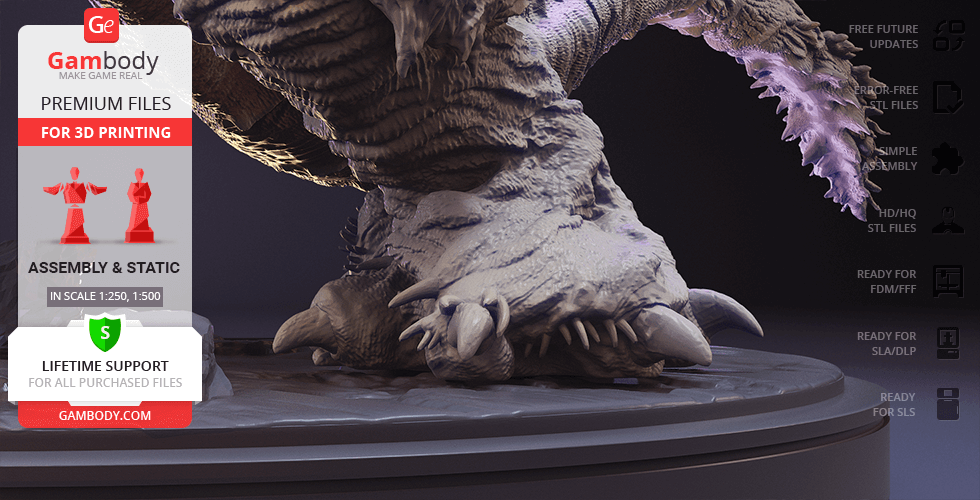

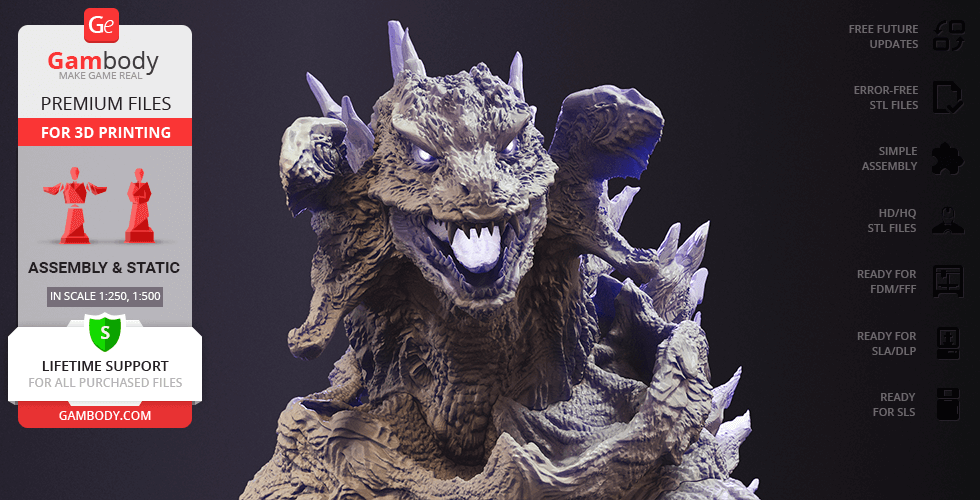

ABOUT THIS 3D FIGURINE

As envisioned by genius director Hideaki Anno, Godzilla Resurgence follows the path that pays homage to the roots of the kaiju franchise and takes a completely original turn. In the 2016 movie instalment, the new Godzilla evolves from a small sea creature affected by nuclear waste. Overcoming tremendous pain and constantly transforming, the monster crawls inland to destroy everything in its path and avenge its tragic faith. But it seems like its story did not end there!

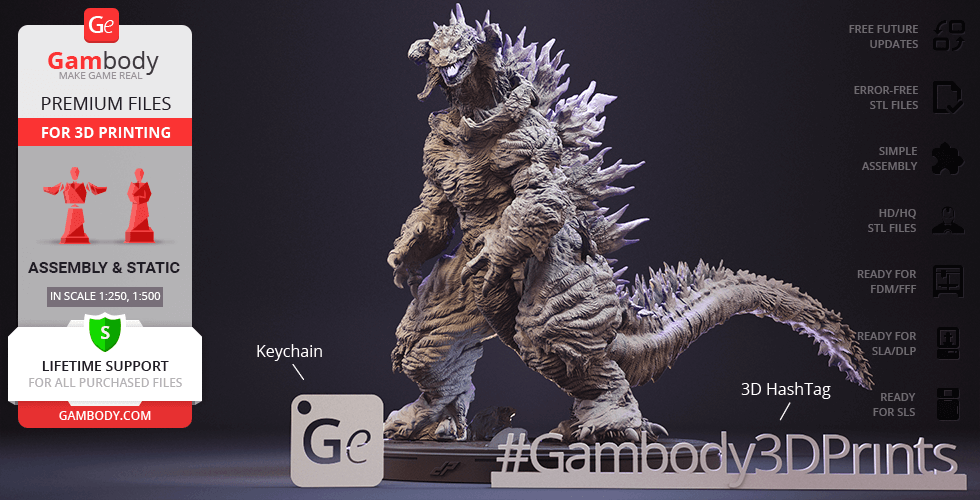

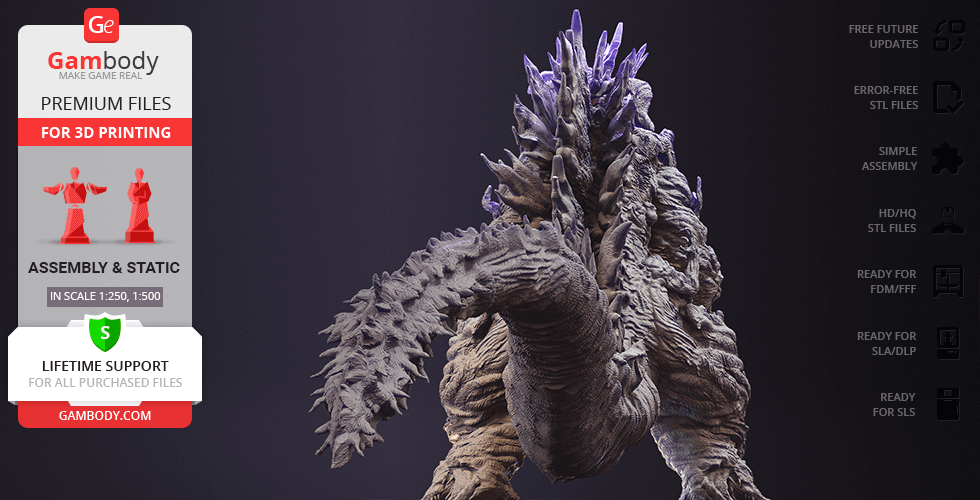

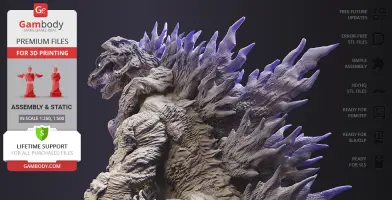

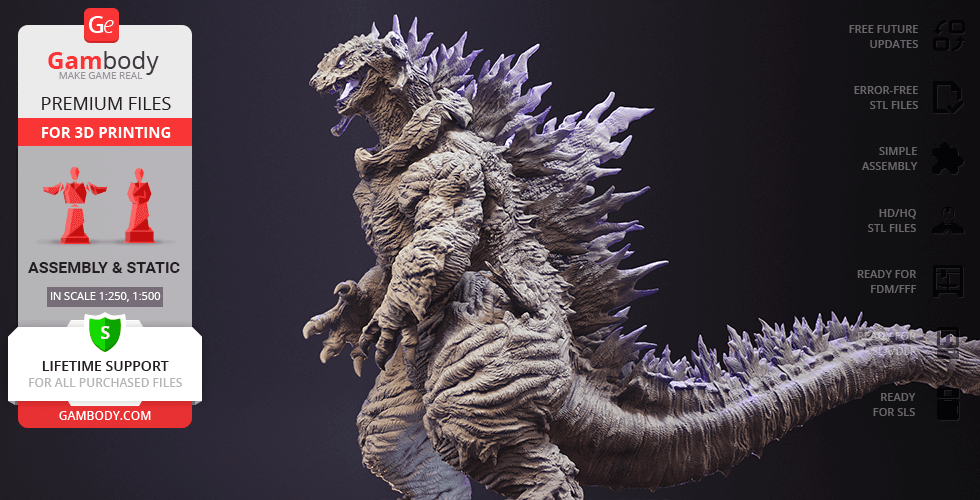

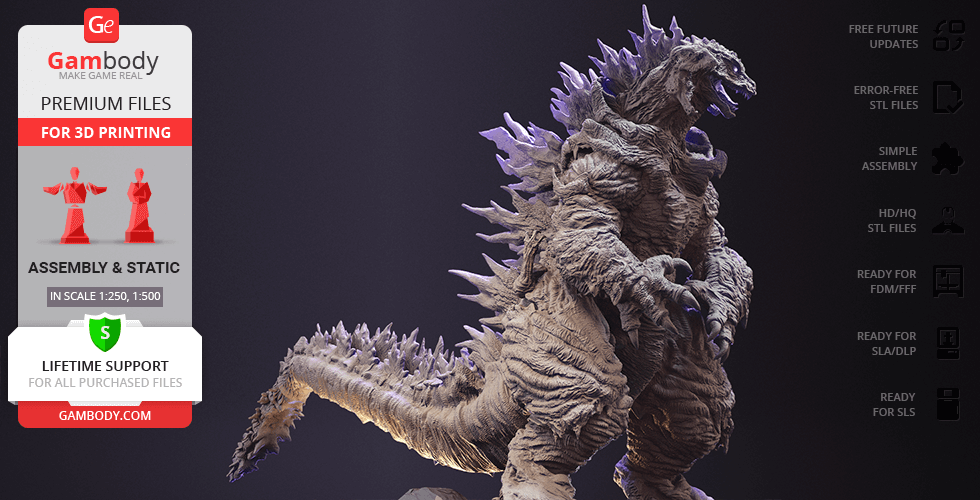

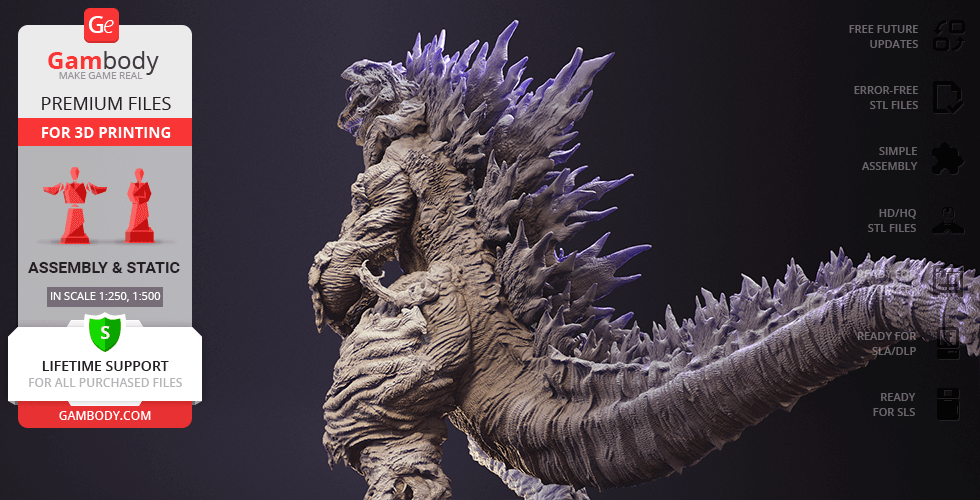

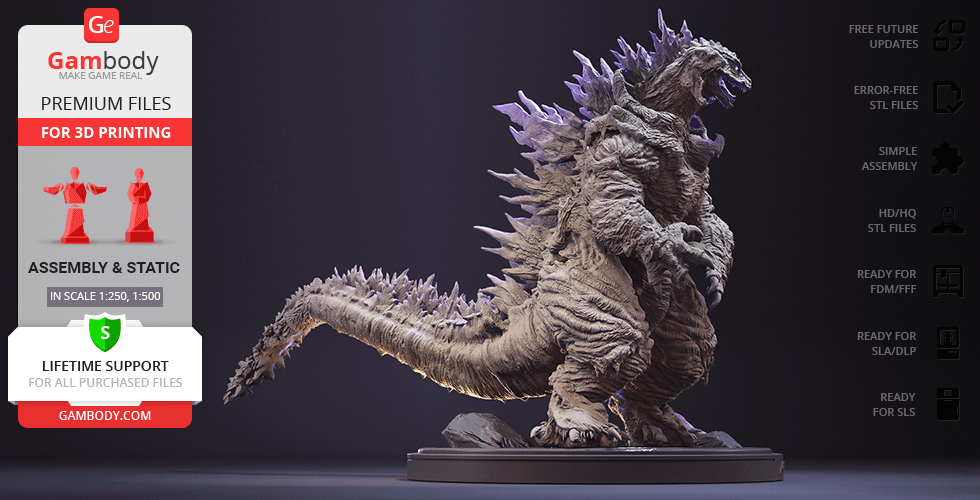

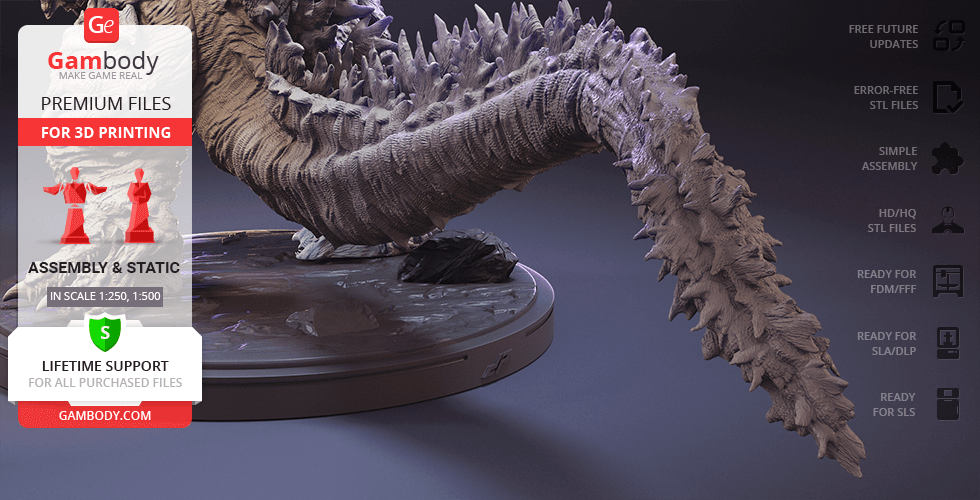

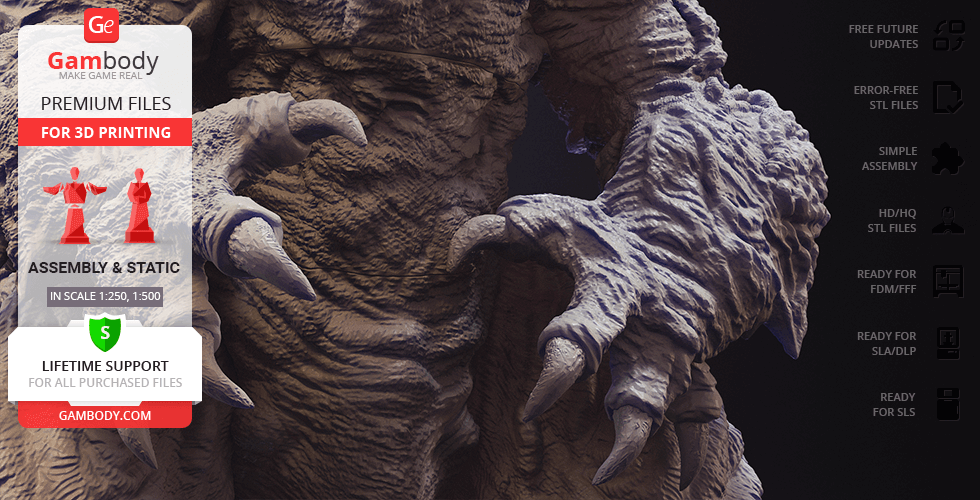

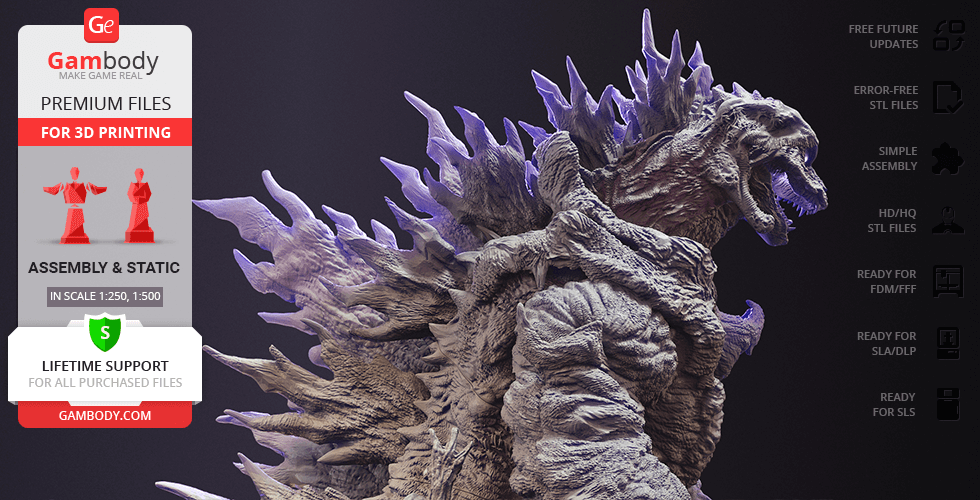

Our contributing 3D artist decided to take his own creative liberty and imagine one of Godzilla’s further evolution stages, depicting it in the Mutant Shin Godzilla 3D printing figurine. Per the author’s idea, the highly detailed giant lizard for 3D printing sheds its previous form like old skin, parts of it remaining lifelessly on the Godzilla’s body. The monster’s dorsal plates elongate and cover the whole length of its enormous tail, and the limbs develop into dangerously massive ones. No kaiju fan will remain indifferent!

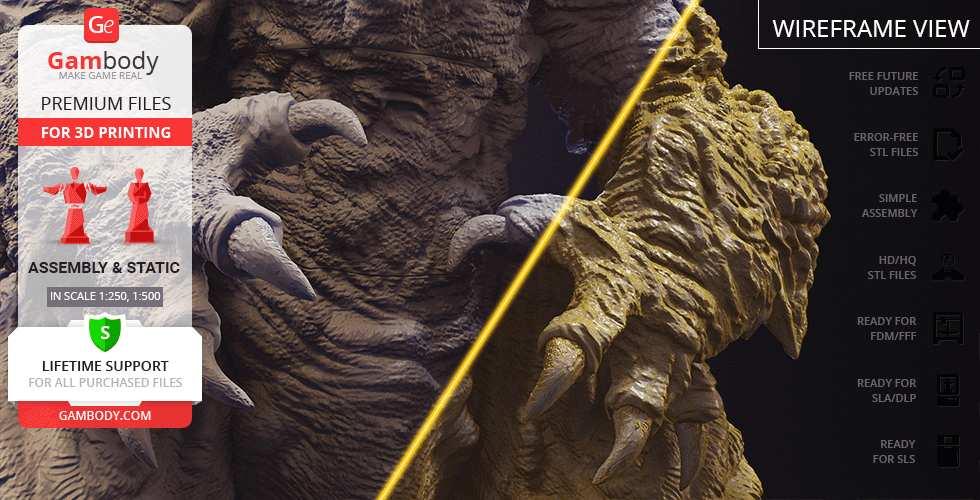

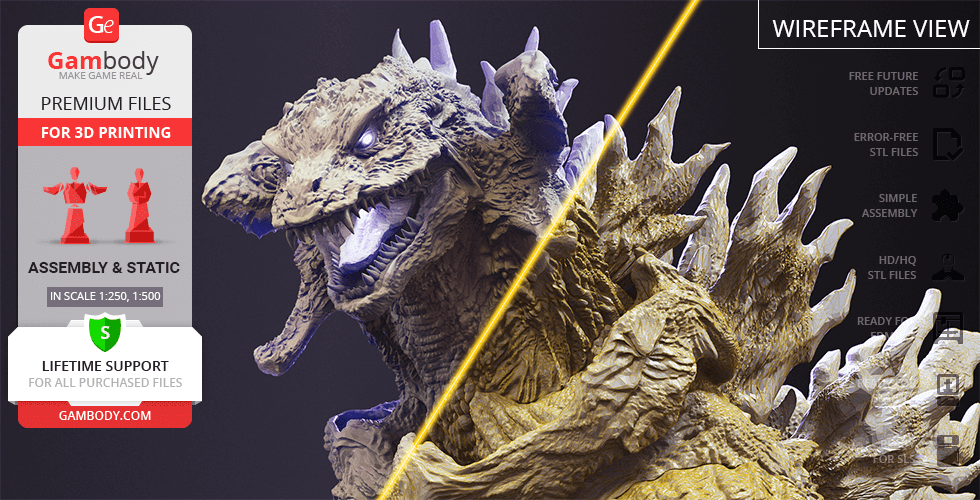

ADAPTATION FOR 3D PRINTING

Mutant Shin Godzilla figurine for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 70 hours.

The model’s cutting was chosen by our team to minimise the amount of generated support and some of the parts were hollowed out for you to save resin in the model’s Eco version. The highly-detailed figurine in its assembly version was divided into as many assembly parts as needed to fit even the smallest 3D printers’ build plates and for you to receive a huge 3D printed piece after assembly. For you to achieve the cleanest 3D printed result, Godzilla’s head, torso, limbs, claws, numerous dorsal plates, tail, etc. are provided as separate assembly parts.

All assembly parts come in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and so that the 3D printing beginners won’t face difficulties when placing the parts on a build plate.

The figurine is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from Shin Godzilla's approximate height which is 118500 mm. The 3D printing figurine's chosen scale is 1:250 for the FFF/FDM version and 1:500 for the DLP/SLA/SLS versions.

VERSIONS' SPECIFICATIONS

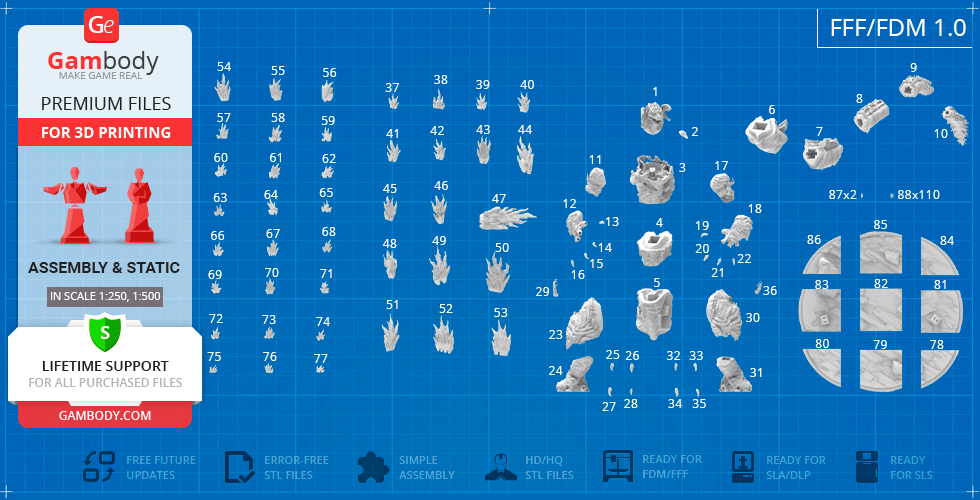

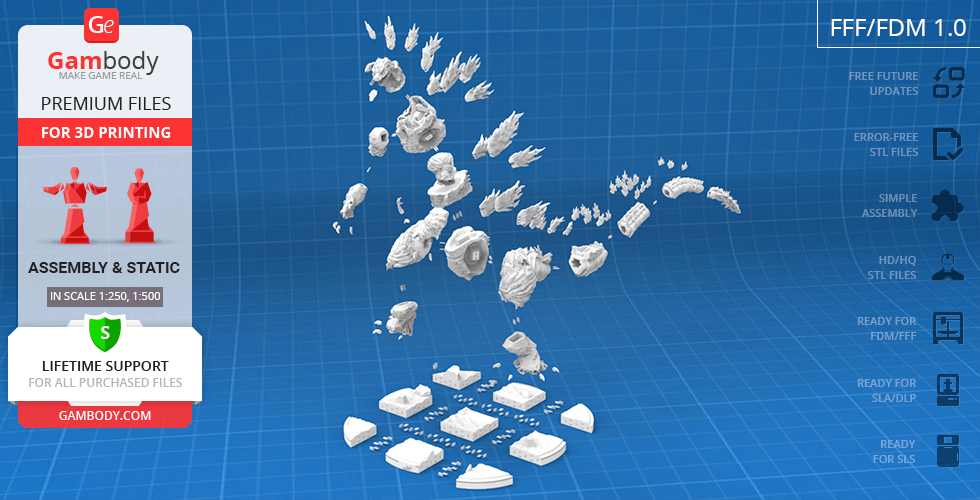

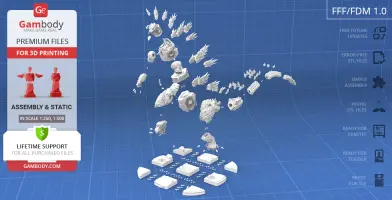

FFF/FDM 1.0 version features:
- Contains 88 parts;
- A printed model is 535 mm tall, 431 mm wide, 852 mm deep;
- The assembly kit includes locks to attach the model's parts securely without glue. Lock 87_ge_lock_10H(x110) needs to be printed 110 times, lock 88_ge_lock_7S(x2) needs to be printed twice;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

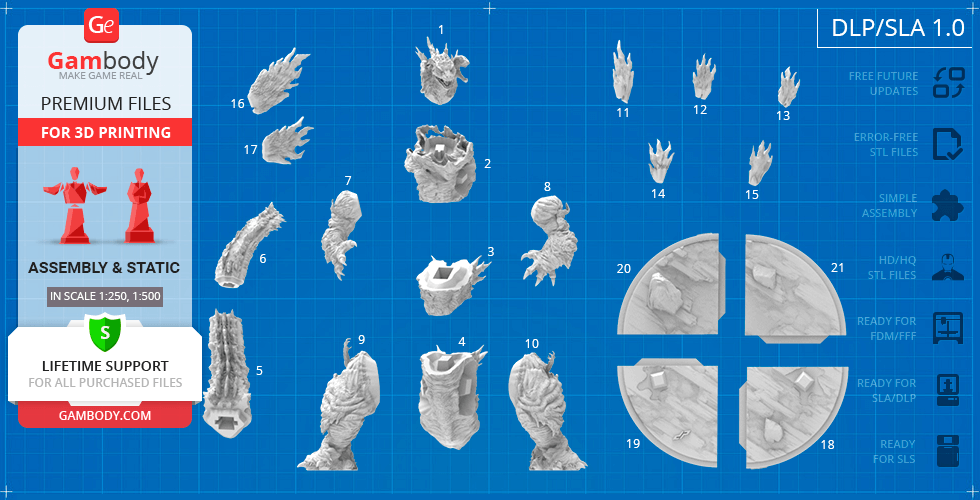

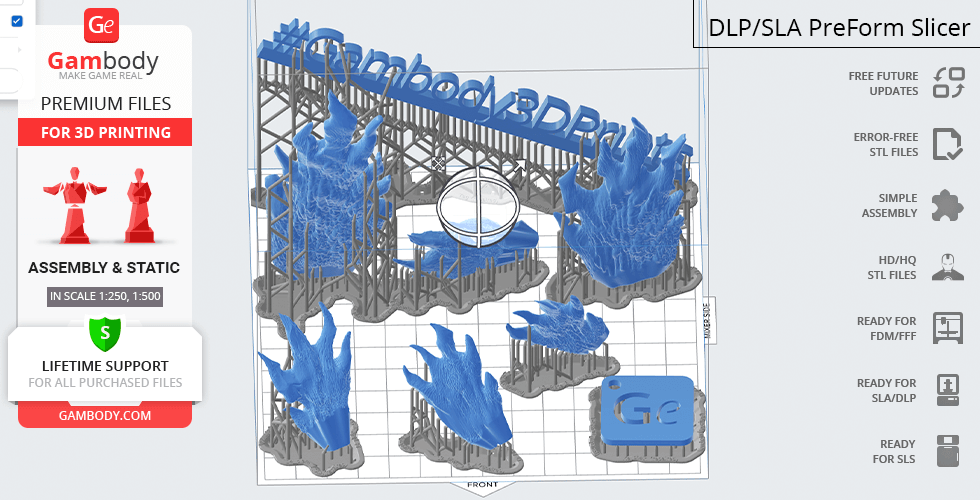

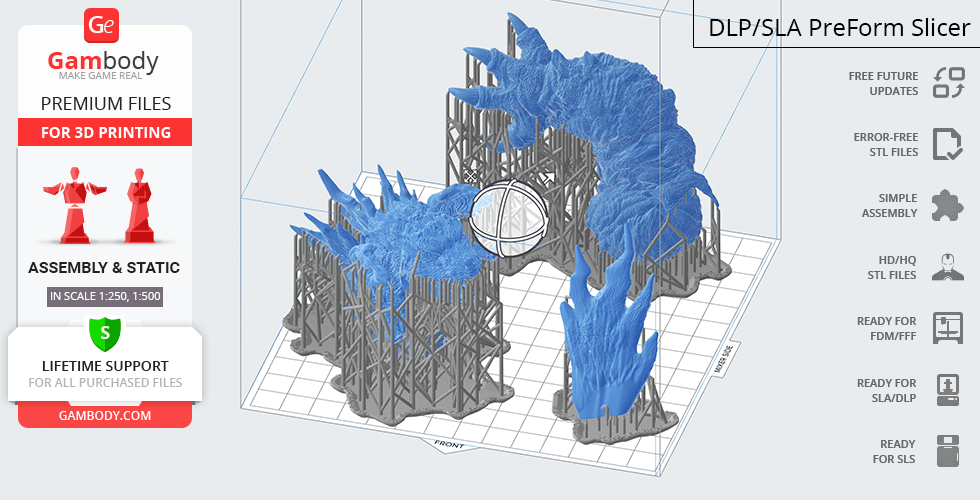

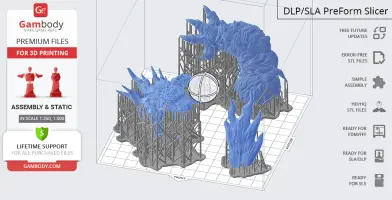

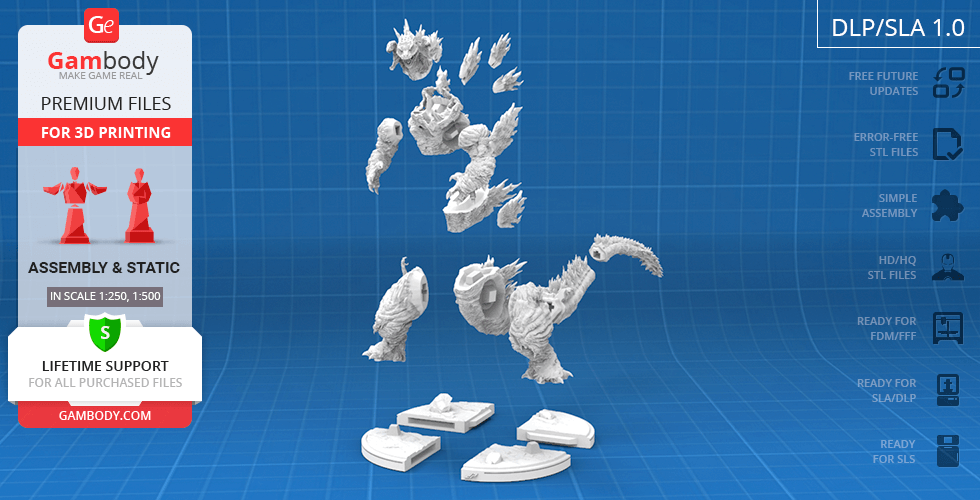

DLP/SLA 1.0 version features:
- Contains 21 parts;
- A printed model is 268 mm tall, 215 mm wide, 426 mm deep;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

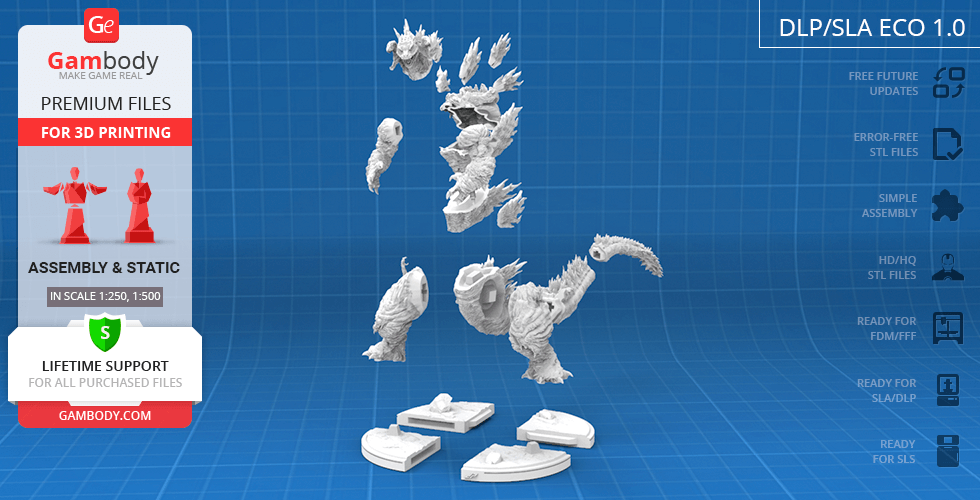

DLP/SLA Eco 1.0 version features:
- Contains 21 parts;
- A printed model is 268 mm tall, 215 mm wide, 426 mm deep;
- Contains some hollowed out parts to save resin.

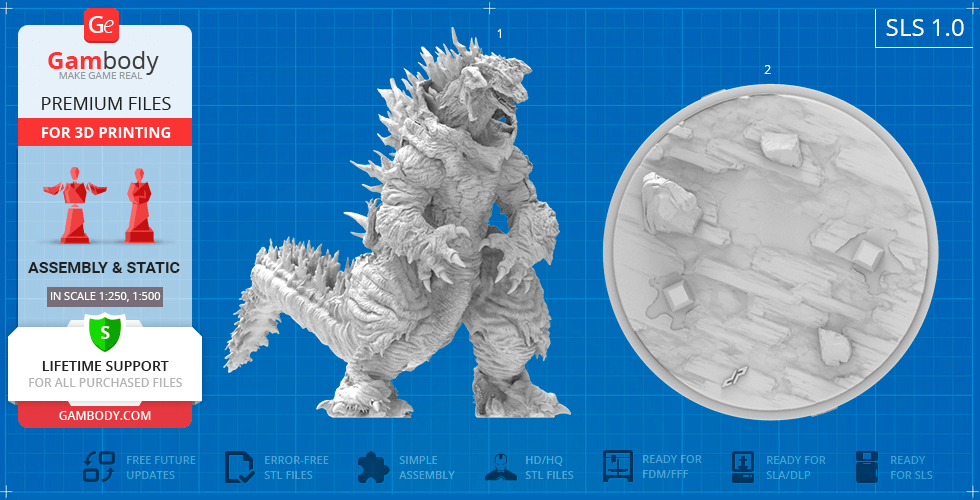

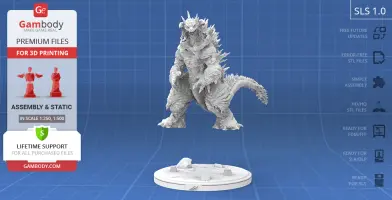

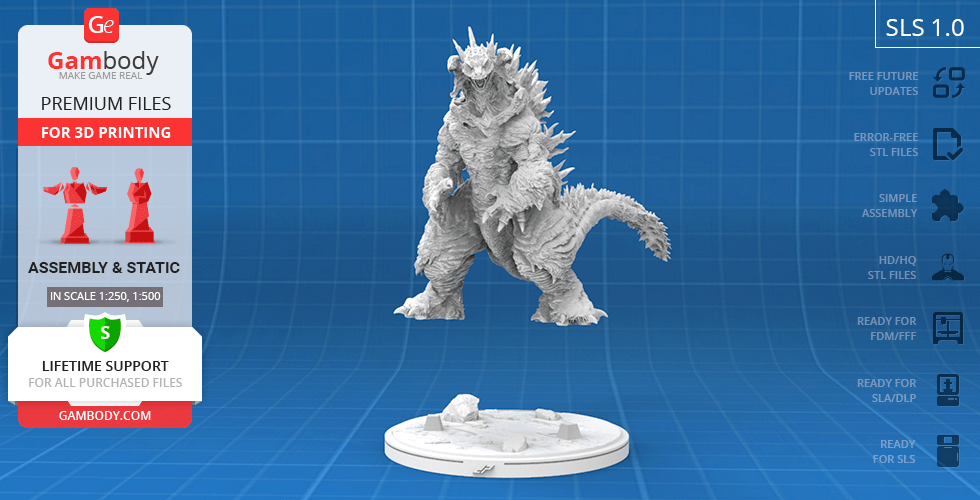

SLS 1.0 version features:
- Made as a solid one-piece figurine;
- A printed model is 268 mm tall, 215 mm wide, 426 mm deep;
- Contains 2 parts - a solid Mutant Shin Godzilla model, and the figurine with the platform separated.

You can get the figurine of Mutant Shin Godzilla for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Mutant Shin Godzilla 3D Printing Figurine at Gambody YouTube channel.

Also, you may like another Shin Godzilla 3D Printing Figurine, as well as other Kaiju Models for 3D Printing.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

Below you can find printing recommendations for CuraSimplify3D and Slic3r software.

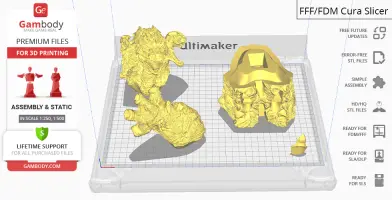

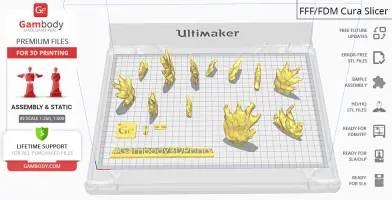

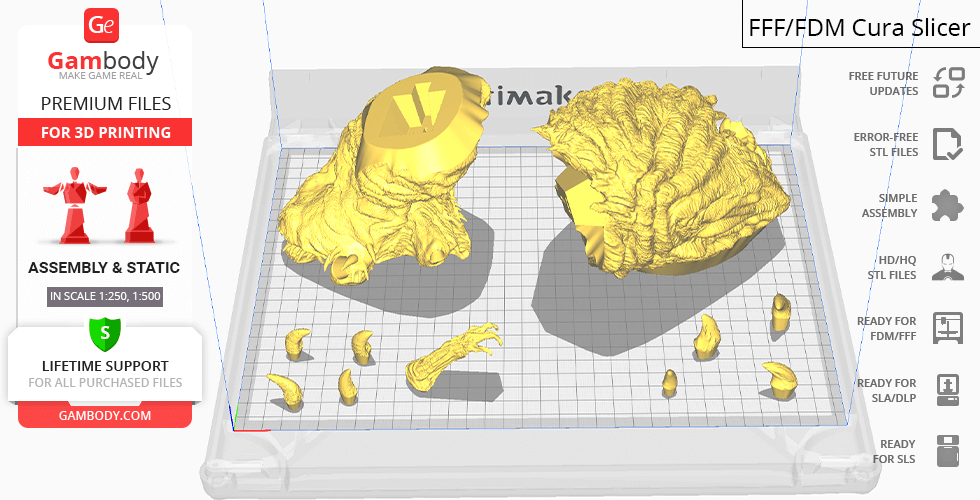

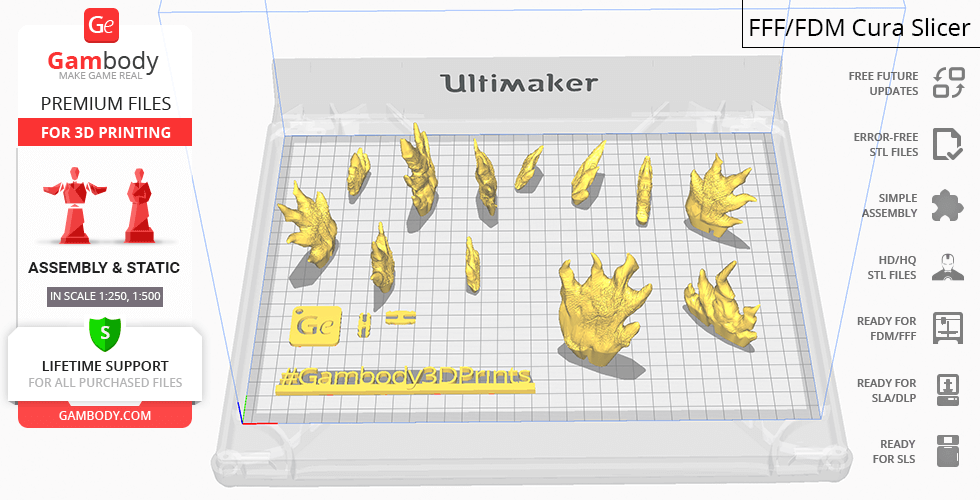

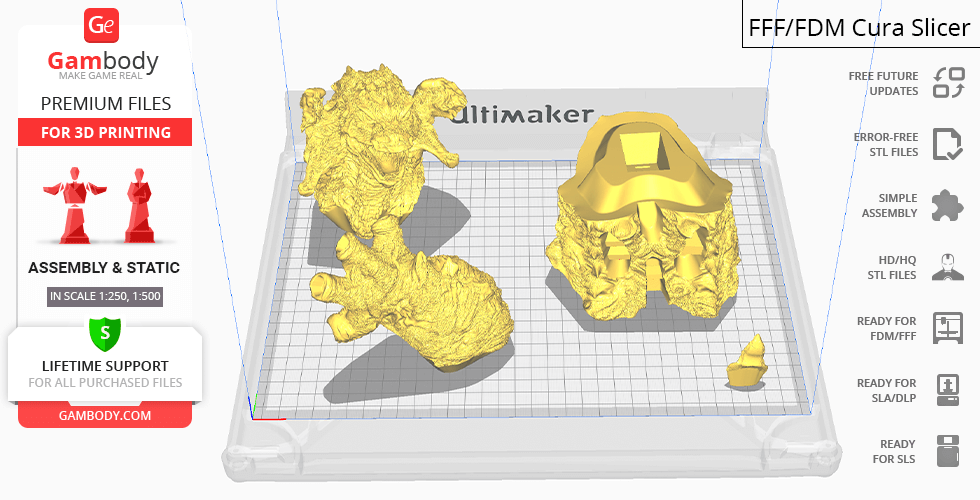

Cura printing recommendations:

These are basic settings that were tested in Cura 4.8.0 slicer.

The test models were printed on Ultimaker 2, Creality Ender 3, Creality CR-10S Pro V2, Anycubic I3 Mega, Anycubic I3 MegaS 3D printers with PLA and PETG filaments.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use and especially the particular assembly part at hand. Each part that any model comprises often needs preliminary review and you are free to tweak the settings the way you find suitable.

Note:
- You can scale up the model (downscaling is not recommended!);
- All connectors should be printed at 100% Infill;
- For all parts of locks (“ge_lock” in “Source files”) you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

Quality
Layer Height: 0.12 mm (you can also set Layer Height at 0.16 or 0.2mm for 0.4mm nozzles)
Initial Layer Height: 0.2 mm (carefully level the print bed and keep your Initial Layer Height the same as the main Layer Height)

Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2

Outer Wall Wipe Distance: 0.3 mm
Top Surface Skin Layers: 0

Top/Bottom Thickness: 0.6 mm
Top Thickness: 0.6 mm
Top Layers: 5
Bottom Thickness: 0.6 mm
Bottom Layers: 5
Initial Bottom Layers: 5

Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Optimize Wall Printing Order: Check

Compensate Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check

Minimum Wall Flow: 0%
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Hole horizontal expansion: 0

Z Seam Alignment: User Specified
Z Seam Position: Back
Z Seam X: Average length of your printer’s plate (e.g.”150” if your plate is 300mm on the X-axis)
Z Seam Y: A value higher than the length of your plate on the Y-axis (e.g. 700)

Seam Corner Preference: Hide Seam
Extra Skin Wall Count: 1
Skin Overlap Percentage: 10%
Skin Overlap 0.04 mm

Infill
Infill Density: 20% (for all smaller parts and for all parts of connectors use 100% Infill)
Infill Pattern: Triangles
Connect Infill Lines: Check
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Line Multiplier: 1
Extra Infill Wall Count: 0

Infill Overlap Percentage: 10-20%
Infill Overlap: 0.04 mm

Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm

Infill Wipe Distance: 0 mm
Infill Layer Thickness: 0.24 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm

Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8

Maximum Skin Angle for Expansion: 90˚
Minimum Skin Width for Expansion: 0.0
Skin Edge Support Thickness: 0
Skin Edge Support Layers: 0

Material
Initial Layer Flow: 100%
Printing Temperature: See your filament settings
Initial Printing Temperature: Your filament settings
Final Printing Temperature: Your filament settings
Build Plate Temperature: Your filament settings
Build Plate Temperature Initial Layer: Your filament settings + 5°
Flow: 100% (Important! If you face difficulty printing the model, you may need to adjust the Flow parameter. You may research the topic using the Internet or seek assistance at our Customer Support Team at support@gambody.com)

Speed

You can increase the printing Speed by 20% when you print simple objects. For small/thin parts you need to decrease the Speed by 25% - 50%.

Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 25 mm/s
          Outer Wall Speed:25 mm/s
          Inner Wall Speed: 50 mm/s

Top/Bottom Speed: 25mm/s
Support Speed: 25 mm/s
          Support Infill Speed: 45 mm/s
          Support Interface Speed: 25 mm/s
                Support Roof Speed: 25 mm/s
                Support Floor Speed: 25 mm/s

Travel Speed: 80 mm/s
Initial Layer Speed: 80 mm/s
Initial Layer Print Speed: 20 mm/s
Initial Layer Travel Speed: 80 mm/s

Skirt/Brim Speed: 20 mm/s
Z  Hop Speed: 5 mm/s
Number of Slower Layers: 2
Enable Acceleration Control: Check

When printing simple objects, you need to set all Acceleration parameters at 500 mm/s. For small/thin parts you need to decrease the Acceleration by 50% - 70%.

Travel
Enable Retraction: Check
Retraction Distance: 4-8 mm, 1-3 mm for Direct Extruder (This is the most important retraction parameter. You can find your optimal value of Retraction Distance by printing any test object, e.g. bridges, towers etc.)

Retraction Speed: 25mm/s
Retraction Retract Speed: 25 mm/s
Retraction Prime Speed: 25 mm/s

Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 1.5 mm
Maximum Retraction Count: 100
Minimum Extrusion Distance Window: 6,5 - 10 mm
Limit Support Retractions: Check
Combing Mode: All
Max Comb Distance With No Retract: 30 mm
Retract Before Outer Wall: Check
Avoid Printed Parts When Travelling: Check
Avoid Supports When Travelling: Check
Travel Avoid Distance: 1 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm
Z Hop When Retracted: Check
Z Hop Height: 0,3 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%

Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.36 mm
Regular Fan Speed at Layer: 3

Minimum Layer Time: 10 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Structure: Normal (you can try using Tree Support Structure if you have difficulty printing any particular assembly part)
Support Placement: Everywhere
Support Overhang Angle: 60° (this parameter can range from 30° to 70° depending on the part at hand)
Support Pattern: Zig Zag
Support Wall Line Count: 1 (stronger support that might be more difficult to remove) 0 (less strong support but is easier to remove)

Support Density: 15%
Support Line Distance: 2.6667 mm
Initial layer support line distance: 2.667 mm

Support Z Distance: 0.12 mm
Support Top Distance: 0.12 mm
Support Bottom Distance: 0.12 mm

Support X/Y Distance: 0.8-1 mm
Support Distance Priority: Z overrides X/Y
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Stair Step Minimum Slope Angle: 10°
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.2 mm
Gradual Support Infill Steps: 0
Minimum Support Area: 2 mm

Enable Support Interface: Check (generates additional “pillow” on the support structure that leads to a more even surface, but can be difficult to remove in hard-to-reach areas)
Enable Support Roof: Check
Enable Support Floor: Check

Support Interface Thickness: 0.8 mm
Support Roof Thickness: 0.8 mm
Support Floor Thickness: 0.8 mm

Support Interface Resolution 0.2 mm
Support Interface Density: 50-100%
        Support Roof Density: 50-100%
Support Roof Line Distance: 0.8 mm
        Support Floor Density: 50-100%
Support Floor line Distance:  0.4mm

Support Interface Pattern: Grid
Support Roof Pattern: Grid (this parameter should differ from Bottom Pattern Initial Layer in “Shell” section)
Support Floor Pattern: Grid

Minimum Support Interface Area: 10mm
Minimum Support Roof Area: 10 mm
Minimum Support Floor Area: 10 mm

Support Interface Horizontal Expansion: 0.0 mm
Support Roof Horizontal Expansion: 0.0 mm
Support Floor Horizontal Expansion: 0.0 mm

Fan Speed Override: Check
Supported Skin Fan Speed: 100%
Use Towers: Check
Tower Diameter: 4 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Skirt/Brim (For unsteady parts, and those parts that may come unstuck use “Brim”. For bigger assembly parts that have large adhesion area and for all parts of locks and claws that you want to come out clean use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
       Brim Line Count: 10
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments

comments powered by Disqus

Similar items

Browse more newly listed 3D printings
