You will get instant access to the STL files of Steampunk Shark Hook after completing your purchase. Simply add the model to your cart and check out using PayPal, credit or debit card, Apple Pay, Google Pay, Alipay, or other available payment methods.
Watch the assembly video for Steampunk Shark Hook, and explore more tutorials, behind-the-scenes content, 3D printing timelapses, and painting guides on the official Gambody YouTube channel.
This 3D model comes with StereoLithography (.STL) files optimized for 3D printing. You'll get digital files, not a physical product
Before printing, take a look at Printing Details for recommended settings and tips to achieve better results.
Steampunk Shark Hook includes 2 version(s) for the supported 3D printer type(s): FFF/FDM, DLP/SLA. Files are available for download after purchase.
See the Description and Specifications sections for more details about this model.
One-line summary:

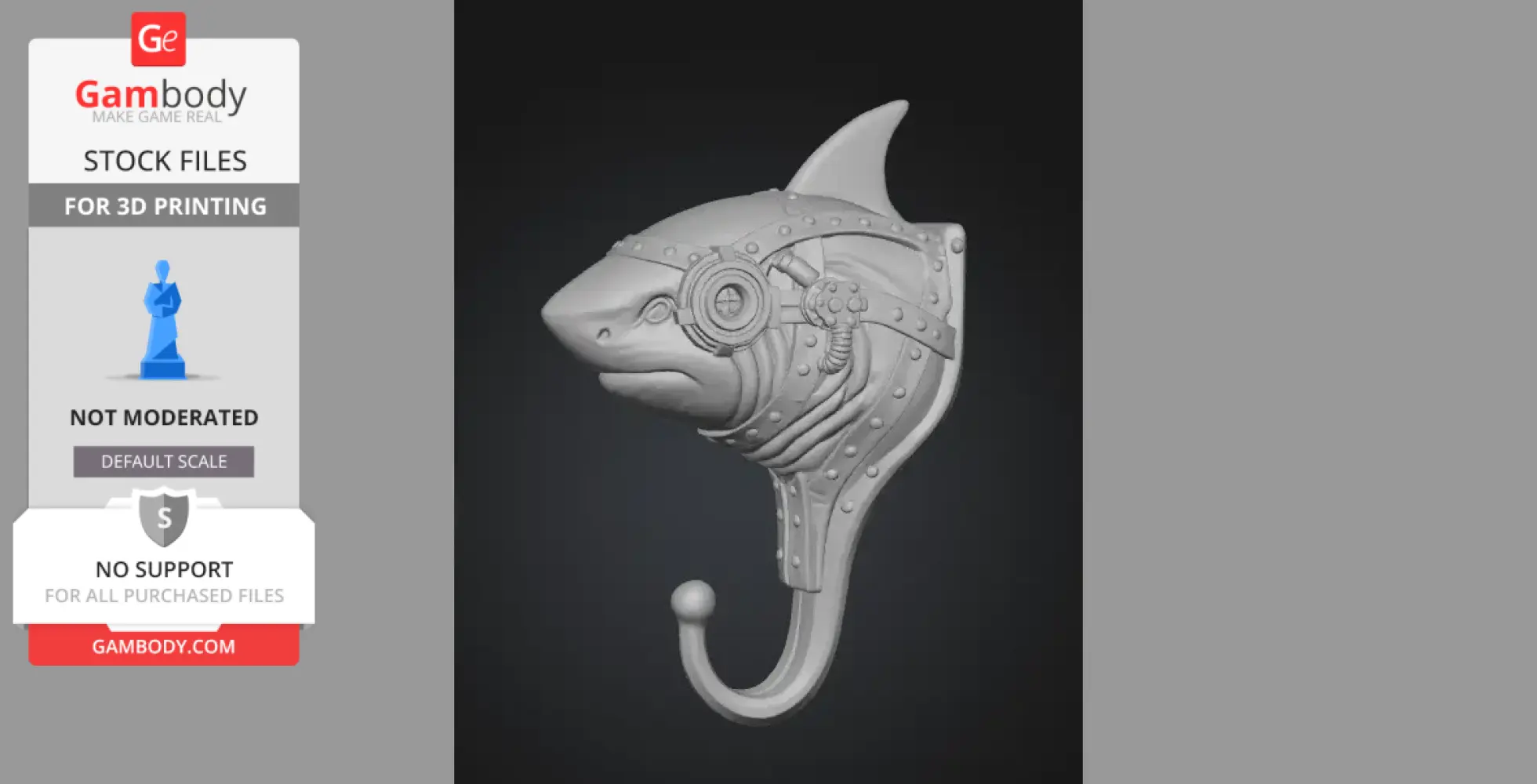

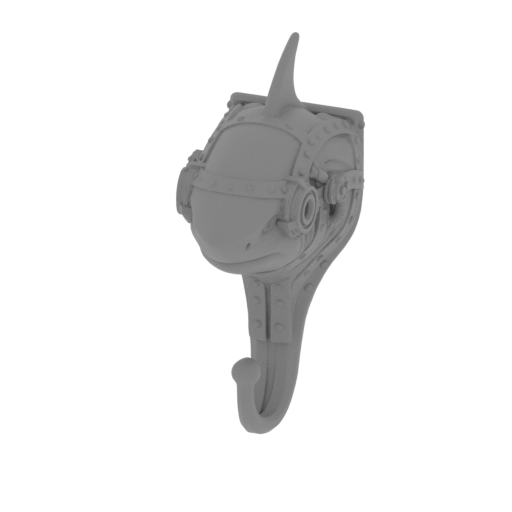

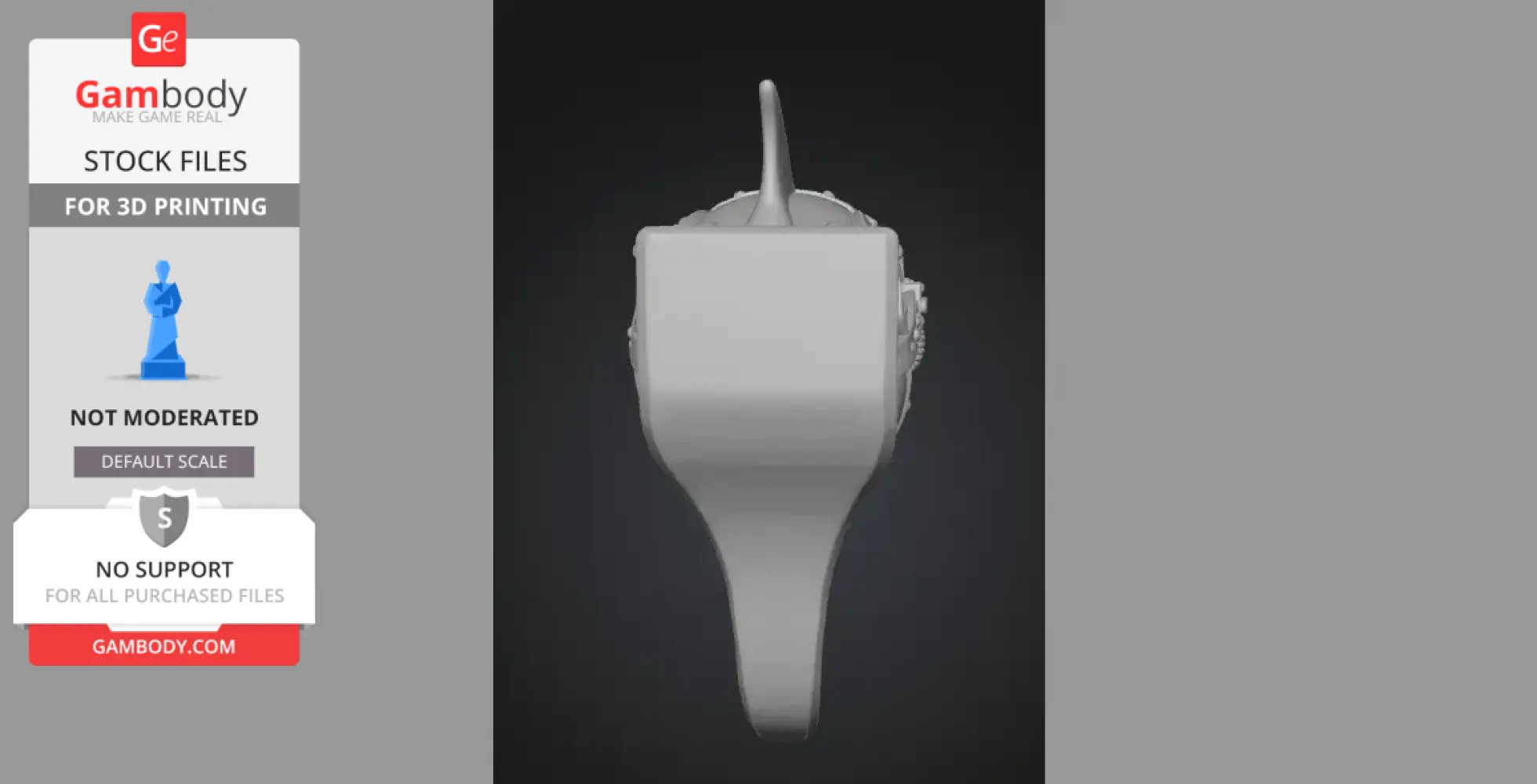

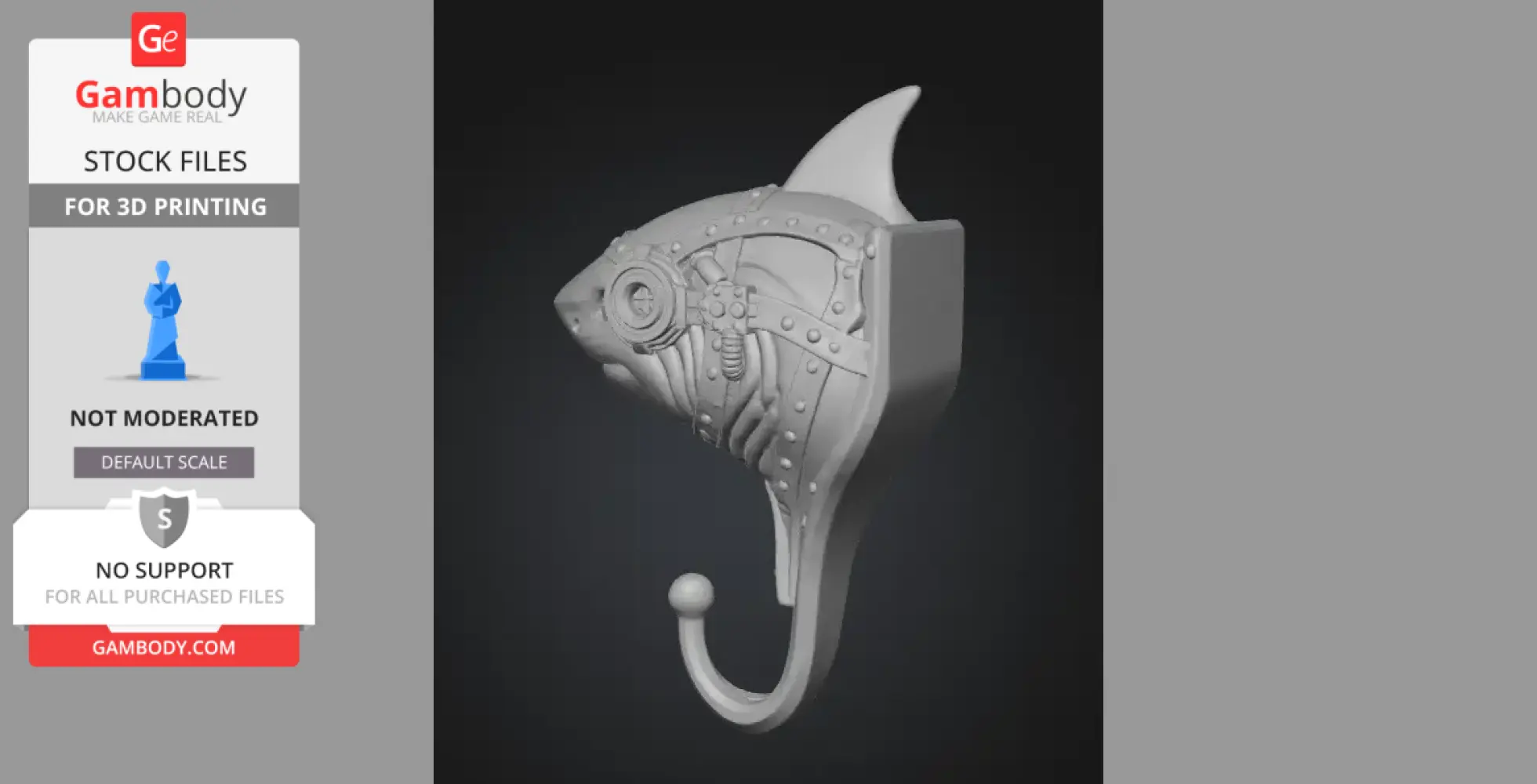

High-detail, watertight STL of a steampunk shark head that transitions into an integrated wall hook — riveted straps, monocle/gear detail, and patina-ready surfaces for metallic finishing.
What’s included
- Single watertight STL file containing the entire solid model (shark head + harness + hook).
- Model exported as one shell with outward-facing normals and no internal overlapping geometry.
- Ready for slicing (no assembly required) — intended as a single-piece decorative hook.
Model intent & presentation

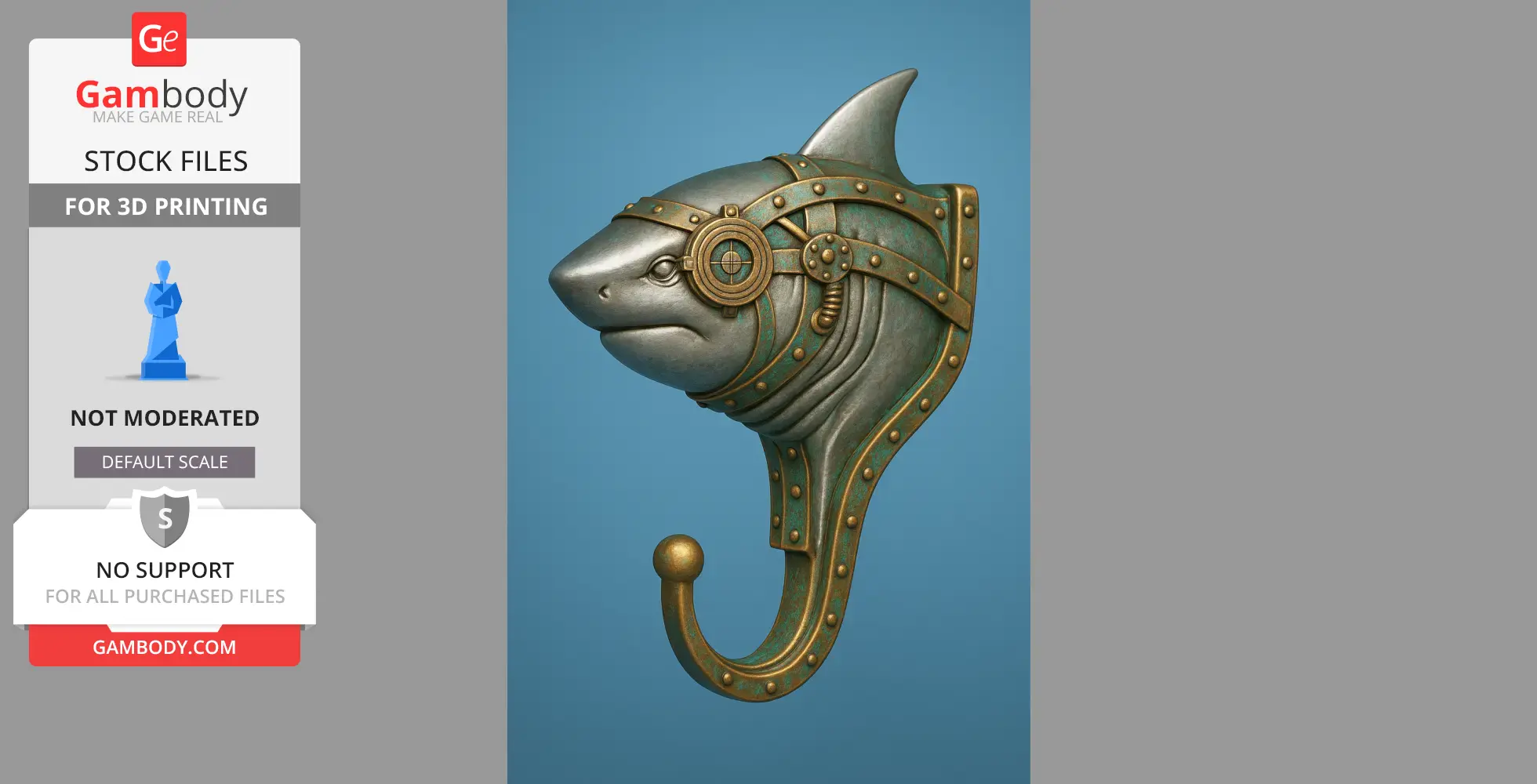

This STL contains geometry only (no color or materials). It’s designed to be printed and then finished to resemble mixed metals: silver/steel shark body with brass/bronze harness and verdigris patina in recessed areas. The provided product images use a light blue background for presentation; the STL itself holds only the geometry.
Recommended use
- Decorative wall hook for light items (coats, keys, towels) or display piece.
- Suitable for resin (SLA) printing for fine detail or FDM for larger, robust prints with appropriate settings.
Recommended FDM (filament) print settings
- Printer type: FDM desktop printer (or SLA for finer results)
- Material: PETG or PLA+ recommended; use ASA/PETG for better toughness if hanging weight. Resin (SLA) recommended for gallery-quality detail.
- Nozzle size: 0.4 mm (0.25 or 0.35 mm for better rivet fidelity)
- Layer height: 0.12–0.2 mm (0.08–0.12 mm for higher fidelity)
- Perimeters / walls: 3–5 perimeters (increase to 5–8 if you need a very strong hook)
- Top/bottom layers: 6–8
- Infill: 20–40% general; increase to 50–100% in the hook region if you plan to hang weight
- Print orientation:
- Default: Upright (head up, hook down). Natural display orientation but may need supports under chin and monocle.
- Strength tip: To maximize hook strength, orient the hook so its curve layers run along the load direction (rotate 90°) — this places layer interfaces parallel to the hook curvature and reduces shear failures.
- Supports: Required under the monocle, under the chin/neck overhangs, and inside the hook depending on orientation. Use tree supports or breakaway supports accessible from non-visible surfaces.
- Bed adhesion: Brim recommended for larger prints; use heated bed and adhesion method suitable for your filament.
Recommended SLA (resin) print settings
- Layer height: 25–50 µm for finest wrinkles and rivet detail.
- Orientation: Slightly tilted (10–30°) to reduce large flat support contact areas on the face; place supports on rear surfaces.
- Supports: Light-touch supports on non-visible rear/back surfaces; avoid supports directly on rivets or eye details when possible.
- Post processing: Wash and cure per resin manufacturer instructions; sand and prime before painting.
