Anycubic Kobra Go 3D Printer + Joel + Ellie

(2)
cm: 0.1 w x 0.1 d x 0.1 h
in: 0.039 w x 0.039 d x 0.039 h

Source Files

|

Description

|

Printing Details

This bundle consists of DIY Anycubic Kobra Go FDM 3D Printer, Joel 3D Printing Figurine and Ellie 3D Printing Figurine. The 3D printing models comprise the files in StereoLithography (.STL) format that is optimized for FFF/FDM 3D printing.

WHAT WILL YOU GET AFTER PURCHASE?

- New Auto-Levelling DIY FDM 3D Printer Kobra Go by Anycubic

- STL files of Joel for FFF/FDM printing:
Files are available for download immediately after purchase

- STL files of Ellie for FFF/FDM printing:
Files are available for download immediately after purchase

Printing settings for Cura 5.2.1 that we provide as a recommendation for Anycubic Kobra Go FDM 3D Printer
- Full technical support from the Gambody Support Team

Detailed information about this bundle is available in the DESCRIPTION section.

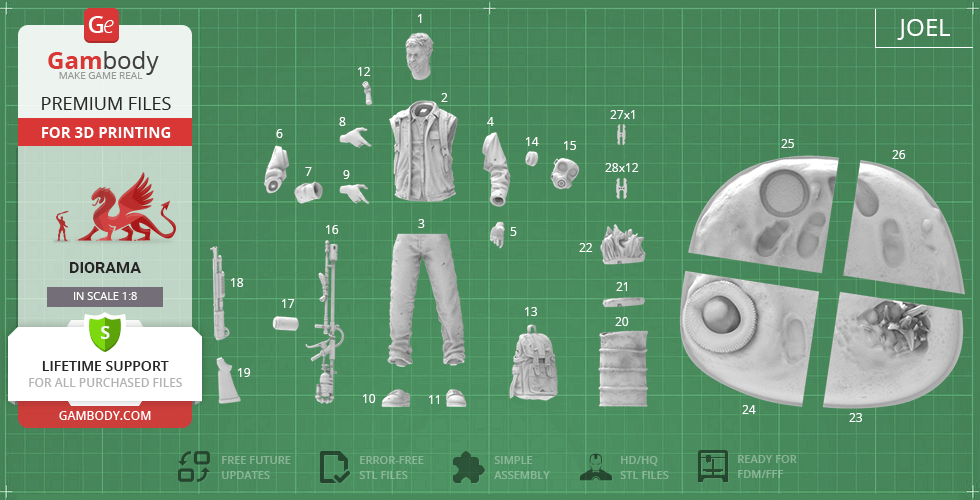

File Name File Size Time / Filament Object Size
(x/y/z mm)
1_head_FDM(repaired).stl
23.96 MiB 2 h 24 min 1 m 25 x 34 x 41 Download
2_body_FDM(repaired).stl
29.06 MiB 12 h 47 min 7 m 61 x 46 x 90 Download
3_legs_FDM(repaired).stl
28.53 MiB 13 h 34 min 7 m 70 x 38 x 118 Download
4_arm_L_FDM(repaired).stl
19.65 MiB 2 h 16 min 1 m 29 x 34 x 65 Download
5_hand_L_FDM(repaired).st l
8.78 MiB 29 min <1 m 14 x 17 x 28 Download
6_arm_R_1_FDM(repaired).s tl
13.33 MiB 1 h 13 min 1 m 41 x 24 x 24 Download
7_arm_R_2_FDM(repaired).s tl
15.16 MiB 54 min <1 m 24 x 38 x 24 Download
8_hand_R_1_FDM(repaired). stl
11.72 MiB 29 min <1 m 16 x 17 x 28 Download
9_hand_R_2_FDM(repaired). stl
12.58 MiB 30 min <1 m 19 x 14 x 28 Download
10_foot_L_FDM(repaired).s tl
12.80 MiB 48 min <1 m 18 x 42 x 16 Download
11_foot_R_FDM(repaired).s tl
13.91 MiB 48 min <1 m 25 x 40 x 16 Download
12_flashlight_FDM(repaire d).stl
9.82 MiB 11 min <1 m 6 x 20 x 11 Download
13_backpack_FDM(repaired) .stl
21.40 MiB 5 h 26 min 3 m 53 x 68 x 29 Download
14_filter_gas_mask_FDM(re paired).stl
12.78 MiB 11 min <1 m 13 x 13 x 10 Download
15_gas_mask_FDM(repaired) .stl
19.04 MiB 51 min <1 m 28 x 23 x 17 Download
16_flamethrower_FDM(repai red).stl
28.86 MiB 4 h 11 min 2 m 14 x 37 x 147 Download
17_baloon_FDM(repaired).s tl
10.95 MiB 22 min <1 m 12 x 12 x 22 Download
18_rifle_FDM(repaired).st l
19.10 MiB 1 h 36 min 1 m 23 x 9 x 86 Download
19_butt_of_the_rifle_FDM( repaired).stl
11.17 MiB 48 min <1 m 20 x 5 x 45 Download
20_barrel_FDM(repaired).s tl
22.49 MiB 7 h 41 min 4 m 44 x 44 x 67 Download
21_barrel_cap_FDM(repaire d).stl
11.79 MiB 55 min <1 m 37 x 37 x 8 Download
22_barrel_ cap_with_fire_ FDM(repaired).stl
19.57 MiB 2 h 49 min 1 m 39 x 42 x 35 Download
23_platform_1_FDM(repaire d).stl
16.28 MiB 15 h 37 min 8 m 125 x 104 x 41 Download
24_platform_2_FDM(repaire d).stl
17.41 MiB 20 h 25 min 11 m 124 x 121 x 35 Download
25_platform_3_FDM(repaire d).stl
18.74 MiB 15 h 17 min 8 m 134 x 104 x 30 Download
26_platform_4_FDM(repaire d).stl
17.21 MiB 12 h 16 min 7 m 108 x 119 x 21 Download
27_ge_lock_7S(x1)_FDM(rep aired).stl
0.02 MiB 3 min <1 m 7 x 18 x 2 Download
28_ge_lock_10H(x12)_FDM(r epaired).stl
0.03 MiB 4 min <1 m 18 x 10 x 2 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download
...

ABOUT THIS BUNDLE

Gambody 3D Printing Marketplace and Anycubic 3D Printer Manufacturer have prepared another irresistible offer for 3D printing beginners and pros! As a part of the Gambody & Anycubic collaboration, we offer you a new set of bundles featuring the affordable DIY Auto-Levelling Kobra Go 3D Printer and high-quality 3D printing designs by Gambody contributors. Enjoy the reliable hobby 3D printing machine and top-notch STL files in one Go!

Please, find the details of the collaboration in our official Press Release.

IMPORTANT: On the Checkout page, you will see the ‘Shipping Information’ section where you will need to specify your shipping details. If you happen to have any questions or want to leave any notes, please contact us at support@gambody.com. Your shipping details will be delivered to Anycubic 3D printer manufacturer, who will take care of the Kobra Go 3D printer’s shipping and provide the tracking number. The delivery of the Kobra Go 3D printer may be expected approximately within 3 weeks after placing the order.

ABOUT THE 3D PRINTER

Kobra Go is a DIY 3D printer enhanced with Anycubic’s innovative features for your easy 3D printing process. After the assembly, you will be able to enjoy the self-developed Anycubic LeviQ auto-levelling system, abrasion-resistant spring steel build plate, separated Bowden extruder, smart power-off and filament supply sensors. Moreover, the 250 x 220 x 220 mm build volume of the compact 3D printer will be sufficient for your Gambody 3D printing projects and the dreams you would like to come to life!

You can read more about the printer's remarkable features on Anycubic’s official website and Gambody Team’s upcoming review

ABOUT 3D PRINTING MODELS

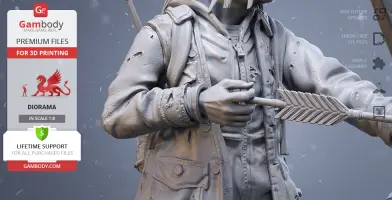

Joel and Ellie STL files are highly detailed 3D printing projects that were created by our talented contributing 3D artists and thoroughly moderated and adapted for 3D printing by Gambody team. This bundle comprises the FFF/FDM versions of both items that are specifically adapted to be printed on FDM 3D printers such as Anycubic Kobra Go. The models’ adaptations take into account the practical aspects of printing with FFF/FDM technology, the capabilities of the 3D printer and the printing material, and the models’ scales and cutting are chosen to ensure the high-quality results of 3D printing.

3D PRINTING MODELS' SPECIFICATIONS

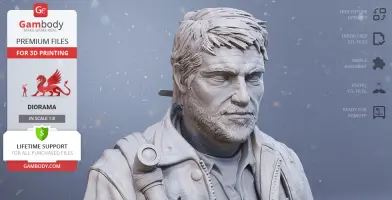

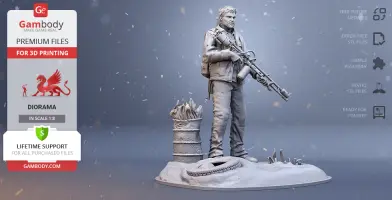

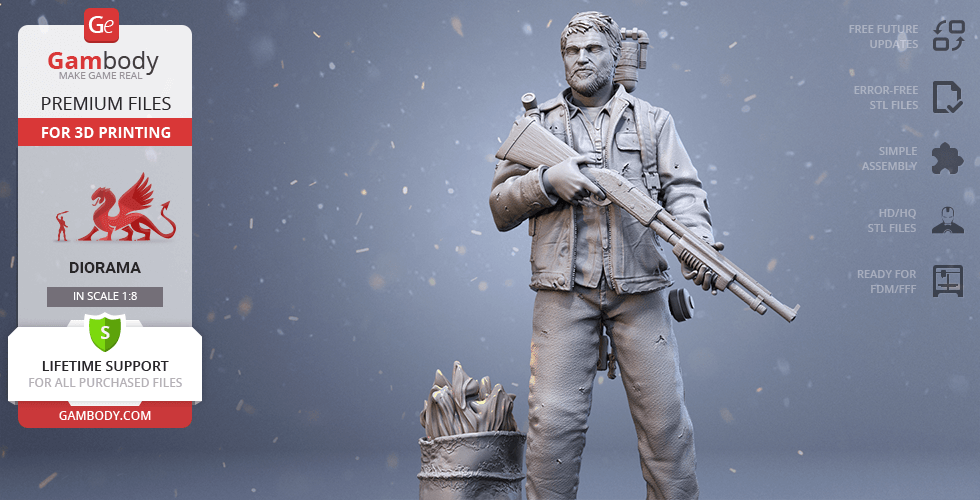

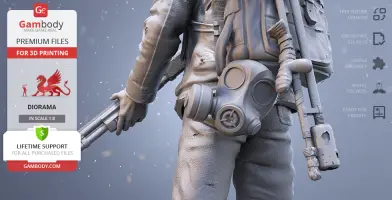

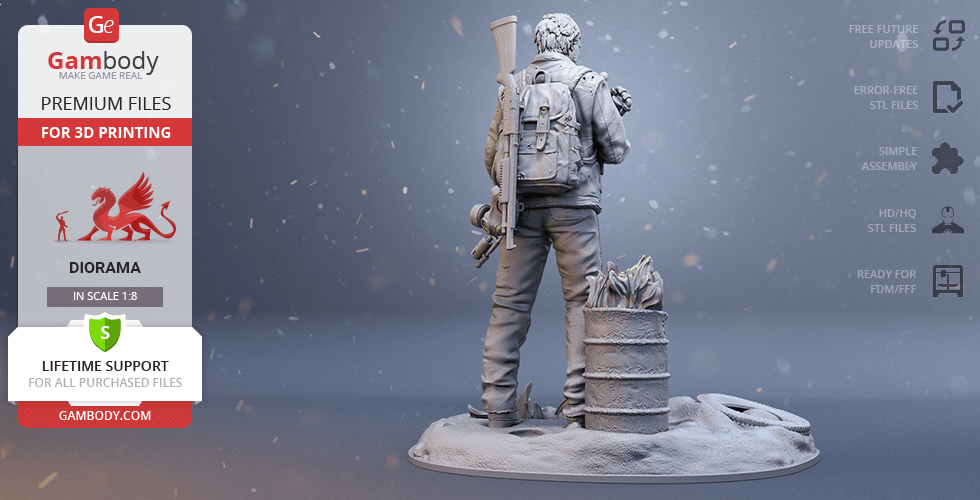

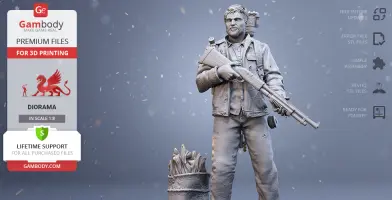

Joel 3D Printing Figurine:
FFF/FDM version:
- Contains 28 parts;

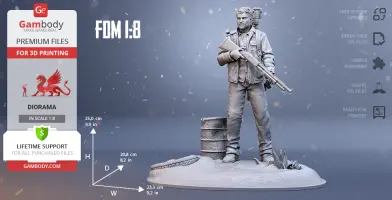

- A printed model is 250 mm tall, 233 mm wide, 208 mm deep;
- Assembly kit includes locks to attach the model's parts securely without glue. One lock 27_ge_lock_7S(x1) needs to be printed once; lock 28_ge_lock_10H(x12) needs to be printed 12 times;

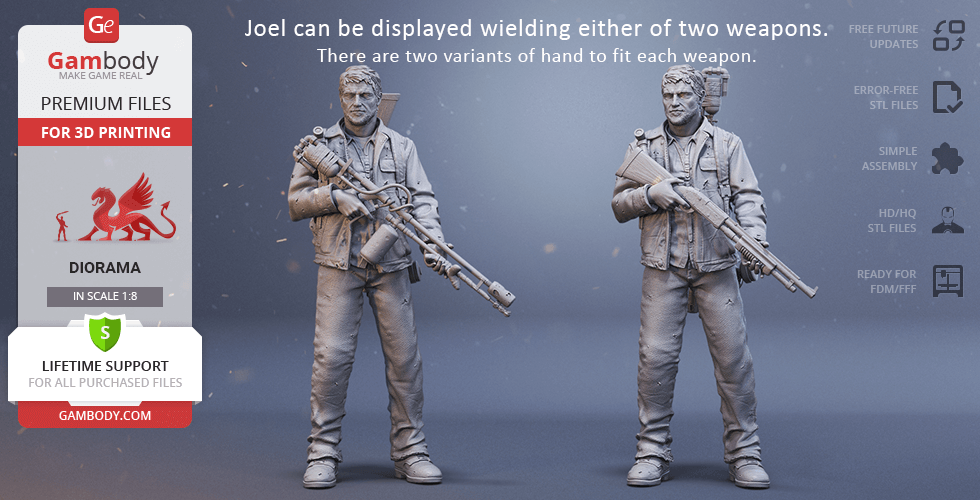

- Comes with two variants of hand to fit either rifle or flamethrower;
- Made with a platform to recreate the winter chapter of The Last of Us with Ellie​;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

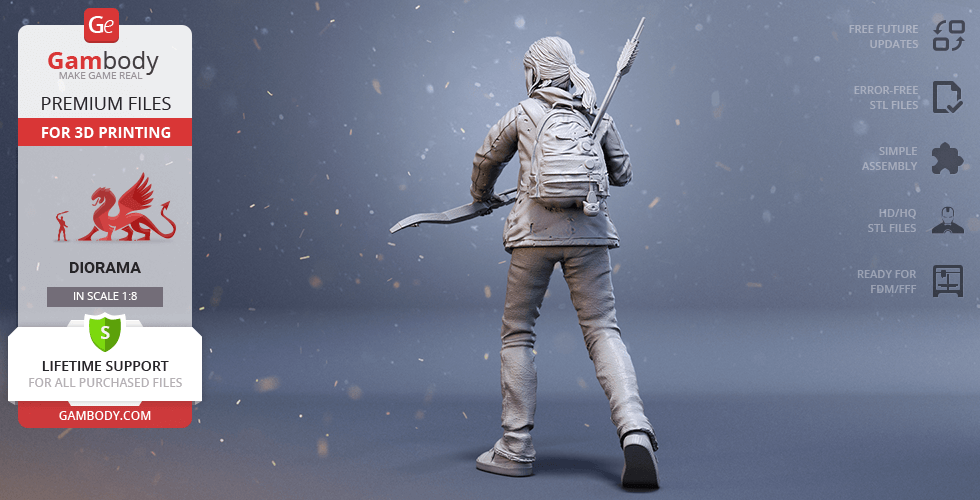

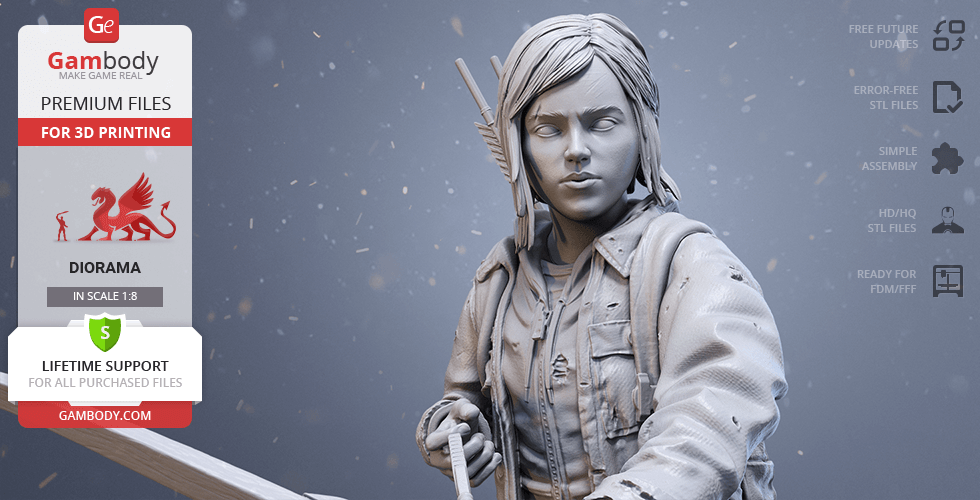

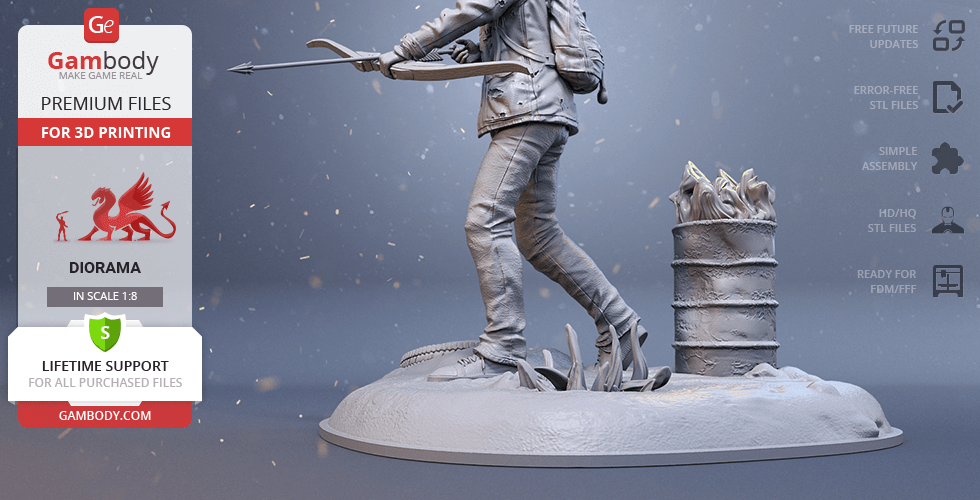

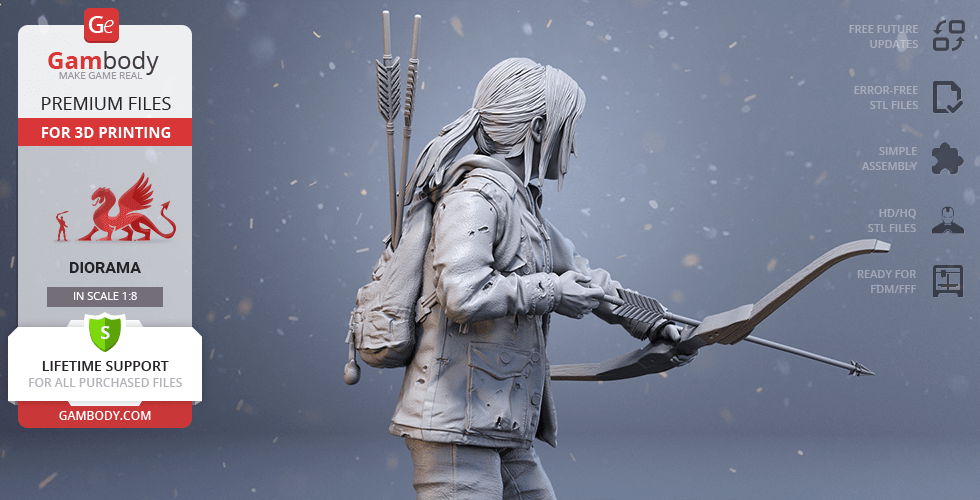

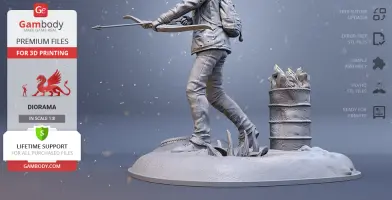

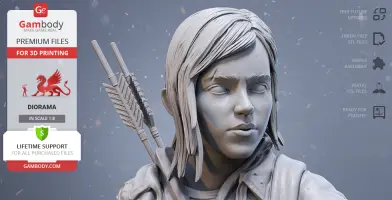

Ellie 3D Printing Figurine:
FFF/FDM version:

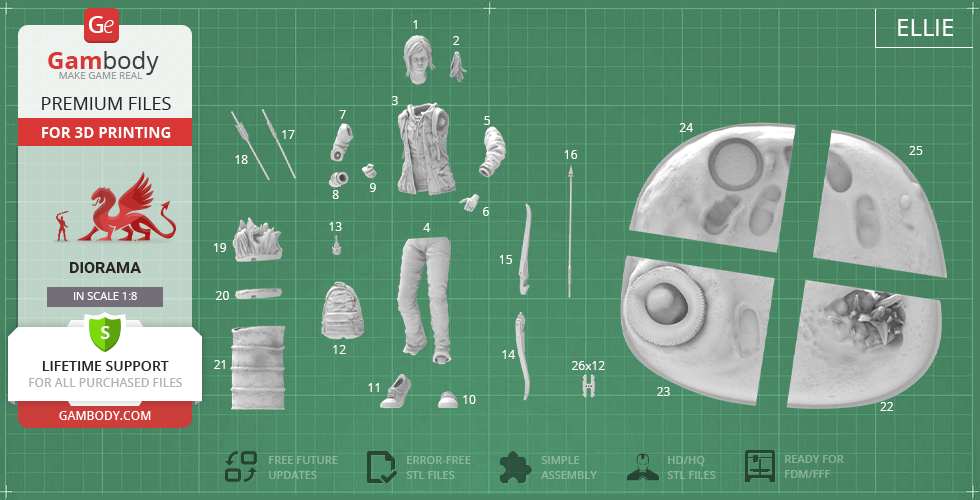

- Contains 26 parts;

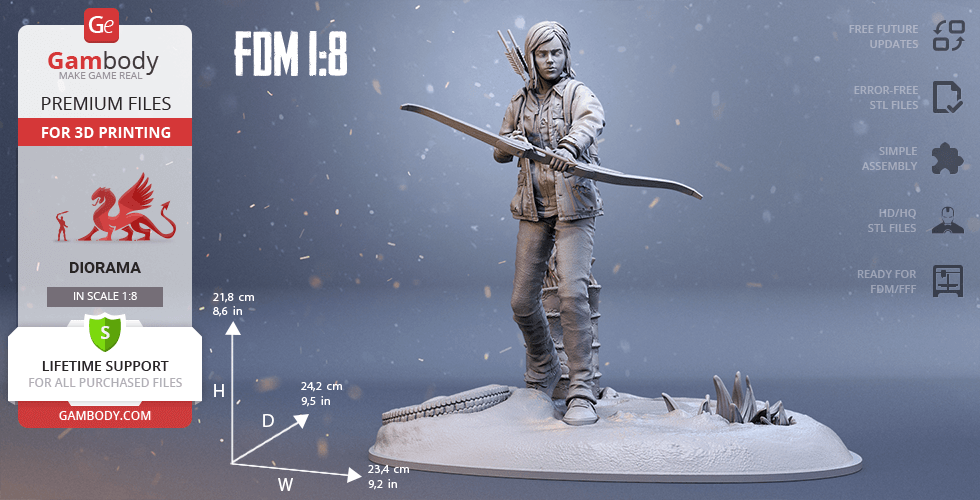

- A printed model is 218 mm tall, 234 mm wide, 242 mm deep;
- Assembly kit includes lock 26_ge_lock_10H(x12) to attach the model's parts securely without glue that needs to be printed 12 times;
- Made with a platform to recreate the winter chapter of The Last of Us with Joel;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

To purchase the bundle comprising Anycubic Kobra Go FDM 3D Printer, Joel 3D Printing Figurine and Ellie 3D Printing Figurine click the green Buy button in the top-right corner of the model’s page.

Go to the page of Joel 3D Printing Figurine and Ellie 3D Printing Figurine to find more details and additional illustrative material!

Generic

These are basic settings that were tested in Cura 4.8.0 slicer.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use and especially the particular assembly part at hand. Each part that any model comprises often needs preliminary review and you are free to tweak the settings the way you find suitable.

Note:
-  You can scale up the model (downscaling is not recommended!);
-  All connectors should be printed at 100% Infill;
-  For all parts of locks (“ge_lock” in “Source files”) you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

Quality
Layer Height: 0.12 mm (you can also set Layer Height at 0.16 or 0.2mm for 0.4mm nozzles)
Initial Layer Height: 0.2 mm (carefully level the print bed and keep your Initial Layer Height the same as the main Layer Height)
Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm
Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.6 mm
Top Thickness: 0.6 mm
Top Layers: 6
Bottom Thickness: 0.6 mm
Bottom Layers: 6
Initial Bottom Layers: 6
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines Top/Bottom
Line Directions: [ ]
Outer Wall Inset: 0 mm
Optimize Wall Printing Order: Check
Compensate Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check
Minimum Wall Flow: 0%
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Hole horizontal expansion: 0
Z Seam Alignment: User Specified
Z Seam Position: Back
Z Seam X: 111.5
Z Seam Y: 300
Seam Corner Preference: Hide Seam
Extra Skin Wall Count: 1
Skin Overlap Percentage: 5%
Skin Overlap 0.02 mm

Infill
Infill Density: 15% (for all smaller parts and for all parts of connectors use 100% Infill)
Infill Pattern: Triangles
Connect Infill Lines: Check
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Line Multiplier: 1
Extra Infill Wall Count: 0
Infill Overlap Percentage: 15%
Infill Overlap: 0.06 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
Minimum Skin Width for Expansion: 0.0
Skin Edge Support Thickness: 0
Skin Edge Support Layers: 0

Material
Initial Layer Flow: 100%
Printing Temperature: 200°
Initial Printing Temperature: 200°
Final Printing Temperature: 200°
Build Plate Temperature: 60°
Build Plate Temperature Initial Layer: 60°
Flow: 99-101% (Important! If you face difficulty printing the model, you may need to adjust the Flow parameter. You may research the topic using the Internet or seek assistance at our Customer Support Team at support@gambody.com)

Speed
You can increase the printing Speed by 20% when you print simple objects. For small/thin parts you need to decrease the Speed by 25% - 50%.

Print Speed: 60 mm/s
Infill Speed: 60 mm/s
Wall Speed: 60 mm/s
Outer Wall Speed:25 mm/s
Inner Wall Speed: 60 mm/s
Top/Bottom Speed: 25mm/s
Support Speed: 30 mm/s
Support Infill Speed: 45 mm/s
Support Interface Speed: 25 mm/s
Support Roof Speed: 25 mm/s
Support Floor Speed: 25 mm/s
Travel Speed: 80 mm/s
Initial Layer Speed: 15 mm/s
Initial Layer Print Speed: 15 mm/s
Initial Layer Travel Speed: 15 mm/s
Skirt/Brim Speed: 20 mm/s Z
Hop Speed: 10 mm/s
Number of Slower Layers: 2
Enable Acceleration Control: Check

When printing simple objects, you need to set all Acceleration parameters at 500 mm/s. For small/thin parts you need to decrease the Acceleration by 50% - 70%.

Travel
Enable Retraction: Check
Retraction Distance: 6 mm
Retraction Speed: 40 mm/s
Retraction Retract Speed: 40 mm/s
Retraction Prime Speed: 40 mm/s
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 1.5 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6 - 10 mm
Limit Support Retractions: Check
Combing Mode: All
Max Comb Distance With No Retract: 30 mm
Retract Before Outer Wall: Check
Avoid Printed Parts When Travelling: Check
Avoid Supports When Travelling: Check
Travel Avoid Distance: 0.625 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm
Z Hop When Retracted: Check
Z Hop Height: 0,5 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.36 mm
Regular Fan Speed at Layer: 3
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Structure: Normal (you can try using Tree Support Structure if you have difficulty printing any particular assembly part)
Support Placement: Everywhere
Support Overhang Angle: 60° (this parameter can range from 30° to 70° depending on the part at hand)
Support Pattern: Zig Zag
Support Wall Line Count: 1 (stronger support that might be more difficult to remove) 0 (less strong support but is easier to remove)
Support Density: 15%
Support Line Distance: 2.6667 mm
Initial layer support line distance: 2.667 mm
Support Z Distance: 0.15 – 0.2mm
Support Top Distance: 0.15 – 0.2mm
Support Bottom Distance: 0.15 - 0.2
Support X/Y Distance: 0.8-1 mm
Support Distance Priority: Z overrides X/Y
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Stair Step Minimum Slope Angle: 10°
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.2 mm
Gradual Support Infill Steps: 0
Minimum Support Area: 2 mm
Enable Support Interface: Check (generates additional “pillow” on the support structure that leads to a more even surface, but can be difficult to remove in hard-to-reach areas)
Enable Support Roof: Check
Enable Support Floor: Check
Support Interface Thickness: 0.8 mm
Support Roof Thickness: 0.8 mm
Support Floor Thickness: 0.8 mm
Support Interface Resolution 0.2 mm
Support Interface Density: 50-100%
Support Roof Density: 50-100%
Support Roof Line Distance: 0.8 mm
Support Floor Density: 50-100%
Support Floor line Distance: 0.4 mm
Support Interface Pattern: Concentric
Support Roof Pattern: Concentric (this parameter should differ from Bottom Pattern Initial Layer in “Shell” section)
Support Floor Pattern: Concentric
Minimum Support Interface Area: 10mm
Minimum Support Roof Area: 10 mm
Minimum Support Floor Area: 10 mm
Support Interface Horizontal Expansion: 0.0 mm
Support Roof Horizontal Expansion: 0.0 mm
Support Floor Horizontal Expansion: 0.0 mm
Fan Speed Override: Check
Supported Skin Fan Speed: 100%
Use Towers: Check
Tower Diameter: 4 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Skirt/Brim (For unsteady parts, and those parts that may come unstuck use “Brim”. For bigger assembly parts that have large adhesion area and for all parts of locks and claws that you want to come out clean use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 6 mm
Brim Line Count: 12
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%



Comments

comments powered by Disqus

Similar items

Browse more newly listed 3D printings
