Arkillo 3D Printing Figurine | Assembly

(2)
cm: 21 w x 20.6 d x 29.8 h
in: 8.268 w x 8.11 d x 11.732 h

Source Files

|

Description

|

Printing Details

This 3D figurine of Arkillo consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

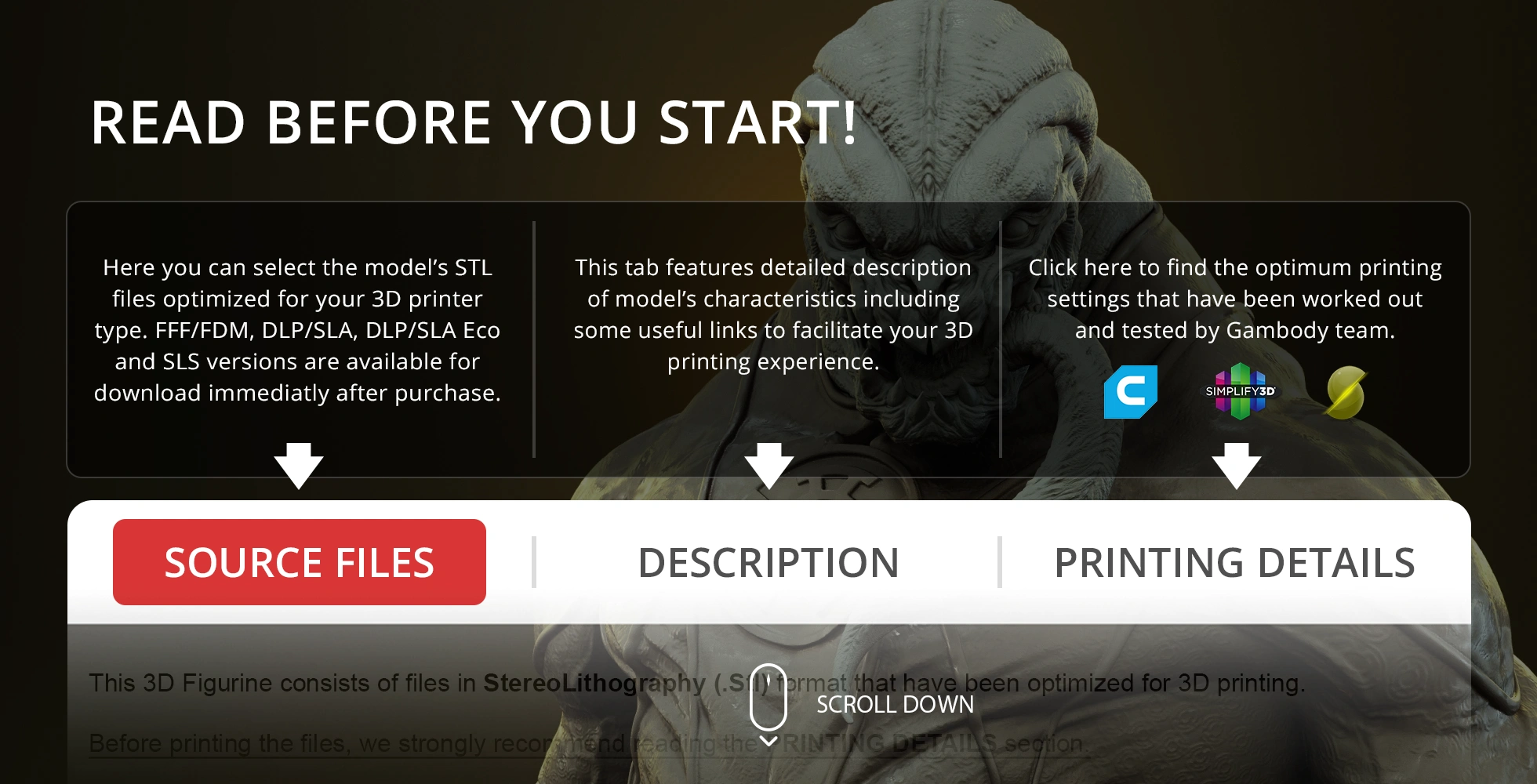

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

  • 4 versions of Arkillo STL files for FFF/FDM, DLP/SLA, DLP/SLA Eco, SLS - files for all versions are available for download after the purchase;
  • STL files of high-poly Arkillo Figurine for 3D printing consist of 36 files;
  • Sizes for:
  • FFF/FDM: 298 mm tall, 210 mm wide, 206 mm deep;
  • DLP/SLA/SLS: 149 mm tall, 105 mm wide, 103 mm deep;
  • Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats;
  • Detailed settings that we provide as a recommendation for Cura, Simplify3D, Slic3r and PrusaSlicer for the best print;
  • Full technical support from the Gambody Support Team.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)
1_head_FDM(repaired).stl
41.99 MiB 4 h 22 min 2 m 36 x 53 x 44 Download

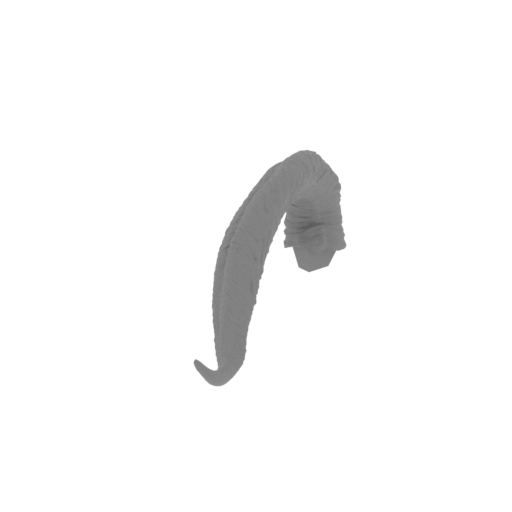

2_tongue_FDM(repaired).st l
12.47 MiB 20 min <1 m 6 x 39 x 15 Download

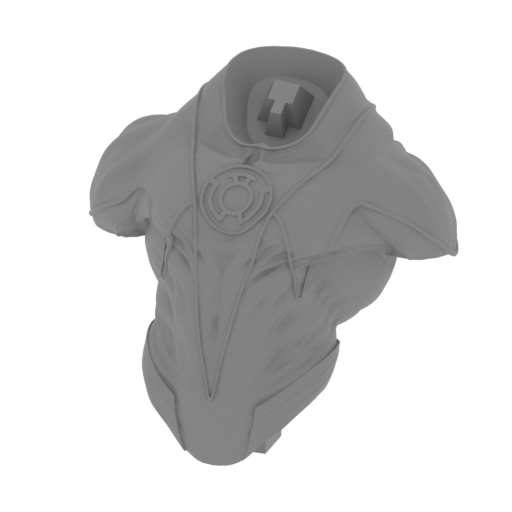

3_body_FDM(repaired).stl
50.26 MiB 26 h 32 min 17 m 106 x 79 x 96 Download

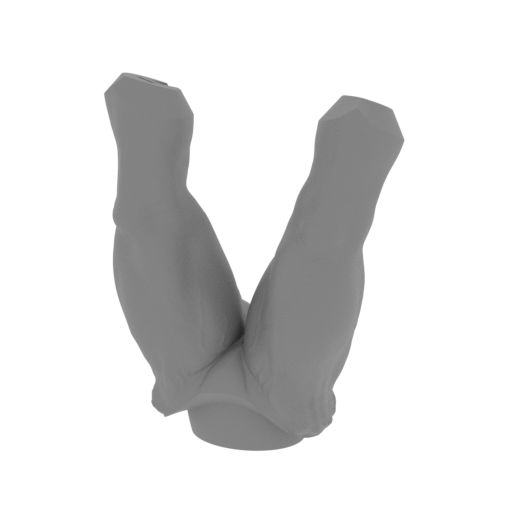

4_legs_FDM(repaired).stl
32.04 MiB 12 h 32 min 7 m 90 x 48 x 117 Download

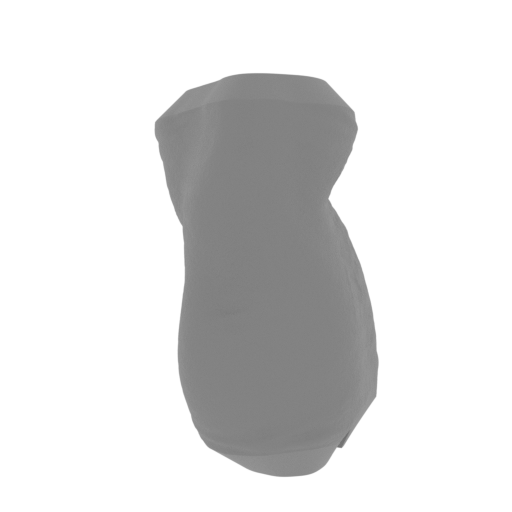

5_arm_R_1_FDM(repaired).s tl
19.54 MiB 1 h 58 min 1 m 30 x 31 x 46 Download

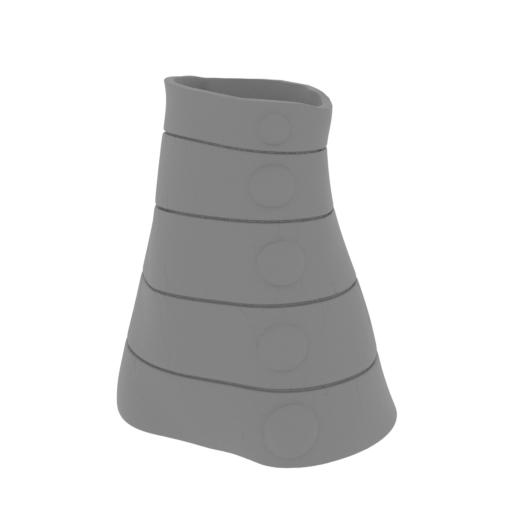

6_arm_R_2_FDM(repaired).s tl
20.01 MiB 1 h 25 min 1 m 28 x 25 x 39 Download

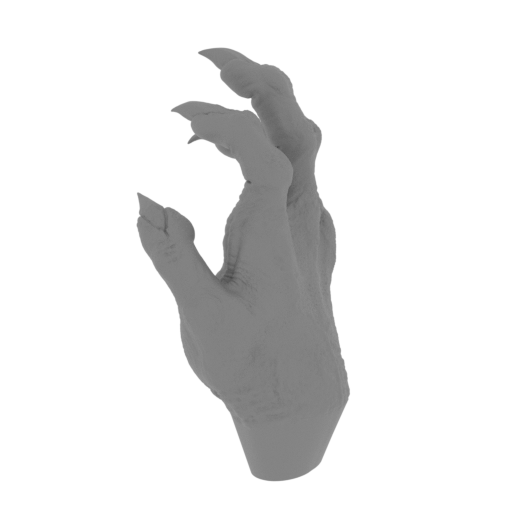

7_hand_R_FDM(repaired).st l
17.75 MiB 2 h 5 min 1 m 30 x 38 x 52 Download

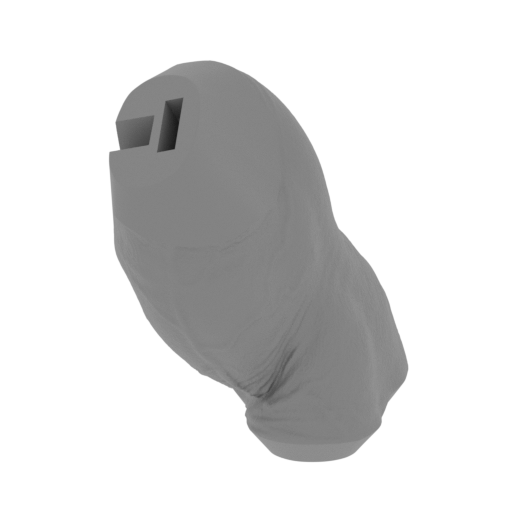

8_arm_L_1_FDM(repaired).s tl
19.57 MiB 1 h 47 min 1 m 29 x 36 x 44 Download

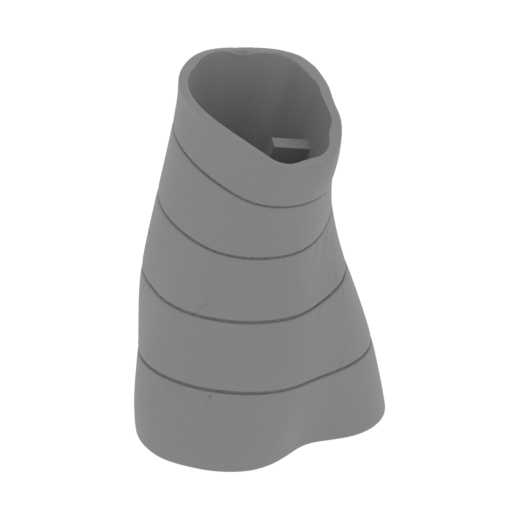

9_arm_L_2_FDM(repaired).s tl
19.63 MiB 1 h 25 min 1 m 23 x 28 x 39 Download

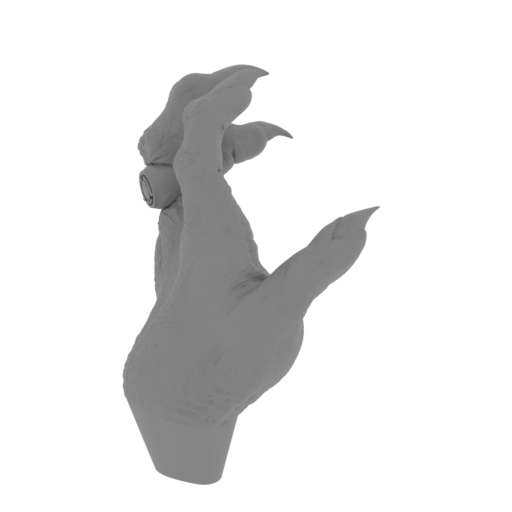

10_hand_L_FDM(repaired).s tl
16.66 MiB 2 h 15 min 1 m 33 x 41 x 51 Download

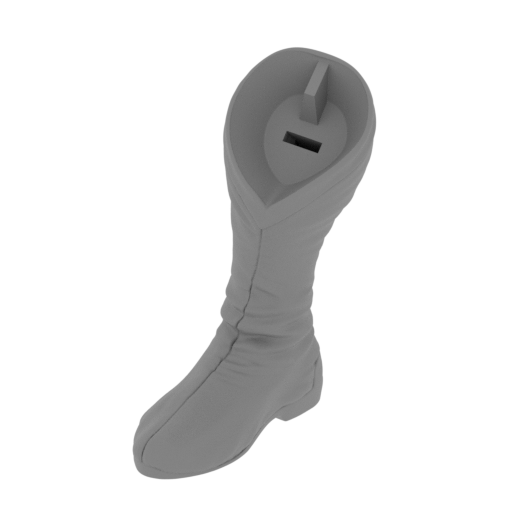

11_foot_R_FDM(repaired).s tl
21.21 MiB 3 h 7 min 2 m 42 x 52 x 76 Download

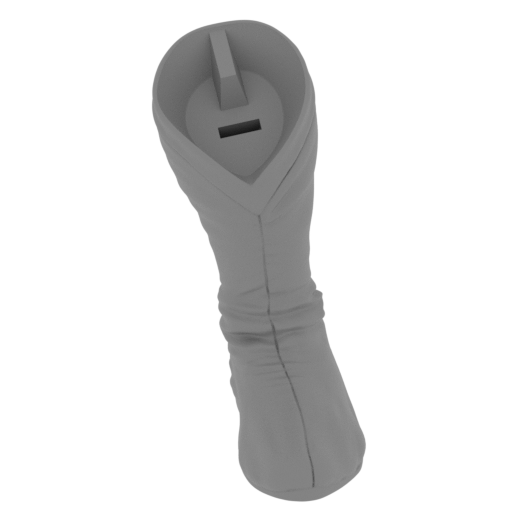

12_foot_L_FDM(repaired).s tl
20.31 MiB 3 h 6 min 2 m 45 x 51 x 70 Download

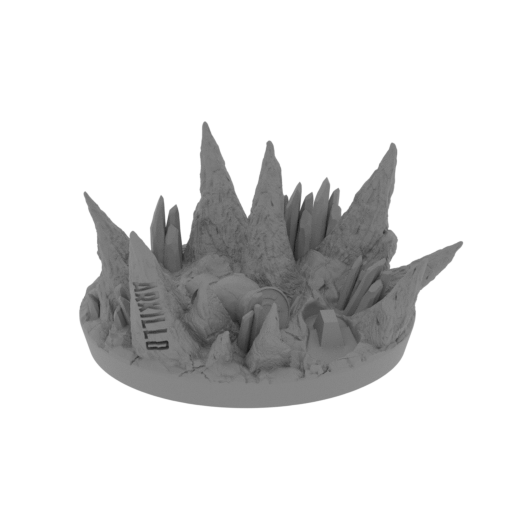

13_platform_1_FDM(repaire d).stl
95.35 MiB 38 h 49 min 19 m 169 x 151 x 80 Download

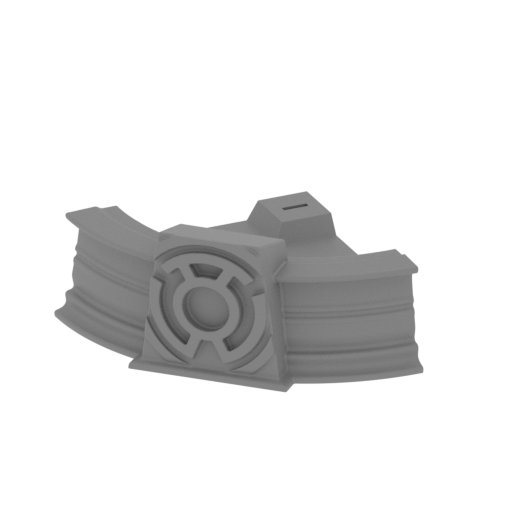

14_platform_2_FDM(repaire d).stl
27.36 MiB 18 h 55 min 11 m 138 x 103 x 54 Download

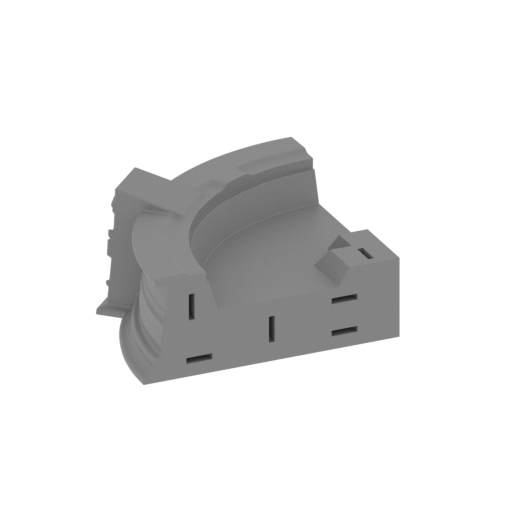

15_platform_3_FDM(repaire d).stl
27.54 MiB 16 h 52 min 9 m 105 x 135 x 45 Download

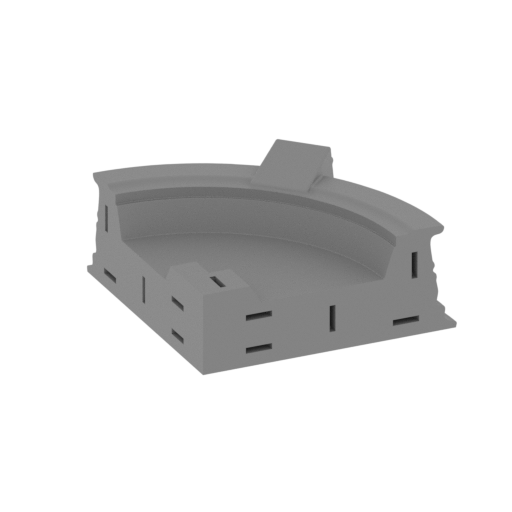

16_platform_4_FDM(repaire d).stl
27.12 MiB 16 h 23 min 9 m 134 x 103 x 45 Download

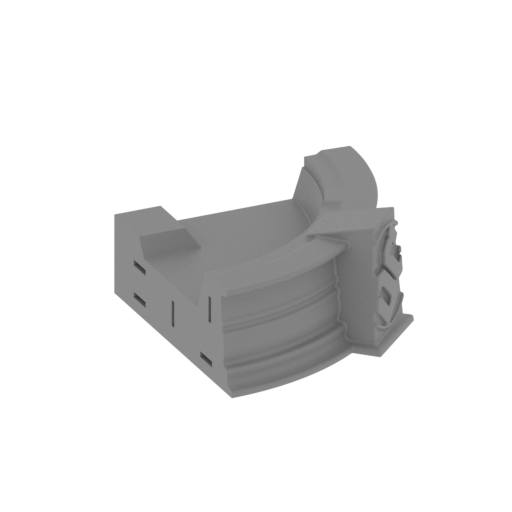

17_platform_5_FDM(repaire d).stl
27.63 MiB 16 h 45 min 10 m 105 x 136 x 45 Download
18_ge_lock_10H(x25)_FDM(r epaired).stl
0.03 MiB 4 min <1 m 10 x 18 x 2 Download

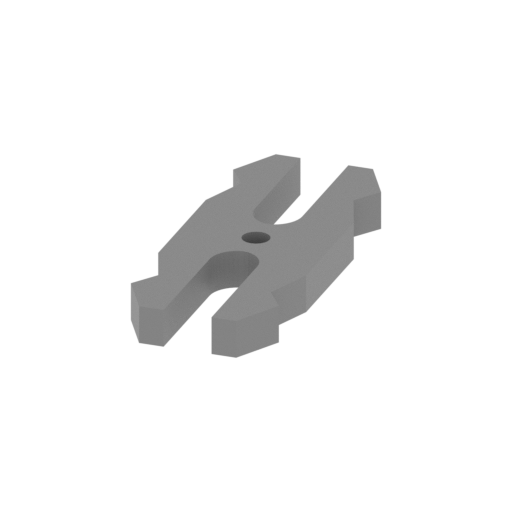

19_ge_lock_7S(x6)_FDM(rep aired).stl
0.02 MiB 4 min <1 m 7 x 18 x 2 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download
...

ABOUT THIS 3D MODEL

The Sinestro Corps, or the Yellow Lantern Corps, is an organization that includes a group of supervillains, and, in contrast with the Green Lantern Corps the mission of which is law enforcement, Sinestro Corps uses fear as a means for eradication of their opponents and establishment of a galactic totalitarian police-state. A savage monster Arkillo is a member of the Yellow Lantern, his outstanding skill is to ​​instill great fear in others. Possessing ruthlessness, superhuman strength, and durability, the carnivore is perfect for his role of ruthless drill sergent for the Sinestro Corps.

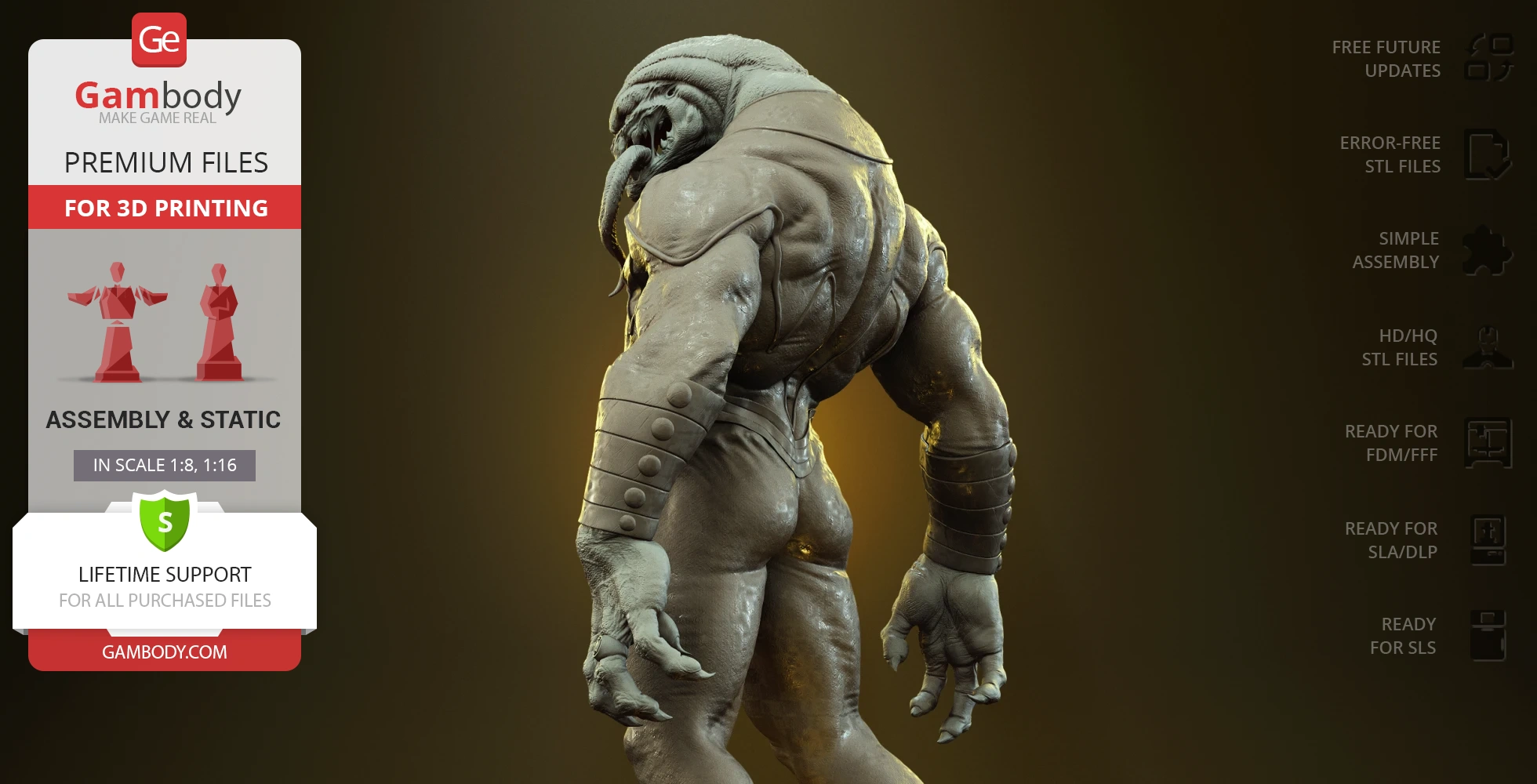

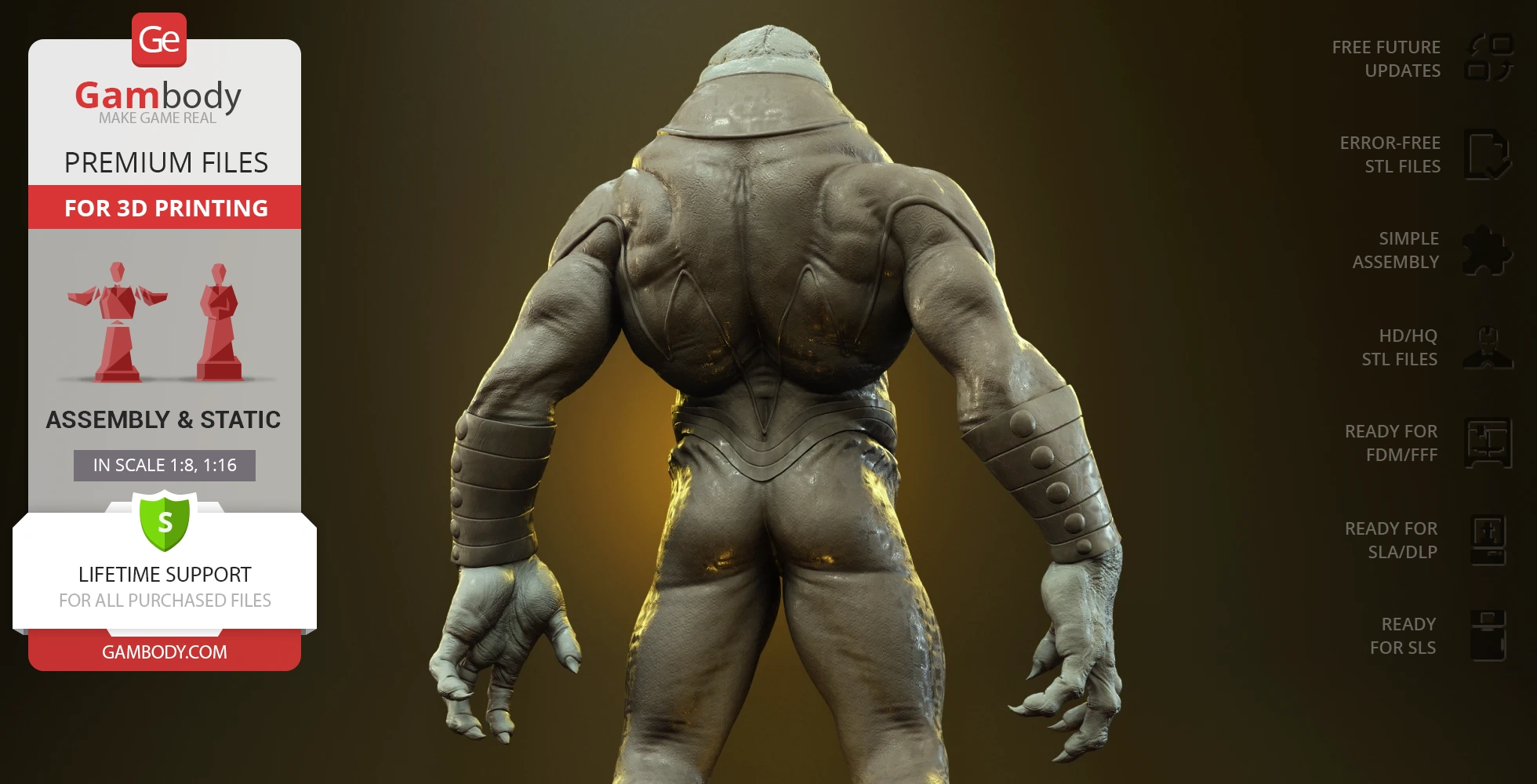

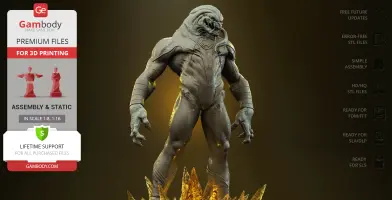

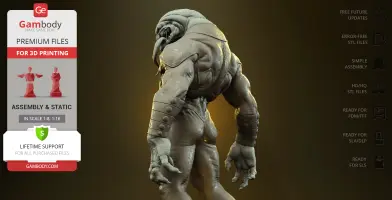

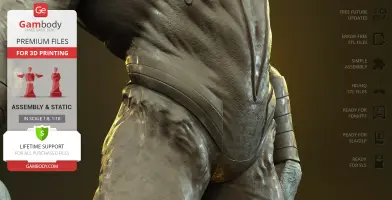

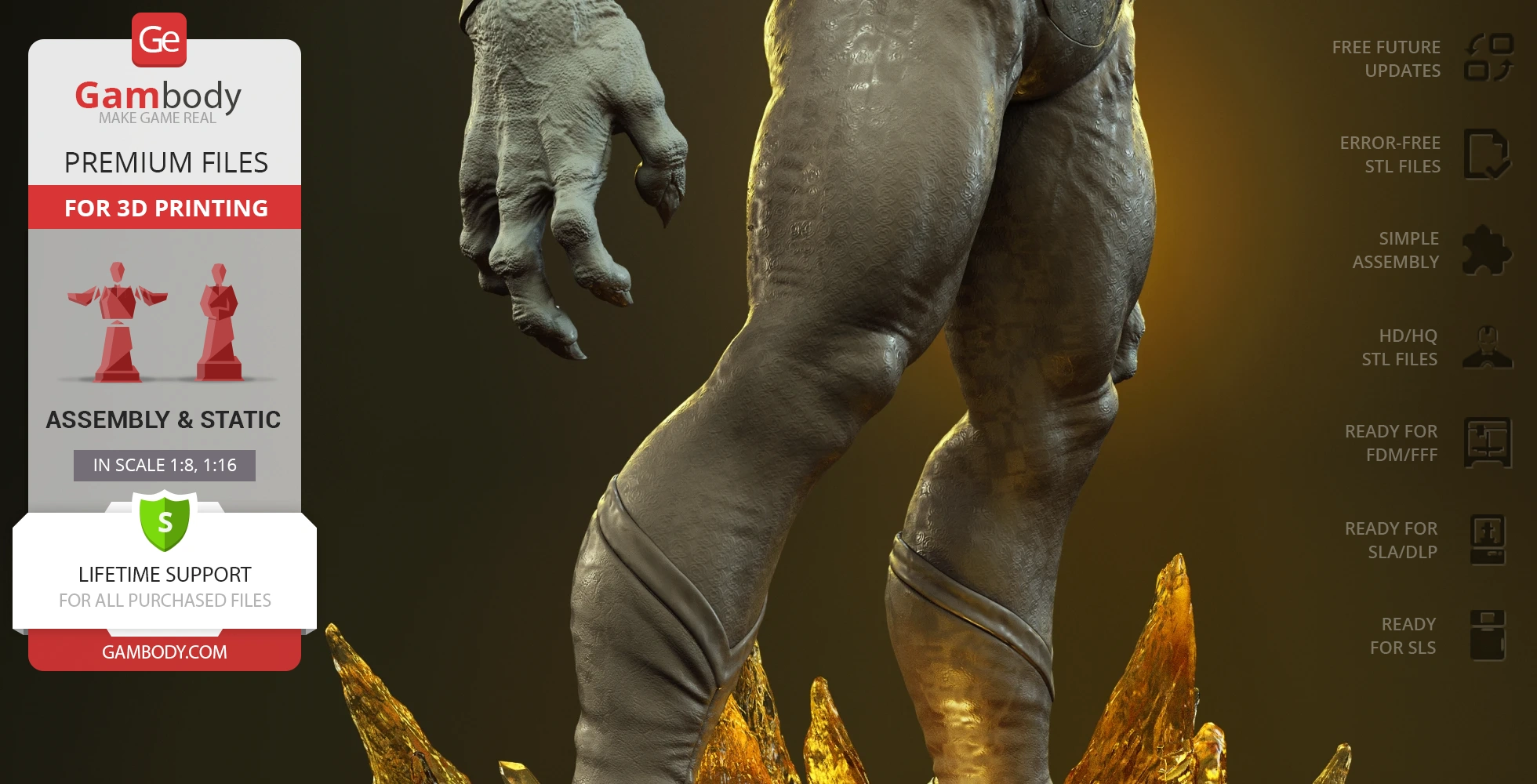

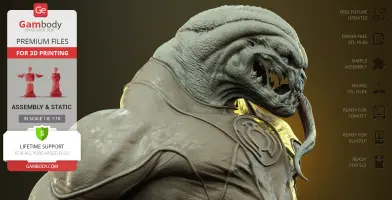

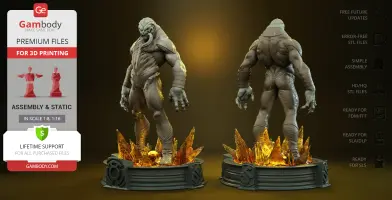

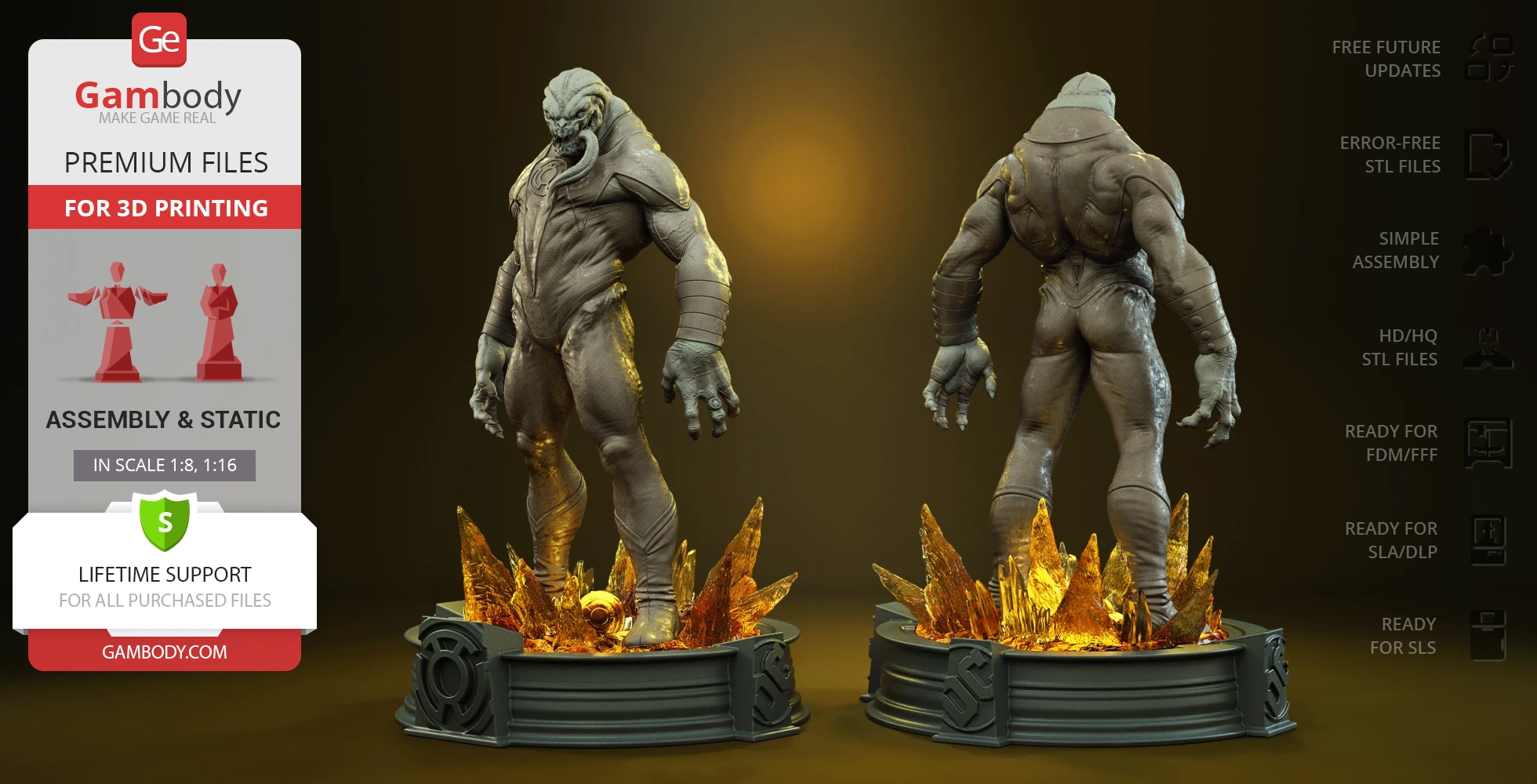

Inspired by the blood-thirsty DC character, our contributing 3D artist created his interpretation of Arkillo for 3D printing. The alien is depicted in a standing pose wearing his costume featuring the Yellow Lantern logo. The body of the monster resembles a human body with huge trapezius muscles, strong arms and legs, and massive hands with claws. The brutal grin on the face of Arkillo, his huge mouth with sharp fangs and raptorial tongue make the appearance of the supervillain even more sinister. This outstanding masterful figurine is designed to take your collection of comics characters to a whole new level!

ADAPTATION FOR 3D PRINTING

Arkillo for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 60 hours in total. The figurines' anatomy and proportions were thoroughly reviewed during the moderation process for the monster to be depicted harmoniously in the intended pose.

The figurine’s cutting was chosen by our team to minimise the amount of generated support and some of the parts were hollowed out for you to save resin in the Eco version. In order to conceal the places where the assembly parts of the figurine are connected, Arkillo was divided into convenient assembly parts.

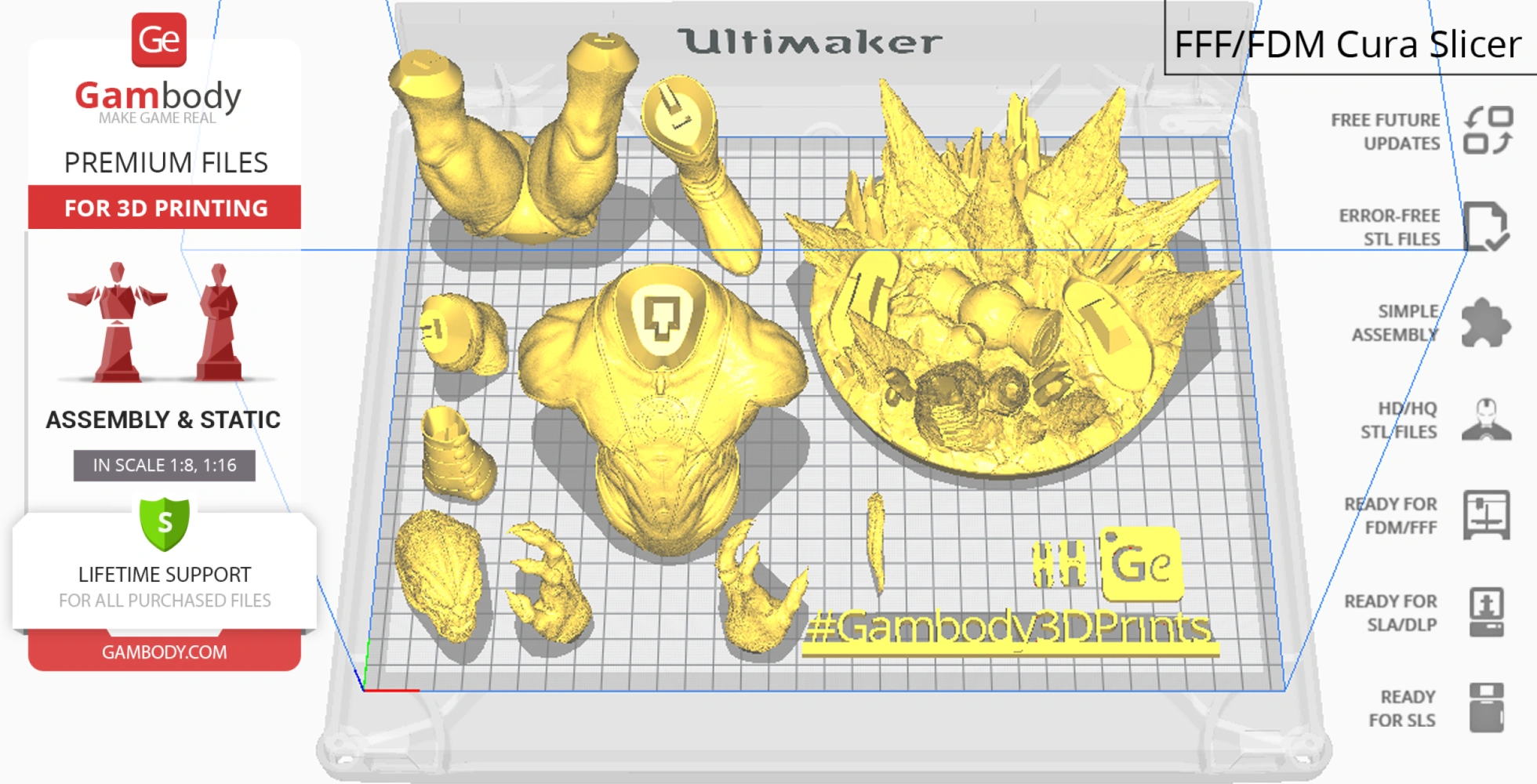

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly Video” and "Assembly Manual" before getting down to Arkillo.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

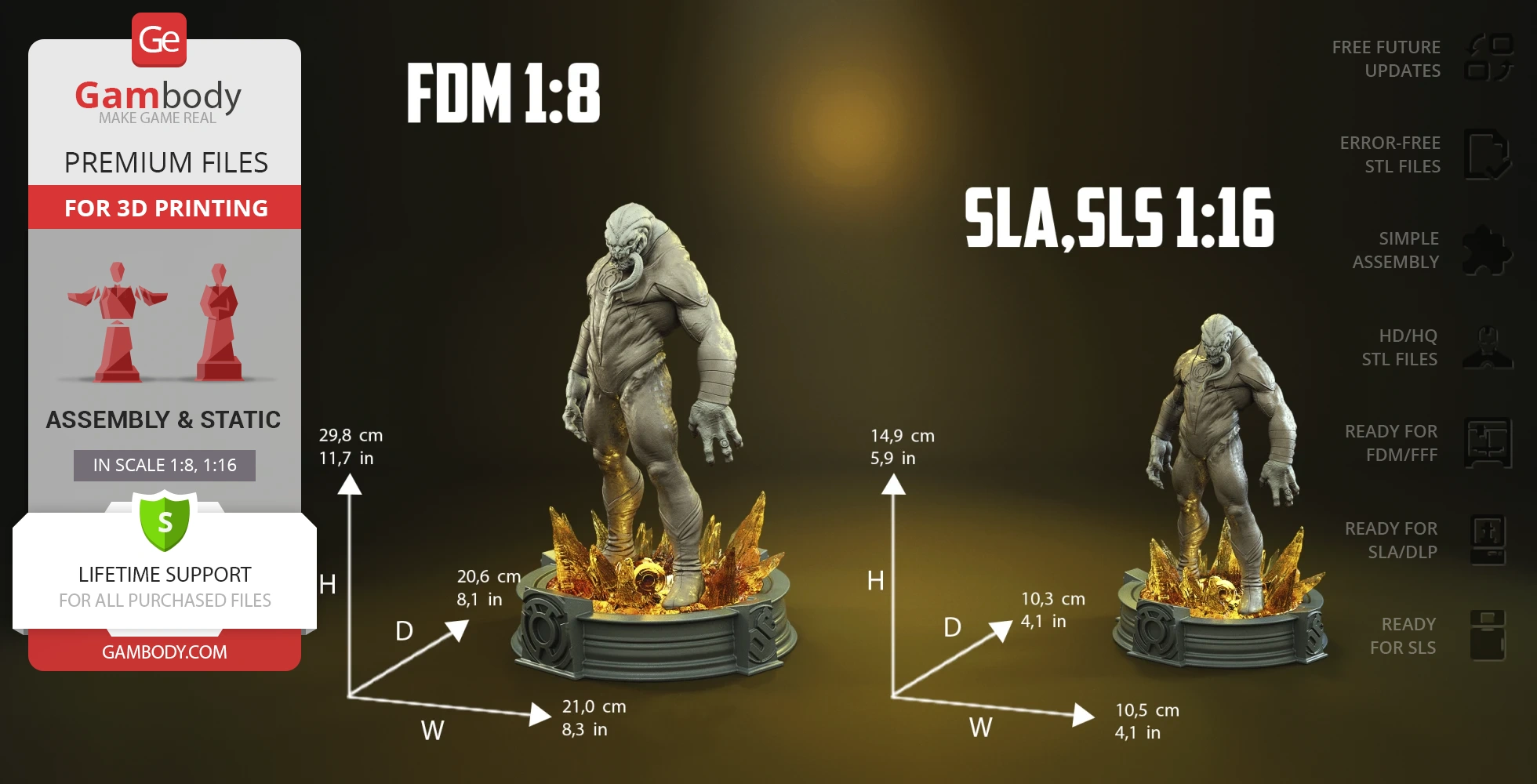

The figurine’s scale was calculated from the height of Arkillo which is 2083 mm. The 3D printing figurine’s chosen scales are 1:8 for the FFF/FDM version and 1:16 for the DLP/SLA/SLS versions.

VERSIONS’ SPECIFICATIONS

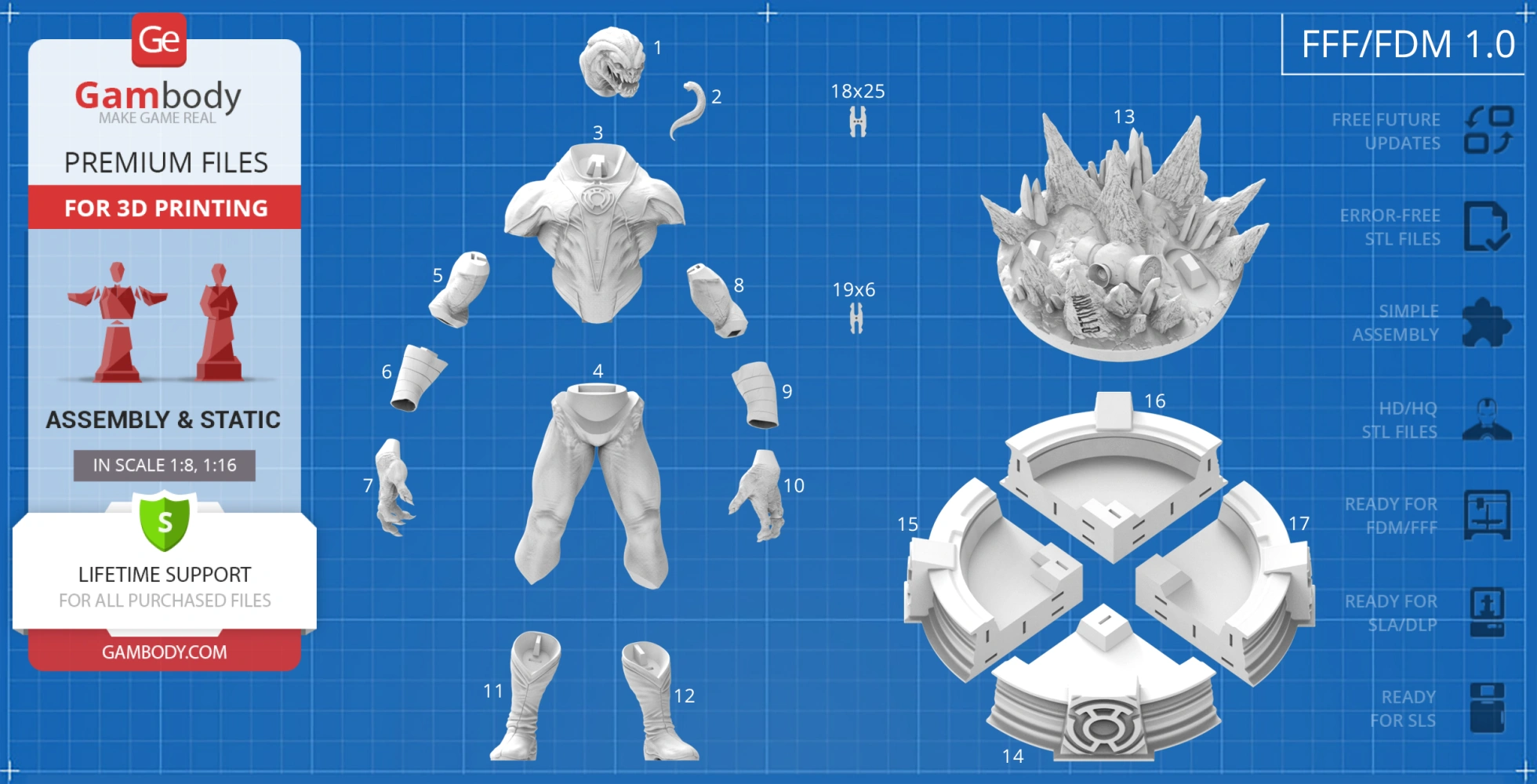

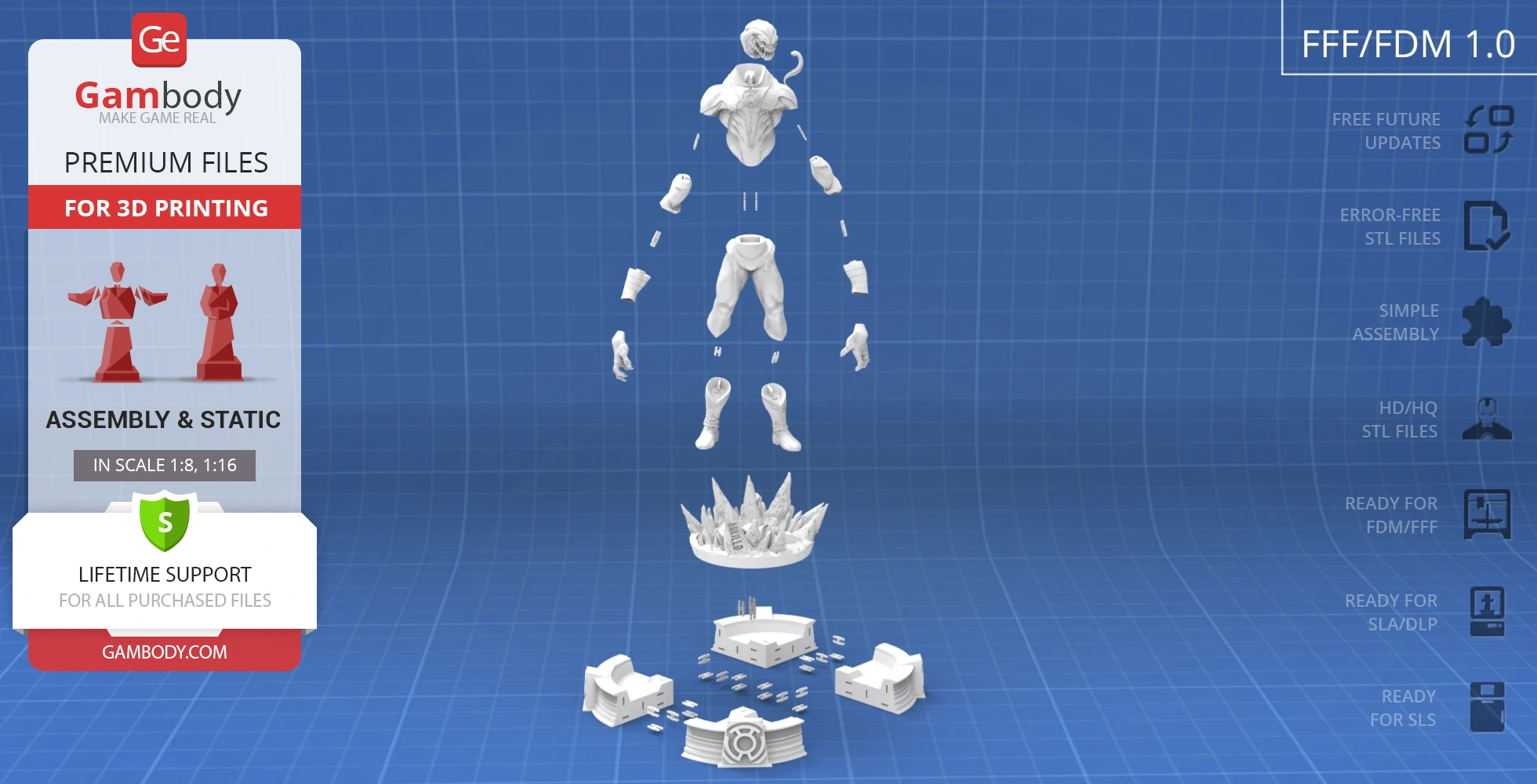

FFF/FDM 1.0 versions features:

  • Contains 19 parts;
  • A printed figurine is 298 mm tall, 210 mm wide, 206 mm deep;
  • All parts are divided in such a way that you will print them with the smallest number of support structures.

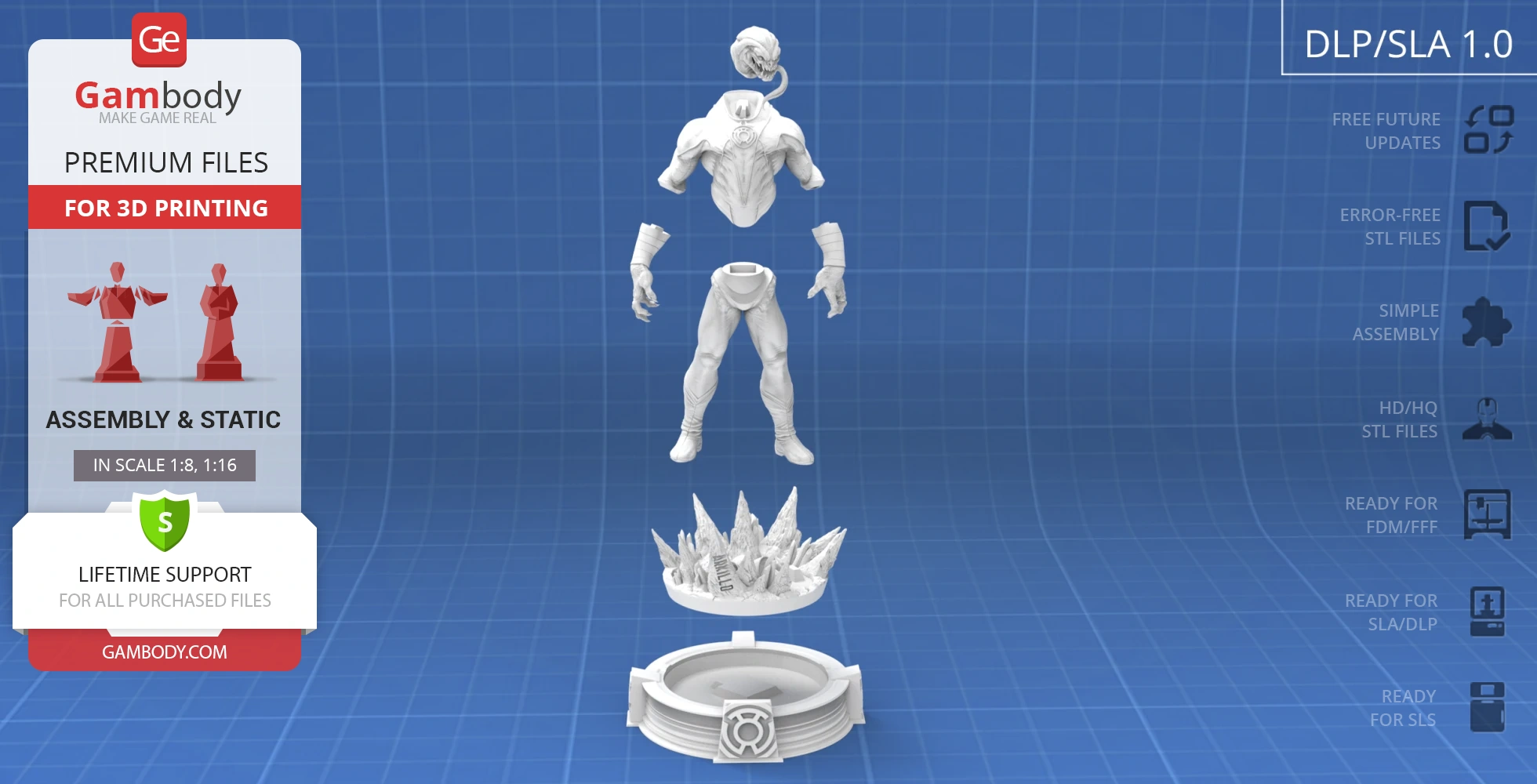

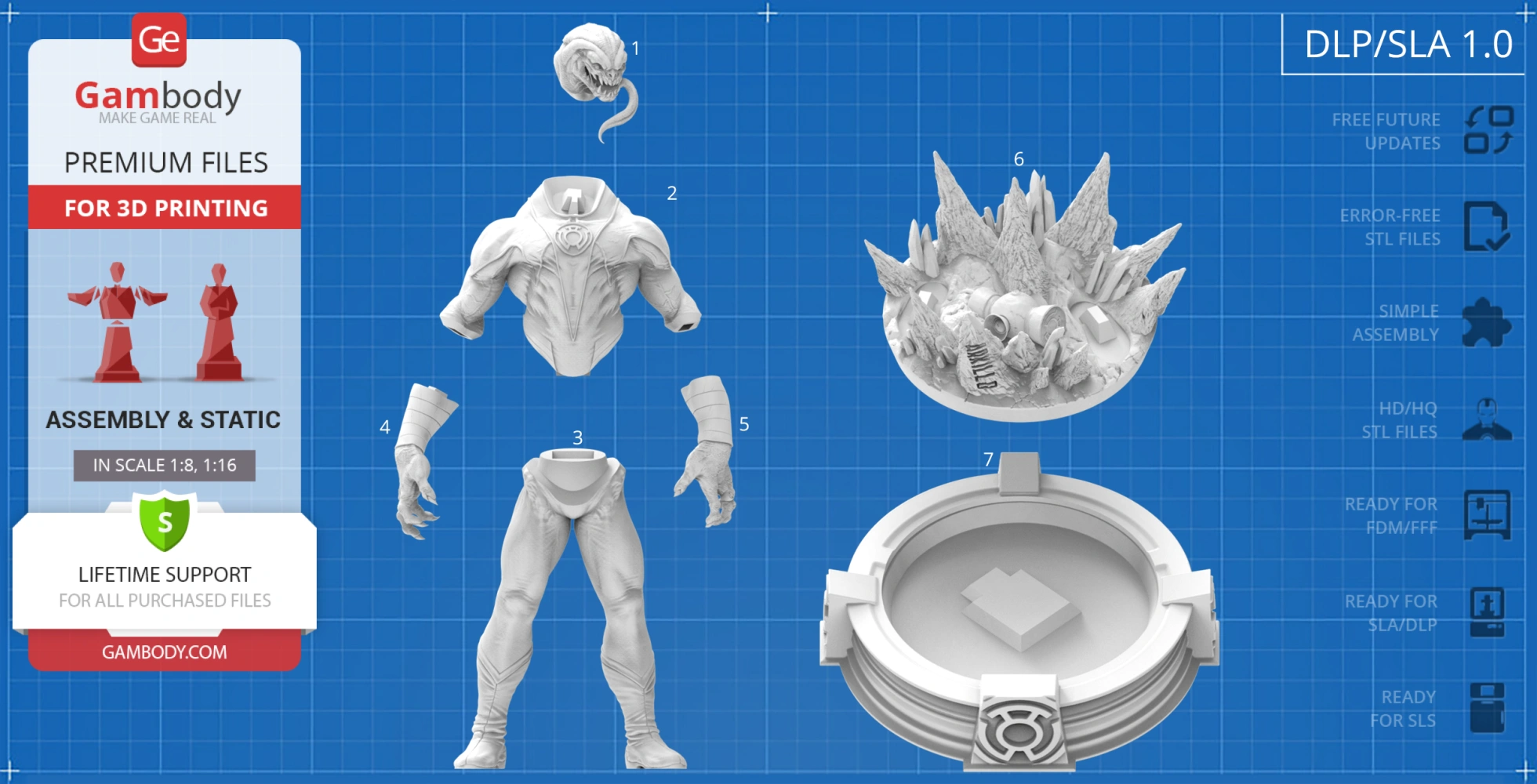

DLP/SLA 1.0 versions features:

  • Contains 7 parts;
  • A printed figurine is 149 mm tall, 105 mm wide, 103 mm deep;
  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

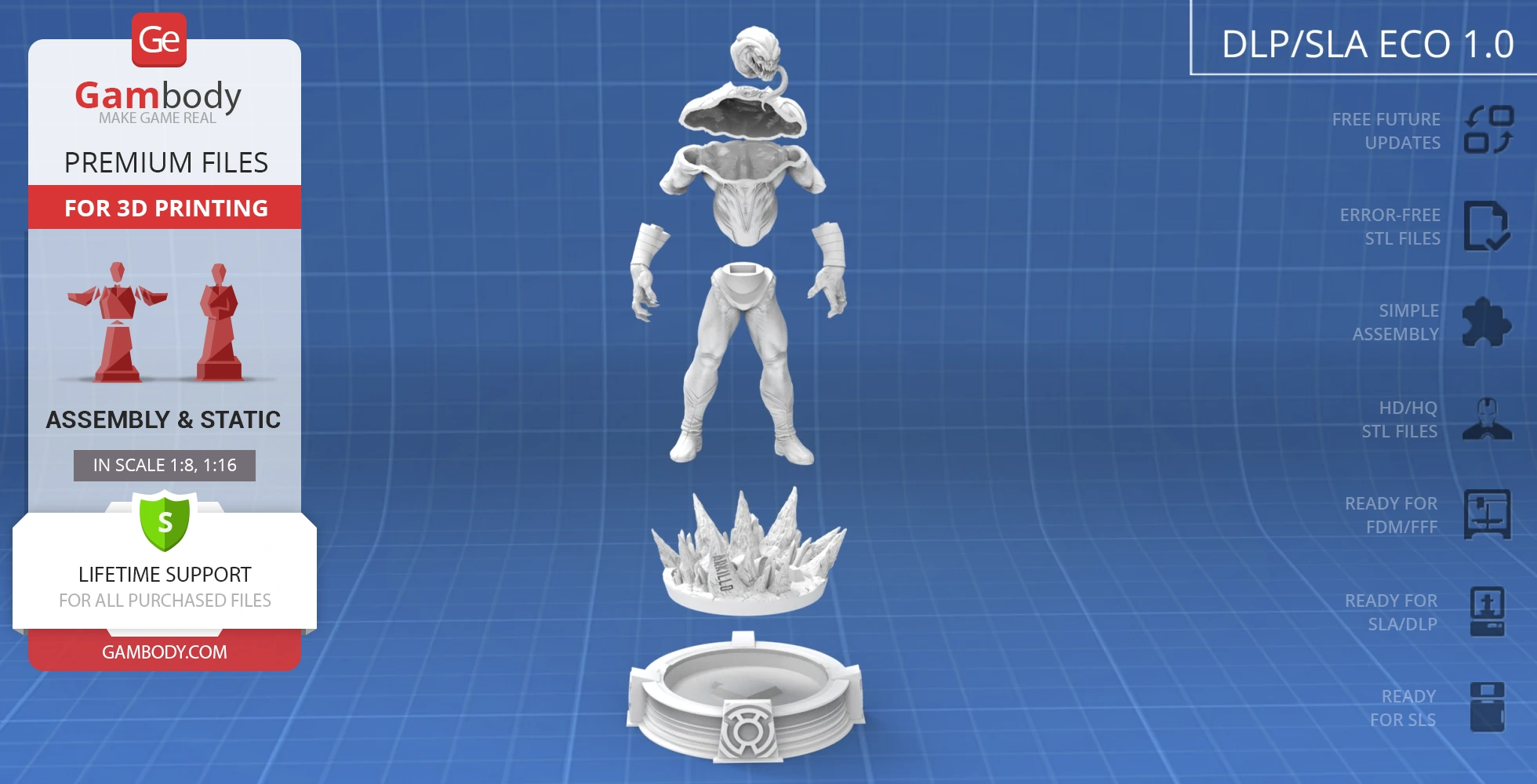

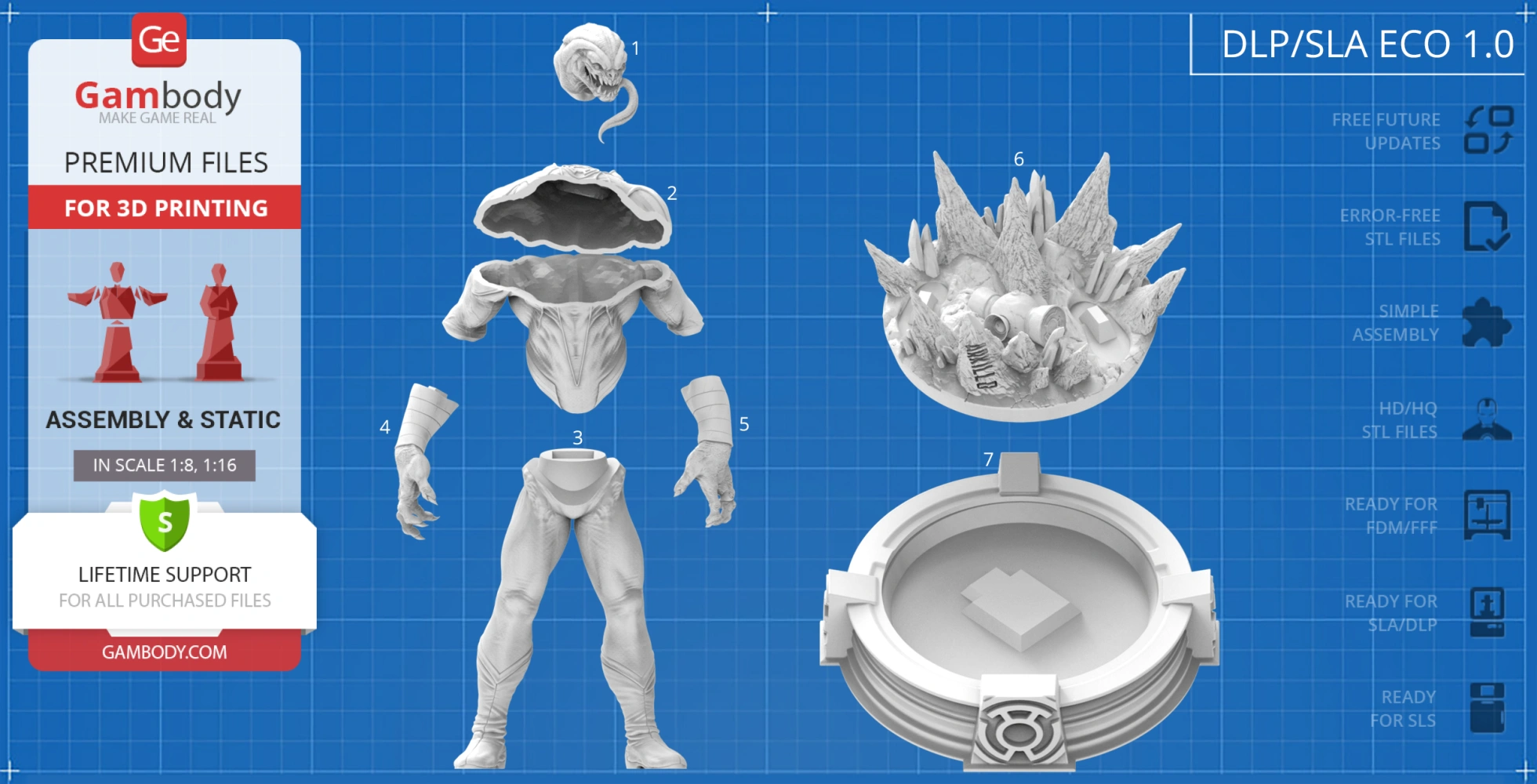

DLP/SLA Eco 1.0 versions features:

  • Contains 7 parts;
  • A printed figurine is 149 mm tall, 105 mm wide, 103 mm deep;
  • Some parts are manually hollowed out to save resin.

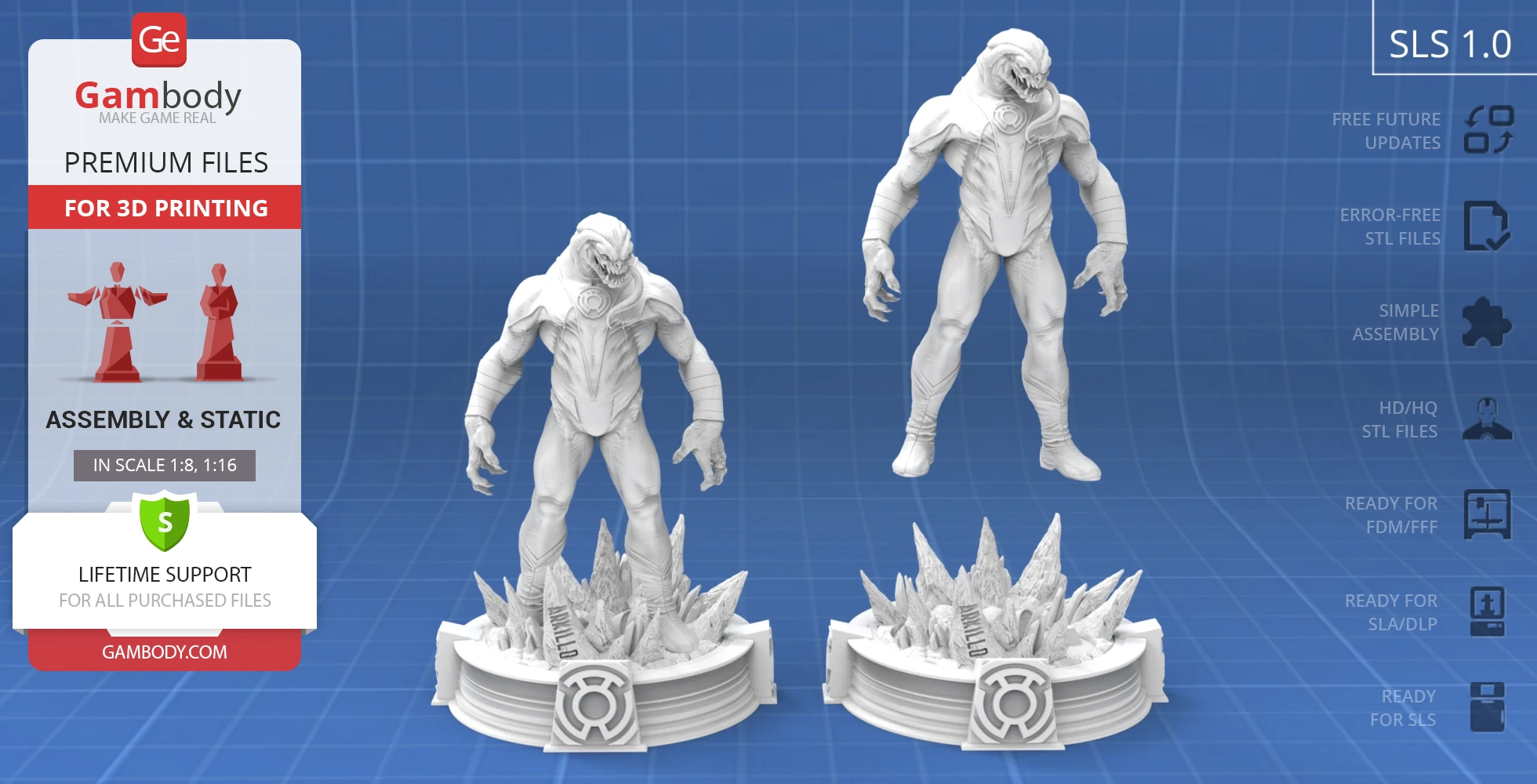

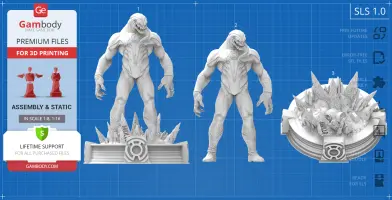

SLS 1.0 versions features:

  • Contains 3 parts - a solid Arkillo figurine on and separately from the platform.

You can get the figurine of Arkillo for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Arkillo 3D Printing Figurine on Gambody YouTube channel.

Also, you may like other Green Lantern Corps 3D Printing Figurines and other DC 3D Printing Figurines.

_______

FAQ:

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

  • You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);
  • All connectors should be printed at 100% Infill.

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
