This 3D printing design of Edward Scissorhands in Diorama consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

4 versions of Edward Scissorhands in Diorama STL files for FFF/FDM, DLP/SLA, DLP/SLA Eco, and SLS — files for all versions are available for download after the purchase;
STL files of high-poly Edward Scissorhands in Diorama model for 3D printing consist of 50 files;

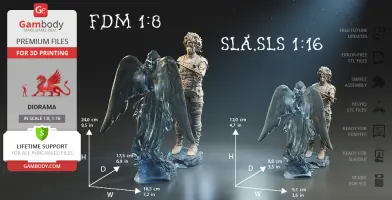

Sizes for:
FFF/FDM: 240 mm tall, 183 mm wide, 175 mm deep;
DLP/SLA/SLS: 120 mm tall, 91 mm wide, 88 mm deep;
Assembly Manual for 1.0 FFF/FDM and 1.0 DLP/SLA versions in PDF and video formats;
Detailed settings that we provide as a recommendation for Cura, Bambu Studio, Simplify3D, Slic3r and PrusaSlicer for the best print;
Full technical support from the Gambody Support Team.

Detailed information about these 3D printer STL files is available in the DESCRIPTION section.


	File Name	File Size	Time / Filament	Object Size (x/y/z mm)

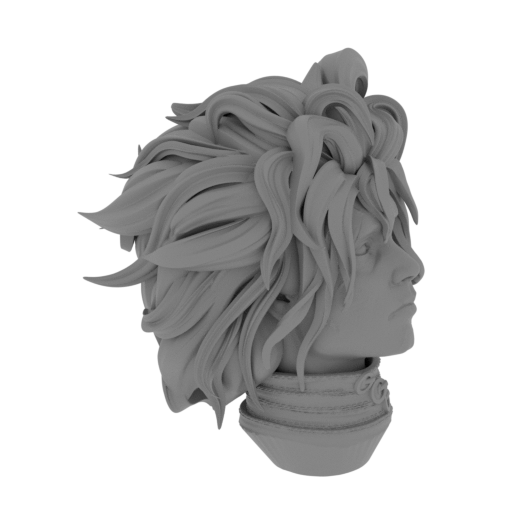

	1_head_FDM(repaired).stl	43.47 MiB	5 h 19 min 2 m	43 x 35 x 48	Download

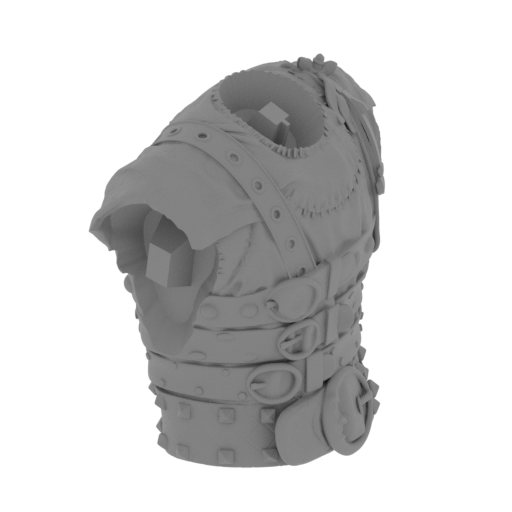

	2_body_FDM(repaired).stl	61.10 MiB	8 h 4 min 5 m	39 x 63 x 61	Download

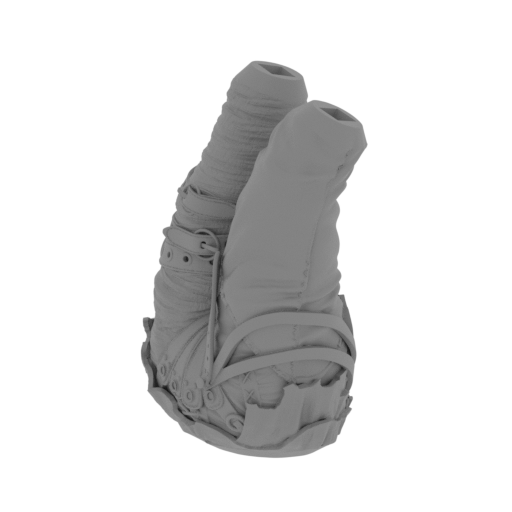

	3_legs_FDM(repaired).stl	71.99 MiB	9 h 2 min 4 m	53 x 44 x 81	Download

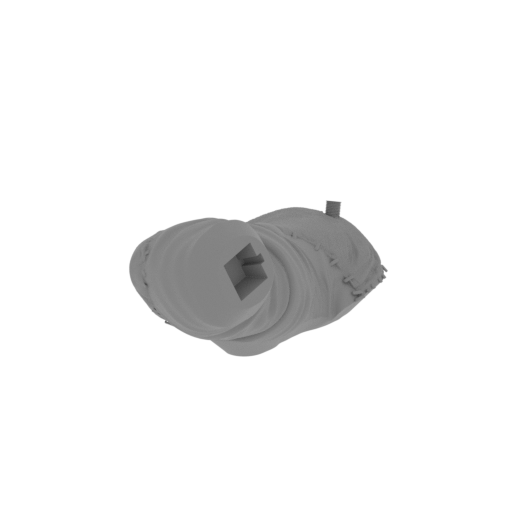

	4_arm_R_1_FDM(repaired).s tl	18.71 MiB	1 h 7 min 1 m	21 x 47 x 23	Download

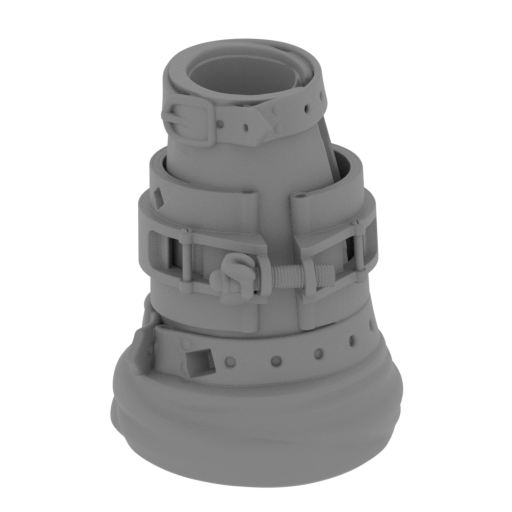

	5_arm_R_2_FDM(repaired).s tl	27.00 MiB	42 min <1 m	15 x 17 x 20	Download

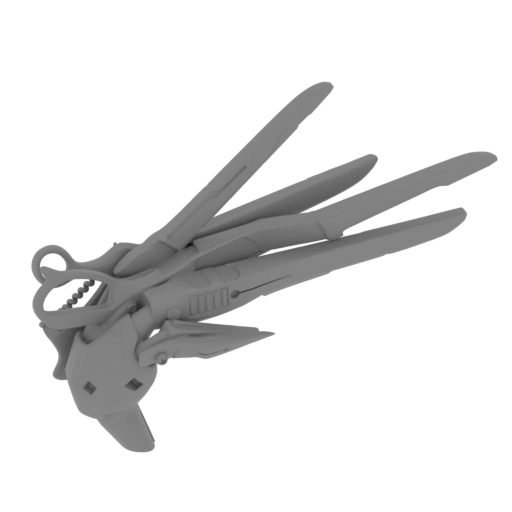

	6_hand_R_FDM(repaired).st l	23.02 MiB	1 h 54 min 1 m	50 x 42 x 46	Download

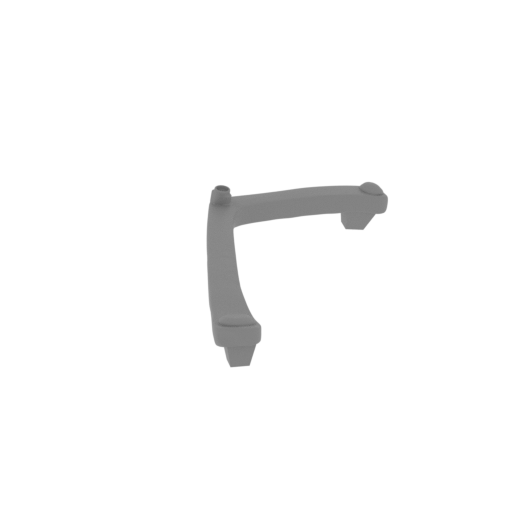

	7_rod_for hand_R_1_FDM(re paired).stl	3.88 MiB	4 min <1 m	8 x 22 x 4	Download

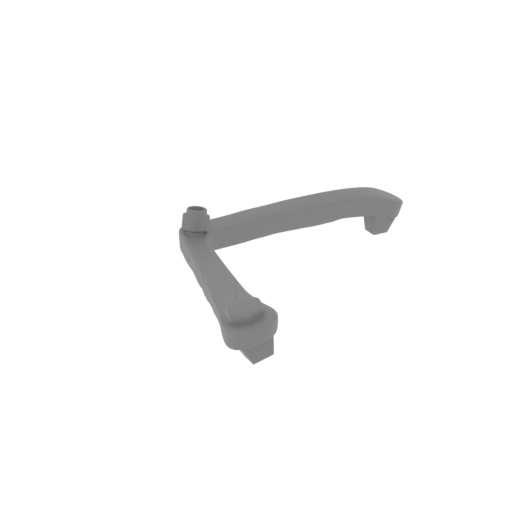

	8_rod_for hand_R_2_FDM(re paired).stl	2.39 MiB	2 min <1 m	7 x 15 x 3	Download

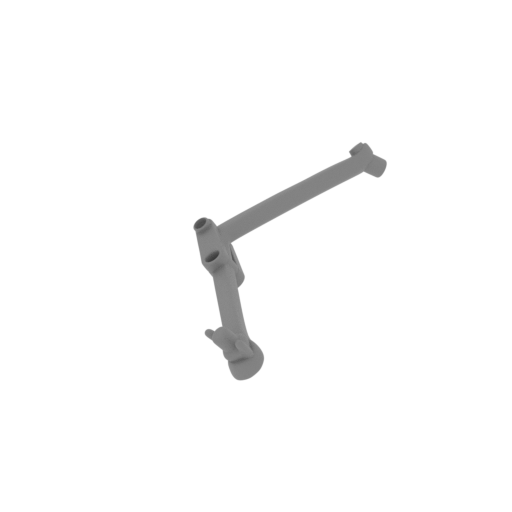

	9_rod_for hand_R_3_FDM(re paired).stl	5.56 MiB	6 min <1 m	9 x 25 x 7	Download

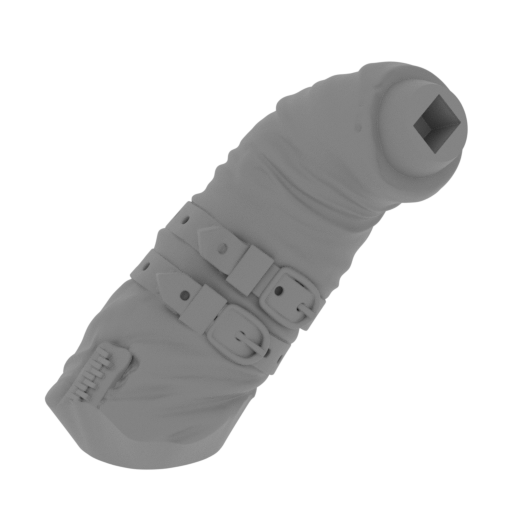

	10_arm_L_FDM(repaired).st l	22.37 MiB	1 h 1 min 1 m	32 x 27 x 32	Download

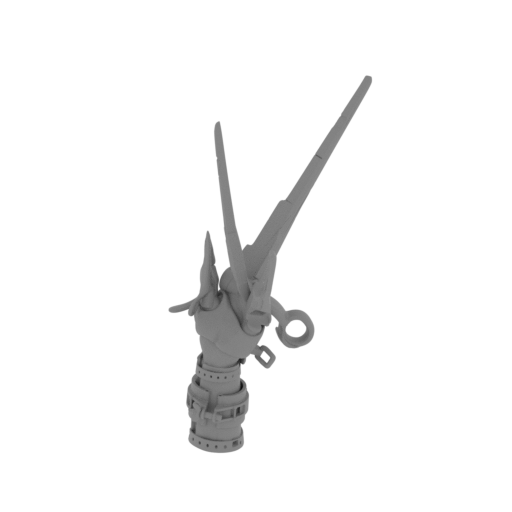

	11_hand_L_FDM(repaired).s tl	24.59 MiB	1 h 50 min 1 m	32 x 47 x 78	Download

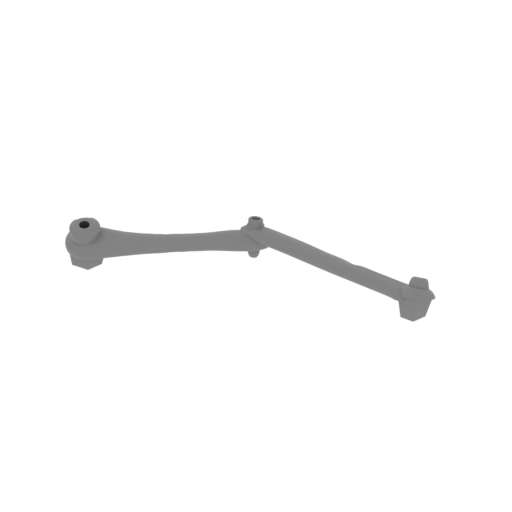

	12_rod_for hand_L_1_FDM(r epaired).stl	7.81 MiB	4 min <1 m	27 x 5 x 4	Download

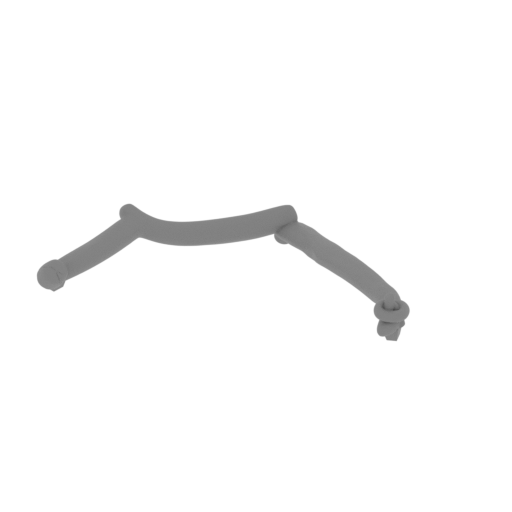

	13_rod_for hand_L_2_FDM(r epaired).stl	5.27 MiB	6 min <1 m	28 x 16 x 4	Download

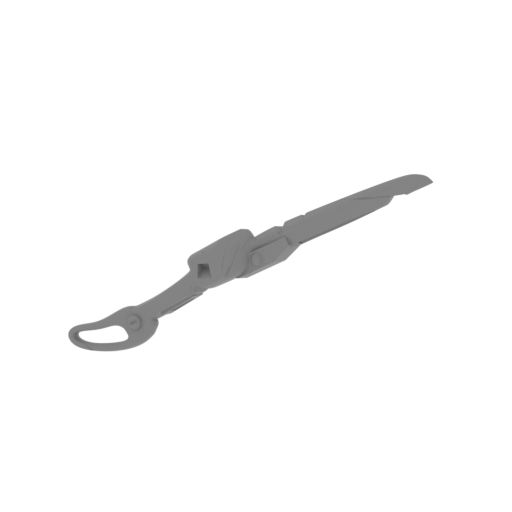

	14_scissors_for hand_L_FD M(repaired).stl	13.75 MiB	20 min <1 m	37 x 5 x 24	Download

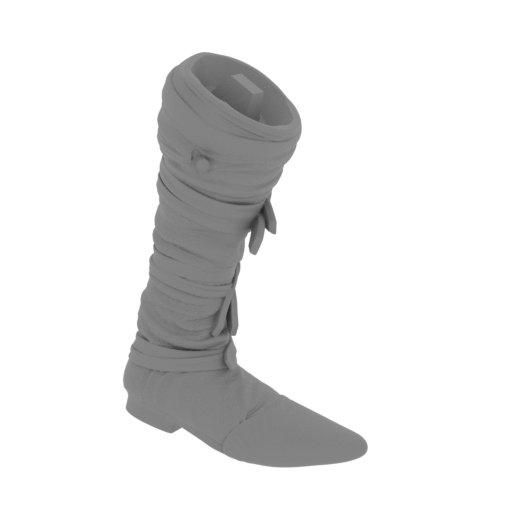

	15_foot_R_FDM(repaired).s tl	29.42 MiB	2 h 39 min 2 m	39 x 26 x 60	Download

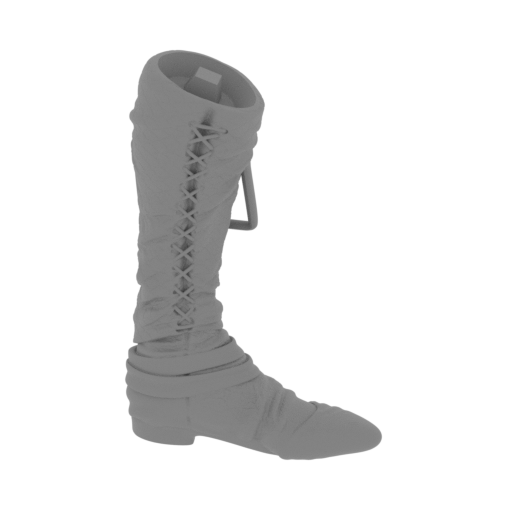

	16_foot_L_FDM(repaired).s tl	31.59 MiB	2 h 27 min 1 m	43 x 21 x 61	Download

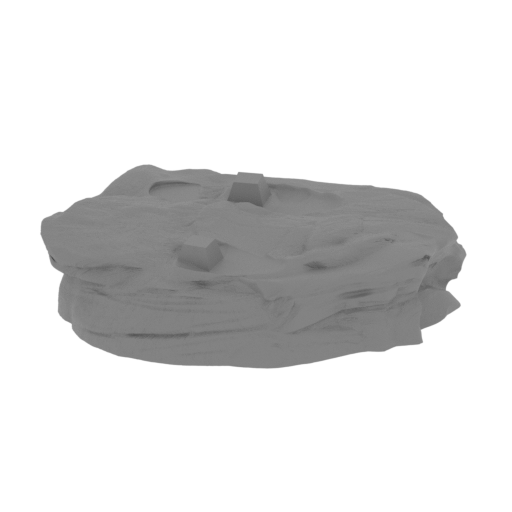

	17_platform_FDM(repaired) .stl	19.57 MiB	6 h 18 min 3 m	79 x 70 x 20	Download

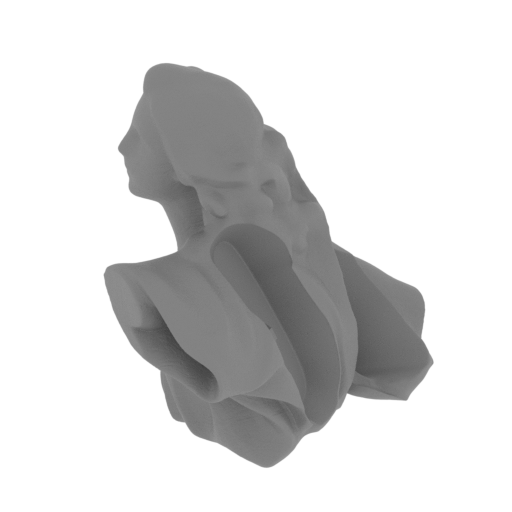

	18_body_ice_statue_FDM(re paired).stl	26.08 MiB	5 h 56 min 3 m	47 x 66 x 66	Download

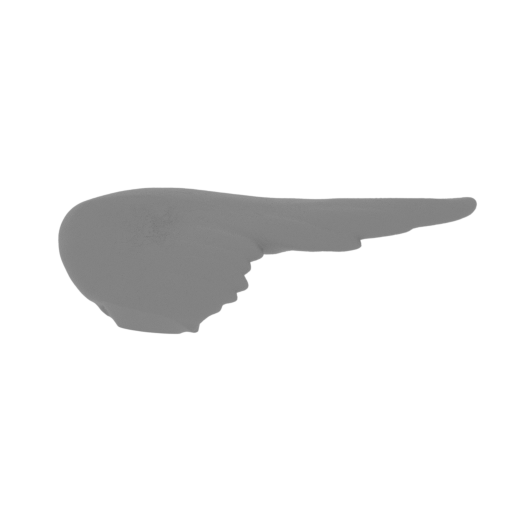

	19_wing_R_ice_statue_FDM( repaired).stl	21.03 MiB	11 h 41 min 9 m	139 x 80 x 37	Download

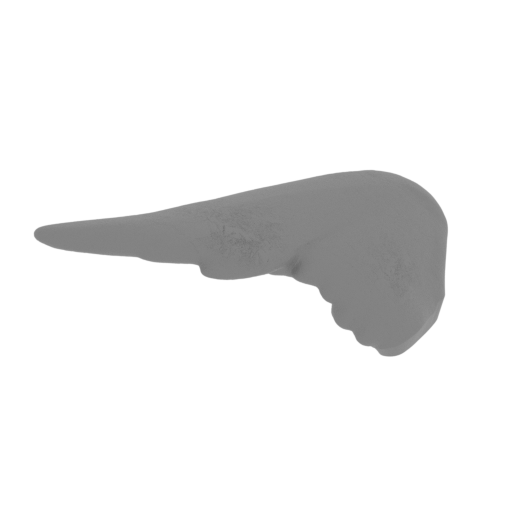

	20_wing_L_ice_statue_FDM( repaired).stl	21.04 MiB	11 h 49 min 9 m	100 x 118 x 51	Download

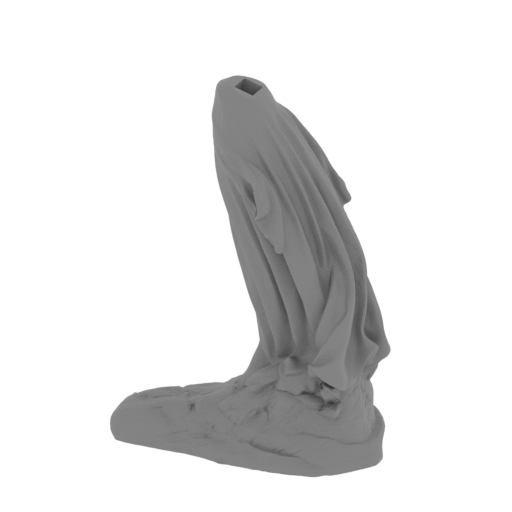

	21_legs_ice_statue_FDM(re paired).stl	45.33 MiB	25 h 2 min 14 m	112 x 81 x 158	Download
	22_ge_lock_10H(x1)_FDM(re paired).stl	0.03 MiB	4 min <1 m	10 x 18 x 2	Download

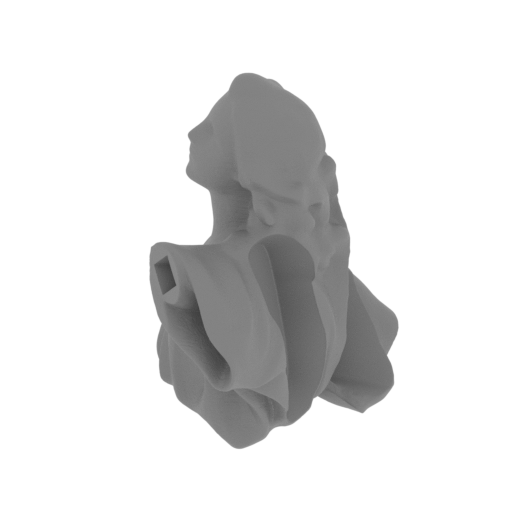

	23_body_with_arms_ice_sta tue_FDM(repaired).stl	34.58 MiB	5 h 48 min 3 m	39 x 66 x 72	Download

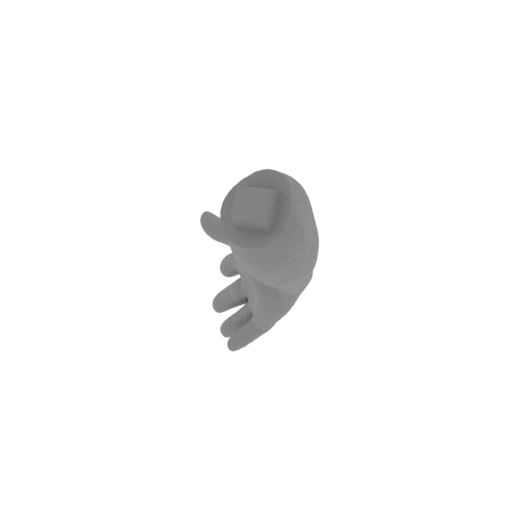

	24_arm_R_ice_statue_FDM(r epaired).stl	15.24 MiB	47 min <1 m	23 x 42 x 35	Download

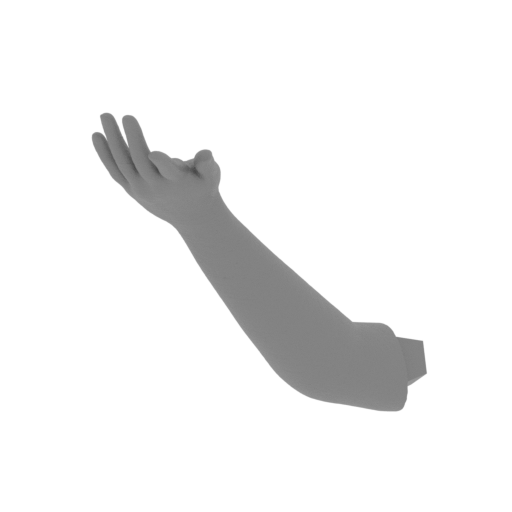

	25_arm_L_ice_statue_FDM(r epaired).stl	13.12 MiB	55 min <1 m	32 x 37 x 46	Download
	Keychain (repaired).stl	0.35 MiB	23 min <1 m	30 x 30 x 2	Download
	Tag (repaired).stl	1.70 MiB	1 h 18 min 1 m	150 x 18 x 5	Download
...

ABOUT THIS 3D MODEL

In a world full of lies and gossip it takes a lot to retain one’s innocence. Artificially created by a late inventor, Edward was a young man with scissor blades instead of hands and gentle soul that knew no wrong. His sudden settlement in a colourful city called Suburbia seems to put to the test the morals of the manifold neighbourhood and the extent that can take the heart of a man with pure intentions.

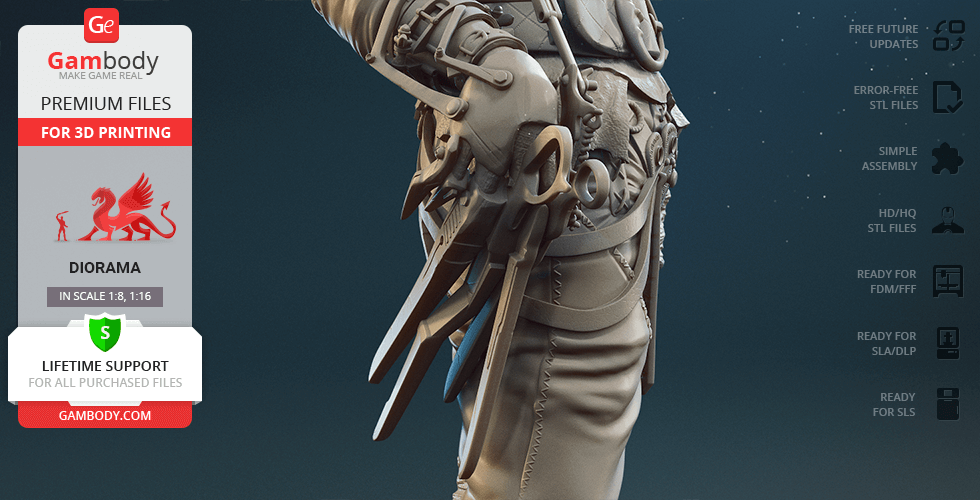

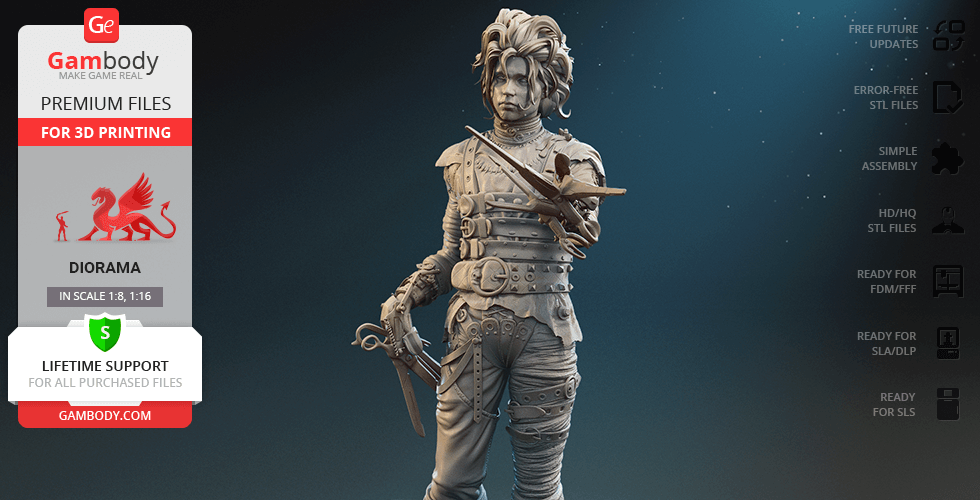

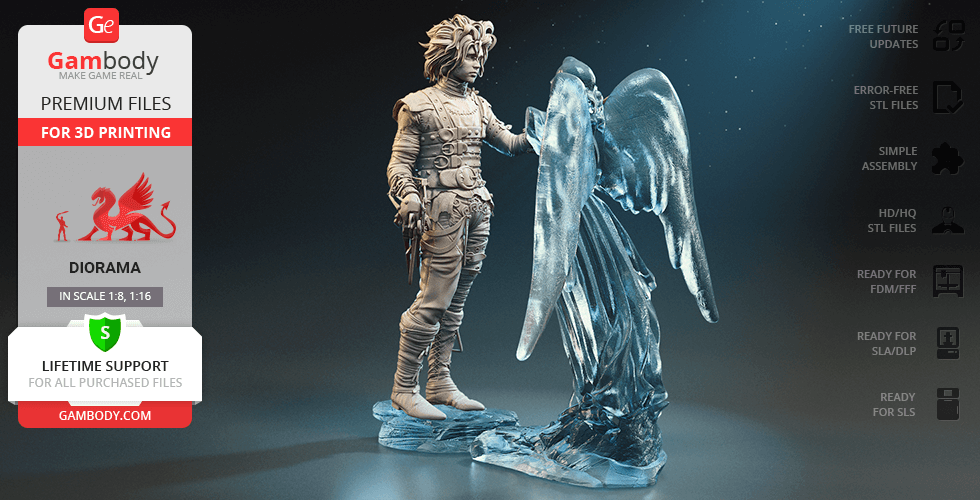

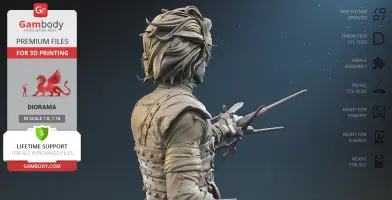

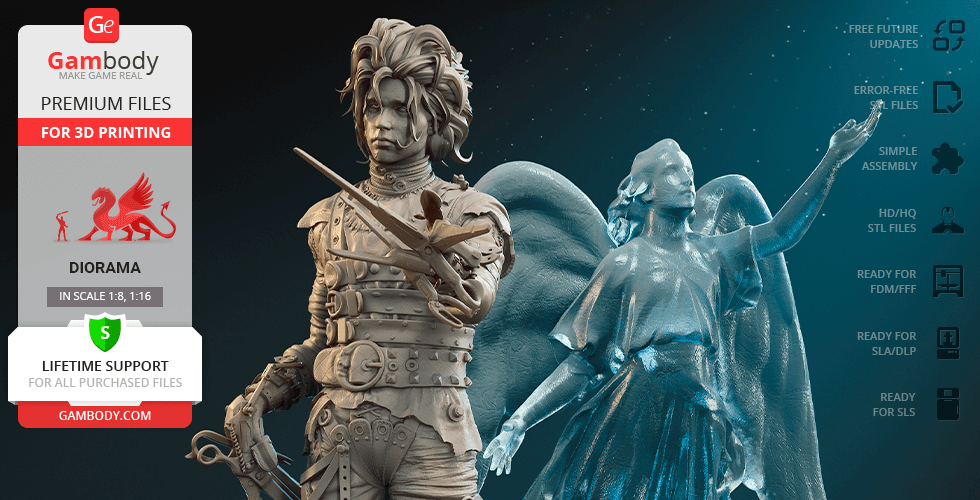

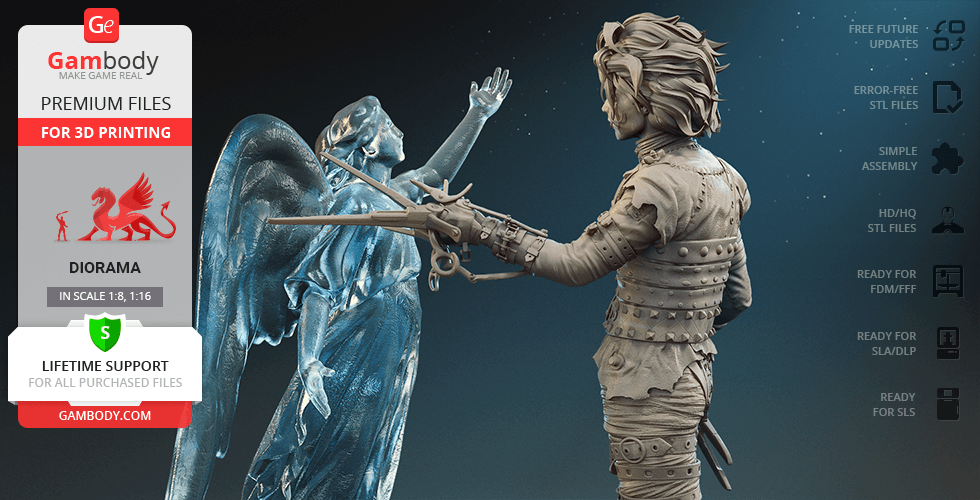

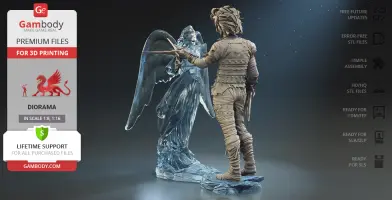

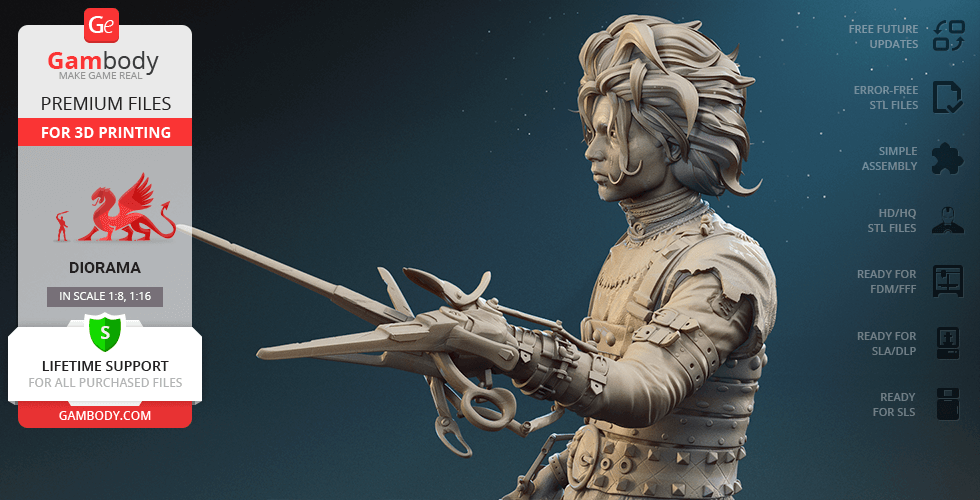

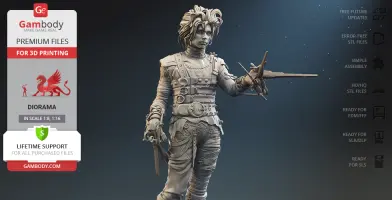

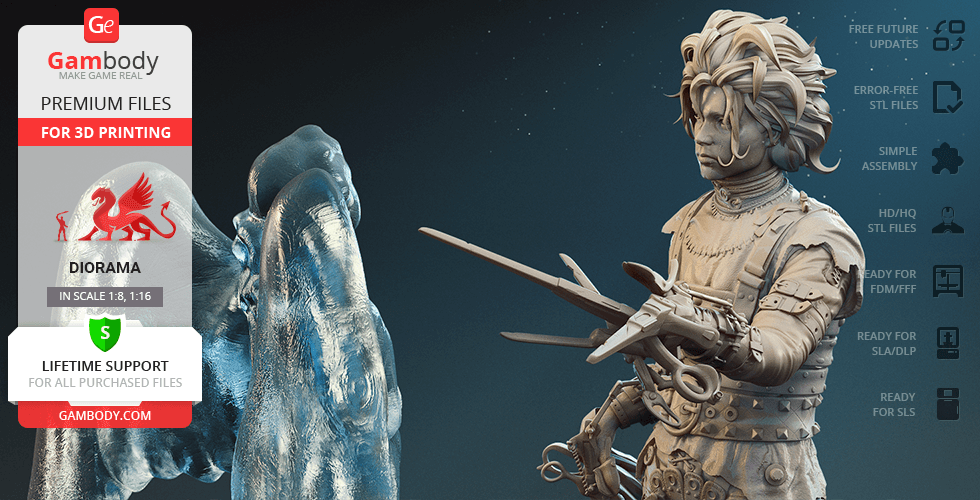

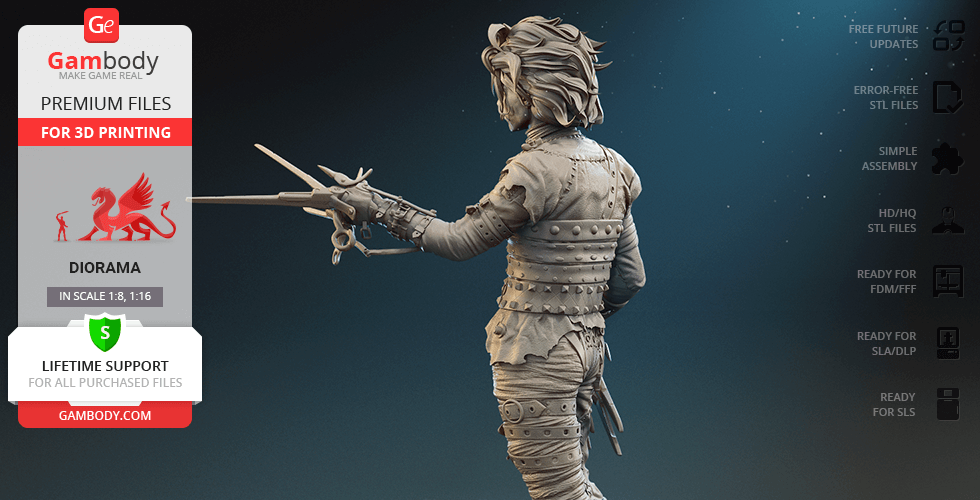

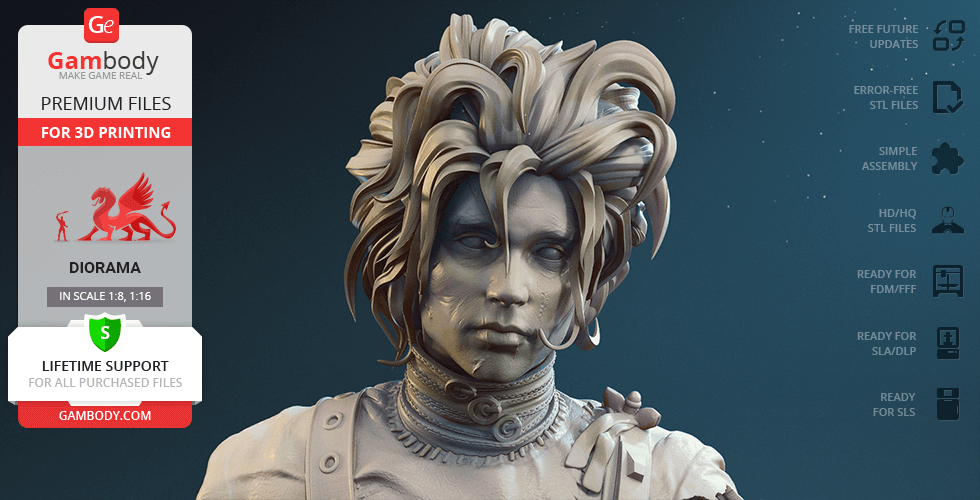

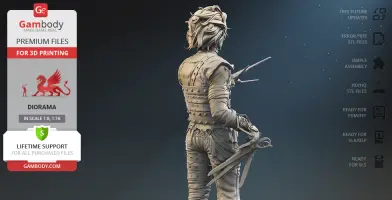

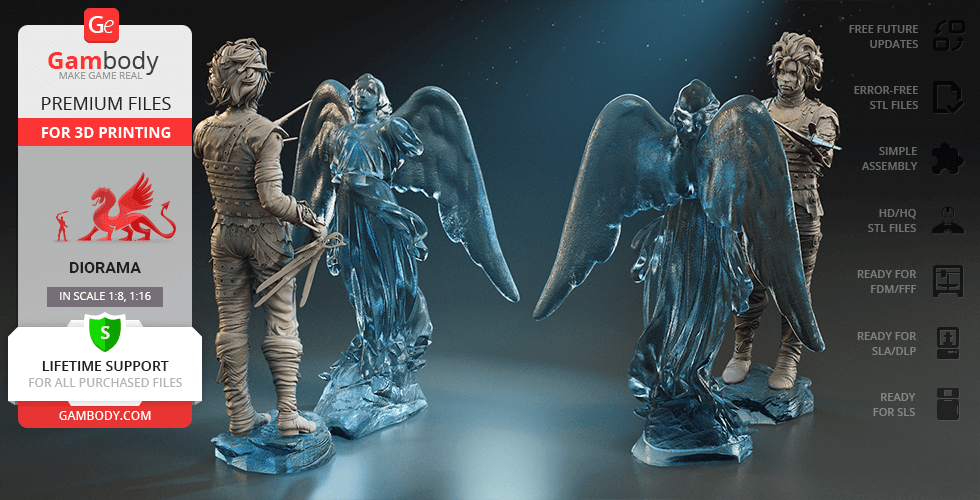

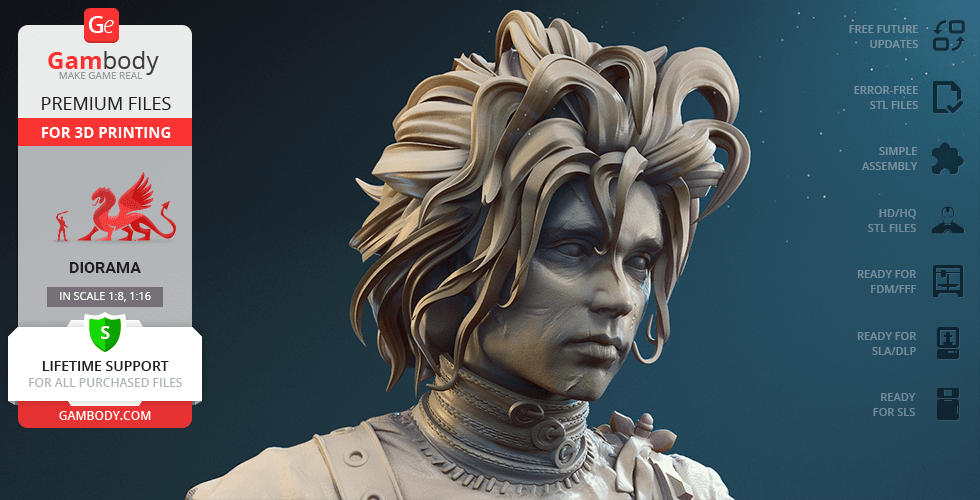

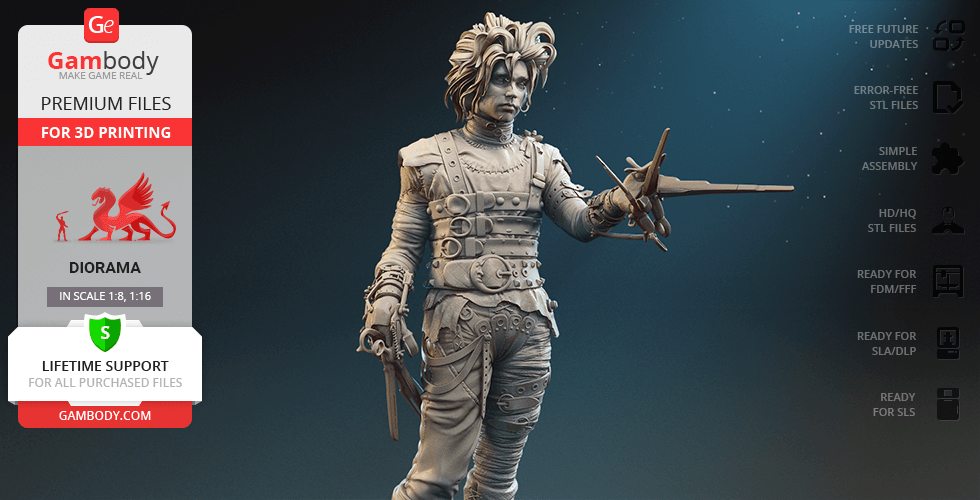

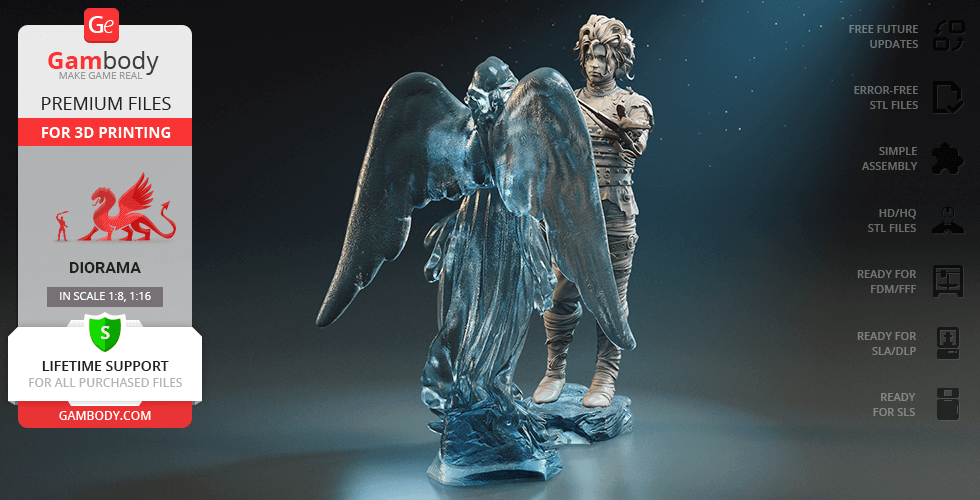

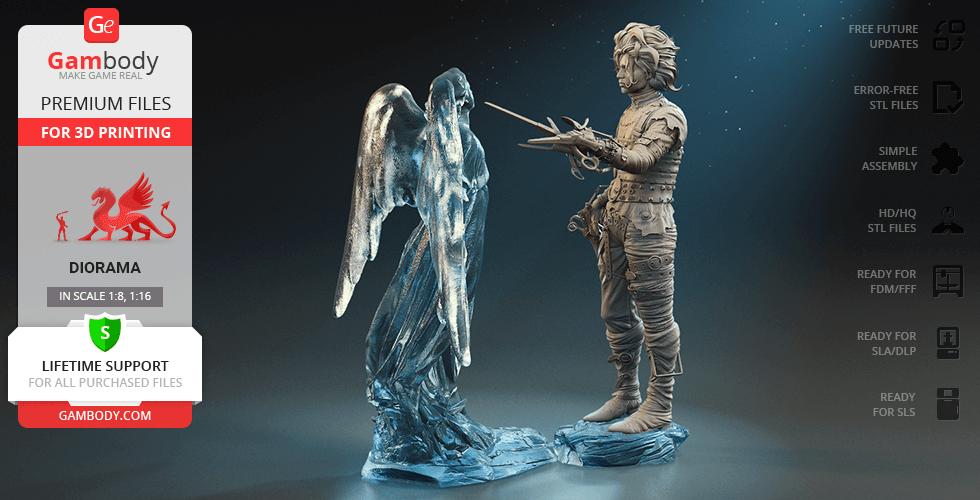

Our contributing 3D artists did a phenomenal job portraying the titular protagonist of the 1990 box office hit. Edward Scissorhands 3D print model seems to be in the middle of carving yet another ice sculpture that is meant to depict his true love dancing under the snow. The author of the model carefully picked the details of Edward’s hairstyle, face scars, clothes, shoes, and masterly sculpted sharp yet gentle blades of the sad man’s scissor hands.

ADAPTATION FOR 3D PRINTING

Edward Scissorhands in Diorama for 3D printing design is a static assembly model and its moderation and adaptation for different types of 3D printers took Gambody team circa 40 hours. The model's anatomy and proportions were thoroughly reviewed during the moderation process for the unusual man to be depicted harmoniously in the intended pose.

The model’s cutting was chosen by our team to minimise the amount of generated support and some of the parts were hollowed out for you to save resin in the Eco version. In order to conceal the places where the assembly parts of the model must be connected, the model was cut along the contour of Edward’s clothes seams. For you to achieve the cleanest 3D printed result, Edward’s head, boots, scissor hands, separate scissor blades, wings and arms of the ice sculpture, etc. are provided as separate assembly parts.

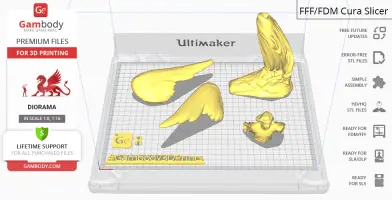

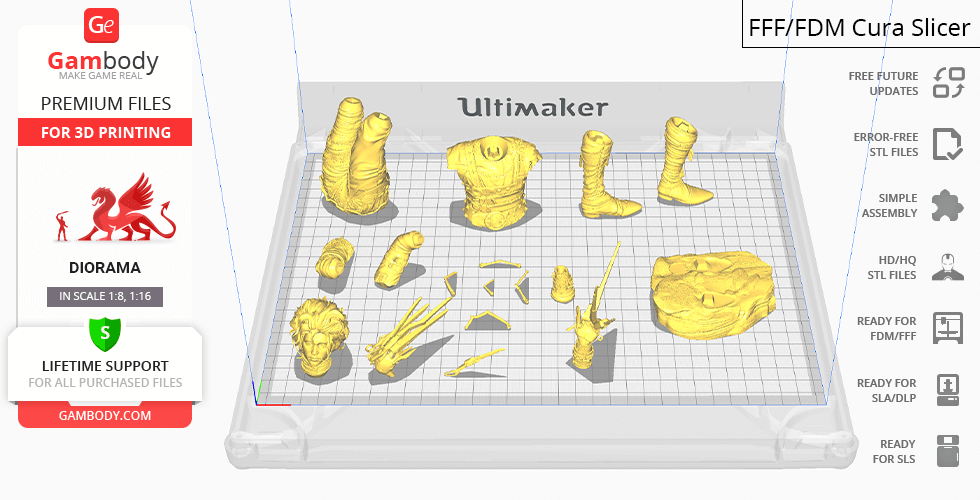

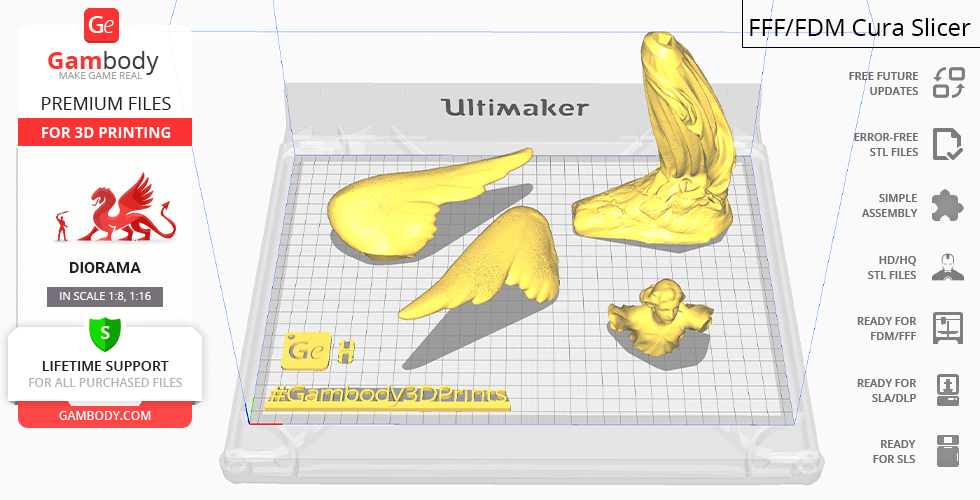

All assembly parts in FFF/FDM versions come in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and so that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for 1.0 FFF/FDM and 1.0 DLP/SLA versions in PDF format.

The 3D print model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

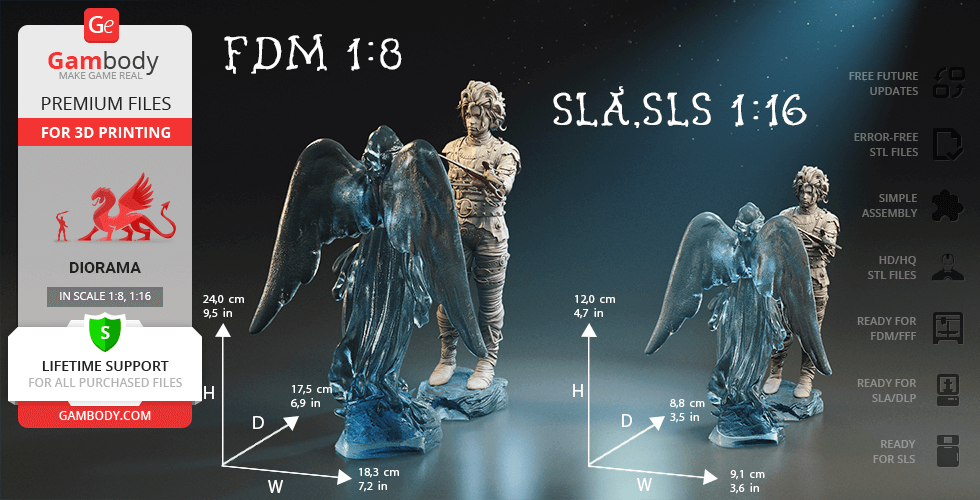

The model's scale was calculated from the approximate height of Edward Scissorhands which is 1780 mm. The 3D printing design's chosen scale is 1:8 for the FFF/FDM version and 1:16 for the DLP/SLA/SLS versions.

VERSIONS' SPECIFICATIONS

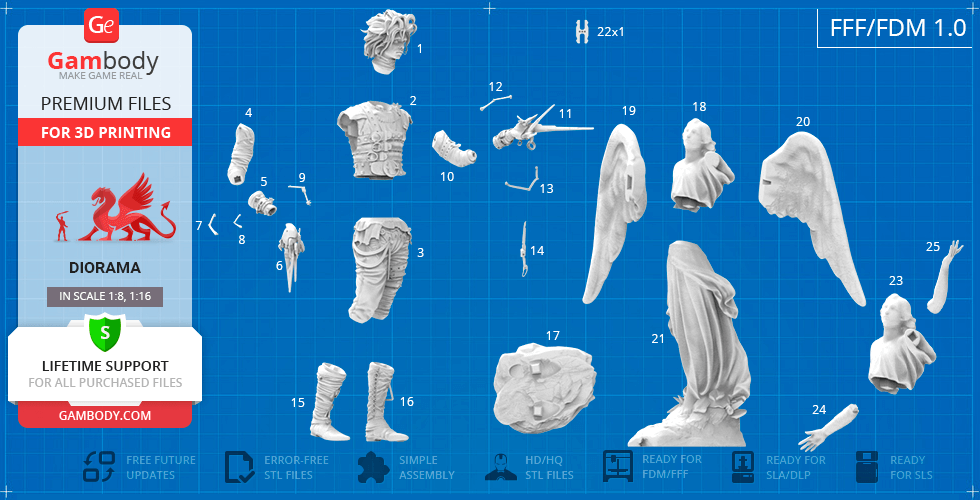

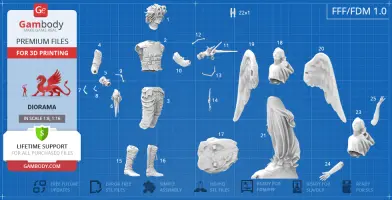

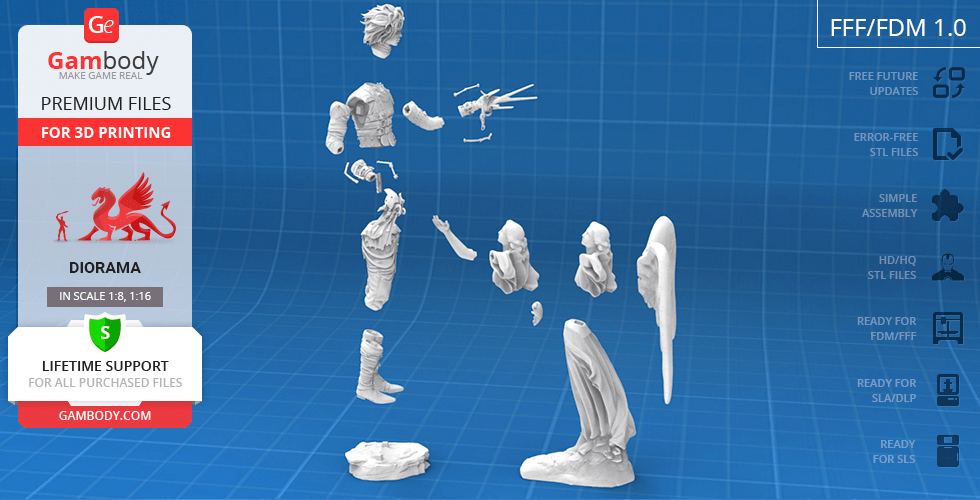

1.0 FFF/FDM version features:

Contains 25 parts;
A printed model is 240 mm tall, 183 mm wide, 175 mm deep;
The assembly kit includes lock 22_ge_lock_10H(x1) to attach the model's legs to the body securely without glue;

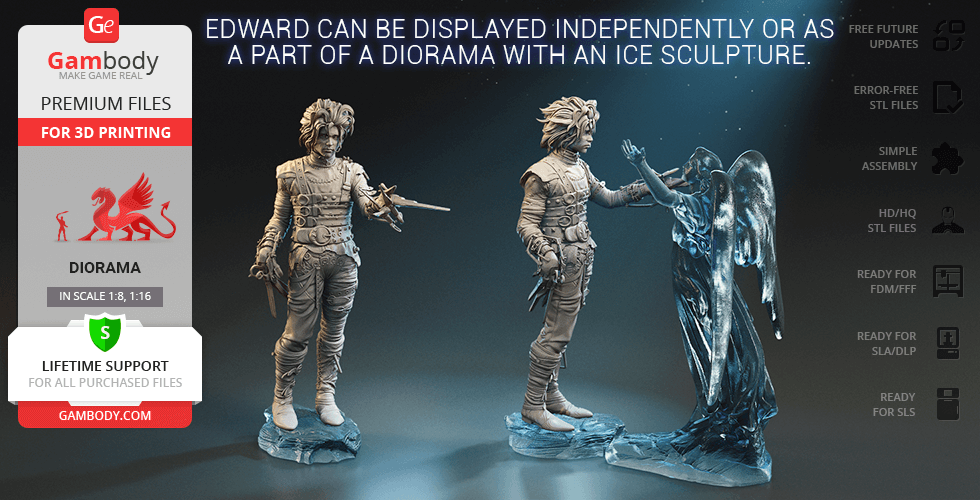

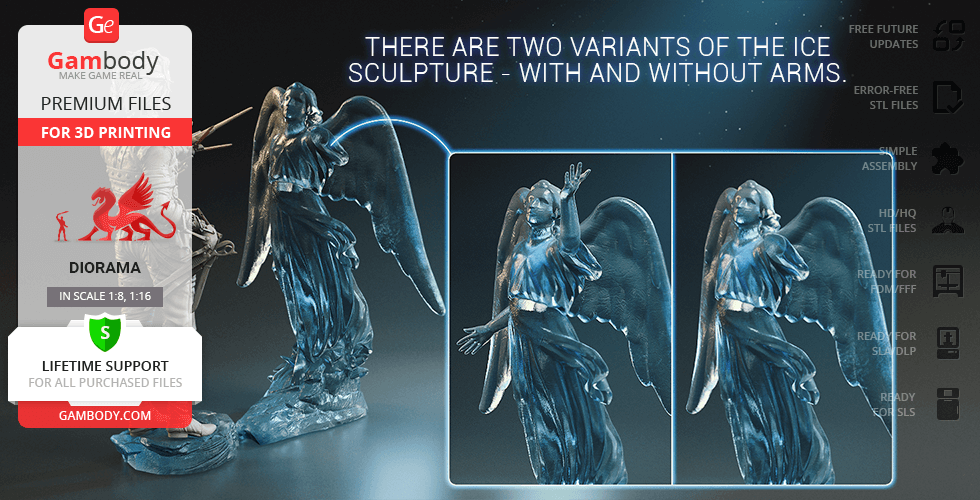

There are two variants of the ice sculpture - with and without arms;
All parts are divided in such a way that you will print them with the smallest number of support structures.

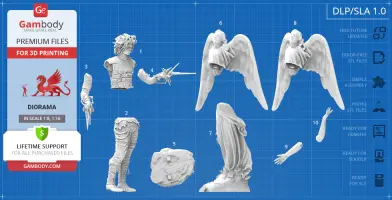

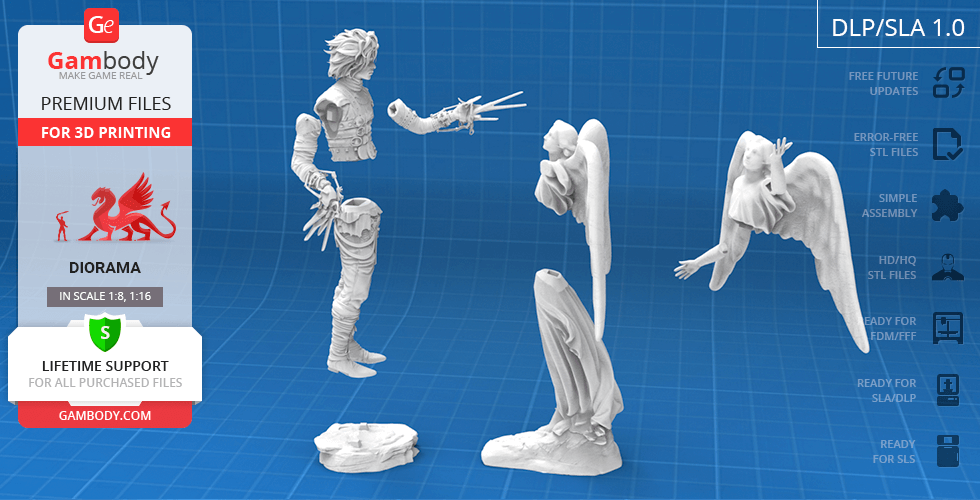

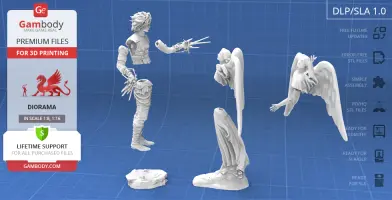

1.0 DLP/SLA version features:

Contains 10 parts;
A printed model is 120 mm tall, 91 mm wide, 88 mm deep;
There are two variants of the ice sculpture - with and without arms;

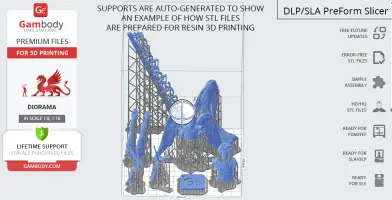

All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

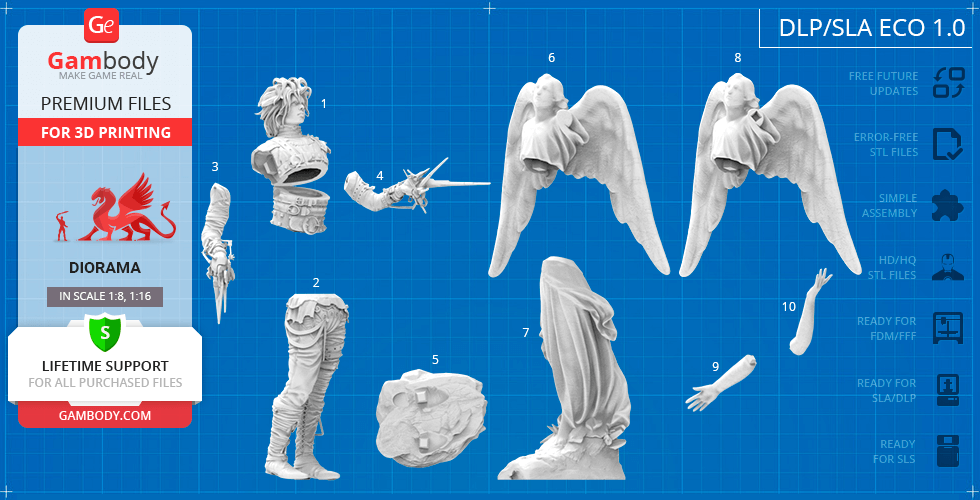

1.0 DLP/SLA Eco version features:

Contains 10 parts;
A printed model is 120 mm tall, 91 mm wide, 88 mm deep;
There are two variants of the ice sculpture - with and without arms;
Contains some hollowed out parts to save resin.

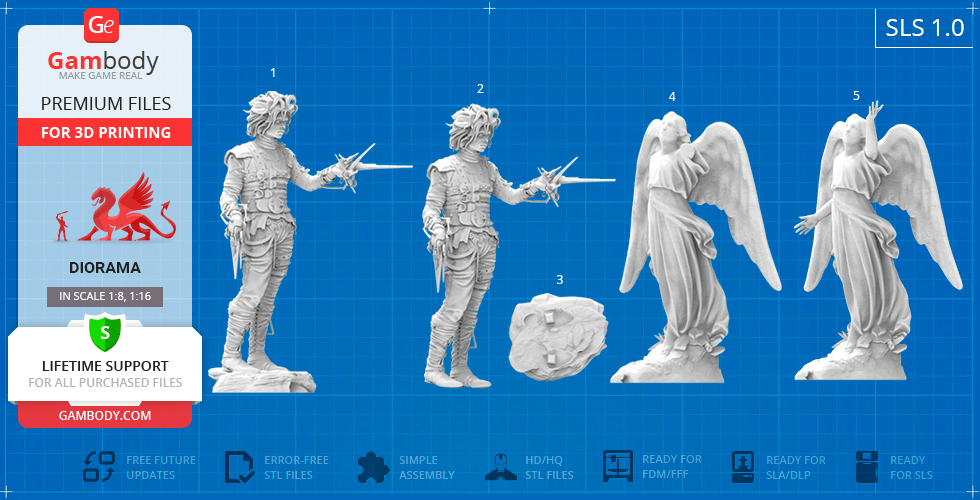

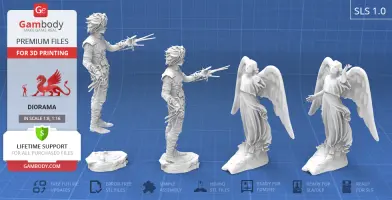

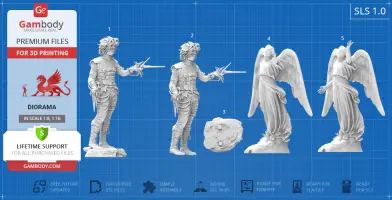

1.0 SLS version features:

Made as a solid one-piece Edward Scissorhands model;
A printed model is 120 mm tall, 91 mm wide, 88 mm deep;
Contains 5 parts - a solid Edward model, an ice sculpture with/without arms and Edward separated from the base.

You can get the STL Files of Edward Scissorhands 3D Print Model immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble the 3D Printed Edward Scissorhands Model from the provided 3D Print Files at Gambody YouTube channel.

Also, you may like other Movie 3D Printing Designs.

_______

FAQ:

Generic

Below you can find printing recommendations for Cura, Bambu Studio, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

Bambu Lab printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Bambu Studio 1.9.1. Test models were printed on the Bambu Lab A1, Bambu Lab A1 Mini, Creality Ender 3 S1, Anycubic Kobra 2, and Anycubic Vyper using PLA and PETG filaments.
