MWO Awesome 3D Printing Files | Assembly + Action

(4)
cm: 29 w x 17.1 d x 30.2 h
in: 11.417 w x 6.732 d x 11.89 h

Source Files

|

Description

|

Printing Details

This 3D model consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

Version 1 and Version 2 are the files for Awesome BattleMech 3D model optimized for 3D printing, the preview pictures of which you see above.

It is recommended:

  • to print Version 1 STL files on FDM/FFF 3D printers;
  • to print Version 2 STL files on DLP/SLA/SLS 3D printers.
File Name File Size Time / Filament Object Size
(x/y/z mm)
3_Axis_2_C_Joint_1_R.stl
0.71 MiB 44 min <1 m 17 x 17 x 42 Download
4_Axis_2_C_Basket_1_R.stl
2.02 MiB 1 h 1 min 1 m 30 x 30 x 16 Download
5_Axis_2_C_Joint_1_L.stl
0.71 MiB 43 min <1 m 17 x 17 x 42 Download
6_Axis_2_C_Basket_1_L.stl
2.02 MiB 1 h 1 min 1 m 30 x 30 x 16 Download
7_Leg_2_R.stl
0.09 MiB 12 h 12 min 8 m 52 x 79 x 72 Download
8_Leg_2_L.stl
0.09 MiB 12 h 13 min 8 m 52 x 79 x 72 Download
9_Axis_1_B_Basket_1_R.stl
1.50 MiB 41 min <1 m 18 x 26 x 14 Download
10_Axis_1_B_Joint_1_R.stl
0.46 MiB 40 min <1 m 13 x 15 x 41 Download
11_Axis_1_B_Basket_1_L.st l
1.50 MiB 41 min <1 m 18 x 26 x 14 Download
12_Axis_1_B_Joint_1_L.stl
0.46 MiB 40 min <1 m 13 x 15 x 41 Download
13_Leg_3_R.stl
0.11 MiB 11 h 19 min 7 m 50 x 75 x 53 Download
14_Leg_3_L.stl
0.11 MiB 11 h 17 min 7 m 50 x 75 x 53 Download
15_Axis_2_C_Joint_2_R.stl
0.71 MiB 42 min <1 m 17 x 17 x 42 Download
16_Axis_2_C_Basket_2_R.st l
2.02 MiB 1 h 1 min 1 m 30 x 30 x 16 Download
17_pelvis.stl
0.33 MiB 13 h 21 min 9 m 57 x 67 x 57 Download
18_Axis_2_C_Basket_2_L.st l
2.02 MiB 1 h 1 min 1 m 30 x 30 x 16 Download
19_Axis_2_C_Joint_2_L.stl
0.71 MiB 42 min <1 m 17 x 17 x 42 Download
20_GE_Connector_C.stl
0.04 MiB 13 min <1 m 30 x 7 x 7 Download
22_arm_1_R.stl
0.57 MiB 12 h 51 min 8 m 37 x 164 x 42 Download
23_arm_2_L.stl
0.40 MiB 13 h 8 min 8 m 55 x 113 x 50 Download
24_GE_Connector_B_1_R.stl
0.12 MiB 16 min <1 m 12 x 12 x 18 Download
25_GE_Connector_B_2_R.stl
0.12 MiB 16 min <1 m 12 x 12 x 18 Download
26_GE_Connector_B_1_L.stl
0.12 MiB 16 min <1 m 12 x 12 x 18 Download
27_GE_Connector_B_2_L.stl
0.12 MiB 16 min <1 m 12 x 12 x 18 Download
30_Axis_2_C_Joint_3_R.stl
0.71 MiB 50 min <1 m 17 x 17 x 51 Download
31_Axis_2_C_Basket_3_R.st l
1.96 MiB 58 min 1 m 30 x 30 x 15 Download
32_Axis_2_C_Joint_3_L.stl
0.71 MiB 50 min <1 m 17 x 17 x 51 Download
33_Axis_2_C_Basket_3_L.st l
1.96 MiB 58 min 1 m 30 x 30 x 15 Download
21_body.stl
2.07 MiB 86 h 57 min 59 m 148 x 129 x 145 Download
28_arm_3_R.stl
0.76 MiB 15 h 30 min 11 m 138 x 78 x 40 Download
29_arm_3_L.stl
0.76 MiB 15 h 29 min 11 m 138 x 79 x 40 Download
4-1_Axis_2_C_Basket_1_R ( repaired).stl
0.06 MiB 38 min <1 m 30 x 30 x 8 Download
4-2_Axis_2_C_Basket_1_R ( repaired).stl
0.22 MiB 21 min <1 m 22 x 22 x 11 Download
6-1_Axis_2_C_Basket_1_L ( repaired).stl
0.06 MiB 38 min <1 m 30 x 30 x 8 Download
6-2_Axis_2_C_Basket_1_L ( repaired).stl
0.22 MiB 21 min <1 m 22 x 22 x 11 Download
9-1_Axis_1_B_Basket_1_R ( repaired).stl
0.03 MiB 31 min <1 m 26 x 18 x 16 Download
9-2_Axis_1_B_Basket_1_R ( repaired).stl
0.24 MiB 15 min <1 m 18 x 19 x 10 Download
11-1_Axis_1_B_Basket_1_L (repaired).stl
0.03 MiB 31 min <1 m 26 x 18 x 16 Download
11-2_Axis_1_B_Basket_1_L (repaired).stl
0.24 MiB 15 min <1 m 18 x 19 x 10 Download
16-1_Axis_2_C_Basket_1_R (repaired).stl
0.06 MiB 38 min <1 m 30 x 30 x 8 Download
16-2_Axis_2_C_Basket_1_R (repaired).stl
0.22 MiB 21 min <1 m 22 x 22 x 11 Download
18-1_Axis_2_C_Basket_1_L (repaired).stl
0.06 MiB 38 min <1 m 30 x 30 x 8 Download
18-2_Axis_2_C_Basket_1_L (repaired).stl
0.22 MiB 21 min <1 m 22 x 22 x 11 Download
31-1_Axis_2_C_Basket_1_R (repaired).stl
0.06 MiB 38 min <1 m 30 x 30 x 8 Download
31-2_Axis_2_C_Basket_1_R (repaired).stl
0.22 MiB 21 min <1 m 22 x 22 x 11 Download
33-1_Axis_2_C_Basket_1_L (repaired).stl
0.06 MiB 38 min <1 m 30 x 30 x 8 Download
33-2_Axis_2_C_Basket_1_L (repaired).stl
0.22 MiB 21 min <1 m 22 x 22 x 11 Download
1_Leg_1_R (repaired).stl
0.24 MiB 6 h 51 min 4 m 58 x 92 x 34 Download
2_Leg_1_L (repaired).stl
0.24 MiB 6 h 52 min 4 m 58 x 92 x 34 Download
...

Face your fear! "Awesome" is here!
Heavy fighting machine with a weight of 80 tons. It was created in 2665 to replace STR-2C Striker. What they produced, not only replaced the aging "Striker", but also became one of the most terrible BattleMechs of all time. The Awesome is built around its impressive all-energy based arsenal and heavy armor making it a highly independent and powerful in assault. Awesome can keep his enemies under siege for a long time so that they can not even recover from fear and wounds.

  Technical specifications

  • Mech type: Inner Sphere
  • Class: Assault
  • Mass: 80 tons
  • Chassis: Technicron Type G
  • Armor: Durallex Heavy
  • Engine: Pitban 240
  • Communications System: Garret T19-G
  • Targeting Tracking System: Dynatec 2780
  • Heat Sinks: 28
  • Speed: 54.0 km/h
  • Armament:
    • RA - 1PPC
    • RT - 1PPC
    • LT - 1PPC
    • HD - Small Laser

Originally built for the Star League out of Technicron's factory on Savannah, the Awesome soon became a common sight in the armies of all the House Lords. And now this sight is available in your house! Huge, fleshy and cubic shape! This giant for a 3D printer was created exactly like your favorite Awesome! Based on the AWS-8Q. And that's not all... All limbs are movable and the torso rotates 360 °
You can replenish your collection with this amazing robot in Gambody Marketplace.

Get Awesome BattleMech 3D Printing files right now! Just click the green Buy button in the
top-right corner of the model’s page. You can pay with PayPal or your credit card.

All STL files for 3D printing have been checked for errors and corrected in Netfabb.
Note: Before starting 3D printing the model, read the Printing Details for CURA 2.3.1 software.

There are 33 parts for FDM version and 6 parts for SLS.
All parts of the joints must be printed at 100% infill.
In the SLS version, a special socket for arms and feet is developed so that you can adjust and
fix them in nine different positions!

FDM version:
- Is 1:60 scale and after being printed will stand 302 mm tall, 290 mm wide, 171 mm deep;
- Is designed to save almost all movable elements its prototype has;
- Has removable hinges that should be printed at 100% infill to make them solid.

SLS/SLA version:
- Is 1:100 scale and will stand 185 mm tall, 172 mm wide, 105 mm deep.
- Has as few details as possible to keep printing costs down.

Watch the tutorial video on how to assemble Awesome BattleMech 3D Printing Miniature at Gambody YouTube channel.

Also Male and female pilots 3D printing miniatures are available for purchase at Gambody. They will become a perfect match for your mech.

________________________

On 07.11.2017 new version of joints have been added.

To use new joints, you do not need to reprint the whole model of your Mech!
You can find detailed picture guidelines about how to use new joints in your model HERE.

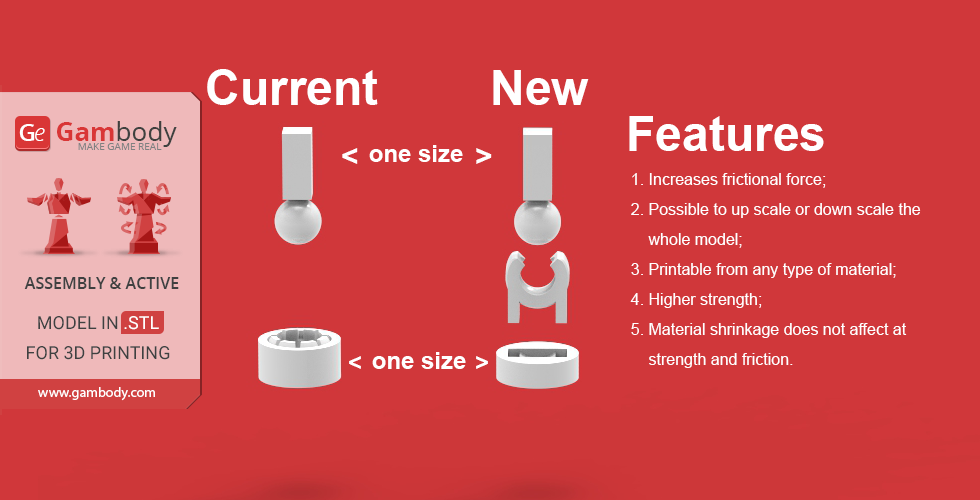

With the new joints you will get next advantages:

  1. Increases frictional force
  2. Possible to up scale or down scale the whole model
  3. Printable from any type of material
  4. Higher strength
  5. Material shrinkage does not affect at strength and friction

STL files are already available for download in “Source files” tab for Version 1 (FDM/FFF 3D printers). You can find them at the end of the list.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

This model was tested in Cura 2.7.0. and print on an Ultimaker 2 in PLA material.

Note:

- You can print new joints with 20-30% infill.
- With the new joints you can up scale or down scale the whole model.

- All parts of connectors should be printed at 100% infill.

- You should print old joints with 100% infill.
- With the old joints do not try to up scale or down scale the whole model since it will not be assemble or movable after scale changes.
- Using the PLA material you should increase the scale of old joints at 2-3% in your slicing program.
- Using the ABS/CPE material you should increase the scale of old joints at 1% in your slicing program.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
   Top/Bottom Line Width: 0.4 mm
   Infill Line Width: 0.4 mm
   Skirt/Brim Line Width: 0.4 mm
   Support Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Shortest
Ignore Small Z Gaps: Check

Infill
Infill Density: 20%

Infill Line Distance: 3.5 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill Overlap Percentage: 10%
    Infill Overlap: 0.4 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Material
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 20 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 40 mm/s
      Outer Wall Speed: 30 mm/s
      Inner Wall Speed: 40 mm/s
    Top/Bottom Speed 20 mm/s
    Support Speed: 30 mm/s
      Support Infill Speed: 30 mm/s
Travel Speed: 120 mm/s
Initial Layer Speed: 30 mm/s

    Initial Layer Print Speed: 30 mm/s
    Initial Layer Travel Speed: 72 mm/s
Skirt/Brim Speed: 30 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.6562 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.27 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Enable Support: Check
Support Placement: Everywhere
Support Overhang Angle: 50°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 2.3333 mm
Support Z Distance: 0.15 mm
    Support Top Distance: 0.15 mm
    Support Bottom Distance: 0.15 mm
Support X/Y Distance: 0.8 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 15
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Extra Skin Wall Count: 0

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
