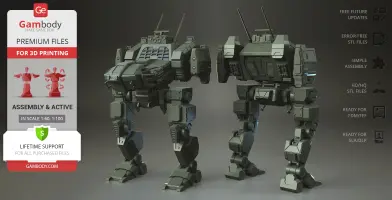

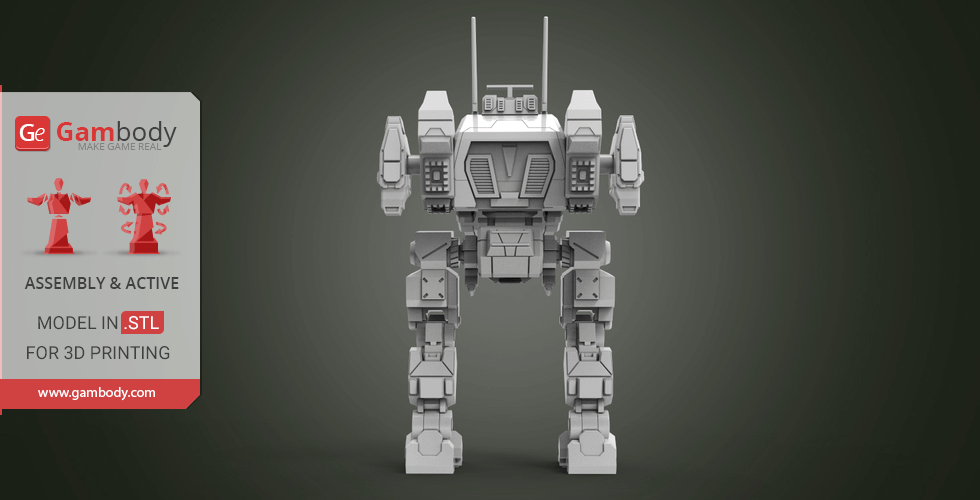

MWO Jenner 3D Printing Model | Assembly + Action

(3)
cm: 13.1 w x 13.5 d x 21.8 h
in: 5.157 w x 5.315 d x 8.583 h

Source Files

|

Description

|

Printing Details

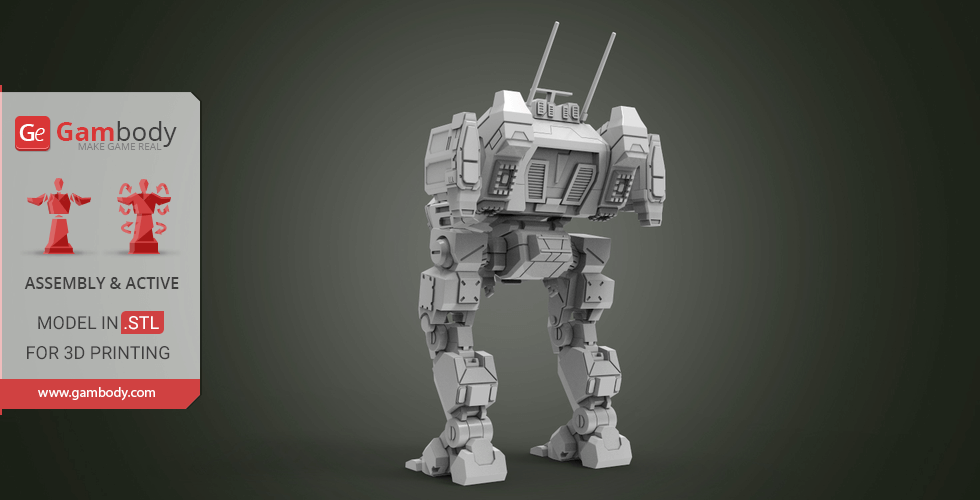

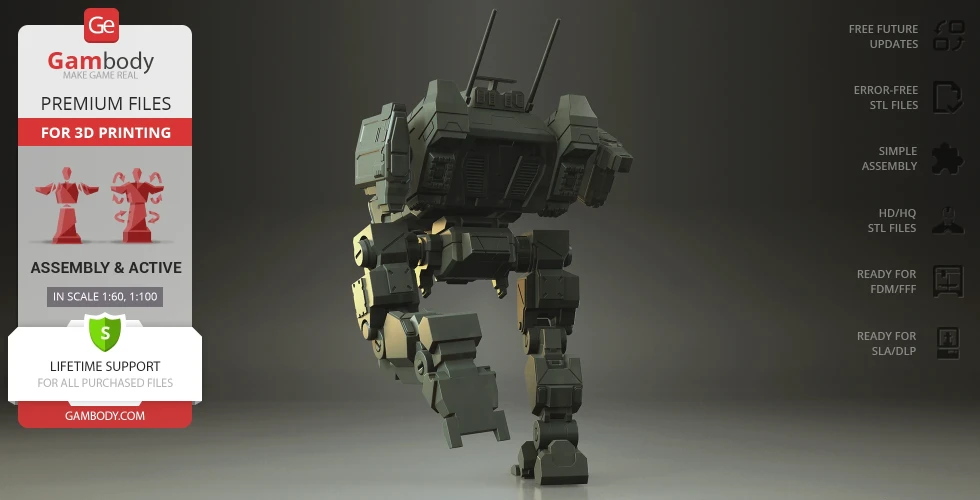

This 3D Model of MWO Jenner consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

  • 2 updated + 2 initial versions of MWO Jenner STL files for FFF/FDM and DLP/SLA - files for all versions are available for download after the purchase
  • STL files of high-poly MWO Jenner 3D Model for 3D printing

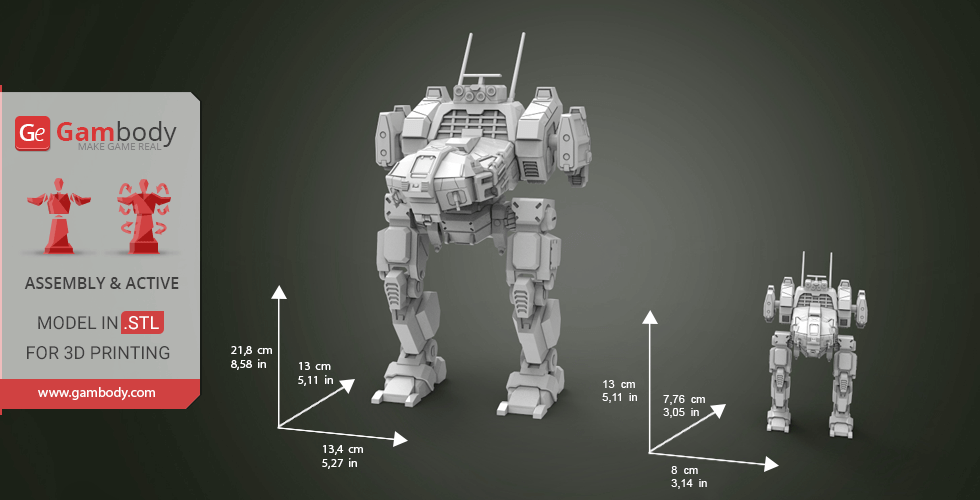

  • Sizes:
  • FFF/FDM: 218 mm tall, 134 mm wide, 130 mm deep
  • DLP/SLA/SLS: 130 mm tall, 80 mm wide, 77 mm deep
  • Detailed settings that we provide as a recommendation for Cura, Simplify3D and Slic3r for the best print- Full technical support from the Gambody Support Team
  • Detailed information about this 3D printing model is available in the DESCRIPTION section.

Available versions:

  • FFF/FDM 1.0 & DLP/SLA/SLS 1.0 versions - versions with outdated joints for filament printers;
  • FFF/FDM 1.1 & DLP/SLA/SLS 1.1 versions - the latest updated versions with fully reworked joints for filament and resin 3D printers accordingly.

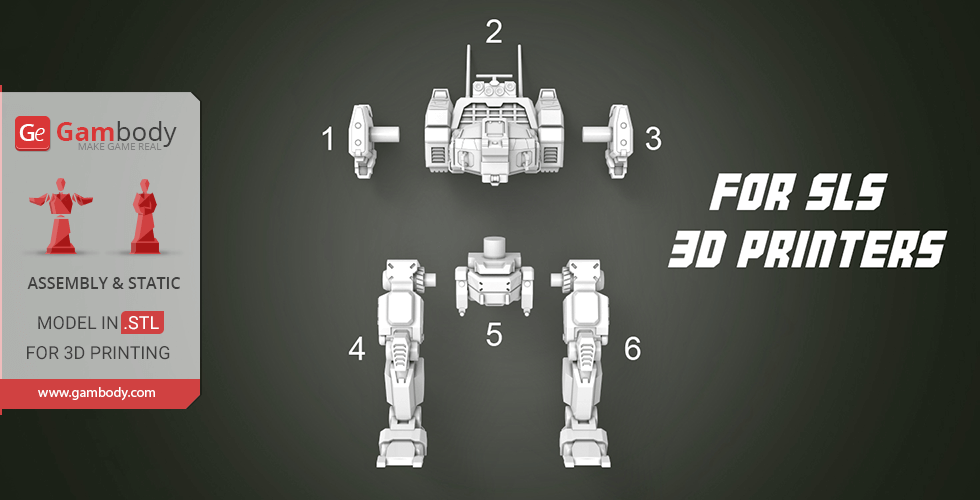

File Name File Size Time / Filament Object Size
(x/y/z mm)

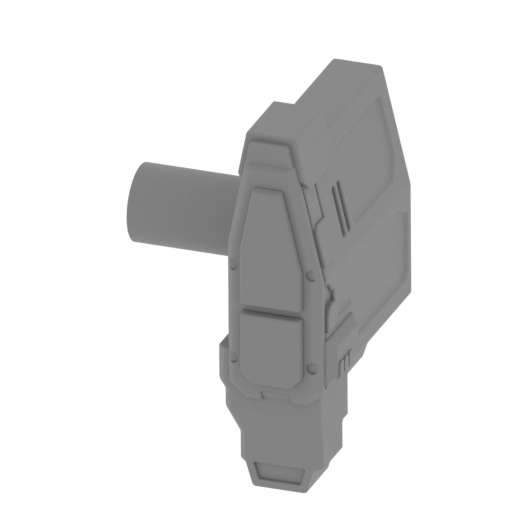

1_gun_R.stl
0.82 MiB 21 min <1 m 14 x 15 x 21 Download
2_body.stl
7.12 MiB 3 h 27 min 2 m 38 x 58 x 45 Download

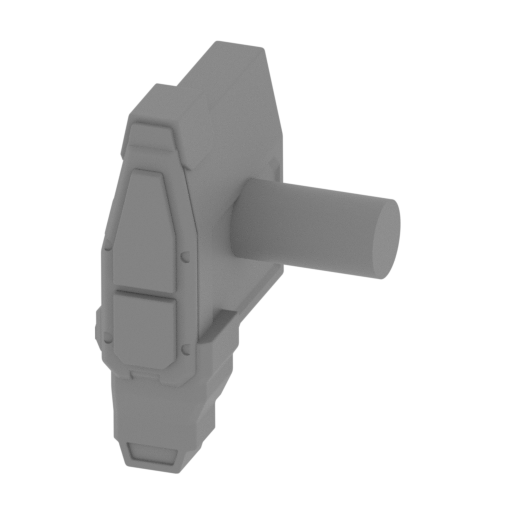

3_gun_L.stl
0.82 MiB 21 min <1 m 14 x 15 x 21 Download

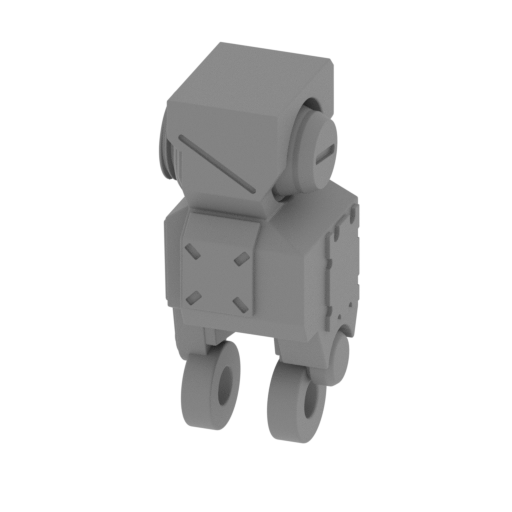

4_leg_R.stl
11.38 MiB 1 h 32 min 1 m 15 x 25 x 53 Download

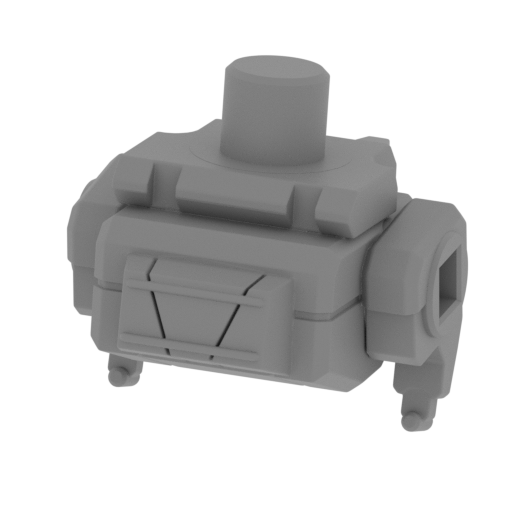

5_pelvis.stl
1.01 MiB 48 min <1 m 21 x 22 x 21 Download
6_leg_L.stl
11.40 MiB 1 h 33 min 1 m 15 x 25 x 53 Download

ABOUT THIS 3D MODEL

Jenner... national pride of the Draconis Combine.

It was Introduced in 2784. Designed, produced and solely used by the Combine, the Jenner was meant to be a fast guerrilla fighter which would go on to form the foundation for highly mobile lances. Five Smithson Lifter jump jets, two in each side torso and one in the center torso, gave it a jumping distance of 150 meters, while its 245-rated Magna fusion engine allowed for a top speed of over 118 km/h, making it faster than most other Mechs. So was creating a good mix of speed and firepower, compared to other Mechs in the same weight range.

ADAPTATION FOR 3D PRINTING

MWO Jenner for 3D printing is an active assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 30 hours in total.

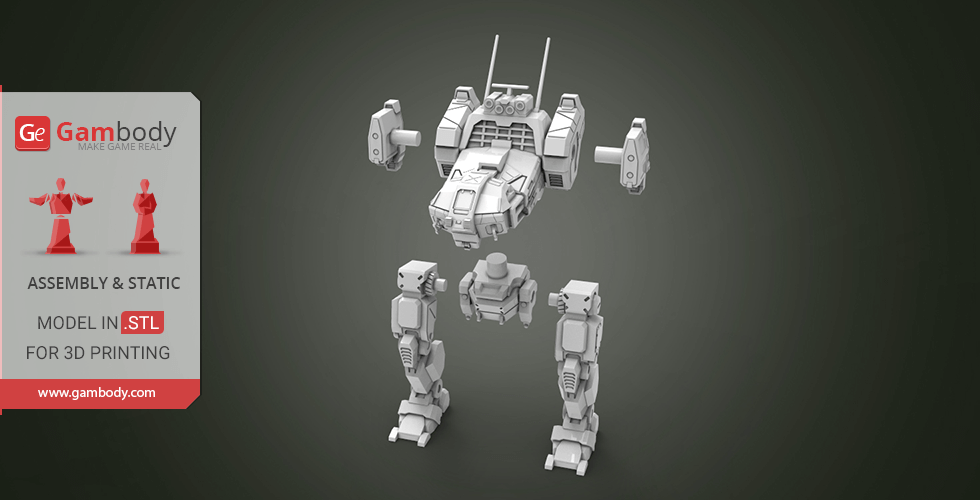

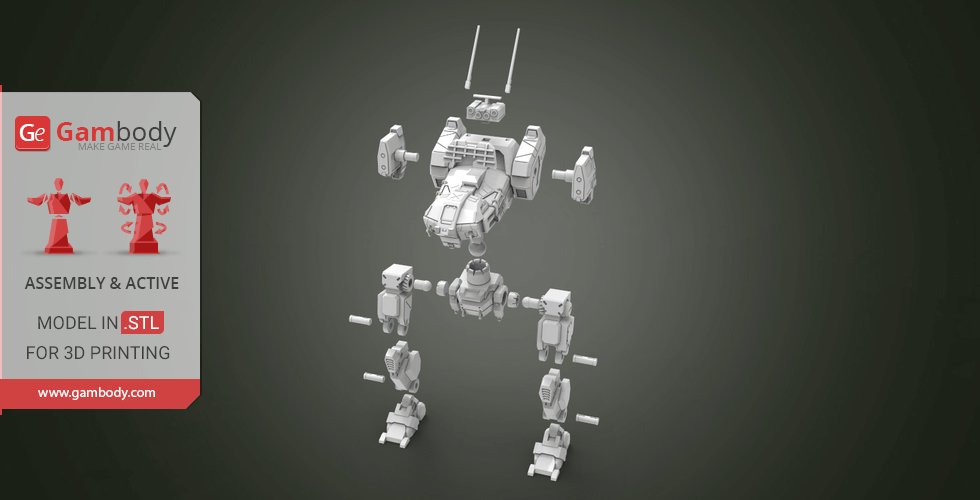

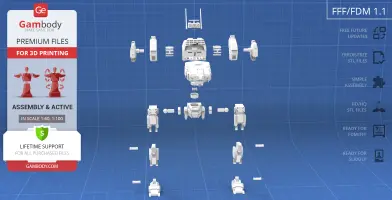

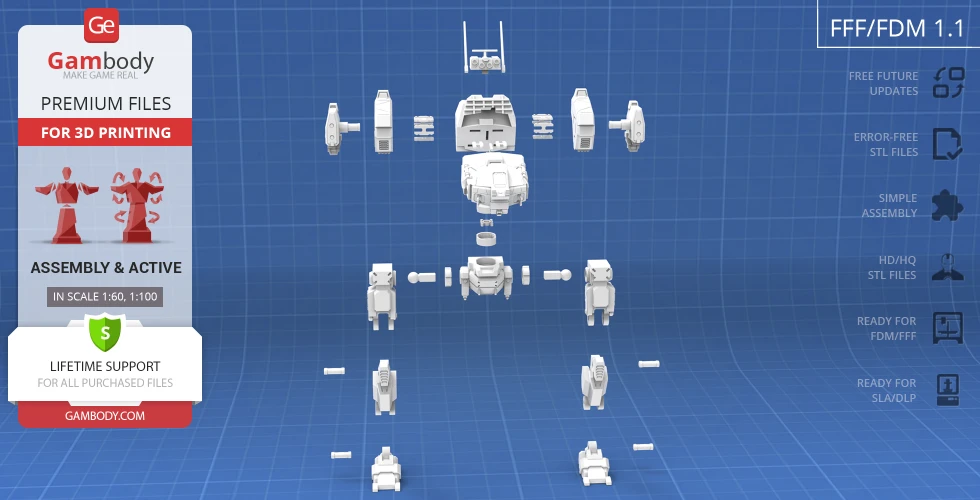

For you to receive the cleanest 3D printing result possible and to minimize the amount of filament needed for generated support, the MWO Jenner model was divided into many assembly parts.

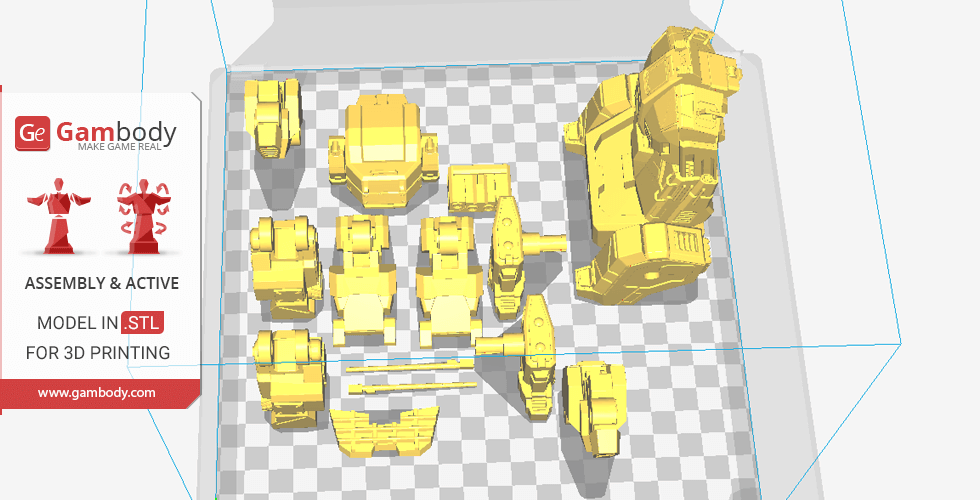

All assembly parts in the FFF/FDM versions are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. We highly recommend that you get acquainted with the “Assembly video” before getting down to the MWO Jenner model.

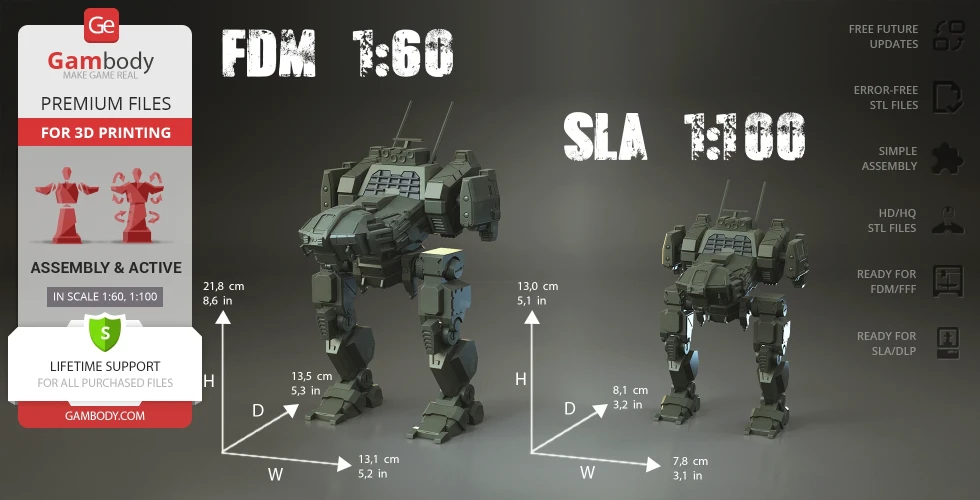

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.The 3D printing model’s chosen scales are 1:60 for the FFF/FDM version and 1:100 for the DLP/SLA version.

VERSIONS' SPECIFICATIONS

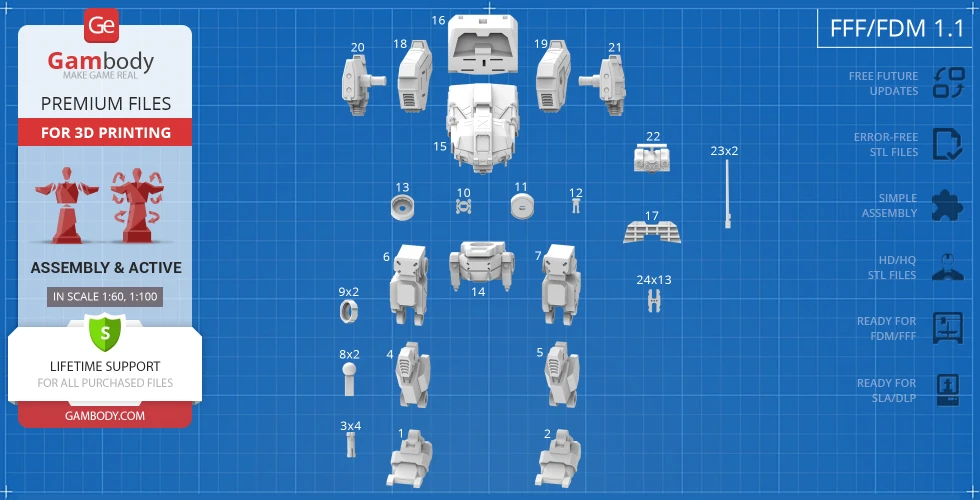

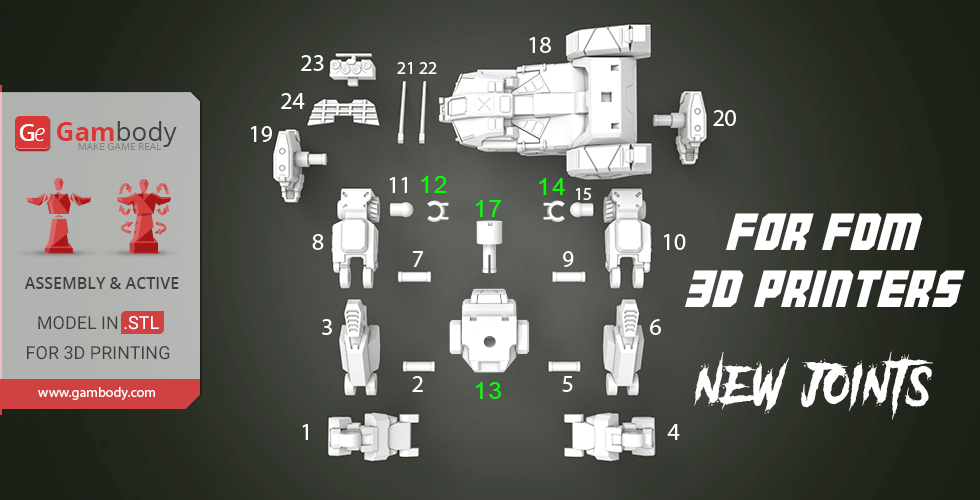

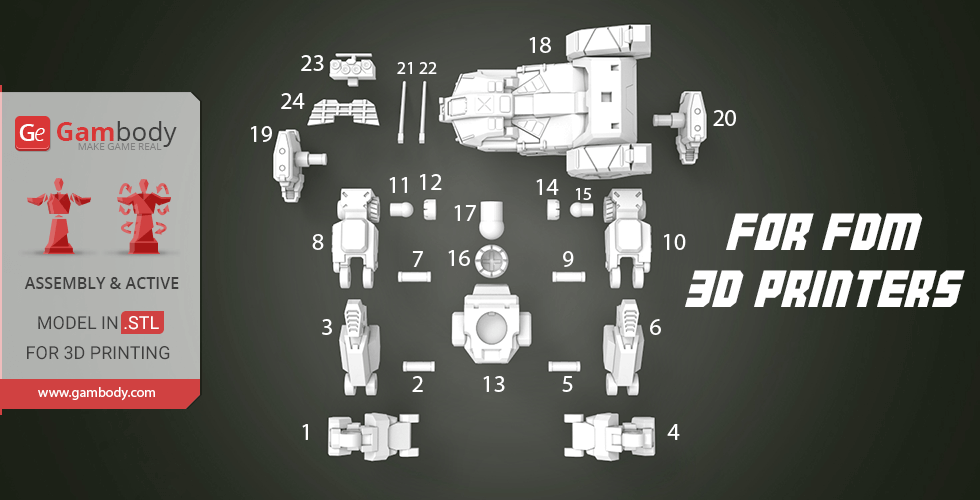

FFF/FDM 1.1 version features:

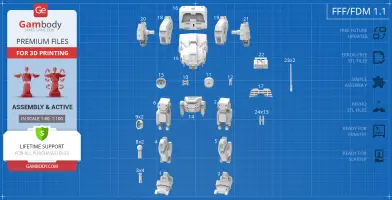

  • Contains 24 parts;
  • A printed model stands 324 mm tall, 241 mm wide, 131 mm deep;

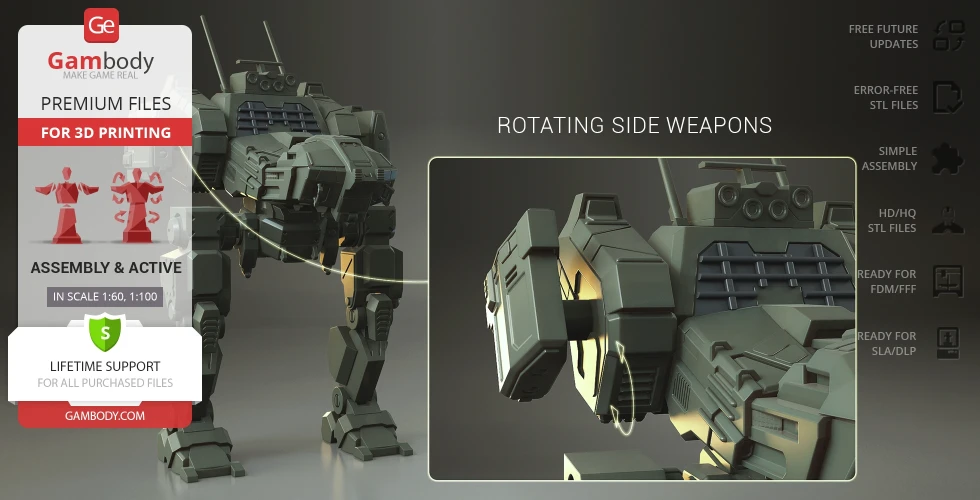

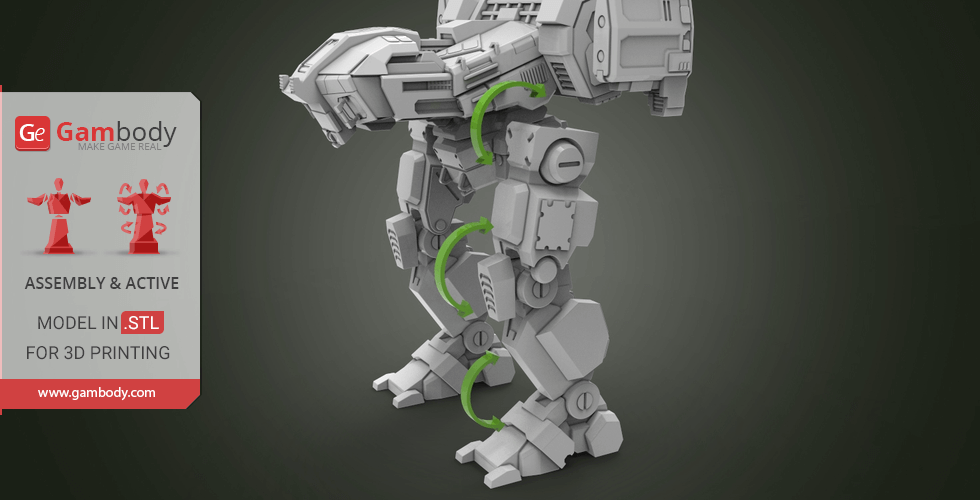

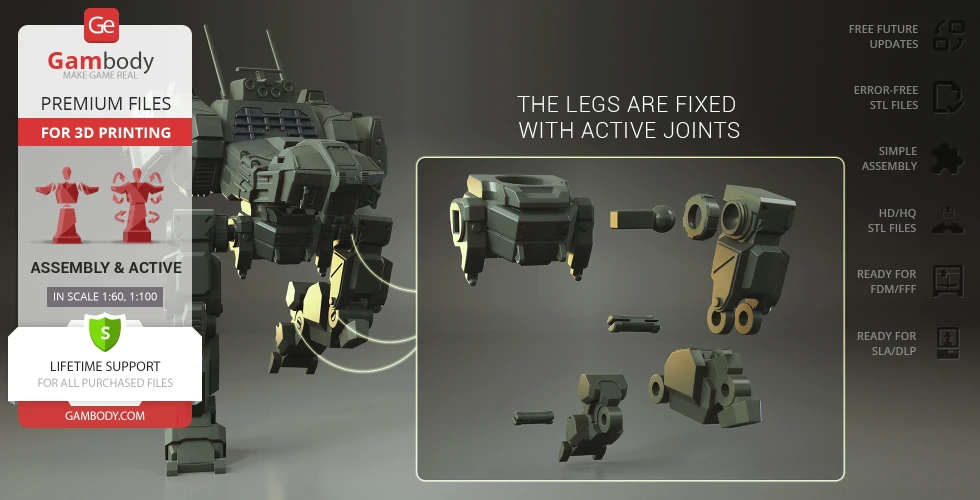

  • Fully articulated model;

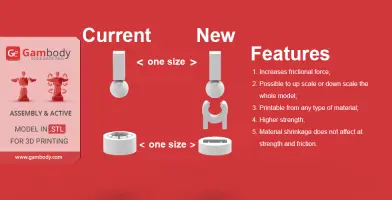

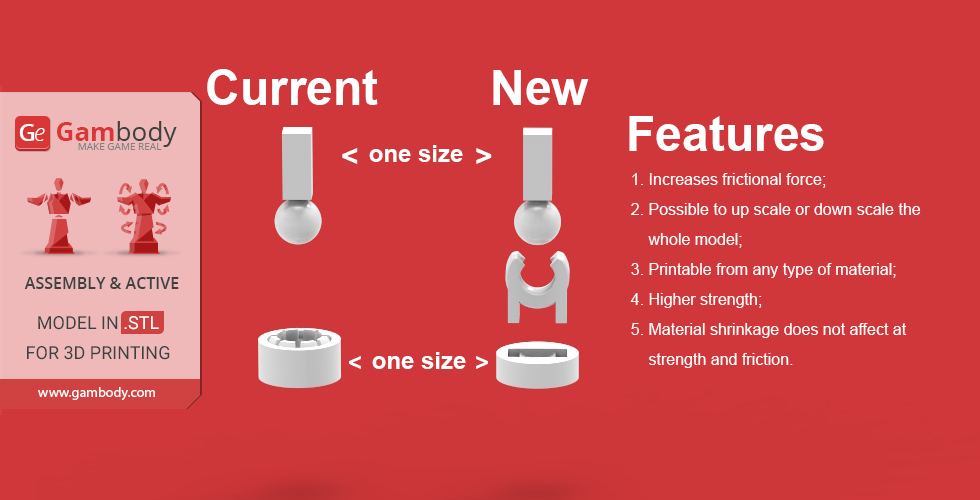

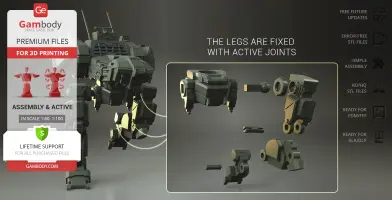

  • Completely reworked joints;
  • All parts are divided in such a way that you will print them with the smallest number of support structures.

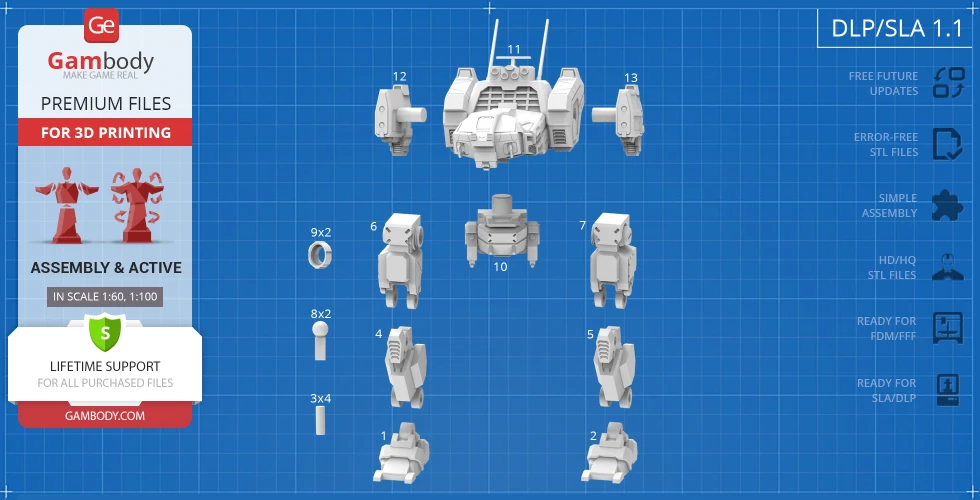

DLP/SLA/SLS 1.1 version features:

  • Contains 13 parts;
  • A printed model stands 194 mm tall, 145 mm wide, 79 mm deep;
  • Fully articulated model;
  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

FFF/FDM 1.0 & DLP/SLA/SLS 1.0 versions' features:

  • The previous versions of MWO Jenner;
  • Feature outdated joints.

You can get the model of MWO Jenner for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial video on how to assemble Jenner MWO 3D Printing Model on Gambody YouTube channel

_______

FAQ:

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

  • You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

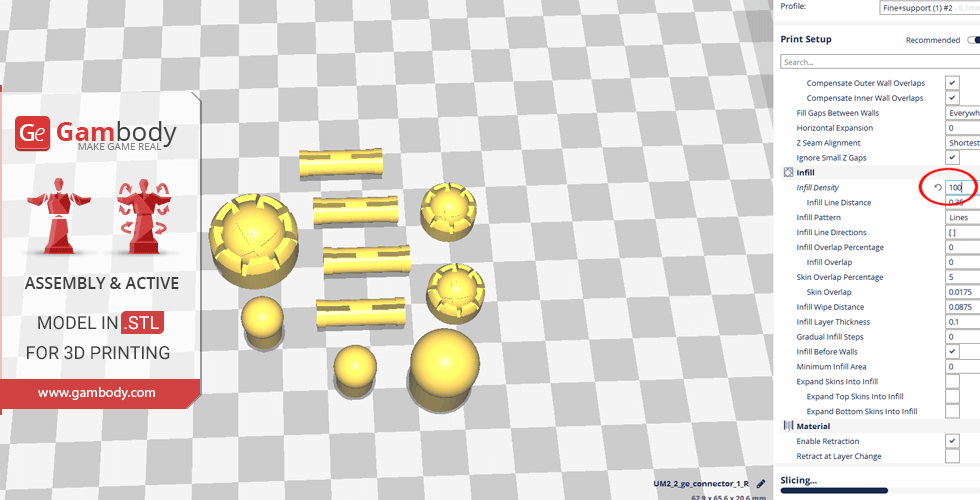

  • All connectors should be printed at 100% Infill.

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
