MWO Catapult Weapon Pack for 3D Printing | Assembly

(8)
cm: 17.6 w x 14.3 d x 25 h
in: 6.929 w x 5.63 d x 9.843 h

Source Files

|

Description

|

Printing Details

These 3D models consist of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

Three versions of the MWO Catapult Weapon Pack for 3D Printing:

FFF/FDM 1.0 version of the Weapon Pack - for the old FDM versions of Mech;
FFF/FDM 2.0 version of the Weapon Pack - for the new FDM versions of the Mech in 1/60 scale;
DLP/SLA/SLS 1.0 version of the Weapon Pack - for the new DLP/SLA/SLS version of the Mech in 1/100 scale.

File Name File Size Time / Filament Object Size
(x/y/z mm)

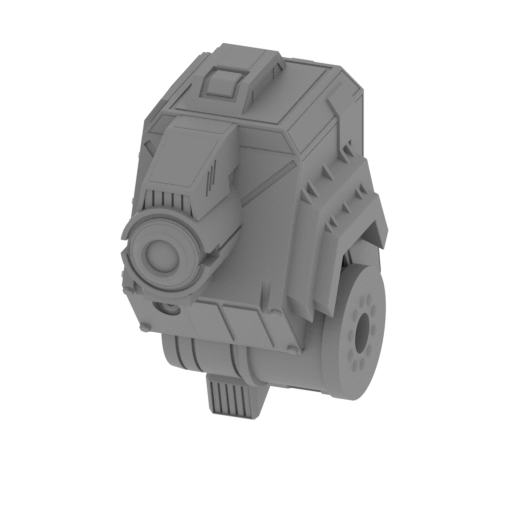

catapult_guns pack 1-1.st l
1.73 MiB 12 h 30 min 8 m 44 x 76 x 77 Download

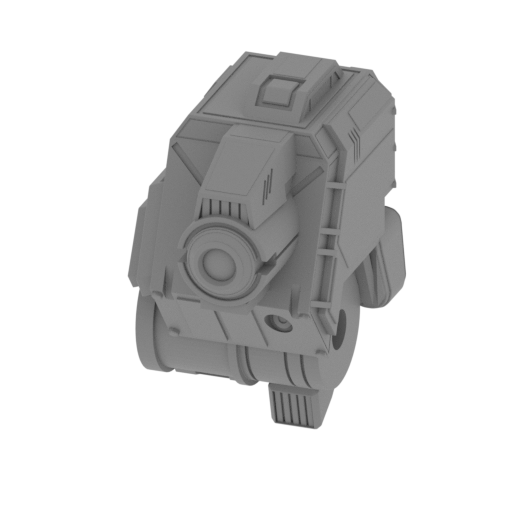

catapult_guns pack 1-2.st l
1.73 MiB 12 h 27 min 8 m 44 x 76 x 77 Download

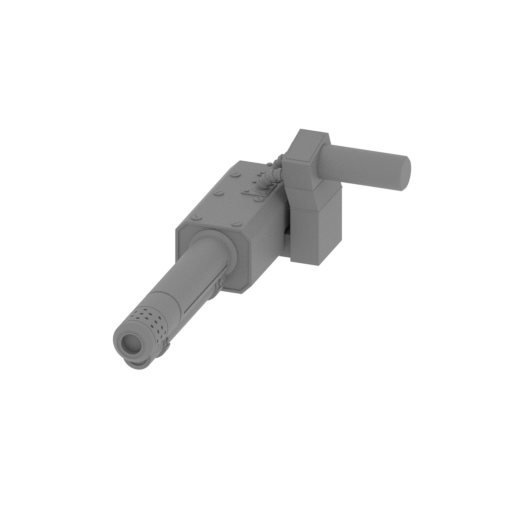

catapult_guns pack 1-3.st l
0.89 MiB 52 min <1 m 28 x 54 x 17 Download

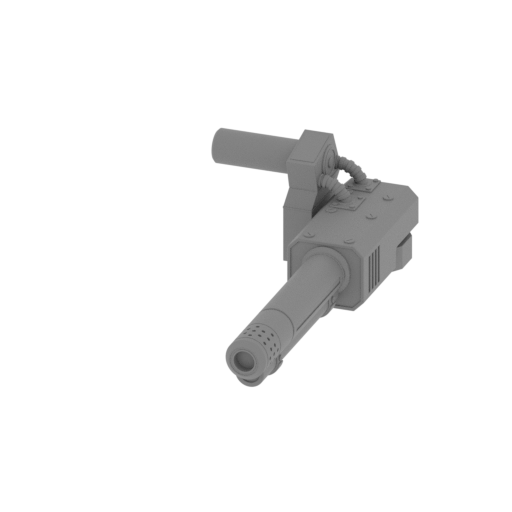

catapult_guns pack 1-4.st l
0.89 MiB 52 min <1 m 28 x 54 x 17 Download

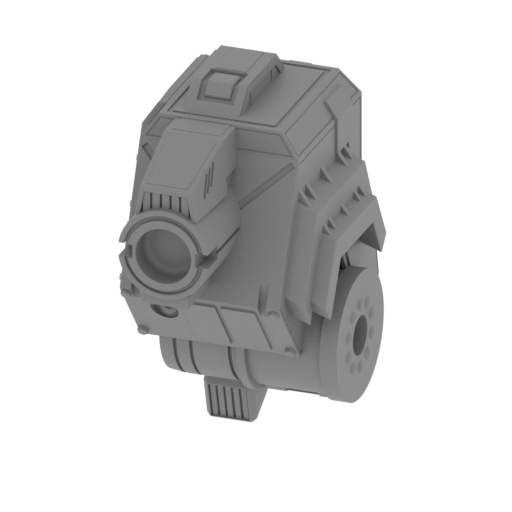

catapult_guns pack 2_1.st l
1.69 MiB 12 h 28 min 8 m 44 x 73 x 77 Download

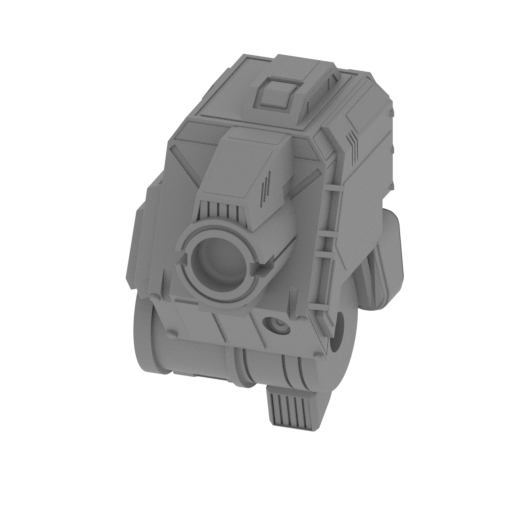

catapult_guns pack 2-2.st l
1.69 MiB 12 h 27 min 8 m 44 x 73 x 77 Download

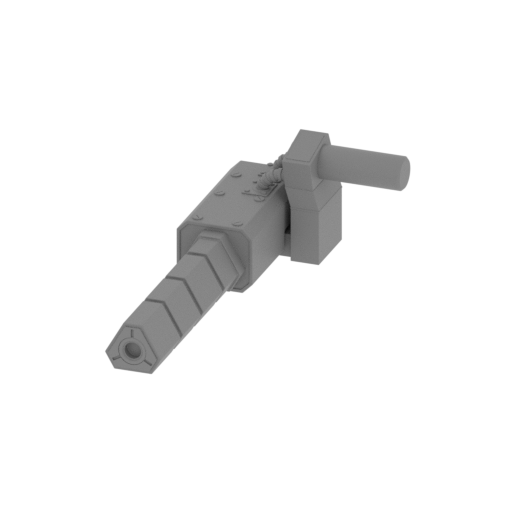

catapult_guns pack 2-3.st l
0.61 MiB 51 min <1 m 28 x 55 x 17 Download

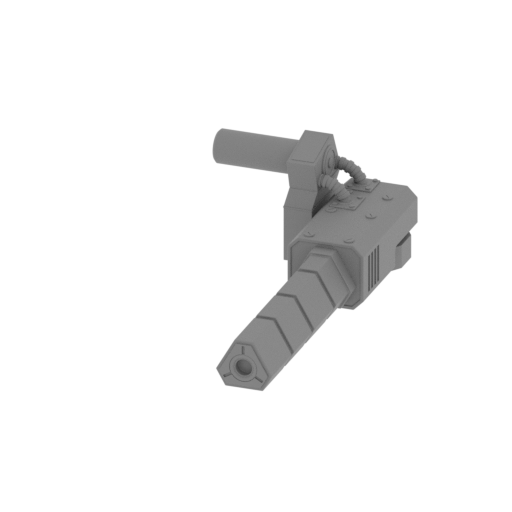

catapult_guns pack 2-4.st l
0.61 MiB 52 min <1 m 28 x 55 x 17 Download

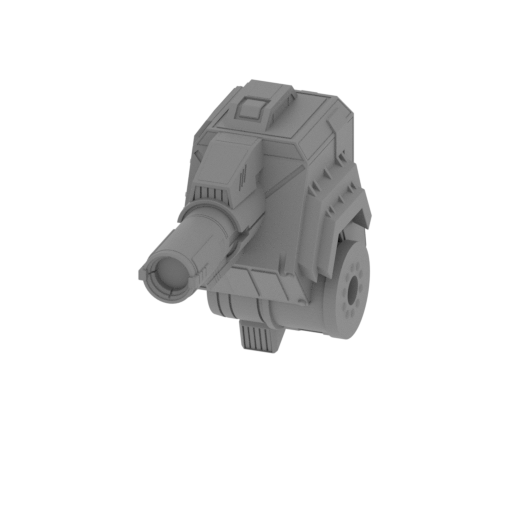

catapult_guns pack 3-1.st l
1.95 MiB 14 h 24 min 10 m 44 x 106 x 77 Download

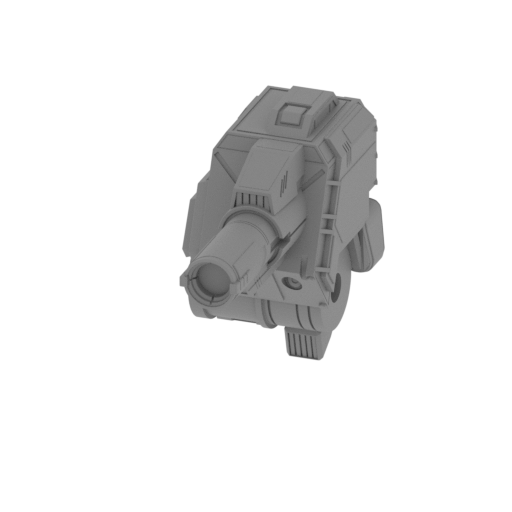

catapult_guns pack 3-2.st l
1.95 MiB 14 h 24 min 10 m 44 x 106 x 77 Download

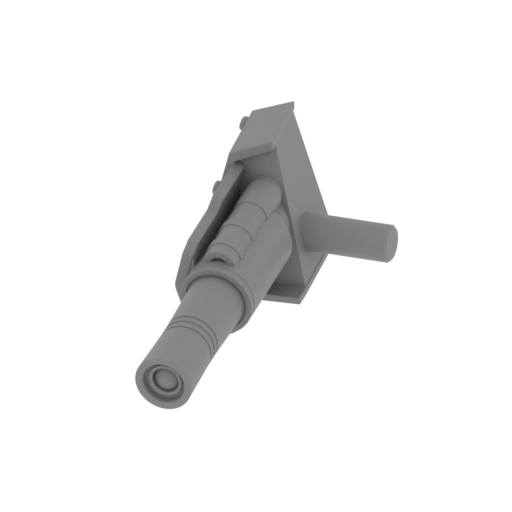

catapult_guns pack 3-3.st l
0.66 MiB 1 h 1 min 1 m 24 x 50 x 24 Download

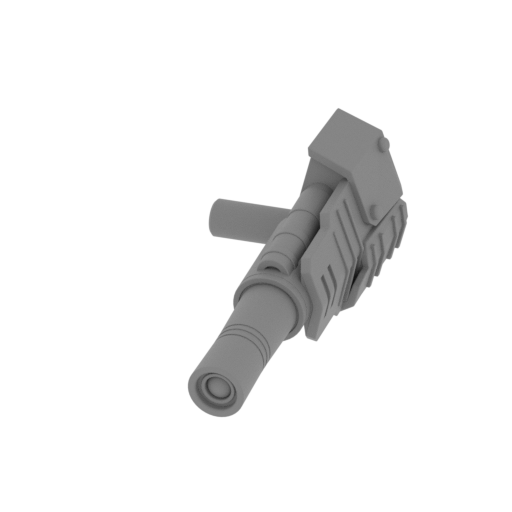

catapult_guns pack 3-4.st l
0.66 MiB 1 h 1 min 1 m 24 x 50 x 24 Download
...

ABOUT THIS 3D MODEL

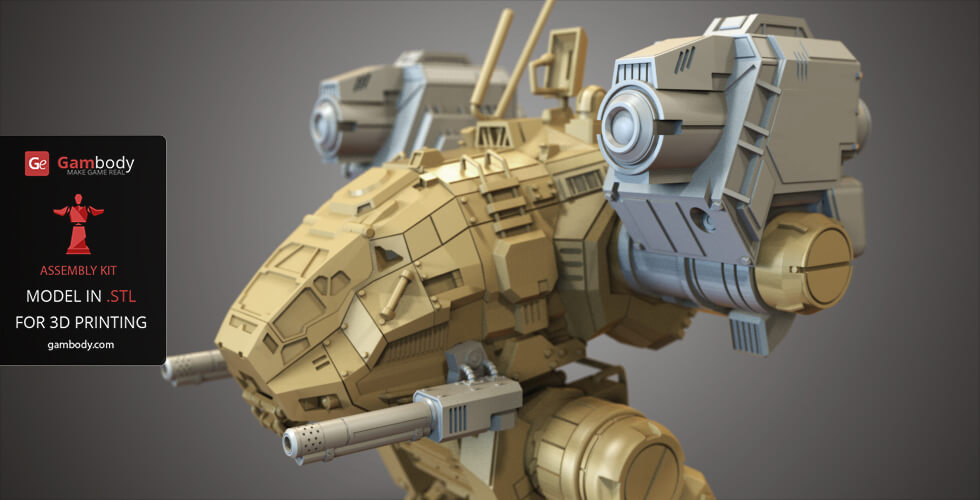

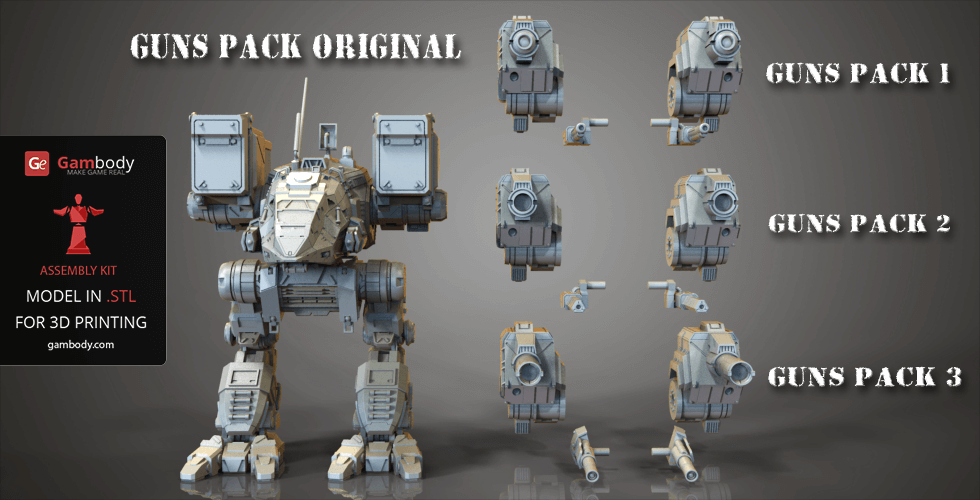

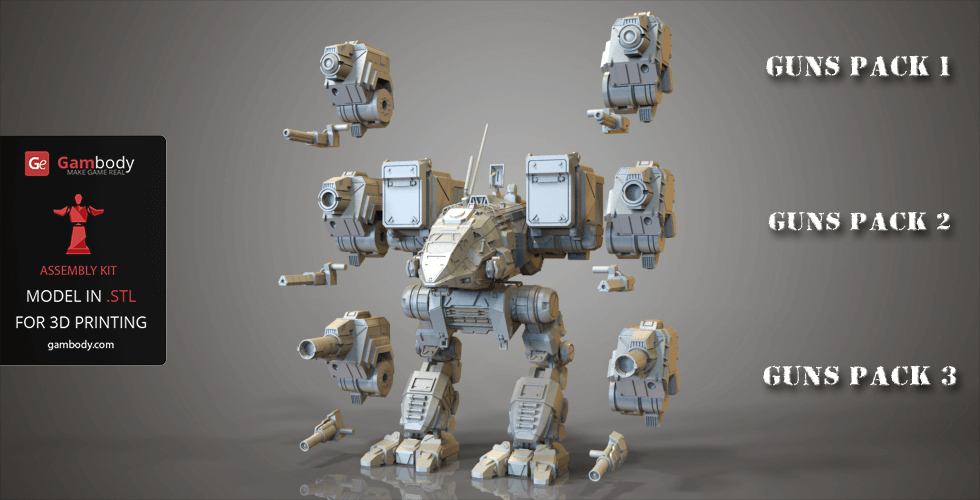

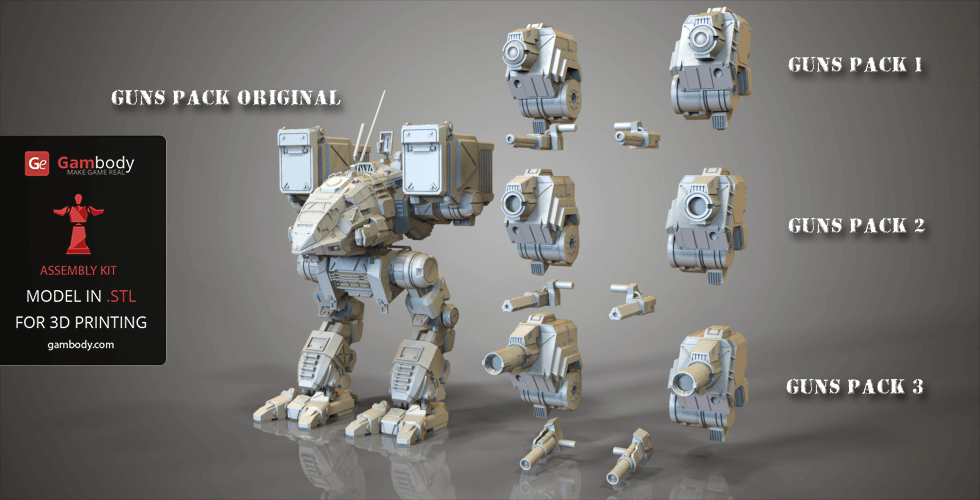

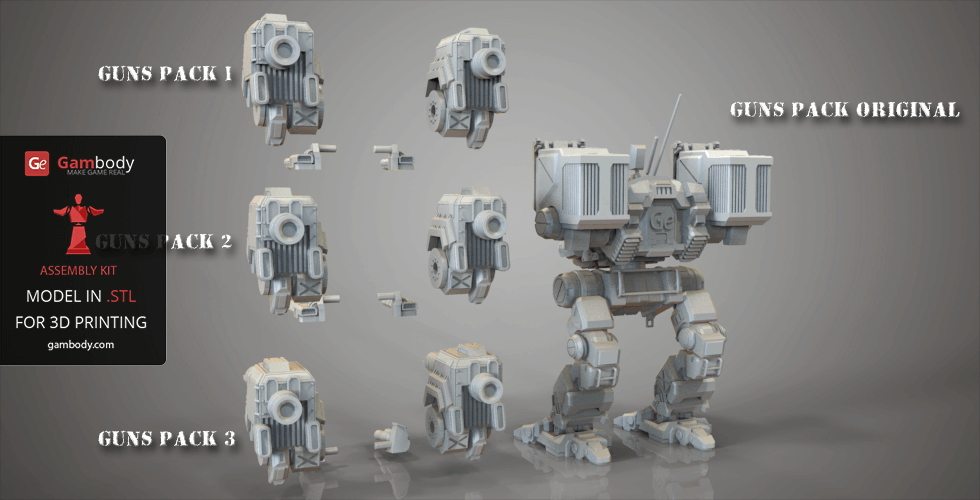

Since MechWarrior Catapult 3D model has gained so much popularity on our marketplace, the 3D modeler came up with a surprise, designing 3 different MWO weapon kit to your regular MWO 3D design.

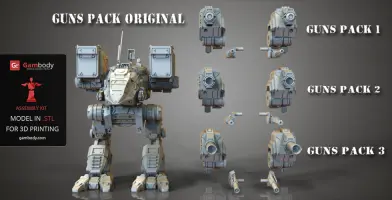

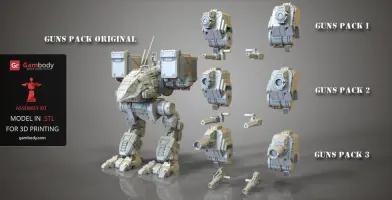

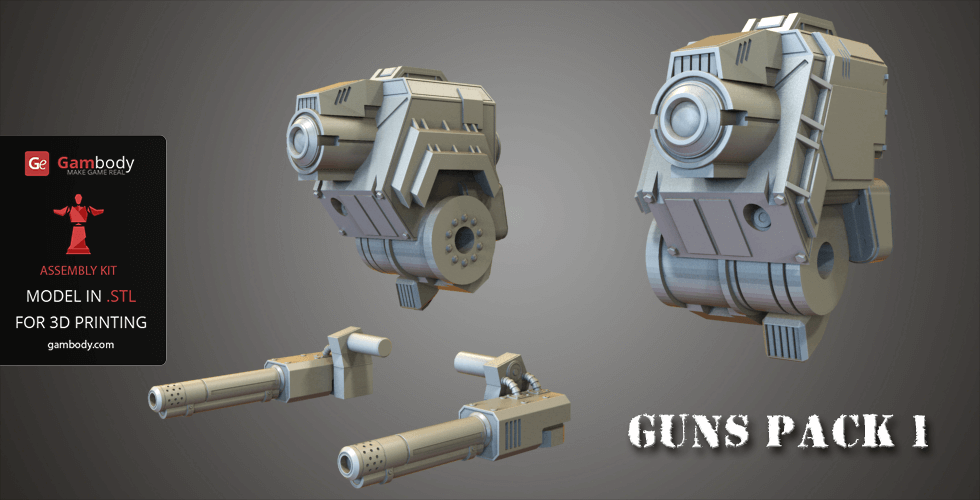

#1 Weapons add-on pack

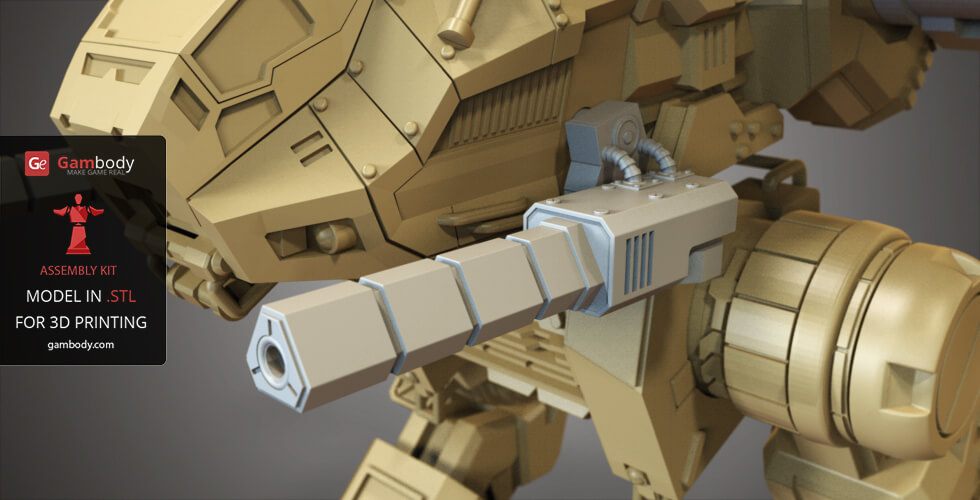

This set brings you the opportunity to equip and upgrade your regular MechWarrior Catapult with right and left arm large laser guns, with right and left torso medium lasers. Equipping your MWO 3D model with these weapons you will upgrade it to CPLT-J model.

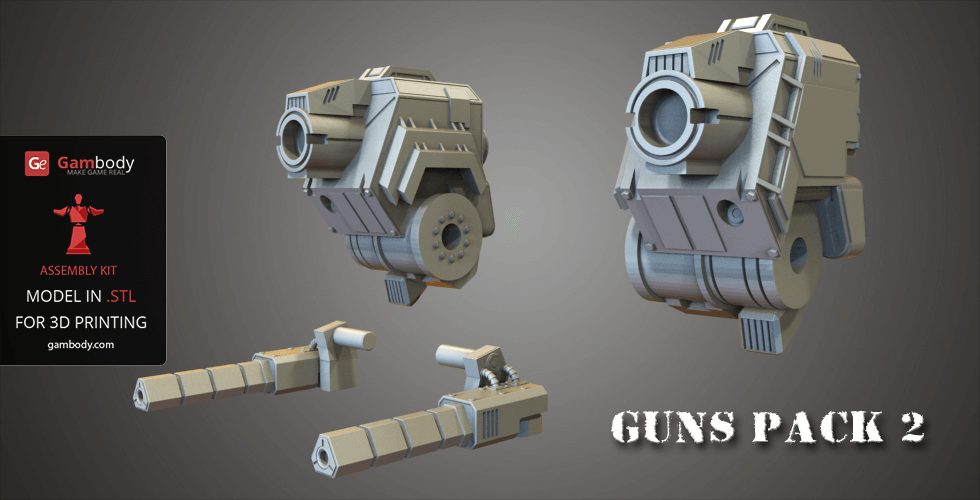

#2 Weapons add-on pack

This set brings different types of laser MWO clan weapons that you can print and mount on your regular MWO 3D model. Upgrade the regular 3D model with powerful and hard-hitting laser guns that trigger the enemy and destroy throwing a rain of shots at it. The laser guns are very effective in producing damage and at keeping the enemy at distance.

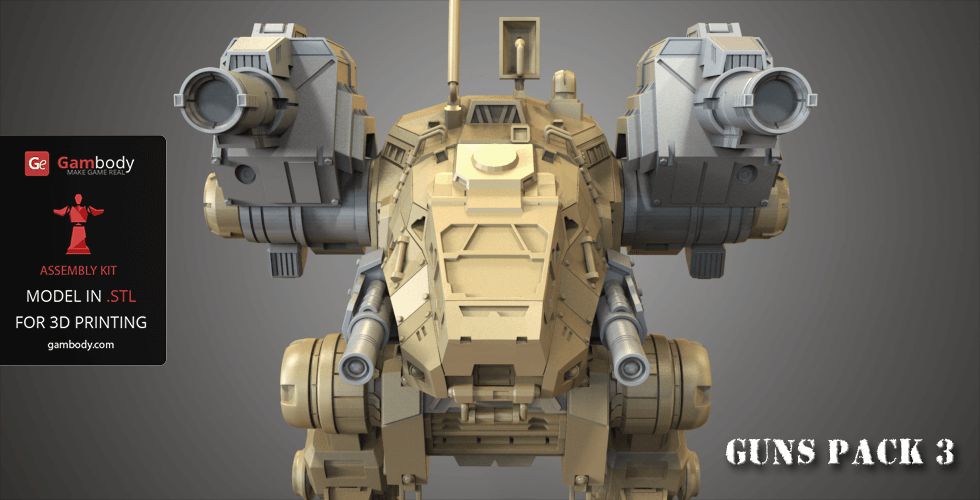

#3 Weapons add-on pack

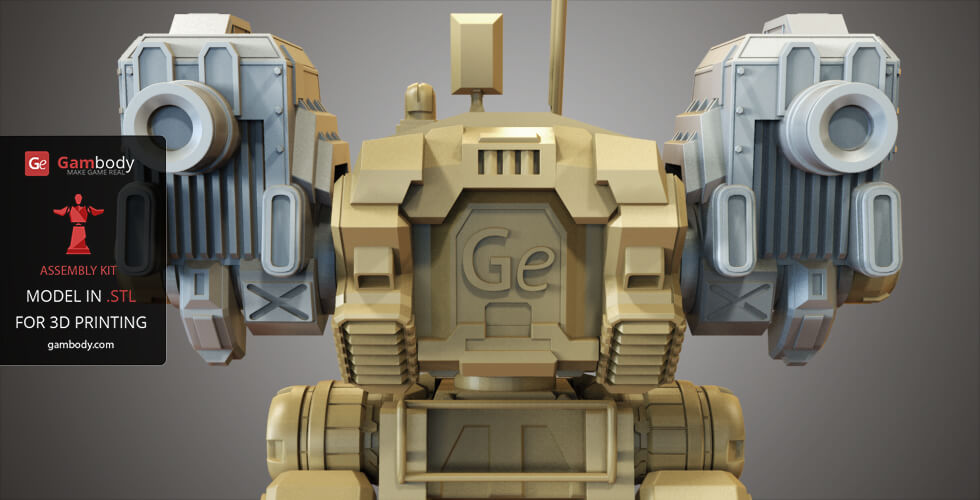

Upgrade your regular MechWarrior Catapult model with awesome and direct fire weapons. Add a pair of PPc MWO guns that are capable to inflict all their damage at once. Mount medium lasers and machine guns and upgrade your 3D model to CPLT-K2 Mech model.

These add-ons are the perfect upgrade solution for your already printed, regular MechWarrior Catapult 3D model.

Bring the BattleTech universe into the real life by printing and assembling realistically looking, upgraded models of the large bipedal combat vehicles.

VERSIONS' SPECIFICATIONS

FFF/FDM 1.0 version features:
- Contains 12 parts;
- Full weapon pack for the original FFF/FDM 1.0 and FFF/FDM 2.0 versions of the MWO Catapult 3D Printing Model;
- The scale is indeterminate.


FFF/FDM 2.0 version features:
- Contains 12 parts;
- Full weapon pack for the updated FFF/FDM 3.0 and FFF/FDM 3.1 versions of the MWO Catapult 3D Printing Model;
- Designed to go with the model in 1/60 scale.

DLP/SLA/SLS 1.0 version features:
- Contains 6 parts;
- Shoulder weapon pack for the updated DLP/SLA/SLS 1.0 version of the MWO Catapult 3D Printing Model;
- Designed to go with the model in 1/100 scale.

You can get the MWO Catapult Weapon Pack for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.



_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

These 3D models of Catapult​ Weapons Add-on Packs were tested in Cura 2.7.0. and printed on an Ultimaker 2 in PLA material.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
   Top/Bottom Line Width: 0.4 mm
   Infill Line Width: 0.4 mm
   Skirt/Brim Line Width: 0.4 mm
   Support Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Shortest
Ignore Small Z Gaps: Check

Infill
Infill Density: 20%

Infill Line Distance: 3.5 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill Overlap Percentage: 10%
    Infill Overlap: 0.4 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Material
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 20 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 40 mm/s
      Outer Wall Speed: 30 mm/s
      Inner Wall Speed: 40 mm/s
    Top/Bottom Speed 20 mm/s
    Support Speed: 30 mm/s
      Support Infill Speed: 30 mm/s
Travel Speed: 120 mm/s
Initial Layer Speed: 30 mm/s

    Initial Layer Print Speed: 30 mm/s
    Initial Layer Travel Speed: 72 mm/s
Skirt/Brim Speed: 30 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.6562 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.27 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Enable Support: Check
Support Placement: Everywhere
Support Overhang Angle: 50°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 2.3333 mm
Support Z Distance: 0.15 mm
    Support Top Distance: 0.15 mm
    Support Bottom Distance: 0.15 mm
Support X/Y Distance: 0.8 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 15
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Extra Skin Wall Count: 0

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
