NieR: Automata 2B 3D Printing Figurine | Assembly

(1)
cm: 18 w x 12.7 d x 22.2 h
in: 7.087 w x 5 d x 8.74 h

Source Files

|

Description

|

Printing Details

This 3D model of NieR: Automata 2B consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

  • 4 versions of NieR: Automata 2B STL files for FFF/FDM, DLP/SLA, DLP/SLA Eco, SLS - files for all versions are available for download after the purchase;
  • STL files of high-poly NieR: Automata 2B Figurine for 3D printing consist of 56 files;
  • Sizes for:
  • FFF/FDM: 222 mm tall, 180 mm wide, 127 mm deep;
  • DLP/SLA/SLS: 111 mm tall, 90 mm wide, 63 mm deep;
  • Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats;
  • Detailed settings that we provide as a recommendation for Cura, Simplify3D, Slic3r and PrusaSlicer for the best print;
  • Full technical support from the Gambody Support Team.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

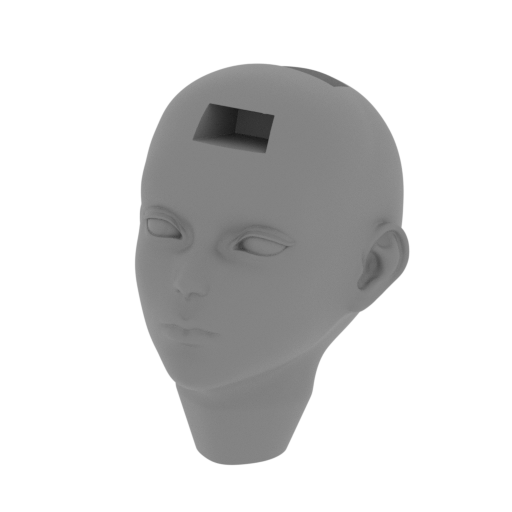

1_head_V_1_FDM(repaired). stl
26.54 MiB 54 min <1 m 21 x 26 x 28 Download

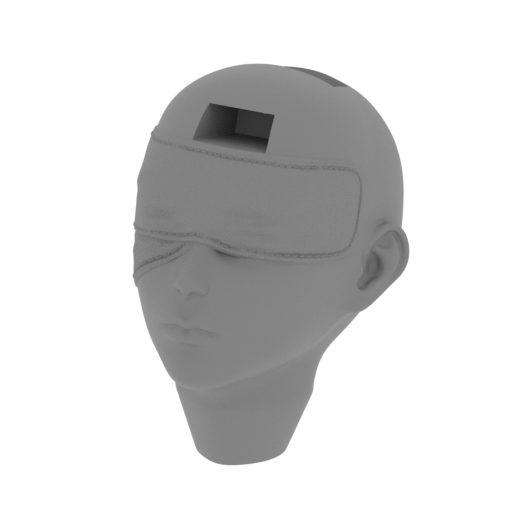

2_head_V_2_FDM(repaired). stl
27.11 MiB 54 min <1 m 21 x 26 x 28 Download

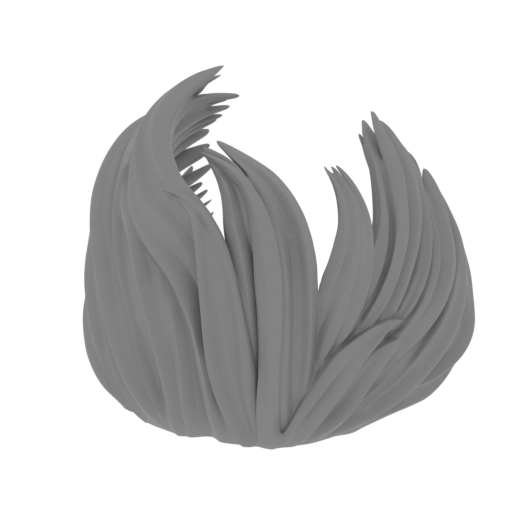

3_hair_front_FDM(repaired ).stl
11.43 MiB 54 min <1 m 25 x 24 x 18 Download

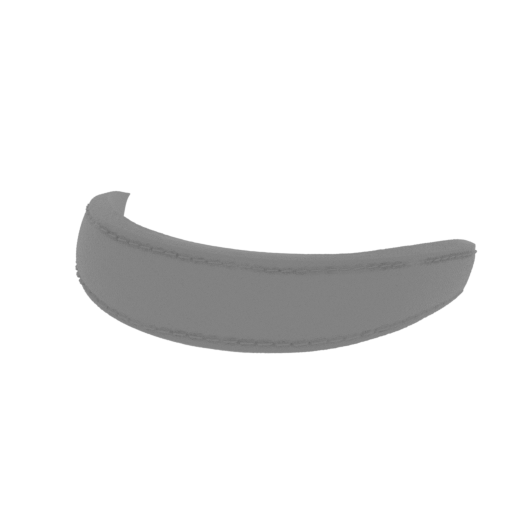

4_hair_hoop_FDM(repaired) .stl
7.62 MiB 6 min <1 m 19 x 14 x 5 Download

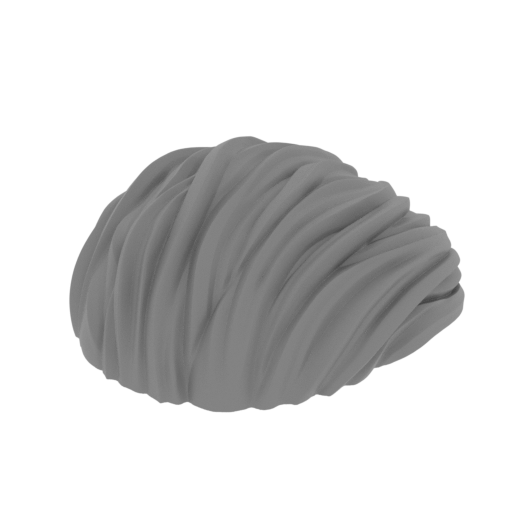

5_hair_back_FDM(repaired) .stl
14.12 MiB 40 min <1 m 21 x 23 x 12 Download

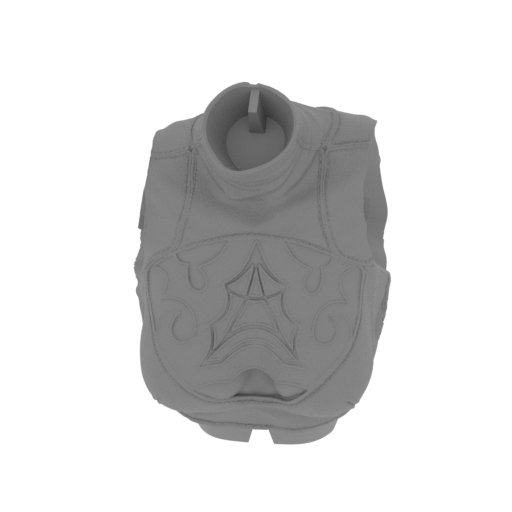

6_body_V_1_FDM(repaired). stl
41.62 MiB 2 h 1 m 30 x 30 x 43 Download

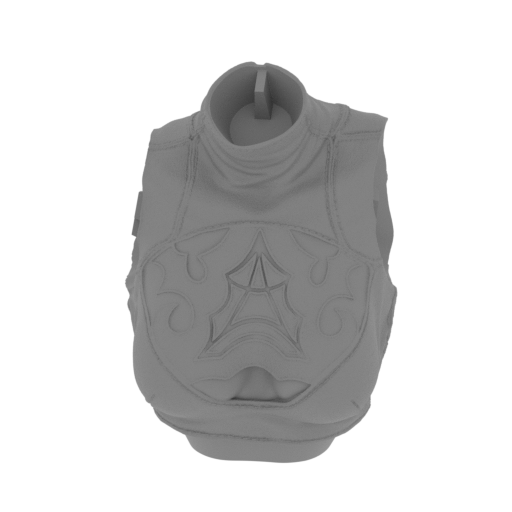

7_body_V_2_FDM(repaired). stl
39.55 MiB 1 h 57 min 1 m 31 x 32 x 41 Download

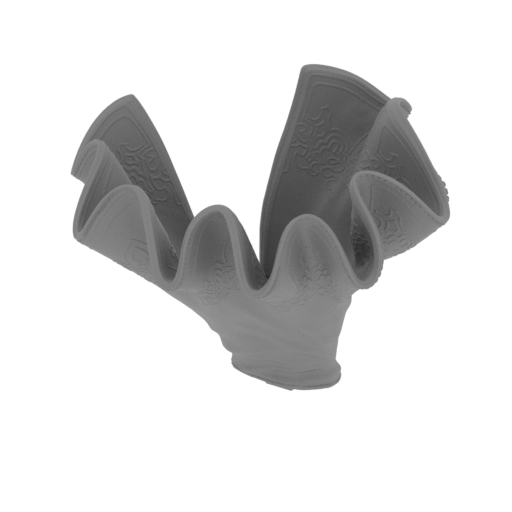

8_skirt_for_body_V_2_FDM( repaired).stl
41.79 MiB 9 h 51 min 6 m 82 x 66 x 68 Download

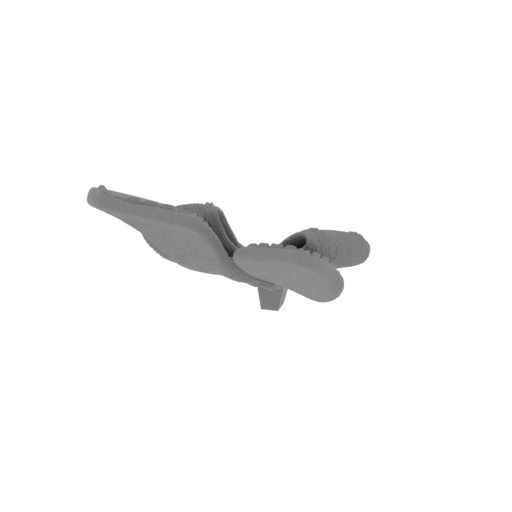

9_bow_knot_for_skirt_FDM( repaired).stl
9.58 MiB 30 min <1 m 18 x 26 x 17 Download

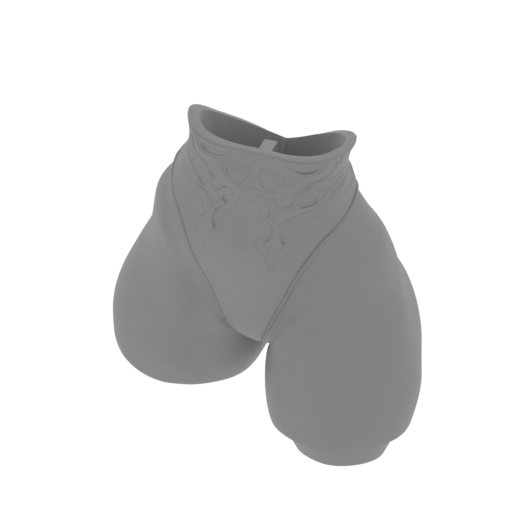

10_pelvis_body_V_1_FDM(re paired).stl
27.01 MiB 3 h 10 min 2 m 44 x 39 x 51 Download

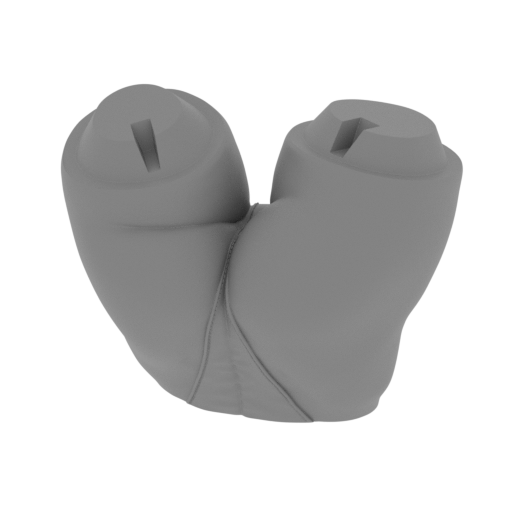

11_pelvis_body_V_2_FDM(re paired).stl
21.01 MiB 2 h 9 min 1 m 45 x 30 x 38 Download

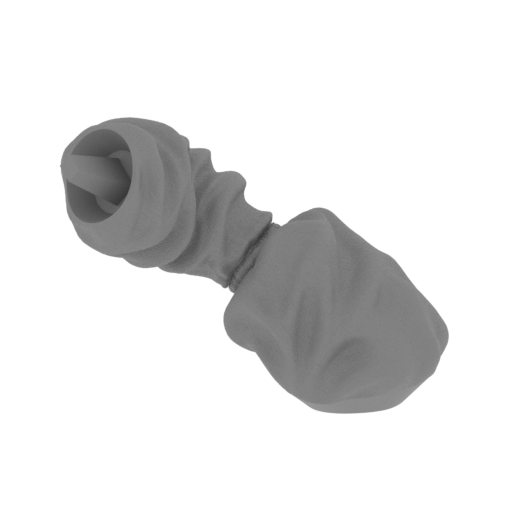

12_arm_R_1_FDM(repaired). stl
17.46 MiB 1 h 20 min 1 m 41 x 22 x 30 Download

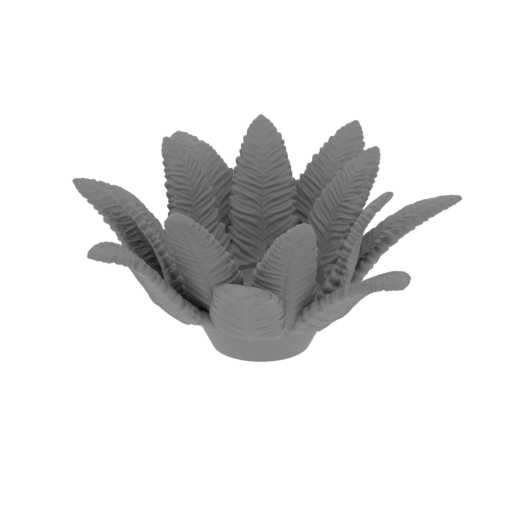

13_arm_R_2_FDM(repaired). stl
9.52 MiB 44 min <1 m 26 x 27 x 13 Download

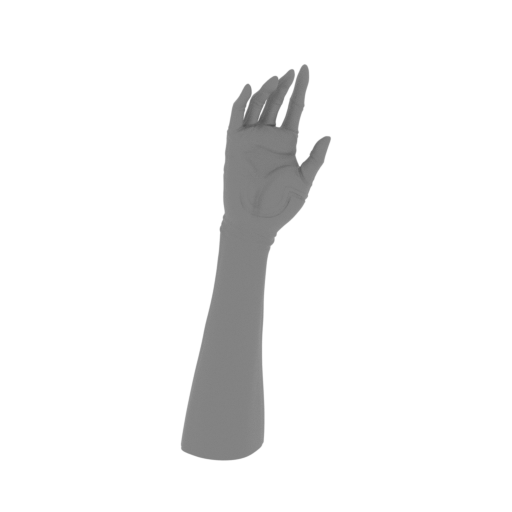

14_hand_R_FDM(repaired).s tl
11.38 MiB 30 min <1 m 13 x 14 x 40 Download

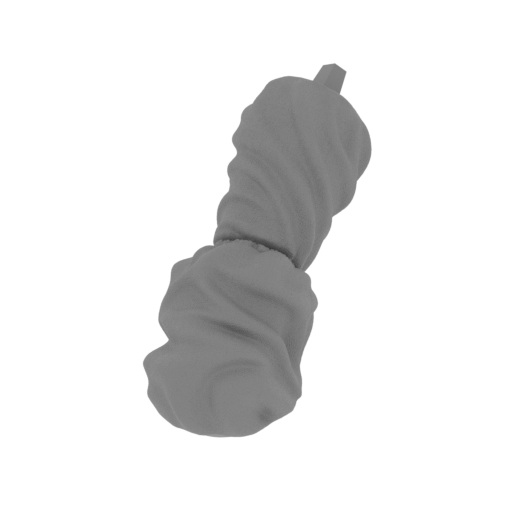

15_arm_L_1_FDM(repaired). stl
17.87 MiB 1 h 13 min 1 m 18 x 43 x 31 Download

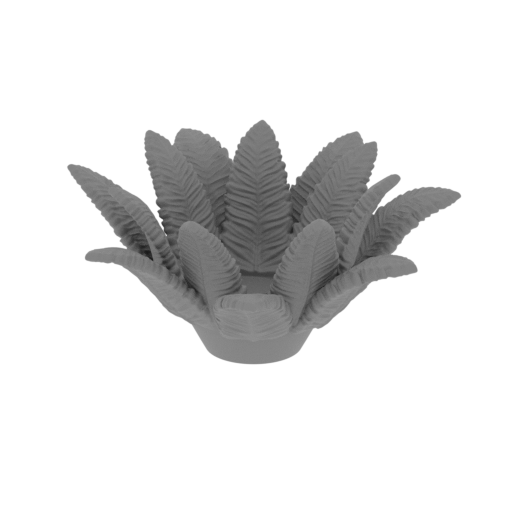

16_arm_L_2_FDM(repaired). stl
9.60 MiB 47 min <1 m 27 x 27 x 14 Download

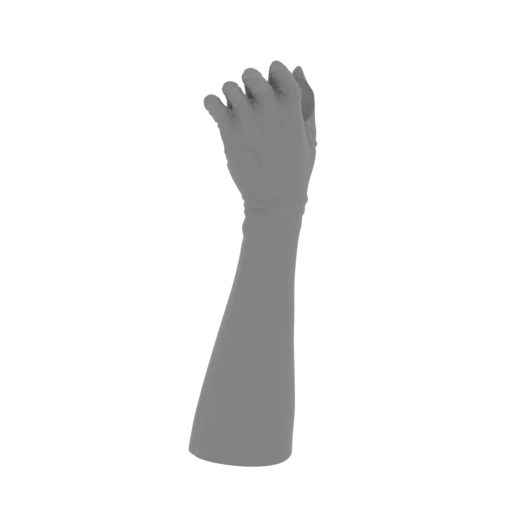

17_hand_L_FDM(repaired).s tl
13.78 MiB 36 min <1 m 10 x 14 x 35 Download

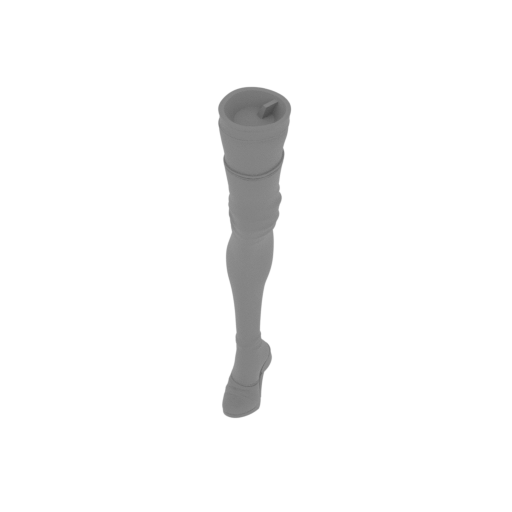

18_leg_R_FDM(repaired).st l
23.49 MiB 2 h 24 min 1 m 30 x 51 x 109 Download

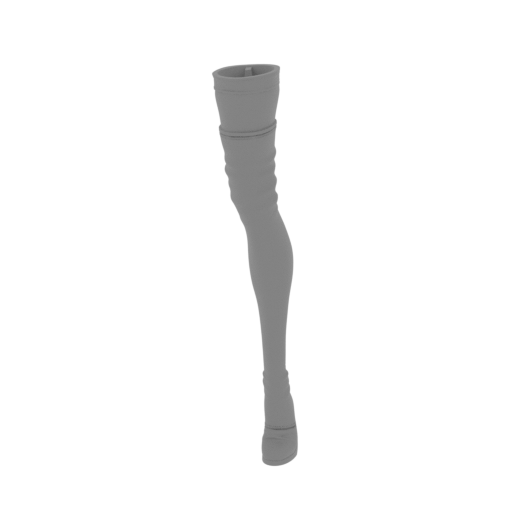

19_leg_L_FDM(repaired).st l
24.09 MiB 2 h 20 min 1 m 31 x 36 x 110 Download

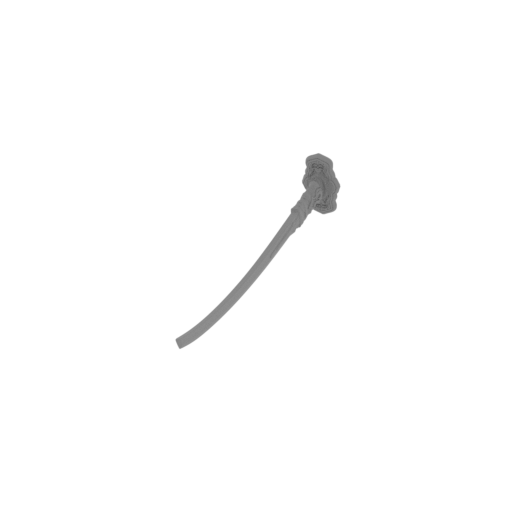

20_sword_1_FDM(repaired). stl
15.00 MiB 24 min <1 m 10 x 93 x 17 Download

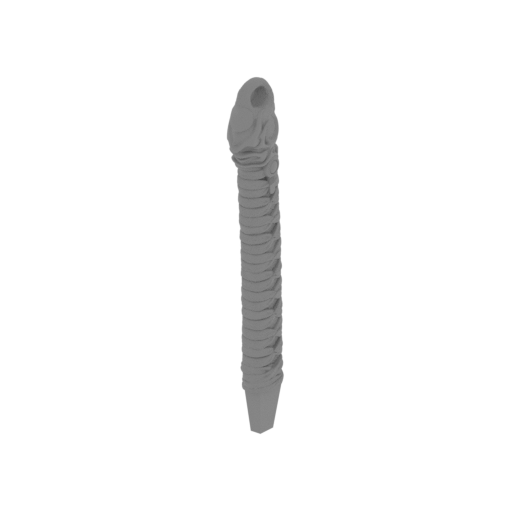

21_sword_2_FDM(repaired). stl
9.23 MiB 23 min <1 m 4 x 8 x 37 Download

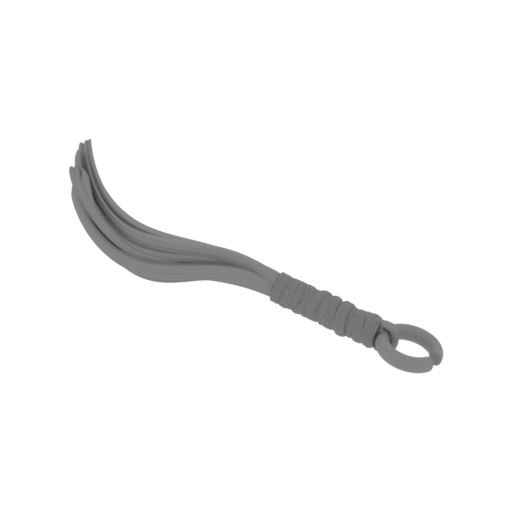

22_sword_3_FDM(repaired). stl
10.69 MiB 10 min <1 m 30 x 5 x 14 Download

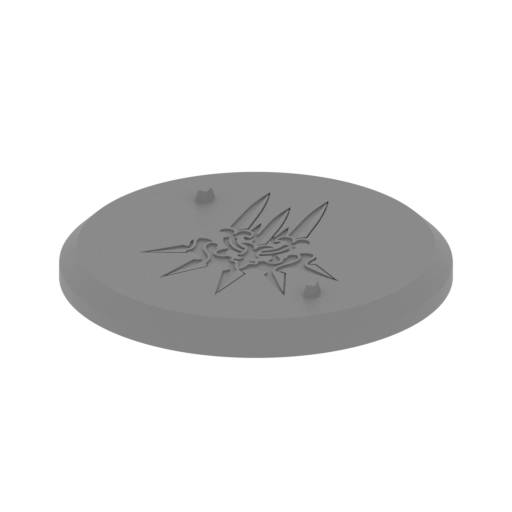

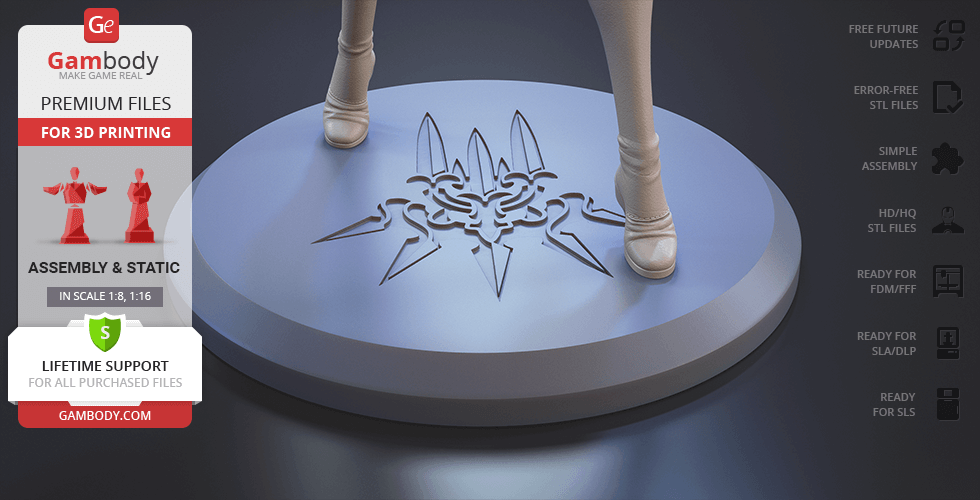

23_platform_FDM(repaired) .stl
34.63 MiB 11 h 28 min 7 m 127 x 127 x 15 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download
...

ABOUT THIS 3D MODEL

NieR: Automata 2B or 2B who is the main protagonist of the 2017 video game Nier: Automata. YoRHa is a military android force that is designed to fight alien machine forms that invaded Earth during the 14th Machine War. 2B is a unit of the automated YoRHa infantry, equipped with all-purpose weapons and is always accompanied by a floating robot POD 042 that serves for range attacks. NieR: Automata 2B’s support officer assigns her to follow and kill one of the new scanner-type androids 9S during the force’s operations against the planet’s invaders. Despite androids’ built-in restraint who barely show their emotions, 2B grows used to her designated partner and the execution of her initial task brings the Type B android a lot of pain.

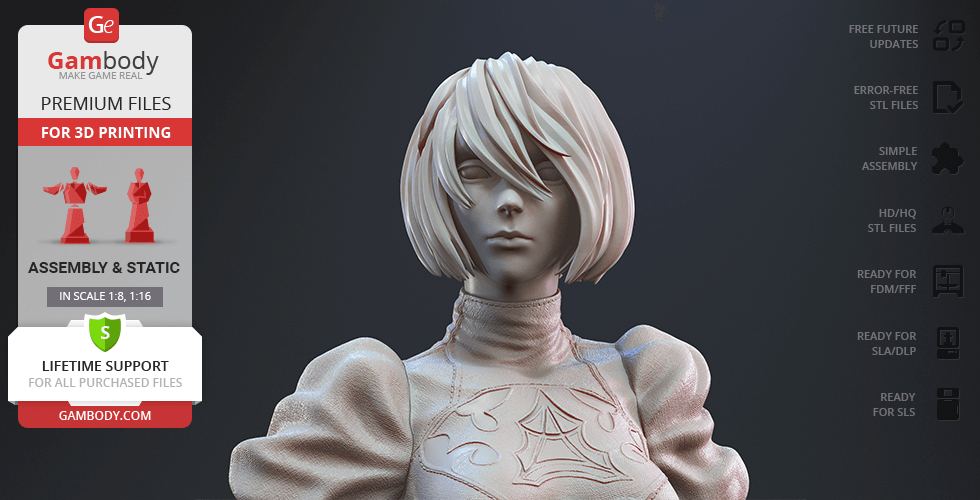

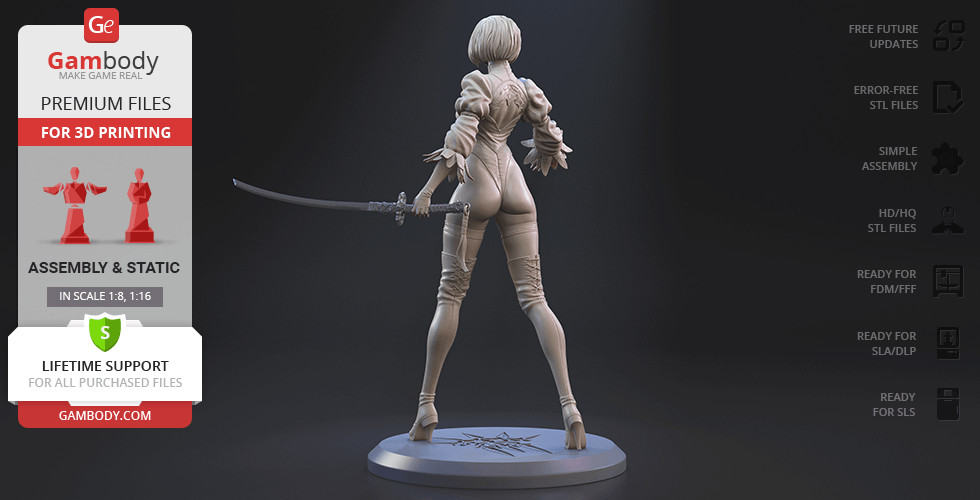

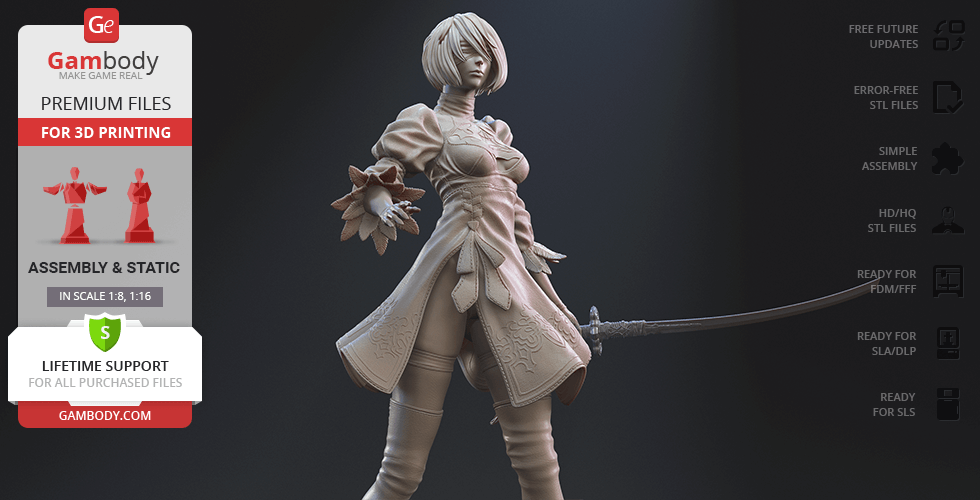

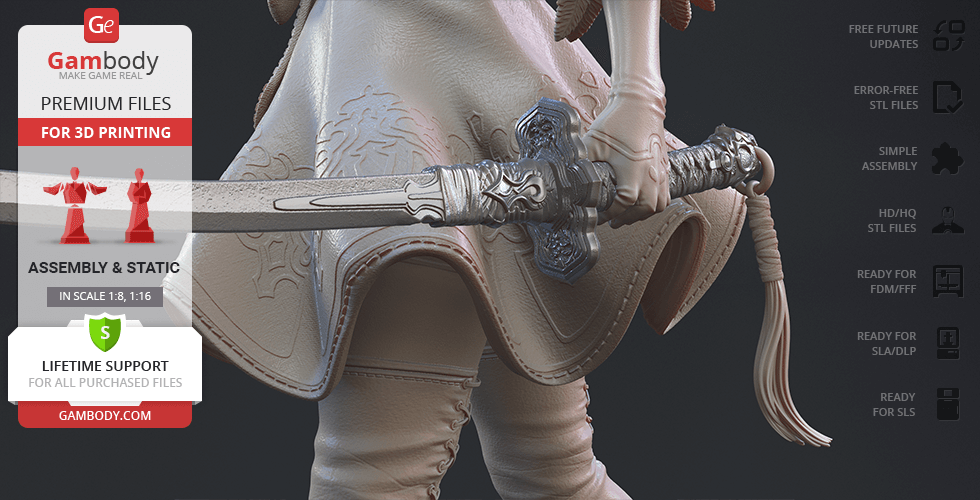

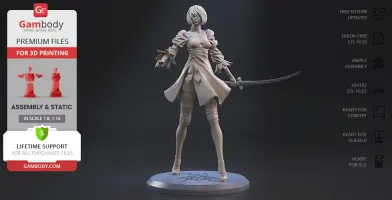

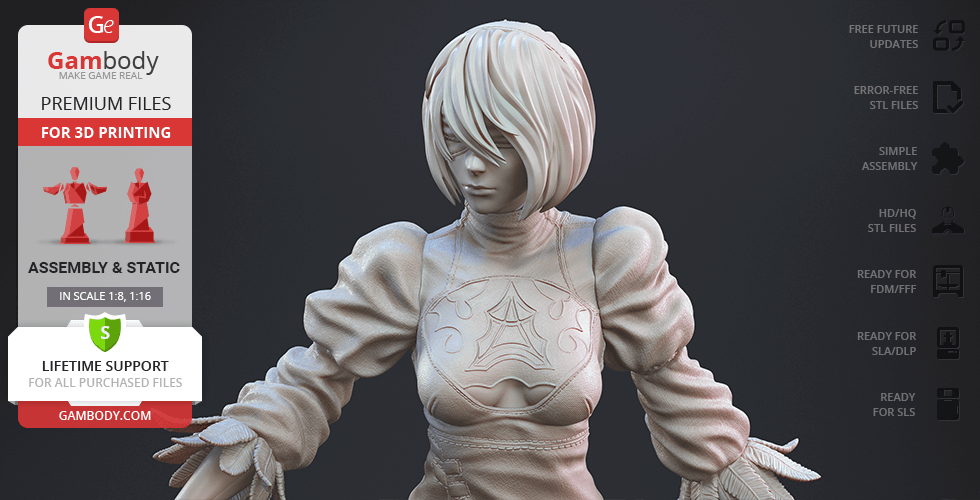

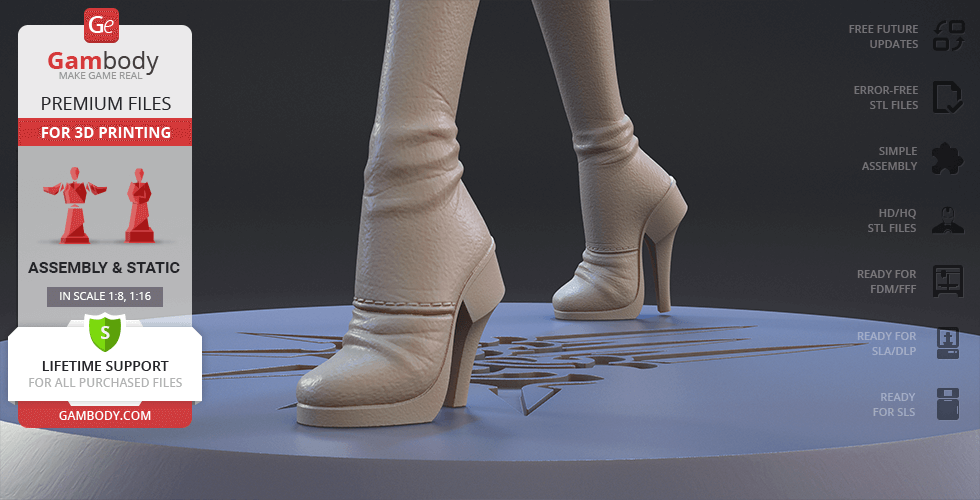

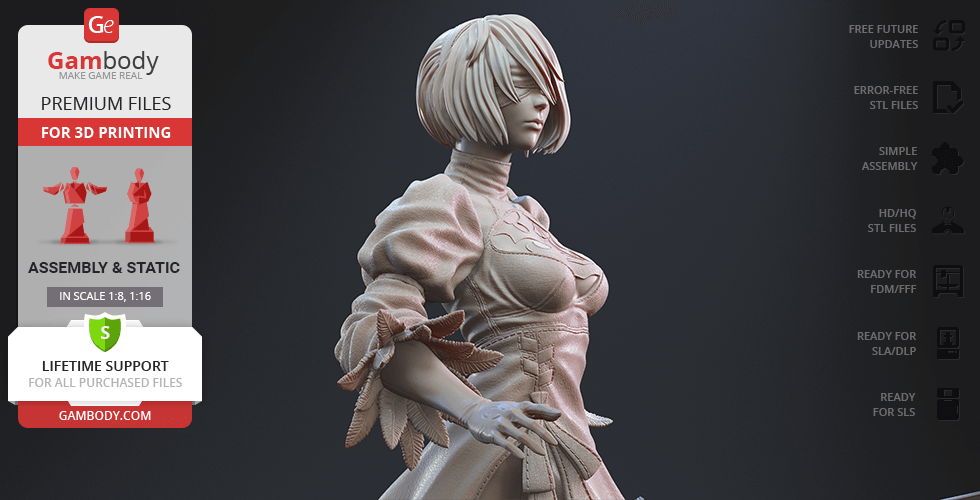

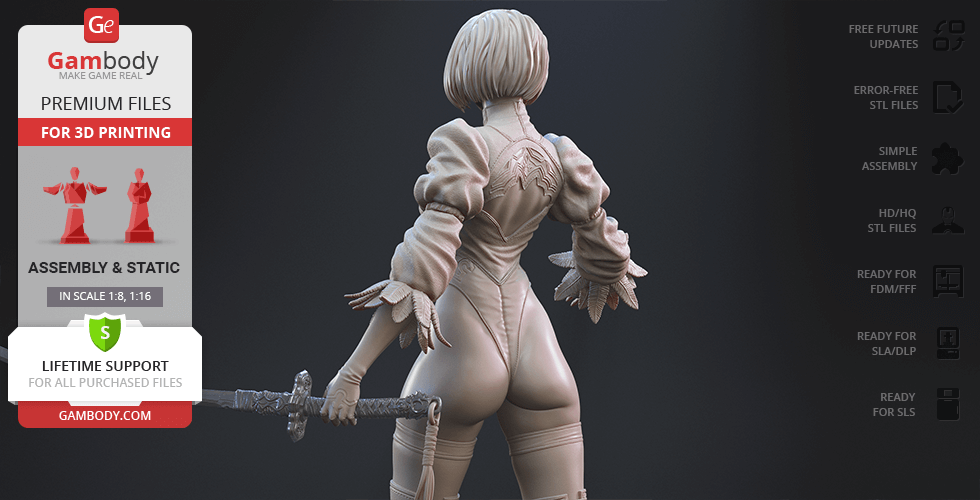

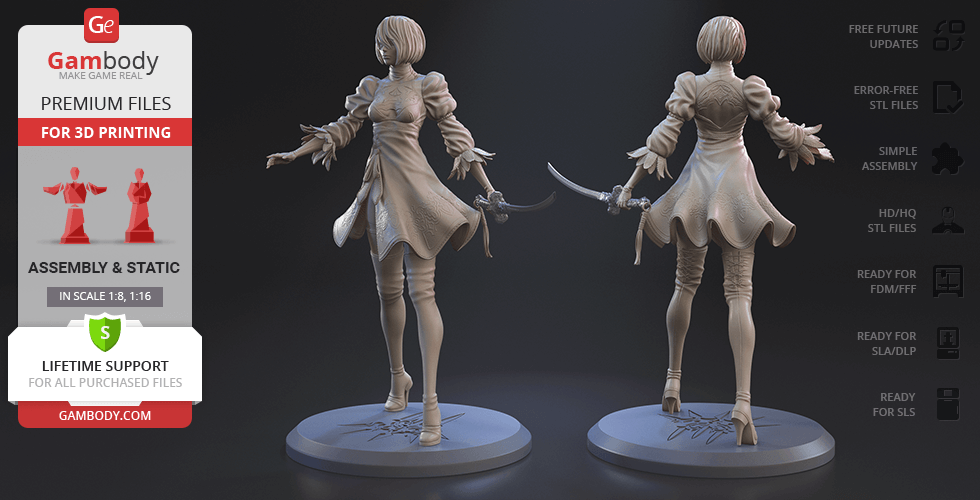

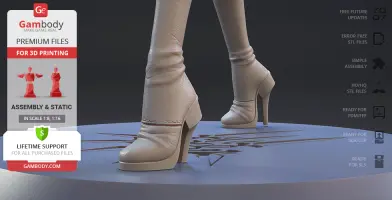

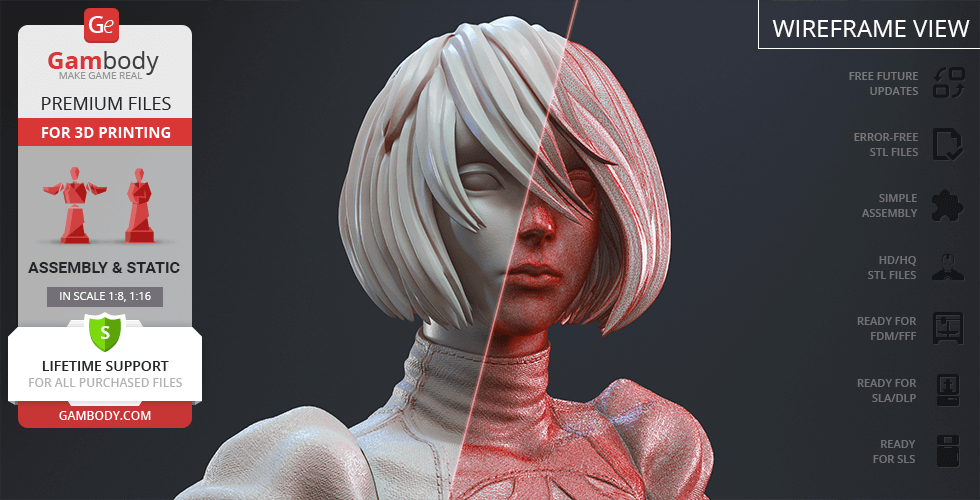

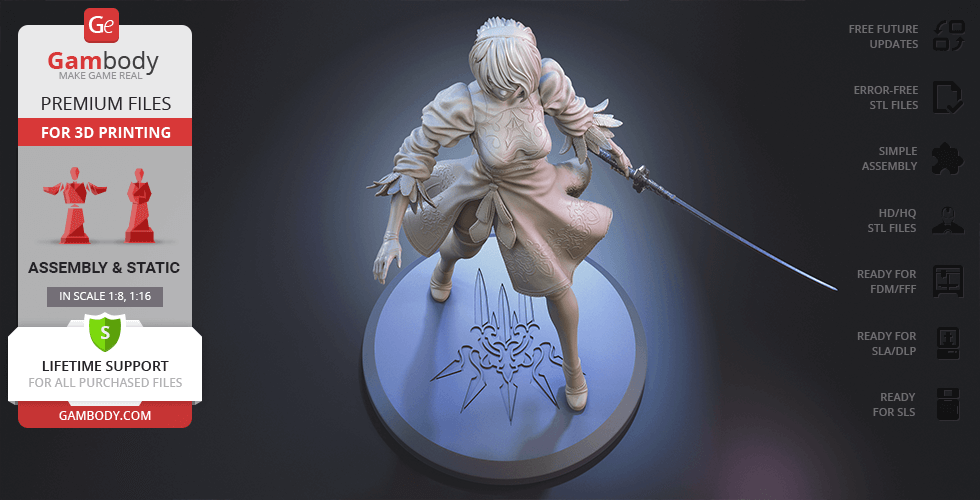

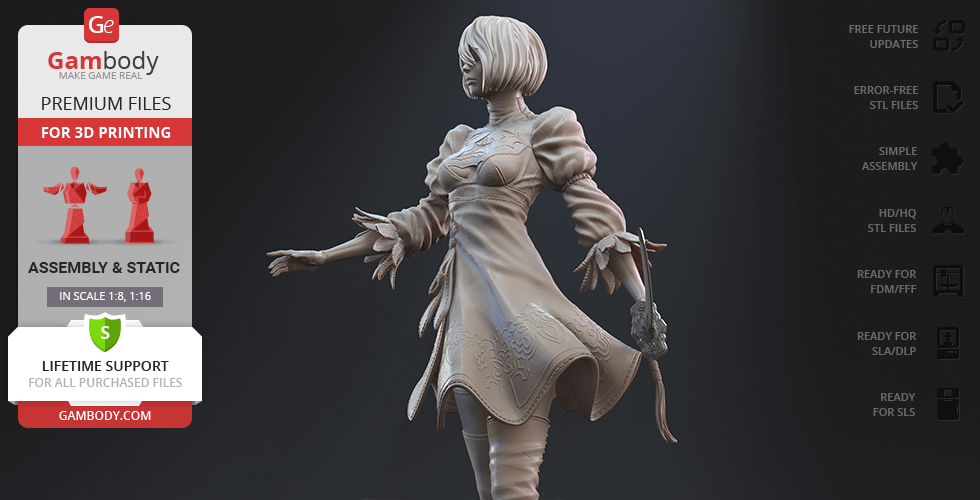

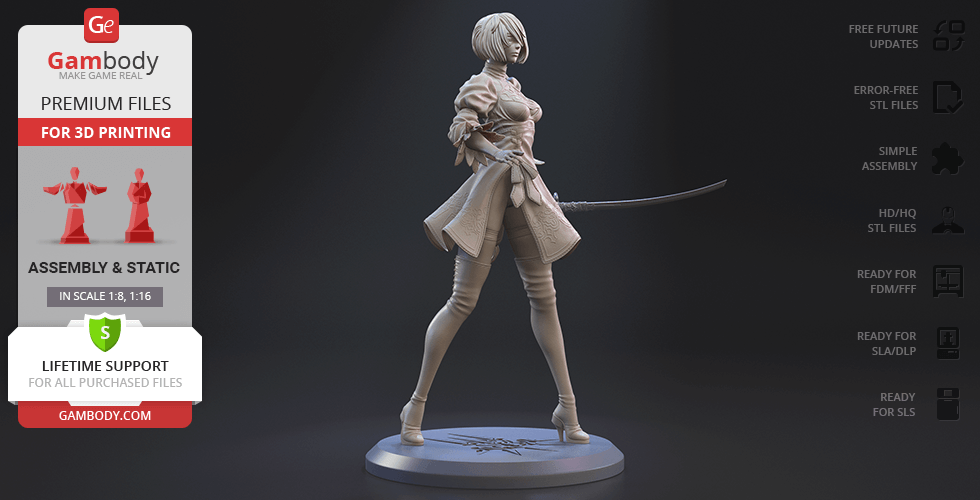

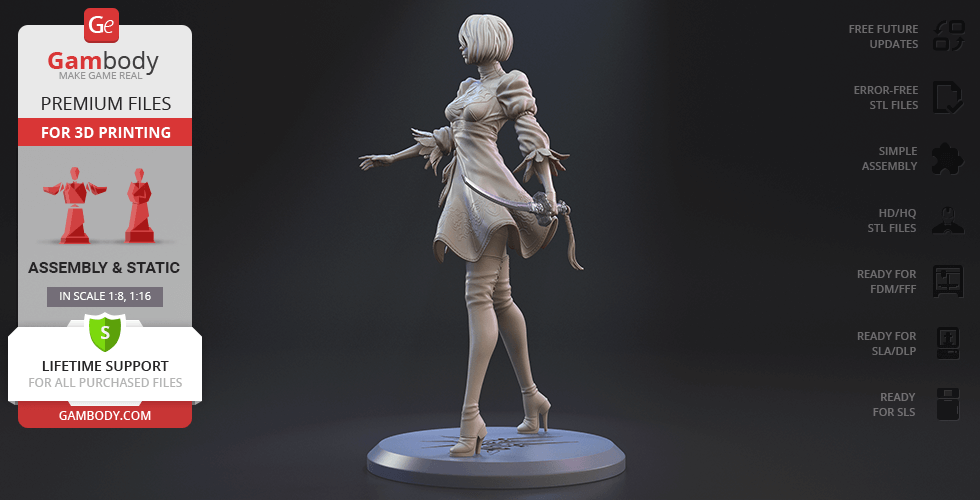

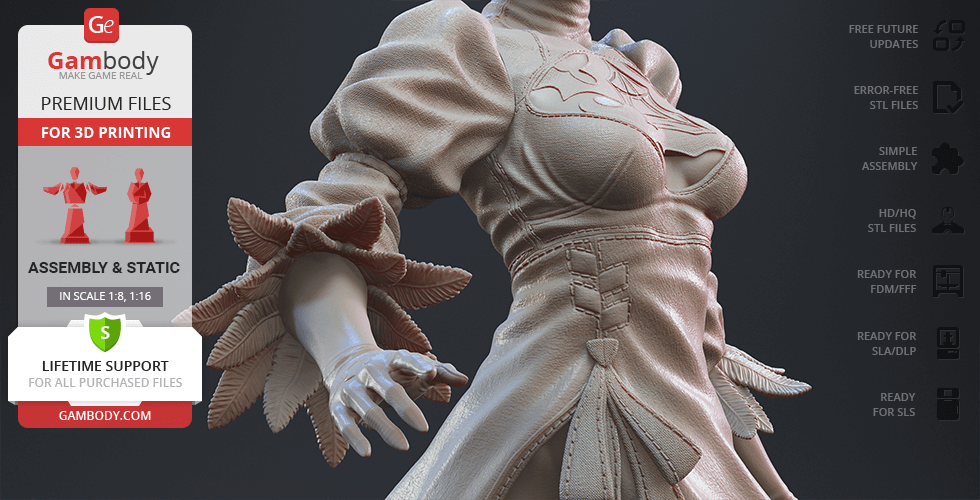

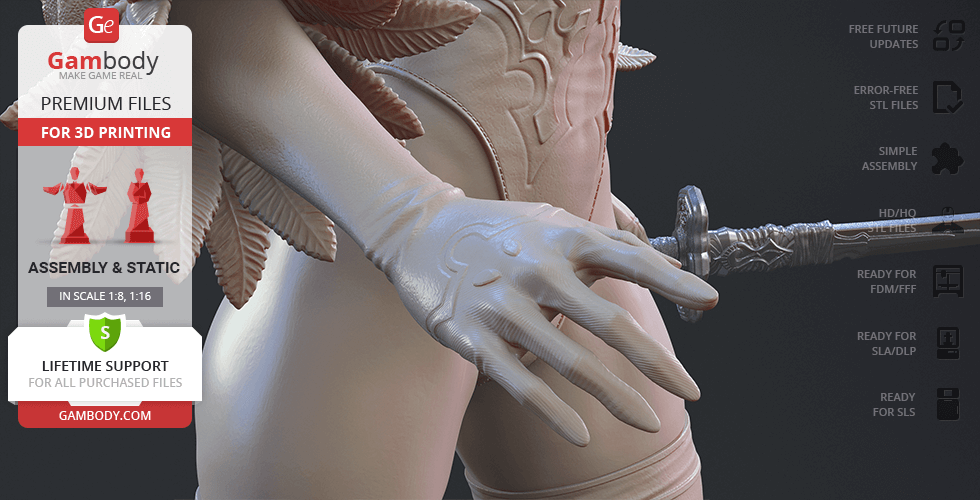

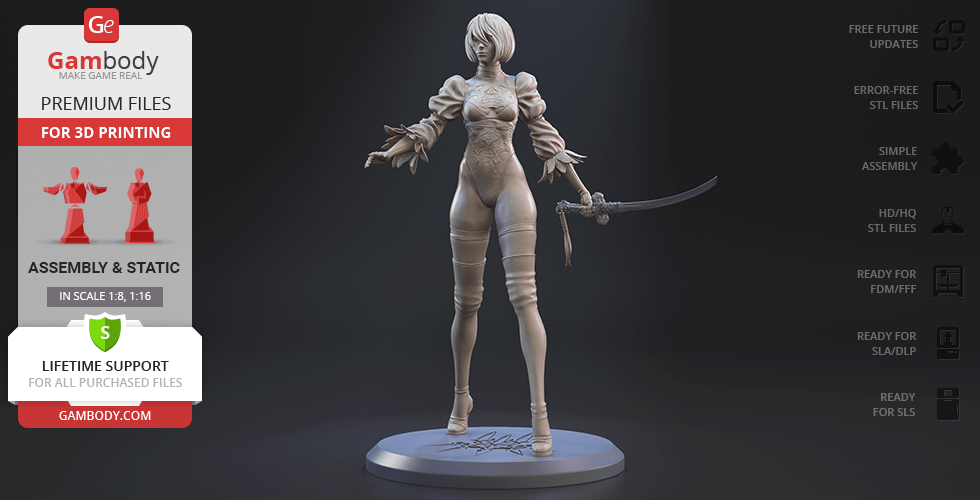

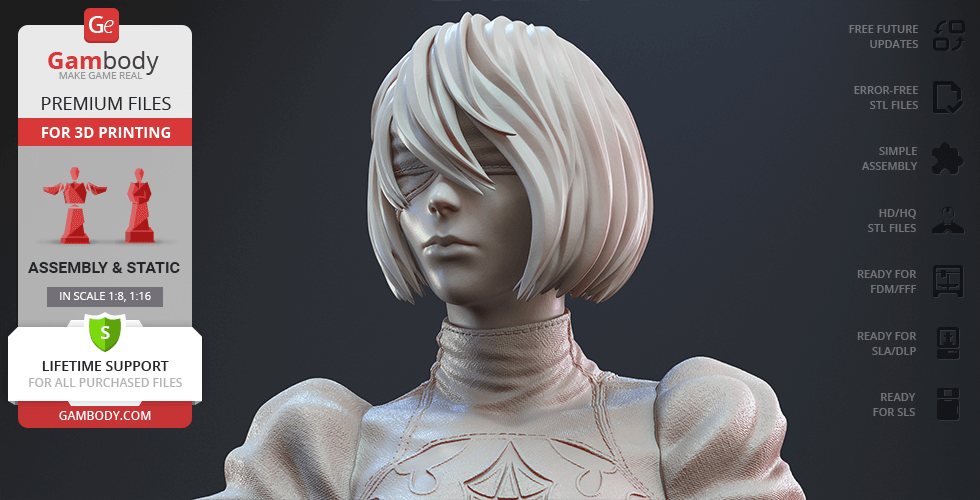

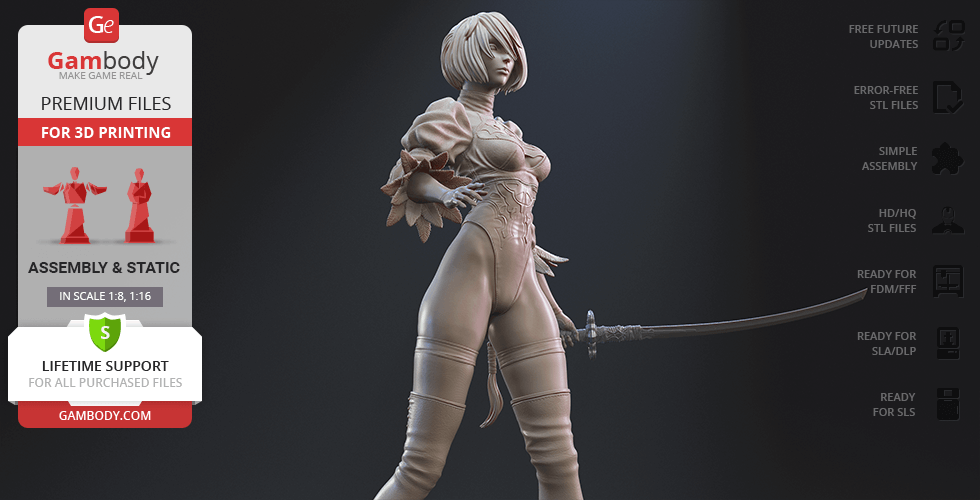

Inspired by the determined character of a female soldier from Nier: Automata, our 3D artists created this impressive figurine for 3D printing. The android has a distinctive short bob cut, the eyes of the heroine can be hidden under the blindfold. YoRHa 2B wears a turtleneck dress which allows her to perform a wide range of moves; the dress can be transformed into a bodysuit. In the left hand, the combat android is holding her signature blade, the Virtuous Contract. High boots with lacing equipped with heels harmoniously complement the image of the heroine. Dive into memories of your favorite game printing highly-detailed and undeniably beautiful YoRHa No.2 Type B!

ADAPTATION FOR 3D PRINTING

NieR: Automata 2B for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 62 hours in total. The figurines' anatomy and proportions were thoroughly reviewed during the moderation process for the android to be depicted harmoniously in the intended pose.

The figurine’s cutting was chosen by our team to minimise the amount of generated support and some of the parts were hollowed out for you to save resin in the Eco version. In order to conceal the places where the assembly parts of the figurine are connected, 2B was divided into convenient assembly parts.

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly Video” and "Assembly Manual" before getting down to NieR: Automata 2B.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

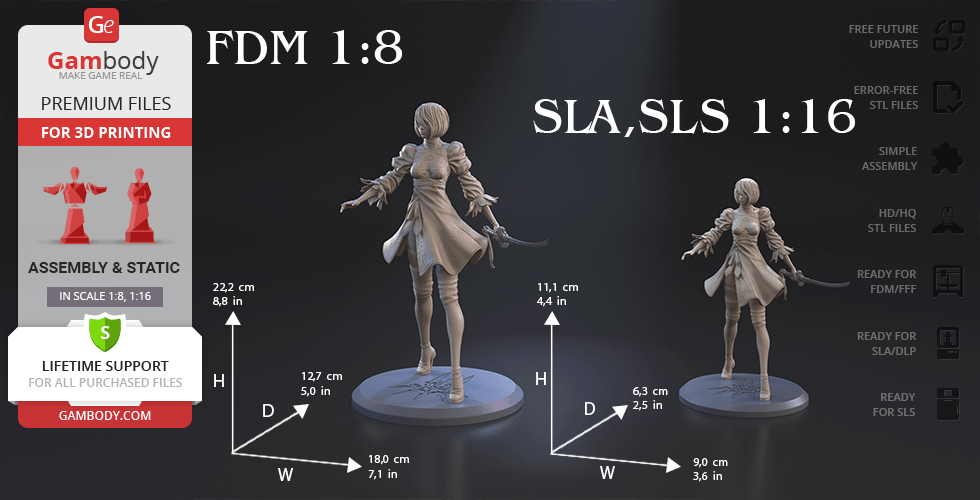

The figurine’s scale was calculated from the height of 2B which is 1680 mm. The 3D printing figurine’s chosen scales are 1:8 for the FFF/FDM version and 1:16 for the DLP/SLA/SLS versions.

VERSIONS’ SPECIFICATIONS

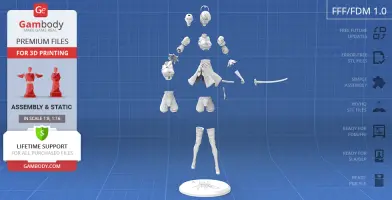

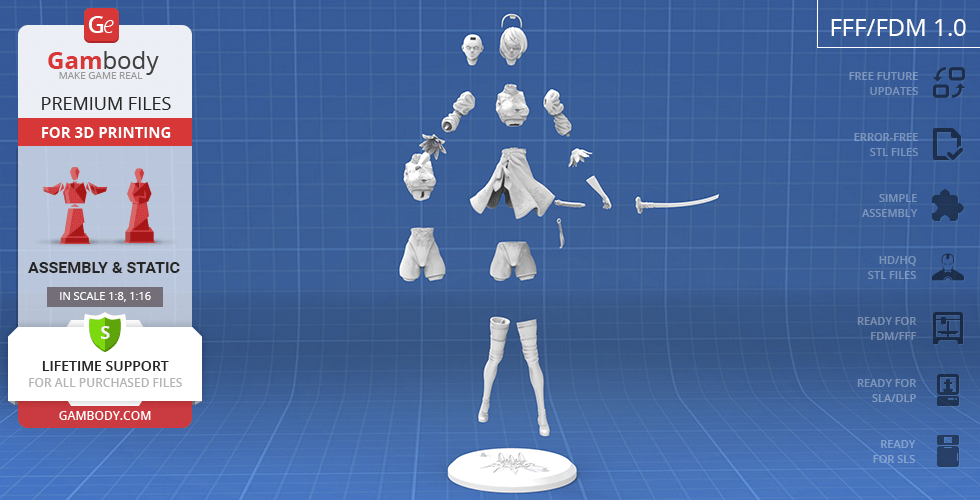

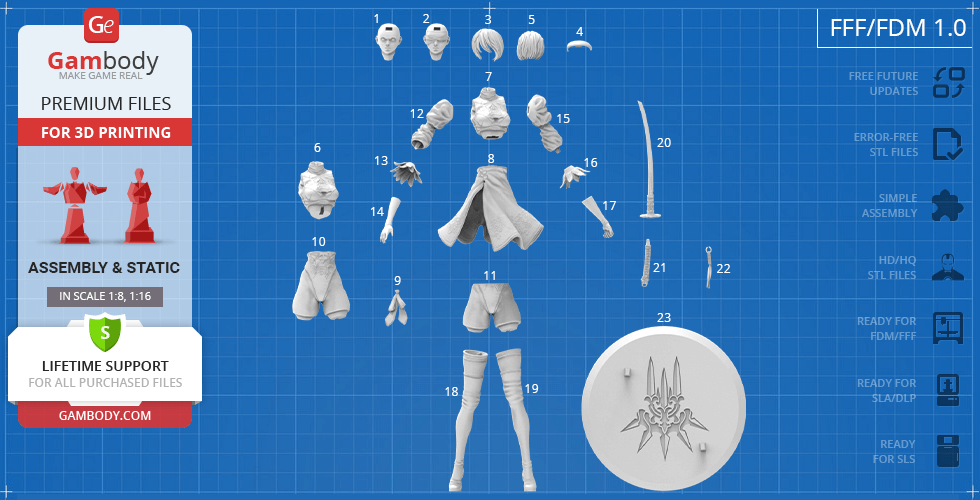

FFF/FDM 1.0 versions features:

  • Contains 23 parts;
  • A printed figurine is 222 mm tall, 180 mm wide, 127 mm deep;

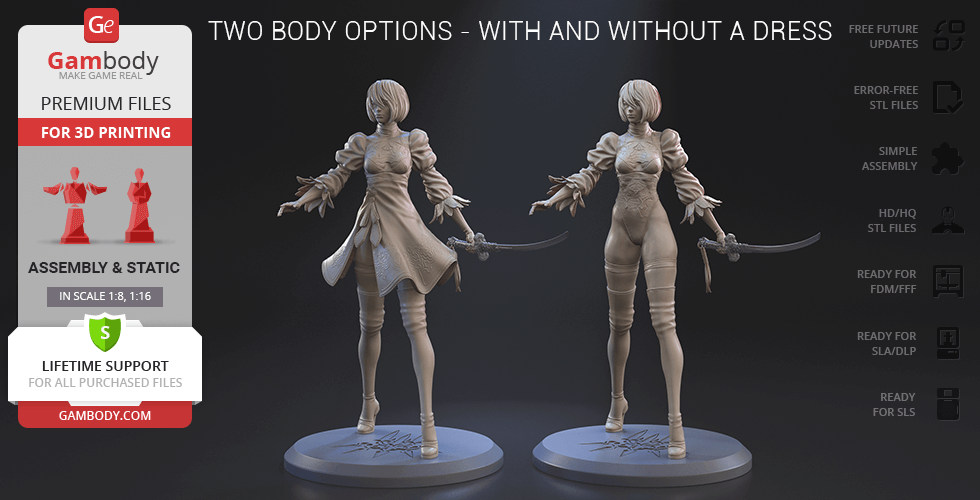

  • Two body options - with and without a dress;

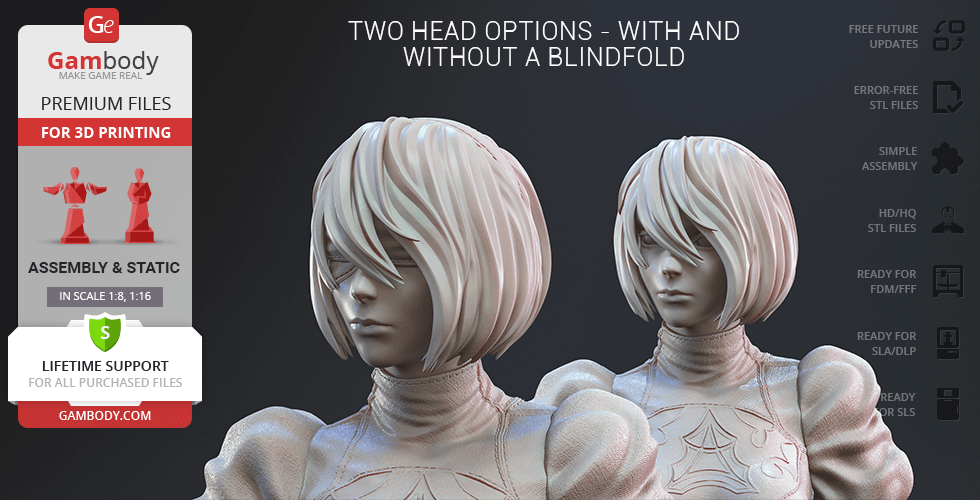

  • Two head options - with and without a blindfold;
  • All parts are divided in such a way that you will print them with the smallest number of support structures.

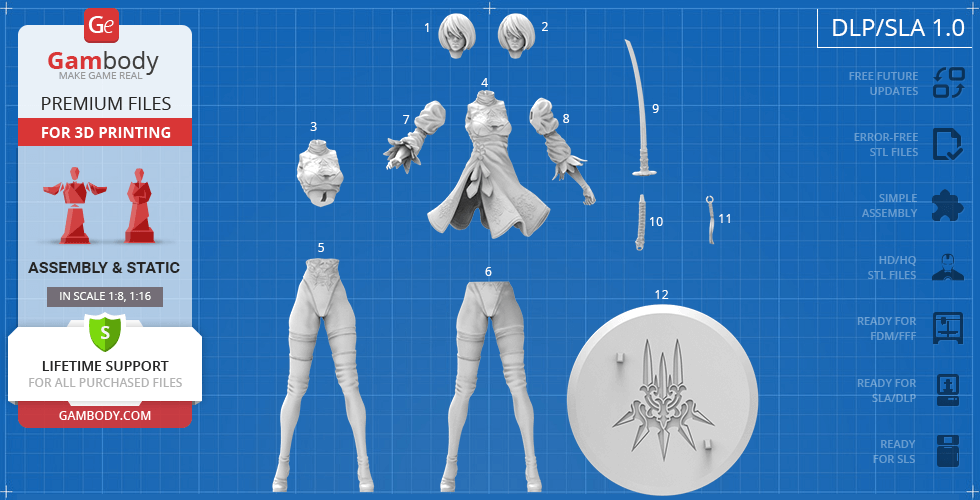

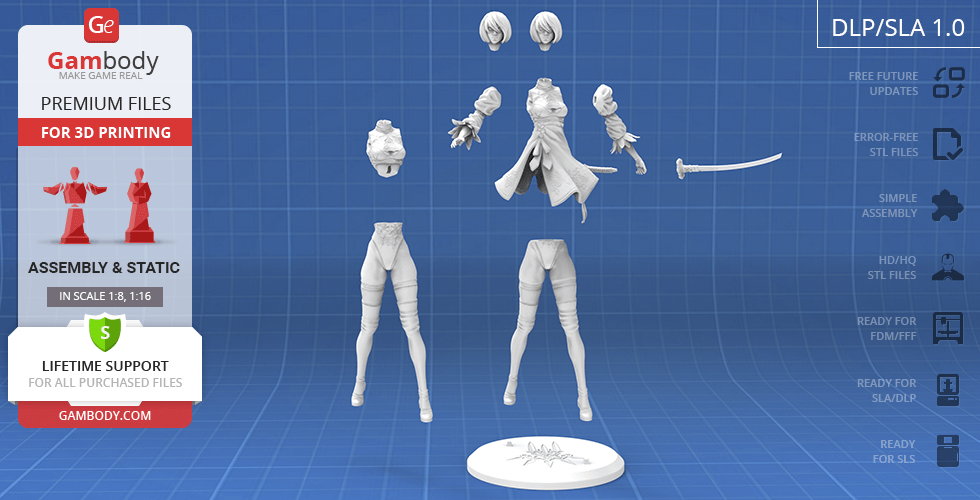

DLP/SLA 1.0 versions features:

  • Contains 12 parts;
  • A printed figurine is 111 mm tall, 90 mm wide, 63 mm deep;
  • Two body options - with and without a dress;
  • Two head options - with and without a blindfold;
  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

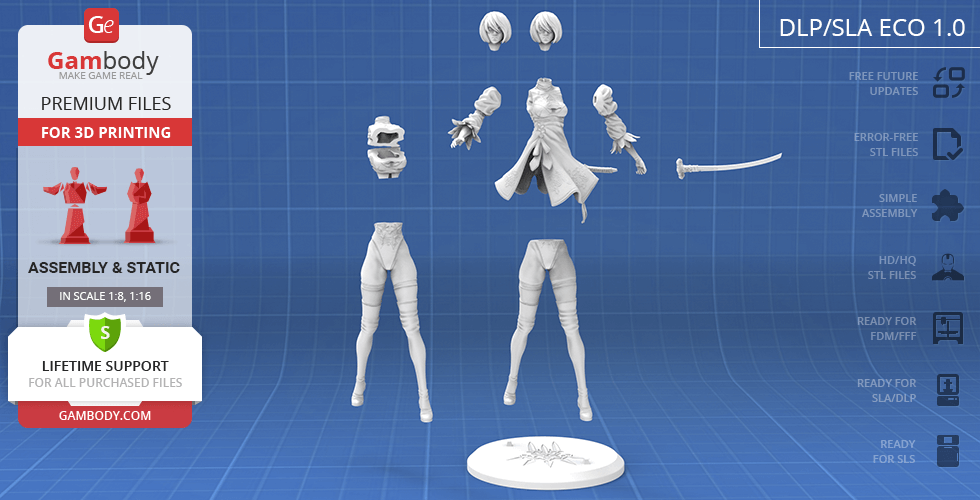

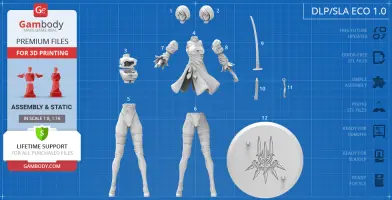

DLP/SLA Eco 1.0 versions features:

  • Contains 12 parts;
  • A printed figurine is 111 mm tall, 90 mm wide, 63 mm deep;
  • Two body options - with and without a dress;
  • Two head options - with and without a blindfold;
  • Some parts are manually hollowed out to save resin.

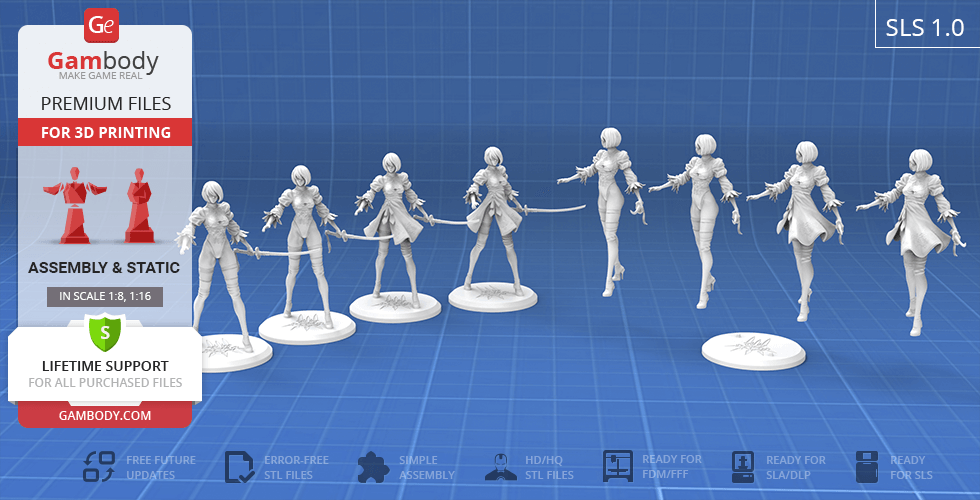

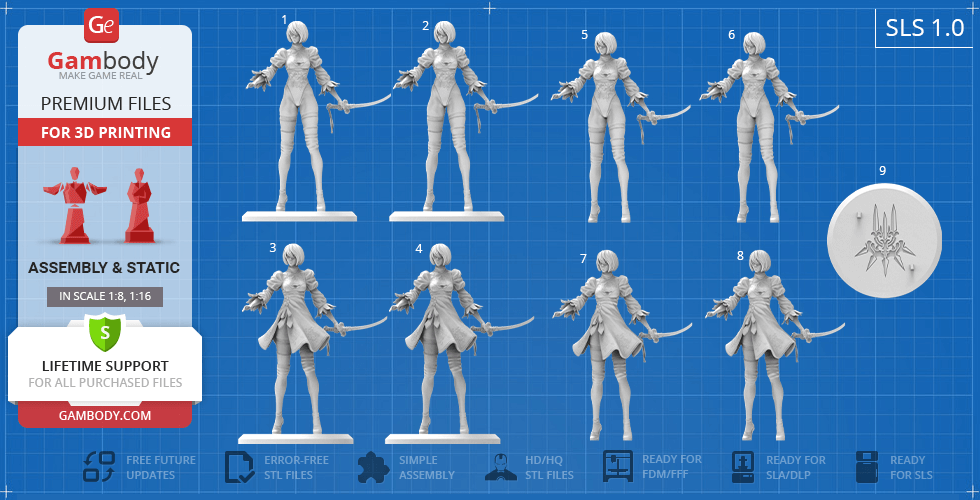

SLS 1.0 versions features:

  • Contains 9 parts - a solid NieR: Automata 2B figurine on and separately from the platform with alternative accessories.

You can get the figurine of NieR: Automata 2B for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble NieR: Automata 2B 3D Printing Figurine on Gambody YouTube channel.

Also, you may like YoRHa A2 Standing Posture 3D Printing Figurine and other Video Games 3D Printing Figurines.

_______

FAQ:

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

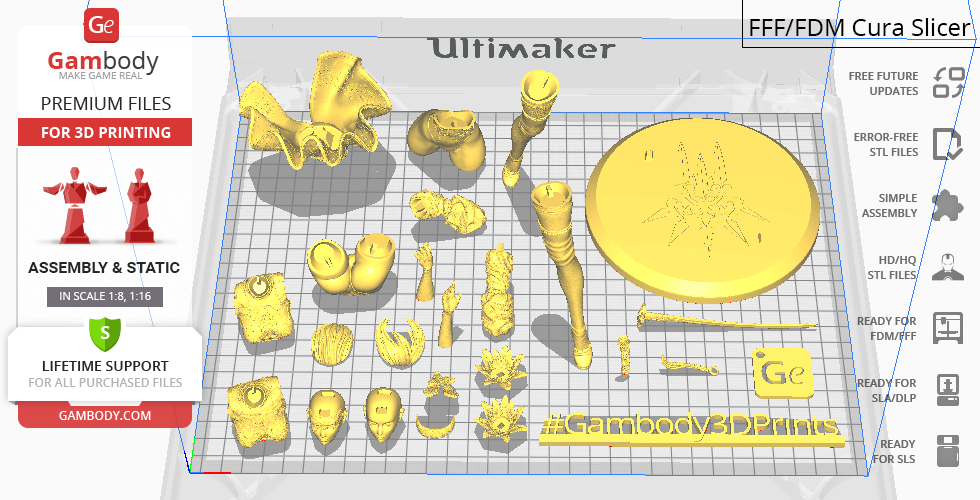

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
