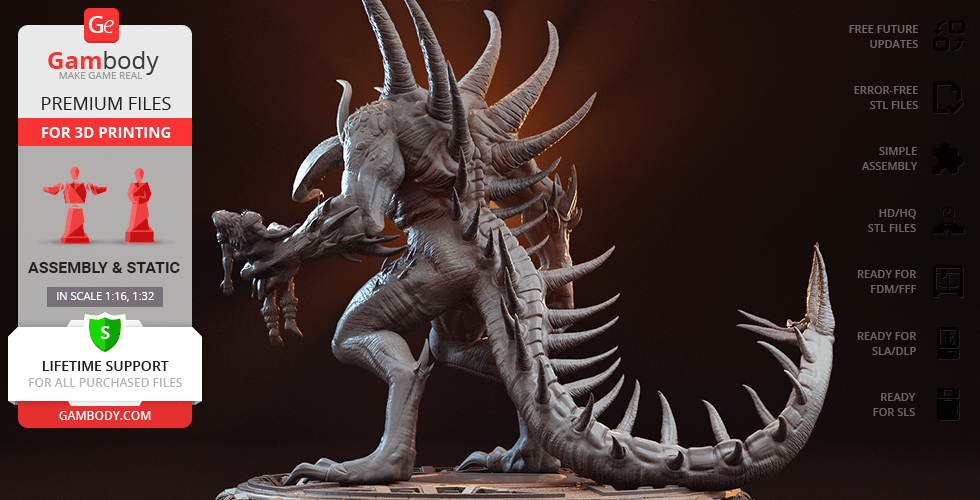

Diablo II Classic 3D Printing Figurine | Assembly

(5)

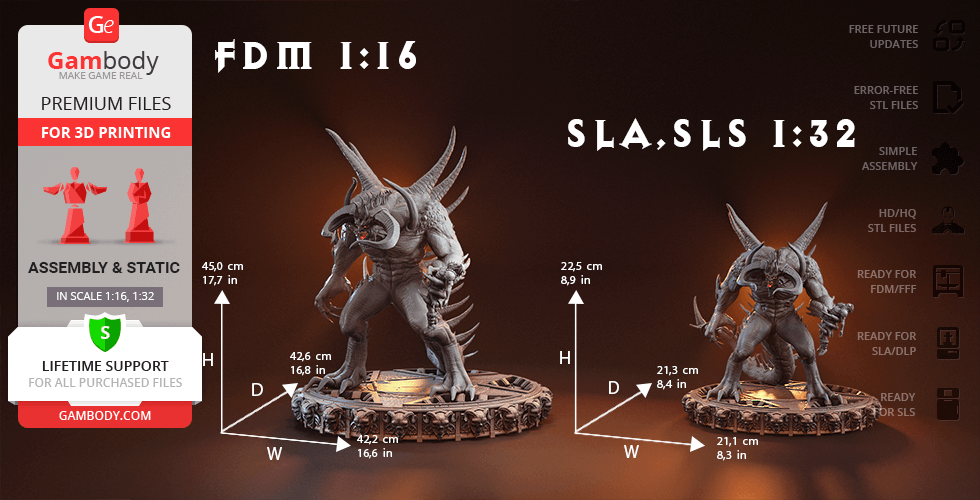

cm: 42.2 w x 42.6 d x 45 h
in: 16.614 w x 16.772 d x 17.717 h

Source Files

|

Description

|

Printing Details

This 3D Figurine of Diablo II Classic consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

- 4 versions of Diablo Lord of Terror STL files for FFF/FDMDLP/SLA, DLP/SLA Eco, and SLS - files for each version are available for download after the purchase

- STL files of high-poly The Lord of Terror Classic 3D Figurine for 3D printing consist of 189 parts
- Sizes:
FFF/FDM: 450 mm tall, 422 mm wide, 426 mm deep​
​DLP/SLA/SLS: 225 mm tall, 211 mm wide, 213 mm deep

Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format
- Detailed settings that we provide as a recommendation for Cura, Simplify3D and Slic3r for the best print
- Full technical support from the Gambody Support Team

Detailed information about this 3D printing figurine is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

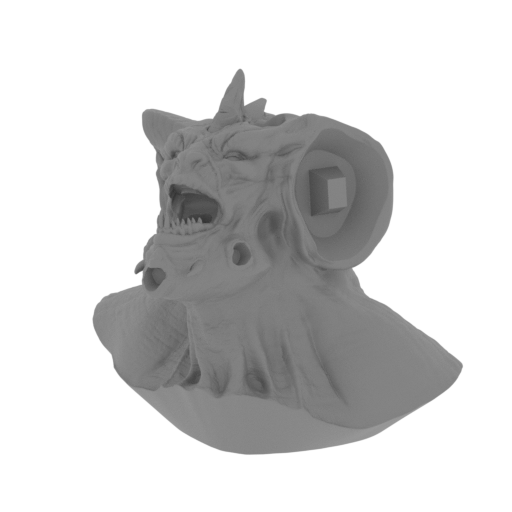

1_head_FDM(repaired).stl
69.78 MiB 13 h 31 min 7 m 84 x 83 x 79 Download

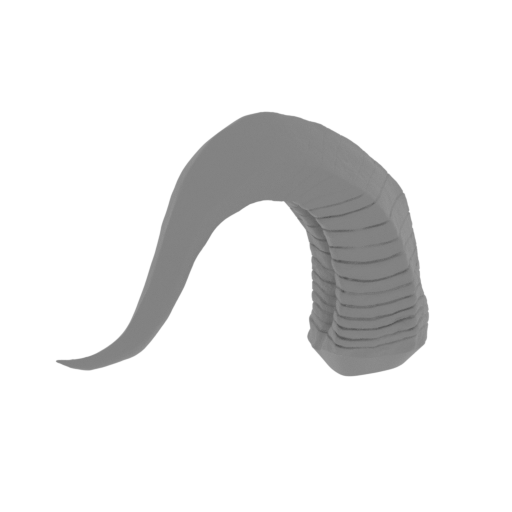

2_horn_R_FDM(repaired).st l
14.91 MiB 3 h 31 min 2 m 54 x 76 x 57 Download

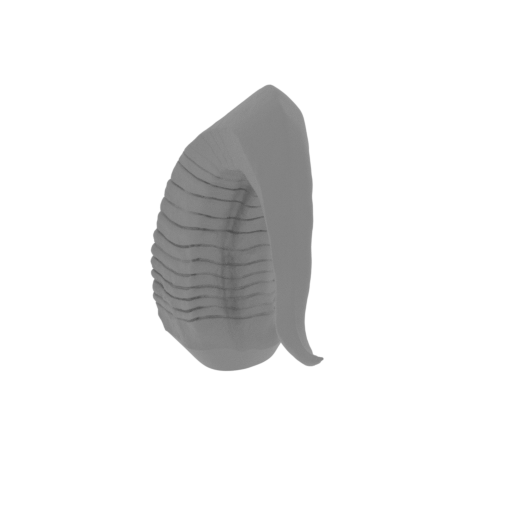

3_horn_L_FDM(repaired).st l
14.86 MiB 3 h 41 min 2 m 54 x 74 x 62 Download

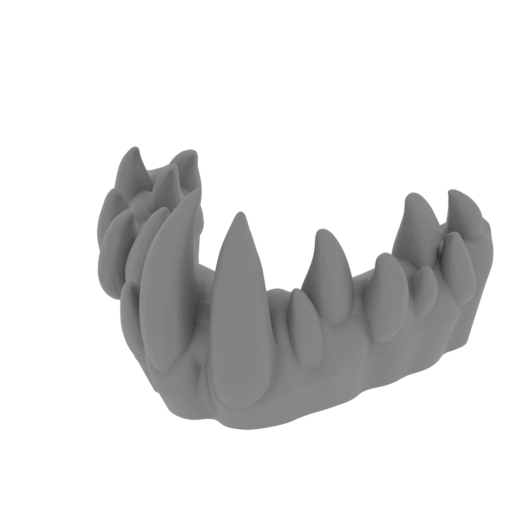

4_jaw_top_FDM(repaired).s tl
13.24 MiB 6 min <1 m 12 x 11 x 8 Download

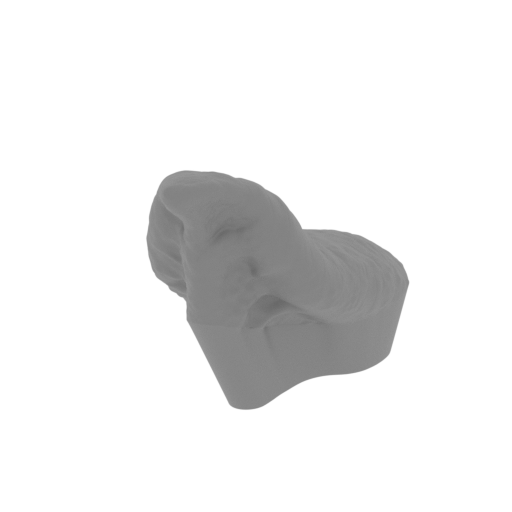

5_tongue_FDM(repaired).st l
5.38 MiB 6 min <1 m 7 x 11 x 9 Download

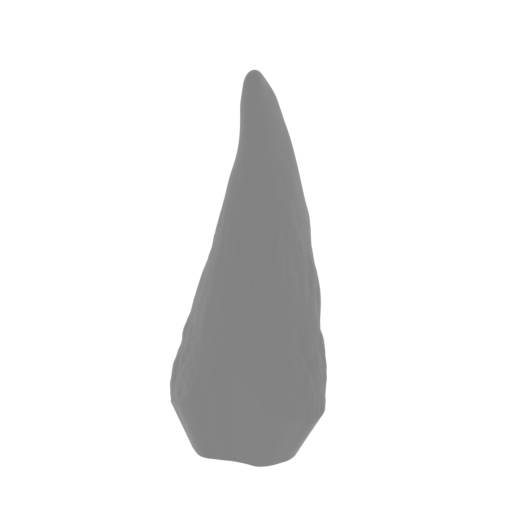

6_spike_chin_1_FDM(repair ed).stl
5.47 MiB 3 min <1 m 5 x 5 x 12 Download

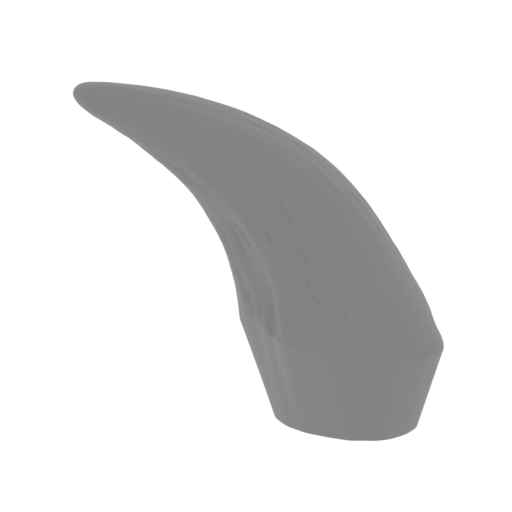

7_spike_chin_2_FDM(repair ed).stl
5.55 MiB 6 min <1 m 11 x 5 x 9 Download
8_spike_chin_3_FDM(repair ed).stl
4.65 MiB 5 min <1 m 11 x 5 x 9 Download
9_spike_neck_1_FDM(repair ed).stl
6.25 MiB 11 min <1 m 9 x 19 x 25 Download
10_spike_neck_2_FDM(repai red).stl
3.37 MiB 12 min <1 m 8 x 22 x 21 Download

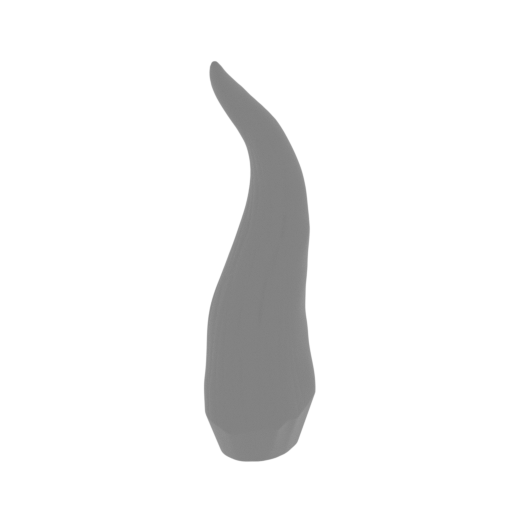

11_spike_neck_3_FDM(repai red).stl
2.87 MiB 7 min <1 m 7 x 9 x 22 Download

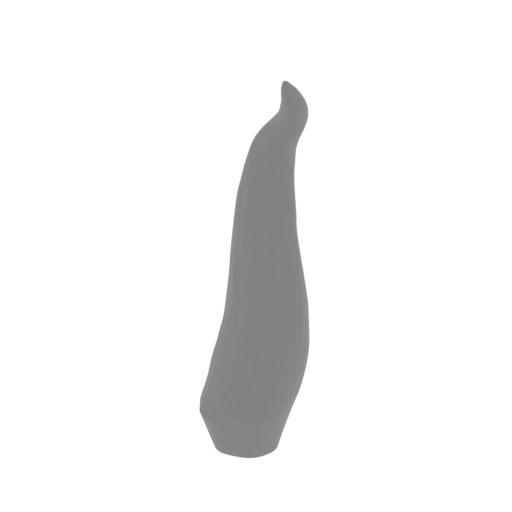

12_spike_neck_4_FDM(repai red).stl
3.42 MiB 6 min <1 m 6 x 8 x 22 Download
13_spike_neck_5_FDM(repai red).stl
2.68 MiB 6 min <1 m 8 x 9 x 22 Download

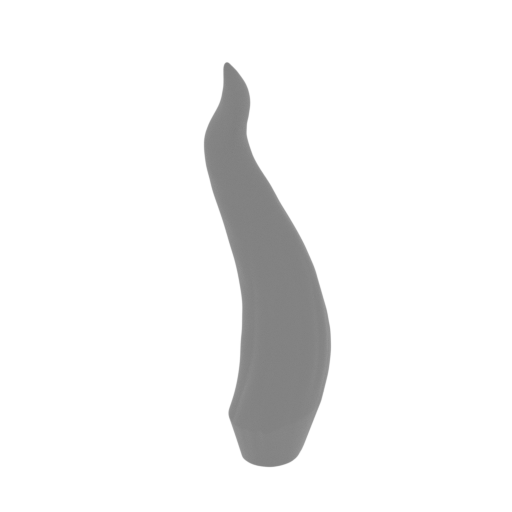

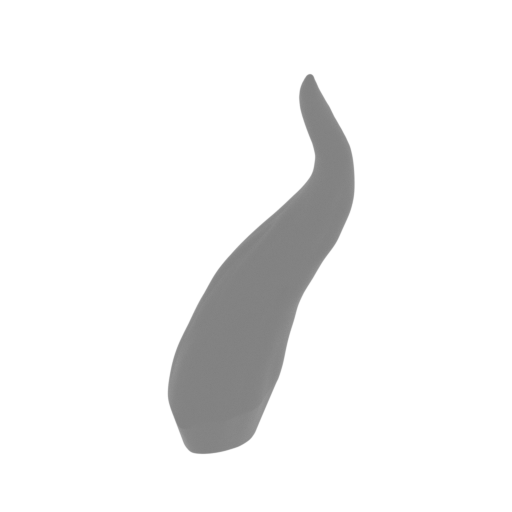

14_spike_neck_6_FDM(repai red).stl
2.85 MiB 6 min <1 m 9 x 9 x 21 Download
15_spike_neck_7_FDM(repai red).stl
2.94 MiB 7 min <1 m 10 x 9 x 23 Download

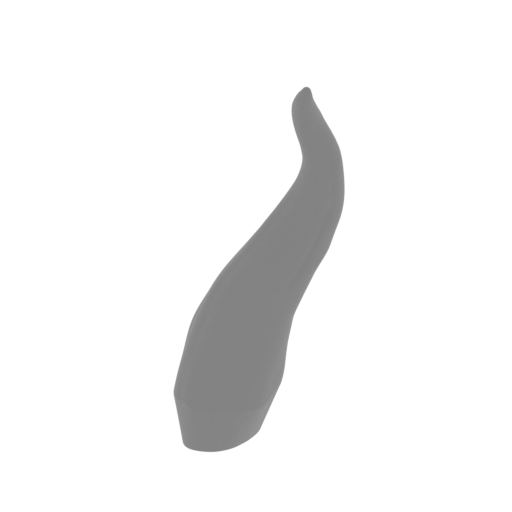

16_spike_neck_8_FDM(repai red).stl
2.88 MiB 7 min <1 m 9 x 8 x 22 Download

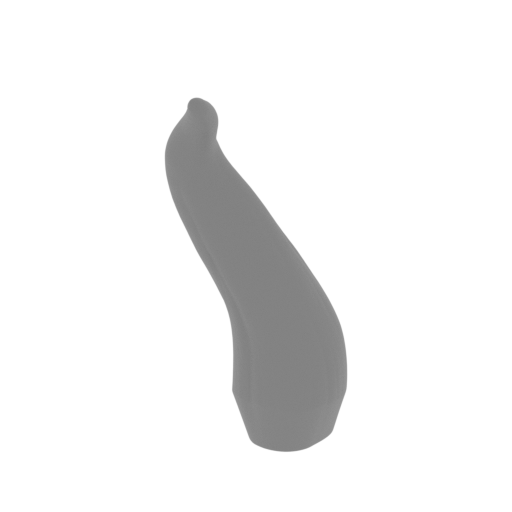

17_spike_neck_9_FDM(repai red).stl
2.03 MiB 4 min <1 m 7 x 6 x 15 Download

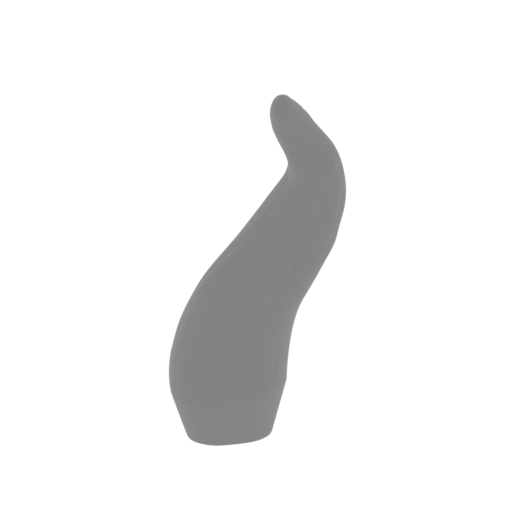

18_spike_neck_10_FDM(repa ired).stl
1.87 MiB 4 min <1 m 6 x 4 x 15 Download

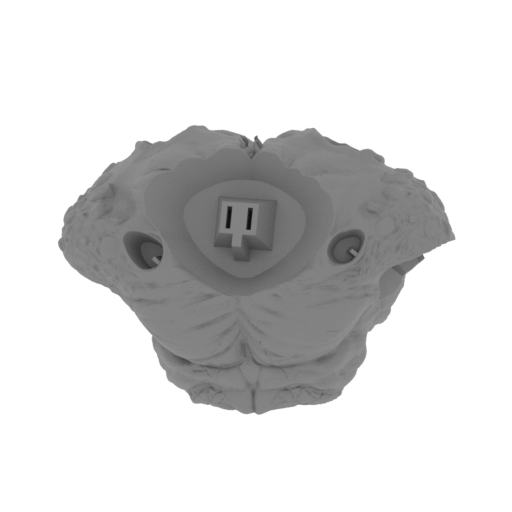

19_body_FDM(repaired).stl
60.16 MiB 75 h 51 min 48 m 171 x 116 x 119 Download

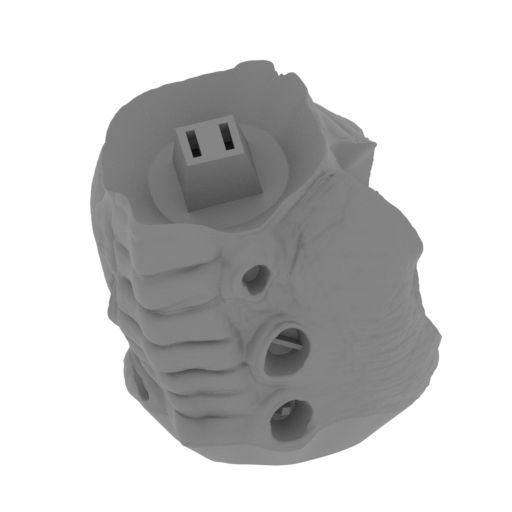

20_pelvis_FDM(repaired).s tl
35.29 MiB 24 h 3 min 14 m 91 x 95 x 92 Download

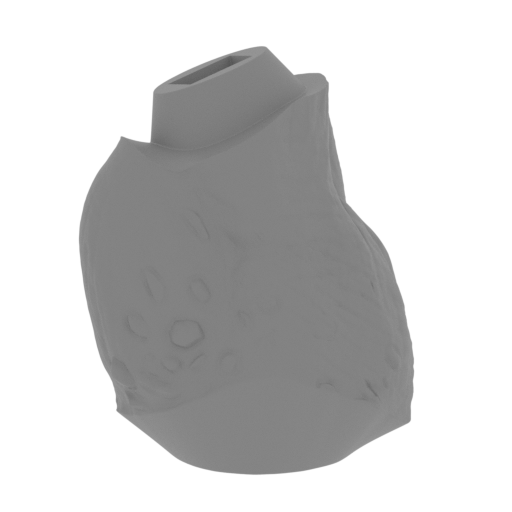

21_arm_R_1_FDM(repaired). stl
16.55 MiB 5 h 56 min 3 m 53 x 52 x 66 Download

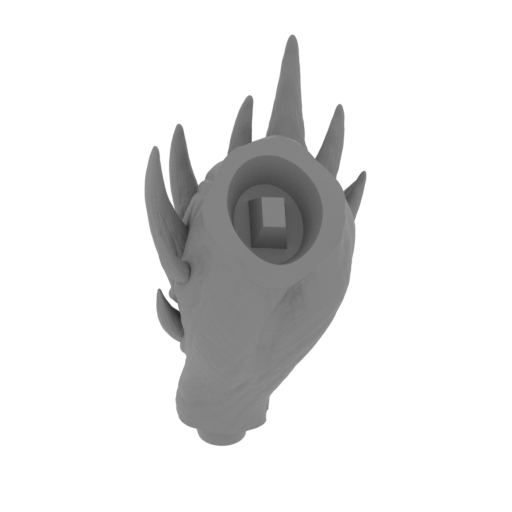

22_arm_R_2_FDM(repaired). stl
17.45 MiB 6 h 28 min 3 m 51 x 58 x 94 Download

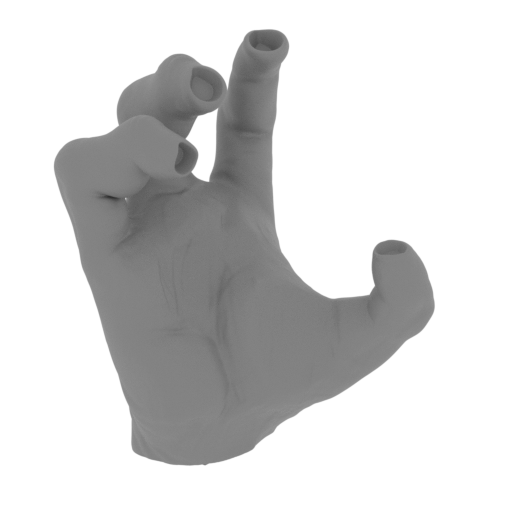

23_hand_R_FDM(repaired).s tl
17.71 MiB 4 h 47 min 3 m 66 x 58 x 67 Download

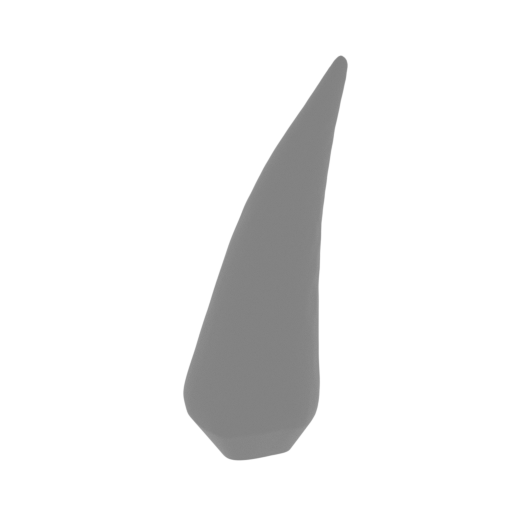

24_claw_1_for_hand_R_FDM( repaired).stl
3.69 MiB 5 min <1 m 6 x 7 x 17 Download
25_claw_2_for_hand_R_FDM( repaired).stl
6.00 MiB 10 min <1 m 13 x 13 x 25 Download

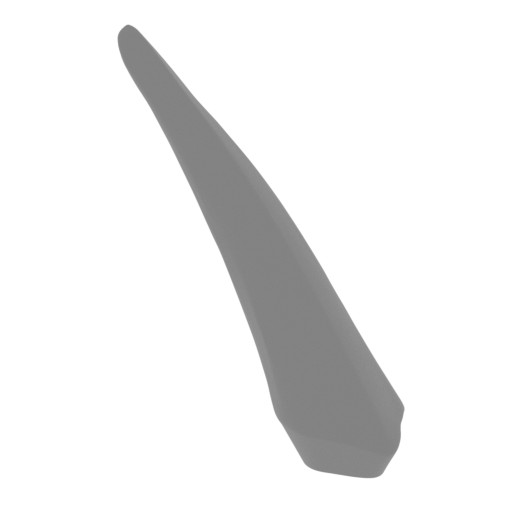

26_claw_3_for_hand_R_FDM( repaired).stl
4.91 MiB 7 min <1 m 16 x 8 x 18 Download

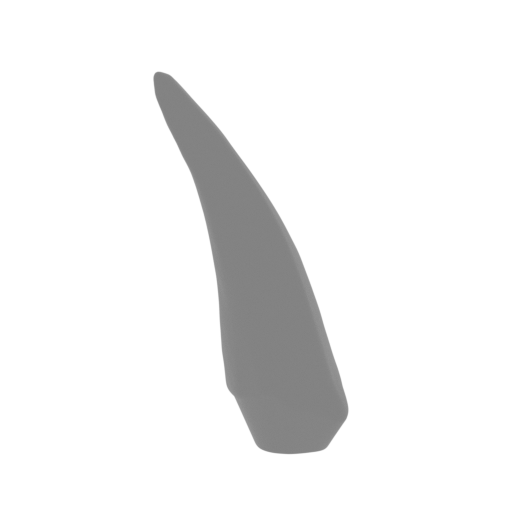

27_claw_4_for_hand_R_FDM( repaired).stl
3.66 MiB 5 min <1 m 9 x 5 x 18 Download

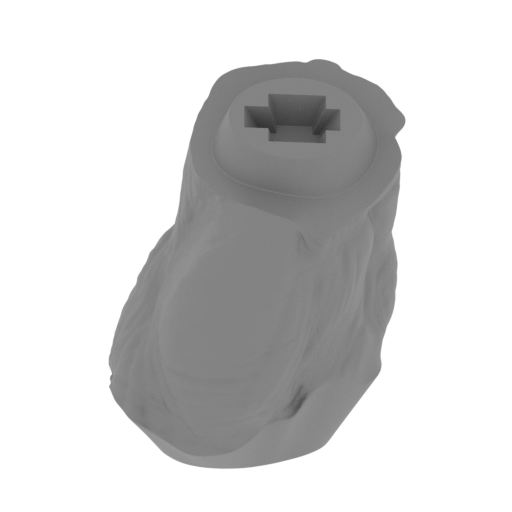

28_arm_L_1_FDM(repaired). stl
16.68 MiB 6 h 27 min 4 m 52 x 55 x 69 Download

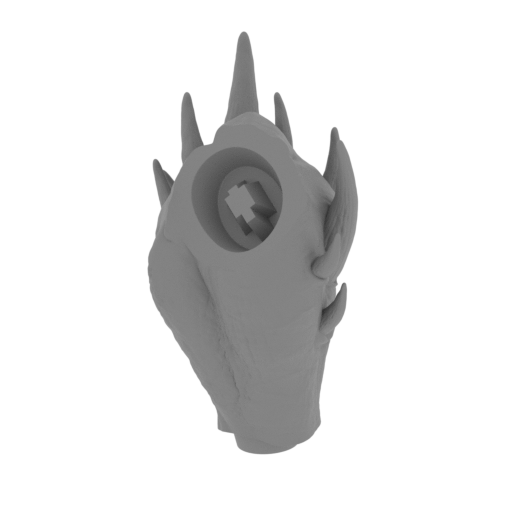

29_arm_L_2_FDM(repaired). stl
17.22 MiB 7 h 14 min 4 m 58 x 53 x 96 Download

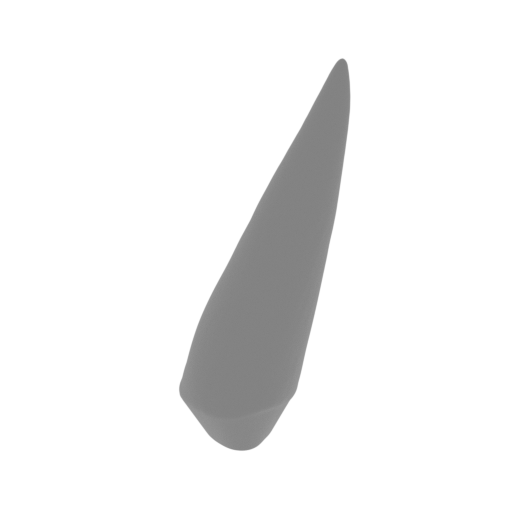

31_claw_1_for_hand_L_FDM( repaired).stl
1.56 MiB 5 min <1 m 7 x 6 x 17 Download

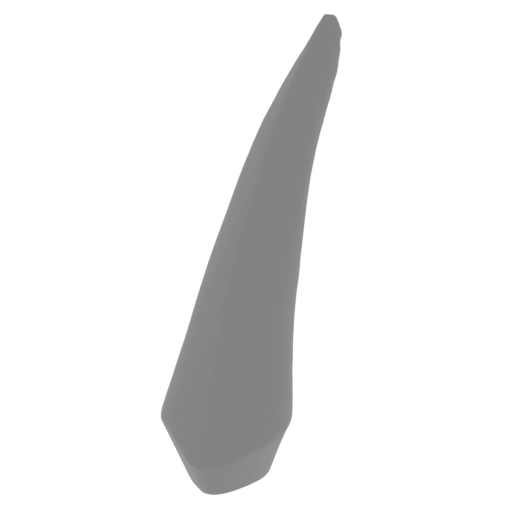

32_claw_2_for_hand_L_FDM( repaired).stl
1.91 MiB 7 min <1 m 6 x 16 x 18 Download

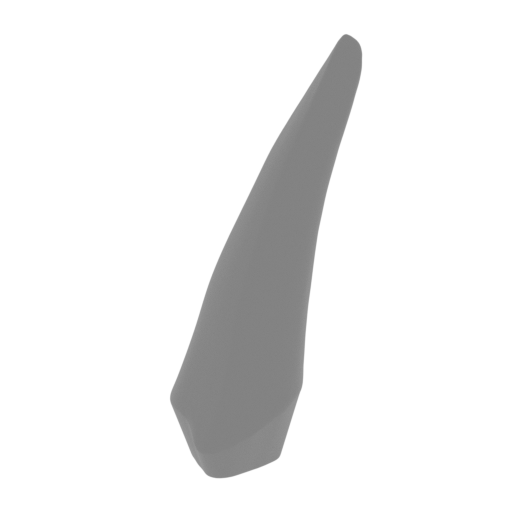

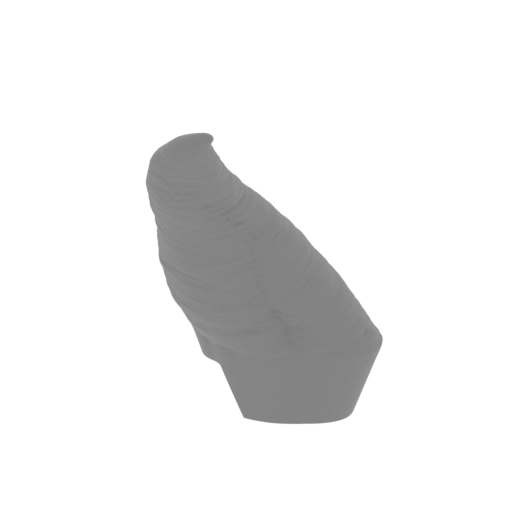

33_claw_3_for_hand_L_FDM( repaired).stl
1.52 MiB 5 min <1 m 6 x 12 x 17 Download
34_claw_4_for_hand_L_FDM( repaired).stl
1.58 MiB 4 min <1 m 6 x 7 x 16 Download

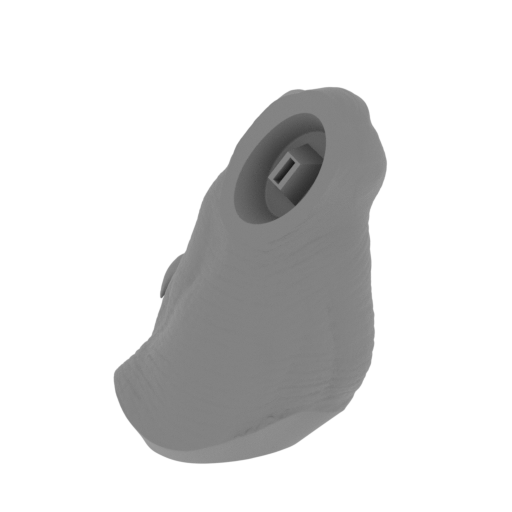

35_leg_R_1_FDM(repaired). stl
21.52 MiB 12 h 18 min 7 m 69 x 66 x 102 Download

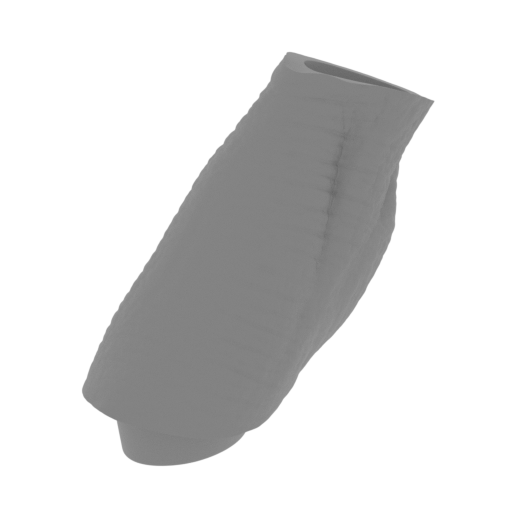

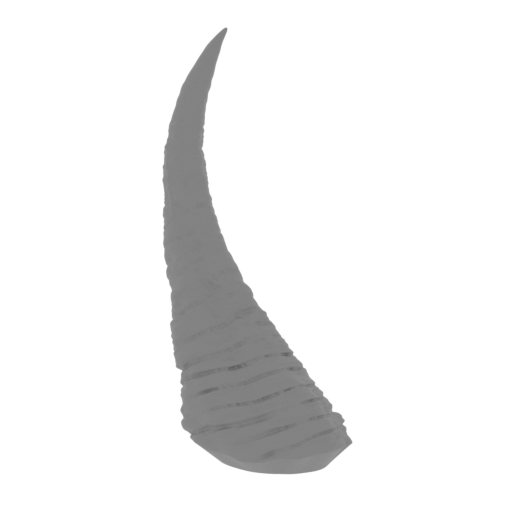

36_leg_R_2_FDM(repaired). stl
17.97 MiB 4 h 38 min 3 m 46 x 63 x 59 Download

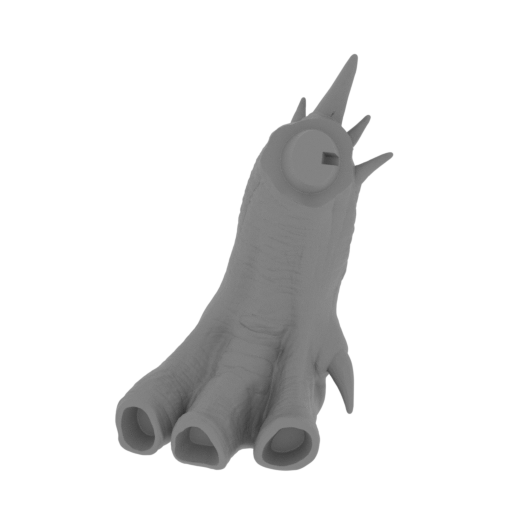

37_foot_R_FDM(repaired).s tl
18.50 MiB 7 h 44 min 4 m 68 x 63 x 109 Download

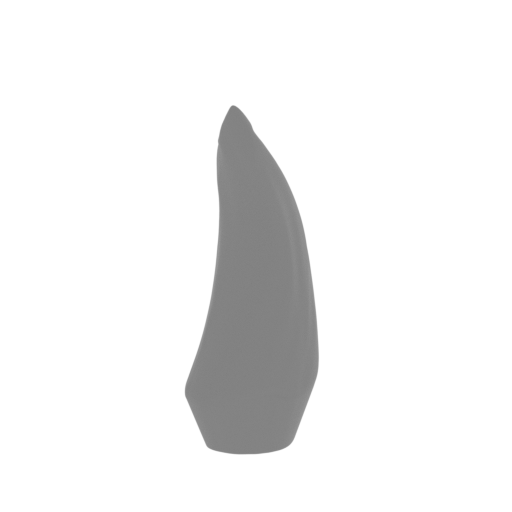

38_claw_1_for_foot_R_FDM( repaired).stl
1.81 MiB 36 min <1 m 14 x 18 x 45 Download

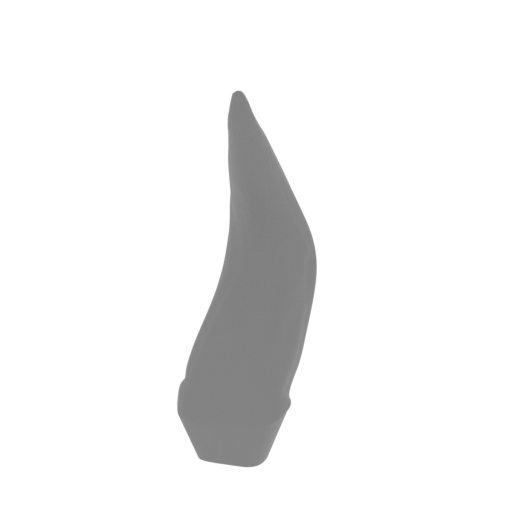

39_claw_2_for_foot_R_FDM( repaired).stl
1.61 MiB 38 min <1 m 14 x 23 x 48 Download

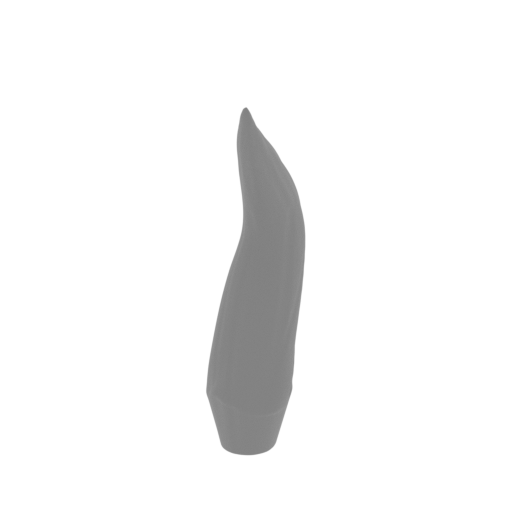

40_claw_3_for_foot_R_FDM( repaired).stl
1.71 MiB 37 min <1 m 11 x 20 x 50 Download

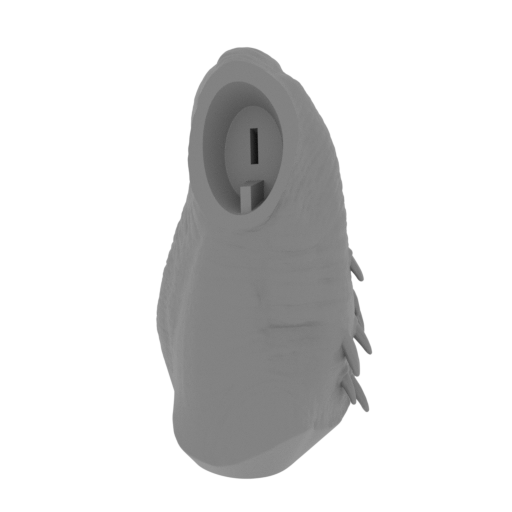

41_leg_L_1_FDM(repaired). stl
20.58 MiB 12 h 20 min 7 m 61 x 73 x 106 Download

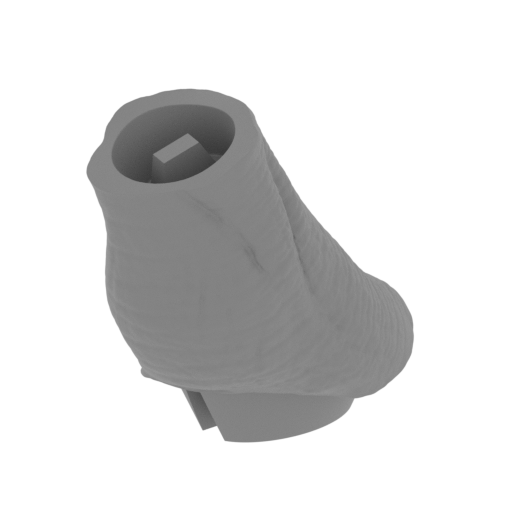

42_leg_L_2_FDM(repaired). stl
17.41 MiB 4 h 30 min 3 m 38 x 60 x 60 Download

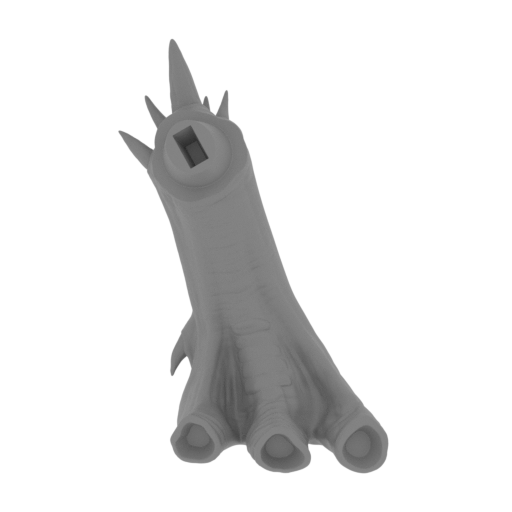

43_foot_L_FDM(repaired).s tl
18.66 MiB 6 h 49 min 4 m 83 x 53 x 107 Download

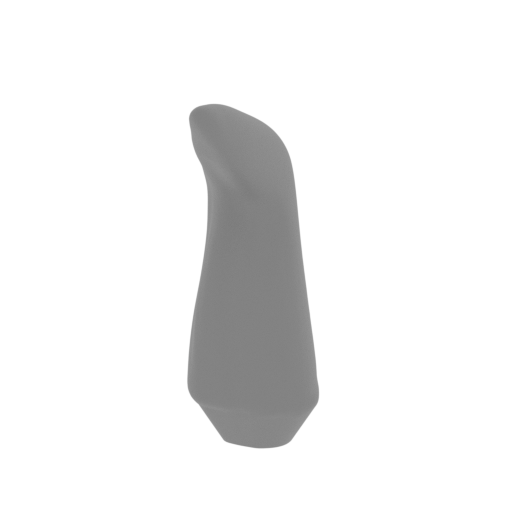

44_claw_1_for_foot_L_FDM( repaired).stl
1.79 MiB 30 min <1 m 12 x 18 x 35 Download
45_claw_2_for_foot_L_FDM( repaired).stl
1.72 MiB 33 min <1 m 13 x 19 x 41 Download

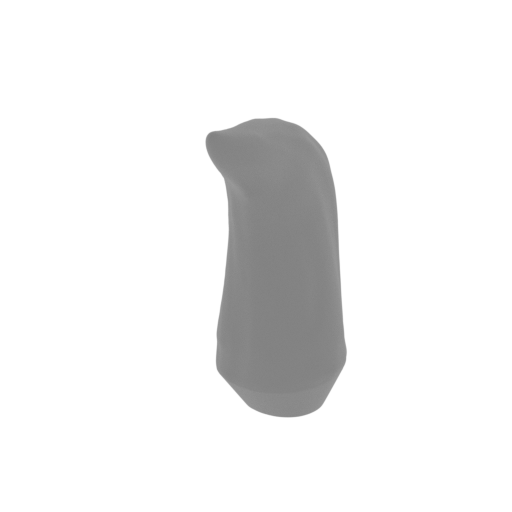

46_claw_3_for_foot_L_FDM( repaired).stl
1.79 MiB 34 min <1 m 12 x 27 x 35 Download

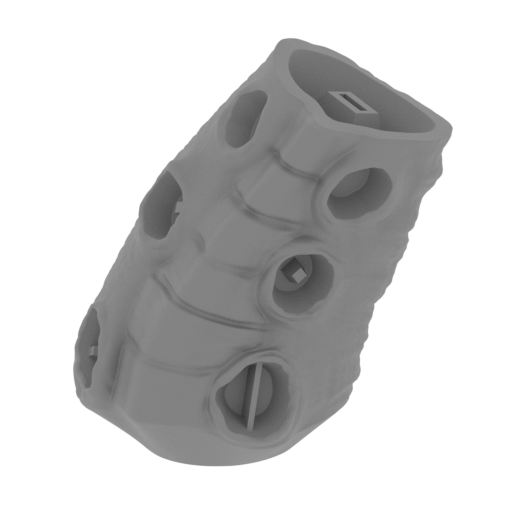

47_tail_1_FDM(repaired).s tl
17.67 MiB 13 h 10 min 7 m 76 x 66 x 83 Download

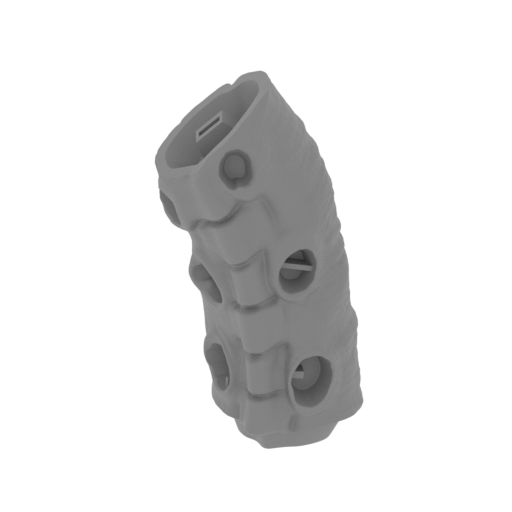

48_tail_2_FDM(repaired).s tl
19.37 MiB 10 h 35 min 6 m 54 x 54 x 104 Download

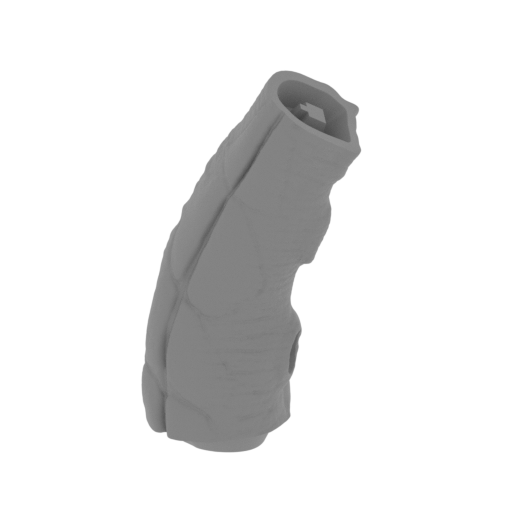

49_tail_3_FDM(repaired).s tl
17.67 MiB 9 h 23 min 5 m 60 x 46 x 105 Download
50_tail_4_FDM(repaired).s tl
17.64 MiB 7 h 37 min 5 m 66 x 45 x 90 Download

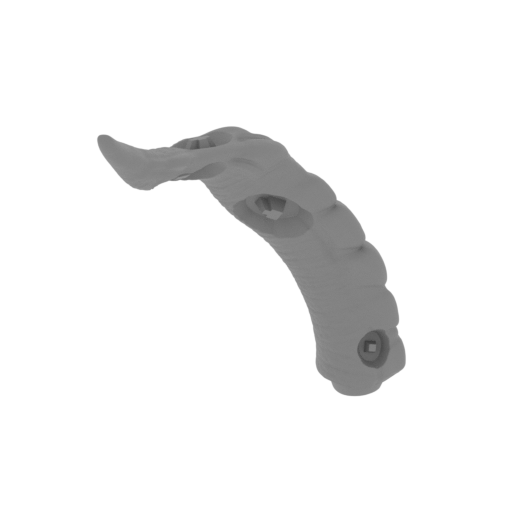

51_tail_5_FDM(repaired).s tl
14.82 MiB 8 h 6 min 6 m 55 x 101 x 105 Download

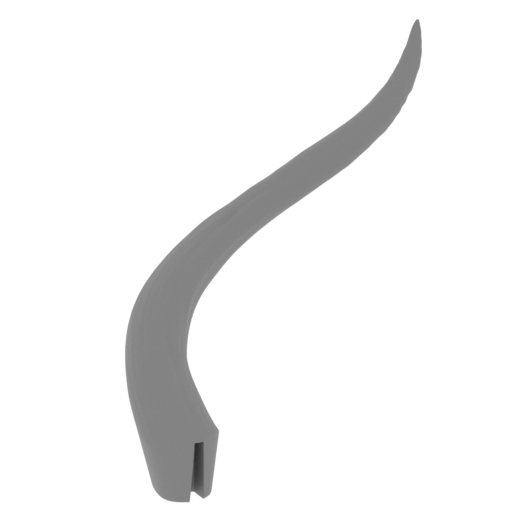

52_chest_spike_1_FDM(repa ired).stl
2.70 MiB 2 h 17 min 1 m 40 x 74 x 73 Download
53_chest_spike_2_FDM(repa ired).stl
2.56 MiB 1 h 57 min 1 m 45 x 72 x 62 Download

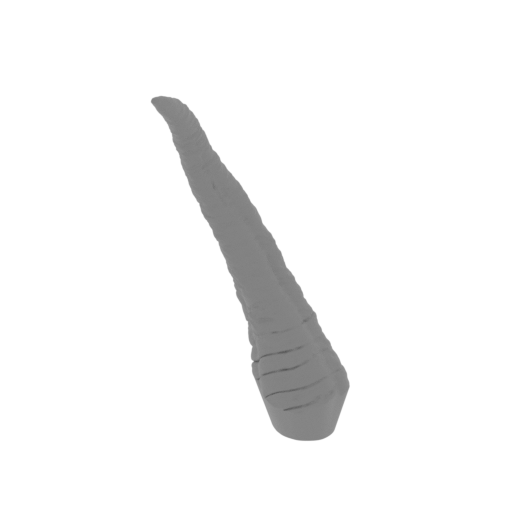

54_spike_1_FDM(repaired). stl
10.52 MiB 3 h 46 min 2 m 49 x 51 x 115 Download

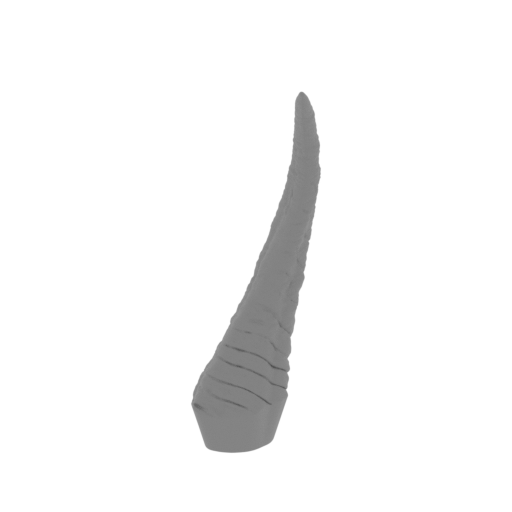

55_spike_2_FDM(repaired). stl
11.38 MiB 3 h 13 min 2 m 38 x 40 x 127 Download

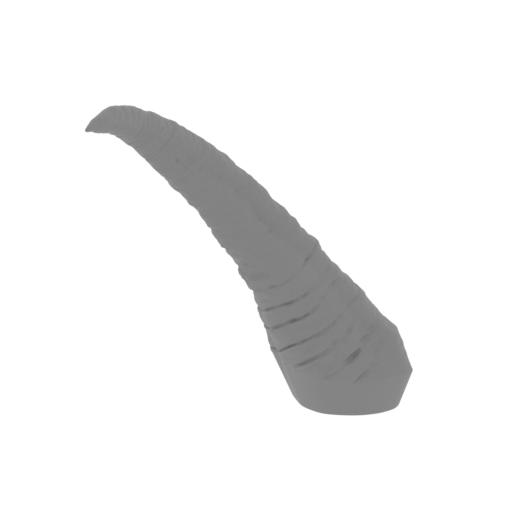

56_spike_3_FDM(repaired). stl
10.58 MiB 4 h 45 min 3 m 57 x 80 x 91 Download

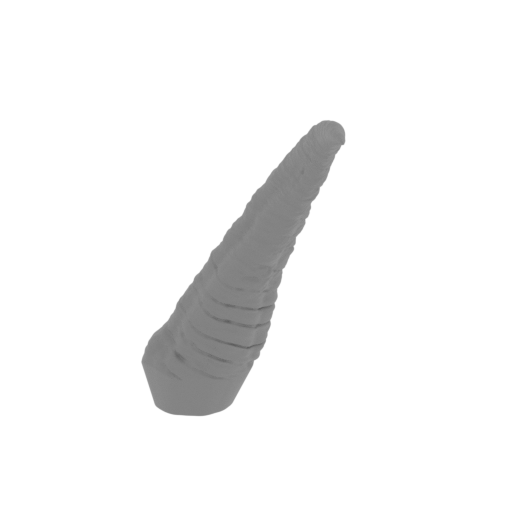

57_spike_4_FDM(repaired). stl
10.54 MiB 4 h 20 min 3 m 67 x 58 x 97 Download

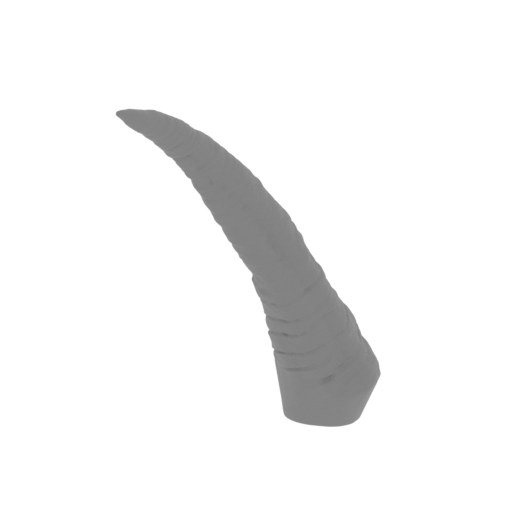

58_spike_5_FDM(repaired). stl
6.52 MiB 2 h 31 min 1 m 44 x 55 x 84 Download

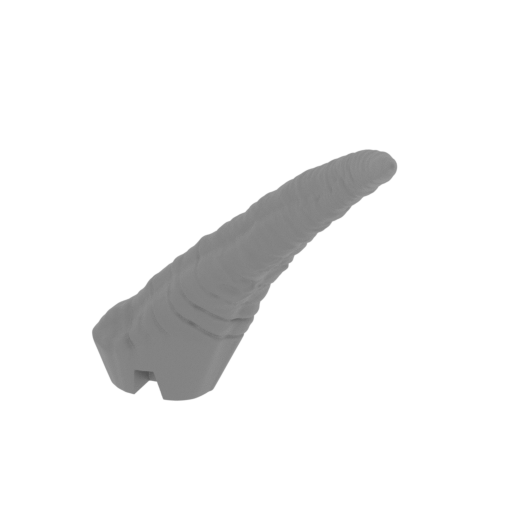

59_spike_6_FDM(repaired). stl
6.04 MiB 2 h 43 min 2 m 70 x 48 x 67 Download

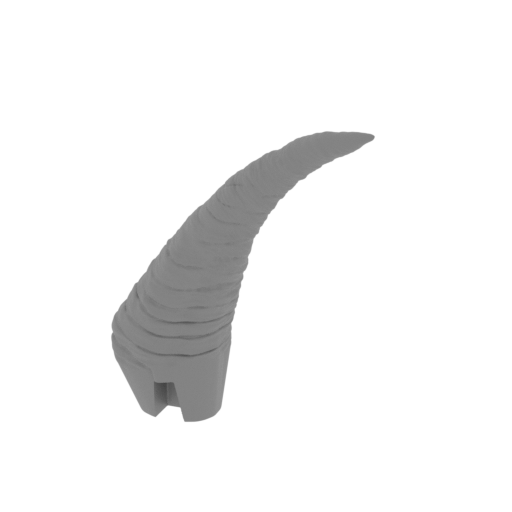

60_spike_7_FDM(repaired). stl
14.07 MiB 1 h 14 min 1 m 45 x 27 x 55 Download

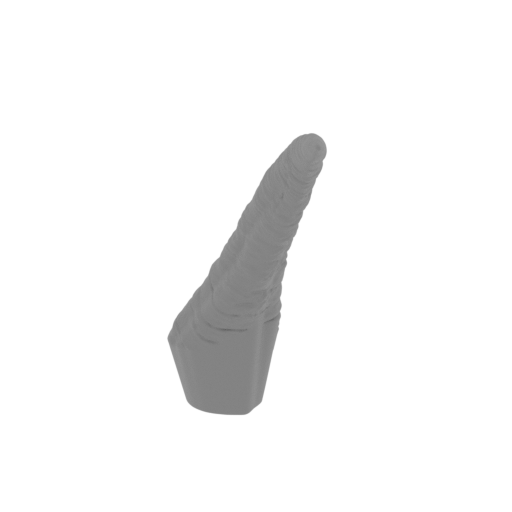

61_spike_8_FDM(repaired). stl
13.23 MiB 1 h 8 min 1 m 32 x 37 x 53 Download

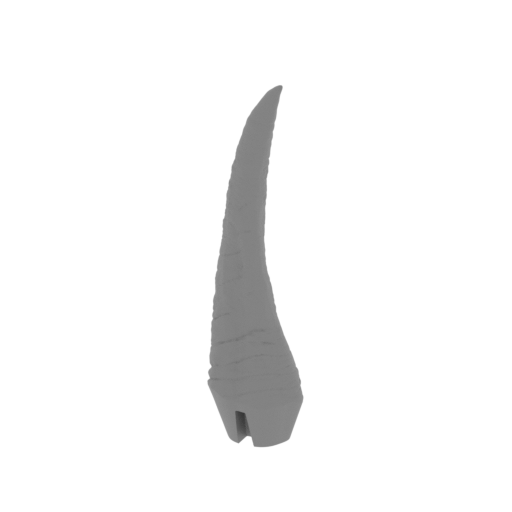

62_spike_9_FDM(repaired). stl
8.82 MiB 35 min <1 m 13 x 11 x 52 Download

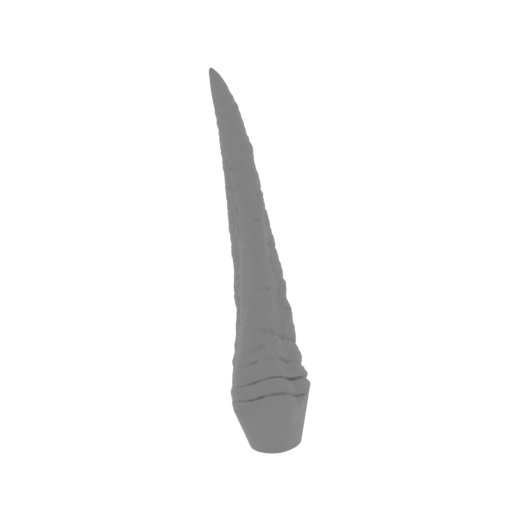

63_spike_10_FDM(repaired) .stl
9.21 MiB 32 min <1 m 15 x 14 x 53 Download

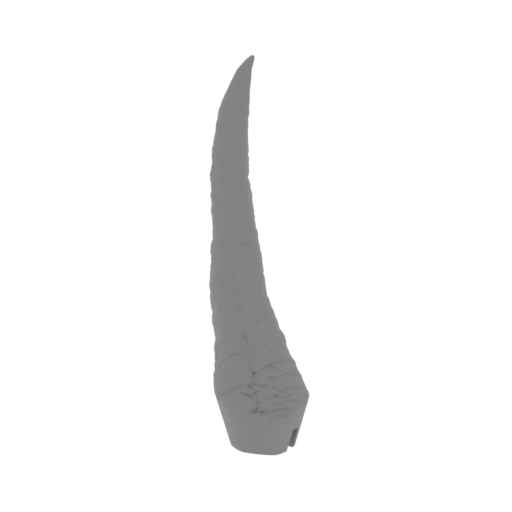

64_spike_11_FDM(repaired) .stl
6.36 MiB 25 min <1 m 14 x 13 x 46 Download

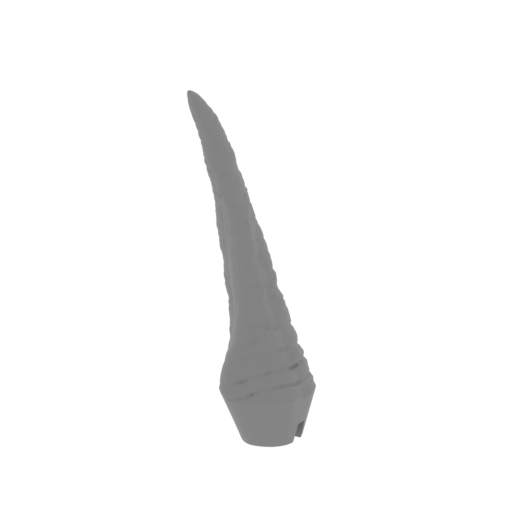

65_spike_12_FDM(repaired) .stl
7.33 MiB 29 min <1 m 14 x 14 x 49 Download
66_spike_13_FDM(repaired) .stl
4.70 MiB 18 min <1 m 9 x 7 x 38 Download

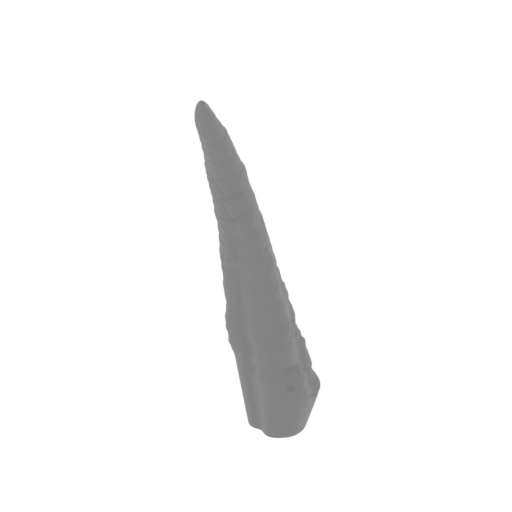

67_spike_14_FDM(repaired) .stl
4.55 MiB 15 min <1 m 9 x 14 x 35 Download

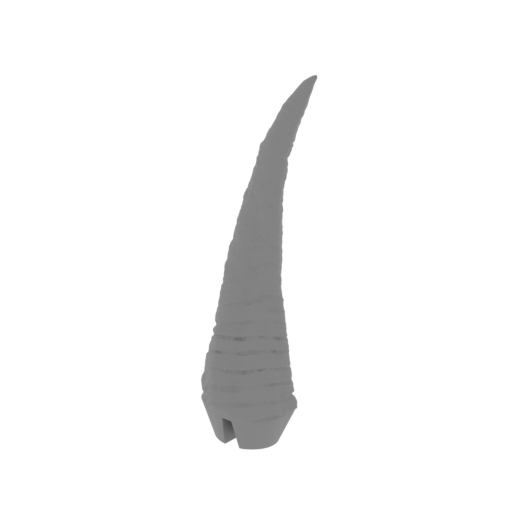

68_spike_15_FDM(repaired) .stl
8.27 MiB 52 min <1 m 20 x 17 x 70 Download

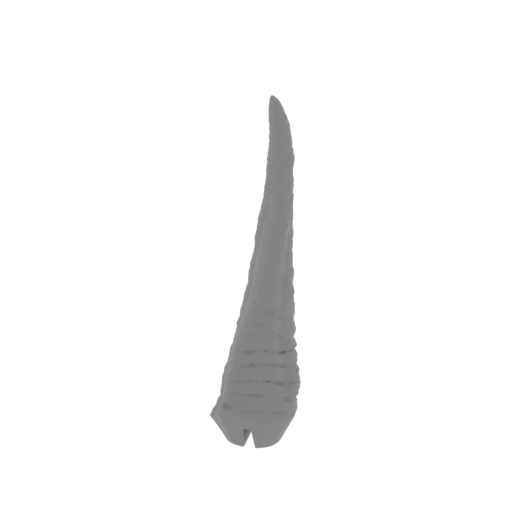

69_spike_16_FDM(repaired) .stl
8.43 MiB 54 min <1 m 16 x 17 x 73 Download

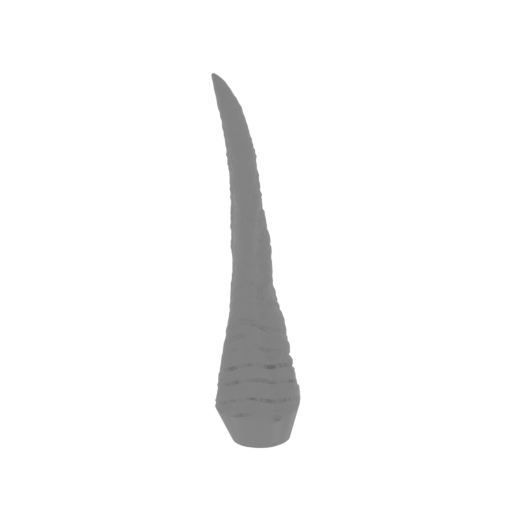

70_spike_17_FDM(repaired) .stl
7.04 MiB 41 min <1 m 15 x 17 x 62 Download
71_spike_18_FDM(repaired) .stl
6.32 MiB 42 min <1 m 15 x 15 x 63 Download

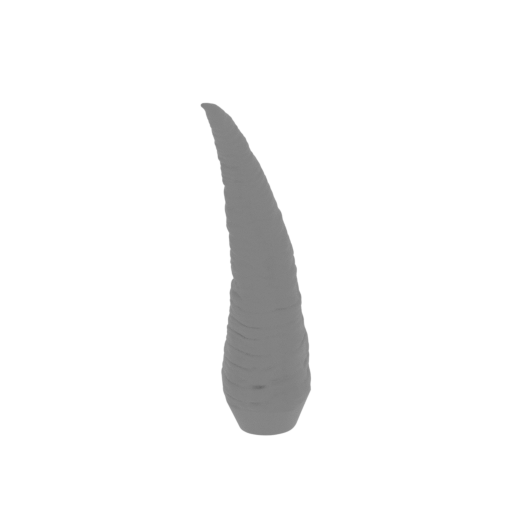

72_spike_19_FDM(repaired) .stl
6.76 MiB 40 min <1 m 13 x 25 x 59 Download

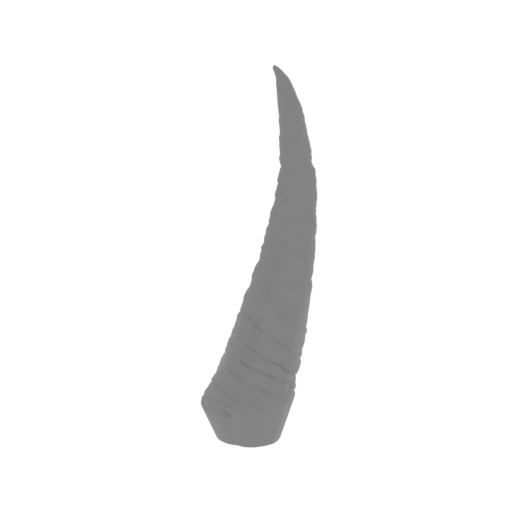

73_spike_20_FDM(repaired) .stl
5.66 MiB 39 min <1 m 16 x 14 x 60 Download

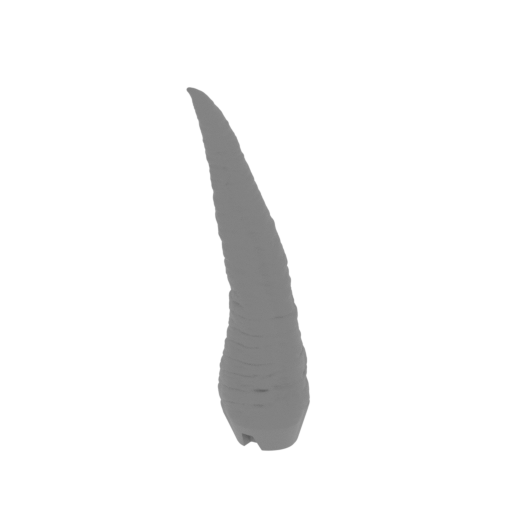

74_spike_21_FDM(repaired) .stl
13.60 MiB 36 min <1 m 16 x 14 x 56 Download
75_spike_22_FDM(repaired) .stl
13.65 MiB 40 min <1 m 16 x 12 x 59 Download

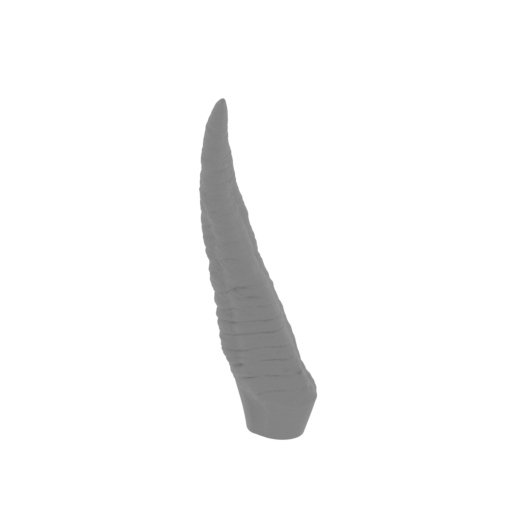

76_spike_23_FDM(repaired) .stl
14.37 MiB 37 min <1 m 16 x 18 x 55 Download

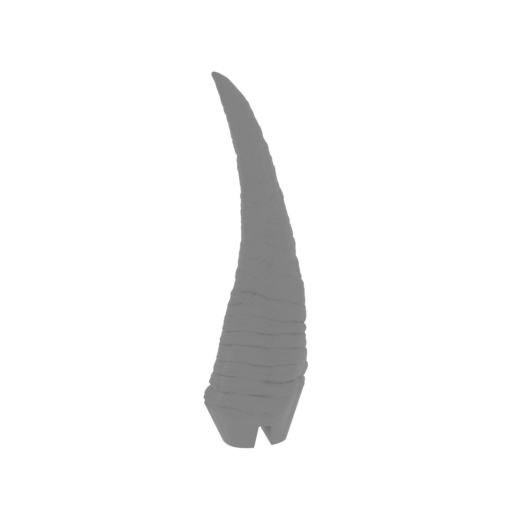

77_spike_24_FDM(repaired) .stl
14.08 MiB 35 min <1 m 13 x 12 x 53 Download
78_spike_25_FDM(repaired) .stl
14.74 MiB 29 min <1 m 11 x 14 x 48 Download

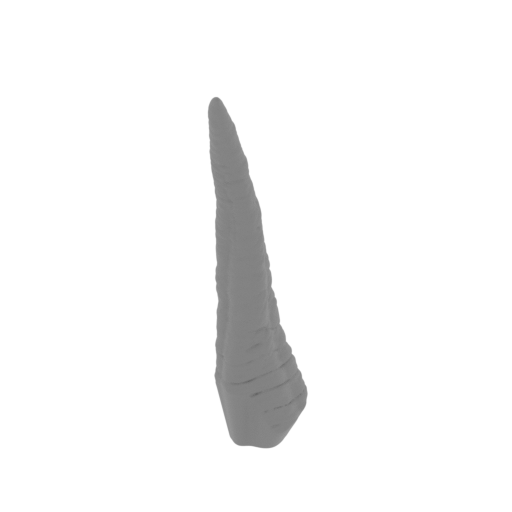

79_spike_26_FDM(repaired) .stl
14.57 MiB 20 min <1 m 9 x 13 x 39 Download

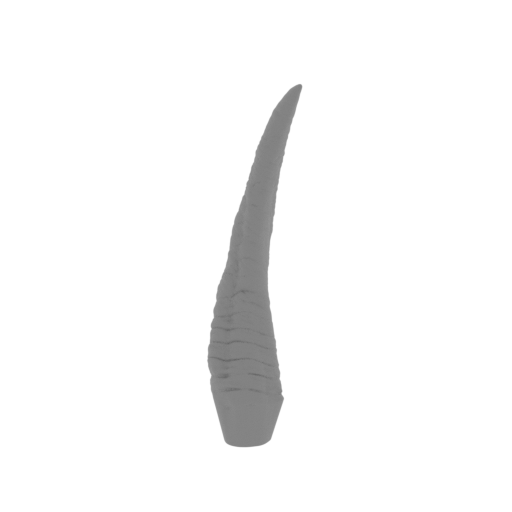

80_spike_27_FDM(repaired) .stl
9.83 MiB 30 min <1 m 12 x 12 x 49 Download

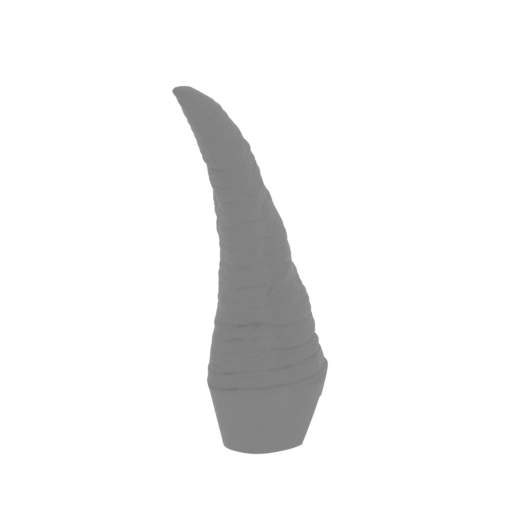

81_spike_28_FDM(repaired) .stl
9.42 MiB 19 min <1 m 11 x 10 x 32 Download
82_spike_29_FDM(repaired) .stl
8.72 MiB 32 min <1 m 12 x 19 x 49 Download

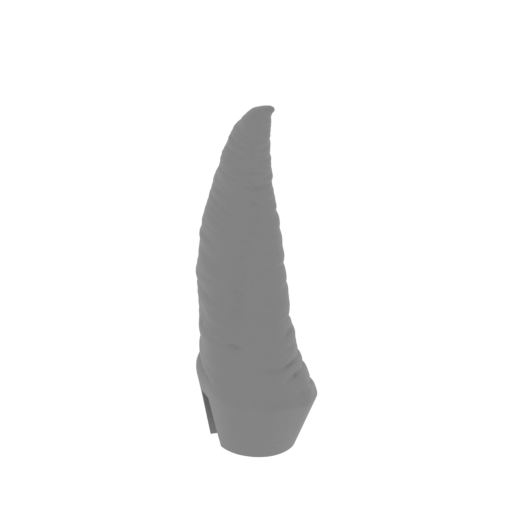

83_spike_30_FDM(repaired) .stl
8.91 MiB 16 min <1 m 10 x 10 x 29 Download

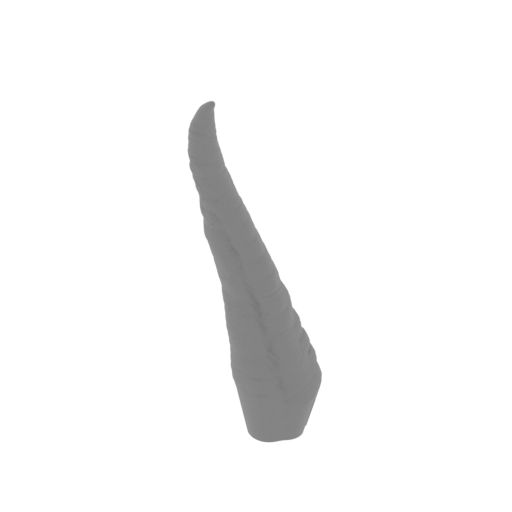

84_spike_31_FDM(repaired) .stl
7.77 MiB 24 min <1 m 12 x 16 x 42 Download
85_spike_32_FDM(repaired) .stl
7.01 MiB 16 min <1 m 12 x 18 x 23 Download

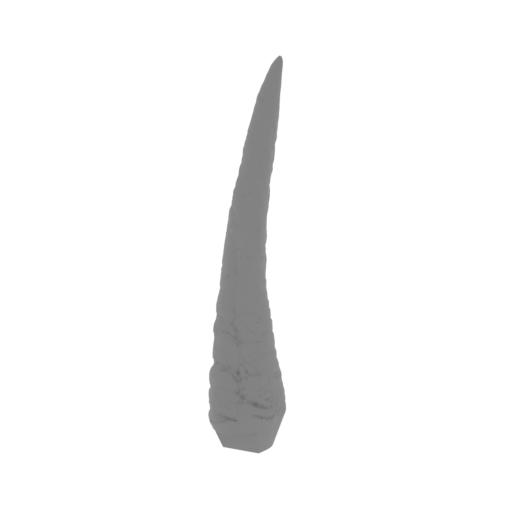

86_spike_33_FDM(repaired) .stl
7.46 MiB 27 min <1 m 9 x 17 x 48 Download
87_spike_34_FDM(repaired) .stl
6.28 MiB 18 min <1 m 11 x 18 x 27 Download
88_spike_35_FDM(repaired) .stl
7.45 MiB 20 min <1 m 10 x 23 x 21 Download

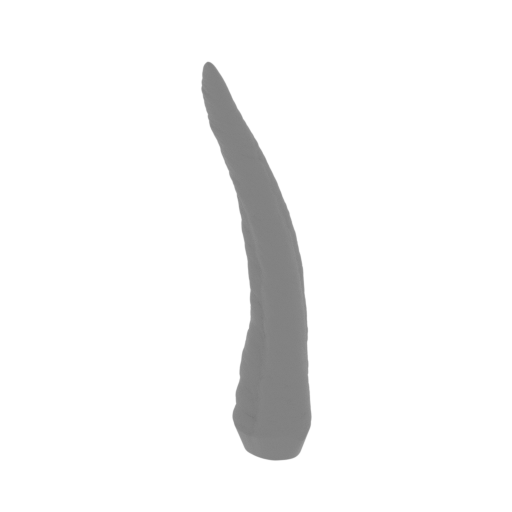

89_spike_36_FDM(repaired) .stl
6.78 MiB 23 min <1 m 15 x 14 x 44 Download

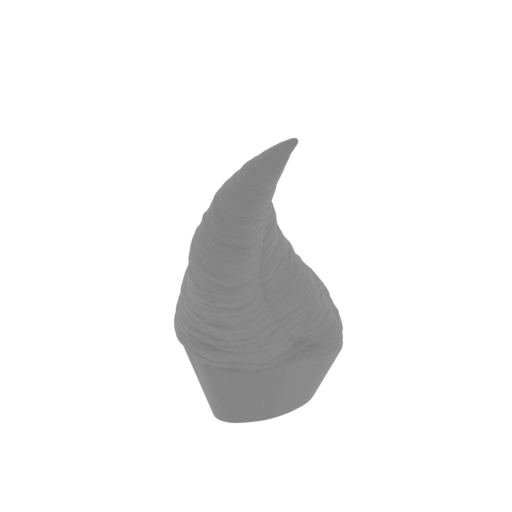

90_spike_37_FDM(repaired) .stl
6.20 MiB 18 min <1 m 12 x 21 x 25 Download
91_spike_38_FDM(repaired) .stl
6.96 MiB 57 min <1 m 33 x 30 x 56 Download

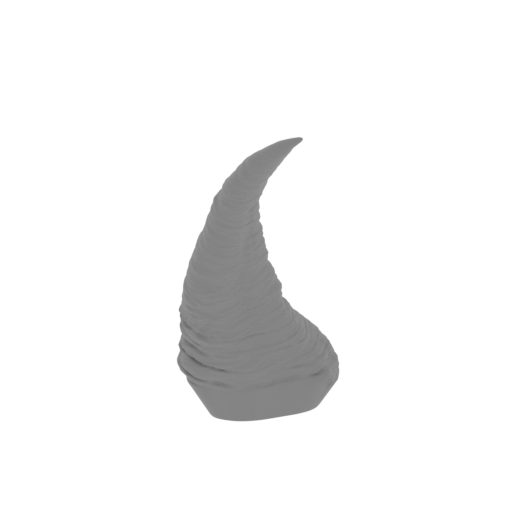

92_spike_39_FDM(repaired) .stl
6.15 MiB 1 h 5 min 1 m 28 x 40 x 58 Download

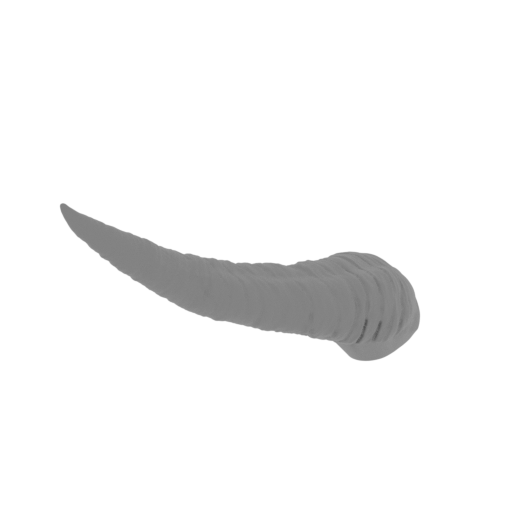

93_spike_40_FDM(repaired) .stl
7.79 MiB 56 min <1 m 35 x 50 x 29 Download

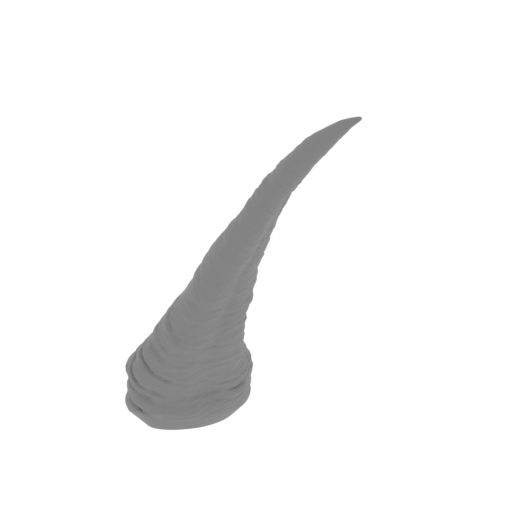

94_spike_41_FDM(repaired) .stl
7.55 MiB 1 h 5 min <1 m 40 x 27 x 59 Download

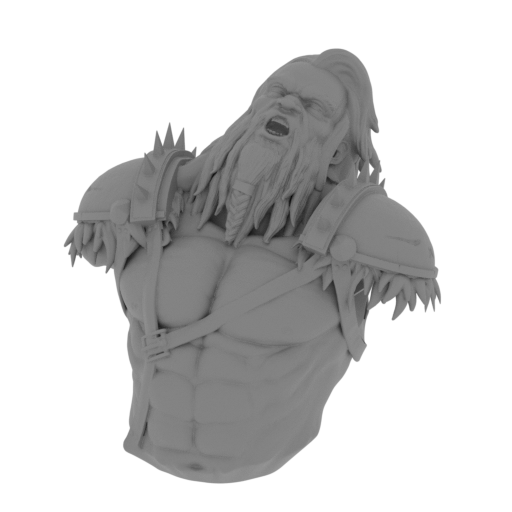

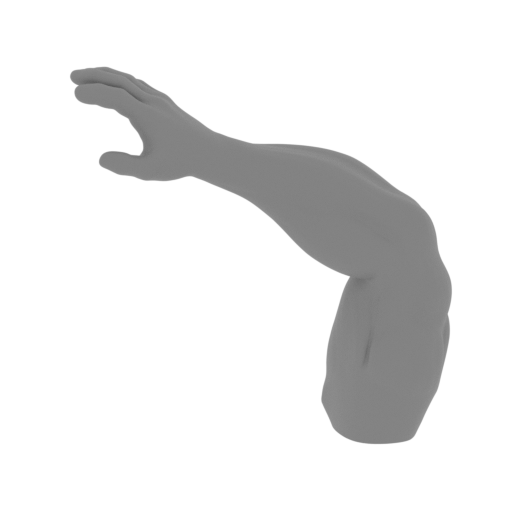

95_barbarian_body_FDM(rep aired).stl
34.95 MiB 3 h 30 min 2 m 44 x 38 x 41 Download

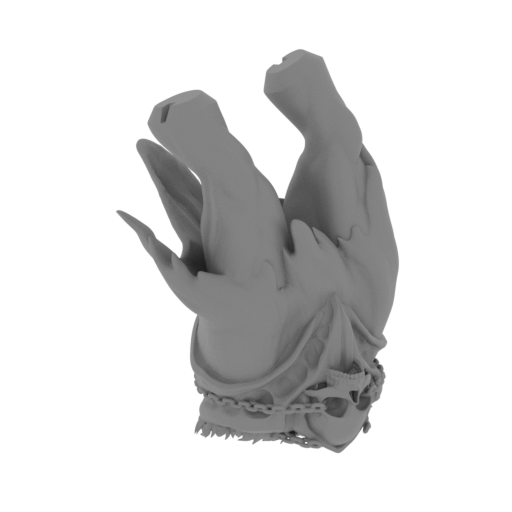

96_barbarian_legs_FDM(rep aired).stl
31.73 MiB 2 h 54 min 1 m 34 x 32 x 52 Download
97_barbarian_arm_R_FDM(re paired).stl
17.48 MiB 40 min <1 m 30 x 18 x 33 Download

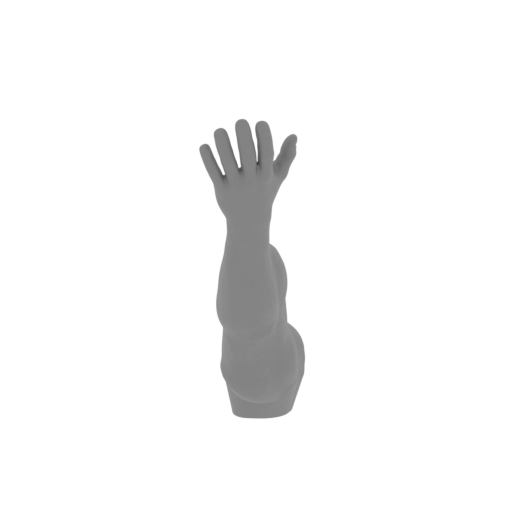

98_barbarian_arm_L_FDM(re paired).stl
17.04 MiB 32 min <1 m 14 x 26 x 43 Download

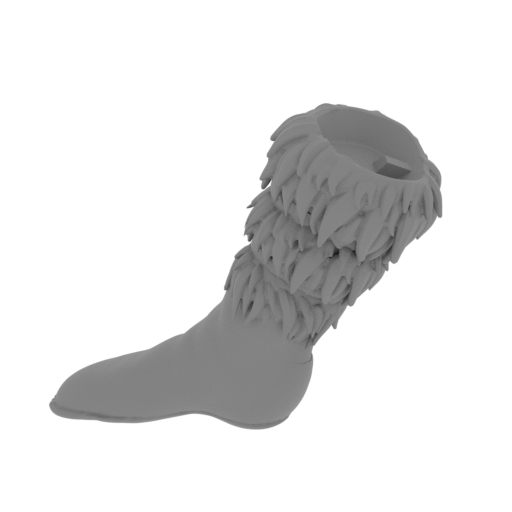

99_barbarian_foot_R_FDM(r epaired).stl
18.52 MiB 50 min <1 m 30 x 15 x 27 Download

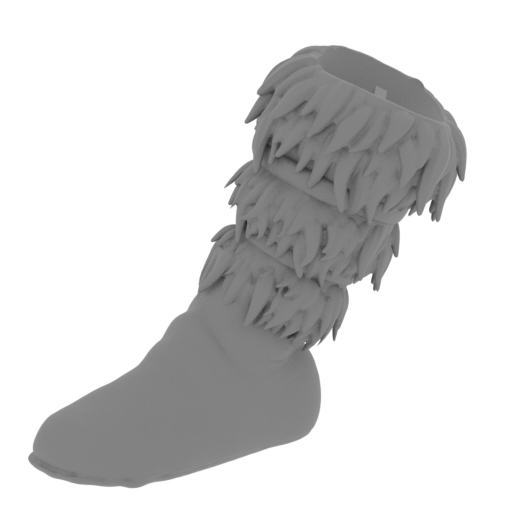

100_barbarian_foot_L_FDM( repaired).stl
18.29 MiB 48 min <1 m 25 x 24 x 26 Download

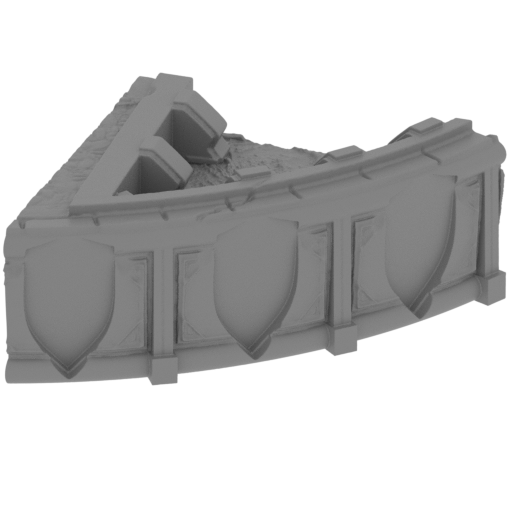

101_platform_1_FDM(repair ed).stl
26.25 MiB 26 h 40 min 15 m 112 x 112 x 54 Download

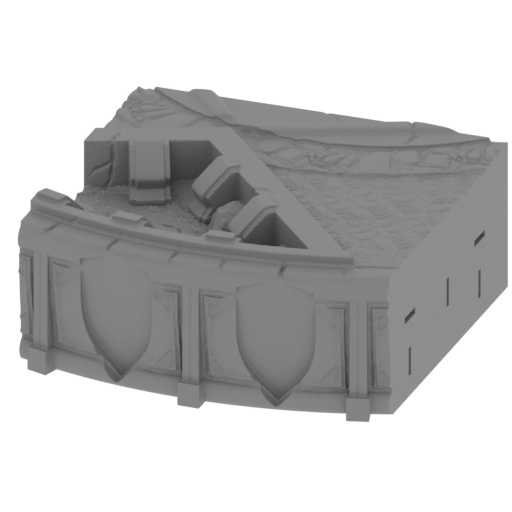

102_platform_2_FDM(repair ed).stl
30.49 MiB 48 h 13 min 27 m 127 x 124 x 54 Download

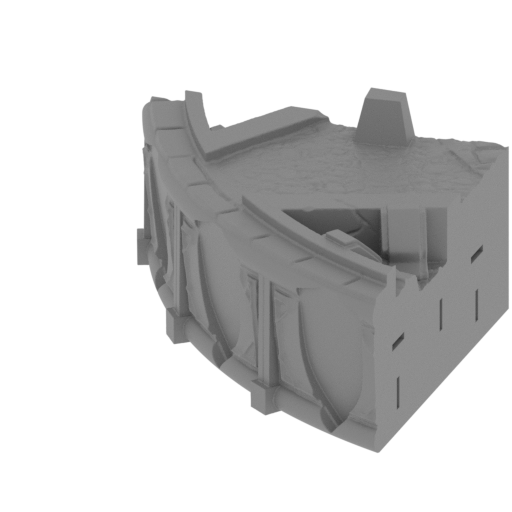

103_platform_3_FDM(repair ed).stl
23.74 MiB 27 h 41 min 16 m 112 x 112 x 62 Download

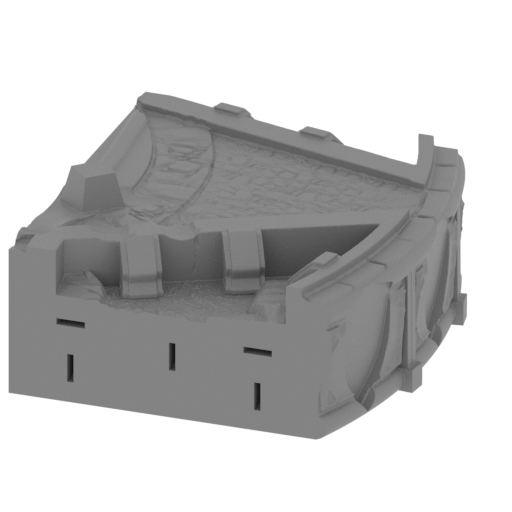

104_platform_4_FDM(repair ed).stl
27.42 MiB 48 h 28 min 28 m 123 x 127 x 63 Download
105_platform_5_FDM(repair ed).stl
30.23 MiB 51 h 6 min 30 m 127 x 127 x 54 Download
106_platform_6_FDM(repair ed).stl
28.32 MiB 48 h 36 min 27 m 123 x 127 x 62 Download

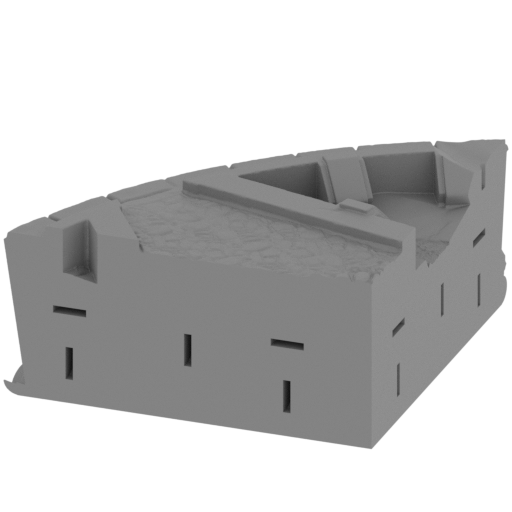

107_platform_7_FDM(repair ed).stl
25.63 MiB 26 h 47 min 15 m 109 x 109 x 54 Download
108_platform_8_FDM(repair ed).stl
30.47 MiB 47 h 28 min 27 m 127 x 121 x 54 Download
109_platform_9_FDM(repair ed).stl
27.46 MiB 26 h 28 min 15 m 109 x 109 x 54 Download

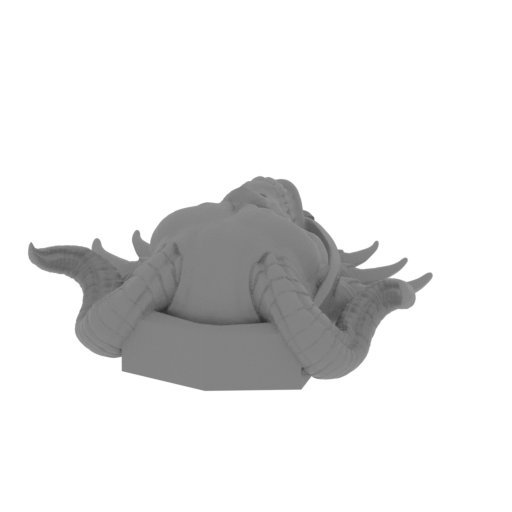

110_scull_(x21)_FDM(repai red).stl
10.14 MiB 2 h 19 min 1 m 53 x 45 x 21 Download

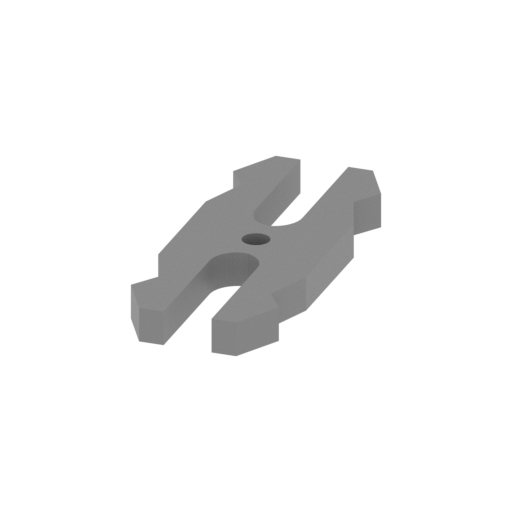

111_ge_lock_7S(x3)_FDM(re paired).stl
0.02 MiB 3 min <1 m 7 x 18 x 2 Download

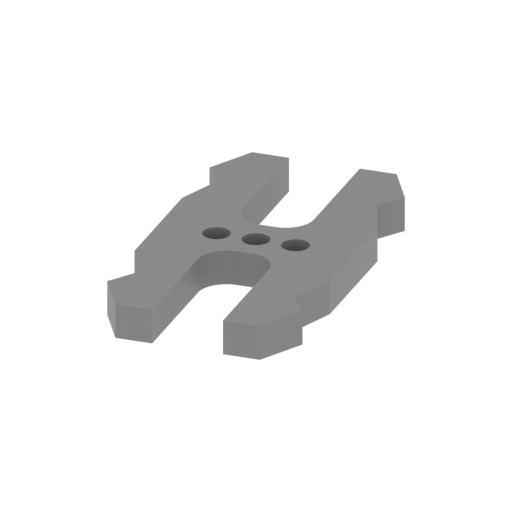

112_ge_lock_10H(x72)_FDM( repaired).stl
0.03 MiB 4 min <1 m 10 x 18 x 2 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download

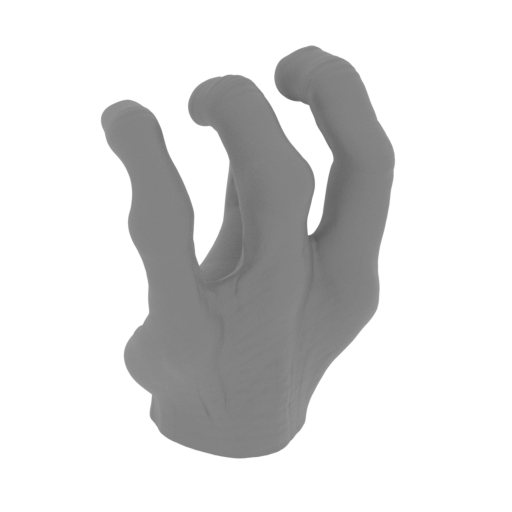

30_hand_L_FDM(repaired).s tl
16.36 MiB 4 h 25 min 3 m 42 x 59 x 59 Download
113_coraline_body_FDM(rep aired).stl
42.17 MiB 2 h 25 min 1 m 32 x 32 x 53 Download

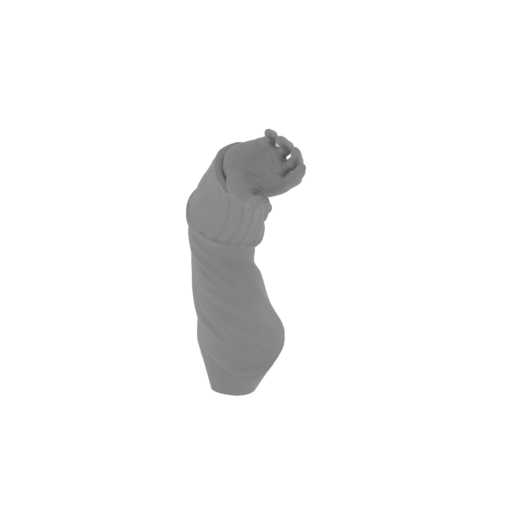

114_coraline_arm_R_FDM(re paired).stl
18.06 MiB 36 min <1 m 19 x 27 x 35 Download

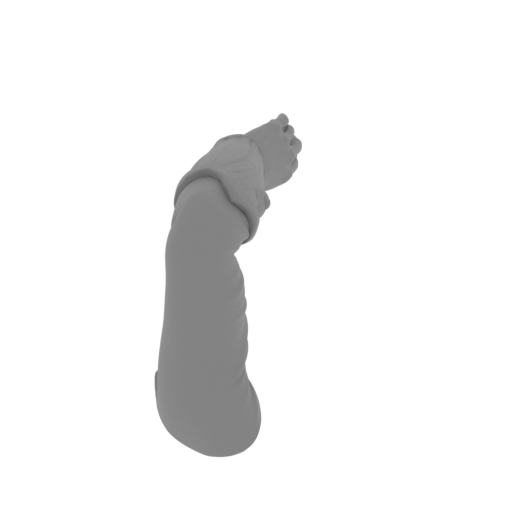

115_coraline_arm_L_FDM(re paired).stl
18.39 MiB 27 min <1 m 10 x 31 x 22 Download

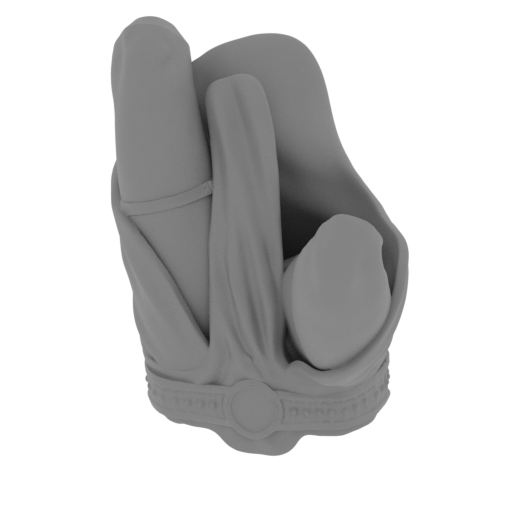

116_coraline_legs_FDM(rep aired).stl
46.07 MiB 2 h 5 min 1 m 36 x 38 x 38 Download

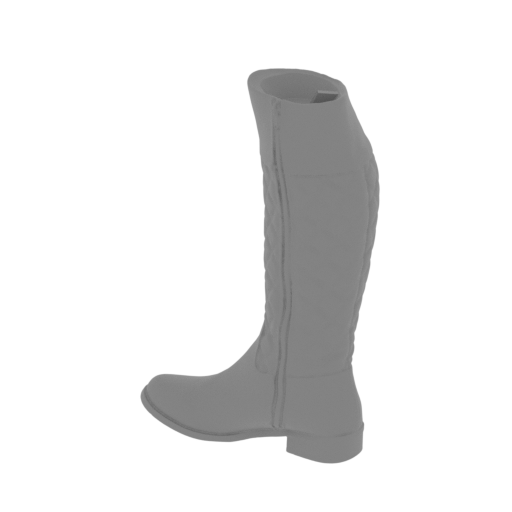

117_coraline_foot_R_FDM(r epaired).stl
15.23 MiB 27 min <1 m 20 x 9 x 32 Download

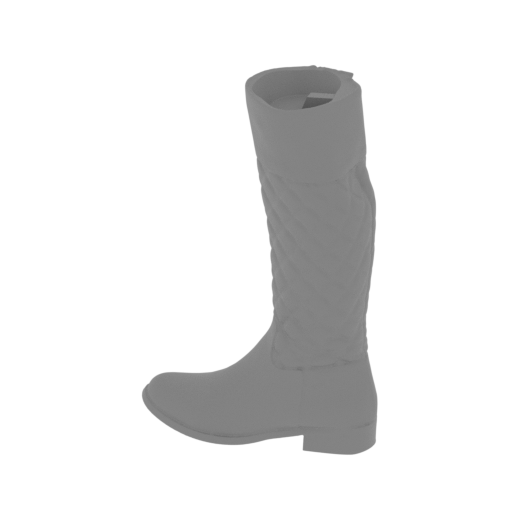

118_coraline_foot_L_FDM(r epaired).stl
15.42 MiB 27 min <1 m 20 x 9 x 32 Download
...

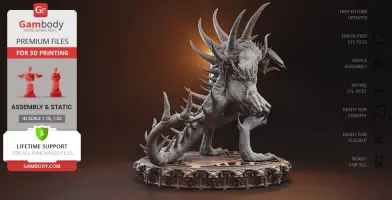

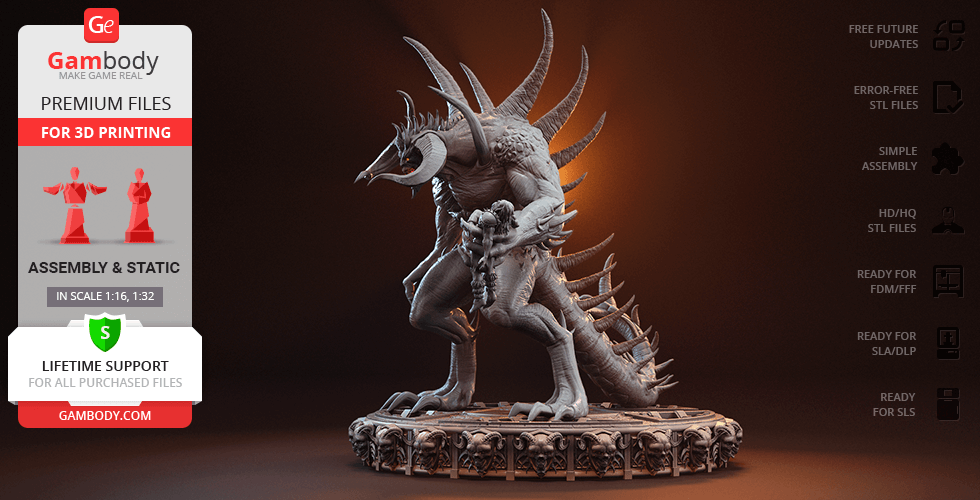

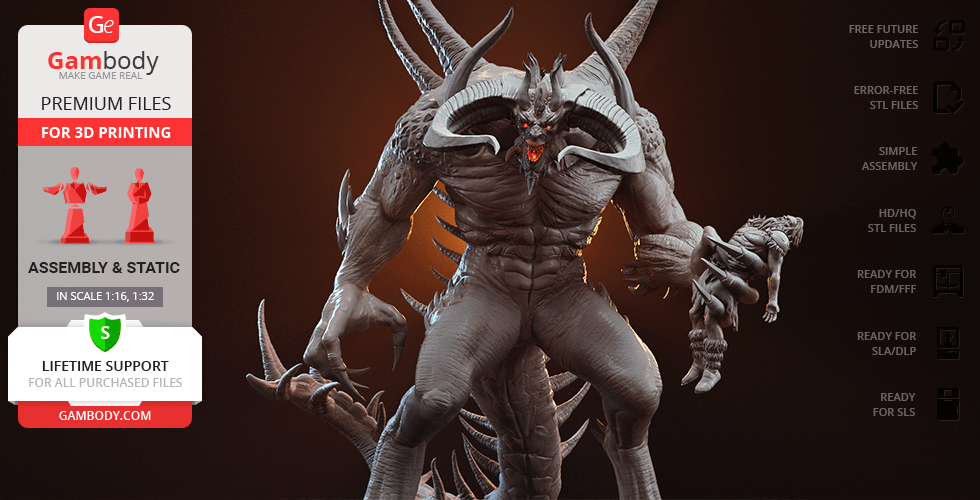

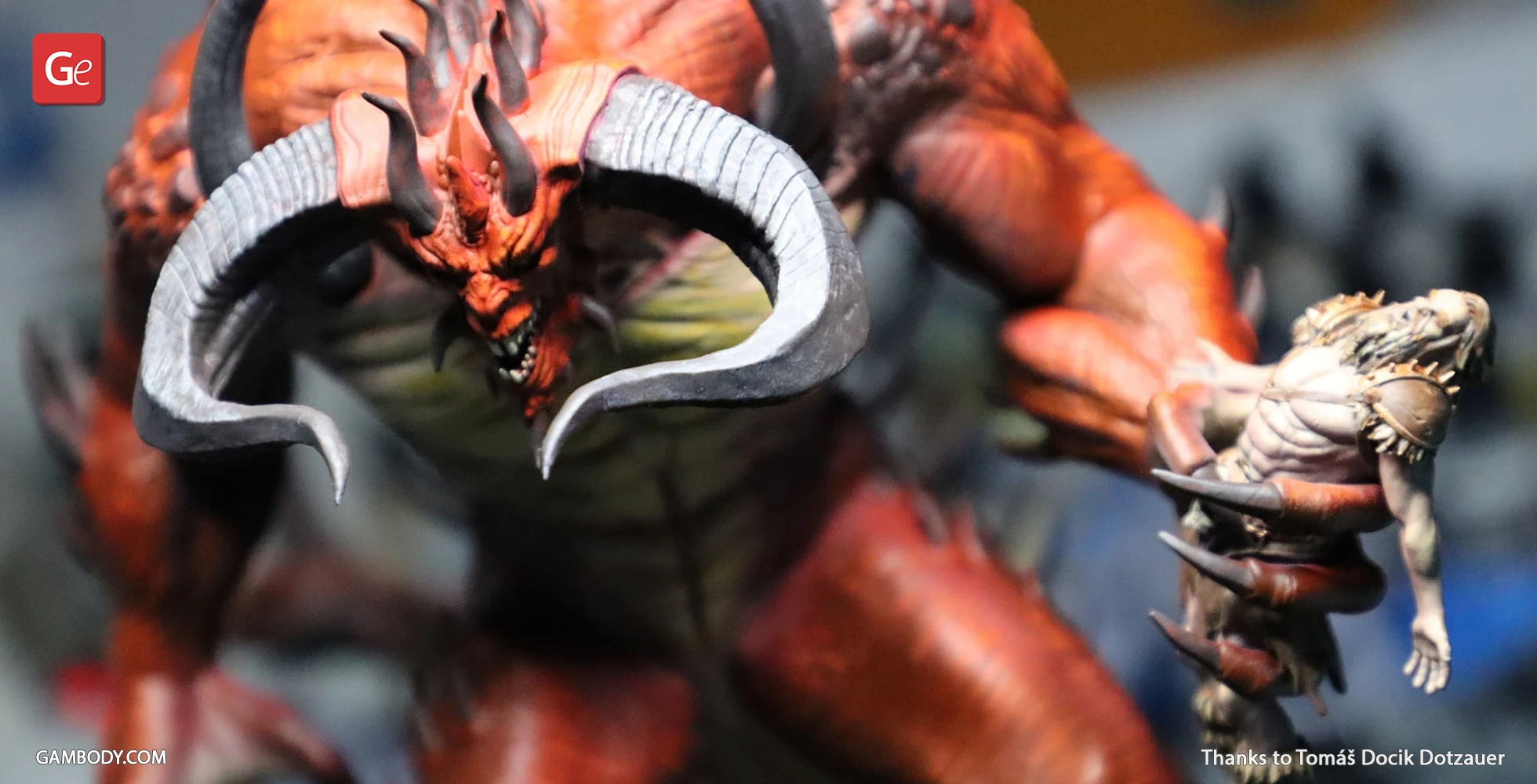

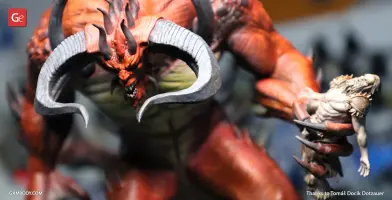

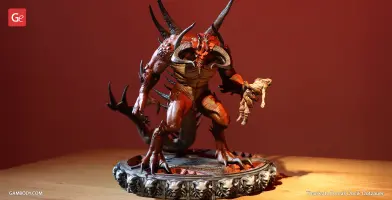

ABOUT THIS 3D FIGURINE

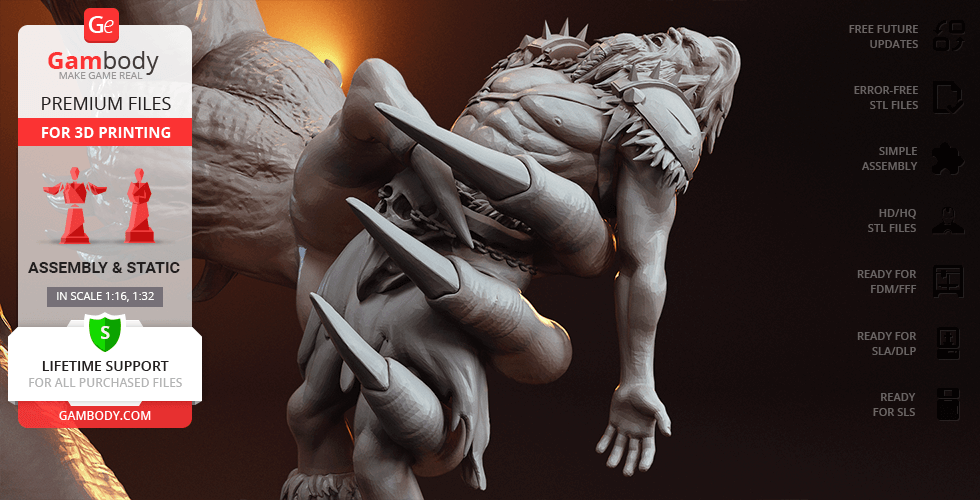

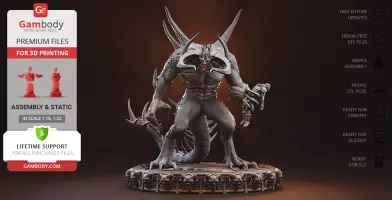

Diablo returned and he is ready to spread havoc! Considered by many to be one of the greatest games of all time, the second instalment of the Diablo series further explores the deadly wastelands and grim locations of the Prime Evils’ universe. Excited about the 2021 resurrection of the Lord of Destruction, our contributing 3D artists revisited the timeless classic in order to sculpt the titular antagonist of the Diablo franchise. The imposing Al'Diabalos for 3D printing is portrayed towering above the spectator, with a defeated victim clenched in its hand. Dangerous and majestic, Diablo is ready to instil terror into your 3D printed collection!

ADAPTATION FOR 3D PRINTING

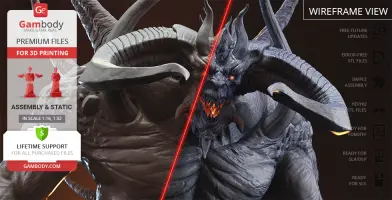

Diablo II Classic for 3D printing is a static assembly figurine and its moderation and adaptation for different types of 3D printers took Gambody team 62 hours in total. The anatomy and proportions of the Lord of Terror were thoroughly reviewed during the moderation process for the figurine to be depicted harmoniously in the intended pose

The model’s cutting in its assembly version was chosen by our team to minimise the amount of filament needed for generated support and some of the parts were hollowed out for you to save resin in Diablo’s Eco version. The imposing figurine and its spiky limbs and tail were divided into as many assembly parts as needed to fit even the smallest 3D printers' build plates and for you to nevertheless receive a towering 3D printed Diablo after assembly. In order to conceal the areas where assembly parts of the model must be connected, the Dark Lord was cut along the contour of his body seams. For you to achieve the cleanest result possible such parts as figurine’s Diablo’s horns, claws, his victim, all kinds of individual spikes all over the figurine’s body, the demon's long tail, skulls all over the base, etc. are provided as separate files.

All assembly parts in FFF/FDM version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any figurine's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format.

The figurine is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from Diablo's actual height that is 6500 mm. The 3D printing figurine's chosen scale is 1:16 for the FFF/FDM version and 1:32 for the DLP/SLA/SLS versions.

VERSIONS' SPECIFICATIONS

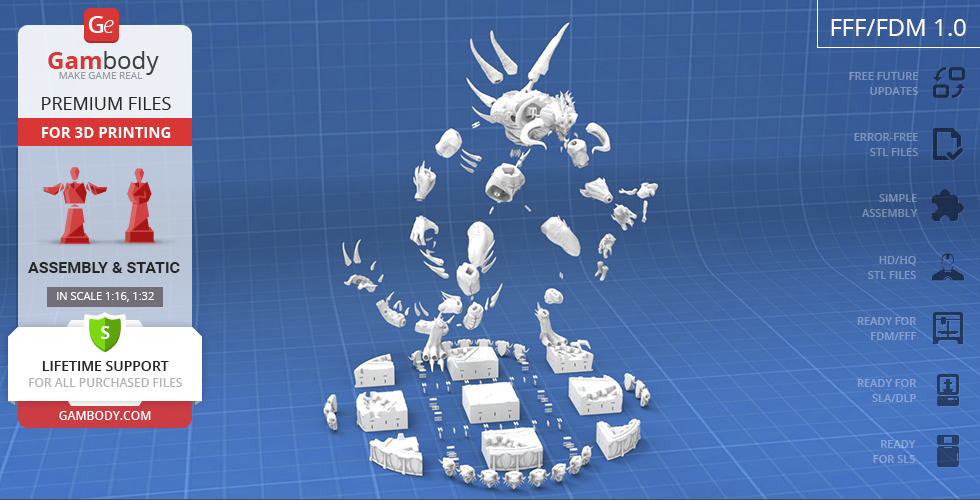

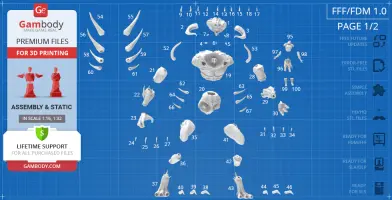

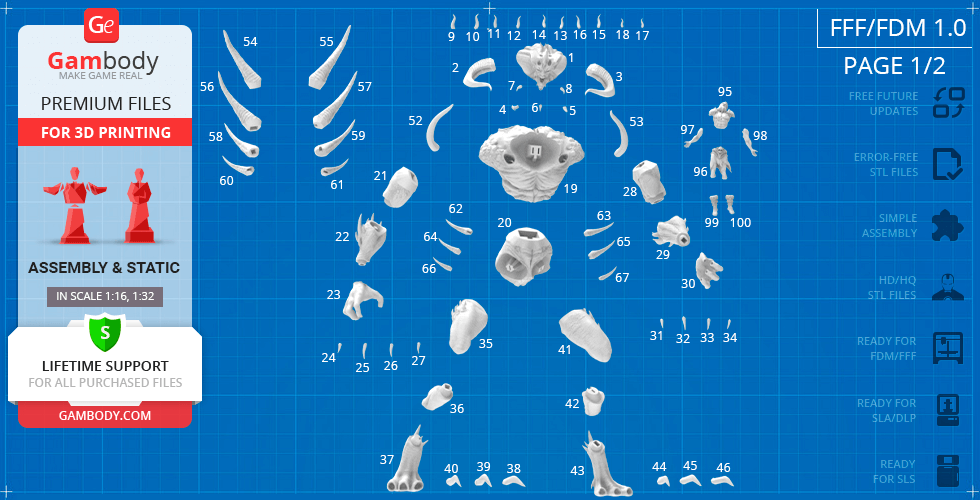

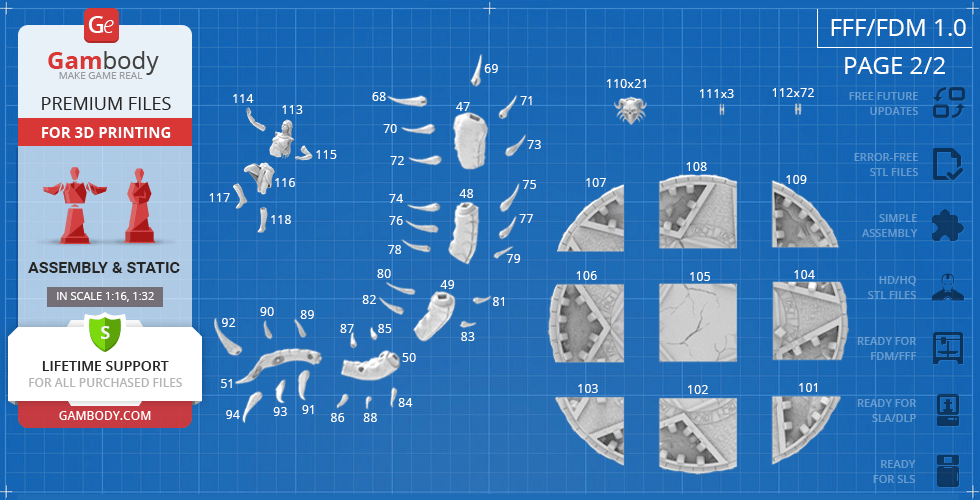

FFF/FDM 1.0 version features:
- Contains 118 parts;
- A printed model is 450 mm tall, 422 mm wide, 426 mm deep​​​;

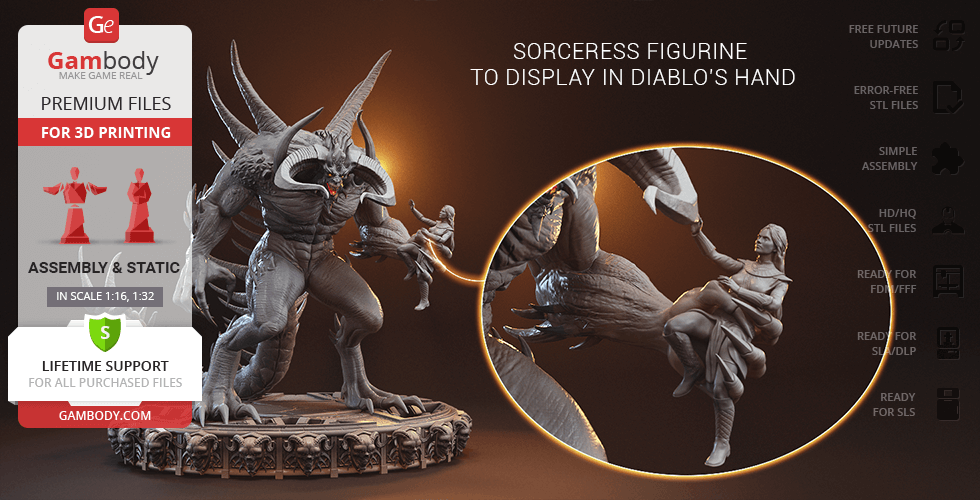

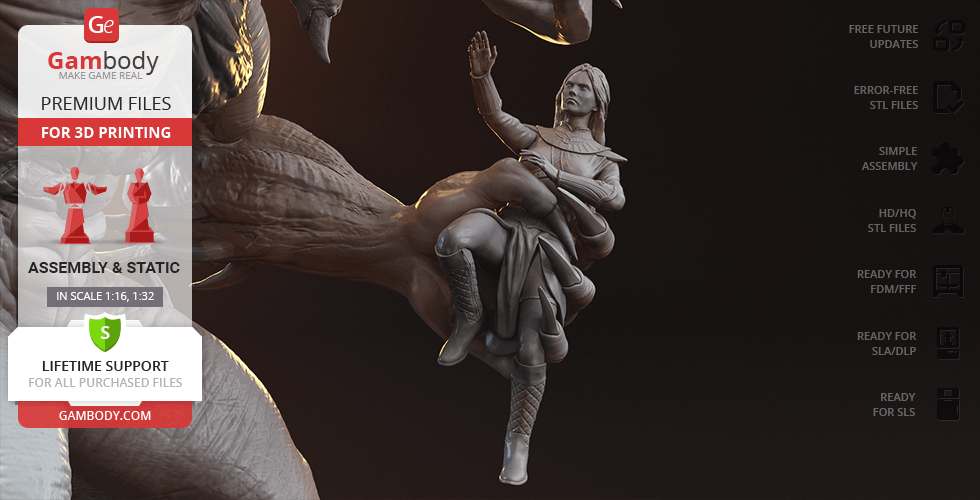

- New sorceress figurine to display in Diablo’s hand;
- The assembly kit includes locks to attach the model's parts securely without glue. Lock 111_ge_lock_7S(x3) needs to be printed 3 times; lock 112_ge_lock_10H(x72) needs to be printed 72 times;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

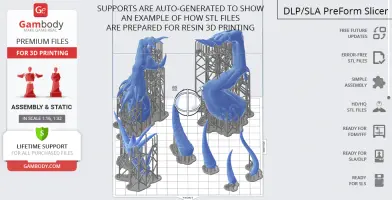

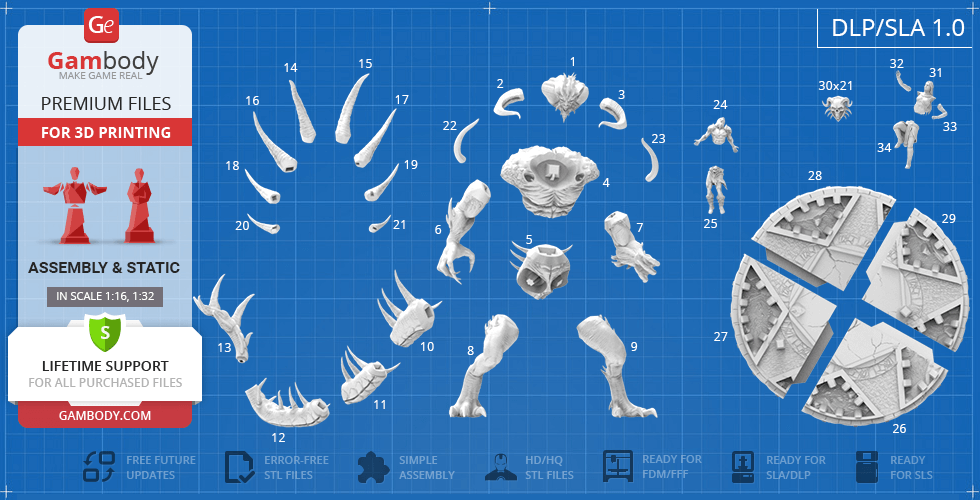

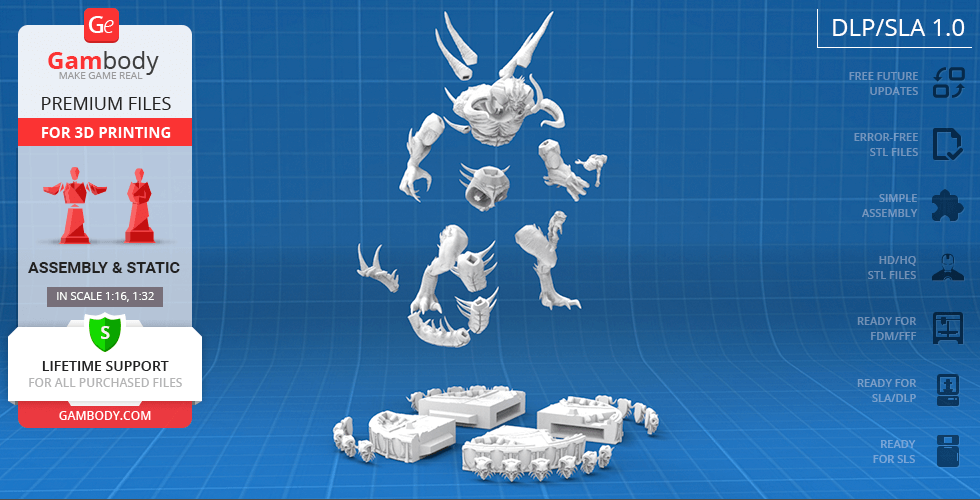

DLP/SLA 1.0 version features:
- Contains 34 parts;
- A printed model is 225 mm tall, 211 mm wide, 213 mm deep;
- New sorceress figurine to display in Diablo’s hand;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

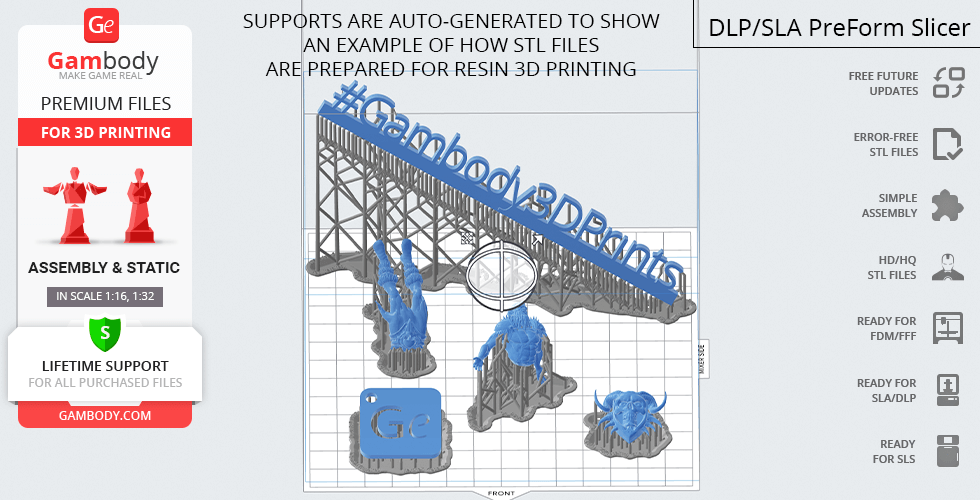

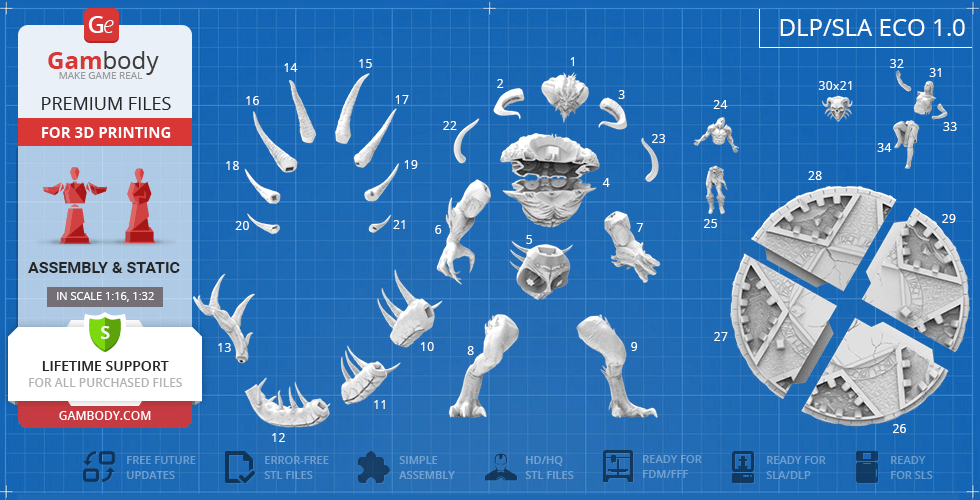

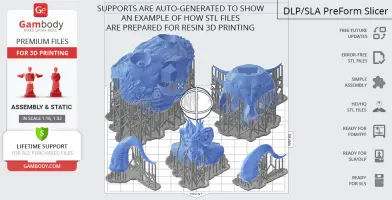

DLP/SLA Eco 1.0 version features:
- Contains 34 parts;
- A printed model is 225 mm tall, 211 mm wide, 213 mm deep;
- New sorceress figurine to display in Diablo’s hand;
- Contains some hollowed out parts to save resin.

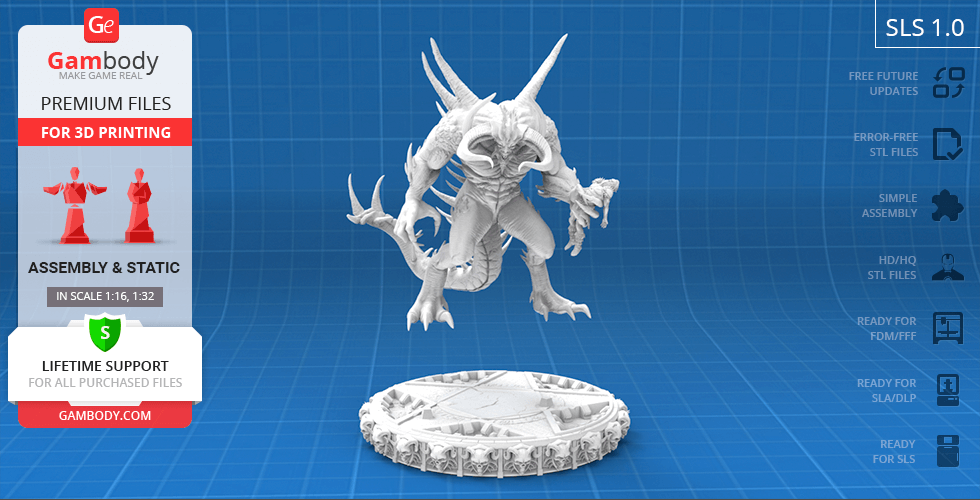

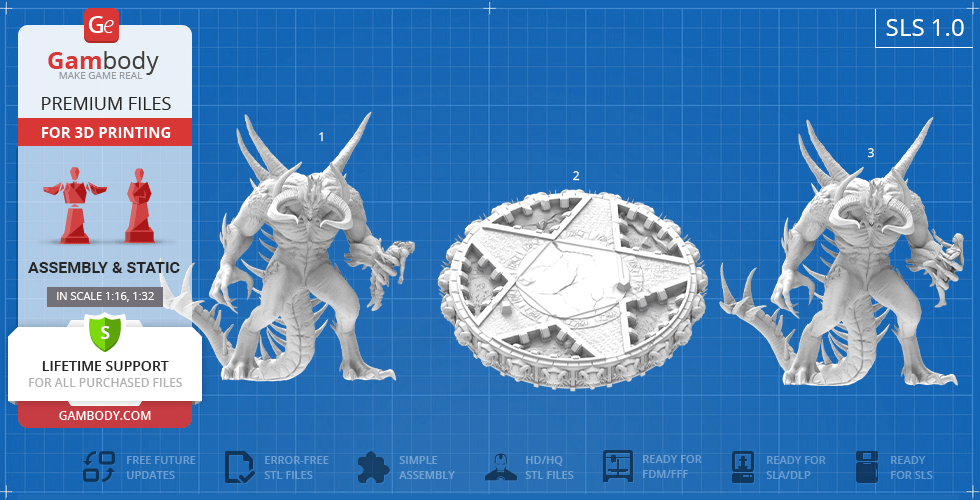

SLS 1.0 version features:
- Made as a solid one-piece Classic Diablo II figurine;
- New sorceress figurine to display in Diablo’s hand;
- A printed model is 225 mm tall, 211 mm wide, 213 mm deep;
- Contains 3 parts - the figurine with the platform separated.

You can get the model of Diablo II Classic for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Diablo II Classic 3D Printing Figurine at Gambody YouTube channel.

Also, you may like other Diablo 3D Printing Figurines.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

Below you can find printing recommendations for CuraSimplify3D and Slic3r software.

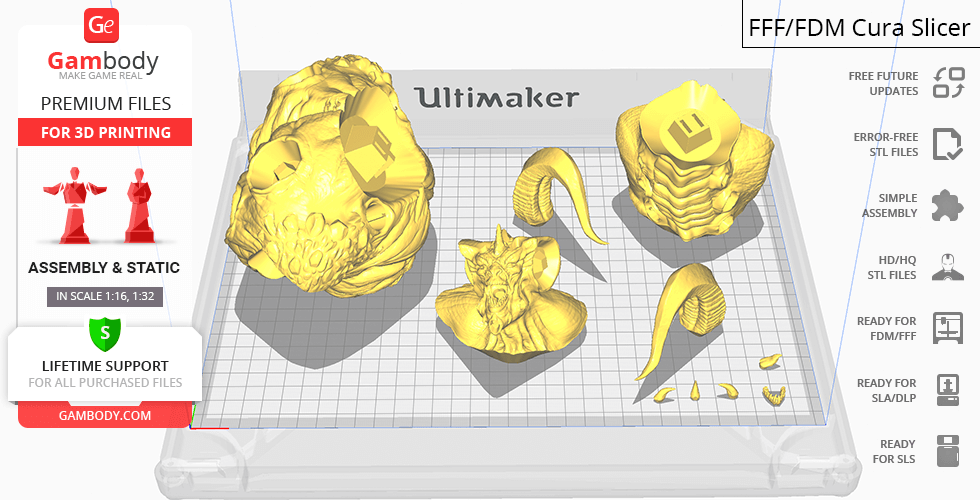

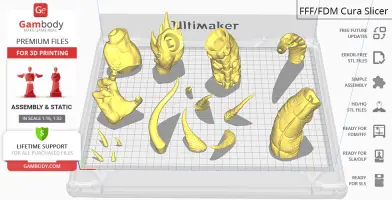

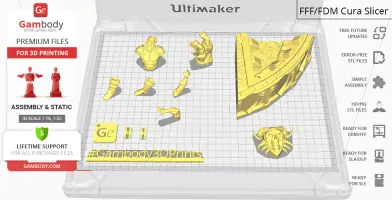

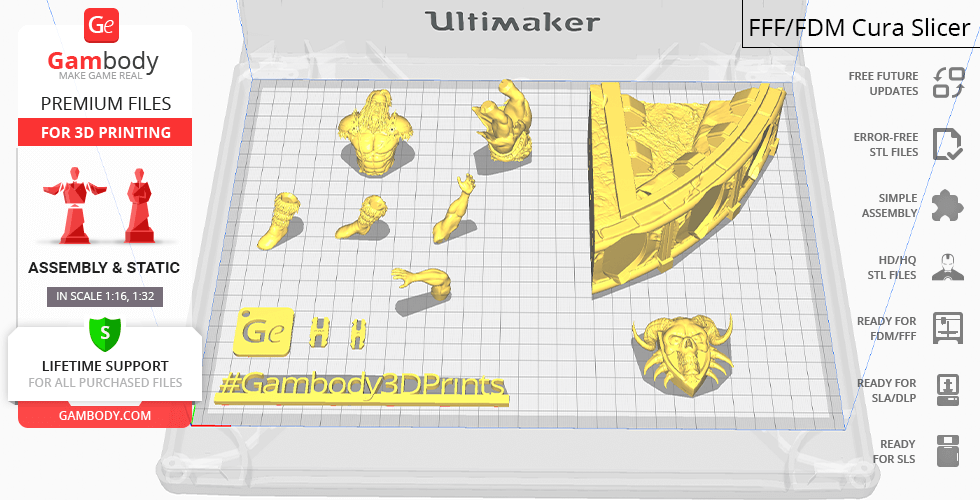

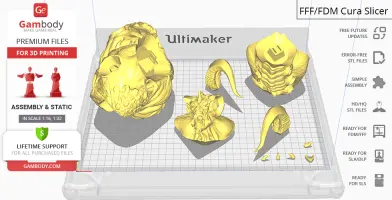

Cura printing recommendations:

These are basic settings that were tested in Cura 4.8.0 slicer.

The test models were printed on Ultimaker 2, Creality Ender 3, Creality CR-10S Pro V2, Anycubic I3 Mega, Anycubic I3 MegaS 3D printers with PLA and PETG filaments.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use and especially the particular assembly part at hand. Each part that any model comprises often needs preliminary review and you are free to tweak the settings the way you find suitable.

Note:
- You can scale up the model (downscaling is not recommended!);
- All connectors should be printed at 100% Infill;
- For all parts of locks (“ge_lock” in “Source files”) you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

Quality
Layer Height: 0.12 mm (you can also set Layer Height at 0.16 or 0.2mm for 0.4mm nozzles)
Initial Layer Height: 0.2 mm (carefully level the print bed and keep your Initial Layer Height the same as the main Layer Height)

Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2

Outer Wall Wipe Distance: 0.3 mm
Top Surface Skin Layers: 0

Top/Bottom Thickness: 0.6 mm
Top Thickness: 0.6 mm
Top Layers: 5
Bottom Thickness: 0.6 mm
Bottom Layers: 5
Initial Bottom Layers: 5

Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Optimize Wall Printing Order: Check

Compensate Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check

Minimum Wall Flow: 0%
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Hole horizontal expansion: 0

Z Seam Alignment: User Specified
Z Seam Position: Back
Z Seam X: Average length of your printer’s plate (e.g.”150” if your plate is 300mm on the X-axis)
Z Seam Y: A value higher than the length of your plate on the Y-axis (e.g. 700)

Seam Corner Preference: Hide Seam
Extra Skin Wall Count: 1
Skin Overlap Percentage: 10%
Skin Overlap 0.04 mm

Infill
Infill Density: 20% (for all smaller parts and for all parts of connectors use 100% Infill)
Infill Pattern: Triangles
Connect Infill Lines: Check
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Line Multiplier: 1
Extra Infill Wall Count: 0

Infill Overlap Percentage: 10-20%
Infill Overlap: 0.04 mm

Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm

Infill Wipe Distance: 0 mm
Infill Layer Thickness: 0.24 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm

Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8

Maximum Skin Angle for Expansion: 90Ëš
Minimum Skin Width for Expansion: 0.0
Skin Edge Support Thickness: 0
Skin Edge Support Layers: 0

Material
Initial Layer Flow: 100%
Printing Temperature: See your filament settings
Initial Printing Temperature: Your filament settings
Final Printing Temperature: Your filament settings
Build Plate Temperature: Your filament settings
Build Plate Temperature Initial Layer: Your filament settings + 5°
Flow: 100% (Important! If you face difficulty printing the model, you may need to adjust the Flow parameter. You may research the topic using the Internet or seek assistance at our Customer Support Team at support@gambody.com)

Speed

You can increase the printing Speed by 20% when you print simple objects. For small/thin parts you need to decrease the Speed by 25% - 50%.

Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 25 mm/s
          Outer Wall Speed:25 mm/s
          Inner Wall Speed: 50 mm/s

Top/Bottom Speed: 25mm/s
Support Speed: 25 mm/s
          Support Infill Speed: 45 mm/s
          Support Interface Speed: 25 mm/s
                Support Roof Speed: 25 mm/s
                Support Floor Speed: 25 mm/s

Travel Speed: 80 mm/s
Initial Layer Speed: 80 mm/s
Initial Layer Print Speed: 20 mm/s
Initial Layer Travel Speed: 80 mm/s

Skirt/Brim Speed: 20 mm/s
Z  Hop Speed: 5 mm/s
Number of Slower Layers: 2
Enable Acceleration Control: Check

When printing simple objects, you need to set all Acceleration parameters at 500 mm/s. For small/thin parts you need to decrease the Acceleration by 50% - 70%.

Travel
Enable Retraction: Check
Retraction Distance: 4-8 mm, 1-3 mm for Direct Extruder (This is the most important retraction parameter. You can find your optimal value of Retraction Distance by printing any test object, e.g. bridges, towers etc.)

Retraction Speed: 25mm/s
Retraction Retract Speed: 25 mm/s
Retraction Prime Speed: 25 mm/s

Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 1.5 mm
Maximum Retraction Count: 100
Minimum Extrusion Distance Window: 6,5 - 10 mm
Limit Support Retractions: Check
Combing Mode: All
Max Comb Distance With No Retract: 30 mm
Retract Before Outer Wall: Check
Avoid Printed Parts When Travelling: Check
Avoid Supports When Travelling: Check
Travel Avoid Distance: 1 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm
Z Hop When Retracted: Check
Z Hop Height: 0,3 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%

Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.36 mm
Regular Fan Speed at Layer: 3

Minimum Layer Time: 10 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Structure: Normal (you can try using Tree Support Structure if you have difficulty printing any particular assembly part)
Support Placement: Everywhere
Support Overhang Angle: 60° (this parameter can range from 30° to 70° depending on the part at hand)
Support Pattern: Zig Zag
Support Wall Line Count: 1 (stronger support that might be more difficult to remove) 0 (less strong support but is easier to remove)

Support Density: 15%
Support Line Distance: 2.6667 mm
Initial layer support line distance: 2.667 mm

Support Z Distance: 0.12 mm
Support Top Distance: 0.12 mm
Support Bottom Distance: 0.12 mm

Support X/Y Distance: 0.8-1 mm
Support Distance Priority: Z overrides X/Y
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Stair Step Minimum Slope Angle: 10°
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.2 mm
Gradual Support Infill Steps: 0
Minimum Support Area: 2 mm

Enable Support Interface: Check (generates additional “pillow” on the support structure that leads to a more even surface, but can be difficult to remove in hard-to-reach areas)
Enable Support Roof: Check
Enable Support Floor: Check

Support Interface Thickness: 0.8 mm
Support Roof Thickness: 0.8 mm
Support Floor Thickness: 0.8 mm

Support Interface Resolution 0.2 mm
Support Interface Density: 50-100%
        Support Roof Density: 50-100%
Support Roof Line Distance: 0.8 mm
        Support Floor Density: 50-100%
Support Floor line Distance:  0.4mm

Support Interface Pattern: Grid
Support Roof Pattern: Grid (this parameter should differ from Bottom Pattern Initial Layer in “Shell” section)
Support Floor Pattern: Grid

Minimum Support Interface Area: 10mm
Minimum Support Roof Area: 10 mm
Minimum Support Floor Area: 10 mm

Support Interface Horizontal Expansion: 0.0 mm
Support Roof Horizontal Expansion: 0.0 mm
Support Floor Horizontal Expansion: 0.0 mm

Fan Speed Override: Check
Supported Skin Fan Speed: 100%
Use Towers: Check
Tower Diameter: 4 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Skirt/Brim (For unsteady parts, and those parts that may come unstuck use “Brim”. For bigger assembly parts that have large adhesion area and for all parts of locks and claws that you want to come out clean use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
       Brim Line Count: 10
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm
