Imperius 3D Printing Figurine | Assembly

(4)

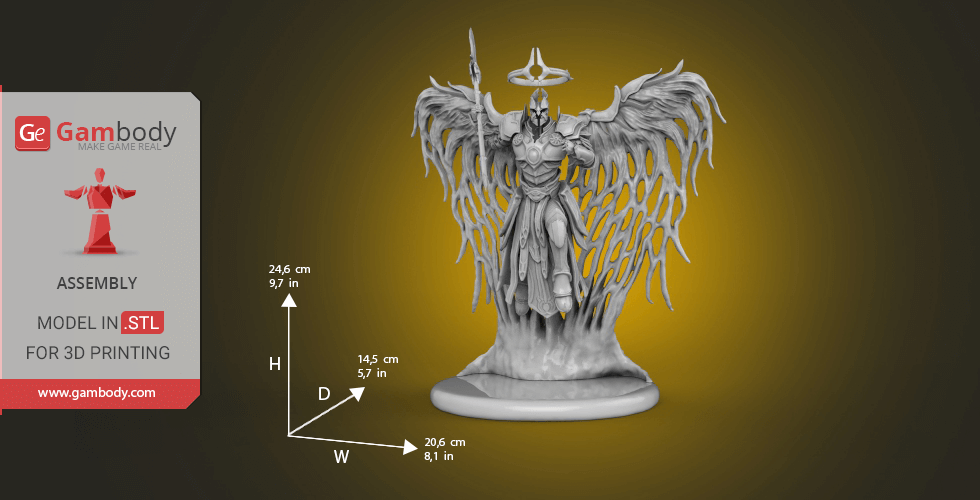

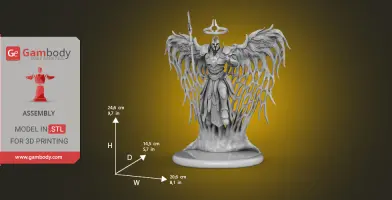

cm: 20.6 w x 14.5 d x 24.6 h
in: 8.11 w x 5.709 d x 9.685 h

Source Files

|

Description

|

Printing Details

This 3D Miniature consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

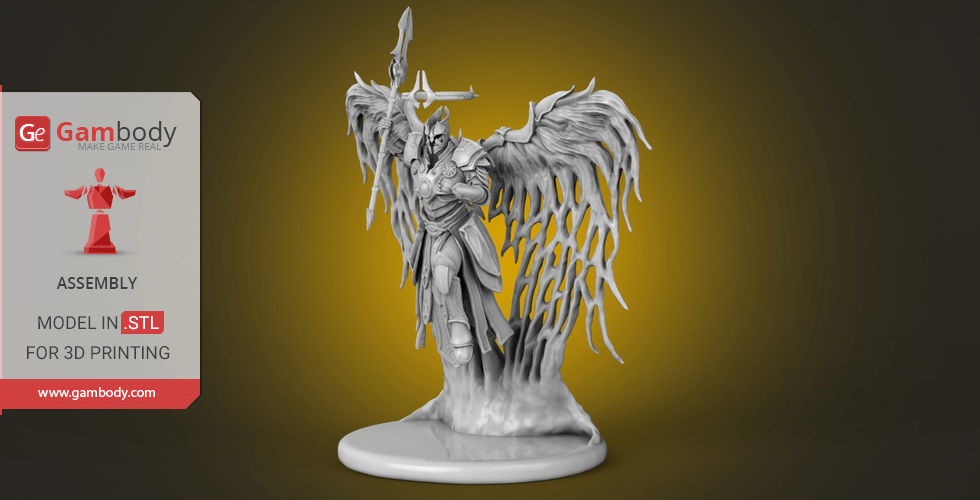

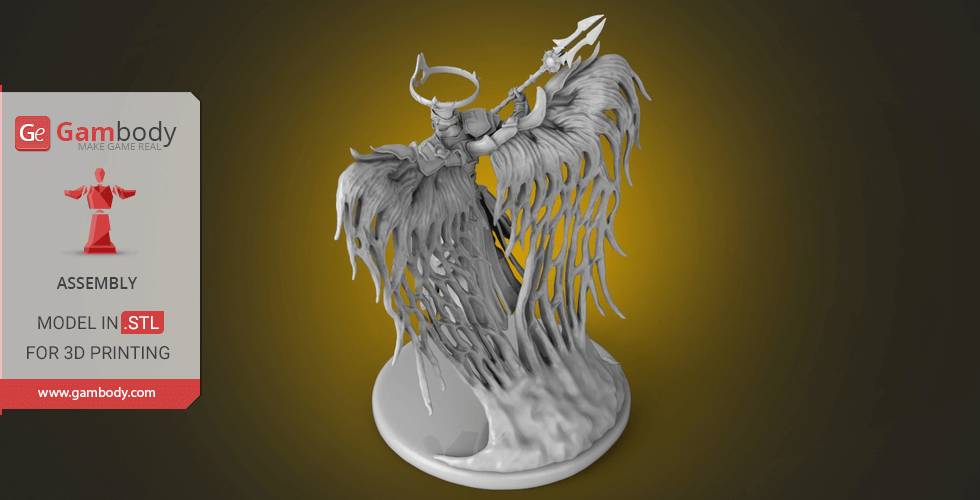

Version 1 and Version 2 are the files for Imperius 3D Miniature optimized for 3D printing, the preview pictures of which you see above.

It is recommended:

  • to print Version 1 STL files on FDM/FFF 3D printers;
  • to print Version 2 STL files on DLP/SLA/SLS 3D printers.
File Name File Size Time / Filament Object Size
(x/y/z mm)

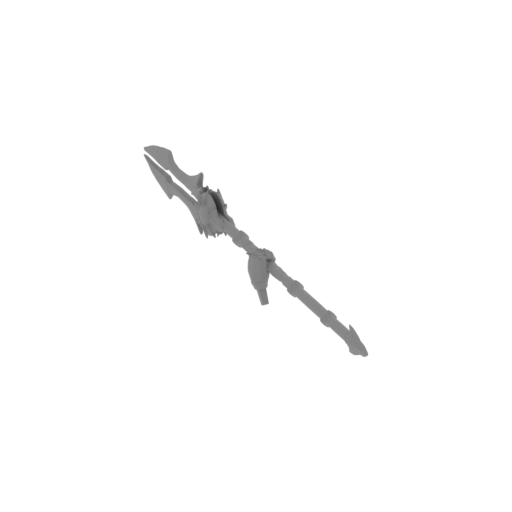

1_hand_with_spear.stl
4.60 MiB 1 h 19 min 1 m 104 x 107 x 20 Download

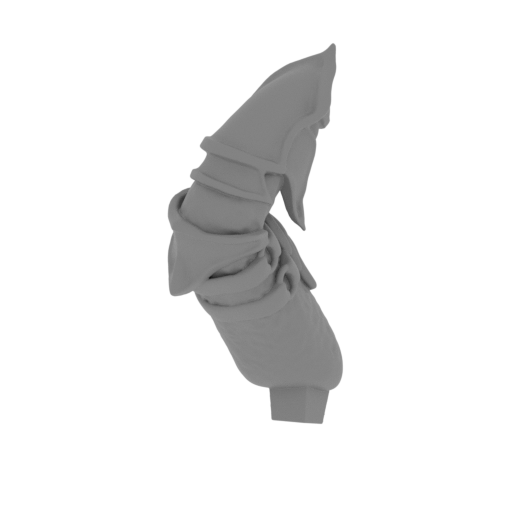

2_arm_R.stl
3.81 MiB 1 h 9 min 1 m 16 x 23 x 43 Download

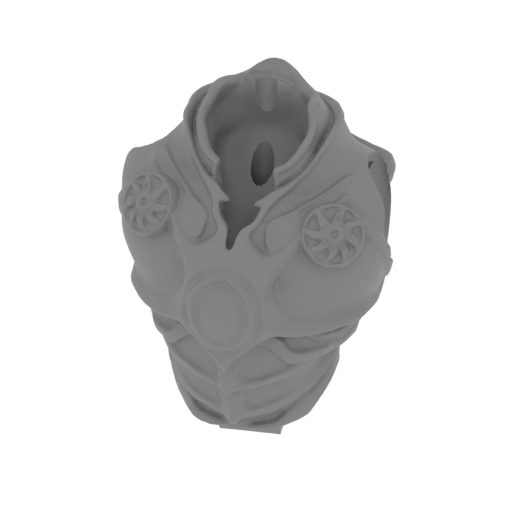

3_body.stl
3.57 MiB 2 h 43 min 2 m 35 x 29 x 48 Download

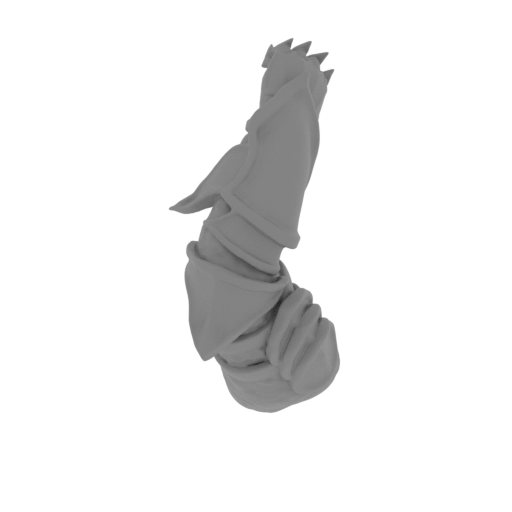

4_arm_L.stl
4.36 MiB 1 h 17 min 1 m 18 x 29 x 42 Download

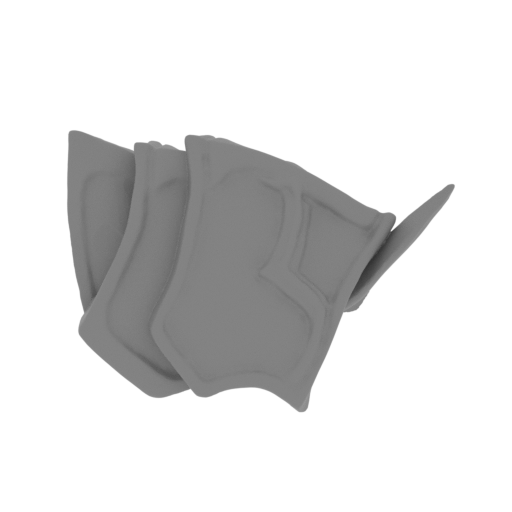

5_shouldeer_R.stl
2.44 MiB 40 min <1 m 27 x 20 x 18 Download

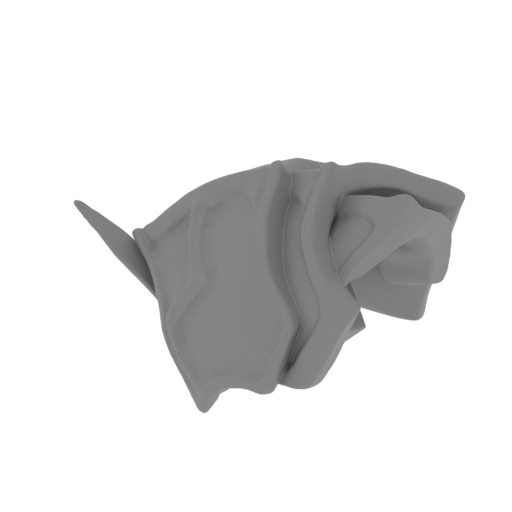

6_shouldeer_L.stl
2.43 MiB 38 min <1 m 27 x 20 x 18 Download

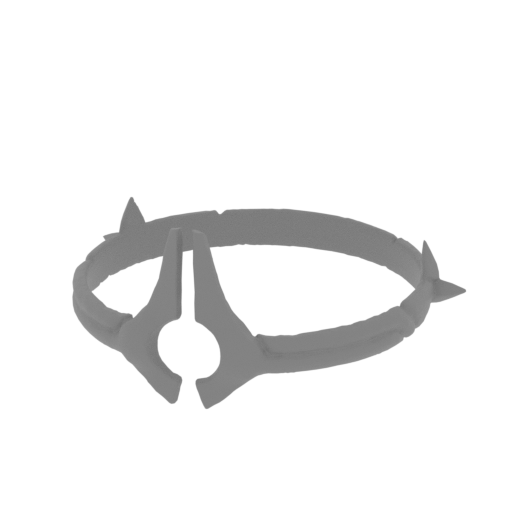

7_nimbus.stl
0.50 MiB 30 min <1 m 41 x 38 x 20 Download

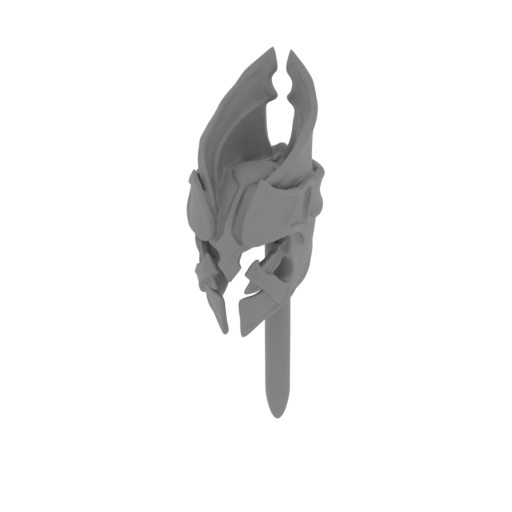

8_head.stl
1.93 MiB 49 min <1 m 12 x 15 x 38 Download

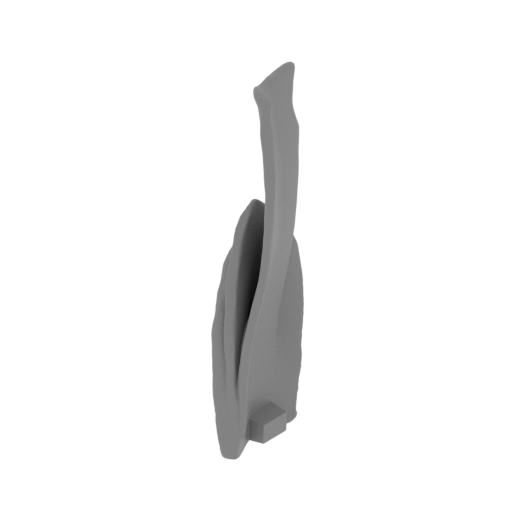

9_pelvis_arm_R.stl
3.30 MiB 1 h 9 min 1 m 13 x 24 x 70 Download

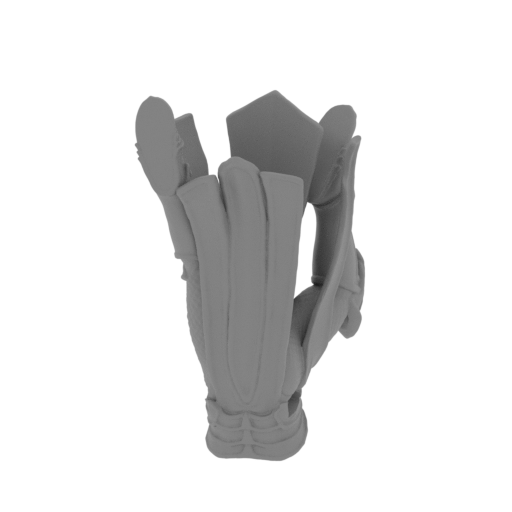

10_legs.stl
12.29 MiB 7 h 31 min 4 m 49 x 61 x 98 Download

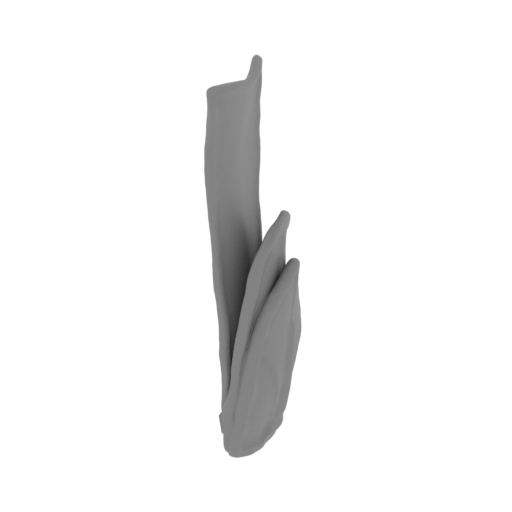

11_pelvis_arm_L.stl
2.93 MiB 1 h 11 min 1 m 16 x 24 x 72 Download

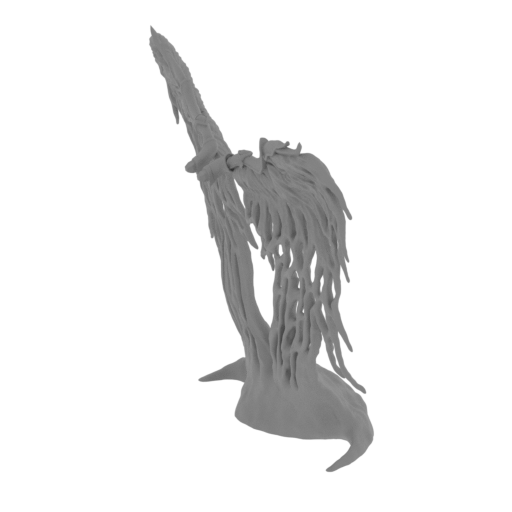

12_wings.stl
13.62 MiB 61 h 51 min 42 m 158 x 147 x 202 Download

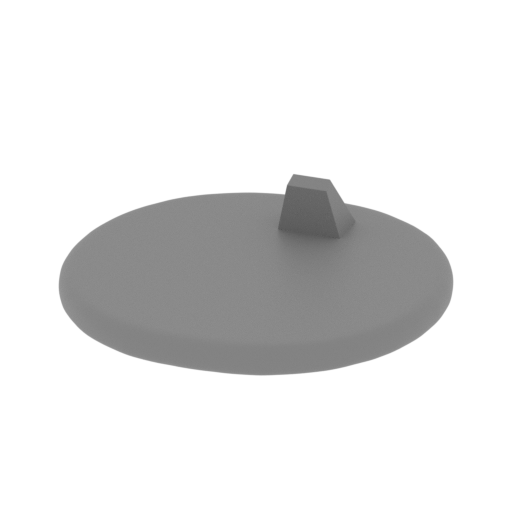

13_platform.stl
1.40 MiB 16 h 4 min 9 m 147 x 145 x 35 Download

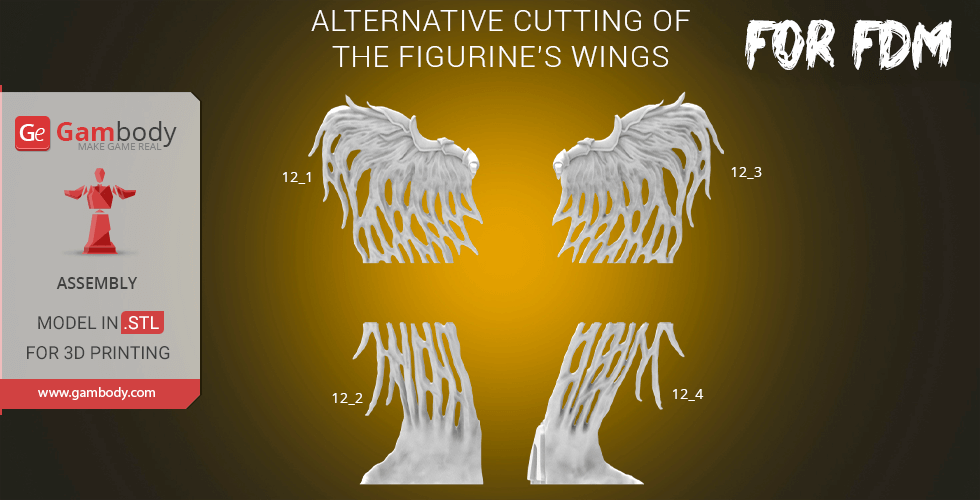

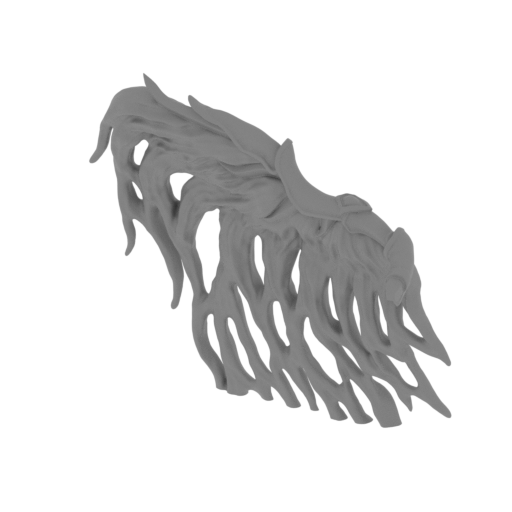

12_1_wings_1_FDM(repaired ).stl
14.96 MiB 13 h 16 min 8 m 106 x 49 x 102 Download

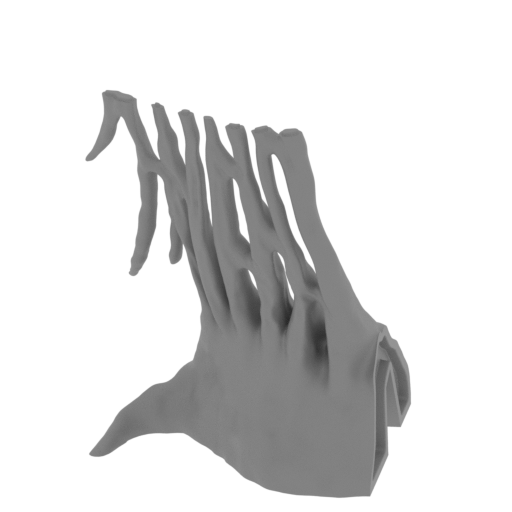

12_2_wings_2_FDM(repaired ).stl
17.33 MiB 9 h 26 min 5 m 79 x 63 x 98 Download

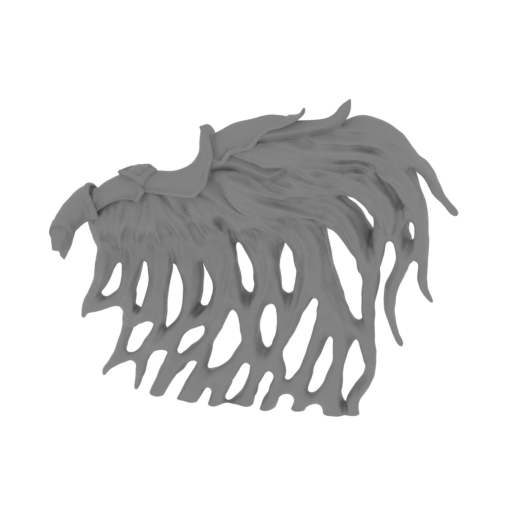

12_3_wings_3_FDM(repaired ).stl
15.66 MiB 13 h 21 min 8 m 105 x 47 x 104 Download

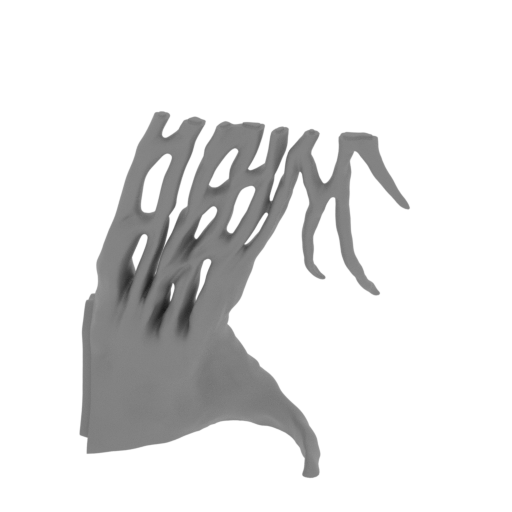

12_4_wings_4_FDM(repaired ).stl
16.45 MiB 8 h 5 min 4 m 95 x 64 x 98 Download
...

HISTORY OF THE IMPERIUS

Empires are the greatest warrior in the universe. During the command of the armies of the Higher Heavens, in the Eternal War, many times defeated the demonic horde, but over time his character changed. He became quick-tempered, angry, and proud. For him, the key to victory over the Burning Hell is the total annihilation of the enemy, he hates everything connected with demons and wants the destruction of people whom he considers a nonentity. His hatred for people only increases with time. Diablo almost finished the Eternal War by attacking the heart of Heaven in the mortal body and it was the mortal heroes of the Nephalem that could defeat the One Evil where the Empires were defeated. Nephalems killed Maltael the former Archangel of Wisdom who became the Angel of Death. Although he tries in every possible way to hide it, even Diablo noticed that the valor of the great archangel was absorbed in anger.

ABOUT THIS 3D MINIATURE

The model is saved in STL files, a format supported by most 3D printers

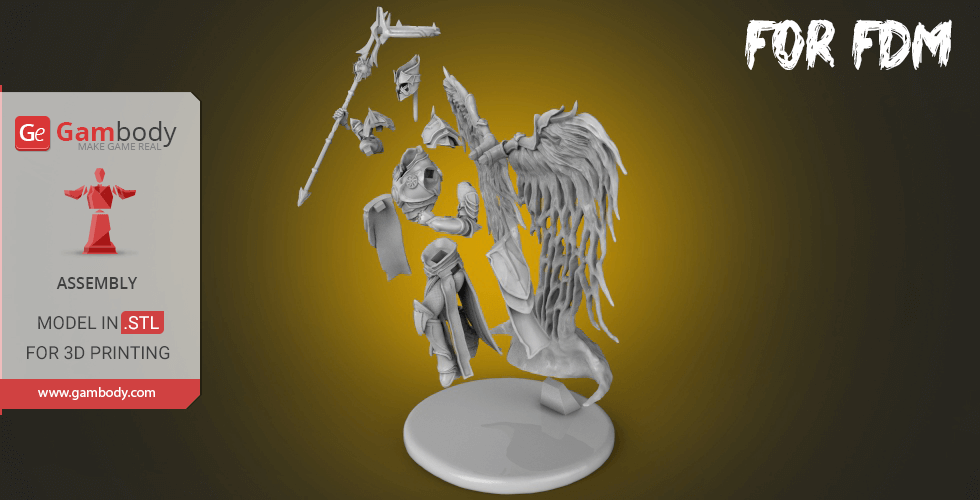

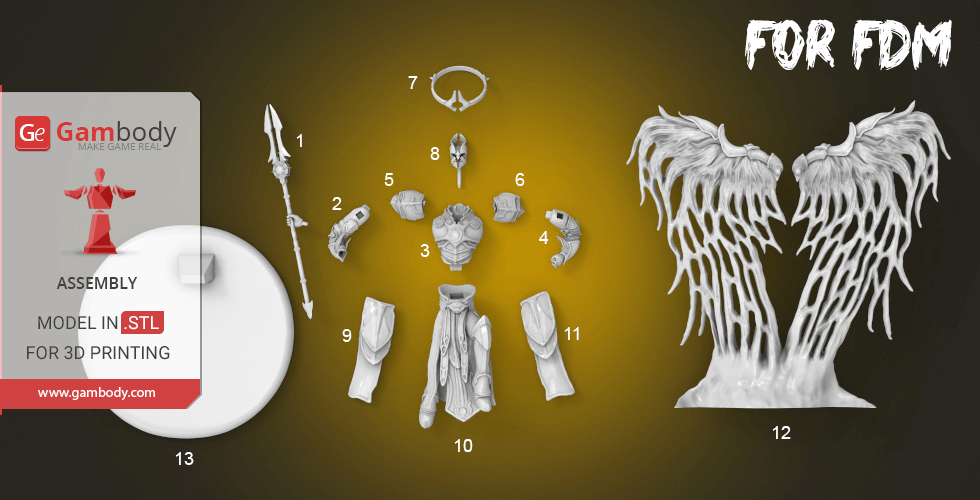

FDM version features:
- Contain 13 parts;
- Model fixed by wings;
- Made with platform.

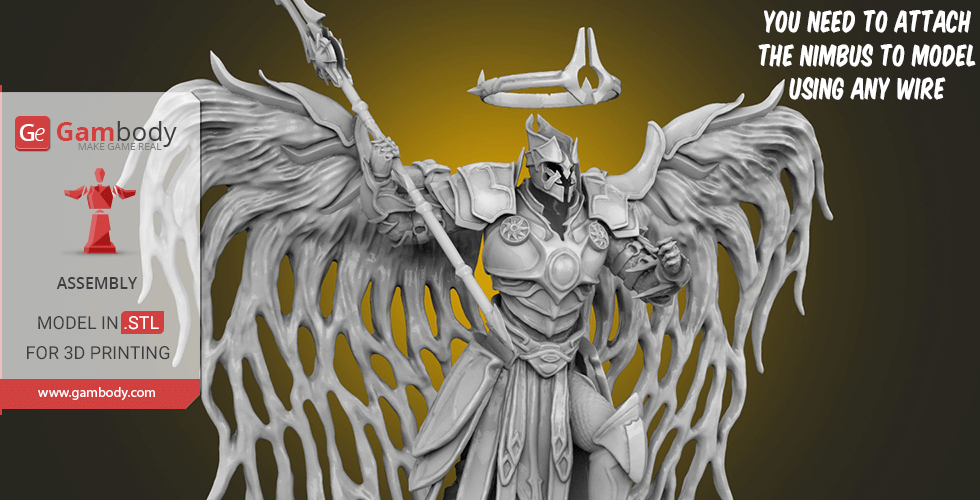

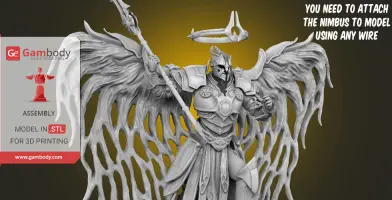

- You need to attach the nimbus to the model using any wire;
- All parts are divided in such way that you will print them with the smallest amount of supports.

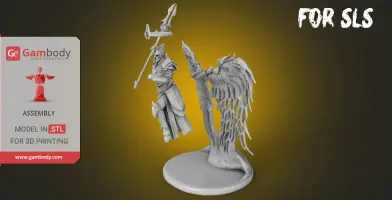

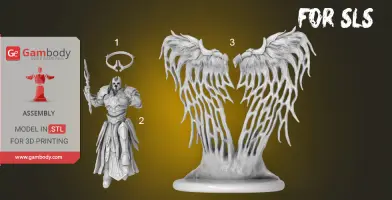

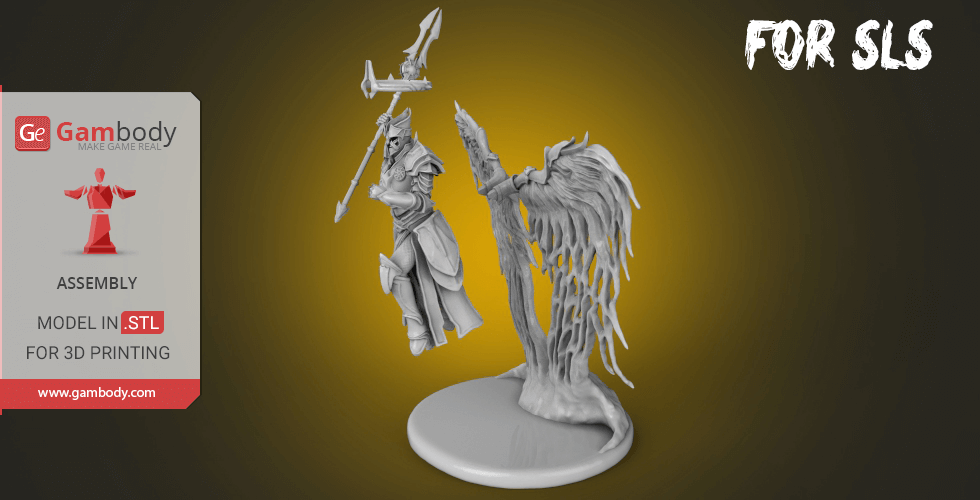

SLS/SLA version features:

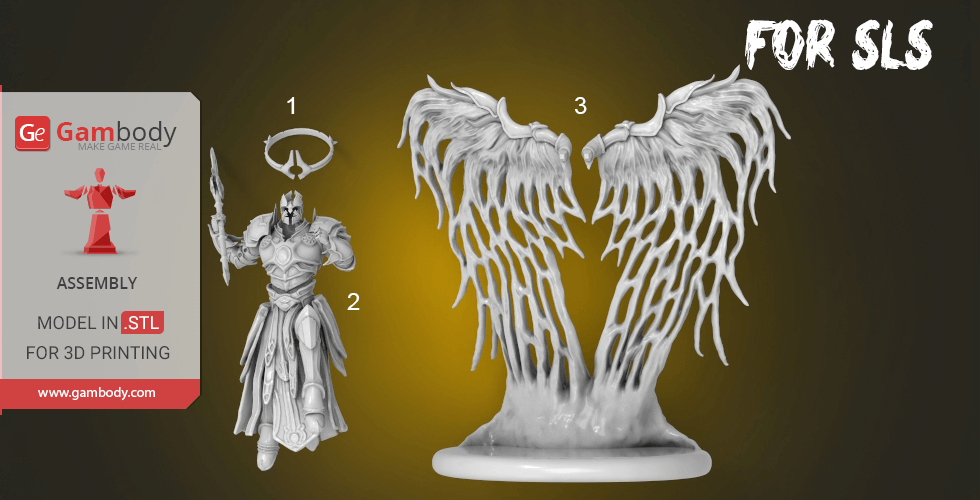

- Same as FDM but made as 3 parts.

All STL files for 3D printing have been checked in Netfabb and no errors were shown.

Note: Before starting 3D printing the model, read the Printing Details for CURA 3.1.0. Software.

There are 13 parts for FFF/FDM version and 3 parts for SLS/SLA version.

Scale: His tall in life is 2030 mm. Model made as 1/8 scale for FDM/SLA/SLS version.

FDM version dimensions:
After being printed will stand - 246 mm tall, 206 mm wide, 145 mm deep;

SLS/SLA version dimensions:
After being printed will stand - 246 mm tall, 206 mm wide, 145 mm deep;
- Has only 3 details, to keep printing costs down.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Imperius 3D Miniature for 3D printing which consist of 16 parts;
- 2 versions of files for this model for FFF/FDM and SLS/SLA;
- Made with platform;
- Model fixed to the platform by wings;

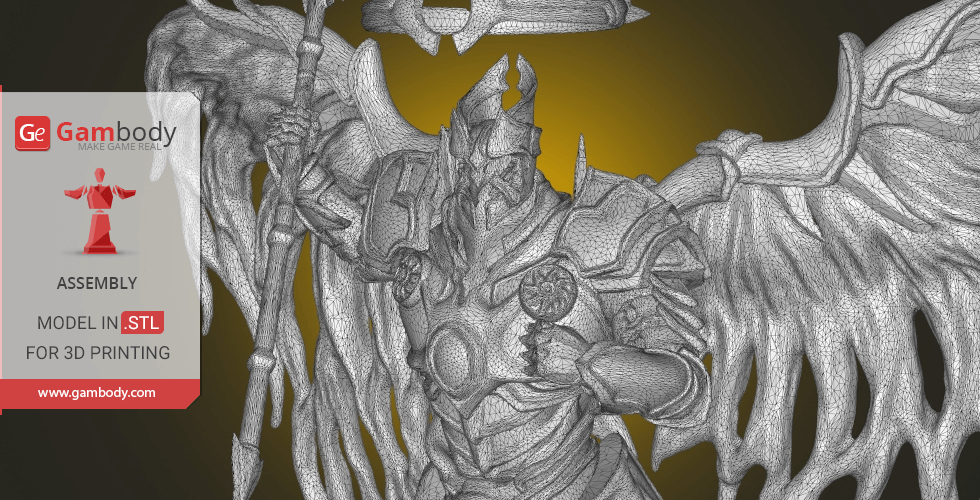

- High-poly detailed miniature of Imperius;
- Detailed settings that we provide for Cura 3.1.0. for the best print;
- Full technical support from the Gambody Support Team.

Watch the tutorial video on how to assemble Imperius 3D Printing Miniature at Gambody YouTube channel.

You can get Model of Imperius for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Also, you may like other Diablo 3D Printing Miniatures.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

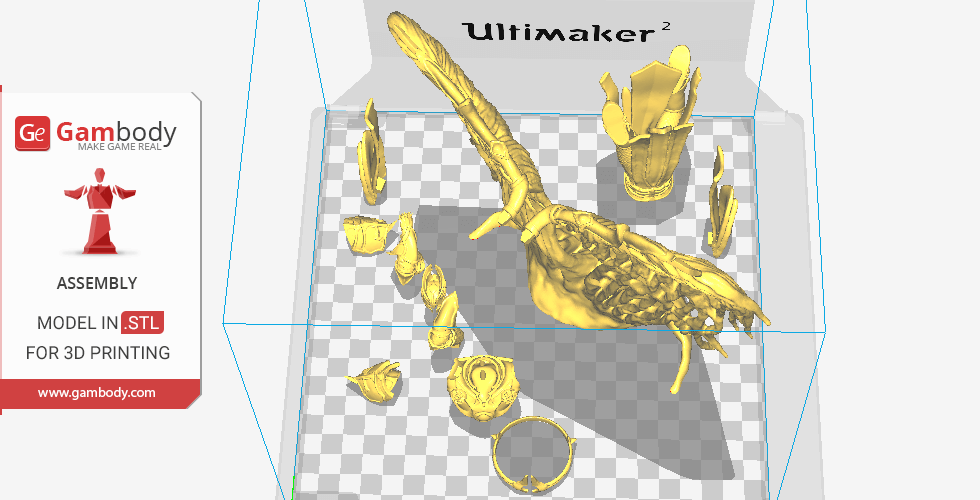

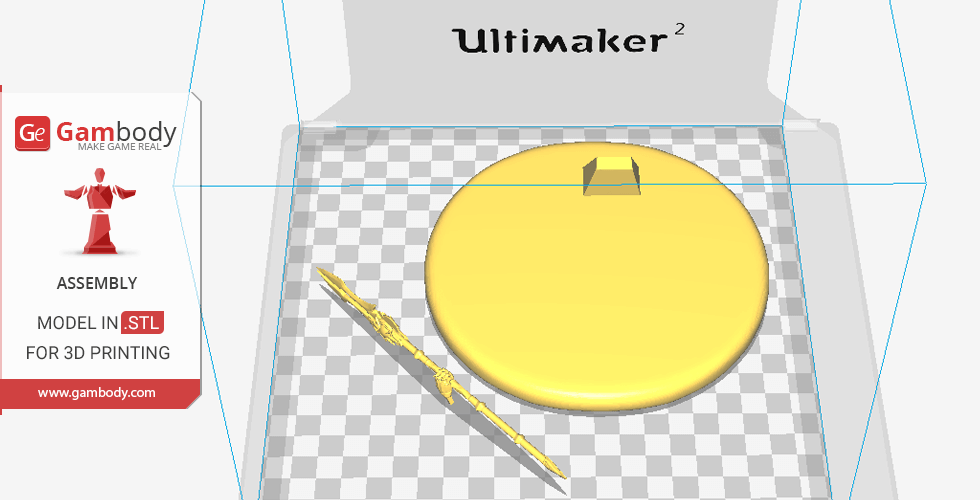

This model was tested in Cura 3.1.0. and printed on an Ultimaker 2 in PLA material.

To avoid printing problems, we recommend the following settings:

Quality

Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Slicing Tolerance: Middle
Line Width: 0.4 mm
Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
   Top/Bottom Line Width: 0.4 mm
   Infill Line Width: 0.4 mm
   Skirt/Brim Line Width: 0.4 mm
   Support Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell

Wall Thickness: 0.8 mm
Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill

Infill Density: 20%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
    Minimum Skin Width for Expansion: 0.0

Material

Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed

Print Speed: 45 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
    Support Speed: 45 mm/s
      Support Infill Speed: 45 mm/s
Travel Speed: 80 mm/s
Initial Layer Speed: 15 mm/s

    Initial Layer Print Speed: 15 mm/s
    Initial Layer Travel Speed: 26.6667 mm/s
Skirt/Brim Speed: 15 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel

Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm
Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support

Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 60°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 1.3333 mm
Support Z Distance: 0.3 mm
    Support Top Distance: 0.3 mm
    Support Bottom Distance: 0.3 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion

Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes

Union Overlapping Volumes: Check
Maximum Resolution: 0.01 mm
Merged Meshes Overlap: 0.15 mm

Special Modes

Print Sequence: All at Once
Surface Mode: Normal

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
