Freddy Krueger 3D Printing Figurine | Assembly

(8)
cm: 14.8 w x 6.3 d x 22.6 h
in: 5.827 w x 2.48 d x 8.898 h

Source Files

|

Description

|

Printing Details

This 3D Miniature consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

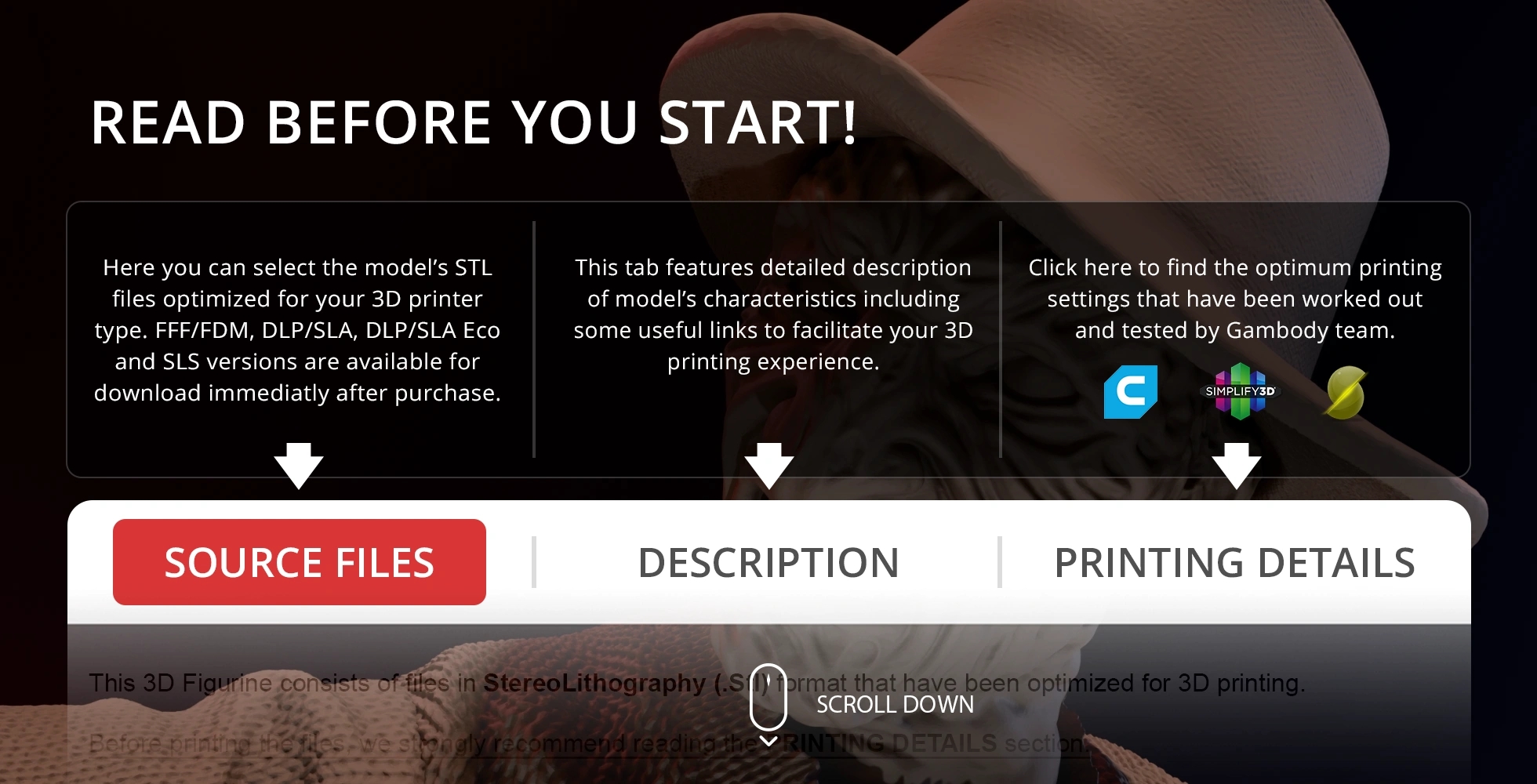

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

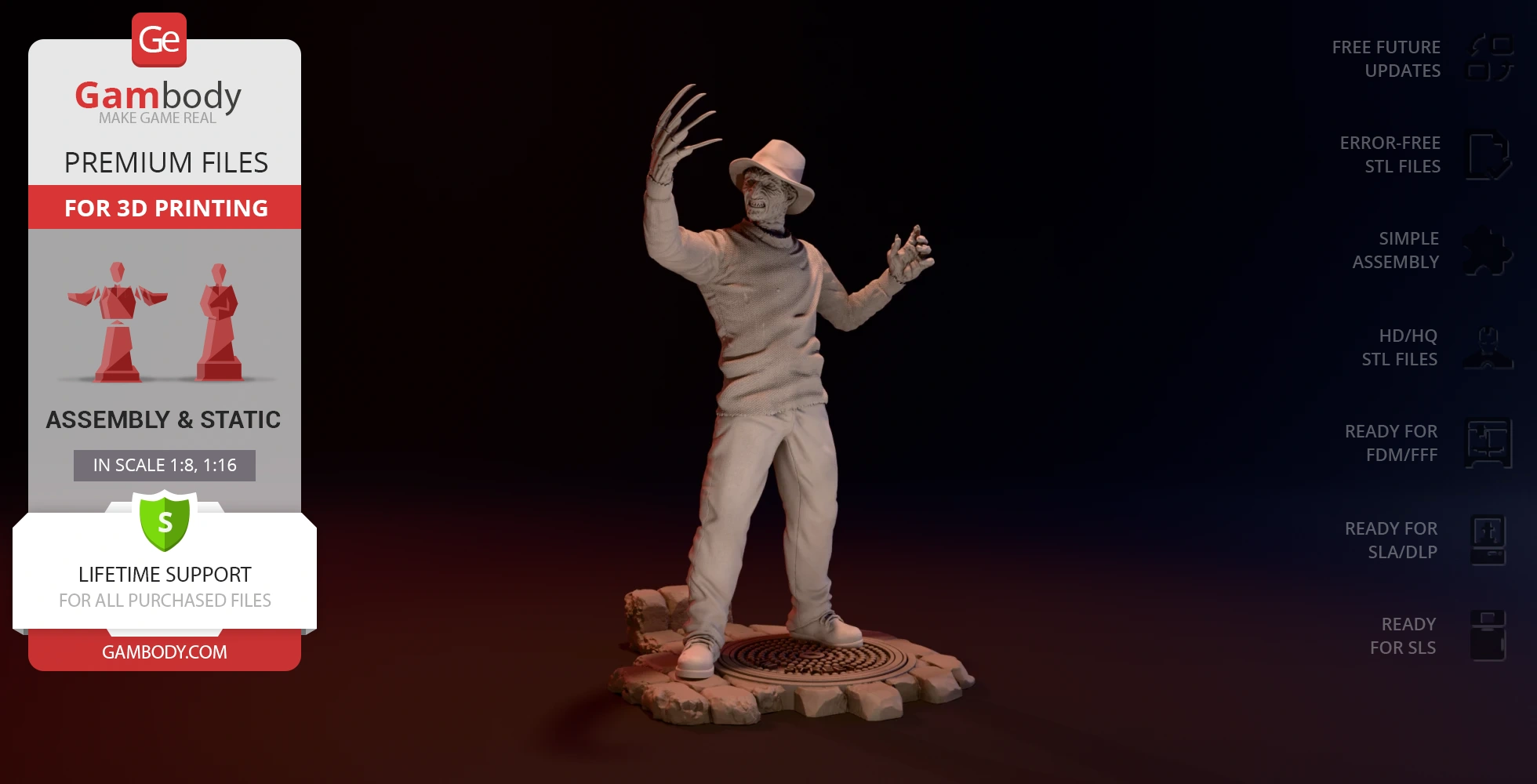

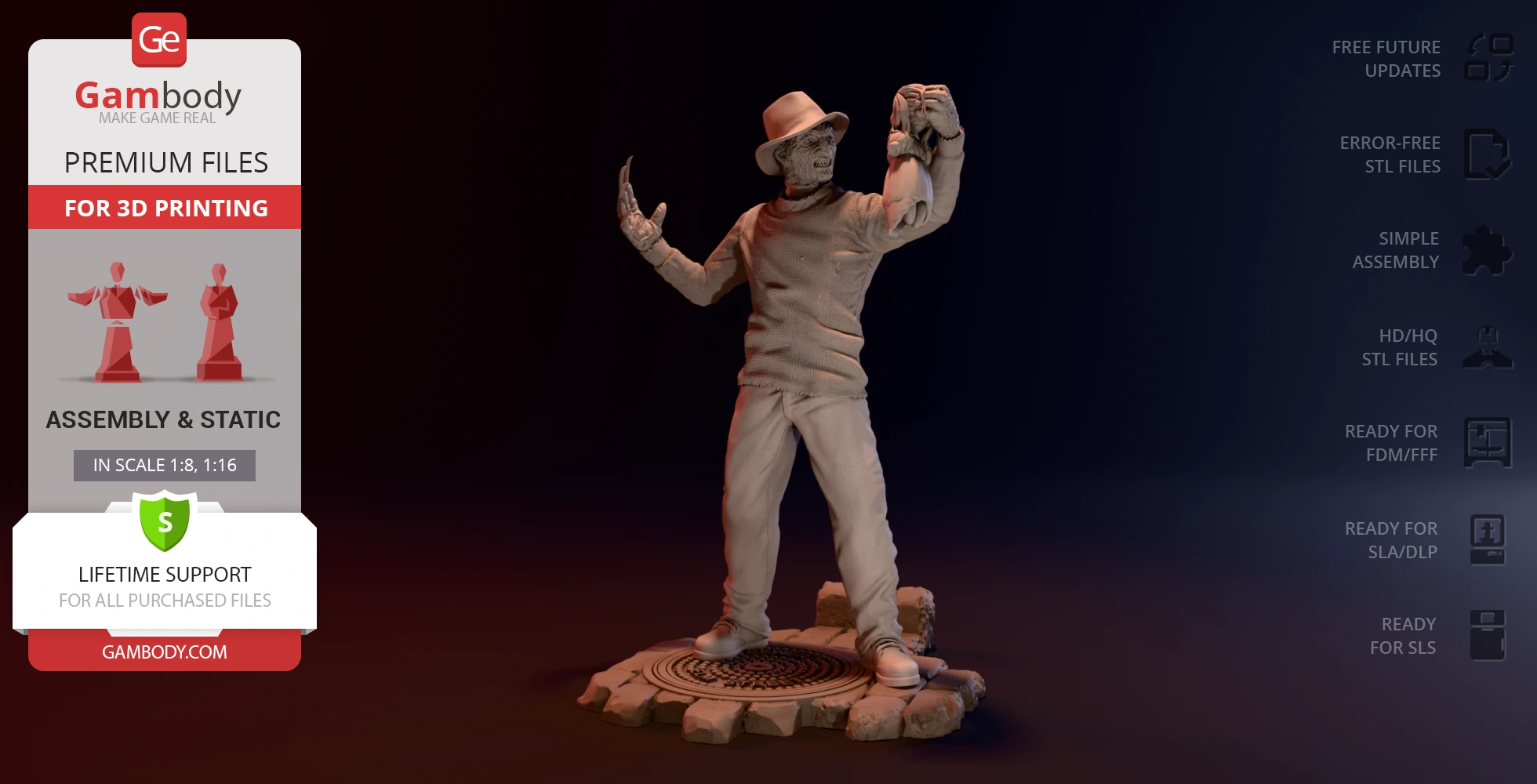

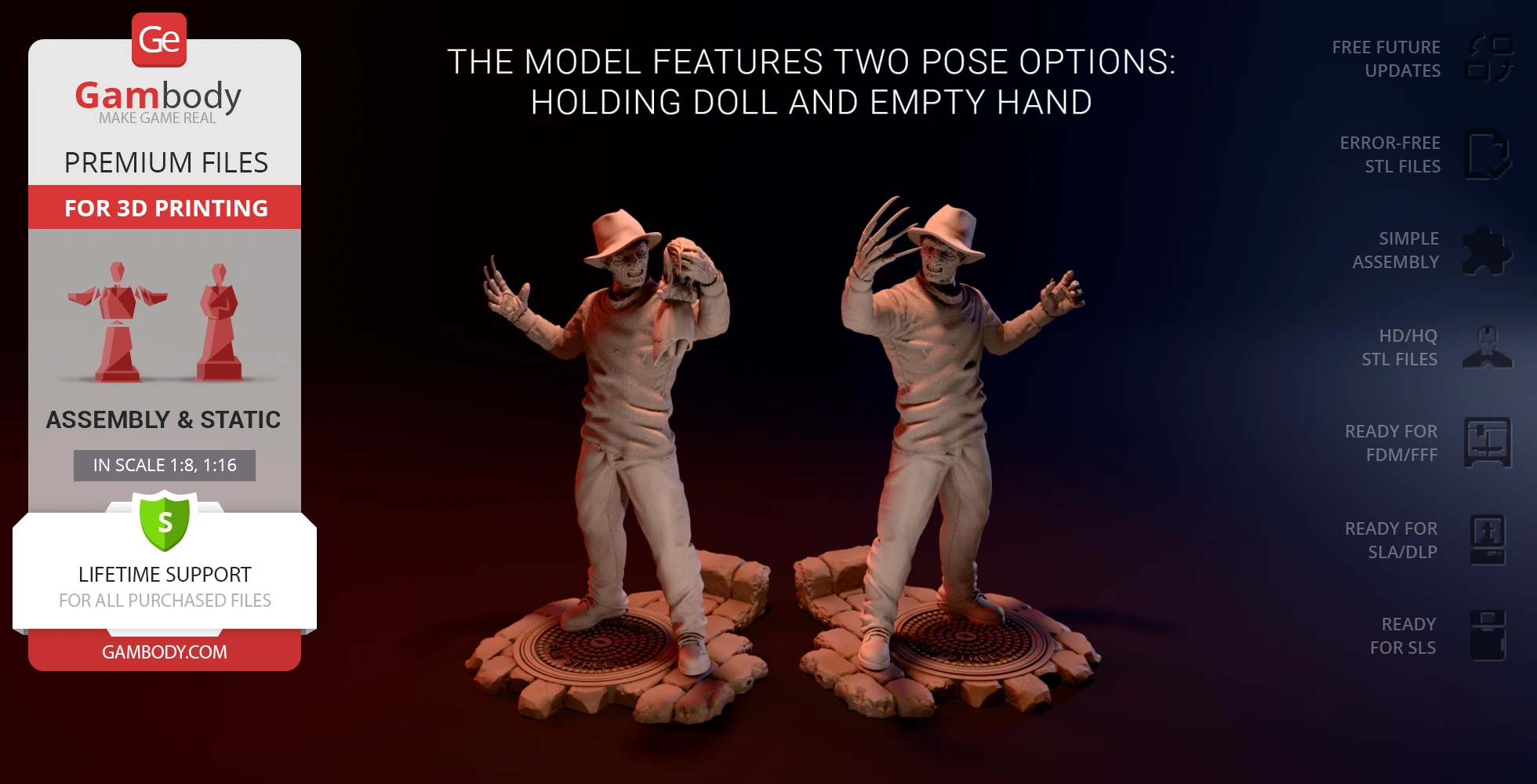

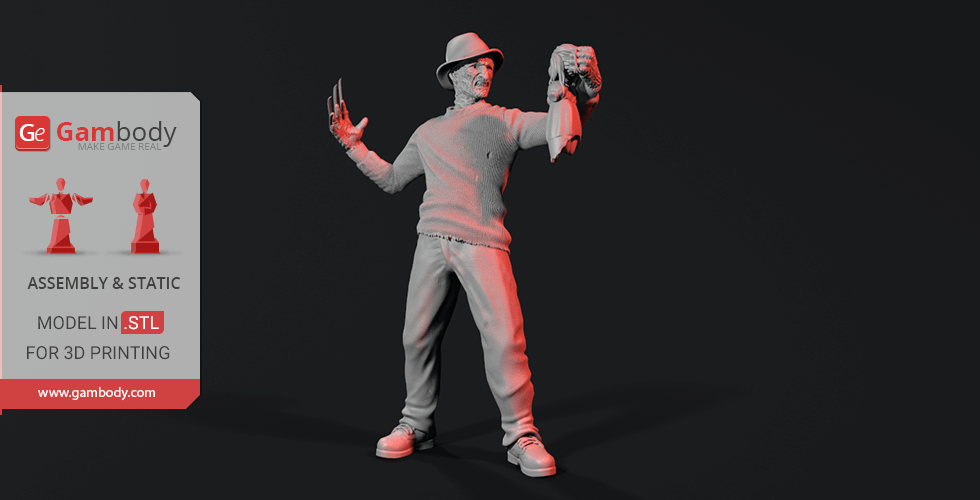

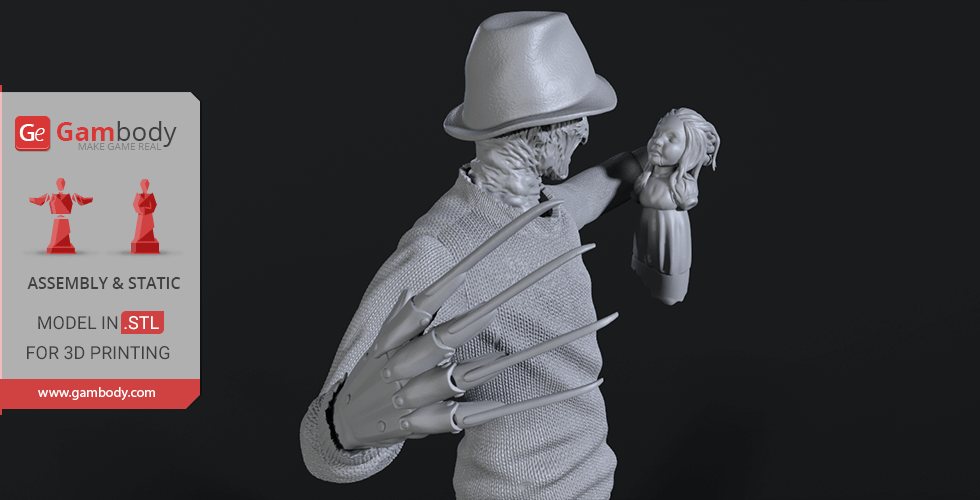

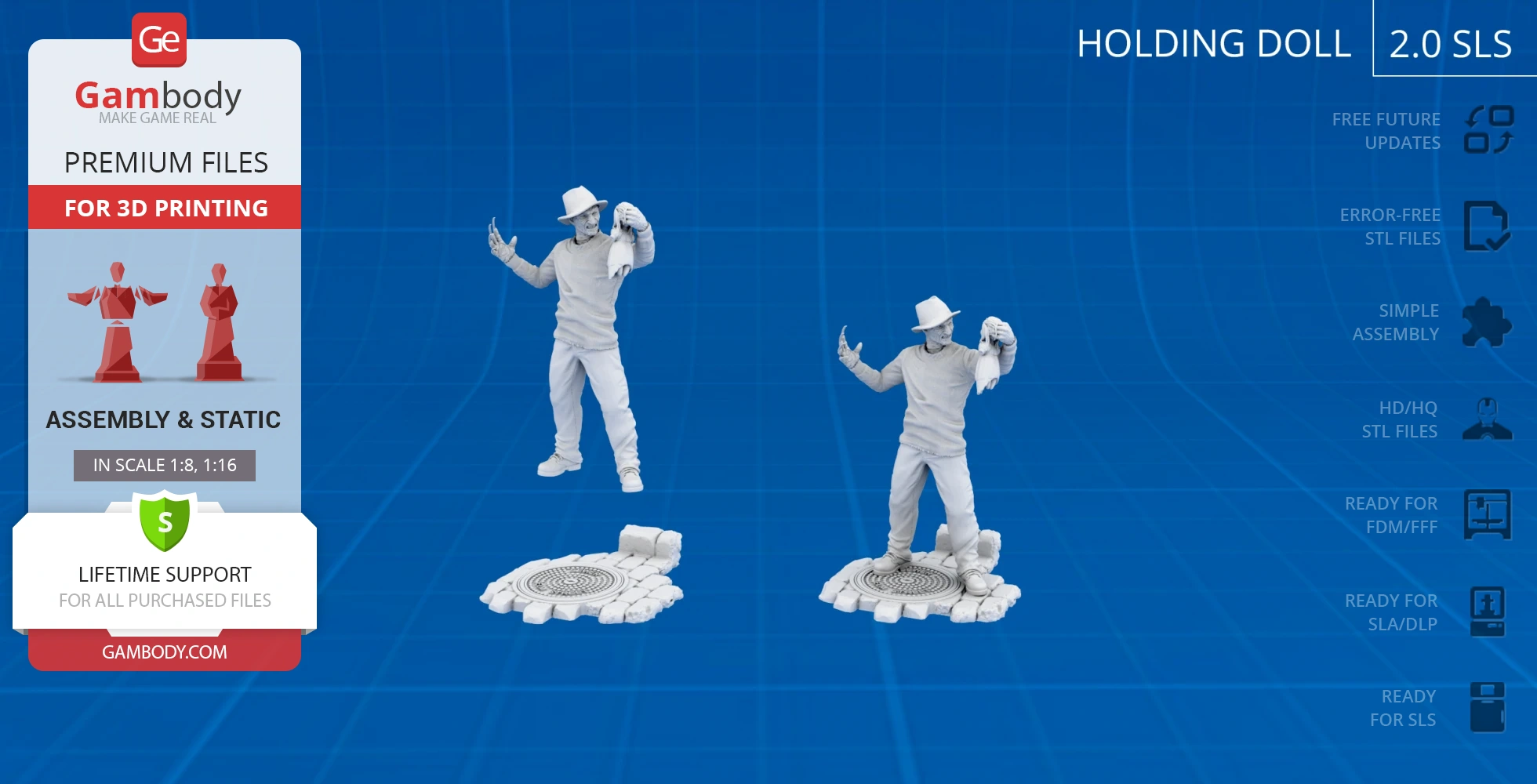

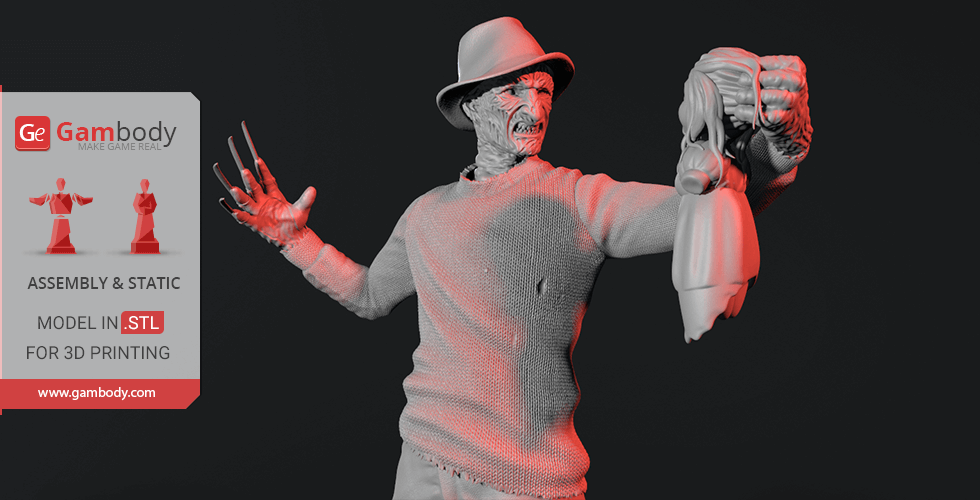

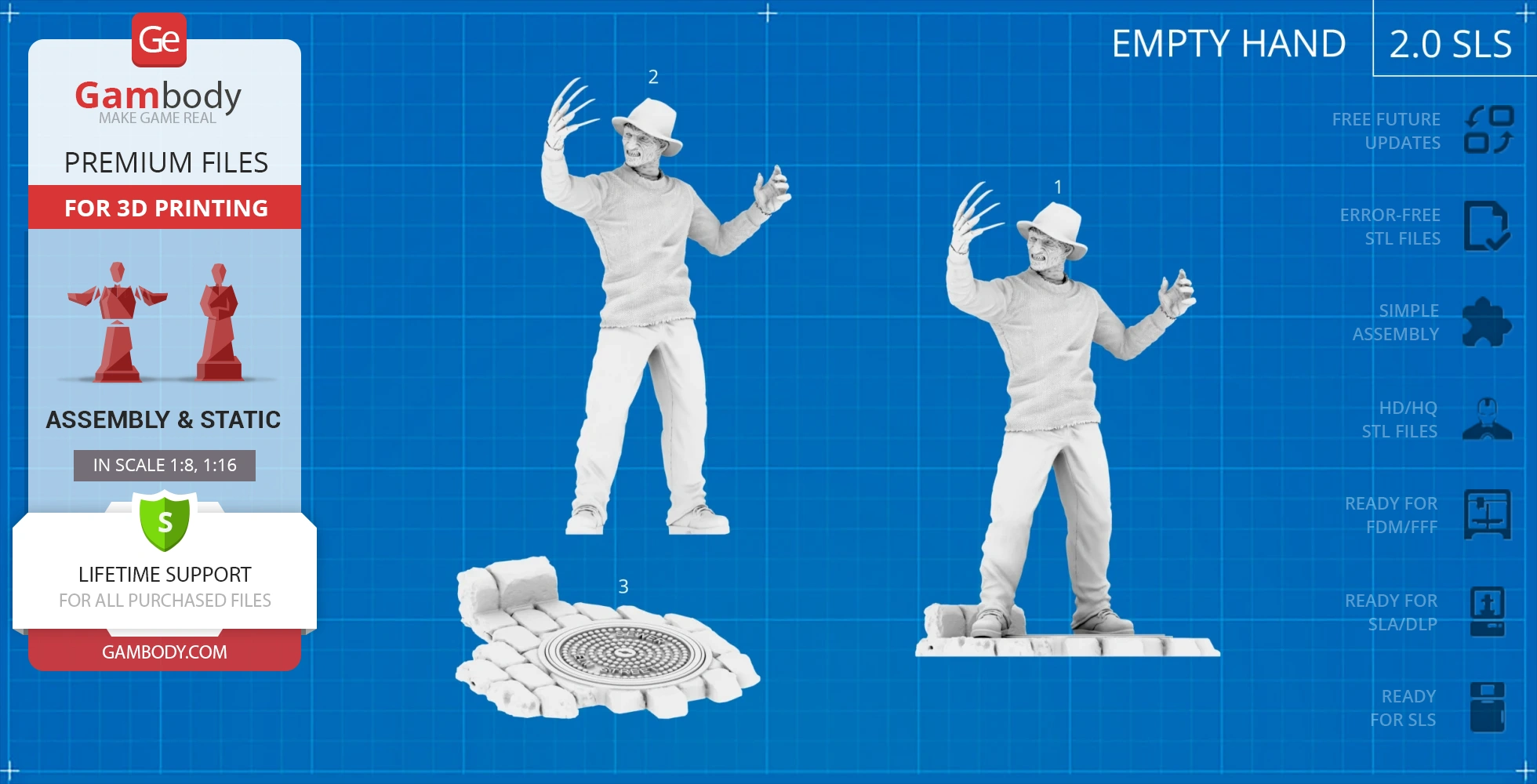

Version 1 and Version 2 are the files for Freddy Krueger 3D Miniature optimized for 3D printing, the preview pictures of which you see above.

It is recommended:

  • to print Version 1 STL files on FDM/FFF 3D printers;
  • to print Version 2 STL files on DLP/SLA/SLS 3D printers.
File Name File Size Time / Filament Object Size
(x/y/z mm)
1_hand_R_FDM (repaired).s tl
3.33 MiB 52 min <1 m 21 x 22 x 49 Download

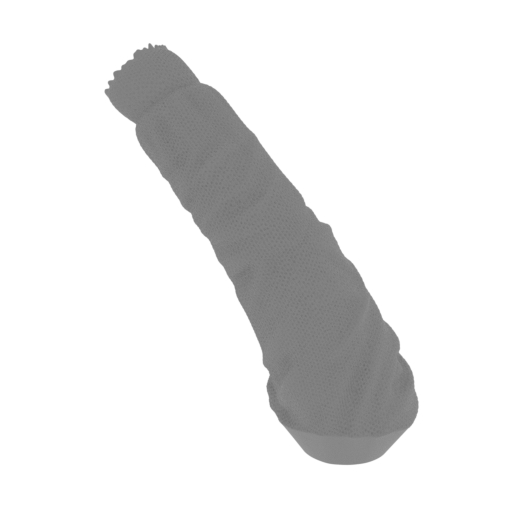

2_arm_R_FDM (repaired).st l
13.05 MiB 2 h 45 min 1 m 39 x 22 x 59 Download

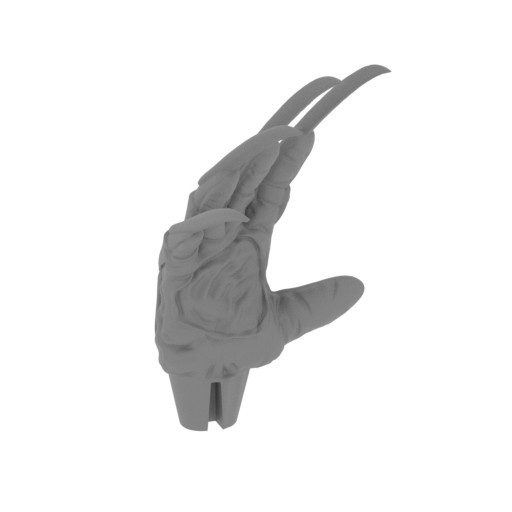

3_hand_L_FDM (repaired).s tl
9.77 MiB 2 h 26 min 1 m 27 x 56 x 29 Download

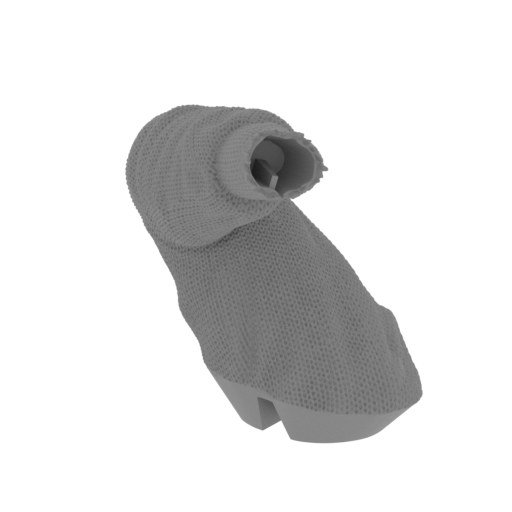

4_arm_L_FDM (repaired).st l
12.65 MiB 2 h 20 min 1 m 22 x 29 x 70 Download
5_Ge_lock_7S_x9_FDM (repa ired).stl
0.02 MiB 3 min <1 m 7 x 18 x 2 Download

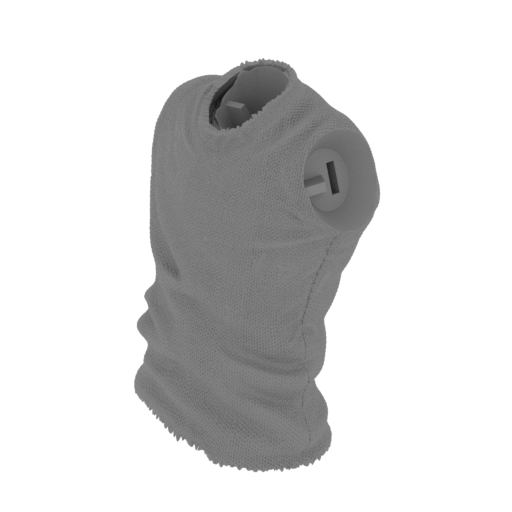

6_body_FDM (repaired).stl
36.91 MiB 11 h 25 min 6 m 67 x 43 x 84 Download

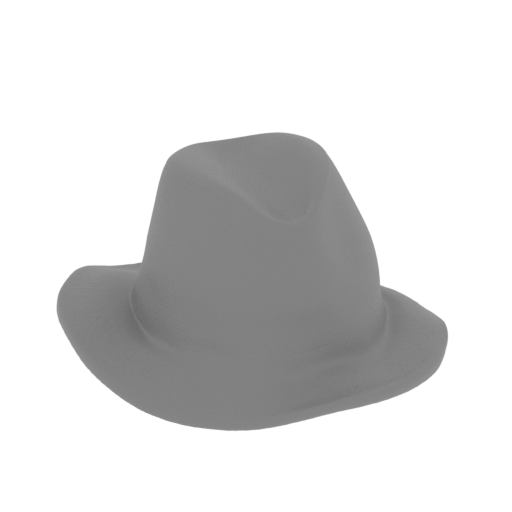

7_hat_FDM (repaired).stl
4.04 MiB 1 h 24 min 1 m 37 x 38 x 21 Download

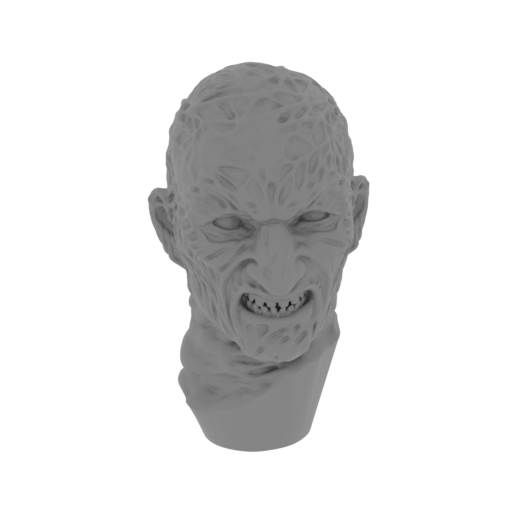

8_head_FDM (repaired).stl
9.38 MiB 1 h 58 min 1 m 28 x 27 x 45 Download

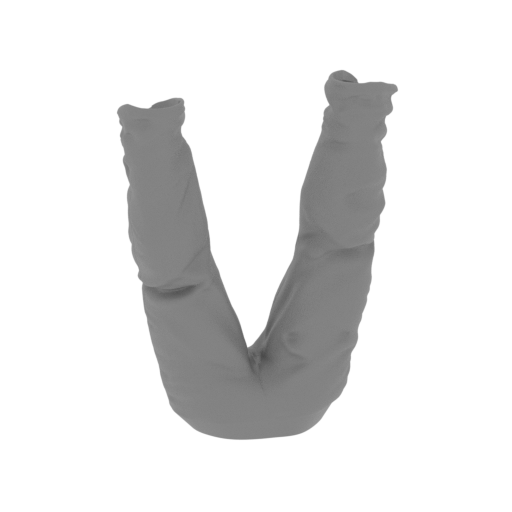

9_legs_new_FDM (repaired) .stl
22.95 MiB 10 h 48 min 6 m 84 x 54 x 118 Download

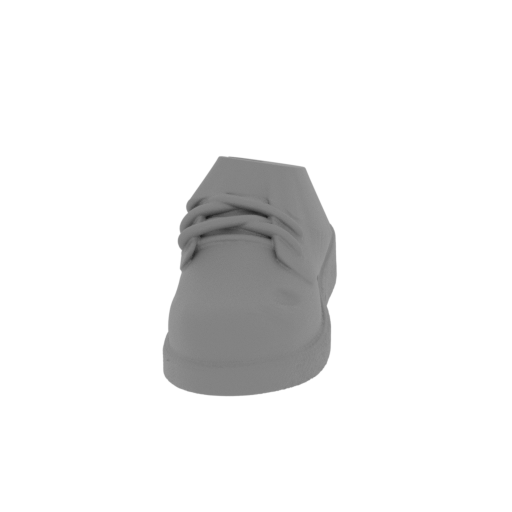

10_foot_R_FDM (repaired). stl
4.17 MiB 44 min <1 m 32 x 32 x 19 Download

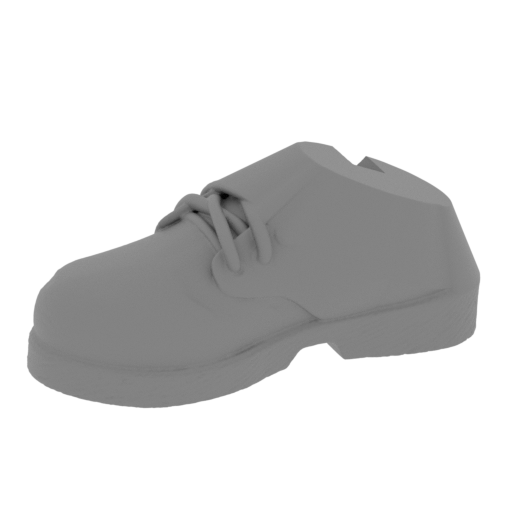

11_foot_L_FDM (repaired). stl
4.22 MiB 44 min <1 m 20 x 40 x 21 Download

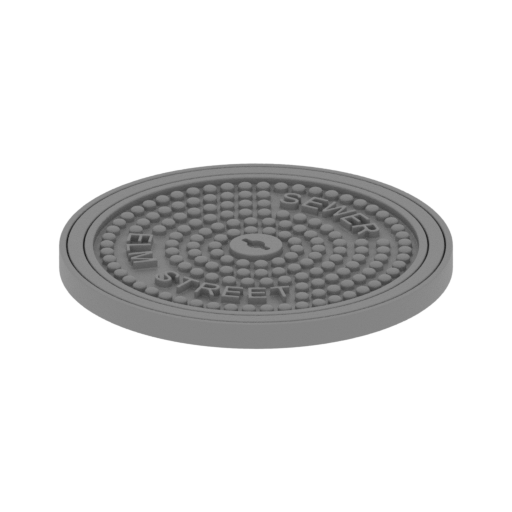

12_sewer hatch_FDM (repai red).stl
7.87 MiB 4 h 20 min 2 m 83 x 83 x 6 Download
13_platform_1_FDM (repair ed).stl
5.79 MiB 22 h 2 min 12 m 148 x 199 x 27 Download
14_platform_2_FDM (repair ed).stl
3.60 MiB 13 h 7 min 7 m 162 x 158 x 27 Download

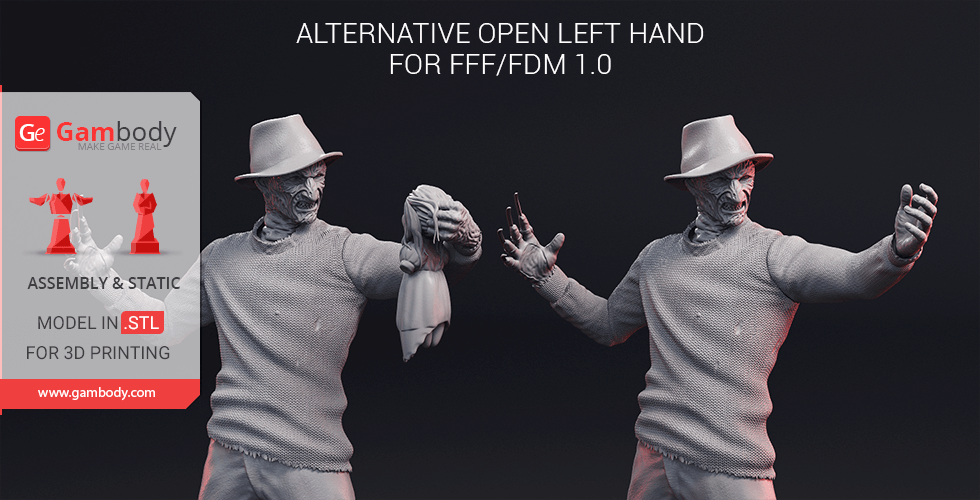

15_arm_L_no_doll_FDM (rep aired).stl
14.99 MiB 2 h 37 min 2 m 39 x 28 x 68 Download
16_hand_L_no_doll_FDM (re paired).stl
14.54 MiB 40 min <1 m 14 x 20 x 33 Download

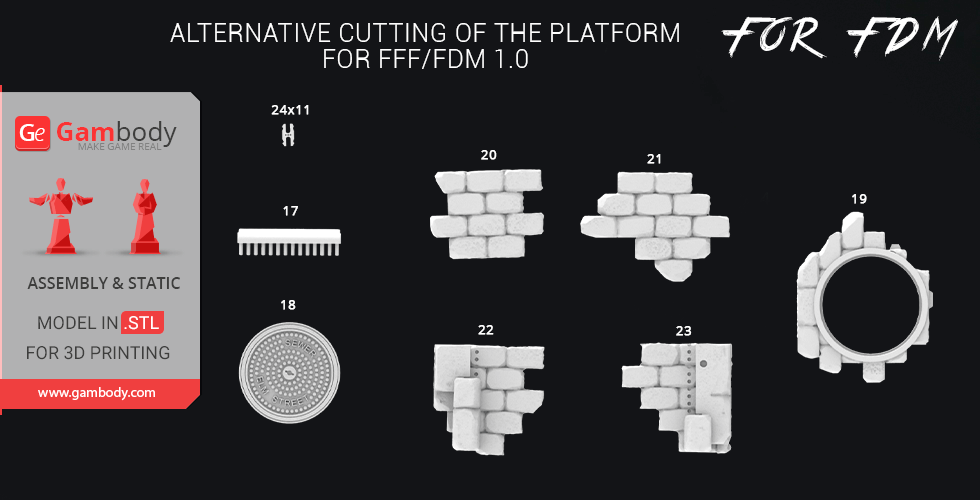

17_platform_v2_FDM (repai red).stl
7.00 MiB 3 h 21 min 2 m 85 x 54 x 18 Download
18_platform_v2_FDM (repai red).stl
5.70 MiB 4 h 20 min 2 m 83 x 83 x 6 Download
19_platform_v2_FDM (repai red).stl
5.90 MiB 6 h 11 min 3 m 125 x 136 x 10 Download
20_platform_v2_FDM (repai red).stl
5.33 MiB 5 h 28 min 3 m 93 x 102 x 9 Download
21_platform_v2_FDM (repai red).stl
6.50 MiB 6 h 6 min 3 m 103 x 115 x 9 Download
22_platform_v2_FDM (repai red).stl
15.86 MiB 8 h 7 min 4 m 110 x 96 x 26 Download
23_platform_v2_FDM (repai red).stl
7.48 MiB 8 h 21 min 5 m 105 x 102 x 27 Download
24_Ge_lock_10H_x11(repair ed).stl
0.03 MiB 4 min <1 m 14 x 19 x 2 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download
...

HISTORY OF FREDDY KRUEGER

Freddy Krueger appears and kills his victims in their dreams. In the world of dreams, Kruger can anything, his abilities are limited only by his imagination which nevertheless works very well for Freddie. Only a man that not afraid of him or possessing the same imagination acquiring his super powers can stand it worthily. Also, Freddie can be "pulled" into the real world if you grab him in time and wake up he will be right there. Outside the world of dreams, a maniac loses his abilities, but he still has a glove and also a high endurance that allows him to survive wounds of almost any kind.

ABOUT THIS 3D MINIATURE

The model is saved in STL files, a format supported by most 3D printers

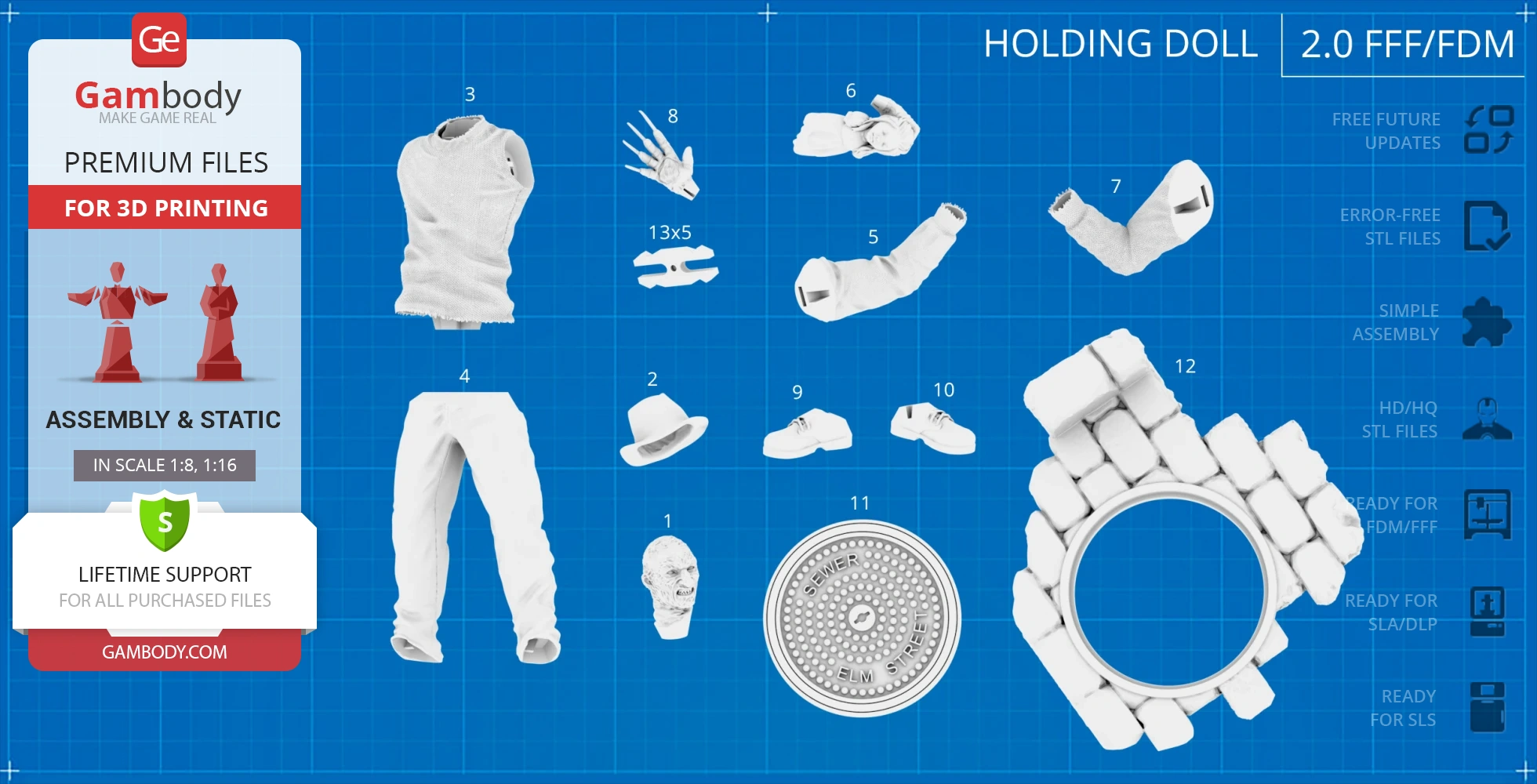

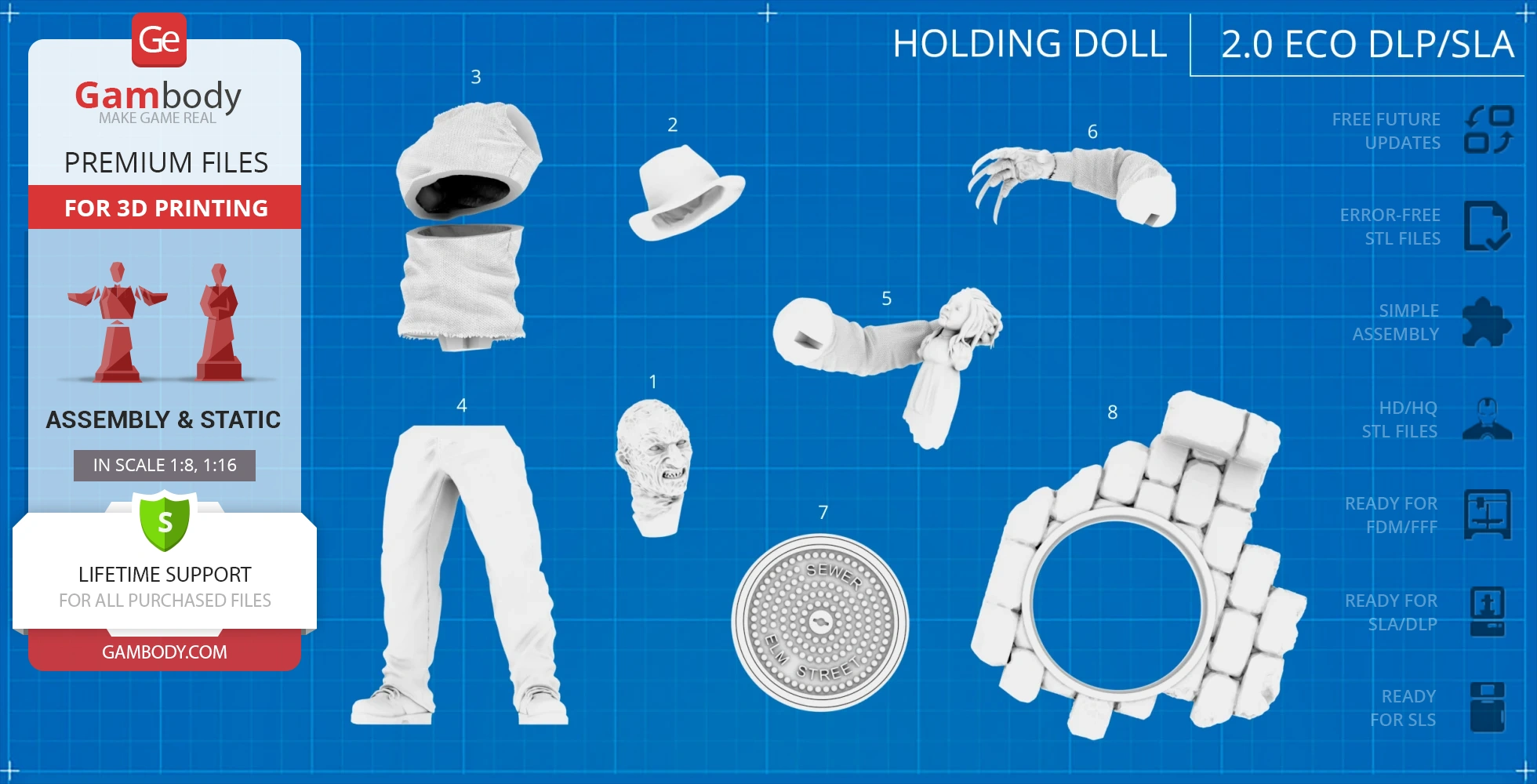

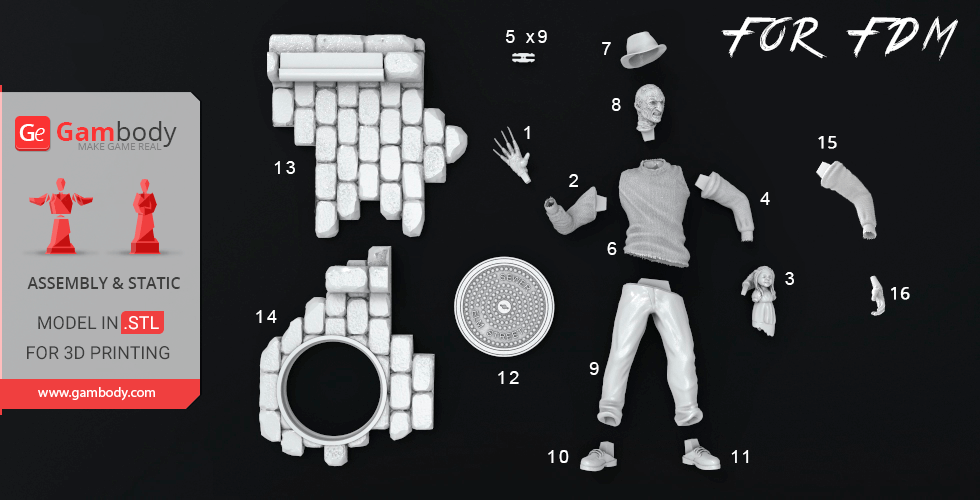

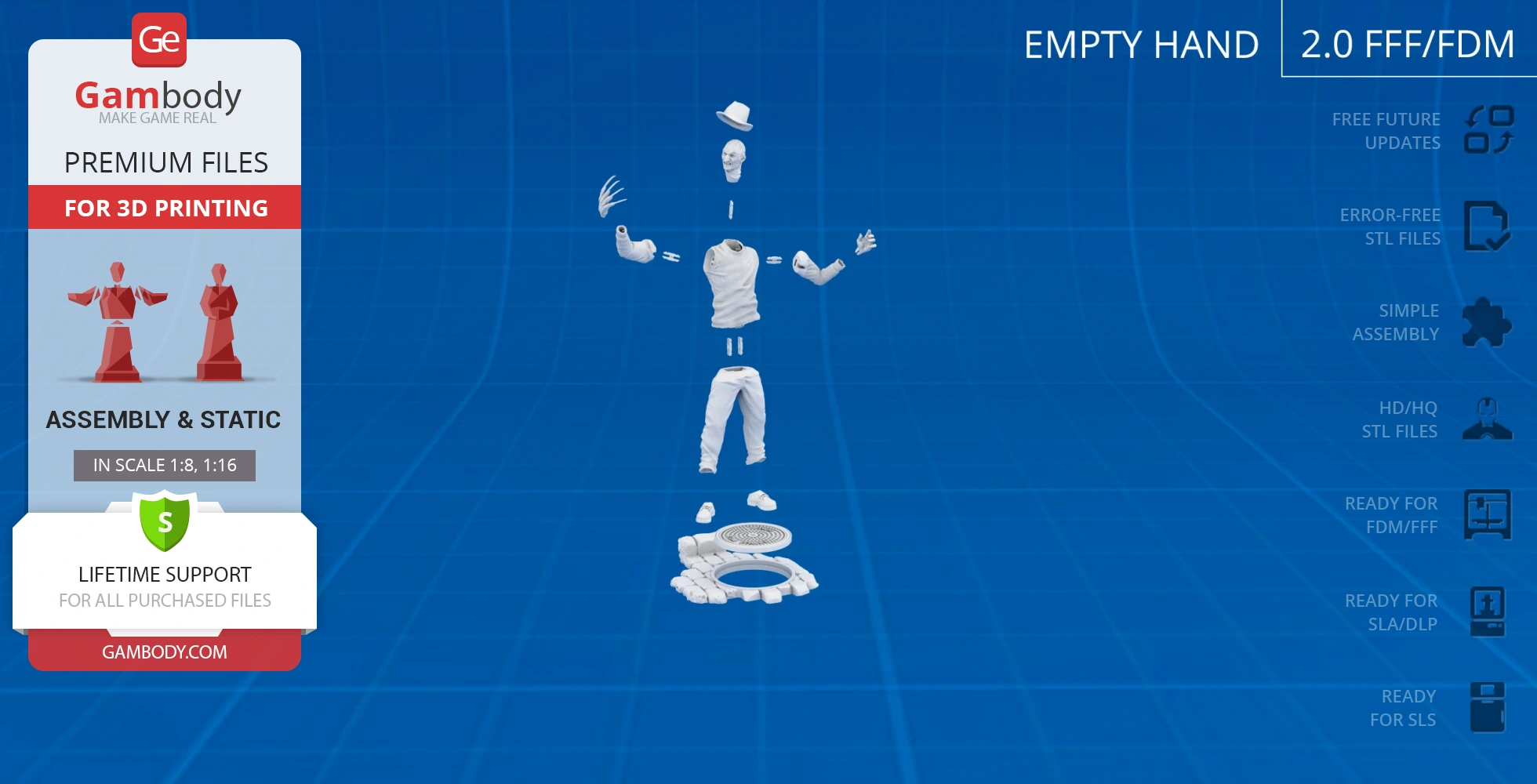

FDM version features:

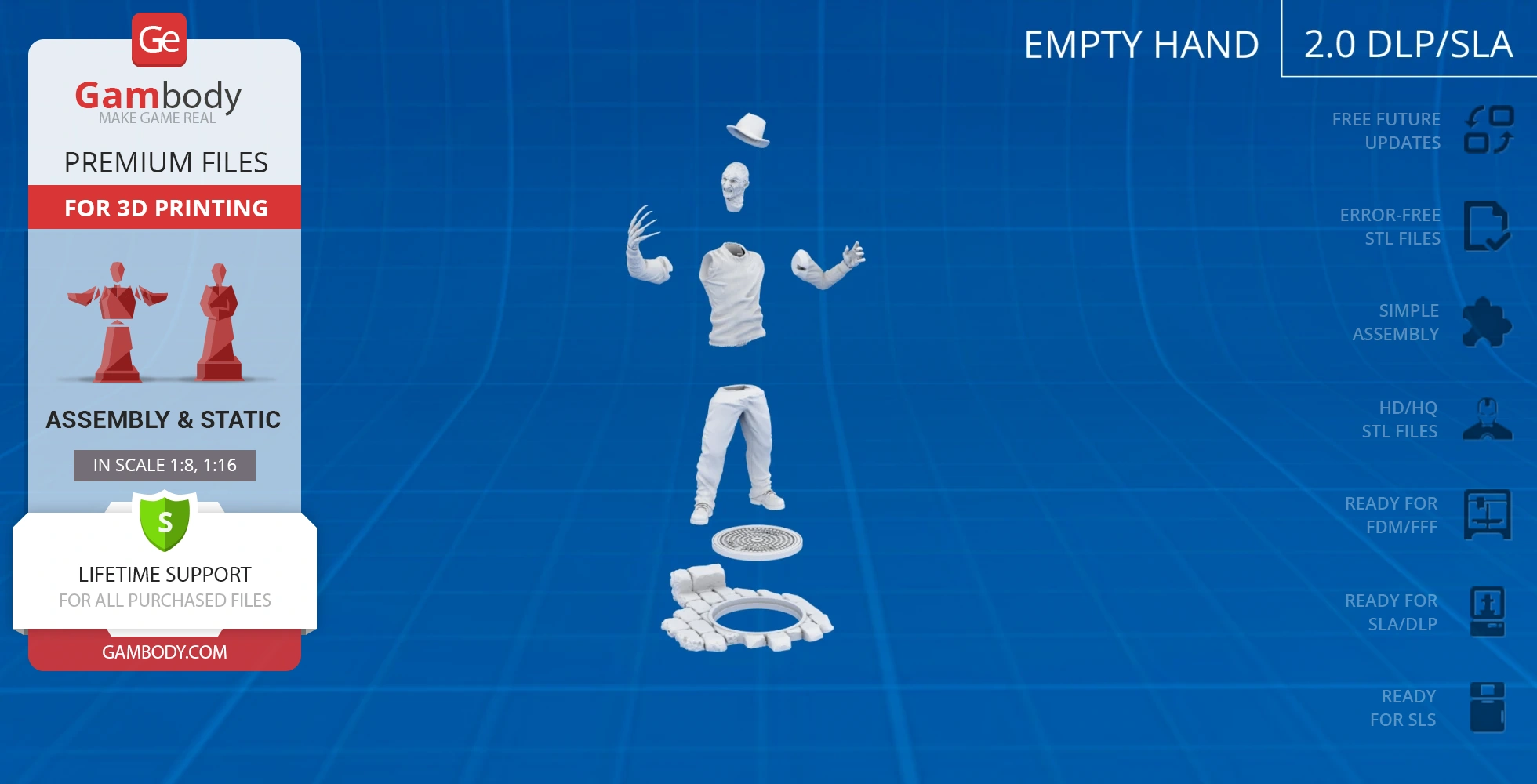

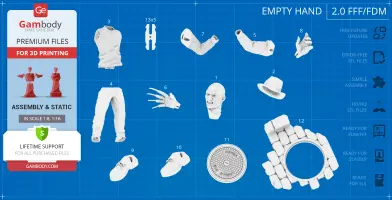

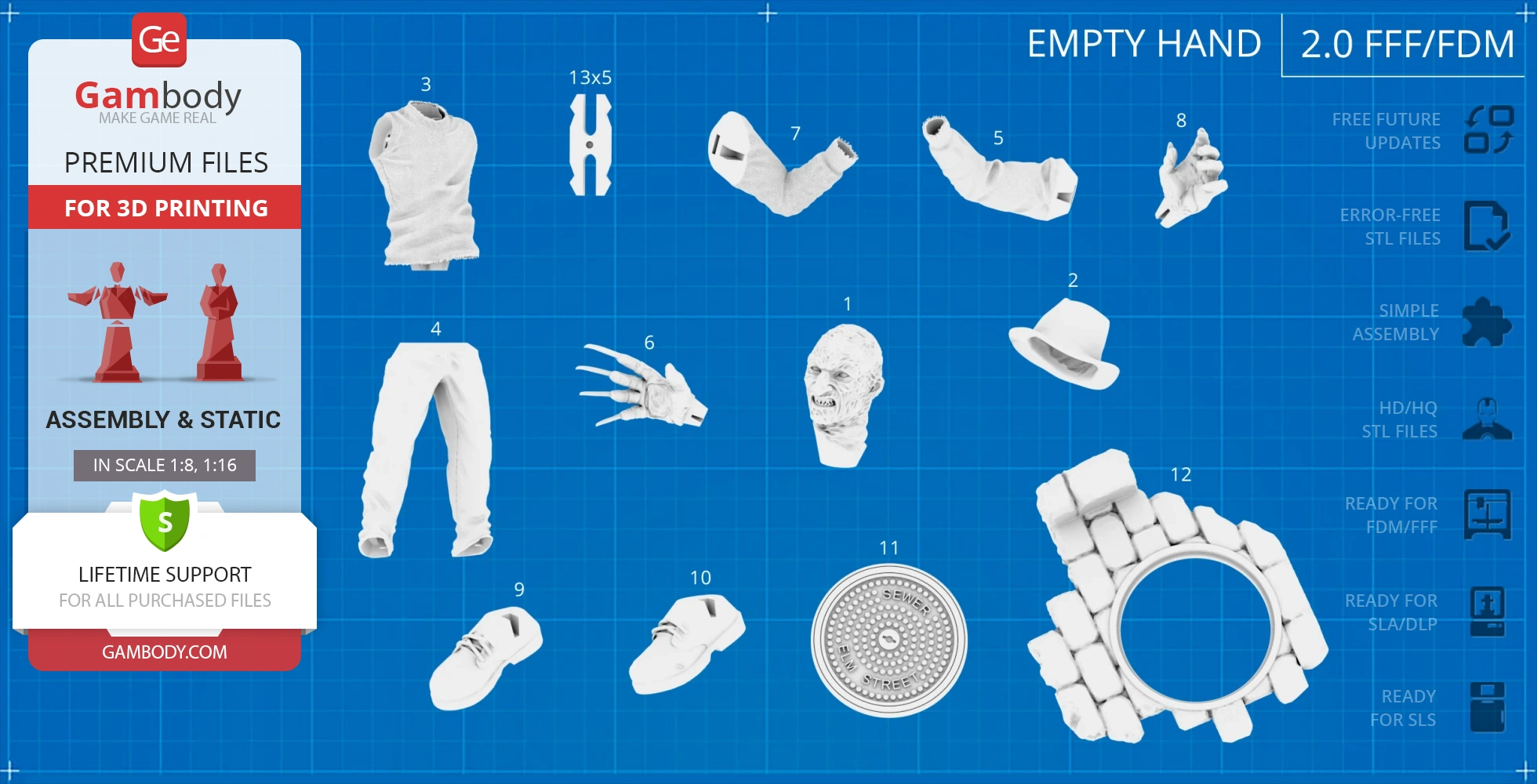

- Contain 14 parts;
- Made with divided hat;

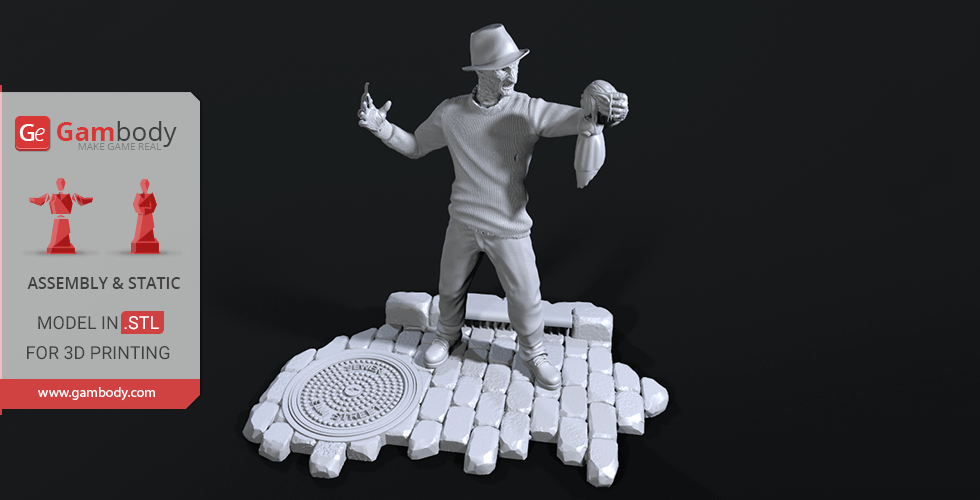

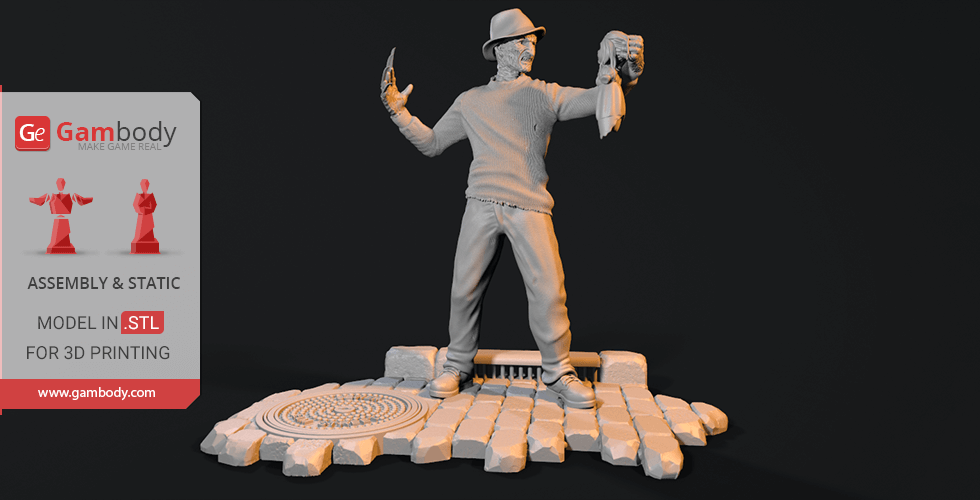

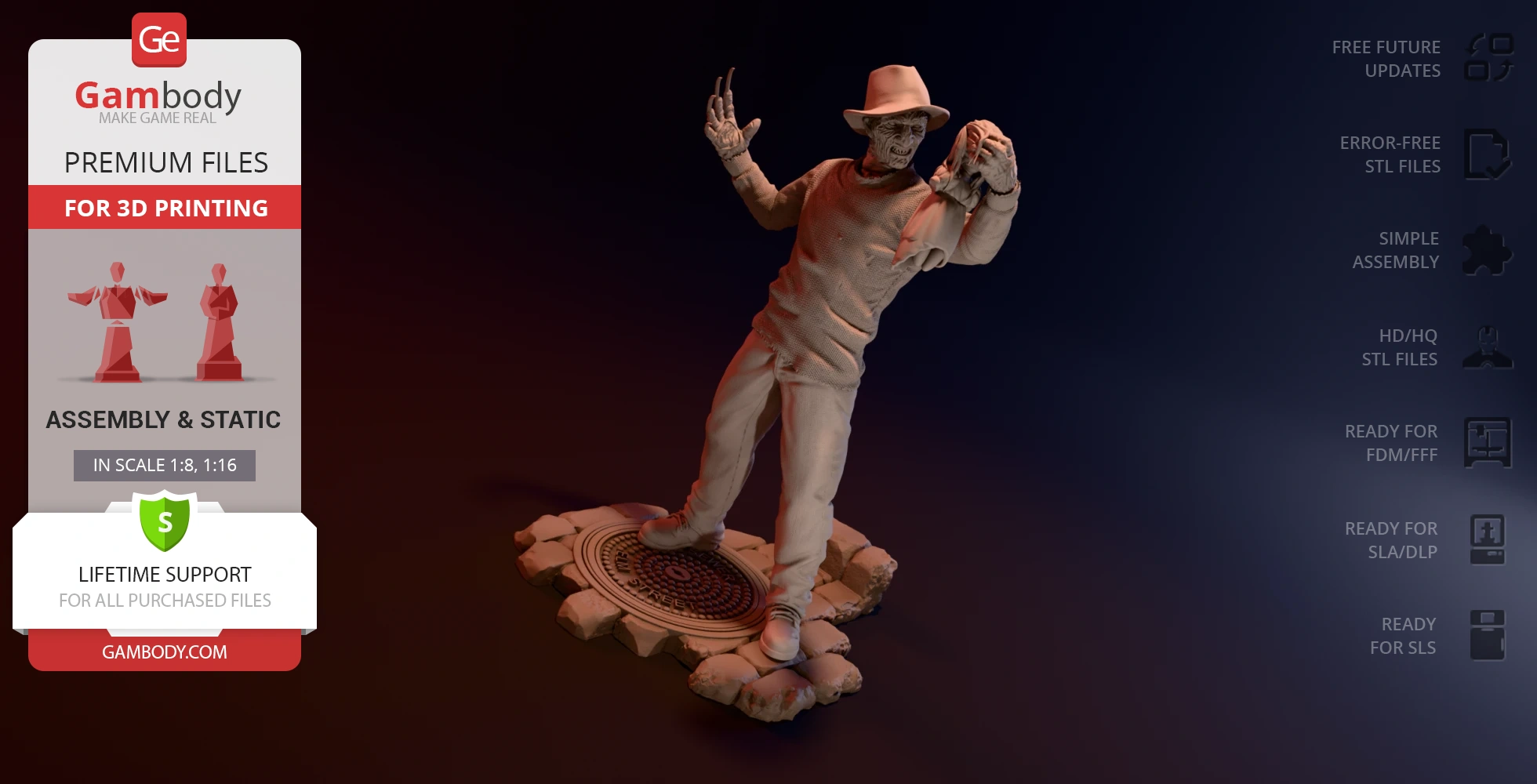

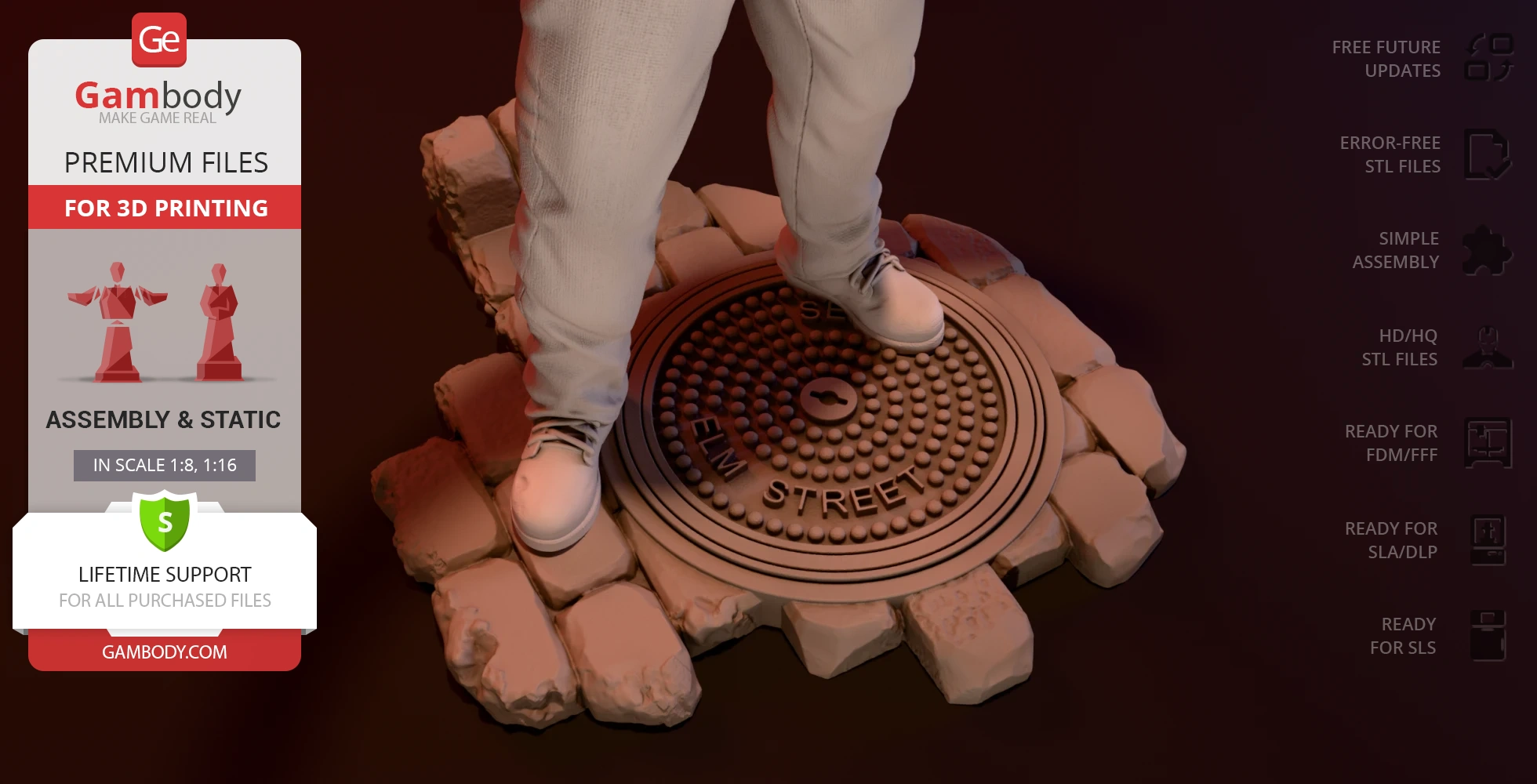

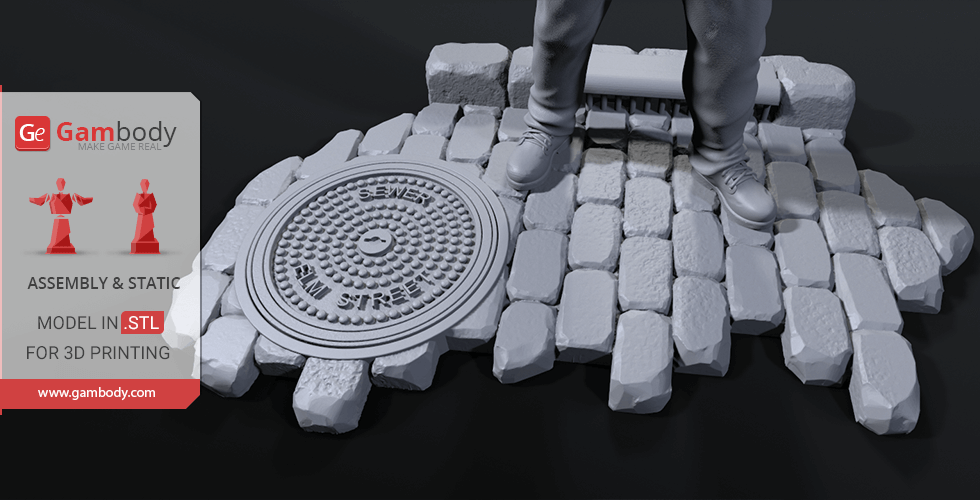

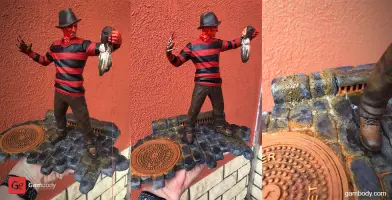

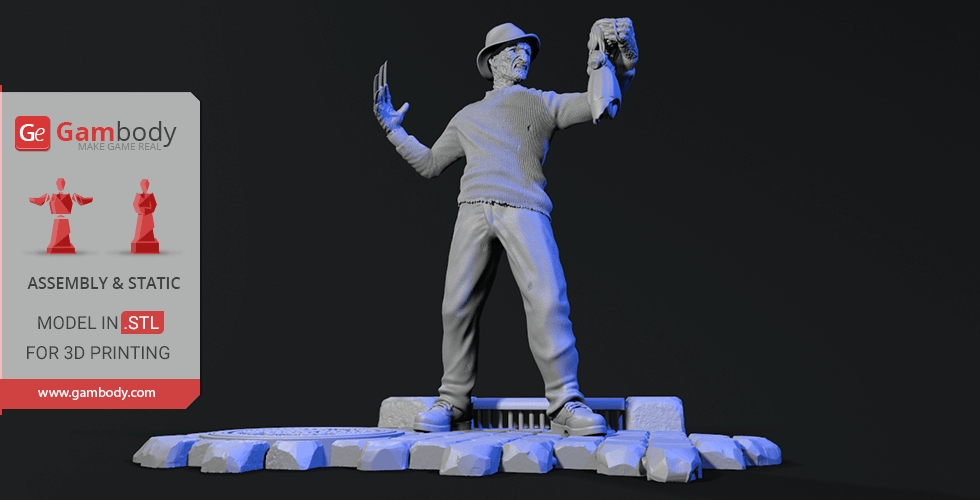

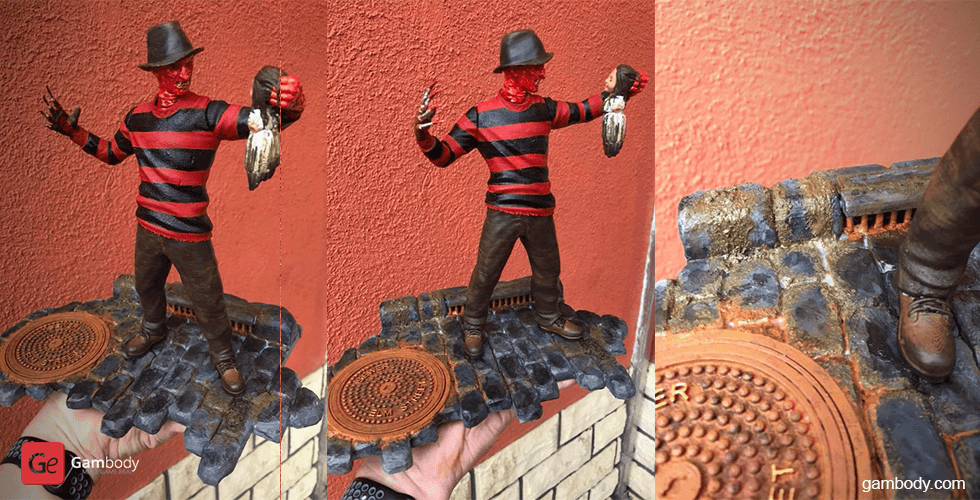

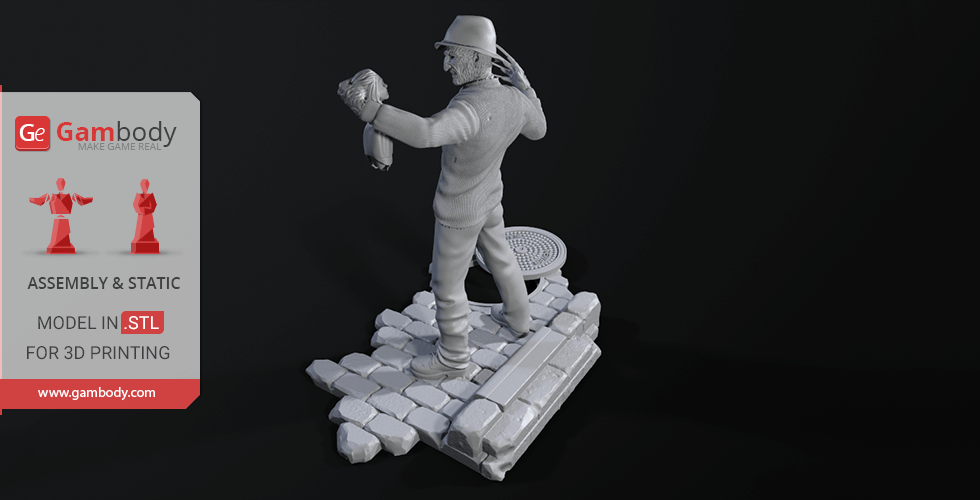

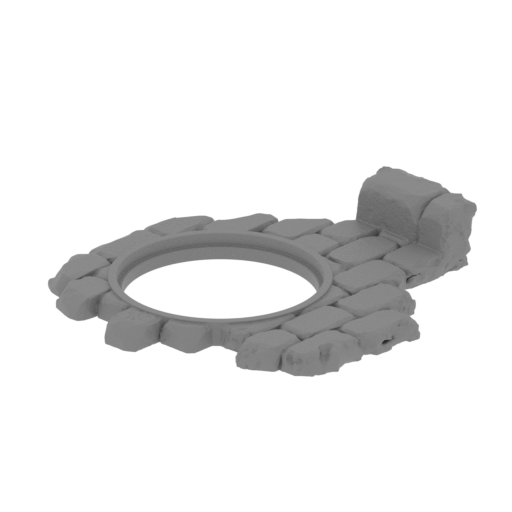

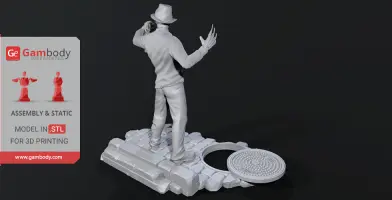

- Made with a platform that stylized as Elm Street, and with hatch. So you can make a diorama with this set;

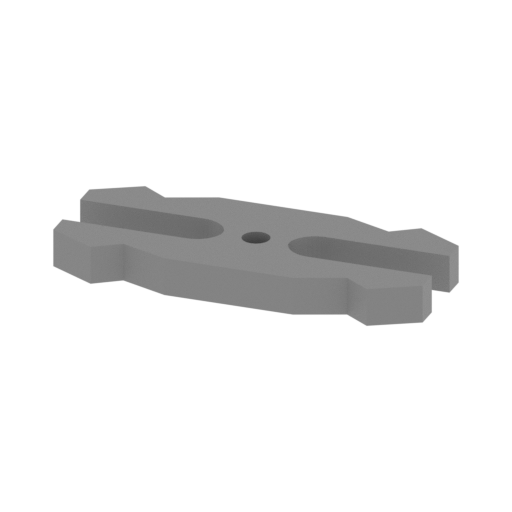

- Made with Locks for better fixing. One part of Lock (5_Ge_lock_7S (x9)) you need to print 9 times.
- All parts are divided in such way that you will print them with the smallest amount of supports.

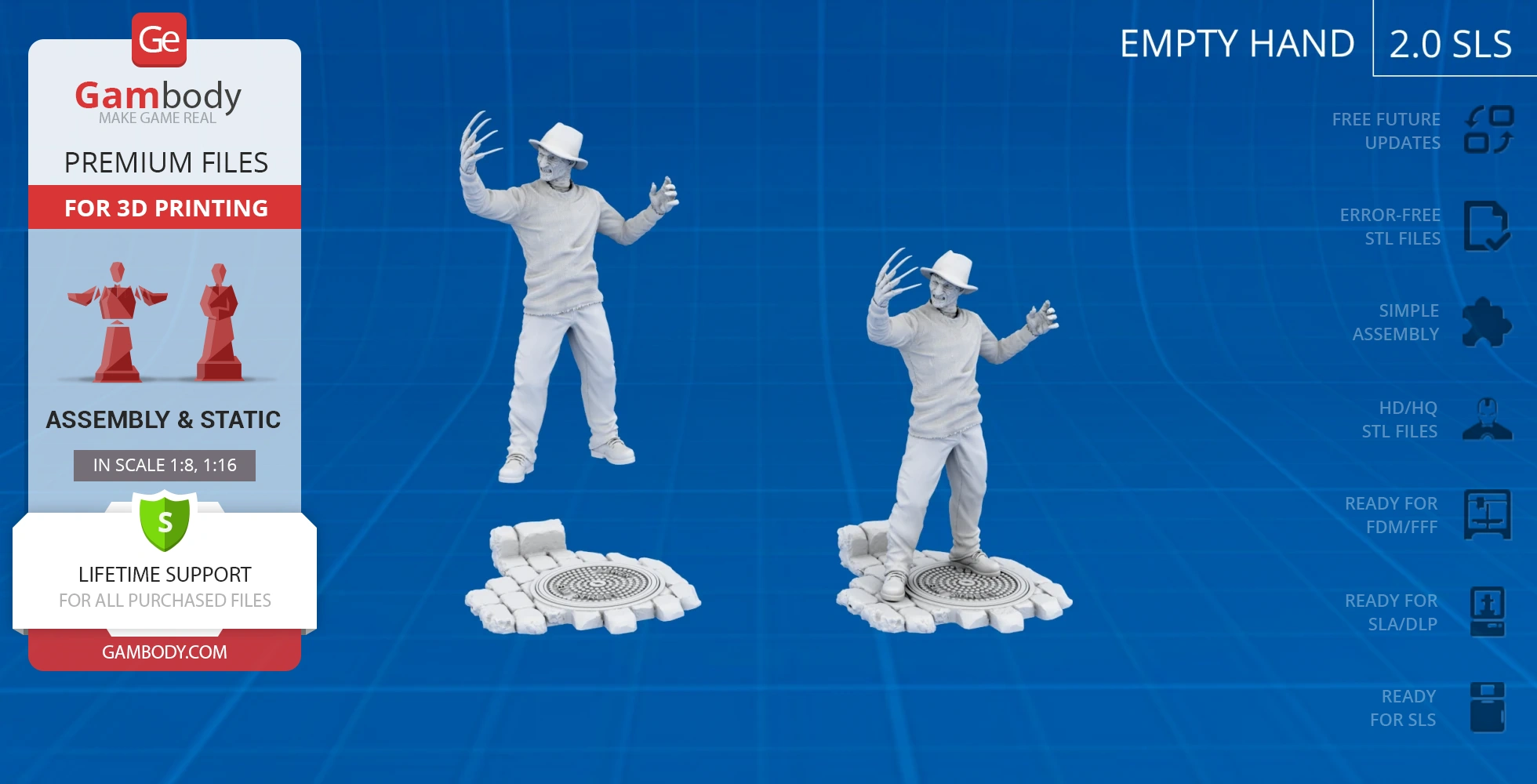

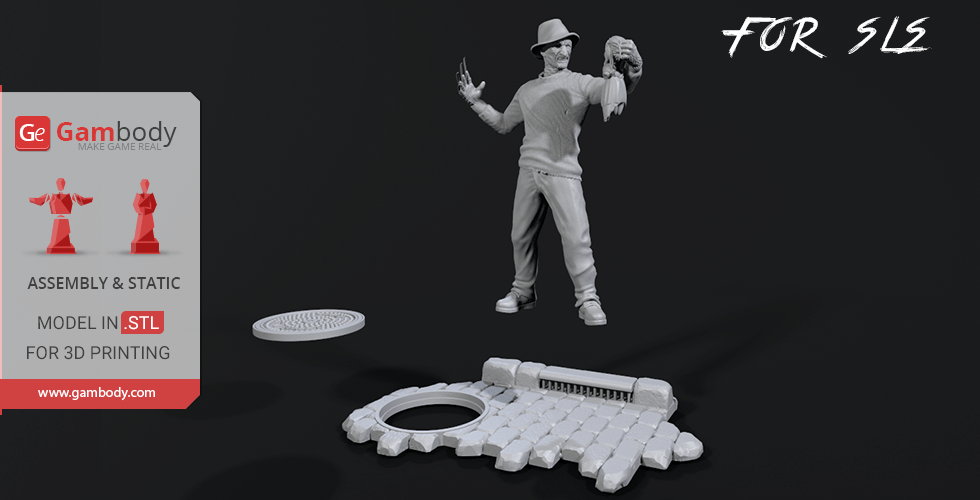

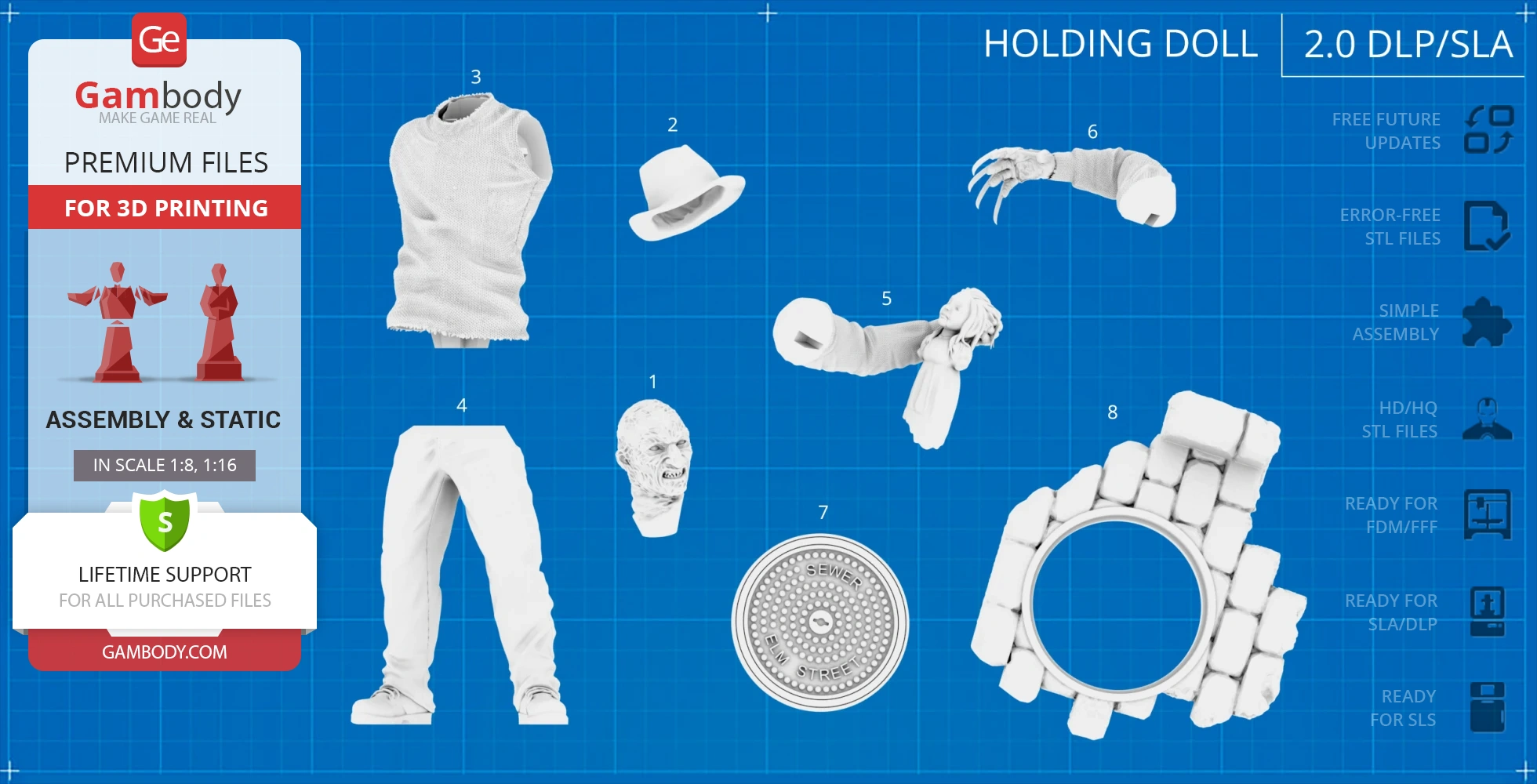

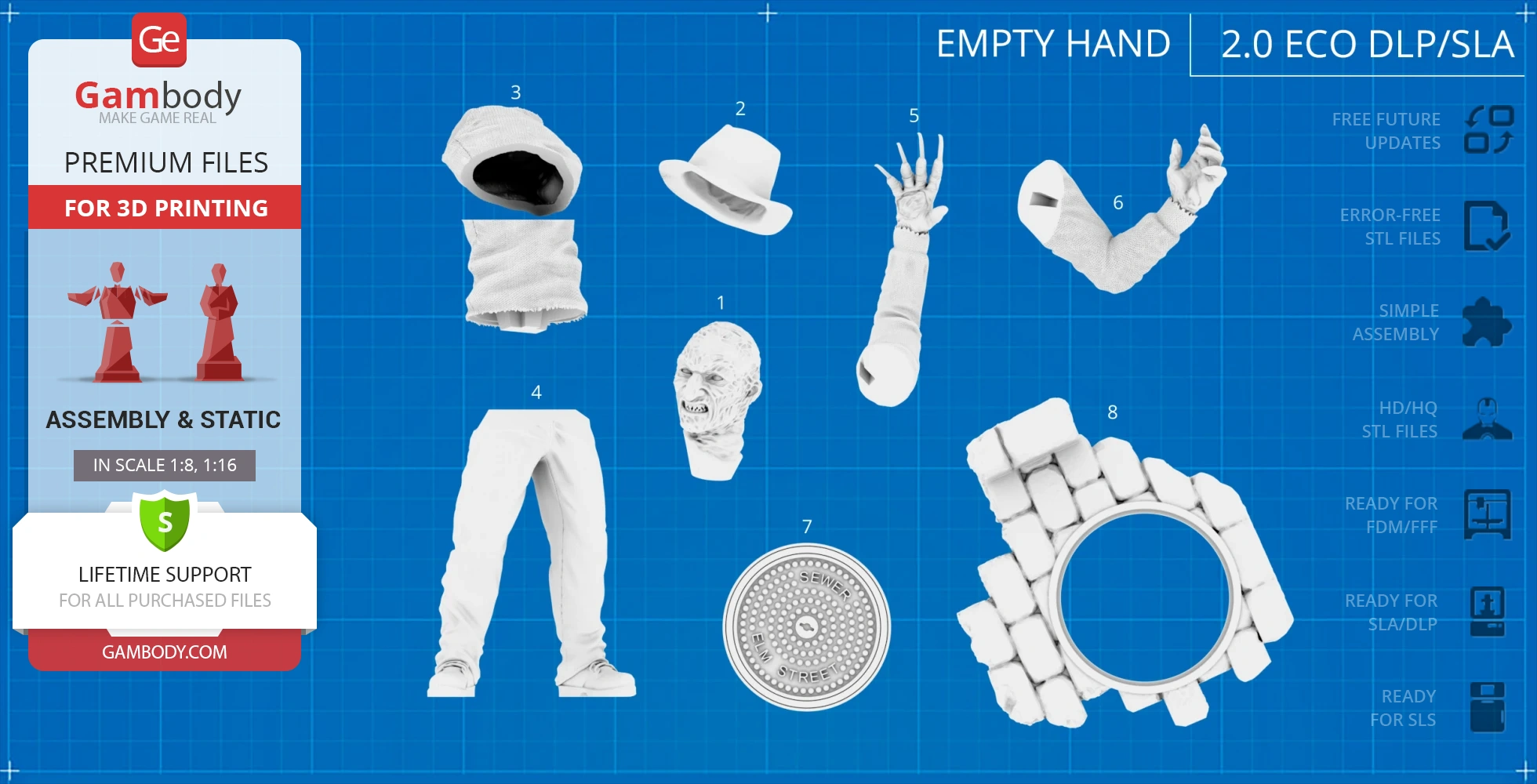

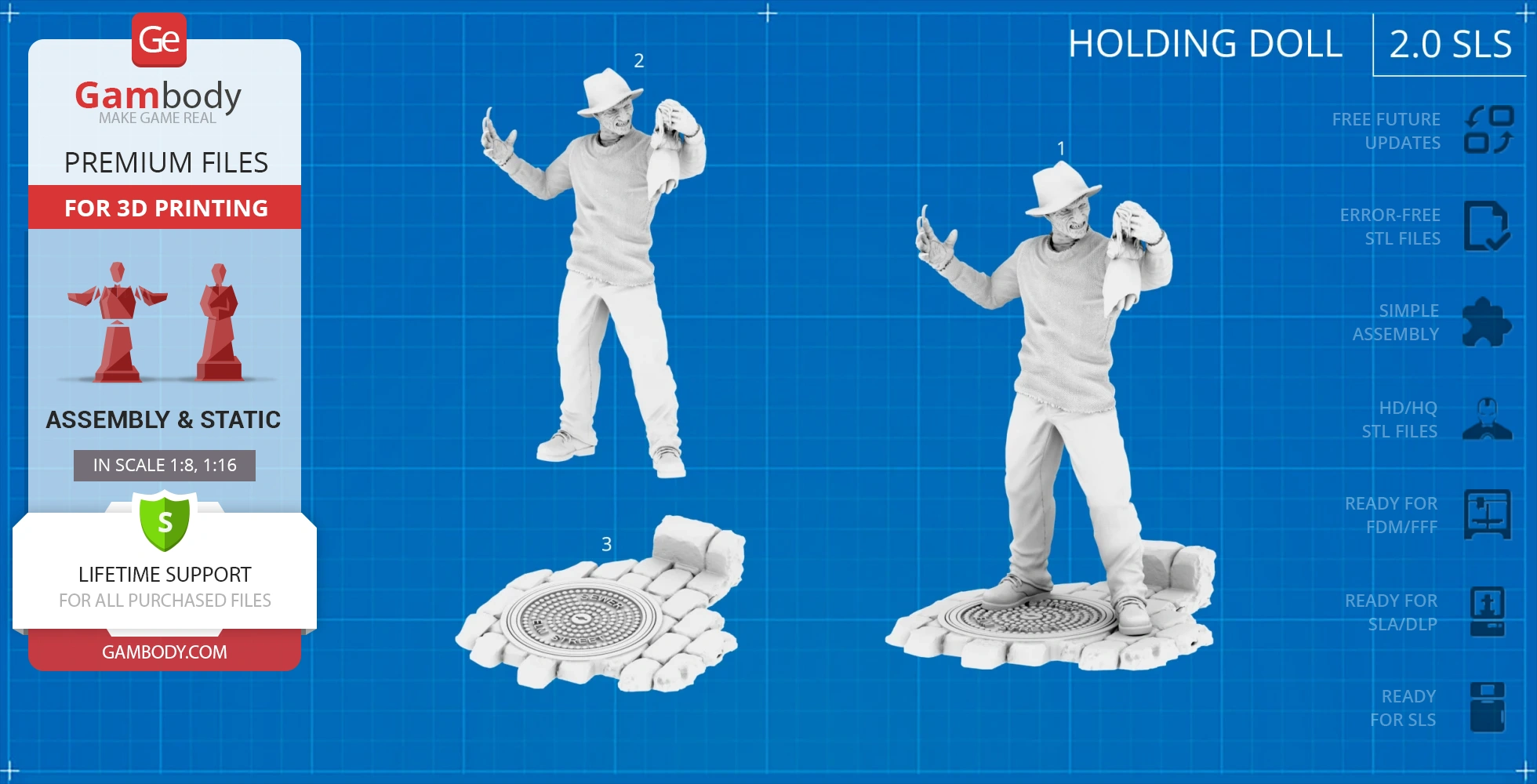

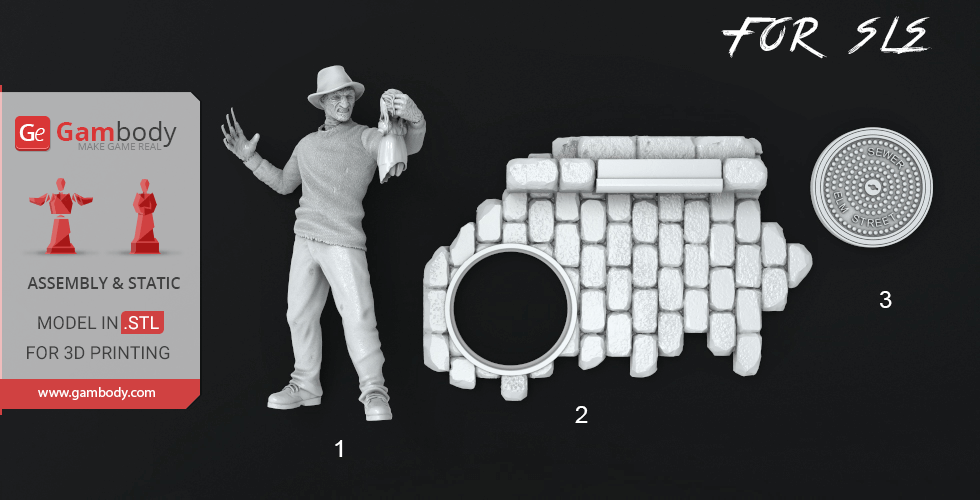

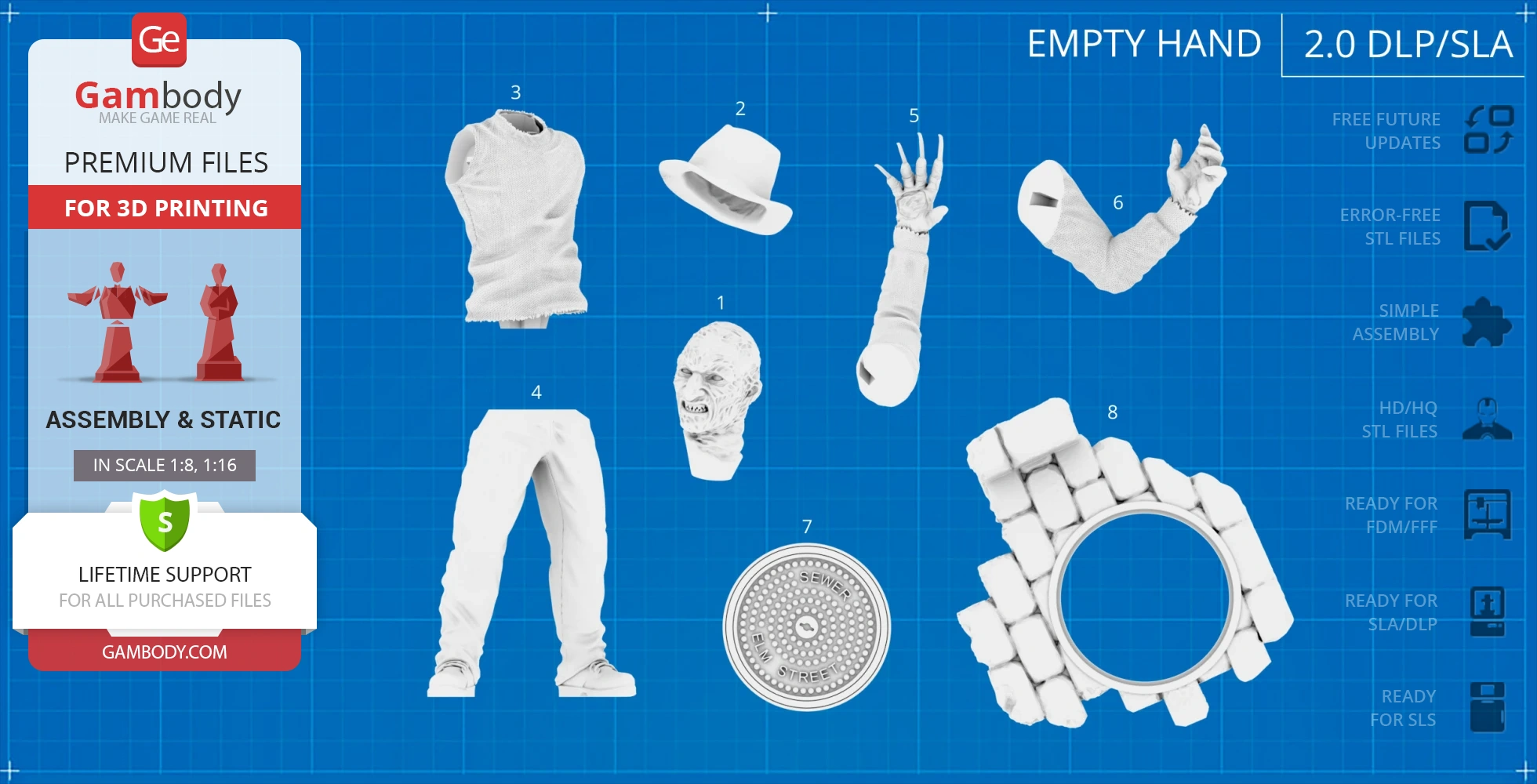

SLS/SLA version features:

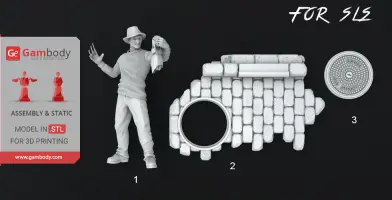

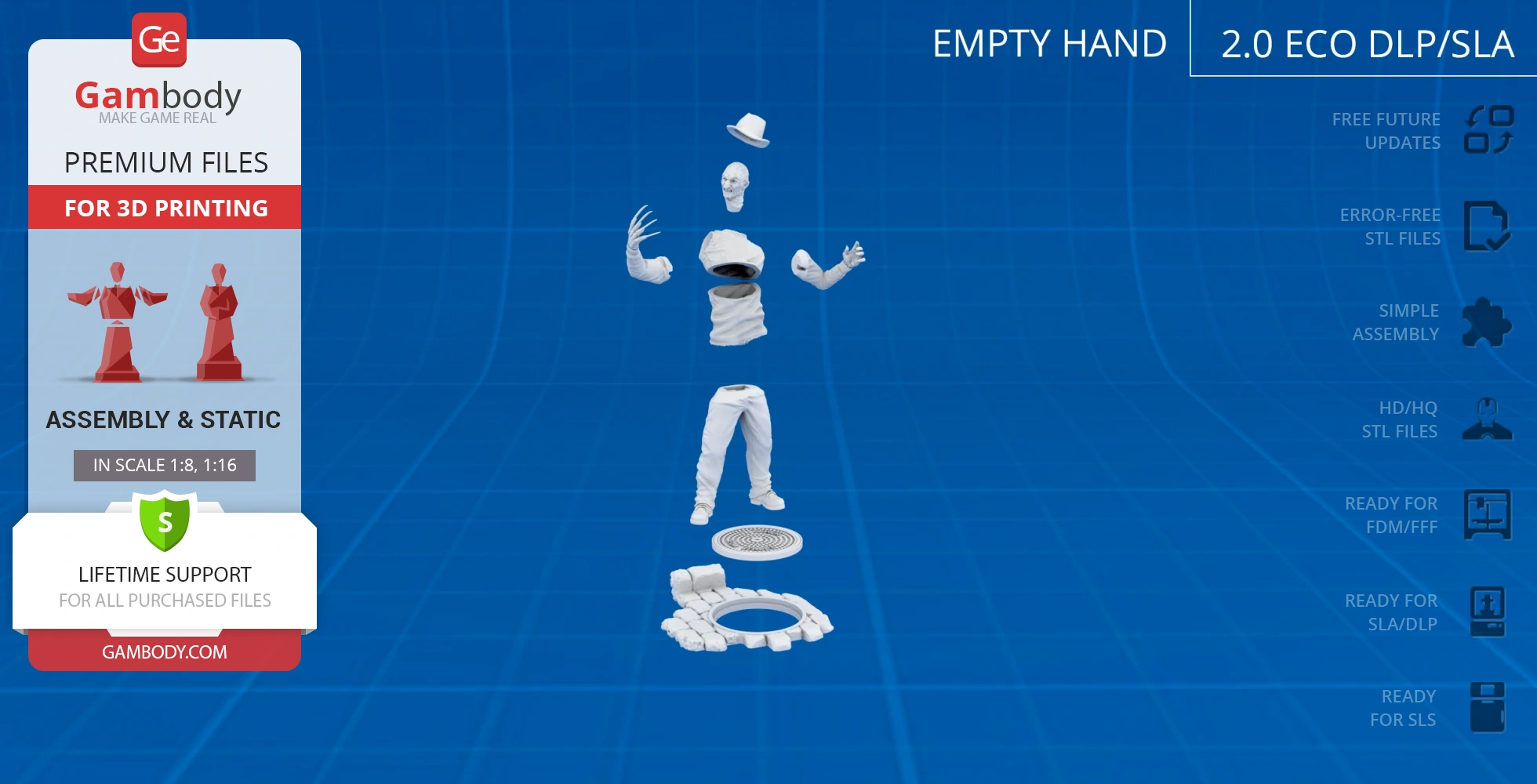

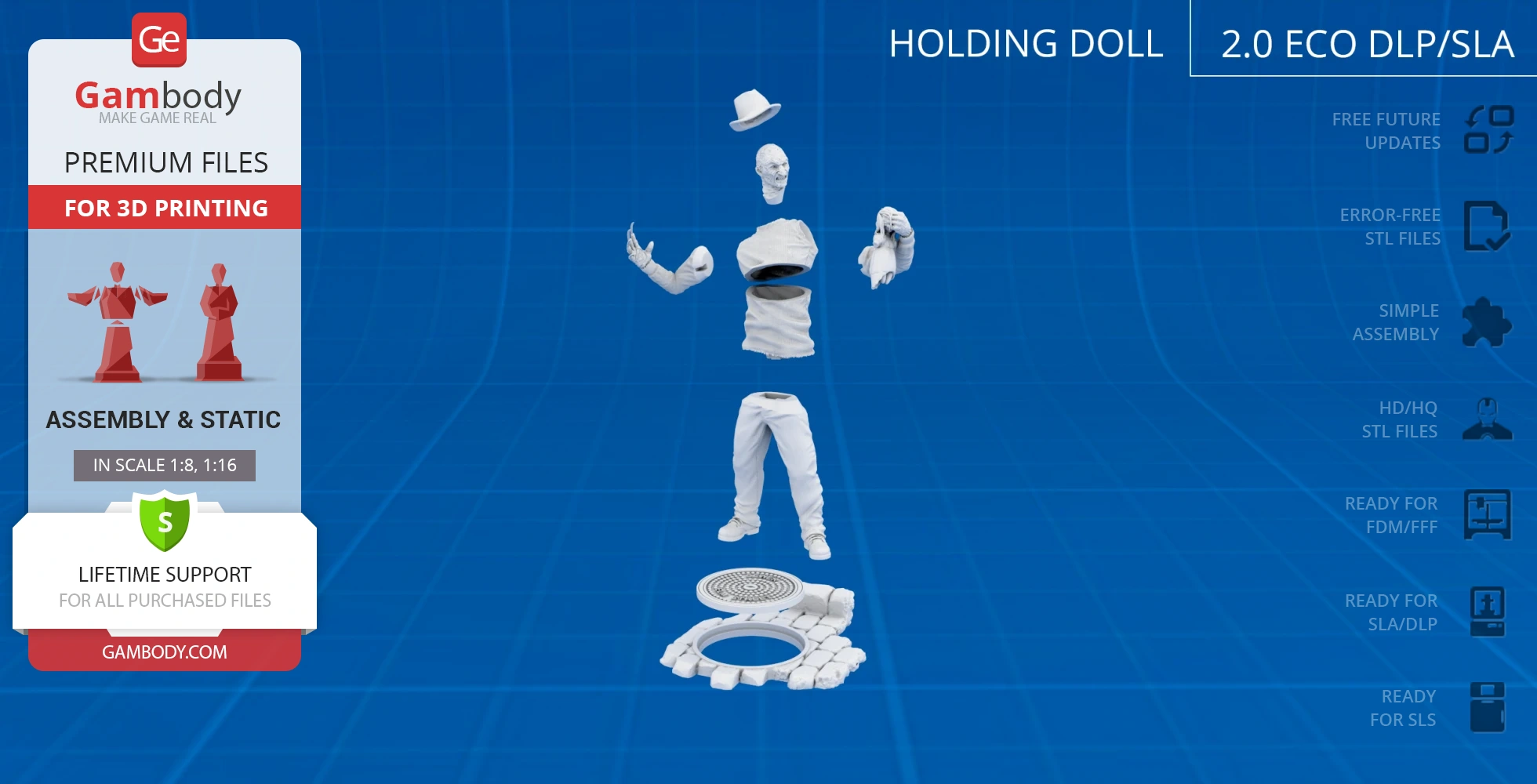

- Same as FDM but smaller and made as 3 parts.

All STL files for 3D printing have been checked in Netfabb and no errors were shown.

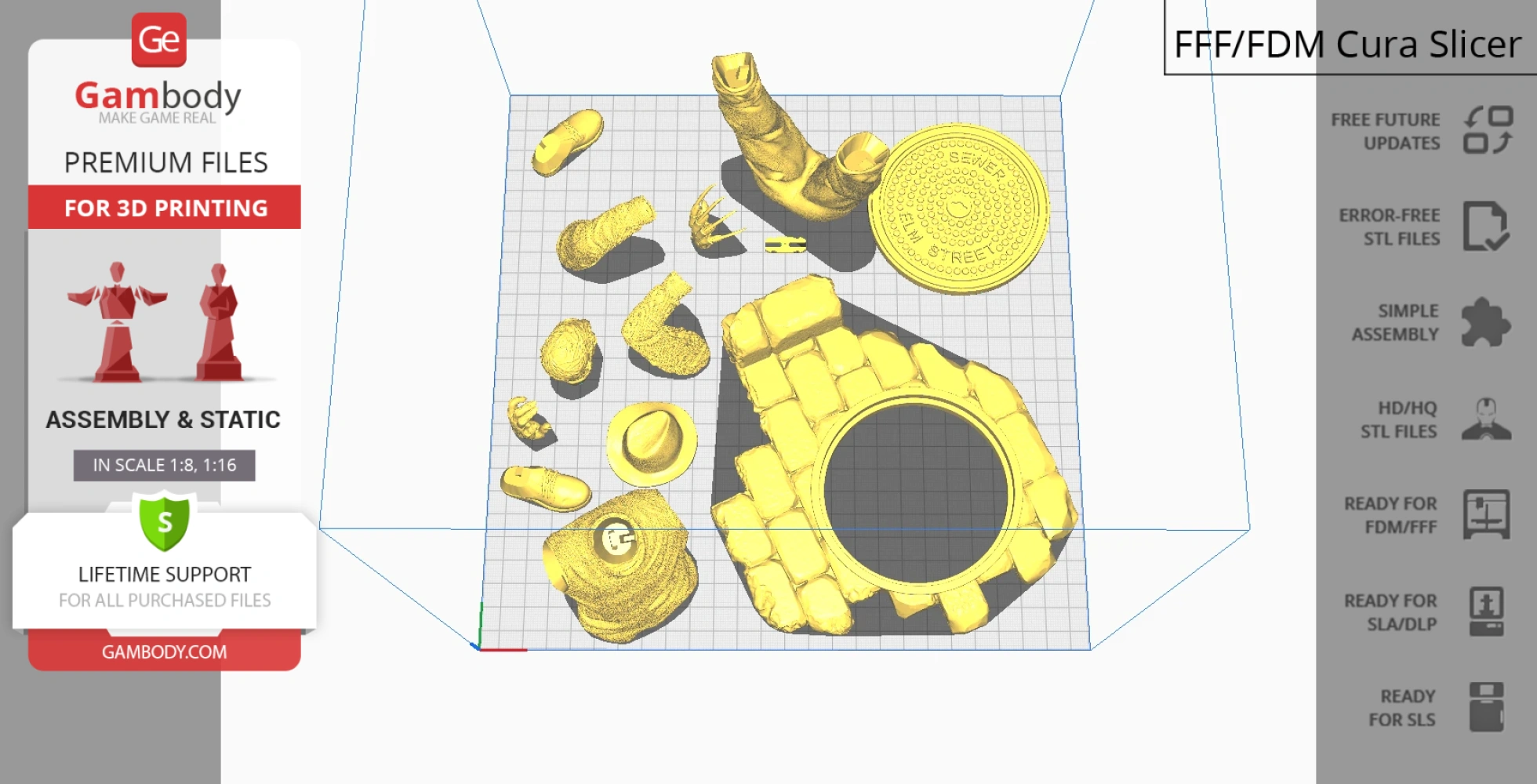

Note: Before starting 3D printing the model, read the Printing Details for CURA 3.2.1. Software.

There are 14 parts for FFF/FDM version and 3 parts for SLS/SLA version.

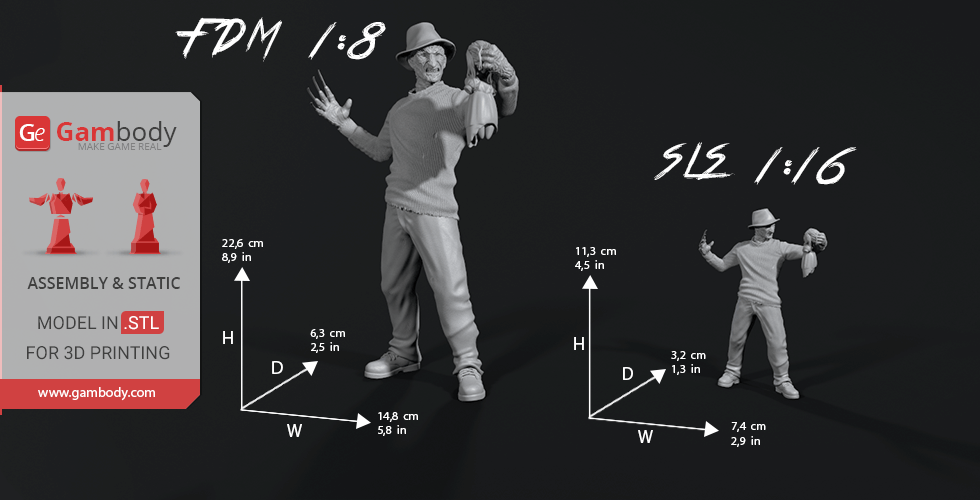

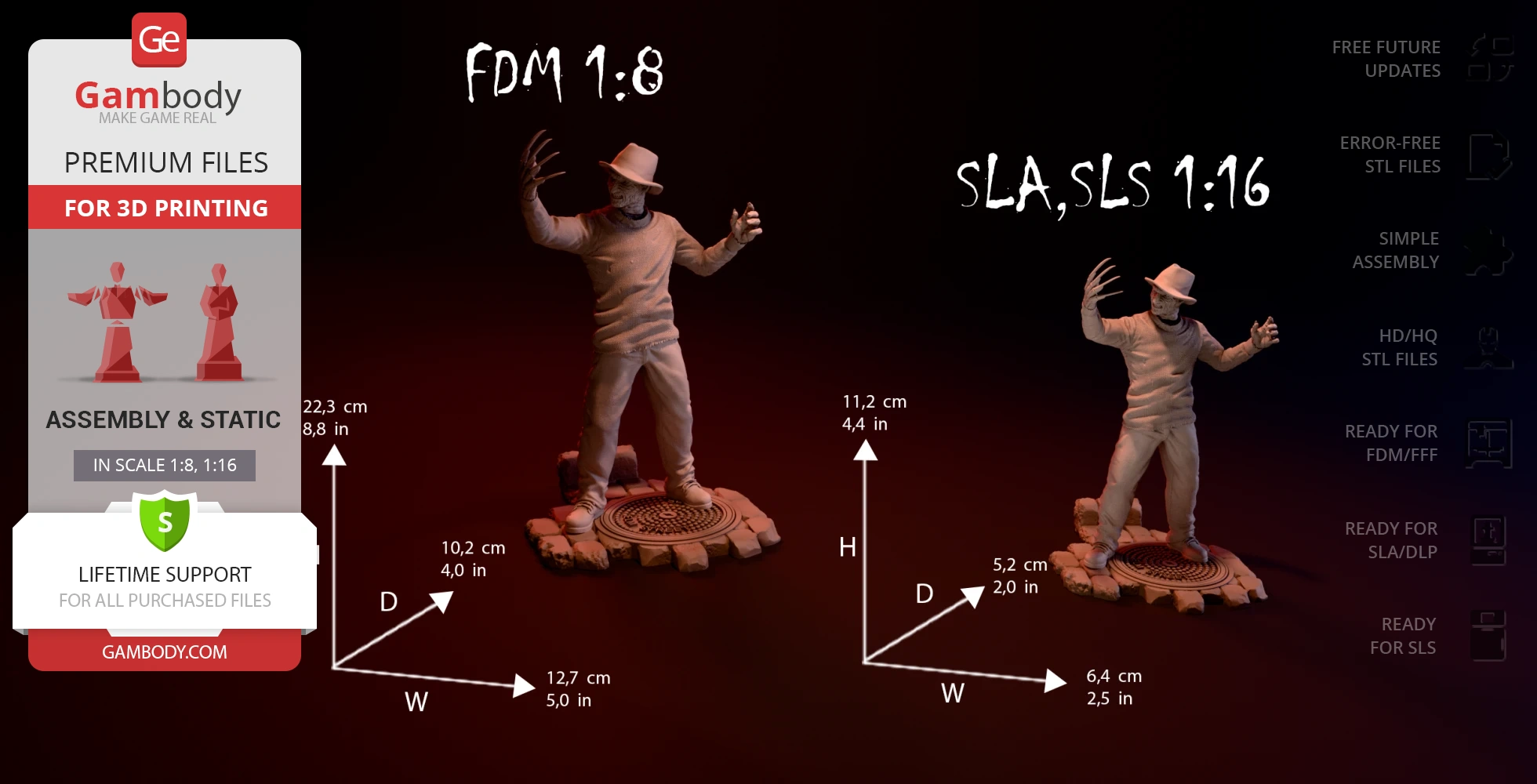

Scale: His tall in life is 1750 mm. Model made as 1/8 scale in FDM version and 1/16 in SLS/SLA version.

FDM version dimensions:
After being printed will stand - 226 mm tall, 148 mm wide, 63 mm deep;

SLS/SLA version dimensions:
After being printed will stand - 113 mm tall, 74 mm wide, 32 mm deep;
- Has few details, to keep printing costs down.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Freddy Krueger​ 3D Miniature for 3D printing which consist of 17 parts;
- 2 versions of files for this model for FFF/FDM and SLS/SLA;
- Made with a platform that stylized as Elm Street, and with hatch. So you can make a diorama with this set;

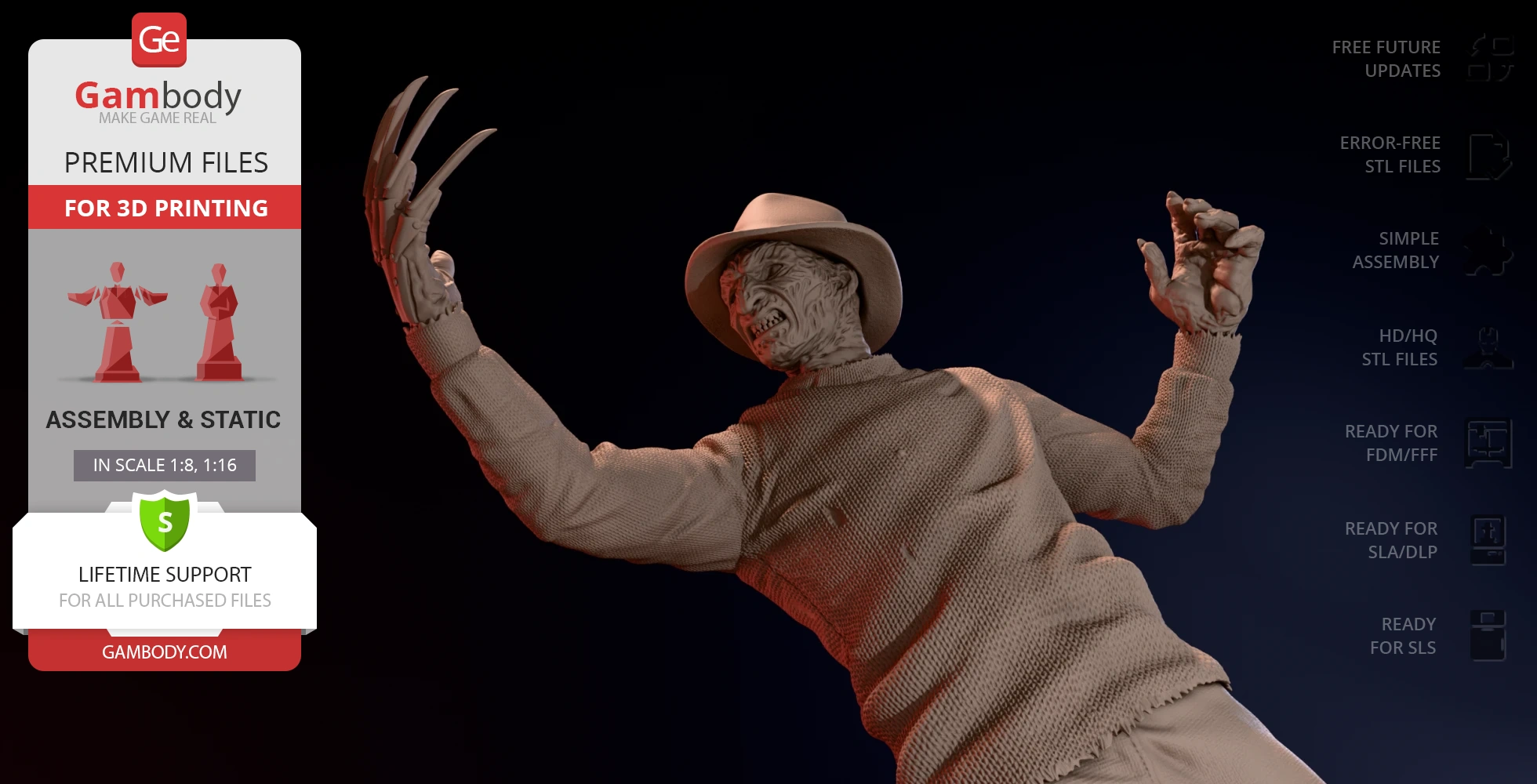

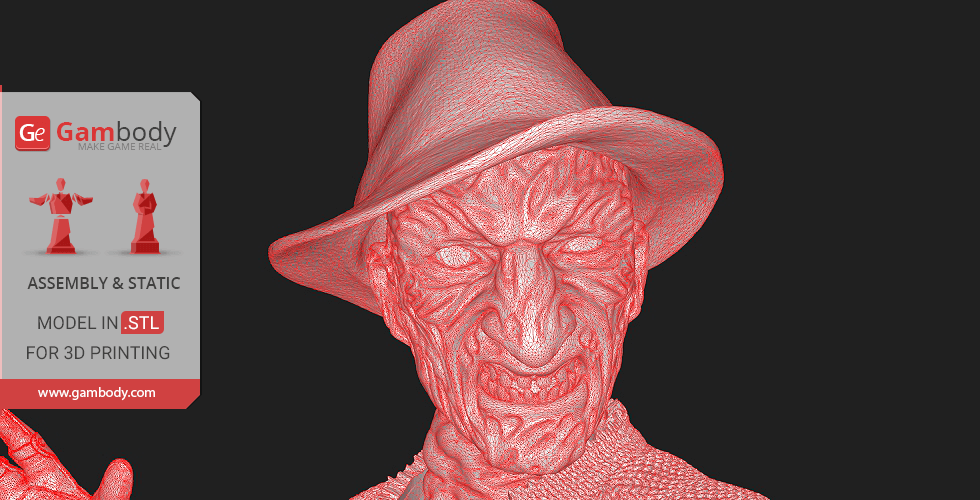

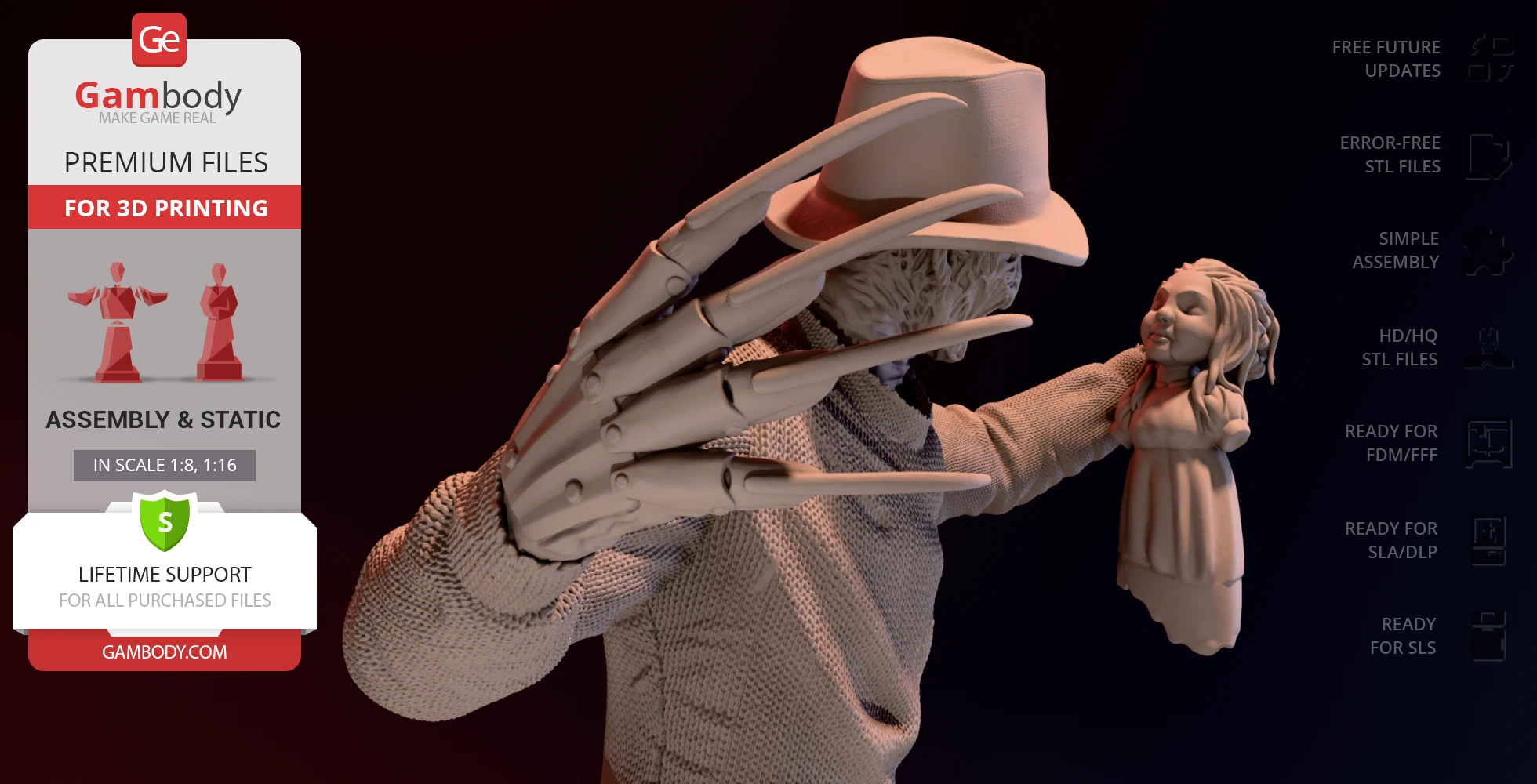

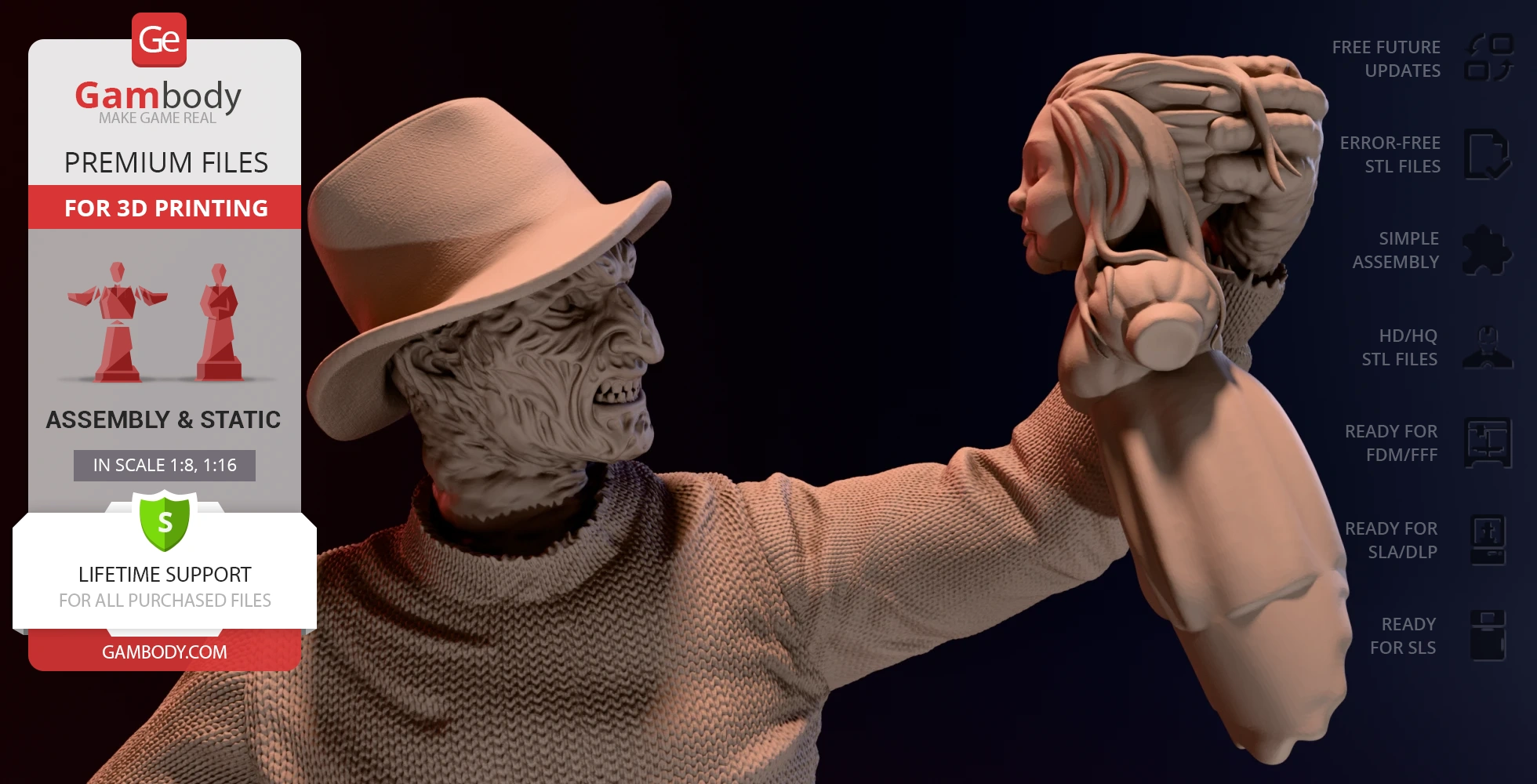

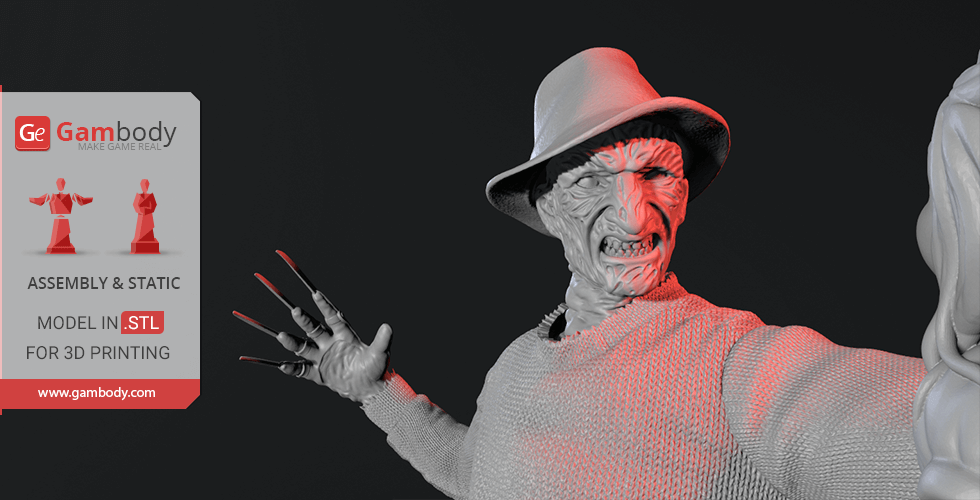

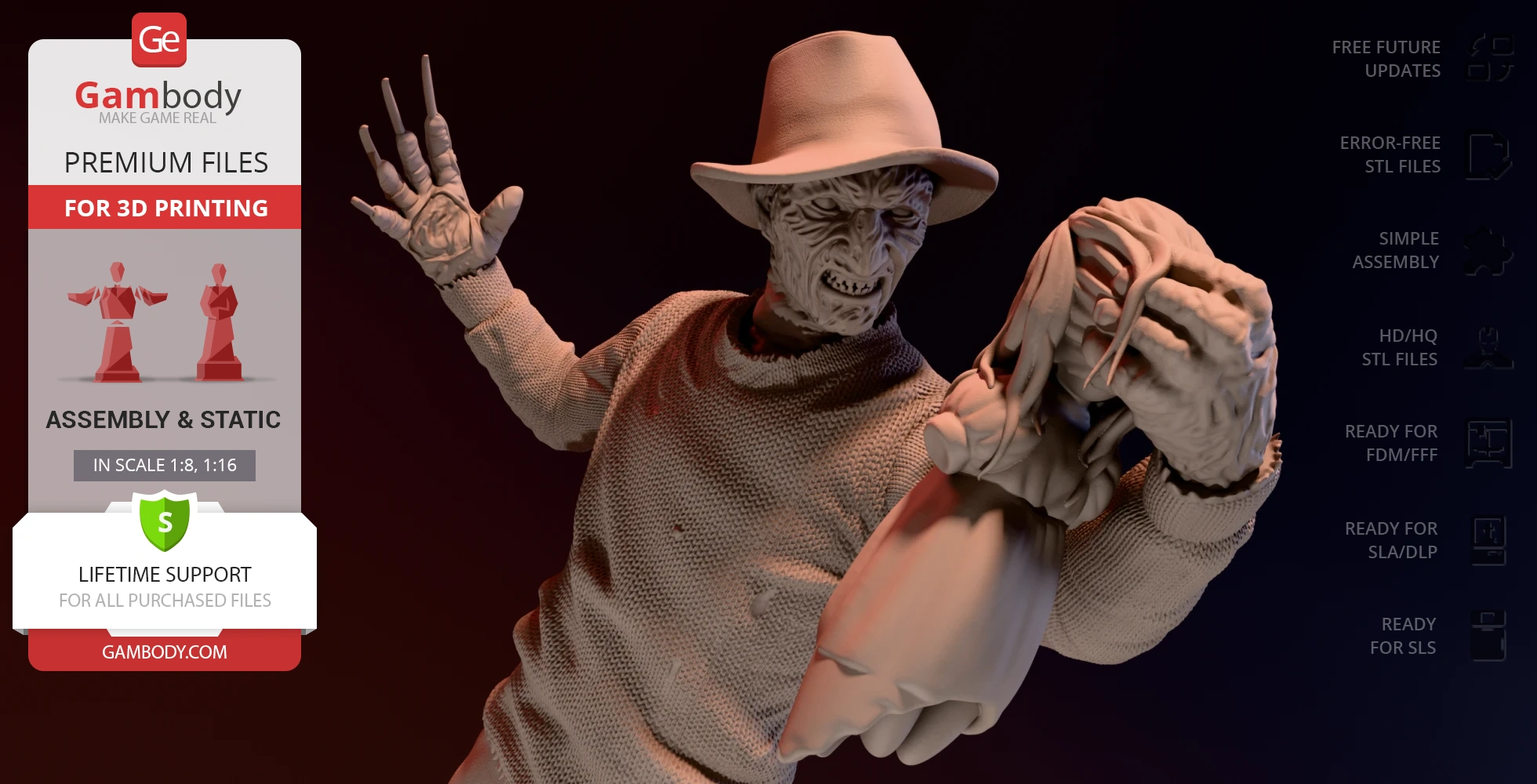

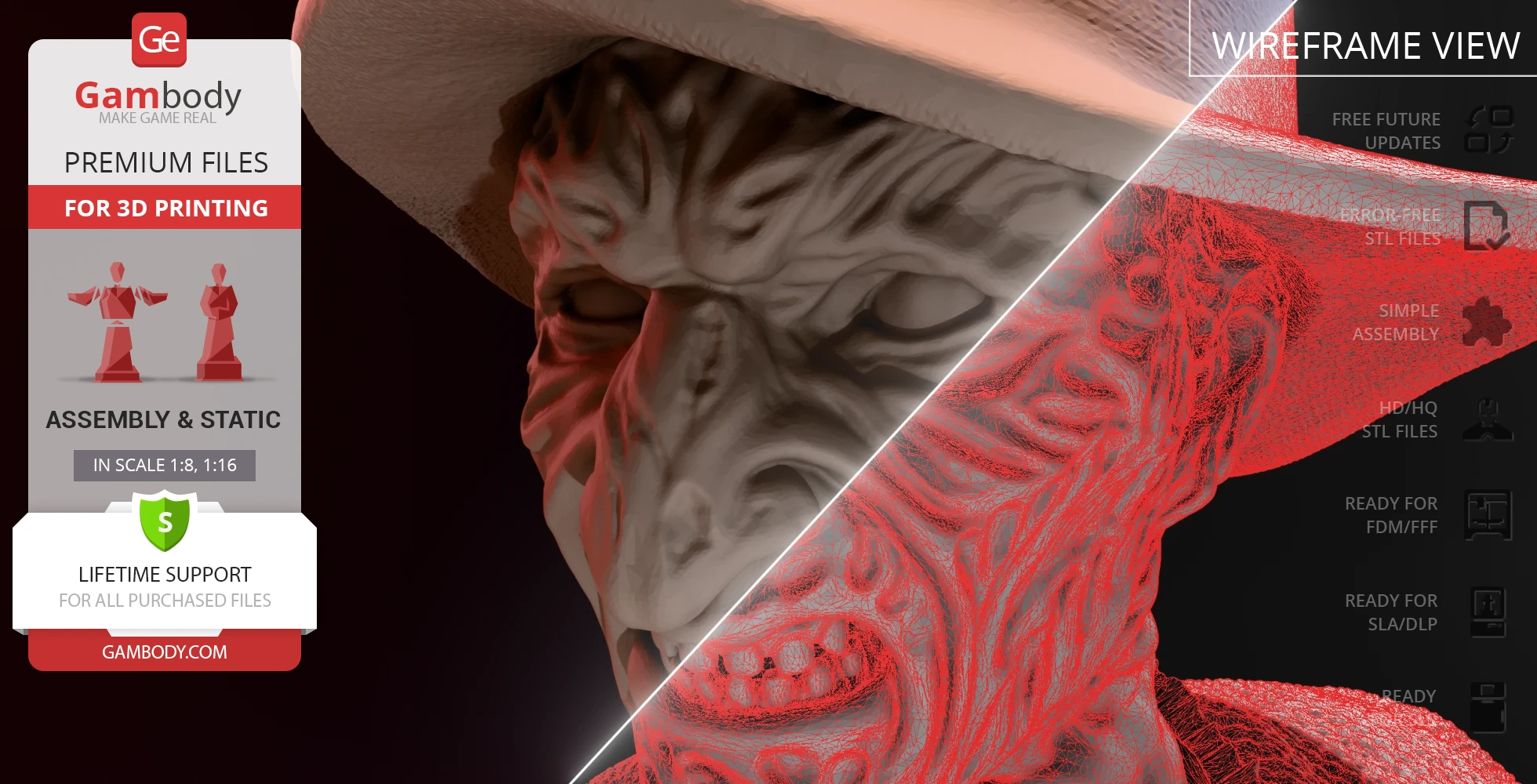

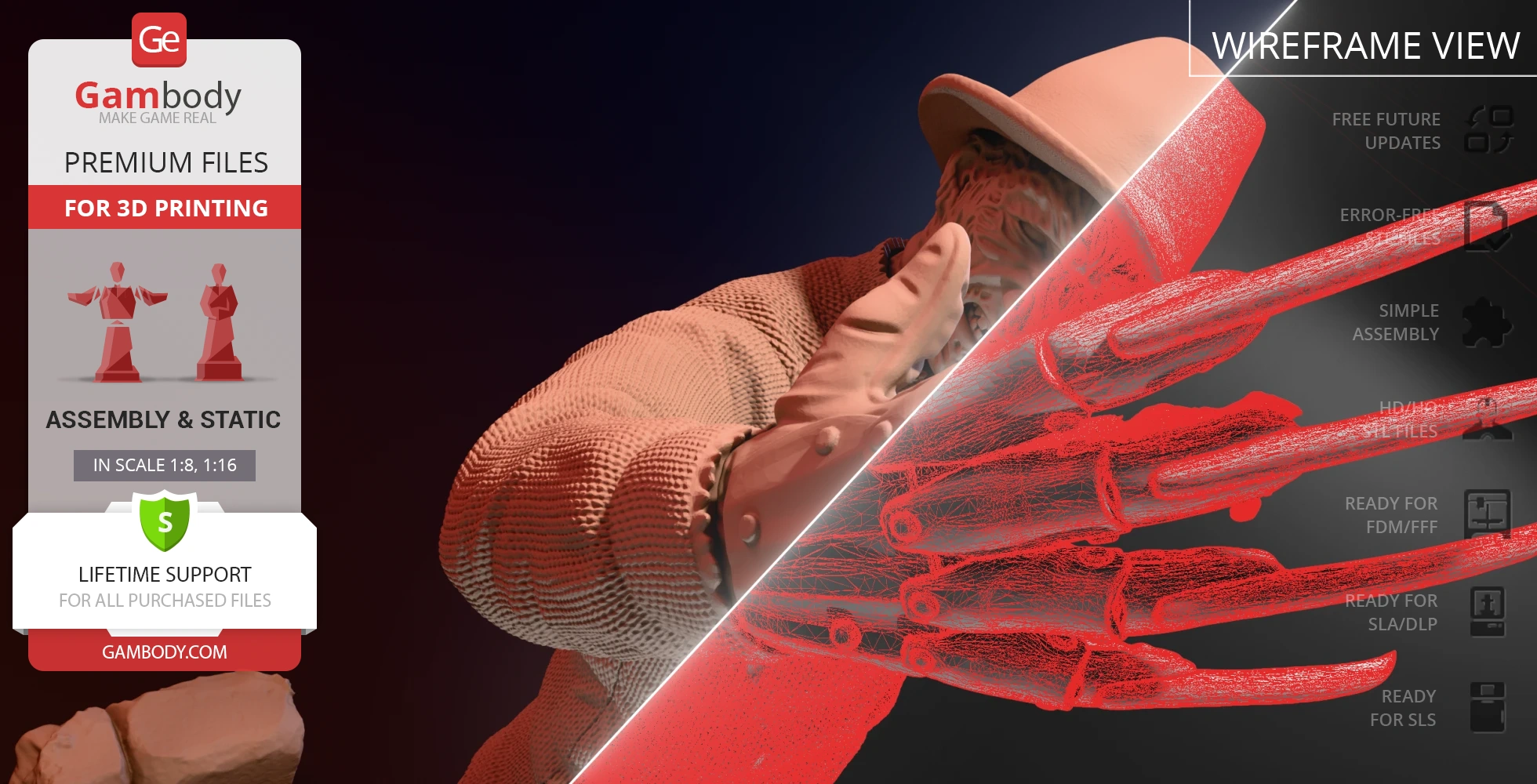

- High-poly detailed miniature of Freddy Krueger;
- Detailed settings that we provide for Cura 3.2.1. for the best print;
- Full technical support from the Gambody Support Team.

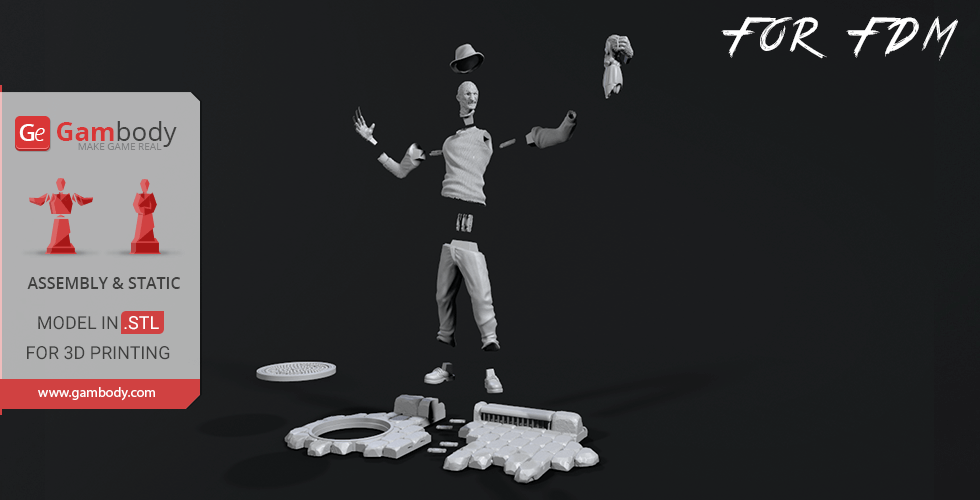

Watch the tutorial video on how to assemble Freddy Krueger 3D Printing Miniature at Gambody YouTube channel.

You can get Model of Freddy Krueger for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Also, you may like other Villains 3D Printing Miniatures.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?

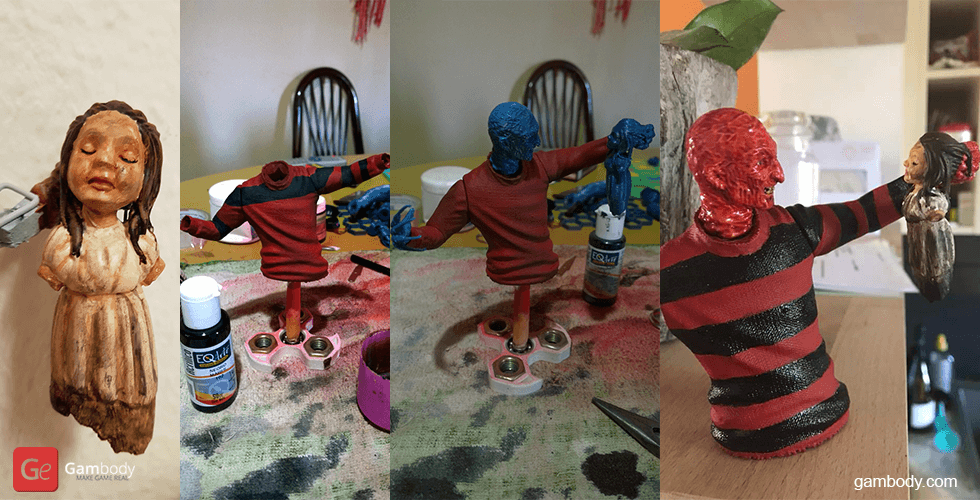

How to paint printed figurine?

Generic

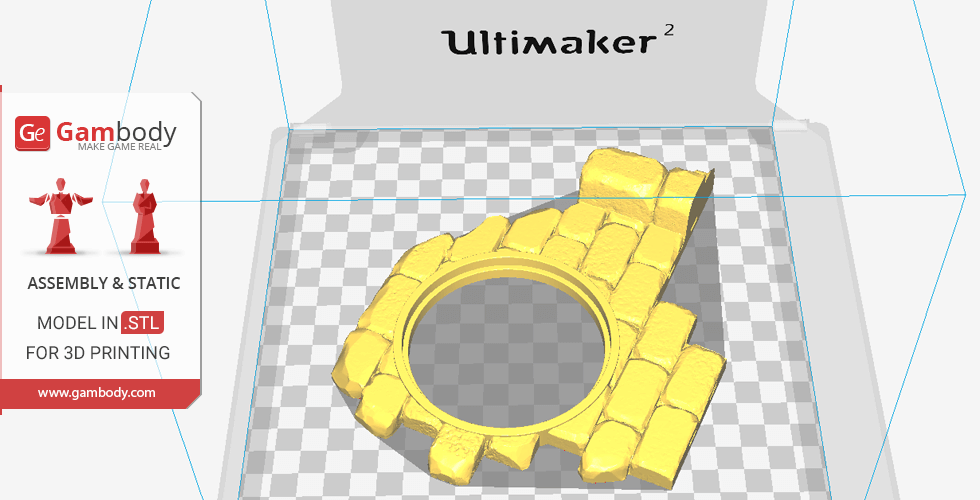

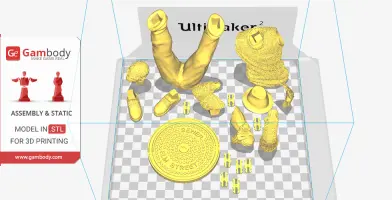

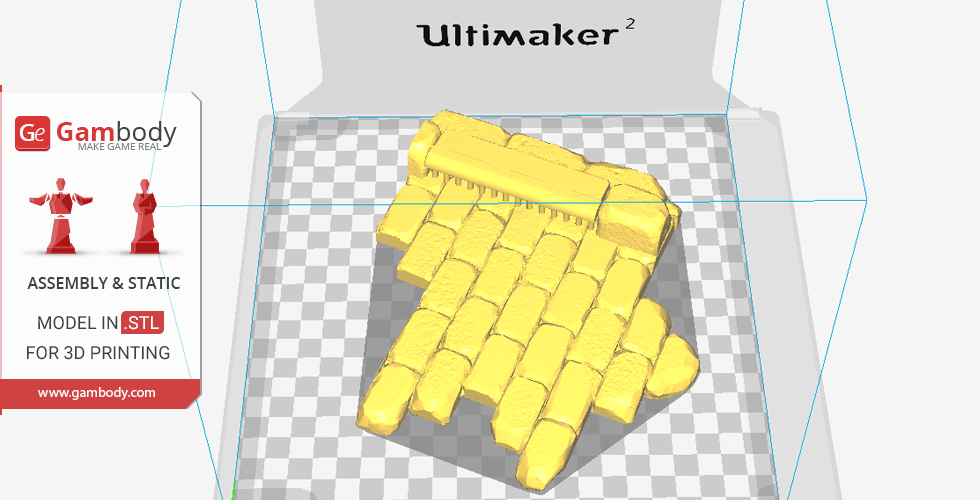

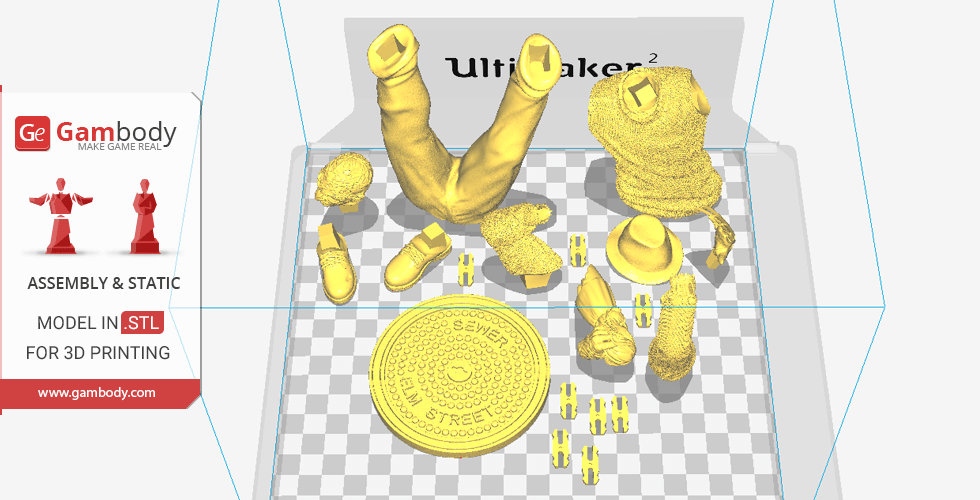

This model was tested in Cura 3.2.1 and printed on an Ultimaker 2 in PLA material.

Recommendations: For all parts of Locks you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
 Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
 Top/Bottom Line Width: 0.4 mm
 Infill Line Width: 0.4 mm
 Skirt/Brim Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
    Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill
Infill Density: 20%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
    Minimum Skin Width for Expansion: 0.0

Material
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
Travel Speed: 120 mm/s
Initial Layer Speed: 30 mm/s
  Initial Layer Print Speed: 30 mm/s
  Initial Layer Travel Speed: 60 mm/s
Skirt/Brim Speed: 30 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 60°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 1.3333 mm
Support Z Distance: 0.3 mm
    Support Top Distance: 0.3 mm
    Support Bottom Distance: 0.3 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim (for all parts of locks use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
