Gray Widower 3D Printing Miniature | Assembly

(3)
cm: 39.8 w x 40.2 d x 18.2 h
in: 15.669 w x 15.827 d x 7.165 h

Source Files

|

Description

|

Printing Details

This 3D Miniature consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

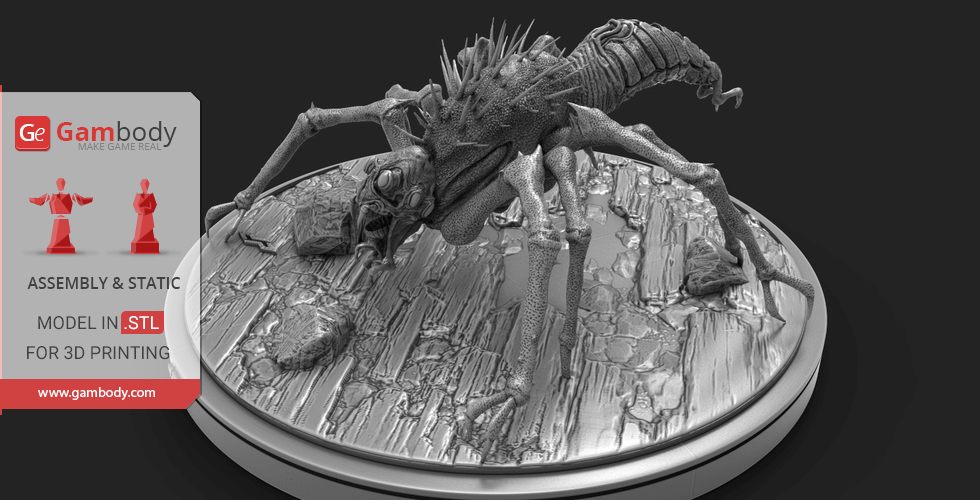

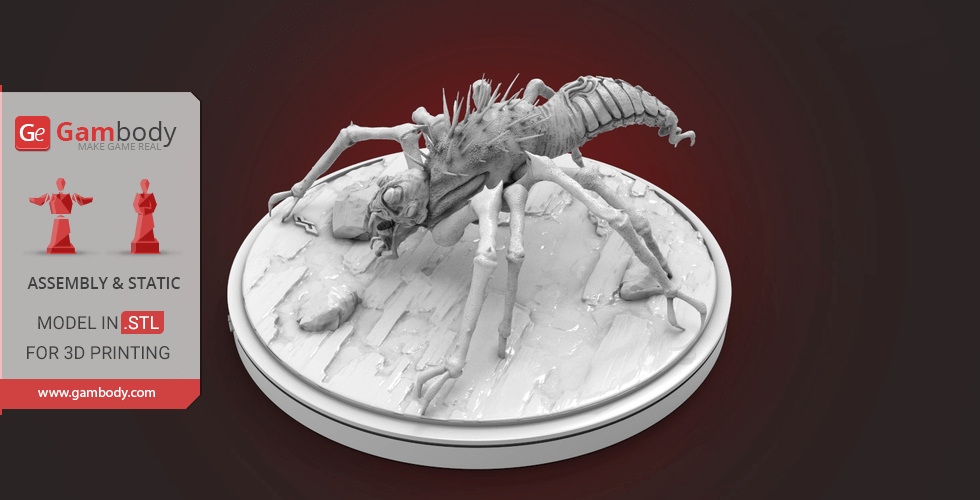

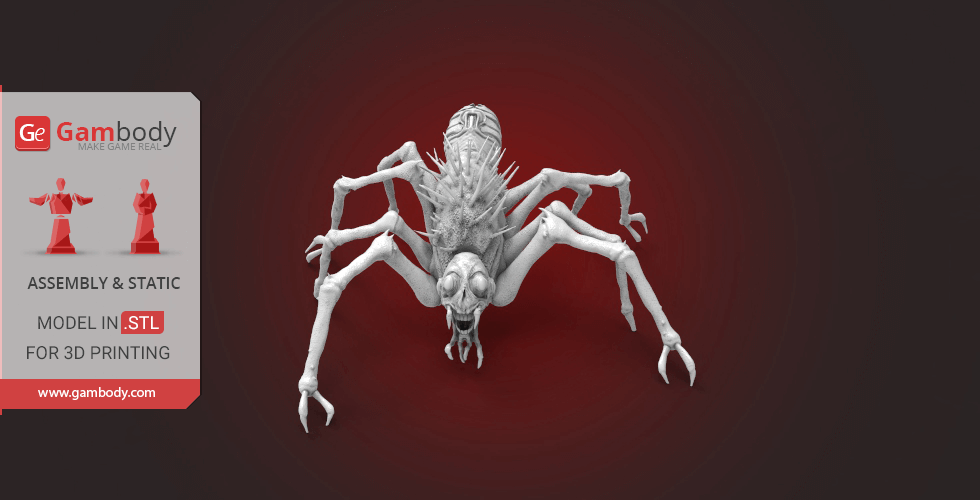

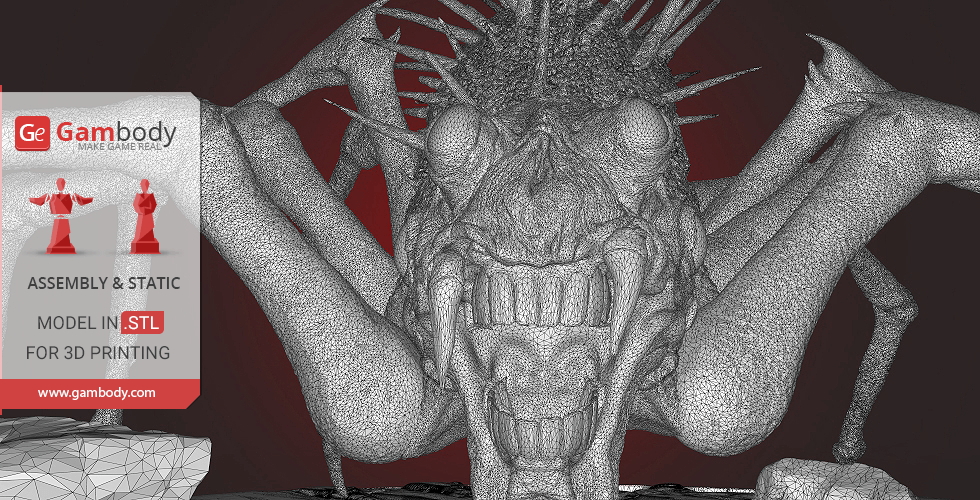

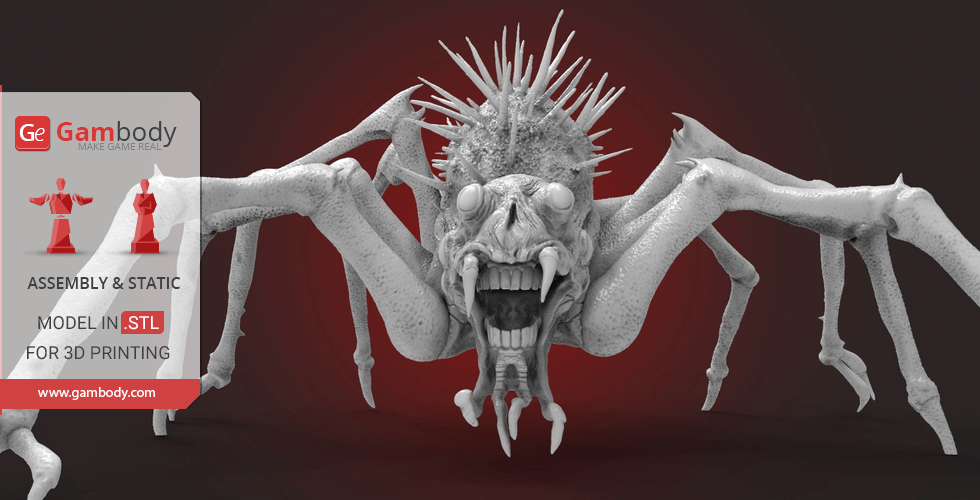

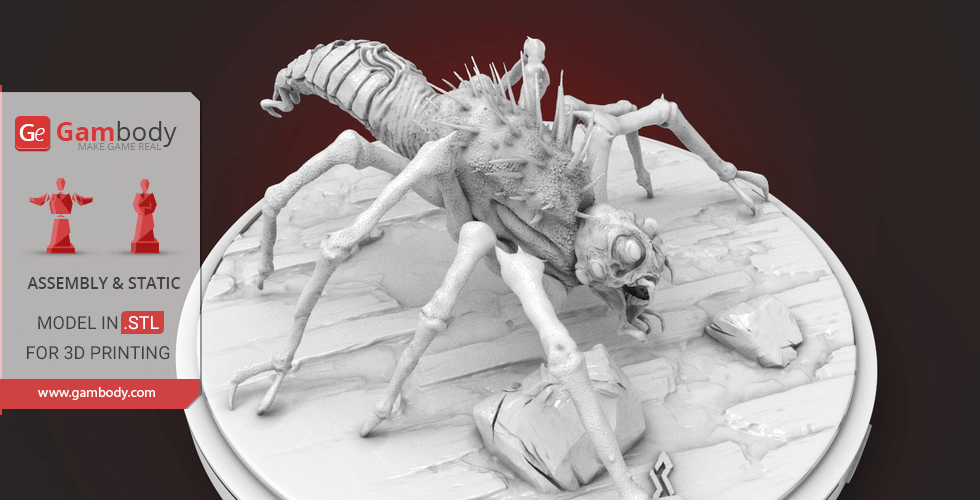

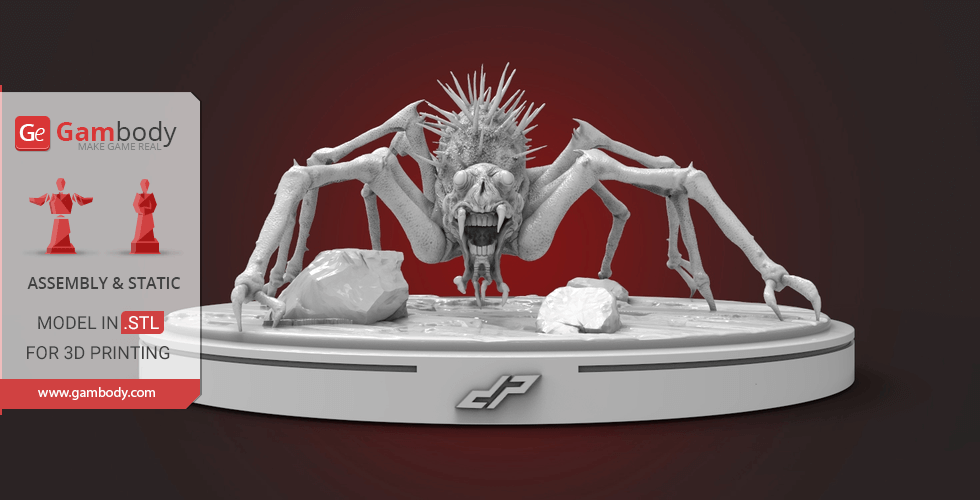

Version 1 and Version 2 are the files for Gray Widower 3D Miniature optimized for 3D printing, the preview pictures of which you see above.

It is recommended:

  • to print Version 1 STL files on FDM/FFF 3D printers;
  • to print Version 2 STL files on DLP/SLA/SLS 3D printers.
File Name File Size Time / Filament Object Size
(x/y/z mm)

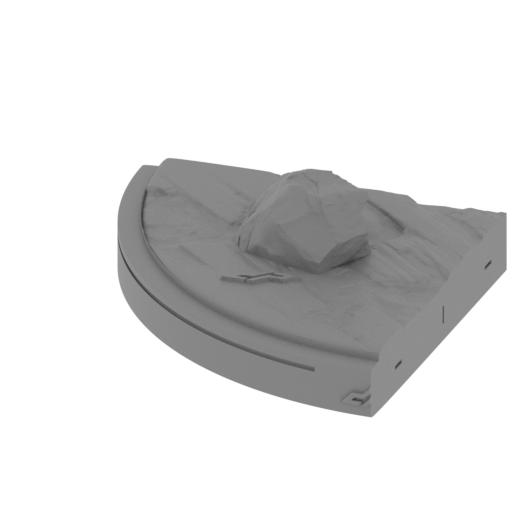

1_platform_1.stl
12.29 MiB 62 h 14 min 37 m 193 x 196 x 68 Download

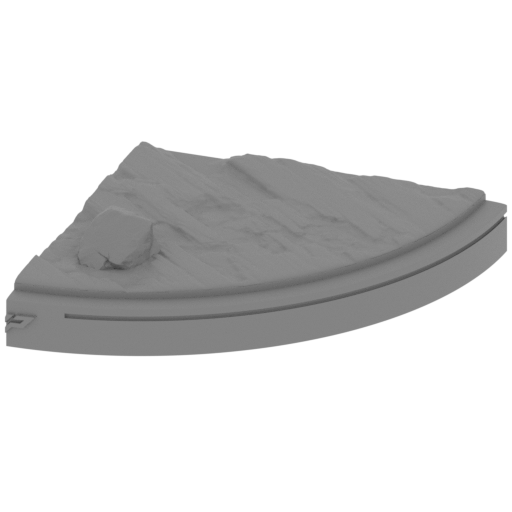

2_platform_2.stl
13.62 MiB 58 h 58 min 35 m 193 x 196 x 51 Download

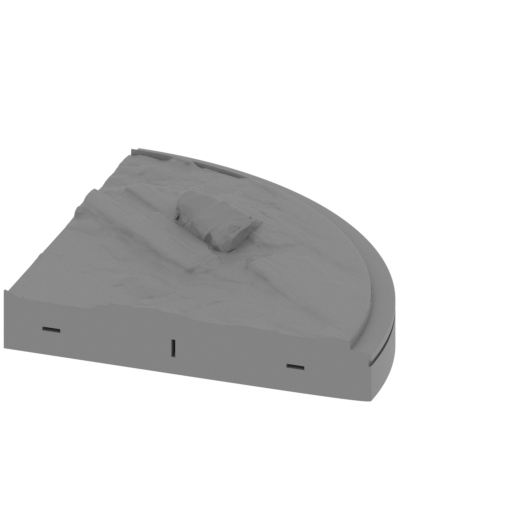

3_platform_3.stl
8.57 MiB 56 h 34 min 33 m 193 x 194 x 48 Download

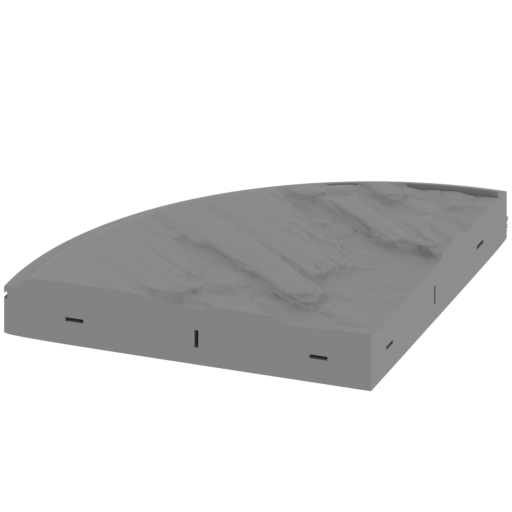

4_platform_4.stl
11.60 MiB 56 h 11 min 33 m 193 x 194 x 34 Download
5_platform_full.stl
45.09 MiB 246 h 28 min 144 m 398 x 402 x 70 Download

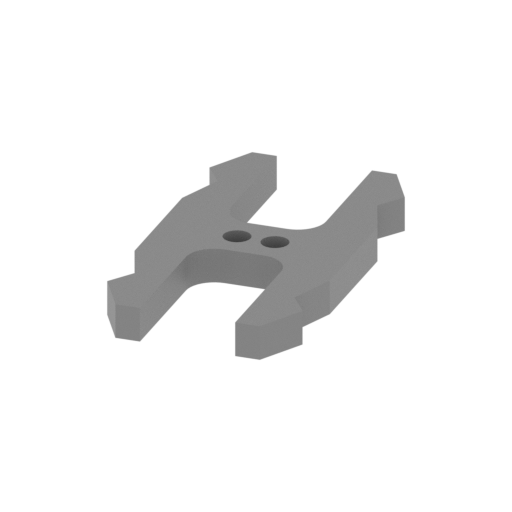

6_Ge_lock_10S (x12).stl
0.02 MiB 3 min <1 m 9 x 18 x 2 Download

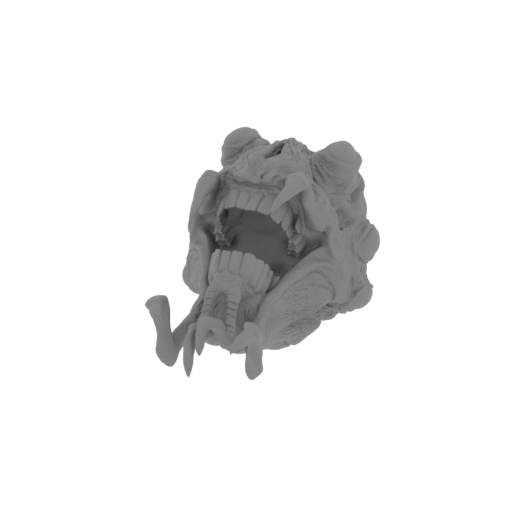

7_head.stl
7.38 MiB 6 h 21 min 3 m 44 x 86 x 42 Download

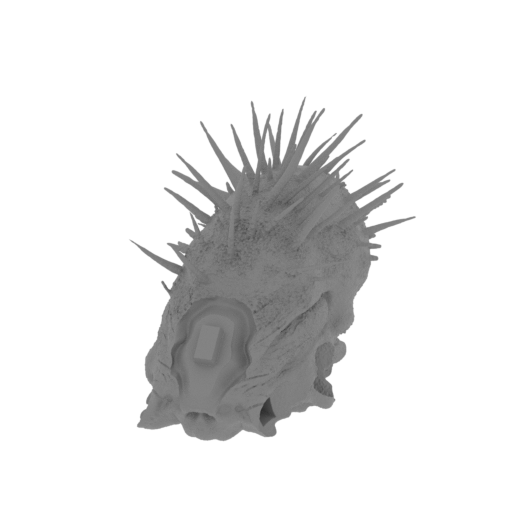

8_body.stl
29.52 MiB 30 h 2 min 18 m 82 x 131 x 100 Download

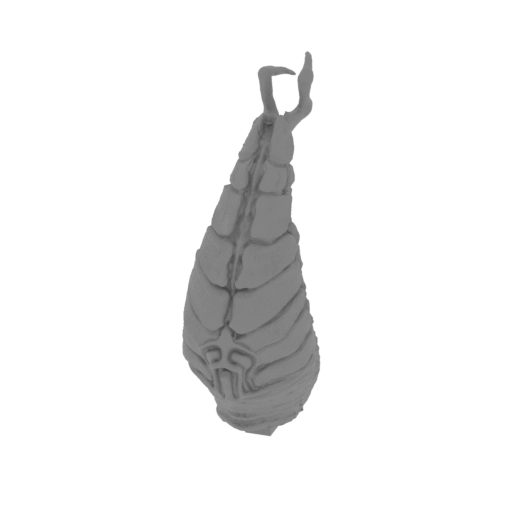

9_back.stl
10.90 MiB 14 h 10 min 9 m 48 x 68 x 141 Download

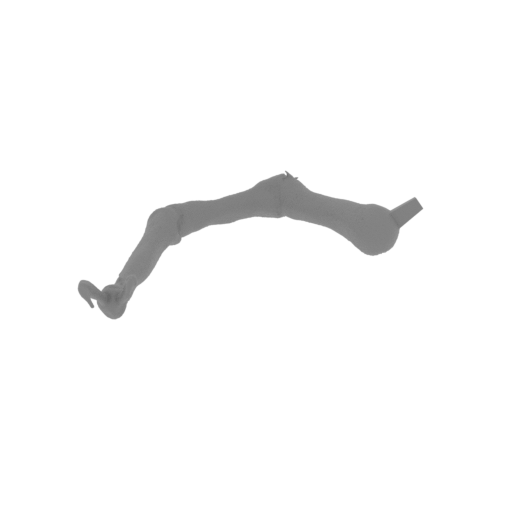

10_leg_1_R.stl
2.92 MiB 4 h 41 min 3 m 109 x 160 x 26 Download

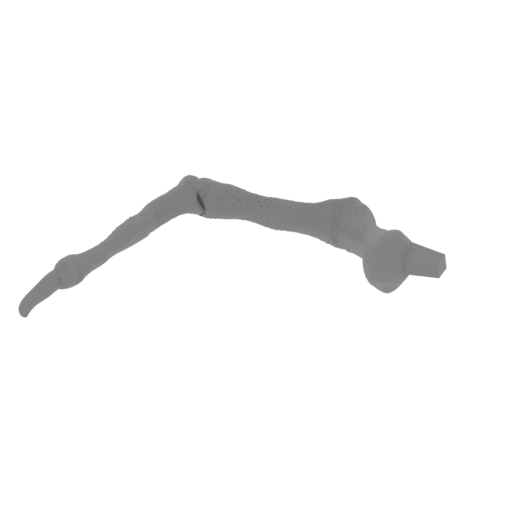

11+leg_2_R.stl
2.85 MiB 3 h 10 min 2 m 121 x 97 x 27 Download

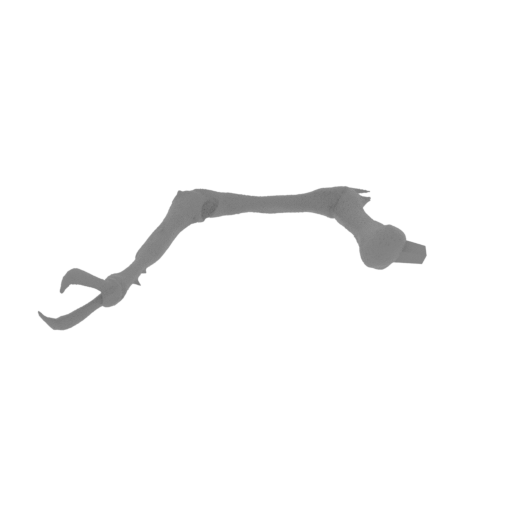

12_leg_3_R.stl
3.85 MiB 4 h 56 min 3 m 132 x 162 x 28 Download

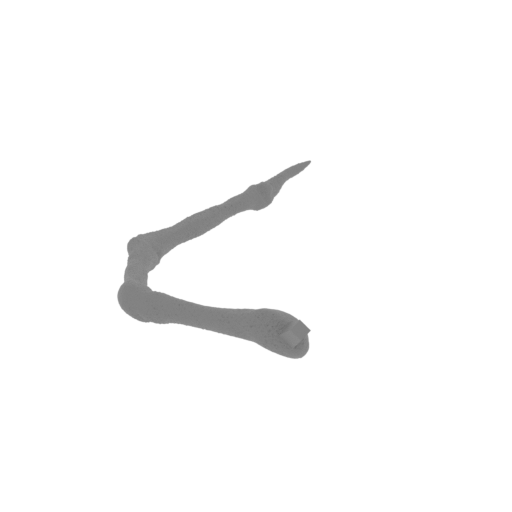

13_leg_4_R.stl
3.03 MiB 3 h 8 min 2 m 90 x 139 x 20 Download

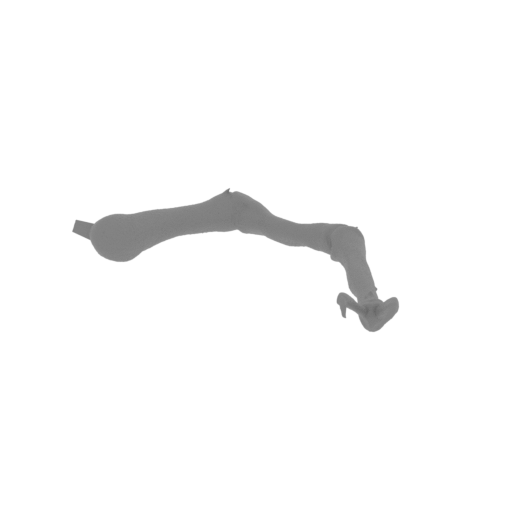

14_leg_1_L.stl
2.94 MiB 5 h 11 min 3 m 165 x 130 x 28 Download

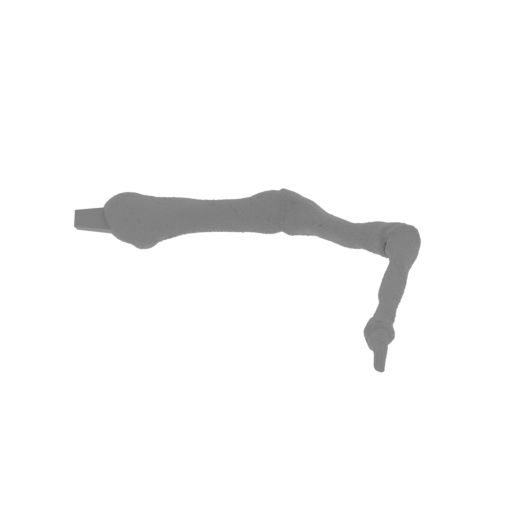

15_leg_2_L.stl
3.09 MiB 3 h 14 min 2 m 124 x 103 x 23 Download

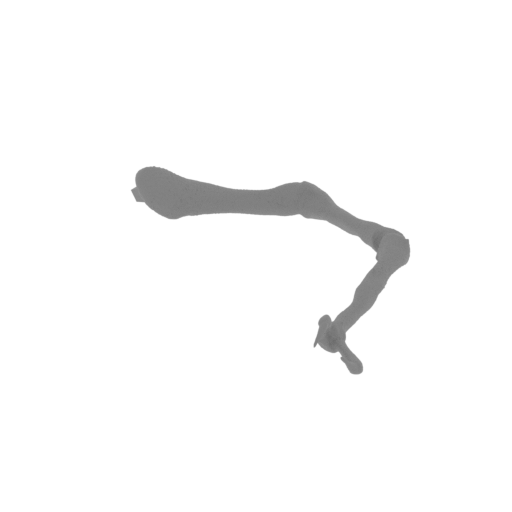

16_leg_3_L.stl
3.71 MiB 4 h 42 min 3 m 144 x 162 x 29 Download

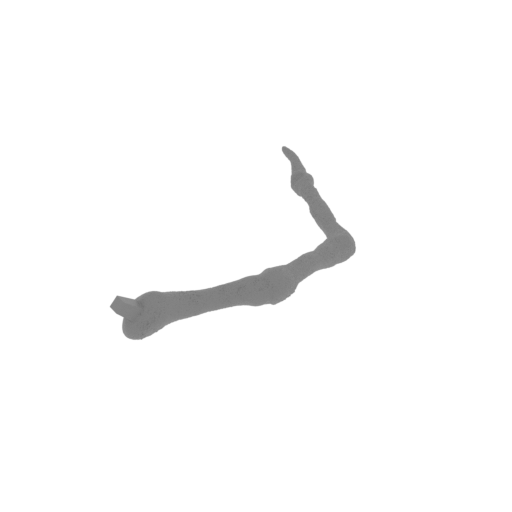

17_leg_4_L.stl
3.36 MiB 3 h 39 min 2 m 68 x 156 x 25 Download
...

HISTORY OF GRAY WIDOWER

Large black creatures that are very similar to spiders. They have thorns on their backs and the skull looks like a human with only 4 eyes and fangs. They come from the mist and kill their victims with the help of a web that can corrode everything. Some of their victims they capture to lay eggs in them and continue their offspring. These creatures came from the other world. This world was discovered by scientists who conducted experiments on the curvature of spaces, but at that moment there was a violent storm and it hit into their building than caused an increase in the portal. So they spread throughout the earth and began to kill all life in their path. They are one of the main monsters that were shown in the movie The Mist on the novel by Stephen King.

ABOUT THIS 3D MINIATURE

The model is saved in STL files, a format supported by most 3D printers

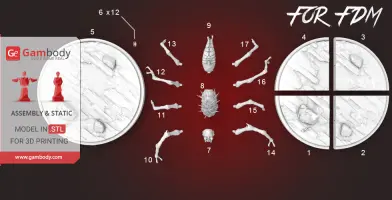

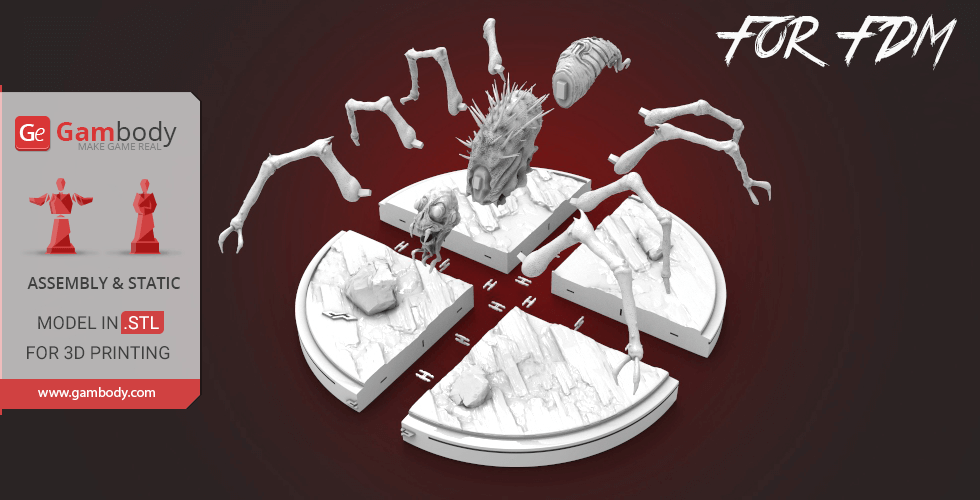

FDM version features:

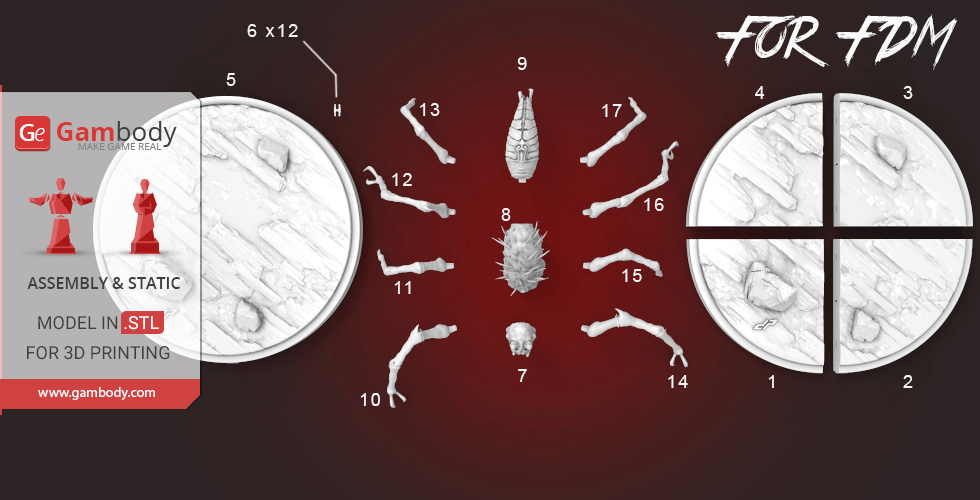

- Contains 17 parts.

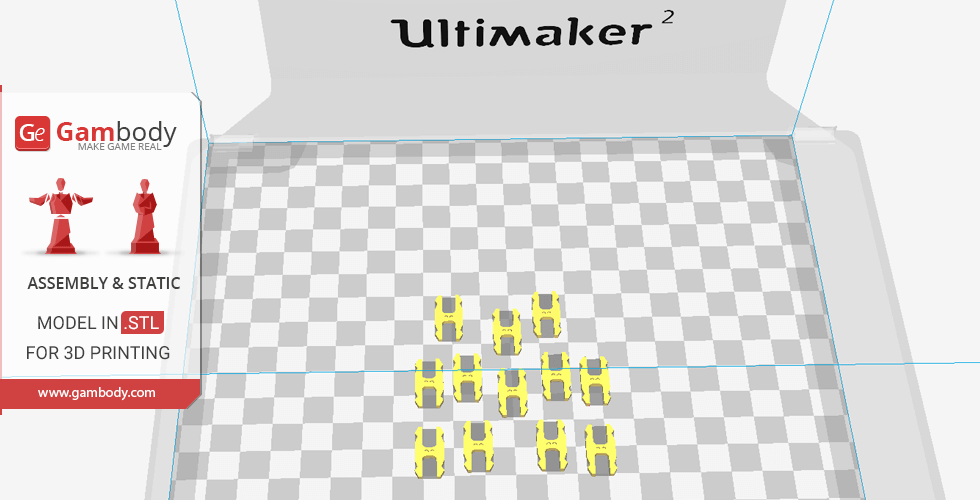

- Platform made with locks. One part of Lock (6_Ge_lock_10S (x12)) you need to print 12 times.
- Can stand on surface without platform.
- Contain devided varinat of platform for small buildplates;
- All parts are divided in such way that you will print them with the smallest amount of supports.

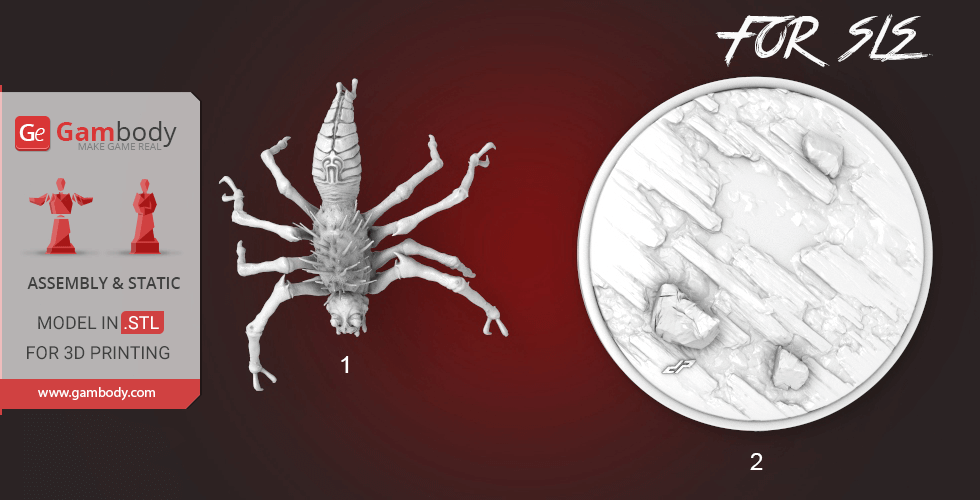

SLS/SLA version features:
- Same as FDM but made as 2 parts.

All STL files for 3D printing have been checked in Netfabb and no errors were shown.

Note: Before starting 3D printing the model, read the Printing Details for CURA 3.2.1. Software.

There are 17 parts for FFF/FDM version and 2 parts for SLS/SLA version.

Scale: For the basis of calculations, was taken, the size 3200 mm. Model made as 1/8 scale in FDM version and 1/16 in SLS/SLA version.

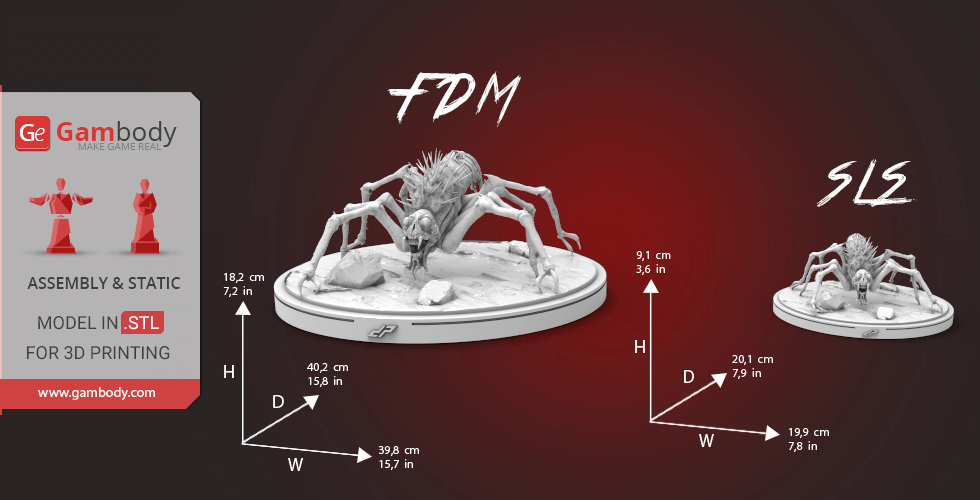

FDM version dimensions:
After being printed will stand - 182 mm tall, 398 mm wide, 402 mm deep;

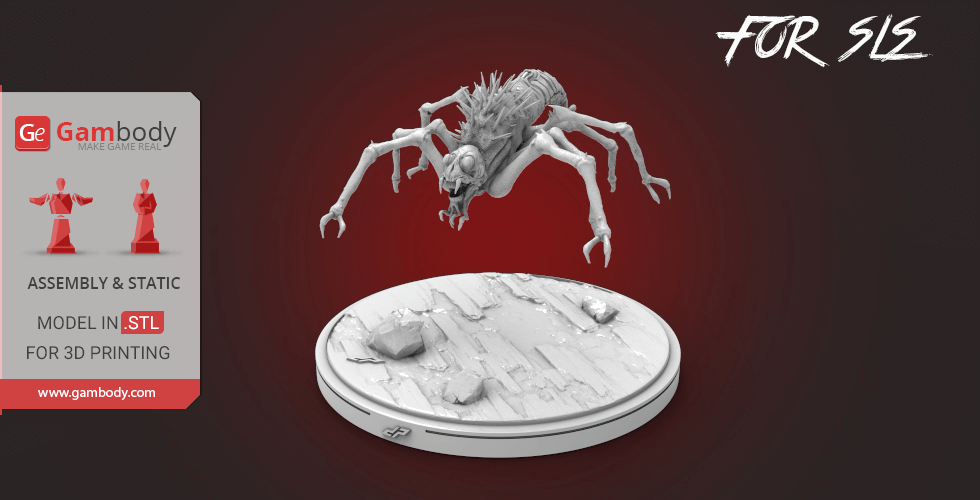

SLS/SLA version dimensions:
After being printed will stand - 91 mm tall, 199 mm wide, 201 mm deep;
- Has only 2 details, to keep printing costs down.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Gray Widower​ 3D Miniature for 3D printing which consist of 19 parts;
- 2 versions of files for this model for FFF/FDM and SLS/SLA;
- Made with platform;
- High-poly detailed miniature of Gray Widower​​;
- Detailed settings that we provide for Cura 3.2.1. for the best print;
- Full technical support from the Gambody Support Team.

Watch the tutorial video on how to assemble Gray Widower​ 3D Printing Miniature at Gambody YouTube channel.

You can get Miniature of Gray Widower​ for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Also, you may like other Villains 3D Printing Miniatures.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

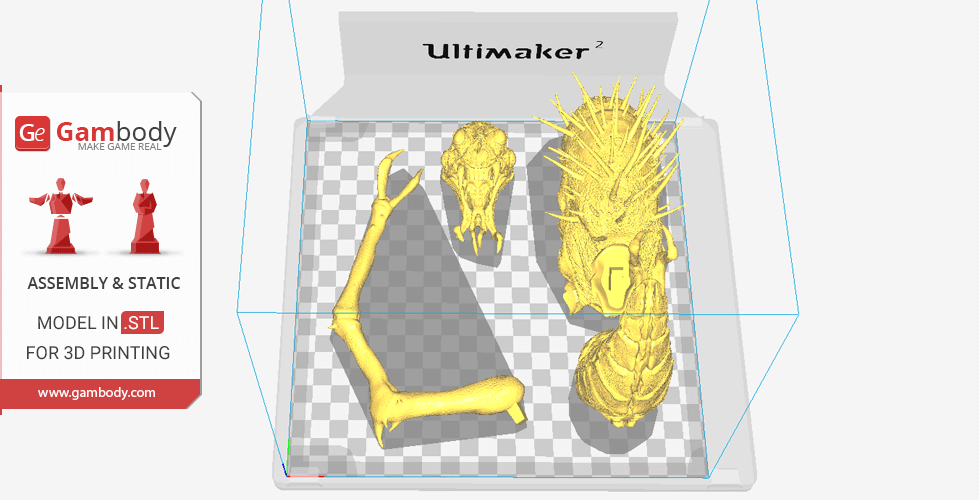

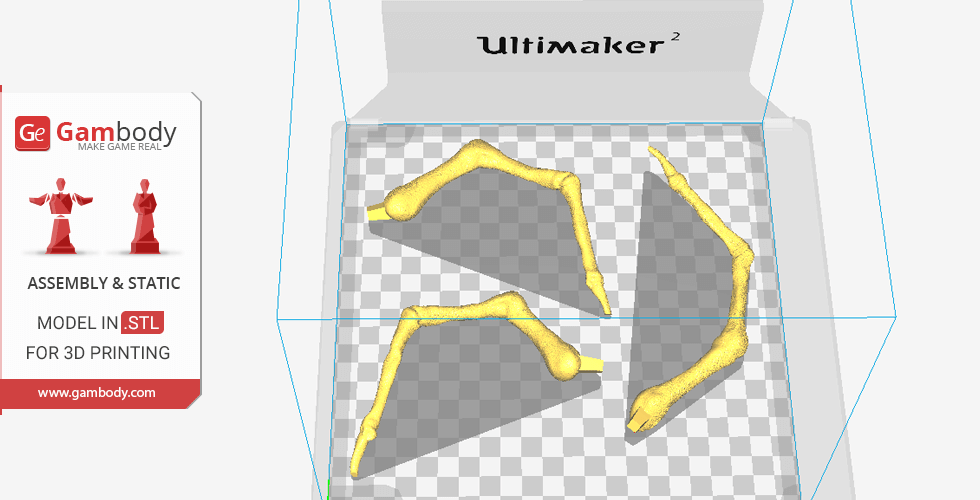

This model was tested in Cura 3.2.1 and printed on an Ultimaker 2 in PLA material.

Recommendations: For all parts of Locks you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
 Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
 Top/Bottom Line Width: 0.4 mm
 Infill Line Width: 0.4 mm
 Skirt/Brim Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
    Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill
Infill Density: 20%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
    Minimum Skin Width for Expansion: 0.0

Material
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
Travel Speed: 120 mm/s
Initial Layer Speed: 30 mm/s
  Initial Layer Print Speed: 30 mm/s
  Initial Layer Travel Speed: 60 mm/s
Skirt/Brim Speed: 30 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 60°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 1.3333 mm
Support Z Distance: 0.3 mm
    Support Top Distance: 0.3 mm
    Support Bottom Distance: 0.3 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim (for all parts of locks use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
