Merkava 2 Tank 1:24 Scale Size 3D Print Model | Assembly Kit

(7)
cm: 15.8 w x 34.5 d x 16.78 h
in: 6.22 w x 13.583 d x 6.606 h

Source Files

|

Description

|

Printing Details

These 3D models consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Download part Mercava_T1 for free to check the printability and test the quality before buying all STL files of the 3D model.

Download Free Samples

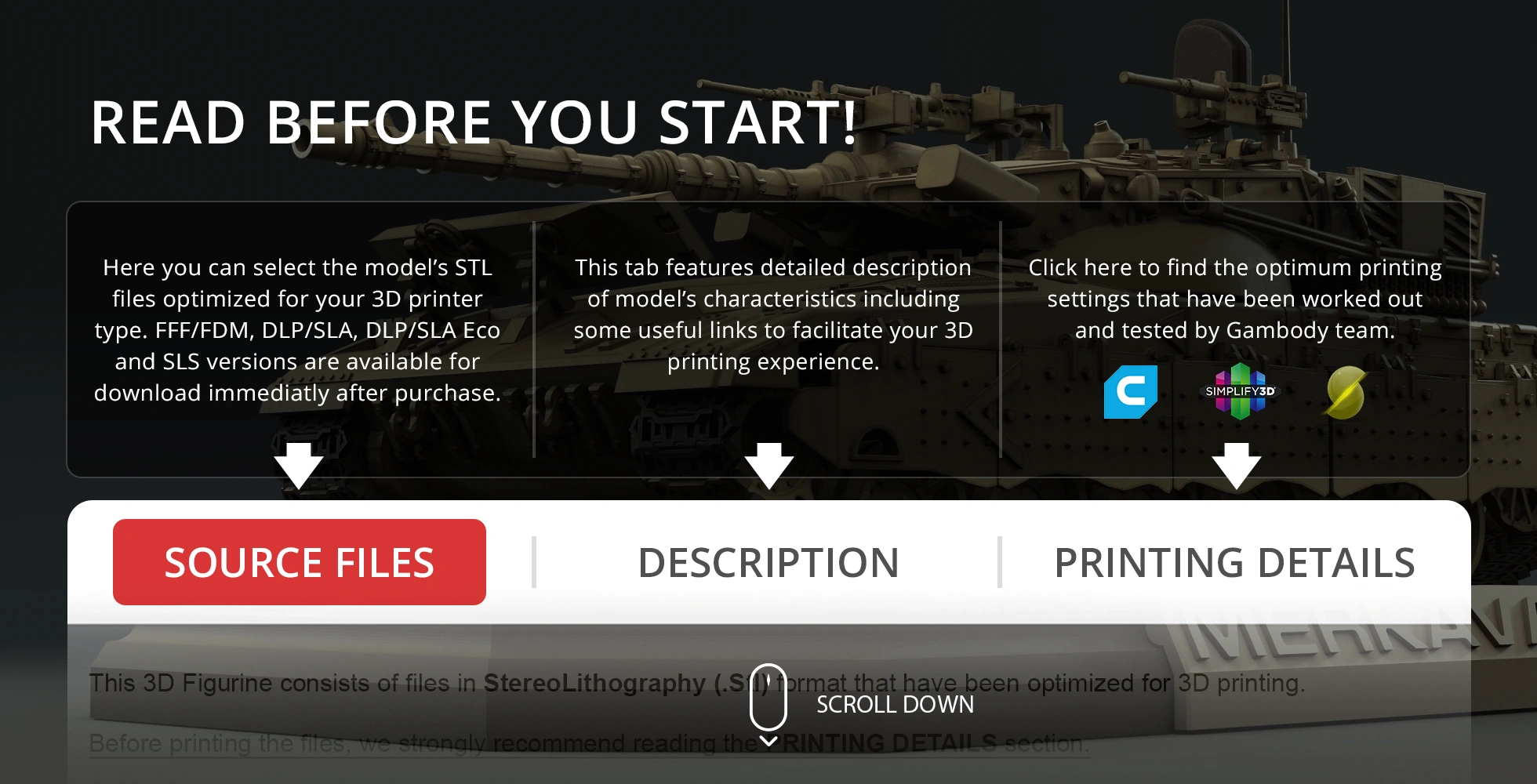

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

File Name File Size Time / Filament Object Size
(x/y/z mm)
Mercava_C1 (repaired) (re paired).stl
1.27 MiB 1 h 20 min 1 m 29 x 29 x 20 Download
Mercava_C2 (repaired) (re paired).stl
1.07 MiB 58 min 1 m 31 x 31 x 12 Download
Mercava_C3 (repaired) (re paired).stl
0.71 MiB 1 h 2 min 1 m 31 x 31 x 12 Download
Mercava_C4 (repaired) (re paired).stl
0.71 MiB 1 h 2 min 1 m 31 x 31 x 12 Download
Mercava_C5 (repaired) (re paired).stl
0.71 MiB 1 h 2 min 1 m 31 x 31 x 12 Download
Mercava_C6 (repaired) (re paired).stl
0.71 MiB 1 h 2 min 1 m 31 x 31 x 12 Download
Mercava_C7 (repaired) (re paired).stl
0.71 MiB 1 h 2 min 1 m 31 x 31 x 12 Download
Mercava_C8 (repaired) (re paired).stl
1.64 MiB 55 min 1 m 32 x 32 x 12 Download
Mercava_C9 (repaired) (re paired).stl
1.27 MiB 1 h 20 min 1 m 29 x 29 x 20 Download
Mercava_C10 (repaired) (r epaired).stl
1.07 MiB 58 min 1 m 31 x 31 x 12 Download
Mercava_C11 (repaired) (r epaired).stl
0.71 MiB 1 h 2 min 1 m 31 x 31 x 12 Download
Mercava_C12 (repaired) (r epaired).stl
0.71 MiB 1 h 2 min 1 m 31 x 31 x 12 Download
Mercava_C13 (repaired) (r epaired).stl
0.71 MiB 1 h 2 min 1 m 31 x 31 x 12 Download
Mercava_C14 (repaired) (r epaired).stl
0.71 MiB 1 h 2 min 1 m 31 x 31 x 12 Download
Mercava_C15 (repaired) (r epaired).stl
0.71 MiB 1 h 2 min 1 m 31 x 31 x 12 Download
Mercava_C16 (repaired) (r epaired).stl
1.63 MiB 55 min 1 m 32 x 32 x 12 Download
Mercava_CA1 (repaired) (r epaired).stl
3.26 MiB 3 h 34 min 2 m 160 x 33 x 9 Download
Mercava_CA2 (repaired) (r epaired).stl
1.99 MiB 2 h 13 min 2 m 103 x 34 x 9 Download
Mercava_CA3 (repaired) (r epaired).stl
3.26 MiB 3 h 34 min 2 m 160 x 33 x 9 Download
Mercava_CA4 (repaired) (r epaired).stl
1.98 MiB 2 h 14 min 2 m 103 x 34 x 9 Download
Mercava_CT1 (repaired) (r epaired).stl
5.04 MiB 10 h 50 min 4 m 151 x 50 x 29 Download
Mercava_CT2 (repaired) (r epaired).stl
5.00 MiB 10 h 37 min 4 m 145 x 54 x 29 Download
Mercava_CT3 (repaired) (r epaired).stl
5.05 MiB 10 h 45 min 4 m 151 x 50 x 29 Download
Mercava_CT4 (repaired) (r epaired).stl
4.98 MiB 10 h 35 min 4 m 145 x 54 x 29 Download
Mercava_D (repaired) (rep aired).stl
0.28 MiB 37 min <1 m 22 x 25 x 21 Download
Mercava_E (repaired) (rep aired).stl
13.04 MiB 12 h 35 min 7 m 89 x 71 x 30 Download
Mercava_G1 (repaired) (re paired).stl
1.33 MiB 1 h <1 m 95 x 10 x 11 Download
Mercava_G2 (repaired) (re paired).stl
1.13 MiB 51 min <1 m 50 x 14 x 12 Download
Mercava_G3 (repaired) (re paired).stl
0.40 MiB 1 h 33 min 1 m 26 x 17 x 51 Download
Mercava_G4 (repaired) (re paired).stl
1.99 MiB 44 min <1 m 20 x 63 x 15 Download
Mercava_G5 (repaired) (re paired).stl
1.90 MiB 45 min <1 m 20 x 63 x 14 Download
Mercava_G6 (repaired) (re paired).stl
1.98 MiB 52 min <1 m 20 x 63 x 17 Download
Mercava_H1 (repaired) (re paired).stl
11.61 MiB 29 h 38 min 18 m 154 x 122 x 50 Download
Mercava_H2 (repaired) (re paired).stl
9.79 MiB 25 h 52 min 15 m 140 x 122 x 45 Download
Mercava_H3 (repaired) (re paired).stl
5.31 MiB 23 h 44 min 17 m 168 x 154 x 33 Download
Mercava_H4 (repaired) (re paired).stl
7.83 MiB 16 h 8 min 11 m 116 x 149 x 21 Download

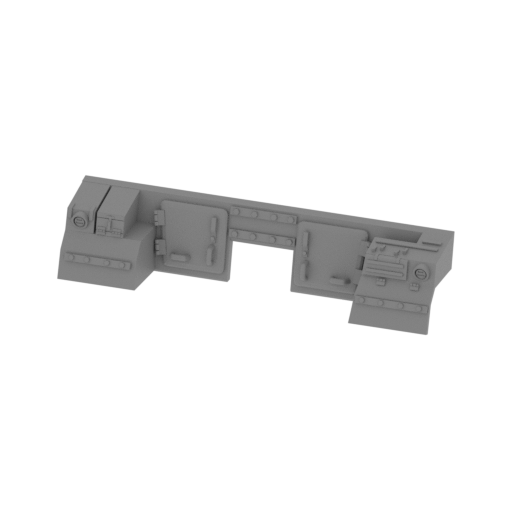

Mercava_H5 (repaired) (re paired).stl
1.40 MiB 5 h 26 min 3 m 36 x 146 x 24 Download
Mercava_H6 (repaired) (re paired).stl
1.58 MiB 1 h 39 min 1 m 88 x 26 x 12 Download
Mercava_H7 (repaired) (re paired).stl
0.50 MiB 7 h 3 min 4 m 75 x 88 x 18 Download
Mercava_H8 (repaired) (re paired).stl
0.19 MiB 18 min <1 m 21 x 31 x 7 Download
Mercava_I (repaired) (rep aired).stl
12.27 MiB 18 h 50 min 10 m 144 x 78 x 49 Download

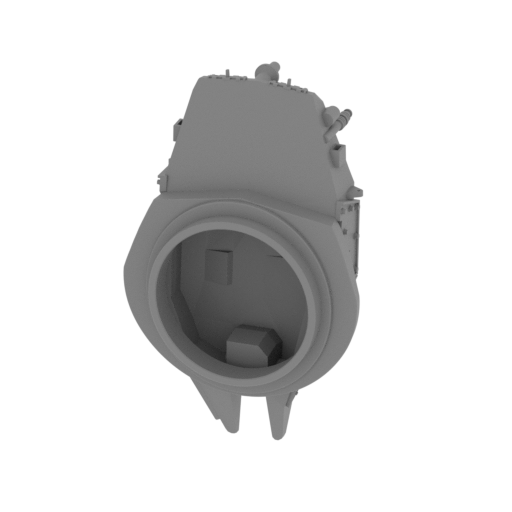

Mercava_T1 (repaired) (re paired).stl
14.42 MiB 43 h 33 min 34 m 117 x 184 x 107 Download
Mercava_T2 (repaired) (re paired).stl
5.32 MiB 12 h 13 min 7 m 103 x 148 x 33 Download
Mercava_T3 (repaired) (re paired).stl
0.57 MiB 27 min <1 m 36 x 23 x 8 Download
Mercava_T4 (repaired) (re paired).stl
0.17 MiB 5 min <1 m 5 x 25 x 5 Download
Mercava_T5 (repaired) (re paired).stl
0.88 MiB 27 min <1 m 28 x 25 x 7 Download
...

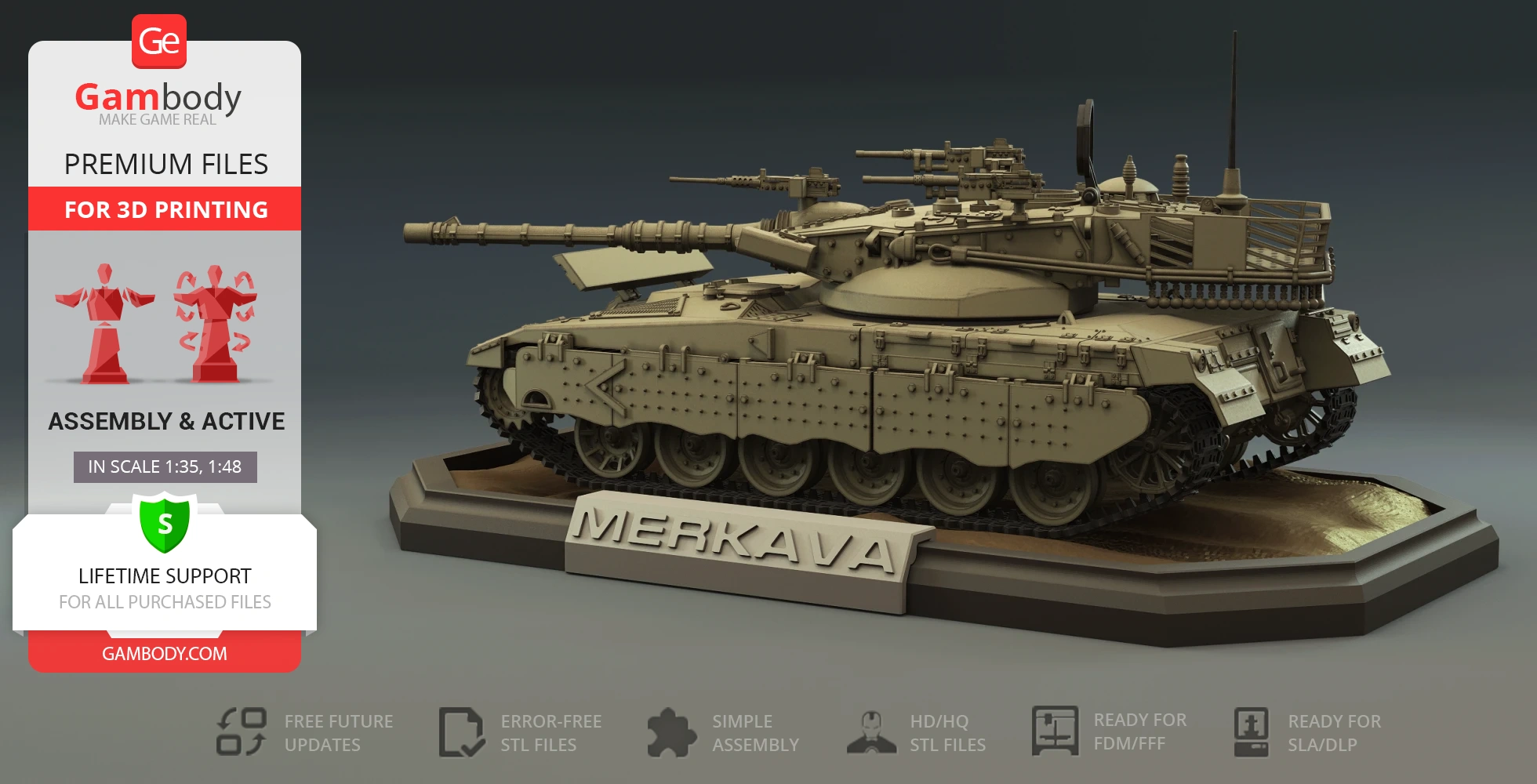

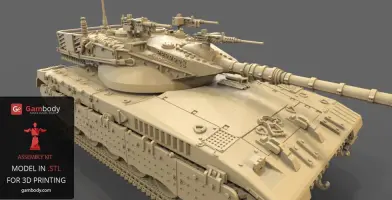

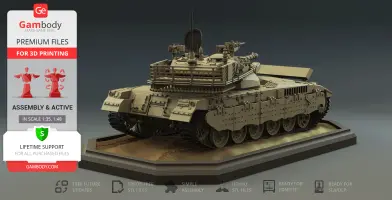

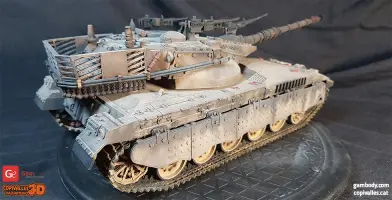

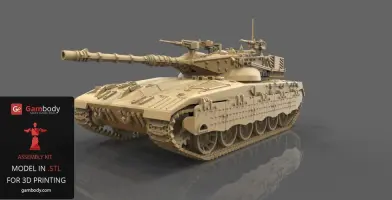

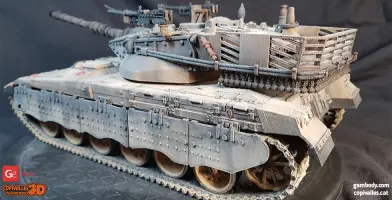

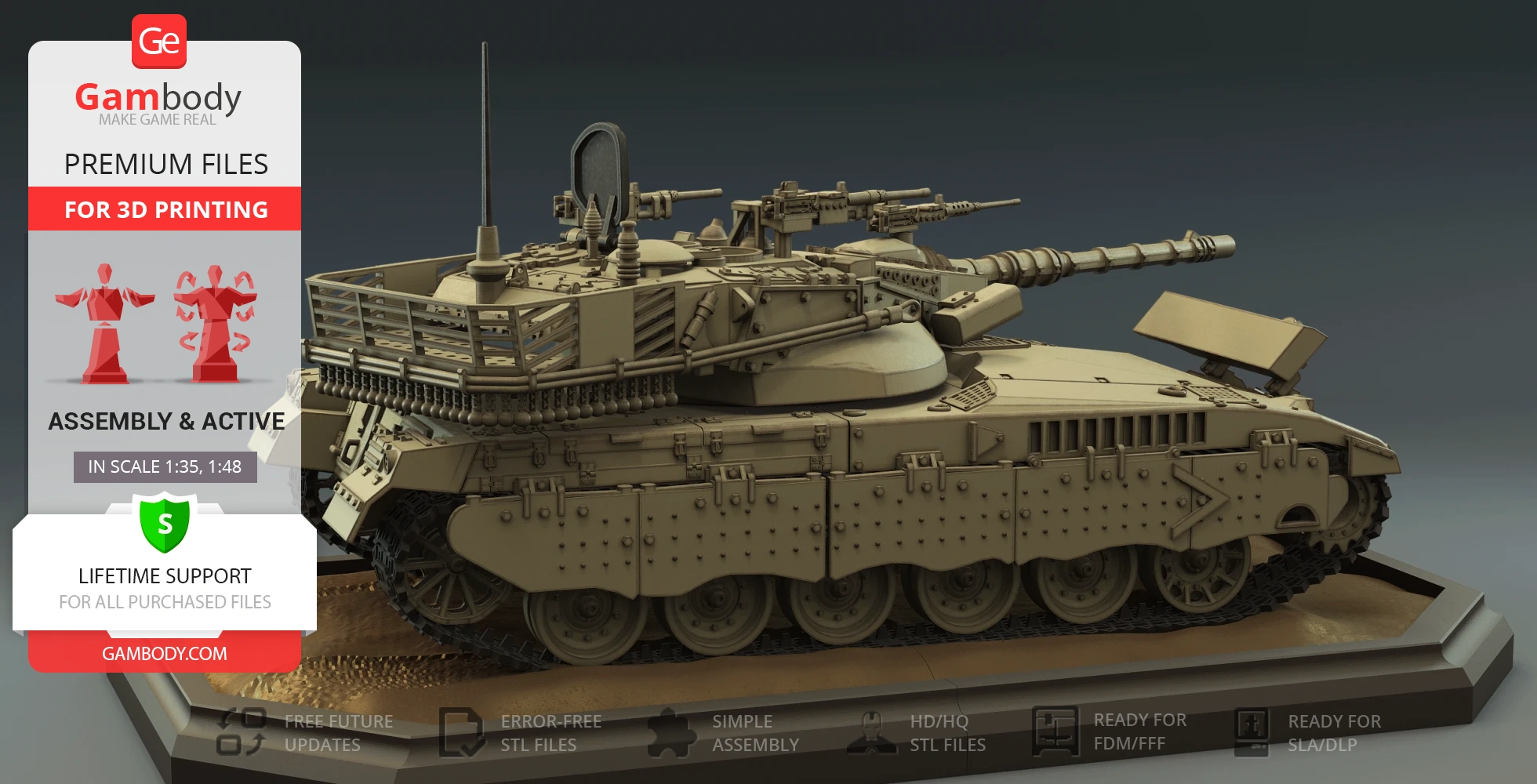

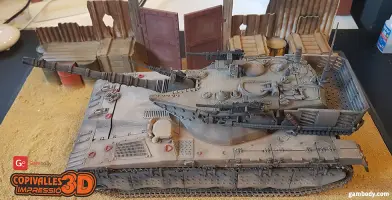

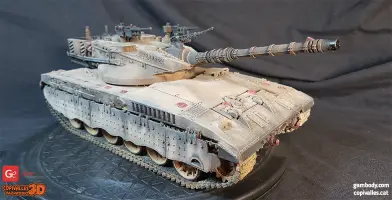

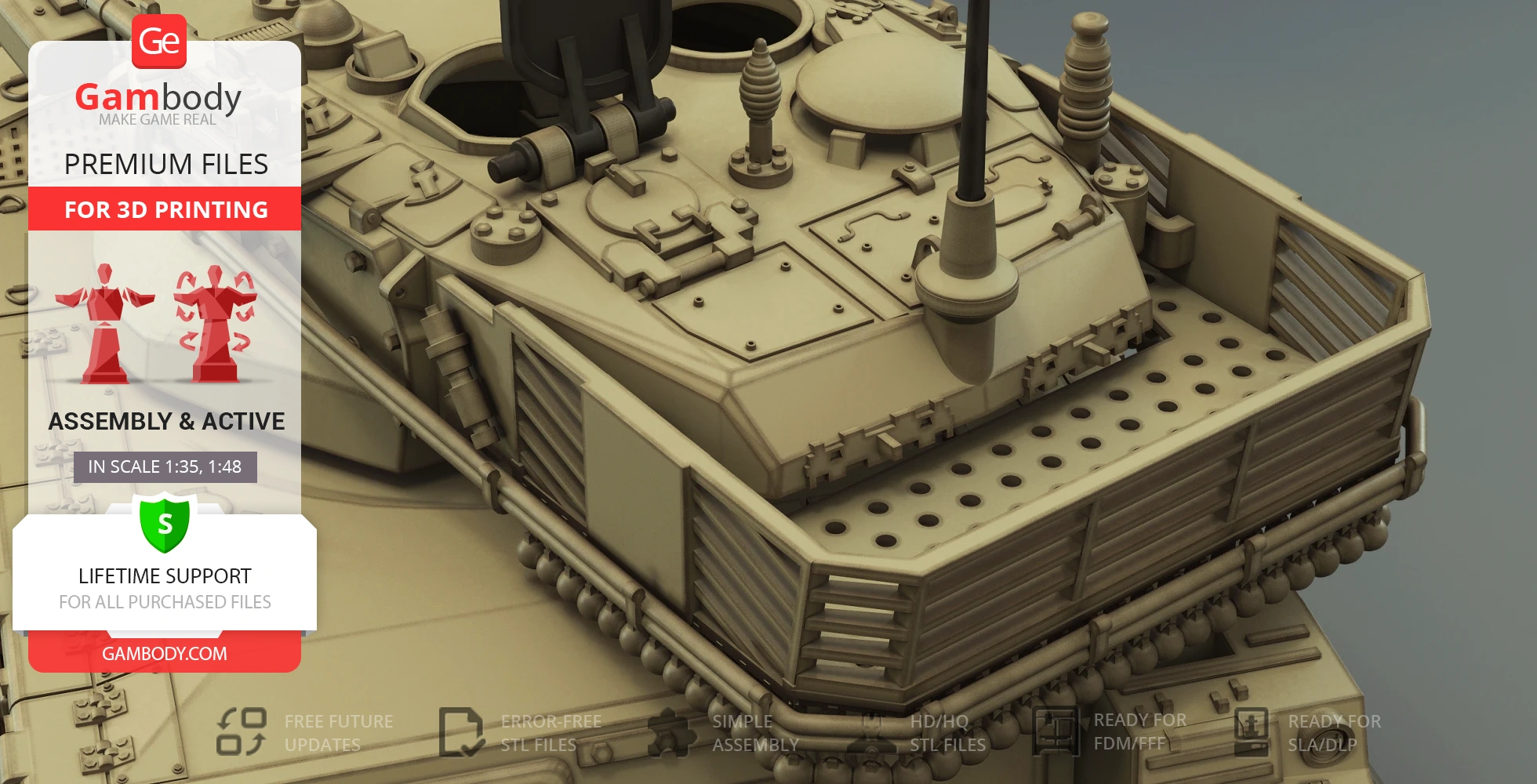

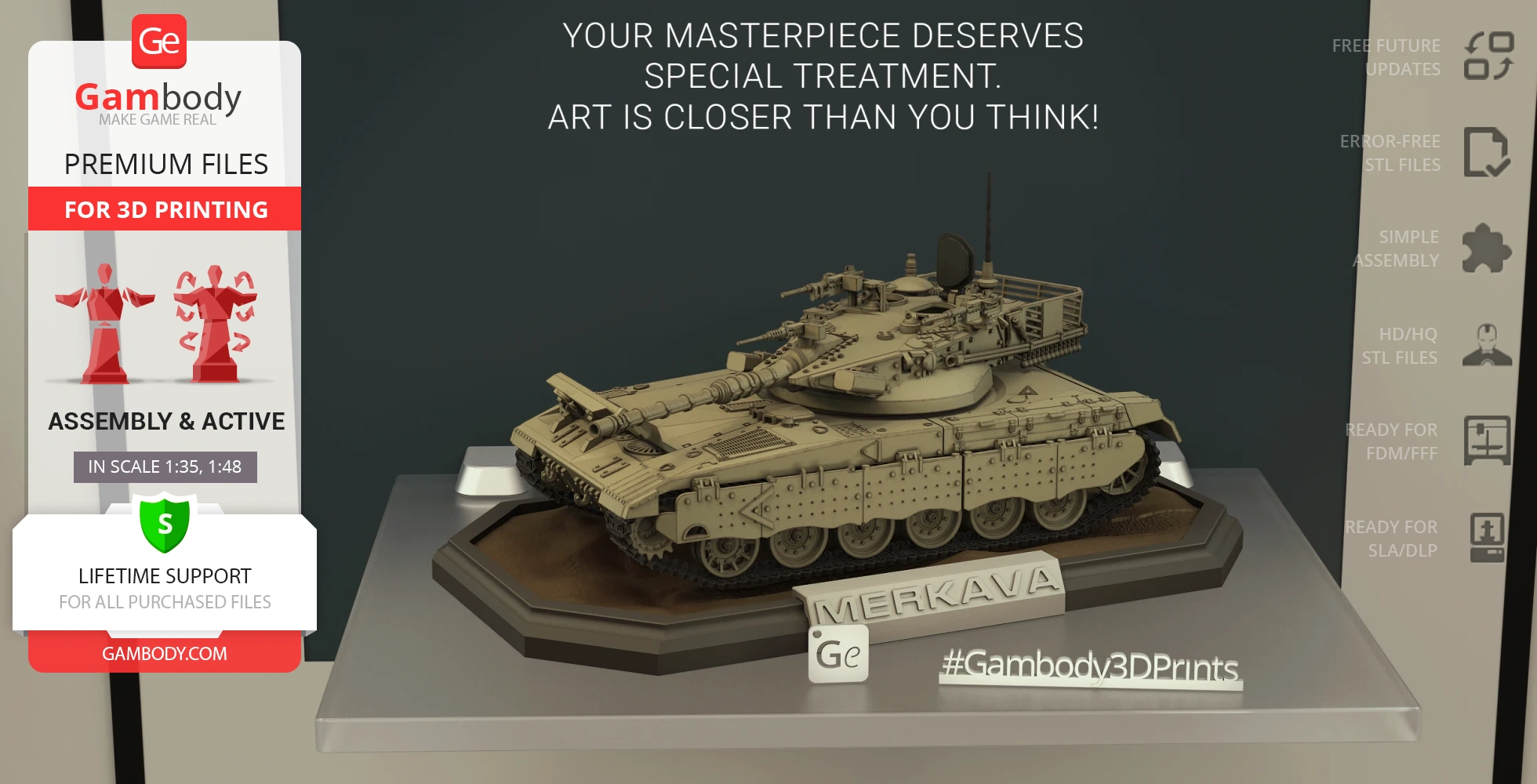

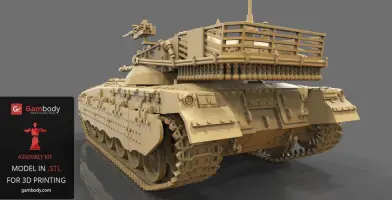

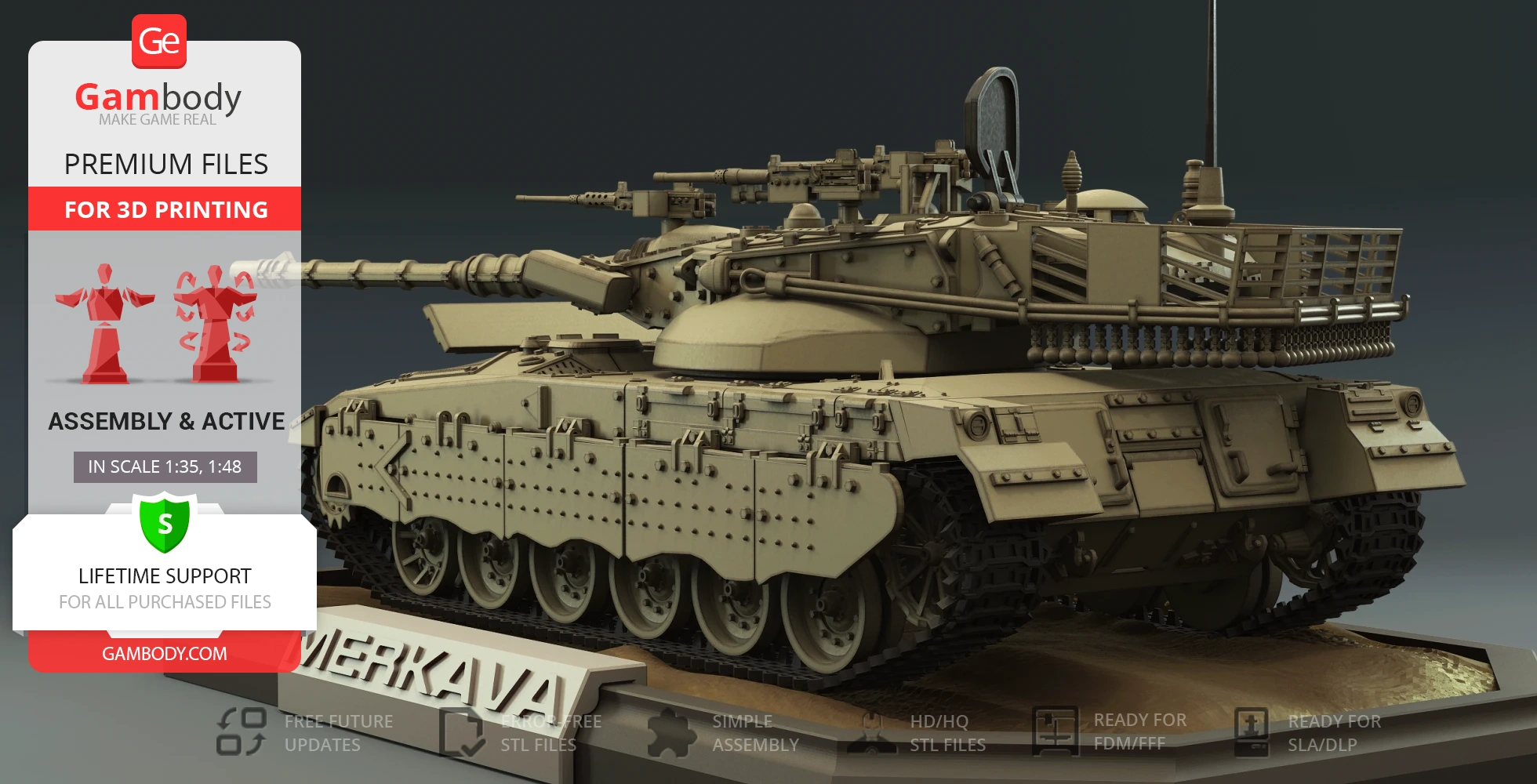

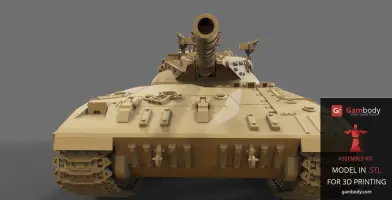

Merkava mk2 3D print design is inspired by the Israeli main battle tank that was produced during 1978-1996. This off-road model of the battle tank was first introduced into service in April 1983 as an improvement to Merkava I.

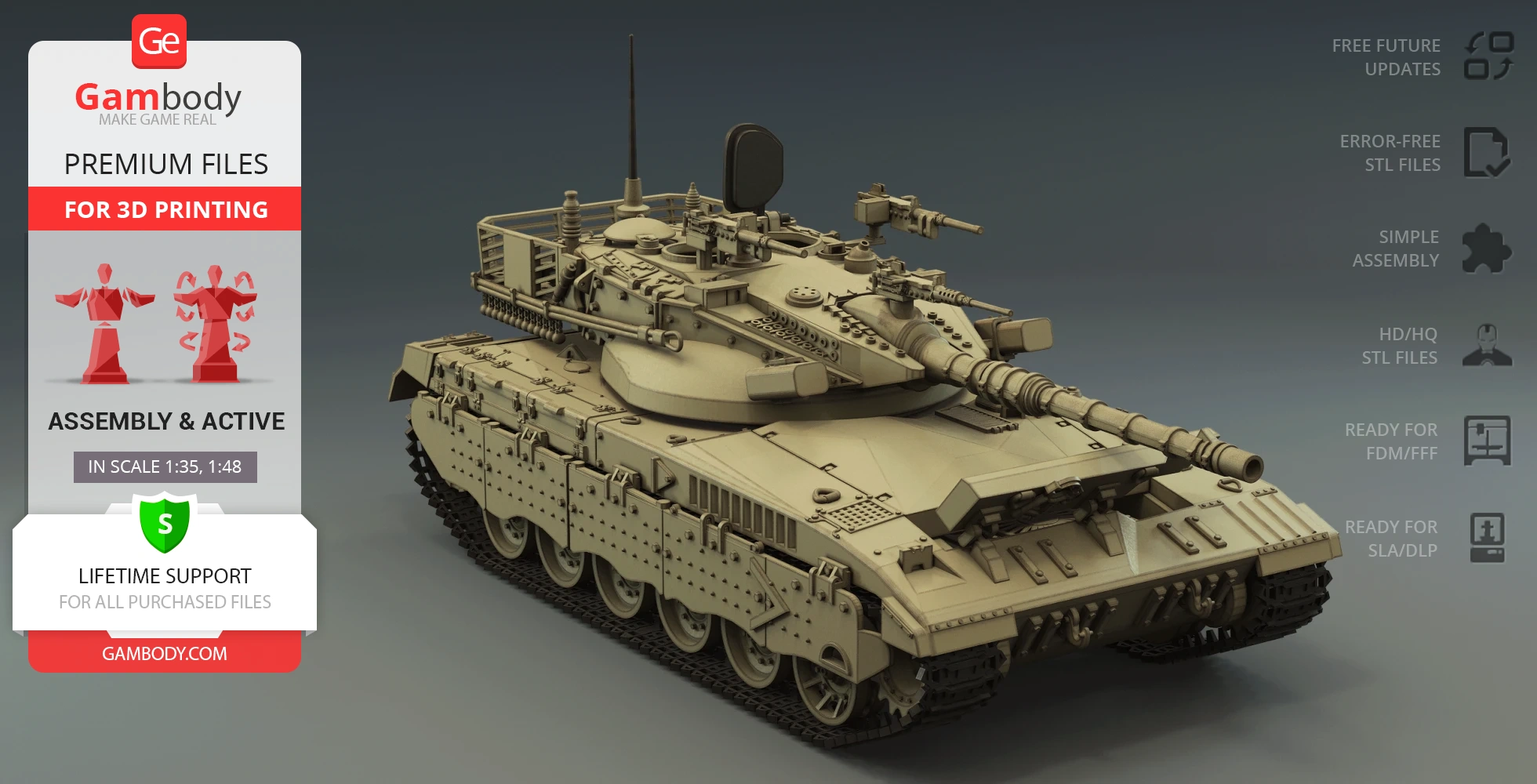

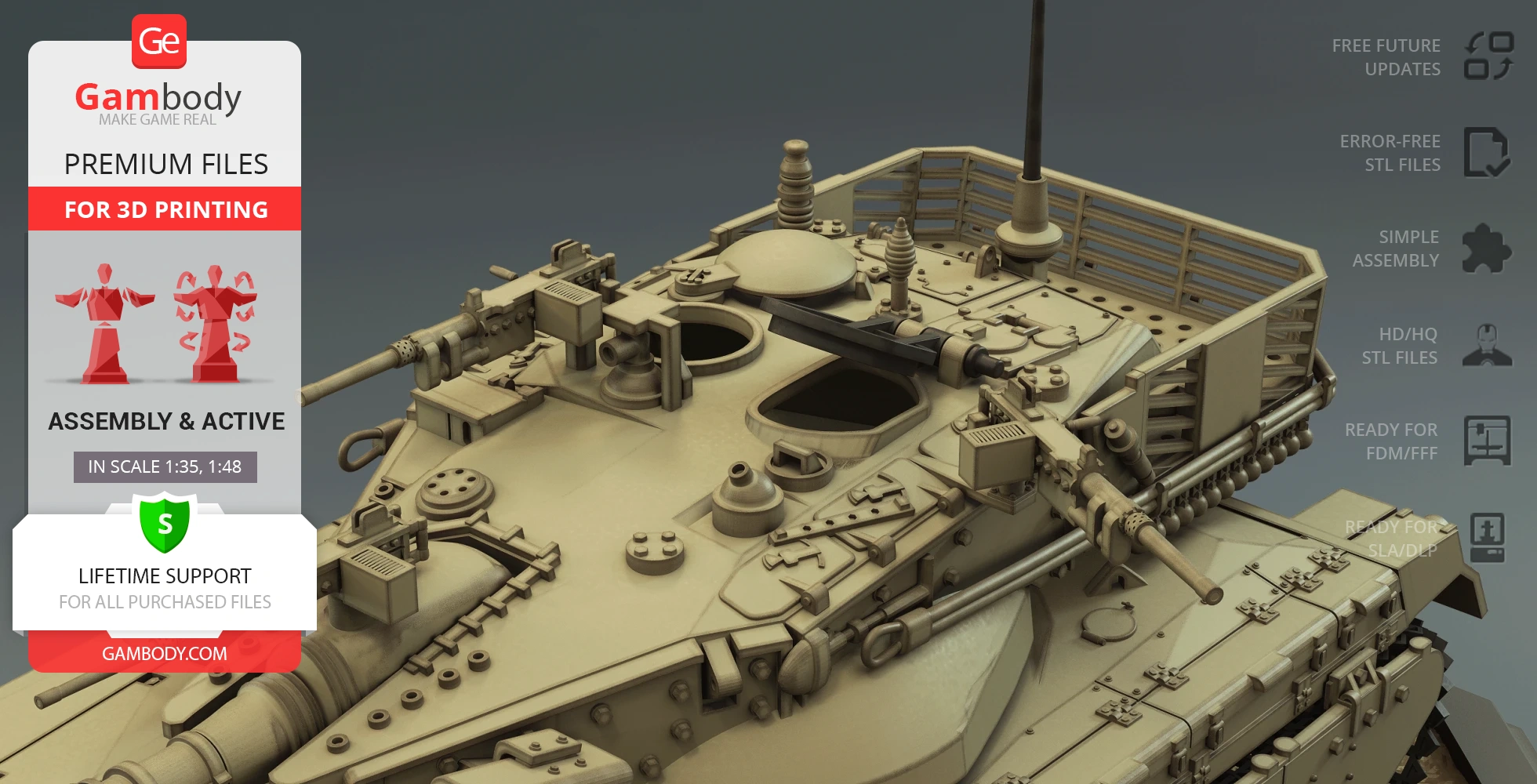

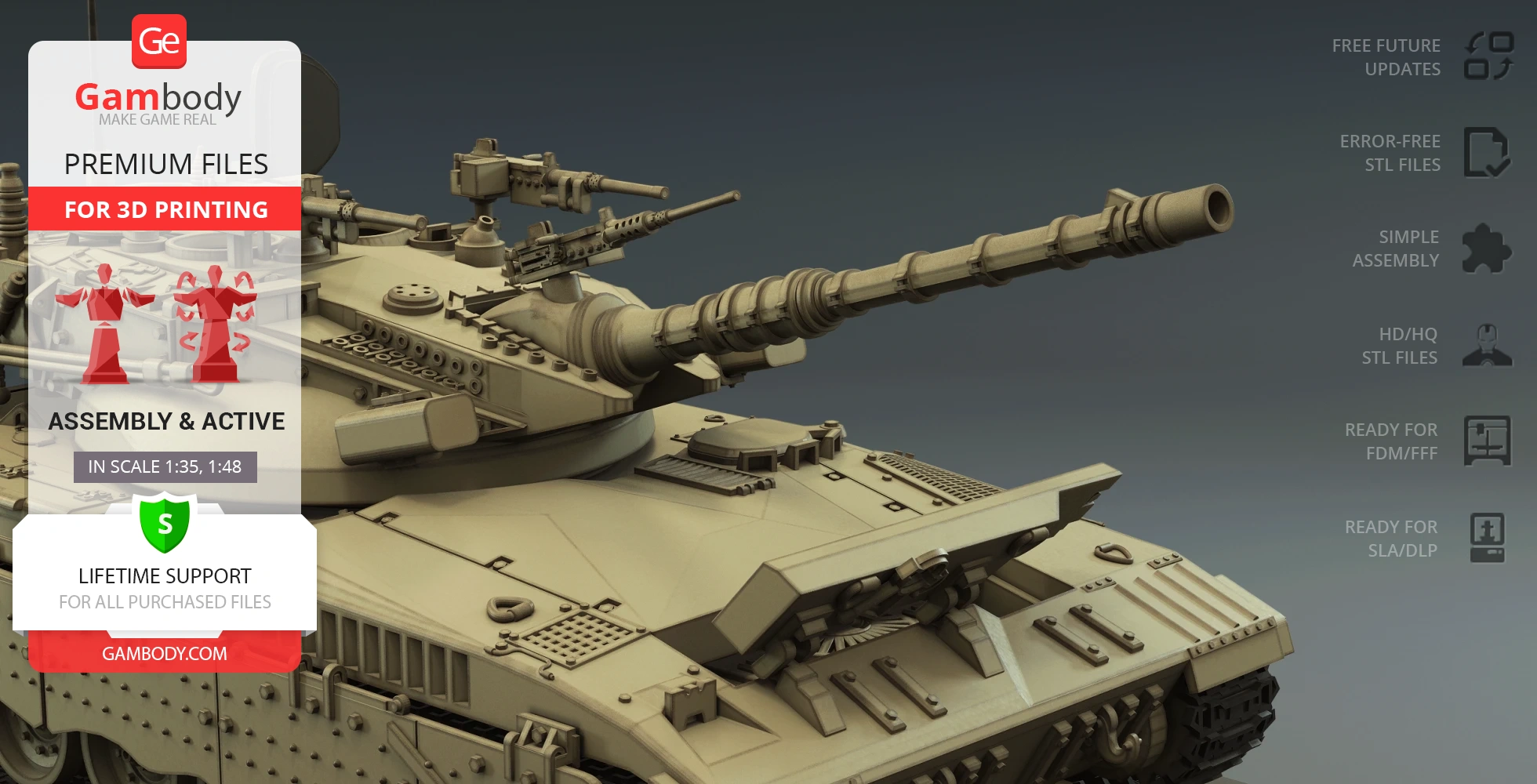

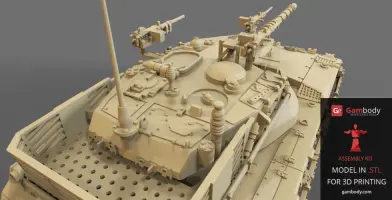

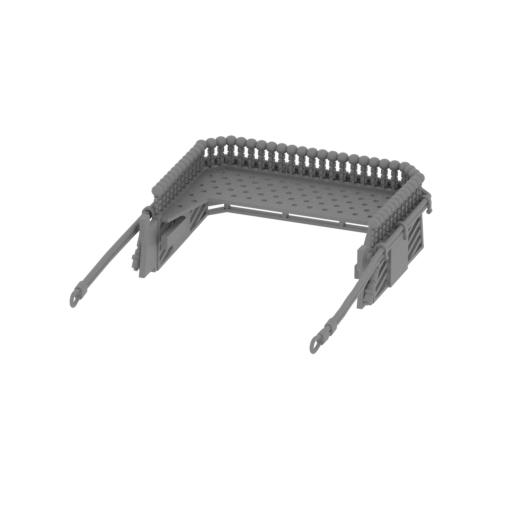

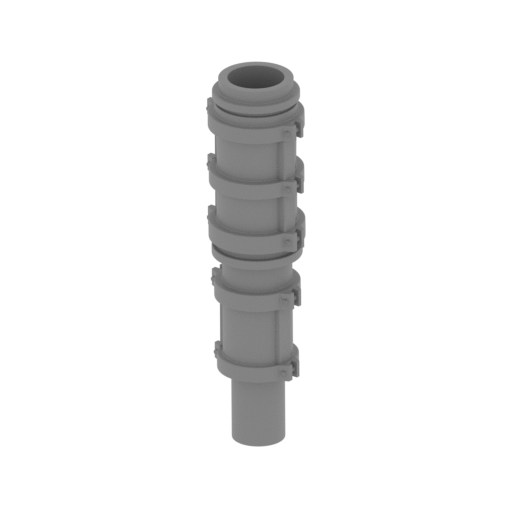

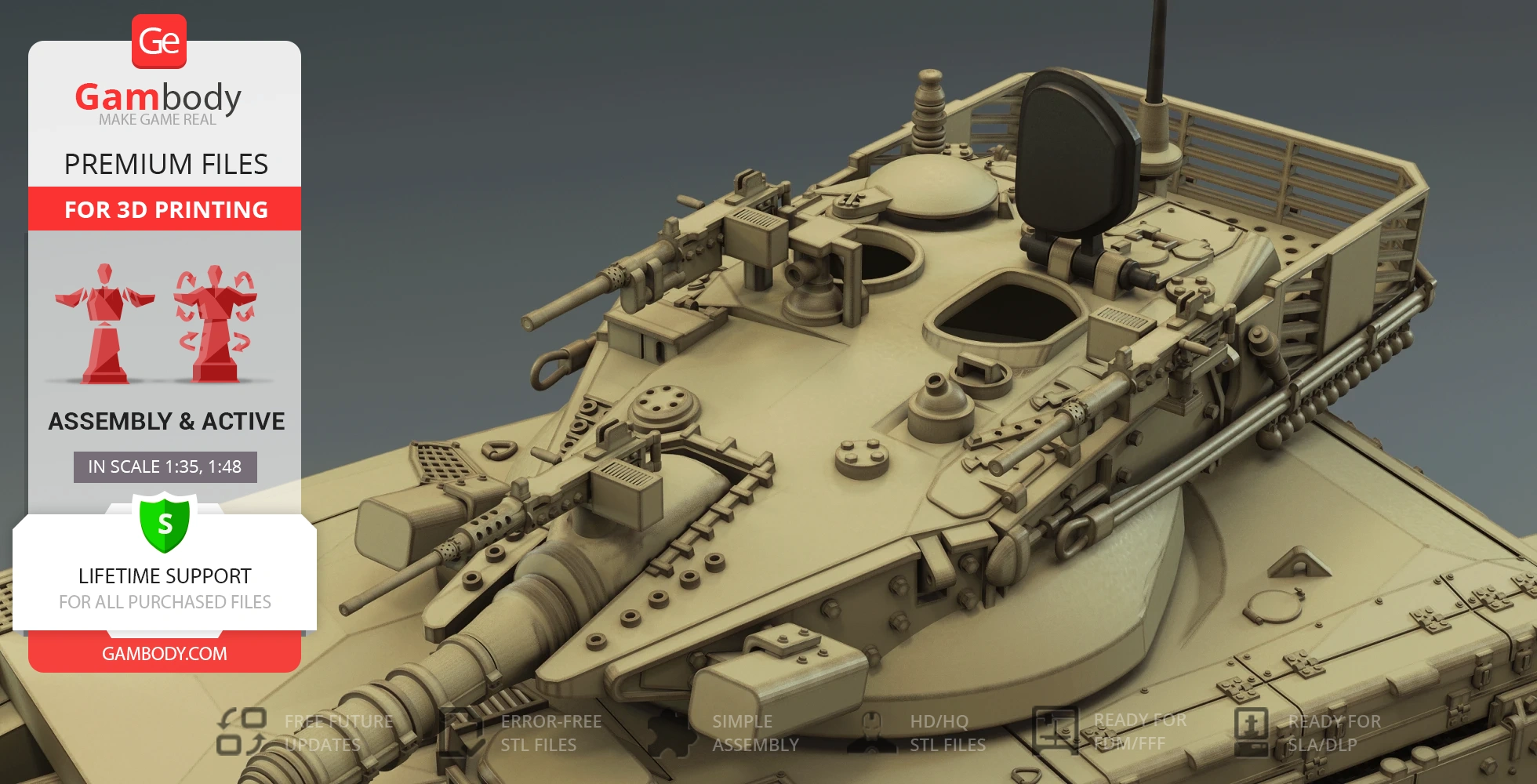

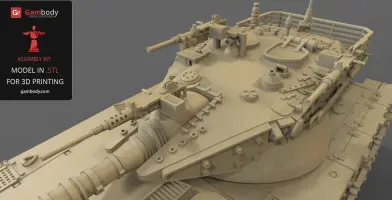

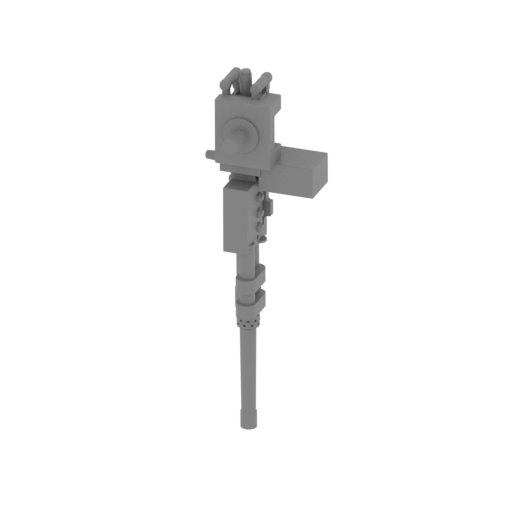

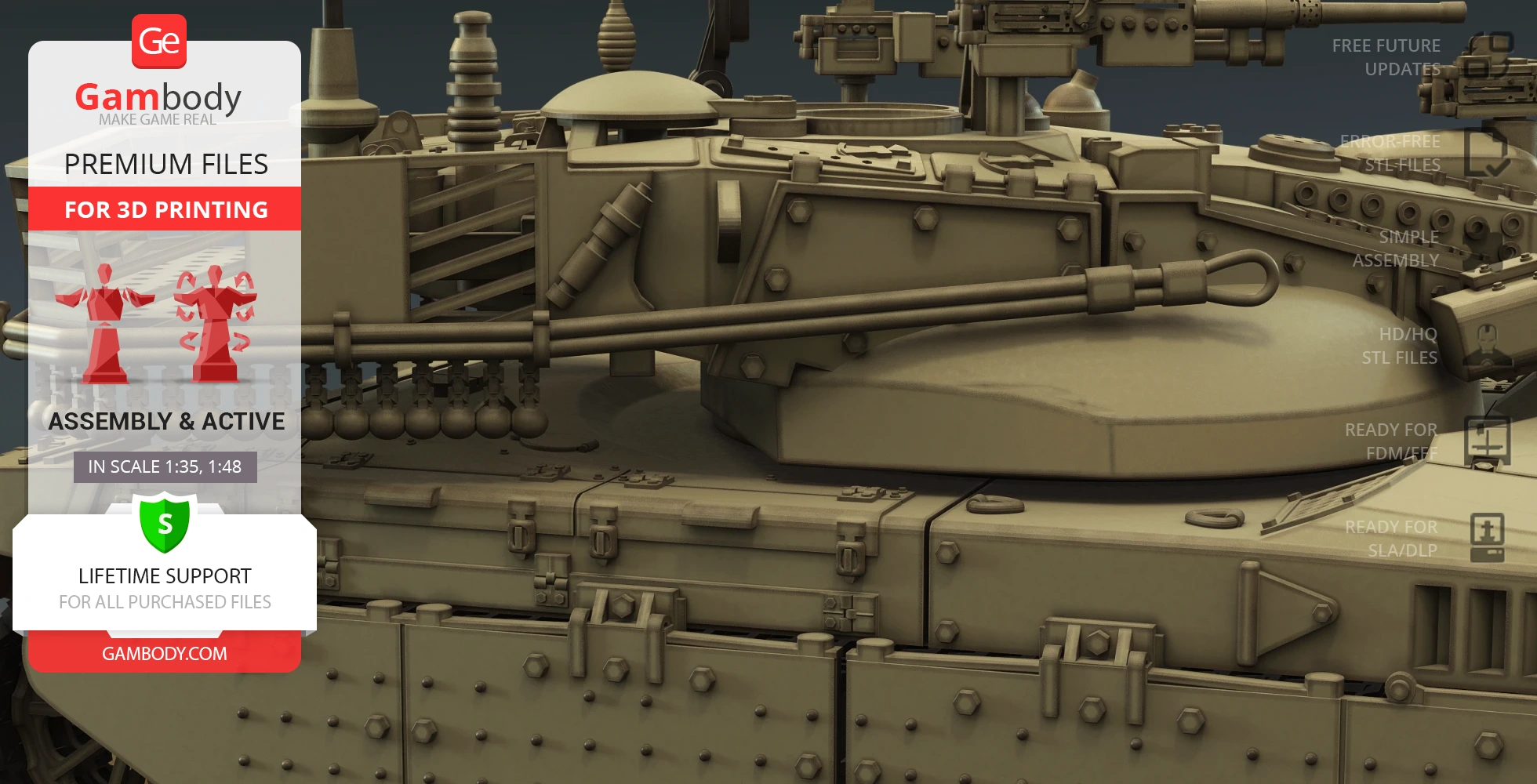

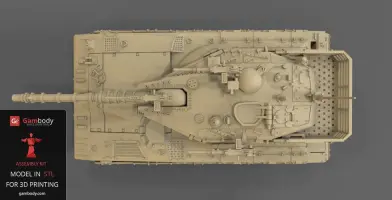

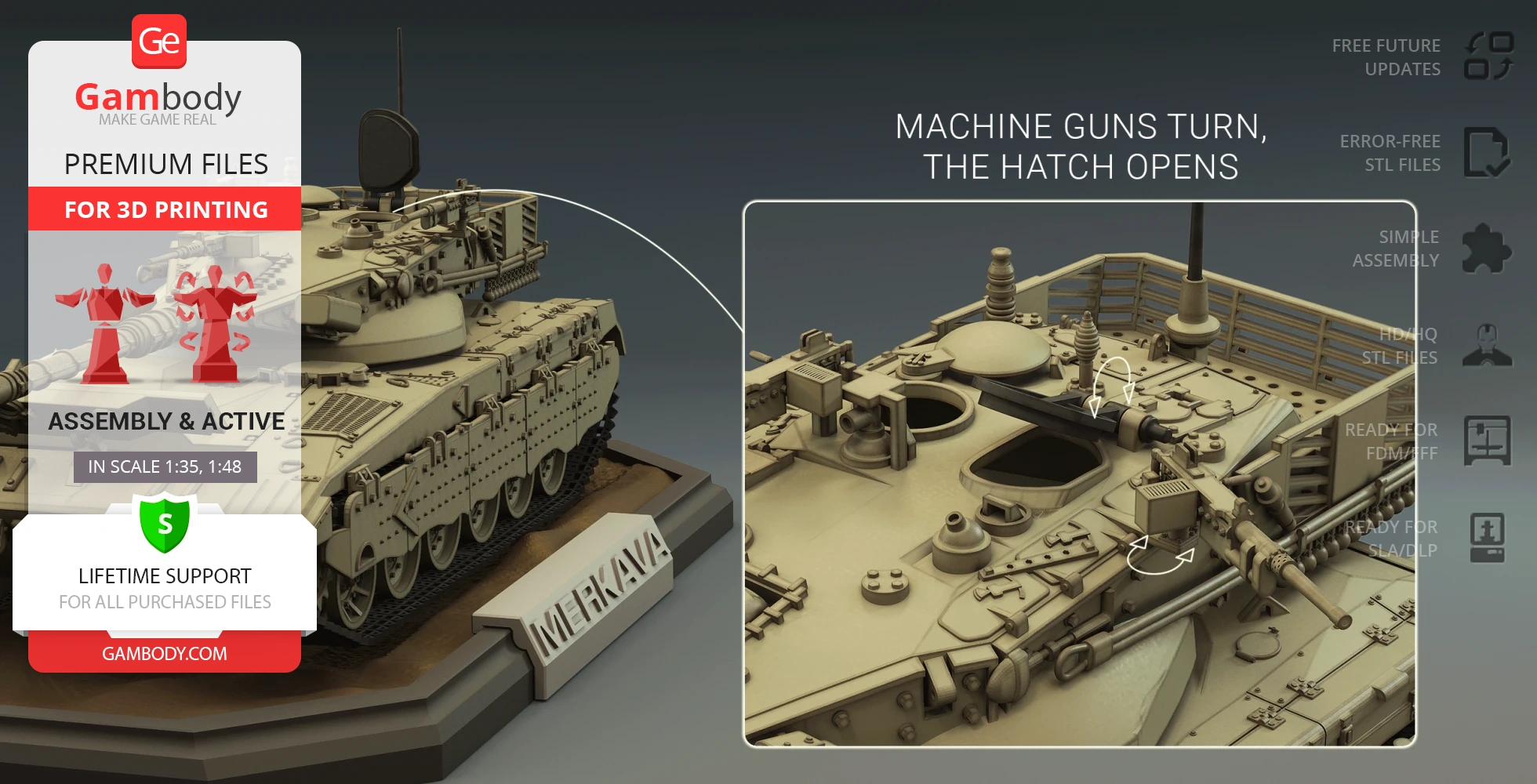

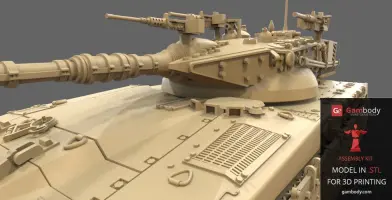

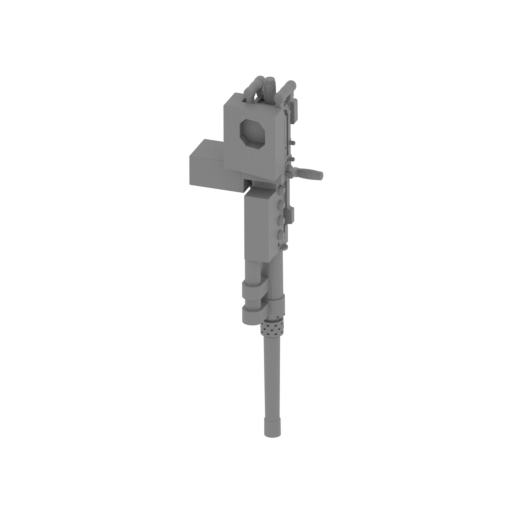

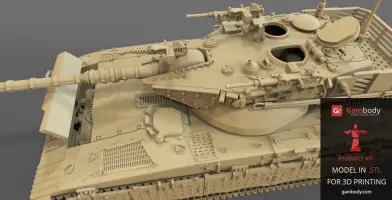

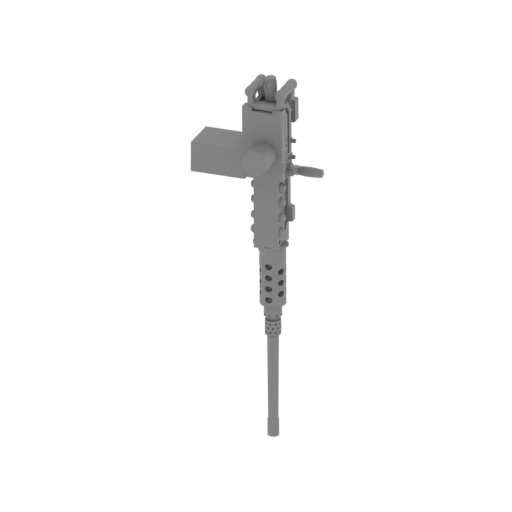

The model for 3D printing is a close reproduction of the prototype layout. It features the turret, the 105mm M68 gun and two 7.62mm machine guns.

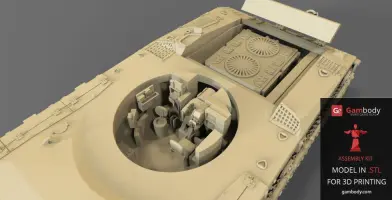

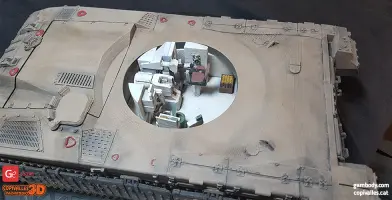

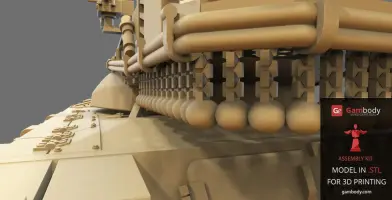

A great advantage of this particular 3D model is that it features the entire interior layout of the original tank, with all elements made up and optimized to fit into the model.

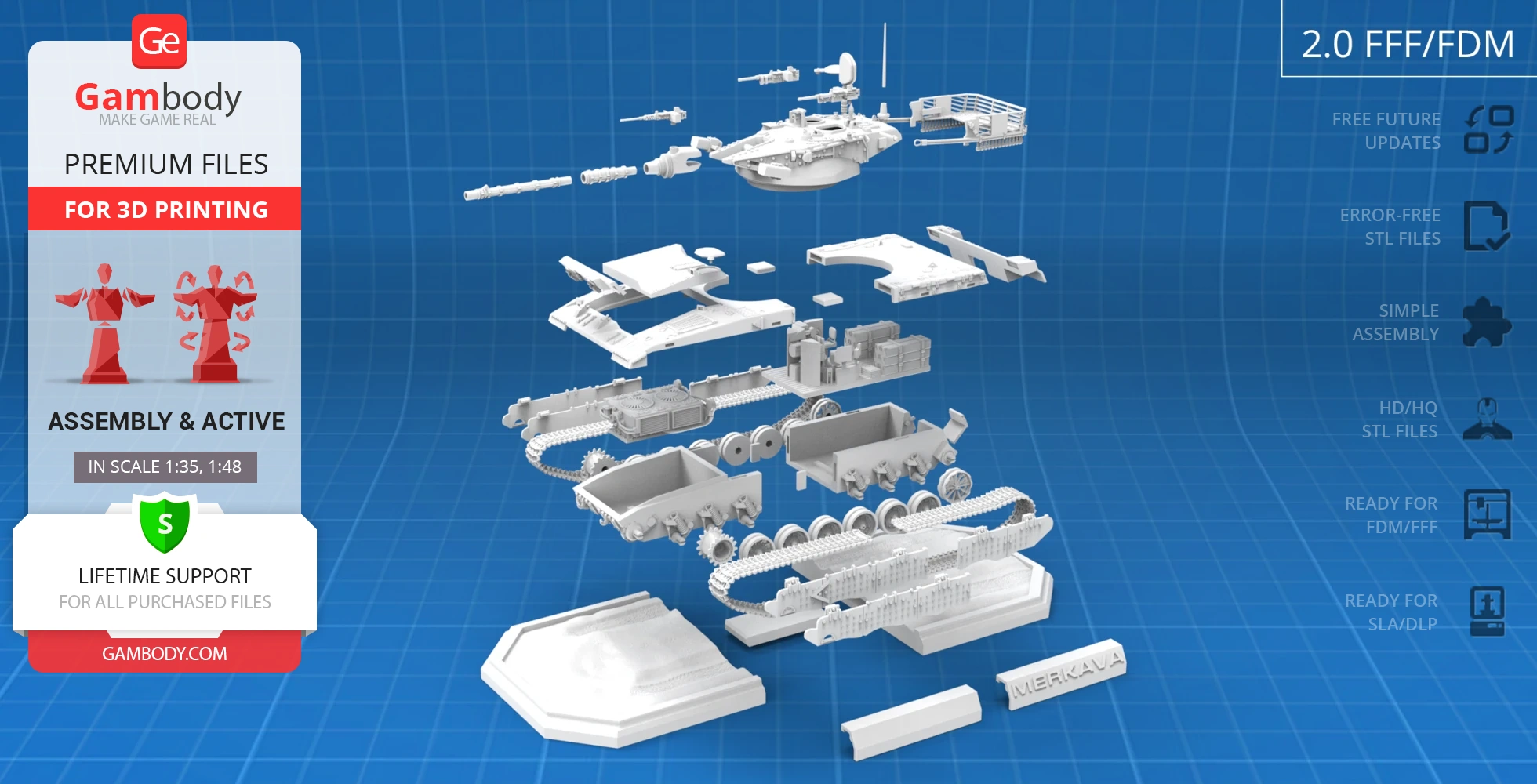

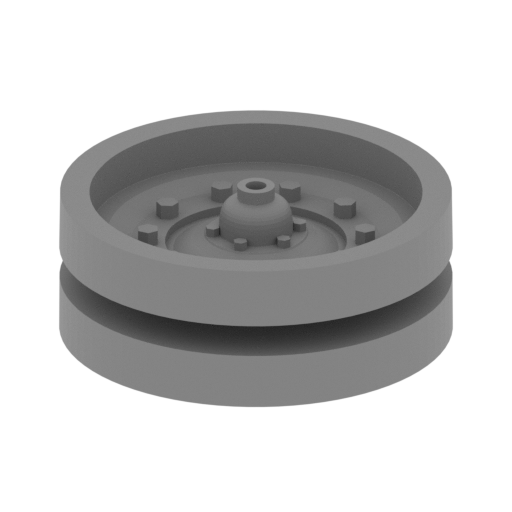

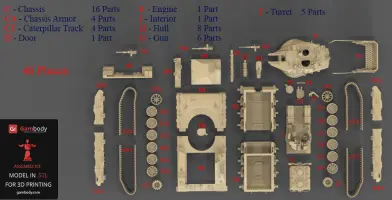

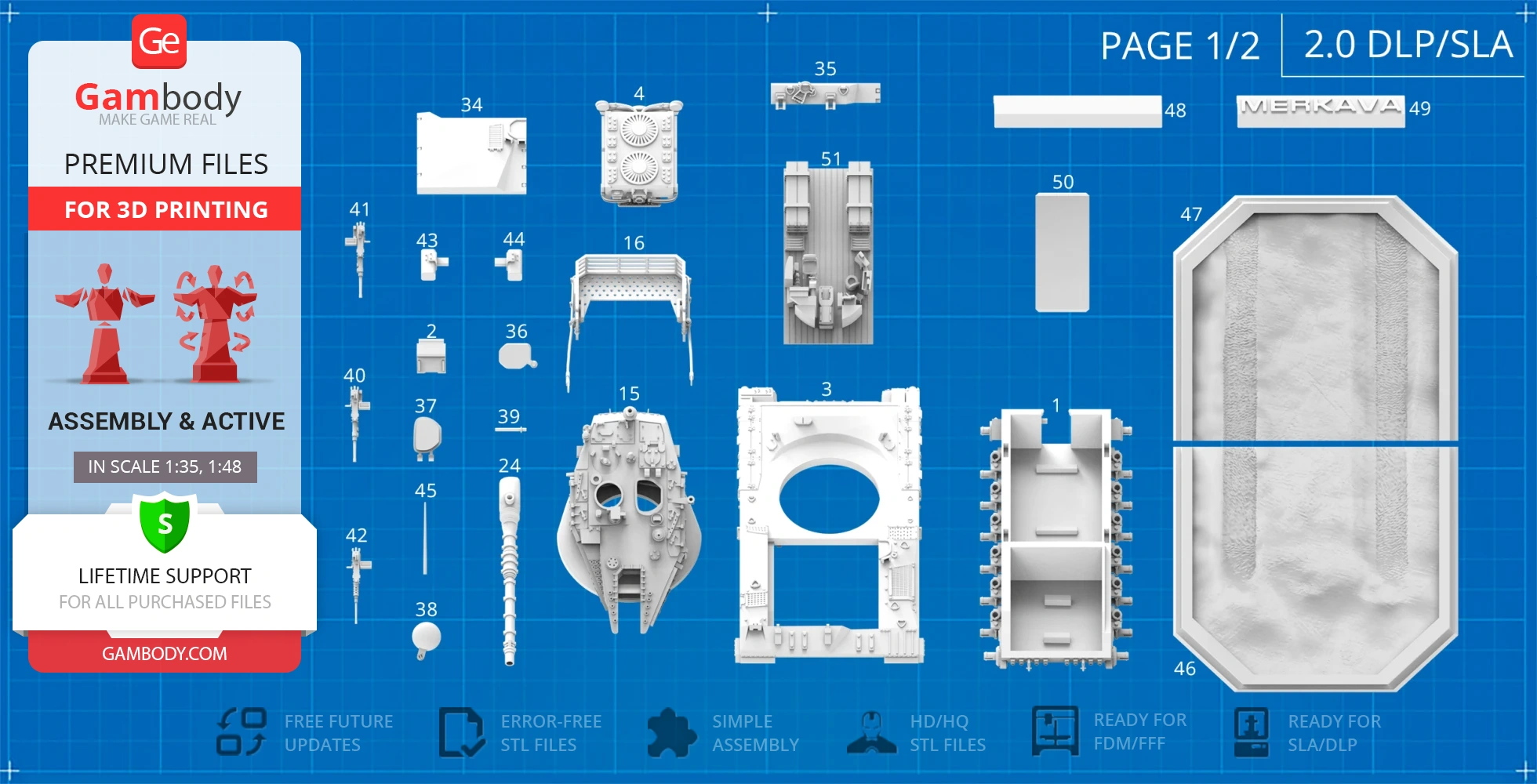

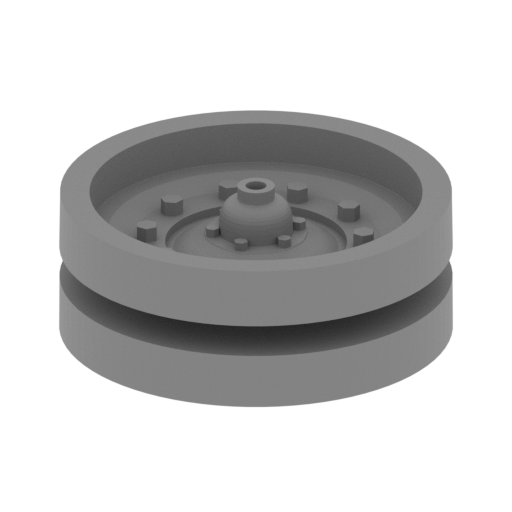

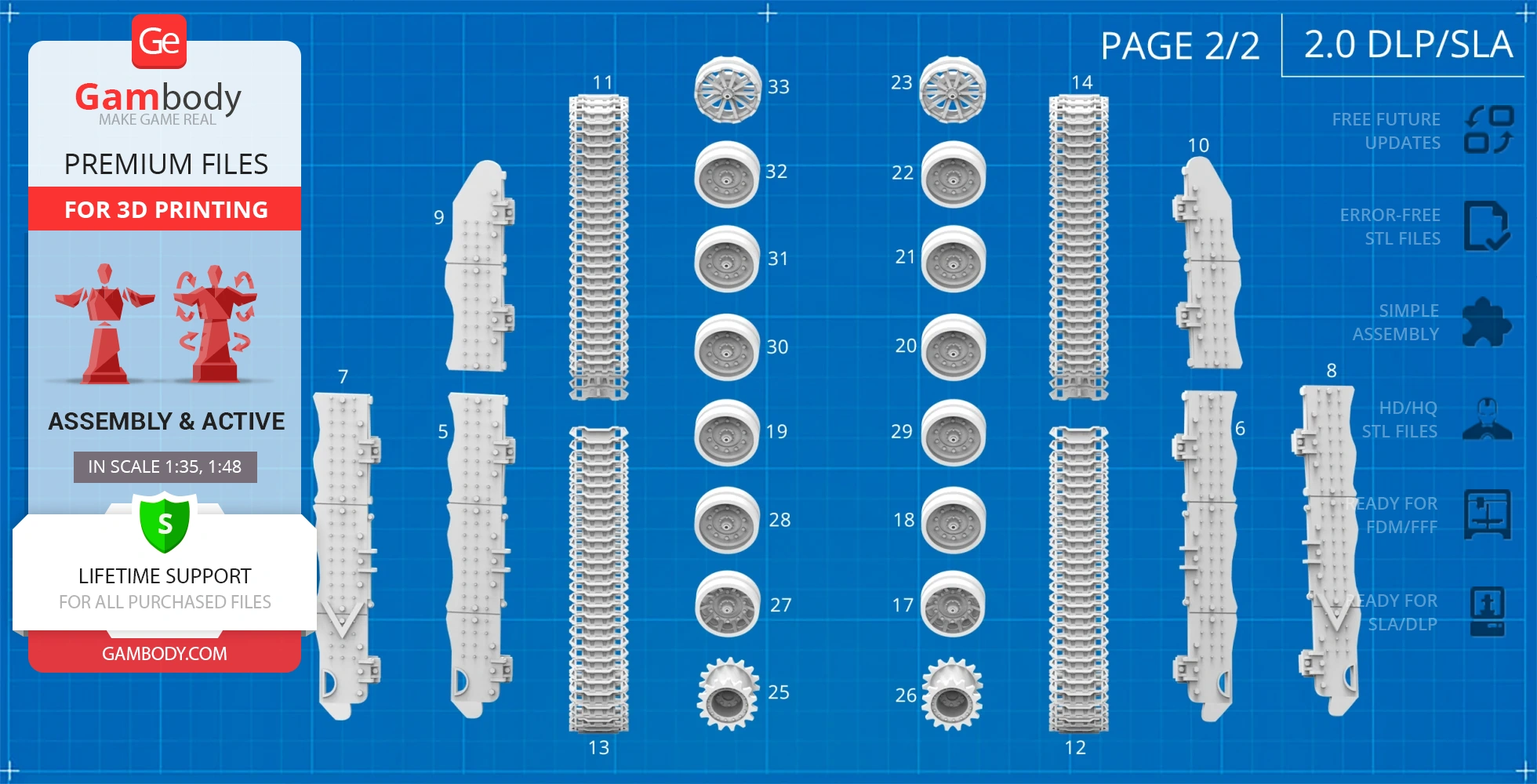

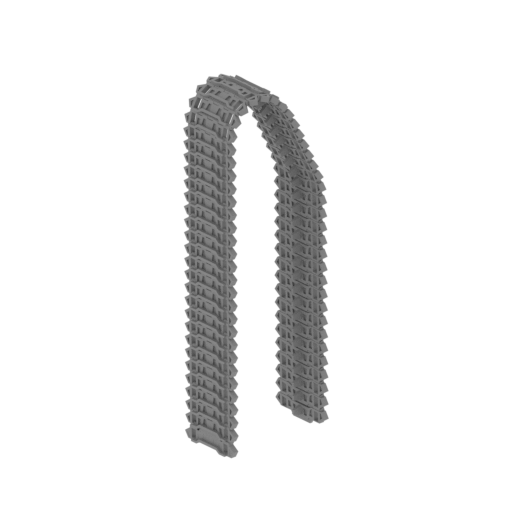

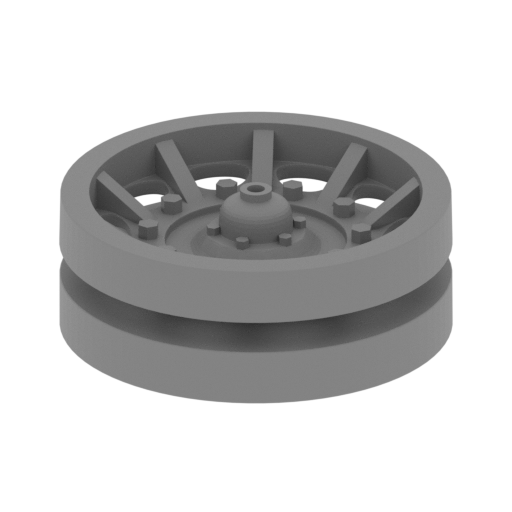

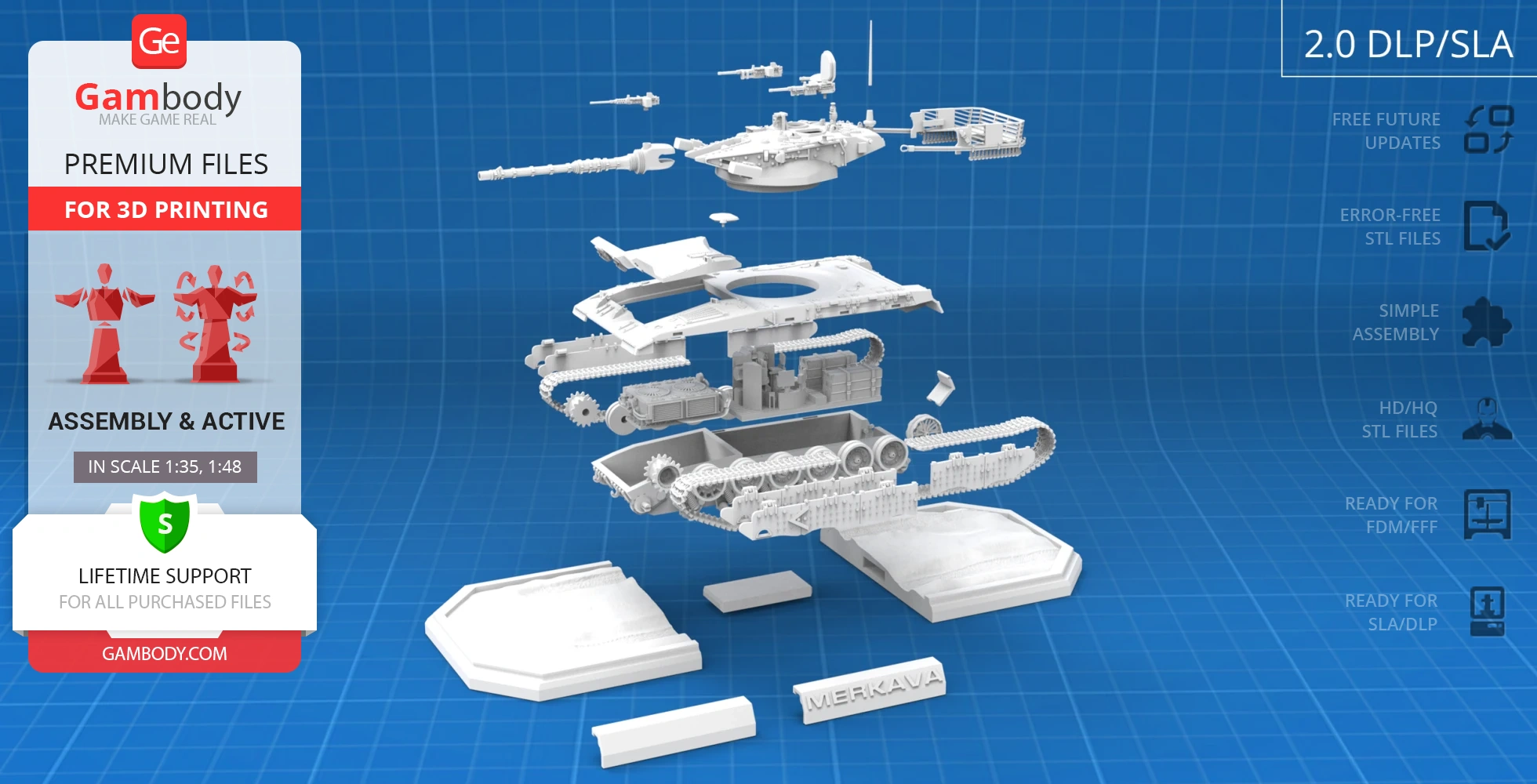

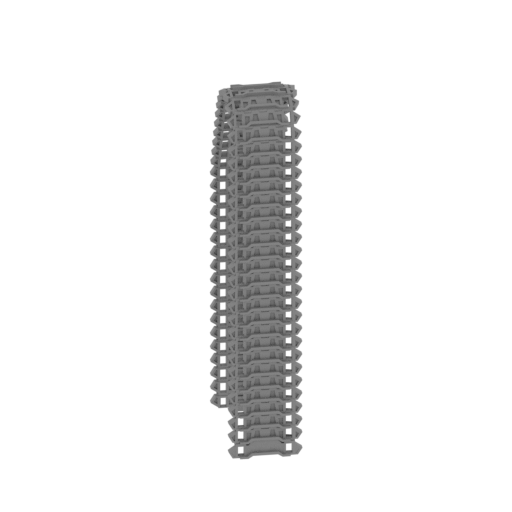

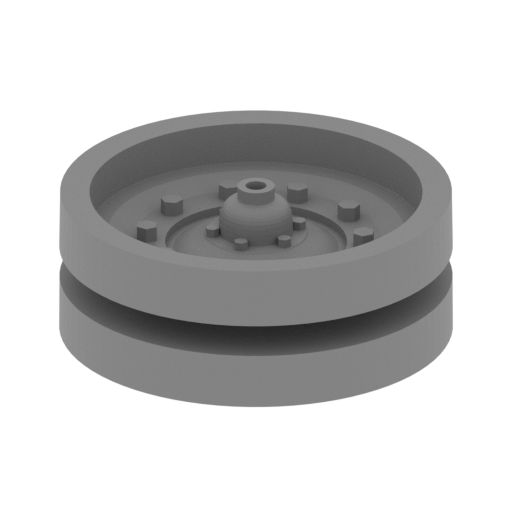

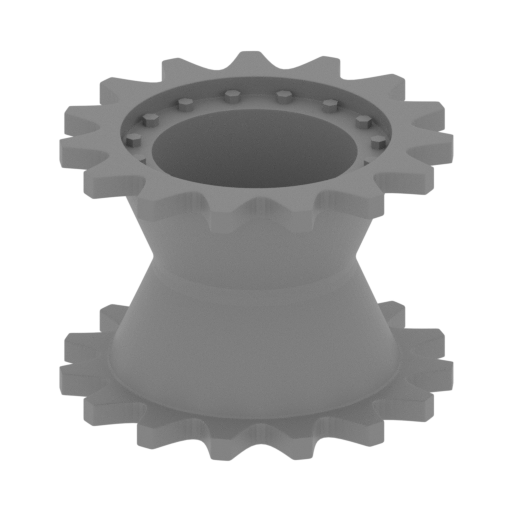

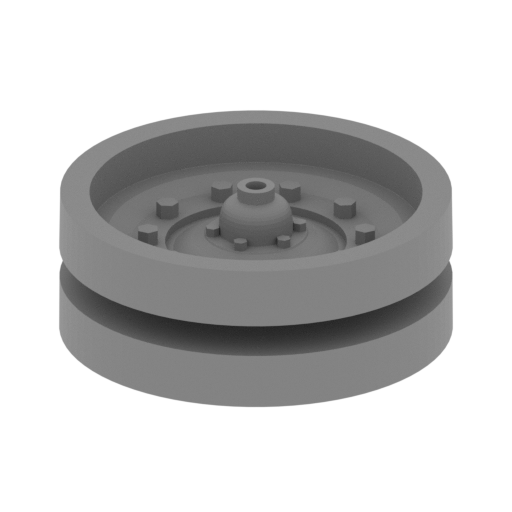

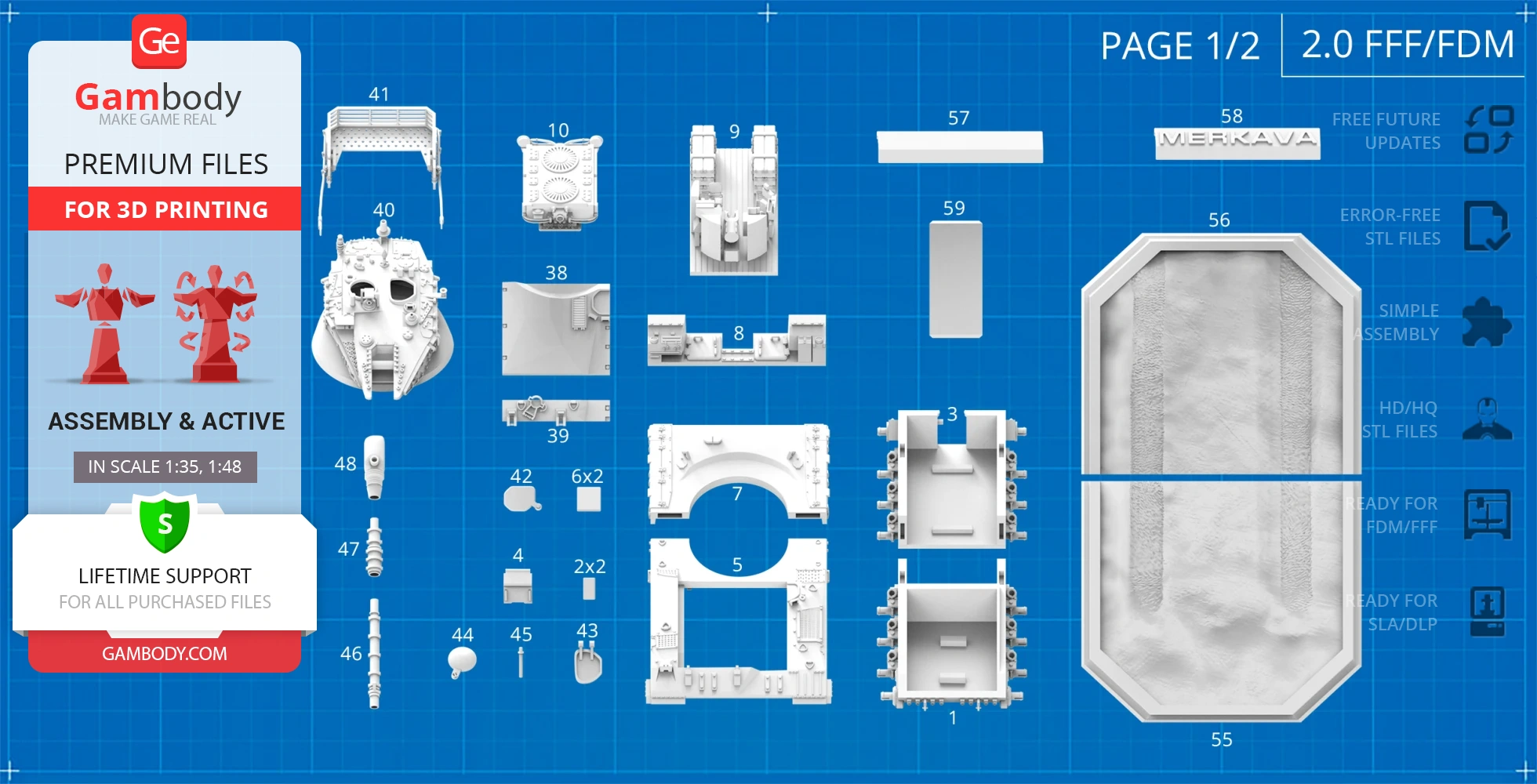

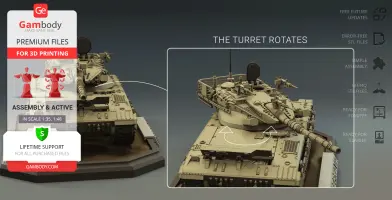

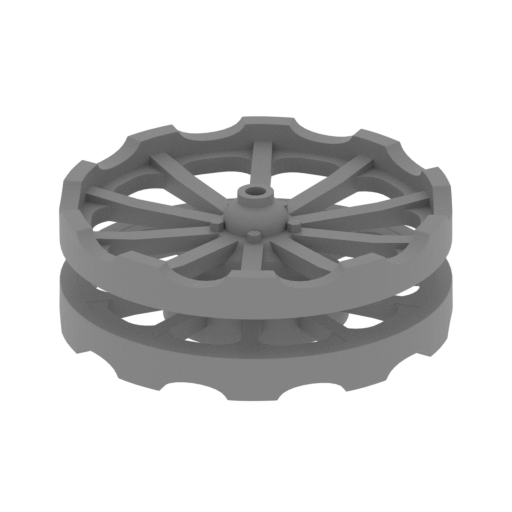

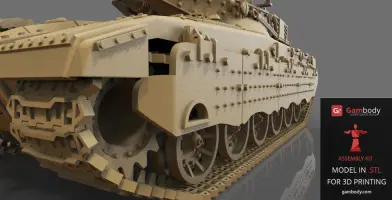

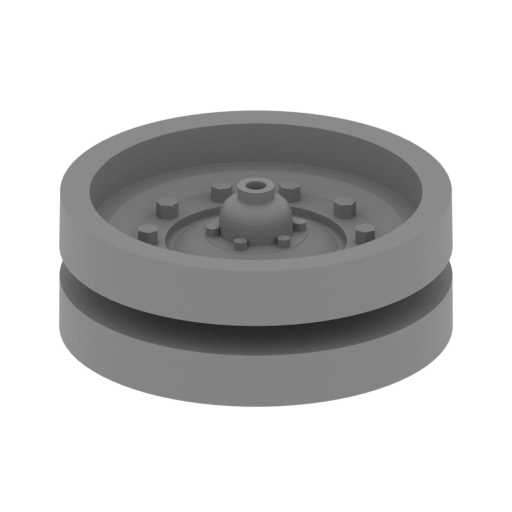

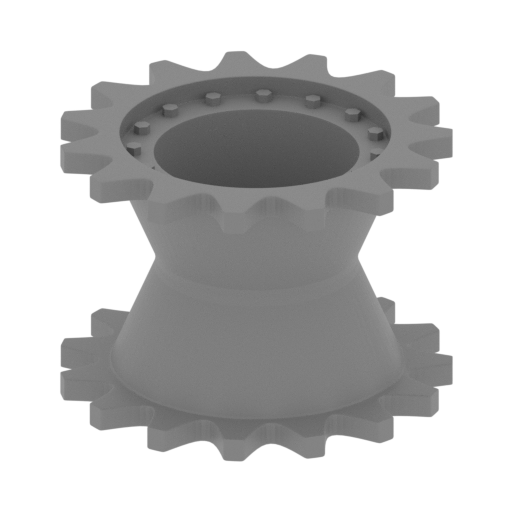

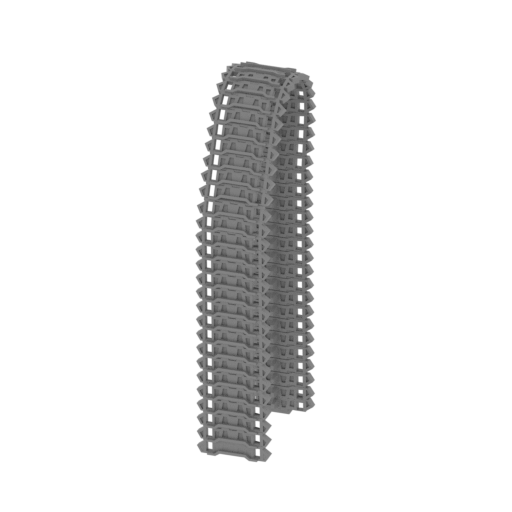

Merkava II 3D model consists of 46 parts. The parts are optimized to be printed on all types of 3D printers using little support material. After having printed and assembled the model, the battle tank’s turret will rotate at 360° and with a workable main gun. The caterpillars are modeled and optimized to be printed in resin and the wheels will be movable.

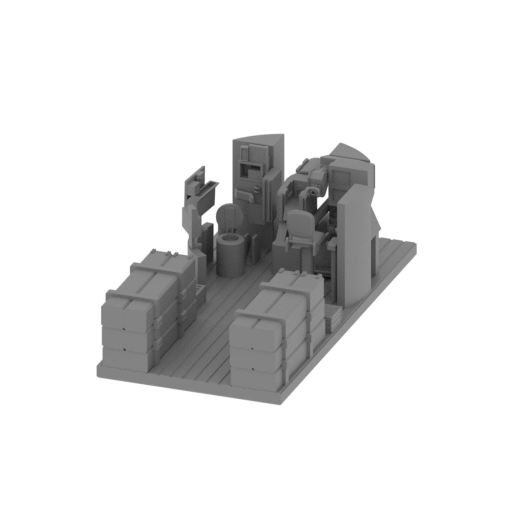

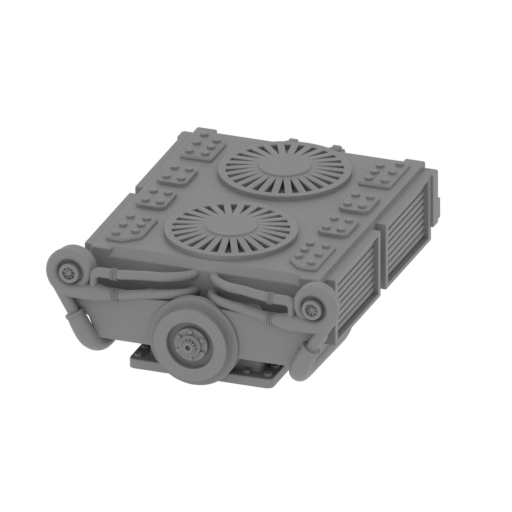

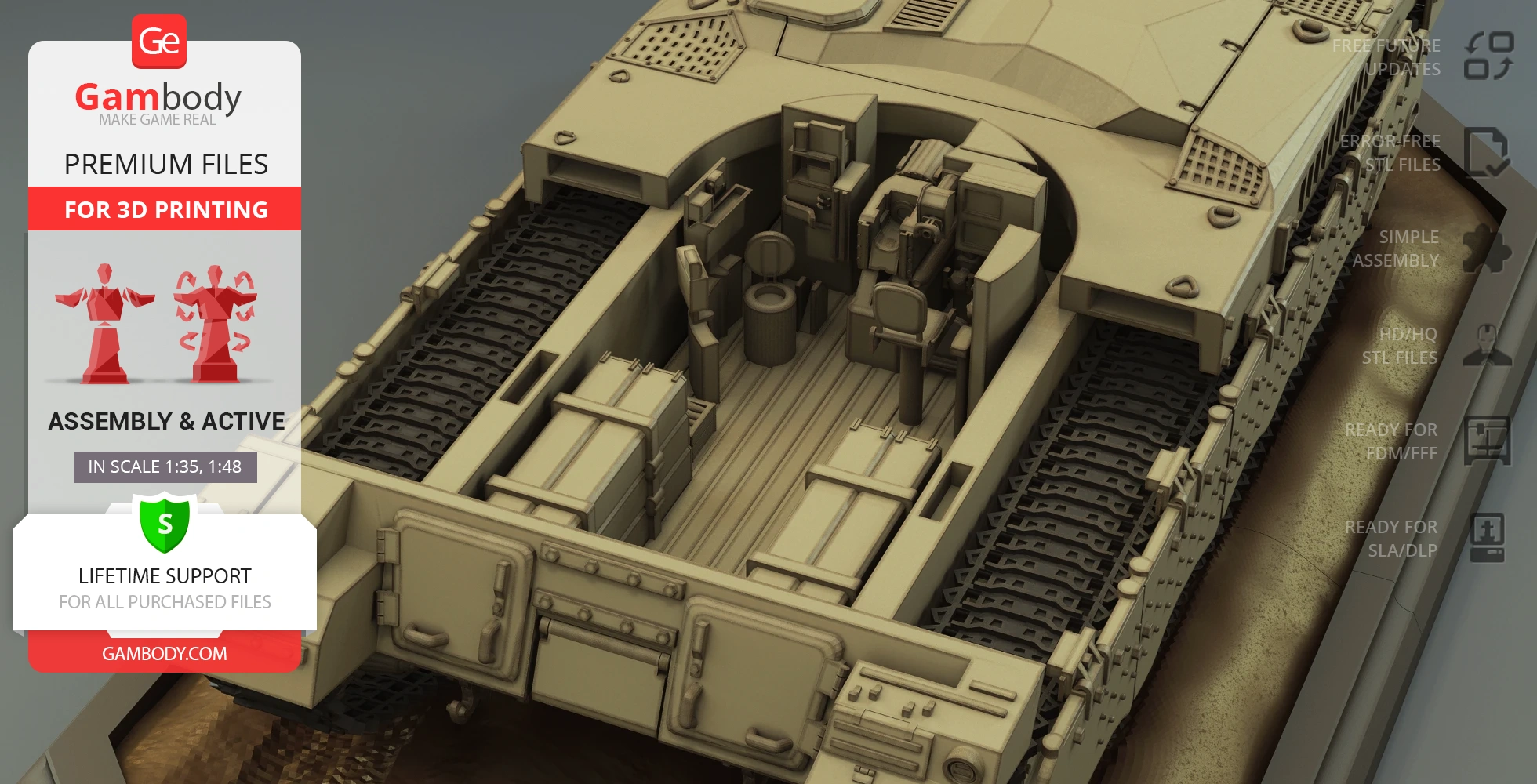

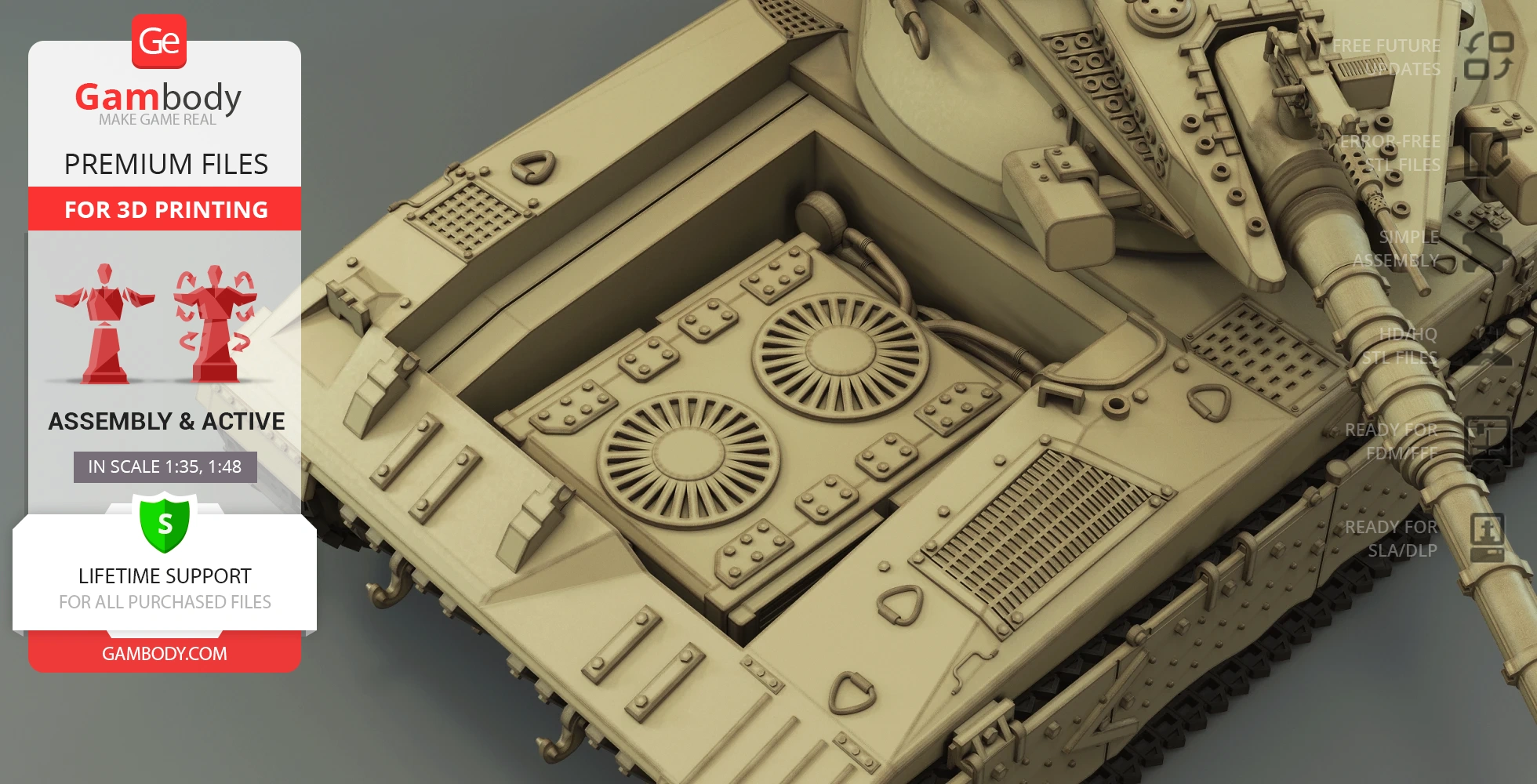

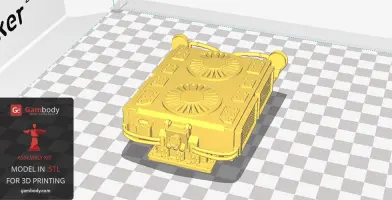

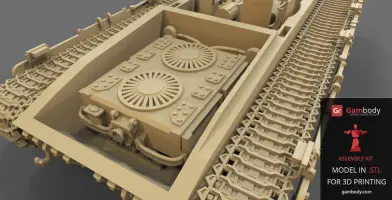

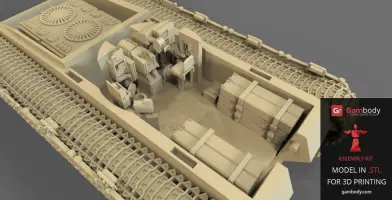

Merkava mk2 interior layout consists of the engine’s compartment that is located at the front, the driver’s compartment in the middle and the ammunition storage compartment at the rear of the tank.

After assembly, your model will be 158mm wide, 167mm tall, and 345mm deep. All parts are modeled in such a way as to fit onto 18x19cm print bed.

All Merkava mk2 STL files of the model underwent thorough checking and repair in Netfabb. The STL files have been produced in Cura15.06 and Repetier Host software.

Download Merkava 3D with interior in STL files. Hit the green “Buy” button at the top of the page. Then proceed to checkout and enter your PayPal or credit card details. Download and print one of the most powerful armoured warfare tanks, the files in ZIP folder.

________________________

On 27.12.2016 the model files have been optimized and made solid. They now are adapted to be 3D printed using any slicing program. 3D model files are already available for purchase and download.

Generic

This model was tested in cura 15.06. To avoid printing problems, we recommend:

Quality:

  • Layer height - 0.1mm
  • Initial layer thickness - 0.3mm
  • Bottom/top pattern - lines
  • Horizontal expansion - 0.04mm (when entering 0.04mm index, the 3D printer perceives the model as monolith, i.e. as having no hidden layers).

Check this **Simplify3D User Guidelines to avoid any 3D printing problems with this software.
**On 27.12.2016, the 3D model files have been optimized. You can print them without following these Simplify3D guidelines, as the model is solid.

As a STL file provider, our goal is to ensure that the files are error-free and printable in the most accurate way. This is why, we only test print the most difficult segments of the model’s parts.

The model’s parts have been tested and printed in PLA. In case you need advice where to get your filaments from, check our partner's website.

Speed setups:

  • Infill speed - 50mm/s
  • Outer shell speed - 30mm/s
  • Inner shell speed - 20mm/s
  • Top/Bottom speed - 20mm/s
  • Support speed - 50mm/s
  • Travel speed - 150mm/s
  • Skirt speed - 30mm/s
  • Amount of slower layers - 4

Infill:

  • Infill Pattern - Grid
  • Line distance - 1.5mm
  • Infill Overlap - 20%
  • Infill Layers - 0

Support

  • Enable Support - check
  • Placement - Everywhere
  • Overhang angle - 30°
  • X/Y Distance - 0.7mm
  • Top Distance - 0.2mm
  • Bottom Distance - 0.2mm
  • Stair Step Height - 0.5mm
  • Join Distance - 0.7mm
  • Area Smoothing - 0.6mm
  • Use towers - check
  • Pattern - Lines
  • Line distance - 1.5mm

Platform Adhesion

  • Type - Brim
  • Brim Line Count -12 (up to 20, depending on the model’s height)

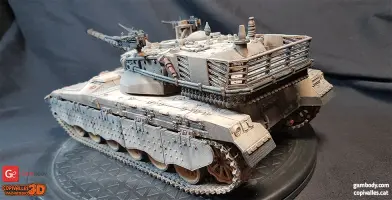

The model’s parts have been test printed in PLA

Recommendations

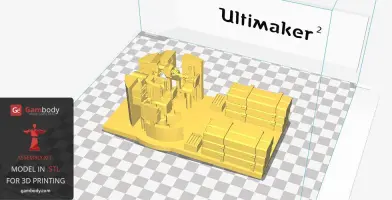

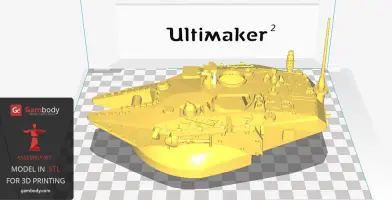

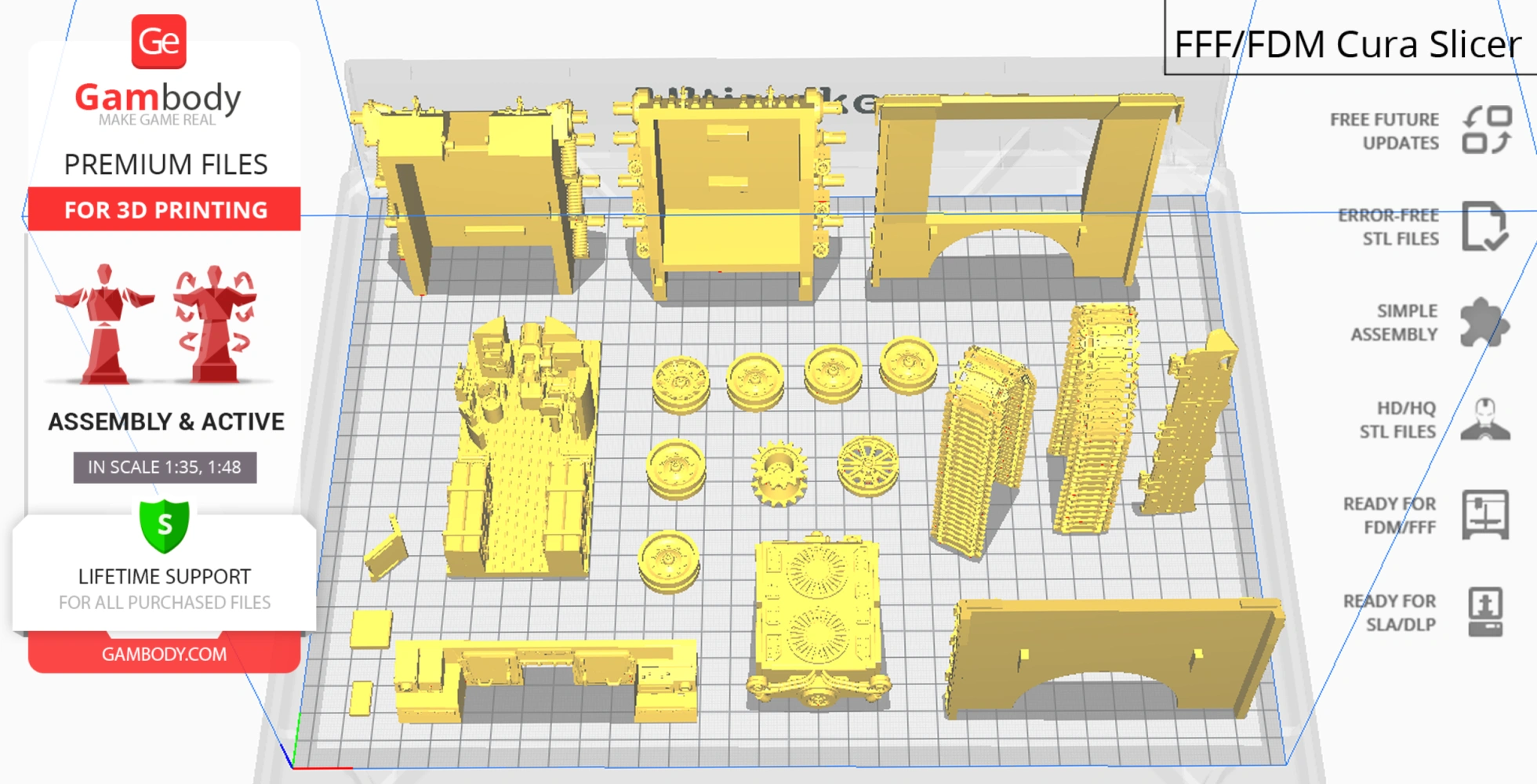

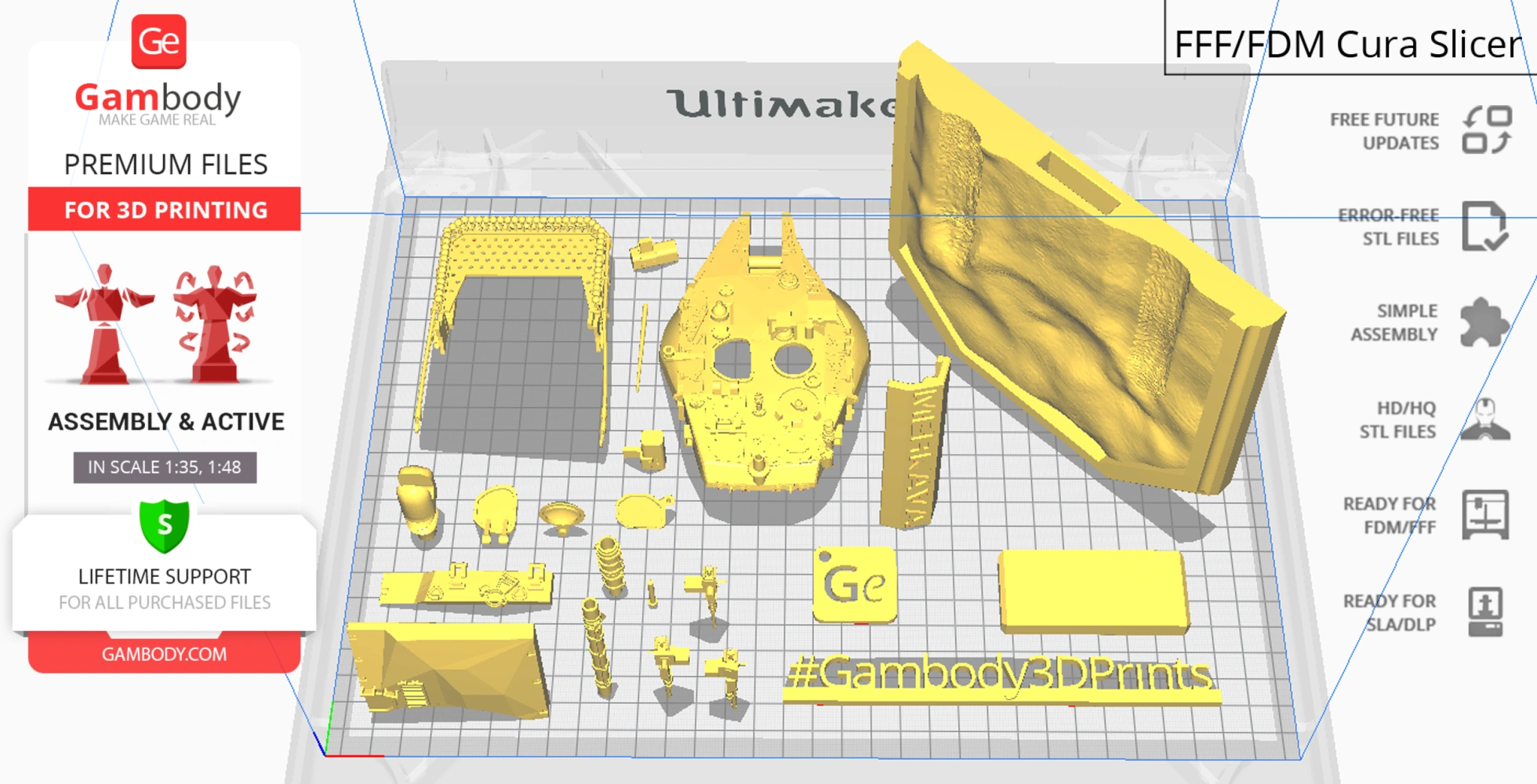

All parts will arrange on the print bed in such a way as to get a clean printing, the upper parts not needing support.

All basic settings by default
