Patrol Boat 31 Mk II STL files for 3D Printing | Assembly Model

(11)
cm: 13.5 w x 33.1 d x 17.9 h
in: 5.315 w x 13.031 d x 7.047 h

Source Files

|

Description

|

Printing Details

This 3D model of Patrol Boat 31 Mk II consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

  • 3 versions of Patrol Boat 31 Mk II STL files for FFF/FDM and DLP/SLA 3D printers — files for all versions are available for download after the purchase;

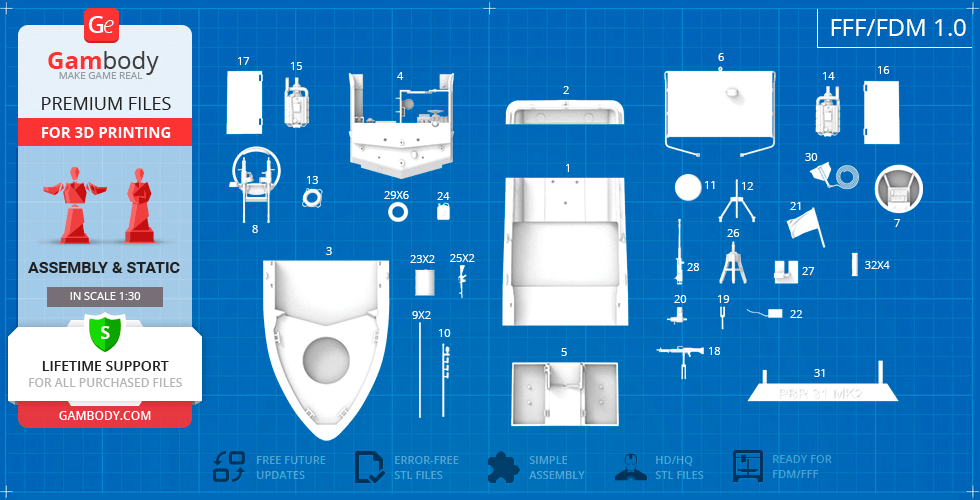

  • STL files of high-poly Patrol Boat 31 Mk II model for 3D printing consist of 102 files;
  • Sizes for:
  • FFF/FDM: 179 mm tall, 135 mm wide, 331 mm deep;
  • DLP/SLA: 90 mm tall, 68 mm wide, 166 mm deep;
  • Assembly Manual for 1.1 FFF/FDM and 1.1 DLP/SLA versions in PDF and video formats;

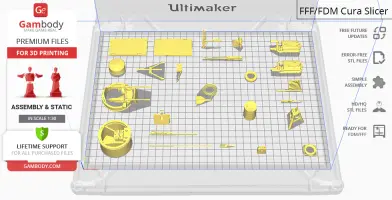

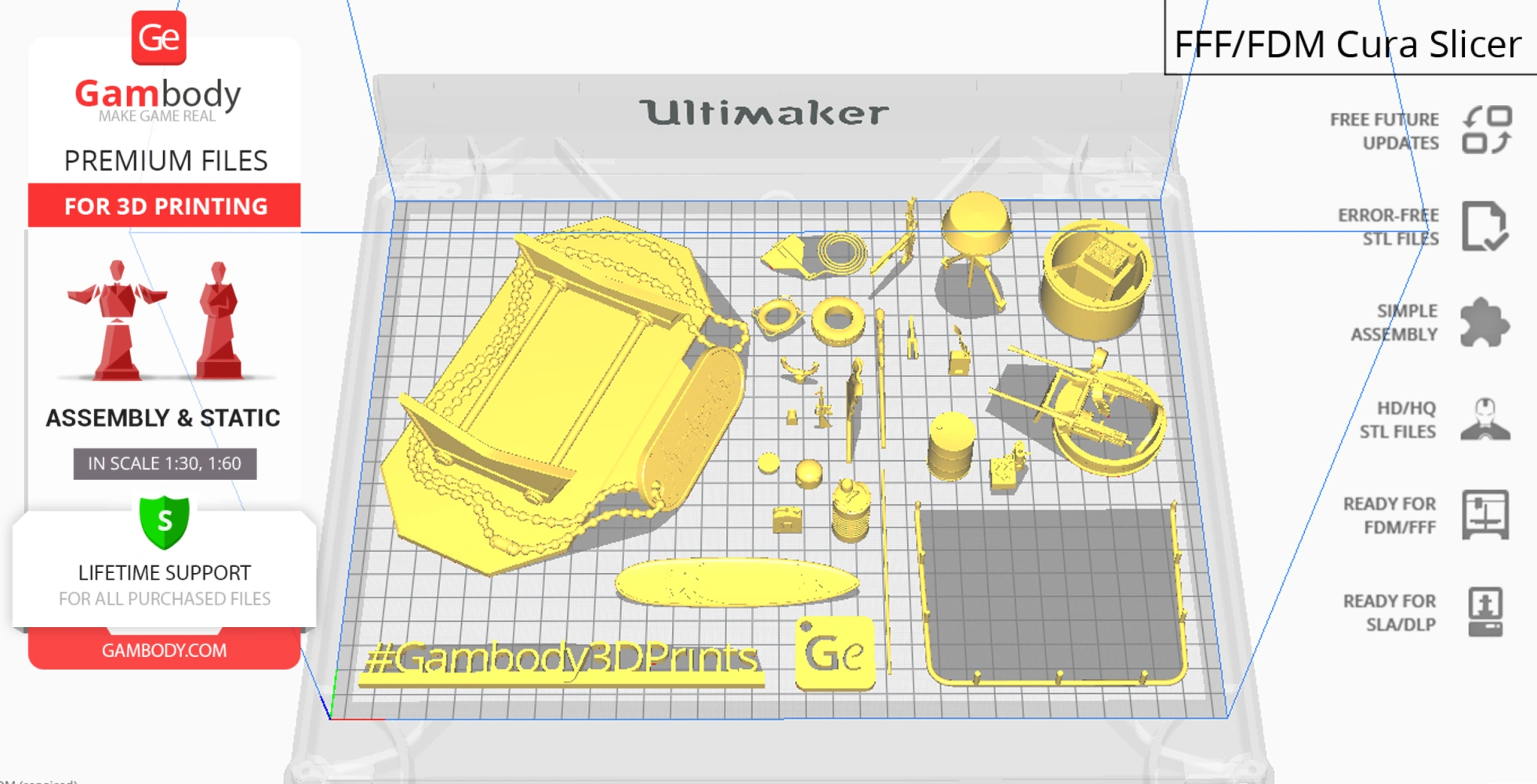

  • Detailed settings that we provide as a recommendation for Cura, Bambu Studio, Simplify3D, Slic3r and PrusaSlicer for the best print;
  • Full technical support from the Gambody Support Team.

Detailed information about these 3D printer files is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)
p_1_Pibber_center_hull (r epaired).stl
5.58 MiB 28 h 24 min 18 m 57 x 115 x 135 Download
p_2_Pibber_stern (repaire d).stl
7.27 MiB 6 h 51 min 4 m 55 x 109 x 22 Download
p_3_Pibber_bow (repaired) .stl
4.00 MiB 31 h 3 min 21 m 58 x 116 x 165 Download
p_4_Pibber_Cockpit (repai red).stl
17.86 MiB 17 h 22 min 10 m 97 x 97 x 64 Download
p_5_Pibber_engine_comp (r epaired).stl
0.94 MiB 6 h 42 min 4 m 58 x 98 x 52 Download
p_6_Pibber_tent (repaired ).stl
12.31 MiB 6 h 10 min 4 m 62 x 102 x 83 Download
p_7_Pibber_turret2 (repai red).stl
7.52 MiB 3 h 7 min 2 m 44 x 44 x 28 Download
p_8_Pibber_turret1 (repai red).stl
7.90 MiB 2 h 26 min 1 m 70 x 47 x 19 Download
p_9_Pibber_antenna (repai red).stl
0.20 MiB 4 min <1 m 88 x 1 x 1 Download
p_10_Pibber_mast (repaire d).stl
2.53 MiB 10 min <1 m 67 x 4 x 7 Download
p_11_Pibber_radar_dome (r epaired).stl
0.60 MiB 43 min <1 m 25 x 25 x 17 Download
p_12_Pibber_radar_mast (r epaired).stl
0.54 MiB 13 min <1 m 42 x 34 x 6 Download
p_13_Pibber_lifebouy (rep aired).stl
3.42 MiB 10 min <1 m 19 x 18 x 4 Download
p_14_Pibber_engine_L (rep aired).stl
2.66 MiB 1 h 28 min 1 m 46 x 22 x 16 Download
p_15_Pibber_engine_R (rep aired).stl
2.63 MiB 1 h 28 min 1 m 46 x 22 x 16 Download
p_16_Pibber_cover_left (r epaired).stl
0.09 MiB 48 min <1 m 58 x 33 x 2 Download
p_17_Pibber_cover_r (repa ired).stl
0.09 MiB 48 min <1 m 58 x 33 x 2 Download
p_18_Pibber_m60 (repaired ).stl
2.21 MiB 33 min <1 m 5 x 30 x 43 Download
p_19_Pibber_mk18mount (re paired).stl
0.17 MiB 2 min <1 m 21 x 4 x 2 Download
p_20_Pibber_mk18 (repaire d).stl
6.74 MiB 20 min <1 m 16 x 18 x 16 Download
p_21_Pibber_flag (repaire d).stl
1.43 MiB 26 min <1 m 38 x 4 x 28 Download
p_22_Pibber_m60_ammobox ( repaired).stl
0.09 MiB 7 min <1 m 8 x 33 x 4 Download
p_23_Pibber_barrel (repai red).stl
0.67 MiB 30 min <1 m 18 x 18 x 24 Download

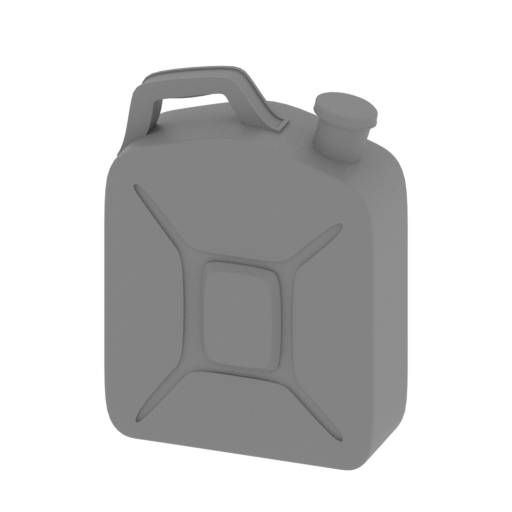

p_24_Pibber_canister (rep aired).stl
0.94 MiB 13 min <1 m 12 x 5 x 16 Download
p_25_Pibber_rifle (repair ed).stl
4.55 MiB 7 min <1 m 30 x 2 x 7 Download
p_26_Pibber_Rear_gun_trip od (repaired).stl
0.81 MiB 38 min <1 m 23 x 25 x 38 Download
p_27_Pibber_Rear_gun_shie ld (repaired).stl
1.68 MiB 26 min <1 m 19 x 22 x 21 Download
p_28_Pibber_Rear_gun_MG ( repaired).stl
4.97 MiB 16 min <1 m 60 x 8 x 9 Download
p_29_Pibber_wheel (repair ed).stl
0.09 MiB 8 min <1 m 18 x 18 x 5 Download
p_30_Pibber_ancor (repair ed).stl
4.08 MiB 10 min <1 m 32 x 39 x 4 Download
p_31_Stand (repaired).stl
2.29 MiB 6 h 9 min 3 m 138 x 117 x 37 Download
p_32_Connector_x4 (repair ed).stl
0.04 MiB 8 min <1 m 21 x 6 x 6 Download
p_33_optional_ancor_witho ut_plastic_rope (repaired ).stl
0.88 MiB 8 min <1 m 4 x 19 x 23 Download
p_1_hollow_Pibber_center_ hull_v2 (repaired).stl
8.43 MiB 30 h 36 min 18 m 57 x 115 x 135 Download
p_3_hollow_Pibber_bow_v2 (repaired).stl
7.47 MiB 33 h 46 min 22 m 58 x 116 x 165 Download
...

ABOUT THIS 3D MODEL

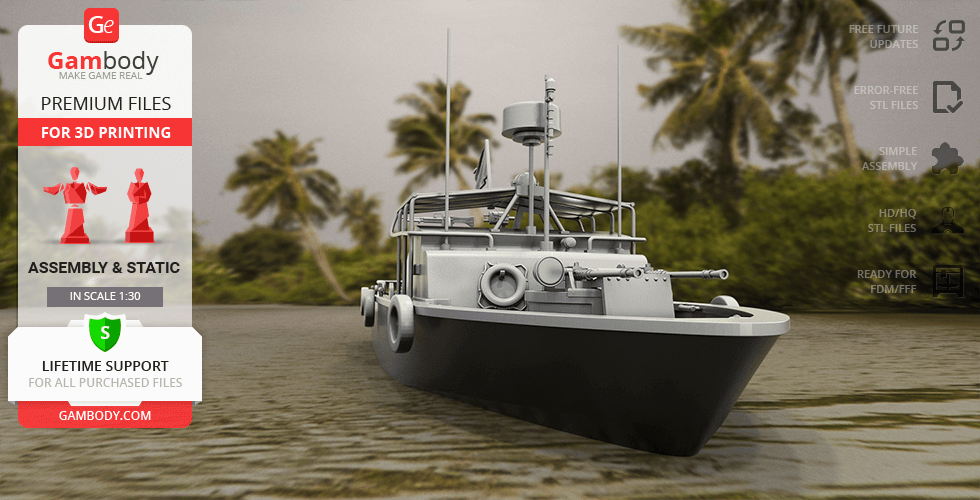

Patrol Boat 31 Mk II, also known as PBR or Riverine, is a versatile US “Brown Water” Navy patrol boat that was widely deployed in the Vietnam War from 1966 through 1971. The speedy waterborne patrol vessel is known to have played a crucial role not only in patrolling the massive waterways to prevent weapon shipment but also engaged in forces’ transportation and firefights with land-based units. PBR is well-known and loved among the model kits enthusiasts and appears in the horror Apocalypse Now where it becomes a symbol of the characters' isolation and moral confusion.

The author of the Apocalypse Now boat for 3D printing was inspired by the Mark II version of the US rigid-hulled war boat shown in the horror movie and came up with an incredible 3D printing project to rejoice hobbyists all around the world. With so much history around it, a model of PBR31 Mk II can become a unique item in any collection of 3D-printed models.

ADAPTATION FOR 3D PRINTING

Patrol Boat 31 Mk 2 3D printing design is a static assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 94 hours in total.

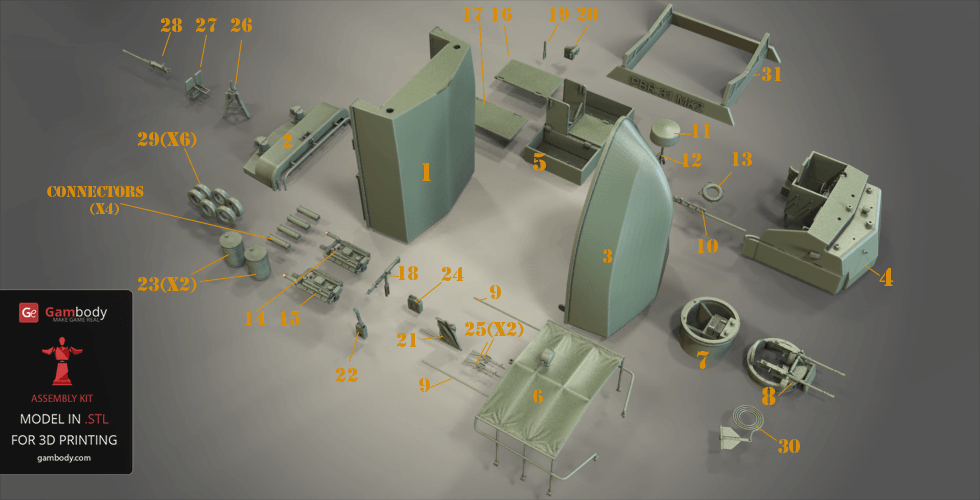

For you to receive the cleanest 3D printing result possible, minimize the amount of filament needed for generated support, and make use of the active elements designed by Gambody Engineers, the boat was divided into convenient assembly parts.

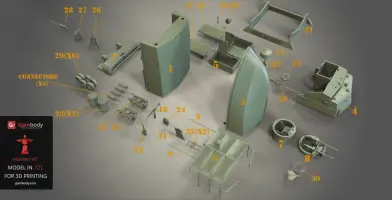

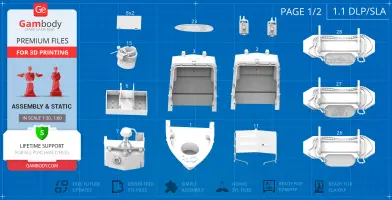

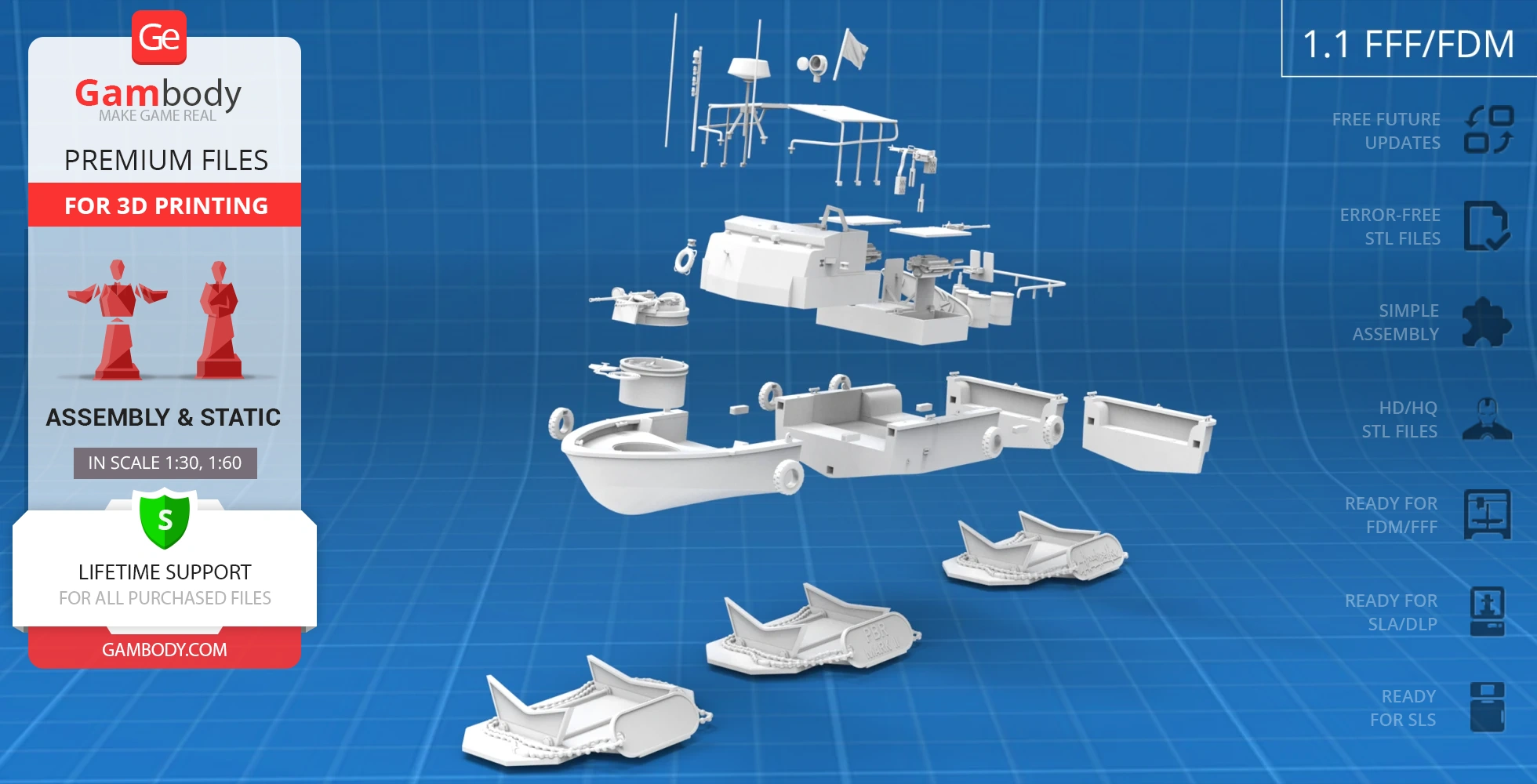

All assembly parts in the 1.1 FFF/FDM version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won’t face difficulties when placing the parts on a build plate. When downloading any model’s file you will also receive “Assembly Manual” for 1.1 FFF/FDM and 1.1 DLP/SLA versions in PDF and video formats. We highly recommend that you get acquainted with the “Assembly Video” and “Assembly Manual” before getting down to the Patrol Boat 31 Mk 2 3D model.

The design is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

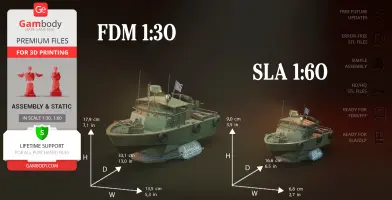

The 3D model’s scale was calculated from the length of the Patrol Boat 31 Mk 2 that is 9800 mm. The 3D printer design’s chosen scales are 1:30 for the FFF/FDM version, and 1:60 for the DLP/SLA version.

VERSIONS’ SPECIFICATIONS

FFF/FDM 1.1 version features:

  • Contains 41 parts;
  • A printed design is 179 mm tall, 135 mm wide, 331 mm deep;
  • Improved interior and exterior designs, enhanced level of detail;

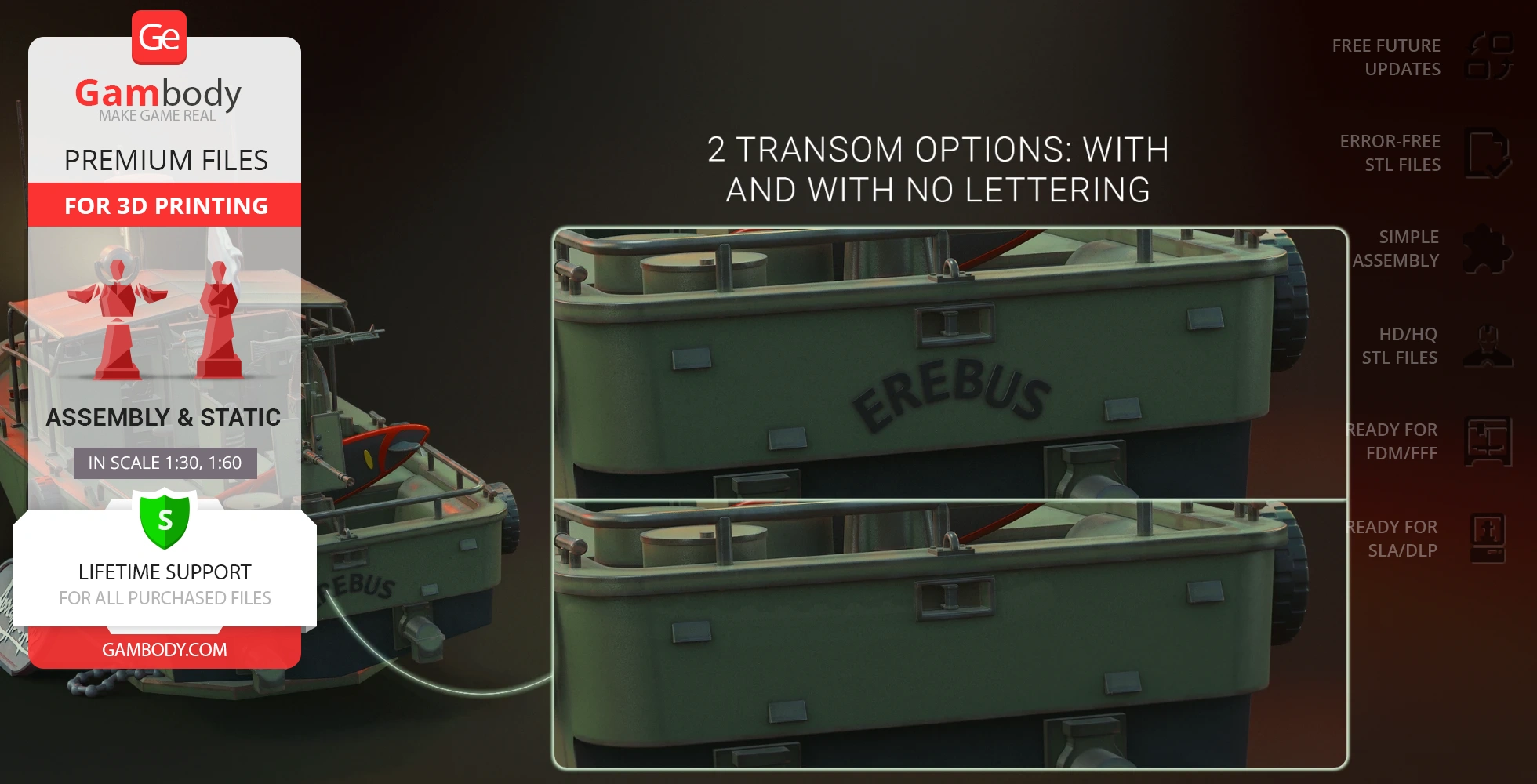

  • 3 stand variants: clean and with alternative lettering;

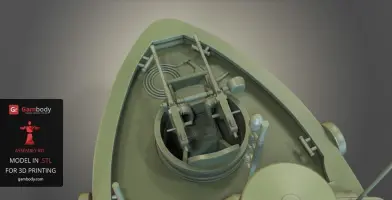

  • Rotating gun turret;
  • Opening hatches to access the battery;
  • All parts are divided in such a way that you will print them with the smallest number of support structures.

DLP/SLA 1.1 version features:

  • Contains 28 parts;
  • A printed design is 90 mm tall, 68 mm wide, 166 mm deep;
  • 3 stand variants: clean and with alternative lettering;
  • Rotating gun turret;
  • Opening hatches to access the battery;

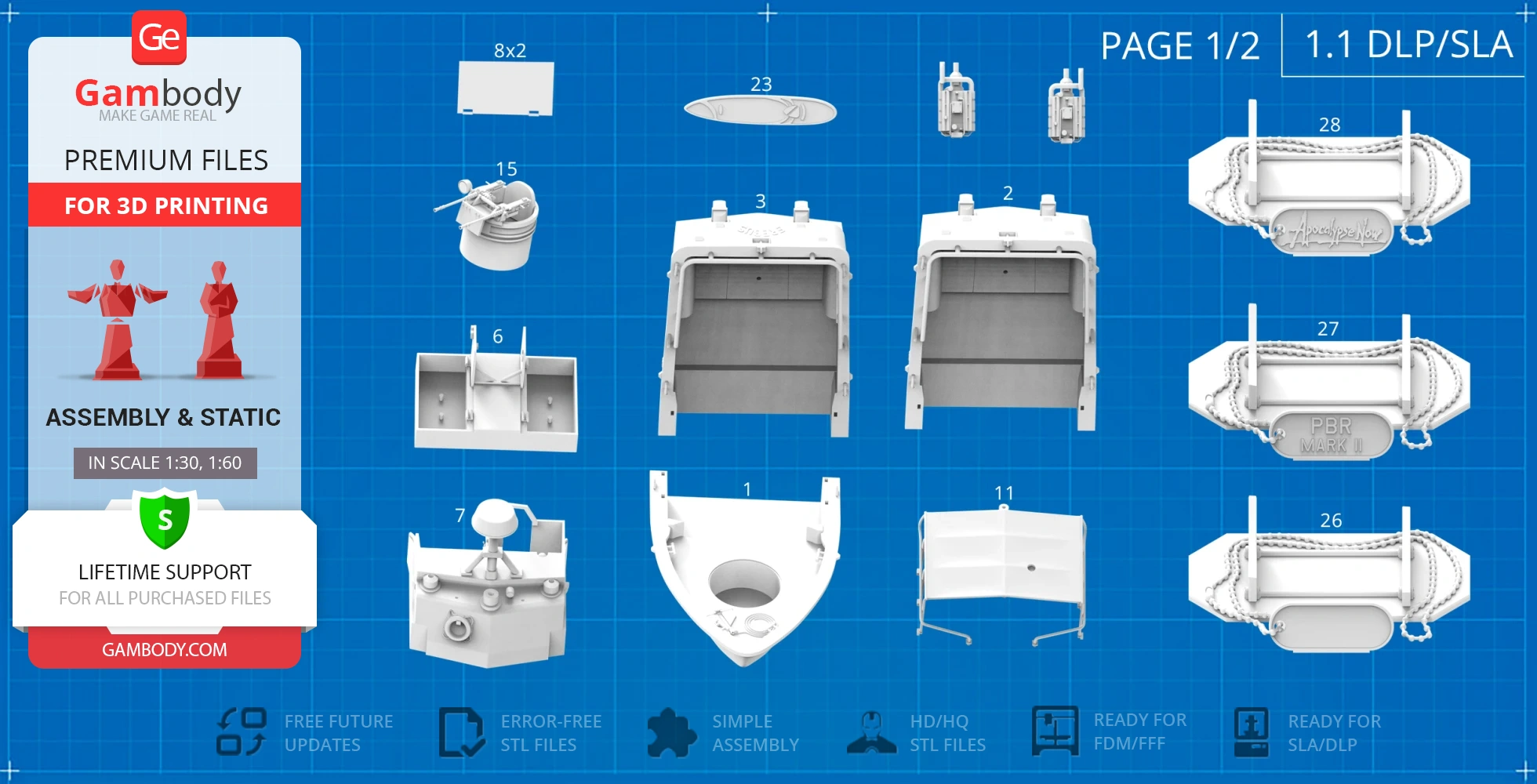

  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

FFF/FDM 1.0 version features:

  • Contains 33 parts;
  • A printed design is 178 mm tall, 126 mm wide, 327 mm deep;
  • Assembly kit includes connector p_32_Connector_x4 to attach the parts of the boat securely without glue that needs to be printed 4 times;
  • There are dock bumper tires (p_29_Pibber_wheel) that you can print as many time as you want and attach to bollards with any rope or cord
  • There are two variants of the anchor (with an without "rope") for you to display it either up or down;

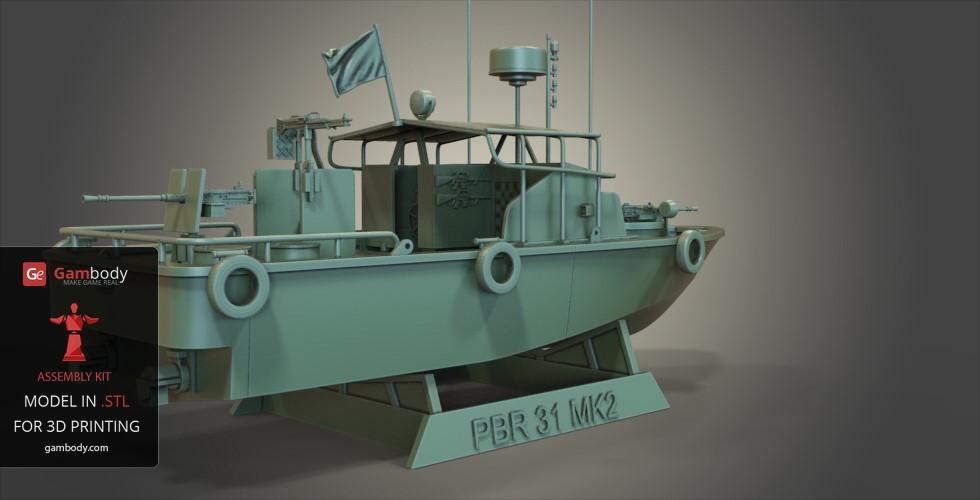

  • Comes with a special stand for you to conveniently display the riverboat;
  • All parts are divided in such a way that you will print them with the smallest number of support structures.

You can get the STL files of Patrol Boat 31 Mk 2 for 3D printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble the 3D printed Patrol Boat 31 Mk 2 from the provided 3D print files on Gambody YouTube channel.

Also, you may like other Watercraft 3D printer designs.
