Cherno Alpha 3D Printing Model | Assembly + Action

(9)
cm: 18.8 w x 18 d x 34.5 h
in: 7.402 w x 7.087 d x 13.583 h

Source Files

|

Description

|

Printing Details

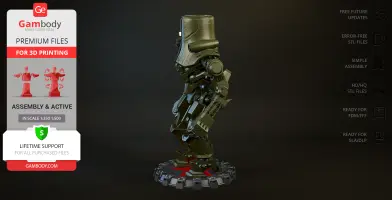

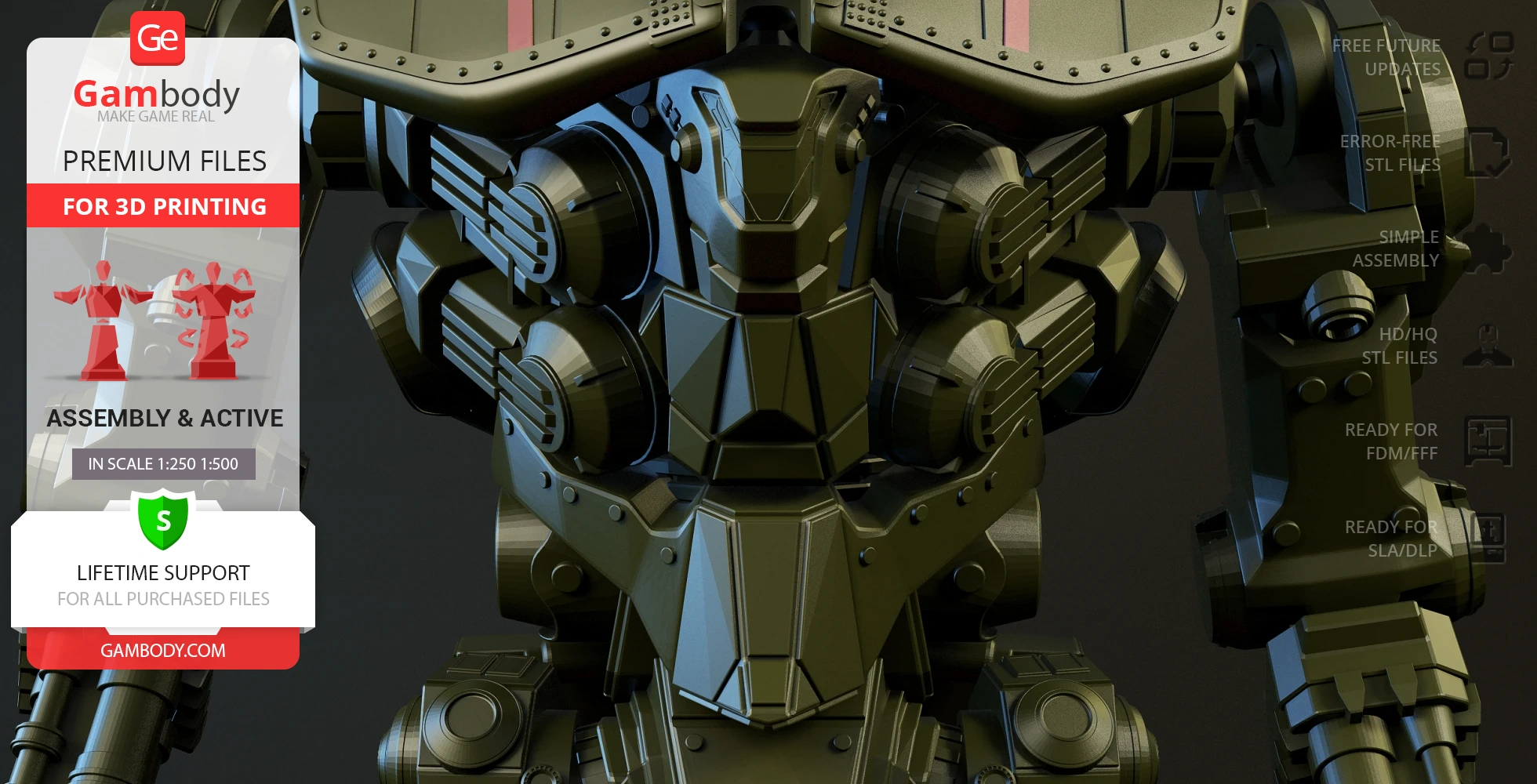

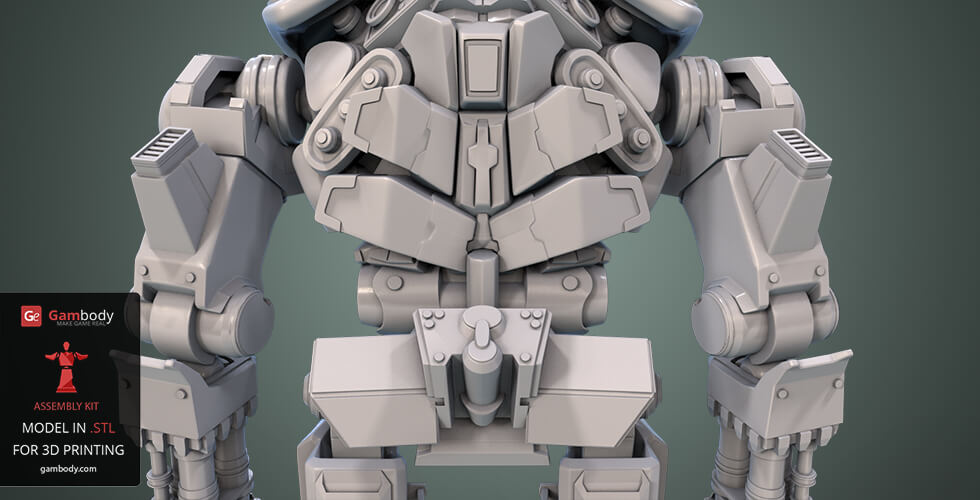

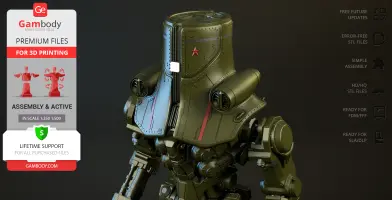

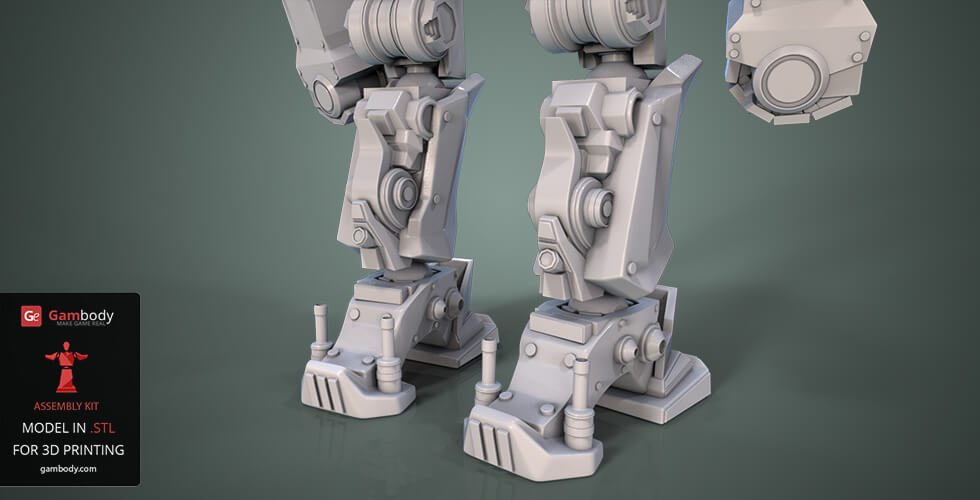

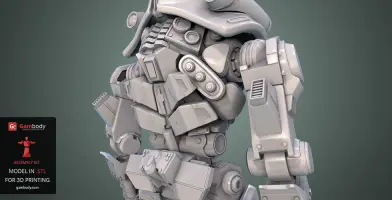

This 3D model of Cherno Alpha consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

  • 3 versions of Cherno Alpha STL files for FFF/FDM and DLP/SLA - files for all versions are available for download after the purchase;
  • STL files of high-poly Cherno Alpha Model for 3D printing consist of 67 files;
  • Sizes for:
  • FFF/FDM: 345 mm tall, 188 mm wide, 180 mm deep;
  • DLP/SLA: 173 mm tall, 94 mm wide, 90 mm deep;
  • Assembly Manual for FFF/FDM 2.0 and DLP/SLA 2.0 versions in PDF and video formats;
  • Detailed settings that we provide as a recommendation for Cura, Bambu Studio, Simplify3D, Slic3r and PrusaSlicer for the best print;
  • Full technical support from the Gambody Support Team.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)
1 (repaired).stl
3.93 MiB 14 h 37 min 10 m 87 x 67 x 75 Download
3 (repaired).stl
0.86 MiB 1 h 25 min 1 m 18 x 47 x 18 Download
4 (repaired).stl
0.85 MiB 1 h 25 min 1 m 18 x 47 x 18 Download
5 (repaired).stl
12.20 MiB 3 h 53 min 2 m 26 x 38 x 75 Download
6 (repaired).stl
12.20 MiB 3 h 53 min 2 m 27 x 38 x 75 Download
7 (repaired).stl
8.78 MiB 3 h 18 min 2 m 28 x 47 x 56 Download
8 (repaired).stl
8.78 MiB 3 h 18 min 2 m 27 x 47 x 56 Download
9 (repaired).stl
4.90 MiB 2 h 29 min 1 m 34 x 66 x 24 Download
10 (repaired).stl
4.90 MiB 2 h 29 min 1 m 34 x 66 x 24 Download

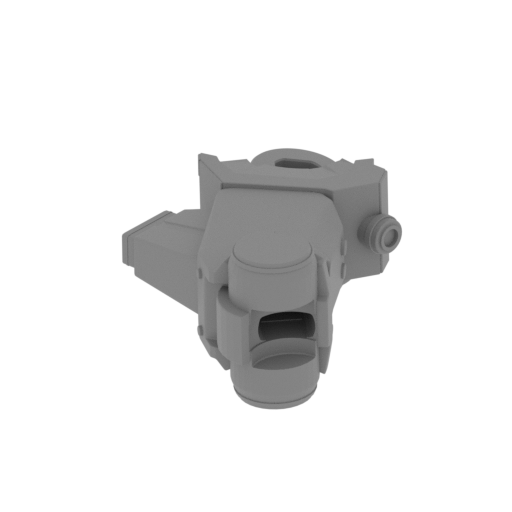

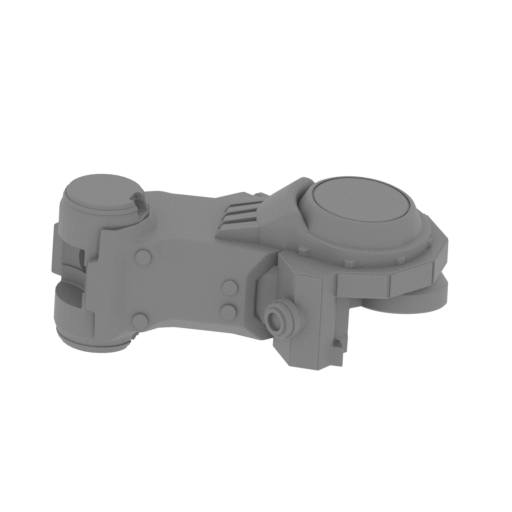

11 (repaired).stl
12.44 MiB 3 h 15 min 2 m 70 x 42 x 31 Download
12 (repaired).stl
12.45 MiB 3 h 14 min 2 m 70 x 42 x 31 Download
13 (repaired).stl
7.38 MiB 4 h 37 min 3 m 28 x 27 x 81 Download
14 (repaired).stl
7.38 MiB 4 h 34 min 3 m 29 x 28 x 81 Download
2 (repaired).stl
35.99 MiB 19 h 9 min 10 m 72 x 73 x 82 Download
...

ABOUT THIS 3D MODEL

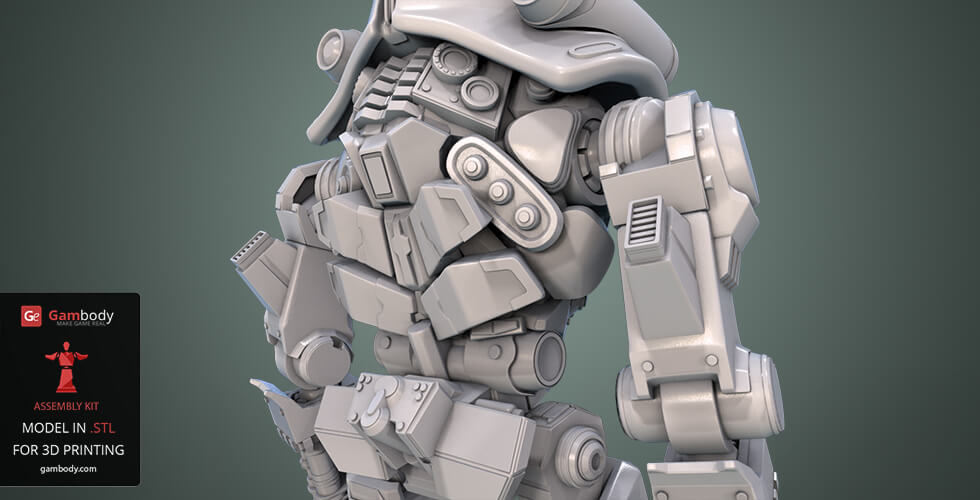

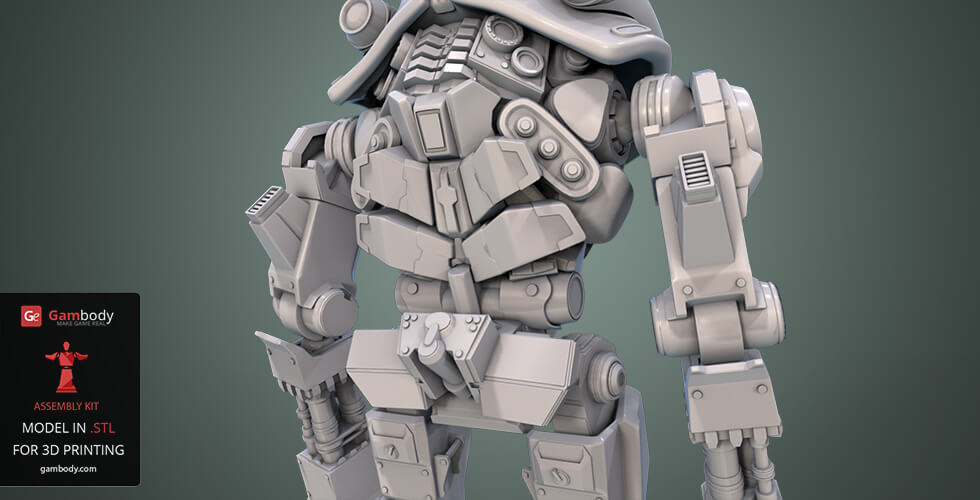

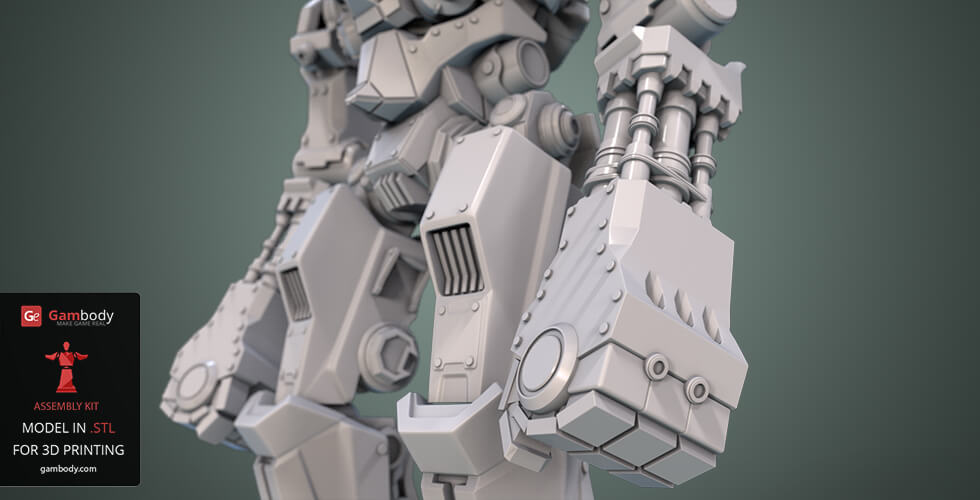

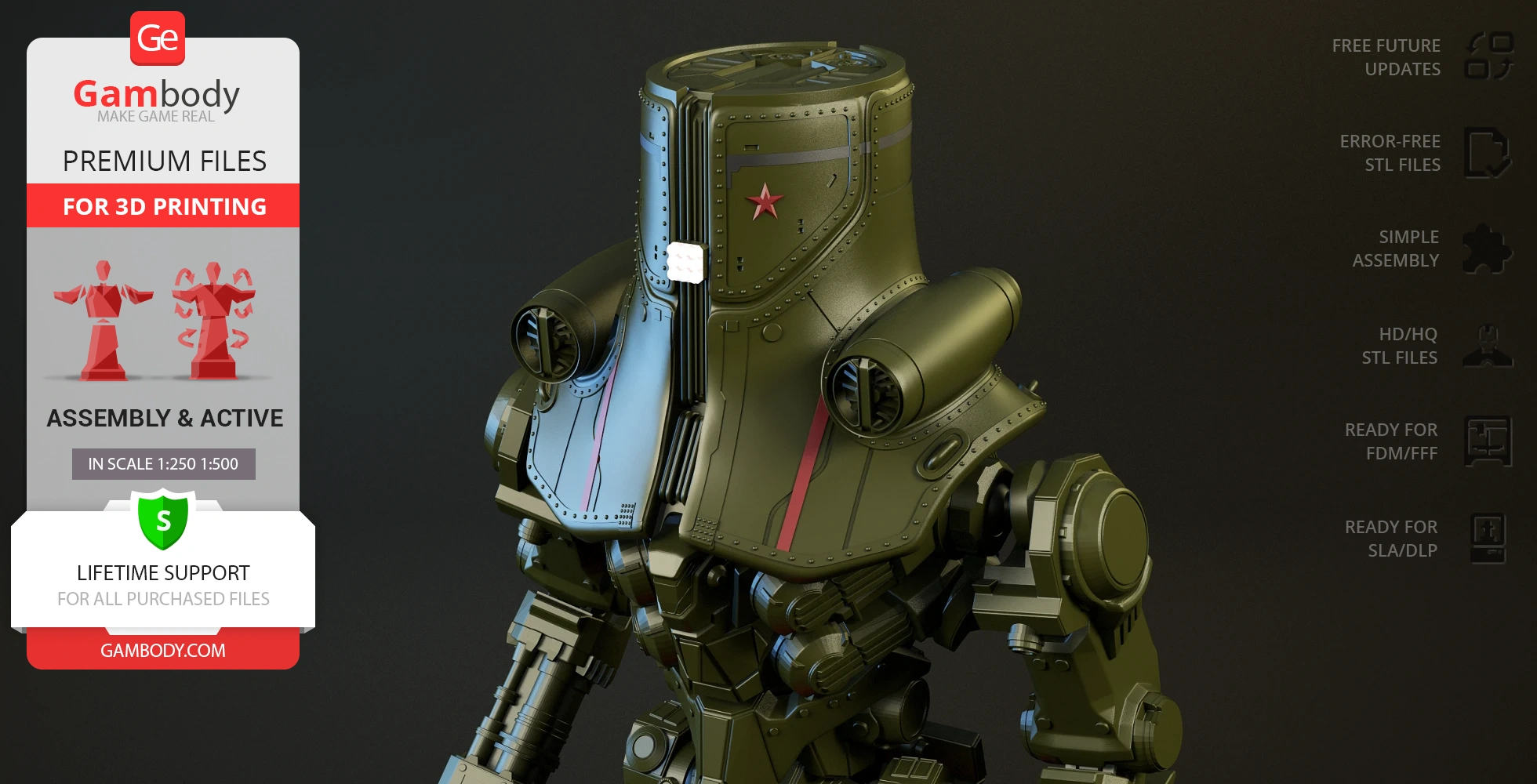

Cherno Alpha 3D model represents the Russian Jaeger that served as a defender along the coastline of Russia and the Siberian perimeter. Its service kept this territory out of any extraordinary incidents for six long years. Piloted by a couple, Sasha and Aleksis Kaidonovsky, Cherno Alpha is the oldest Jaeger still used in combat. Its story starts in 2015 when it is launched in service. By 2025, Cherno Alpha is the only survivor Jaeger active in war and serving the mission it was built in the first place.

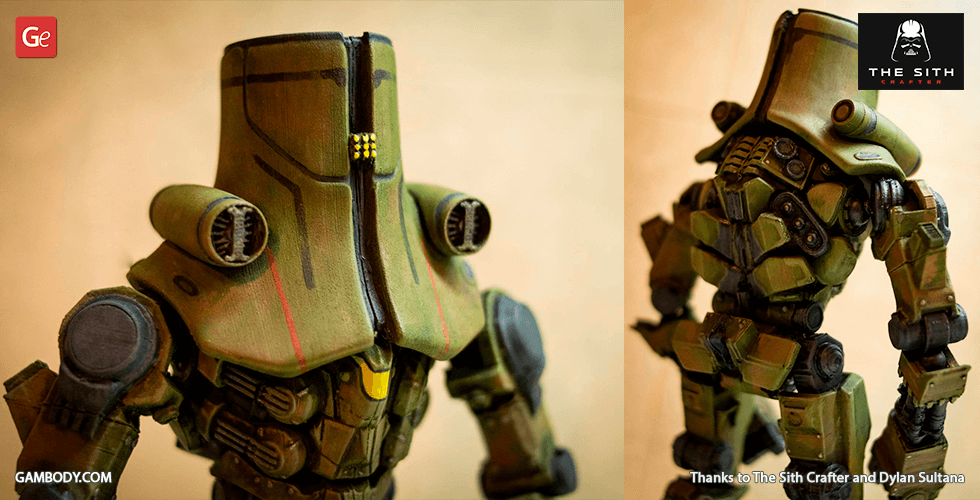

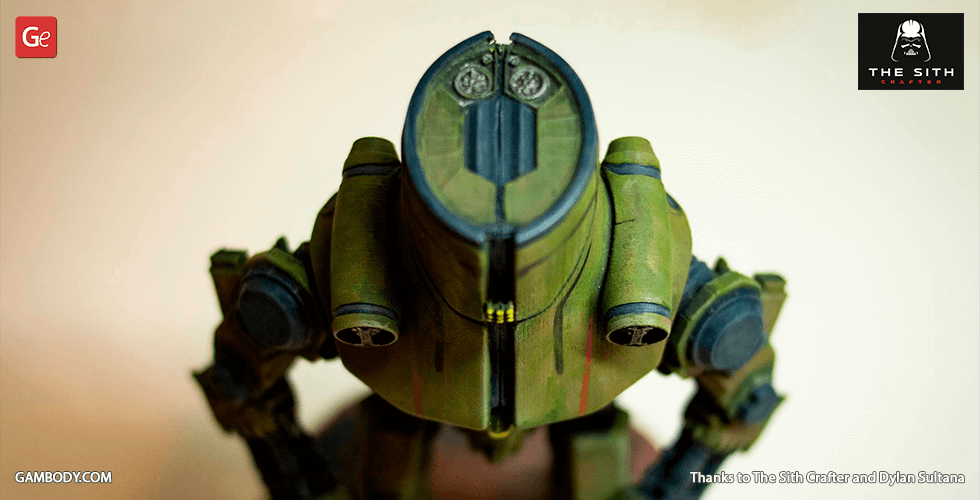

The 3D printing replica of Cherno Alpha Jaeger from the acclaimed movie will give you the opportunity to have this courageous fighter in the physical world.

ADAPTATION FOR 3D PRINTING

The Cherno Alpha model for 3D printing is an active assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 98 hours in total.

For you to receive the cleanest 3D printing result possible, minimize the amount of filament needed for generated support, and make use of the active elements designed by Gambody Engineers, the Jaeger was divided into convenient assembly parts.

All assembly parts in the FFF/FDM 2.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won’t face difficulties when placing the parts on a build plate. When downloading any model’s file you will also receive “Assembly Manual” for FFF/FDM 2.0 and DLP/SLA 2.0 versions in PDF and video formats. We highly recommend that you get acquainted with the “Assembly Video” and “Assembly Manual” before getting down to the Cherno Alpha 3D printing model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model’s scale was calculated from the height of the Jaeger. The 3D printing model’s chosen scales are 1:250 for the FFF/FDM version and 1:500 for the DLP/SLA version.

VERSIONS’ SPECIFICATIONS

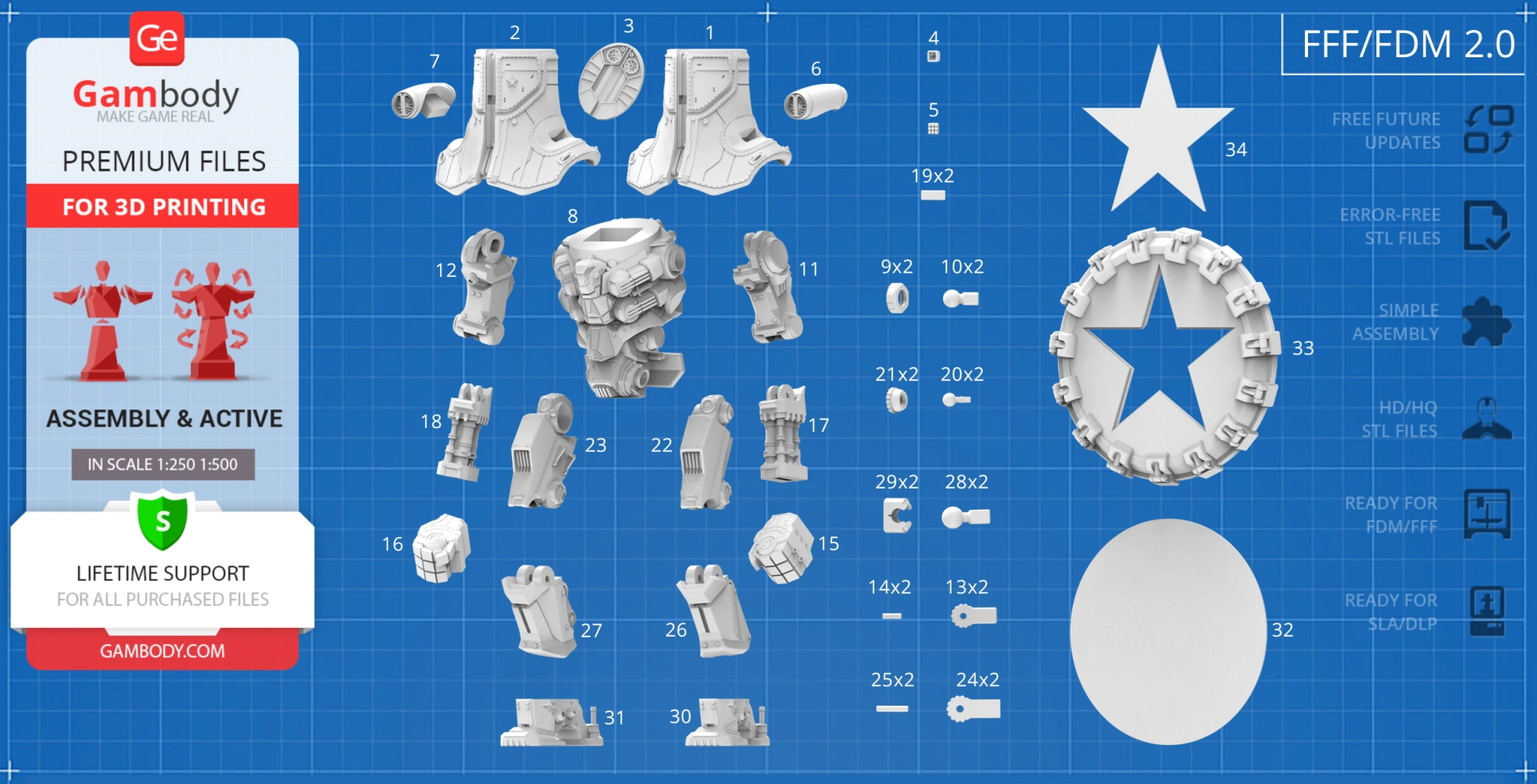

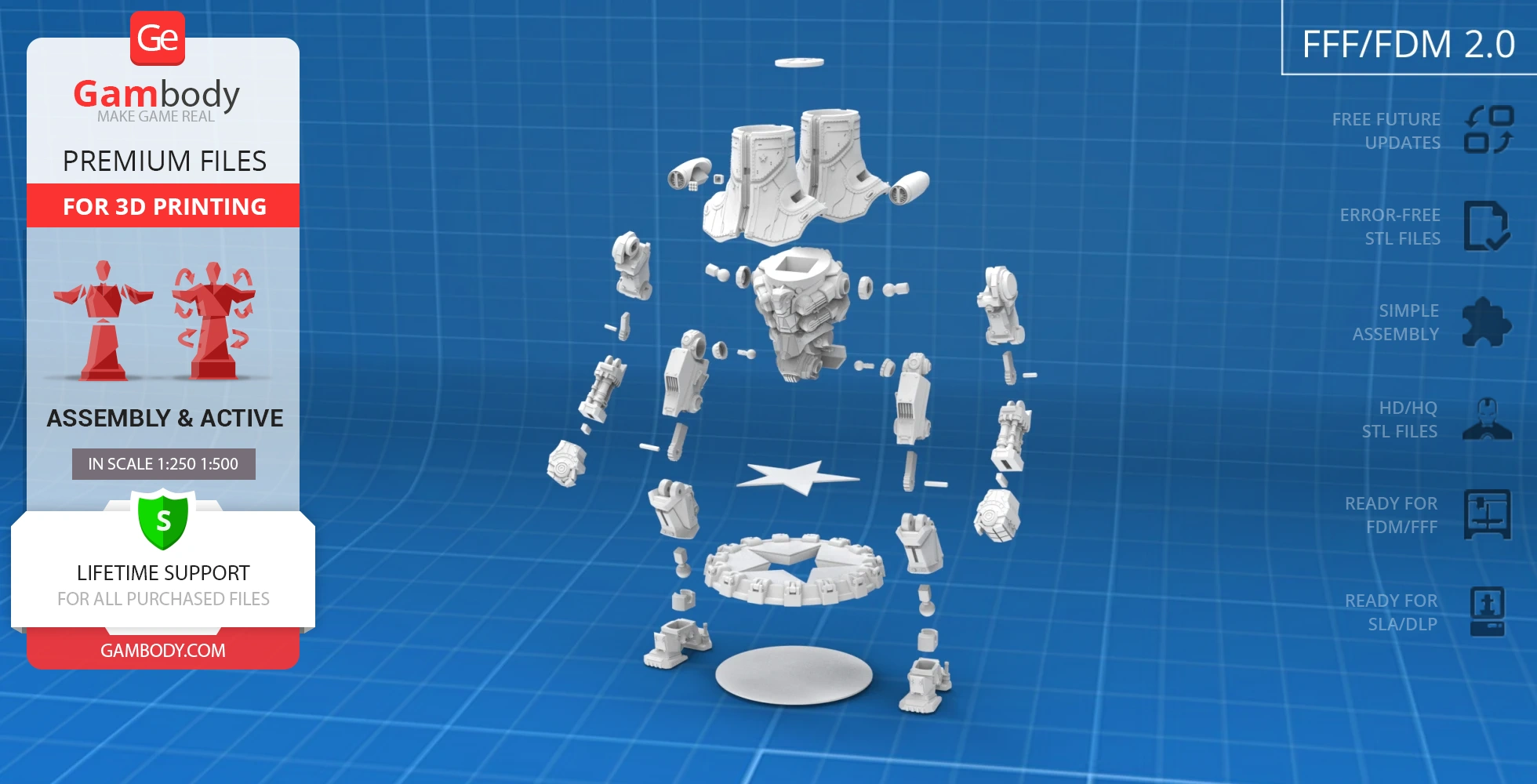

FFF/FDM 2.0 version features:

  • Contains 34 parts;
  • A printed model is 345 mm tall, 188 mm wide, 180 mm deep;

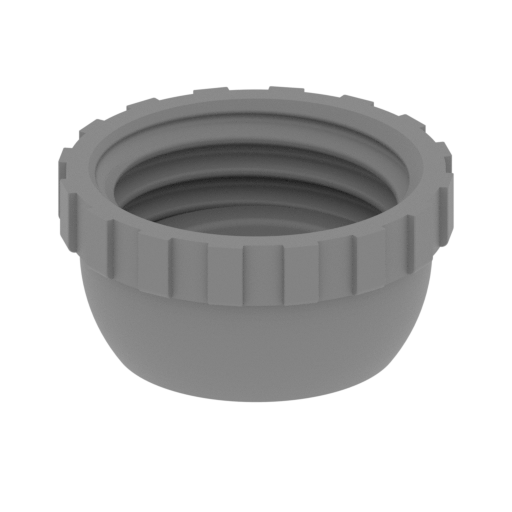

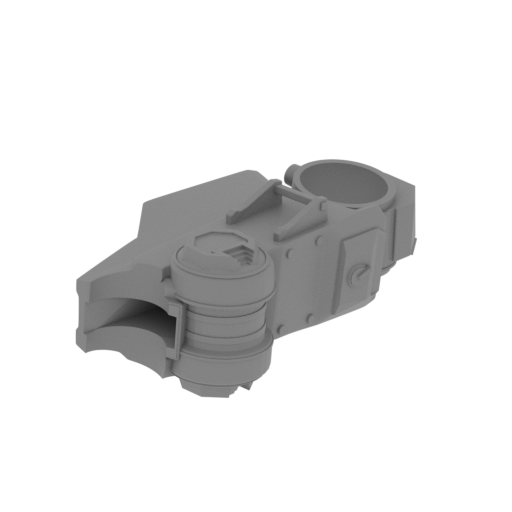

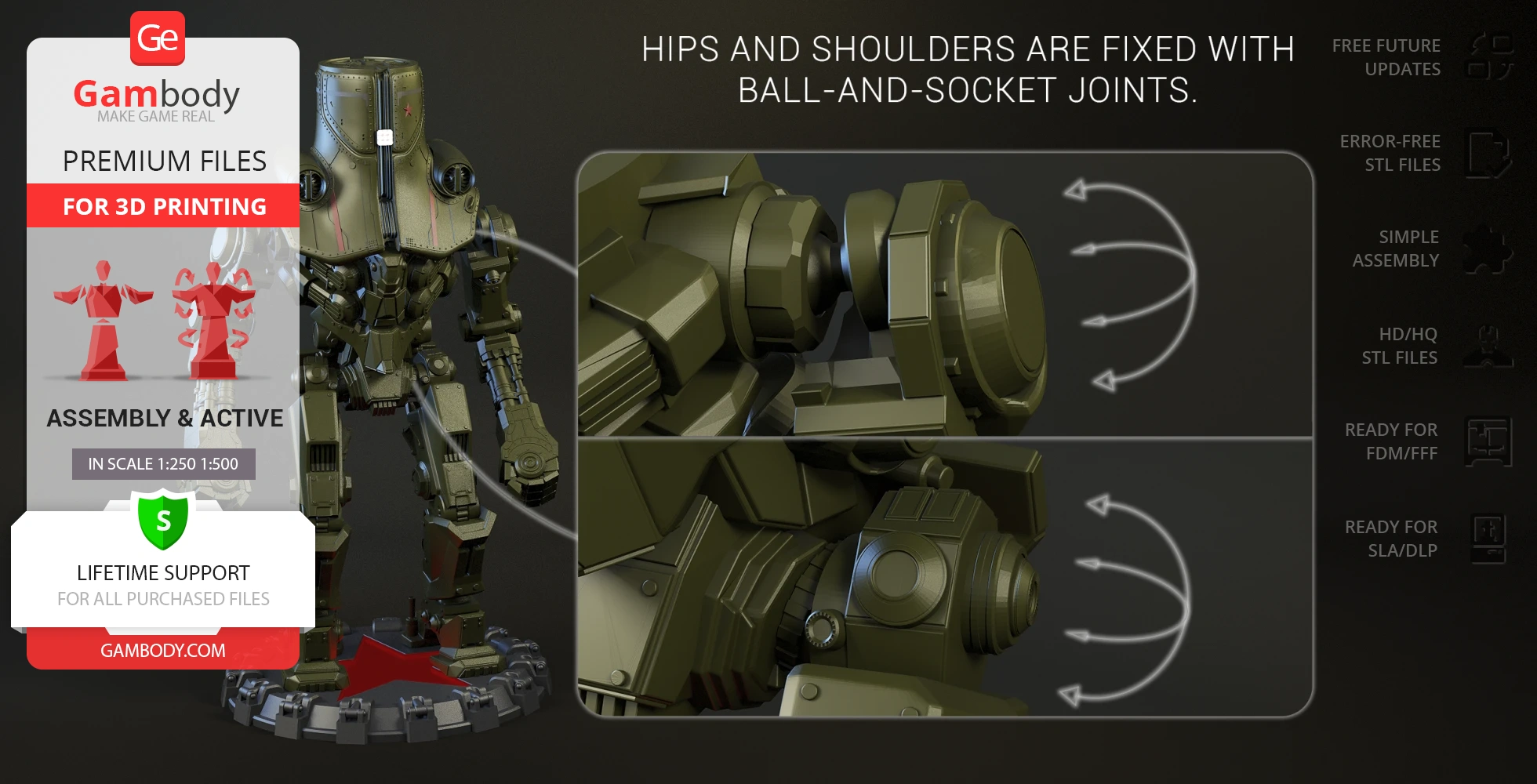

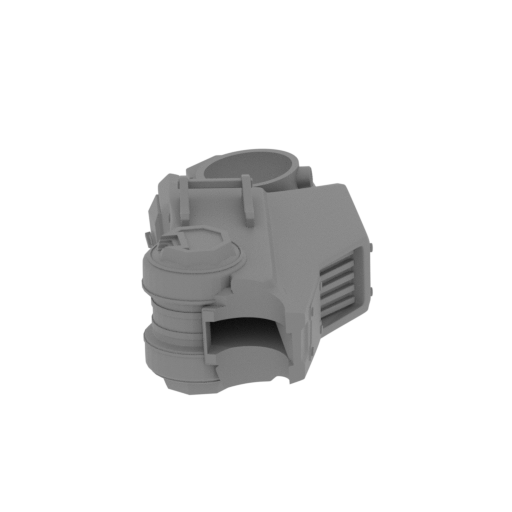

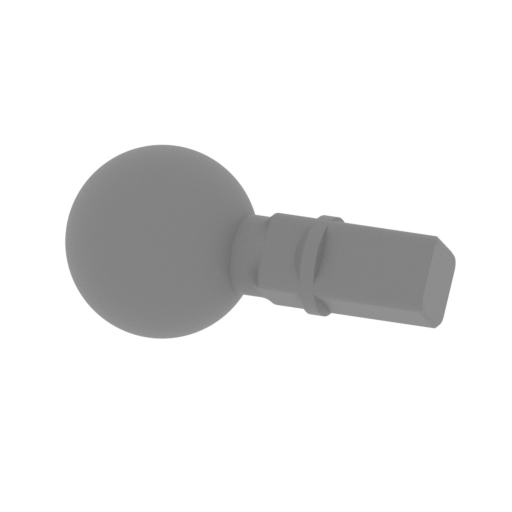

  • Hips and shoulders are fixed with ball-and-socket joints;

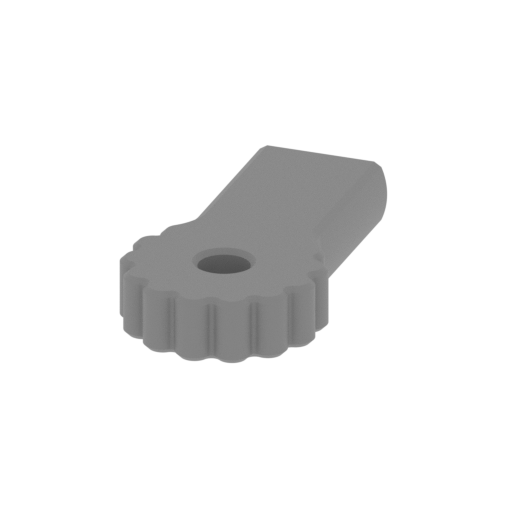

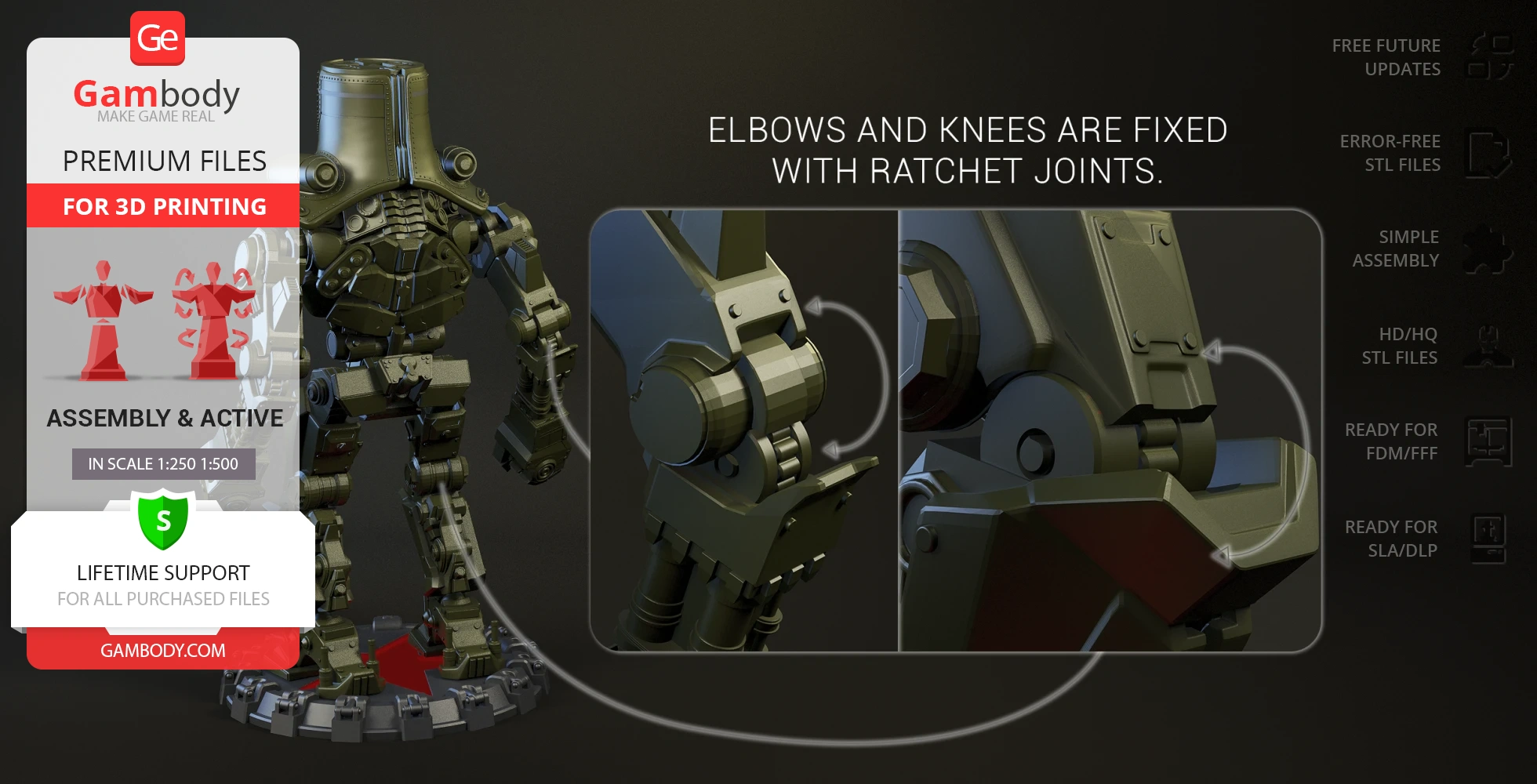

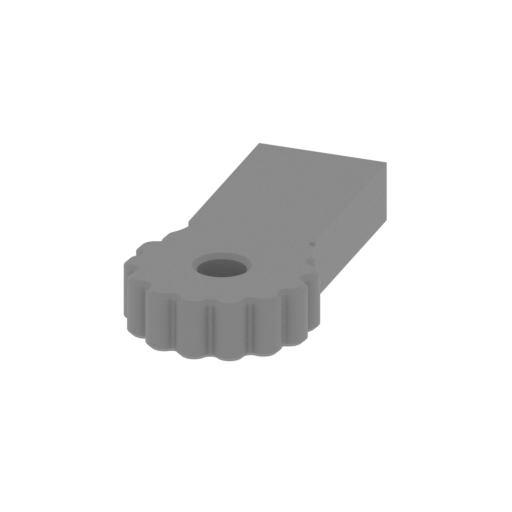

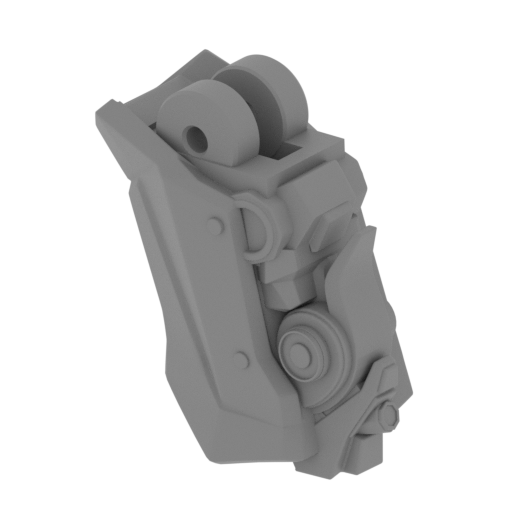

  • Elbows and knees are fixed with ratchet joints;

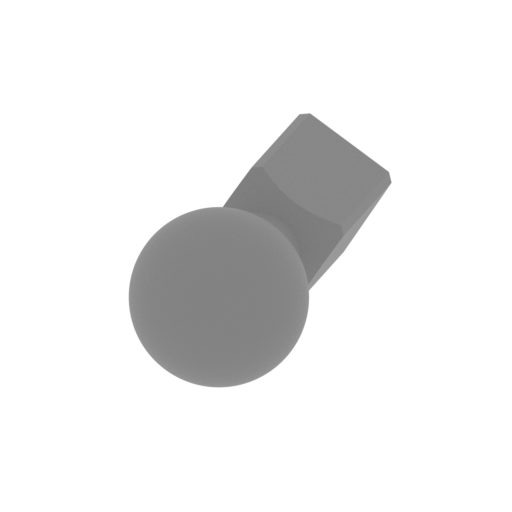

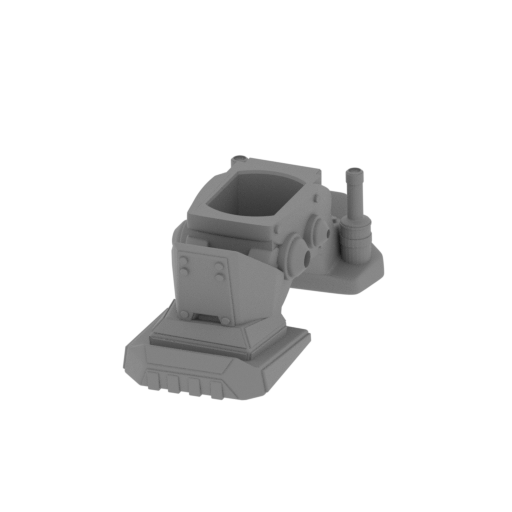

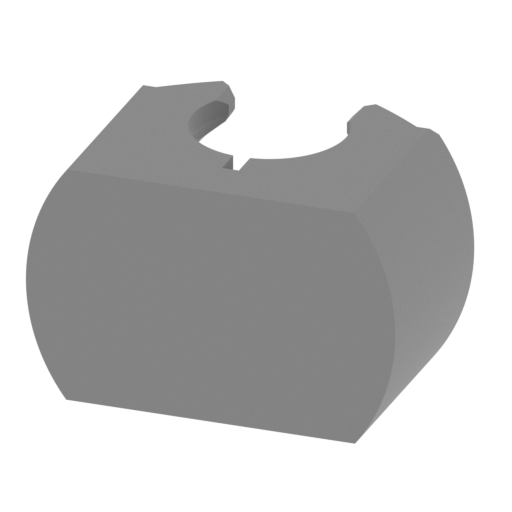

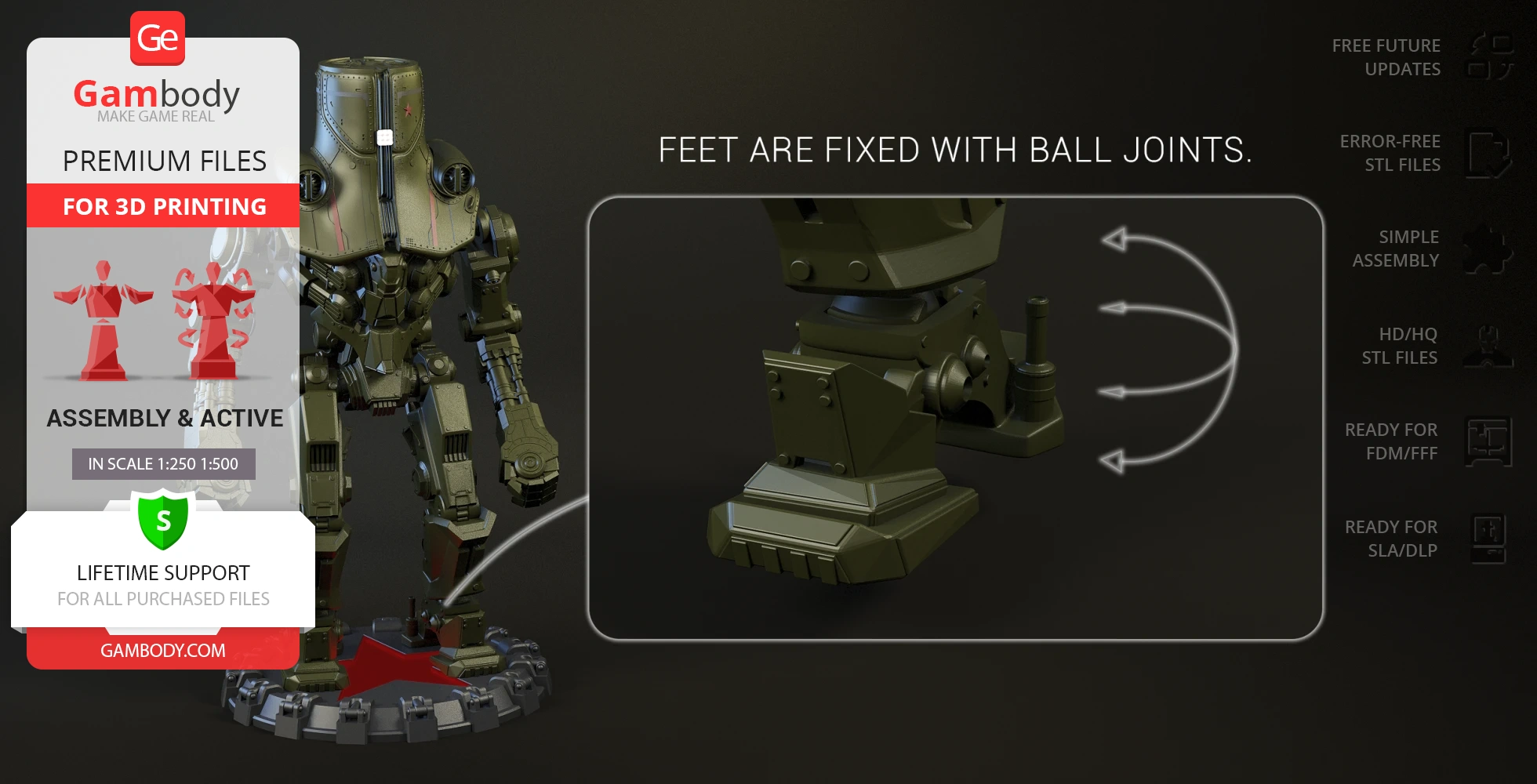

  • Feet are fixed with ball joints;

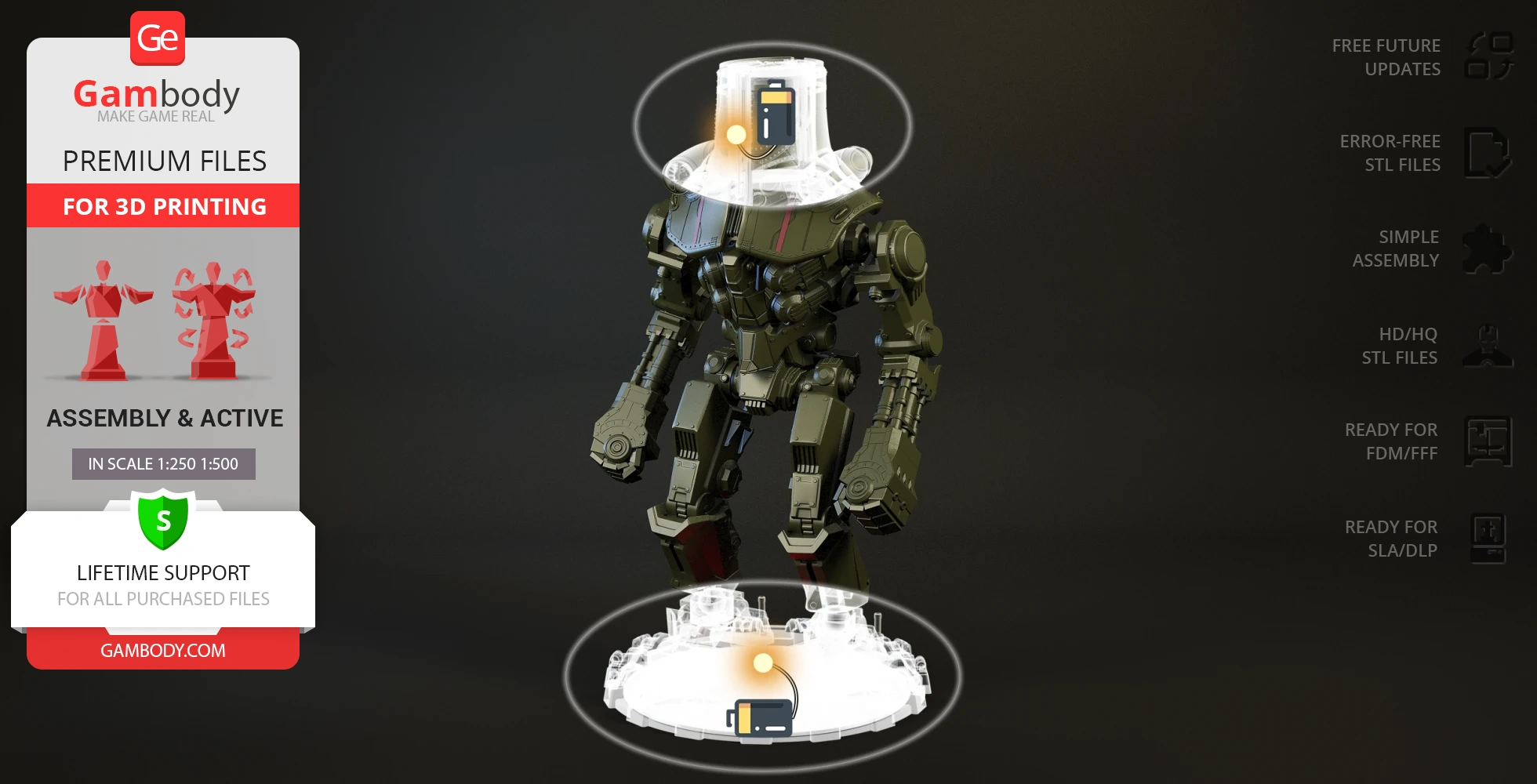

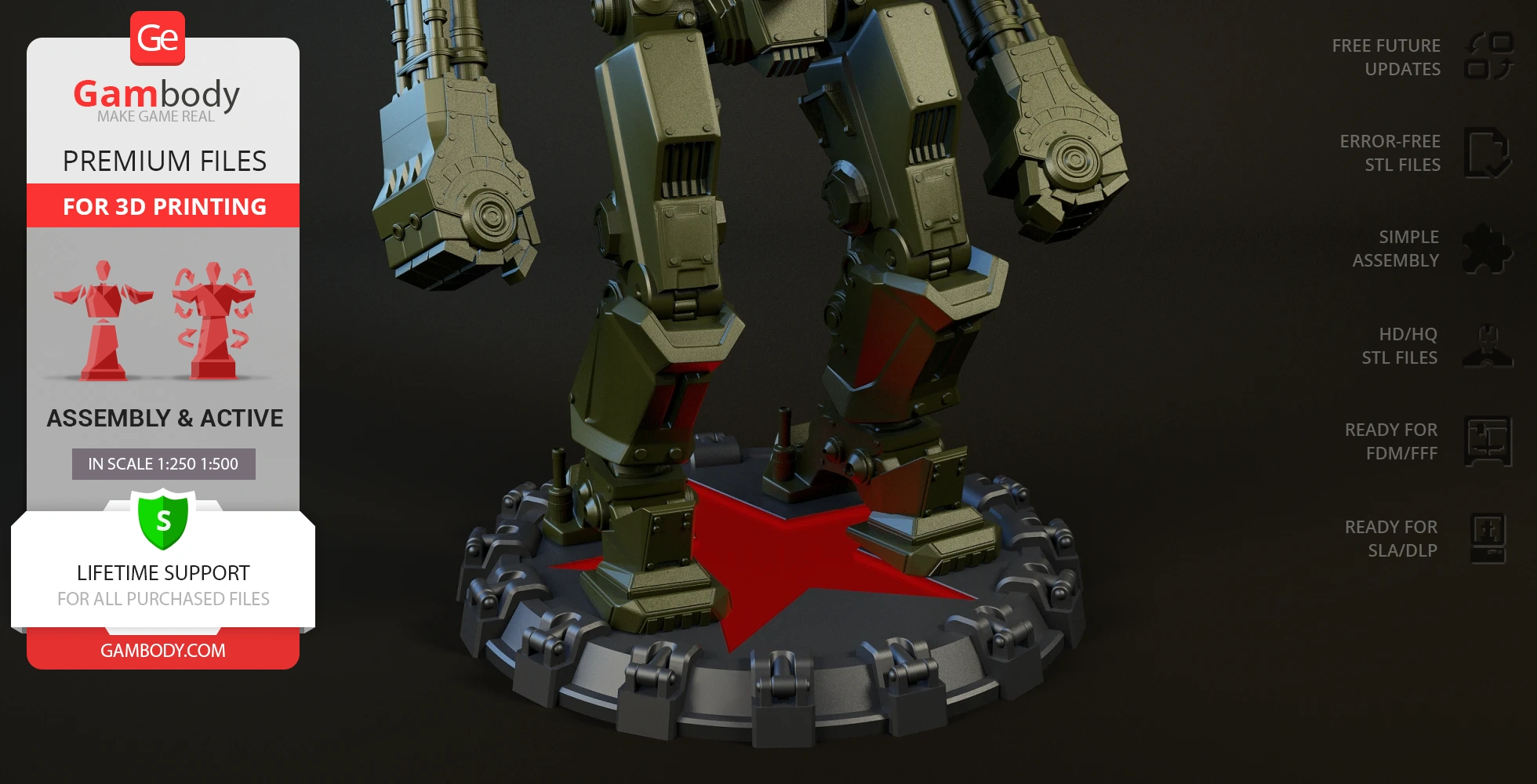

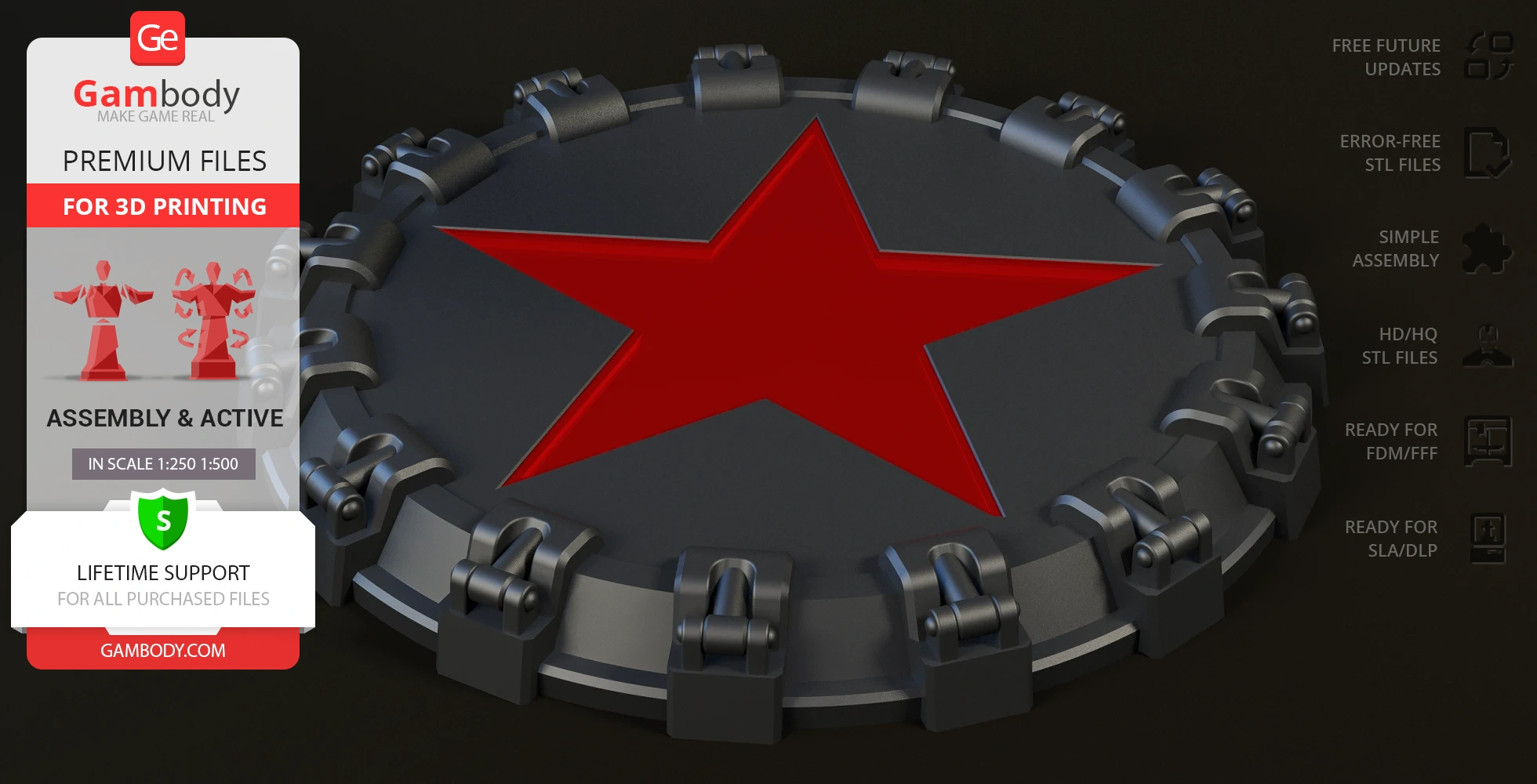

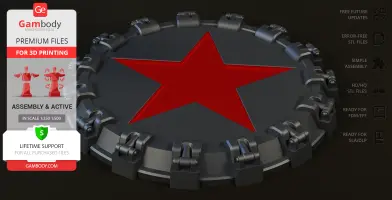

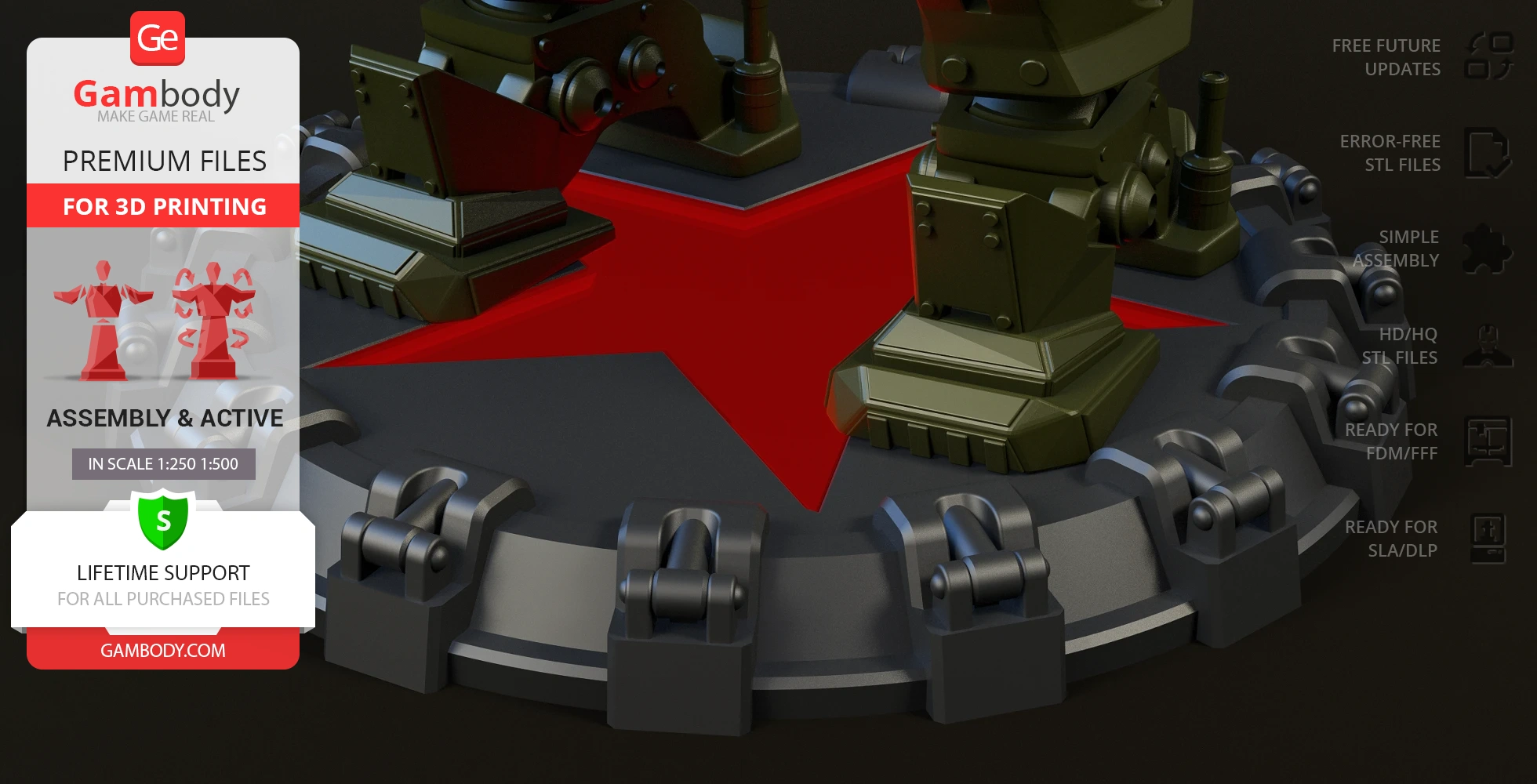

  • The front spotlight and the platform star can be illuminated;

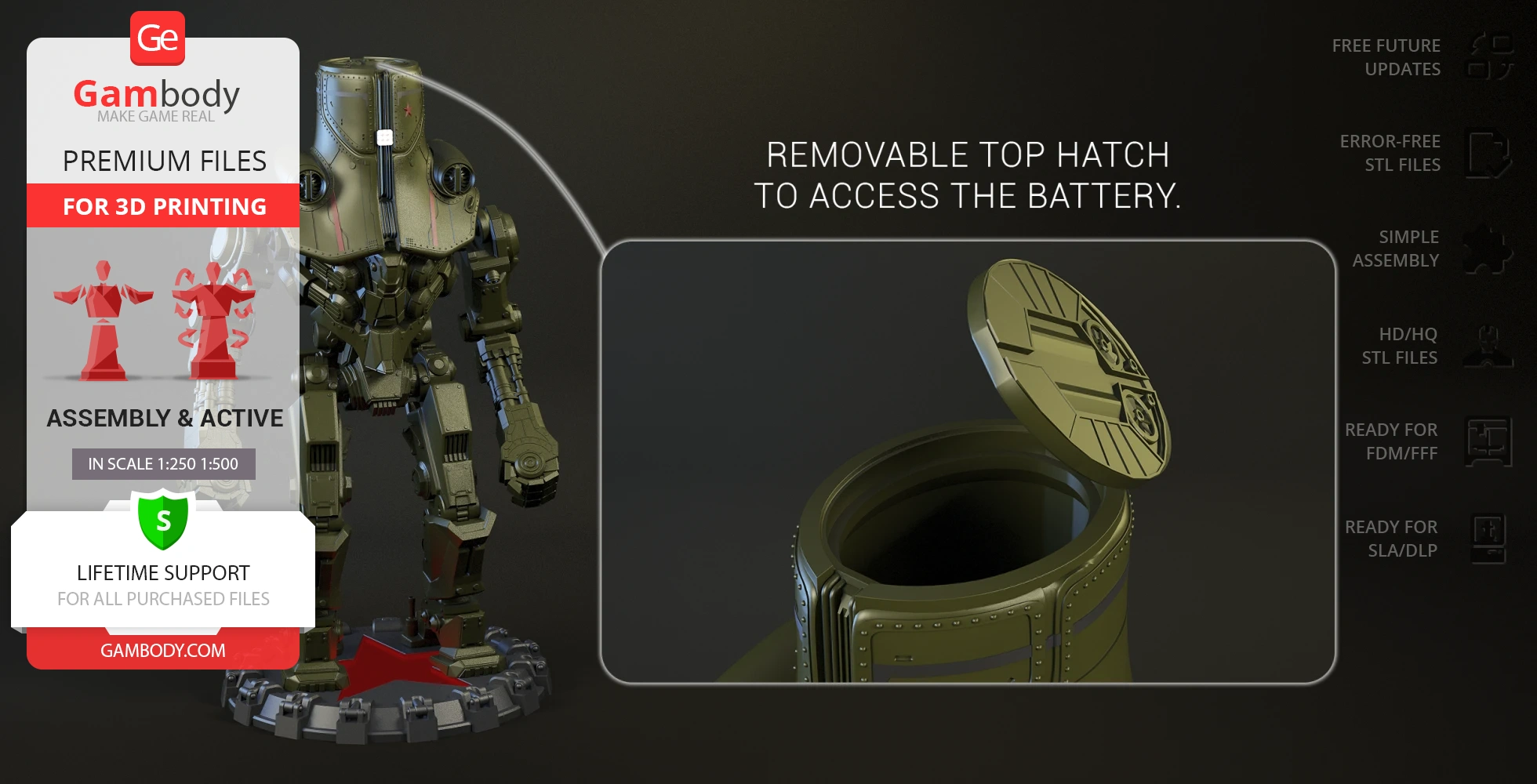

  • Removable top hatch to access the battery;
  • 2 variants of the body - with and without a star and lines;
  • All parts are divided in such a way that you will print them with the smallest number of support structures.

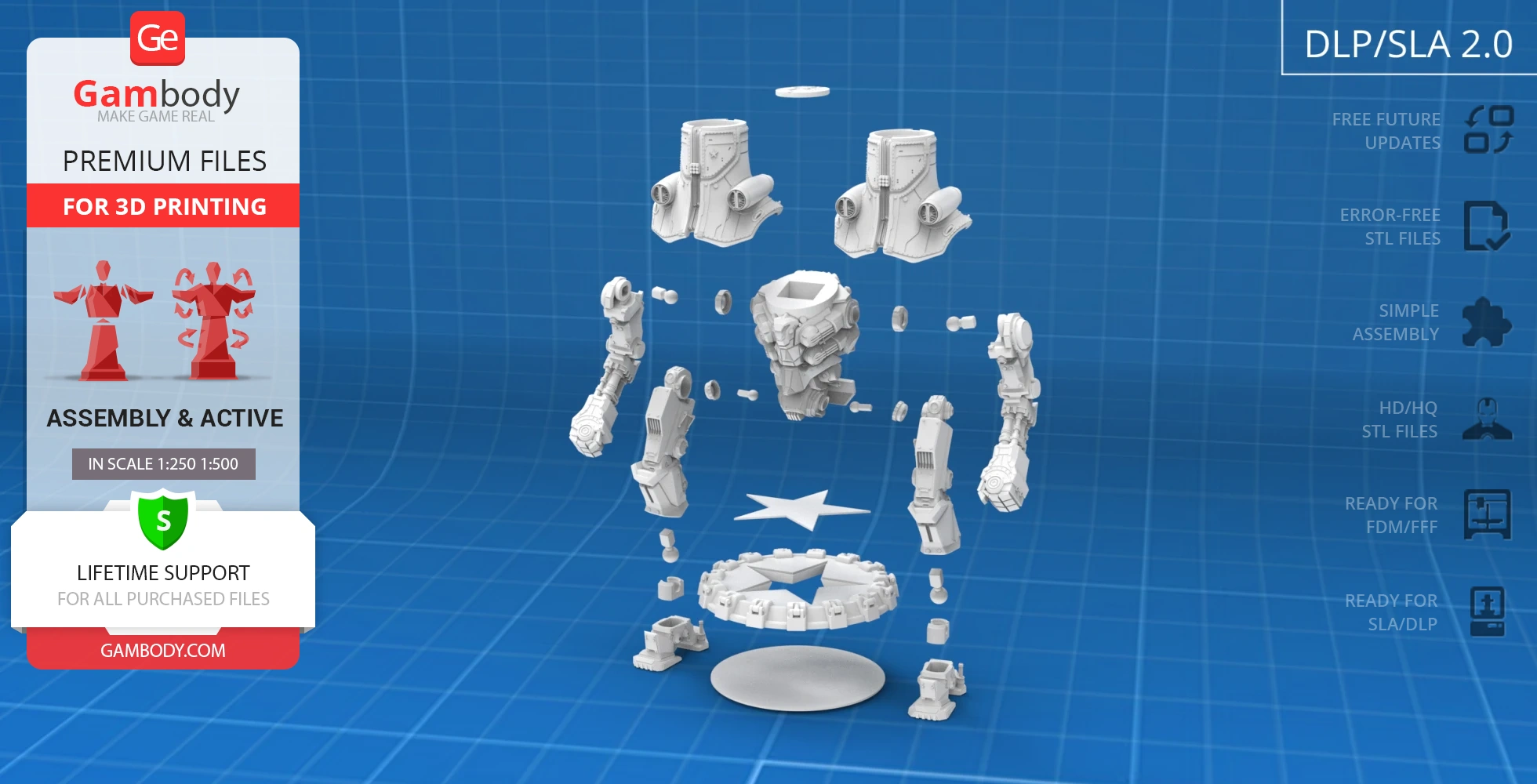

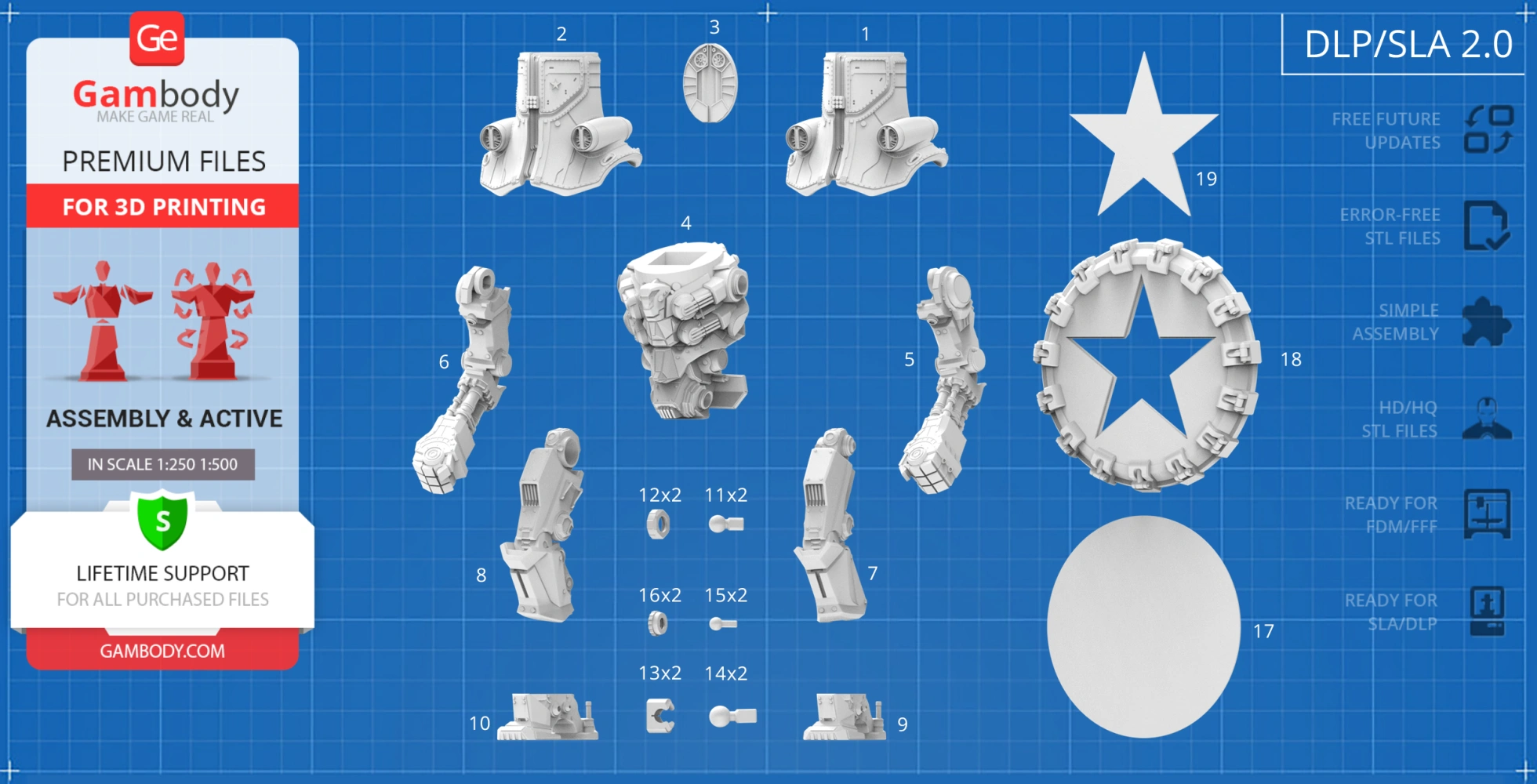

DLP/SLA 2.0 version features:

  • Contains 19 parts;
  • A printed model is 173 mm tall, 94 mm wide, 90 mm deep;
  • Hips and shoulders are fixed with ball-and-socket joints;
  • Feet are fixed with ball joints;

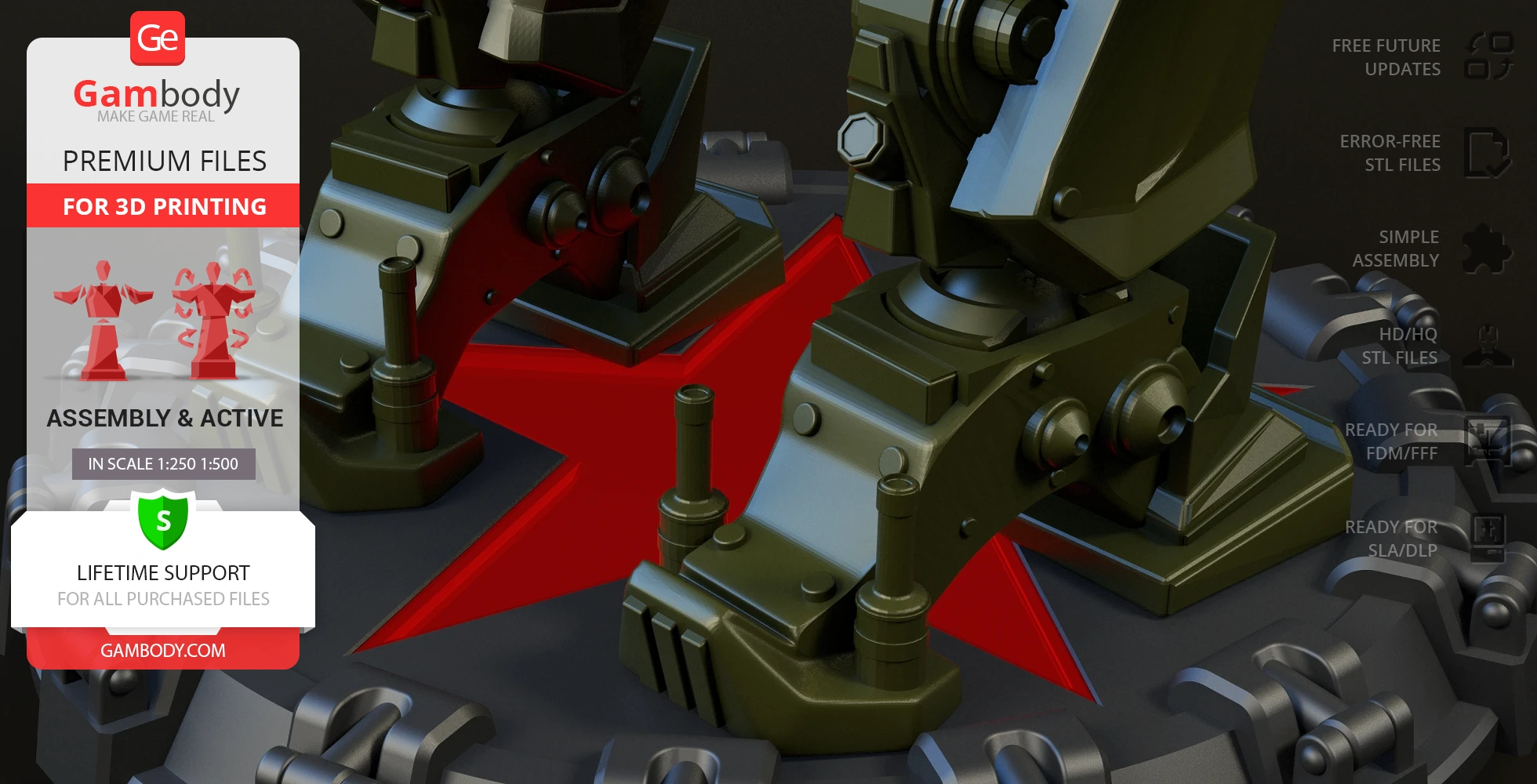

  • The platform star can be illuminated;
  • Removable top hatch to access the battery;
  • 2 variants of the body - with and without a star and lines;
  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

FFF/FDM 1.0 version features:

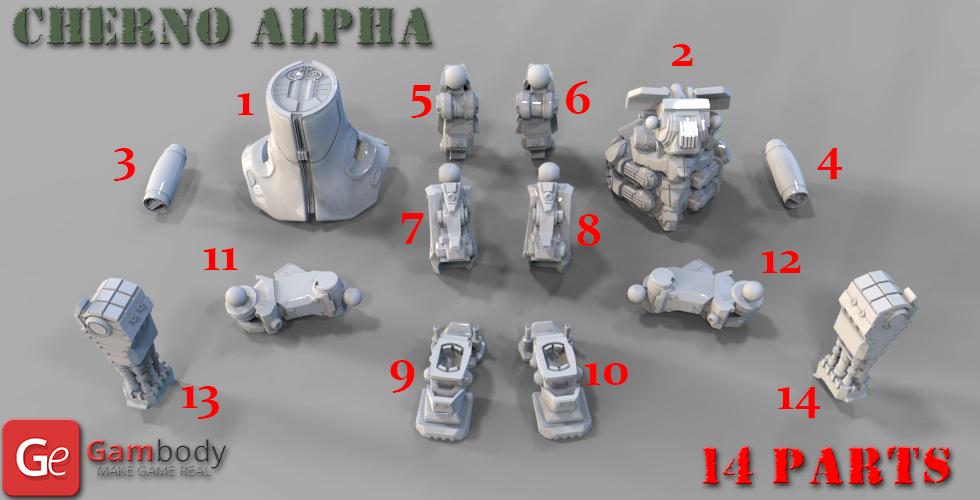

  • Contains 14 parts;
  • A printed model is 70 mm deep, 250 mm tall, and 141 mm wide.
  • All parts are divided in such a way that you will print them with the smallest number of support structures.

You can get the Cherno Alpha model for 3D printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble a Cherno Alpha 3D Printing Model on Gambody YouTube channel.

Also, you may like other Pacific Rim 3D Printing Models.

________

FAQ

Generic

Below you can find printing recommendations for Cura, Bambu Lab, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);

All connectors should be printed at 100% Infill.

Bambu Lab printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Bambu Studio 1.9.1. Test models were printed on the Bambu Lab A1, Bambu Lab A1 Mini, Creality Ender 3 S1, Anycubic Kobra 2, and Anycubic Vyper using PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download

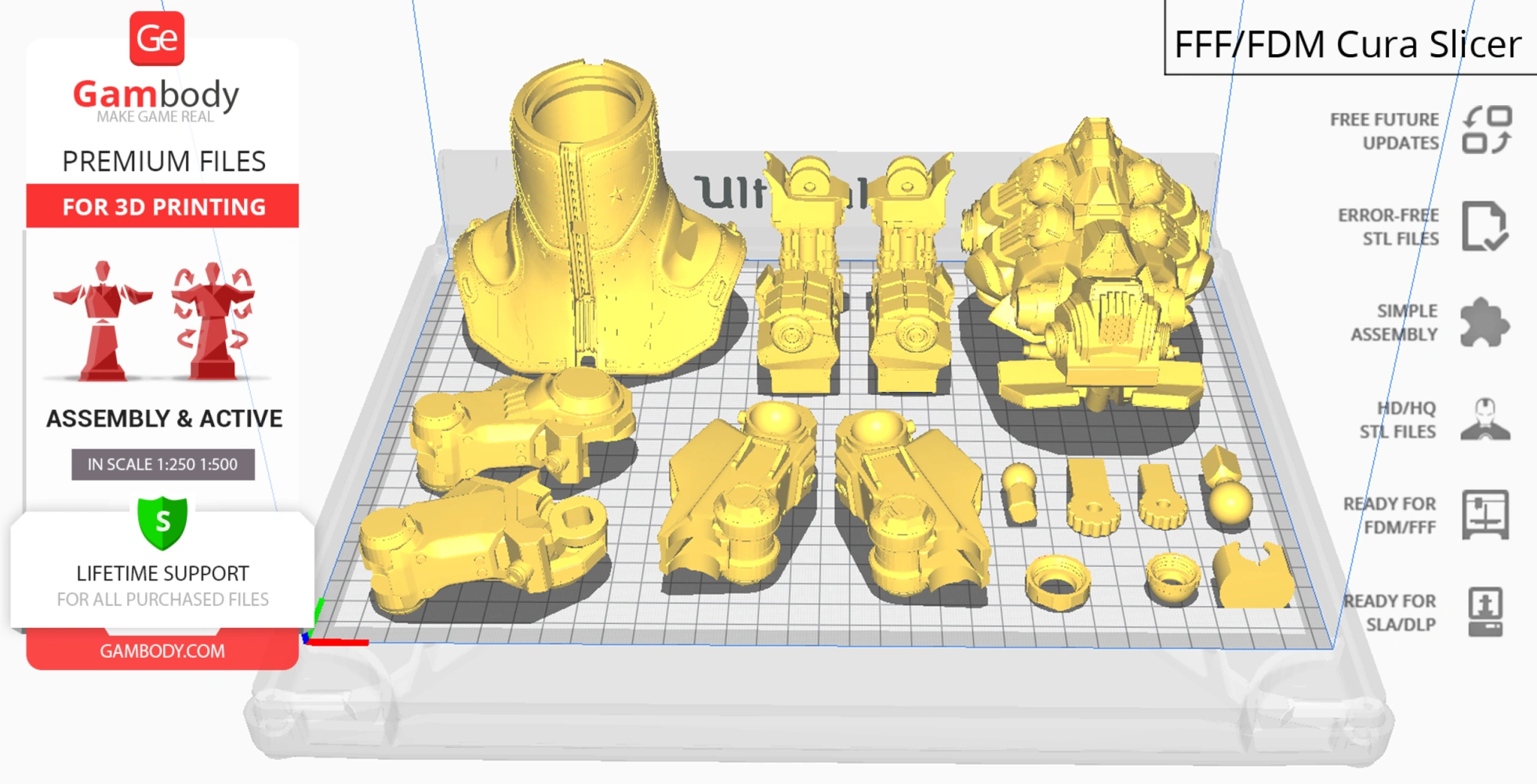

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
