Leatherback Kaiju 3D Printing Figurine | Assembly

(4)
cm: 31.1 w x 33.8 d x 33.8 h
in: 12.244 w x 13.307 d x 13.307 h

Source Files

|

Description

|

Printing Details

This 3D Figurine consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

Leatherback Kaiju 3D Printing Figurine comes in 3 versions for each 3D printer type (FDM/FFF, DLP/SLA and SLS). Files for each version are available for download after the purchase.

Detailed information about this model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

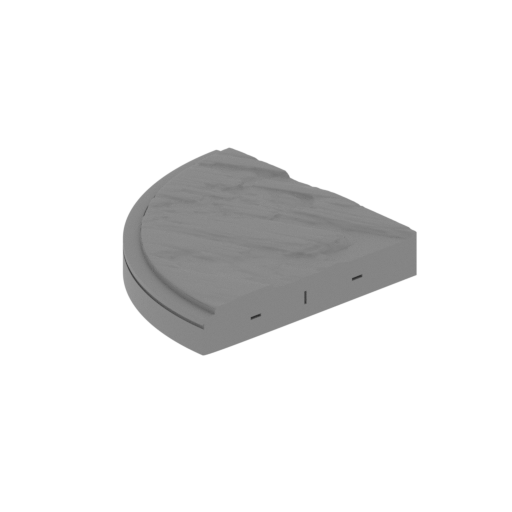

1_Platform_1_FDM (repaire d).stl
2.33 MiB 64 h 16 min 38 m 202 x 270 x 35 Download

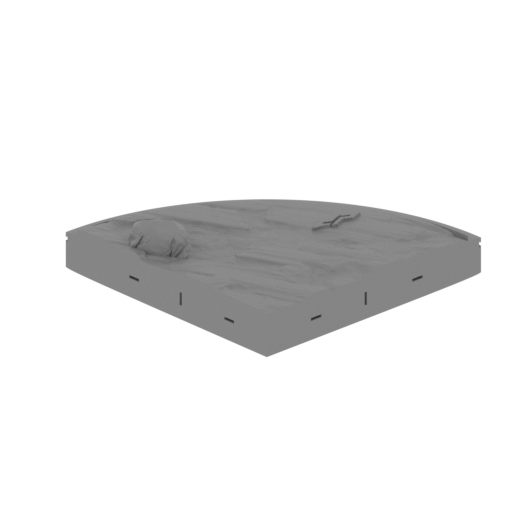

2_Platform_2_FDM (repaire d).stl
3.24 MiB 66 h 41 min 39 m 270 x 202 x 53 Download

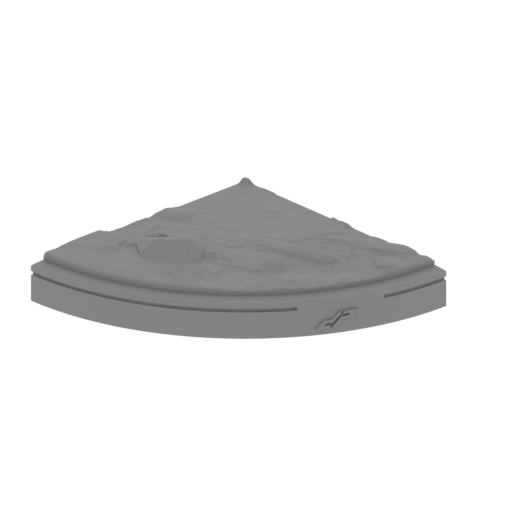

3_Platform_3_FDM (repaire d).stl
2.45 MiB 63 h 25 min 37 m 270 x 202 x 46 Download

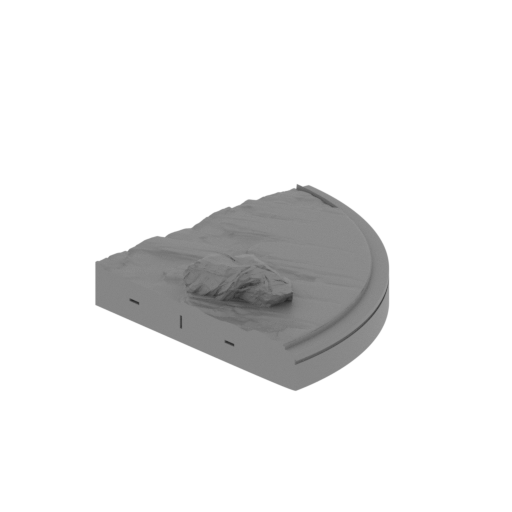

4_Platform_4_FDM (repaire d).stl
2.50 MiB 69 h 23 min 41 m 202 x 270 x 67 Download
5_Platform_FDM (repaired) .stl
9.87 MiB 270 h 36 min 155 m 403 x 403 x 67 Download

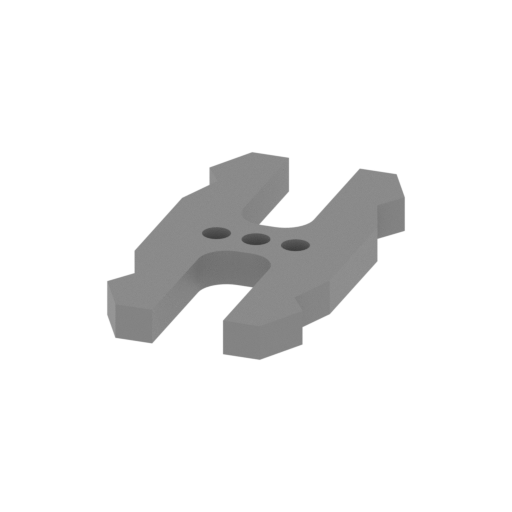

6_Ge_lock_10H_(X44)_FDM ( repaired).stl
0.03 MiB 4 min <1 m 10 x 18 x 2 Download

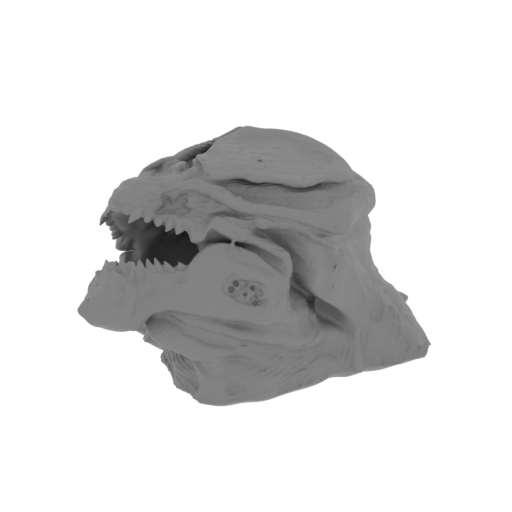

7_Head_FDM (repaired).stl
10.84 MiB 14 h 29 min 9 m 79 x 95 x 58 Download

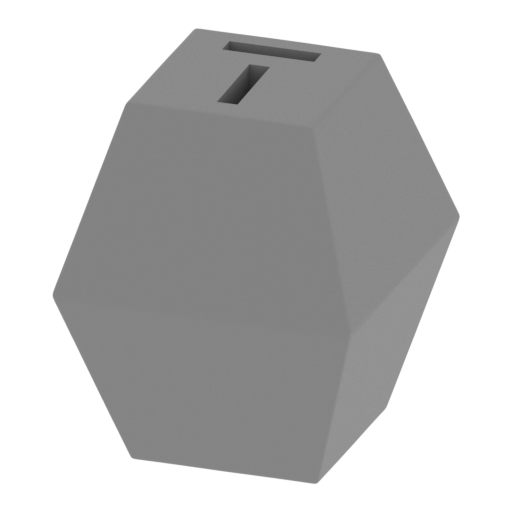

8_Key_1_FDM (repaired).st l
9.43 MiB 2 h 21 min 1 m 32 x 32 x 39 Download

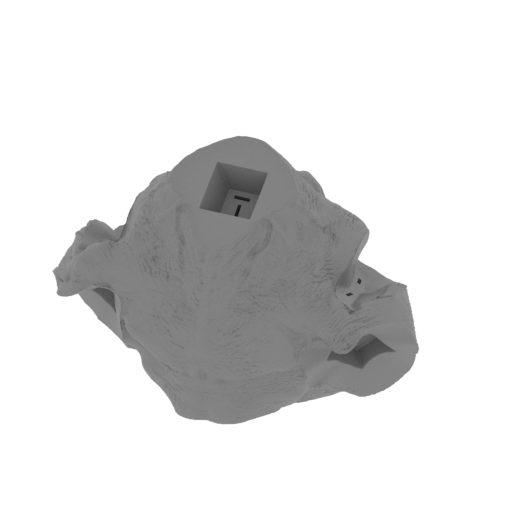

9_Body_FDM (repaired).stl
19.83 MiB 144 h 55 min 87 m 229 x 164 x 157 Download

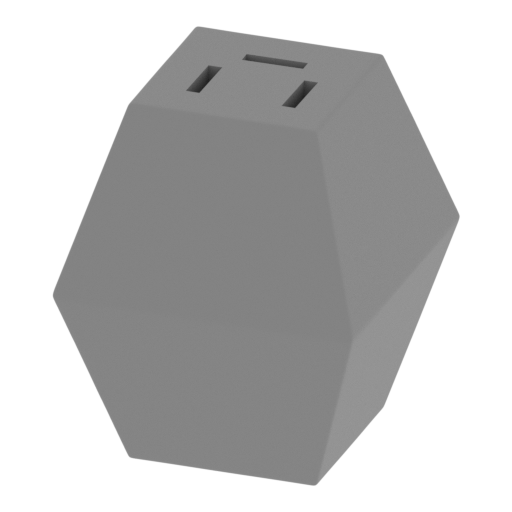

10_Key_2_FDM (repaired).s tl
4.73 MiB 6 h 44 min 4 m 49 x 49 x 59 Download

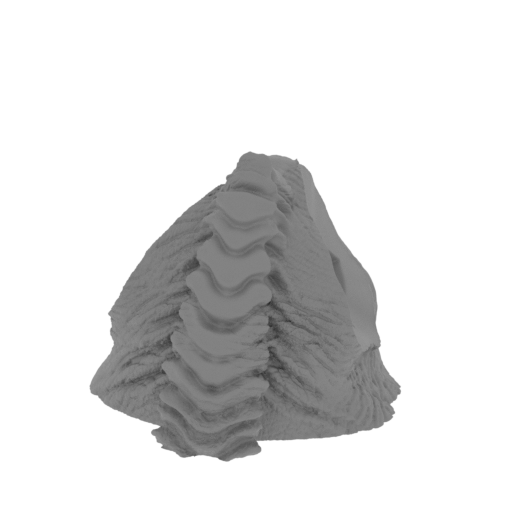

11_Pelvis_FDM (repaired). stl
12.42 MiB 46 h 39 min 26 m 117 x 148 x 115 Download

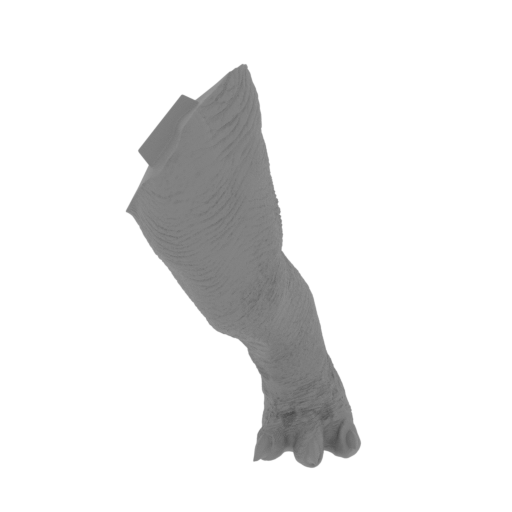

12_Leg_L_FDM (repaired).s tl
10.51 MiB 52 h 9 min 39 m 114 x 106 x 191 Download

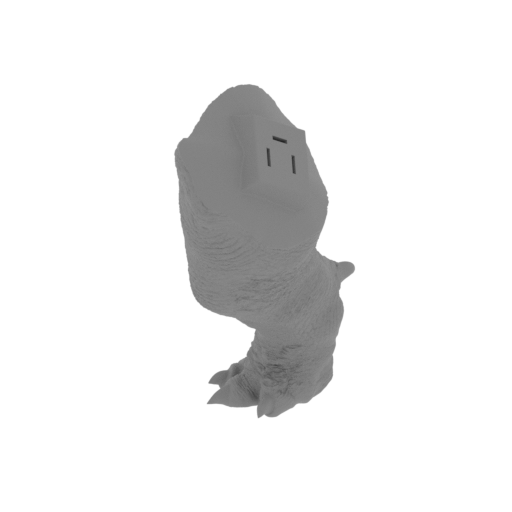

13_Leg_R_FDM (repaired).s tl
9.66 MiB 57 h 46 min 43 m 81 x 150 x 190 Download

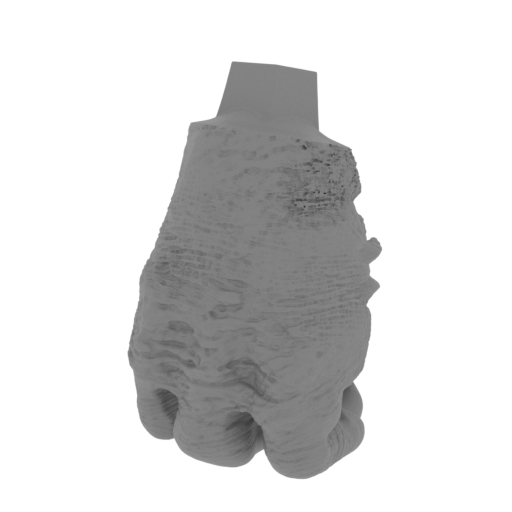

14_Hand_L_FDM (repaired). stl
9.88 MiB 39 h 6 min 25 m 88 x 92 x 142 Download

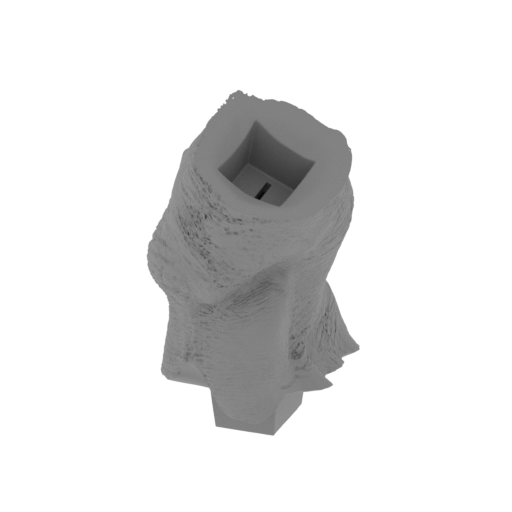

15_Arm_L_FDM (repaired).s tl
10.22 MiB 44 h 29 min 31 m 88 x 115 x 143 Download

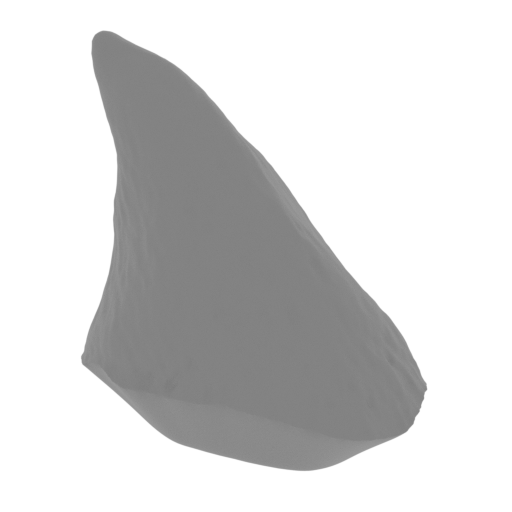

16_Spike_hand_L_FDM (repa ired).stl
2.27 MiB 52 min <1 m 30 x 24 x 29 Download

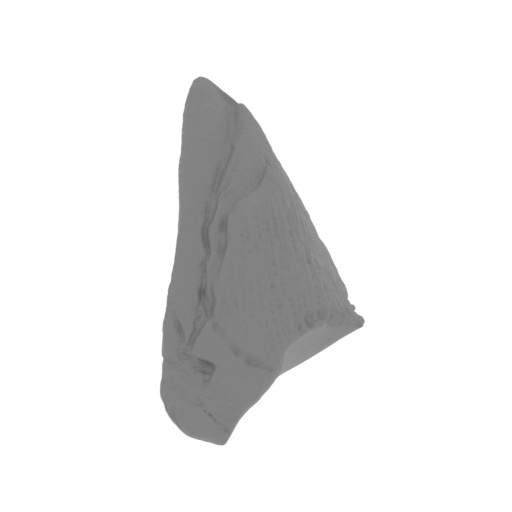

17_Spike_body_L_FDM (repa ired).stl
4.30 MiB 6 h 52 min 4 m 53 x 99 x 68 Download

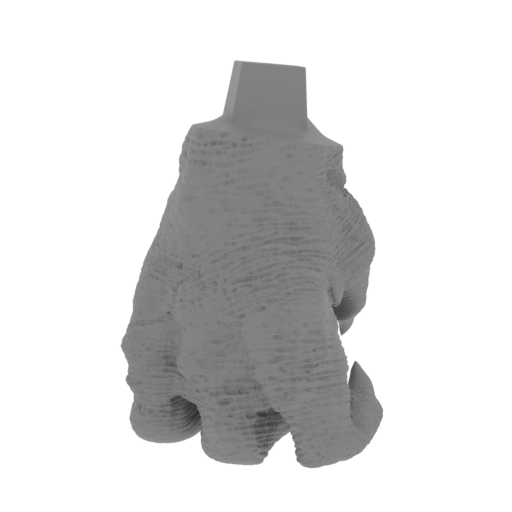

18_Hand_R_FDM (repaired). stl
10.00 MiB 40 h 30 min 26 m 91 x 86 x 144 Download

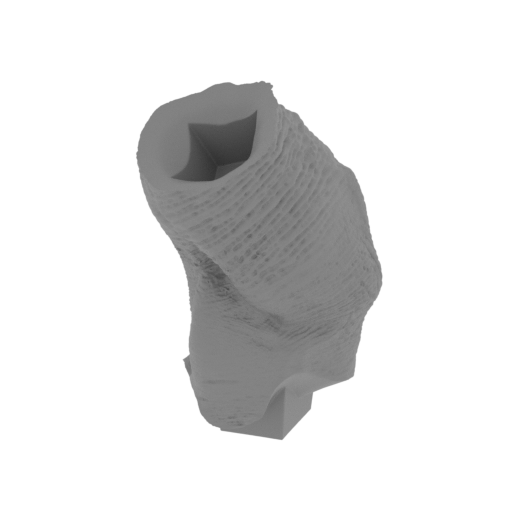

19_Arm_R_FDM (repaired).s tl
10.91 MiB 42 h 25 min 28 m 79 x 105 x 143 Download

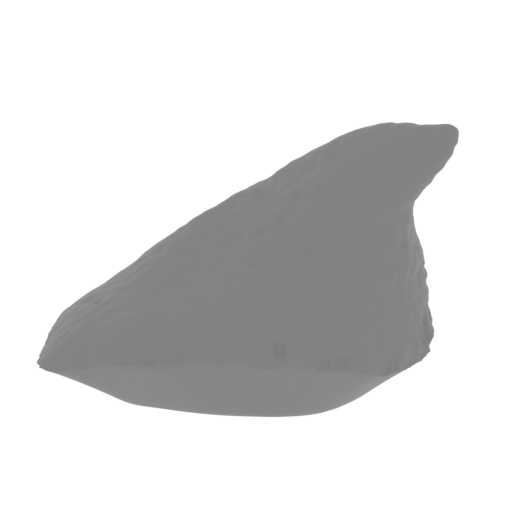

20_Spike_hand_R_FDM (repa ired).stl
2.37 MiB 51 min <1 m 34 x 23 x 26 Download

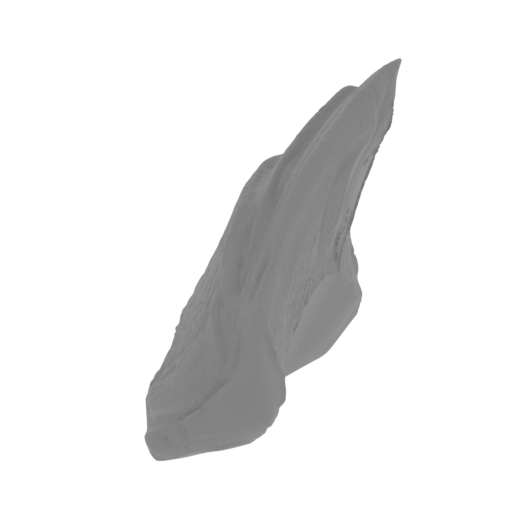

21_Spike_body_R_FDM (repa ired).stl
4.46 MiB 5 h 44 min 3 m 41 x 84 x 70 Download

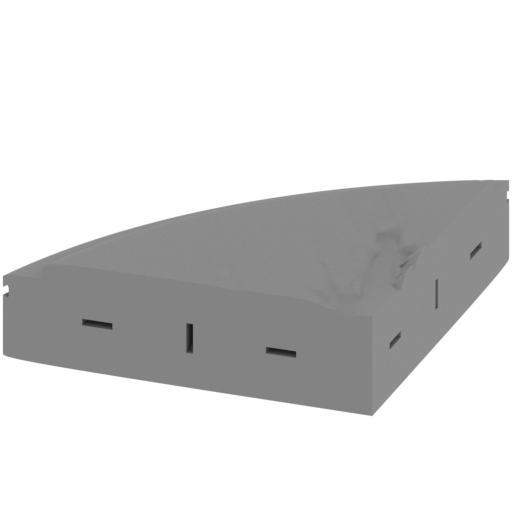

22_Platform_1_cut_FDM (re paired).stl
0.59 MiB 19 h 43 min 12 m 119 x 119 x 37 Download

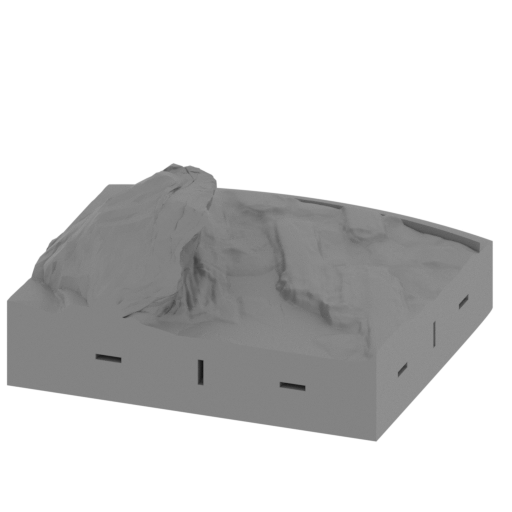

23_Platform_2_cut_FDM (re paired).stl
1.79 MiB 41 h 25 min 24 m 140 x 132 x 67 Download

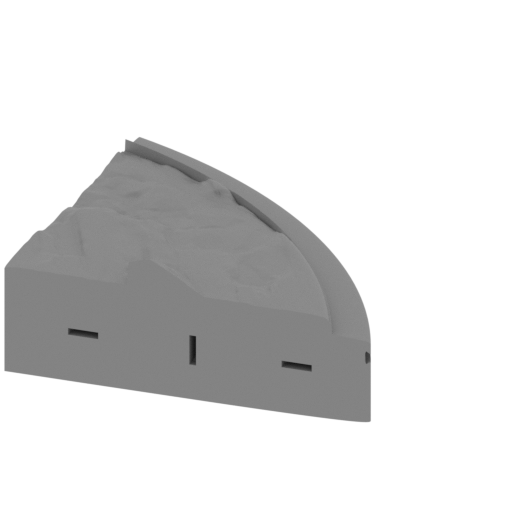

24_Platform_3_cut_FDM (re paired).stl
0.89 MiB 19 h 40 min 12 m 119 x 120 x 45 Download

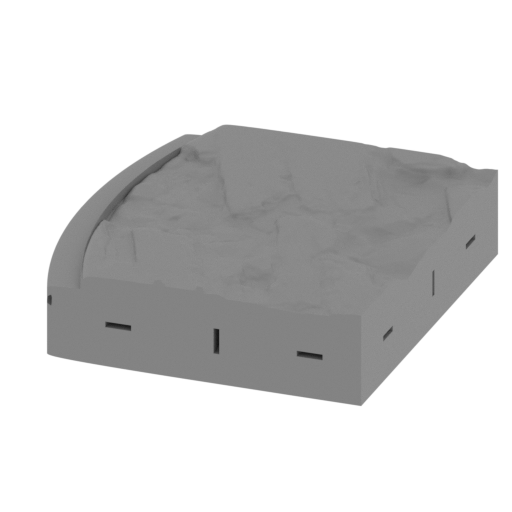

25_Platform_4_cut_FDM (re paired).stl
1.54 MiB 37 h 7 min 22 m 132 x 140 x 37 Download

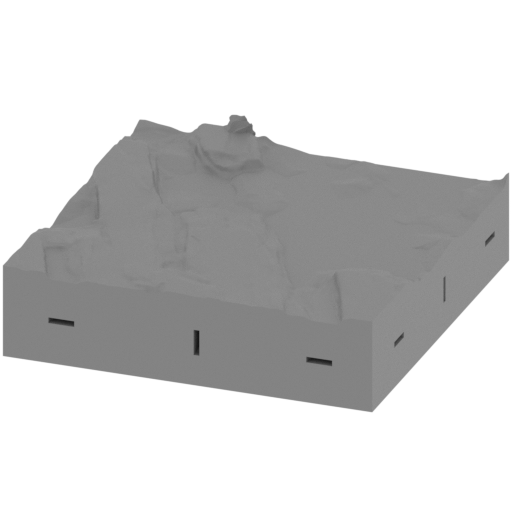

26_Platform_5_cut_FDM (re paired).stl
2.52 MiB 40 h 31 min 25 m 140 x 140 x 41 Download

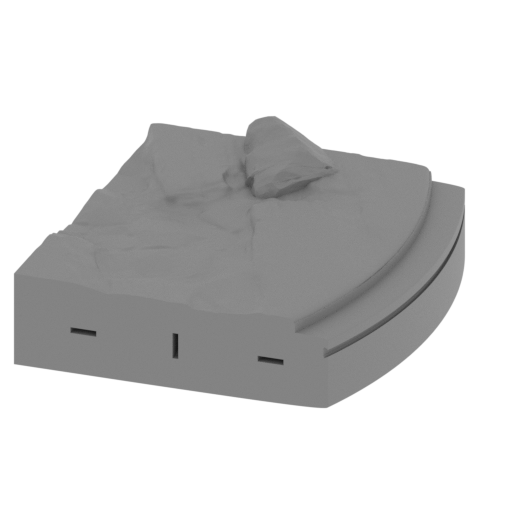

27_Platform_6_cut_FDM (re paired).stl
1.16 MiB 37 h 9 min 22 m 132 x 140 x 46 Download

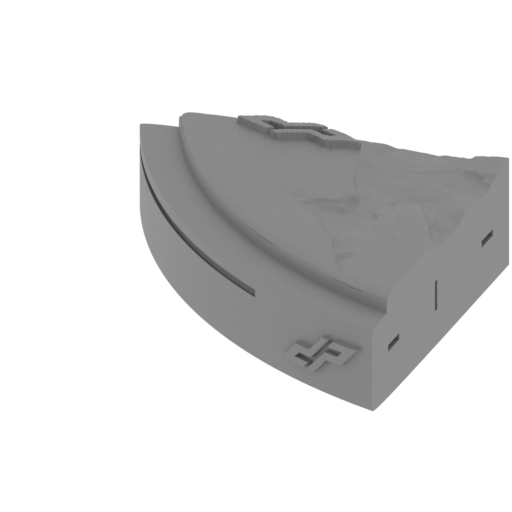

28_Platform_7_cut_FDM (re paired).stl
0.96 MiB 19 h 48 min 12 m 119 x 119 x 37 Download

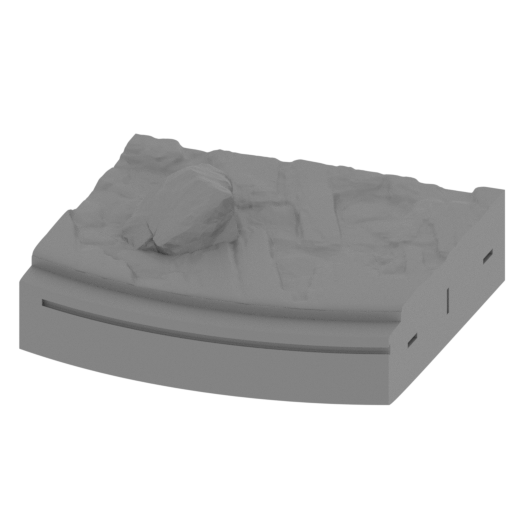

29_Platform_8_cut_FDM (re paired).stl
1.88 MiB 37 h 55 min 22 m 140 x 132 x 53 Download

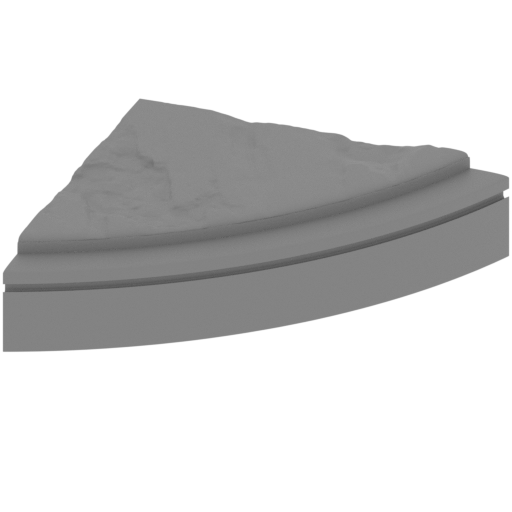

30_Platform_9_cut_FDM (re paired).stl
0.78 MiB 19 h 39 min 12 m 119 x 119 x 35 Download
...

HISTORY OF LEATHERBACK KAIJU

Leatherback is one of the largest kaiju of the 4th category that appeared near the coast of Hong Kong, paired with Otachi. Outwardly resembling a gorilla, it is the creators’ reference to the film King Kong. It has a special organ on its back that can naturally charge and generate an electromagnetic pulse. Leatherback does not possess the same level of intelligence or cunning as Otachi. Its physical strength is great enough to throw a Jaeger a long distance away. In battle, it is direct and relies more on physical strength and its own impressive dimensions. And it is a dangerous threat to digitized Jaegers.

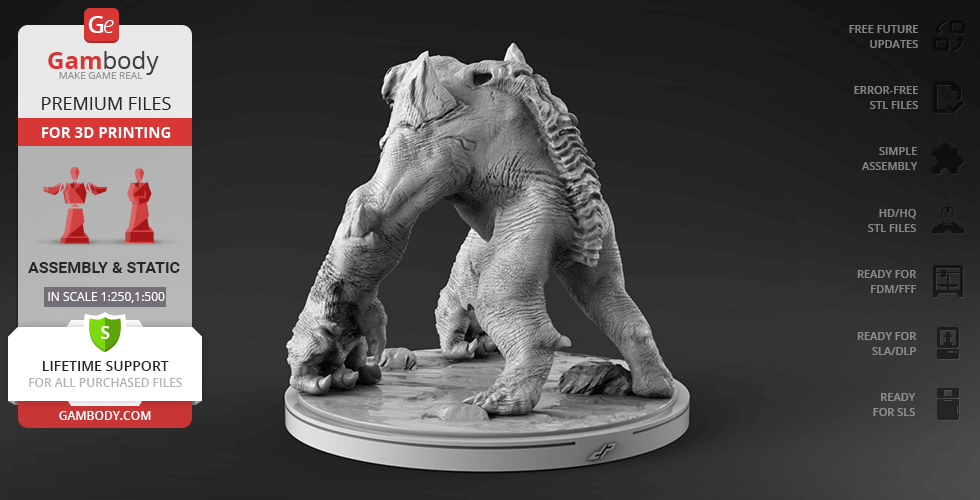

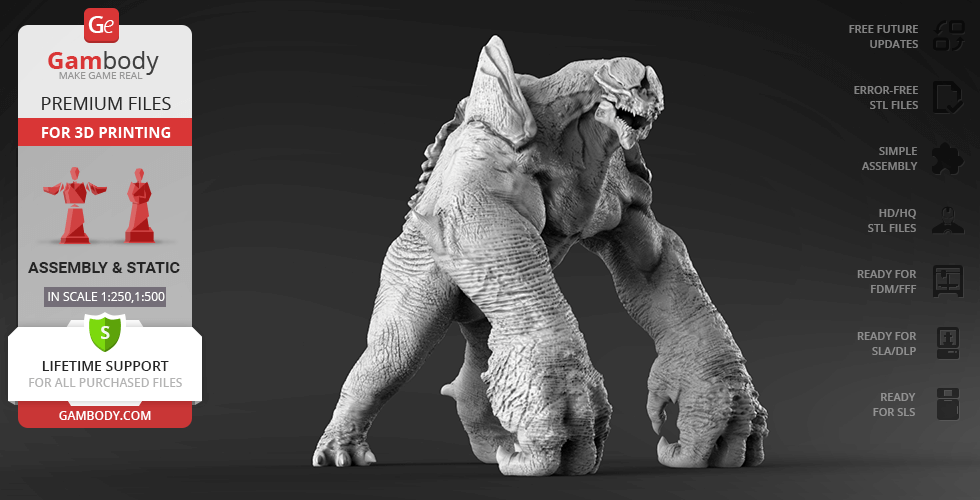

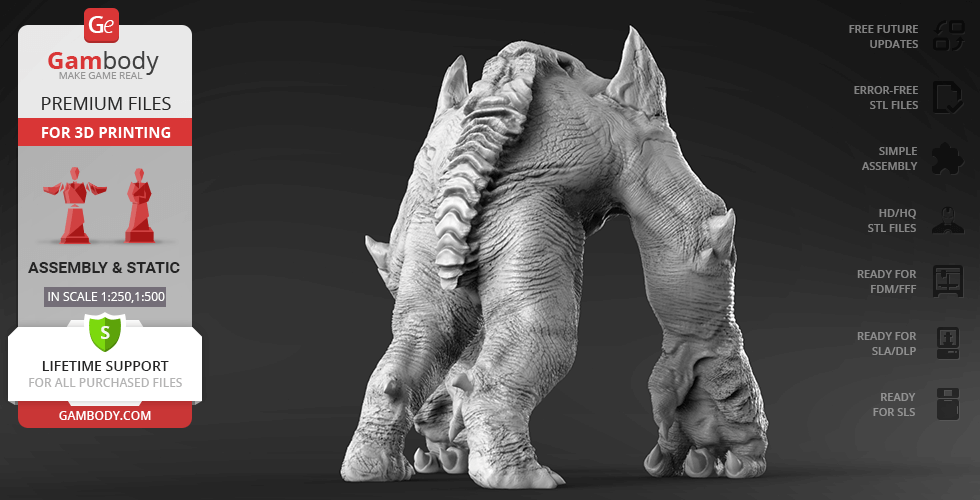

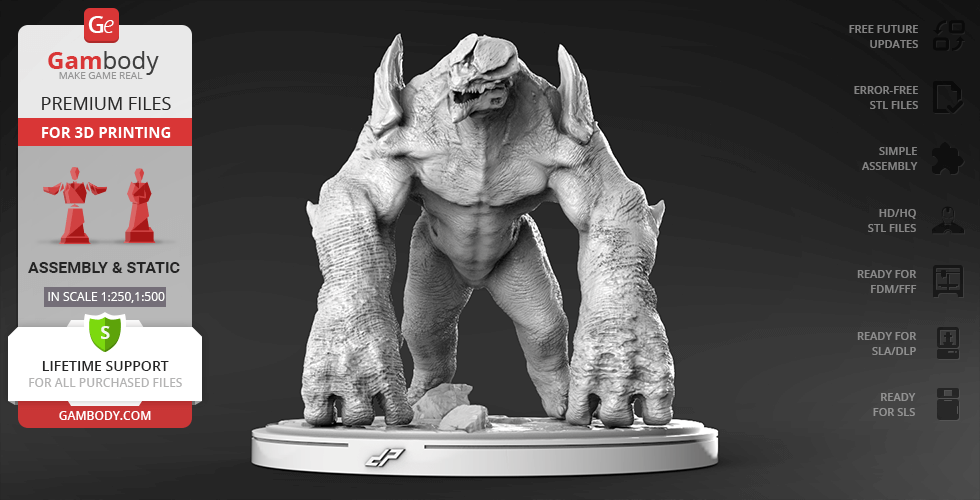

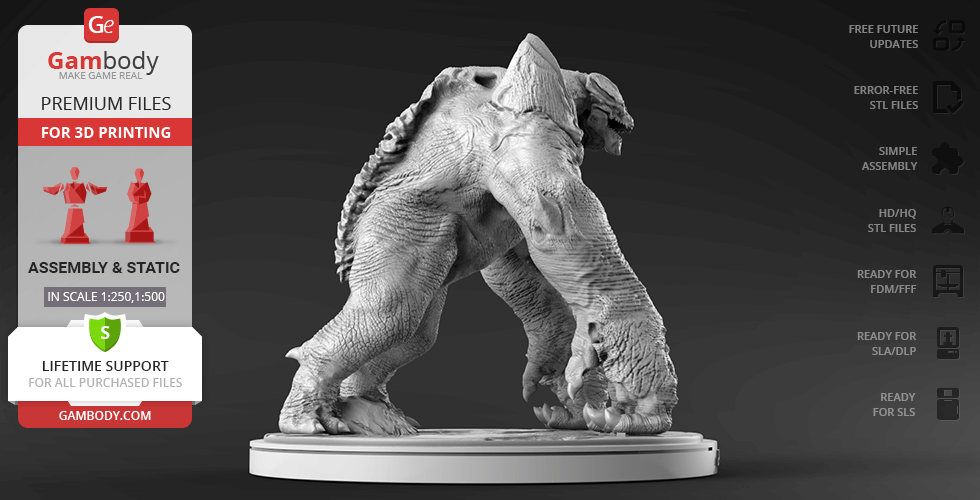

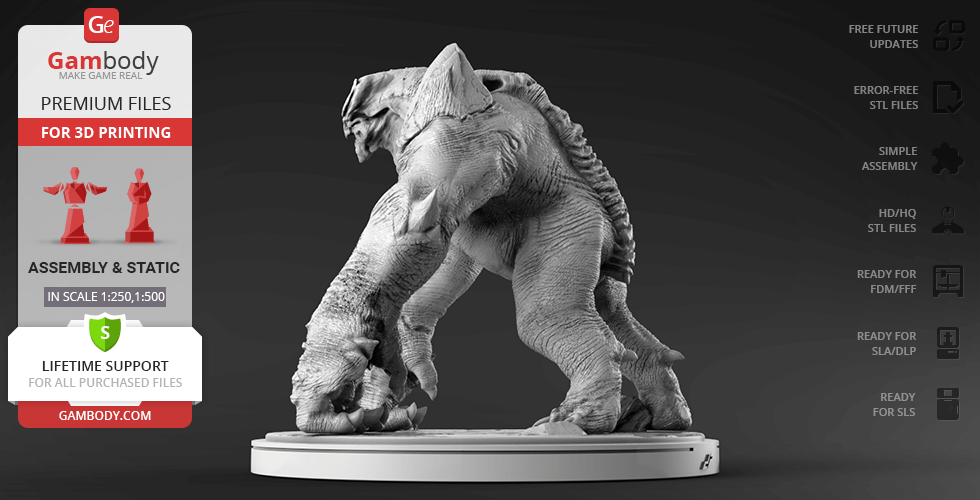

ABOUT THIS 3D FIGURINE

The model is saved in STL files, a format supported by most 3D printers

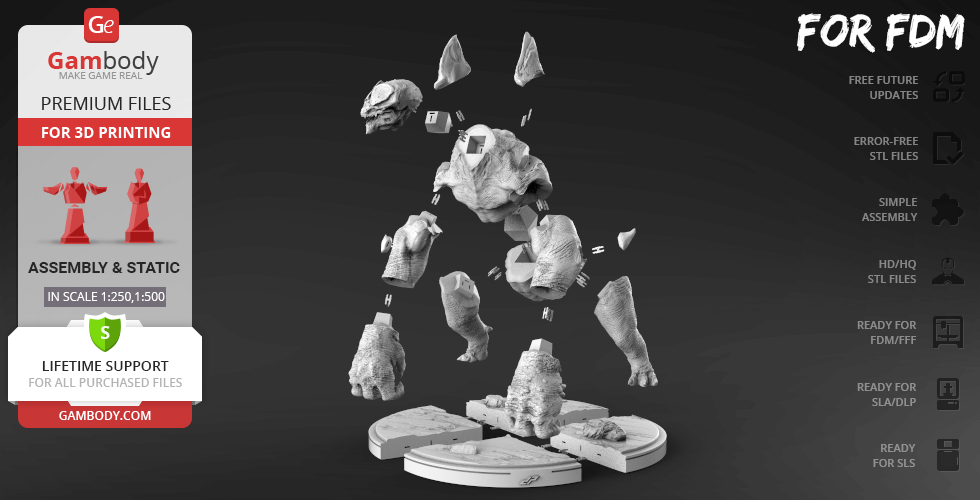

FFF/FDM 1.0 version features:

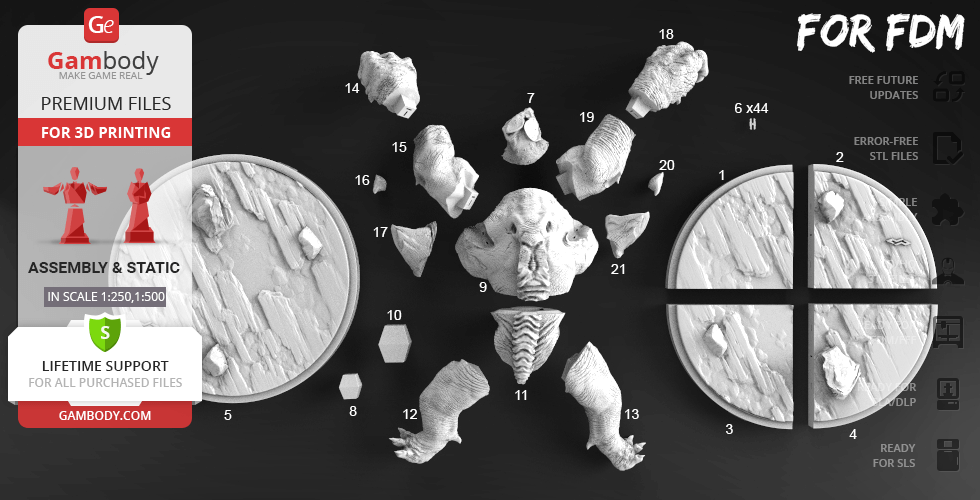

- Contain 30 parts;
- Made with Locks for better fixing. One part of Lock (6_Ge_lock_10H_(X80)) you need to print 80 times.
- Made with 3 variants of the platform. Divided and Solid for different sizes of buildplates;
- All parts are divided in such way that you will print them with the smallest amount of supports.

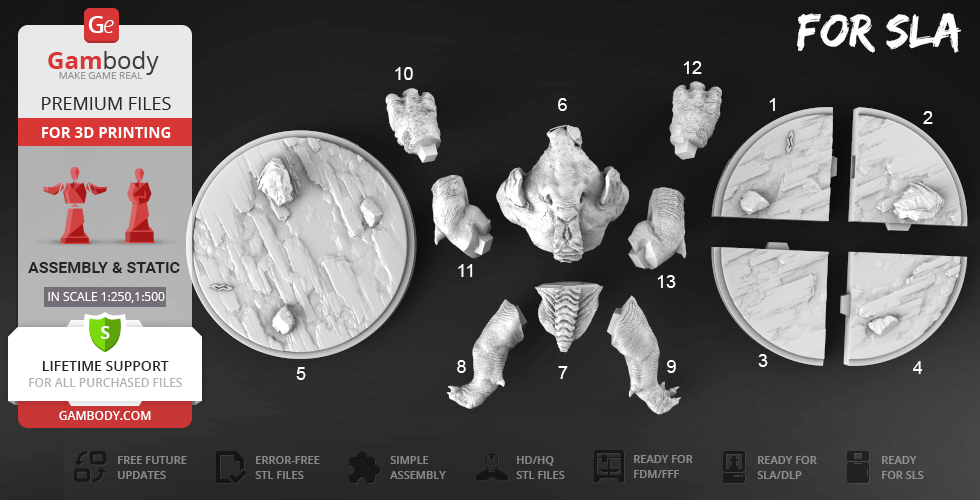

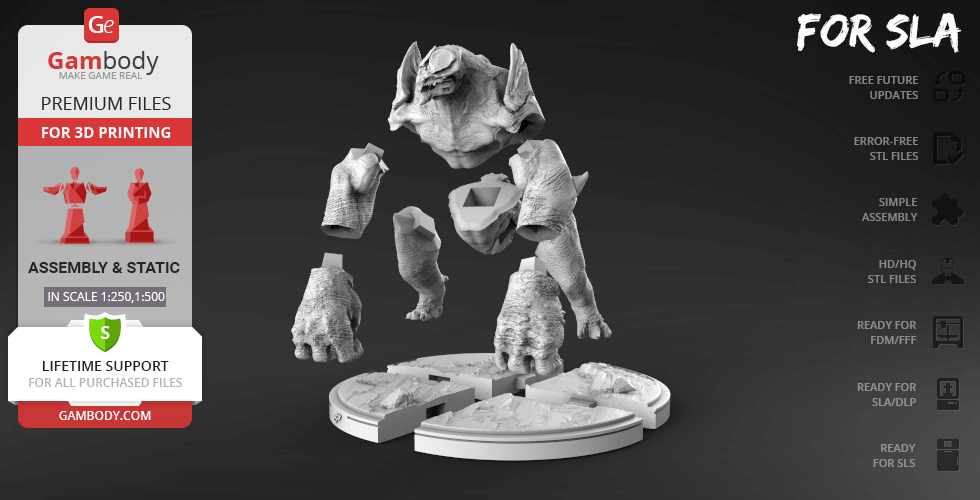

DLP/SLA 1.0 version features:
- Same as FDM but smaller, also made as 13 parts;

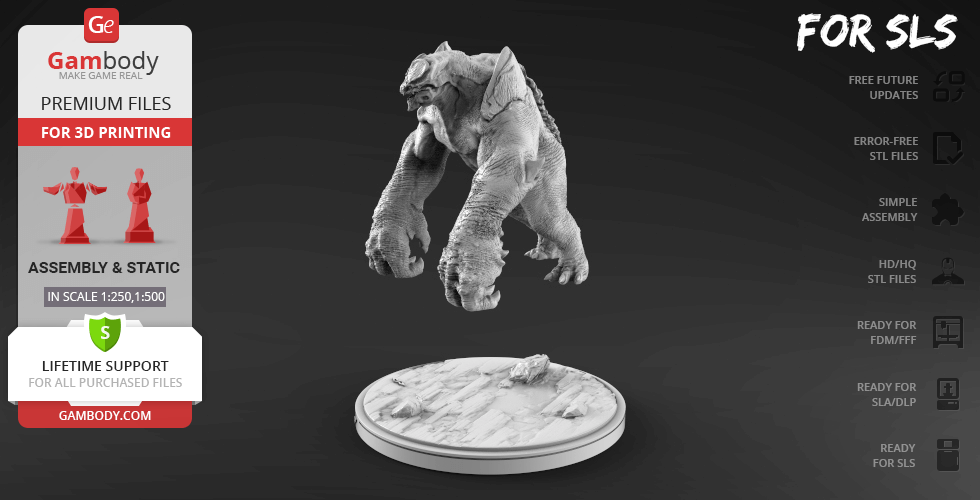

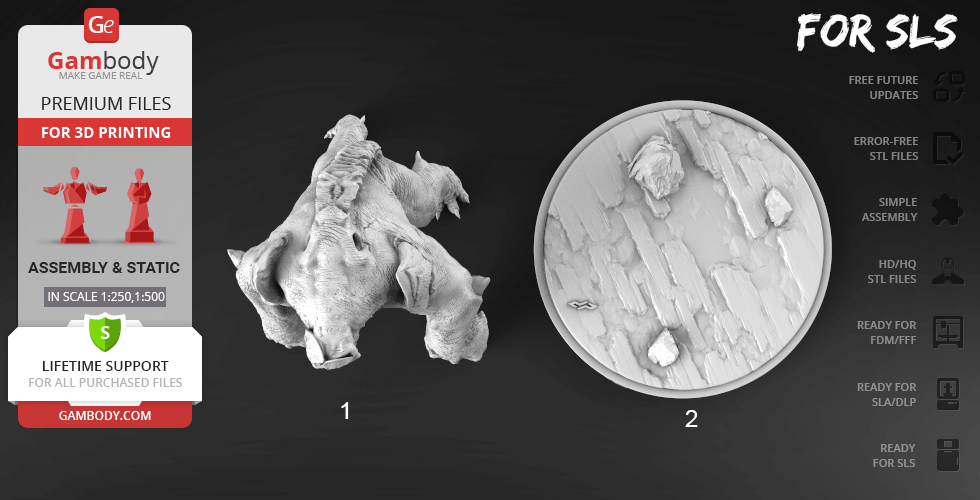

SLS 1.0 version features:
- Same as SLA but made as 2 parts for economy your material;

All STL files for 3D printing have been checked in Netfabb and no errors were shown.

Note: Before starting 3D printing the model, read the Printing Details for CURA 3.4.1Simplify3D or Slic3r Software.

There are 30 parts for FFF/FDM 1.0 version, 13 parts for DLP/SLA 1.0 version and 2 parts for SLS 1.0.

Scale: Leatherback Kaiju height is 81380 mm. The scale of this model made in proportion to it. 1/250 for FDM version and 1/500 for SLA/SLS version.

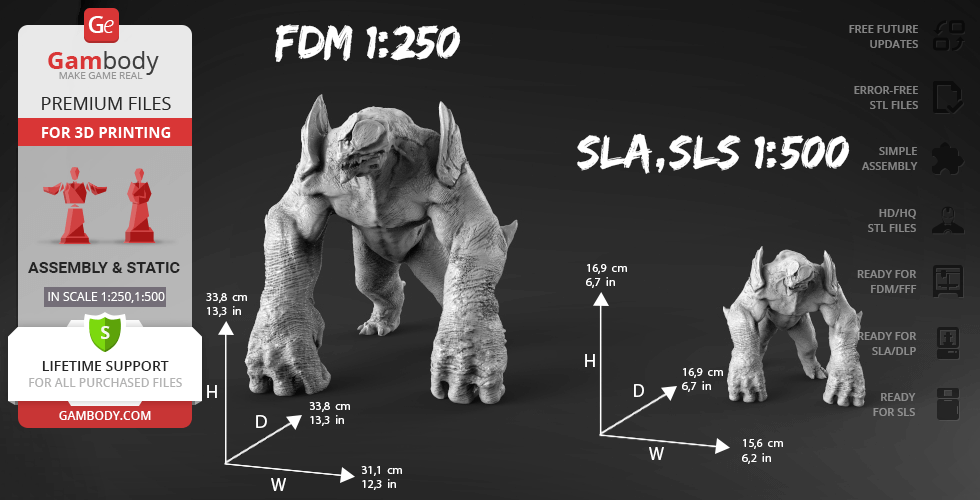

FFF/FDM version dimensions:
After being printed will stand - 338 mm tall, 311 mm wide, 338 mm deep;

DLP/SLA/​SLS version dimensions:
After being printed will stand - 169 mm tall, 156 mm wide, 169 mm deep;
- Has a few details, to keep printing costs down.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Leatherback​​ Kaiju 3D Figurine for 3D printing which consist of 45 parts;
- 3 versions of files for this model for FFF/FDM, DLP/SLA, and SLS;
- High-poly detailed figurine of Leatherback Kaiju;
- Detailed settings that we provide for Cura 3.4.1Simplify3D or Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get Model of Leatherback​ Kaiju for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Leatherback​​ Kaiju 3D Printing Figurine at Gambody YouTube channel.

Also, you may like other Kaiju 3D Printing Figurines as well as other Jaegers 3D Printing Models.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

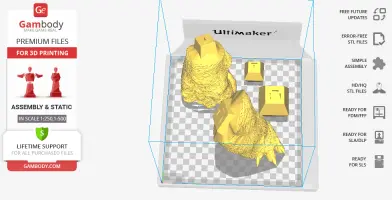

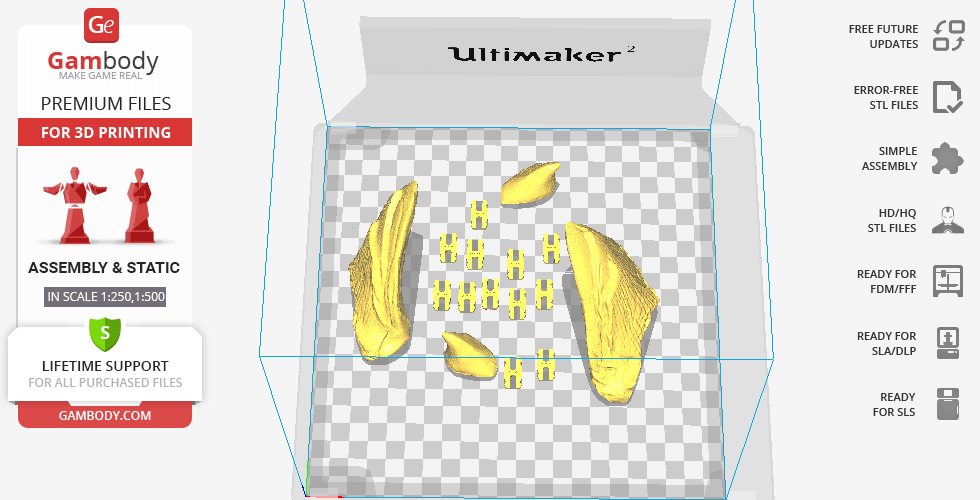

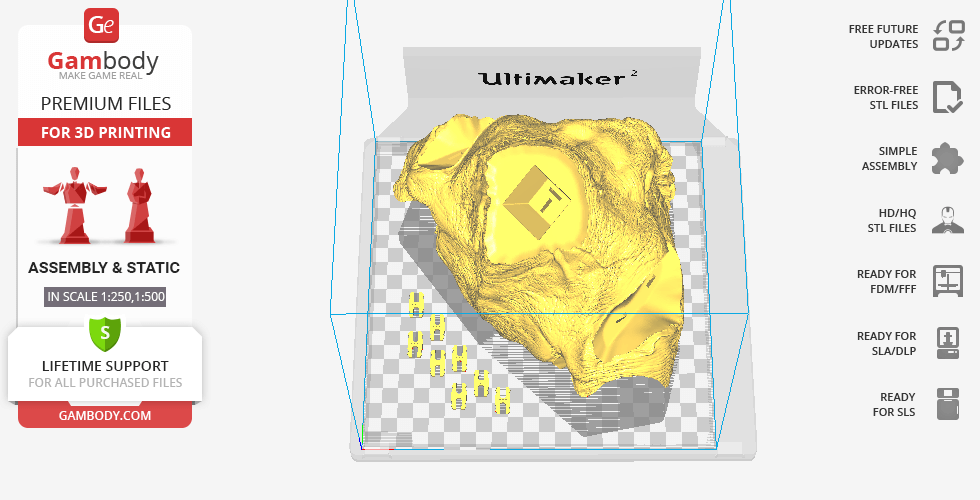

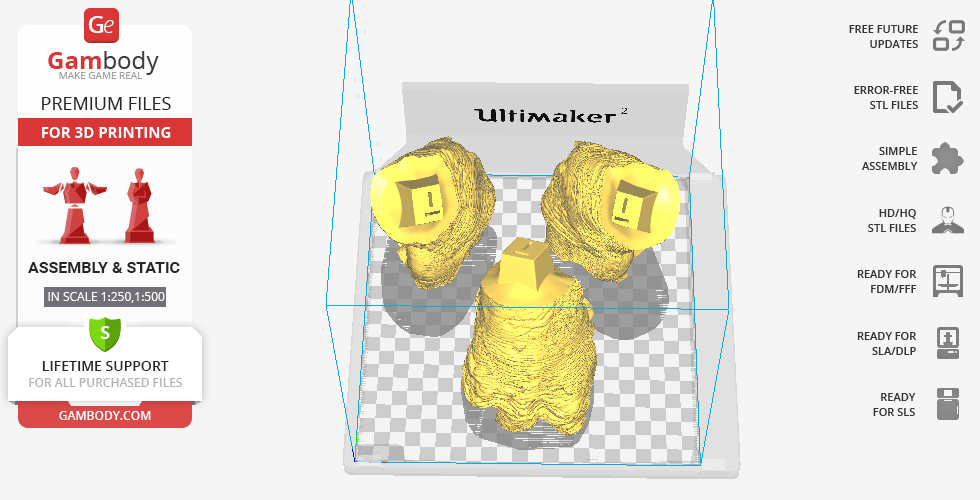

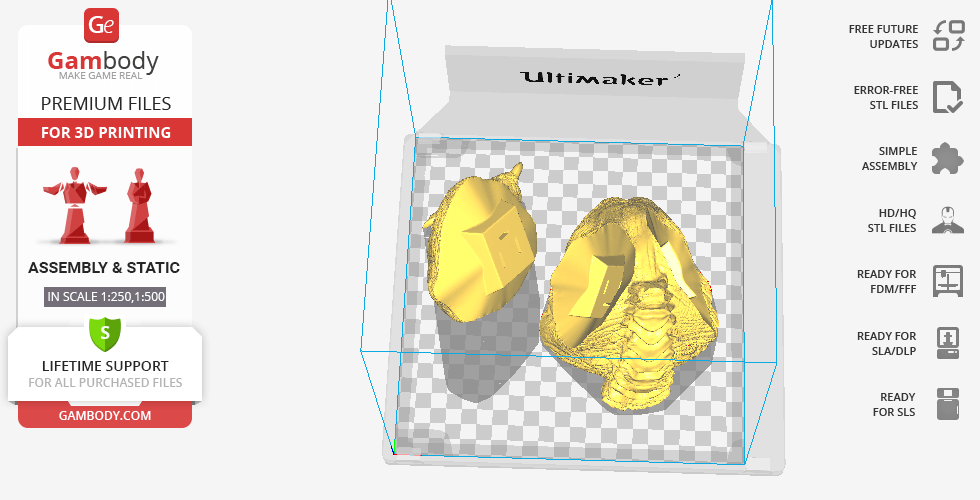

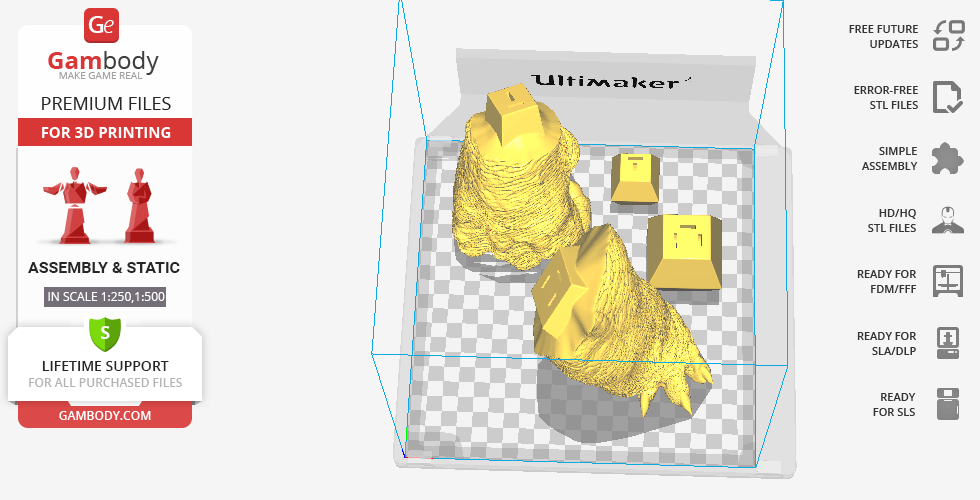

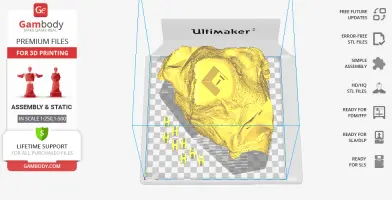

This model was tested in Cura 3.4.1 and printed on an Ultimaker 2 in PLA material. Below you can find printing recommendations for CuraSimplify3D and Slic3r softwares.

Cura printing recommendations:

Recommendations: For all parts of Locks you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
 Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
 Top/Bottom Line Width: 0.4 mm
 Infill Line Width: 0.4 mm
 Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
    Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill
Infill Density: 20%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 1
Gradual Infill Steps Height: 1.5 mm
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90Ëš
    Minimum Skin Width for Expansion: 0.0

Material
Initial Layer Flow: 100%
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 45 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
    Support Speed: 45 mm/s
     Support Infill Speed: 45 mm/s
Travel Speed: 45 mm/s
Initial Layer Speed: 22.5 mm/s
  Initial Layer Print Speed: 22.5 mm/s
  Initial Layer Travel Speed: 30 mm/s
Skirt/Brim Speed: 45 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.6562 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 60°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 3 mm
Support Z Distance: 0.2 mm
    Support Top Distance: 0.2 mm
    Support Bottom Distance: 0.2 mm
Support X/Y Distance: 1 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.25 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Gradual Support Infill Steps: 0
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim (for all parts of locks use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 15
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.

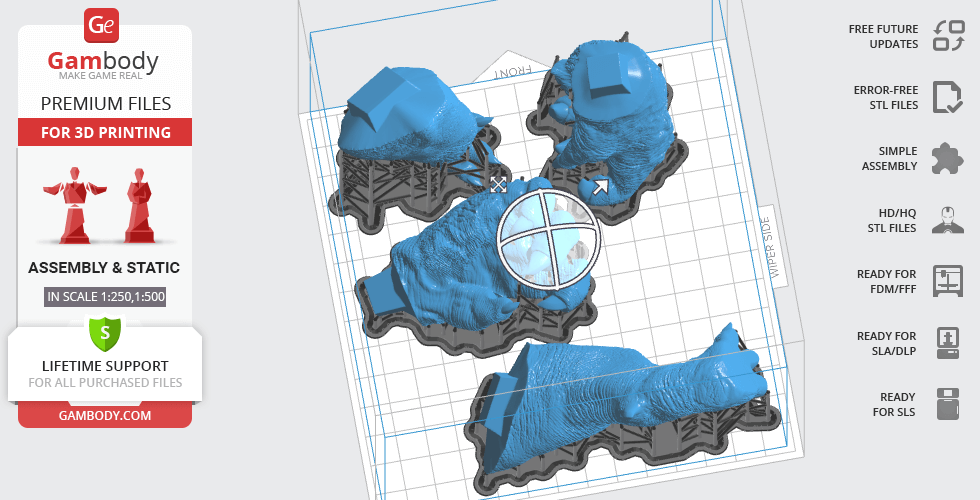

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments

comments powered by Disqus

Similar items

Browse more newly listed 3D printings
