Commander Shepard 3D Printing Figurine | Assemble

(3)
cm: 14.7 w x 14.7 d x 25 h
in: 5.787 w x 5.787 d x 9.843 h

Source Files

|

Description

|

Printing Details

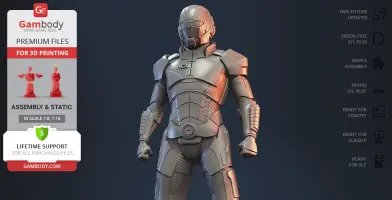

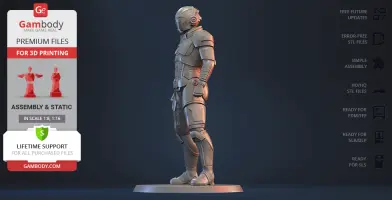

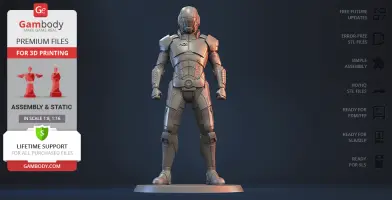

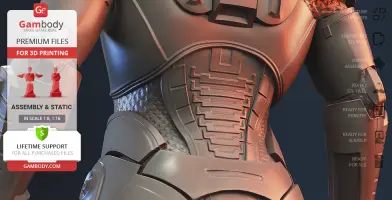

This 3D Model of Commander Shepard from Mass Effect consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

  • 4 versions of Shepard STL files for FFF/FDM, DLP/SLA, DLP/SLA Eco, SLS - files for all versions are available for download after the purchase;
  • STL files of high-poly Shepard 3D Figurine for 3D printing consist of 32 files;
  • Sizes for:
  • FFF/FDM: 250 mm tall, 147 mm wide, 147 mm deep;
  • DLP/SLA: 125 mm tall, 73 wide, 73 mm deep;
  • Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF and video formats;
  • Detailed settings that we provide as a recommendation for Cura, Simplify3D, Slic3r and PrusaSlicer for the best print;
  • Full technical support from the Gambody Support Team.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

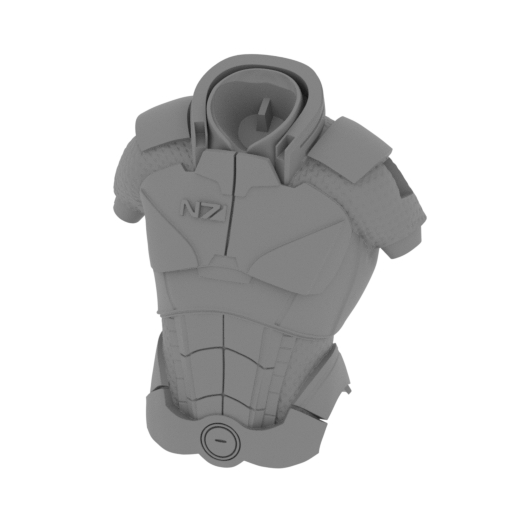

2_body_FDM(repaired).stl
53.78 MiB 13 h 57 min 8 m 74 x 47 x 89 Download

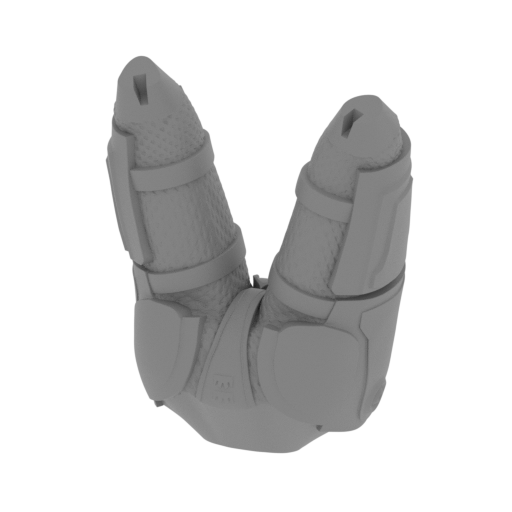

3_legs_FDM(repaired).stl
42.00 MiB 9 h 48 min 5 m 68 x 42 x 85 Download

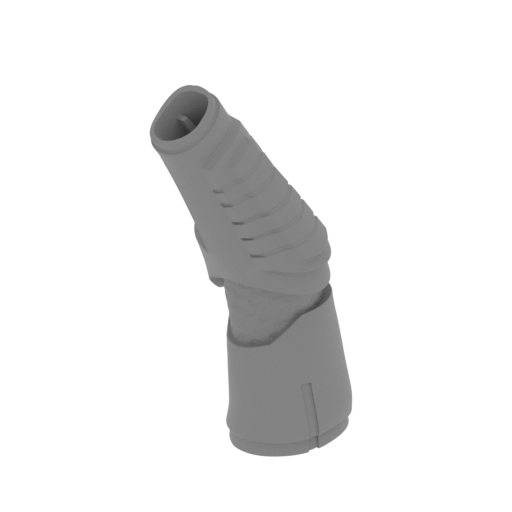

4_arm_R_FDM(repaired).stl
22.07 MiB 1 h 34 min 1 m 23 x 27 x 54 Download

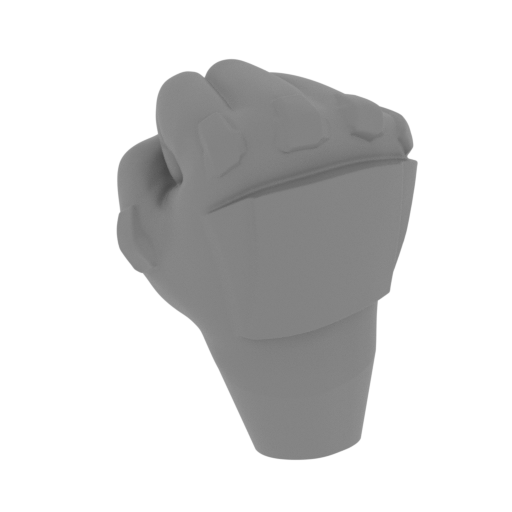

5_hand_R_FDM(repaired).st l
15.66 MiB 23 min <1 m 15 x 13 x 21 Download

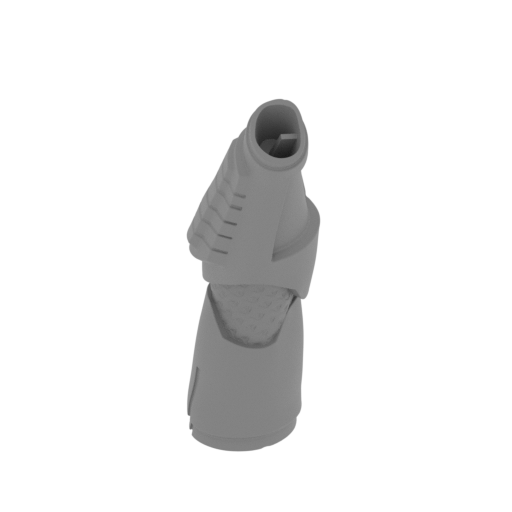

6_arm_L_FDM(repaired).stl
22.93 MiB 1 h 35 min 1 m 22 x 27 x 54 Download

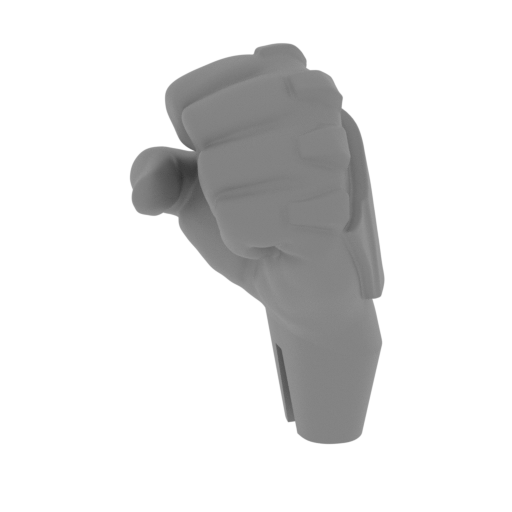

7_hand_L_FDM(repaired).st l
15.13 MiB 23 min <1 m 15 x 13 x 21 Download

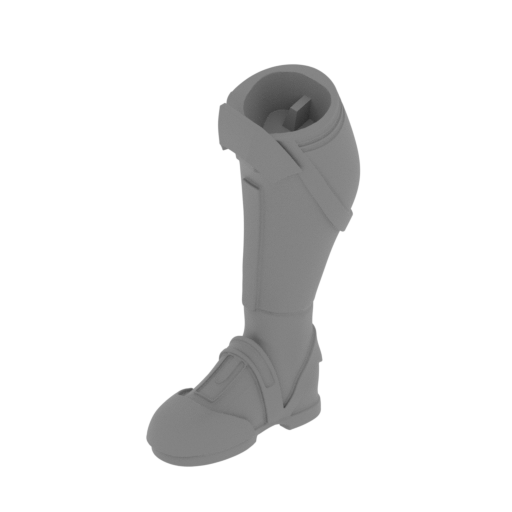

8_foot_R_FDM(repaired).st l
20.96 MiB 3 h 8 min 2 m 35 x 37 x 72 Download

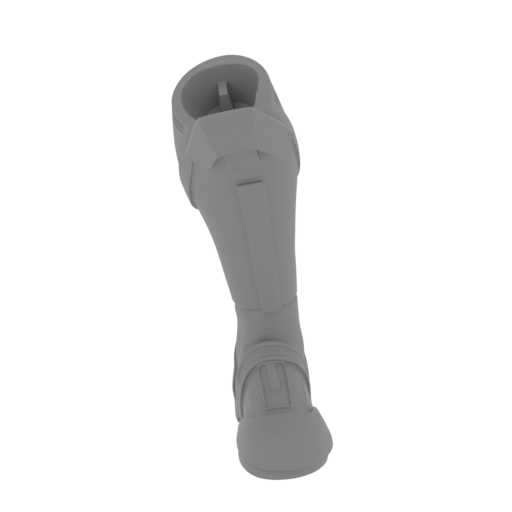

9_foot_L_FDM(repaired).st l
20.94 MiB 3 h 1 min 2 m 35 x 37 x 72 Download

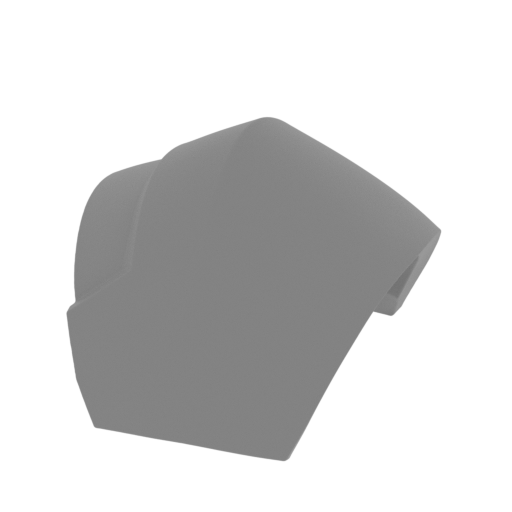

10_scapular_R_FDM(repaire d).stl
14.92 MiB 1 h 1 m 26 x 29 x 21 Download

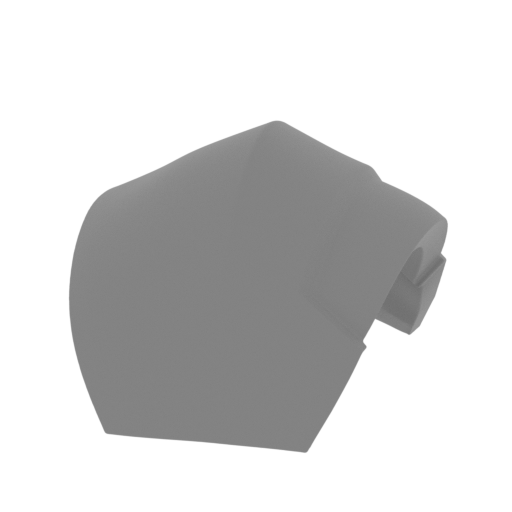

11_scapular_L_FDM(repaire d).stl
15.55 MiB 1 h 1 min 1 m 26 x 29 x 21 Download

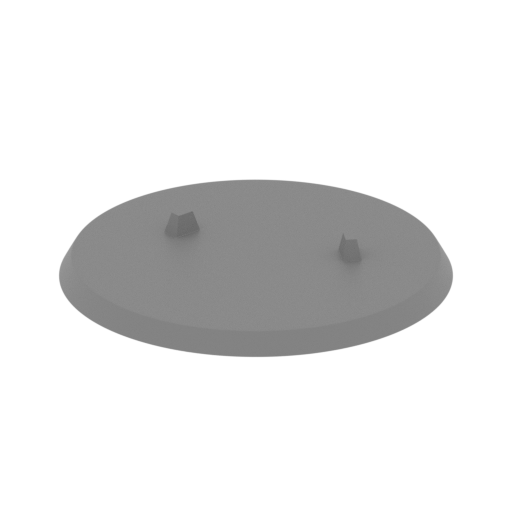

12_platform_FDM(repaired) .stl
20.50 MiB 12 h 16 min 7 m 147 x 147 x 16 Download
13_ge_lock_10H(x1)_FDM(re paired).stl
0.03 MiB 4 min <1 m 10 x 18 x 2 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download

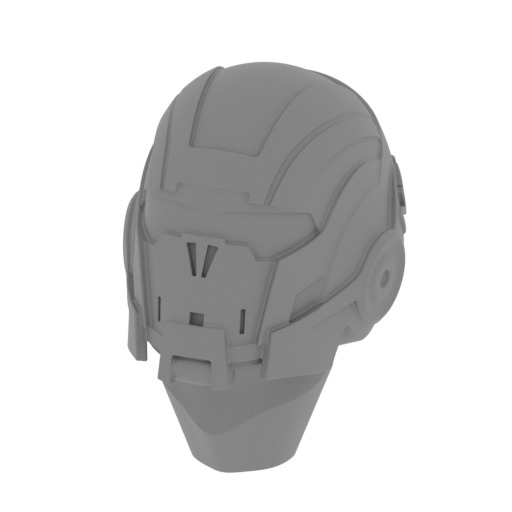

1_head_FDM(repaired).stl
23.74 MiB 2 h 57 min 2 m 31 x 41 x 43 Download
...

ABOUT THIS 3D MODEL

Commander Shepard is the iconic protagonist of the Mass Effect series, known for their incredible bravery, leadership skills, and tactical prowess. As a graduate of the Systems Alliance N7 special forces program, Shepard possesses an unparalleled combat ability, and their experiences on the planet Eden Prime gave them a unique insight into the threat of the Reapers, a race of intelligent machines that threatened all organic life. Shepard's heroics and leadership skills earned them the title of Spectre, a prestigious position within the Citadel Council's elite task force. Throughout their journey aboard the Normandy SR-2, Shepard faces countless challenges and battles against powerful enemies, assembling a team of skilled allies to combat the Reapers and save the galaxy from destruction. The character's compelling story arc, whether played as a male or female character FemShep, has made them unforgettable figures in gaming history.

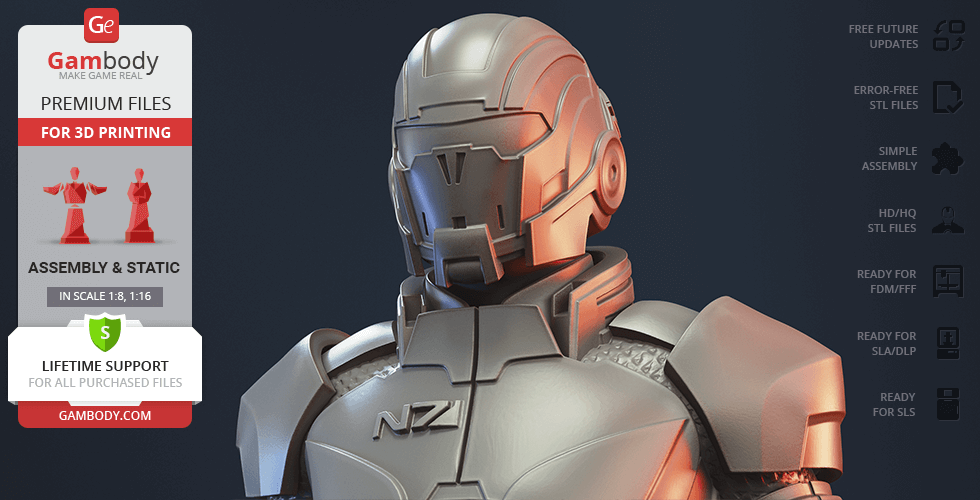

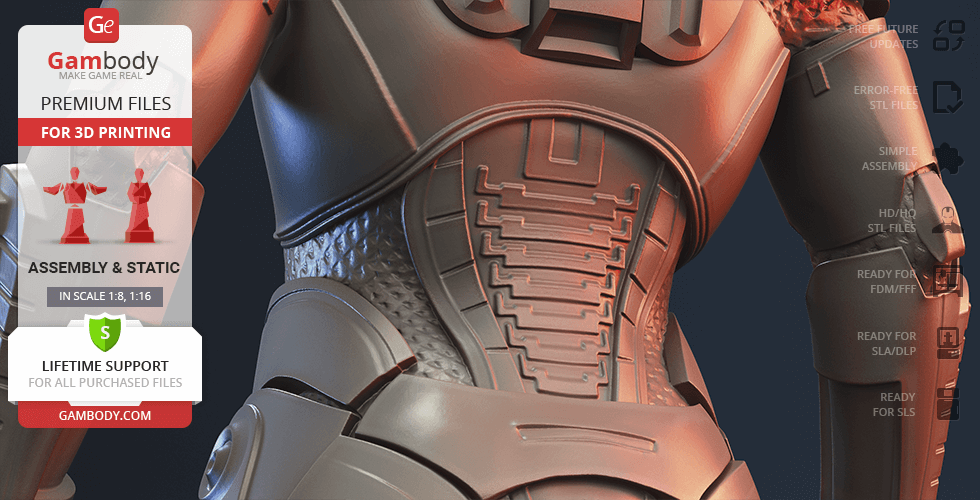

Shepard has a reputation as a rebel who can break the rules and go against the bureaucracy to save civilians. He has remarkable abilities as a commander and a soldier. Inspired by the legendary N7 soldier, our contributing artist created this impressive figurine for 3D printing. The whole posture of Shepard says of his decisiveness and confidence. The soldier's costume is decorated with the emblem that identifies his belonging to the group of graduates of the ICT program. Looking at the figurine you feel the inner power of the character and there is no doubt that under his protection the allies will always stay safe. The spectacular level of the figurine’s execution will result in an amazing 3D printing project that you will surely not want to put off!

ADAPTATION FOR 3D PRINTING

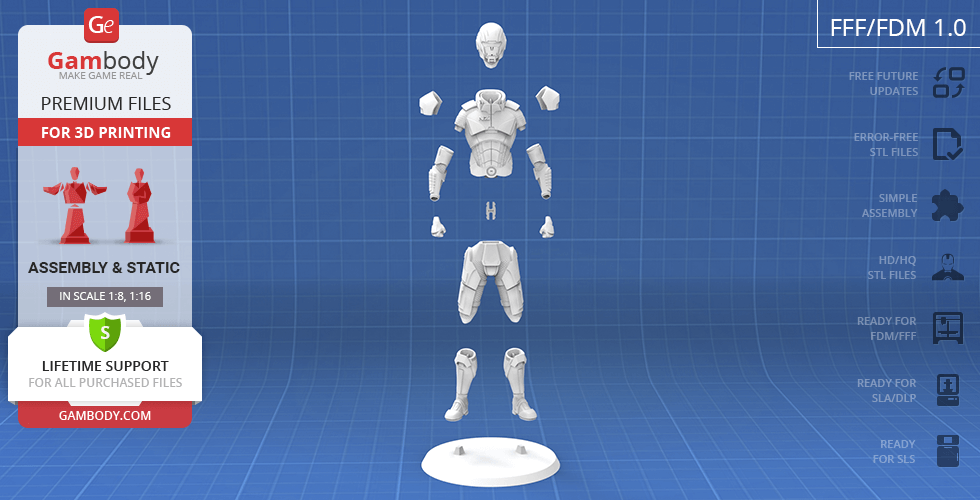

Commander Shepard figurine for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 39 hours. The figurine’s anatomy and proportions were thoroughly reviewed during the moderation process for the Shepard to be depicted harmoniously in the intended pose.

The model’s cutting was chosen by our team to minimise the amount of generated support and some of the parts were hollowed out for you to save resin in the Eco version. For you to achieve the cleanest 3D printed result, the body of the Shepard was divided into convenient assembly parts.

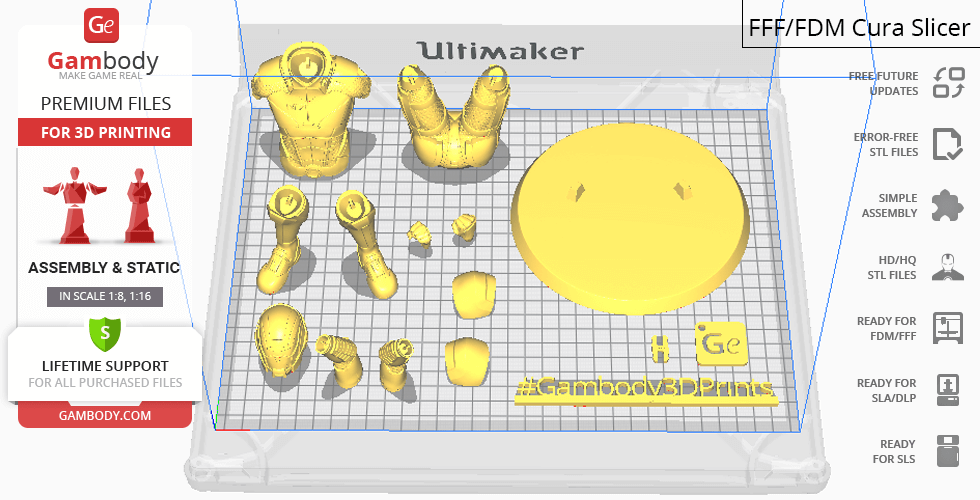

All assembly parts of the FFF/FDM versions come in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and so that the 3D printing beginners won't face difficulties when placing the parts on a build plate.

The figurine is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

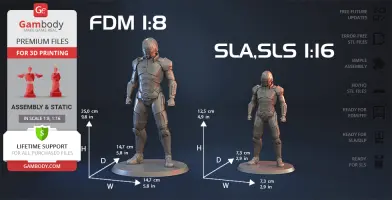

The model's scale was calculated from the height of Shepard which is 1890 mm. The 3D printing figurine's chosen scale is 1:8 for the FFF/FDM version and 1:16 for the DLP/SLA/SLS versions.

VERSIONS’ SPECIFICATIONS

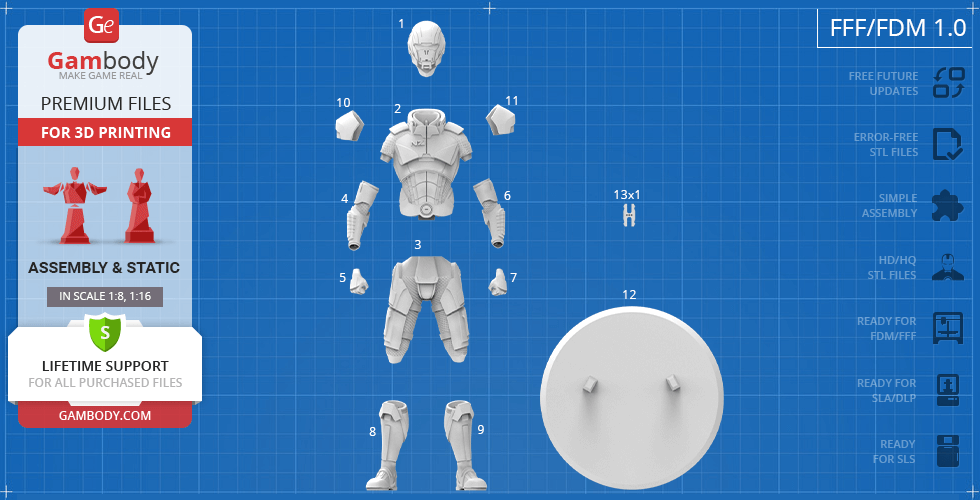

FFF/FDM 1.0 version features:

  • Contains 13 parts;
  • A printed model is 250 mm tall, 147 mm wide, 147 mm deep;
  • All parts are divided in such a way that you will print them with the smallest number of support structures;

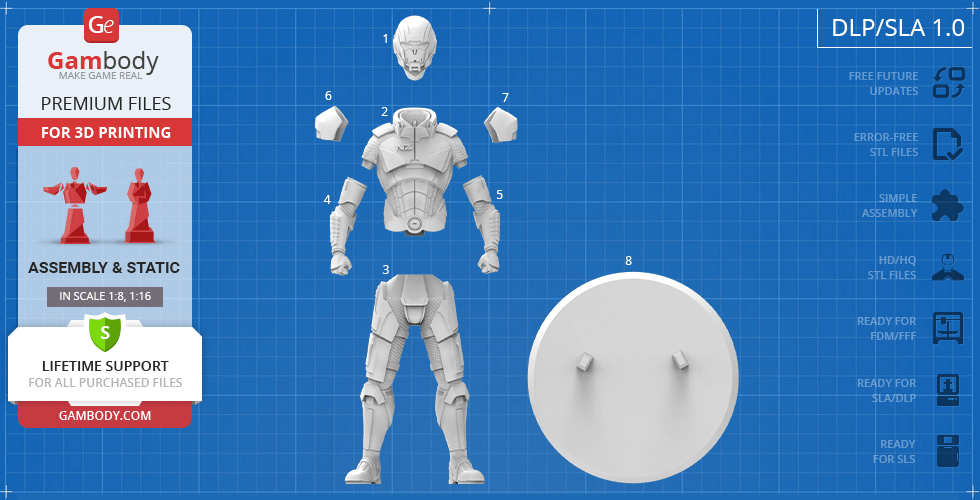

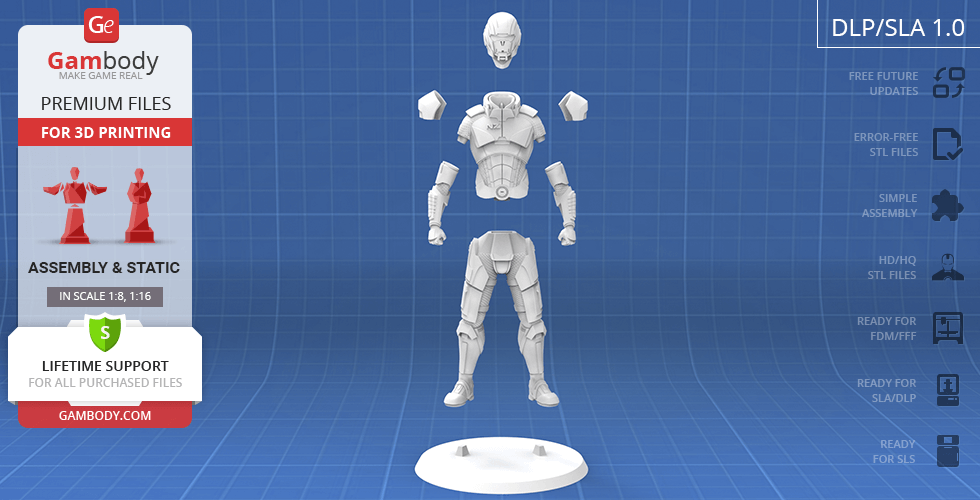

DLP/SLA 1.0 version features:

  • Contains 8 parts;
  • A printed model is 125 mm tall, 73 mm wide, 73 mm deep;
  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed;

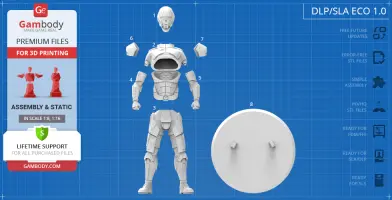

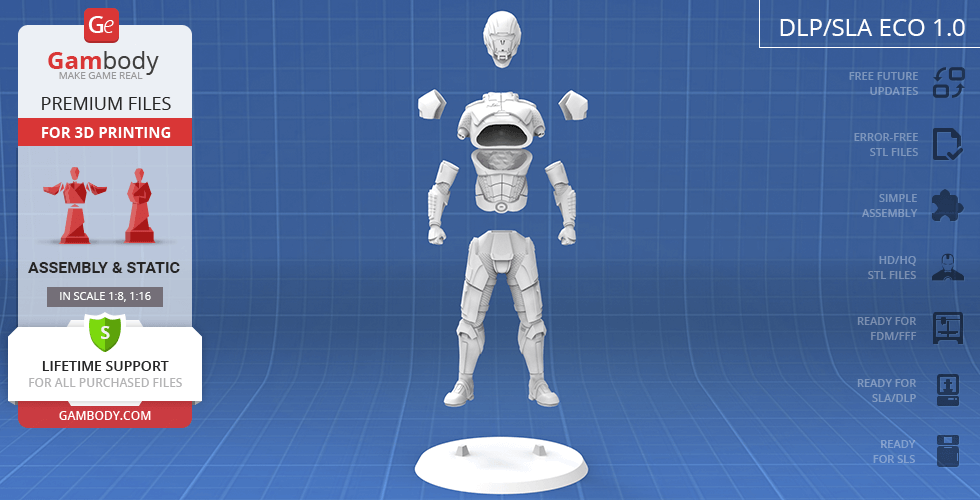

DLP/SLA Eco 1.0 version features:

  • Contains 8 parts;
  • A printed model is 125 mm tall, 73 mm wide, 73 mm deep;
  • All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed;

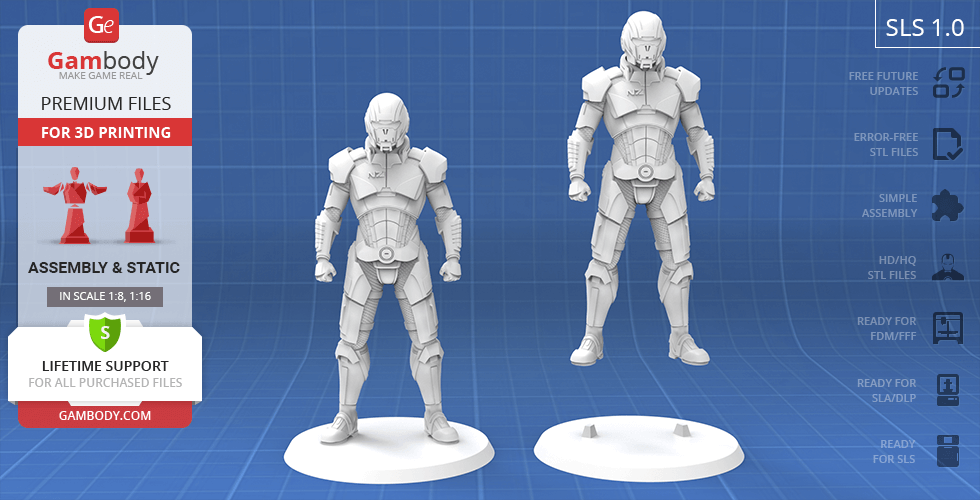

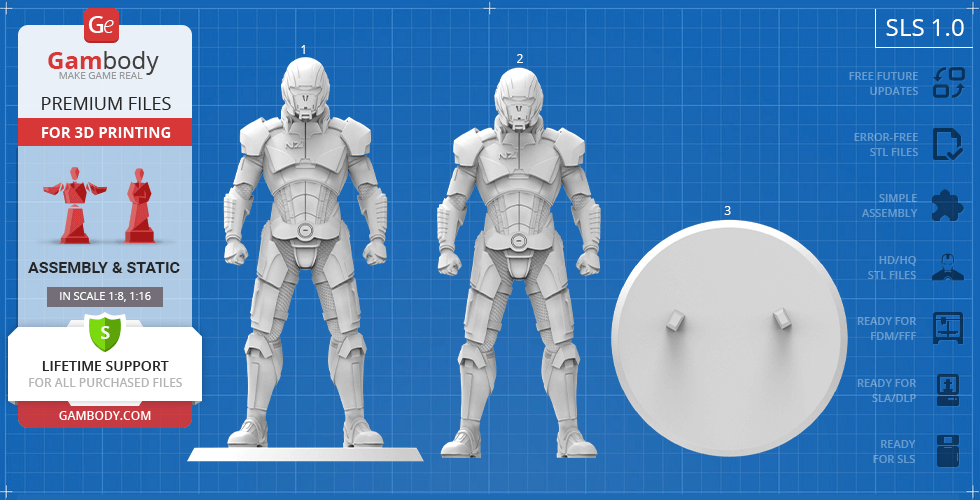

SLS 1.0 versions features:

  • Contains 3 parts - a solid Shepard figurine with and without the platform.

You can get the model of Shepard N7 Mass Effect for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Shepard N7 Mass Effect 3D Printing Figurine on Gambody YouTube channel.

Also, you may like the Garrus Vakarian and Legion figurines for 3D printing.

________

FAQ:

Generic

Below you can find printing recommendations for Cura, Simplify3D, Slic3r and PrusaSlicer software.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use, and especially the particular assembly part you are working with. Each part that any model comprises often needs preliminary review, and you are free to tweak the settings the way you find suitable.

Note:

  • You can scale up the model (downscaling for FFF/FDM 3D printers is not recommended!);
  • All connectors should be printed at 100% Infill.

Cura printing recommendations:

These are averaged settings which were tested in the Cura 5.2.1 slicer. Test models were printed on Anycubic Vyper, Creality Ender 3 Pro with PLA filament.

To avoid printing problems, we recommend the following settings: download

Simplify3D printing recommendations:

These are averaged settings which were tested in the Simplify3D 5.0.0 slicer. Test models were printed on Anycubic Vyper, FLSUN v400, Ender3 S1 with PLA filament.

To avoid printing problems, we recommend the following settings: download

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

To avoid printing problems, we recommend the following settings: download

PrusaSlicer printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

To avoid printing problems, we recommend the following settings: download
