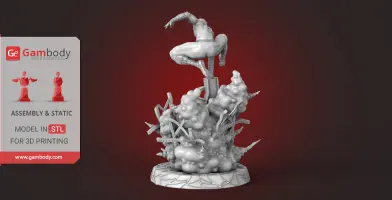

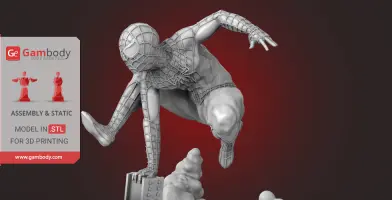

Spider-Man Explosion Scene 3D Printing Figurine | Assembly

(13)
cm: 20.4 w x 19.2 d x 30 h
in: 8.031 w x 7.559 d x 11.811 h

Source Files

|

Description

|

Printing Details

This 3D Miniature consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

Version 1 and Version 2 are the files for Spider-Man 3D Miniature optimized for 3D printing, the preview pictures of which you see above.

It is recommended:

  • to print Version 1 STL files on FDM/FFF 3D printers;
  • to print Version 2 STL files on DLP/SLA/SLS 3D printers.
File Name File Size Time / Filament Object Size
(x/y/z mm)

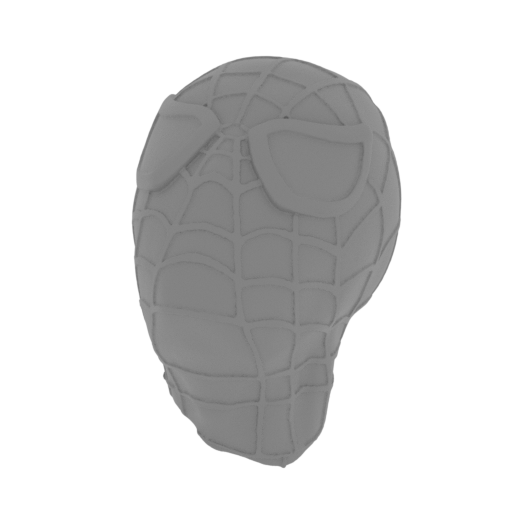

1_head_s_1.stl
5.77 MiB 1 h 43 min 1 m 23 x 36 x 35 Download

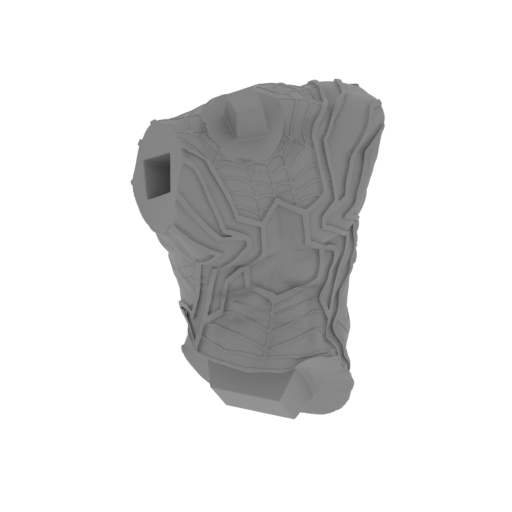

2_body_s_1.stl
16.10 MiB 6 h 4 min 4 m 39 x 45 x 71 Download

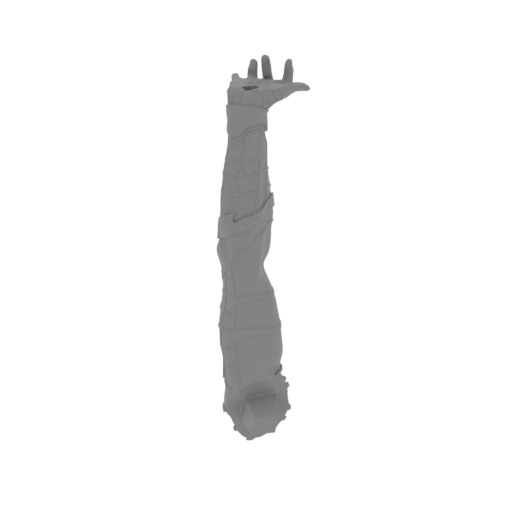

3_arm_R_s_1.stl
6.88 MiB 2 h 25 min 2 m 19 x 25 x 85 Download

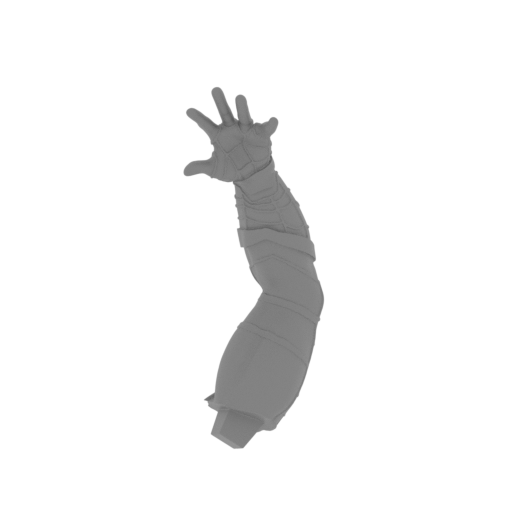

4_arm_L_s_1.stl
5.32 MiB 1 h 46 min 1 m 21 x 25 x 70 Download

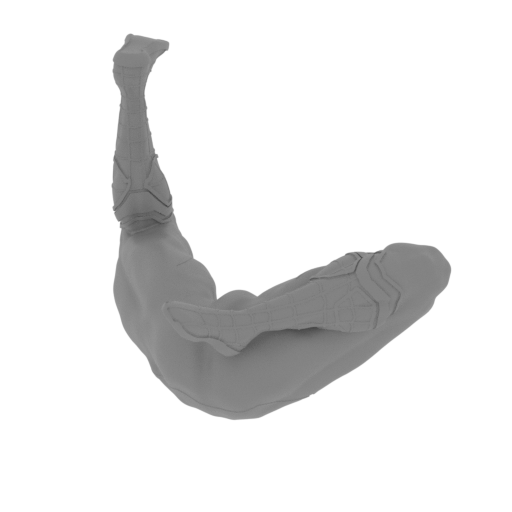

5_legs_s_1.stl
11.73 MiB 12 h 22 min 8 m 110 x 105 x 90 Download

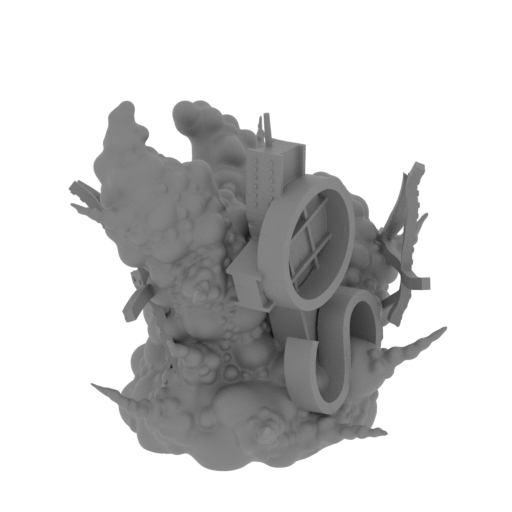

7_platform_2.STL
17.51 MiB 116 h 50 min 75 m 189 x 184 x 176 Download

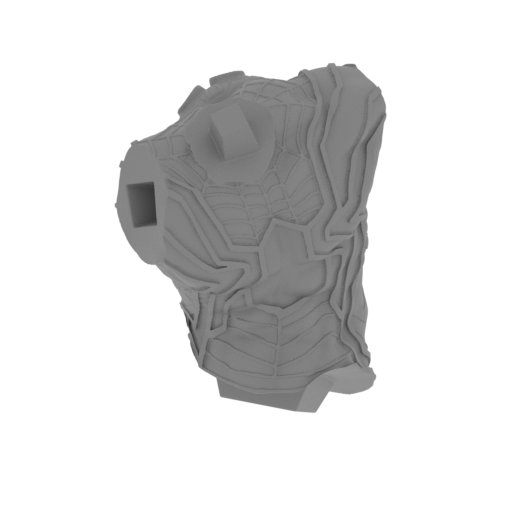

8_body_s_1_with_paws.stl
16.53 MiB 6 h 3 min 4 m 39 x 50 x 65 Download

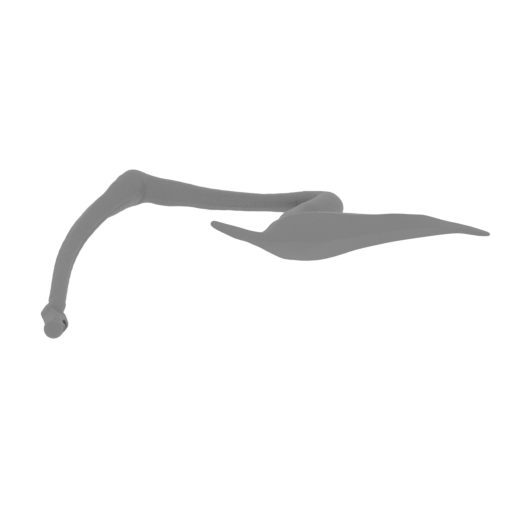

9_paw_1.stl
0.86 MiB 2 h 42 min 2 m 110 x 114 x 22 Download

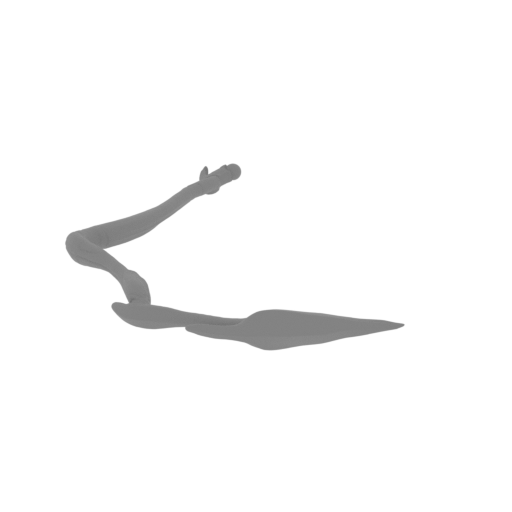

10_paw_2.stl
0.97 MiB 2 h 7 min 1 m 130 x 133 x 14 Download

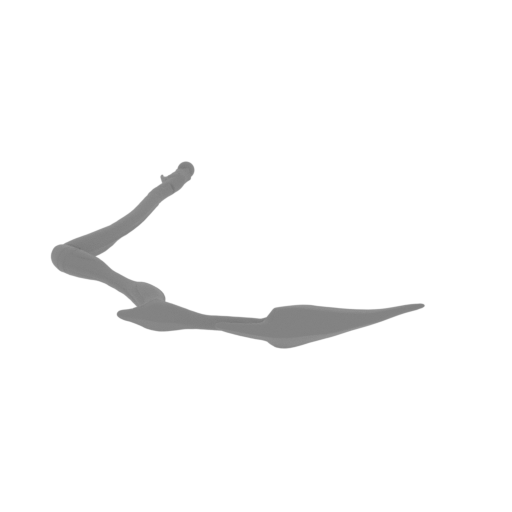

11_paw_3.stl
0.93 MiB 2 h 7 min 1 m 130 x 127 x 14 Download

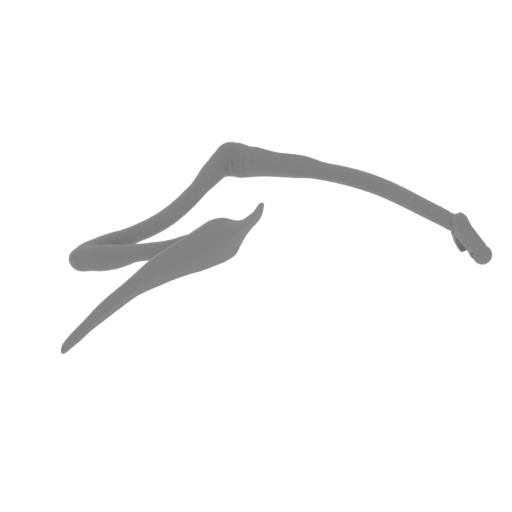

12_paw_4.stl
0.81 MiB 2 h 47 min 2 m 111 x 113 x 26 Download

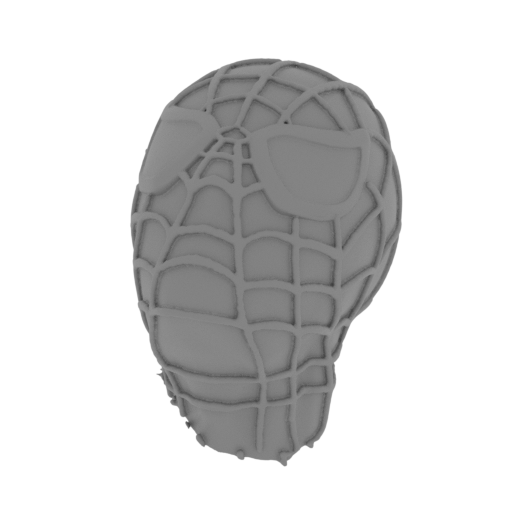

13_head_s_2.stl
7.07 MiB 1 h 56 min 1 m 23 x 37 x 35 Download

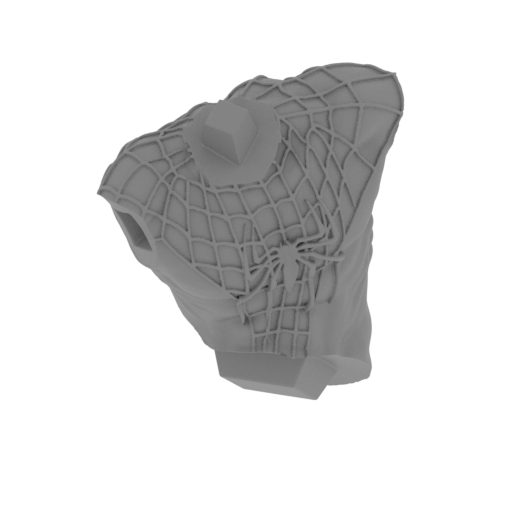

14_body_s_2.stl
15.18 MiB 5 h 52 min 4 m 40 x 51 x 63 Download

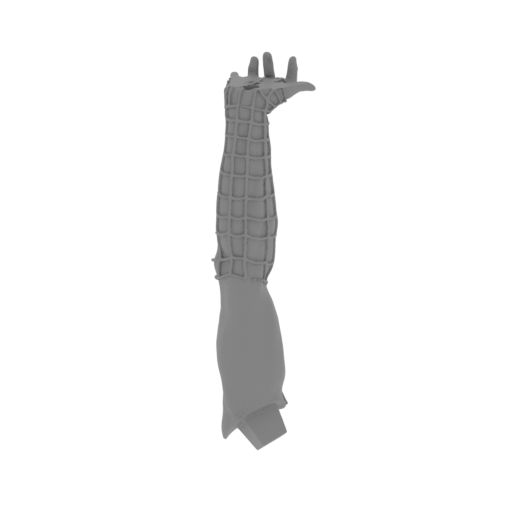

15_arm_R_s_2.stl
3.06 MiB 2 h 23 min 2 m 19 x 26 x 78 Download

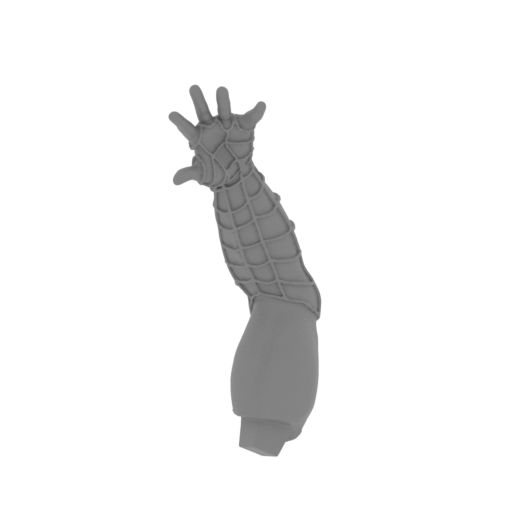

16_arm_L_s_2.stl
2.67 MiB 1 h 47 min 1 m 24 x 27 x 68 Download

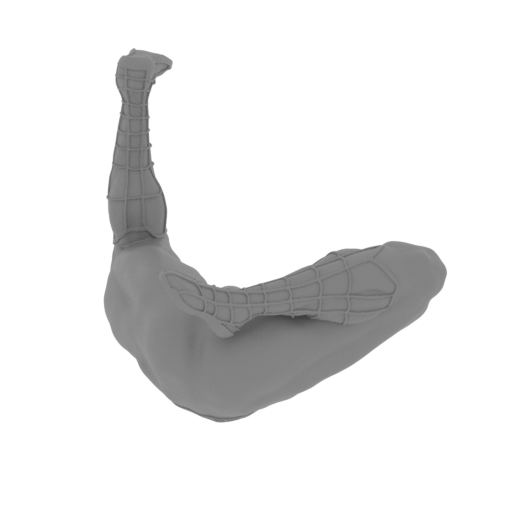

17_legs_s_2.stl
12.86 MiB 12 h 60 min 8 m 110 x 109 x 85 Download

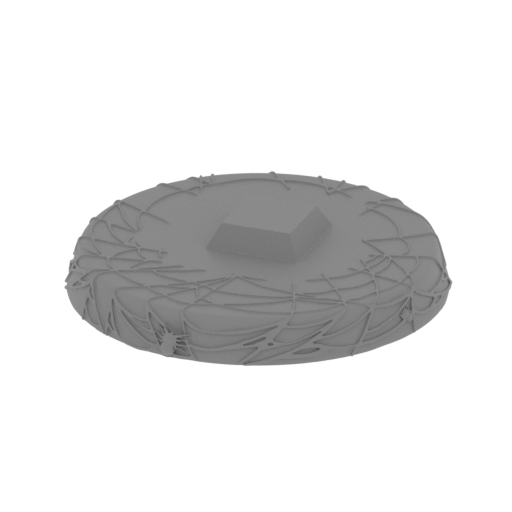

6_platform_1.stl
28.96 MiB 38 h 59 min 22 m 181 x 185 x 33 Download
...

HISTORY OF SPIDER-MAN

Peter Benjamin Parker is a superhero known as Spider-Man. Peter was bitten by a radioactive spider in high school and as a result, he developed spider-like abilities. Soon he was free to creep along the walls and feel the danger and eventually created a device that shoots cobwebs. After the death of Uncle Ben, Peter realized that "with great strength, comes a great responsibility" so he became Spider-Man. The history of the spider man contains many personalities in which he changed costumes and sometimes even his abilities and personality.
There are 3 versions of his costume is presented for you.
- First from the Infinity War.

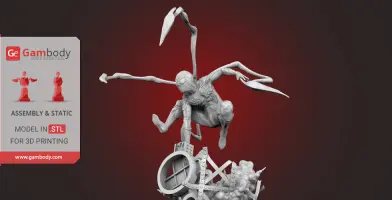

- Second with his metallic tentacles.
- The third is more classic from the Amazing Spiderman series.

ABOUT THIS 3D MINIATURE

The model is saved in STL files, a format supported by most 3D printers

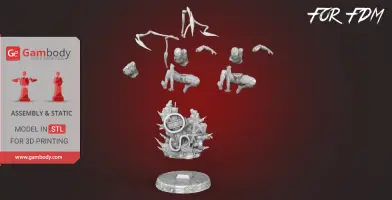

FDM version features:

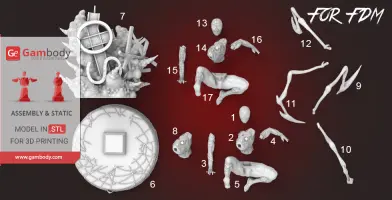

- Contain 17 parts;

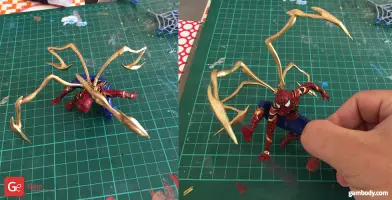

- Made with removable parts of tentacles;

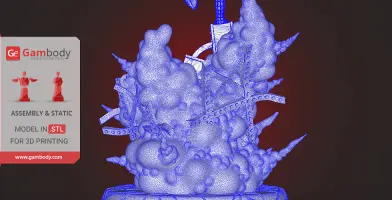

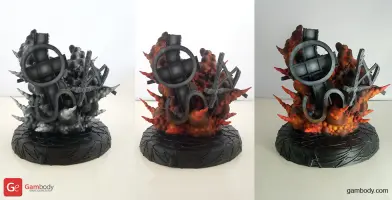

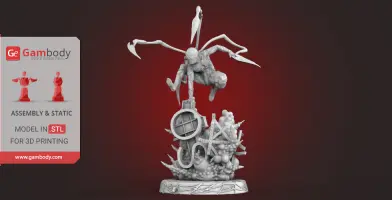

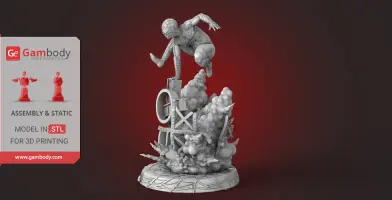

- Made with platform that stylized as an explosion and a collapsing building;
- Provided second version of classic Amazing Spiderman costume;
- All parts are divided in such way that you will print them with the smallest amount of supports.

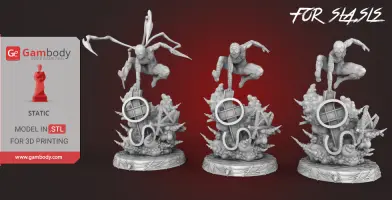

DLP/SLS/SLA version features:

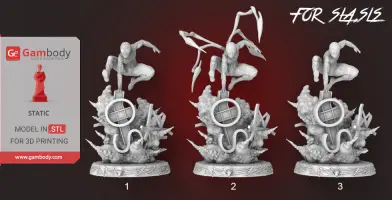

- Made as solid figure in 3 variants with different costumes;

All STL files for 3D printing have been checked in Netfabb and no errors were shown.

Note: Before starting 3D printing the model, read the Printing Details for CURA 3.2.1 and Simpily3D. Software.

There are 17 parts for FFF/FDM version and 3 part for DLP/SLS/SLA version.

Scale: Model made as 1/8 scale in FDM version and 1/16 in SLS/SLA version.

FDM version dimensions:
After being printed will stand - 300 mm tall, 204 mm wide, 192 mm deep;

SLS/SLA version dimensions:
After being printed will stand - 150 mm tall, 102 mm wide, 96 mm deep;
- Has only 1 detail in each variant, to keep printing costs down.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Spider-Man 3D Miniature for 3D printing which consist of 20 parts;
- 2 versions of files for this model for FFF/FDM and DLP/SLS/SLA;
- Made with platform that stylized as an explosion and a collapsing building;
- Made with removable parts of tentacles;
- High-poly detailed miniature of Spider-Man;
- Detailed settings that we provide for Cura 3.2.1. and Simplify3D for the best print;
- Full technical support from the Gambody Support Team.

Watch the tutorial video on how to assemble Spider-Man 3D Printing Miniature at Gambody YouTube channel.

You can get Model of Spider-Man for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Also, you may like other Marvel 3D Printing Figurines as well as 3D Figurines of DC.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

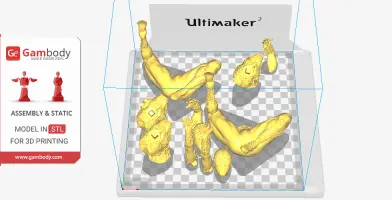

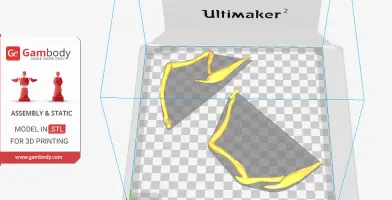

This model was tested in Cura 3.2.1 and printed on an Ultimaker 2 in PLA material. Below you can find printing recommendations for Cura and Simplify3D softwares.

Cura printing recommendations:

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
 Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
 Top/Bottom Line Width: 0.4 mm
 Infill Line Width: 0.4 mm
 Skirt/Brim Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
    Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill
Infill Density: 20%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
    Minimum Skin Width for Expansion: 0.0

Material
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
Travel Speed: 120 mm/s
Initial Layer Speed: 30 mm/s
  Initial Layer Print Speed: 30 mm/s
  Initial Layer Travel Speed: 60 mm/s
Skirt/Brim Speed: 30 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 60°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 1.3333 mm
Support Z Distance: 0.3 mm
    Support Top Distance: 0.3 mm
    Support Bottom Distance: 0.3 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.



Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m
