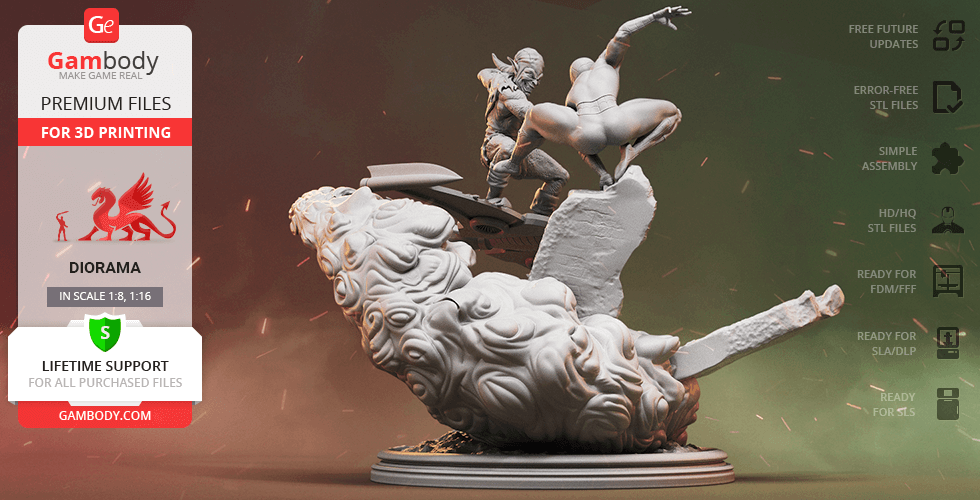

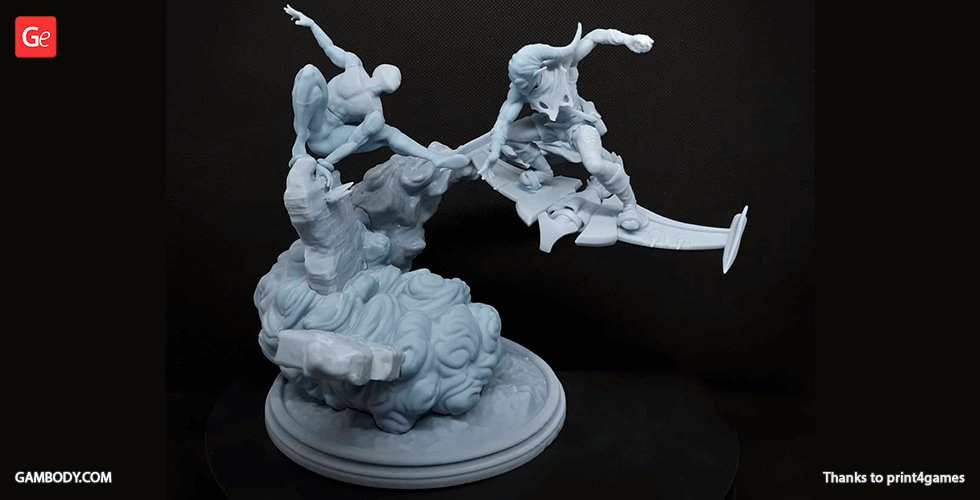

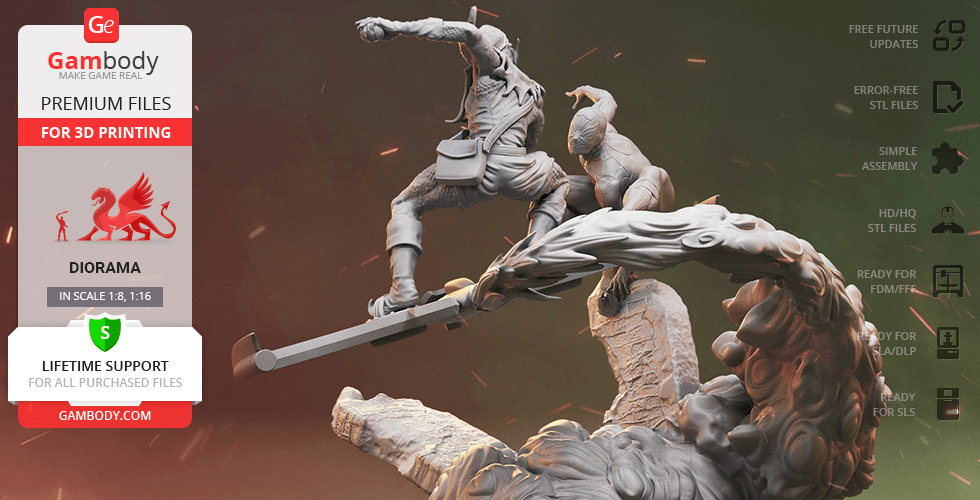

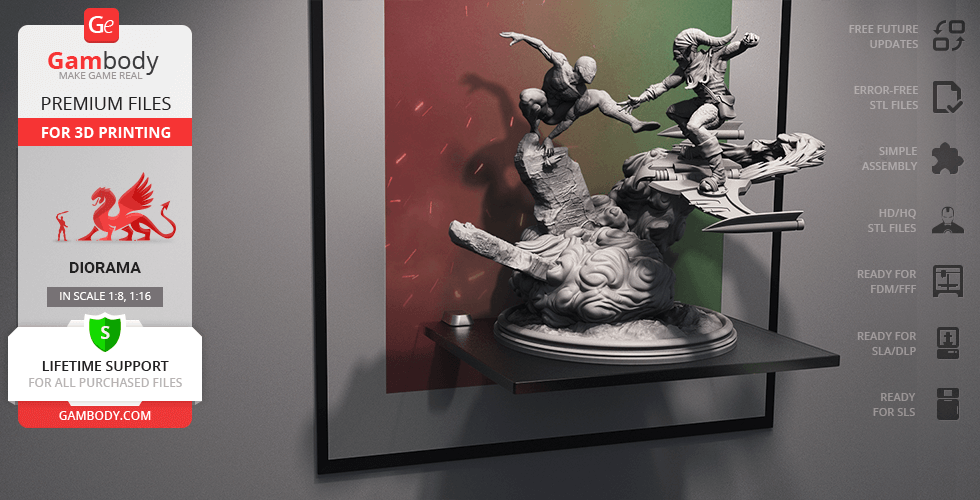

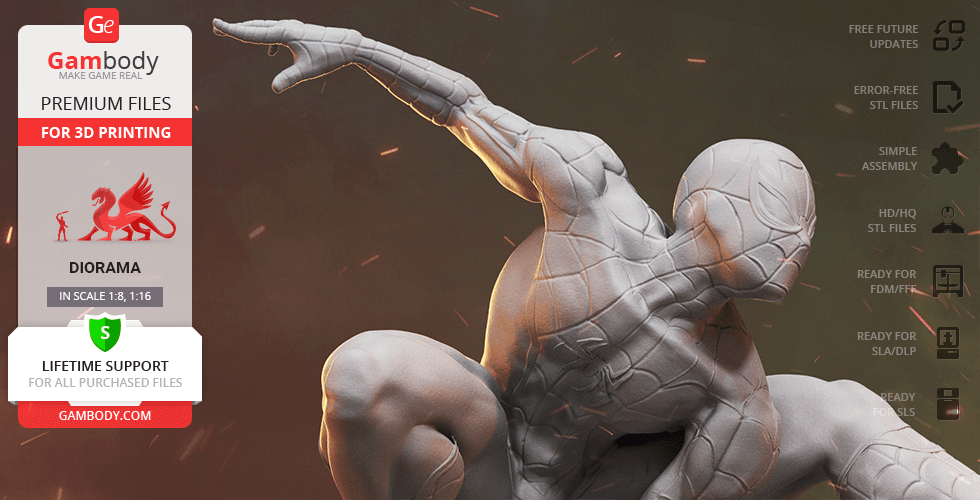

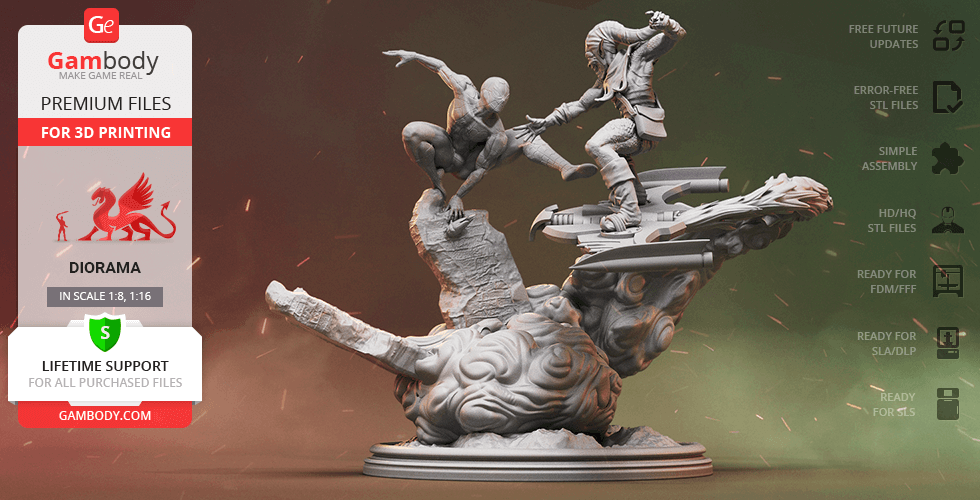

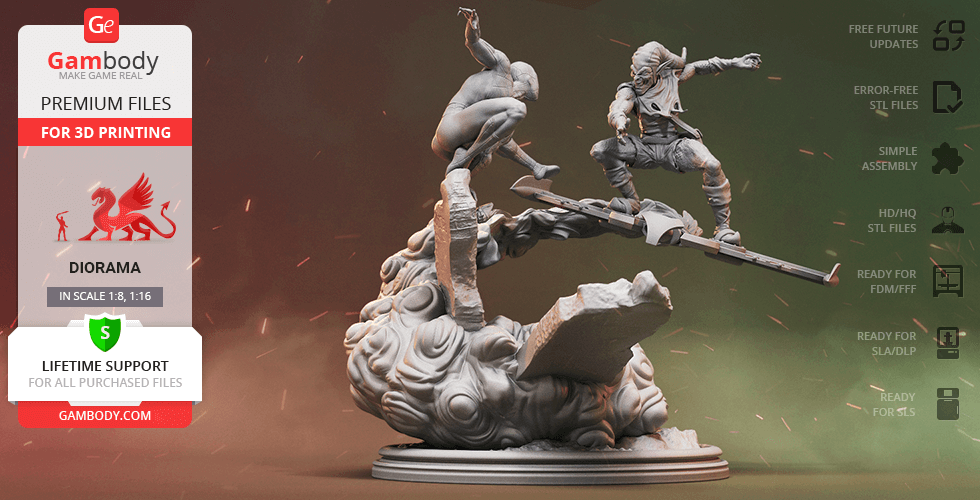

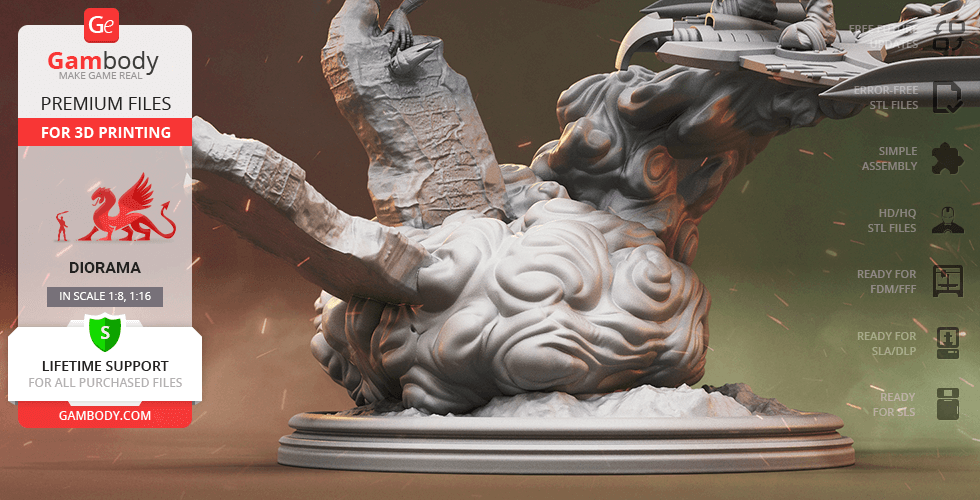

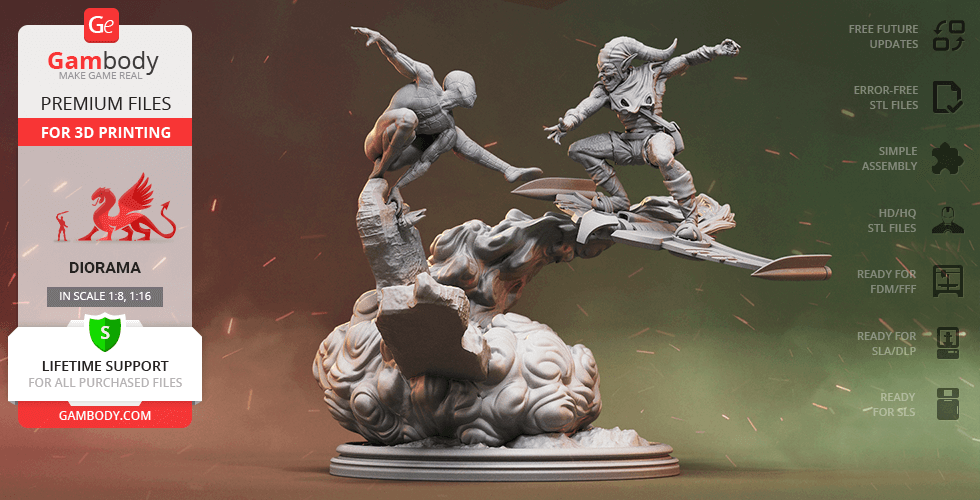

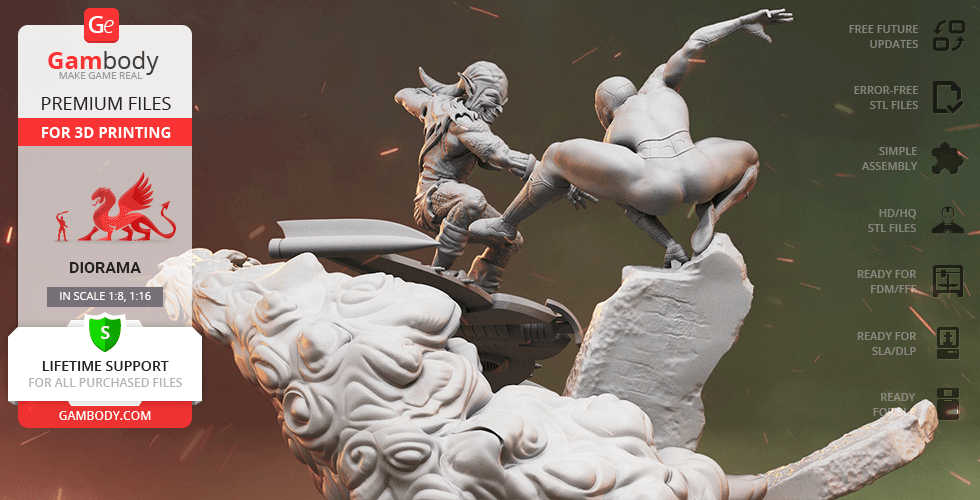

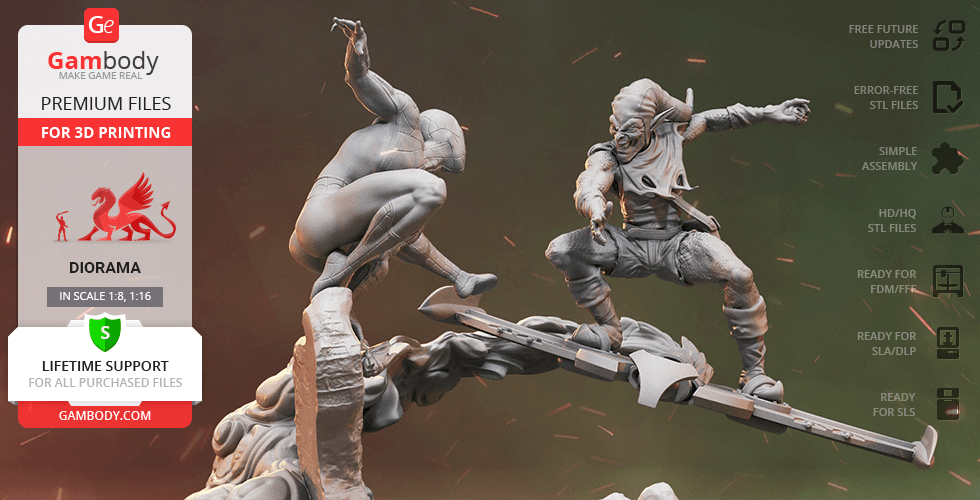

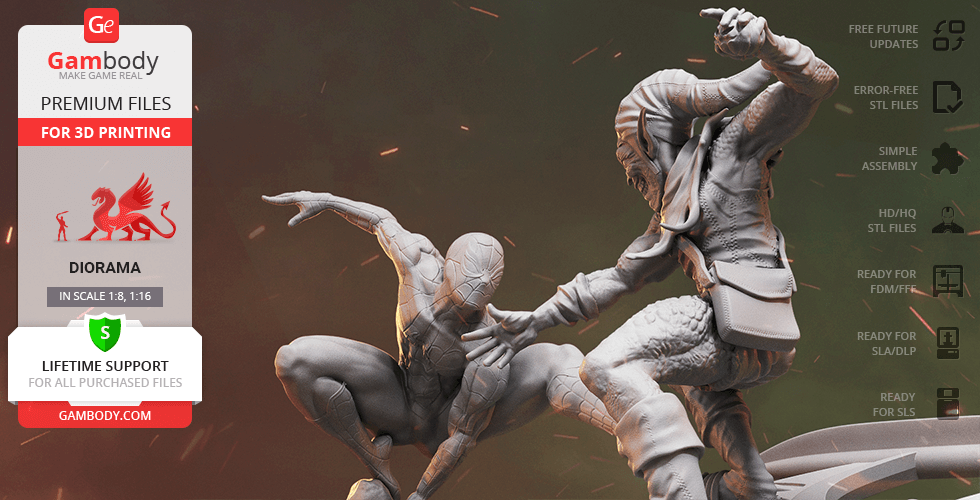

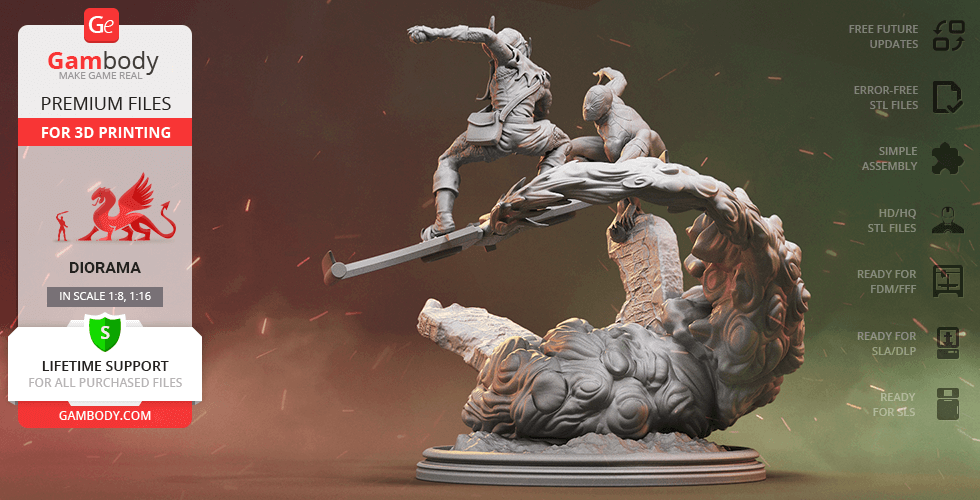

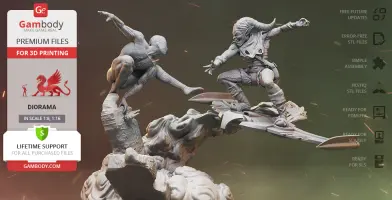

Spider-Man vs Green Goblin 3D Printing Figurines in Diorama | Assembly

(10)
cm: 33.9 w x 33.6 d x 29 h
in: 13.346 w x 13.228 d x 11.417 h

Source Files

|

Description

|

Printing Details

This 3D Diorama consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

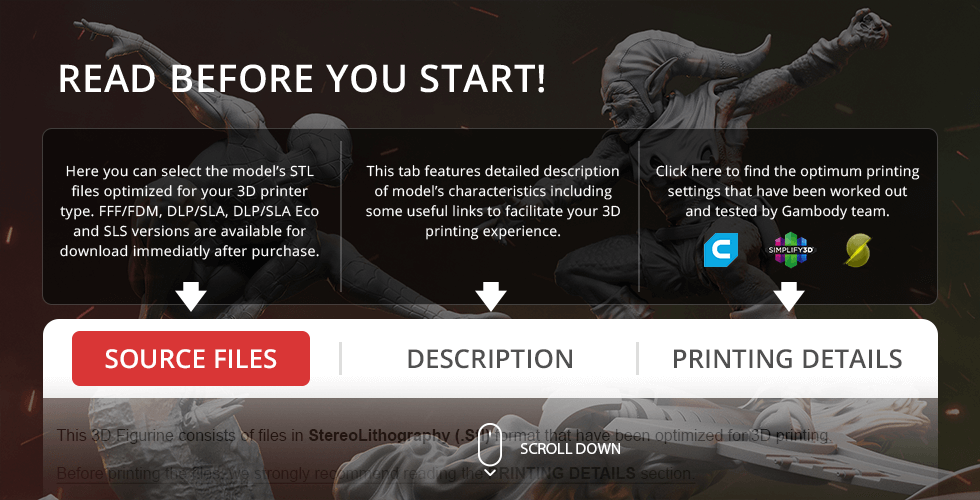

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

Spider-Man vs Green Goblin 3D Printing Figurines in Diorama come in 4 versions for each 3D printer type (FFF/FDM, DLP/SLA and SLS). Files for each version are available for download after the purchase.

Detailed information about this 3D printing diorama is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

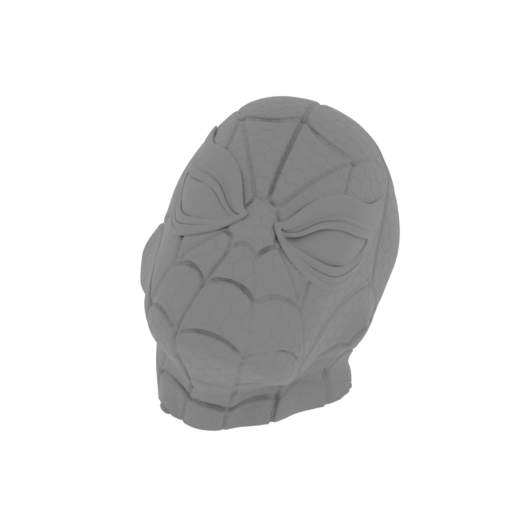

1_Spider_Man_head_FDM(rep aired).stl
18.77 MiB 37 min <1 m 17 x 29 x 21 Download

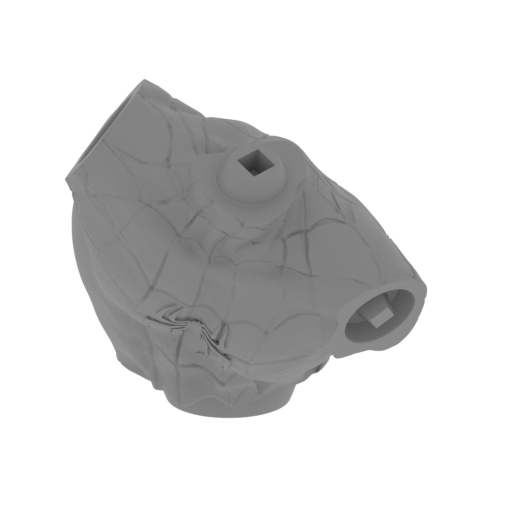

2_Spider_Man_body_FDM(rep aired).stl
29.41 MiB 3 h 6 min 2 m 46 x 38 x 44 Download

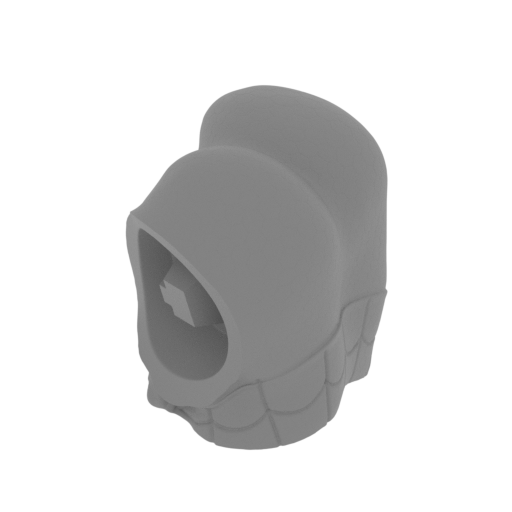

3_Spider_Man_pelvis_FDM(r epaired).stl
26.60 MiB 1 h 46 min 1 m 23 x 39 x 30 Download

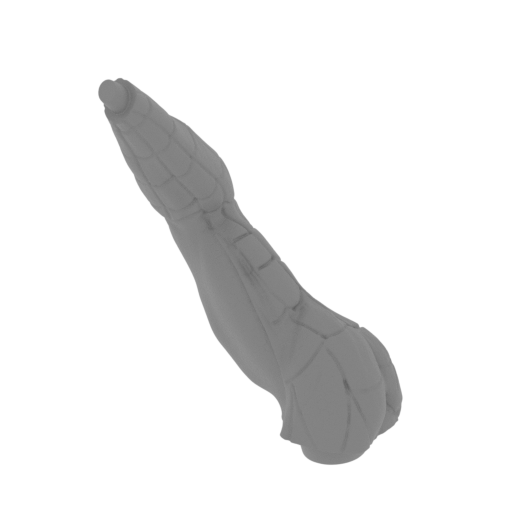

4_Spider_Man_arm_R_FDM(re paired).stl
13.62 MiB 55 min <1 m 31 x 17 x 42 Download

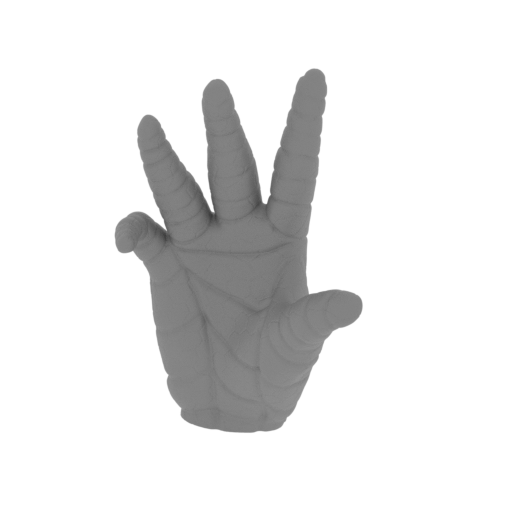

5_Spider_Man_hand_R_FDM(r epaired).stl
13.25 MiB 19 min <1 m 16 x 10 x 23 Download

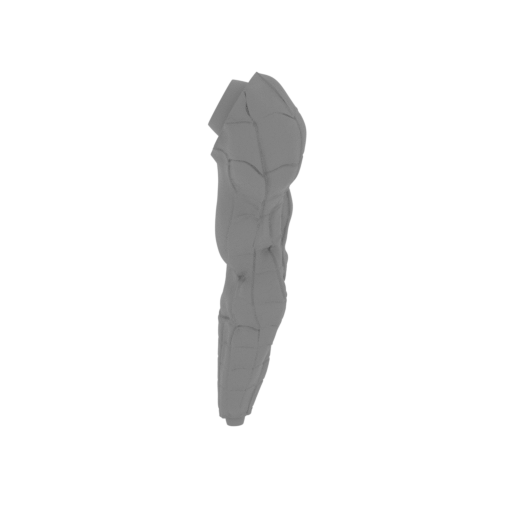

6_Spider_Man_arm_L_FDM(re paired).stl
15.69 MiB 60 min <1 m 14 x 16 x 58 Download

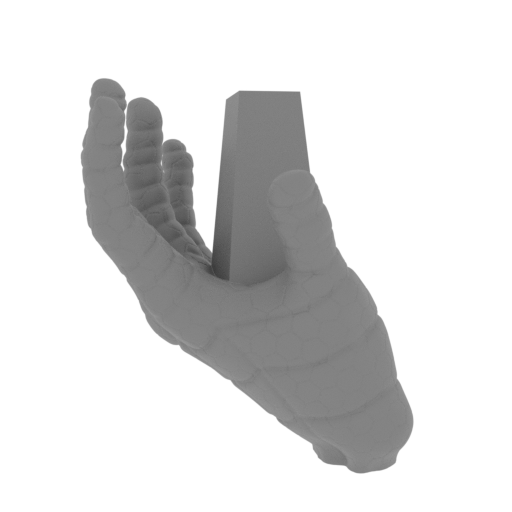

7_Spider_Man_hand_L_FDM(r epaired).stl
12.01 MiB 18 min <1 m 16 x 13 x 18 Download

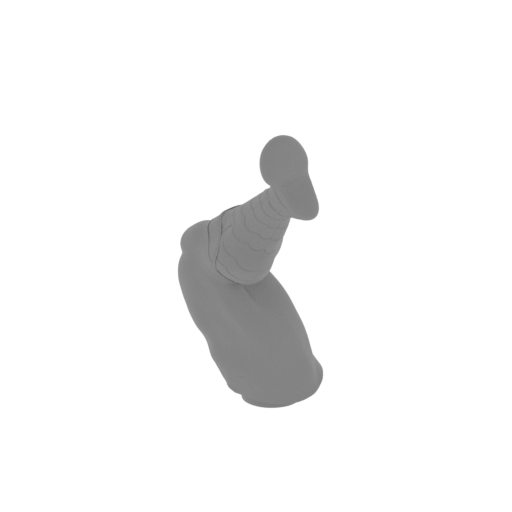

8_Spider_Man_leg_L_FDM(re paired).stl
17.59 MiB 3 h 22 min 2 m 44 x 64 x 88 Download

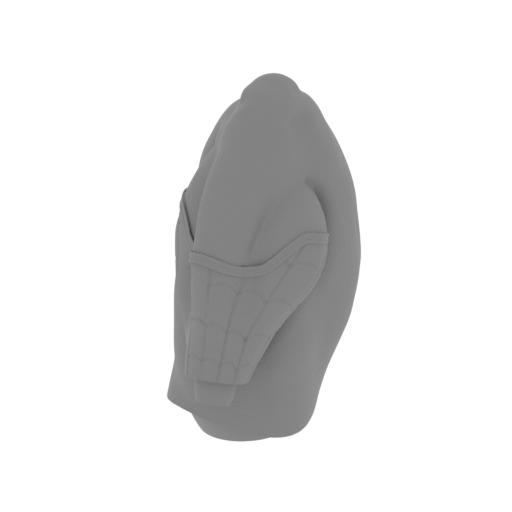

9_Spider_Man_leg_R_FDM(re paired).stl
18.93 MiB 1 h 48 min 1 m 25 x 32 x 52 Download

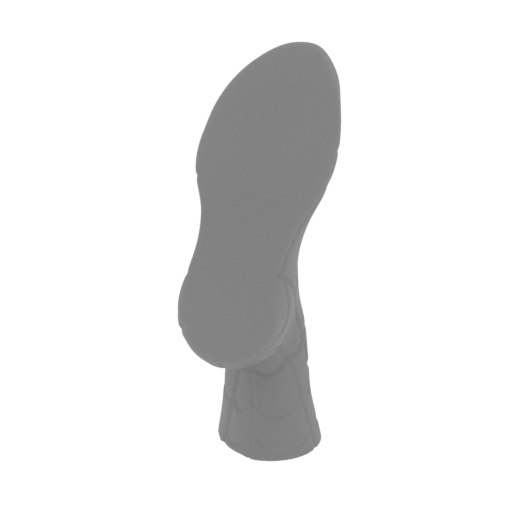

10_Spider_Man_foot_R_FDM( repaired).stl
9.98 MiB 26 min <1 m 11 x 17 x 30 Download

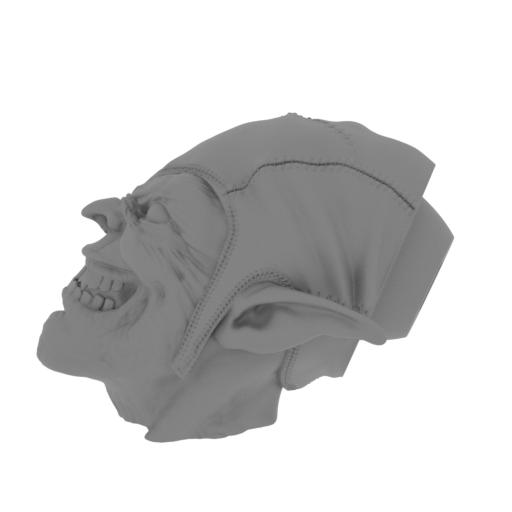

11_Green_Goblin_head_FDM( repaired).stl
19.13 MiB 1 h 5 min 1 m 32 x 26 x 24 Download

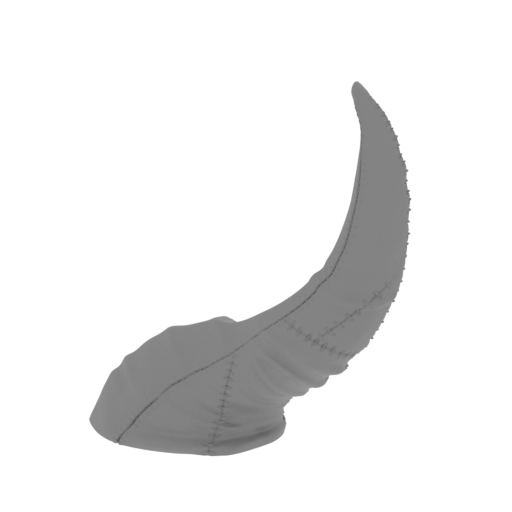

12_Green_Goblin_cap_FDM(r epaired).stl
15.45 MiB 33 min <1 m 32 x 17 x 37 Download

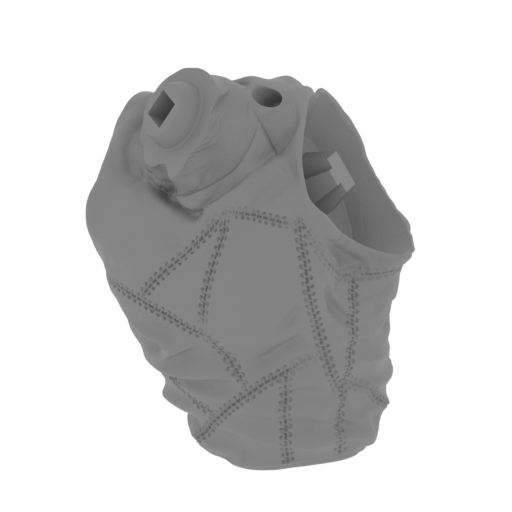

13_Green_Goblin_body_FDM( repaired).stl
31.97 MiB 2 h 20 min 1 m 37 x 26 x 43 Download

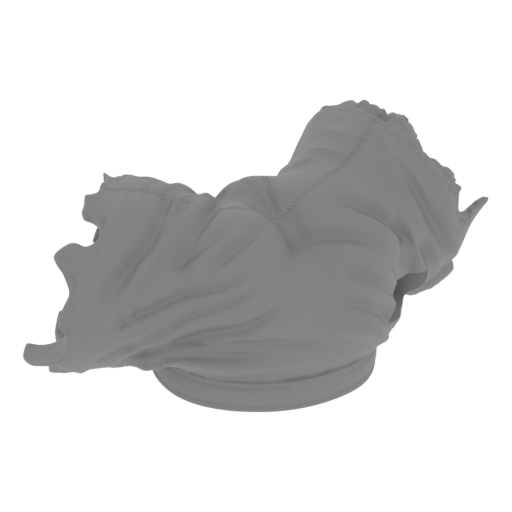

14_Green_Goblin_pelvis_FD M(repaired).stl
17.74 MiB 2 h 28 min 1 m 45 x 39 x 31 Download

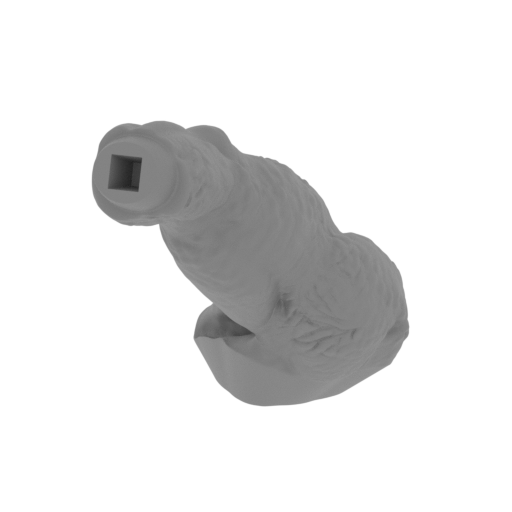

15_Green_Goblin_arm_R_FDM (repaired).stl
15.81 MiB 1 h 6 min 1 m 23 x 37 x 36 Download

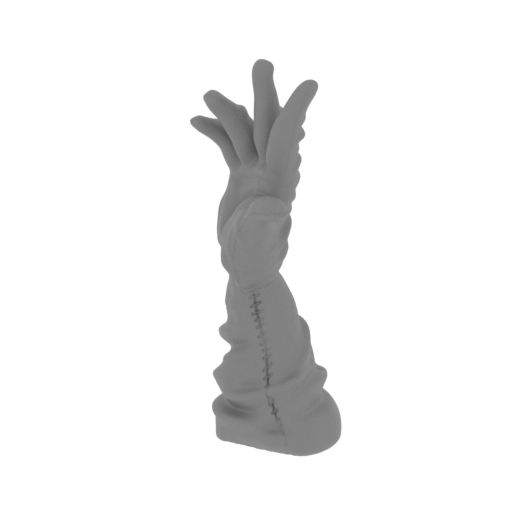

16_Green_Goblin_hand_R_FD M(repaired).stl
13.36 MiB 41 min <1 m 17 x 15 x 38 Download

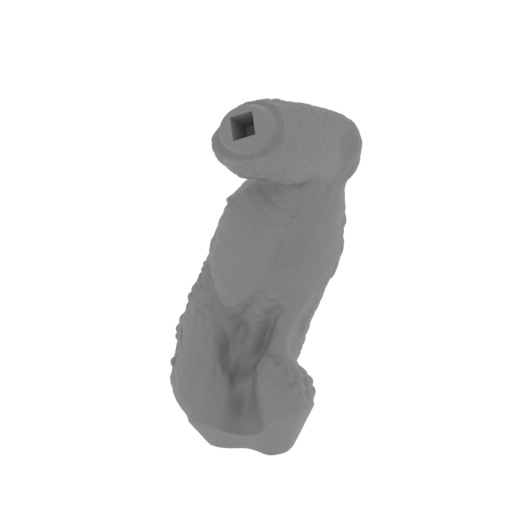

17_Green_Goblin_arm_L_FDM (repaired).stl
17.80 MiB 1 h 1 m 23 x 22 x 46 Download

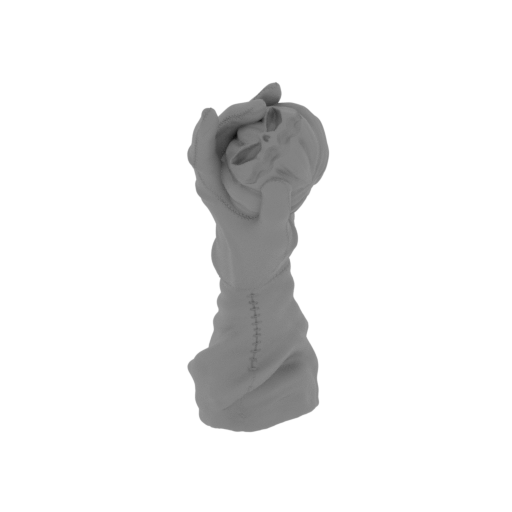

18_Green_Goblin_hand_L_FD M(repaired).stl
14.28 MiB 44 min <1 m 15 x 19 x 37 Download

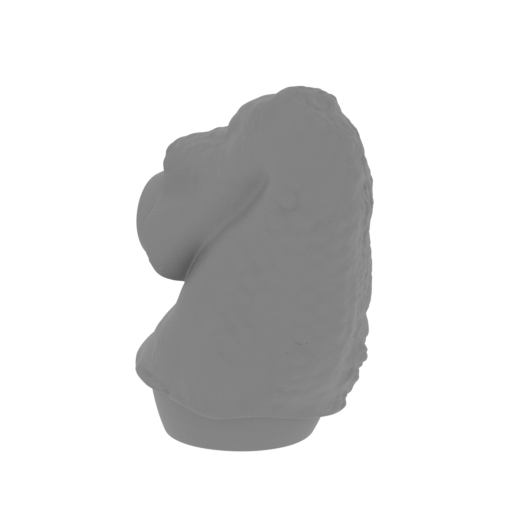

19_Green_Goblin_leg_R_FDM (repaired).stl
18.44 MiB 56 min 1 m 23 x 19 x 36 Download

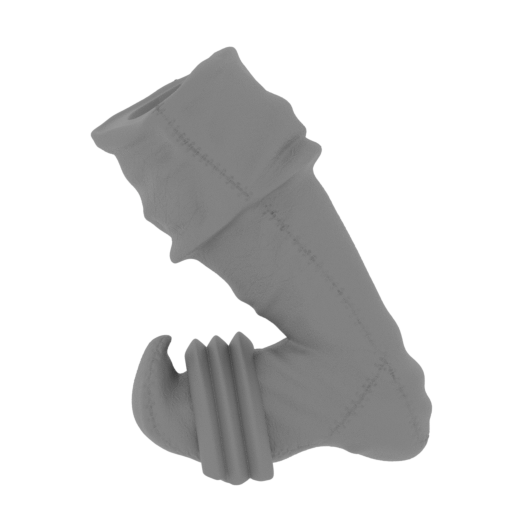

20_Green_Goblin_foot_R_FD M(repaired).stl
17.82 MiB 1 h 17 min 1 m 33 x 24 x 35 Download

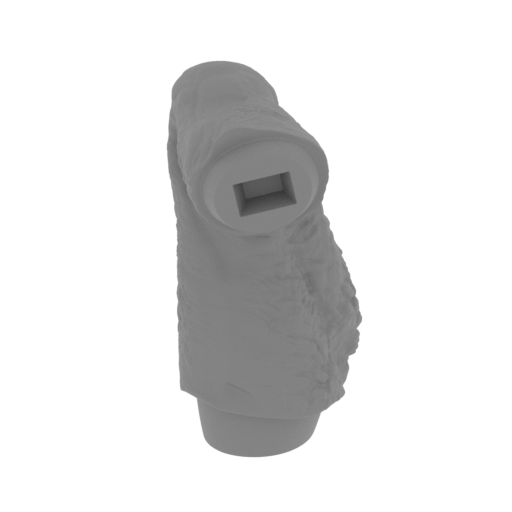

21_Green_Goblin_leg_L_FDM (repaired).stl
18.46 MiB 1 h 24 min 1 m 22 x 30 x 42 Download

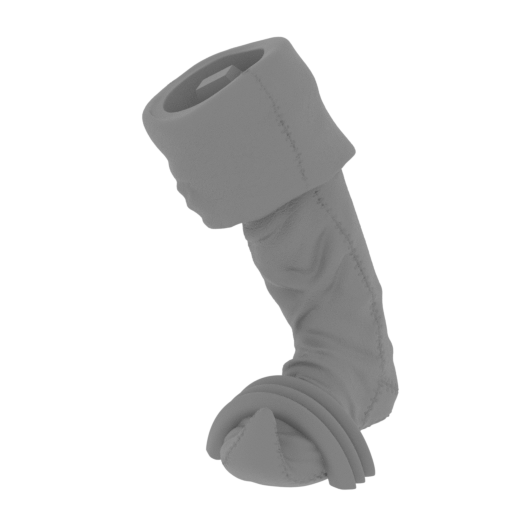

22_Green_Goblin_foot_L_FD M(repaired).stl
15.88 MiB 1 h 27 min 1 m 31 x 33 x 41 Download

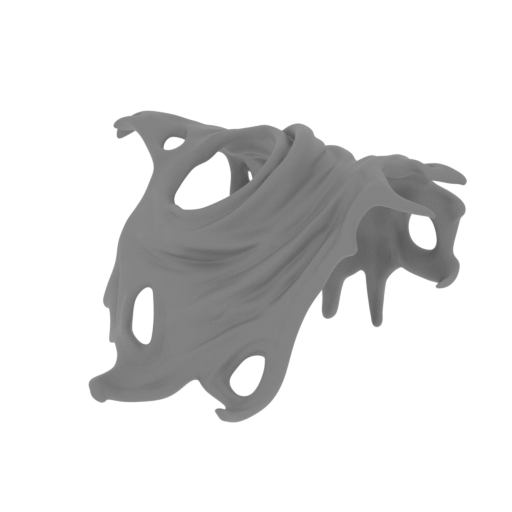

23_Green_Goblin_cape_FDM( repaired).stl
12.29 MiB 2 h 12 min 1 m 47 x 44 x 28 Download

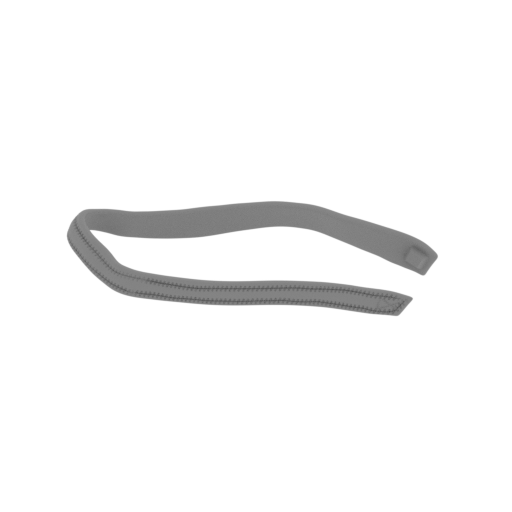

24_Green_Goblin_belt_bag_ FDM(repaired).stl
10.28 MiB 29 min <1 m 59 x 29 x 8 Download

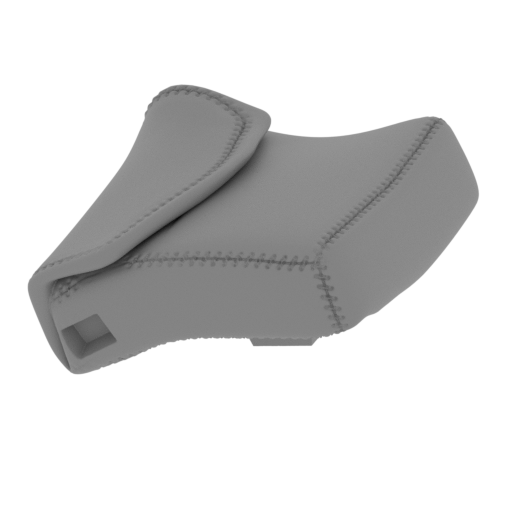

25_Green_Goblin_bag_FDM(r epaired).stl
10.08 MiB 40 min <1 m 21 x 23 x 12 Download

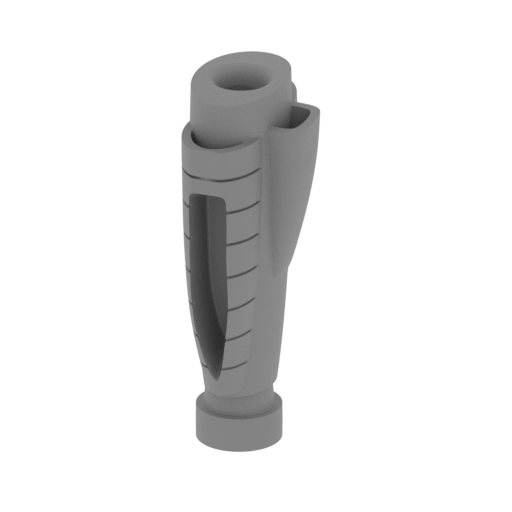

26_glider_1_FDM(repaired) .stl
15.19 MiB 2 h 16 min 1 m 20 x 31 x 62 Download

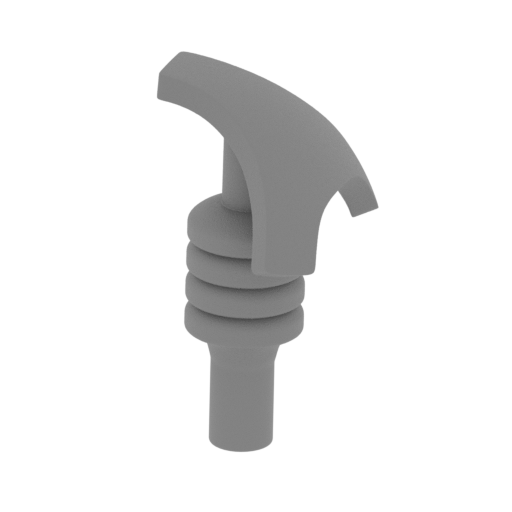

27_glider_2_FDM(repaired) .stl
9.13 MiB 1 h 24 min 1 m 21 x 30 x 42 Download

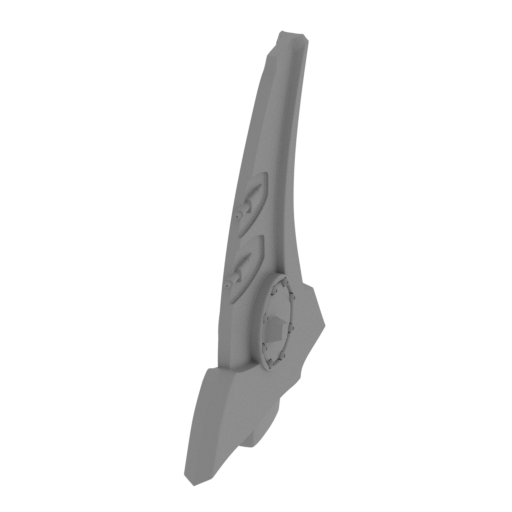

28_glider_3_FDM(repaired) .stl
23.25 MiB 4 h 45 min 3 m 17 x 90 x 103 Download

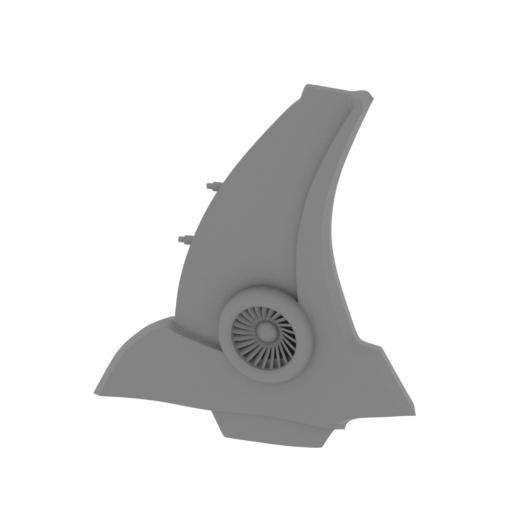

29_glider_4_FDM(repaired) .stl
19.50 MiB 4 h 56 min 3 m 90 x 17 x 103 Download

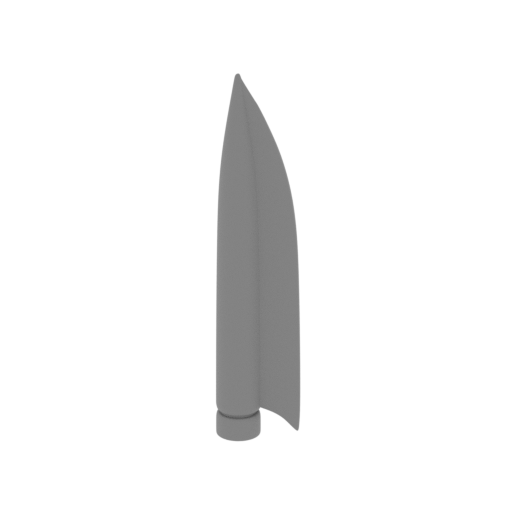

30_glider_5_FDM(repaired) .stl
7.12 MiB 1 h 11 min 1 m 17 x 9 x 82 Download

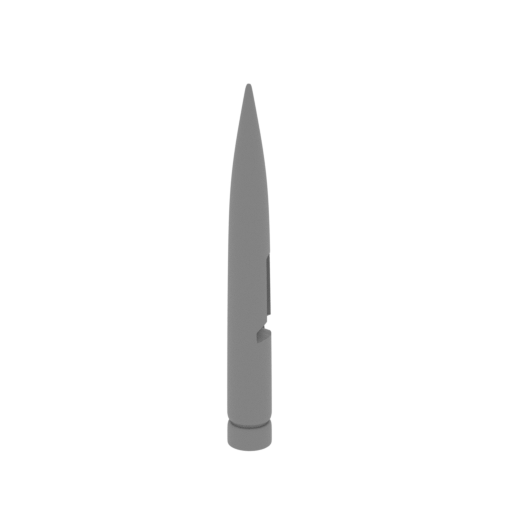

31_glider_6_FDM(repaired) .stl
7.61 MiB 1 h 10 min 1 m 9 x 17 x 82 Download

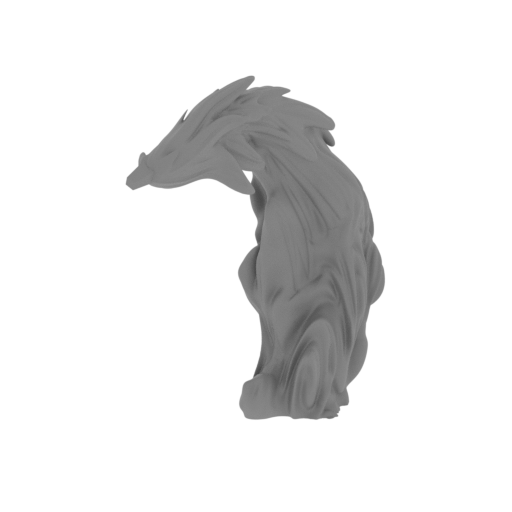

32_smoke_1_FDM(repaired). stl
18.18 MiB 14 h 36 min 10 m 45 x 114 x 121 Download

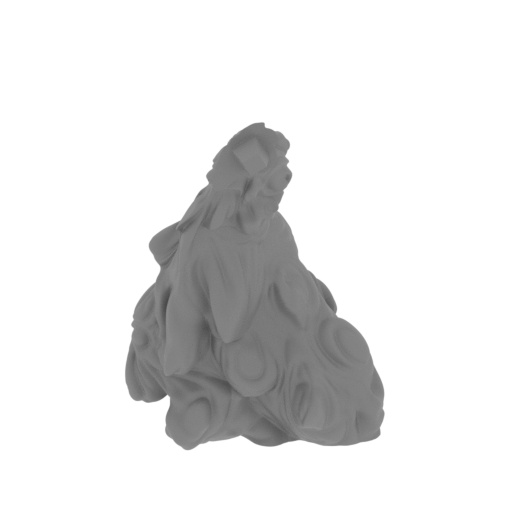

33_smoke_2_FDM(repaired). stl
13.39 MiB 32 h 53 min 21 m 98 x 118 x 158 Download

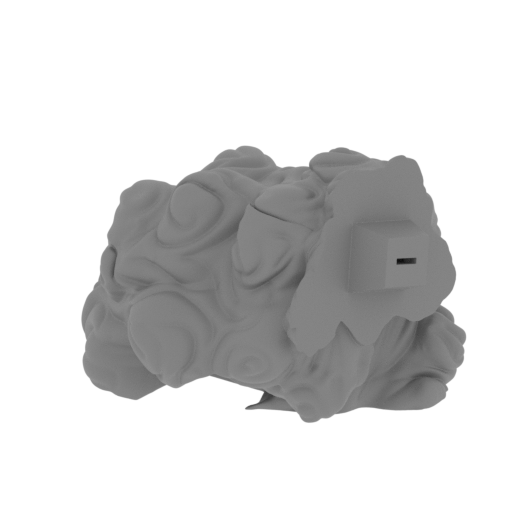

34_smoke_3_FDM(repaired). stl
17.14 MiB 44 h 38 min 28 m 137 x 117 x 97 Download

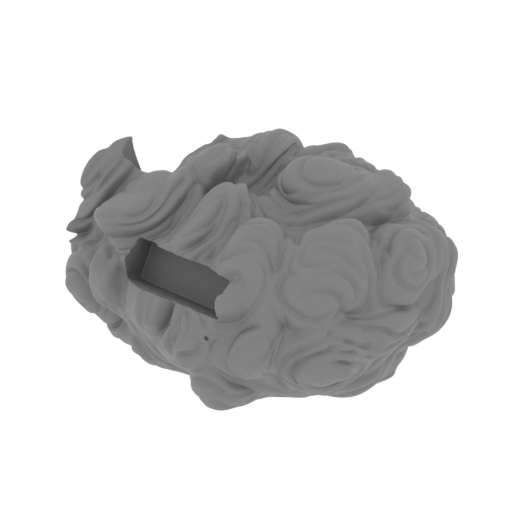

35_smoke_4_FDM(repaired). stl
19.89 MiB 64 h 8 min 39 m 166 x 146 x 89 Download

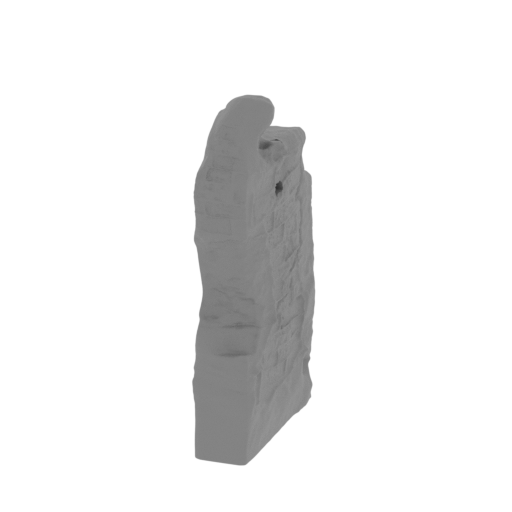

36_slab_1_FDM(repaired).s tl
17.58 MiB 9 h 11 min 6 m 25 x 67 x 123 Download

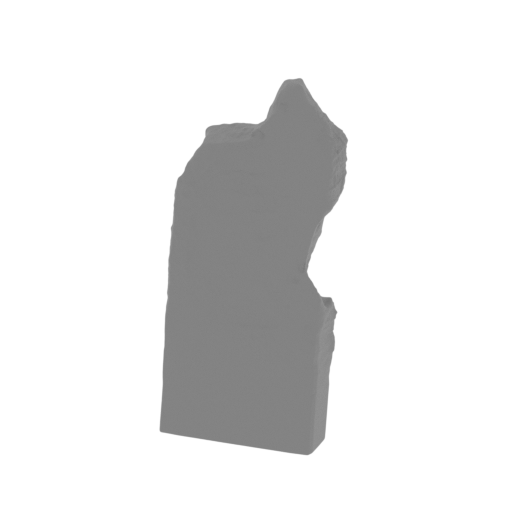

37_slab_2_FDM(repaired).s tl
16.59 MiB 10 h 12 min 6 m 66 x 23 x 139 Download

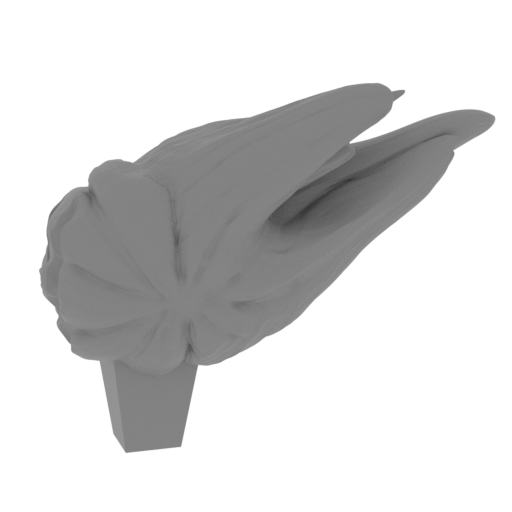

38_pumpkin_bomb_FDM(repai red).stl
16.75 MiB 23 min <1 m 19 x 16 x 19 Download

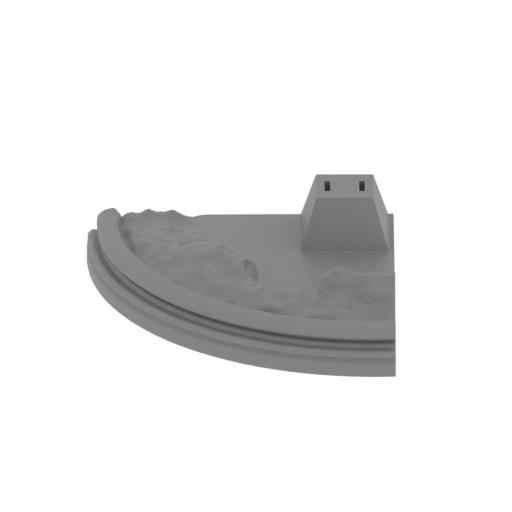

39_platform_1_FDM(repaire d).stl
16.29 MiB 17 h 59 min 10 m 157 x 125 x 38 Download

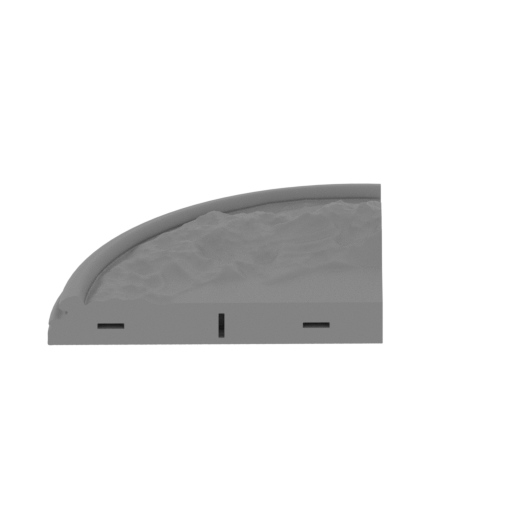

40_platform_2_FDM(repaire d).stl
12.03 MiB 14 h 24 min 8 m 119 x 144 x 28 Download

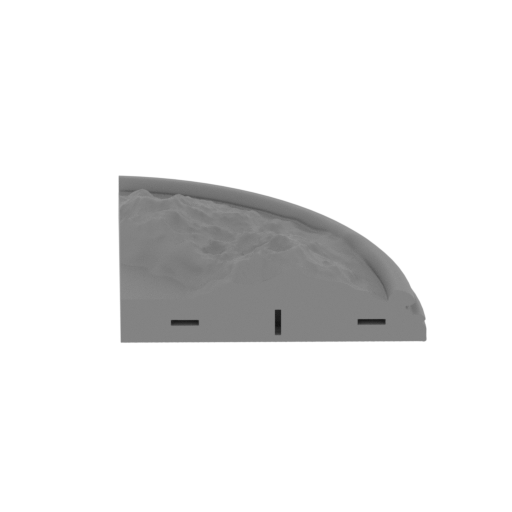

41_platform_3_FDM(repaire d).stl
11.67 MiB 13 h 36 min 8 m 137 x 105 x 32 Download

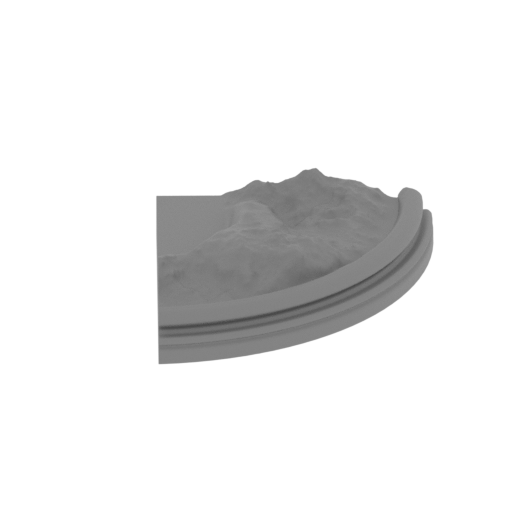

42_platform_4_FDM(repaire d).stl
13.53 MiB 15 h 12 min 9 m 110 x 152 x 32 Download

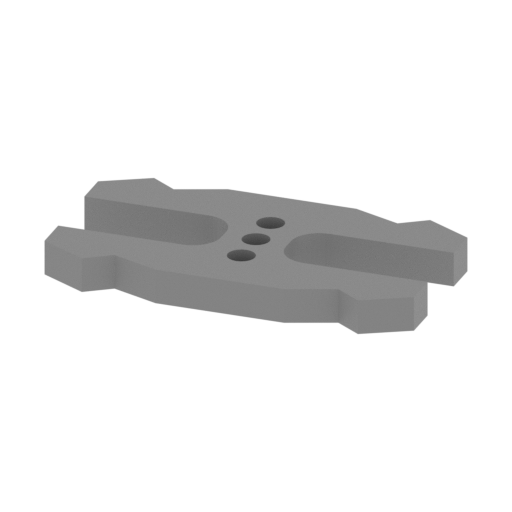

43_ge_lock_10H(x17)_FDM ( repaired).stl
0.03 MiB 4 min <1 m 18 x 10 x 2 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 16 min 1 m 150 x 18 x 5 Download
...

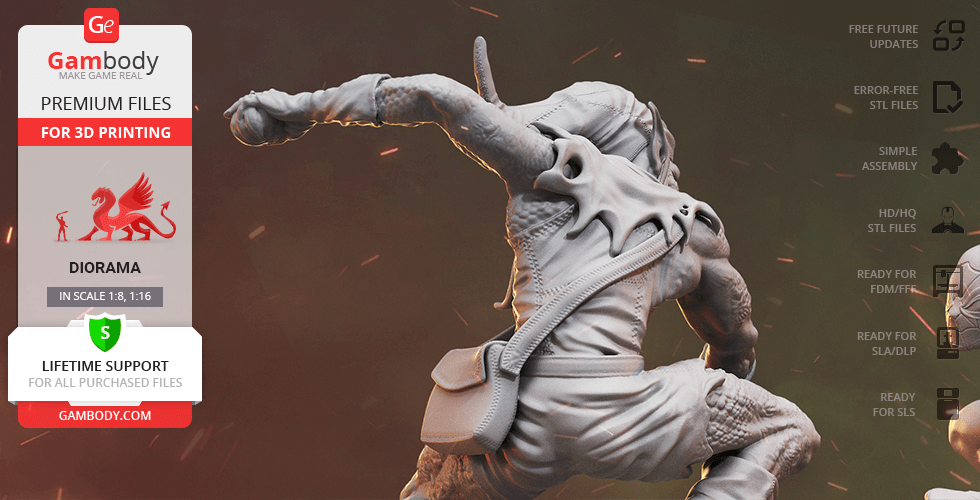

ABOUT THIS 3D FIGURINE

Friendly neighbourhood Spider-Man has clashed with rogues of all kinds in the course of the character’s development but it is the Green Goblin that has always been considered to be Parker’s arch-nemesis. Halloween-themed supervillain with his pointy ears and chin plagued the life of Spider-Man and interfered with the fates of Peter Parker’s loved ones for many years. It has taken the 3D artist approximately 187 hours to complete the exciting Spider-Man vs Green Goblin scene that is now available for 3D printing. Spider-Man is depicted in his traditional suit while masterly balancing on a piece of a slab that must have broken off a building in the course of the battle. Green Goblin, the 3D printing version of Peter Parker’s ultimate foe, is also shown wearing his original Goblin Armour. Claimed to be one of the most memorable supervillain costumes ever, Goblin Armour for 3D printing comprises special Goblin Gloves, Boots, jester’s hat, a pair of purple shorts, sleeveless shirt and a satchel. As expected, 3D printing Norman Osborn is fighting the opponent flying on his Goblin Glider that easily resembles a large, metallic bat. In his left hand, the 3D printing Green Goblin is holding a grenade disguised as a small jack-o'-lantern and he is clearly ready to throw the bomb at the young adversary. Huge smoke puffs that the Goblin Glider leaves behind form a nice platform to mount both Marvel heroes on and present the scene as if in motion.

ADAPTATION FOR 3D PRINTING

Spider-Man vs Green Goblin figurines for 3D printing in diorama is a static assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 50 hours in total. Both figurines’ anatomy was thoroughly reviewed during the moderation process for the superhero and supervillain to be depicted harmoniously in the intended action poses. The diorama’s cutting was chosen by our team to minimise the amount of filament needed for generated support and some of the parts were hollowed out for you to save resin in the model’s Eco version. In order to conceal the places where the assembly parts of the model must be connected, the figurines were cut along the contour of both characters’ suit seams and properly separated from the platform. What is more, in order to ensure an excellent quality of the 3D printed result, such smaller parts as Goblin’s boots, jester’s hat, gloves, bag, its strap, parts of Glider etc. are provided as separate assembly elements. The large platform resembling smoke puffs was divided into several parts in order to fit the build plates of the smallest 3D printers. All the assembly parts come in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and to make sure that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format.

The figurine is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from Green Goblin's actual height that is 1800 mm. The 3D printing figurines' chosen scale is 1/8 for the FFF/FDM version and 1/16 for the DLP/SLA/SLS versions.

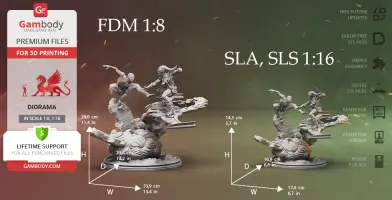

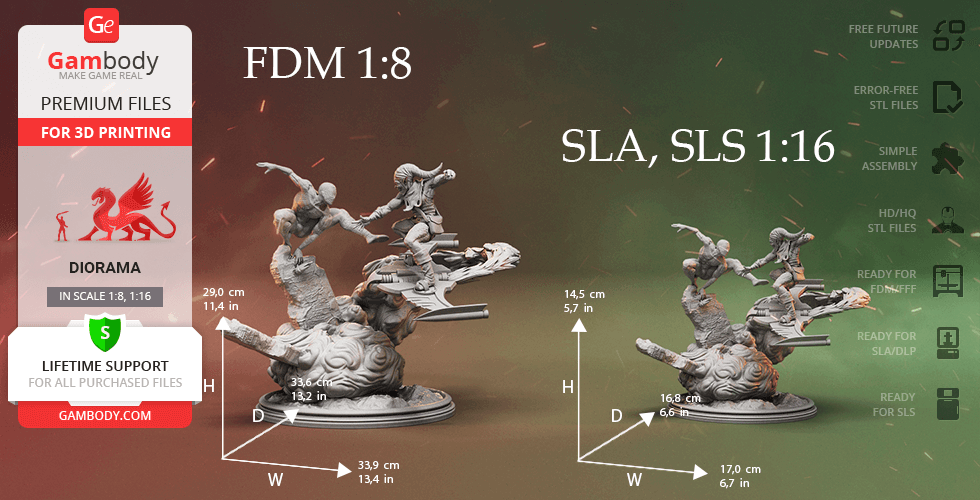

VERSIONS' SPECIFICATIONS

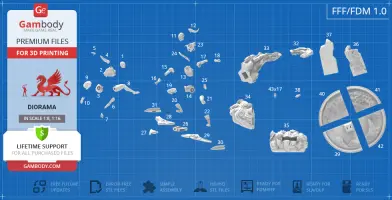

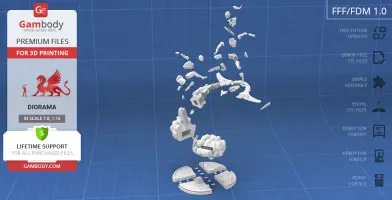

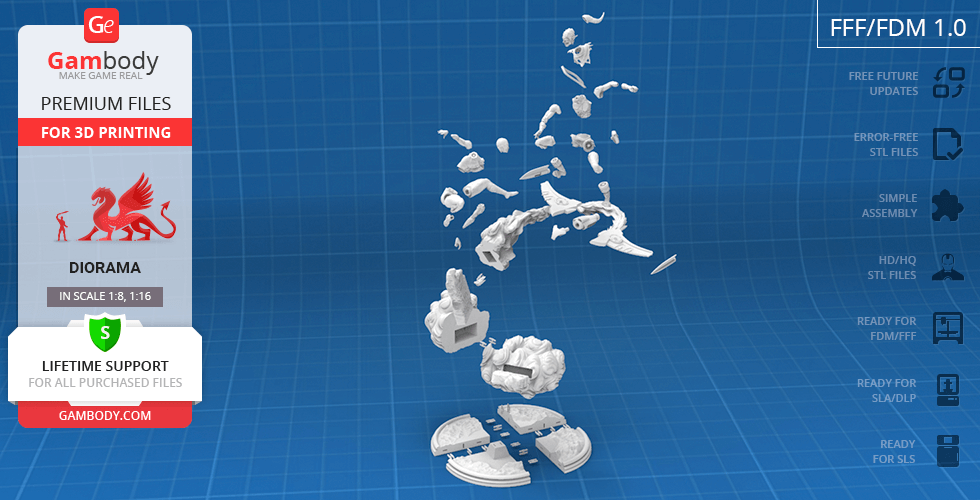

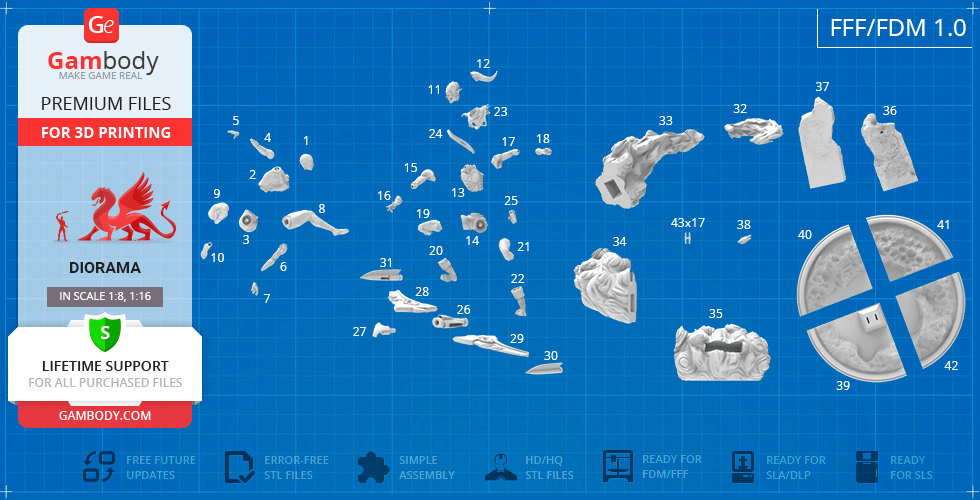

FFF/FDM 1.0 version features:
- Contains 43 parts;
- A printed model is 290 mm tall, 339 mm wide, 336 mm deep;
- Assembly kit includes lock 43_ge_lock_10H(x17) to connect the model's parts securely without glue that needs to be printed 17 times;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

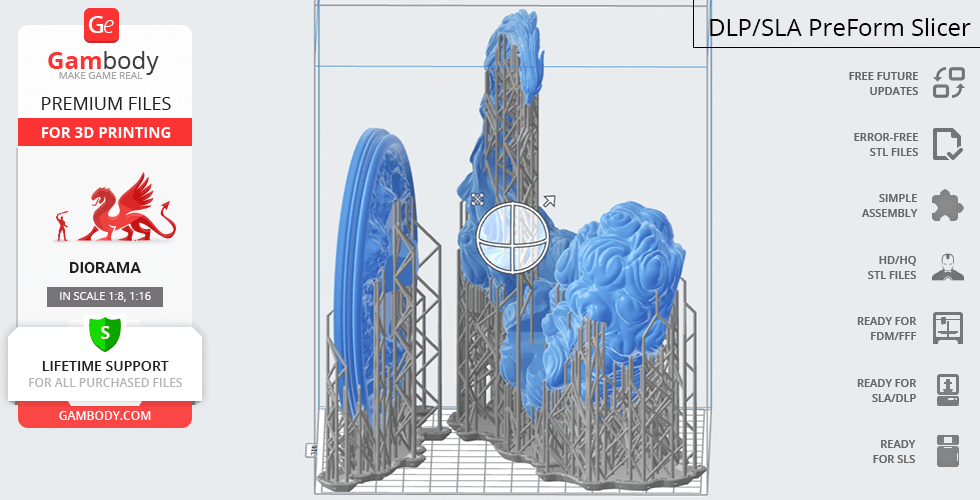

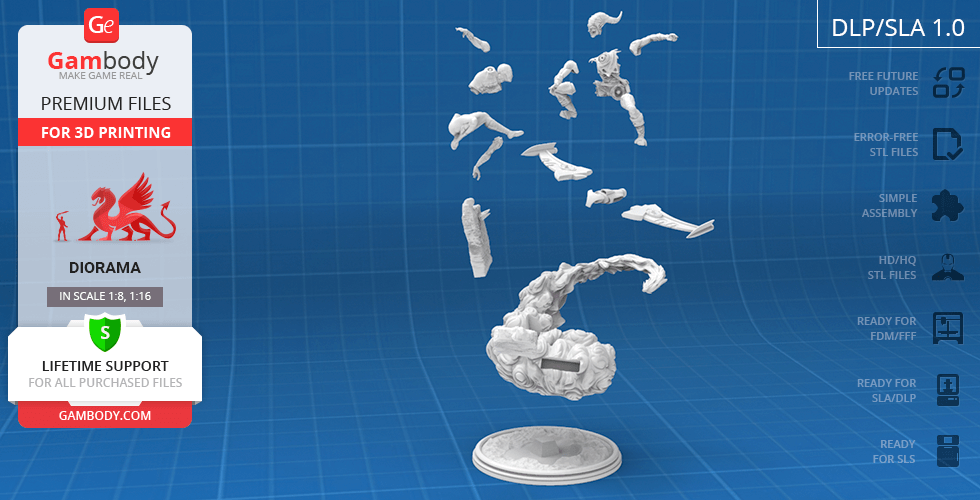

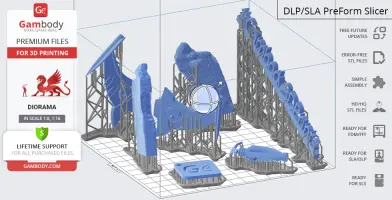

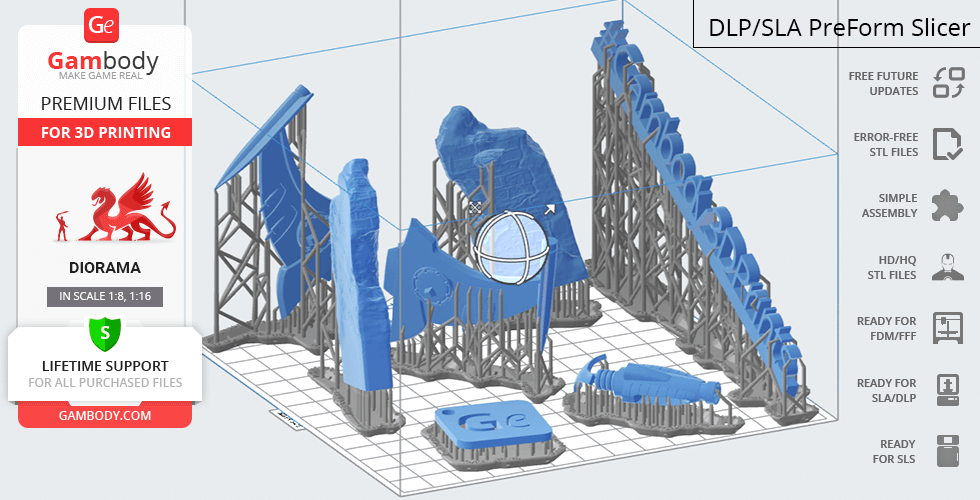

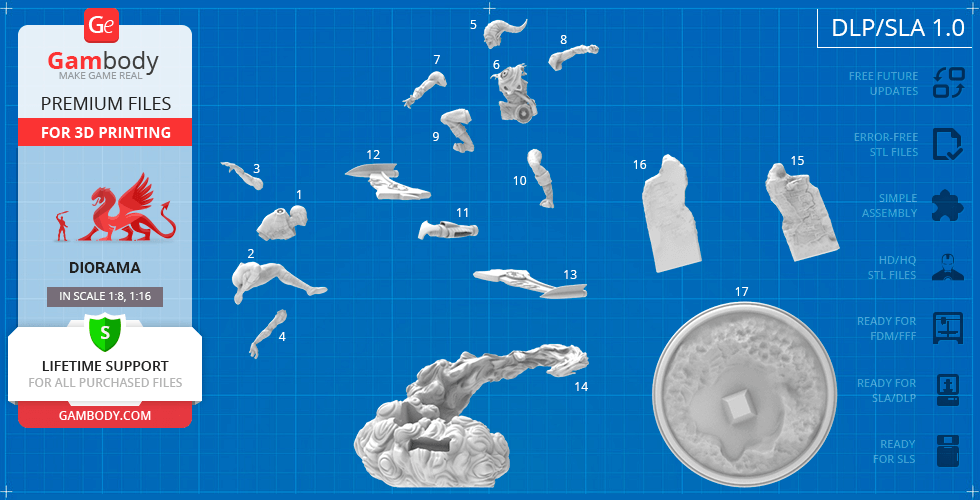

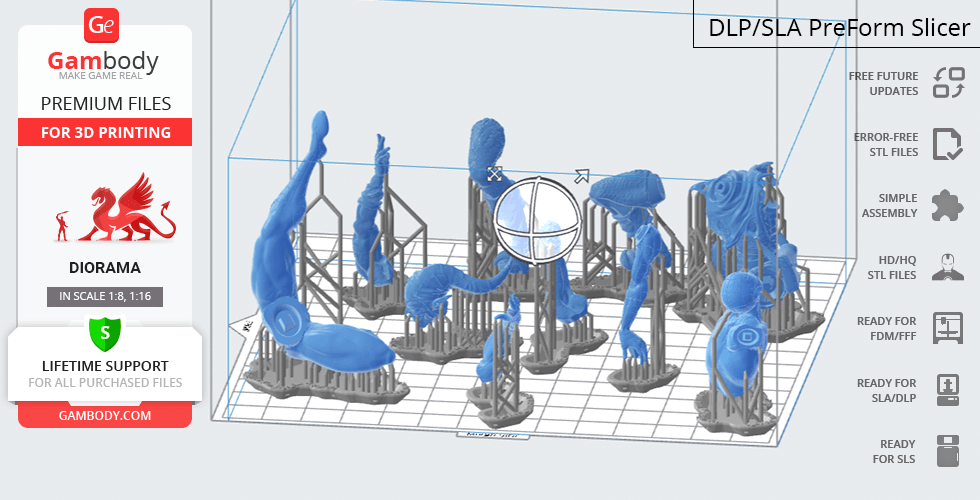

DLP/SLA 1.0 version features:
- Contains 17 parts;
- A printed model is 145 mm tall, 170 mm wide, 168 mm deep;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

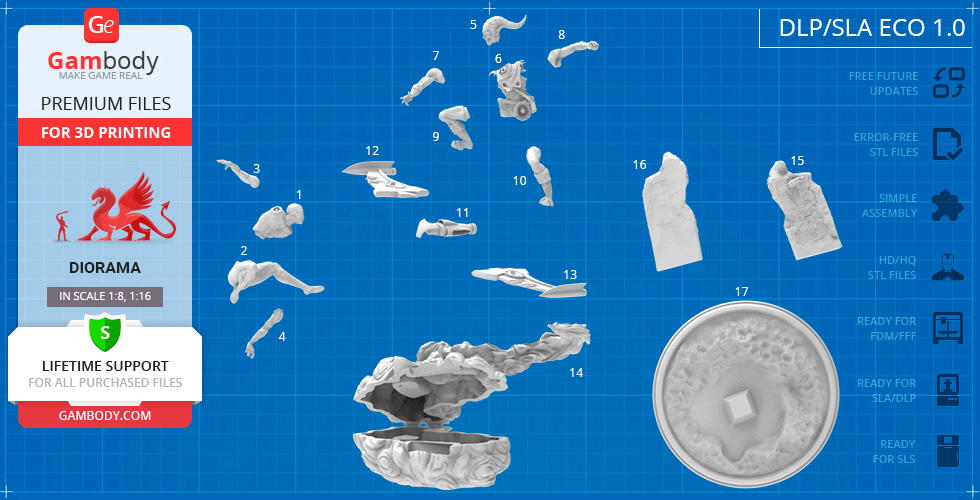

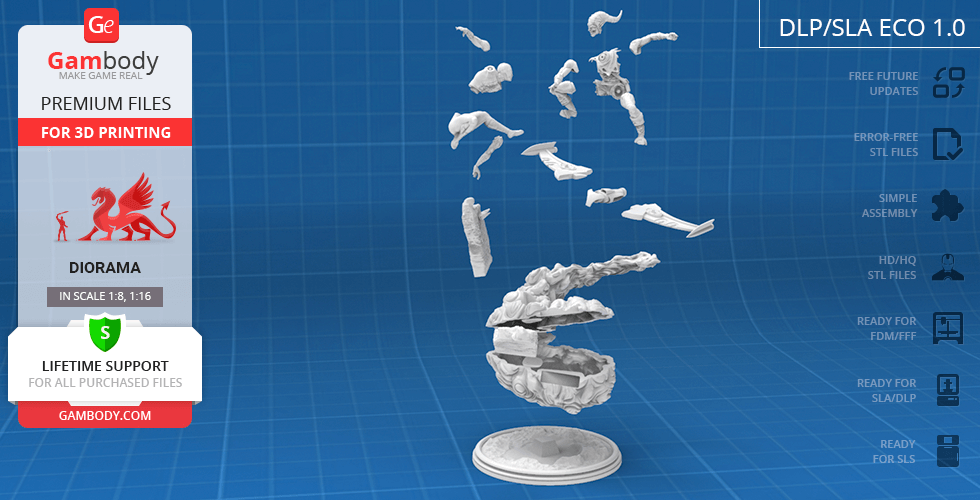

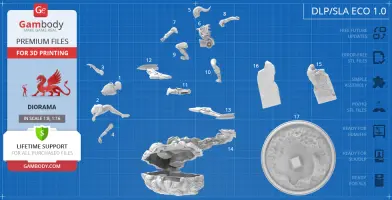

DLP/SLA Eco 1.0 version features:
- Contains 17 parts;
- A printed model is 145 mm tall, 170 mm wide, 168 mm deep;
- Contains some hollowed out parts to save resin.

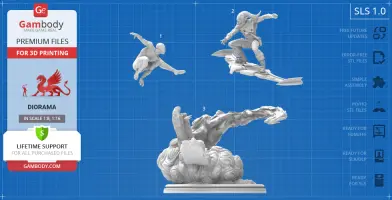

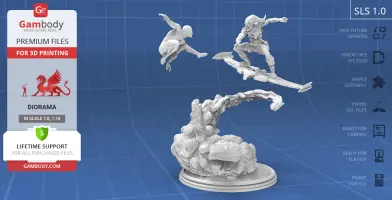

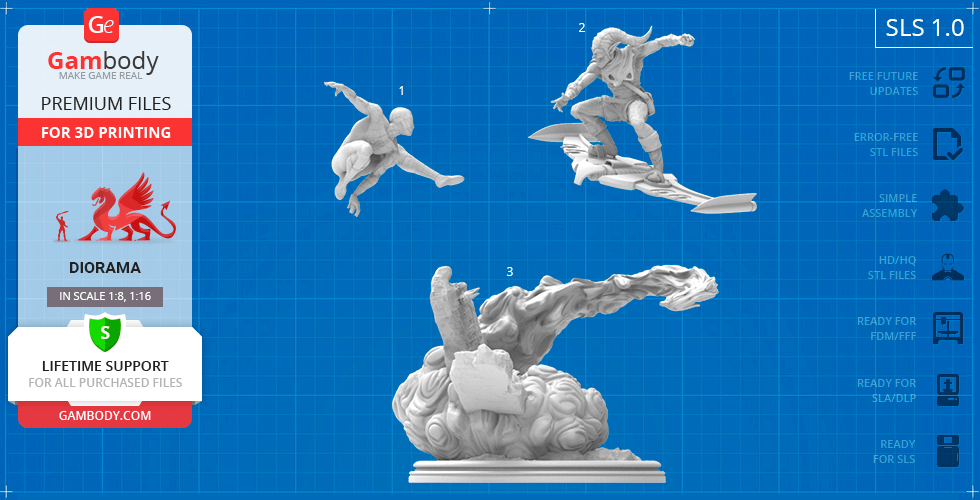

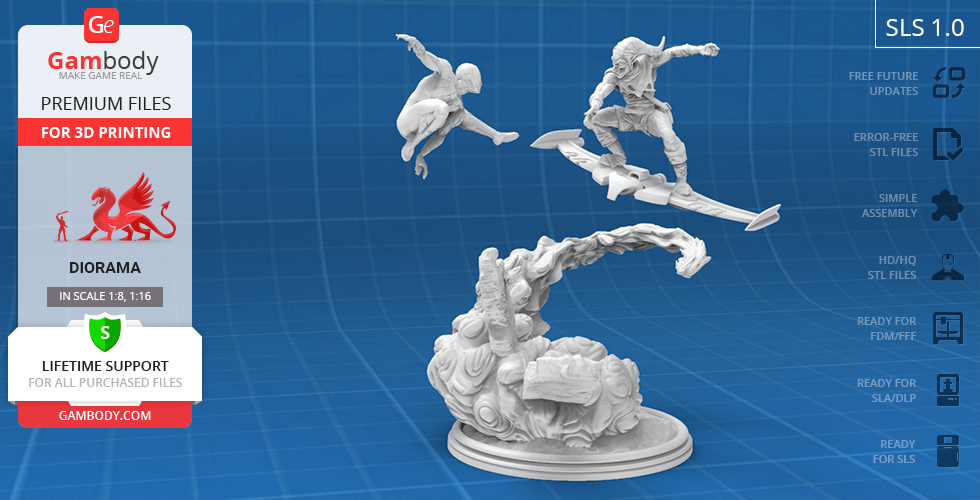

SLS 1.0 version features:
- Made as a solid one-piece figurine;
- A printed model is 145 mm tall, 170 mm wide, 168 mm deep;
- Contains 3 parts - a one-piece Spider-Man figurine and a solid Green Goblin standing on his Glider with the platform separated.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Spider-Man vs Green Goblin Figurines in Diorama for 3D Printing which consist of 80 parts;
- 4 versions of files for this model for FFF/FDM, DLP/SLA, DLP/SLA Eco and SLS;

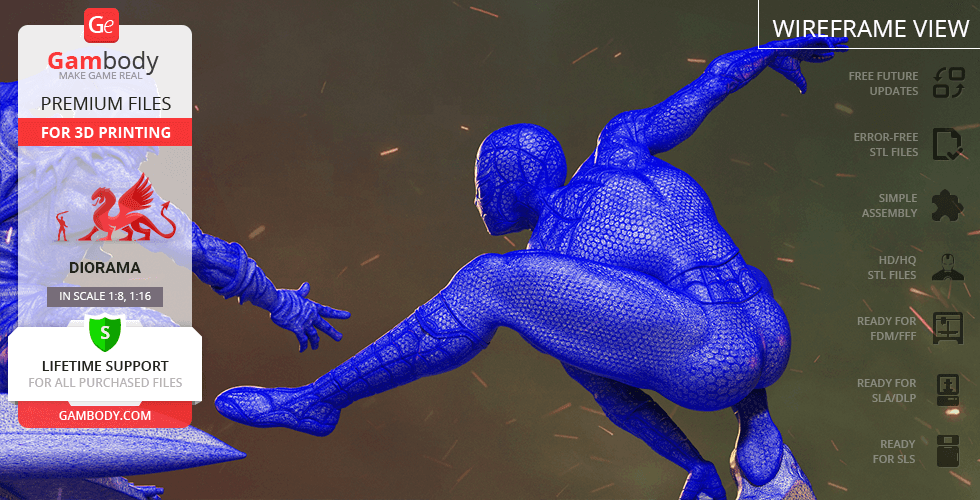

- High-poly detailed figurines of Spider-Man vs Green Goblin​;
Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format;
- Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get the figurines of Spider-Man vs Green Goblin in Diorama​ for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Spider-Man vs Green Goblin 3D Printing Figurines in Diorama at Gambody YouTube channel.

Also, you may like other Spider-Man 3D Printing Figurines as well as Marvel 3D Printing Figurines.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

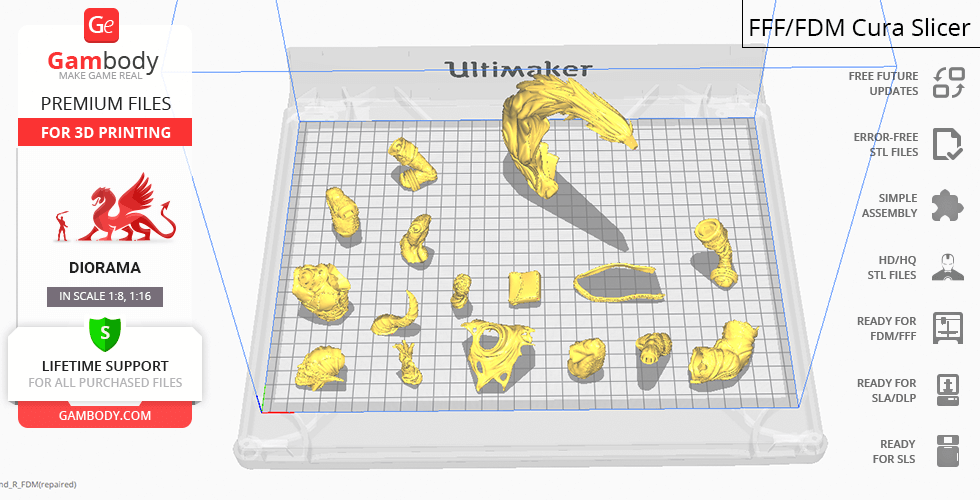

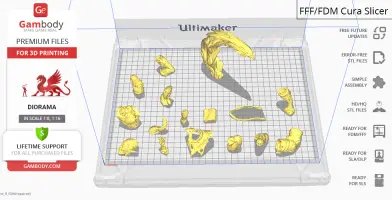

Below you can find printing recommendations for CuraSimplify3D and Slic3r software.

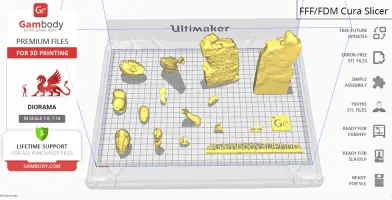

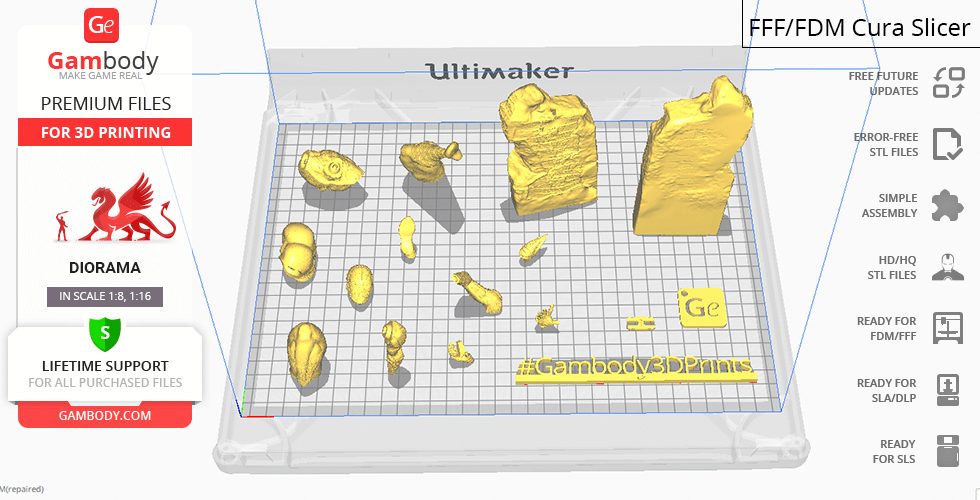

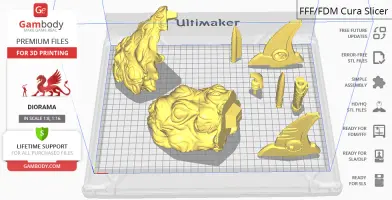

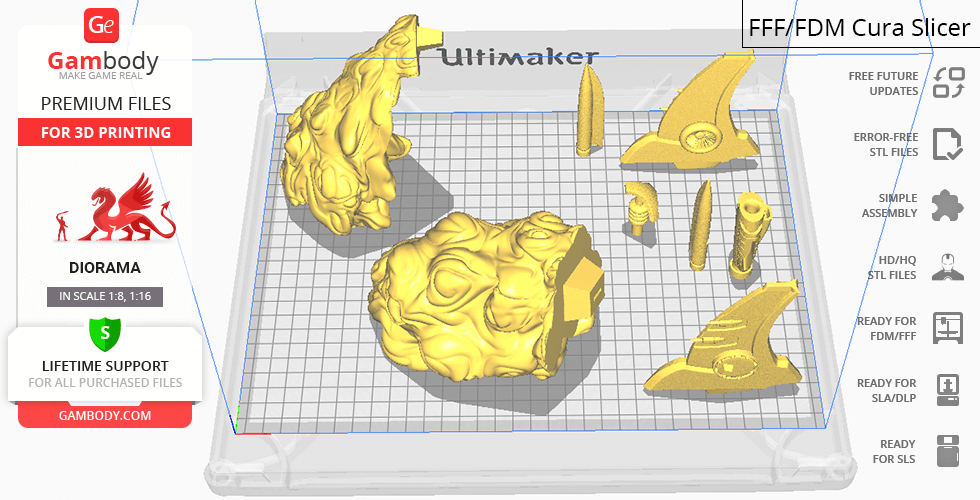

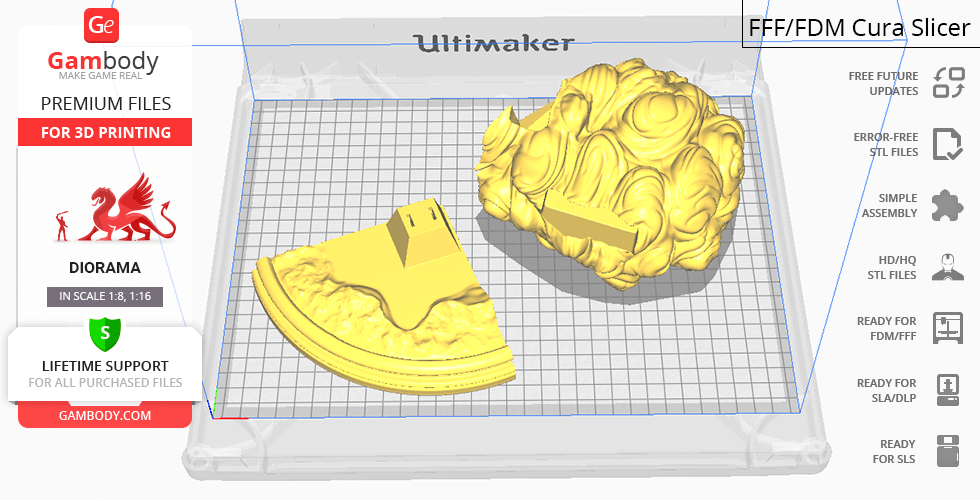

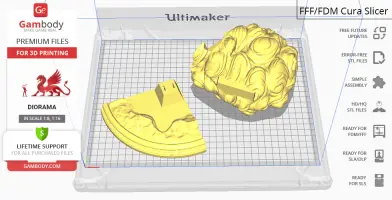

Cura printing recommendations:

These are basic settings that were tested in Cura 4.8.0 slicer.

The test models were printed on Ultimaker 2, Creality Ender 3, Creality CR-10S Pro V2, Anycubic I3 Mega, Anycubic I3 MegaS 3D printers with PLA and PETG filaments.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use and especially the particular assembly part at hand. Each part that any model comprises often needs preliminary review and you are free to tweak the settings the way you find suitable.

Note:
- You can scale up the model (downscaling is not recommended!);
- All connectors should be printed at 100% Infill;
- For all parts of locks (“ge_lock” in “Source files”) you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

Quality
Layer Height: 0.12 mm (you can also set Layer Height at 0.16 or 0.2mm for 0.4mm nozzles)
Initial Layer Height: 0.2 mm (carefully level the print bed and keep your Initial Layer Height the same as the main Layer Height)

Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2

Outer Wall Wipe Distance: 0.3 mm
Top Surface Skin Layers: 0

Top/Bottom Thickness: 0.6 mm
Top Thickness: 0.6 mm
Top Layers: 5
Bottom Thickness: 0.6 mm
Bottom Layers: 5
Initial Bottom Layers: 5

Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Optimize Wall Printing Order: Check

Compensate Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check

Minimum Wall Flow: 0%
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Hole horizontal expansion: 0

Z Seam Alignment: User Specified
Z Seam Position: Back
Z Seam X: Average length of your printer’s plate (e.g.”150” if your plate is 300mm on the X-axis)
Z Seam Y: A value higher than the length of your plate on the Y-axis (e.g. 700)

Seam Corner Preference: Hide Seam
Extra Skin Wall Count: 1
Skin Overlap Percentage: 10%
Skin Overlap 0.04 mm

Infill
Infill Density: 20% (for all smaller parts and for all parts of connectors use 100% Infill)
Infill Pattern: Triangles
Connect Infill Lines: Check
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Line Multiplier: 1
Extra Infill Wall Count: 0

Infill Overlap Percentage: 10-20%
Infill Overlap: 0.04 mm

Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm

Infill Wipe Distance: 0 mm
Infill Layer Thickness: 0.24 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm

Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8

Maximum Skin Angle for Expansion: 90Ëš
Minimum Skin Width for Expansion: 0.0
Skin Edge Support Thickness: 0
Skin Edge Support Layers: 0

Material
Initial Layer Flow: 100%
Printing Temperature: See your filament settings
Initial Printing Temperature: Your filament settings
Final Printing Temperature: Your filament settings
Build Plate Temperature: Your filament settings
Build Plate Temperature Initial Layer: Your filament settings + 5°
Flow: 100% (Important! If you face difficulty printing the model, you may need to adjust the Flow parameter. You may research the topic using the Internet or seek assistance at our Customer Support Team at support@gambody.com)

Speed

You can increase the printing Speed by 20% when you print simple objects. For small/thin parts you need to decrease the Speed by 25% - 50%.

Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 25 mm/s
          Outer Wall Speed:25 mm/s
          Inner Wall Speed: 50 mm/s

Top/Bottom Speed: 25mm/s
Support Speed: 25 mm/s
          Support Infill Speed: 45 mm/s
          Support Interface Speed: 25 mm/s
                Support Roof Speed: 25 mm/s
                Support Floor Speed: 25 mm/s

Travel Speed: 80 mm/s
Initial Layer Speed: 80 mm/s
Initial Layer Print Speed: 20 mm/s
Initial Layer Travel Speed: 80 mm/s

Skirt/Brim Speed: 20 mm/s
Z  Hop Speed: 5 mm/s
Number of Slower Layers: 2
Enable Acceleration Control: Check

When printing simple objects, you need to set all Acceleration parameters at 500 mm/s. For small/thin parts you need to decrease the Acceleration by 50% - 70%.

Travel
Enable Retraction: Check
Retraction Distance: 4-8 mm, 1-3 mm for Direct Extruder (This is the most important retraction parameter. You can find your optimal value of Retraction Distance by printing any test object, e.g. bridges, towers etc.)

Retraction Speed: 25mm/s
Retraction Retract Speed: 25 mm/s
Retraction Prime Speed: 25 mm/s

Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 1.5 mm
Maximum Retraction Count: 100
Minimum Extrusion Distance Window: 6,5 - 10 mm
Limit Support Retractions: Check
Combing Mode: All
Max Comb Distance With No Retract: 30 mm
Retract Before Outer Wall: Check
Avoid Printed Parts When Travelling: Check
Avoid Supports When Travelling: Check
Travel Avoid Distance: 1 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm
Z Hop When Retracted: Check
Z Hop Height: 0,3 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%

Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.36 mm
Regular Fan Speed at Layer: 3

Minimum Layer Time: 10 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Structure: Normal (you can try using Tree Support Structure if you have difficulty printing any particular assembly part)
Support Placement: Everywhere
Support Overhang Angle: 60° (this parameter can range from 30° to 70° depending on the part at hand)
Support Pattern: Zig Zag
Support Wall Line Count: 1 (stronger support that might be more difficult to remove) 0 (less strong support but is easier to remove)

Support Density: 15%
Support Line Distance: 2.6667 mm
Initial layer support line distance: 2.667 mm

Support Z Distance: 0.12 mm
Support Top Distance: 0.12 mm
Support Bottom Distance: 0.12 mm

Support X/Y Distance: 0.8-1 mm
Support Distance Priority: Z overrides X/Y
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Stair Step Minimum Slope Angle: 10°
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.2 mm
Gradual Support Infill Steps: 0
Minimum Support Area: 2 mm

Enable Support Interface: Check (generates additional “pillow” on the support structure that leads to a more even surface, but can be difficult to remove in hard-to-reach areas)
Enable Support Roof: Check
Enable Support Floor: Check

Support Interface Thickness: 0.8 mm
Support Roof Thickness: 0.8 mm
Support Floor Thickness: 0.8 mm

Support Interface Resolution 0.2 mm
Support Interface Density: 50-100%
        Support Roof Density: 50-100%
Support Roof Line Distance: 0.8 mm
        Support Floor Density: 50-100%
Support Floor line Distance:  0.4mm

Support Interface Pattern: Grid
Support Roof Pattern: Grid (this parameter should differ from Bottom Pattern Initial Layer in “Shell” section)
Support Floor Pattern: Grid

Minimum Support Interface Area: 10mm
Minimum Support Roof Area: 10 mm
Minimum Support Floor Area: 10 mm

Support Interface Horizontal Expansion: 0.0 mm
Support Roof Horizontal Expansion: 0.0 mm
Support Floor Horizontal Expansion: 0.0 mm

Fan Speed Override: Check
Supported Skin Fan Speed: 100%
Use Towers: Check
Tower Diameter: 4 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Skirt/Brim (For unsteady parts, and those parts that may come unstuck use “Brim”. For bigger assembly parts that have large adhesion area and for all parts of locks and claws that you want to come out clean use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
       Brim Line Count: 10
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments

comments powered by Disqus

Similar items

Browse more newly listed 3D printings
