Dreadnought 3D Printing Model | Assembly

(9)
cm: 13.6 w x 12.8 d x 20.5 h
in: 5.354 w x 5.039 d x 8.071 h

Source Files

|

Description

|

Printing Details

This 3D Figurine consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

Dreadnought 3D Printing Model comes in 6 versions for each 3D printer type (FFF/FDM, DLP/SLA and SLS). Files for each version are available for download after the purchase.

Detailed information about this model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

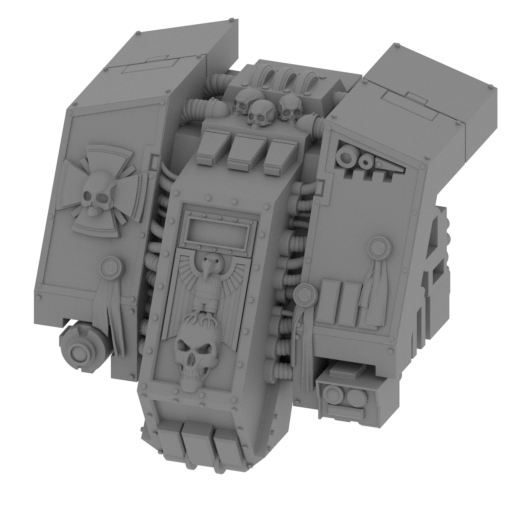

1_body_FDM (repaired).stl
44.44 MiB 17 h 15 min 11 m 69 x 71 x 63 Download

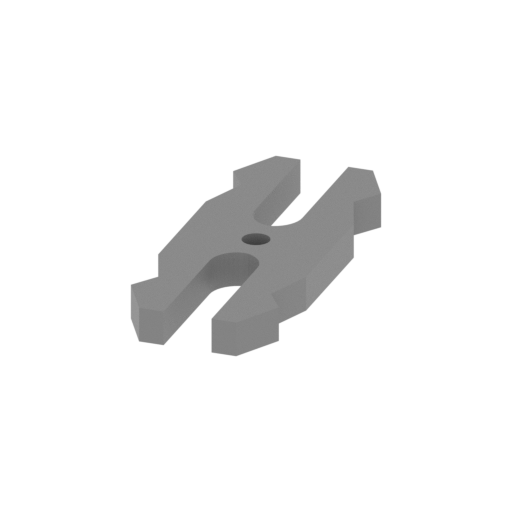

2_Ge_lock_7S_(x4)_FDM (re paired).stl
0.02 MiB 3 min <1 m 7 x 18 x 2 Download

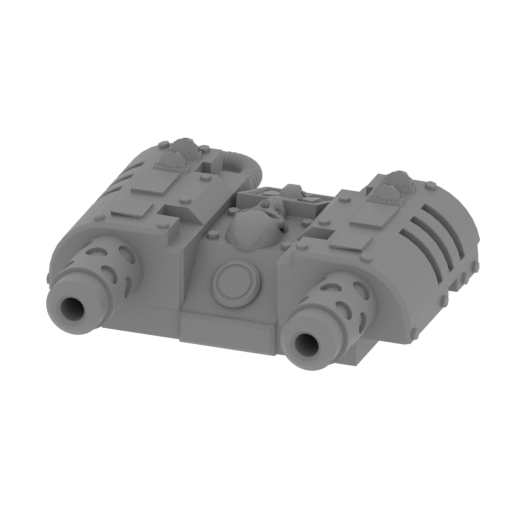

3_body_back_FDM (repaired ).stl
9.18 MiB 2 h 17 min 1 m 46 x 46 x 16 Download

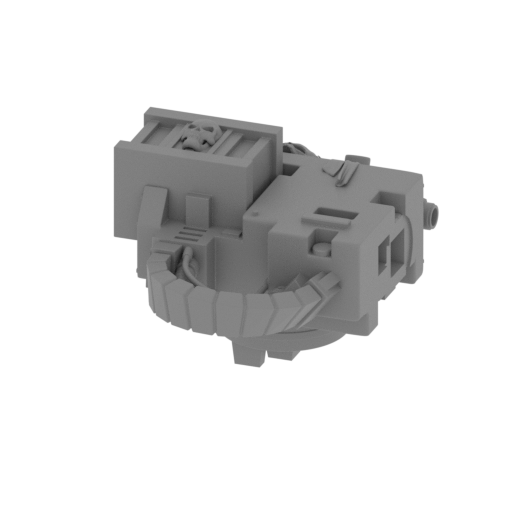

4_arm_R_FDM (repaired).st l
44.98 MiB 6 h 26 min 4 m 49 x 69 x 42 Download

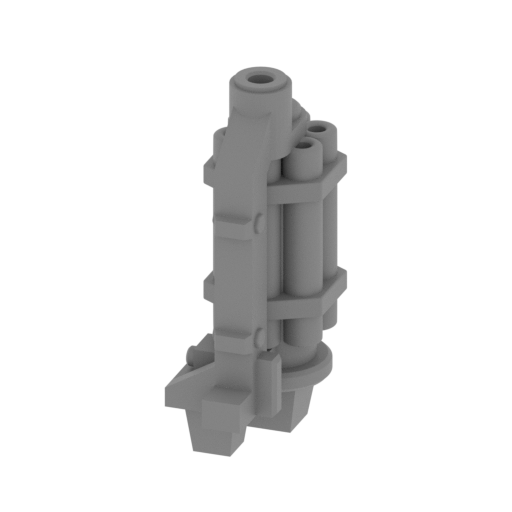

5_hand_R_FDM (repaired).s tl
4.09 MiB 1 h 16 min 1 m 14 x 24 x 40 Download
6_arm_L_FDM (repaired).st l
52.66 MiB 5 h 53 min 3 m 37 x 66 x 59 Download

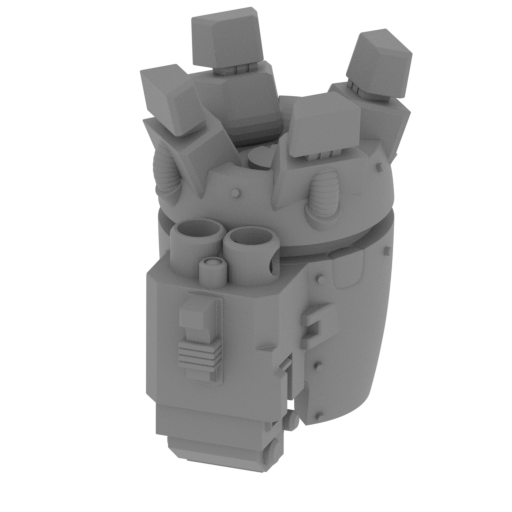

7_hand_L_FDM (repaired).s tl

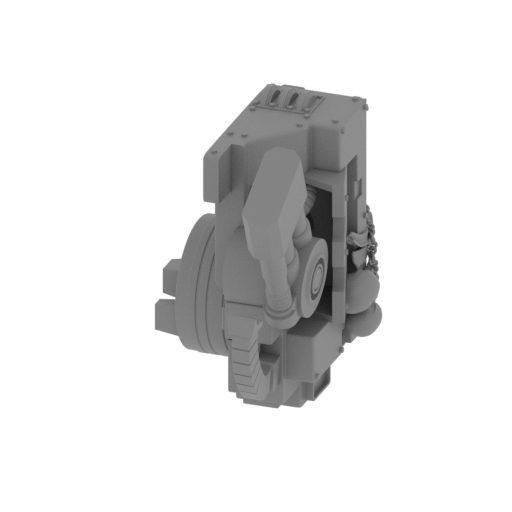

4.83 MiB 2 h 50 min 2 m 27 x 40 x 44 Download

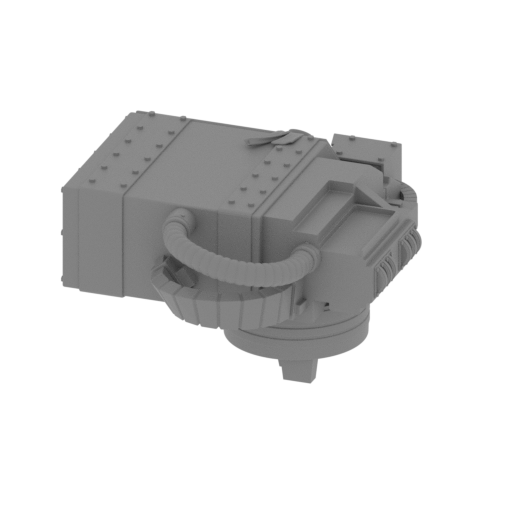

8_gun_L_FDM (repaired).st l
34.44 MiB 5 h 48 min 4 m 54 x 63 x 34 Download

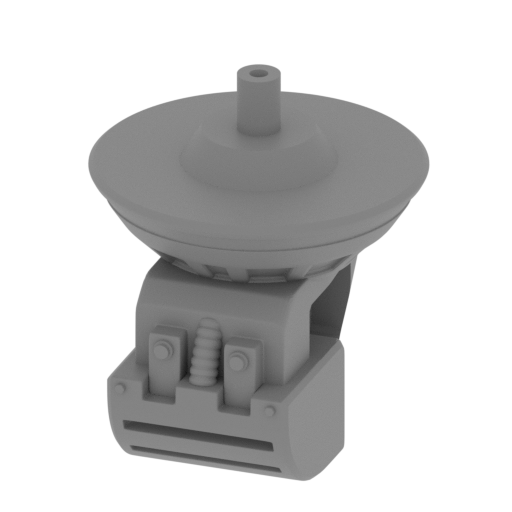

9_pelvis_FDM (repaired).s tl
4.47 MiB 2 h 11 min 1 m 31 x 33 x 36 Download

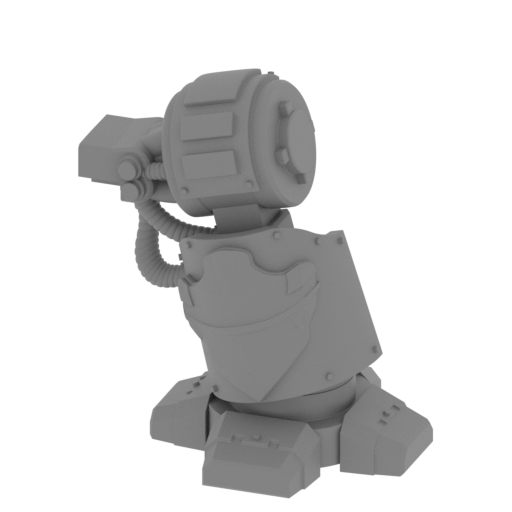

10_leg_R_FDM (repaired).s tl
24.45 MiB 4 h 12 min 2 m 51 x 40 x 57 Download

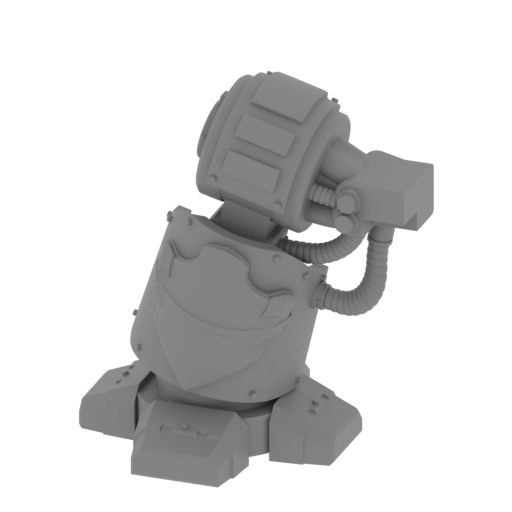

11_leg_L_FDM (repaired).s tl
24.44 MiB 4 h 13 min 2 m 51 x 40 x 57 Download

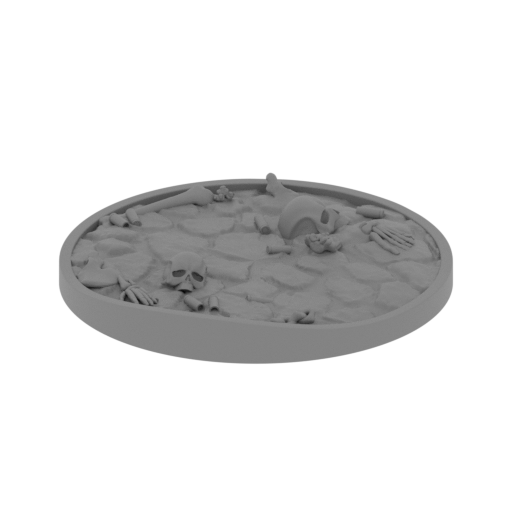

12_platform_FDM (repaired ).stl
37.06 MiB 11 h 28 min 6 m 124 x 124 x 18 Download
13_cloack_FDM (repaired). stl

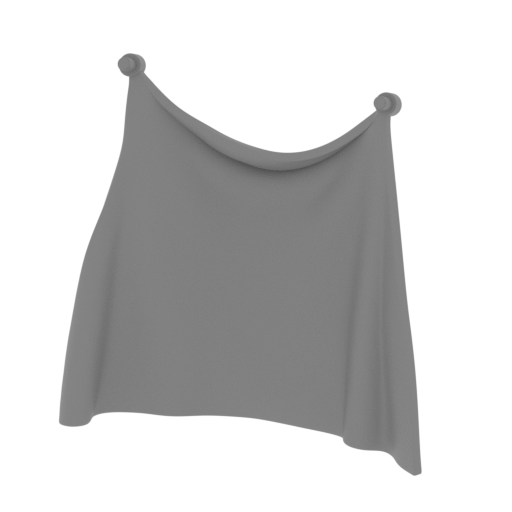

8.60 MiB 2 h 19 min 1 m 63 x 21 x 65 Download

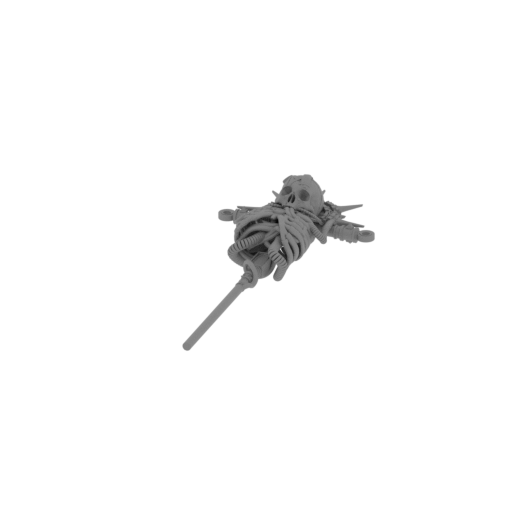

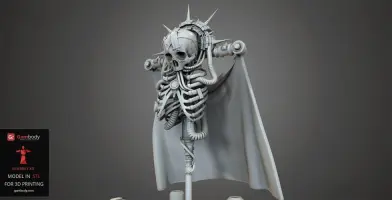

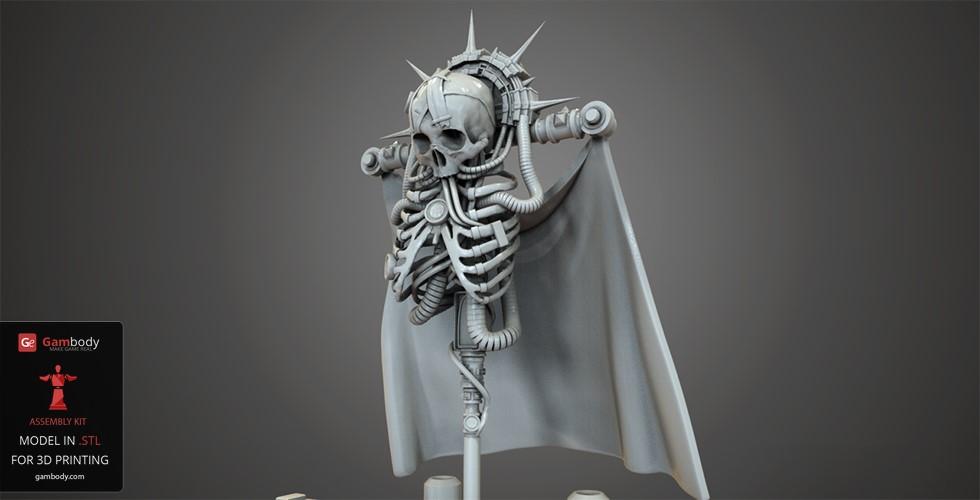

14_stuff_FDM (repaired).s tl
19.81 MiB 3 h 47 min 2 m 51 x 120 x 22 Download
...

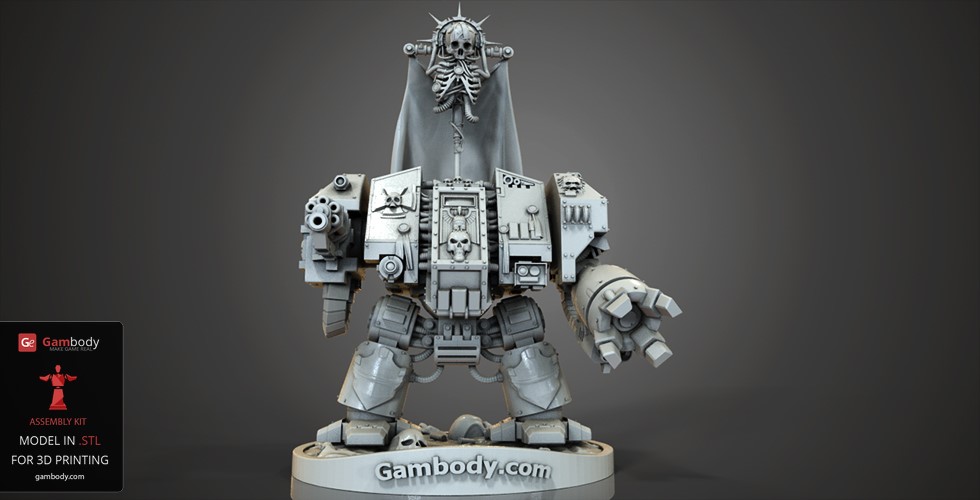

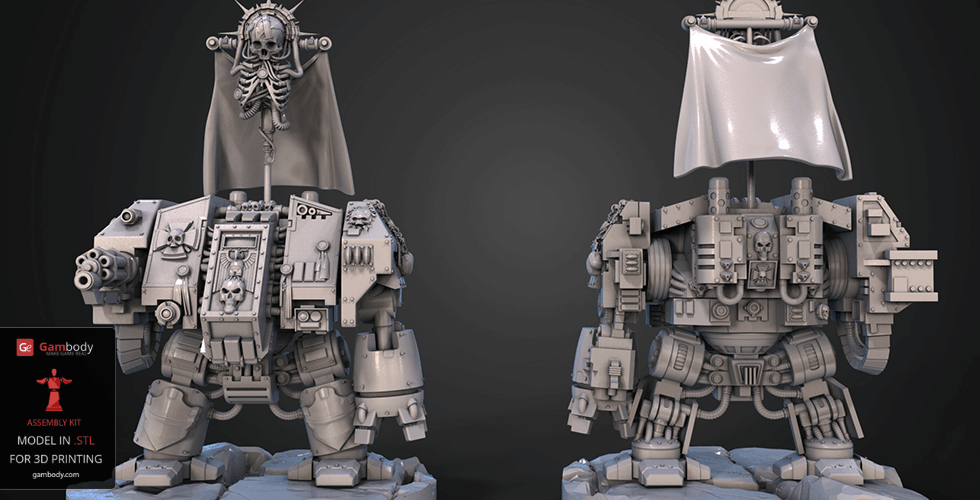

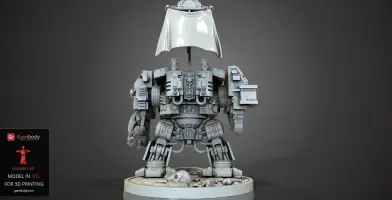

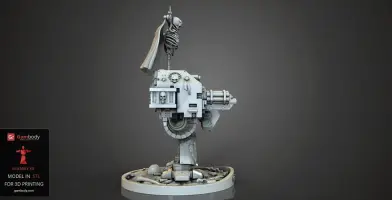

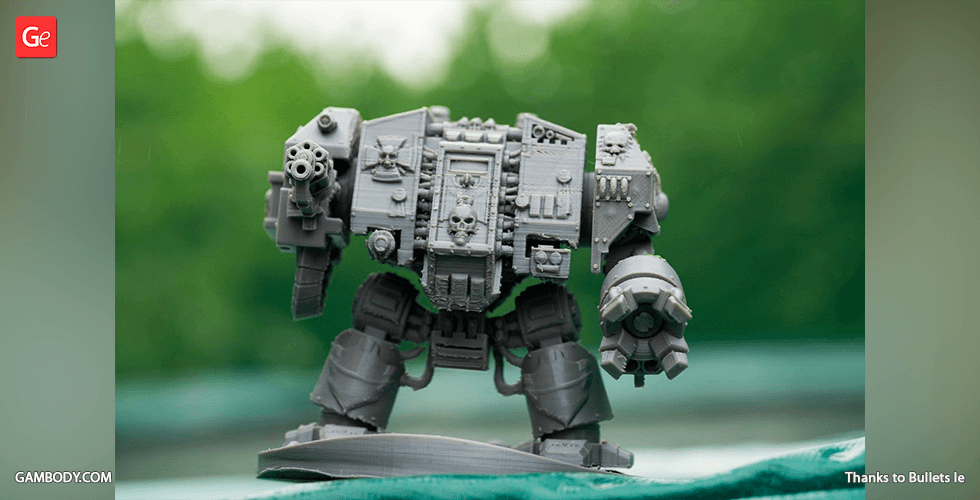

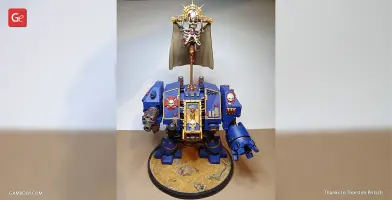

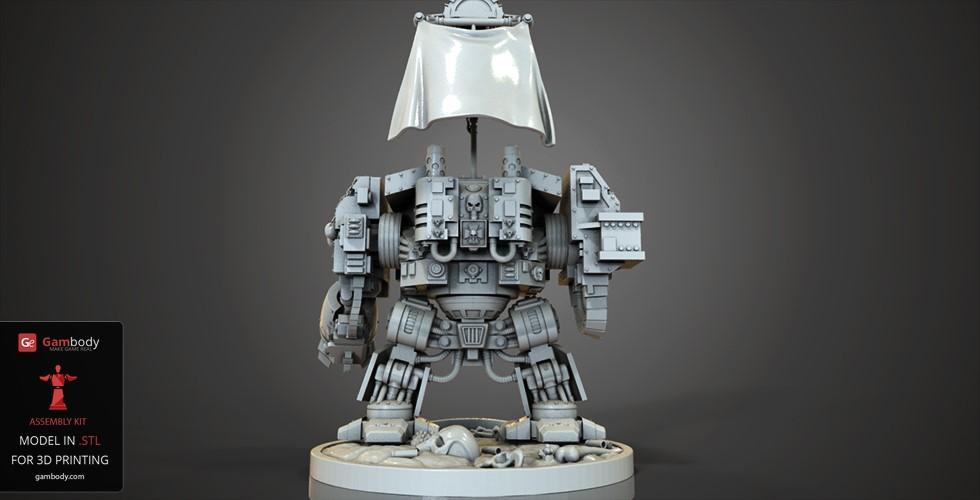

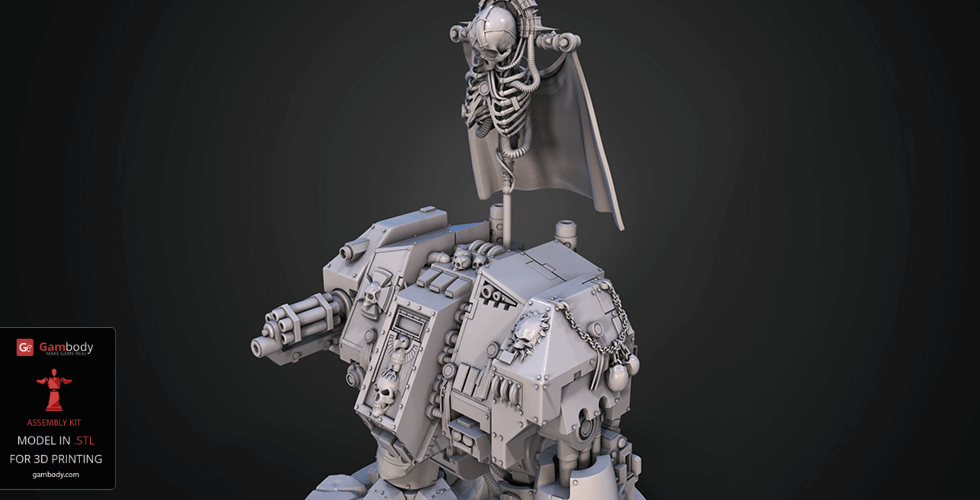

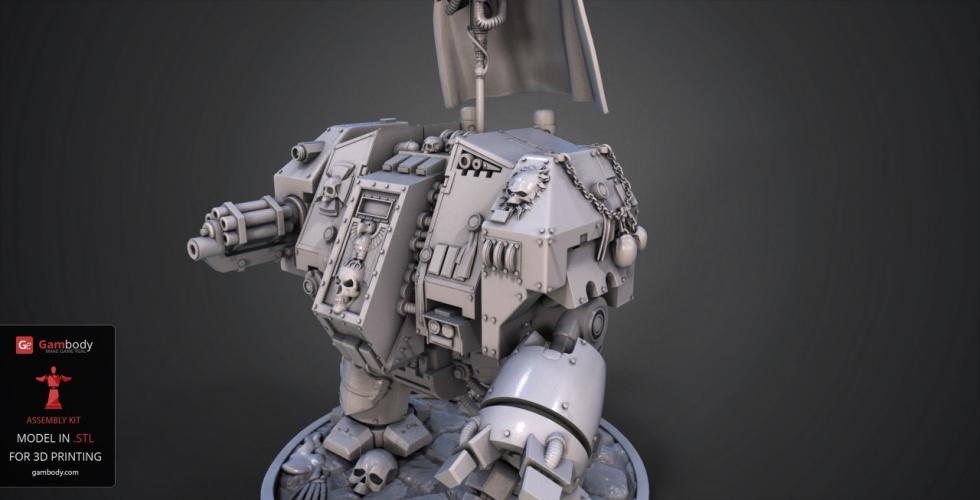

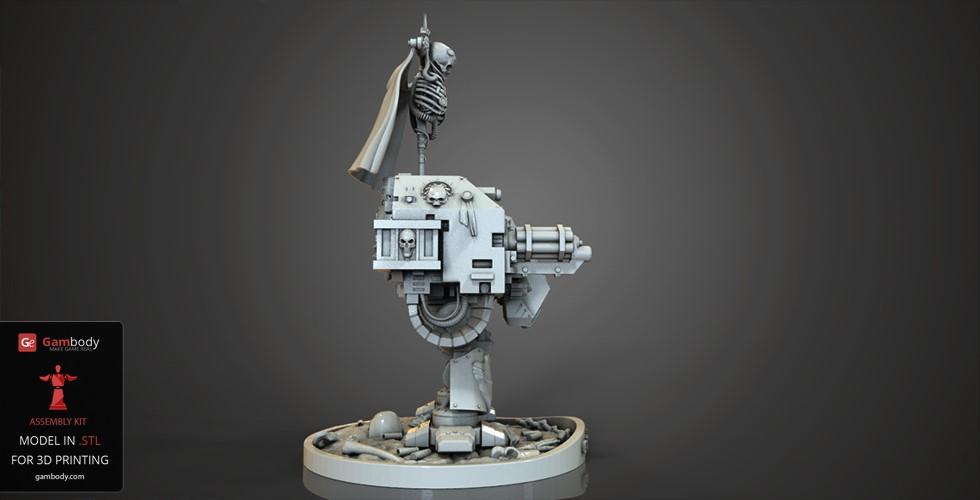

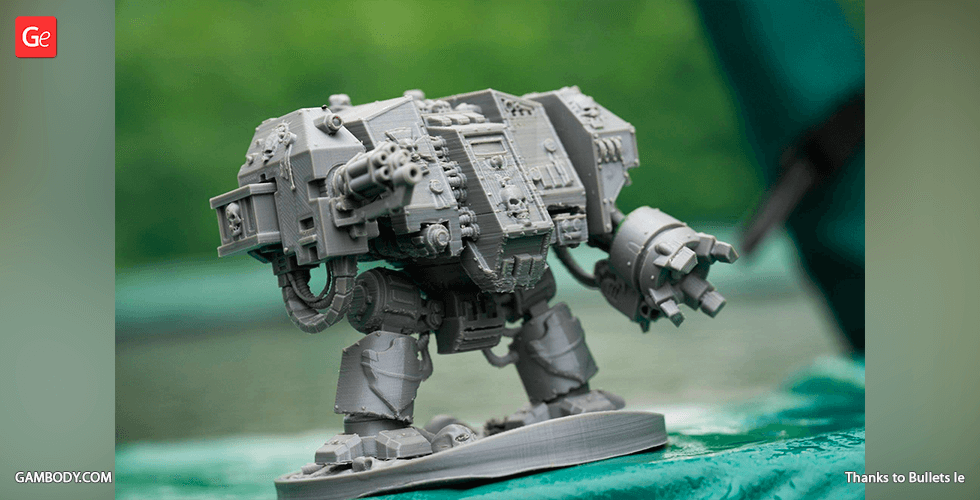

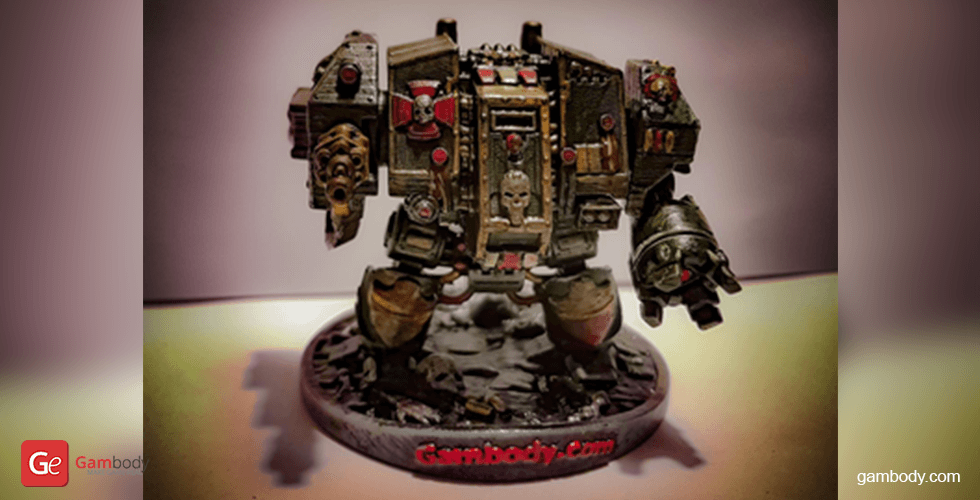

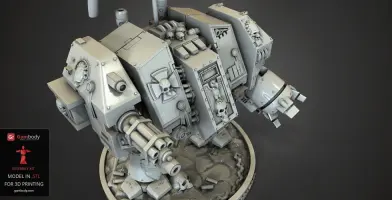

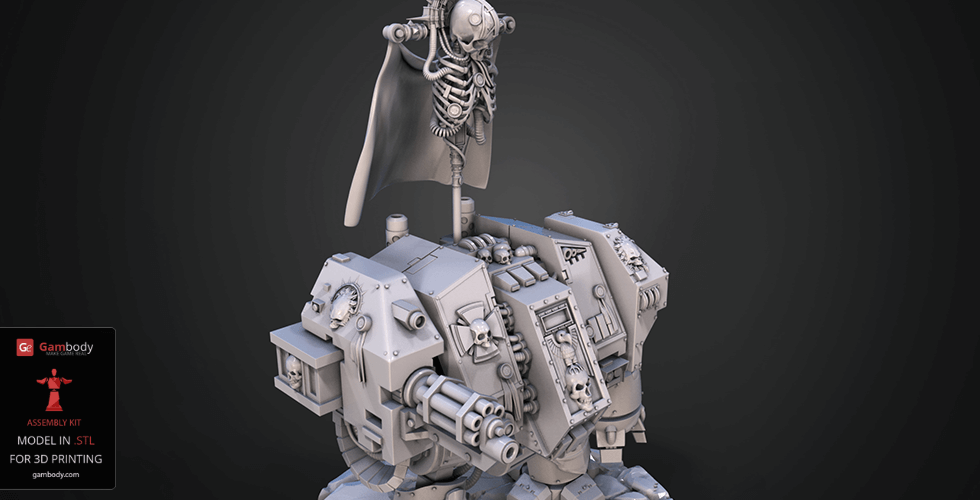

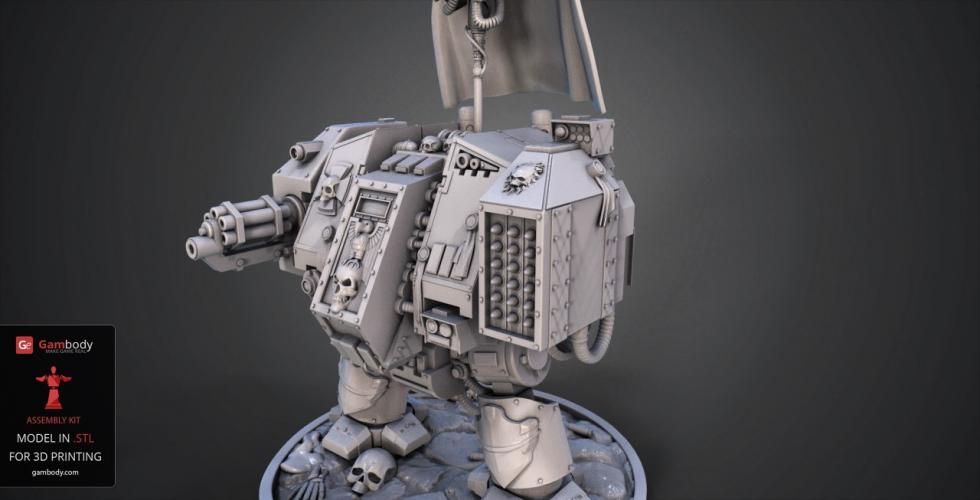

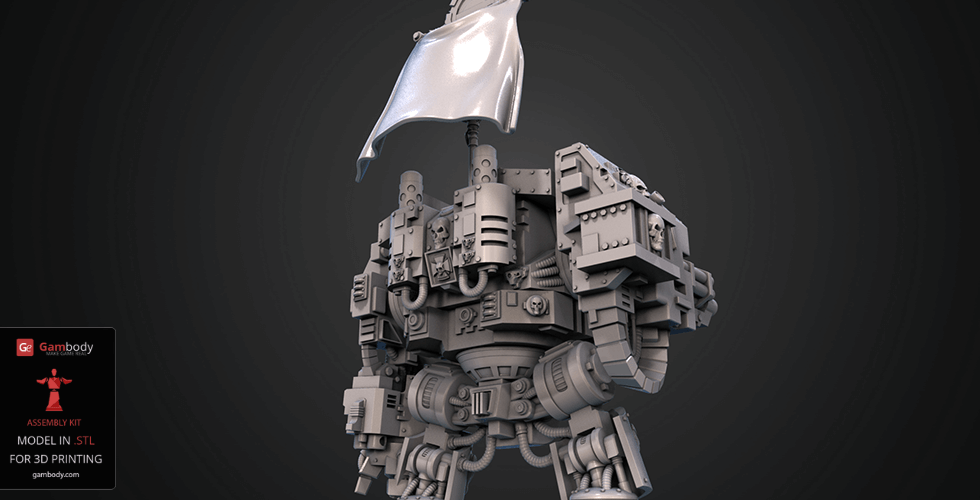

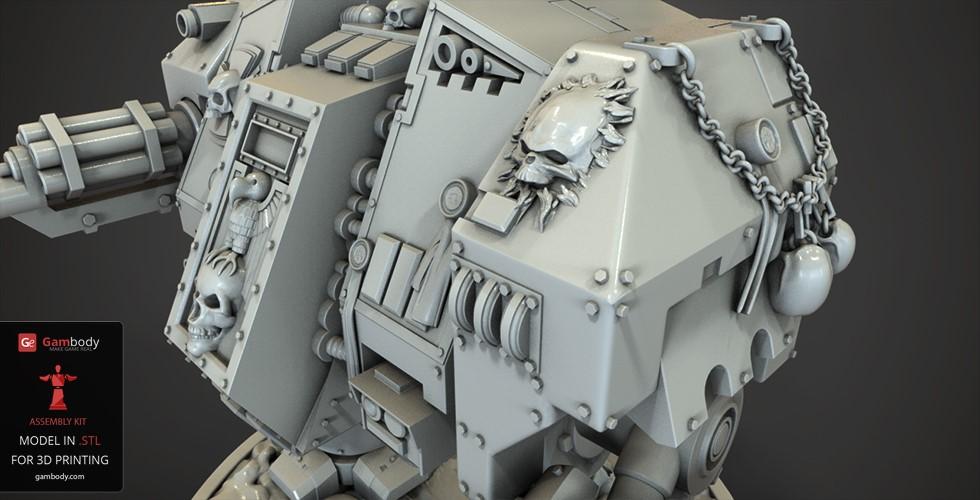

Dreadnought 3D model is inspired by the war towering machines resembling huge heavy armor suits. Equipped with incredible firepower, the Dreadnoughts leave nothing but ash behind them.

The towering power armor is controlled by a pilot that is connected to the suit’s cybernetic system. Due to this fact, the pilot is able to use the suit as if it is its own body.

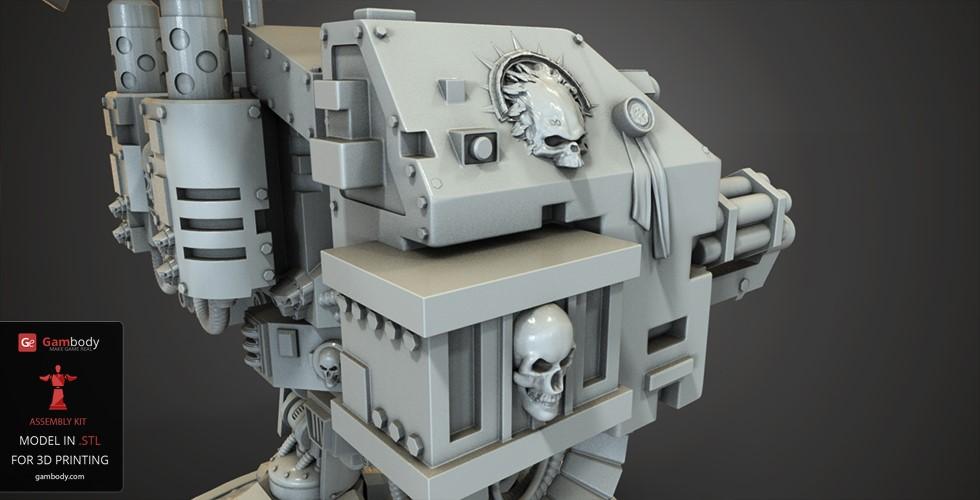

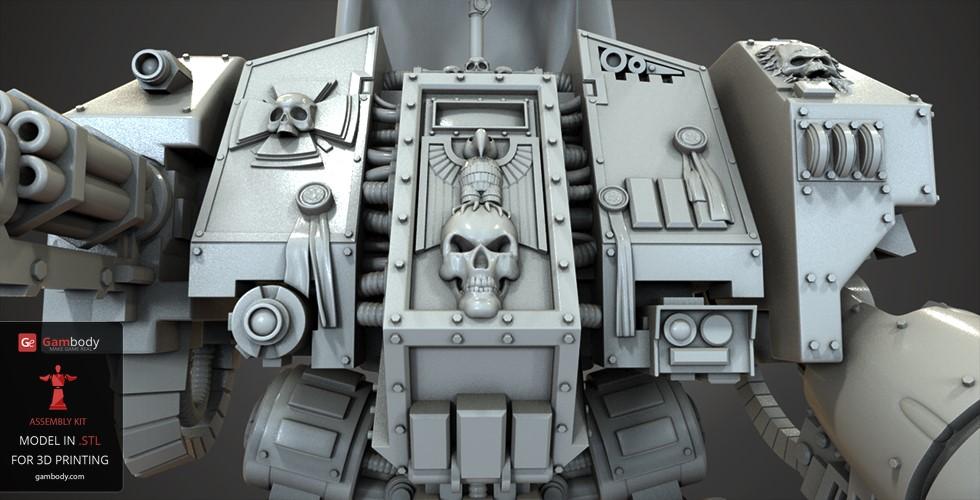

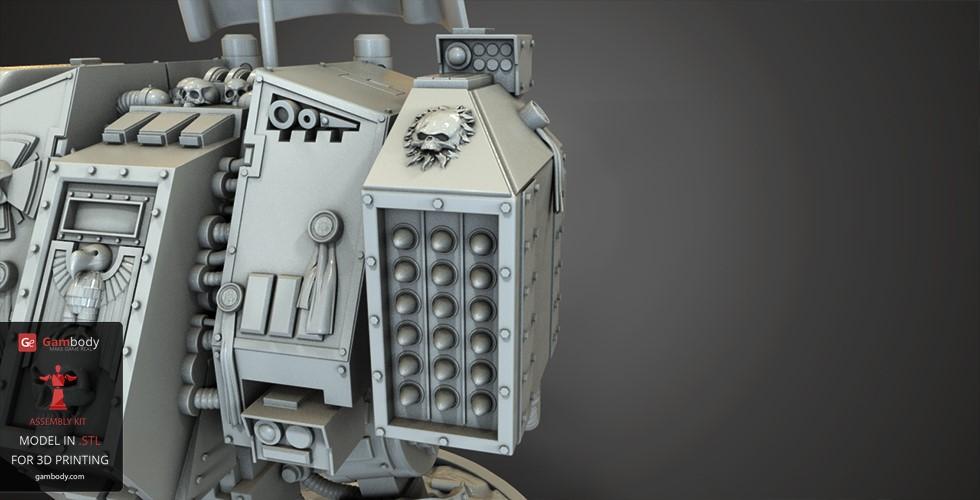

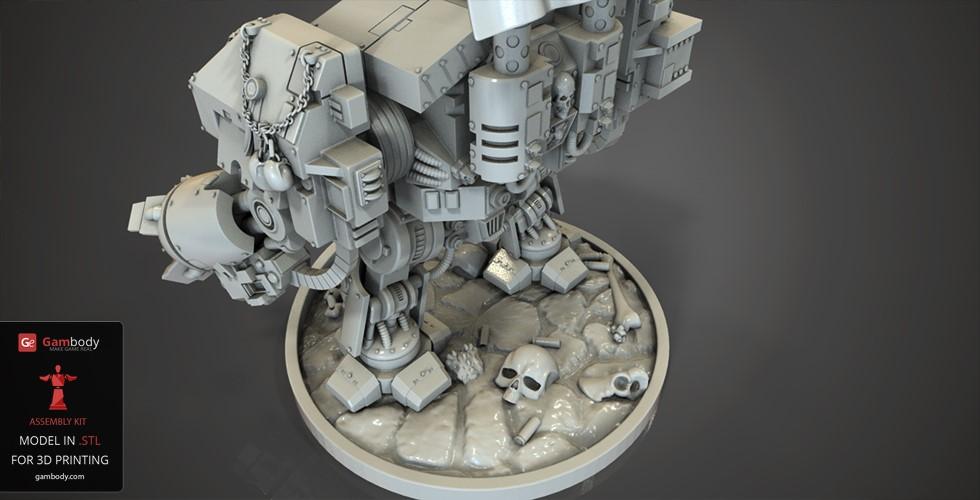

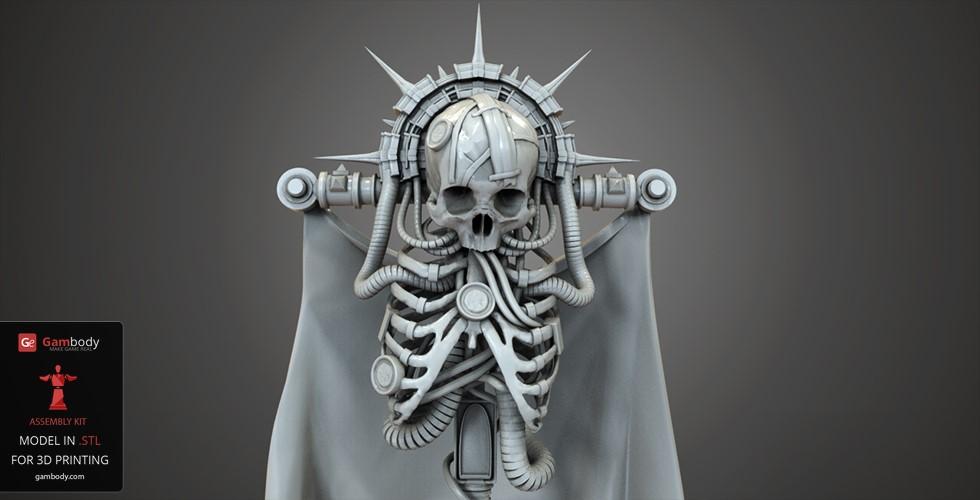

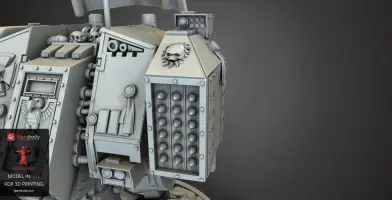

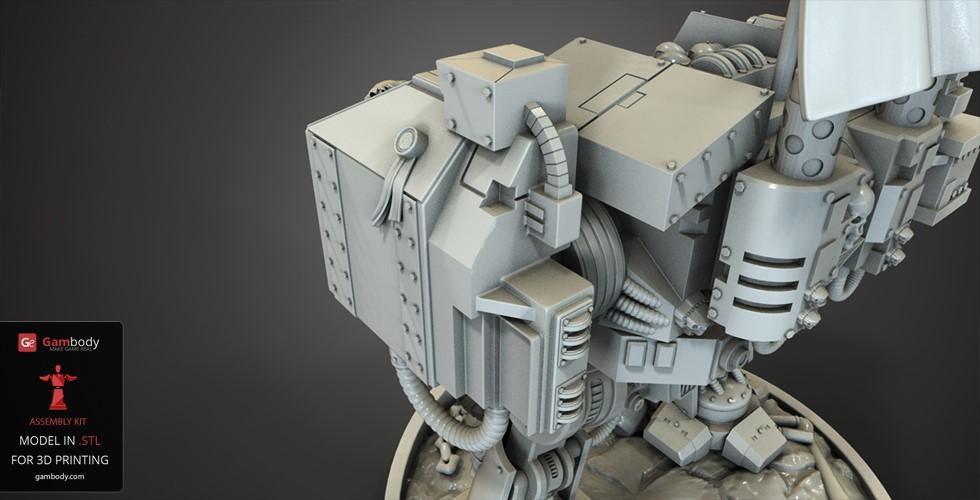

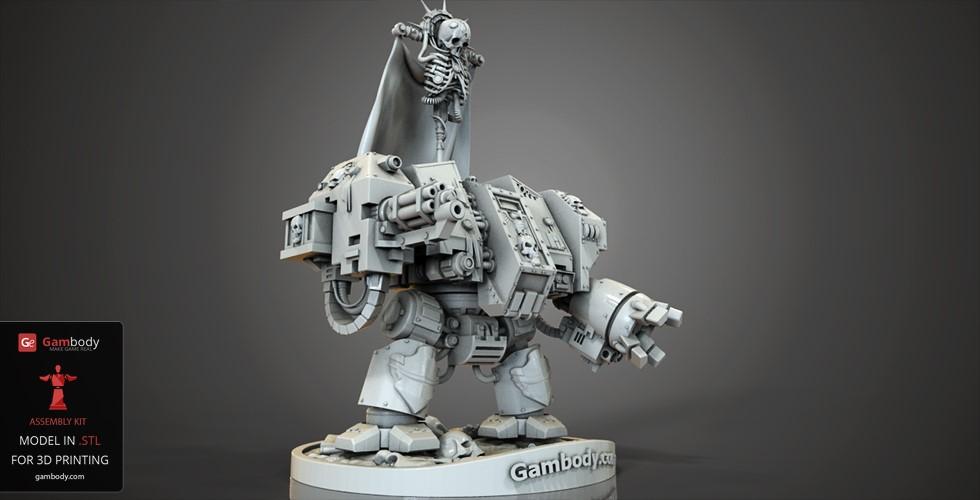

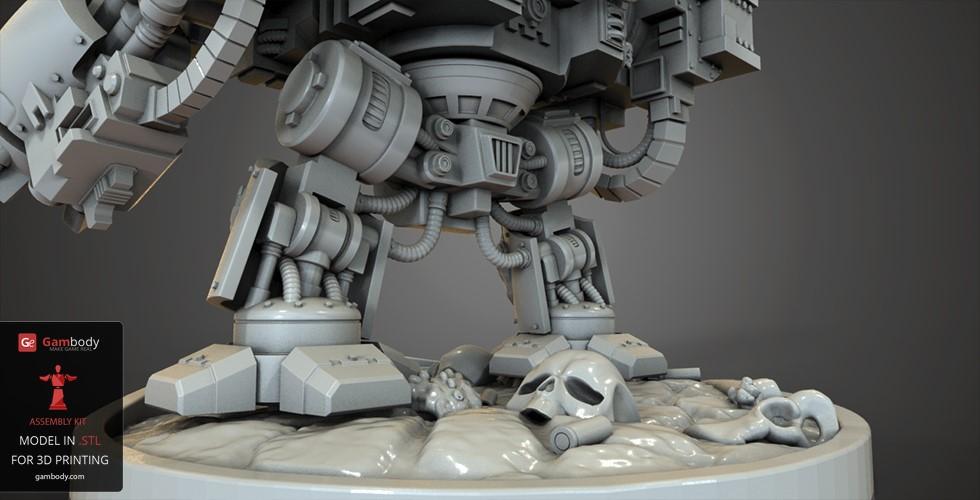

The Dreadnought 3D model showcases all the might and fear that the prototype embodies. Created in Autodesk Maya, the figurine is a high-poly model showing intricate details of the outer shell. For printing optimization, the STL files of the 3D model are made solid, facilitating their handling in any slicing program.

Also, the STL files are checked and corrected for errors in Netfabb. They are tested in CURA 2.3.1. slicing program. It is highly advised to print the files at 0.1 mm layer height for accurate printing results. For other 3D printing recommendations, please see Printing Details tab above.

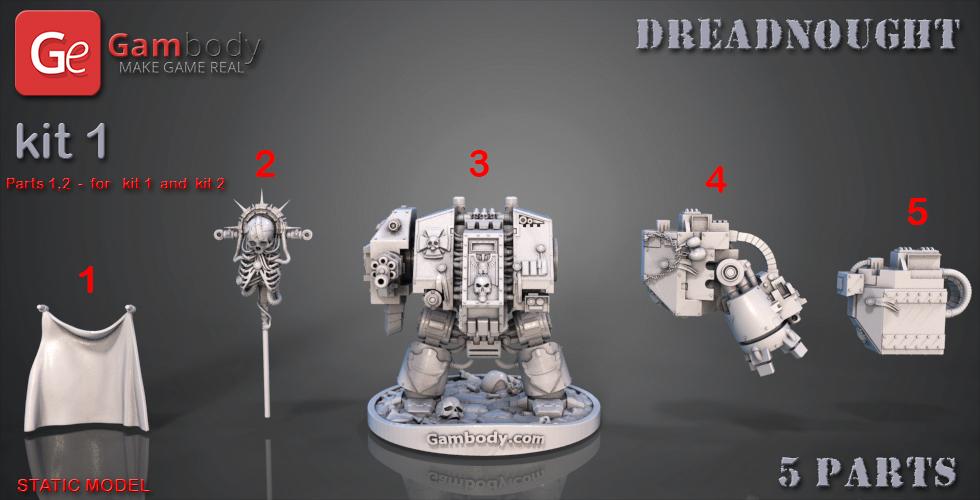

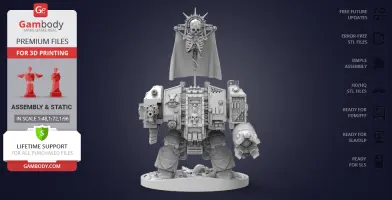

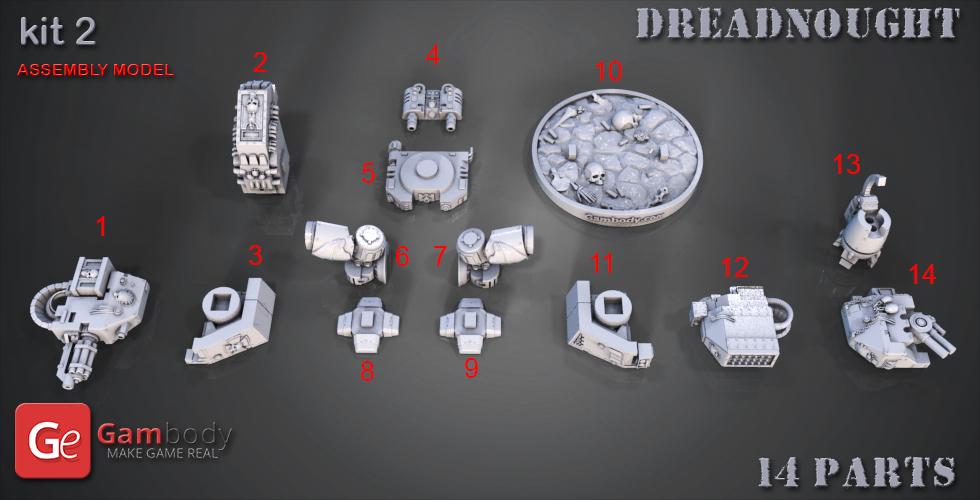

You can opt for one of the 2 variants of Dreadnought 3D model: static, consisting of 5 parts (kit 1) and assembly, consisting of 14 parts (kit 2). Support is used for their 3D printing.

The parts don’t require glue for the assembly.

Buy Dreadnought 3D model by clicking the green Buy button in the top-right corner of the page. Add the files to your shopping card. Continue to checkout. Pay securely with PayPal or your credit card. Download the files in a .zip folder together with a PDF file with the printing recommendations.

If you don’t have a 3D printer of your own, you can use the services of our partners, 3DHubs and Treatstock. Just select the files you want to 3D print and click the Print with 3DHubs or Print with Treatstock button.


________________________

On 18.07.2018 have been added 4 new versions.

The model was completely redone. Here is the list of changes:
1. Changed the cutting of the model for more comfortable printing with the smallest amount of supports.
2. Reworked assembly of the model and Locks were added for connecting the parts.
3. Increased detalization, as well as worked out small technical details in order to maximize the repeat of the game analog model.
4. This update was divided into 4 versions, for comfortable printing on different types of printers. The SLS version of Dreadnought was divided into 2 new scale versions of 1:72 and 1:96.

One part of Lock (2_Ge_lock_7S_(x4)) you need to print 4 times.

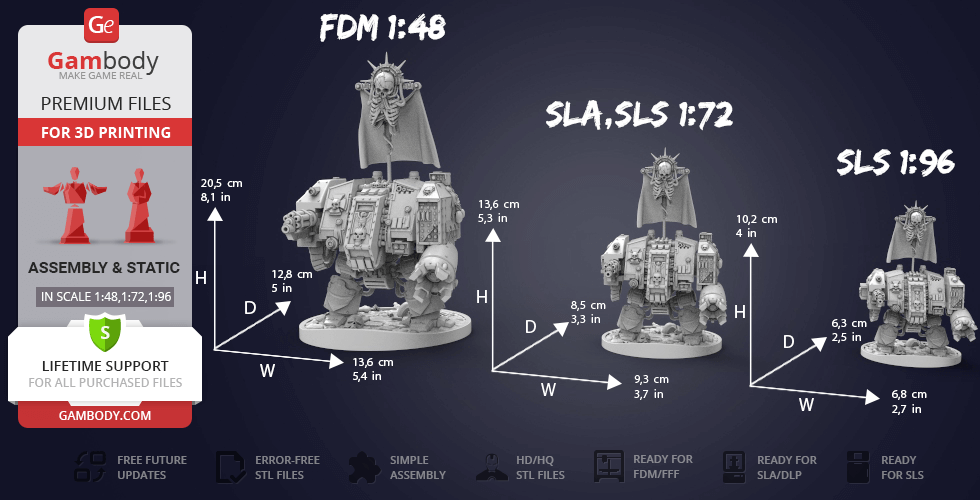

New sizes of this model:

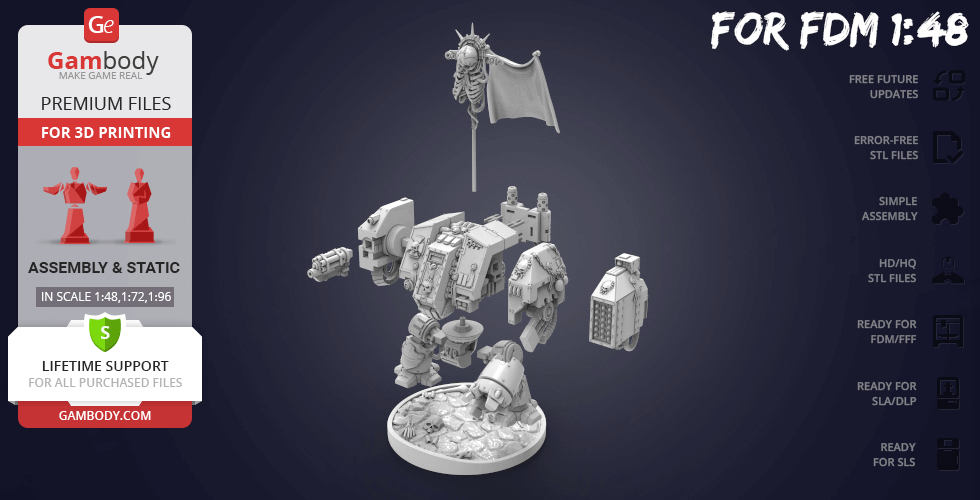

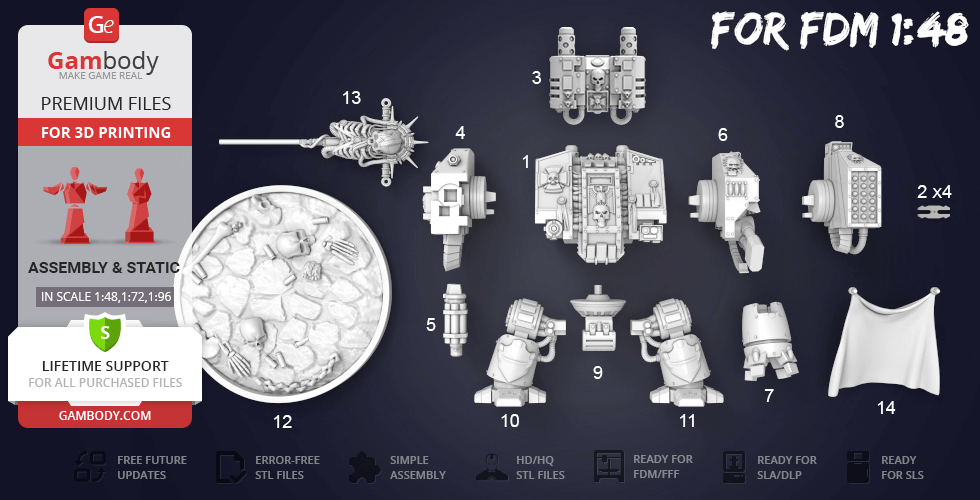

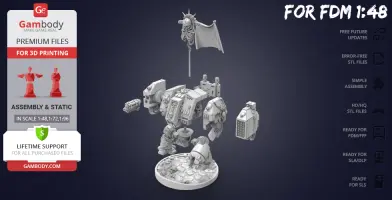

FFF/FDM 2.0 version 1:48 Scale dimensions:
After being printed will stand - 205 mm tall, 136 mm wide, 128 mm deep;

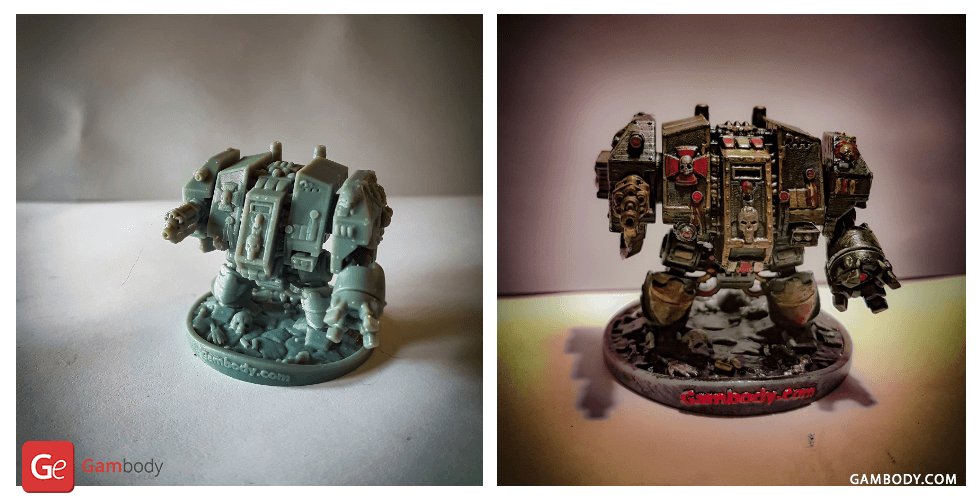

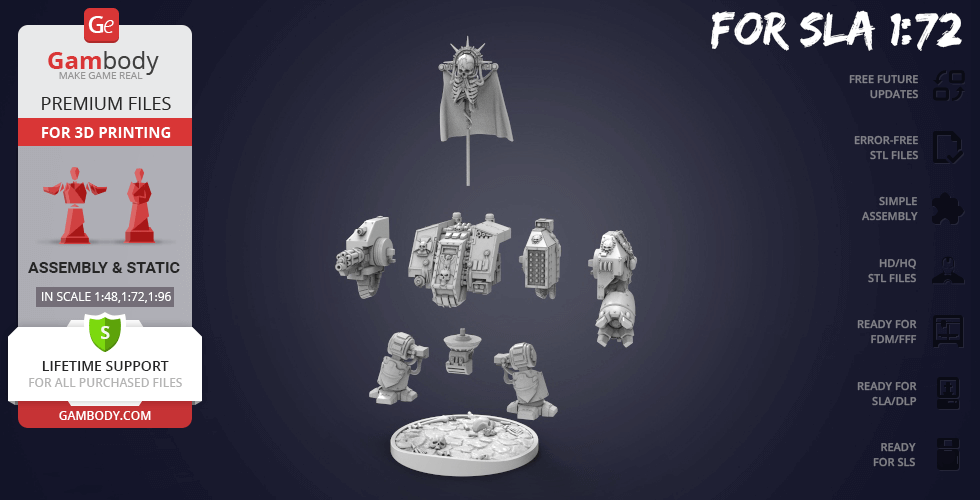

DLP/SLA 2.0 version 1:72 Scale dimensions:
After being printed will stand - 136 mm tall, 93 mm wide, 85 mm deep;

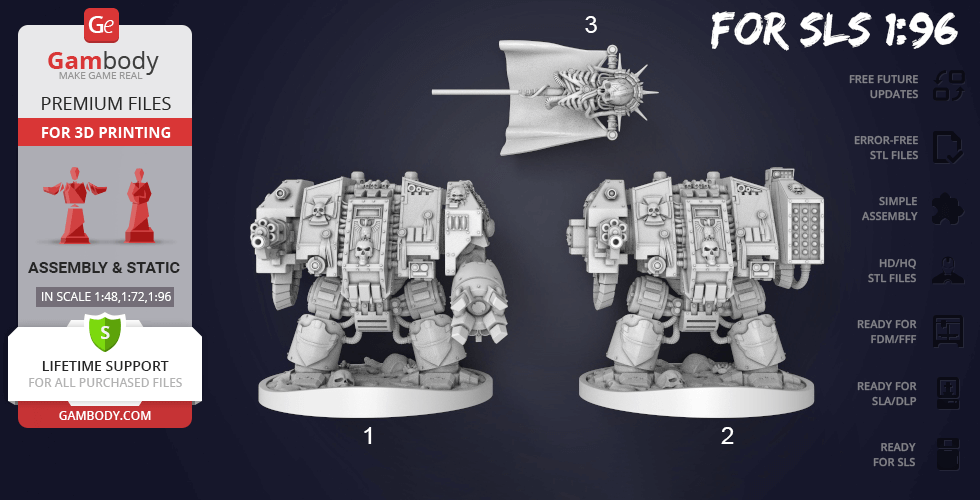

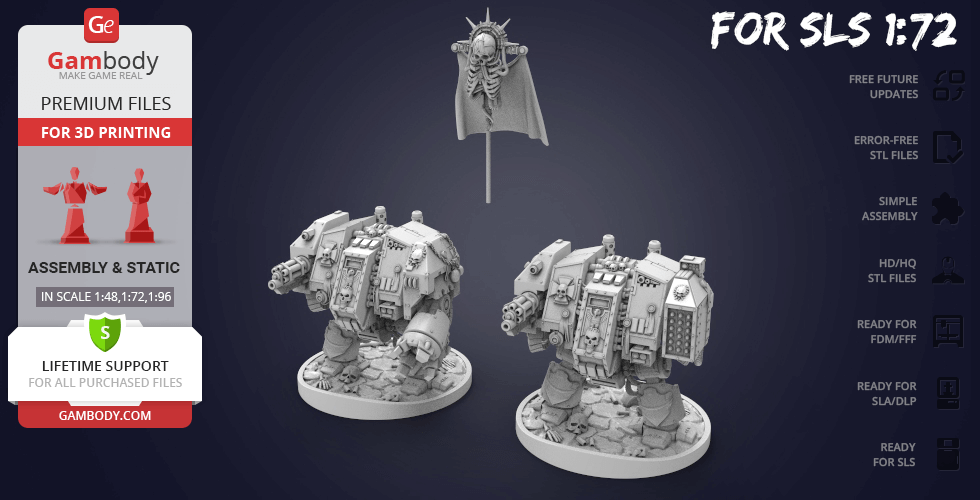

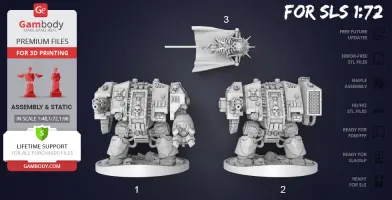

SLS 1.0 version 1:72 Scale dimensions:
After being printed will stand - 102 mm tall, 68 mm wide, 63 mm deep;

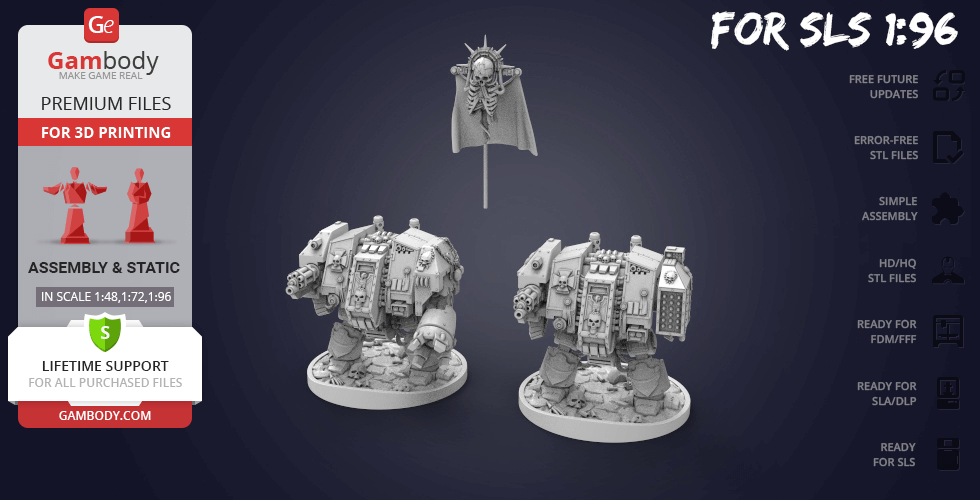

SLS 1.0 version 1:96 Scale dimensions:
After being printed will stand - 102 mm tall, 68 mm wide, 63 mm deep;

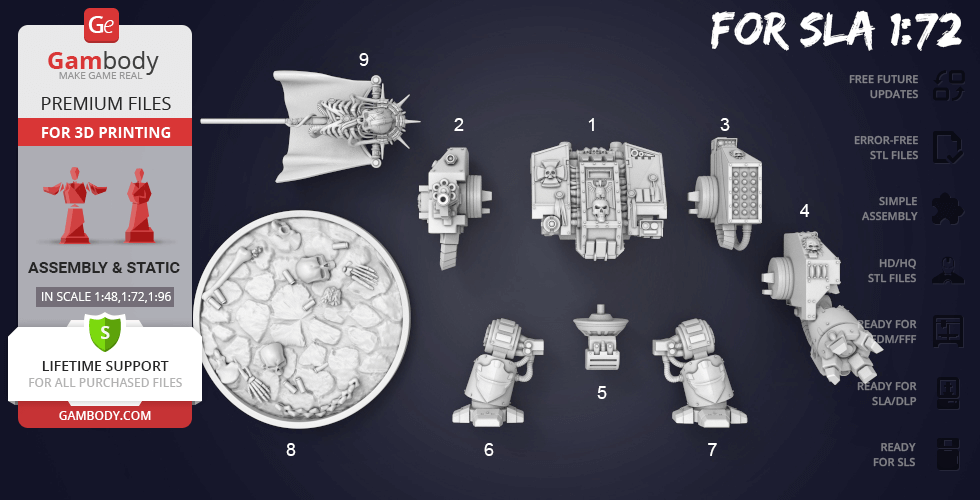

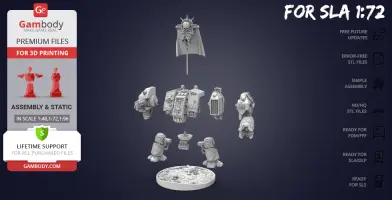

There are 14 parts for FFF/FDM version, 9 parts for DLP/SLA version and 3 parts for each SLS versions.

STL files are already available for download in “Source files” tab for (FFF/FDM 2.0), (DLP/SLA 2.0), (SLS 1.0 (1:72 Scale)), (SLS 1.0 (1:96 Scale)).

Watch the tutorial video on how to assemble new Dreadnought 3D Printing Model at Gambody YouTube channel.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?

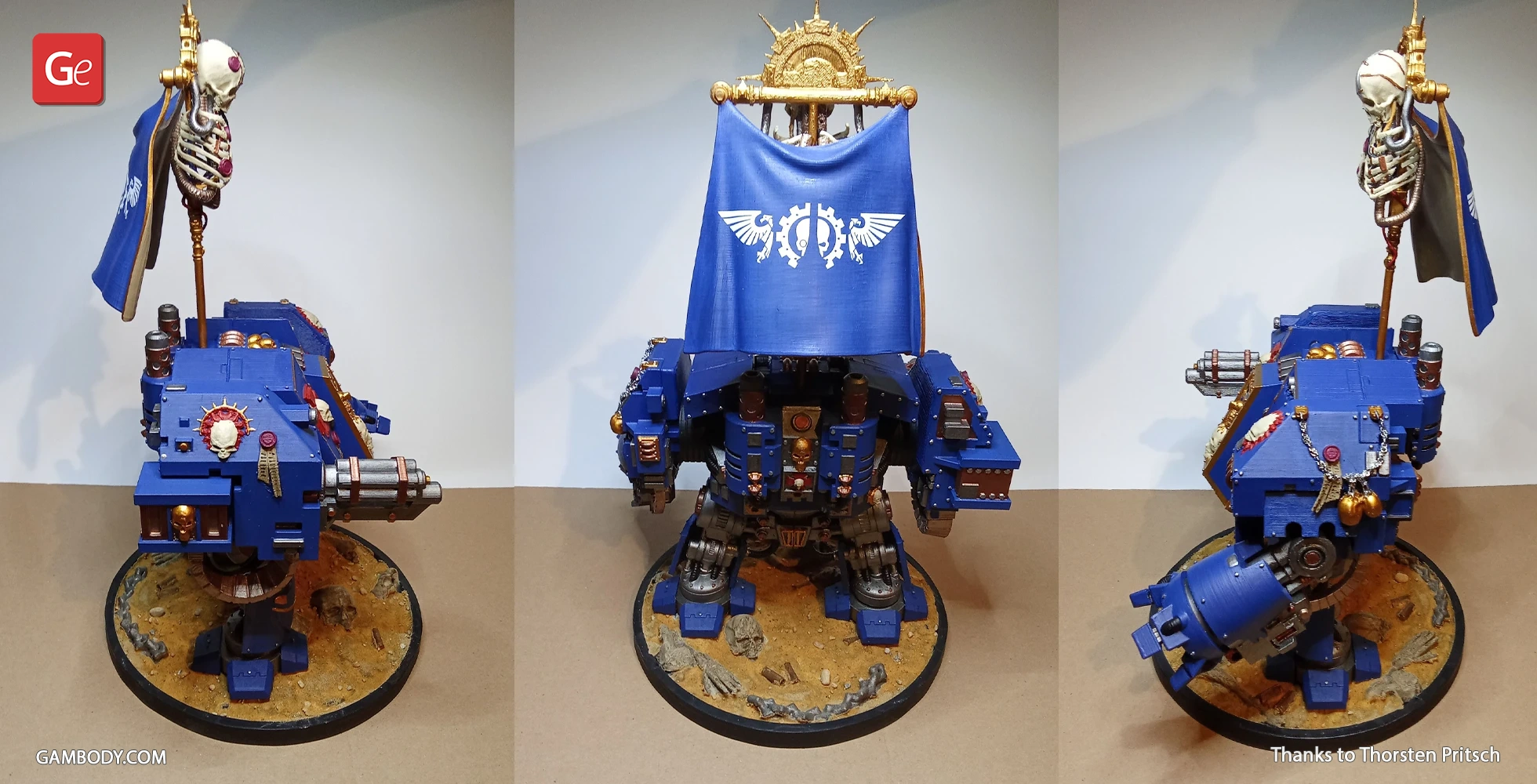

How to paint printed figurine

Generic

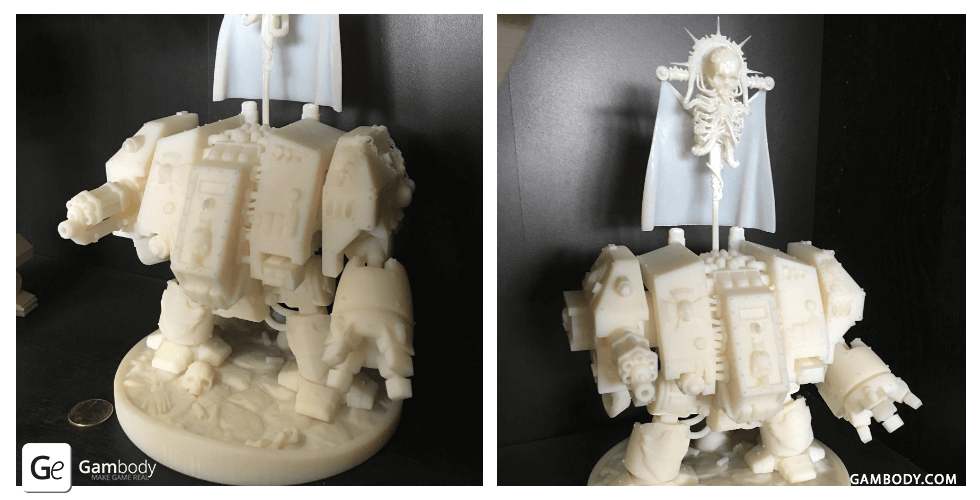

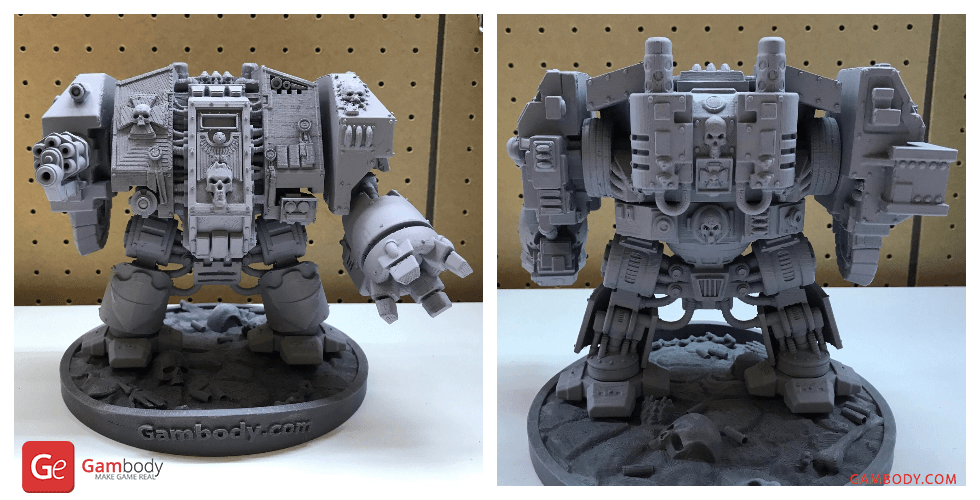

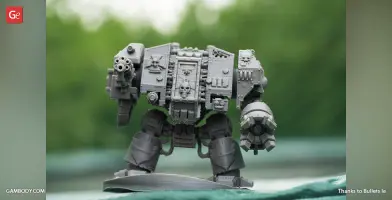

This model was tested in Cura 3.4.1 and printed on an Ultimaker 2 in PLA material. Below you can find printing recommendations for Cura and Simplify3D softwares.

Cura printing recommendations:

Recommendations: For all parts of Locks you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
 Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
 Top/Bottom Line Width: 0.4 mm
 Infill Line Width: 0.4 mm
 Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
    Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill
Infill Density: 20%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 1
Gradual Infill Steps Height: 1.5 mm
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
    Minimum Skin Width for Expansion: 0.0

Material
Initial Layer Flow: 100%
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
    Support Speed: 45 mm/s
     Support Infill Speed: 45 mm/s
Travel Speed: 60 mm/s
Initial Layer Speed: 22.5 mm/s
  Initial Layer Print Speed: 22.5 mm/s
  Initial Layer Travel Speed: 30 mm/s
Skirt/Brim Speed: 30 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.6562 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 50°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 1.3333 mm
Support Z Distance: 0.3 mm
    Support Top Distance: 0.3 mm
    Support Bottom Distance: 0.3 mm
Support X/Y Distance: 1 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.25 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Gradual Support Infill Steps: 0
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim (for all parts of locks use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

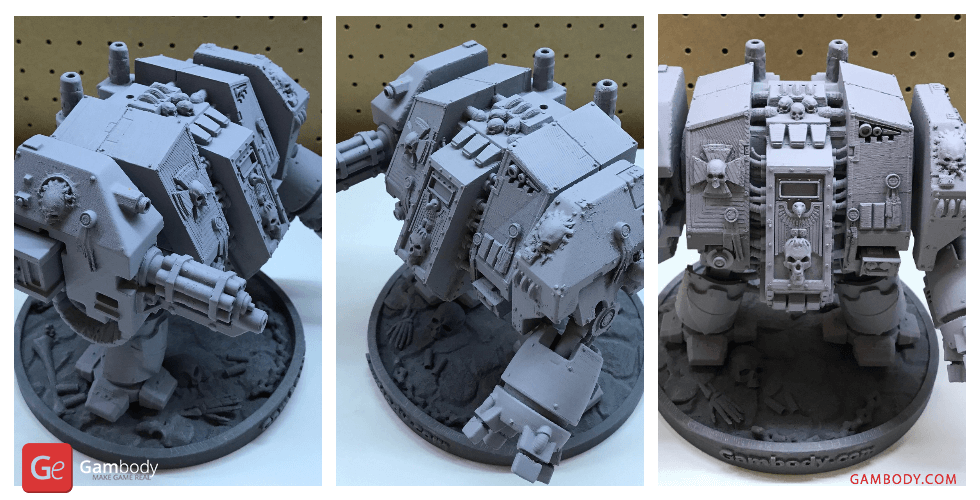

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m
