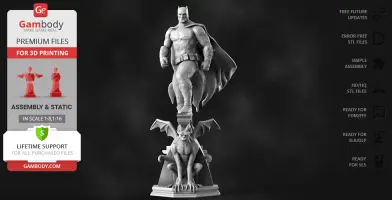

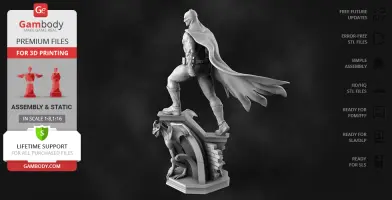

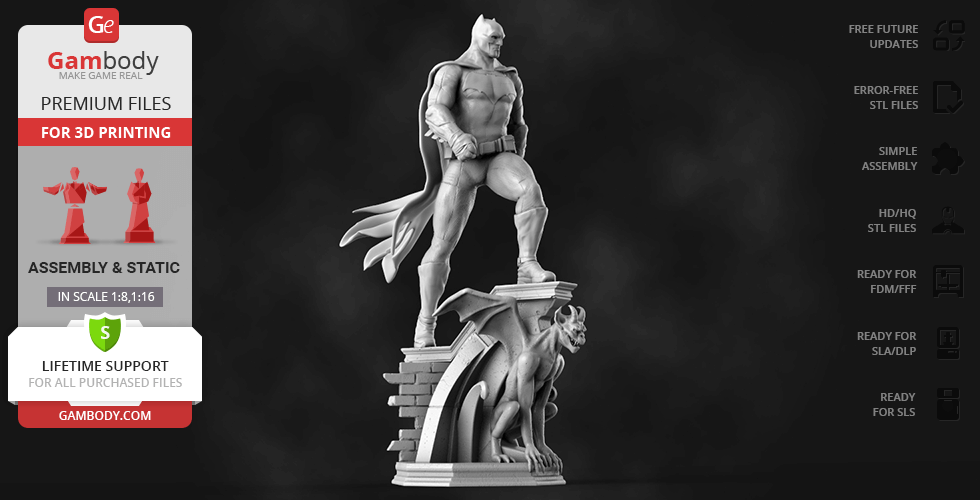

Batman - Dawn of Justice 3D Printing Figurine | Assembly

(6)
cm: 17.1 w x 27.1 d x 35.6 h
in: 6.732 w x 10.669 d x 14.016 h

Source Files

|

Description

|

Printing Details

This 3D Figurine consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

Batman - Dawn of Justice 3D Printing Figurine comes in 3 versions for each 3D printer type (FFF/FDM, DLP/SLA and SLS). Files for each version are available for download after the purchase.

Detailed information about this model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

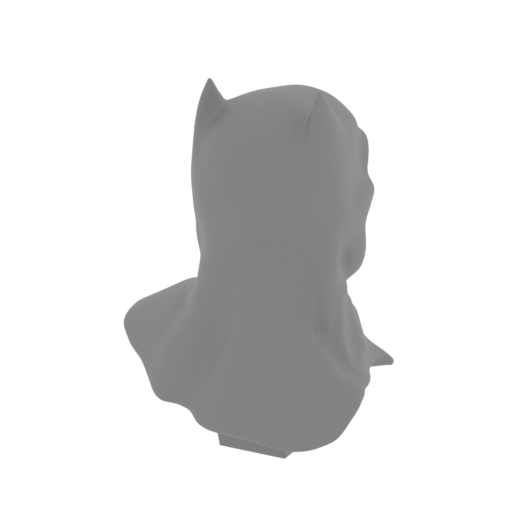

1_Head_FDM (repaired).stl
18.18 MiB 2 h 20 min 1 m 36 x 36 x 49 Download

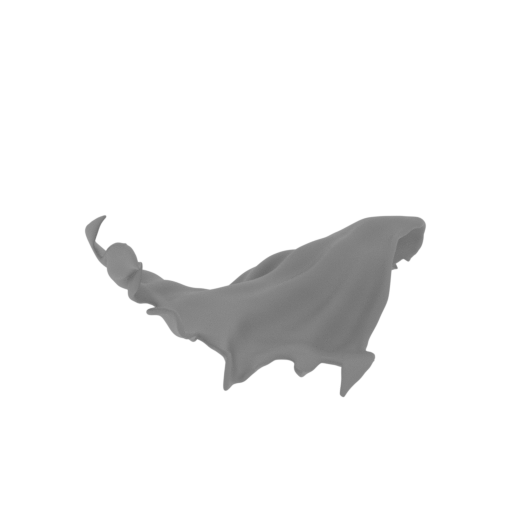

2_Сloak_FDM (repaired).s tl
25.56 MiB 40 h 13 min 29 m 157 x 211 x 98 Download

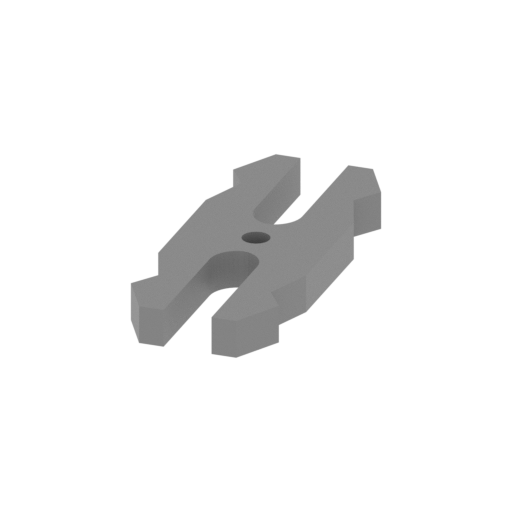

3_Ge_lock_7S_(x5) (repair ed).stl
0.02 MiB 3 min <1 m 7 x 18 x 2 Download

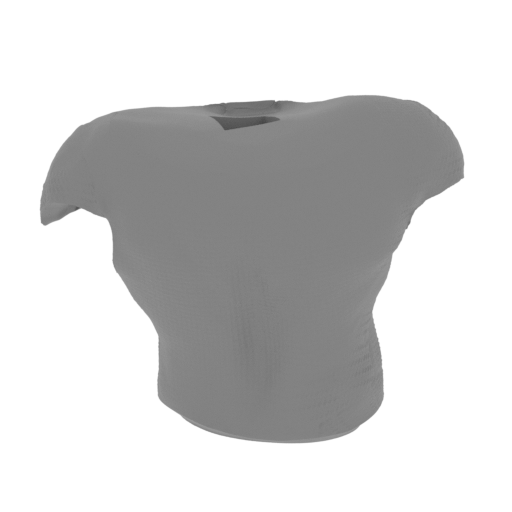

4_Body_FDM (repaired).stl
26.56 MiB 9 h 51 min 6 m 74 x 50 x 66 Download

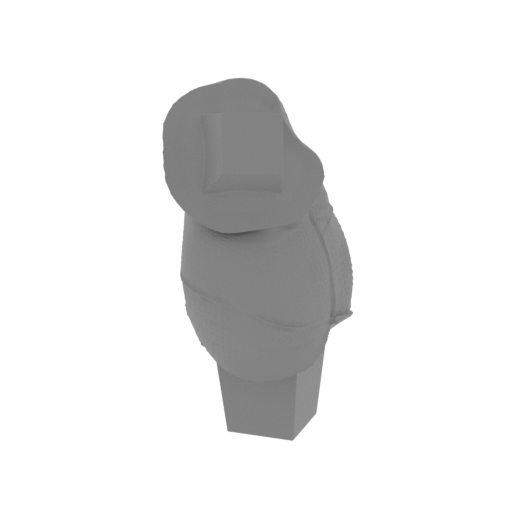

5_Arm_R_FDM (repaired).st l
13.28 MiB 1 h 12 min 1 m 18 x 27 x 42 Download

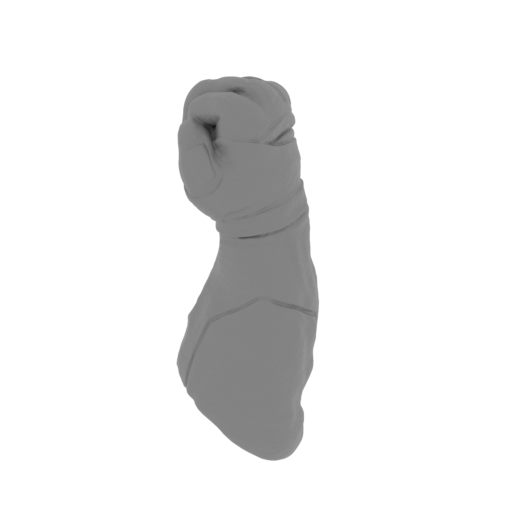

6_Hand_R_FDM (repaired).s tl
10.82 MiB 1 h 32 min 1 m 20 x 28 x 53 Download

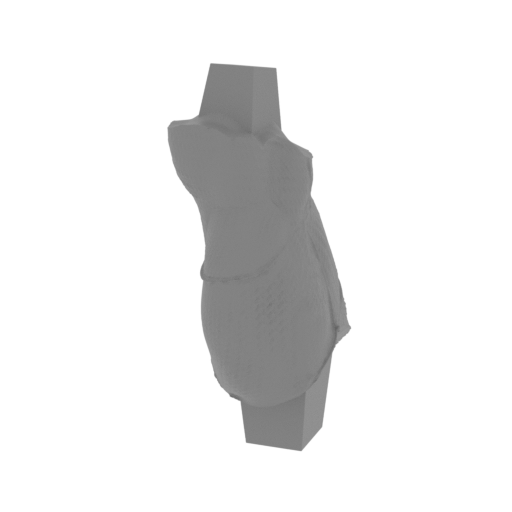

7_Arm_L_FDM (repaired).st l
8.73 MiB 1 h 18 min 1 m 23 x 25 x 49 Download

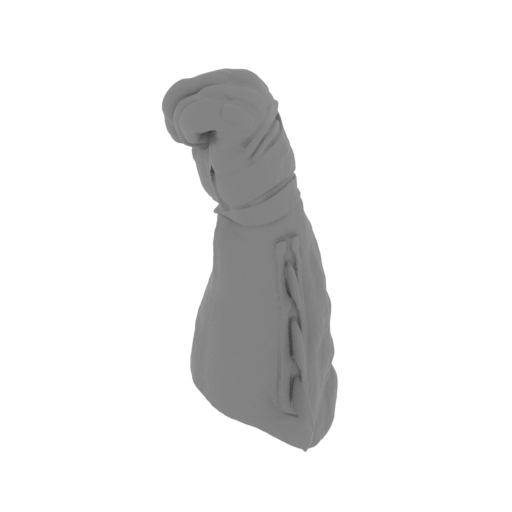

8_Hand_L_FDM (repaired).s tl
9.92 MiB 1 h 21 min 1 m 24 x 23 x 49 Download

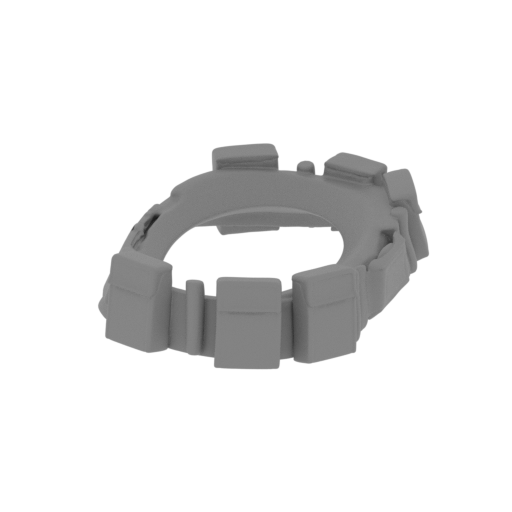

9_Belt_FDM (repaired).stl
14.58 MiB 1 h 53 min 1 m 44 x 59 x 15 Download

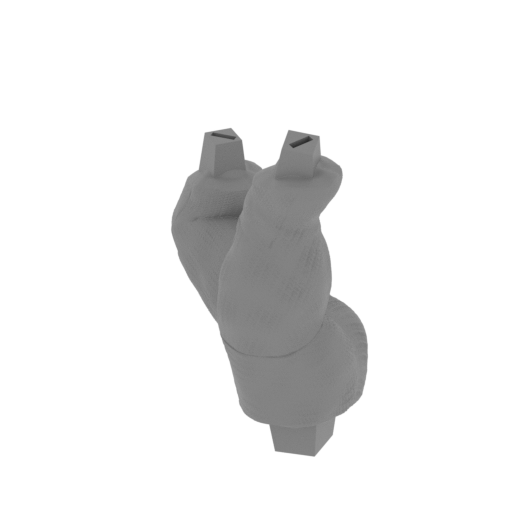

10_Legs_FDM (repaired).st l
25.10 MiB 13 h 51 min 9 m 78 x 90 x 116 Download

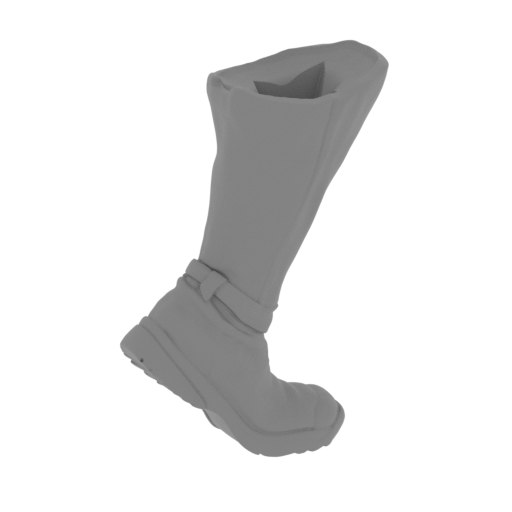

11_Foot_R_FDM (repaired). stl
14.24 MiB 2 h 12 min 1 m 38 x 43 x 66 Download

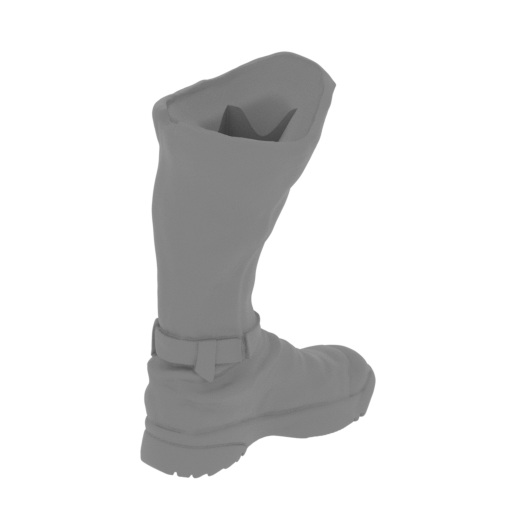

12_Foot_L_FDM (repaired). stl
14.42 MiB 1 h 54 min 1 m 27 x 41 x 59 Download

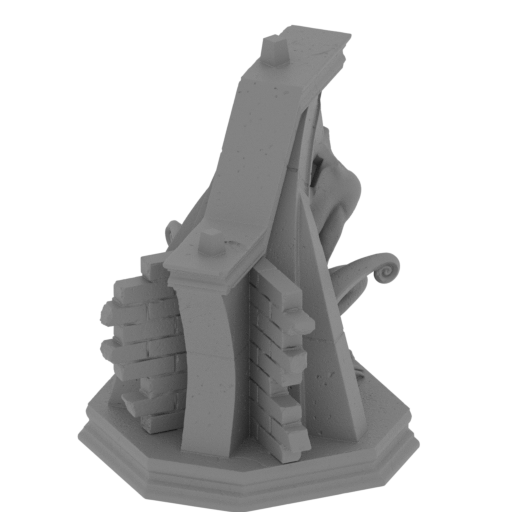

13_Platform_FDM (repaired ).stl
37.93 MiB 64 h 56 min 37 m 130 x 146 x 156 Download

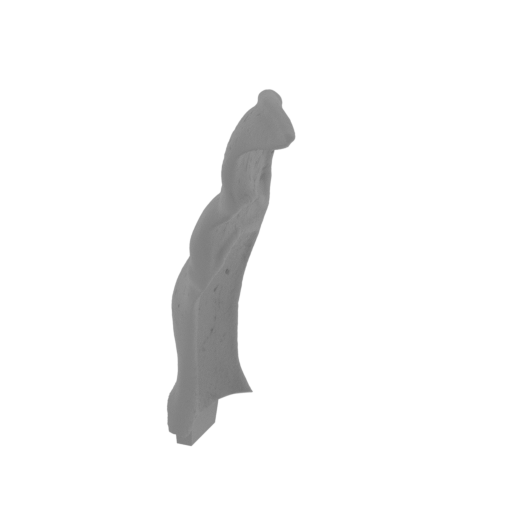

14_Platform_Wing_R_FDM (r epaired).stl
10.71 MiB 2 h 48 min 2 m 30 x 45 x 71 Download

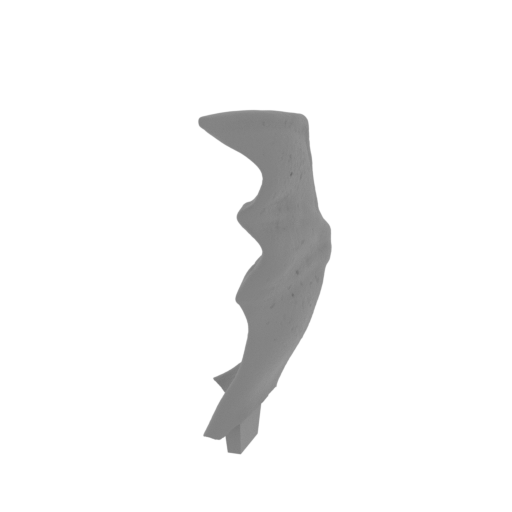

15_Platform_Wing_L_FDM (r epaired).stl
10.62 MiB 1 h 53 min 1 m 20 x 45 x 75 Download

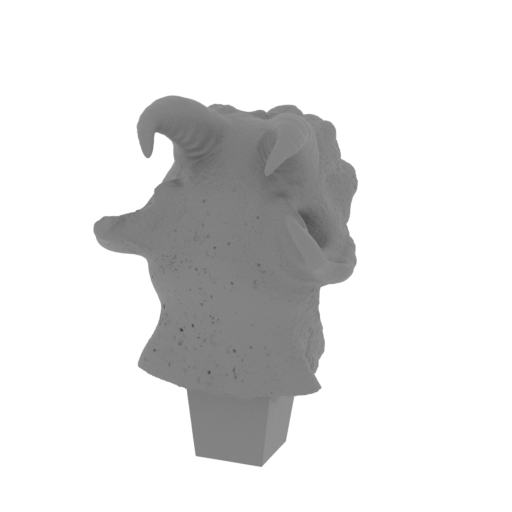

16_Platform_head_FDM (rep aired).stl
8.26 MiB 1 h 45 min 1 m 26 x 31 x 38 Download
...

HISTORY OF BATMAN

Sometimes not only villains are a threat: heroes, and especially god-like superheroes, can be a tremendous danger, too, because any uncontrolled power is essentially destructive. This is how the caped watchman of Gotham City views the Man of Steel, whose epic fight against General Zod had left Metropolis in ruins. And while the whole world watches the clash of two heroes and two views of justice with bated breath, a new unprecedented menace raises its head. And so the masked vigilante has to redefine justice for himself.

ABOUT THIS 3D FIGURINE

The model is saved in STL files, a format supported by most 3D printers

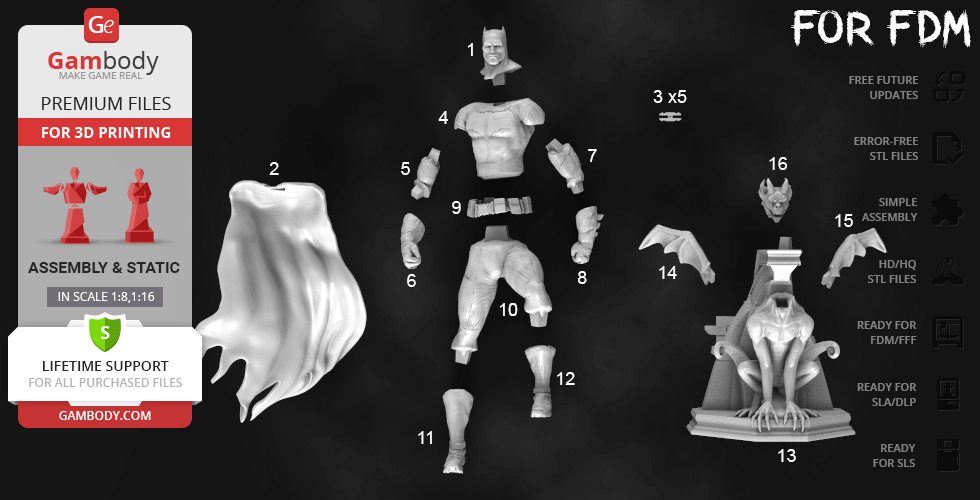

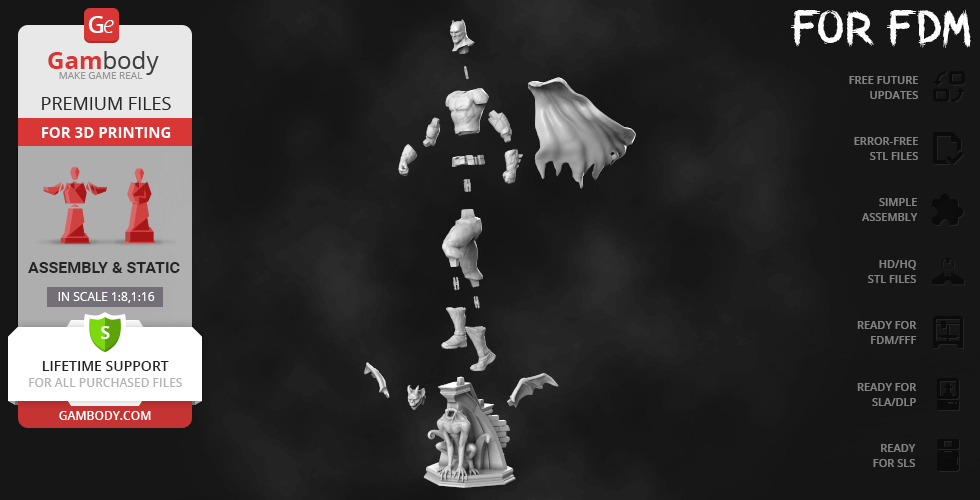

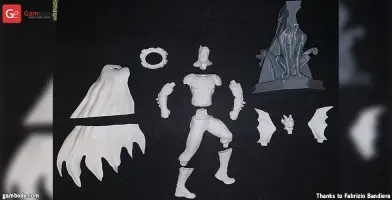

FFF/FDM 1.0 version features:
- Contain 16 parts;
- Made with Locks. One part of Lock (3_Ge_lock_7S_(x5)) you need to print 5 times.

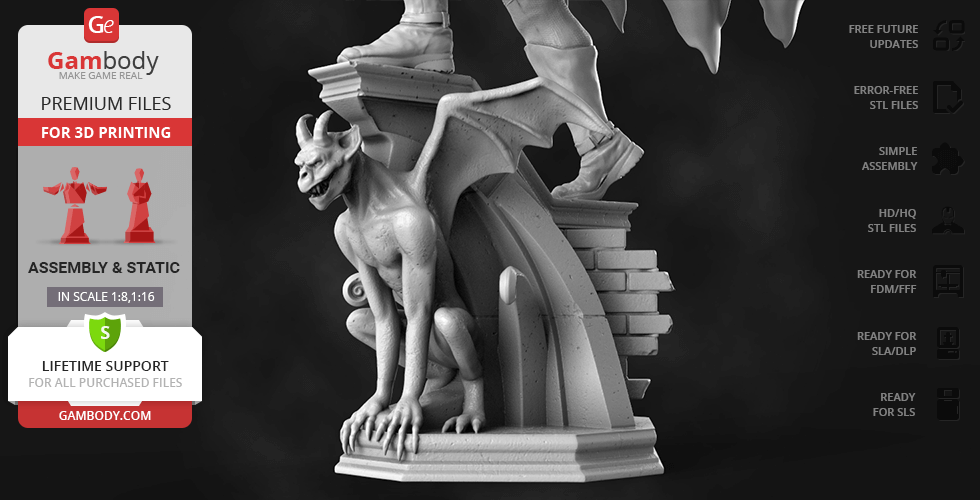

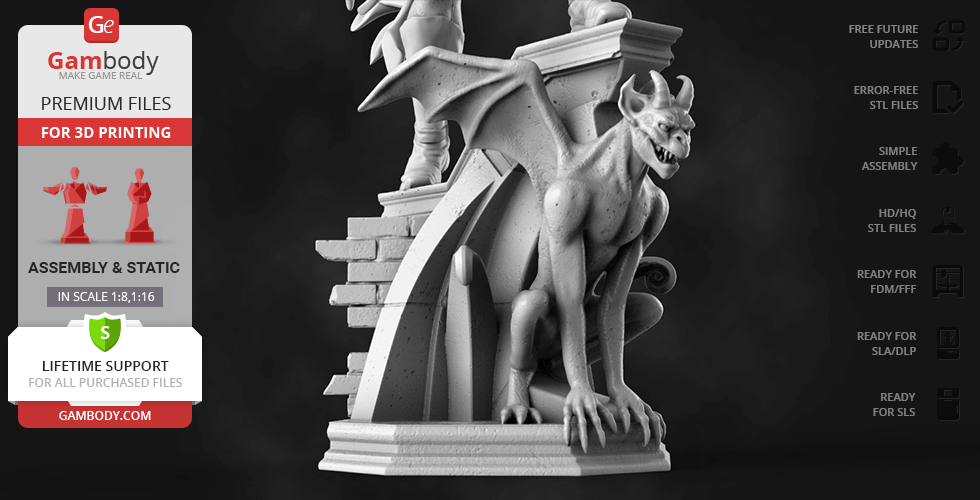

- Made with special platform with gargoyle;
- Made with divided cloack that you can print with flexible material;
- All parts are divided in such way that you will print them with the smallest amount of supports.

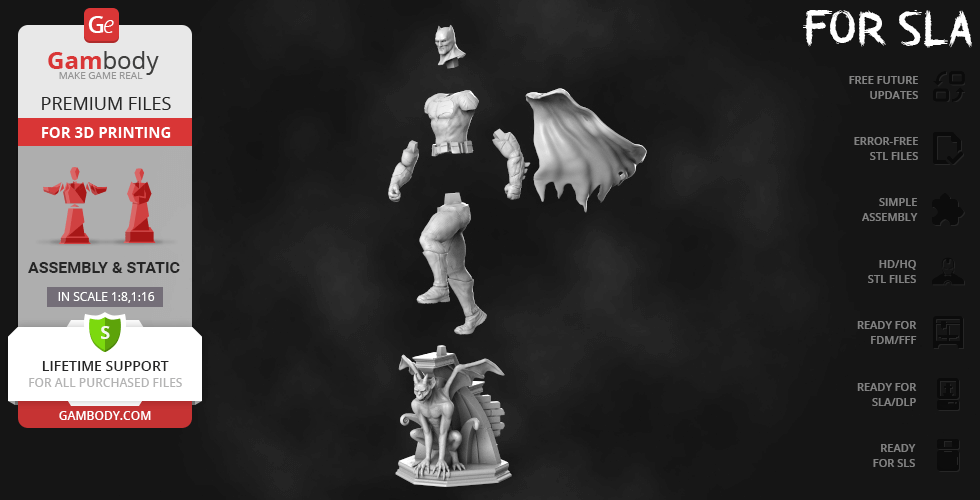

DLP/SLA 1.0 version features:

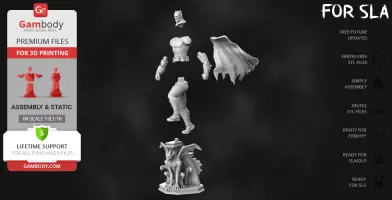

- Same as FFF/FDM but smaller, also made as 7 parts;

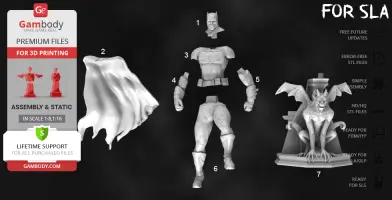

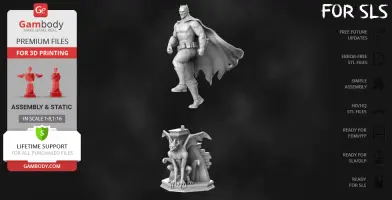

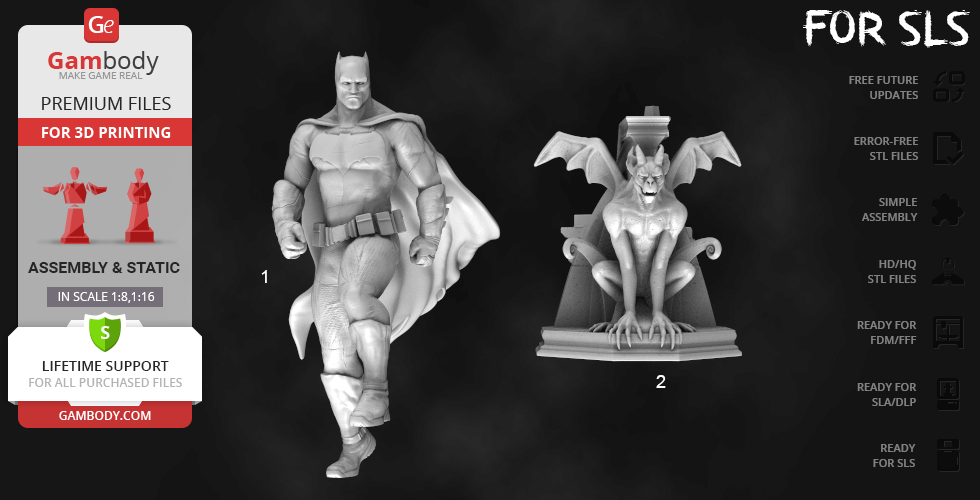

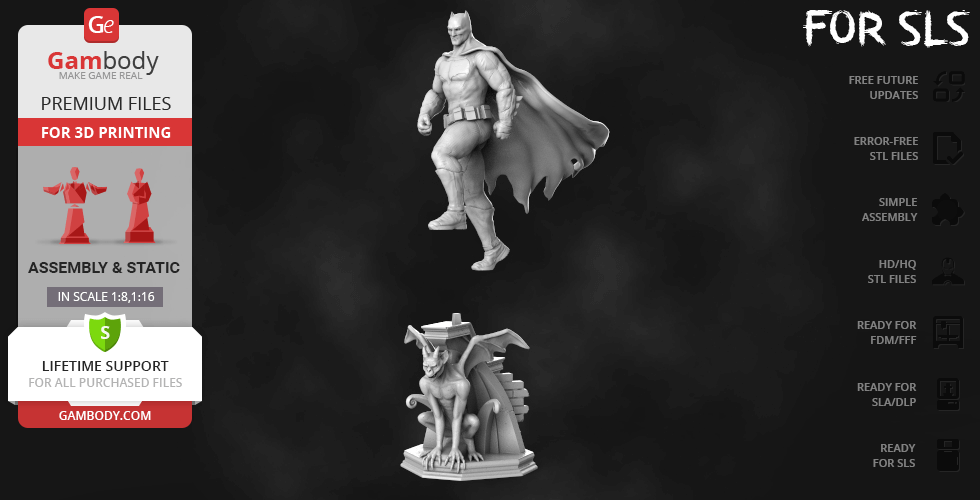

SLS 1.0 version features:
- Same as DLP/SLA but made as 2 parts for economy your material;

All STL files for 3D printing have been checked in Netfabb and no errors were shown.

Note: Before starting 3D printing the model, read the Printing Details for CURA 3.4.1. or Simplify3D Software.

There are 16 parts for FFF/FDM 1.0 version, 7 parts for DLP/SLA 1.0 version and 2 parts for SLS 1.0.

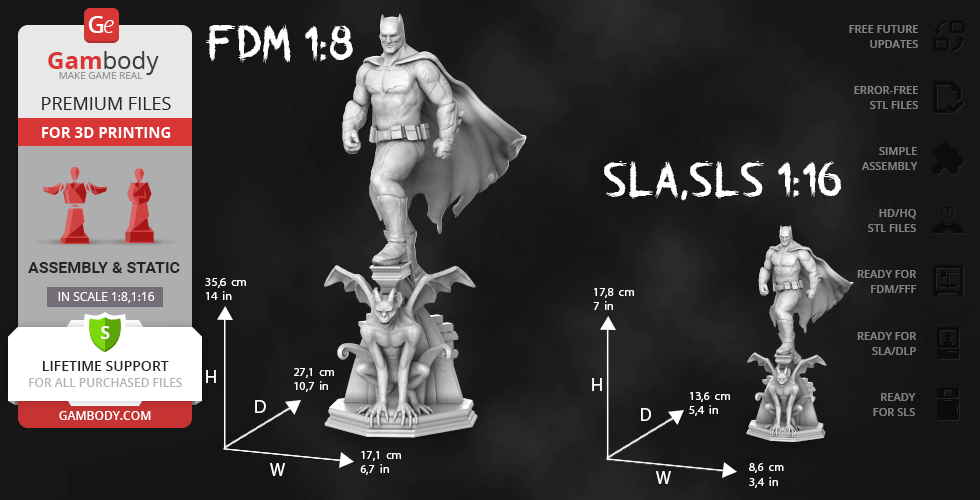

Scale: Batman height is 1880 mm. The scale of this model made in proportion to it. 1/8 for FFF/FDM 1.0 version and 1/16 for DLP/SLA 1.0 and SLS 1.0 versions.

FFF/FDM 1.0 version dimensions:
After being printed will stand - 356 mm tall, 171 mm wide, 271 mm deep;

SLA/DLP 1.0 and ​SLS 1.0 version dimensions:
After being printed will stand - 178 mm tall, 86 mm wide, 136 mm deep;
- Has a few details, to keep printing costs down.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Batman - Dawn of Justice​ 3D Printing Figurine which consist of 25 parts;
- 3 versions of files for this model for FFF/FDM, DLP/SLA, and SLS;

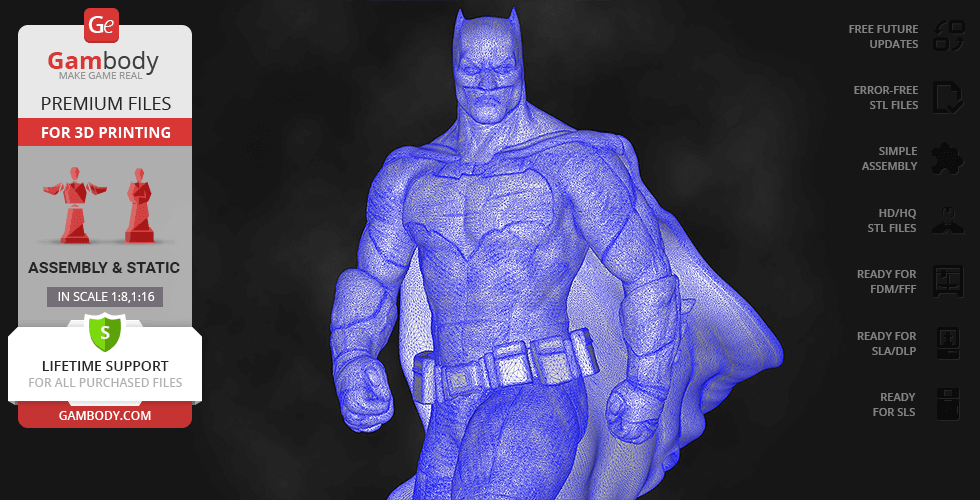

- High-poly detailed figurine of Batman - Dawn of Justice;
- Detailed settings that we provide for Cura 3.4.1. and Simplify3D for the best print;
- Full technical support from the Gambody Support Team.

You can get Batman​ - Dawn of Justice for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Batman​​ - Dawn of Justice 3D Printing Figurine at Gambody YouTube channel.

Also, you may like other Batman 3D Printing Figurines, as well as DC Comics 3D Figurines.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?



Generic

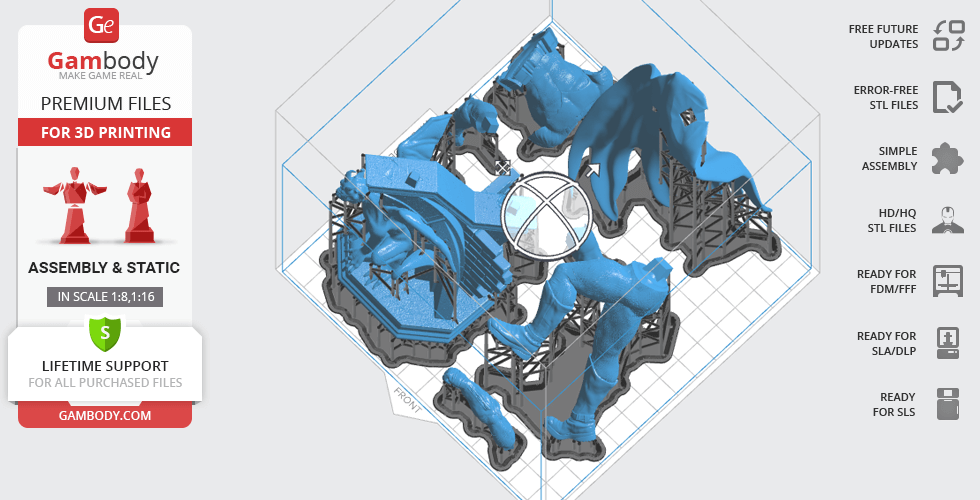

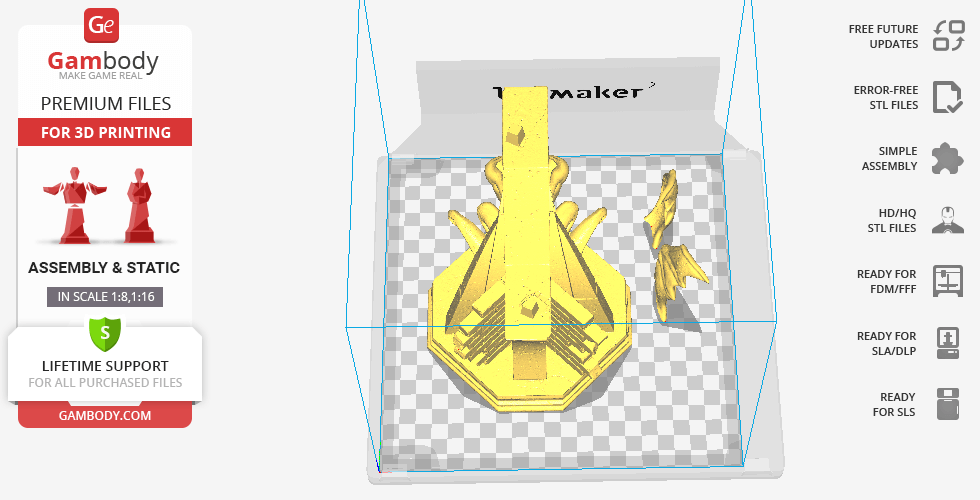

This model was tested in Cura 3.4.1 and printed on an Ultimaker 2 in PLA material. Below you can find printing recommendations for Cura and Simplify3D softwares.

Cura printing recommendations:

Recommendations: For all parts of Locks you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
 Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
 Top/Bottom Line Width: 0.4 mm
 Infill Line Width: 0.4 mm
 Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
    Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill
Infill Density: 20%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 1
Gradual Infill Steps Height: 1.5 mm
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
    Minimum Skin Width for Expansion: 0.0

Material
Initial Layer Flow: 100%
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
    Support Speed: 45 mm/s
     Support Infill Speed: 45 mm/s
Travel Speed: 60 mm/s
Initial Layer Speed: 22.5 mm/s
  Initial Layer Print Speed: 22.5 mm/s
  Initial Layer Travel Speed: 30 mm/s
Skirt/Brim Speed: 30 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.6562 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 50°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 1.3333 mm
Support Z Distance: 0.3 mm
    Support Top Distance: 0.3 mm
    Support Bottom Distance: 0.3 mm
Support X/Y Distance: 1 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.25 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Gradual Support Infill Steps: 0
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim (for all parts of locks use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m
