Batman Ninja 3D Printing Model | Assembly

(8)
cm: 25.8 w x 17.6 d x 24.7 h
in: 10.157 w x 6.929 d x 9.724 h

Source Files

|

Description

|

Printing Details

This 3D Miniature consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

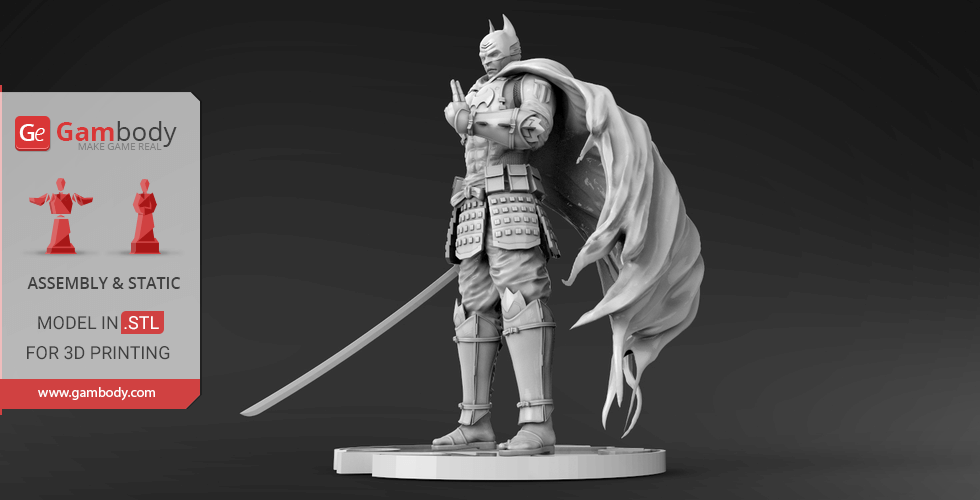

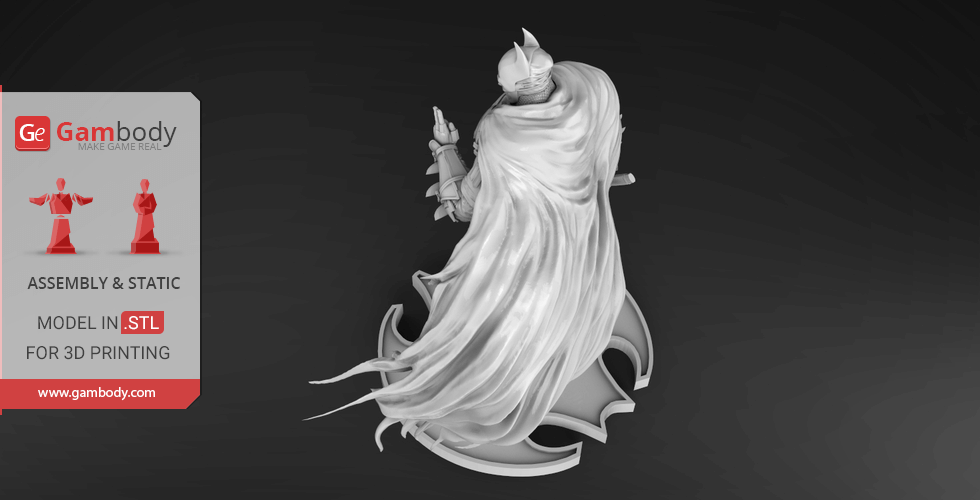

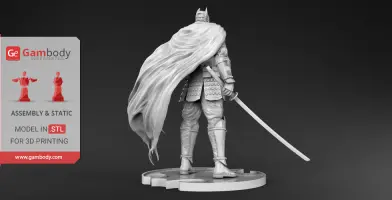

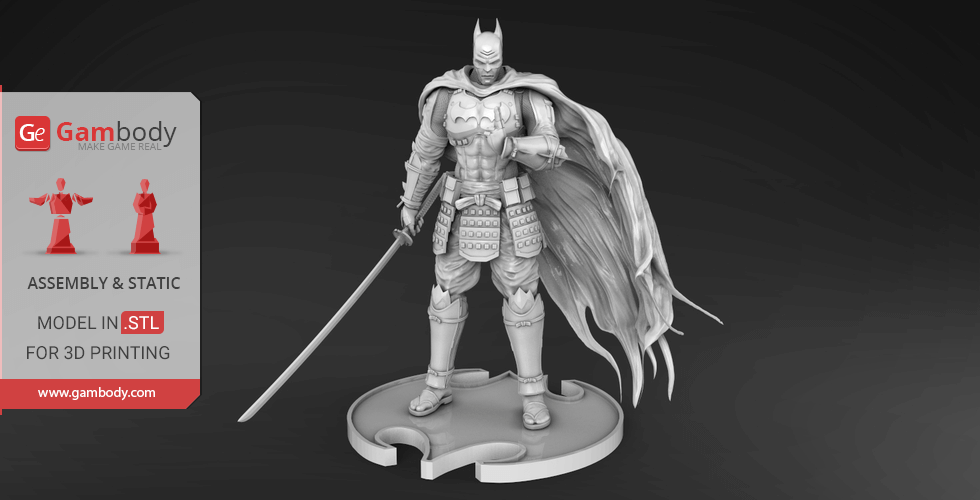

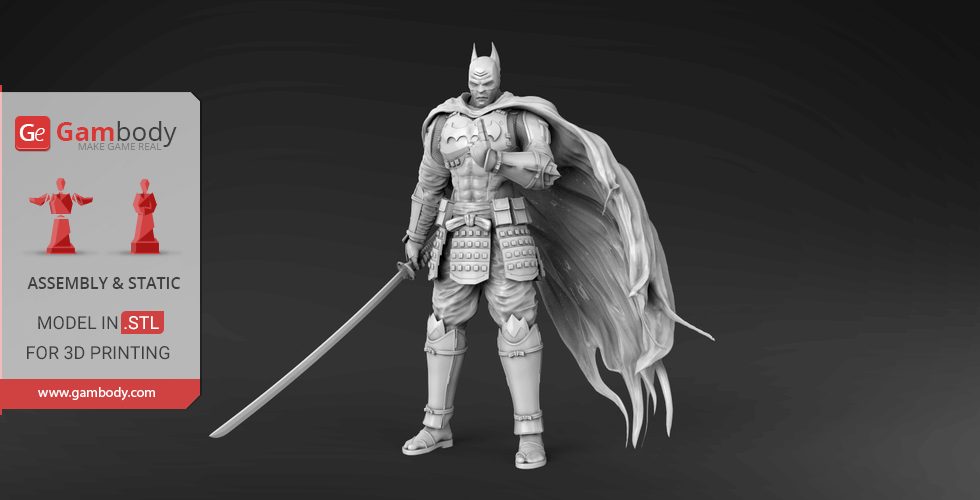

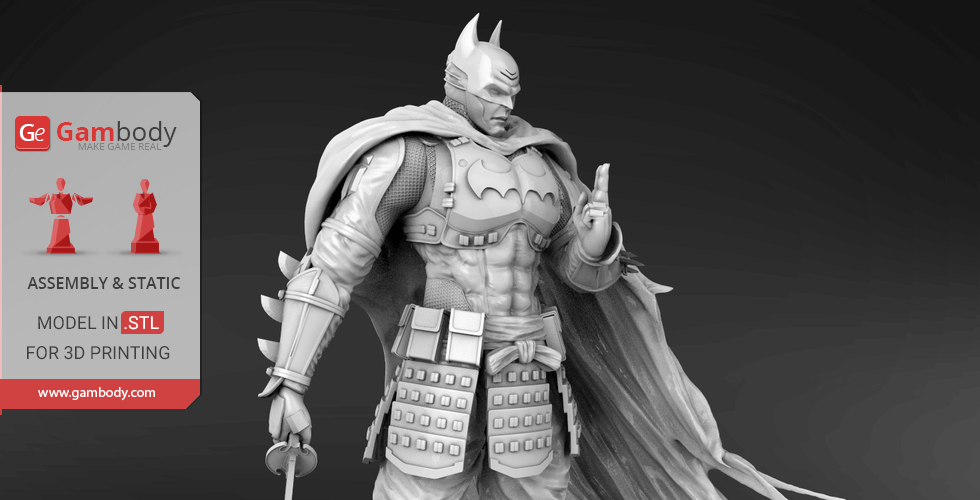

Version 1 and Version 2 are the files for Batman Ninja 3D Miniature optimized for 3D printing, the preview pictures of which you see above.

It is recommended:

  • to print Version 1 STL files on FDM/FFF 3D printers;
  • to print Version 2 STL files on DLP/SLA/SLS 3D printers.
File Name File Size Time / Filament Object Size
(x/y/z mm)

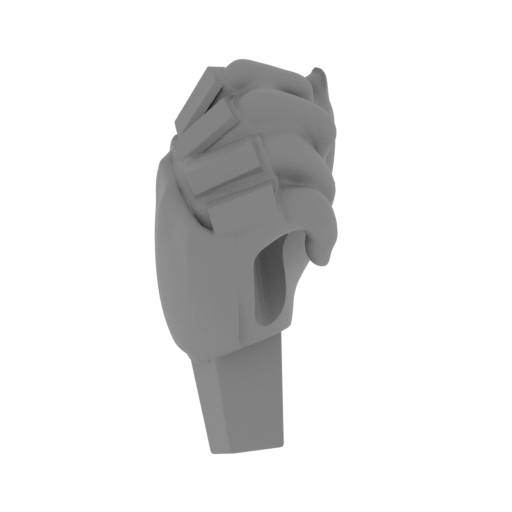

1_hand_R.stl
1.80 MiB 29 min <1 m 13 x 16 x 25 Download

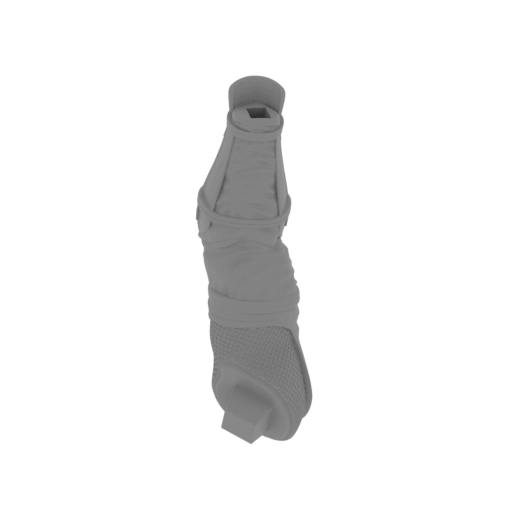

2_arm_R.stl
12.01 MiB 3 h 19 min 2 m 26 x 27 x 89 Download

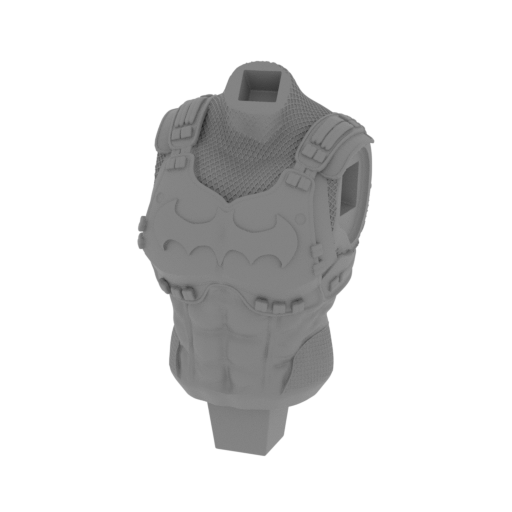

3_body.stl
26.91 MiB 10 h 20 min 7 m 49 x 48 x 89 Download

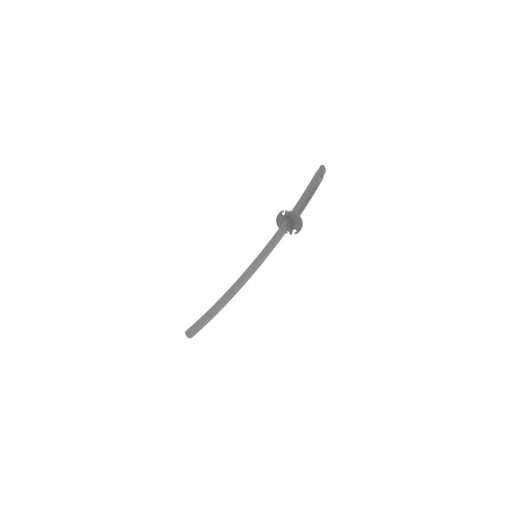

4_katana.stl
3.11 MiB 58 min 1 m 14 x 204 x 18 Download

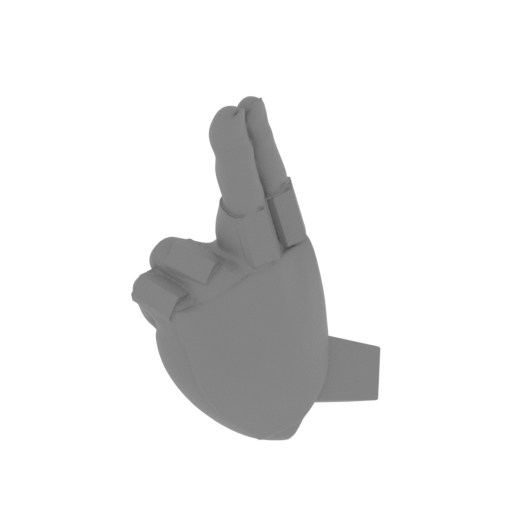

5_hand_L.stl
1.55 MiB 21 min <1 m 14 x 15 x 27 Download

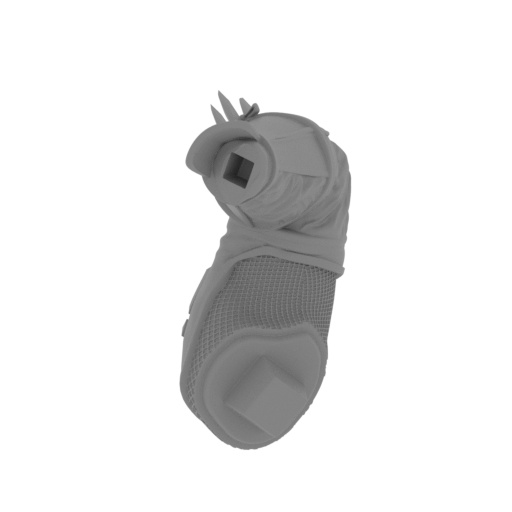

6_arm_L.stl
11.75 MiB 3 h 46 min 2 m 25 x 43 x 65 Download

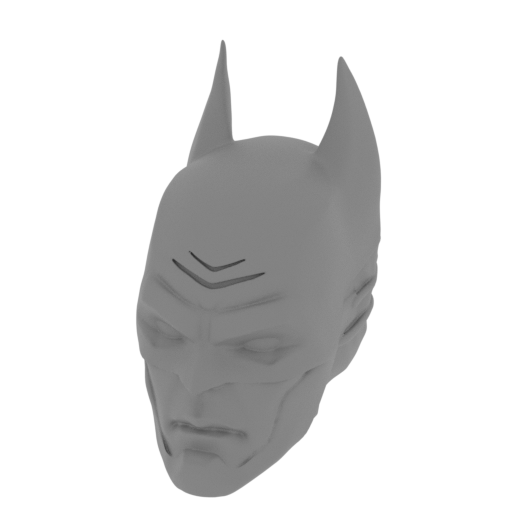

7_head.stl
3.41 MiB 1 h 1 m 17 x 31 x 33 Download

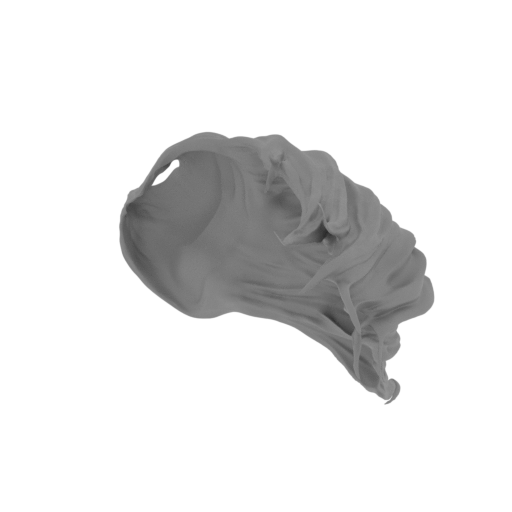

8_cloak.stl
8.94 MiB 55 h 34 min 43 m 181 x 168 x 129 Download

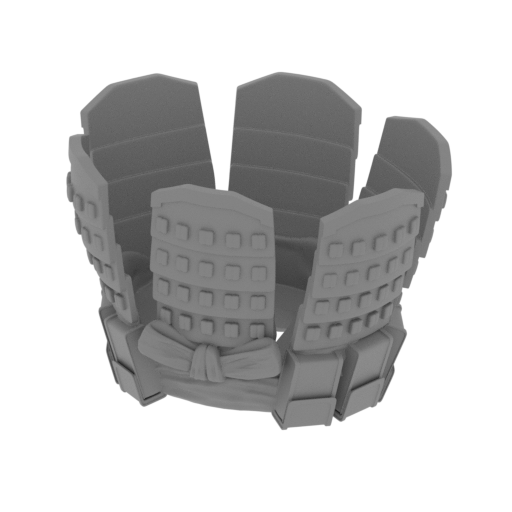

9_belt.stl
32.08 MiB 8 h 12 min 5 m 71 x 52 x 51 Download
10_legs.stl
29.55 MiB 18 h 3 min 12 m 90 x 43 x 137 Download

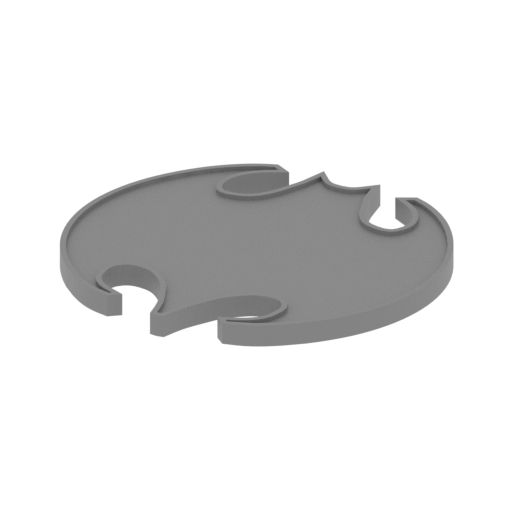

11_platform.stl
0.10 MiB 15 h 45 min 10 m 170 x 168 x 11 Download

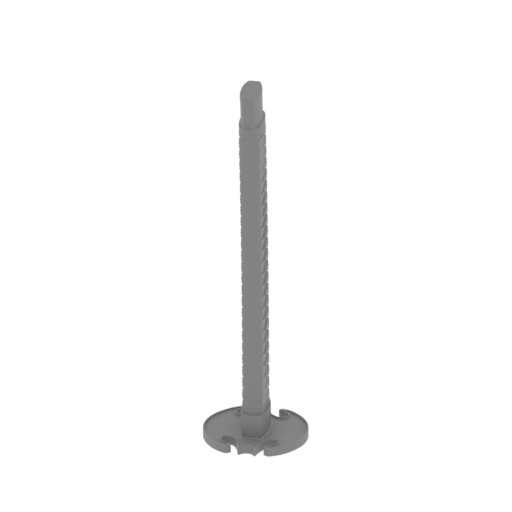

12_katana_1.stl
9.80 MiB 24 min <1 m 14 x 14 x 53 Download

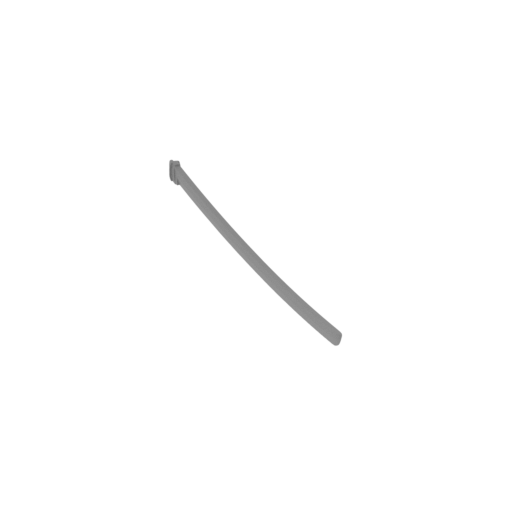

13_katana_2.stl
15.28 MiB 31 min <1 m 99 x 119 x 13 Download

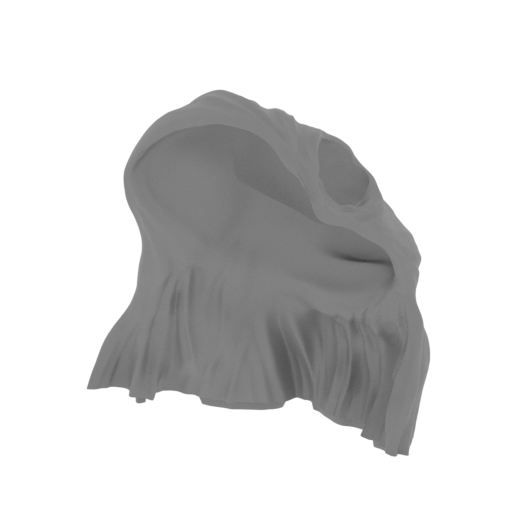

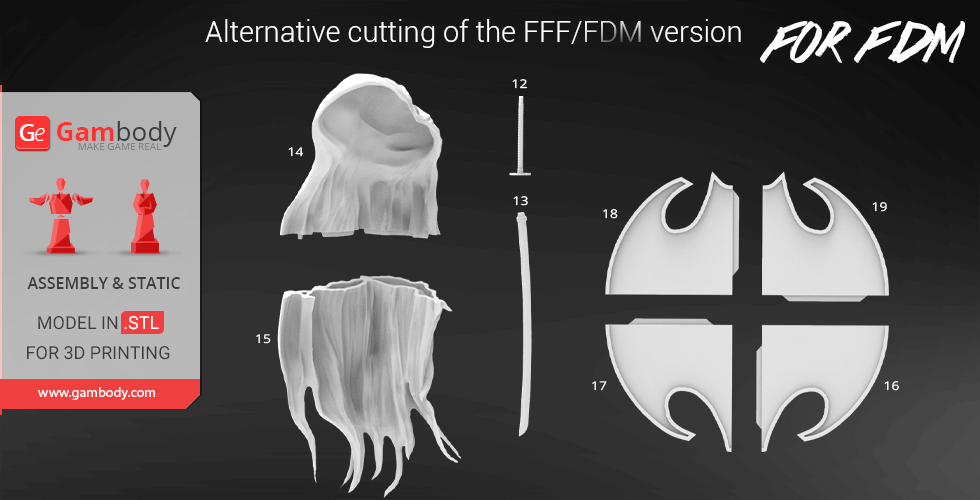

14_cloak_1.stl
15.79 MiB 17 h 28 min 12 m 108 x 60 x 119 Download

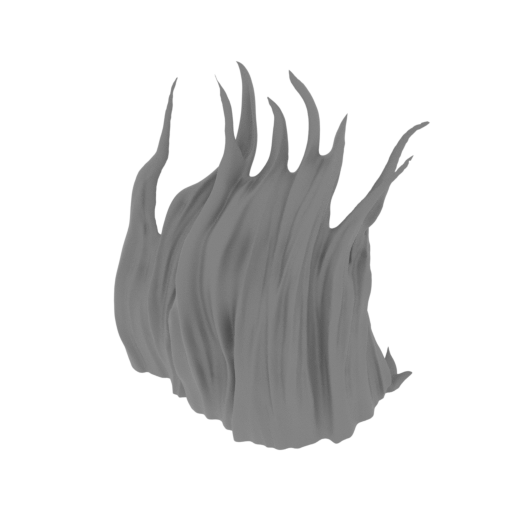

15_cloak_2.stl
17.10 MiB 15 h 13 min 8 m 122 x 60 x 148 Download

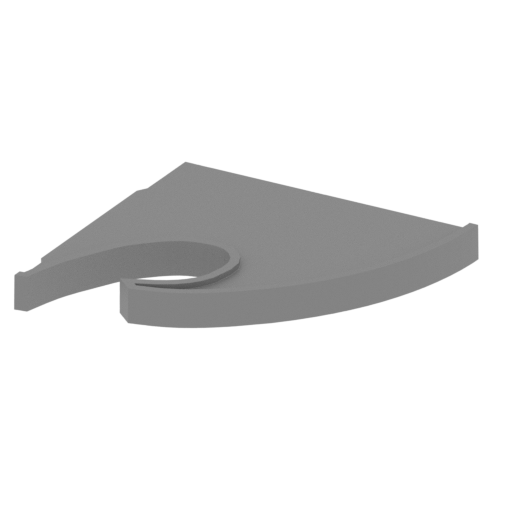

16_platform_1.stl
12.49 MiB 4 h 16 min 3 m 99 x 84 x 9 Download

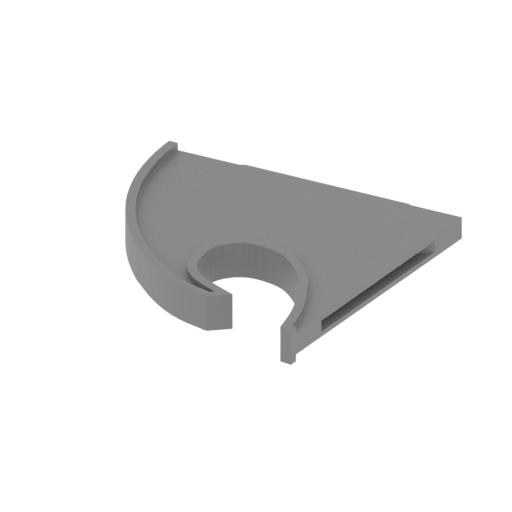

17_platform_2.stl
11.56 MiB 4 h 13 min 2 m 85 x 99 x 9 Download

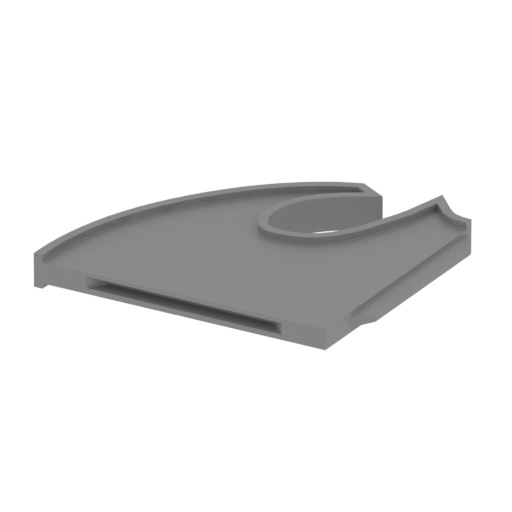

18_platform_3.stl
11.91 MiB 4 h 23 min 3 m 99 x 84 x 9 Download

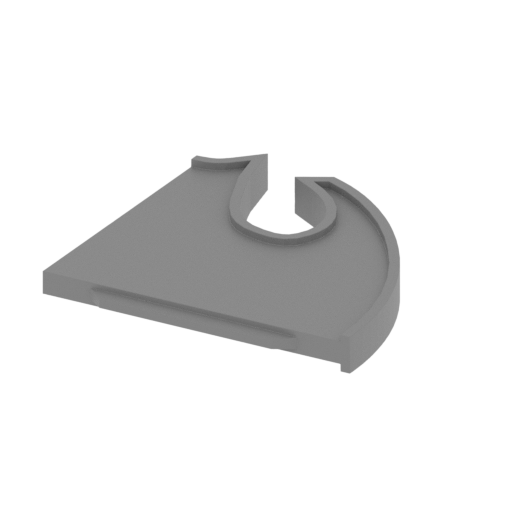

19_platform_4.stl
11.16 MiB 4 h 29 min 3 m 85 x 94 x 10 Download
...

HISTORY OF BATMAN NINJA

Batman Ninja takes a journey across the ages as Gorilla Grodd's time displacement machine transports many of Batman's worst enemies to Feudal Japan – along with the Dark Knight and a few of his allies. The villains take over the forms of the feudal lords that rule the divided land, with the Joker taking the lead among the warring factions. As his traditional high-tech weaponry is exhausted almost immediately, Batman must rely on his intellect and his allies to restore order to the land, and return to present-day Gotham City.

ABOUT THIS 3D MINIATURE

The model is saved in STL files, a format supported by most 3D printers

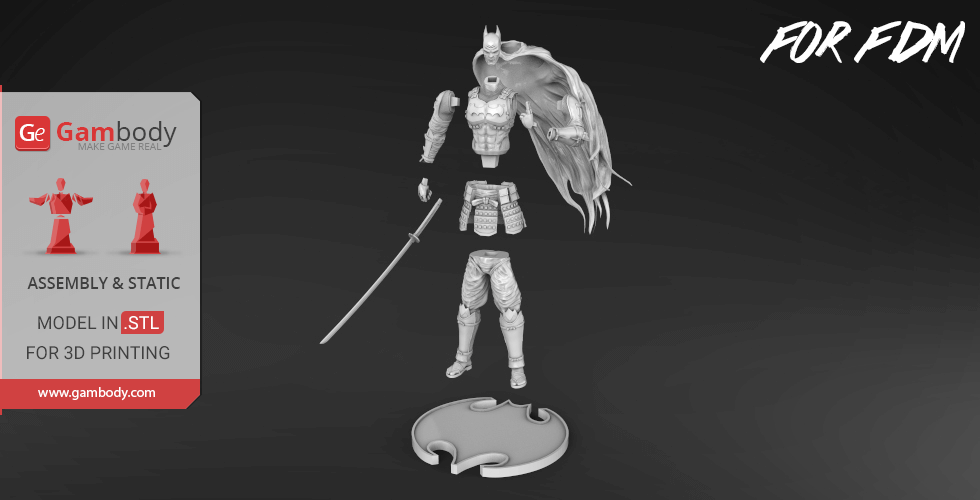

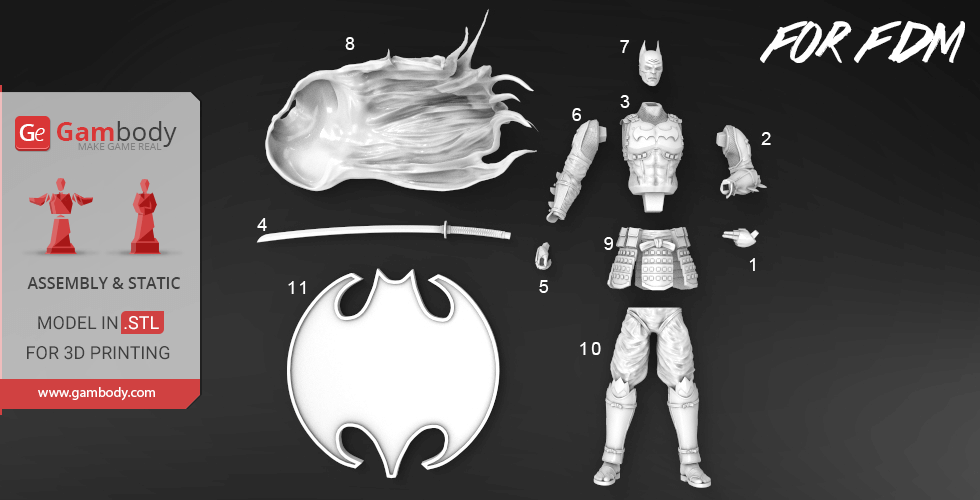

FDM version features:
- Contain 16 parts;
- Made with removable cloak and sword;

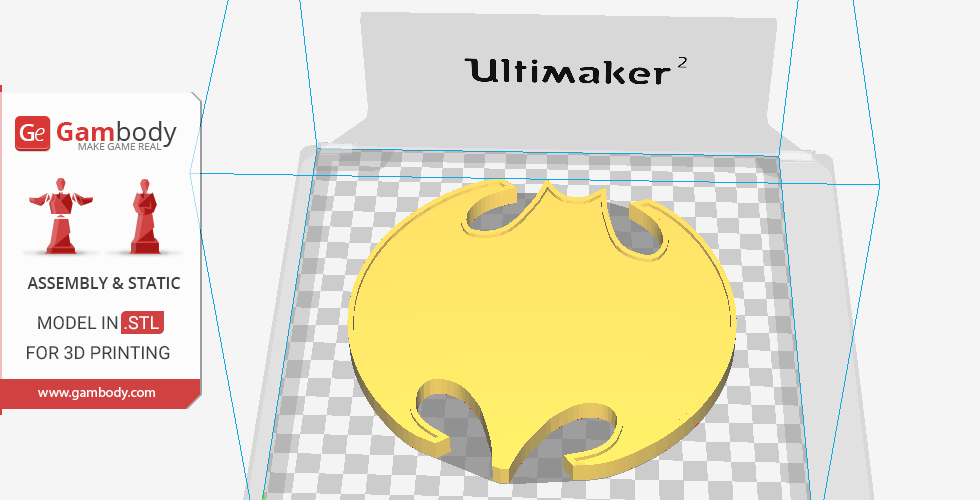

- Made with platform that stylized as Batman Logo;
- All parts are divided in such way that you will print them with the smallest amount of supports.

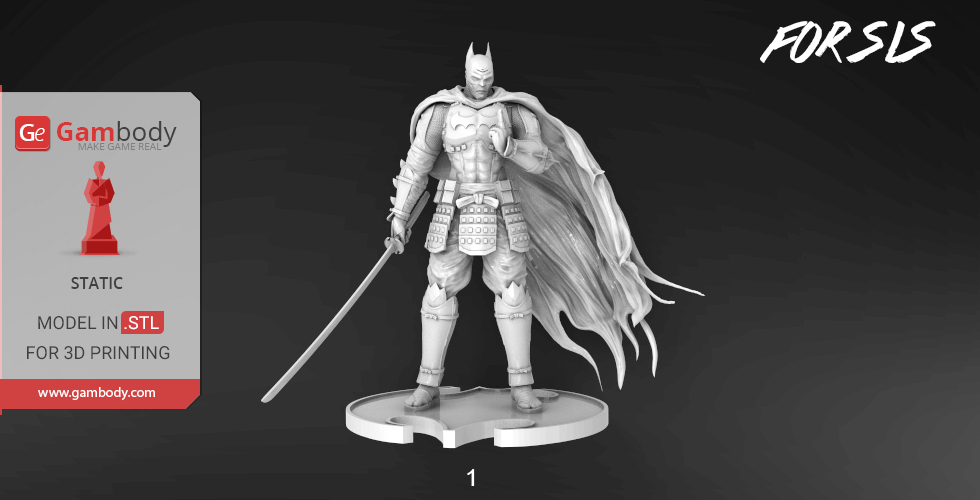

SLS/SLA version features:
- Same as FDM but made as 1 part;

All STL files for 3D printing have been checked in Netfabb and no errors were shown.

Note: Before starting 3D printing the model, read the Printing Details for CURA 3.2.1. Software.

There are 11 parts for FFF/FDM version and 1 part for SLS/SLA version.

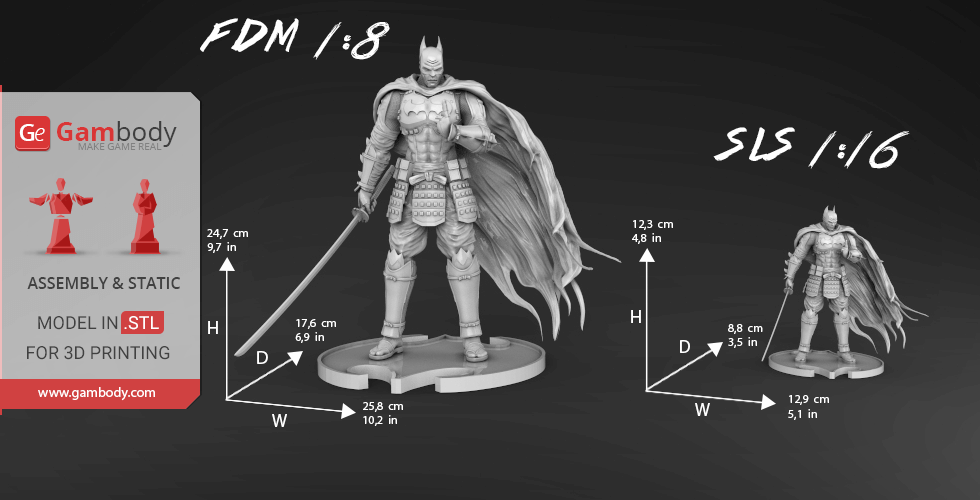

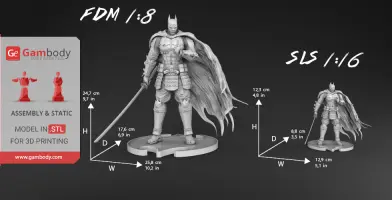

Scale: His tall in life is 1820 mm. Model made as 1/8 scale in FDM version and 1/16 in SLS/SLA version.

FDM version dimensions:
After being printed will stand - 247 mm tall, 258 mm wide, 176 mm deep;

SLS/SLA version dimensions:
After being printed will stand - 123 mm tall, 129 mm wide, 88 mm deep;
- Has few details, to keep printing costs down.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Batman Ninja 3D Miniature for 3D printing which consist of 17 parts;
- 2 versions of files for this model for FFF/FDM and SLS/SLA;
- Made with platform that stylized as Batman Logo;
- Made with removable cloak and sword;

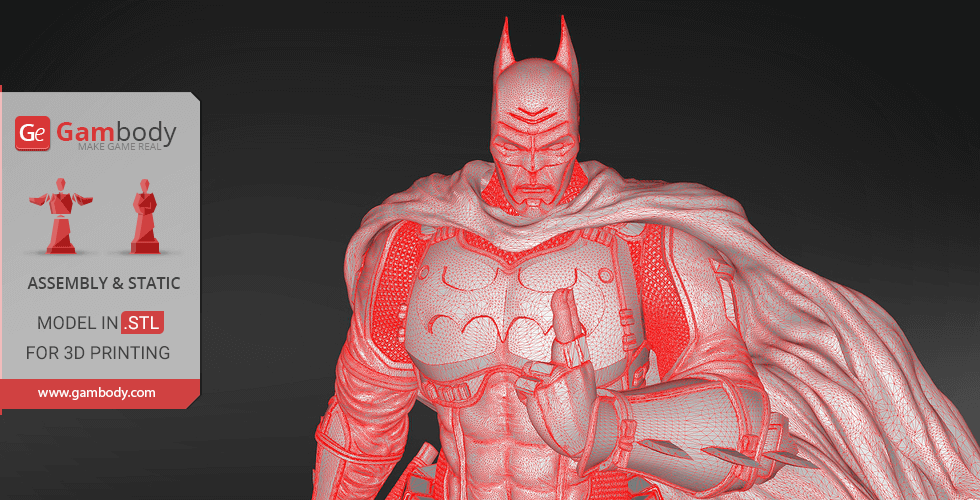

- High-poly detailed miniature of Batman Ninja;
- Detailed settings that we provide for Cura 3.2.1. for the best print;
- Full technical support from the Gambody Support Team.

Watch the tutorial video on how to assemble Batman Ninja 3D Printing Miniature at Gambody YouTube channel.

You can get Model of Batman Ninja for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Also you may like Batman 3D Printing Miniature as well as other DC Comics or Heroes 3D Miniatures.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

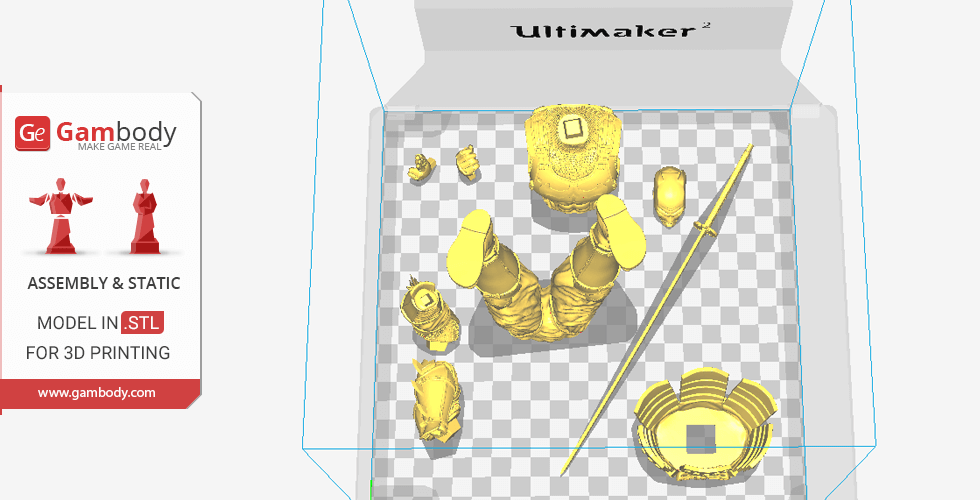

This model was tested in Cura 3.2.1 and printed on an Ultimaker 2 in PLA material.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
 Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
 Top/Bottom Line Width: 0.4 mm
 Infill Line Width: 0.4 mm
 Skirt/Brim Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
    Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill
Infill Density: 20%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
    Minimum Skin Width for Expansion: 0.0

Material
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
Travel Speed: 120 mm/s
Initial Layer Speed: 30 mm/s
  Initial Layer Print Speed: 30 mm/s
  Initial Layer Travel Speed: 60 mm/s
Skirt/Brim Speed: 30 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 60°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 1.3333 mm
Support Z Distance: 0.3 mm
    Support Top Distance: 0.3 mm
    Support Bottom Distance: 0.3 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
