Cammy 3D Printing Miniature | Assembly

(4)
cm: 12.3 w x 12.3 d x 21.6 h
in: 4.843 w x 4.843 d x 8.504 h

Source Files

|

Description

|

Printing Details

This 3D Miniature consists of files in StereoLithography (.Stl) format that have been optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

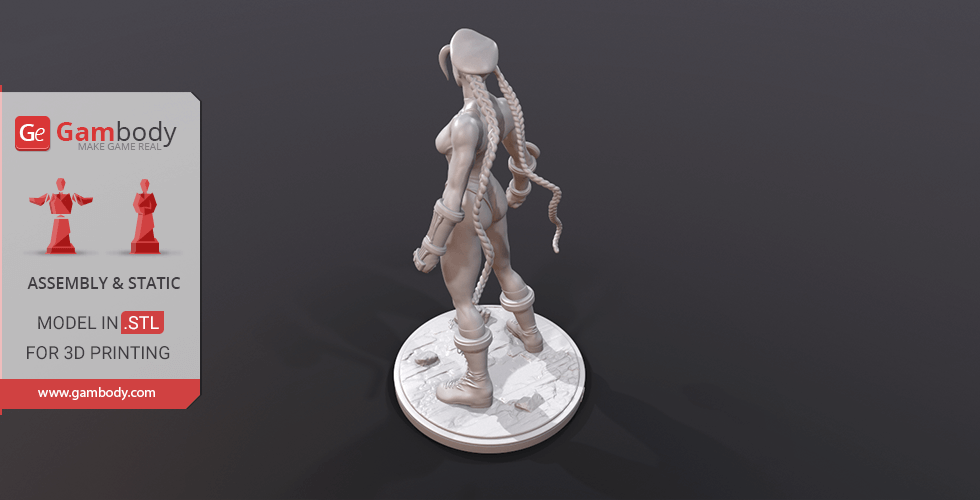

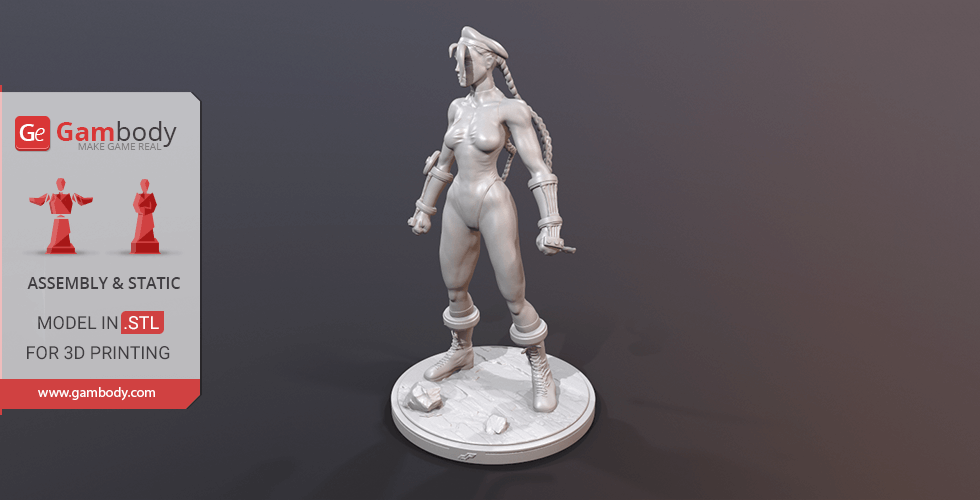

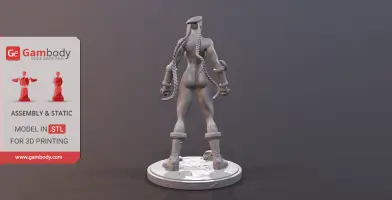

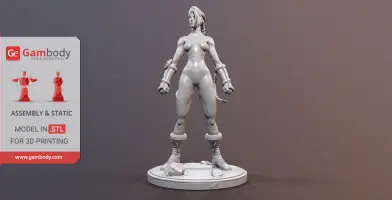

Version 1 and Version 2 are the files for Cammy 3D Miniature optimized for 3D printing, the preview pictures of which you see above.

It is recommended:

  • to print Version 1 STL files on FDM/FFF 3D printers;
  • to print Version 2 STL files on DLP/SLA/SLS 3D printers.
File Name File Size Time / Filament Object Size
(x/y/z mm)

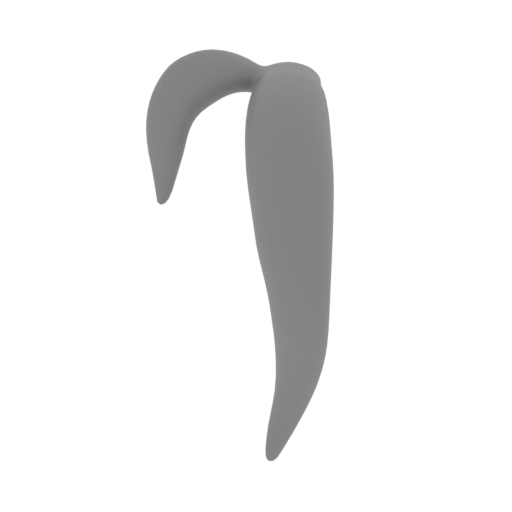

3_hair_3.stl
0.19 MiB 15 min <1 m 11 x 11 x 19 Download

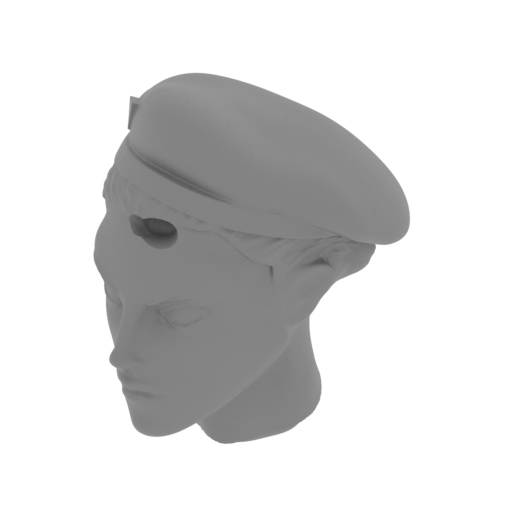

4_head.stl
2.09 MiB 1 h 20 min 1 m 23 x 29 x 32 Download

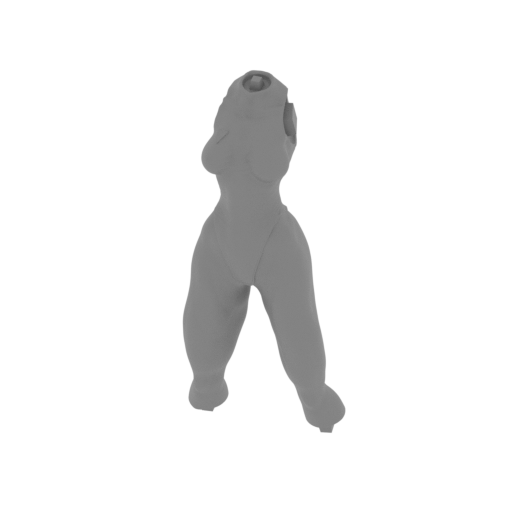

5_body.stl
8.00 MiB 7 h 40 min 4 m 57 x 37 x 137 Download

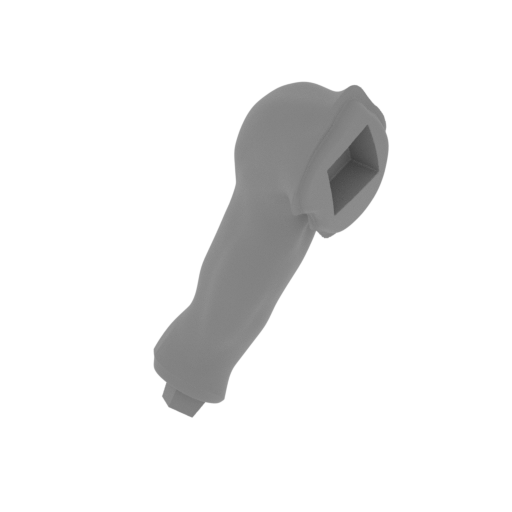

6_arm_R.stl
1.45 MiB 1 h 3 min 1 m 29 x 20 x 47 Download

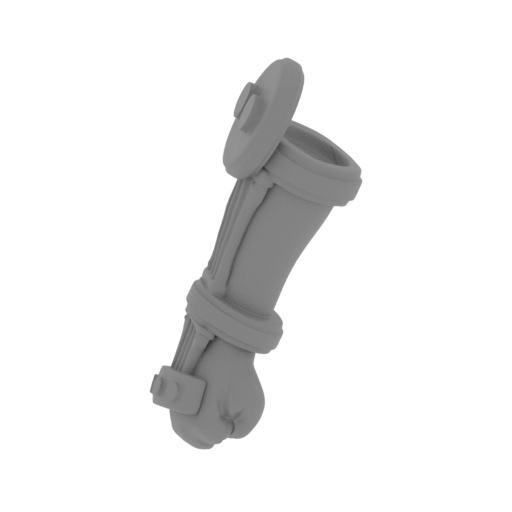

7_hand_R.stl
2.19 MiB 1 h 13 min 1 m 24 x 25 x 48 Download

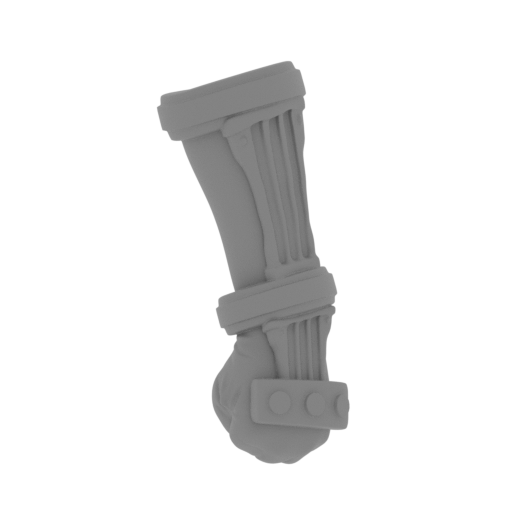

8_hand_L.stl
1.97 MiB 1 h 2 min 1 m 24 x 25 x 41 Download

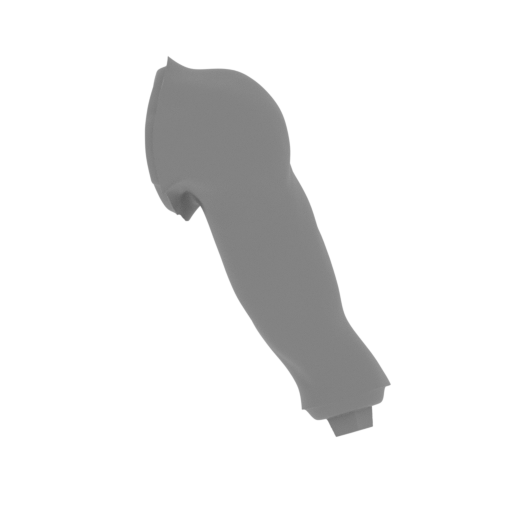

9_arm_L.stl
1.45 MiB 1 h 2 min 1 m 29 x 20 x 46 Download

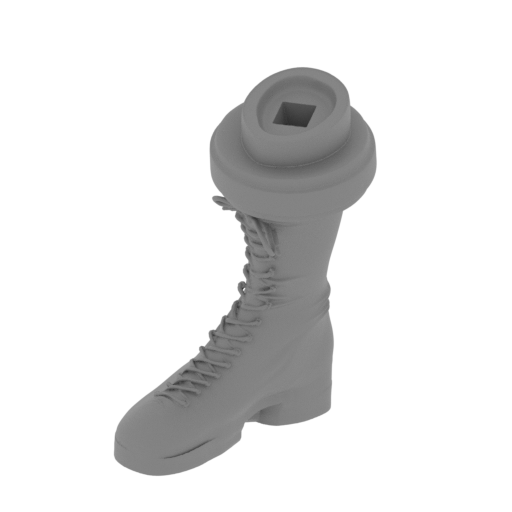

10_foot_R.stl
3.89 MiB 2 h 3 min 1 m 33 x 34 x 53 Download

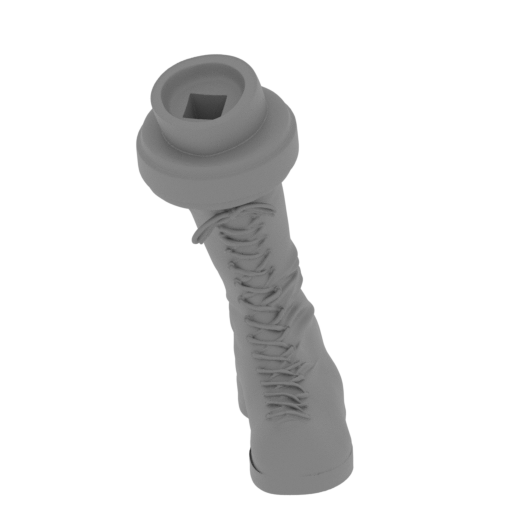

11_foot_L.stl
3.90 MiB 2 h 3 min 1 m 33 x 34 x 53 Download

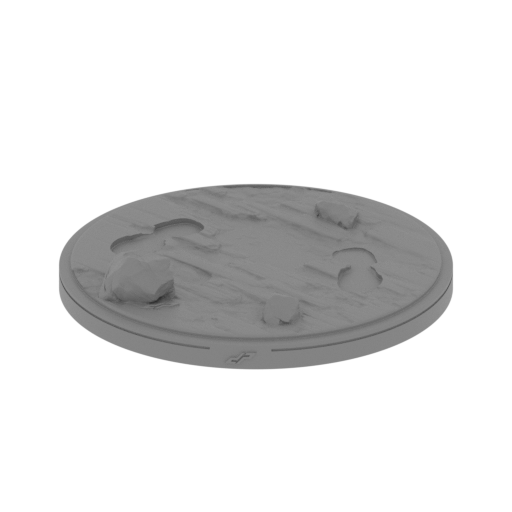

12_platform.STL
13.19 MiB 10 h 40 min 6 m 123 x 123 x 23 Download

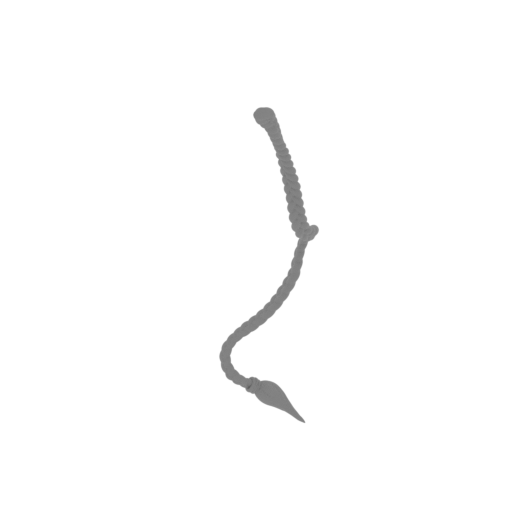

1_hair_1_FDM(repaired).st l
11.52 MiB 2 h 16 min 1 m 30 x 43 x 113 Download

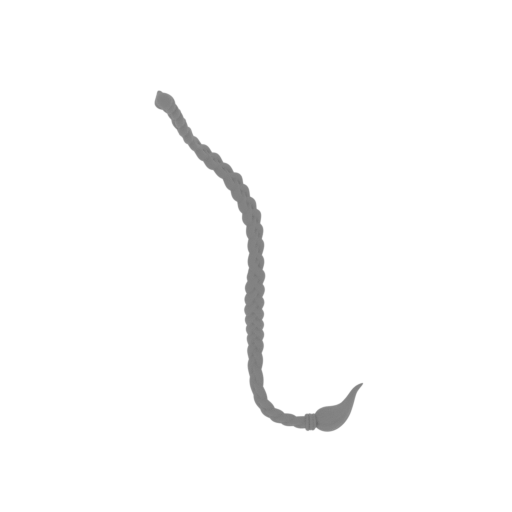

2_hair_2_FDM(repaired).st l
13.04 MiB 2 h 1 m 46 x 44 x 108 Download
...

HISTORY OF CAMMY

Cammy is a strong girl. Her strength came to her from the experiments that she conducted on her in the laboratory of Shadaloo. And if at one time she was just a puppet, then in time she managed to break out of M Bison submission. She lost her memory and began to try to restore her. This made her a personal journey in Street Fighter's history. Although in different releases of the game, she changed her appearance but already took a firm position on the list of favorite characters.

ABOUT THIS 3D MINIATURE

The model is saved in STL files, a format supported by most 3D printers

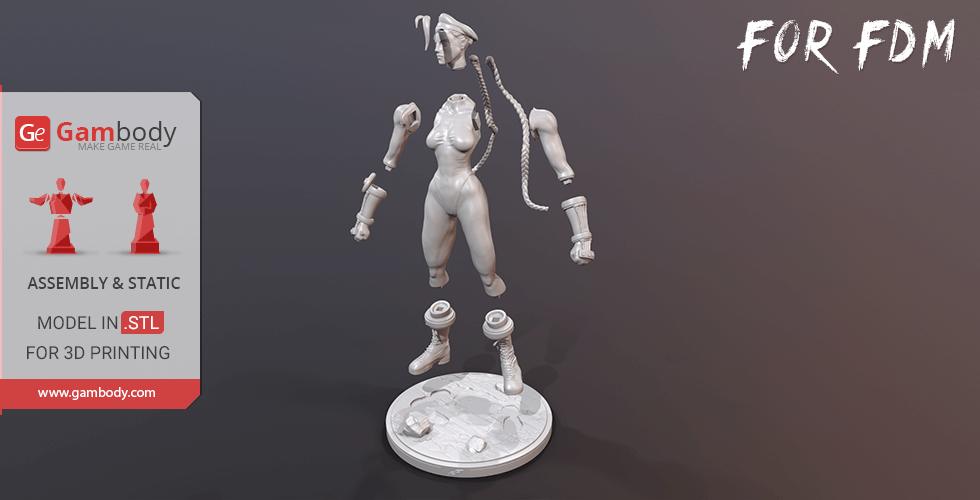

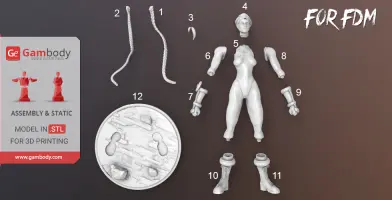

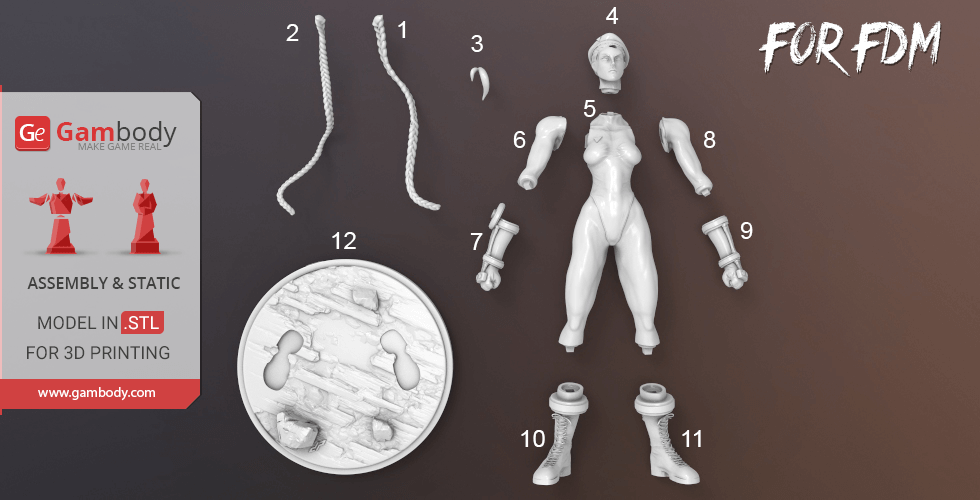

FDM version features:
- Contain 12 parts;
- Made with high detalization;
- Made with platform and can stand on surface without platform;
- All parts are divided in such way that you will print them with the smallest amount of supports.

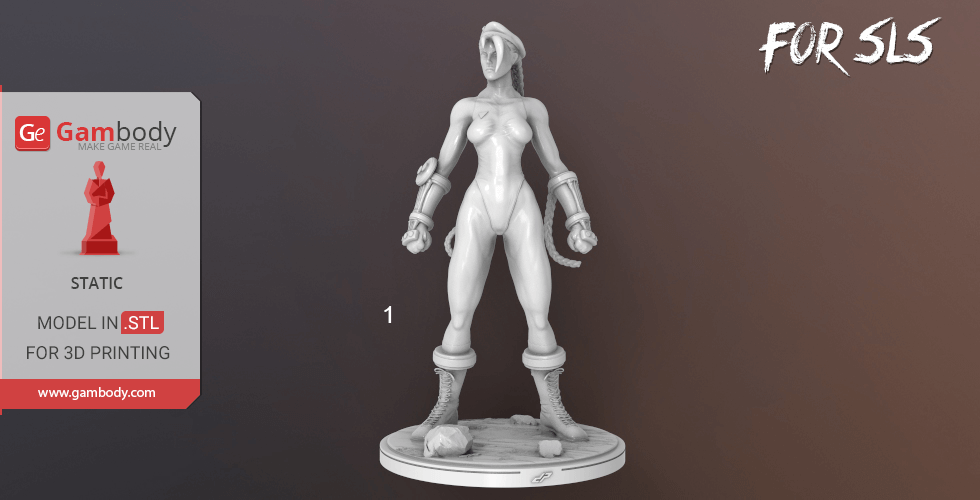

SLS/SLA version features:
- Same as FDM but made as 1 part.

All STL files for 3D printing have been checked in Netfabb and no errors were shown.

Note: Before starting 3D printing the model, read the Printing Details for CURA 3.2.1. Software.

There are 12 parts for FFF/FDM version and 1 part for SLS/SLA version.

Scale: His tall in life is 1640 mm. Model made as 1/8 scale in FDM version and 1/16 in SLS/SLA version.

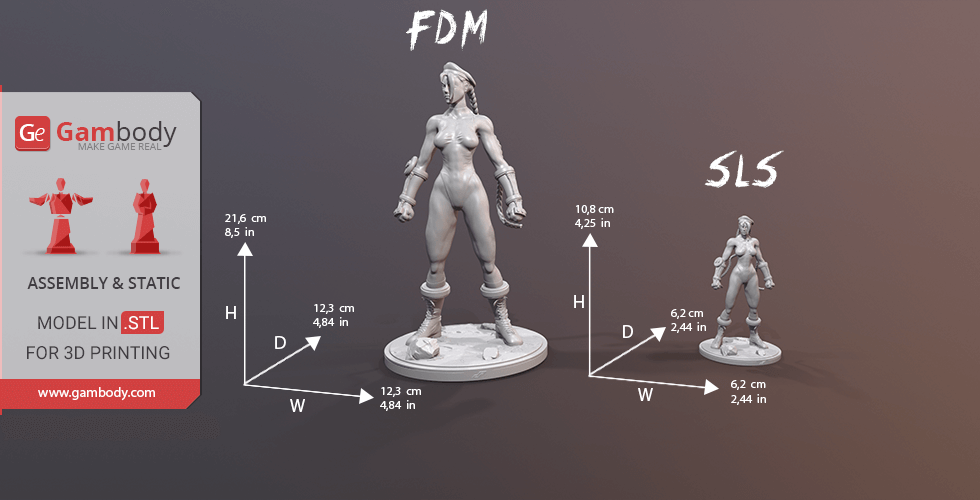

FDM version dimensions:
After being printed will stand - 216 mm tall, 123 mm wide, 123 mm deep;

SLS/SLA version dimensions:
After being printed will stand - 108 mm tall, 62 mm wide, 62 mm deep;
- Has only 1 detail, to keep printing costs down.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of Cammy 3D Miniature for 3D printing which consist of 15 parts;
- 2 versions of files for this model for FFF/FDM and SLS/SLA;
- Made with platform;
- Made with high detalization;

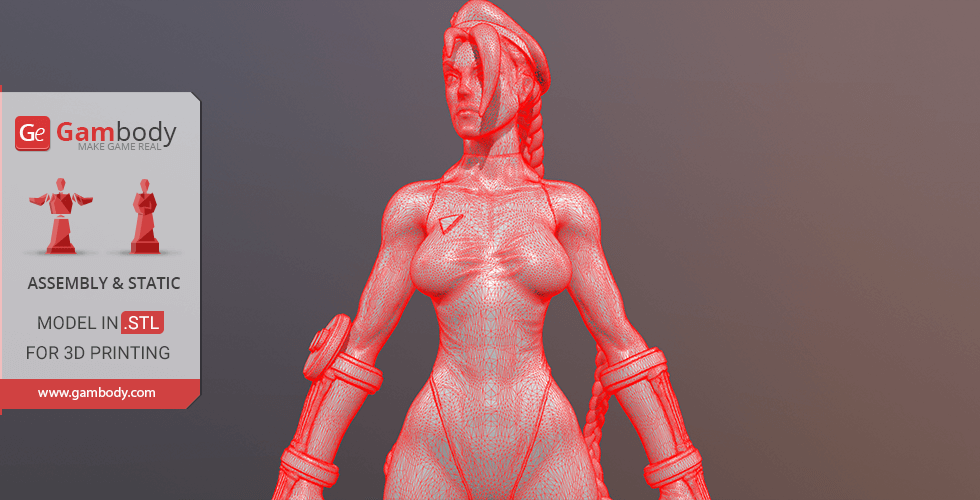

- High-poly detailed miniature of Cammy;
- Detailed settings that we provide for Cura 3.2.1. for the best print;
- Full technical support from the Gambody Support Team.

Watch the tutorial video on how to assemble Cammy 3D Printing Miniature at Gambody YouTube channel.

You can get Model of Cammy for 3D Printing right now! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Also, you may like other Street Fighters 3D Printing Miniatures.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

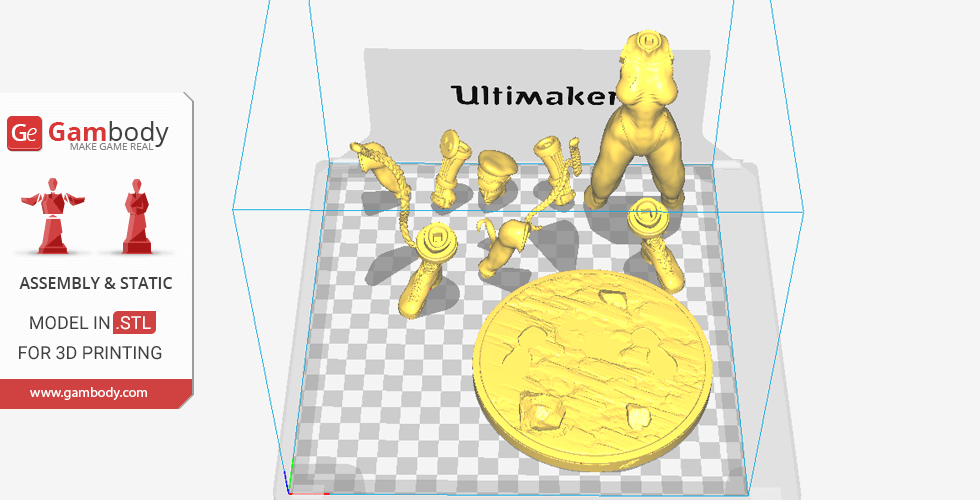

This model was tested in Cura 3.2.1 and printed on an Ultimaker 2 in PLA material.

To avoid printing problems, we recommend the following settings:

Quality
Layer Height: 0.1 mm
Initial Layer Height: 0.3 mm
Line Width: 0.4 mm
 Wall Line Width: 0.4 mm
   Outer Wall Line Width: 0.4 mm
   Inner Wall(s) Line Width: 0.4 mm
 Top/Bottom Line Width: 0.4 mm
 Infill Line Width: 0.4 mm
 Skirt/Brim Line Width: 0.4 mm
 Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
    Wall Line Count: 2
Outer Wall Wipe Distance: 0.2 mm
Top Surface Skin Layers: 0
Top/Bottom Thickness: 0.8 mm
   Top Thickness: 0.8 mm
      Top Layers: 8
    Bottom Thickness: 0.8 mm
      Bottom Layers: 8
Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Compensate Wall Overlaps: Check
    Compensate Outer Wall Overlaps: Check
    Compensate Inner Wall Overlaps: Check
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Z Seam Alignment: Sharpest Corner
Seam Corner Preference: Hide Seam
Ignore Small Z Gaps: Check
Extra Skin Wall Count: 1

Infill
Infill Density: 20%
Infill Line Distance: 4.0 mm
Infill Pattern: Grid
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Overlap Percentage: 10%
    Infill Overlap: 0.04 mm
Skin Overlap Percentage: 5%
    Skin Overlap: 0.02 mm
Infill Wipe Distance: 0.1 mm
Infill Layer Thickness: 0.1 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2
Skin Removal Width: 0.8 mm
    Top Skin Removal Width: 0.8 mm
    Bottom Skin Removal Width: 0.8 mm
Skin Expand Distance: 0.8
    Top Skin Expand Distance: 0.8
    Bottom Skin Expand Distance: 0.8
Maximum Skin Angle for Expansion: 90˚
    Minimum Skin Width for Expansion: 0.0

Material
Enable Retraction: Check
Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 0.8 mm
Maximum Retraction Count: 90
Minimum Extrusion Distance Window: 6.5 mm
Nozzle Switch Retraction Distance: 16 mm
Nozzle Switch Retraction Speed: 20 mm/s
    Nozzle Switch Retract Speed: 20 mm/s
    Nozzle Switch Prime Speed: 20 mm/s

Speed
Print Speed: 45 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 22.5 mm/s
      Outer Wall Speed: 22.5 mm/s
      Inner Wall Speed: 45 mm/s
    Top/Bottom Speed: 15 mm/s
Travel Speed: 120 mm/s
Initial Layer Speed: 30 mm/s
  Initial Layer Print Speed: 30 mm/s
  Initial Layer Travel Speed: 60 mm/s
Skirt/Brim Speed: 30 mm/s
Maximum Z Speed: 0 mm/s
Number of Slower Layers: 2

Travel
Combing Mode: All
Avoid Printed Parts when Traveling: Check
Travel Avoid Distance: 0.625 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
    Regular Fan Speed: 100%
    Maximum Fan Speed: 100%
Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.3 mm
    Regular Fan Speed at Layer: 2
Minimum Layer Time: 5 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Placement: Everywhere
Support Overhang Angle: 60°
Support Pattern: Zig Zag
Connect Support ZigZags: Check
Support Density: 15 %
    Support Line Distance: 1.3333 mm
Support Z Distance: 0.3 mm
    Support Top Distance: 0.3 mm
    Support Bottom Distance: 0.3 mm
Support X/Y Distance: 0.7 mm
Support Distance Priority: Z overrides X/Y
Minimum Support X/Y Distance: 0.2 mm
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.1 mm
Use Towers: Check
Tower Diameter: 3.0 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Brim
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
    Brim Line Count: 18
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Disclaimer: This model will look outstanding if printed on SLA/SLS 3D printer. The accuracy of the model printed on FFF printer can vary from the result shown in the pictures.
