D77 Pelican 3D Printing Model | Assembly + Active

(4)
cm: 36.3 w x 50.3 d x 16.6 h
in: 14.291 w x 19.803 d x 6.535 h

Source Files

|

Description

|

Printing Details

This 3D Model of the D77 Pelican from Halo consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

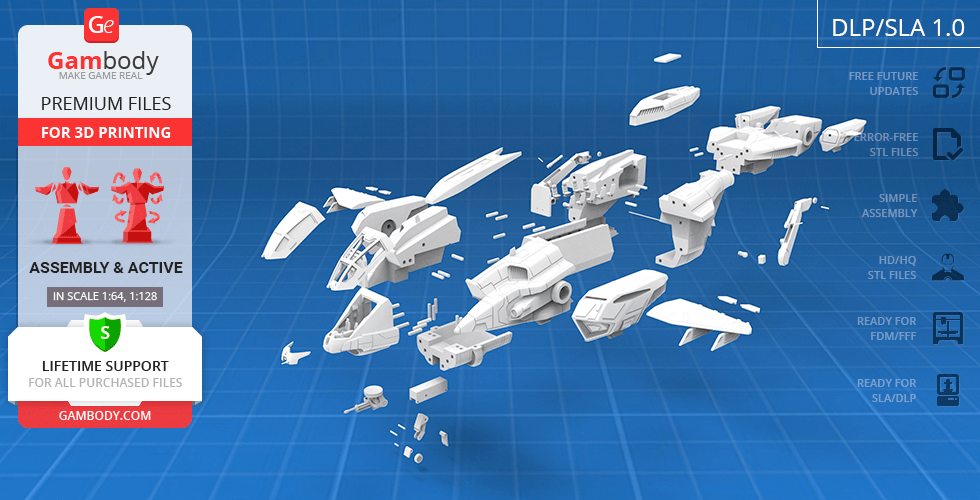

  • 2 versions of Dropship 77-Troop Carrier STL files for FFF/FDM and DLP/SLA - files for all versions are available for download after the purchase
  • STL files of high-poly Pelican Dropship 3D Model for 3D printing consist of 123 parts
  • Sizes:
  • FFF/FDM: 166 mm tall, 363 mm wide, 503 mm deep
  • DLP/SLA: 83 mm tall, 182 mm wide, 252 mm deep

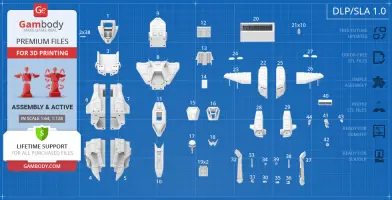

  • Assembly Manual for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format
  • Detailed settings that we provide as a recommendation for Cura, Simplify3D, Slic3r and PrusaSlicer for the best print
  • Full technical support from the Gambody Support Team

Detailed information about this 3D printing model is available in the DESCRIPTION section.

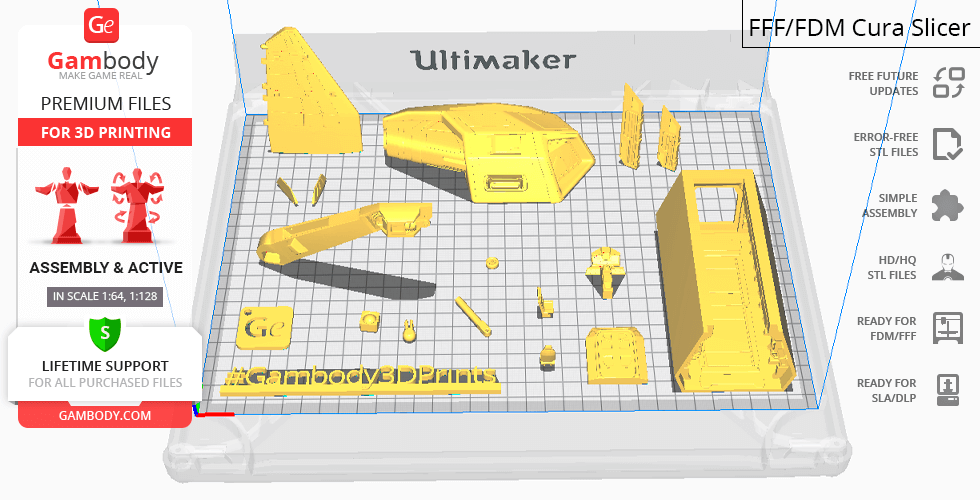

File Name File Size Time / Filament Object Size
(x/y/z mm)
_1_hull_cabine_FDM (repai red).stl
10.59 MiB 9 h 27 min 5 m 73 x 64 x 72 Download

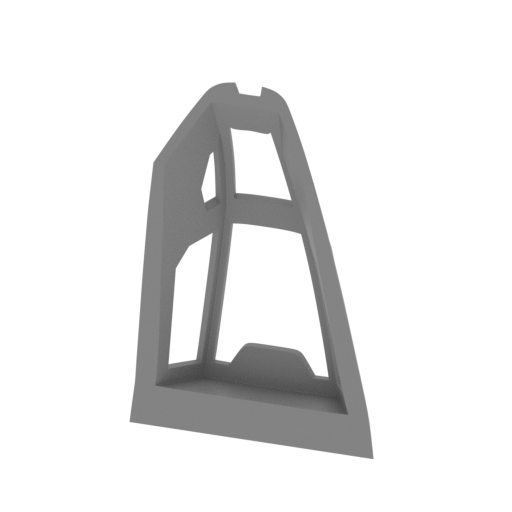

_2_cabine_cap_FDM (repair ed).stl
5.47 MiB 2 h 54 min 1 m 48 x 24 x 73 Download

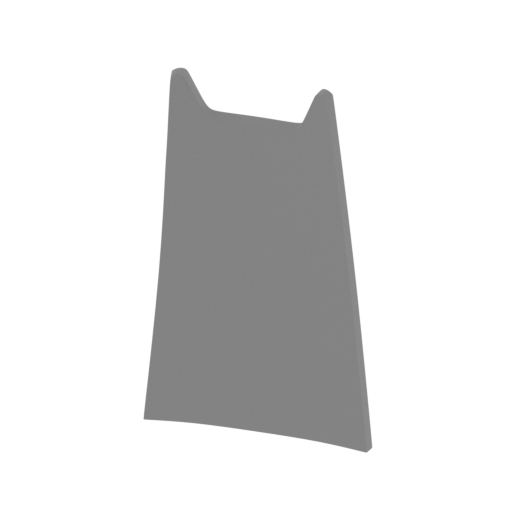

_3_window_front_1_FDM (re paired).stl
0.40 MiB 14 min <1 m 16 x 3 x 25 Download

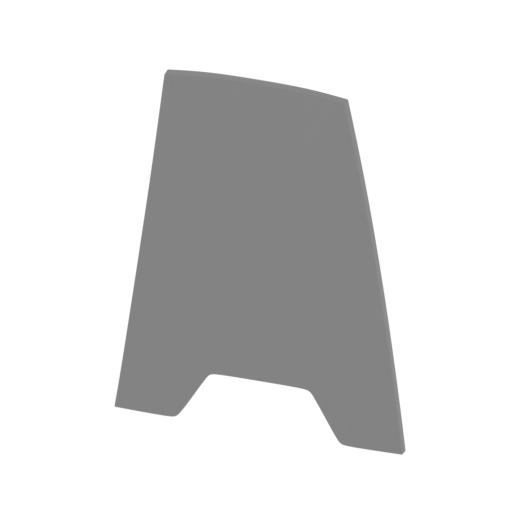

_4_window_front_2_FDM (re paired).stl
0.37 MiB 29 min <1 m 26 x 3 x 34 Download

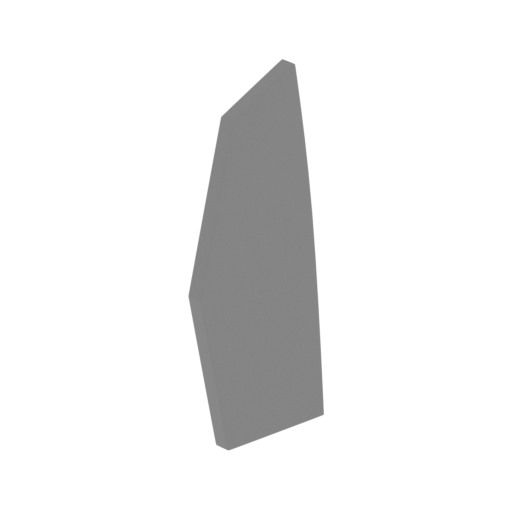

_5_window_front_1_R_FDM ( repaired).stl
0.13 MiB 5 min <1 m 4 x 7 x 19 Download

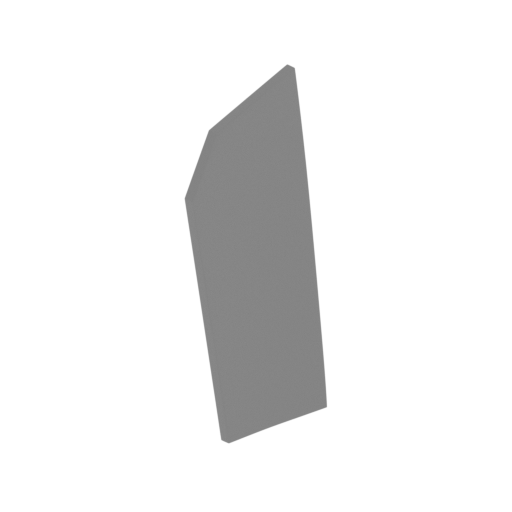

_6_window_front_2_R_FDM ( repaired).stl
0.25 MiB 16 min <1 m 7 x 15 x 33 Download

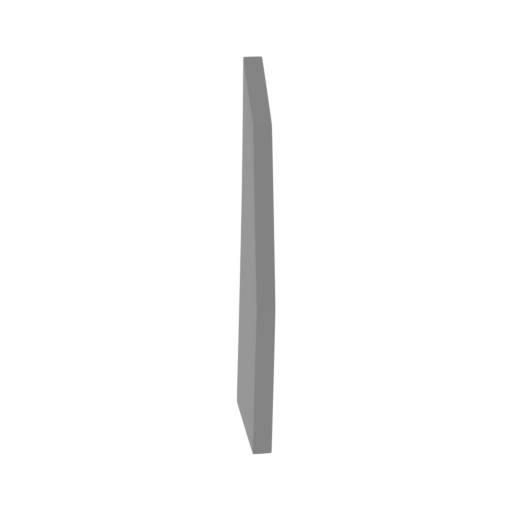

_7_window_front_1_L_FDM ( repaired).stl
0.13 MiB 5 min <1 m 4 x 7 x 19 Download

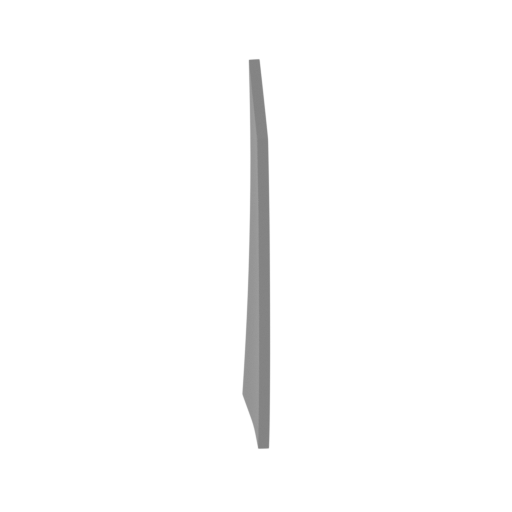

_8_window_front_2_L_FDM ( repaired).stl
0.25 MiB 16 min <1 m 8 x 15 x 33 Download

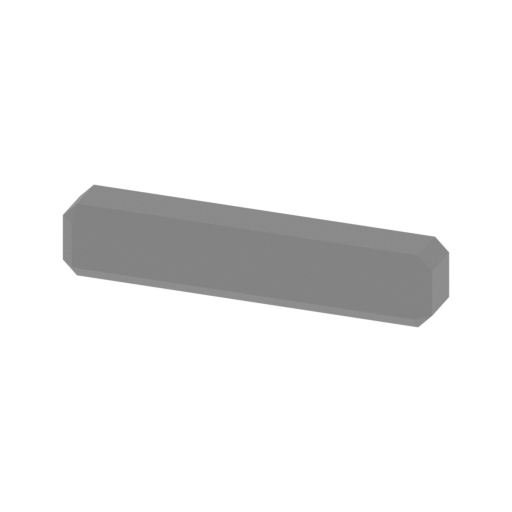

_9_hull_beams_x38_FDM (re paired).stl
0.01 MiB 5 min <1 m 20 x 4 x 4 Download

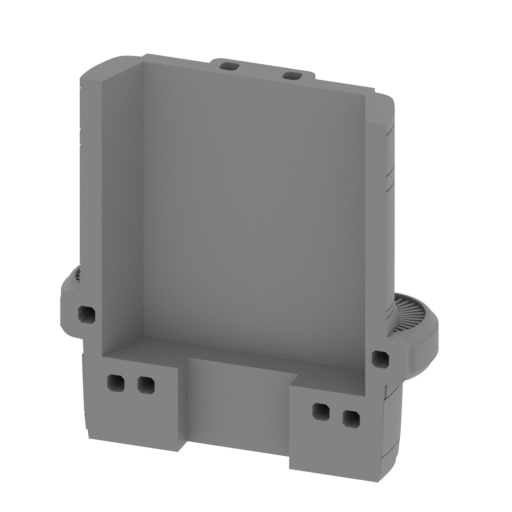

_10_hull_bot_FDM (repaire d).stl
15.32 MiB 11 h 3 min 6 m 91 x 30 x 92 Download

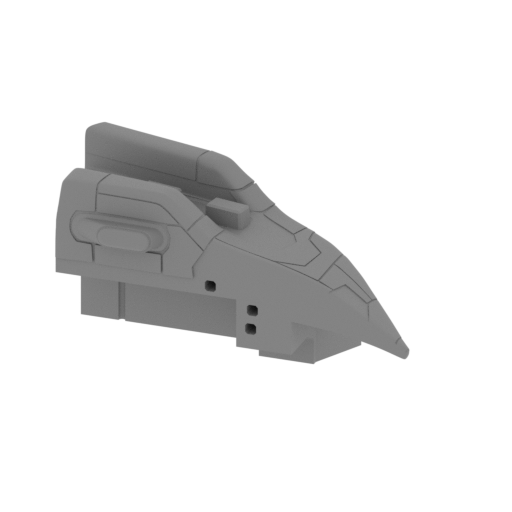

_11_hull_main_1_R_FDM (re paired).stl
17.60 MiB 28 h 34 min 19 m 144 x 89 x 69 Download

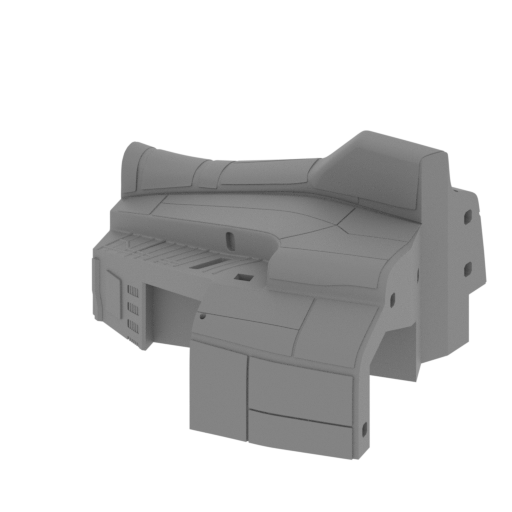

_12_hull_main_2_R_FDM (re paired).stl
8.24 MiB 32 h 14 min 21 m 117 x 120 x 69 Download

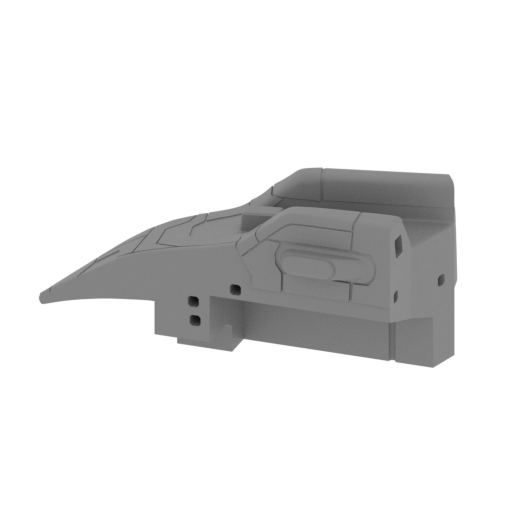

_13_hull_main_1_L_FDM (re paired).stl
17.48 MiB 28 h 25 min 19 m 144 x 89 x 69 Download

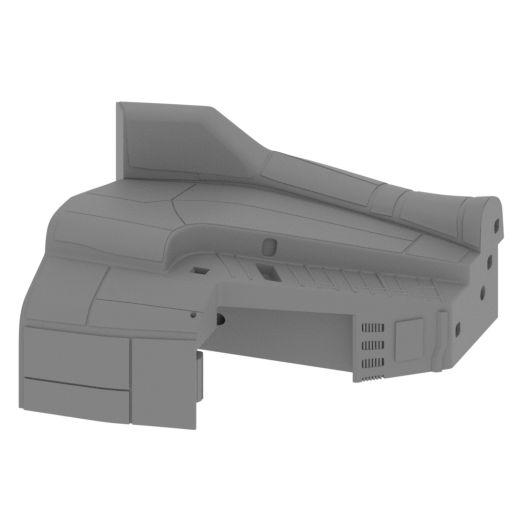

_14_hull_main_2_L_FDM (re paired).stl
8.25 MiB 32 h 15 min 21 m 117 x 120 x 69 Download

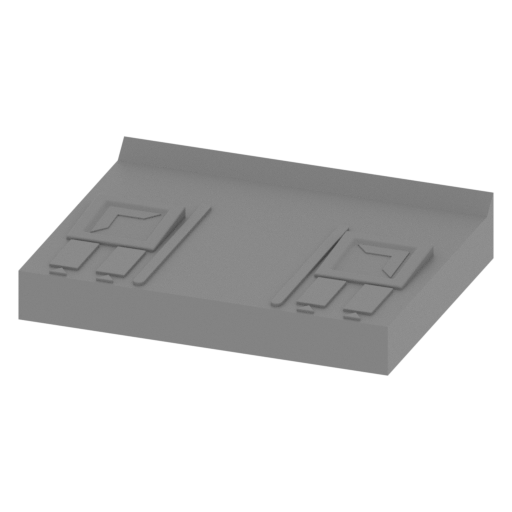

_15_door_1_FDM (repaired) .stl
0.23 MiB 1 h 25 min 1 m 49 x 38 x 9 Download

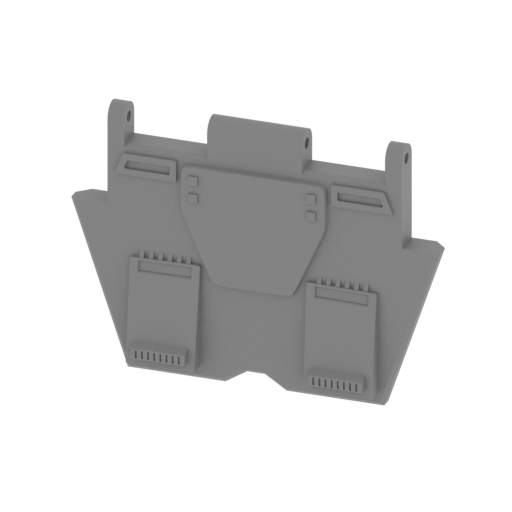

_16_door_2_FDM (repaired) .stl
1.40 MiB 2 h 43 min 1 m 65 x 9 x 47 Download

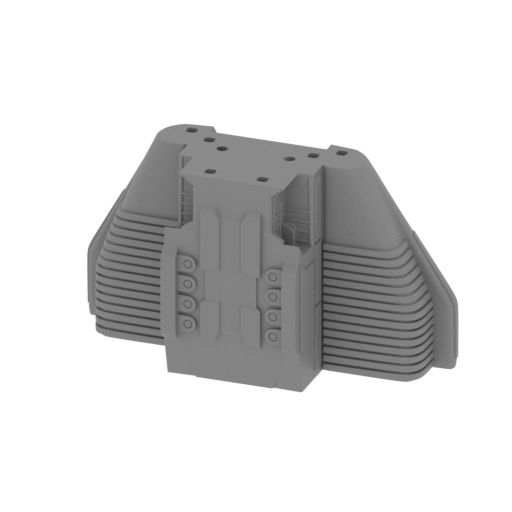

_17_hull_tail_1_FDM (repa ired).stl
23.72 MiB 30 h 9 min 17 m 152 x 64 x 87 Download

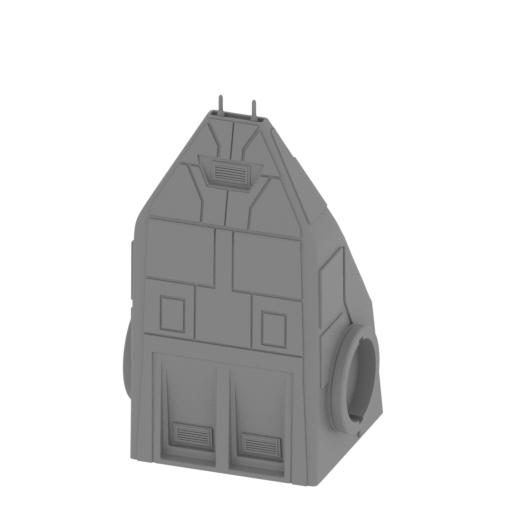

_18_hull_tail_2_FDM (repa ired).stl
7.16 MiB 13 h 41 min 8 m 65 x 55 x 109 Download

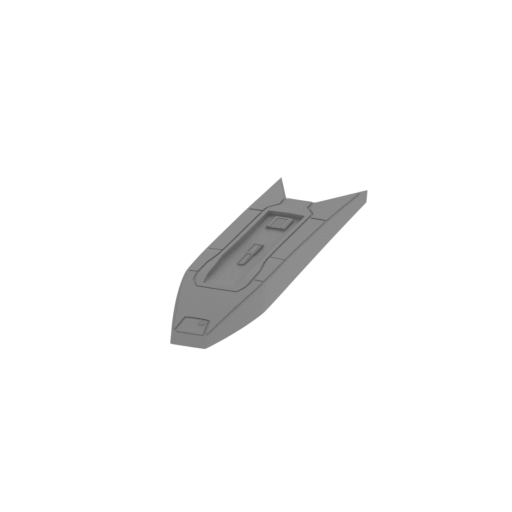

_19_hull_top_1_FDM (repai red).stl
4.03 MiB 3 h 29 min 2 m 32 x 139 x 11 Download

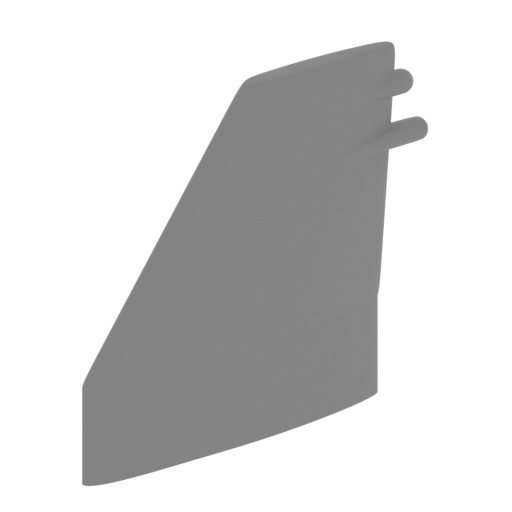

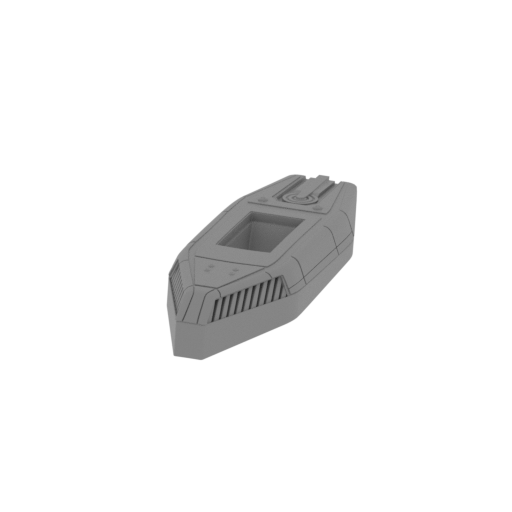

_20_hull_top_2_FDM (repai red).stl
6.21 MiB 7 h 46 min 4 m 50 x 141 x 20 Download

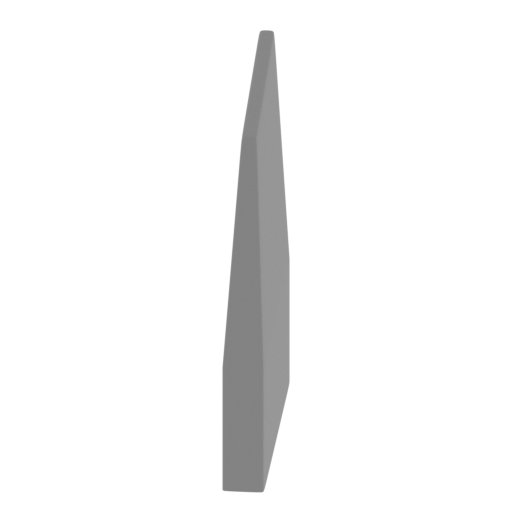

_21_small_wing_1_R_FDM (r epaired).stl
0.06 MiB 5 min <1 m 4 x 9 x 13 Download

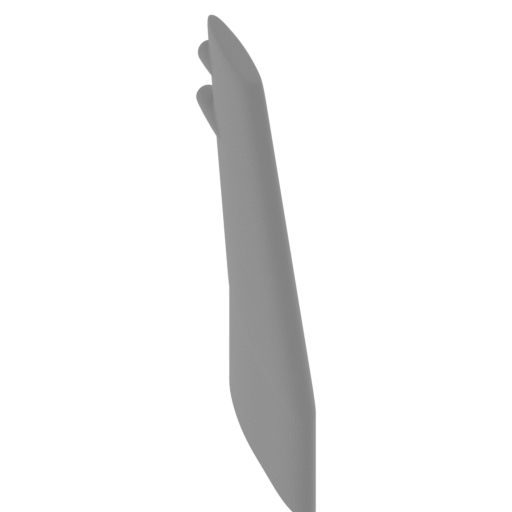

_22_small_wing_2_R_FDM (r epaired).stl
0.70 MiB 26 min <1 m 16 x 23 x 26 Download

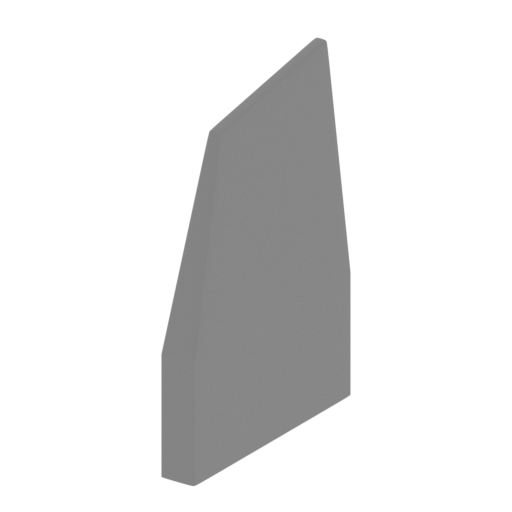

_23_small_wing_1_L_FDM (r epaired).stl
0.06 MiB 5 min <1 m 4 x 9 x 13 Download
_24_small_wing_2_L_FDM (r epaired).stl
0.70 MiB 25 min <1 m 16 x 23 x 26 Download

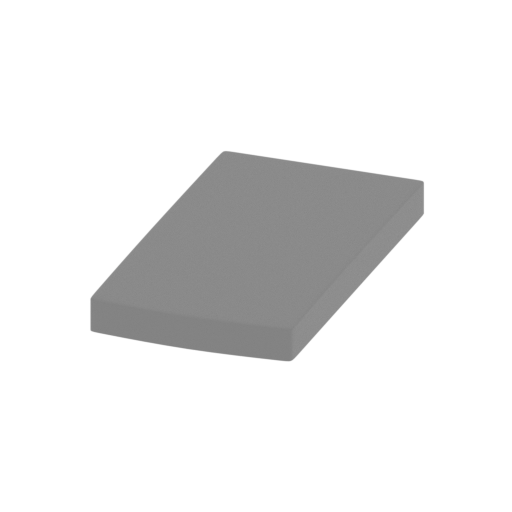

_25_top_cap_FDM (repaired ).stl
0.07 MiB 23 min <1 m 20 x 36 x 3 Download

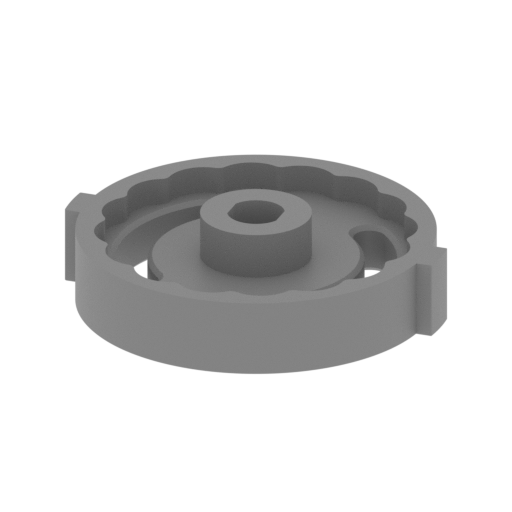

_26_mechanism_back_1_x2_F DM (repaired).stl
0.40 MiB 24 min <1 m 25 x 23 x 6 Download

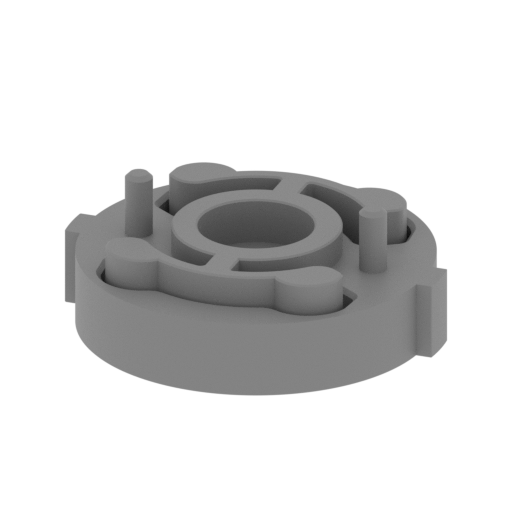

_27_mechanism_back_2_x2_F DM (repaired).stl
0.46 MiB 39 min <1 m 25 x 23 x 9 Download
_28_mechanism_back_3_x2_F DM (repaired).stl

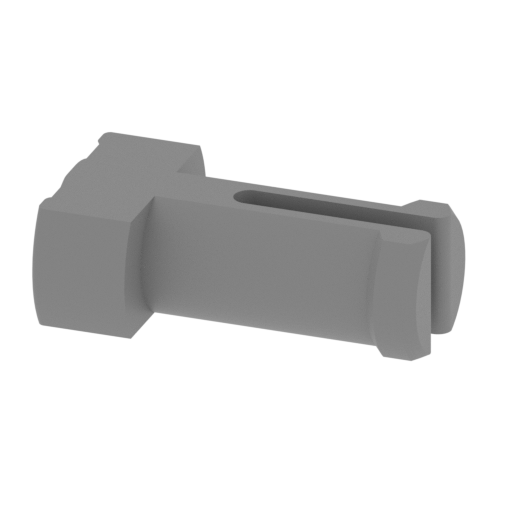

0.16 MiB 3 min <1 m 10 x 6 x 3 Download

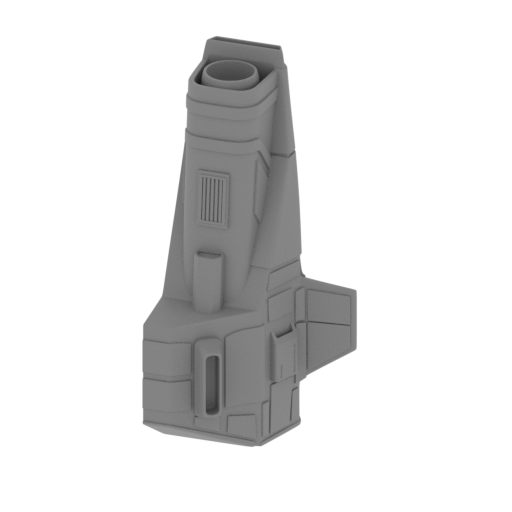

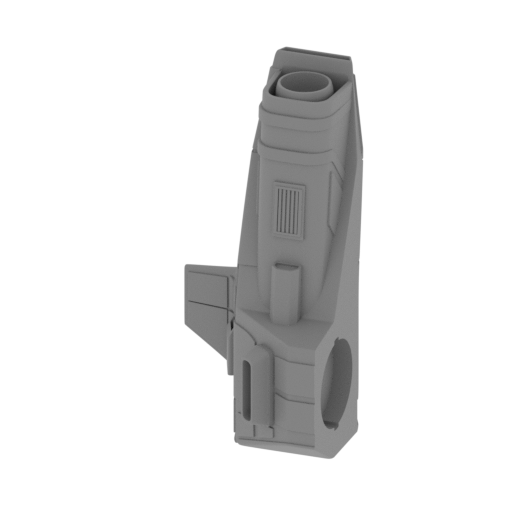

_29_turbine_back_R_FDM (r epaired).stl
5.87 MiB 7 h 37 min 4 m 47 x 42 x 101 Download
_30_turbine_back_L_FDM (r epaired).stl
5.87 MiB 7 h 38 min 4 m 47 x 42 x 101 Download

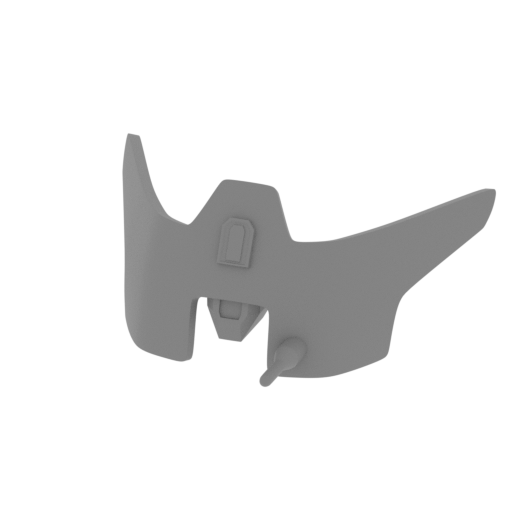

_31_cap_cabine_front_FDM (repaired).stl
1.82 MiB 24 min <1 m 35 x 29 x 16 Download

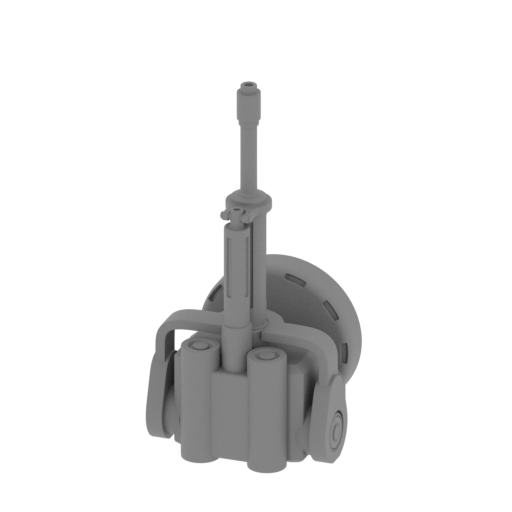

_32_gun_cabine_front_FDM (repaired).stl
4.14 MiB 1 h 29 min 1 m 25 x 22 x 52 Download

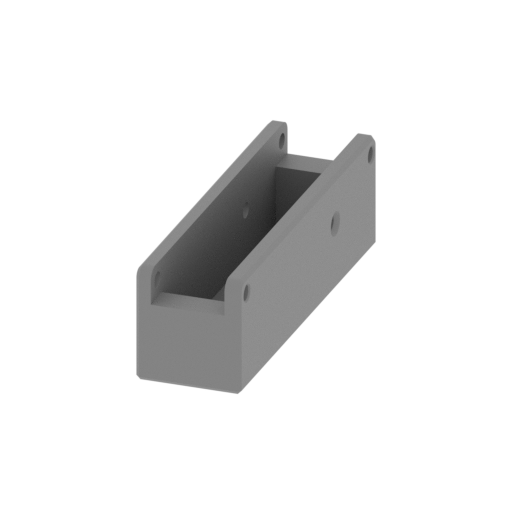

_33_leg_front_body_FDM (r epaired).stl
0.57 MiB 1 h 6 min 1 m 14 x 49 x 15 Download

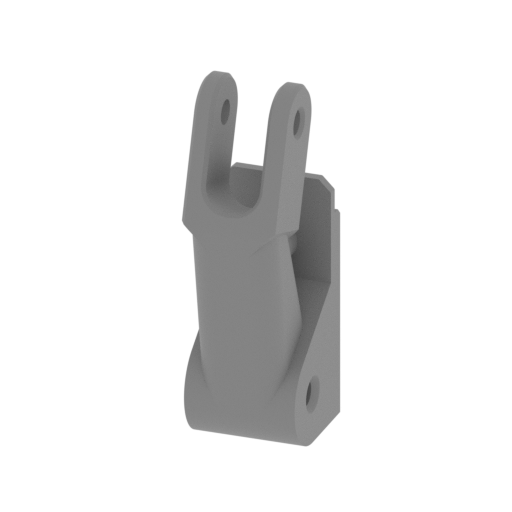

_34_leg_front_main_FDM (r epaired).stl
0.86 MiB 36 min <1 m 9 x 13 x 31 Download

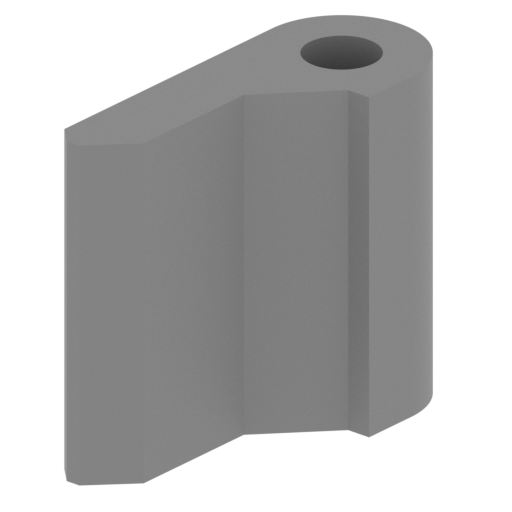

_36_leg_front_cap_front_F DM (repaired).stl
0.29 MiB 7 min <1 m 7 x 10 x 9 Download
_35_leg_front_wheel_FDM ( repaired).stl

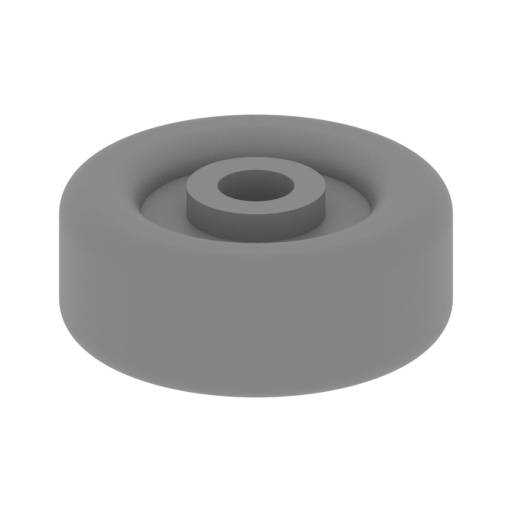

3.35 MiB 6 min <1 m 11 x 11 x 4 Download
_37_leg_front_cap_back_FD M (repaired).stl
0.29 MiB 9 min <1 m 6 x 20 x 9 Download

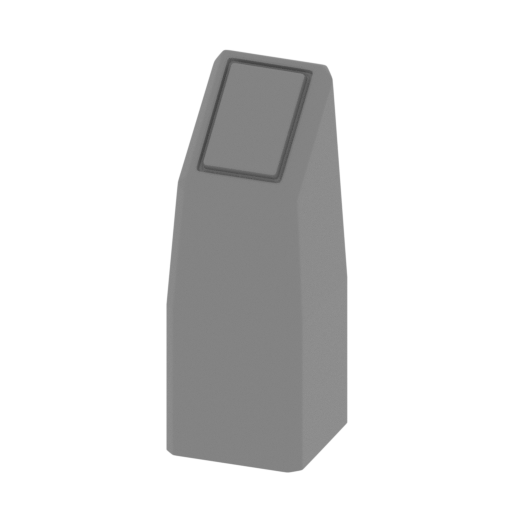

_41_sub_wing_1_R_FDM (rep aired).stl
0.21 MiB 14 min <1 m 7 x 7 x 18 Download

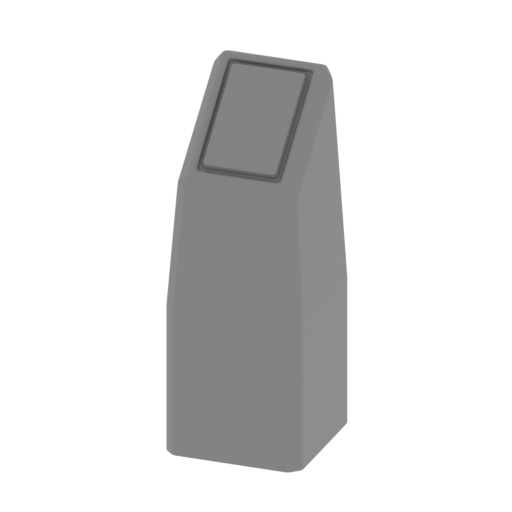

_43_sub_wing_1_L_FDM (rep aired).stl
0.21 MiB 14 min <1 m 7 x 7 x 18 Download

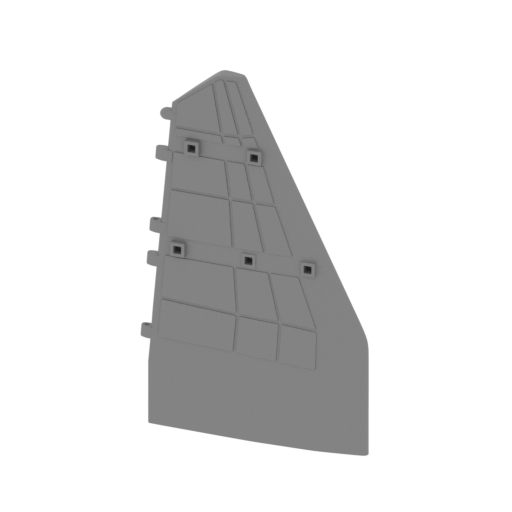

_46_wing_main_R_FDM (repa ired).stl
5.75 MiB 3 h 45 min 2 m 60 x 8 x 97 Download

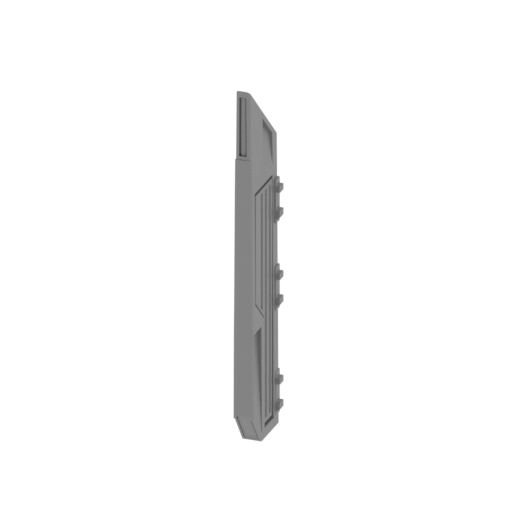

_47_wing_a_R_FDM (repaire d).stl
0.38 MiB 1 h 10 min <1 m 5 x 13 x 63 Download
_48_wing_b_R_FDM (repaire d).stl
0.32 MiB 48 min <1 m 5 x 13 x 47 Download
_49_wing_beams_x5_R_FDM ( repaired).stl
0.05 MiB 1 min <1 m 2 x 5 x 2 Download

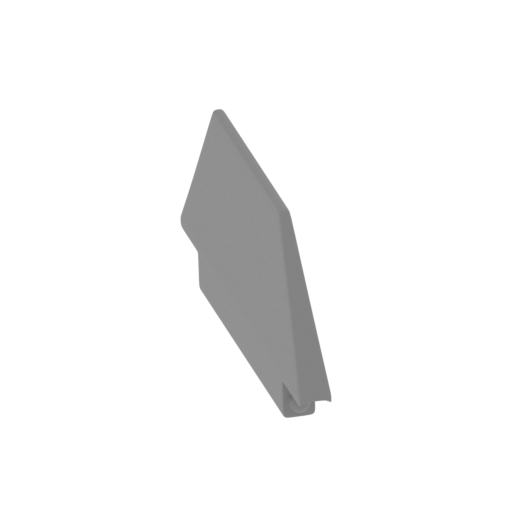

_50_wing_c_R_FDM (repaire d).stl
0.37 MiB 9 min <1 m 15 x 20 x 11 Download

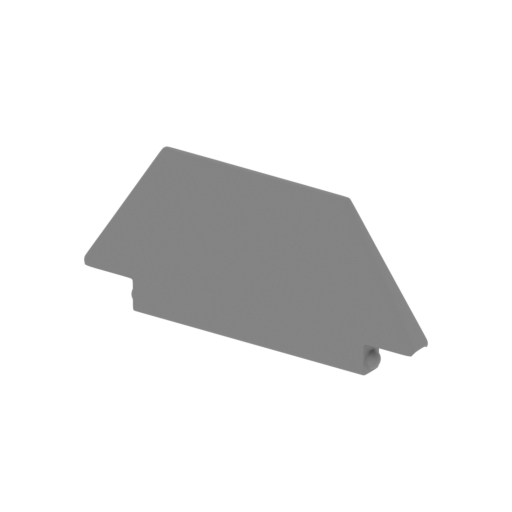

_51_wing_d_R_FDM (repaire d).stl
0.37 MiB 9 min <1 m 23 x 7 x 11 Download

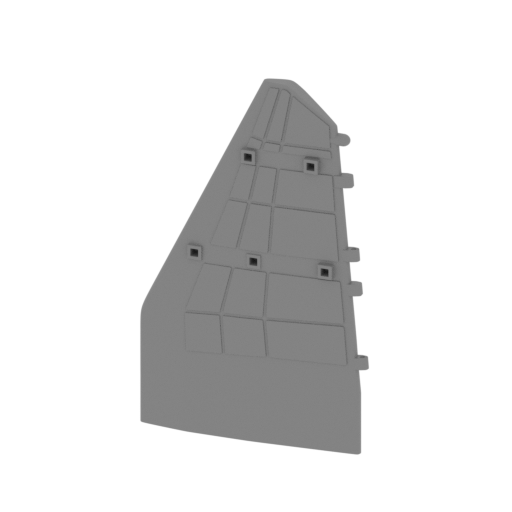

_53_wing_main_L_FDM (repa ired).stl
5.74 MiB 3 h 43 min 2 m 60 x 8 x 97 Download
_54_wing_a_L_FDM (repaire d).stl
0.38 MiB 1 h 12 min <1 m 5 x 13 x 63 Download

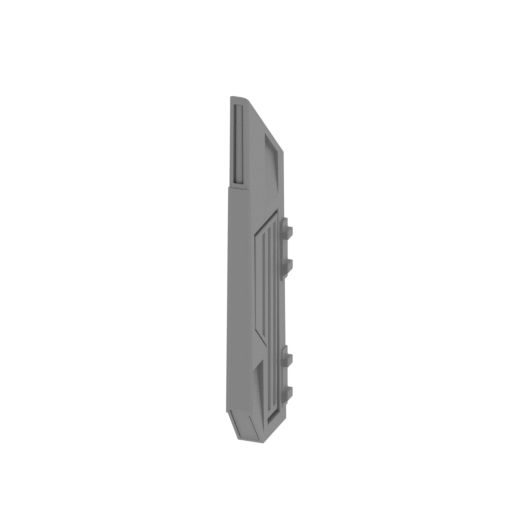

_55_wing_b_L_FDM (repaire d).stl
0.32 MiB 48 min <1 m 5 x 13 x 47 Download
_56_wing_beams_x5_L_FDM ( repaired).stl
0.05 MiB 1 min <1 m 2 x 5 x 2 Download

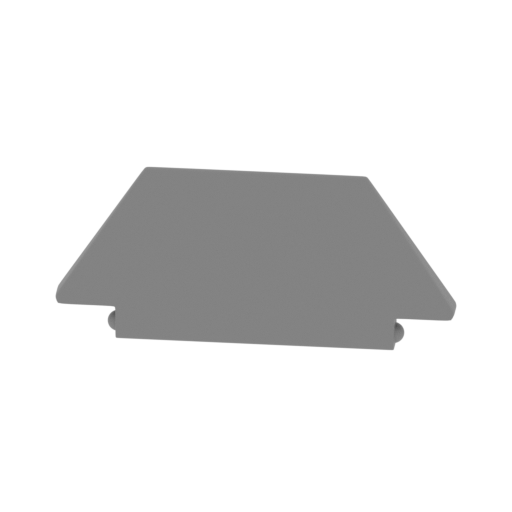

_57_wing_c_L_FDM (repaire d).stl
0.37 MiB 9 min <1 m 23 x 7 x 11 Download
_58_wing_d_L_FDM (repaire d).stl
0.37 MiB 9 min <1 m 23 x 7 x 11 Download

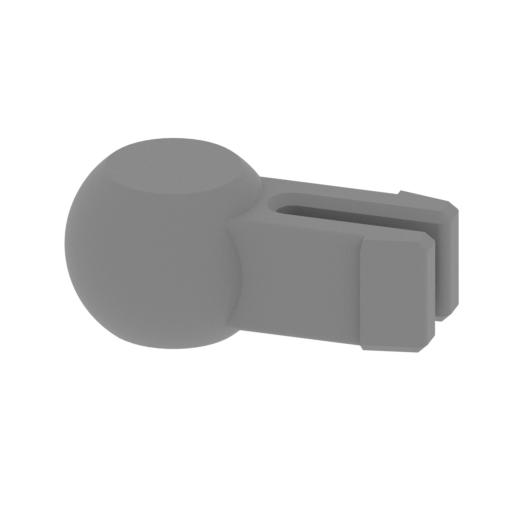

_59_leg_back_joint_R_FDM (repaired).stl
0.35 MiB 6 min <1 m 13 x 7 x 6 Download

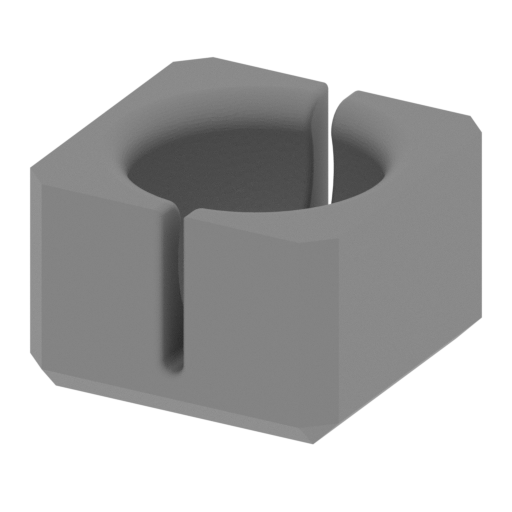

_60_leg_back_box_R_FDM (r epaired).stl
0.44 MiB 8 min <1 m 11 x 11 x 6 Download

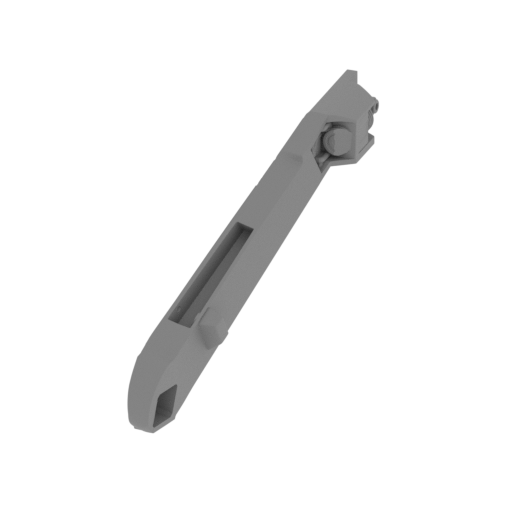

_61_leg_back_R_FDM (repai red).stl
3.34 MiB 4 h 26 min 3 m 36 x 104 x 66 Download
_62_leg_back_pivot_R_FDM (repaired).stl

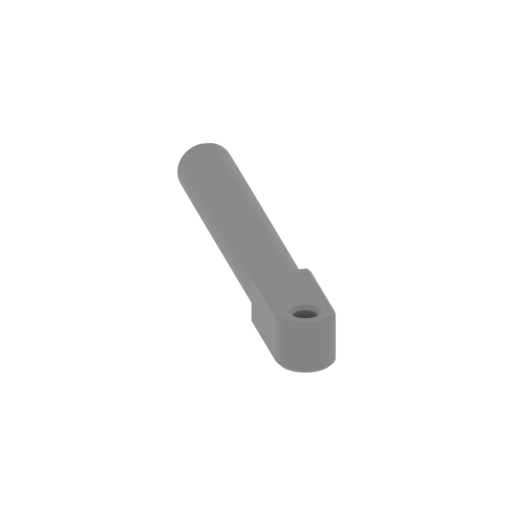

0.29 MiB 6 min <1 m 20 x 28 x 4 Download

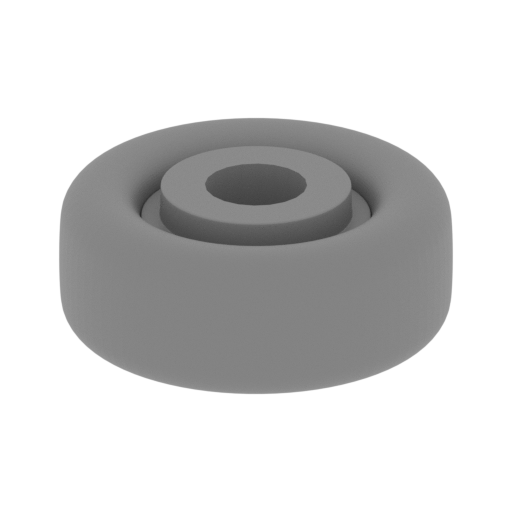

_63_leg_back_wheel_R_FDM (repaired).stl
1.17 MiB 3 min <1 m 8 x 8 x 3 Download

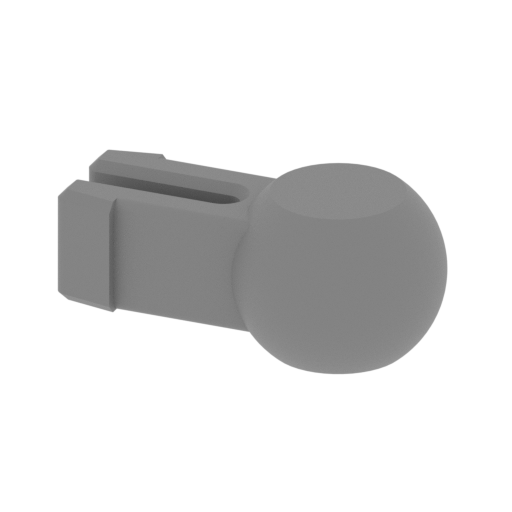

_64_leg_back_joint_L_FDM (repaired).stl
0.34 MiB 6 min <1 m 13 x 7 x 6 Download

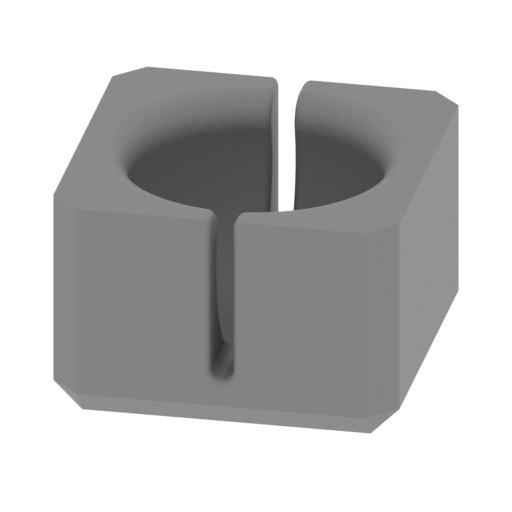

_65_leg_back_box_L_FDM (r epaired).stl
0.44 MiB 8 min <1 m 11 x 11 x 7 Download

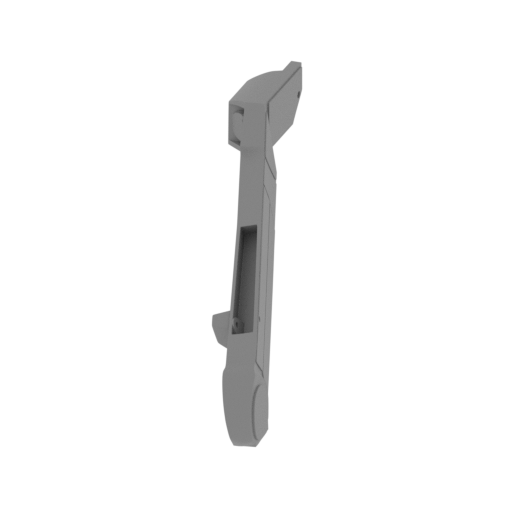

_66_leg_back_L_FDM (repai red).stl
3.34 MiB 4 h 31 min 3 m 36 x 104 x 66 Download

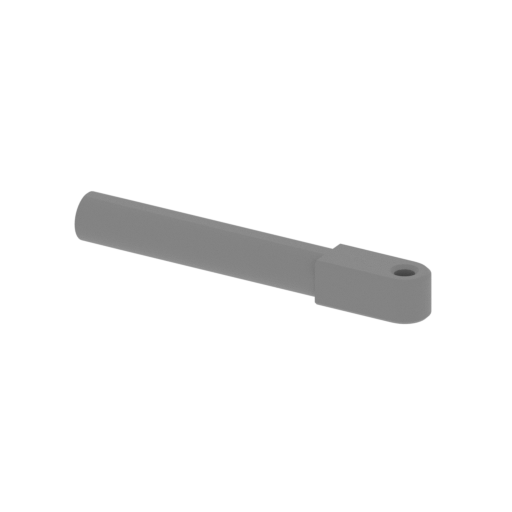

_67_leg_back_pivot_L_FDM (repaired).stl
0.29 MiB 6 min <1 m 32 x 9 x 4 Download

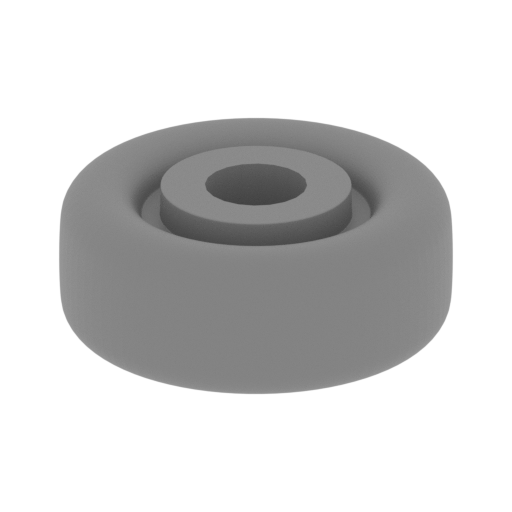

_68_leg_back_wheel_L_FDM (repaired).stl
1.17 MiB 3 min <1 m 8 x 8 x 3 Download
_69_cockpit_cabine_panel_ FDM (repaired).stl
0.50 MiB 32 min <1 m 23 x 29 x 14 Download

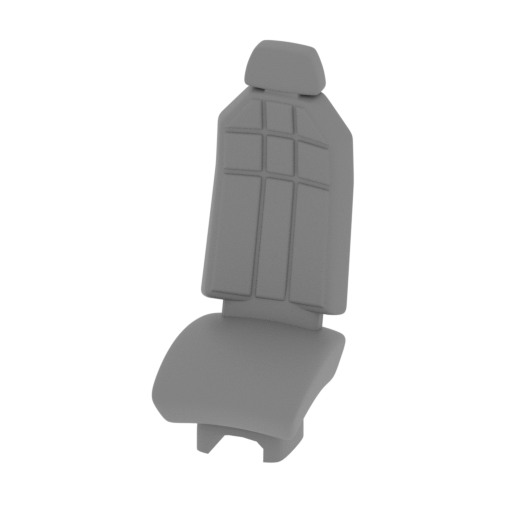

_70_cockpit_cabine_seat_x 2_FDM (repaired).stl
1.95 MiB 12 min <1 m 8 x 11 x 20 Download
_71_cockpit_main_FDM (rep aired).stl
6.78 MiB 18 h 25 min 10 m 65 x 121 x 50 Download

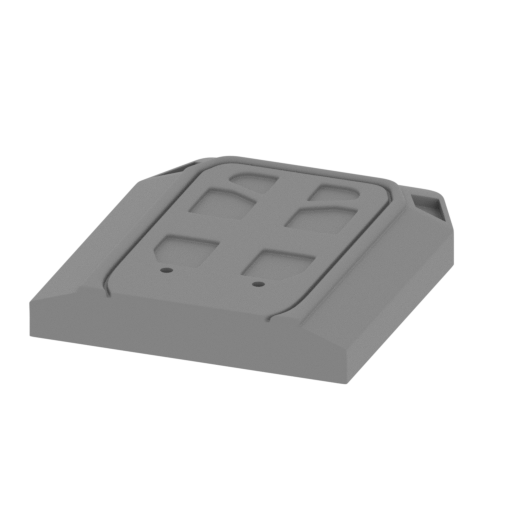

_72_cockpit_doors_x2_FDM (repaired).stl
2.99 MiB 52 min <1 m 32 x 37 x 6 Download

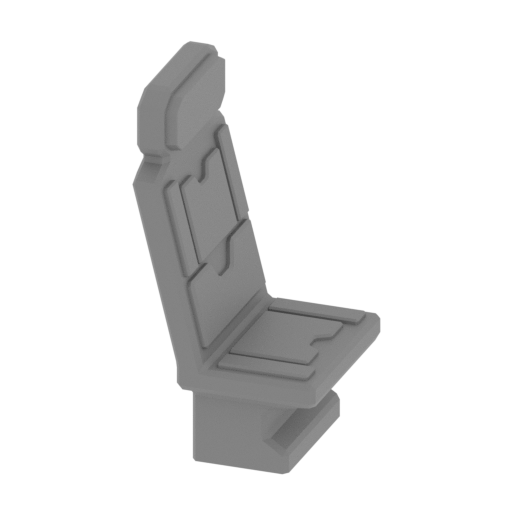

_73_cockpit_main_seats_x1 0_FDM (repaired).stl
0.08 MiB 13 min <1 m 9 x 9 x 18 Download

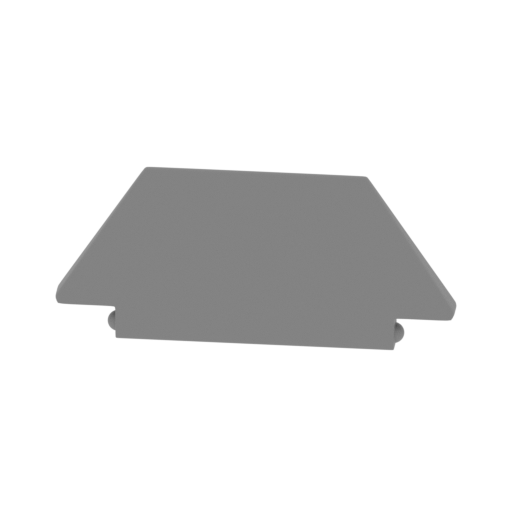

Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download

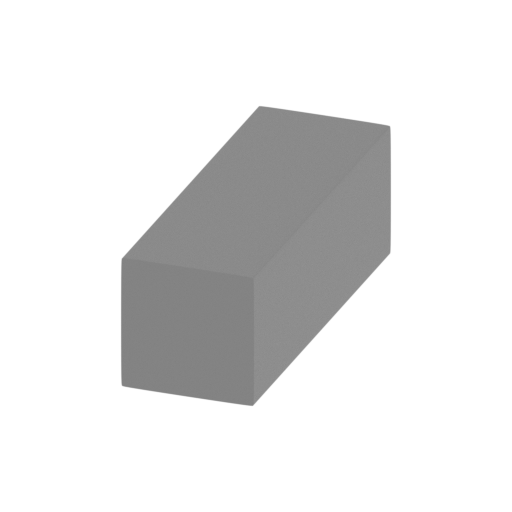

Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download

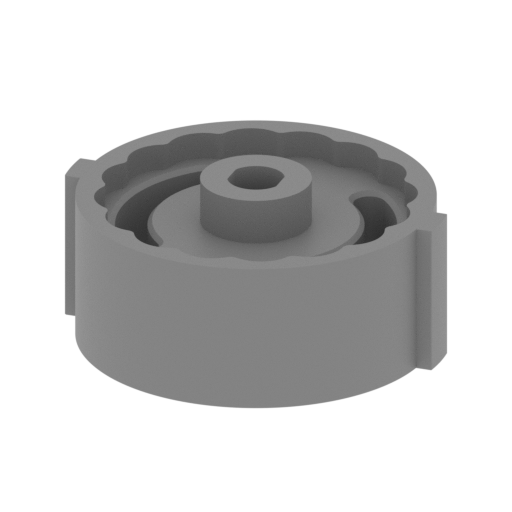

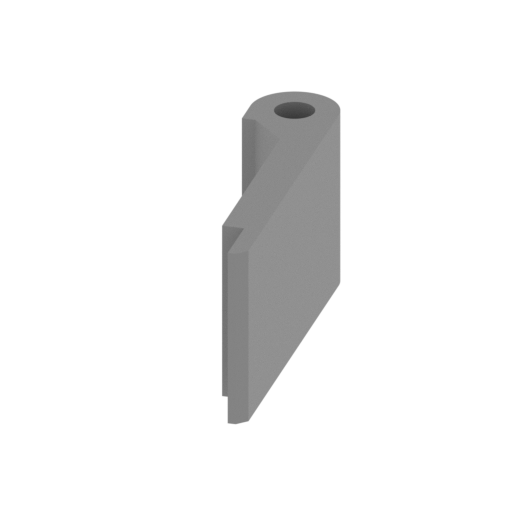

_38_mechanism_front_1_x2 (repaired).stl
0.40 MiB 26 min <1 m 22 x 20 x 10 Download
_39_mechanism_front_2_x2 (repaired).stl
0.21 MiB 4 min <1 m 18 x 5 x 3 Download

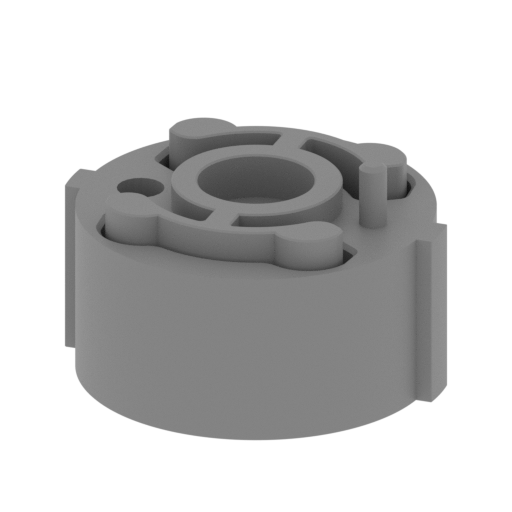

_40_mechanism_front_3_x2 (repaired).stl
0.52 MiB 60 min <1 m 22 x 20 x 13 Download
_42_sub_wing_2_R_FDM (rep aired).stl
5.11 MiB 2 h 15 min 1 m 79 x 37 x 17 Download

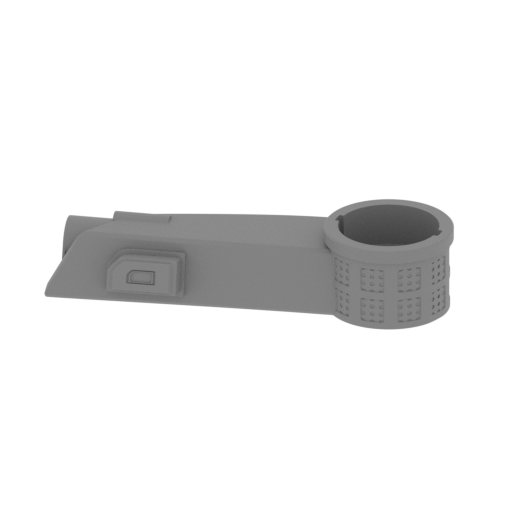

_44_sub_wing_2_L_FDM (rep aired).stl
5.11 MiB 2 h 15 min 1 m 79 x 37 x 17 Download

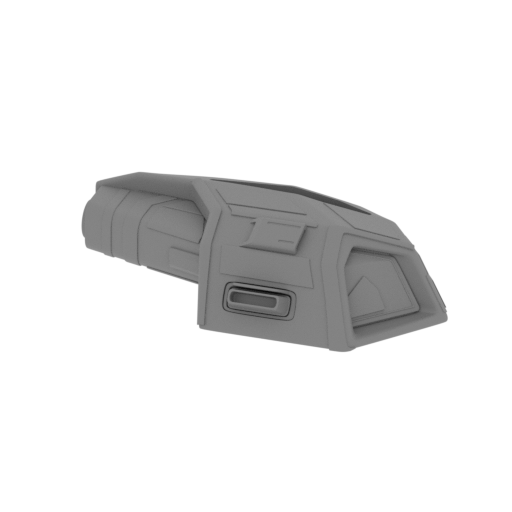

_45_wing_body_R_FDM (repa ired).stl
5.96 MiB 12 h 53 min 7 m 132 x 59 x 33 Download

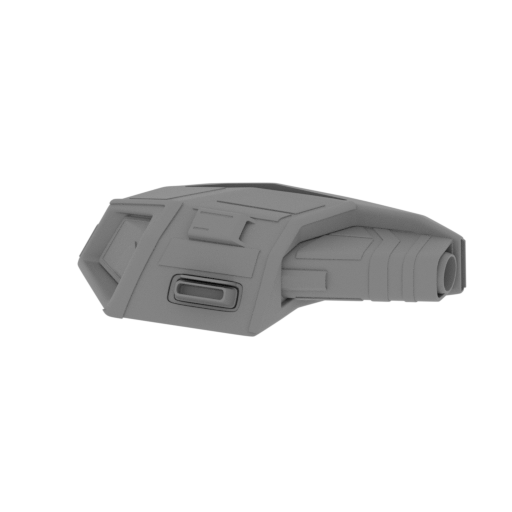

_52_wing_body_L_FDM (repa ired).stl
5.96 MiB 12 h 59 min 7 m 132 x 59 x 33 Download
...

ABOUT THIS 3D MODEL

The versatile Dropship 77-Troop Carrier, also known as Pelican, has been helping the brave UNSC troops for more than 50 years. It is capable of medium-lift operations, swift dispatch of ground troops, and even fire support. But it seems as the craft has just been assigned another, no less important mission - becoming the most exciting 3D printing project for our hobbyists!

The highly detailed design of the infamous Pelican was meticulously prepared by our contributing 3D artist for your enjoyment. And with the help of Gambody engineers, the model came to life with lots of interesting articulation mechanisms that are worth exploring first-hand.

ADAPTATION FOR 3D PRINTING

D77 Pelican for 3D printing is an active assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 50 hours in total.

For you to receive the cleanest 3D printing result possible, minimize the amount of filament needed for generated support, preserve the active elements introduced by Gambody engineers, the D77 Pelican model was divided into many assembly parts.

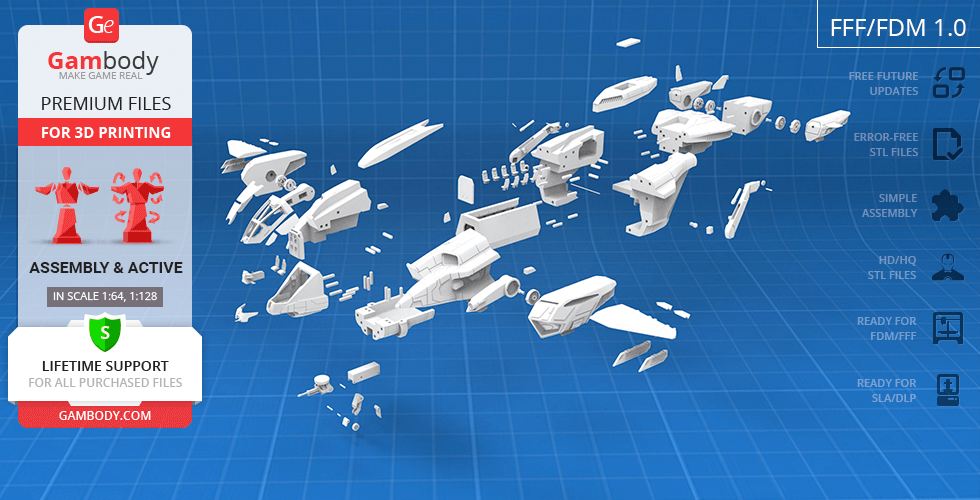

All assembly parts in the FFF/FDM 1.0 version are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 and DLP/SLA 1.0 versions in PDF format. We highly recommend that you get acquainted with the “Assembly video” and "Assembly Manual" before getting down to the D77 Pelican model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.The model’s scale was calculated from the length of the D77 Pelican which is 3050 mm. The 3D printing model’s chosen scales are 1:64 for the FFF/FDM version and 1:128 for the DLP/SLA version.

VERSIONS' SPECIFICATIONS

FFF/FDM 1.0 version features:

  • Contains 79 parts;
  • A printed model stands 166 mm tall, 363 mm wide, 503 mm deep;
  • Opening rear hatch;

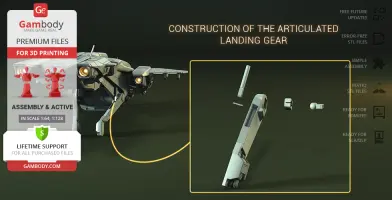

  • Front landing gear can be extended or concealed within the ship’s body;

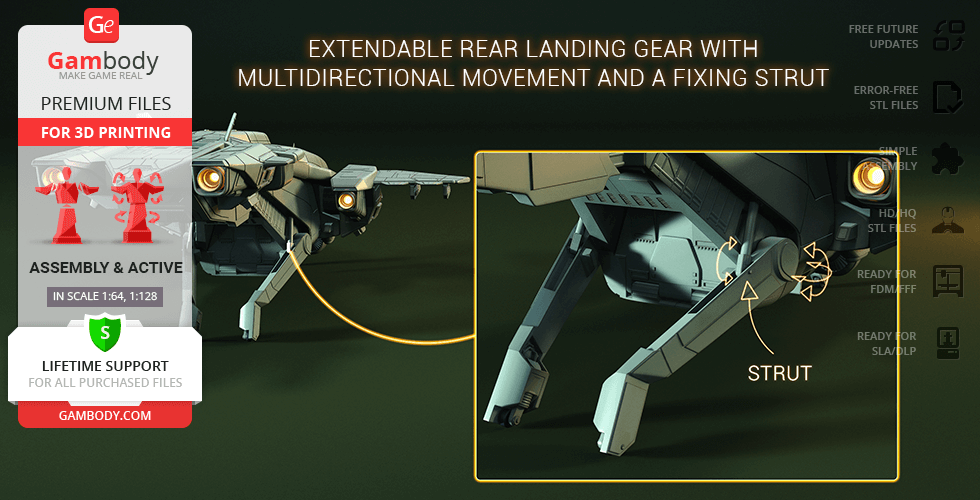

  • Extendable rear landing gear with multidirectional movement at the joint;
  • Extended rear landing gear can be fixed in place with the struts; retracted landing gear can be attached to the ship's body;

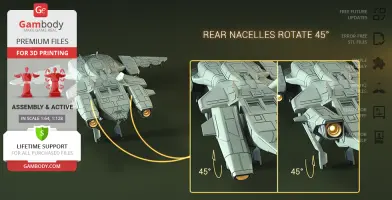

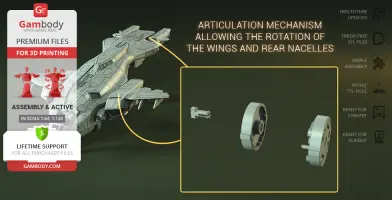

  • Wings and rear nacelles rotate 45°;
  • Highly detailed cockpit and troop bay;
  • The assembly of the model requires "pins" that can be made out of short pieces of regular 1.75mm filament;

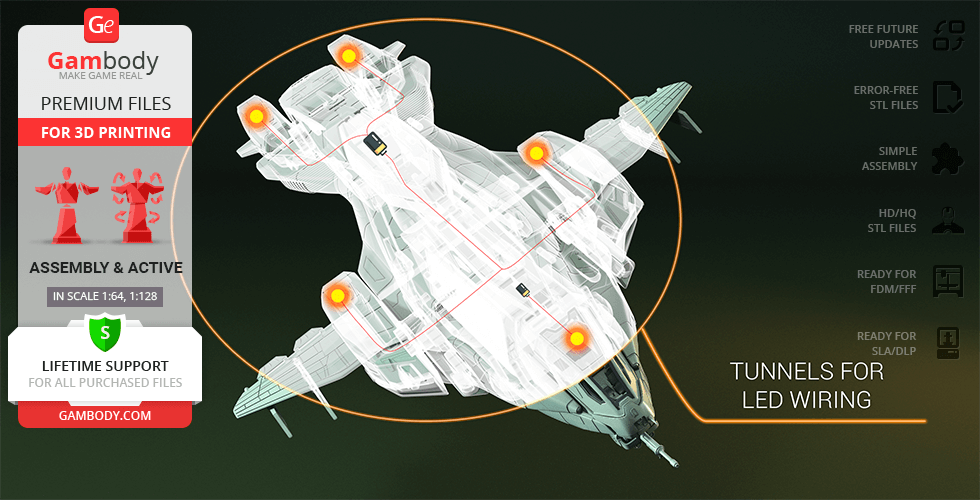

  • Tunnels throughout the ship's body are provided for you to introduce LED wiring and light up the four thrusters and the cockpit; a spot to hide the battery is provided inside;
