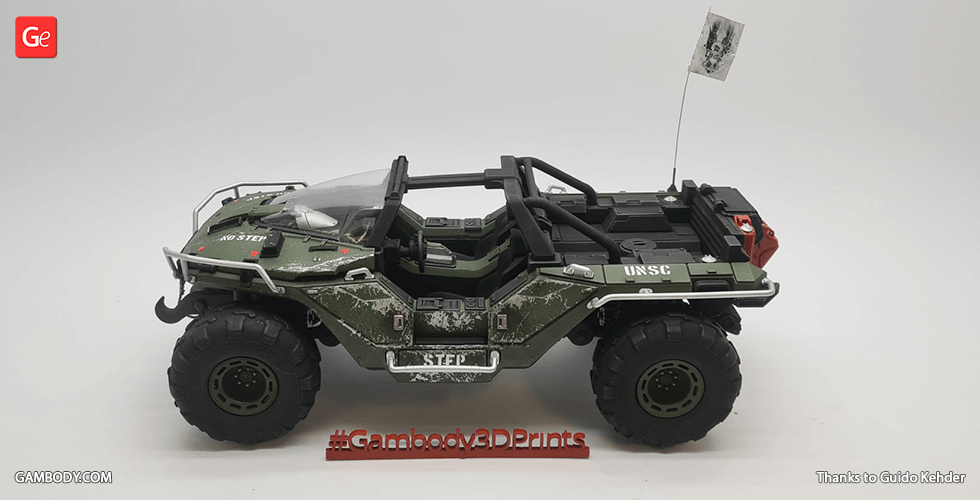

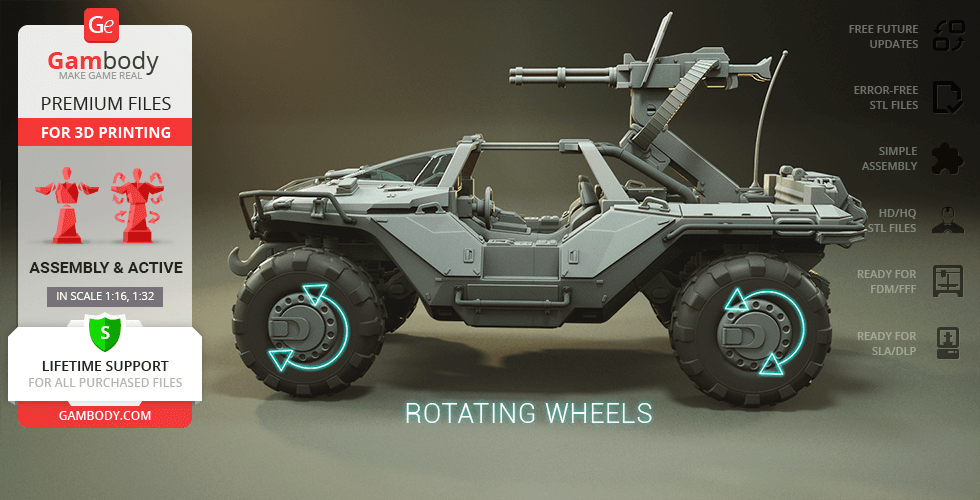

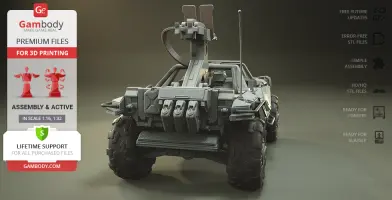

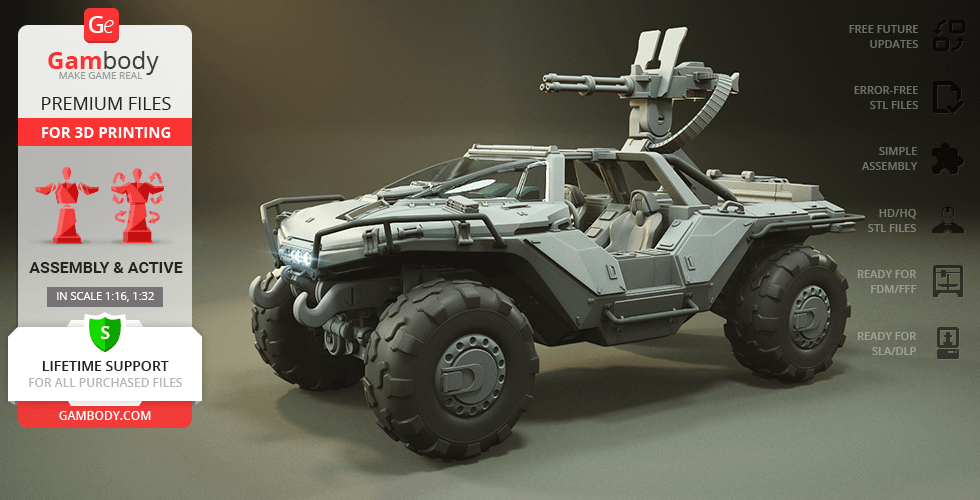

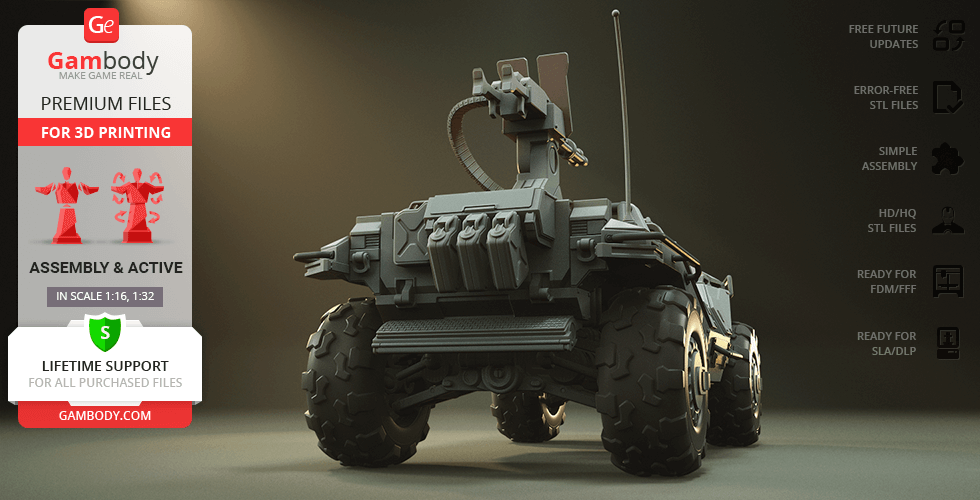

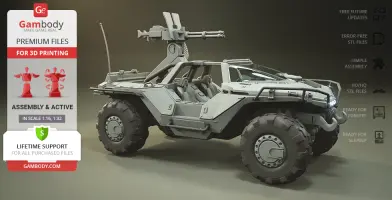

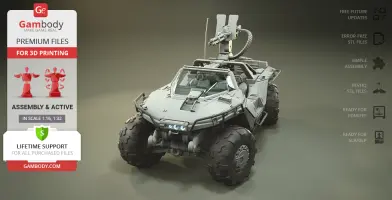

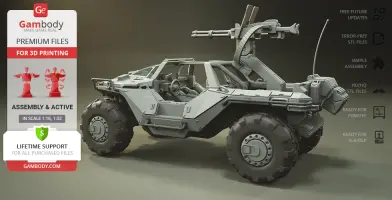

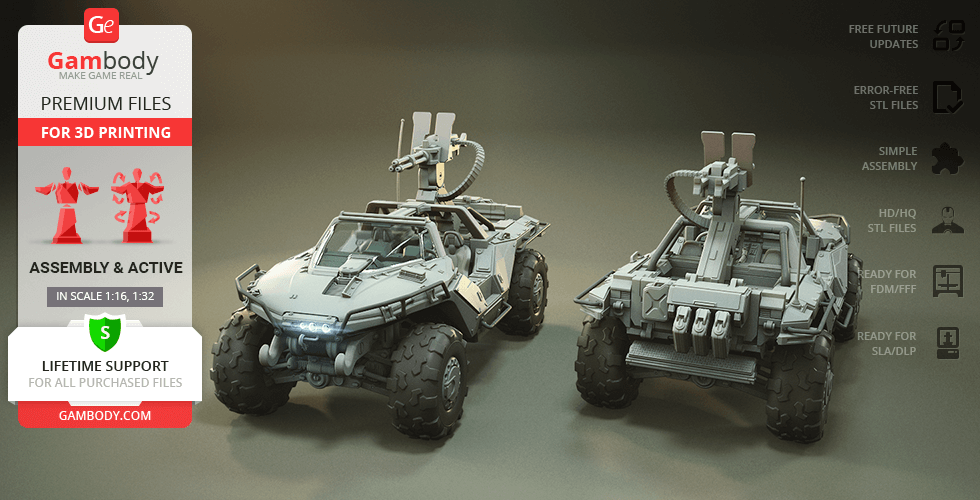

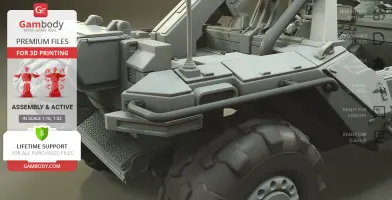

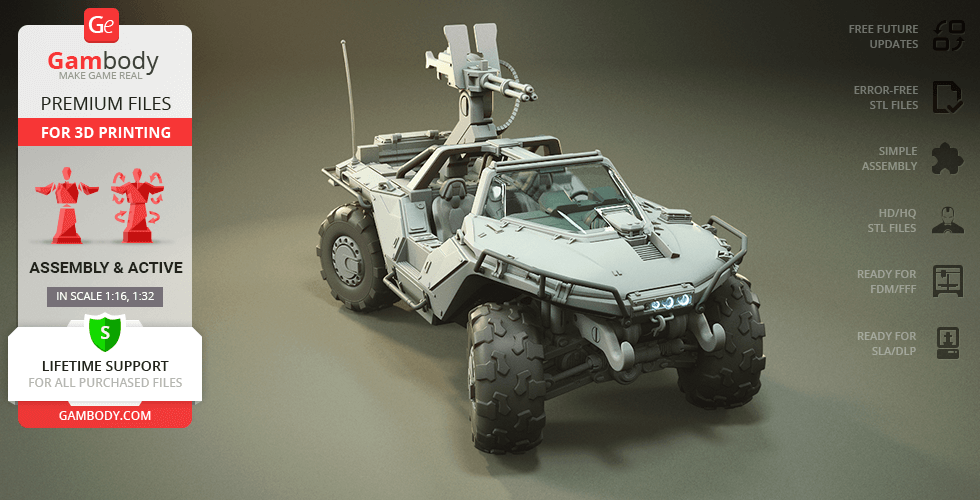

Warthog M12B 3D Printing Model | Assembly + Action

(14)
cm: 18.9 w x 39.4 d x 22.2 h
in: 7.441 w x 15.512 d x 8.74 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

- 2 versions of Warthog M12B STL files for FFF/FDM and DLP/SLA/SLS - files for both versions are available for download after the purchase

- STL files of high-poly Warthog M12B 3D Model for 3D printing consist of 181 parts
- Sizes:
FFF/FDM: 222 mm tall, 189 mm wide, 394 mm deep
DLP/SLA/SLS: 111 mm tall, 95 mm wide, 197 mm deep

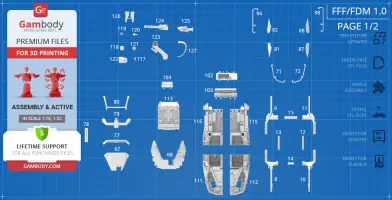

Assembly Manual for FFF/FDM 1.0 and DLP/SLA/SLS 1.0 versions in PDF format

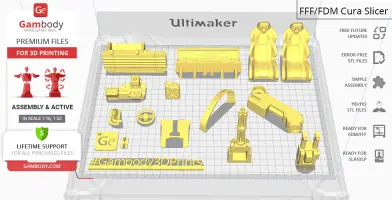

- Detailed settings that we provide as a recommendation for Cura, Simplify3D and Slic3r for the best print
- Full technical support from the Gambody Support Team

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

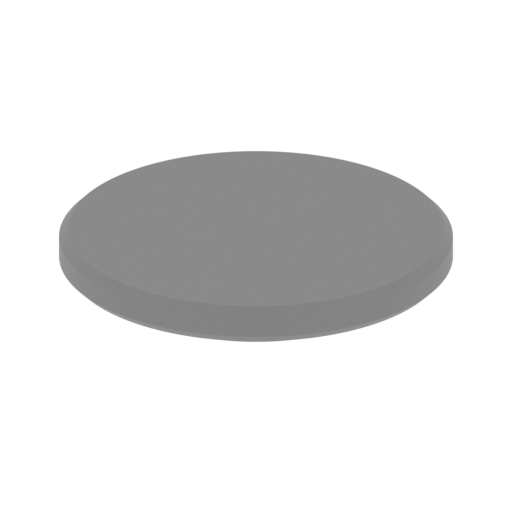

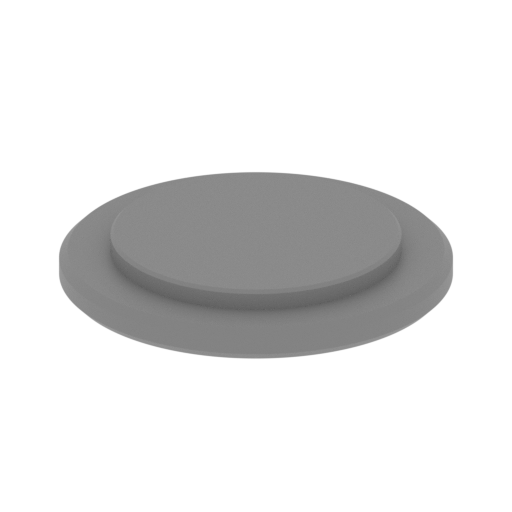

_1_Ge_lock_10H_x15 (repai red).stl
0.03 MiB 4 min <1 m 10 x 18 x 2 Download
_2_wheel_tire_x4 (repaire d).stl
25.47 MiB 14 h 54 min 8 m 87 x 87 x 38 Download

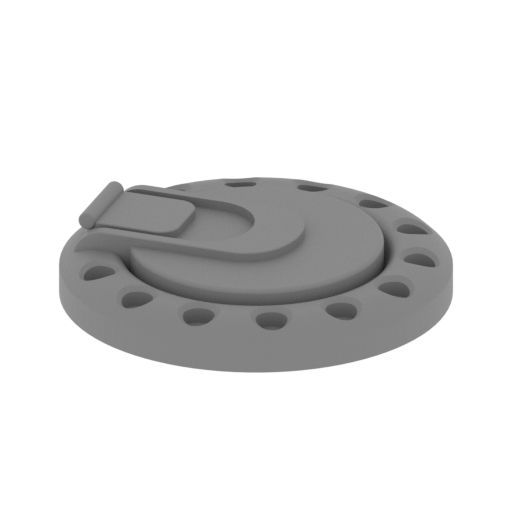

_3_wheel_disk_x4 (repaire d).stl
1.47 MiB 1 h 5 min 1 m 40 x 40 x 8 Download

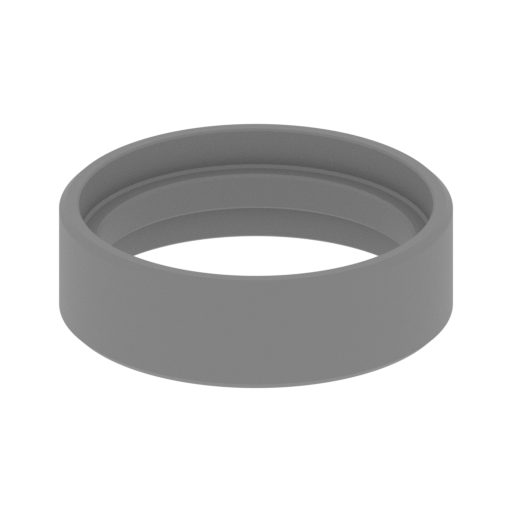

_4_wheel_bearing_out_x4 ( repaired).stl
0.11 MiB 51 min 1 m 40 x 40 x 13 Download

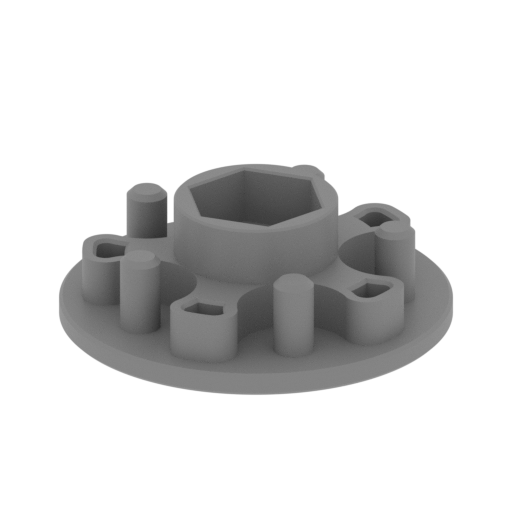

_5_wheel_bearing_in_x4 (r epaired).stl
0.23 MiB 39 min <1 m 30 x 30 x 9 Download

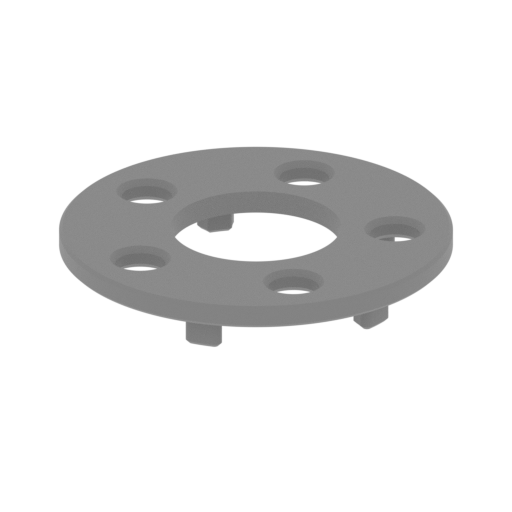

_6_wheel_bearing_a_x20 (r epaired).stl
0.11 MiB 5 min <1 m 9 x 9 x 9 Download

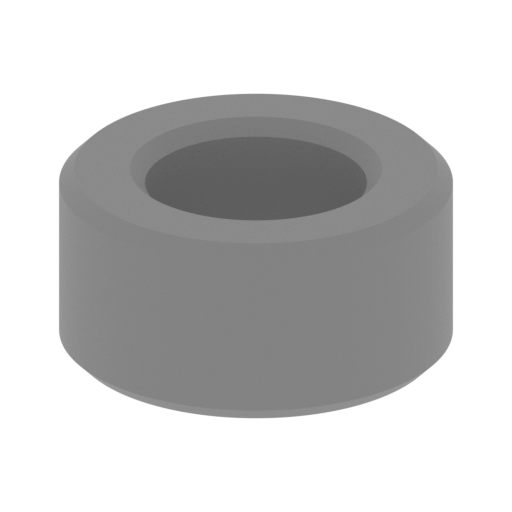

_7_wheel_bearing_b_x20 (r epaired).stl
0.10 MiB 4 min <1 m 9 x 9 x 9 Download

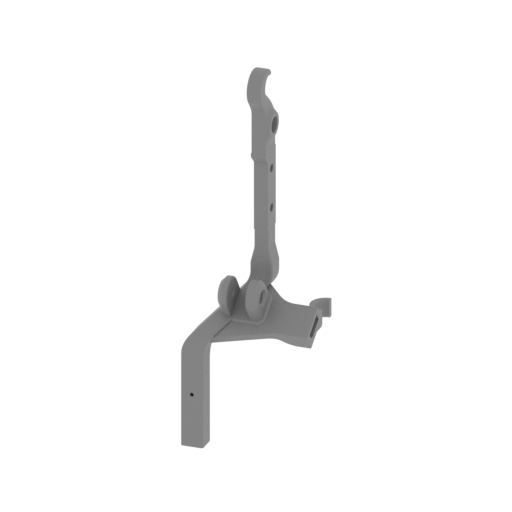

_8_suspension_frame_front _R (repaired).stl
2.49 MiB 9 h 13 min 6 m 58 x 44 x 182 Download
_9_suspension_frame_back_ R (repaired).stl
1.33 MiB 5 h 44 min 3 m 58 x 51 x 166 Download

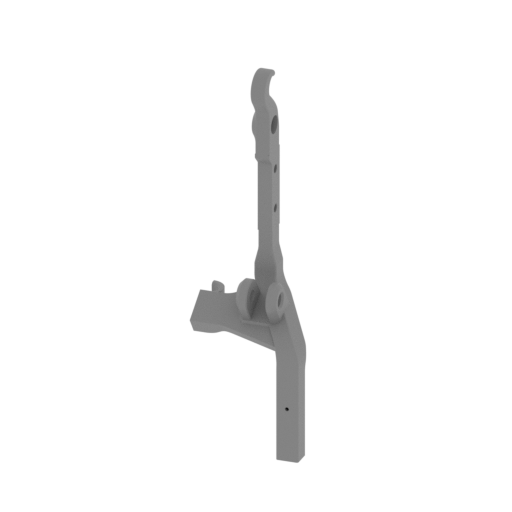

_10_suspension_frame_fron t_L (repaired).stl
2.49 MiB 9 h 18 min 6 m 58 x 44 x 182 Download

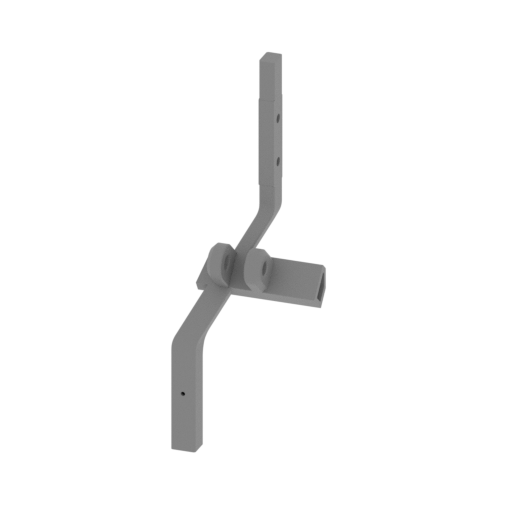

_11_suspension_frame_back _L (repaired).stl
1.33 MiB 6 h 7 min 3 m 58 x 51 x 166 Download
_12_suspension_frame_beam _a_1 (repaired).stl
0.07 MiB 26 min <1 m 8 x 61 x 7 Download
_13_suspension_frame_beam _a_2 (repaired).stl
0.07 MiB 26 min <1 m 8 x 61 x 7 Download
_14_suspension_frame_beam _b (repaired).stl
0.01 MiB 12 min <1 m 27 x 11 x 4 Download
_15_suspension_frame_beam _c (repaired).stl
0.01 MiB 25 min <1 m 55 x 11 x 5 Download

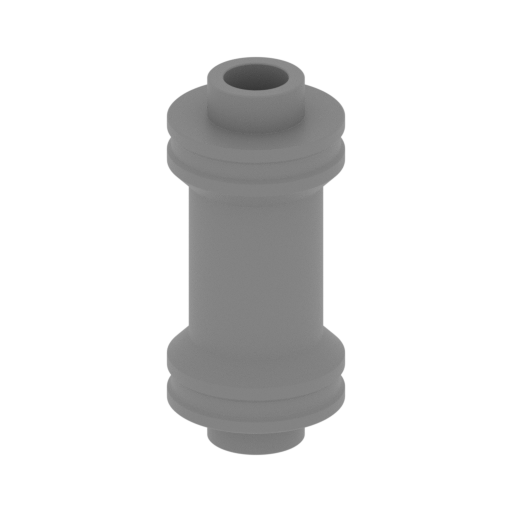

_16_suspension_winch_a (r epaired).stl
2.95 MiB 1 h 20 min 1 m 22 x 22 x 49 Download

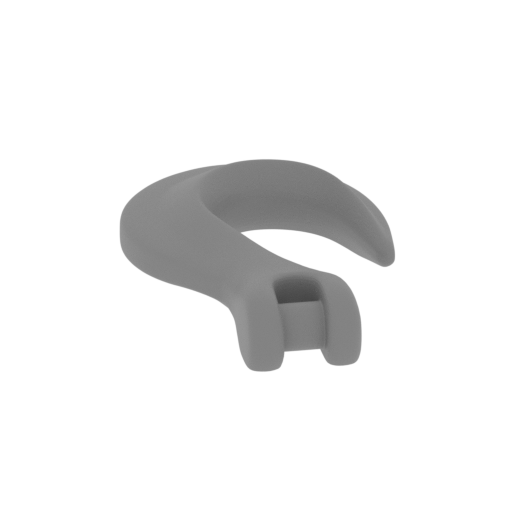

_17_suspension_winch_b (r epaired).stl
1.83 MiB 3 min <1 m 11 x 14 x 3 Download

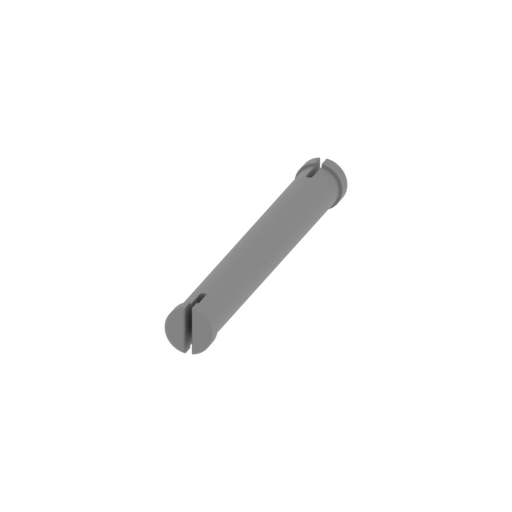

_18_suspension_winch_pin (repaired).stl
0.46 MiB 36 min <1 m 67 x 9 x 9 Download

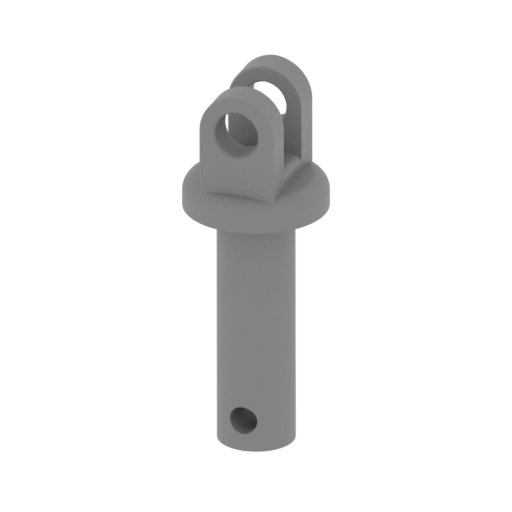

_19_suspension_shoсk_in_ x8 (repaired).stl
0.46 MiB 25 min <1 m 9 x 9 x 24 Download

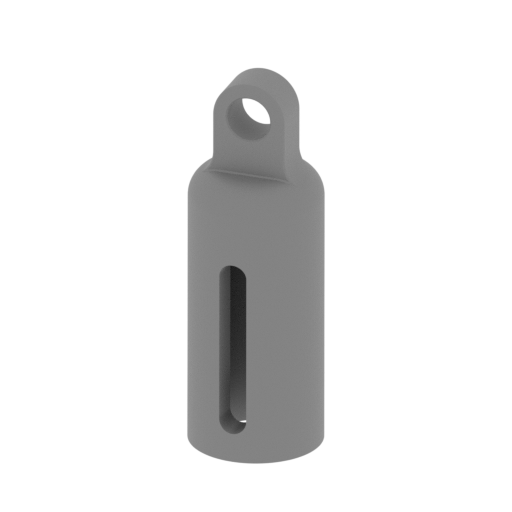

_20_suspension_shoсk_out _x8 (repaired).stl
0.51 MiB 23 min <1 m 9 x 9 x 26 Download

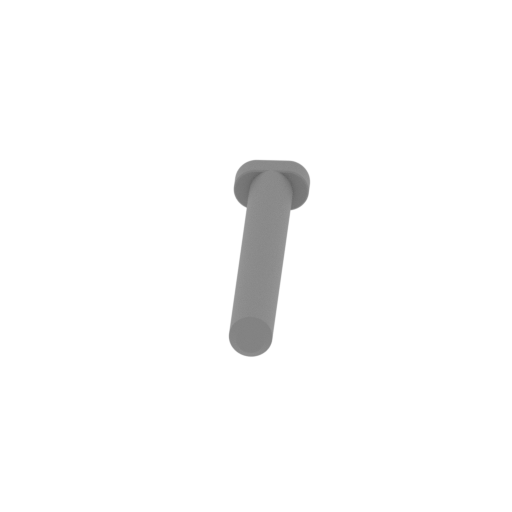

_21_suspension_shock_pin_ x4 (repaired).stl
0.34 MiB 4 min <1 m 11 x 26 x 3 Download

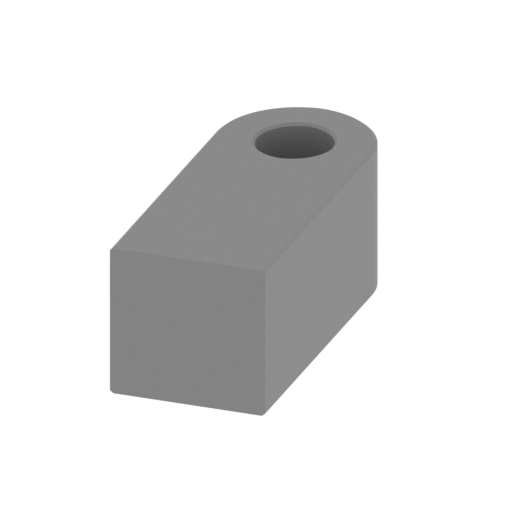

_22_suspension_shoсk_fro nt_conncetor_a_x4 (repair ed).stl
0.10 MiB 6 min <1 m 6 x 14 x 6 Download

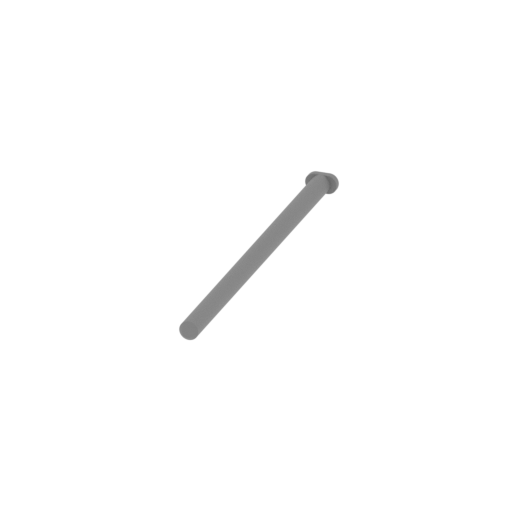

_23_suspension_shoсk_fro nt_conncetor_b_x2 (repair ed).stl
0.41 MiB 6 min <1 m 5 x 54 x 3 Download

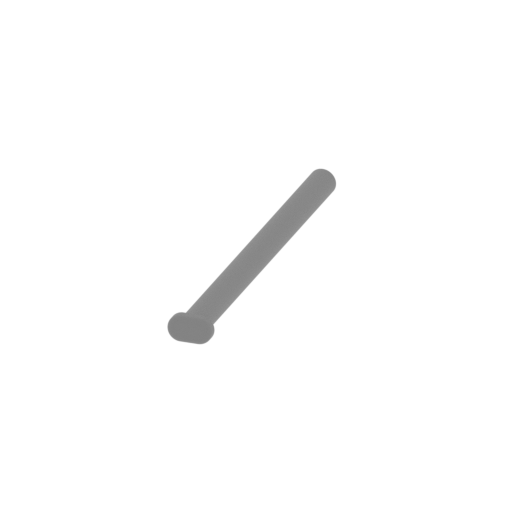

_24_suspension_shoсk_bac k_x2 (repaired).stl
0.41 MiB 5 min <1 m 5 x 39 x 3 Download
_25_suspension_connector_ a_x8 (repaired).stl
0.43 MiB 5 min <1 m 20 x 6 x 4 Download
_26_suspension_connector_ b_x2 (repaired).stl
0.55 MiB 10 min <1 m 9 x 57 x 3 Download

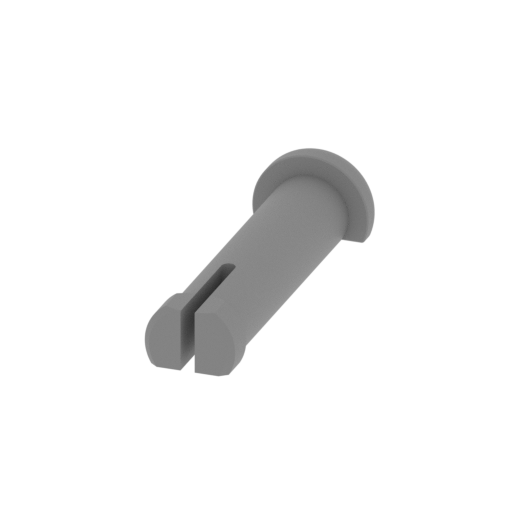

_27_suspension_connector_ c_x2 (repaired).stl
0.48 MiB 10 min <1 m 9 x 29 x 6 Download

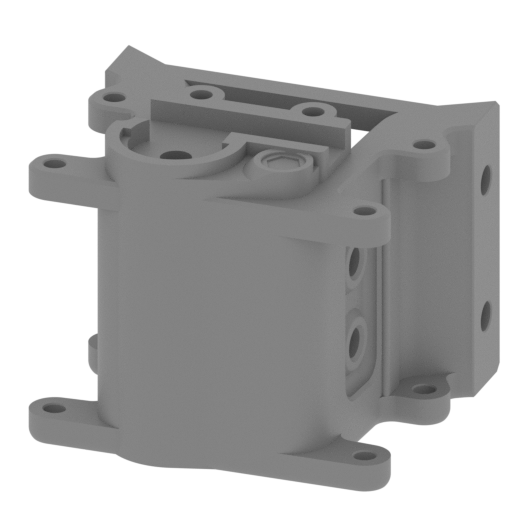

_28_suspension_front_a (r epaired).stl
5.20 MiB 7 h 22 min 4 m 53 x 46 x 45 Download

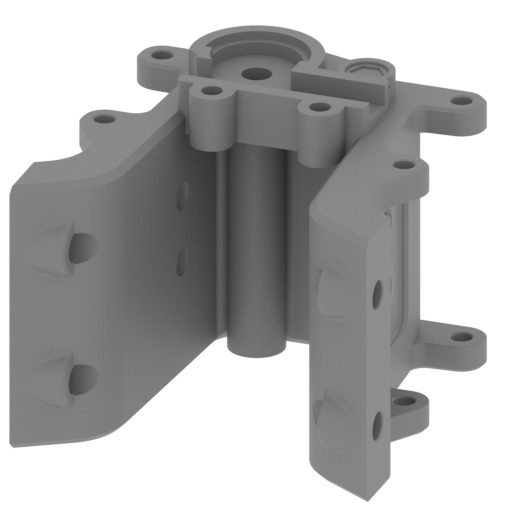

_30_suspension_back_a (re paired).stl
5.01 MiB 7 h 45 min 4 m 53 x 55 x 45 Download

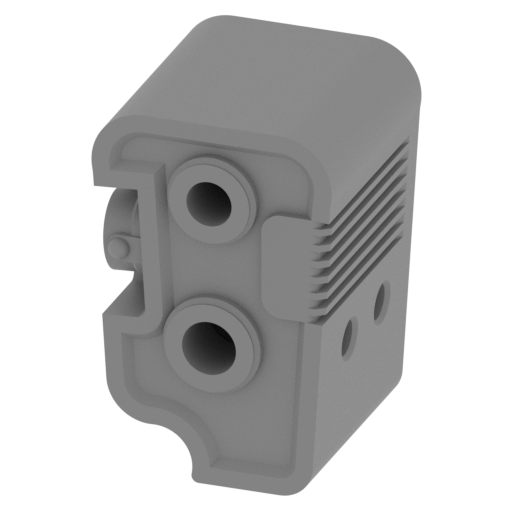

_31_suspension_back_b (re paired).stl
1.59 MiB 3 h 29 min 2 m 28 x 29 x 42 Download
_32_suspension_gear_a_x2 (repaired).stl
0.52 MiB 40 min <1 m 24 x 24 x 14 Download
_33_suspension_gear_b_x2 (repaired).stl
0.34 MiB 21 min <1 m 22 x 22 x 6 Download
_34_suspension_gear_c_x2 (repaired).stl
0.24 MiB 9 min <1 m 14 x 14 x 7 Download
_35_suspension_gear_d_x2 (repaired).stl
0.13 MiB 7 min <1 m 12 x 12 x 3 Download
_37_suspension_beam_a_x2 (repaired).stl
3.03 MiB 32 min <1 m 62 x 10 x 10 Download

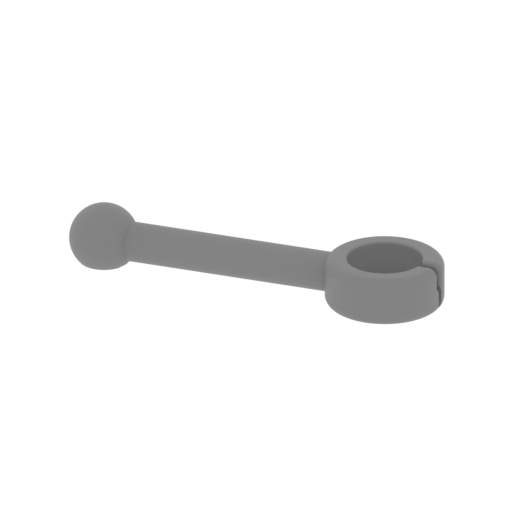

_38_suspension_beam_b_x4 (repaired).stl
2.22 MiB 12 min <1 m 37 x 21 x 6 Download

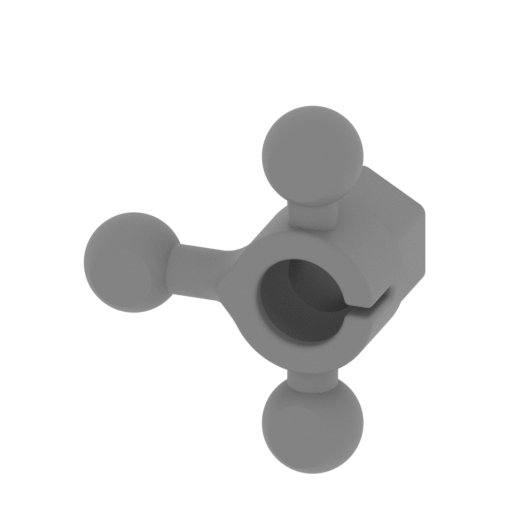

_41_suspension_beam_e_x4 (repaired).stl
2.41 MiB 26 min <1 m 25 x 31 x 15 Download

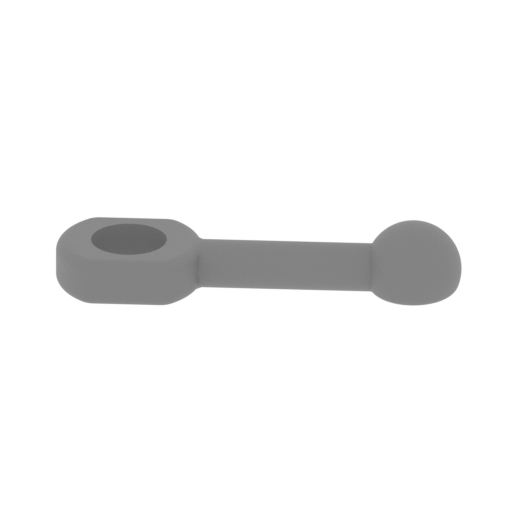

_42_suspension_beam_f_x4 (repaired).stl
1.43 MiB 10 min <1 m 33 x 17 x 6 Download
_43_suspension_beam_g_x4 (repaired).stl
1.85 MiB 1 h 2 min <1 m 19 x 27 x 22 Download

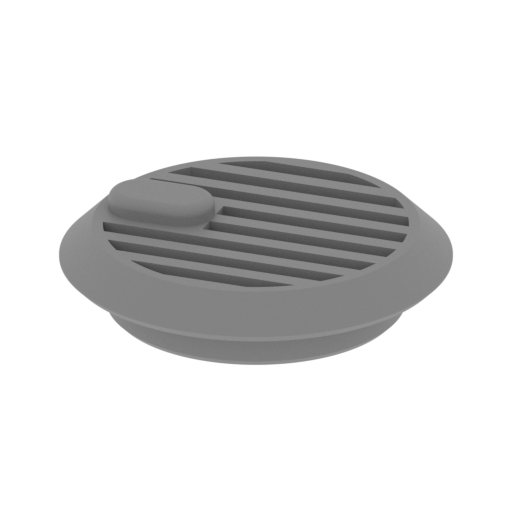

_45_suspension_beam_i_x4 (repaired).stl
0.32 MiB 11 min <1 m 18 x 18 x 5 Download
_46_suspension_connector_ d_x4 (repaired).stl
0.31 MiB 3 min <1 m 5 x 18 x 3 Download

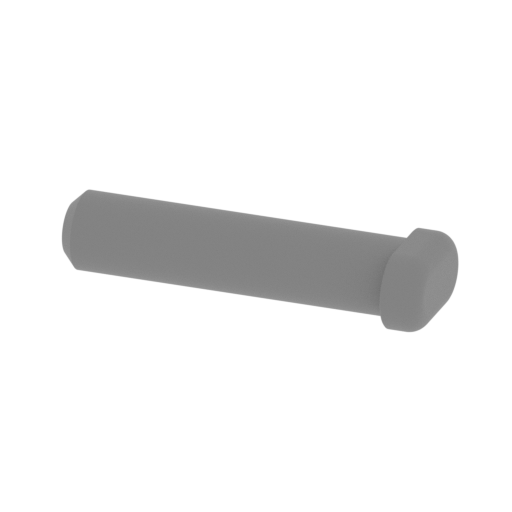

_47_suspension_connector_ e_x4 (repaired).stl
0.35 MiB 10 min <1 m 29 x 10 x 6 Download

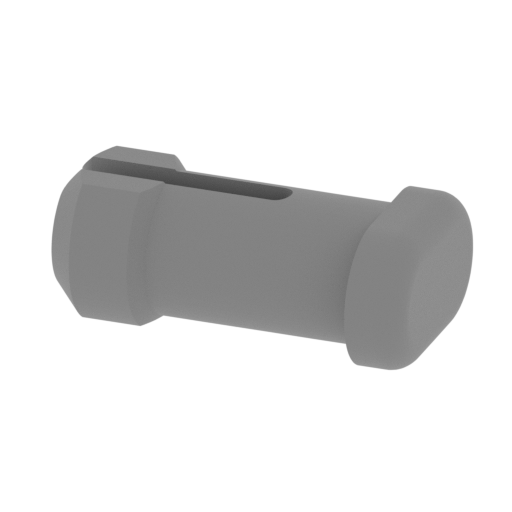

_48_suspension_connector_ f_x4 (repaired).stl
0.36 MiB 5 min <1 m 13 x 8 x 5 Download

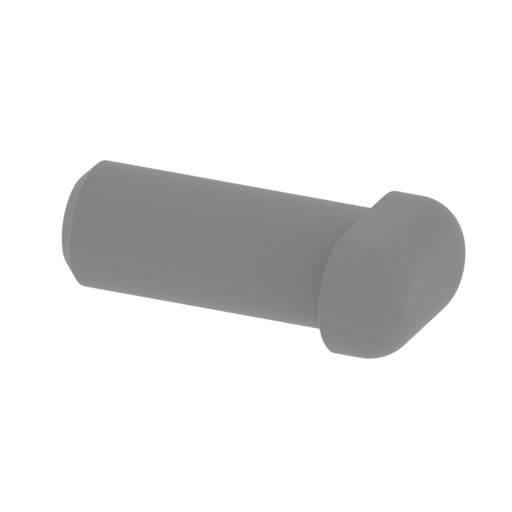

_49_suspension_connector_ g_x8 (repaired).stl
0.29 MiB 4 min <1 m 12 x 7 x 4 Download

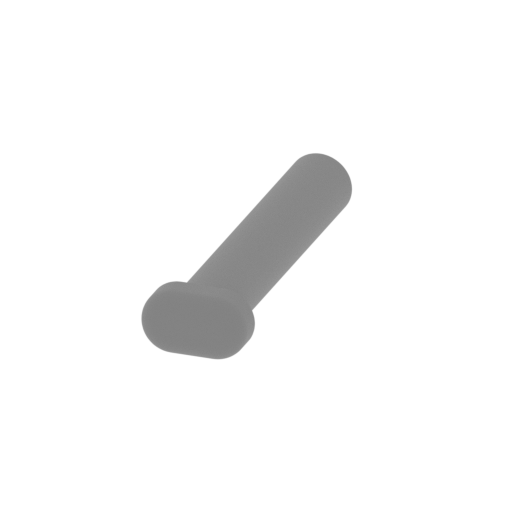

_50_suspension_connector_ h_x16 (repaired).stl
0.31 MiB 3 min <1 m 5 x 18 x 3 Download
_51_suspension_center_1 ( repaired).stl
0.47 MiB 27 min <1 m 9 x 80 x 6 Download
_52_suspension_center_2 ( repaired).stl
0.31 MiB 16 min <1 m 18 x 18 x 10 Download

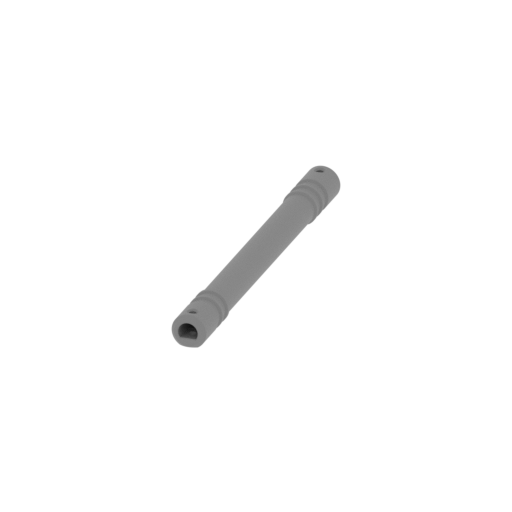

_53_suspension_center_3 ( repaired).stl
0.68 MiB 57 min 1 m 9 x 98 x 9 Download
_54_suspension_center_4 ( repaired).stl
0.52 MiB 29 min <1 m 9 x 81 x 6 Download

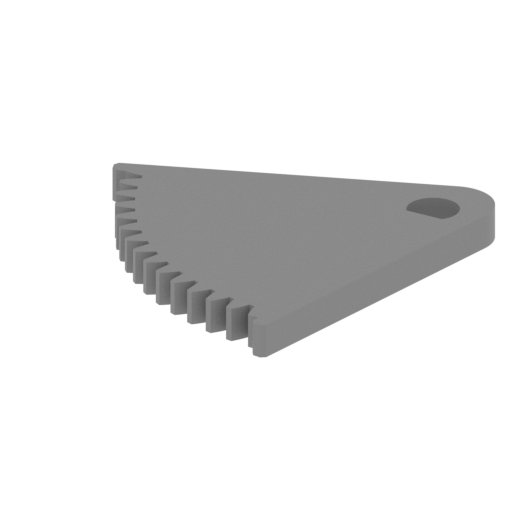

_55_suspension_center_5 ( repaired).stl
0.10 MiB 41 min <1 m 45 x 44 x 4 Download

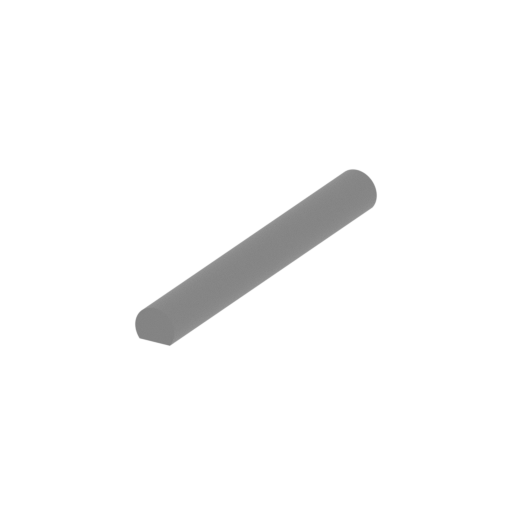

_56_suspension_center_6 ( repaired).stl
0.09 MiB 13 min <1 m 15 x 51 x 5 Download

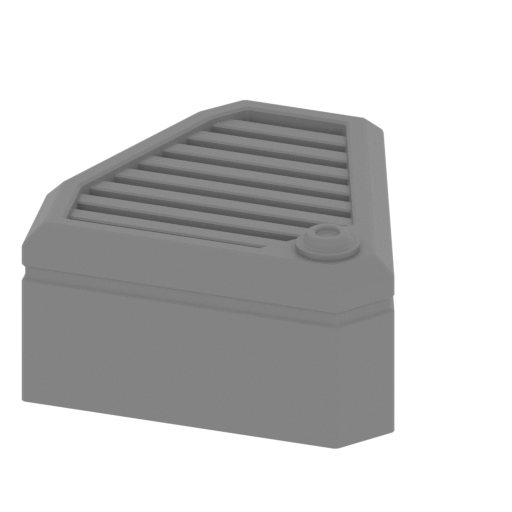

_57_engine_a_R (repaired) .stl
0.14 MiB 33 min <1 m 24 x 24 x 13 Download
_58_engine_b_R (repaired) .stl
0.23 MiB 14 min <1 m 15 x 11 x 12 Download
_59_engine_c_R (repaired) .stl
0.44 MiB 11 min <1 m 16 x 25 x 9 Download

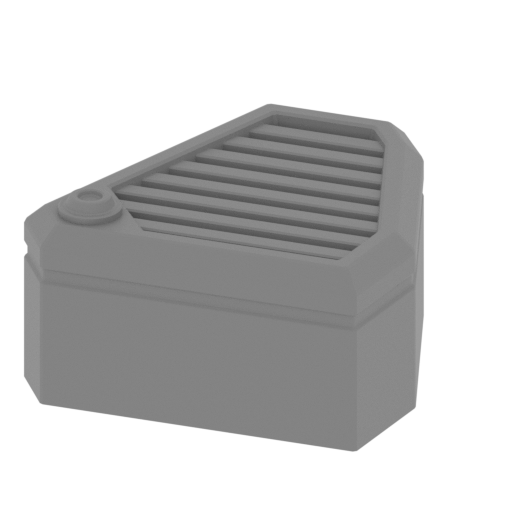

_60_engine_a_L (repaired) .stl
0.14 MiB 33 min <1 m 24 x 24 x 13 Download
_61_engine_b_L (repaired) .stl
0.23 MiB 14 min <1 m 15 x 11 x 12 Download
_62_engine_c_L (repaired) .stl
0.44 MiB 11 min <1 m 16 x 25 x 9 Download

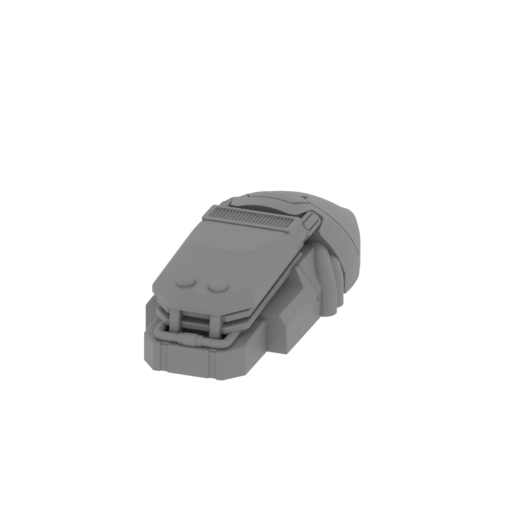

_63_engine_d (repaired).s tl
4.10 MiB 1 h 30 min 1 m 26 x 58 x 14 Download

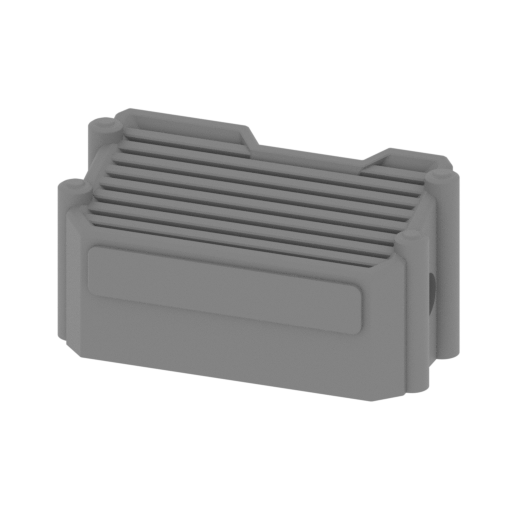

_64_engine_e (repaired).s tl
0.55 MiB 1 h 15 min 1 m 40 x 19 x 20 Download

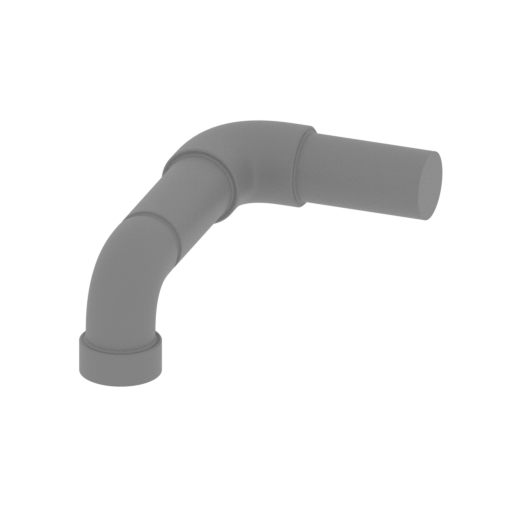

_65_engine_f (repaired).s tl
0.50 MiB 14 min <1 m 17 x 27 x 10 Download

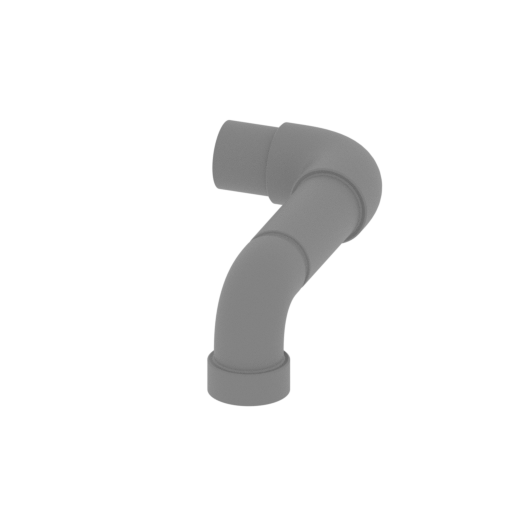

_66_engine_g (repaired).s tl
0.51 MiB 13 min <1 m 12 x 27 x 10 Download

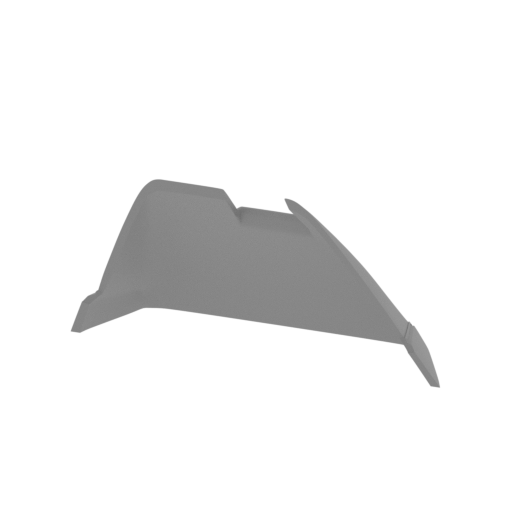

_67_front_window (repaire d).stl
6.12 MiB 3 h 56 min 2 m 110 x 52 x 63 Download

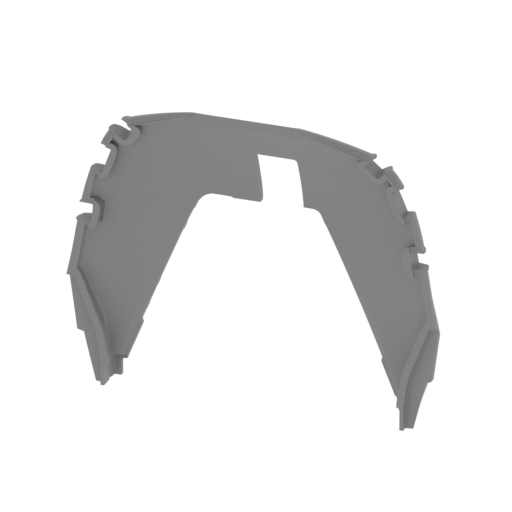

_68_front_hood (repaired) .stl
23.43 MiB 13 h 29 min 7 m 151 x 27 x 124 Download

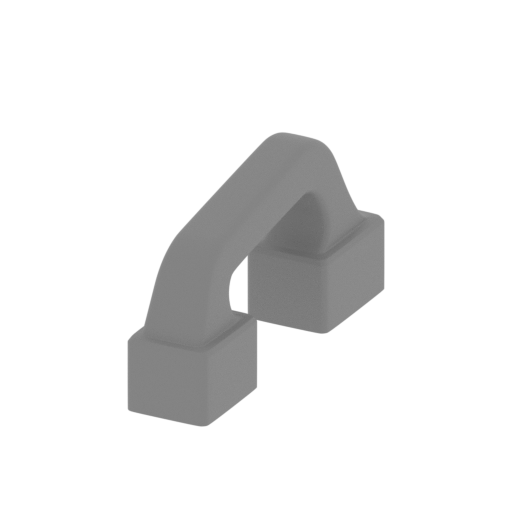

_69_front_knob_R (repaire d).stl
1.00 MiB 9 min <1 m 6 x 17 x 9 Download

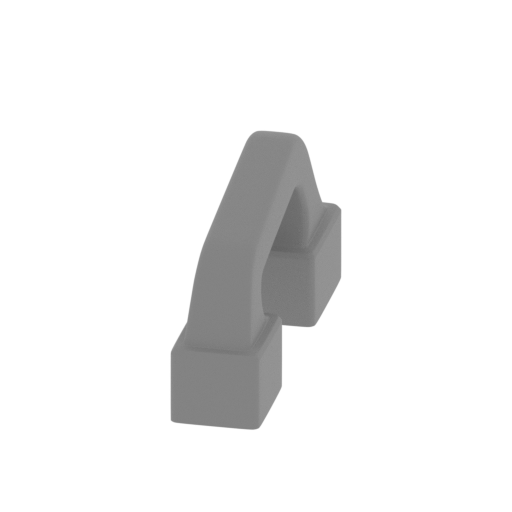

_70_front_knob_L (repaire d).stl
1.00 MiB 8 min <1 m 6 x 17 x 9 Download

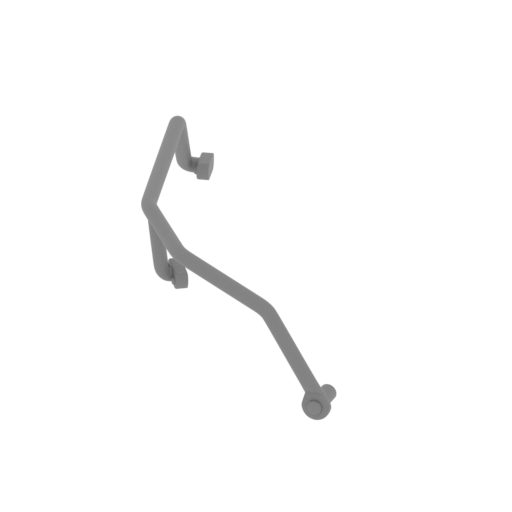

_71_front_rail_R (repaire d).stl
3.94 MiB 1 h 26 min 1 m 61 x 82 x 34 Download

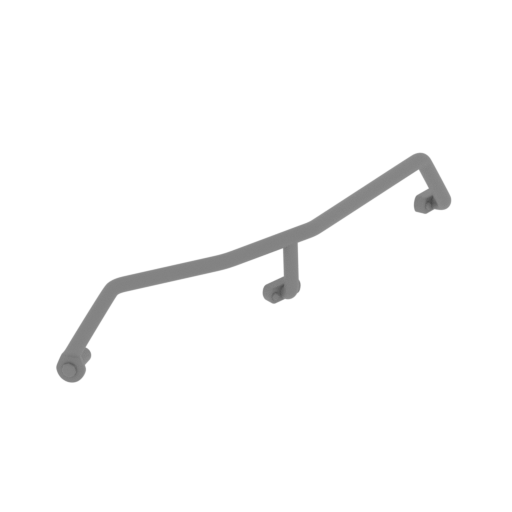

_72_front_rail_L (repaire d).stl
3.94 MiB 1 h 27 min 1 m 61 x 82 x 34 Download
_73_front_rail (repaired) .stl
0.30 MiB 5 min <1 m 16 x 3 x 6 Download

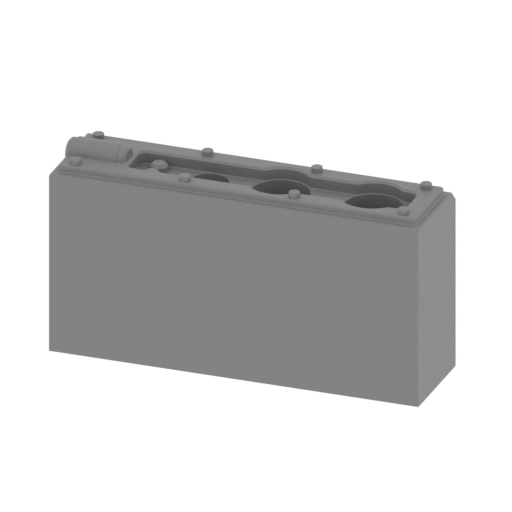

_74_front_lights_a (repai red).stl
0.61 MiB 1 h 17 min 1 m 41 x 13 x 23 Download

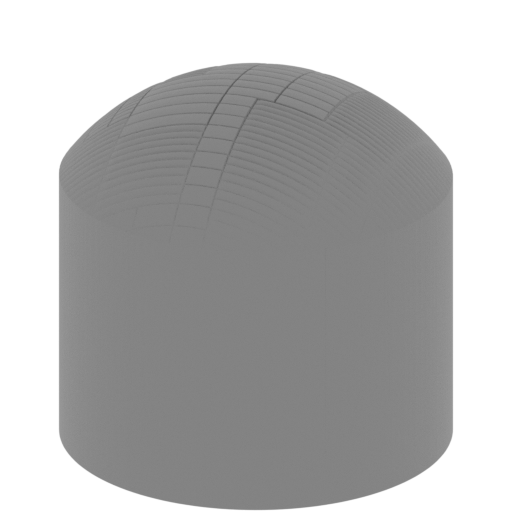

_75_front_lights_b (repai red).stl
2.25 MiB 5 min <1 m 6 x 6 x 6 Download

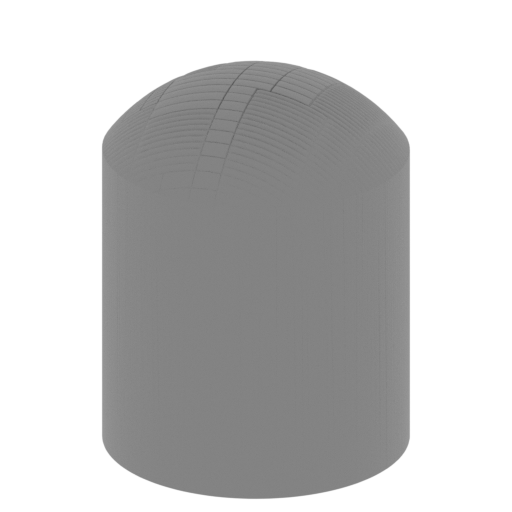

_76_front_lights_c (repai red).stl
2.35 MiB 3 min <1 m 4 x 4 x 5 Download

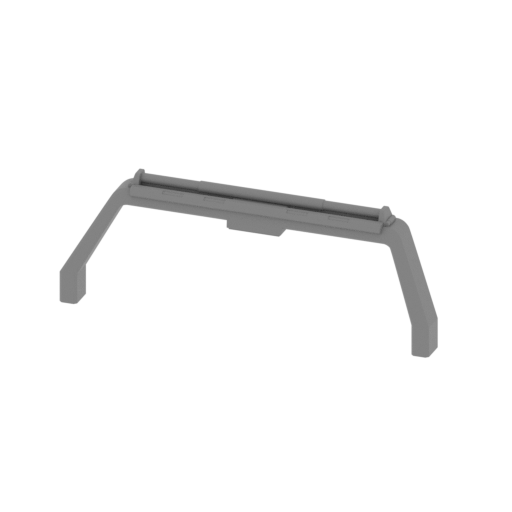

_77_center_frame_a (repai red).stl
1.34 MiB 3 h 18 min 2 m 115 x 21 x 38 Download

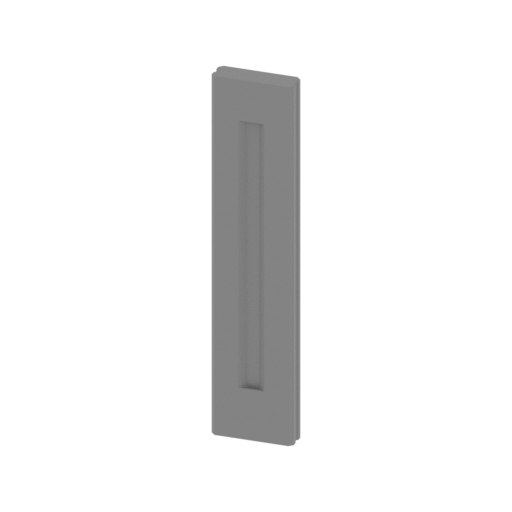

_78_center_frame_b (repai red).stl
0.07 MiB 1 h 4 min <1 m 14 x 4 x 62 Download

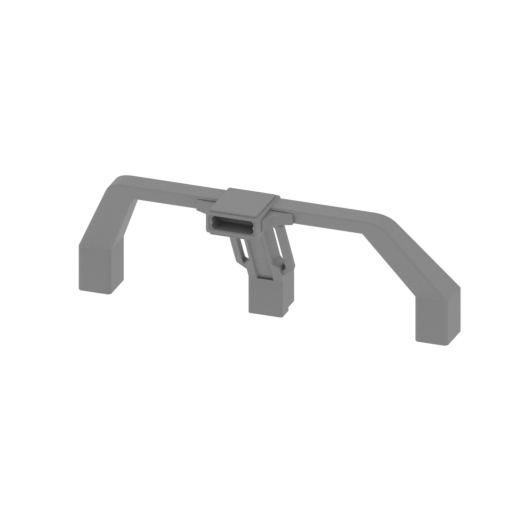

_79_center_frame_c (repai red).stl
2.18 MiB 5 h 53 min 4 m 123 x 44 x 48 Download

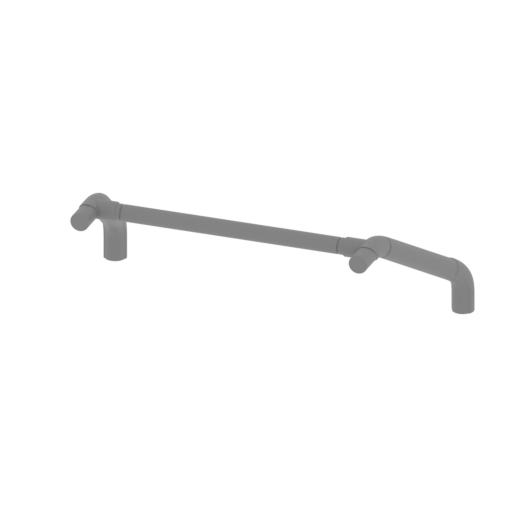

_80_center_frame_d (repai red).stl
1.78 MiB 3 h 30 min 2 m 112 x 61 x 40 Download

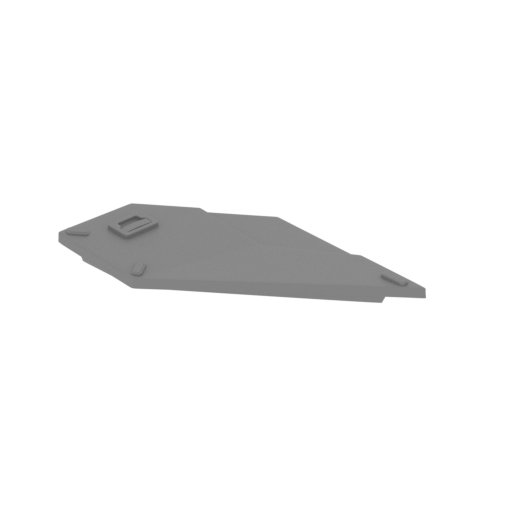

_81_center_panel_a_R (rep aired).stl
1.64 MiB 58 min 1 m 70 x 31 x 6 Download

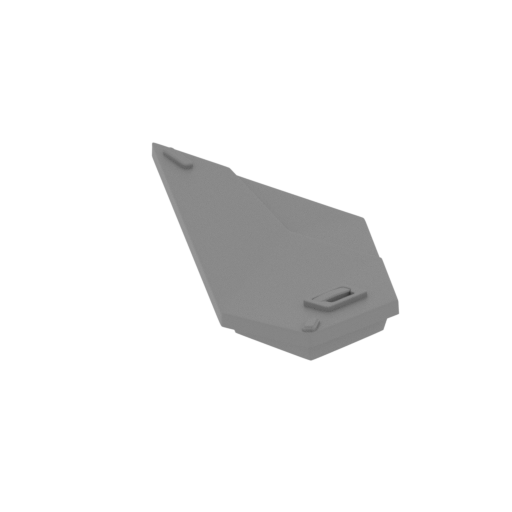

_82_center_panel_b_R (rep aired).stl
1.84 MiB 55 min <1 m 51 x 55 x 6 Download

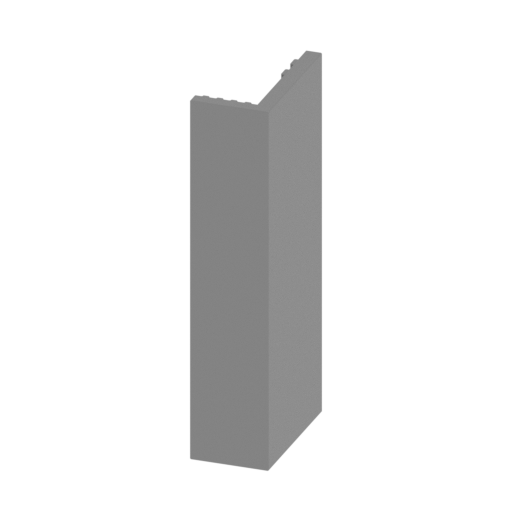

_83_center_panel_c_R (rep aired).stl
0.13 MiB 9 min <1 m 7 x 41 x 2 Download
_84_center_panel_d_R (rep aired).stl
0.11 MiB 25 min <1 m 52 x 26 x 4 Download

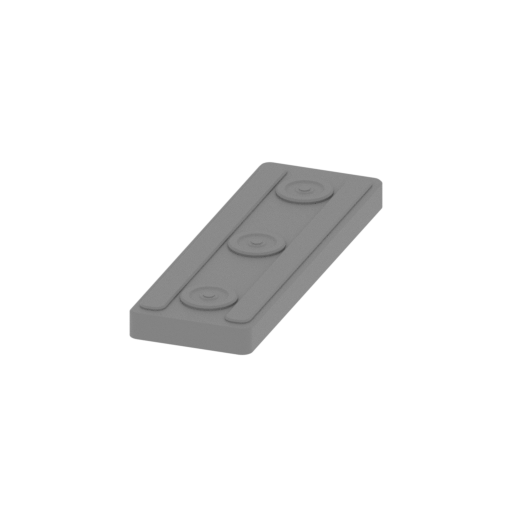

_85_center_panel_e_R (rep aired).stl
0.50 MiB 29 min <1 m 16 x 49 x 4 Download
_86_center_rail_R (repair ed).stl
0.53 MiB 36 min <1 m 65 x 21 x 16 Download

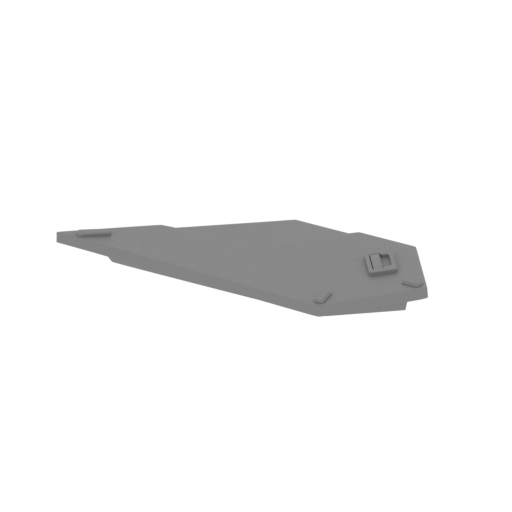

_87_center_panel_a_L (rep aired).stl
1.64 MiB 58 min 1 m 70 x 31 x 6 Download

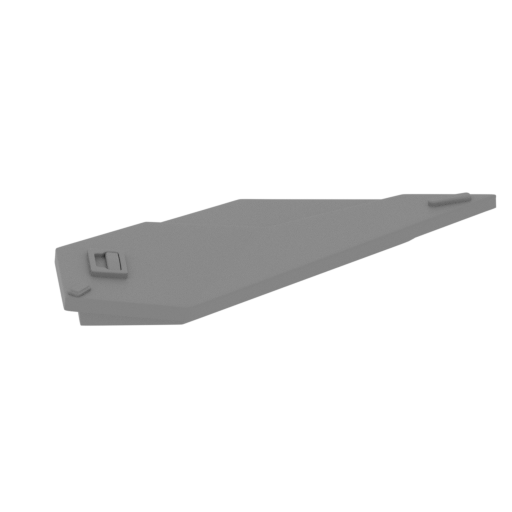

_88_center_panel_b_L (rep aired).stl
1.84 MiB 55 min <1 m 51 x 55 x 6 Download
_89_center_panel_c_L (rep aired).stl
0.13 MiB 9 min <1 m 7 x 41 x 2 Download

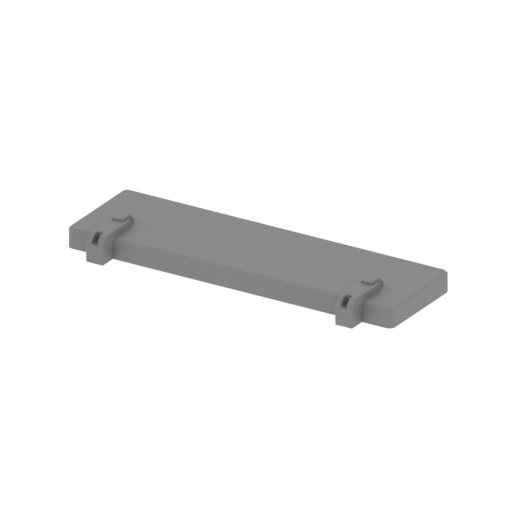

_90_center_panel_d_L (rep aired).stl
0.11 MiB 25 min <1 m 52 x 26 x 4 Download
_91_center_panel_e_L (rep aired).stl
0.50 MiB 29 min <1 m 16 x 49 x 4 Download

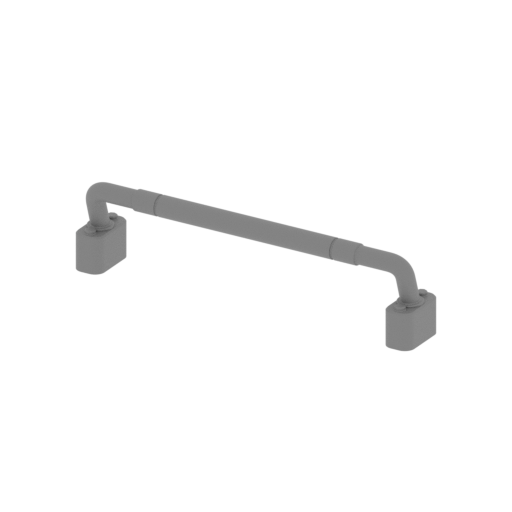

_92_center_rail_L (repair ed).stl
0.53 MiB 35 min <1 m 65 x 21 x 16 Download
_93_back_knob_a_R (repair ed).stl
1.00 MiB 8 min <1 m 13 x 16 x 9 Download
_94_back_rail_R (repaired ).stl
2.96 MiB 1 h 11 min 1 m 108 x 11 x 26 Download
_95_back_panel_R (repaire d).stl
0.78 MiB 17 min <1 m 23 x 10 x 10 Download

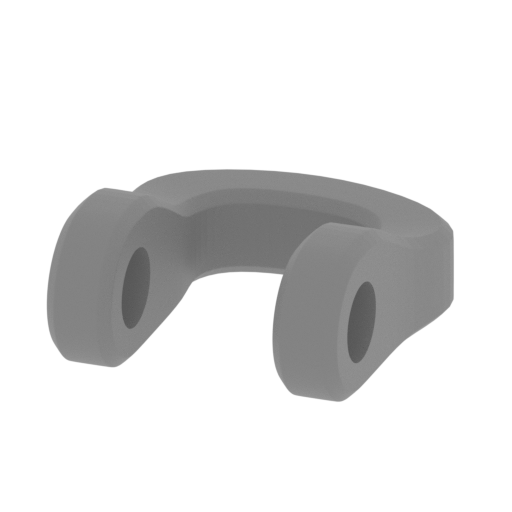

_96_back_knob_b_R (repair ed).stl
0.96 MiB 4 min <1 m 8 x 10 x 4 Download
_97_back_knob_a_L (repair ed).stl
1.00 MiB 8 min <1 m 13 x 16 x 9 Download

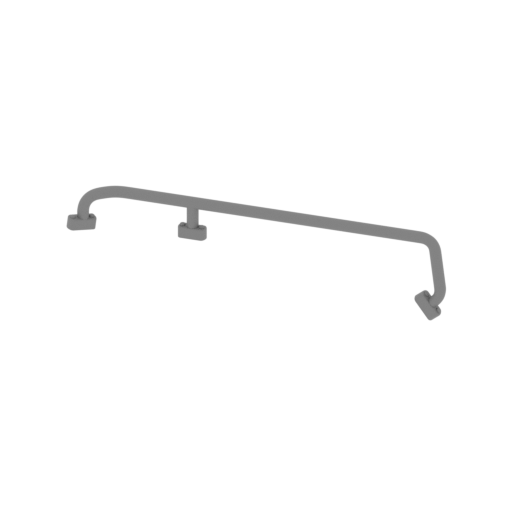

_98_back_rail_L (repaired ).stl
2.96 MiB 1 h 11 min 1 m 108 x 11 x 26 Download
_99_back_panel_L (repaire d).stl
0.78 MiB 17 min <1 m 23 x 10 x 10 Download
_100_back_knob_b_L (repai red).stl
0.96 MiB 4 min <1 m 8 x 10 x 4 Download

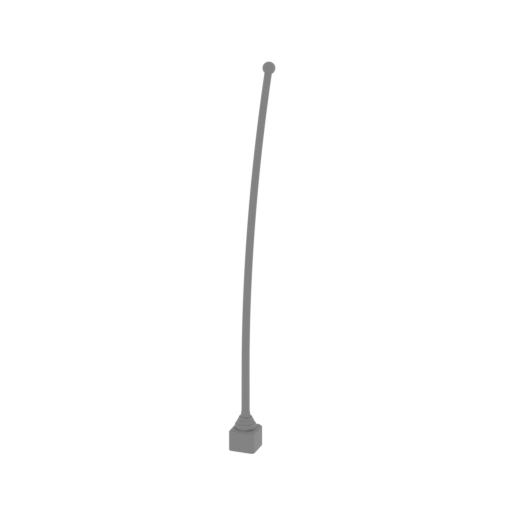

_101_back_anten (repaired ).stl
1.50 MiB 46 min <1 m 7 x 22 x 98 Download

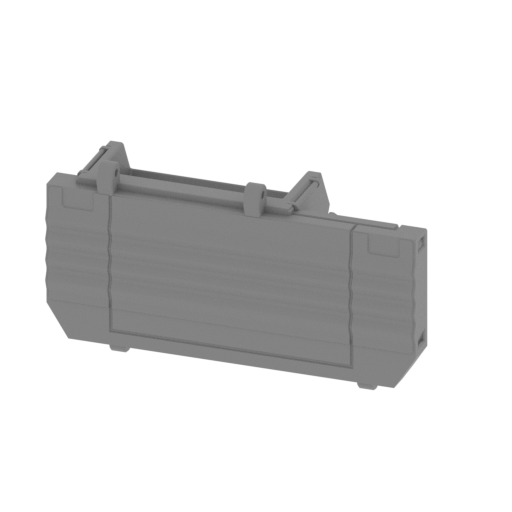

_102_back_hood_a (repaire d).stl
3.27 MiB 7 h 21 min 5 m 92 x 36 x 51 Download
_103_back_hood_b (repaire d).stl
10.53 MiB 5 h 22 min 3 m 99 x 41 x 27 Download
_104_back_hood_c (repaire d).stl
0.17 MiB 1 h 29 min 1 m 49 x 15 x 31 Download

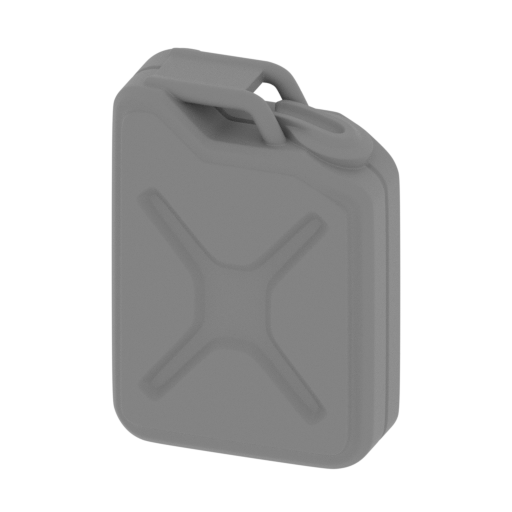

_105_back_canister_x4 (re paired).stl
13.68 MiB 44 min <1 m 21 x 10 x 29 Download

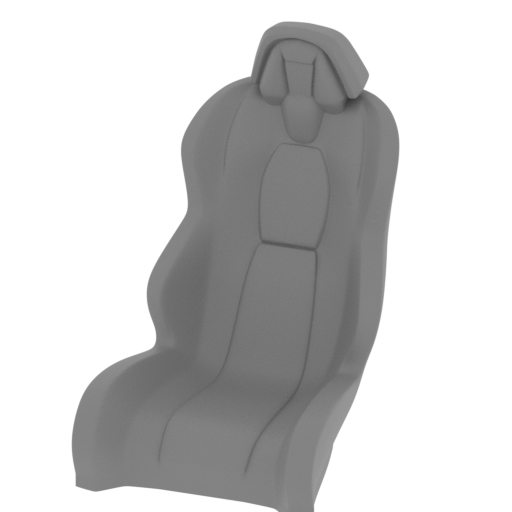

_106_cockpit_seat_1 (repa ired).stl
5.44 MiB 4 h 6 min 2 m 44 x 66 x 68 Download

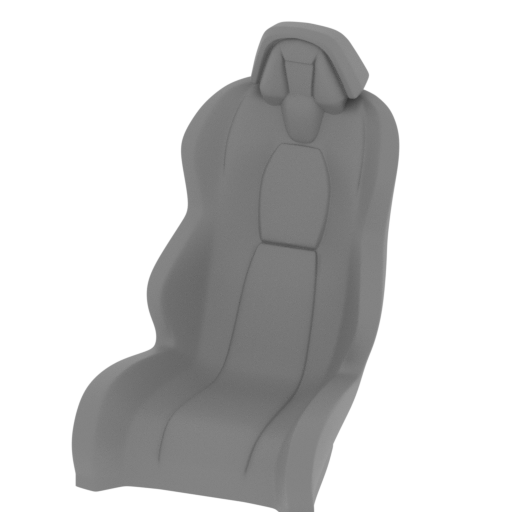

_107_cockpit_seat_2 (repa ired).stl
5.45 MiB 4 h 7 min 2 m 44 x 66 x 68 Download

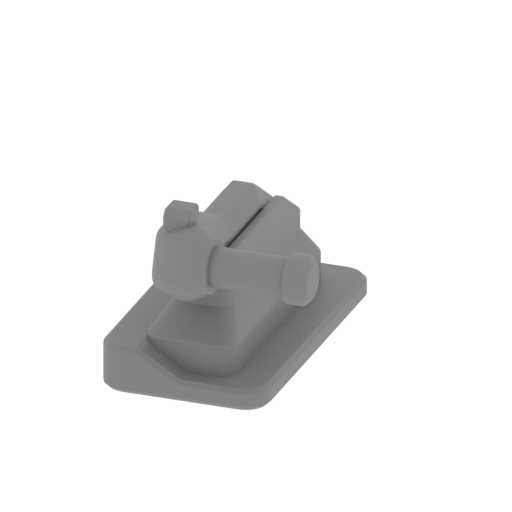

_108_cockpit_gear_shift ( repaired).stl
0.99 MiB 33 min <1 m 20 x 32 x 18 Download

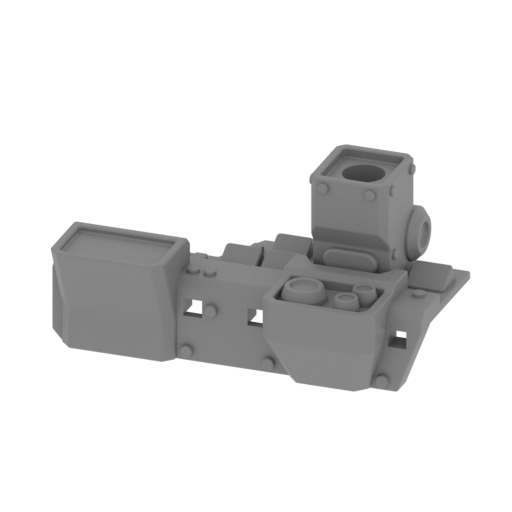

_109_cockpit_panel (repai red).stl
0.70 MiB 2 h 16 min 1 m 58 x 30 x 29 Download

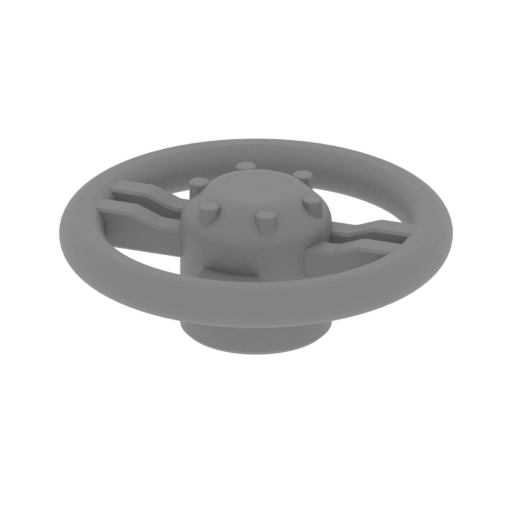

_110_cockpit_stearing (re paired).stl
0.90 MiB 27 min <1 m 26 x 26 x 10 Download

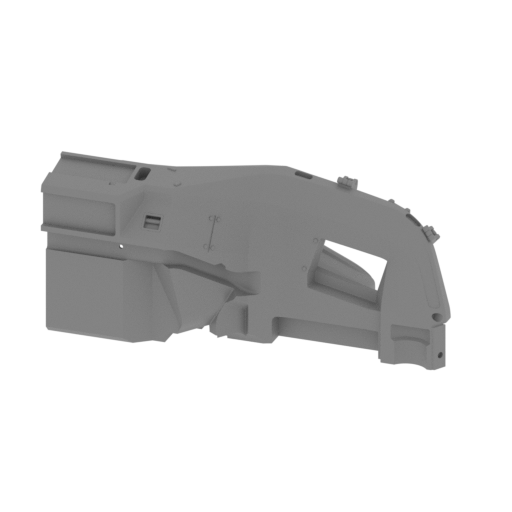

_111_body_front_R (repair ed).stl
16.45 MiB 43 h 58 min 28 m 177 x 79 x 86 Download

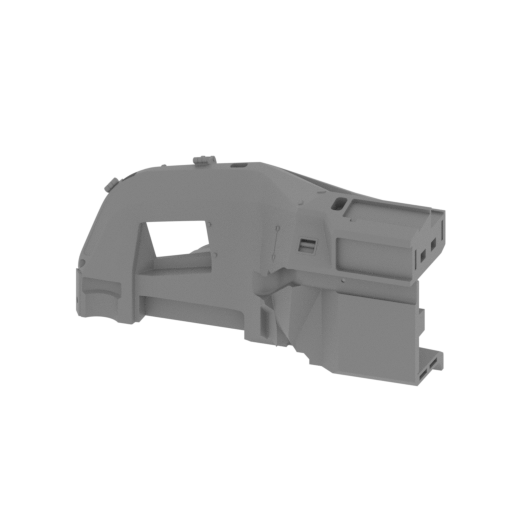

_112_body_front_L (repair ed).stl
16.23 MiB 43 h 56 min 29 m 177 x 79 x 86 Download
_113_body_bottom (repaire d).stl
5.52 MiB 21 h 6 min 16 m 93 x 123 x 33 Download
_114_body_beams_x9 (repai red).stl
0.01 MiB 11 min <1 m 38 x 6 x 4 Download
_115_body_back_L (repaire d).stl
14.86 MiB 36 h 57 min 23 m 86 x 79 x 184 Download

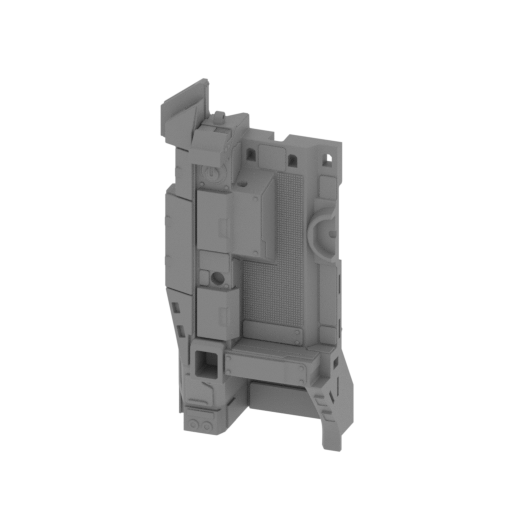

_116_body_back_R (repaire d).stl
14.88 MiB 37 h 8 min 23 m 86 x 79 x 184 Download

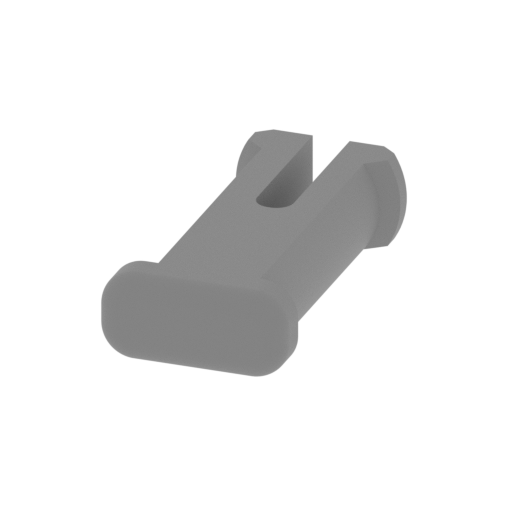

_117_gun_connector_1 (rep aired).stl
1.03 MiB 3 min <1 m 6 x 13 x 3 Download
_118_gun_connector_2 (rep aired).stl
0.09 MiB 14 min <1 m 18 x 20 x 6 Download

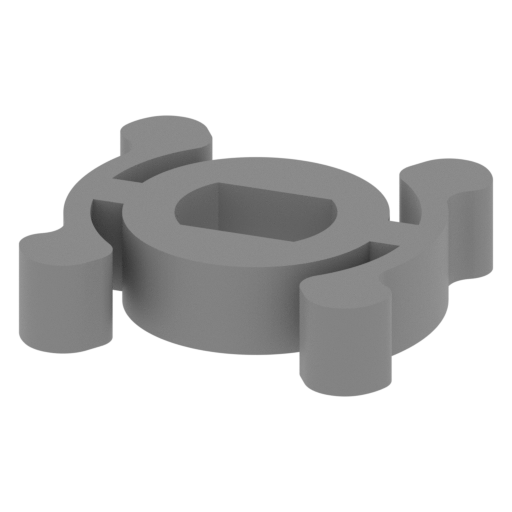

_119_gun_connector_3 (rep aired).stl
0.47 MiB 7 min <1 m 12 x 11 x 3 Download

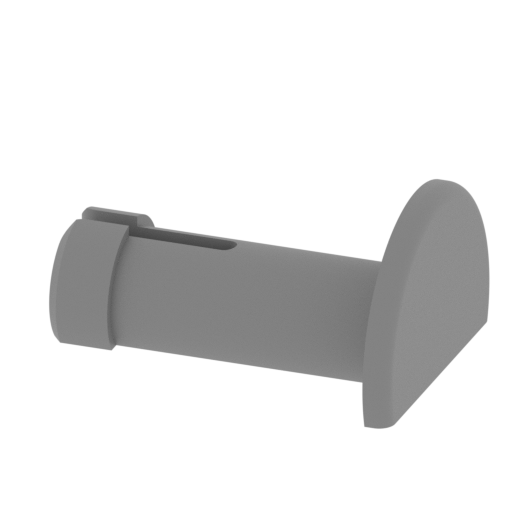

_120_gun_connector_4 (rep aired).stl
0.81 MiB 9 min <1 m 18 x 14 x 9 Download

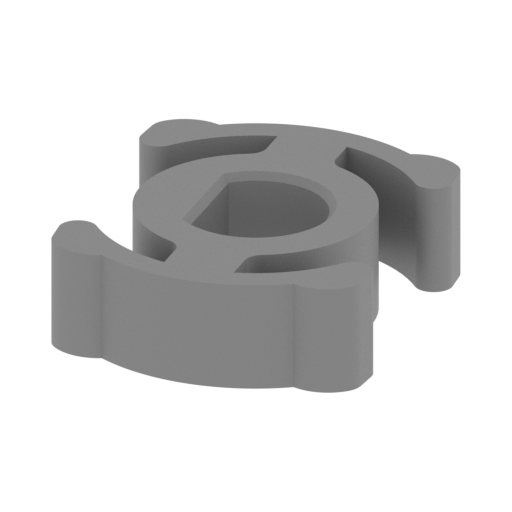

_121_gun_connector_5 (rep aired).stl
0.60 MiB 14 min <1 m 14 x 16 x 5 Download
_122_gun_connector_6 (rep aired).stl
0.18 MiB 58 min 1 m 22 x 36 x 18 Download
_123_gun_1 (repaired).stl
1.47 MiB 3 h 39 min 2 m 74 x 78 x 19 Download

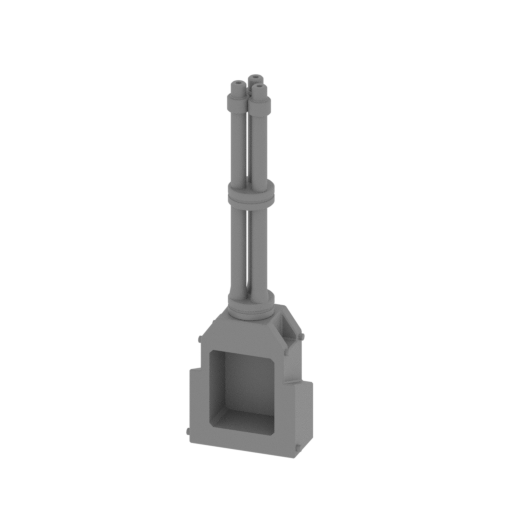

_124_gun_2 (repaired).stl
0.92 MiB 3 h 56 min 2 m 32 x 21 x 103 Download

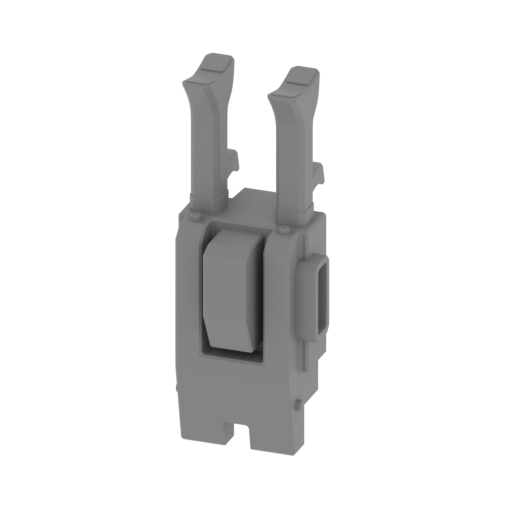

_125_gun_3 (repaired).stl
1.31 MiB 2 h 33 min 1 m 26 x 25 x 67 Download

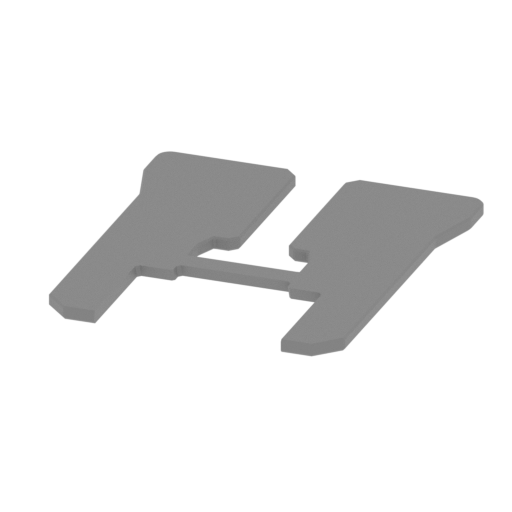

_126_gun_4 (repaired).stl
0.05 MiB 30 min <1 m 41 x 46 x 2 Download

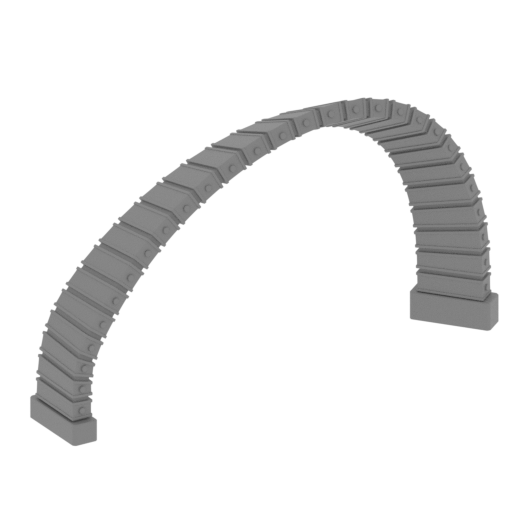

_127_gun_5 (repaired).stl
16.91 MiB 2 h 7 min 1 m 51 x 54 x 40 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download

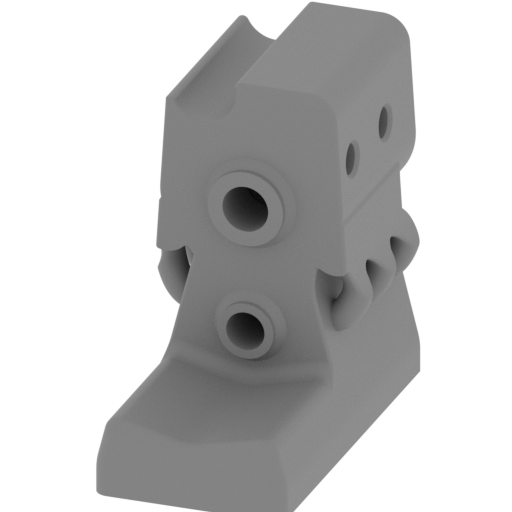

_29_suspension_front_b (r epaired).stl
10.06 MiB 4 h 22 min 2 m 29 x 50 x 49 Download

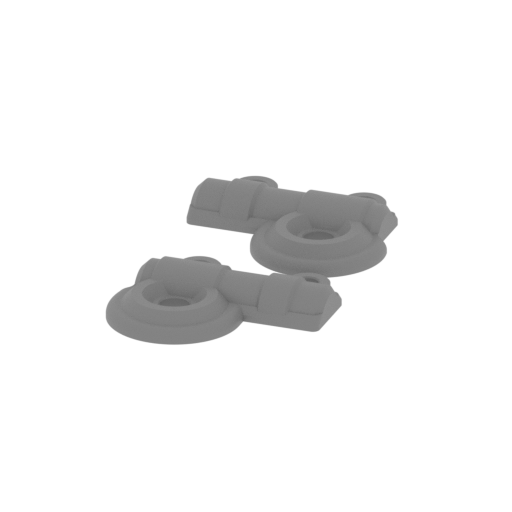

_36_suspension_caps (repa ired).stl
0.82 MiB 37 min <1 m 30 x 54 x 5 Download

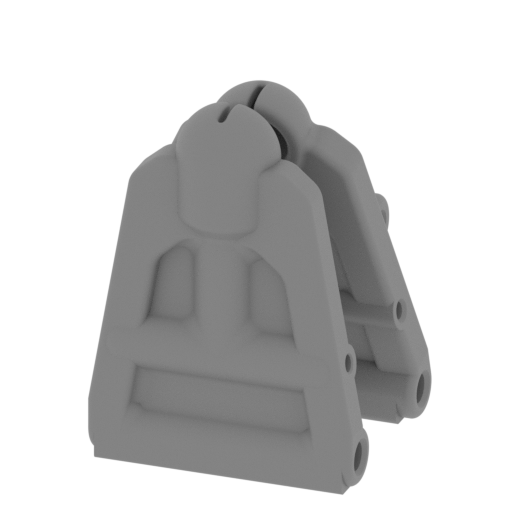

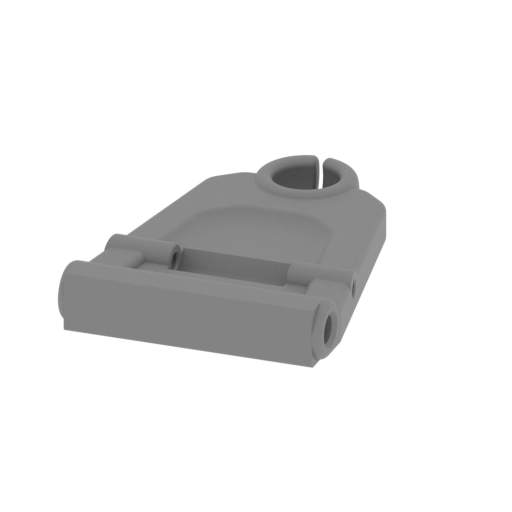

_40_suspension_beam_d_x4 (repaired).stl
9.78 MiB 2 h 48 min 1 m 32 x 29 x 44 Download

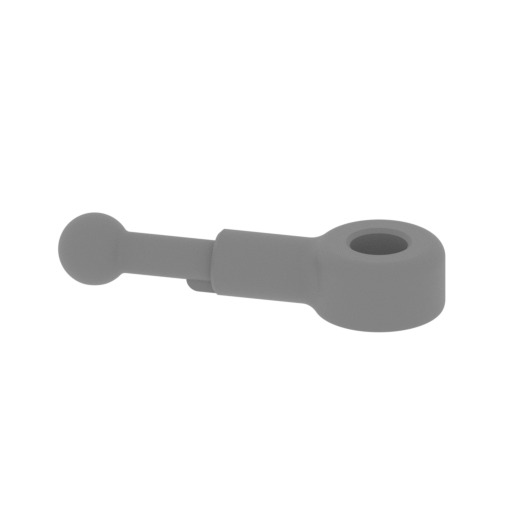

_39_suspension_beam_c_x4 (repaired).stl
1.73 MiB 39 min <1 m 48 x 9 x 16 Download
_44_suspension_beam_h_x4 (repaired).stl
1.07 MiB 21 min <1 m 21 x 13 x 13 Download
...

ABOUT THIS 3D MODEL

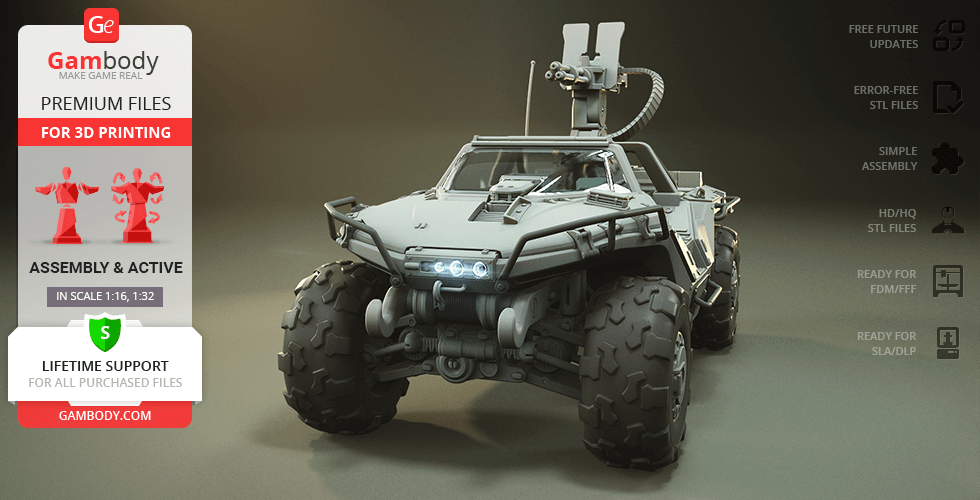

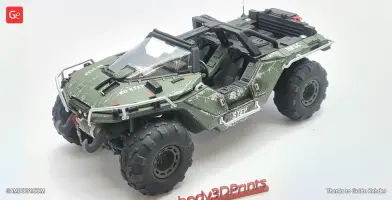

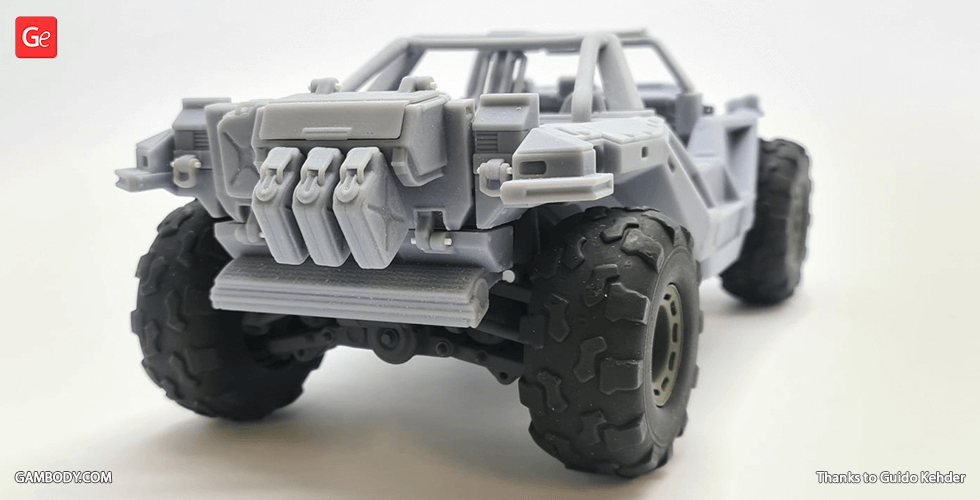

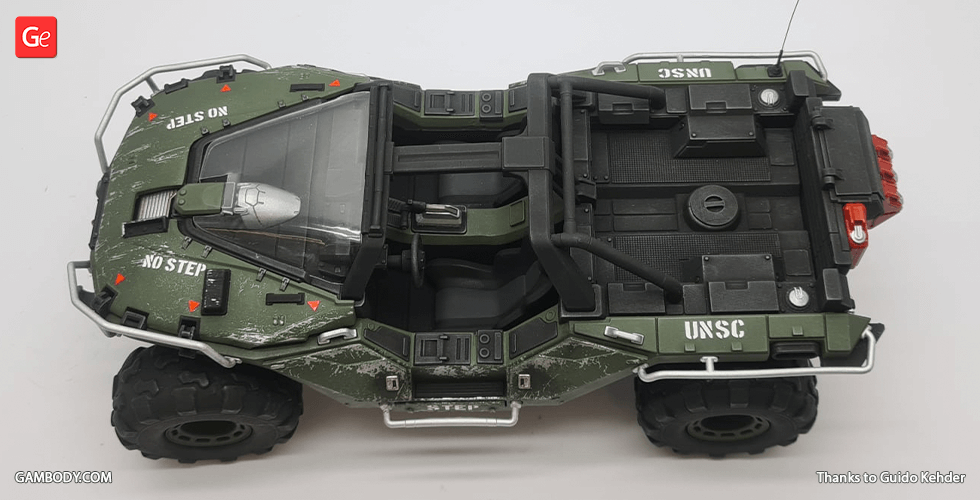

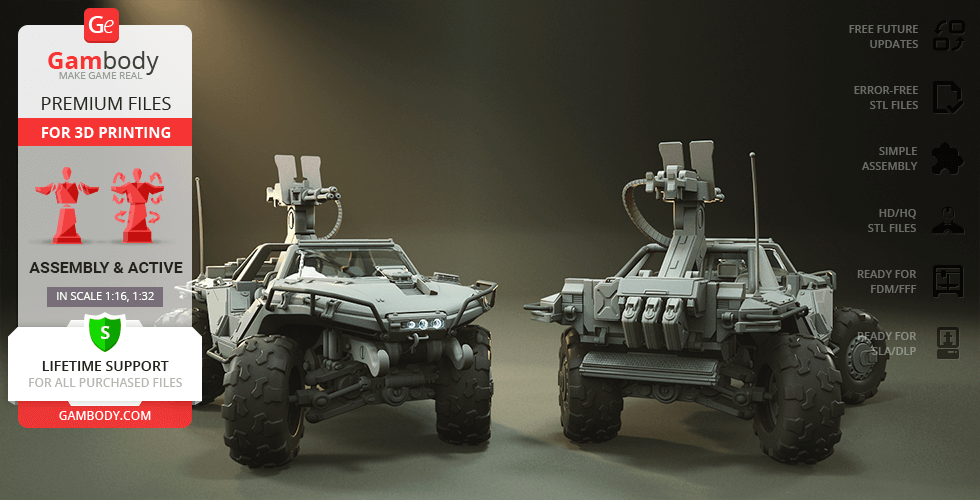

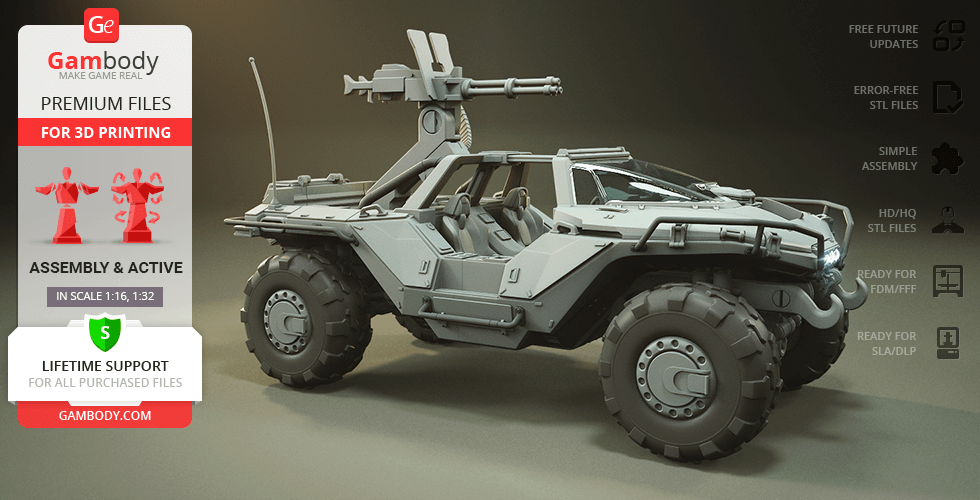

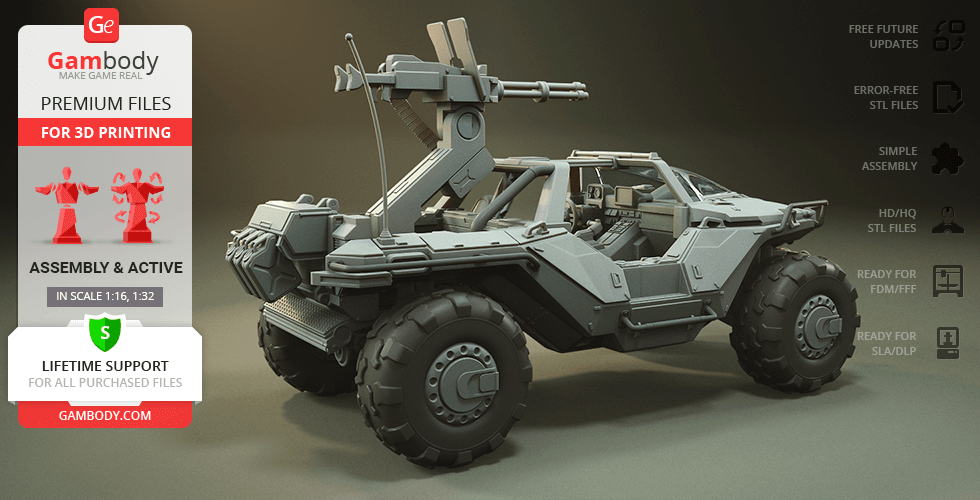

M12B Force Application Vehicle, colloquially known as Warthog, or simply Hog, is an all-wheel-drive all-terrain vehicle that served on the frontlines of an interstellar war between humanity and alien Covenant. Although M12B FAV is one of many design variants of the Warthog, it still is an extremely multi-purpose vehicle that is adaptable to almost any situation, capable of going over any obstacle, and can even run on pure water!

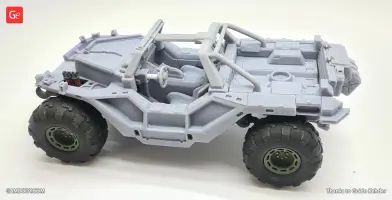

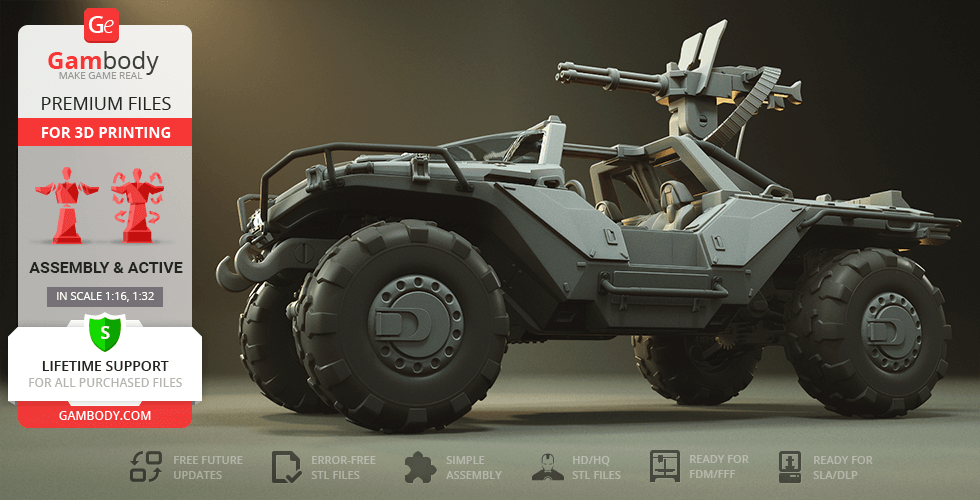

The 3D printing model of Warthog M12B incorporates most of the vehicle’s fascinating features so well-liked by the fans of the Halo franchise. The author of the fantastic model spent many hours studying, modelling and engineering the workhorse of UNSC Armed Forces’ mechanised infantry and the result is totally worth all efforts! By the way, there is the 3D printing Master Chief to operate your future 3D printed Hog!

ADAPTATION FOR 3D PRINTING

Warthog M12B for 3D printing is a highly detailed action assembly model and its moderation and adaptation for different types of 3D printers took the Gambody team 120 hours in total.

In order to preserve the accurate likeness of the fictional Warthog M12B all-wheel-drive vehicle, the model was divided into many parts that are to be assembled as if a real car. Taking into account the willingness of our customers to make their 3D printing projects as true to life as possible, Gambody team worked on the highly-articulated assembly of the vehicle that presupposes active suspension and a variety of movable elements.

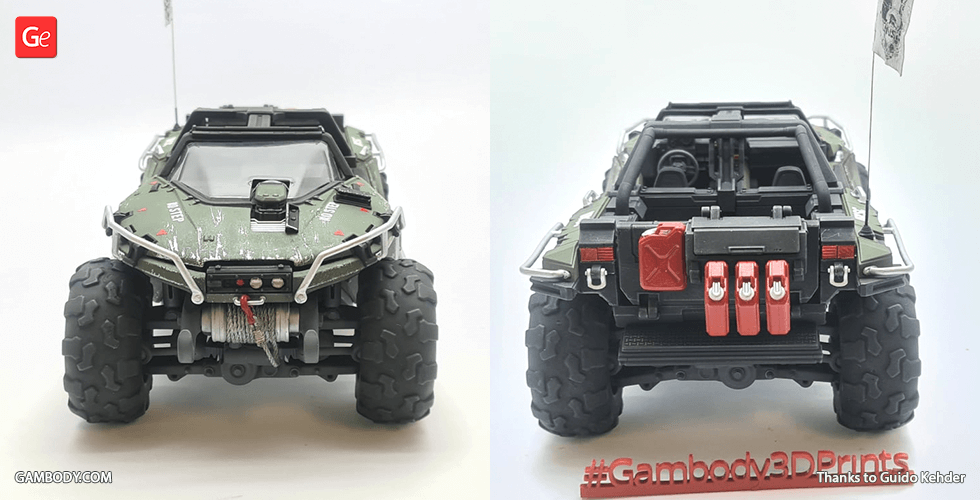

Thus, various special mechanisms were introduced into the model to make sure that the parts comprising the suspension, as well as the details of the frame and the car body, are both authentic and highly functional (please, see "Versions' specifications", "Assembly video" and photo preview slider).

The cutting of the model was chosen to ensure the cleanest 3D printing result possible and to minimize the amount of material needed to print the generated support. All assembly parts are provided in STL files of FFF/FDM version in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and so that the 3D printing beginners won't face difficulties when placing the parts on a build plate. We highly recommend that you get acquainted with the “Assembly video” and "Assembly Manual" before getting down to the Warthog M12B model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

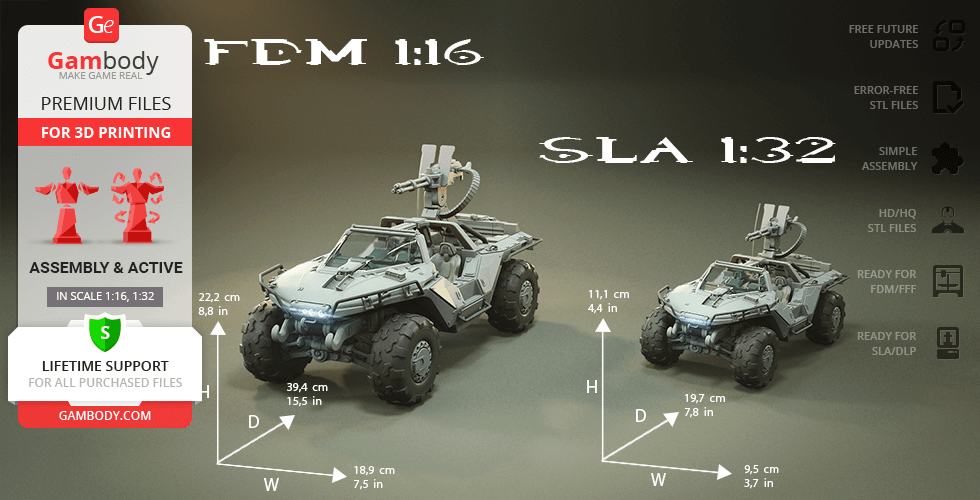

The model's scale was calculated from the length of the Warthog M12B which is 6300 mm. The 3D printing model's chosen scale is 1:16 for the FFF/FDM version and 1:32 for the DLP/SLA/SLS version.

VERSIONS' SPECIFICATIONS

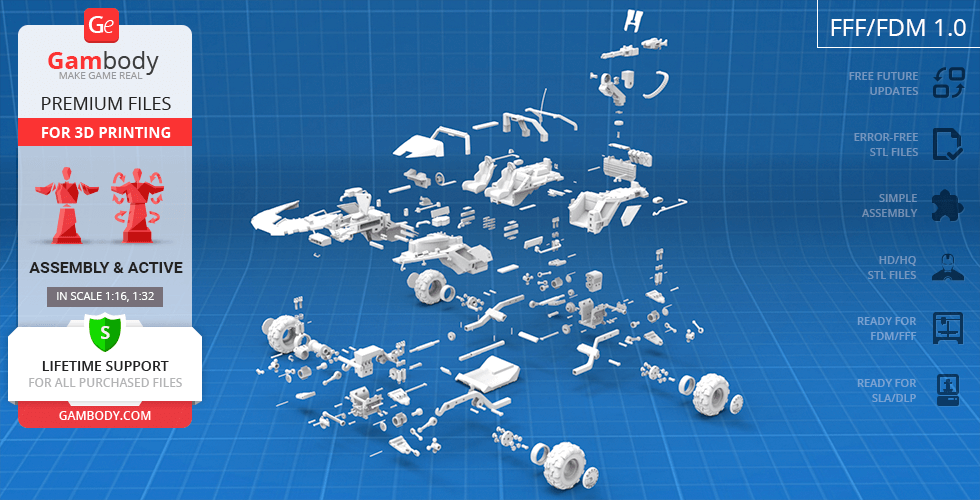

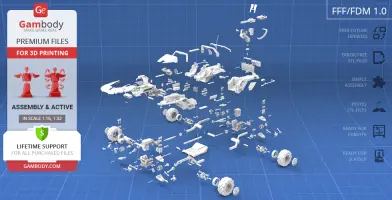

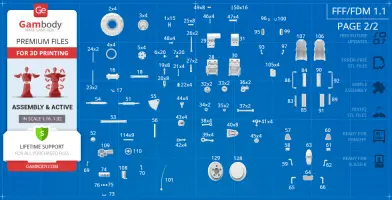

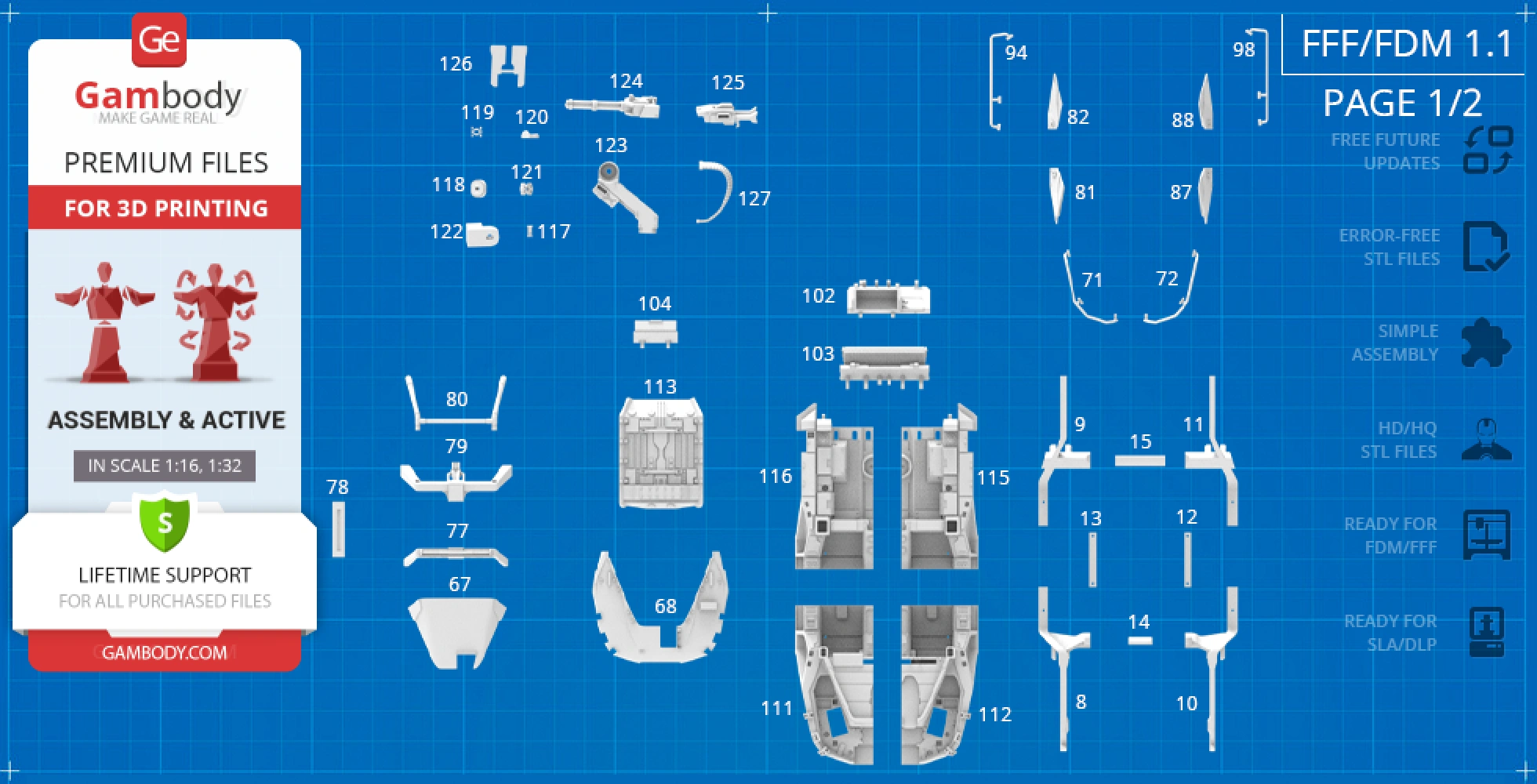

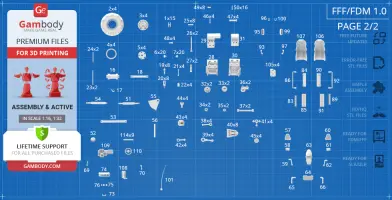

FFF/FDM 1.0 version features:

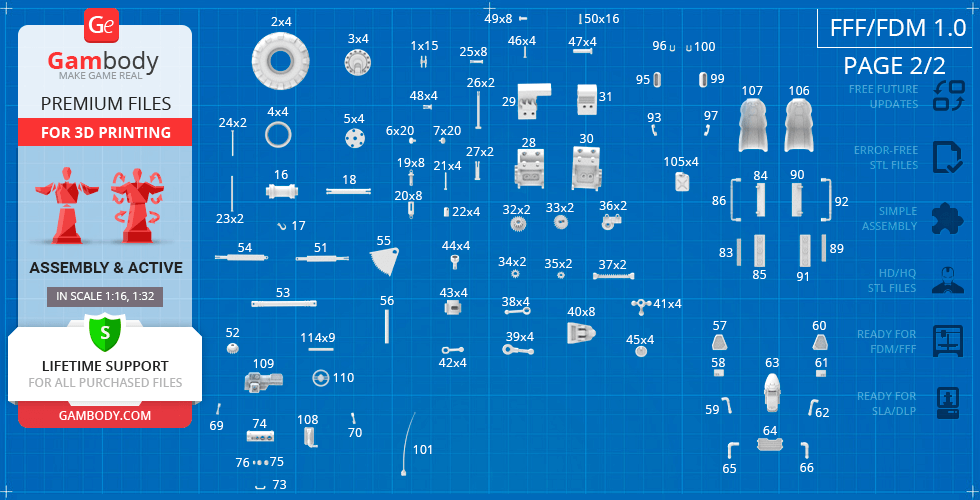

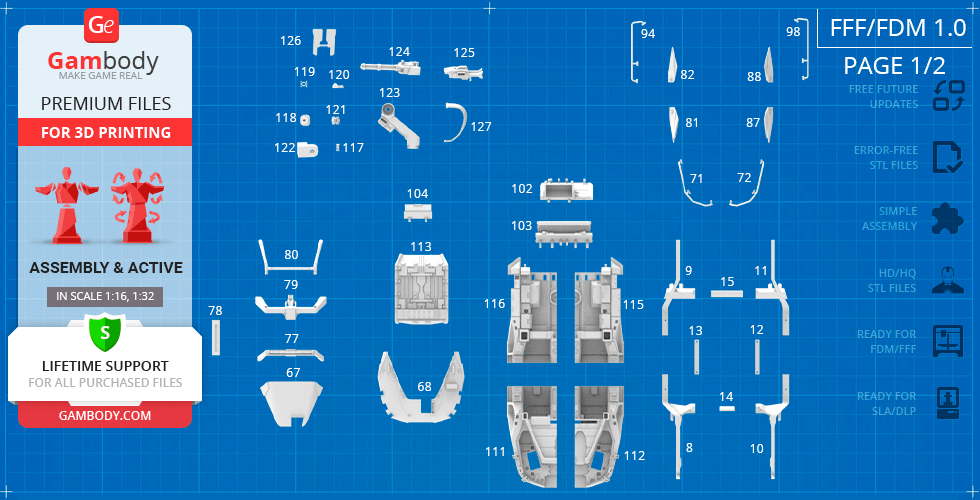

- Contains 127 parts;
- A printed model is 222 mm tall, 189 mm wide, 394 mm deep;
- There are many assembly parts that need to be printed multiple times - the number of required copies (x5, x20 etc.) is indicated in the title of the file in “Source files” tab, e.g. file "_2_wheel_tire_x4" needs to be printed 4 times;

Suspension and wheels:
- There are rotating gear bearings in all Warthog's wheels;
Wheel tyres can be printed either with plastic filament or with flexible material;

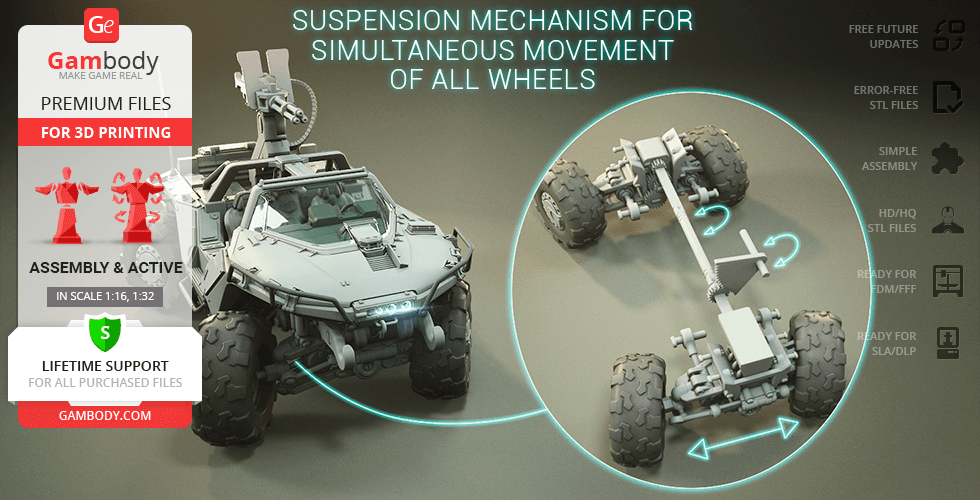

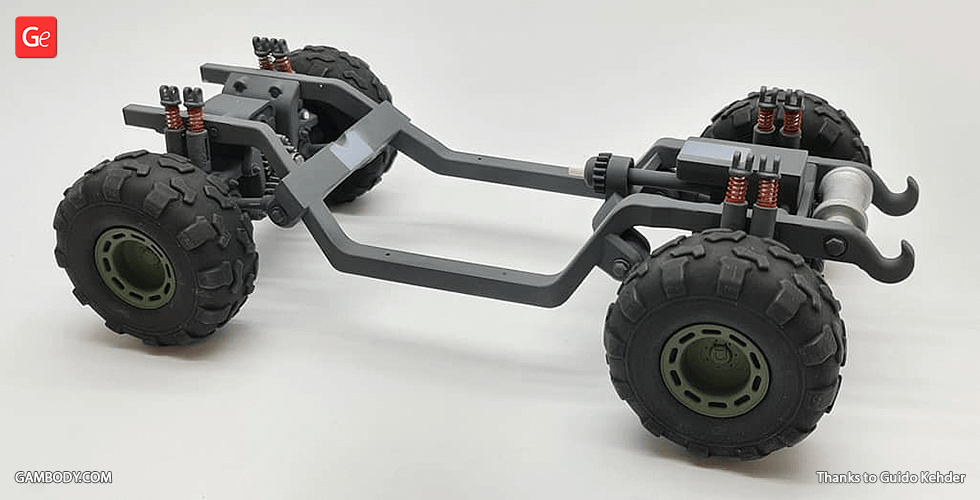

- Warthog boasts a highly realistic complex active suspension of the front and rear axles;

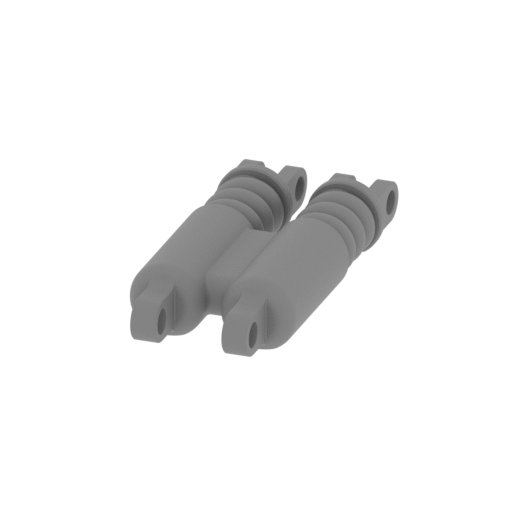

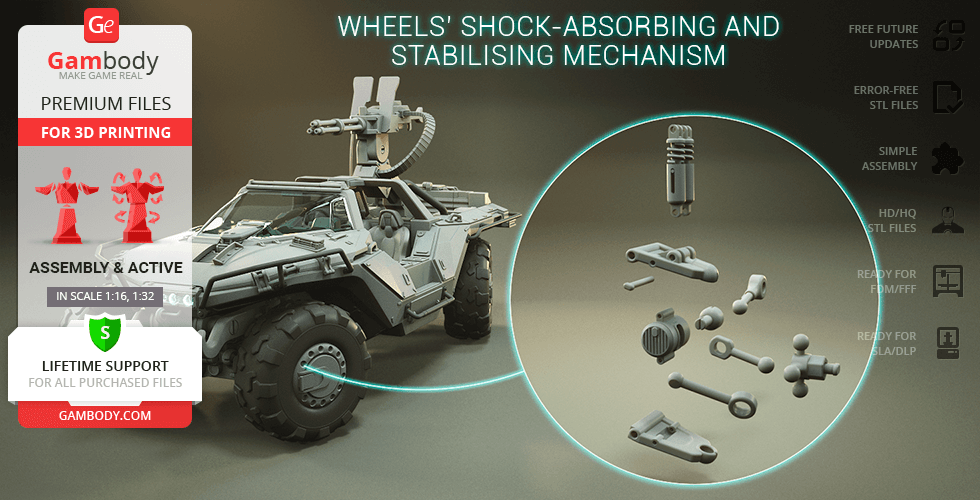

- The wheels are equipped with a complex mechanism of shock-absorbers and stabilisers;
- The assembly of the shock-absorbers requires 4 regular ball pen springs and additional "pins" that can be made out of short pieces of regular 1.75mm filament;

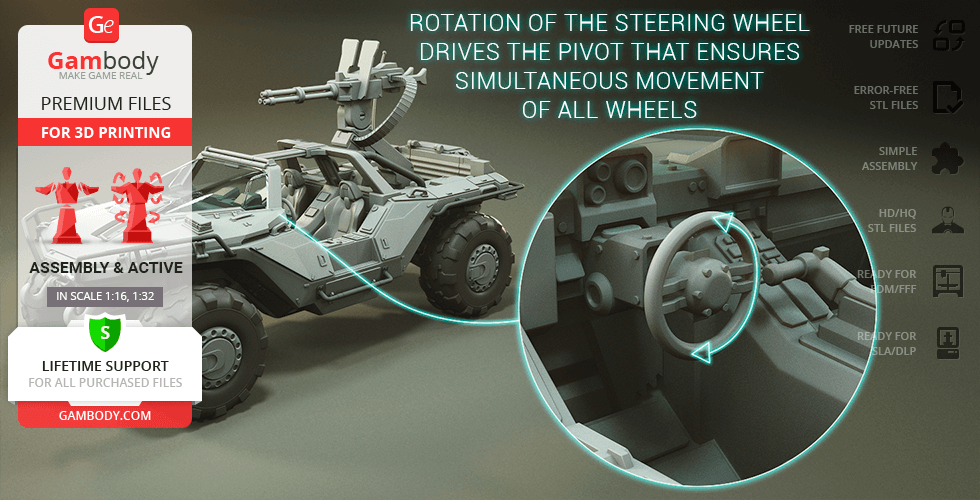

- Rotation of the steering wheel drives the gears and the pivot that ensure simultaneous movement of both front and rear wheels;
- Warthog is equipped with opposite direction 4-wheel steering (4WS) system;

Car body:

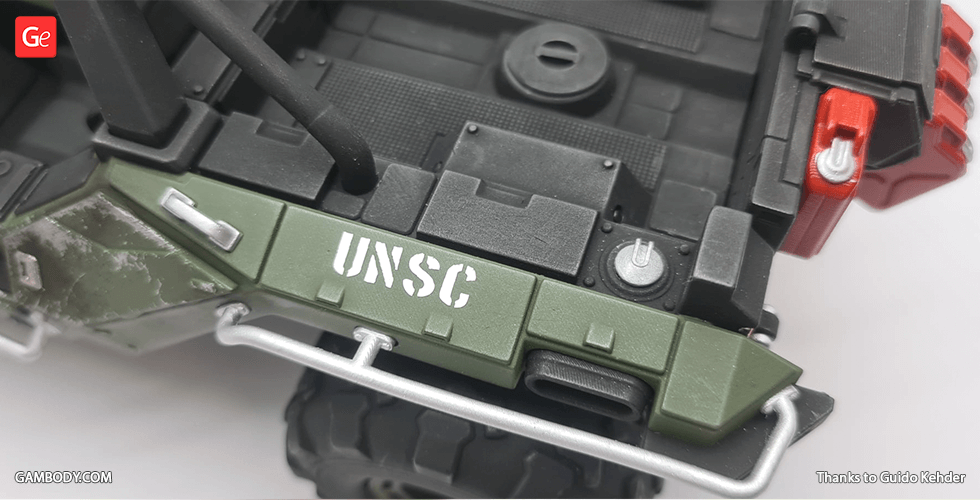

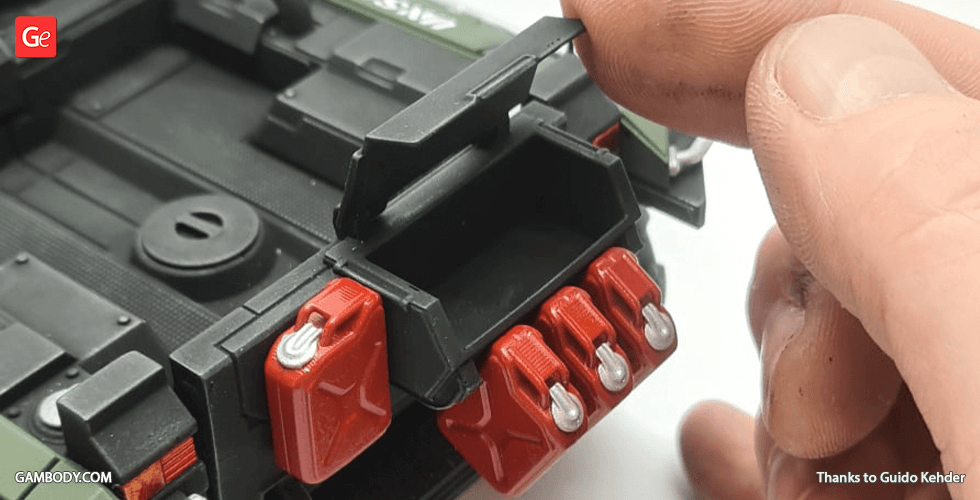

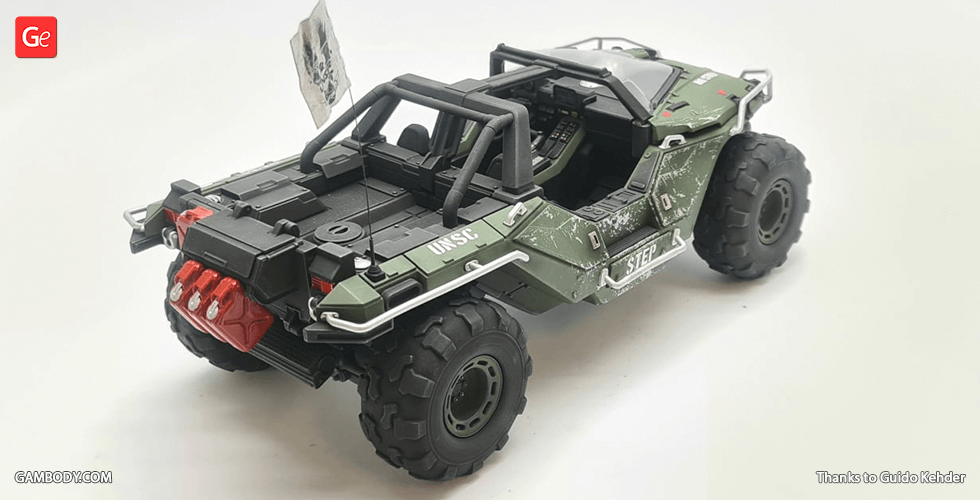

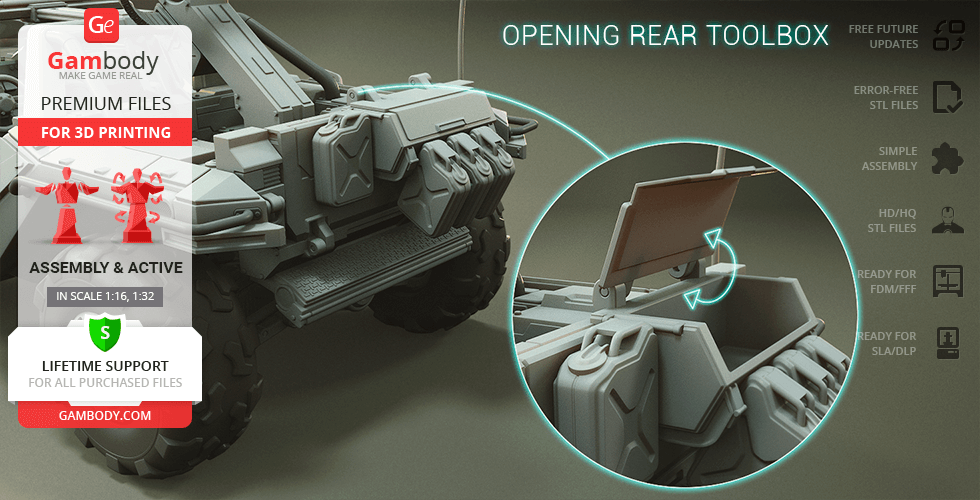

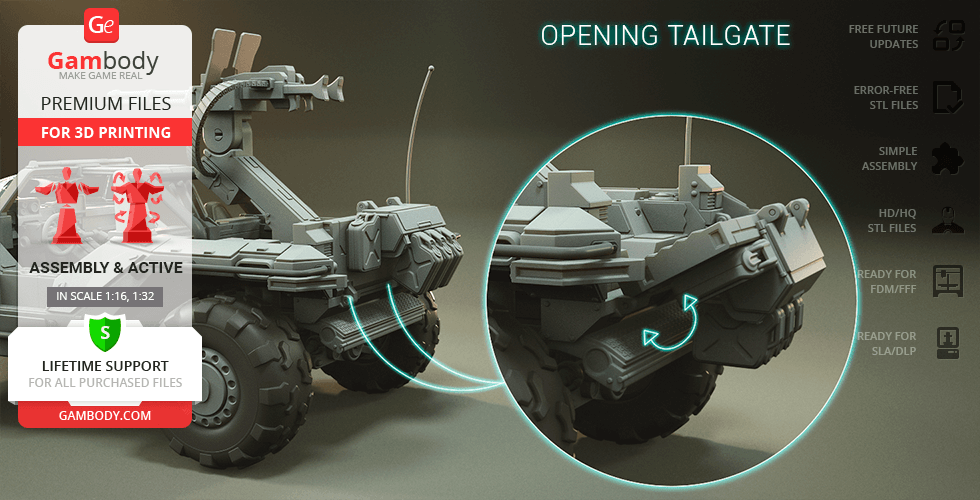

- Model's tailgate and rear toolbox open;

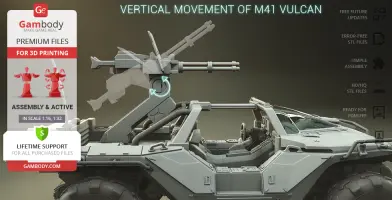

M41 Vulcan chain gun moves vertically via a ratchet and rotates 360°;

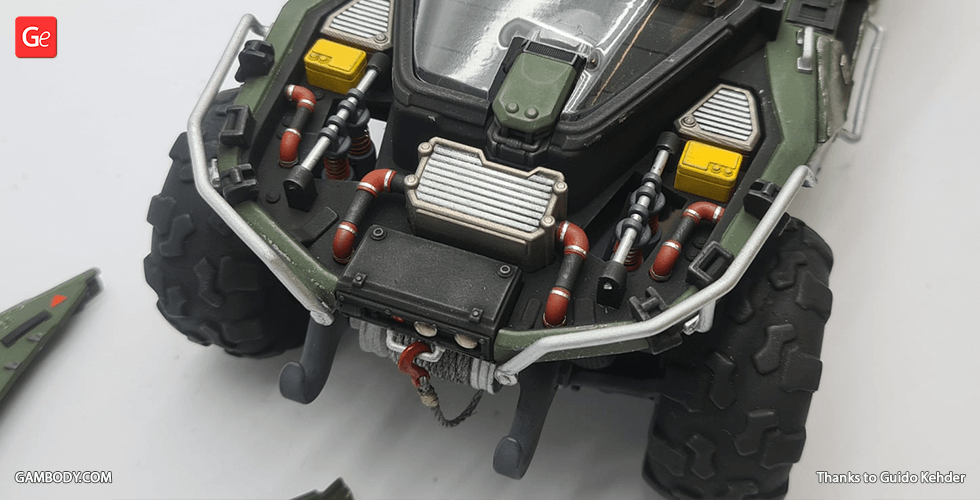

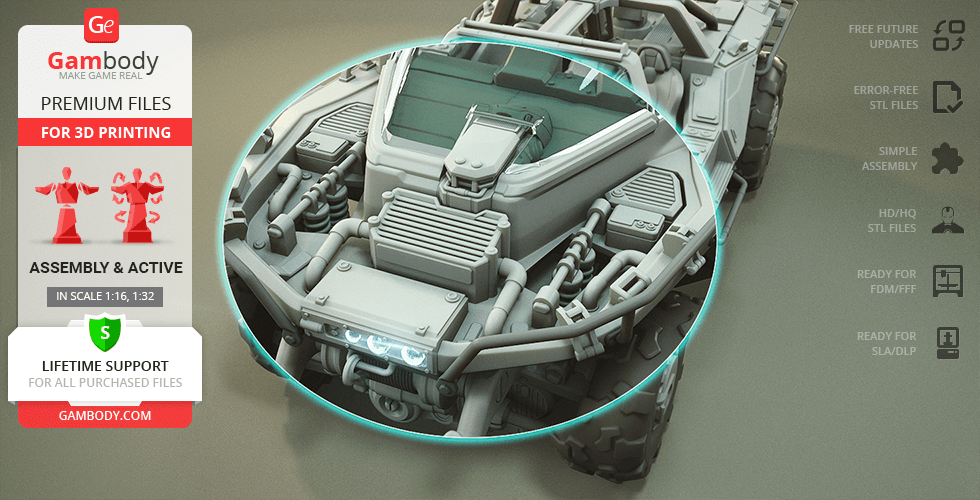

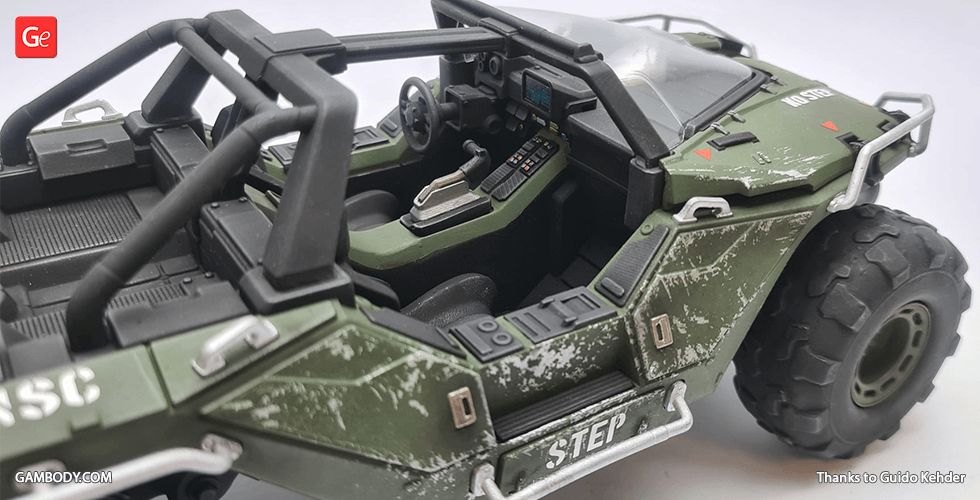

- The M12B FAV boasts a highly detailed interior and intricate engine under the hood;

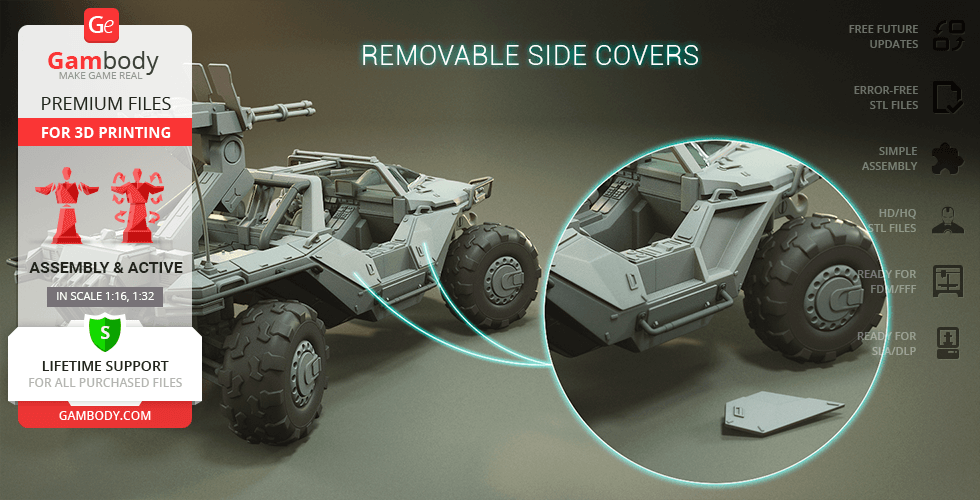

- Covers on the sides of the vehicle can be removed to access empty utility slots;
- Rear tow hooks can be articulated via 1.75mm filament "pins";

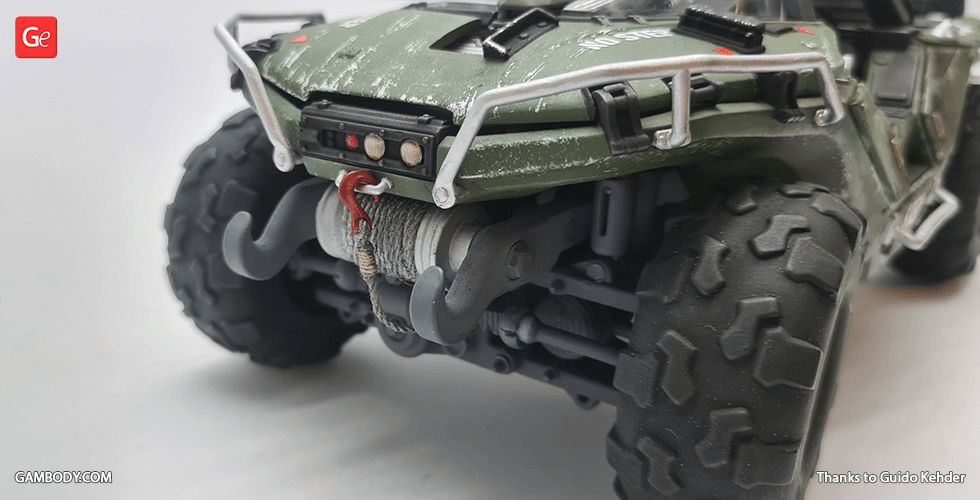

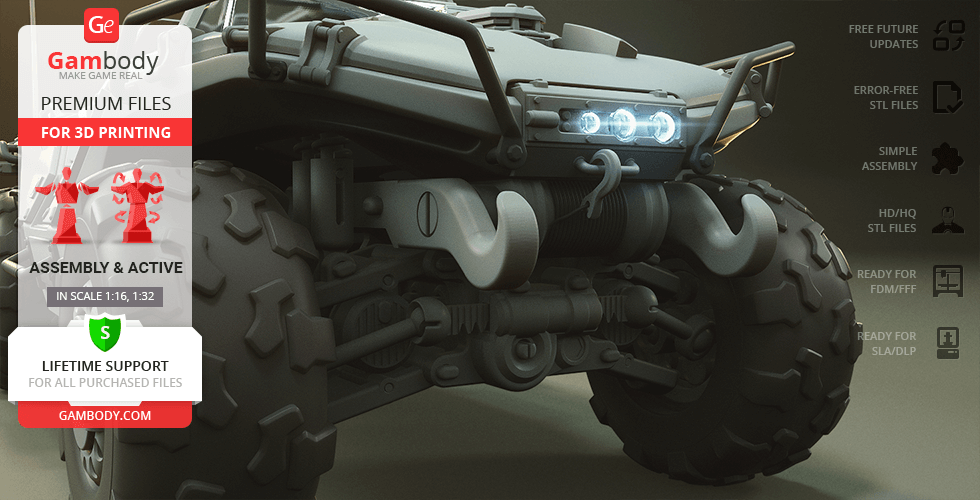

- You may wind wire, thread, filament, etc., and fasten a tow hook at the front of the vehicle;

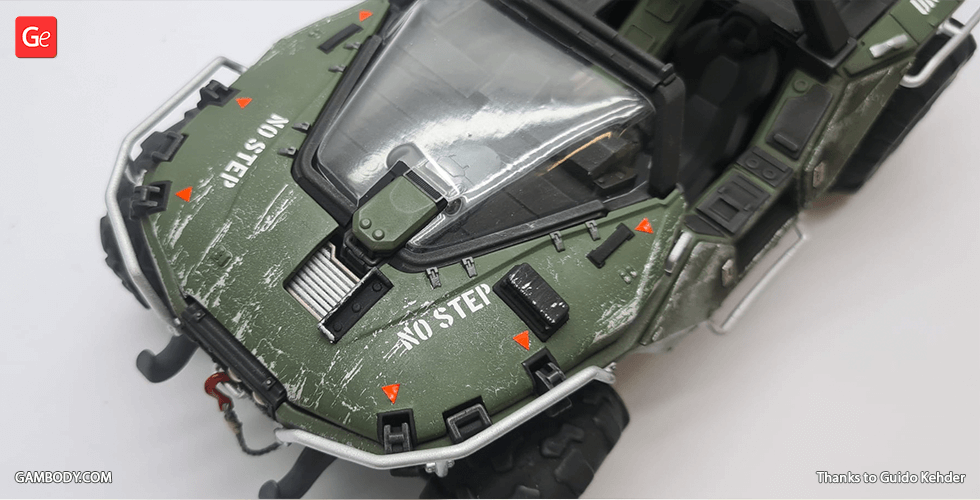

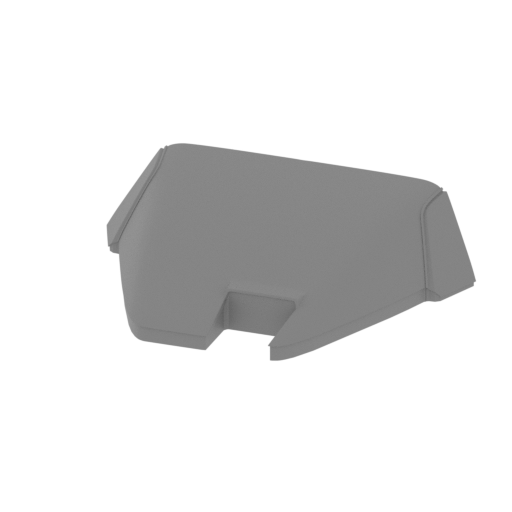

- The vehicle's windshield and headlights are provided separately to be printed with the transparent material;

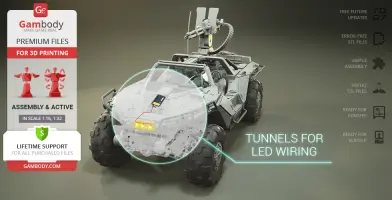

- You can light up the model's headlightsLED wiring can be easily installed throughout the body of the vehicle, while the battery can be hidden behind the highly detailed engine;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

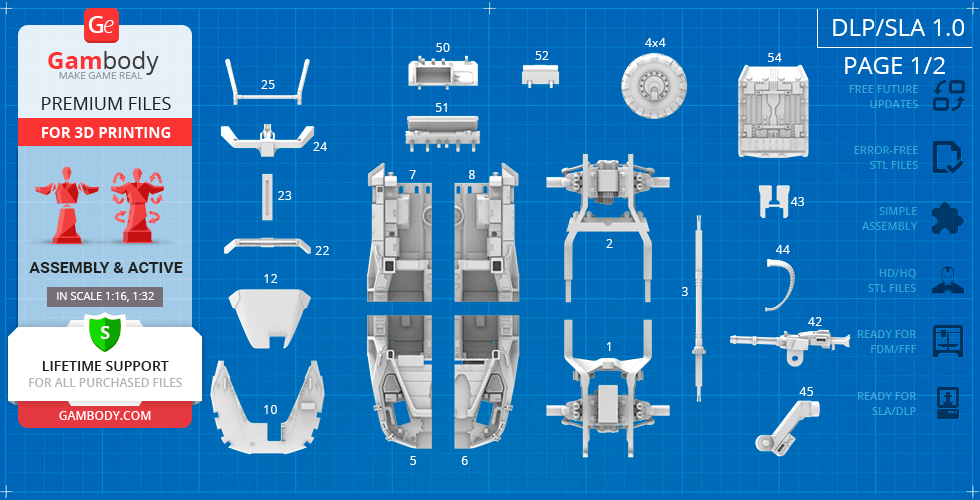

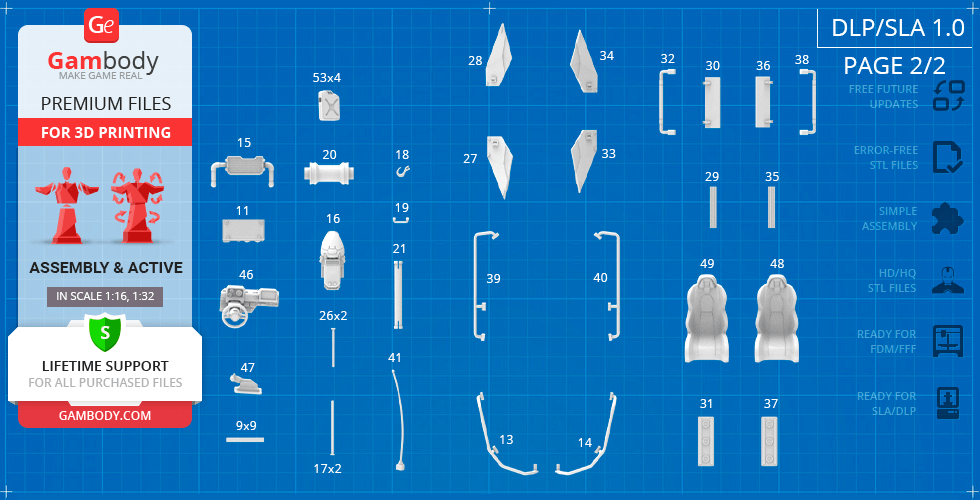

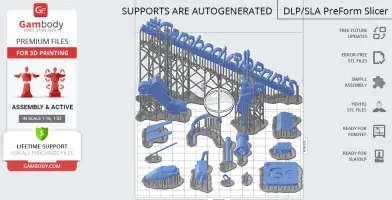

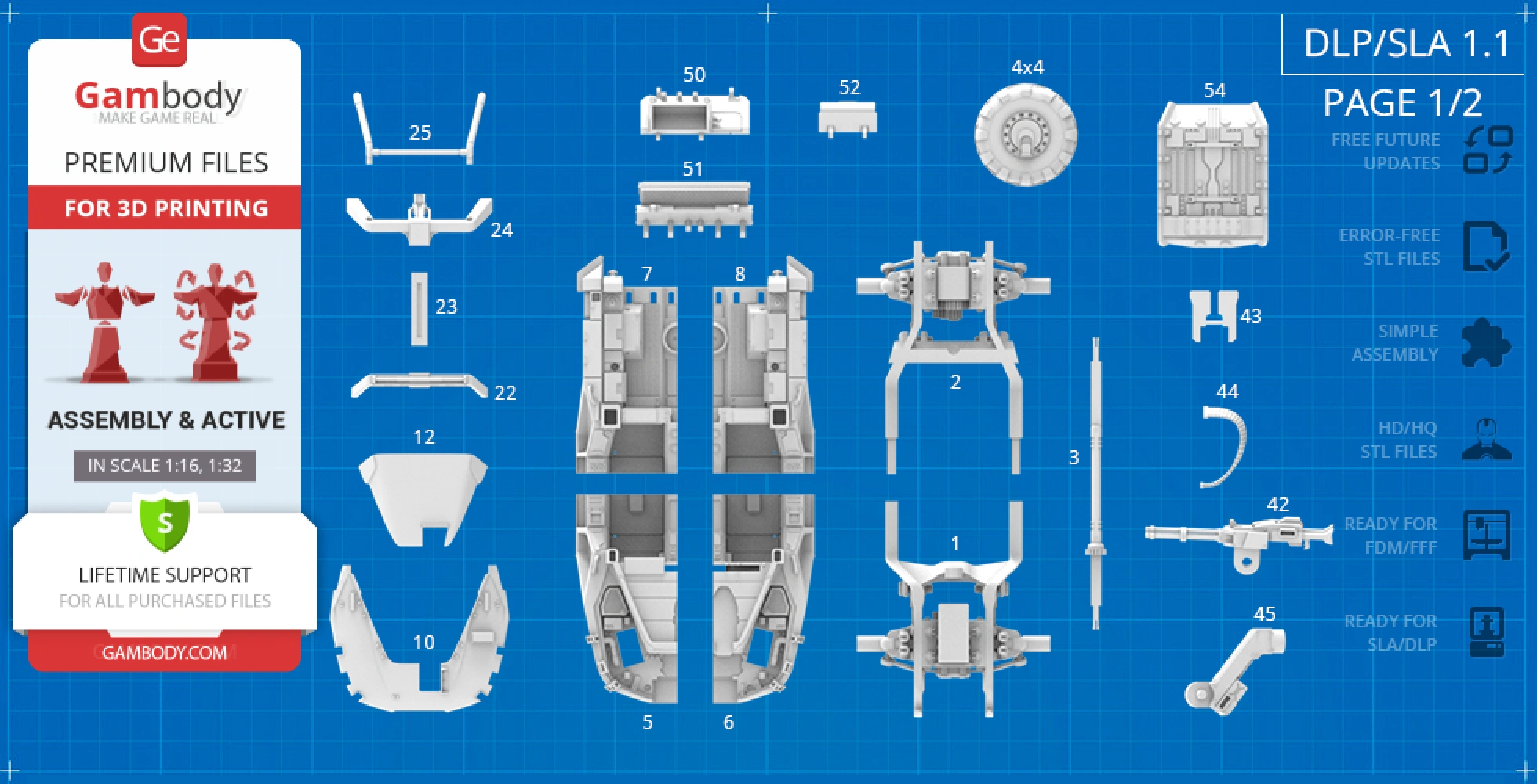

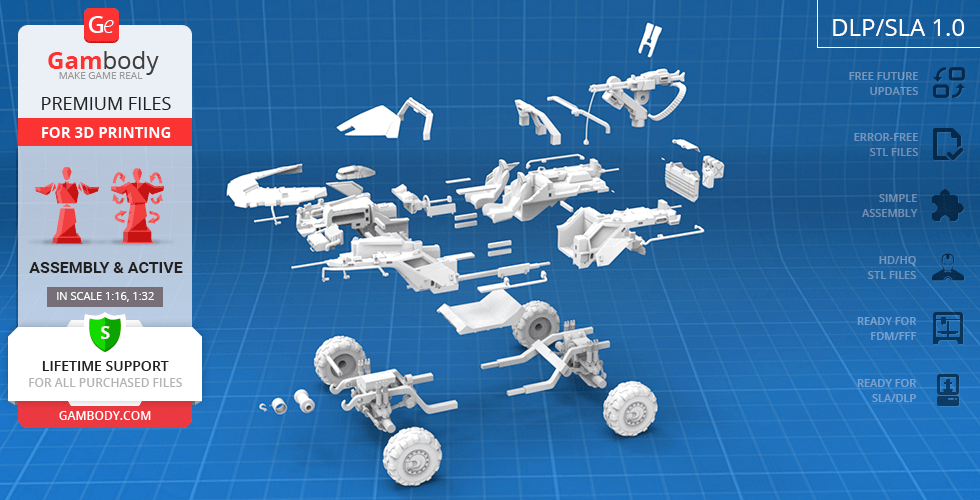

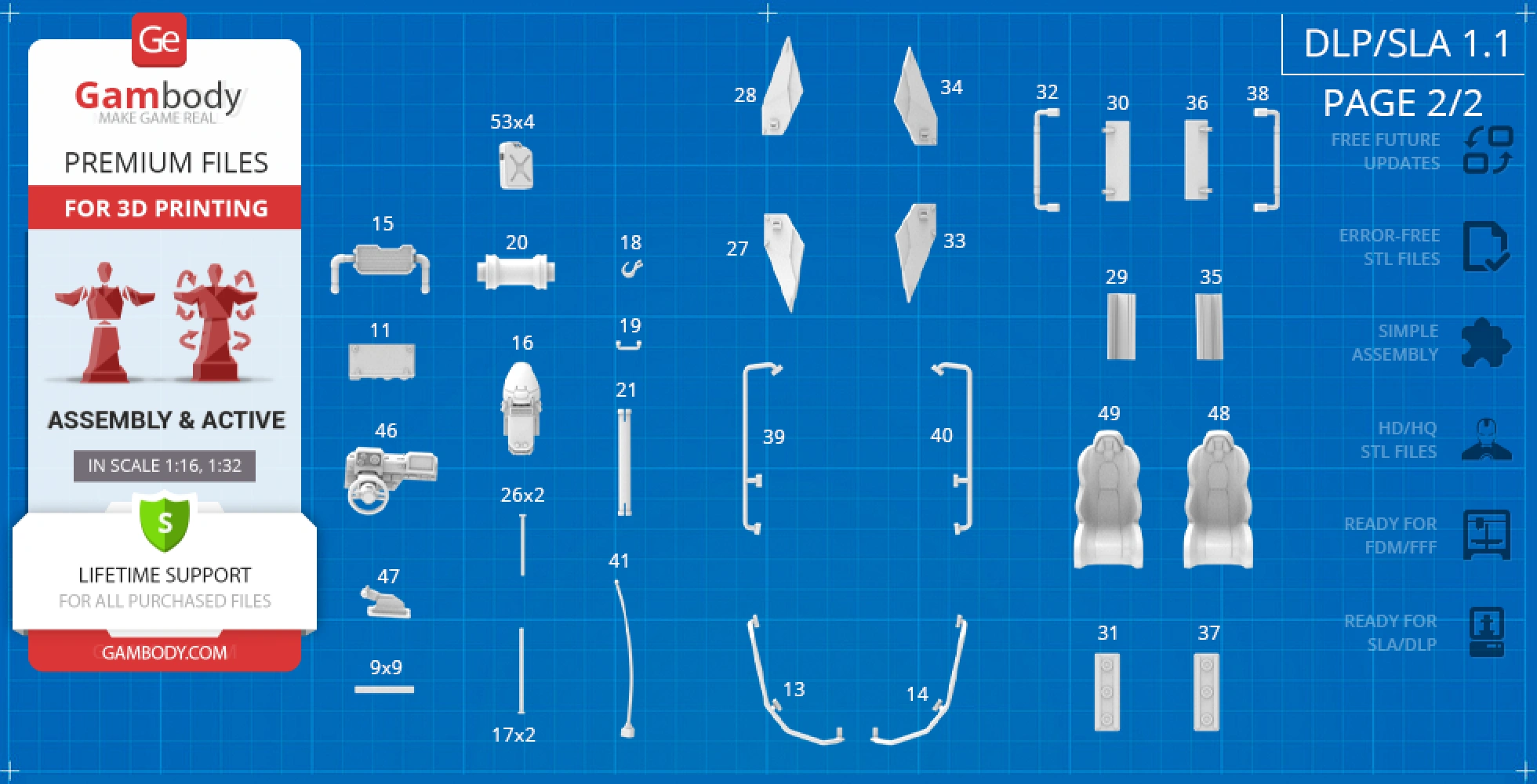

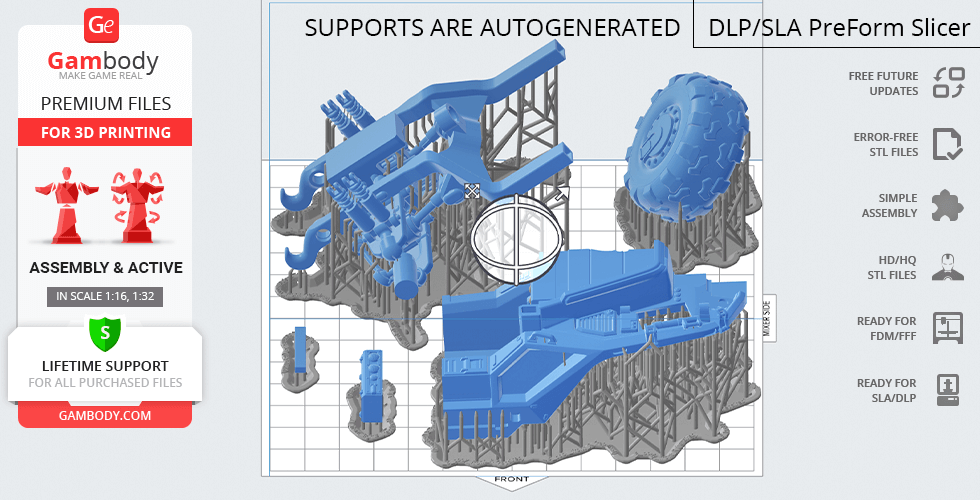

DLP/SLA 1.0 version features:
- Contains 54 parts;
- A printed model is 111 mm tall, 95 mm wide, 197 mm deep;
- Warthog boasts a highly static suspension of the front and rear axles;
- All Warthog's wheels can rotate;
- Model's tailgate and rear toolbox open;
M41 Vulcan chain gun rotates 360°;
- The vehicle's windshield and headlights are provided separately to be printed with the transparent material;
- You can light up the model's headlightsLED wiring can be easily installed throughout the body of the vehicle, while the battery can be hidden behind the highly detailed engine;
- All parts are divided in such a way to fit the build plates and to ensure that support structures are generated where needed.

You can get the model of Warthog M12B for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Warthog M12B 3D Printing Model at Gambody YouTube channel.

Also, you may like Master Chief 3D Printing Figurine, as well as other Vehicle 3D Printing Models.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

Below you can find printing recommendations for CuraSimplify3D and Slic3r software.

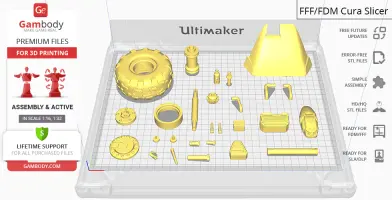

Cura printing recommendations:

These are basic settings that were tested in Cura 4.8.0 slicer.

The test models were printed on Ultimaker 2, Creality Ender 3, Creality CR-10S Pro V2, Anycubic I3 Mega, Anycubic I3 MegaS 3D printers with PLA and PETG filaments.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use and especially the particular assembly part at hand. Each part that any model comprises often needs preliminary review and you are free to tweak the settings the way you find suitable.

Note:
- You can scale up the model (downscaling is not recommended!);
- All connectors should be printed at 100% Infill;
- For all parts of locks (“ge_lock” in “Source files”) you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

Quality
Layer Height: 0.12 mm (you can also set Layer Height at 0.16 or 0.2mm for 0.4mm nozzles)
Initial Layer Height: 0.2 mm (carefully level the print bed and keep your Initial Layer Height the same as the main Layer Height)

Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2

Outer Wall Wipe Distance: 0.3 mm
Top Surface Skin Layers: 0

Top/Bottom Thickness: 0.6 mm
Top Thickness: 0.6 mm
Top Layers: 5
Bottom Thickness: 0.6 mm
Bottom Layers: 5
Initial Bottom Layers: 5

Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Optimize Wall Printing Order: Check

Compensate Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check

Minimum Wall Flow: 0%
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Hole horizontal expansion: 0

Z Seam Alignment: User Specified
Z Seam Position: Back
Z Seam X: Average length of your printer’s plate (e.g.”150” if your plate is 300mm on the X-axis)
Z Seam Y: A value higher than the length of your plate on the Y-axis (e.g. 700)

Seam Corner Preference: Hide Seam
Extra Skin Wall Count: 1
Skin Overlap Percentage: 10%
Skin Overlap 0.04 mm

Infill
Infill Density: 20% (for all smaller parts and for all parts of connectors use 100% Infill)
Infill Pattern: Triangles
Connect Infill Lines: Check
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Line Multiplier: 1
Extra Infill Wall Count: 0

Infill Overlap Percentage: 10-20%
Infill Overlap: 0.04 mm

Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm

Infill Wipe Distance: 0 mm
Infill Layer Thickness: 0.24 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm

Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8

Maximum Skin Angle for Expansion: 90˚
Minimum Skin Width for Expansion: 0.0
Skin Edge Support Thickness: 0
Skin Edge Support Layers: 0

Material
Initial Layer Flow: 100%
Printing Temperature: See your filament settings
Initial Printing Temperature: Your filament settings
Final Printing Temperature: Your filament settings
Build Plate Temperature: Your filament settings
Build Plate Temperature Initial Layer: Your filament settings + 5°
Flow: 100% (Important! If you face difficulty printing the model, you may need to adjust the Flow parameter. You may research the topic using the Internet or seek assistance at our Customer Support Team at support@gambody.com)

Speed

You can increase the printing Speed by 20% when you print simple objects. For small/thin parts you need to decrease the Speed by 25% - 50%.

Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 25 mm/s
          Outer Wall Speed:25 mm/s
          Inner Wall Speed: 50 mm/s

Top/Bottom Speed: 25mm/s
Support Speed: 25 mm/s
          Support Infill Speed: 45 mm/s
          Support Interface Speed: 25 mm/s
                Support Roof Speed: 25 mm/s
                Support Floor Speed: 25 mm/s

Travel Speed: 80 mm/s
Initial Layer Speed: 80 mm/s
Initial Layer Print Speed: 20 mm/s
Initial Layer Travel Speed: 80 mm/s

Skirt/Brim Speed: 20 mm/s
Z  Hop Speed: 5 mm/s
Number of Slower Layers: 2
Enable Acceleration Control: Check

When printing simple objects, you need to set all Acceleration parameters at 500 mm/s. For small/thin parts you need to decrease the Acceleration by 50% - 70%.

Travel
Enable Retraction: Check
Retraction Distance: 4-8 mm, 1-3 mm for Direct Extruder (This is the most important retraction parameter. You can find your optimal value of Retraction Distance by printing any test object, e.g. bridges, towers etc.)

Retraction Speed: 25mm/s
Retraction Retract Speed: 25 mm/s
Retraction Prime Speed: 25 mm/s

Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 1.5 mm
Maximum Retraction Count: 100
Minimum Extrusion Distance Window: 6,5 - 10 mm
Limit Support Retractions: Check
Combing Mode: All
Max Comb Distance With No Retract: 30 mm
Retract Before Outer Wall: Check
Avoid Printed Parts When Travelling: Check
Avoid Supports When Travelling: Check
Travel Avoid Distance: 1 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm
Z Hop When Retracted: Check
Z Hop Height: 0,3 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%

Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.36 mm
Regular Fan Speed at Layer: 3

Minimum Layer Time: 10 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Structure: Normal (you can try using Tree Support Structure if you have difficulty printing any particular assembly part)
Support Placement: Everywhere
Support Overhang Angle: 60° (this parameter can range from 30° to 70° depending on the part at hand)
Support Pattern: Zig Zag
Support Wall Line Count: 1 (stronger support that might be more difficult to remove) 0 (less strong support but is easier to remove)

Support Density: 15%
Support Line Distance: 2.6667 mm
Initial layer support line distance: 2.667 mm

Support Z Distance: 0.12 mm
Support Top Distance: 0.12 mm
Support Bottom Distance: 0.12 mm

Support X/Y Distance: 0.8-1 mm
Support Distance Priority: Z overrides X/Y
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Stair Step Minimum Slope Angle: 10°
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.2 mm
Gradual Support Infill Steps: 0
Minimum Support Area: 2 mm

Enable Support Interface: Check (generates additional “pillow” on the support structure that leads to a more even surface, but can be difficult to remove in hard-to-reach areas)
Enable Support Roof: Check
Enable Support Floor: Check

Support Interface Thickness: 0.8 mm
Support Roof Thickness: 0.8 mm
Support Floor Thickness: 0.8 mm

Support Interface Resolution 0.2 mm
Support Interface Density: 50-100%
        Support Roof Density: 50-100%
Support Roof Line Distance: 0.8 mm
        Support Floor Density: 50-100%
Support Floor line Distance:  0.4mm

Support Interface Pattern: Grid
Support Roof Pattern: Grid (this parameter should differ from Bottom Pattern Initial Layer in “Shell” section)
Support Floor Pattern: Grid

Minimum Support Interface Area: 10mm
Minimum Support Roof Area: 10 mm
Minimum Support Floor Area: 10 mm

Support Interface Horizontal Expansion: 0.0 mm
Support Roof Horizontal Expansion: 0.0 mm
Support Floor Horizontal Expansion: 0.0 mm

Fan Speed Override: Check
Supported Skin Fan Speed: 100%
Use Towers: Check
Tower Diameter: 4 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Skirt/Brim (For unsteady parts, and those parts that may come unstuck use “Brim”. For bigger assembly parts that have large adhesion area and for all parts of locks and claws that you want to come out clean use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
       Brim Line Count: 10
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments

comments powered by Disqus
