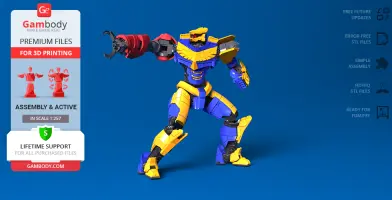

Atlas Destroyer 3D Printing Model | Assembly + Action

(2)
cm: 17.3 w x 8.5 d x 29.5 h
in: 6.811 w x 3.346 d x 11.614 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

WHAT WILL YOU GET AFTER PURCHASE?

- 1 version of Atlas Destroyer STL files for FFF/FDM - files are available for download after the purchase

- STL files of high-poly Atlas Destroyer 3D Model for 3D printing consist of 129 parts

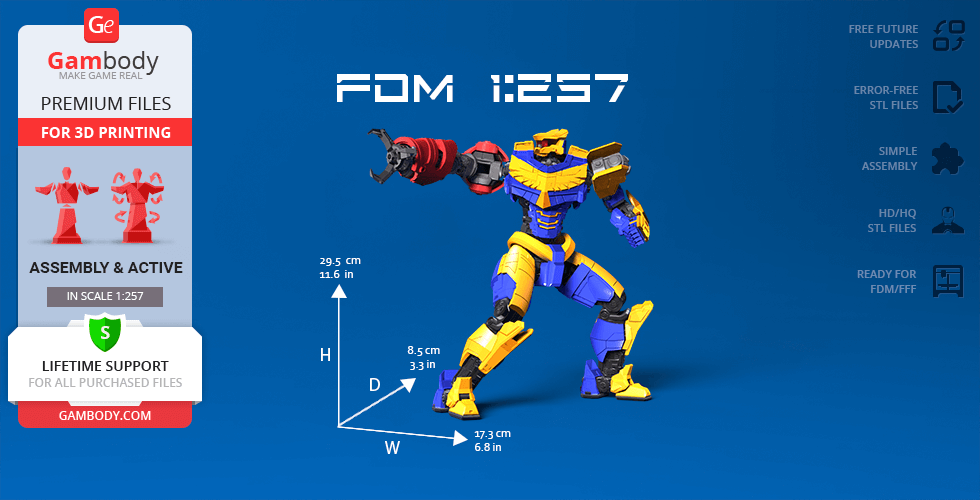

- Sizes:
FFF/FDM:

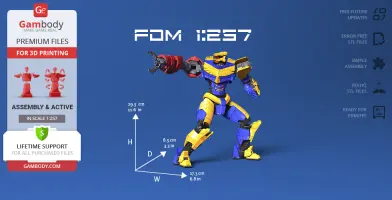

Atlas Destroyer 3D Model: 295 mm tall, 173 mm wide, 85 mm deep

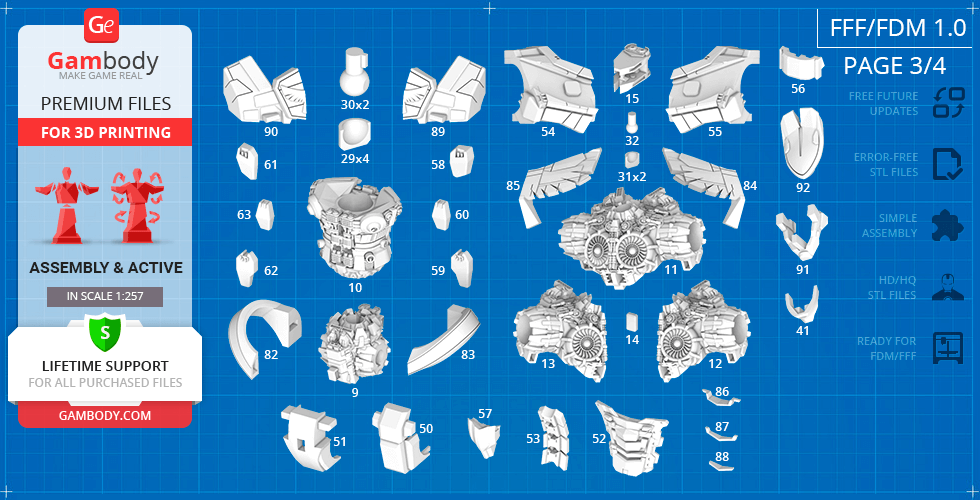

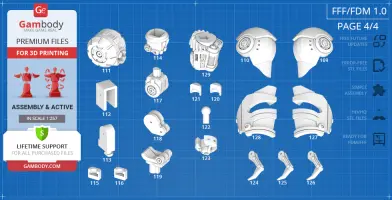

Assembly Manual for FFF/FDM 1.0 version in PDF format

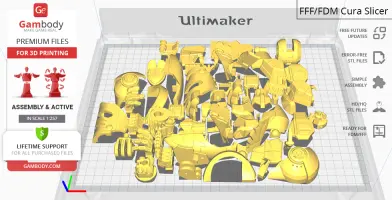

- Detailed settings that we provide as a recommendation for Cura, Simplify3D, Slic3r and PrusaSlicer for the best print
- Full technical support from the Gambody Support Team

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)

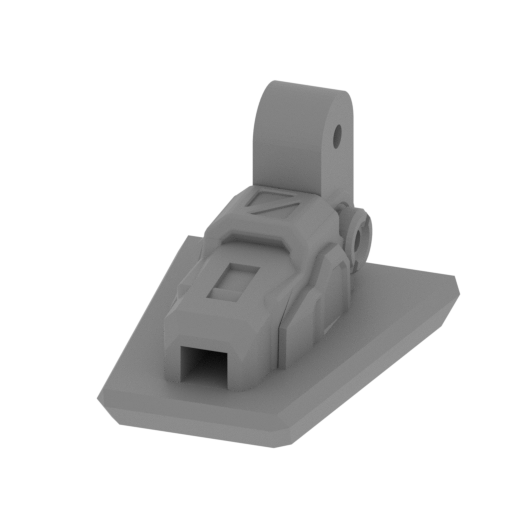

_1_sk_foot_1_R (repaired) .stl
0.32 MiB 54 min <1 m 24 x 32 x 20 Download

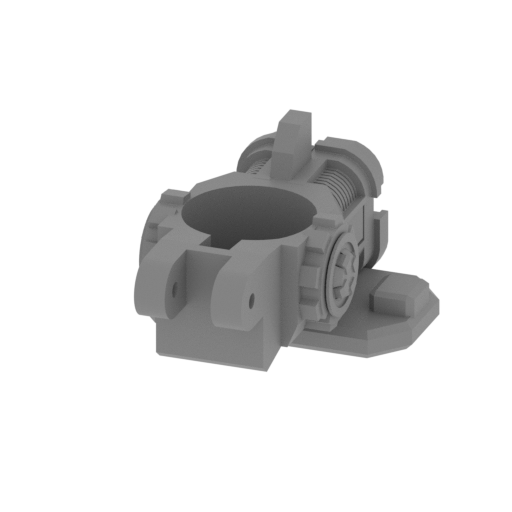

_2_sk_foot_2_R (repaired) .stl
11.79 MiB 2 h 31 min 1 m 36 x 48 x 26 Download
_3_sk_foot_1_L (repaired) .stl
0.32 MiB 55 min <1 m 24 x 32 x 20 Download
_4_sk_foot_2_L (repaired) .stl
11.79 MiB 2 h 30 min 1 m 36 x 48 x 26 Download

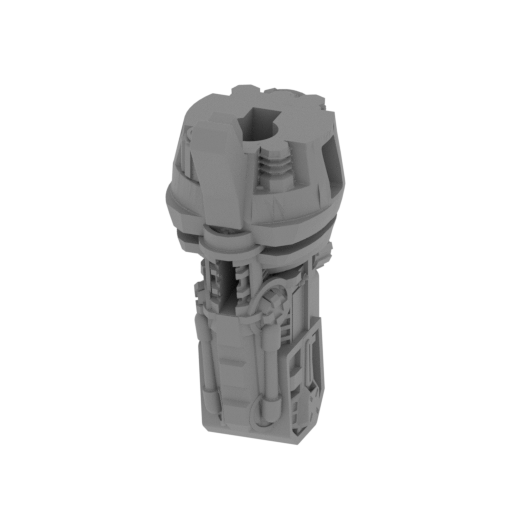

_5_sk_shin_R (repaired).s tl
22.52 MiB 5 h 35 min 3 m 28 x 46 x 65 Download

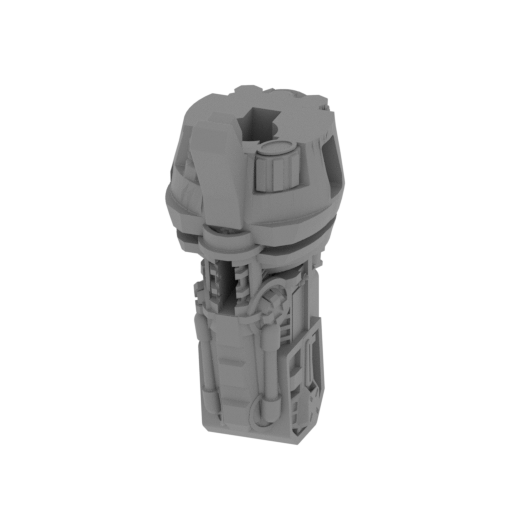

_6_sk_shin_L (repaired).s tl
22.54 MiB 5 h 40 min 3 m 28 x 46 x 65 Download

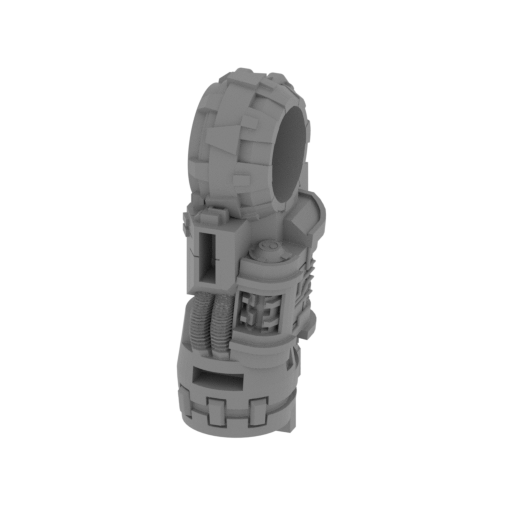

_7_sk_leg_R (repaired).st l
12.67 MiB 4 h 53 min 2 m 23 x 33 x 66 Download

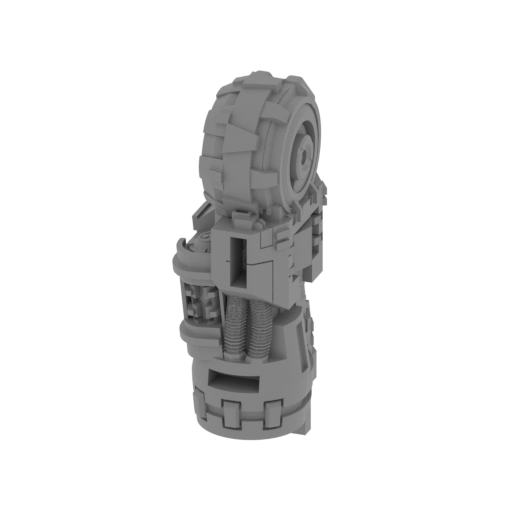

_8_sk_leg_L (repaired).st l
12.67 MiB 4 h 59 min 2 m 23 x 33 x 66 Download
_9_sk_pelvis (repaired).s tl
15.38 MiB 5 h 7 min 3 m 36 x 57 x 38 Download
_10_sk_body_1 (repaired). stl
36.85 MiB 8 h 34 min 5 m 57 x 43 x 49 Download

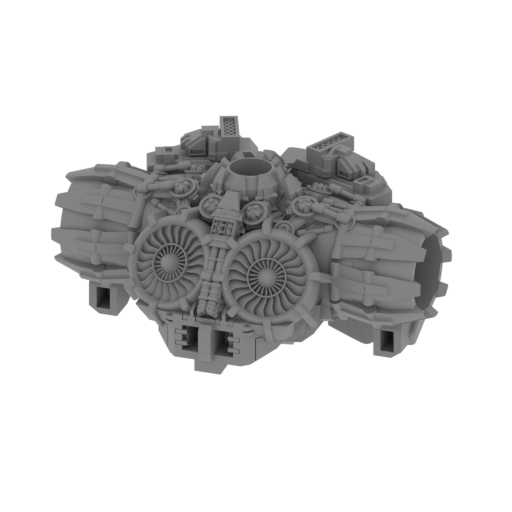

_11_sk_body_2a (repaired) .stl
66.98 MiB 15 h 46 min 8 m 85 x 64 x 47 Download

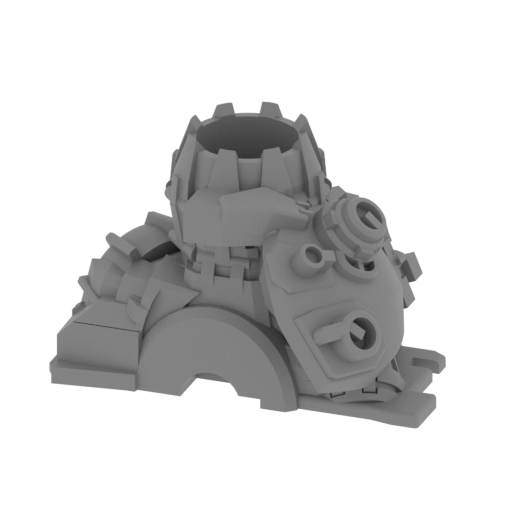

_12_sk_body_2b_1 (repaire d).stl
35.87 MiB 6 h 38 min 3 m 64 x 47 x 42 Download

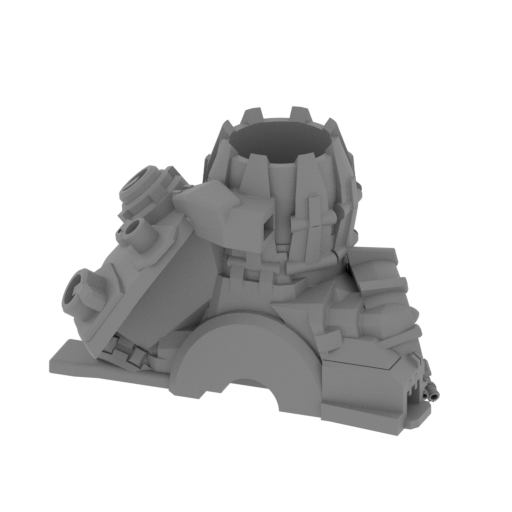

_13_sk_body_2b_2 (repaire d).stl
35.86 MiB 6 h 39 min 3 m 64 x 47 x 42 Download

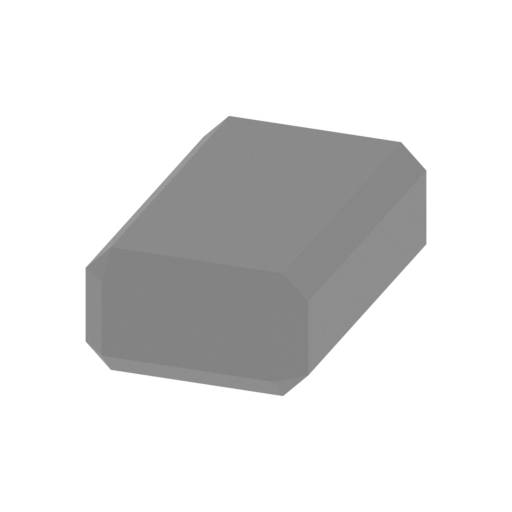

_14_sk_body_2b_3 (repaire d).stl
0.01 MiB 4 min <1 m 6 x 11 x 4 Download

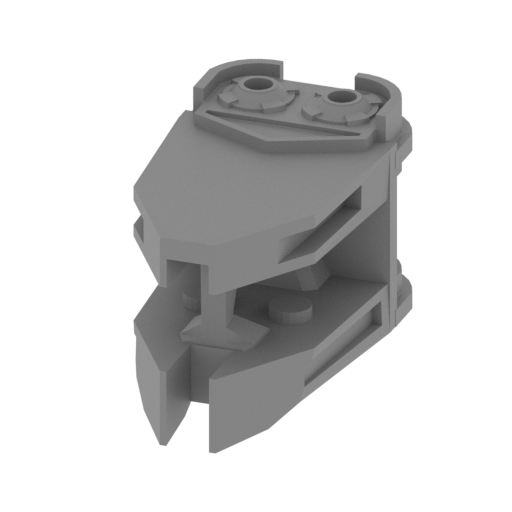

_15_sk_head (repaired).st l
5.44 MiB 57 min <1 m 16 x 27 x 18 Download

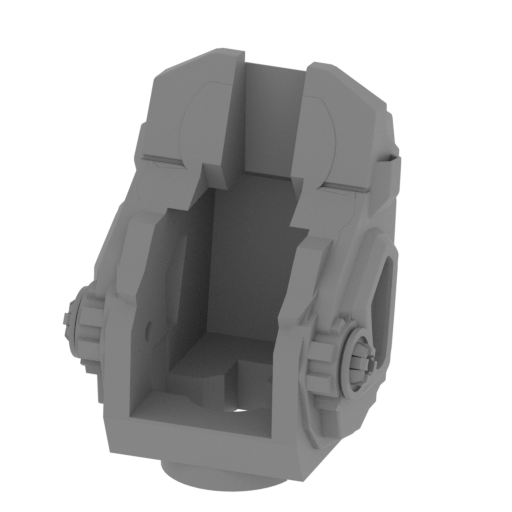

_16_sk_shoulder_R (repair ed).stl
10.21 MiB 2 h 26 min 1 m 31 x 31 x 37 Download

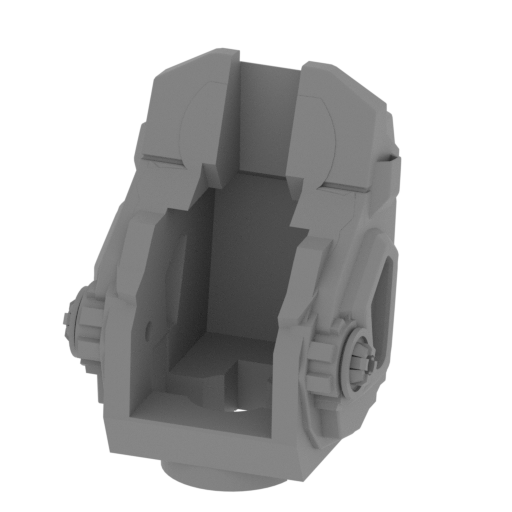

_17_sk_shoulder_L (repair ed).stl
10.18 MiB 2 h 25 min 1 m 31 x 31 x 37 Download

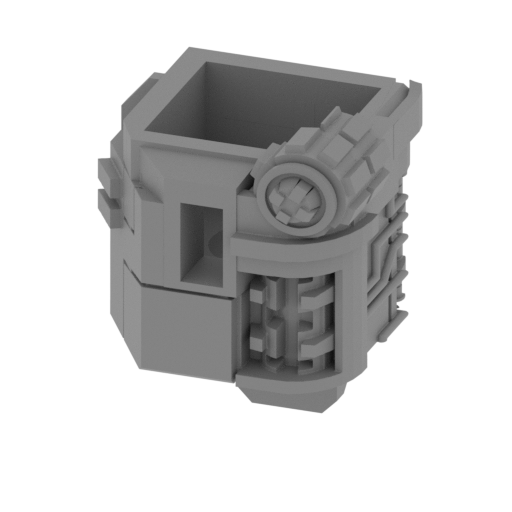

_18_sk_arm_R (repaired).s tl
6.34 MiB 1 h 31 min 1 m 22 x 25 x 27 Download
_19_sk_arm_L (repaired).s tl
6.35 MiB 1 h 28 min 1 m 22 x 25 x 27 Download

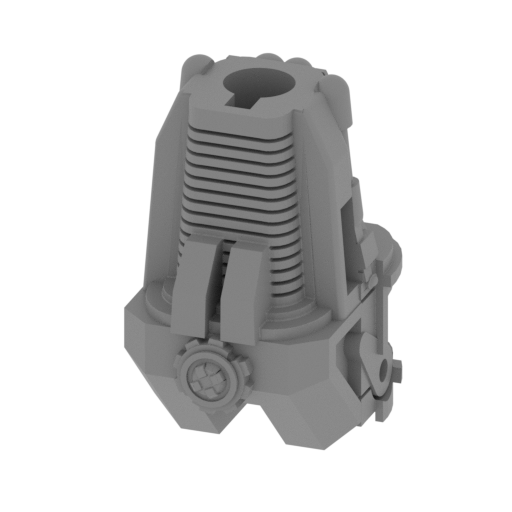

_20_sk_hand_R (repaired). stl
11.93 MiB 1 h 35 min 1 m 21 x 24 x 33 Download
_21_sk_hand_L (repaired). stl
11.95 MiB 1 h 35 min 1 m 21 x 24 x 33 Download

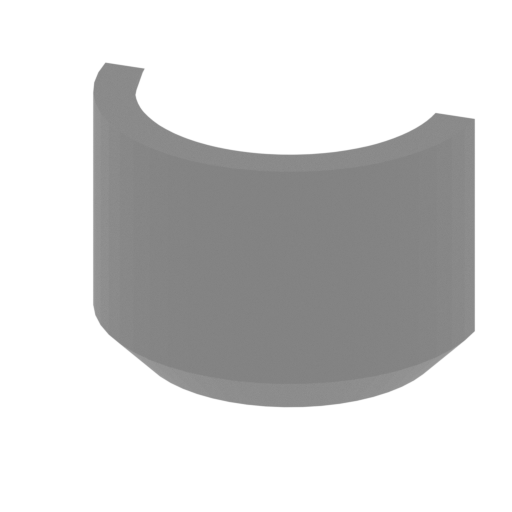

_22_joint_foot_1_x4 (repa ired).stl
0.11 MiB 11 min <1 m 16 x 8 x 12 Download

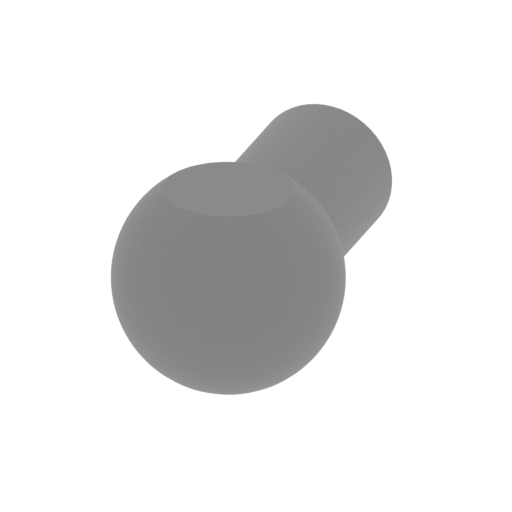

_23_joint_foot_2_x2 (repa ired).stl
0.25 MiB 19 min <1 m 14 x 24 x 13 Download

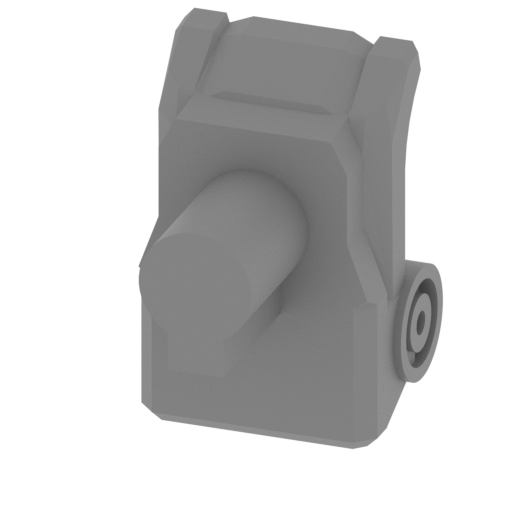

_24_joint_knee_1_x2 (repa ired).stl
0.60 MiB 1 h 14 min 1 m 21 x 28 x 31 Download

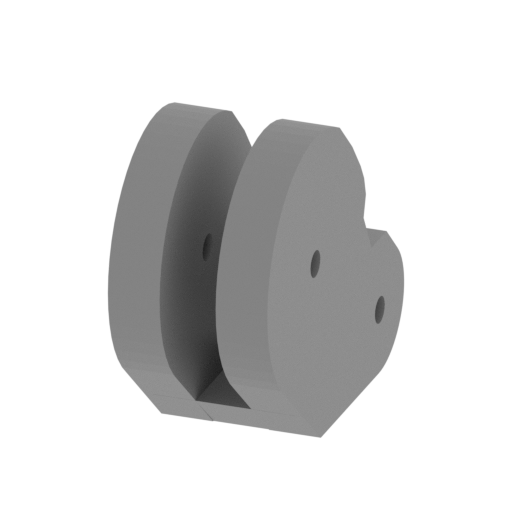

_25_joint_knee_2_x2 (repa ired).stl
0.06 MiB 40 min <1 m 12 x 27 x 23 Download

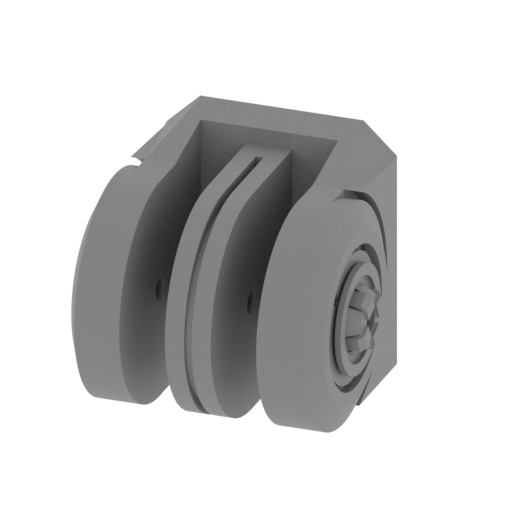

_26_joint_knee_3_x2 (repa ired).stl
4.83 MiB 1 h 23 min 1 m 26 x 32 x 21 Download

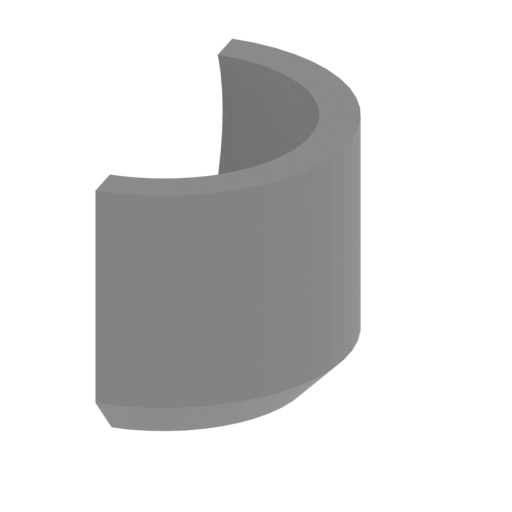

_27_joint_pelvis_1_x4 (re paired).stl
0.11 MiB 11 min <1 m 8 x 16 x 12 Download

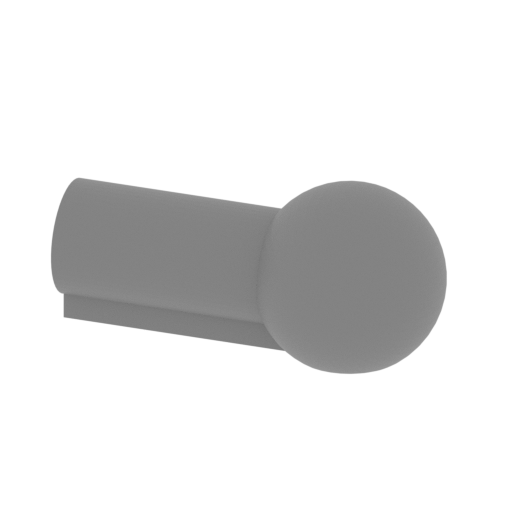

_28_joint_pelvis_2_x2 (re paired).stl
0.25 MiB 21 min <1 m 29 x 14 x 13 Download

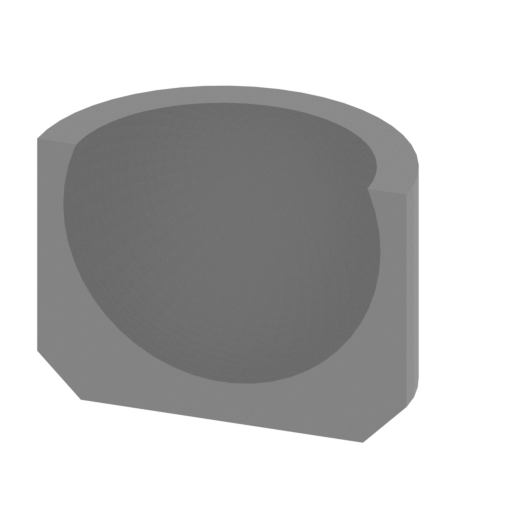

_29_joint_body_1_x4 (repa ired).stl
0.11 MiB 15 min <1 m 19 x 10 x 14 Download

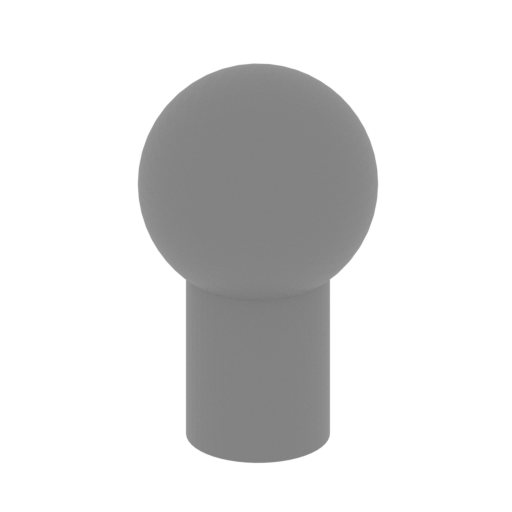

_30_joint_body_2_x2 (repa ired).stl
0.23 MiB 31 min <1 m 17 x 16 x 28 Download
_31_joint_body_3_x2 (repa ired).stl
0.11 MiB 5 min <1 m 9 x 4 x 8 Download

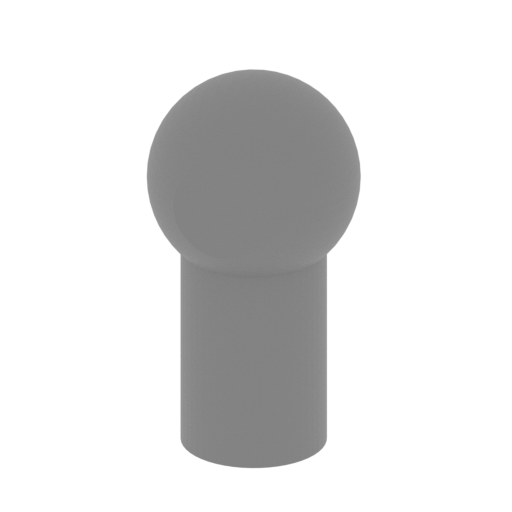

_32_joint_body_4 (repaire d).stl
0.22 MiB 7 min <1 m 7 x 6 x 13 Download

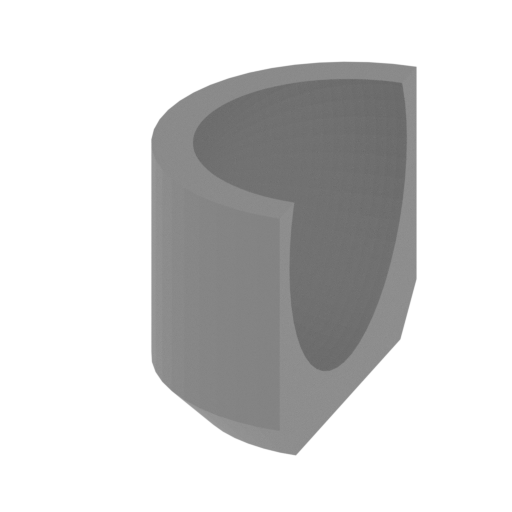

_33_joint_shoulder_1_x4 ( repaired).stl
0.11 MiB 11 min <1 m 8 x 16 x 12 Download
_34_joint_shoulder_2_x2 ( repaired).stl
0.27 MiB 23 min <1 m 14 x 13 x 22 Download

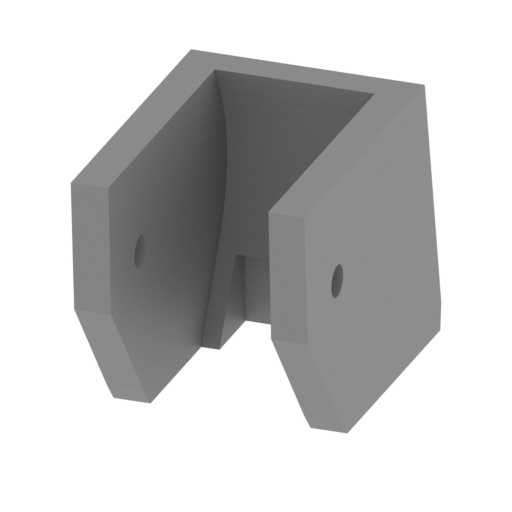

_35_joint_shoulder_3_x2 ( repaired).stl
0.03 MiB 27 min <1 m 14 x 23 x 17 Download

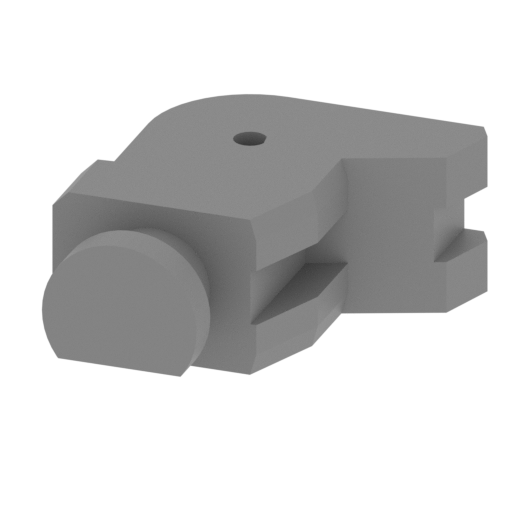

_36_joint_shoulder_4_x2 ( repaired).stl
0.07 MiB 24 min <1 m 21 x 23 x 10 Download

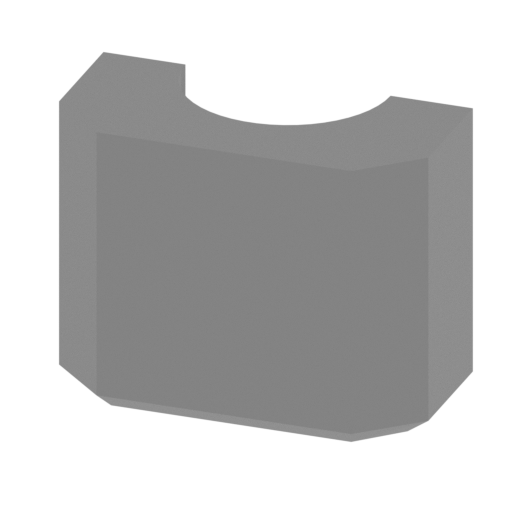

_37_joint_shoulder_5_x4 ( repaired).stl
0.02 MiB 11 min <1 m 13 x 6 x 10 Download

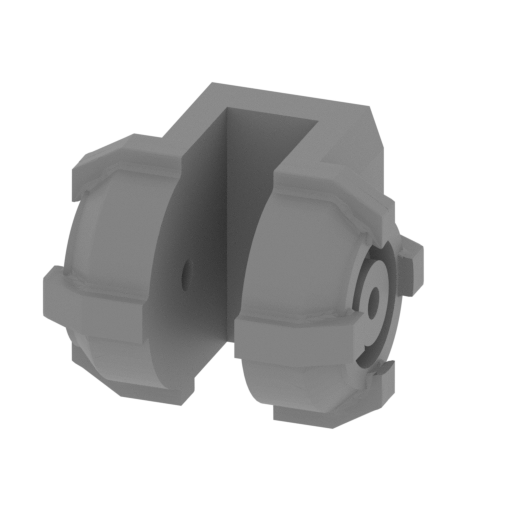

_38_joint_arm_1_x2 (repai red).stl
0.71 MiB 45 min <1 m 20 x 24 x 16 Download

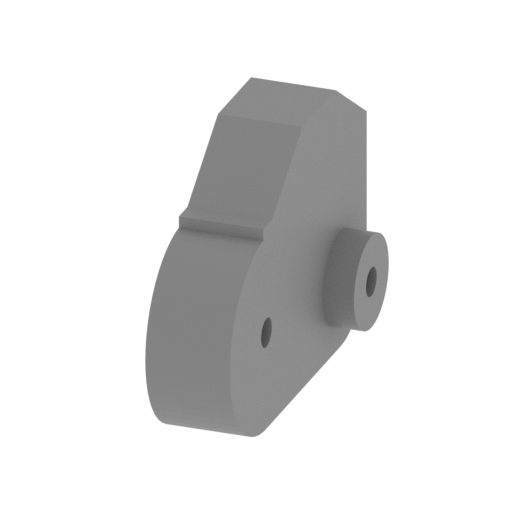

_39_joint_arm_2_x2 (repai red).stl
0.23 MiB 24 min <1 m 10 x 25 x 18 Download

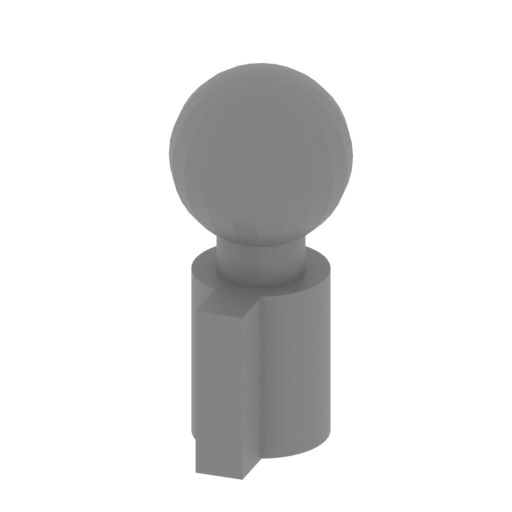

_40_joint_hand_x2 (repair ed).stl
0.08 MiB 12 min <1 m 8 x 9 x 17 Download

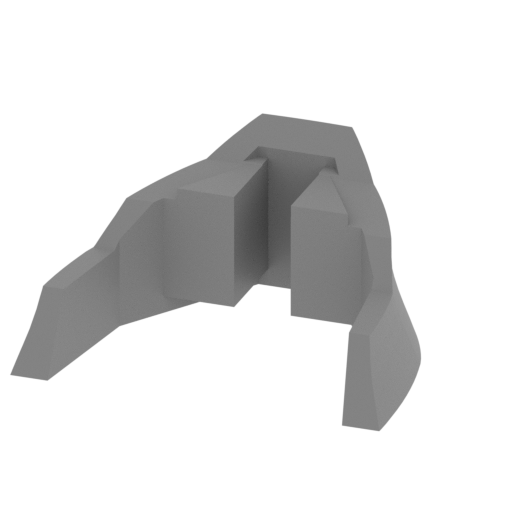

_41_armor_red_head (repai red).stl
0.08 MiB 11 min <1 m 21 x 18 x 9 Download

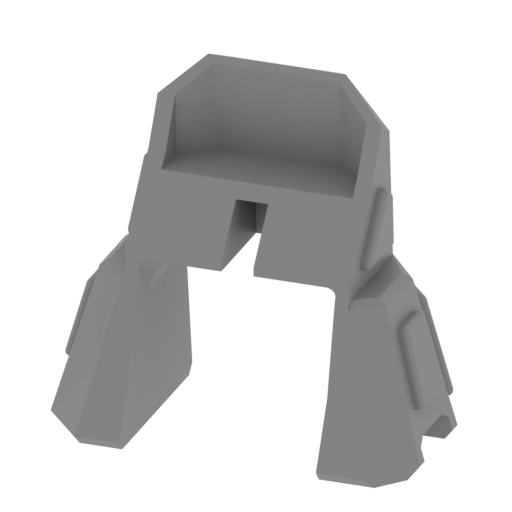

_42_armor_blue_heel_R (re paired).stl
0.43 MiB 1 h 13 min 1 m 35 x 20 x 33 Download
_43_armor_blue_heel_L (re paired).stl
0.43 MiB 1 h 13 min 1 m 35 x 20 x 33 Download

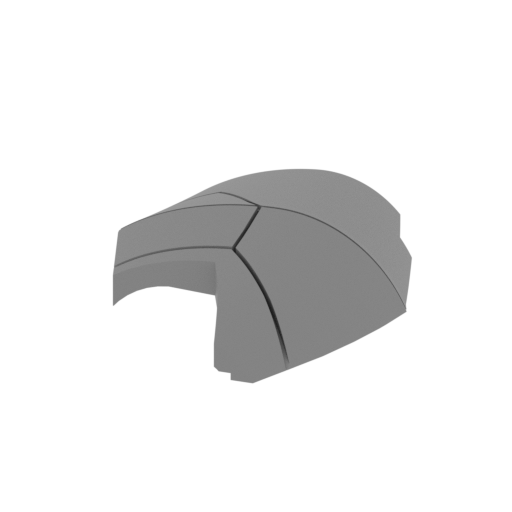

_44_armor_blue_shin_R (re paired).stl
1.36 MiB 1 h 8 min 1 m 35 x 45 x 10 Download

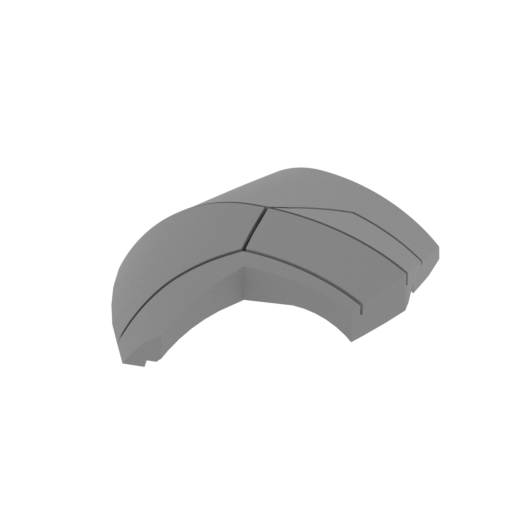

_45_armor_blue_shin_L (re paired).stl
1.36 MiB 1 h 8 min 1 m 35 x 45 x 10 Download

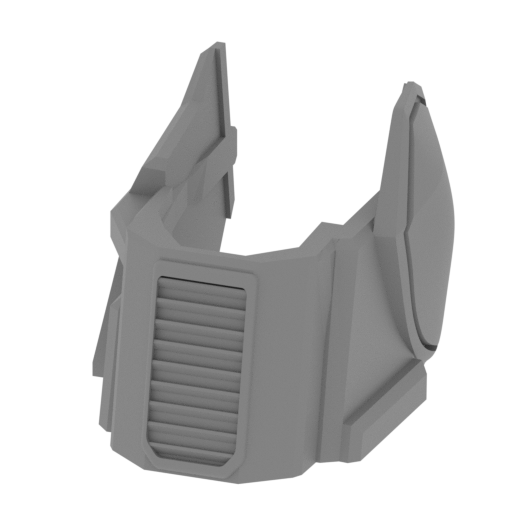

_46_armor_blue_leg_1_R (r epaired).stl
5.17 MiB 1 h 41 min 1 m 35 x 40 x 33 Download

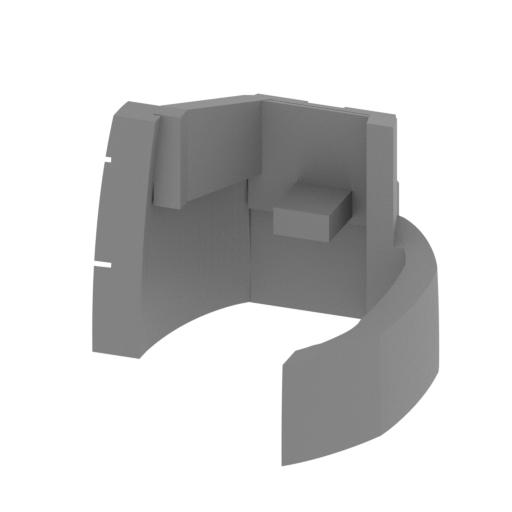

_47_armor_blue_leg_2_R (r epaired).stl
0.26 MiB 1 h 12 min 1 m 35 x 40 x 27 Download

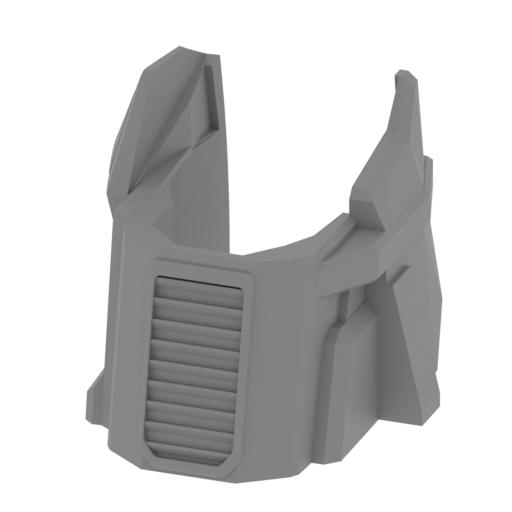

_48_armor_blue_leg_1_L (r epaired).stl
5.14 MiB 1 h 40 min 1 m 35 x 40 x 33 Download
_49_armor_blue_leg_2_L (r epaired).stl
0.27 MiB 1 h 11 min 1 m 35 x 40 x 27 Download

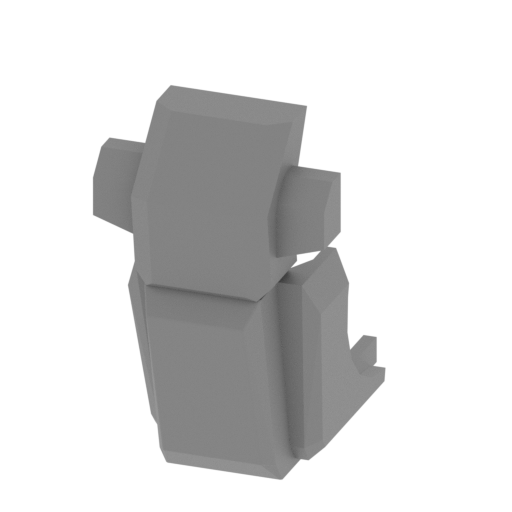

_50_armor_blue_pelvis_1 ( repaired).stl
0.09 MiB 1 h 29 min 1 m 25 x 37 x 40 Download

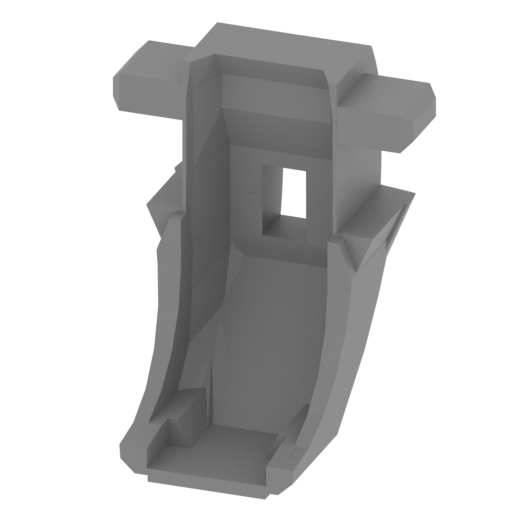

_51_armor_blue_pelvis_2 ( repaired).stl
0.62 MiB 1 h 31 min 1 m 32 x 29 x 40 Download
_52_armor_blue_body_1 (re paired).stl
0.54 MiB 2 h 6 min 1 m 47 x 38 x 18 Download
_53_armor_blue_body_2 (re paired).stl
0.59 MiB 48 min <1 m 15 x 39 x 18 Download

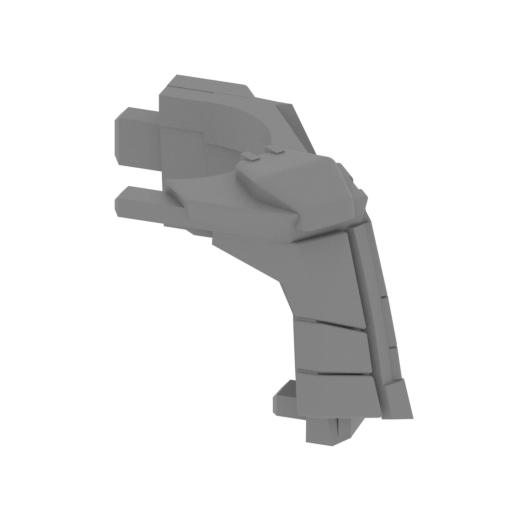

_54_armor_blue_body_3_R ( repaired).stl
0.86 MiB 3 h 32 min 2 m 57 x 49 x 39 Download

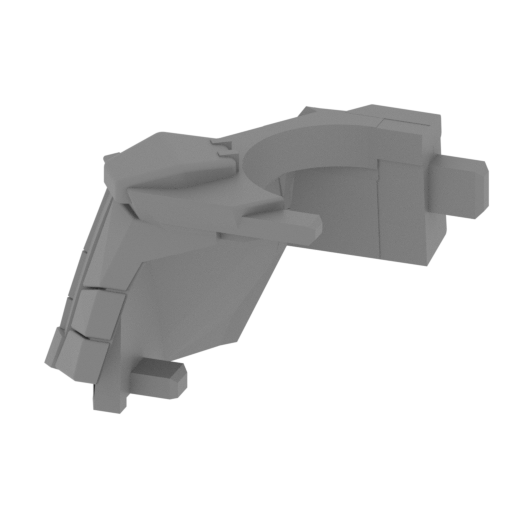

_55_armor_blue_body_3_L ( repaired).stl
0.87 MiB 3 h 32 min 2 m 57 x 49 x 39 Download

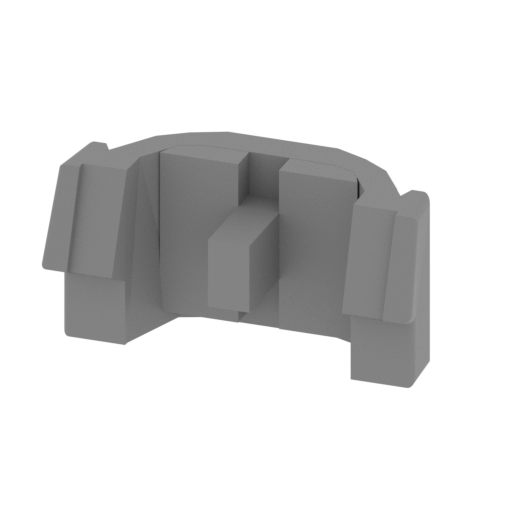

_56_armor_blue_neck (repa ired).stl
0.04 MiB 21 min <1 m 27 x 12 x 13 Download

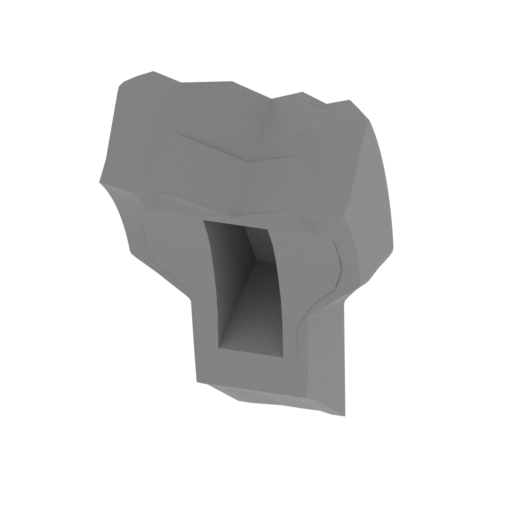

_57_armor_blue_back_1 (re paired).stl
0.37 MiB 31 min <1 m 18 x 14 x 26 Download

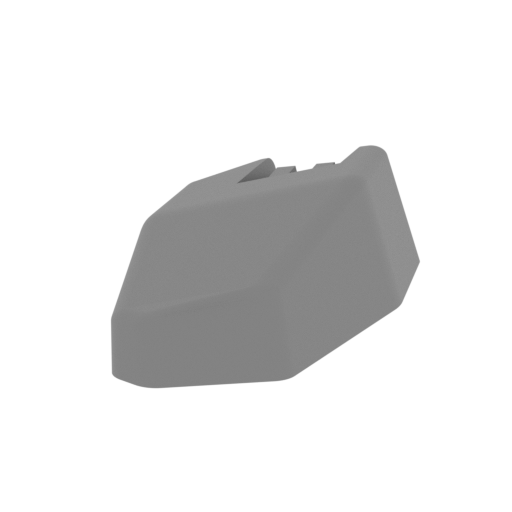

_58_armor_blue_back_2_R ( repaired).stl
0.14 MiB 14 min <1 m 13 x 21 x 7 Download

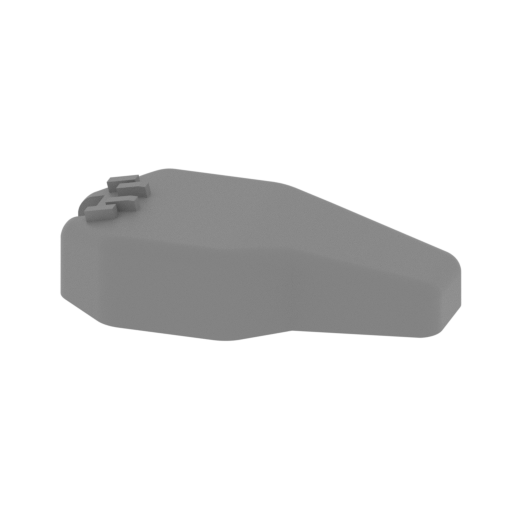

_59_armor_blue_back_3_R ( repaired).stl
0.17 MiB 14 min <1 m 23 x 12 x 6 Download

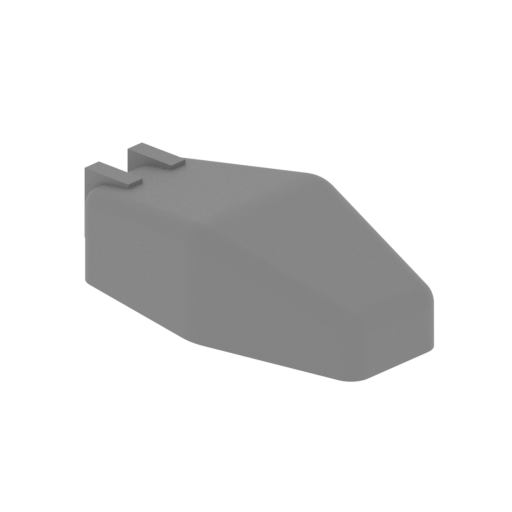

_60_armor_blue_back_4_R ( repaired).stl
0.13 MiB 10 min <1 m 19 x 12 x 6 Download

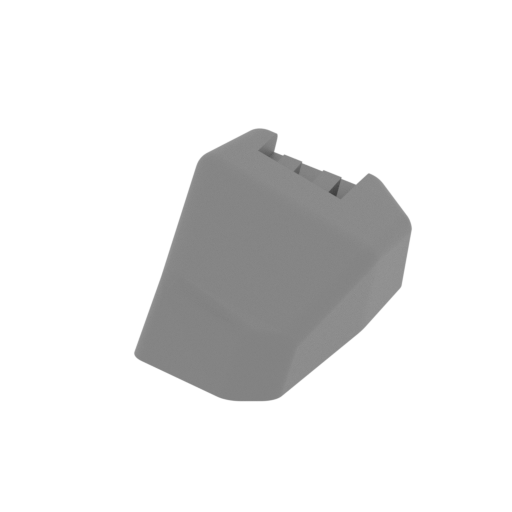

_61_armor_blue_back_2_L ( repaired).stl
0.14 MiB 14 min <1 m 13 x 21 x 7 Download

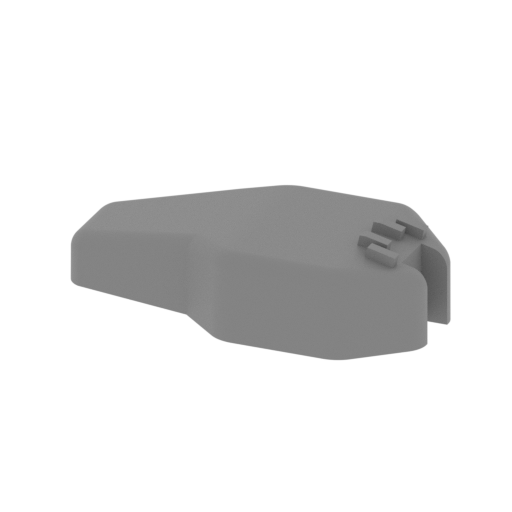

_62_armor_blue_back_3_L ( repaired).stl
0.17 MiB 13 min <1 m 23 x 12 x 6 Download
_63_armor_blue_back_4_L ( repaired).stl
0.13 MiB 10 min <1 m 19 x 12 x 6 Download

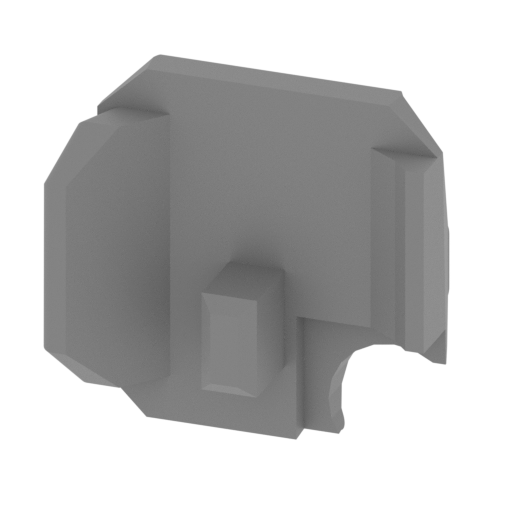

_64_armor_blue_arm_1_R (r epaired).stl
0.16 MiB 21 min <1 m 20 x 11 x 19 Download

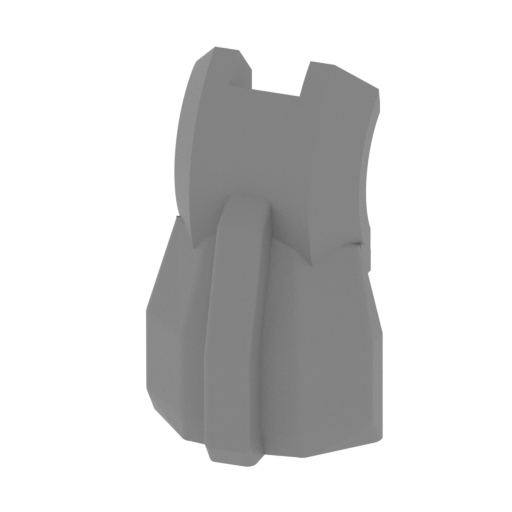

_65_armor_blue_arm_2_R (r epaired).stl
0.21 MiB 54 min 1 m 23 x 17 x 38 Download

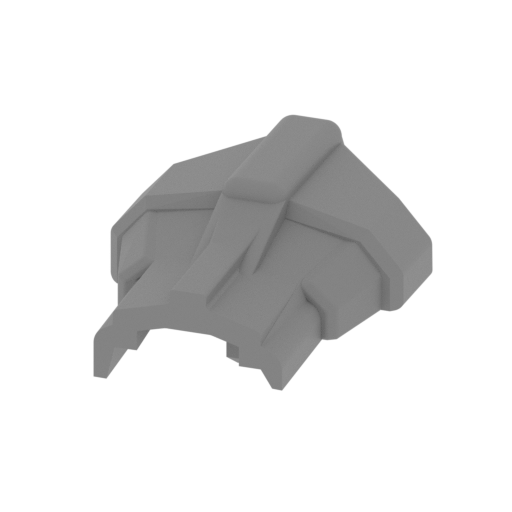

_66_armor_blue_arm_3_R (r epaired).stl
0.77 MiB 52 min 1 m 26 x 32 x 14 Download

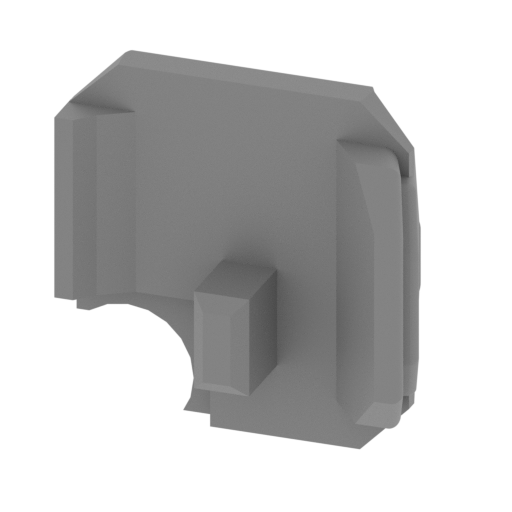

_67_armor_blue_arm_1_L (r epaired).stl
0.16 MiB 21 min <1 m 20 x 11 x 19 Download

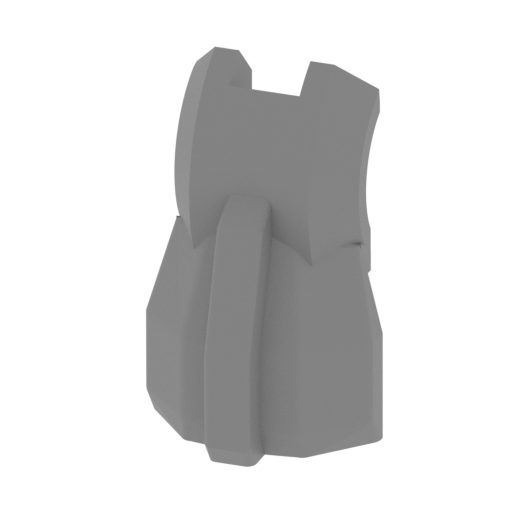

_68_armor_blue_arm_2_L (r epaired).stl
0.21 MiB 55 min 1 m 23 x 17 x 38 Download

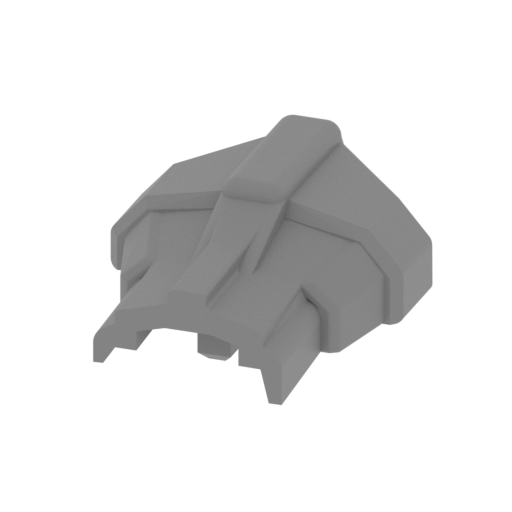

_69_armor_blue_arm_3_L (r epaired).stl
0.77 MiB 52 min 1 m 26 x 32 x 14 Download
_70_armor_gold_foot_1_R ( repaired).stl
0.02 MiB 34 min <1 m 23 x 30 x 12 Download

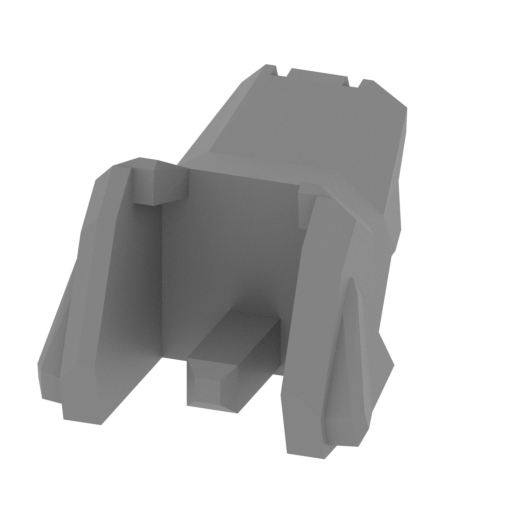

_71_armor_gold_foot_2_R ( repaired).stl
0.03 MiB 54 min <1 m 25 x 28 x 18 Download

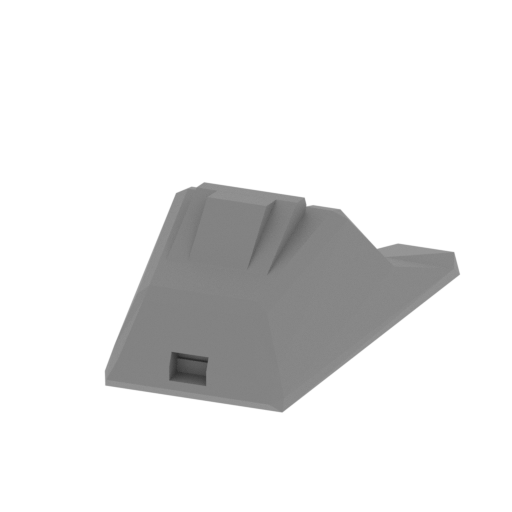

_72_armor_gold_foot_1_L ( repaired).stl
0.02 MiB 34 min <1 m 23 x 30 x 12 Download

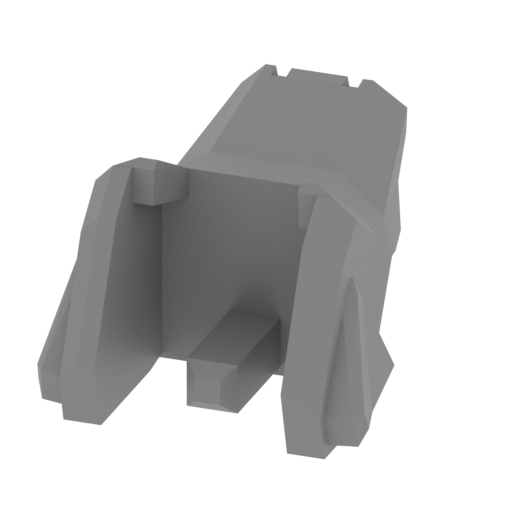

_73_armor_gold_foot_2_L ( repaired).stl
0.03 MiB 53 min <1 m 25 x 28 x 18 Download

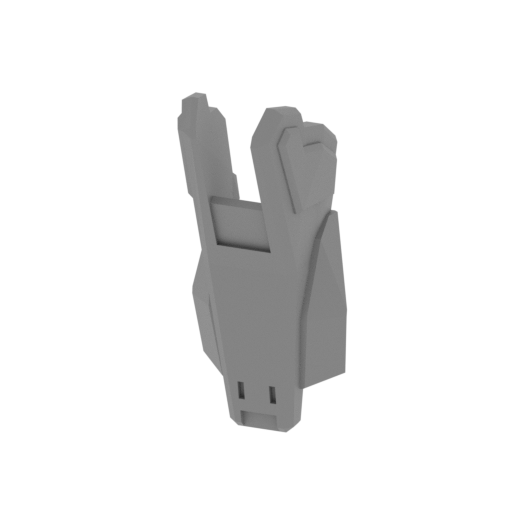

_74_armor_gold_shin_1_R ( repaired).stl
0.05 MiB 1 h 40 min 1 m 24 x 28 x 58 Download
_75_armor_gold_shin_2_R ( repaired).stl
1.36 MiB 1 h 8 min 1 m 35 x 45 x 10 Download
_76_armor_gold_shin_1_L ( repaired).stl
0.05 MiB 1 h 40 min 1 m 24 x 28 x 58 Download
_77_armor_gold_shin_2_L ( repaired).stl
1.36 MiB 1 h 8 min 1 m 35 x 45 x 10 Download
_78_armor_gold_leg_1_R (r epaired).stl
0.51 MiB 2 h 27 min 2 m 23 x 84 x 28 Download

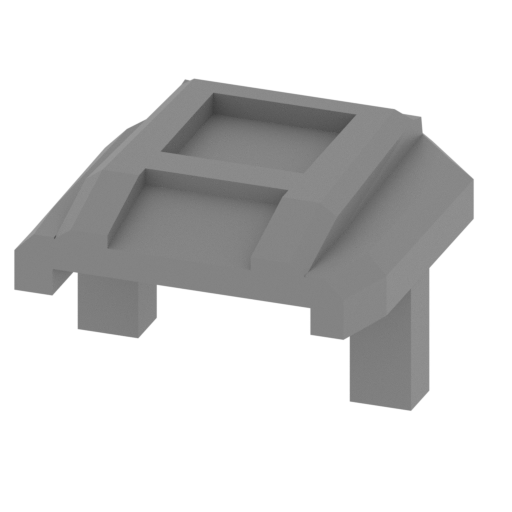

_79_armor_gold_leg_2_R (r epaired).stl
0.02 MiB 36 min <1 m 20 x 21 x 13 Download

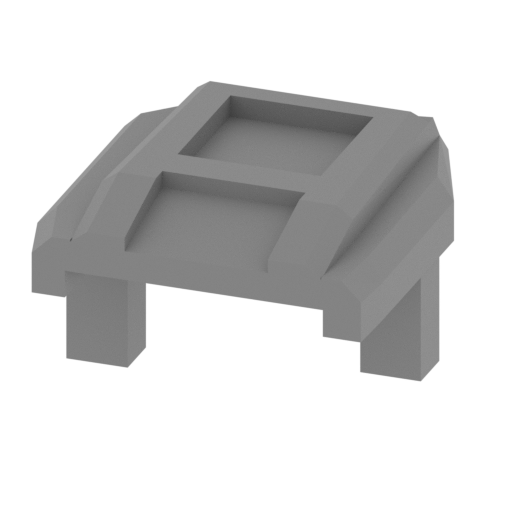

_80_armor_gold_leg_2_L (r epaired).stl
0.02 MiB 35 min <1 m 20 x 21 x 13 Download

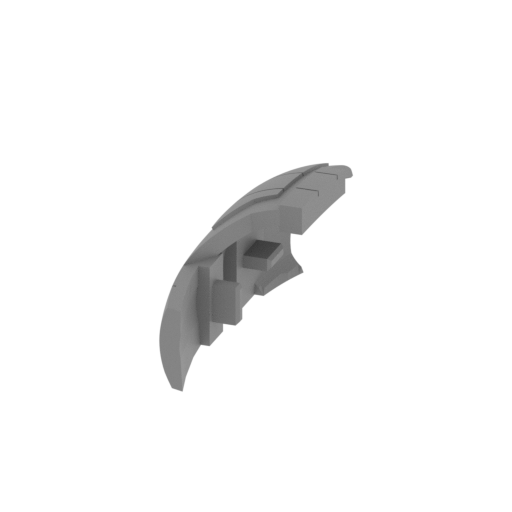

_81_armor_gold_leg_1_L (r epaired).stl
0.51 MiB 2 h 26 min 2 m 23 x 84 x 28 Download

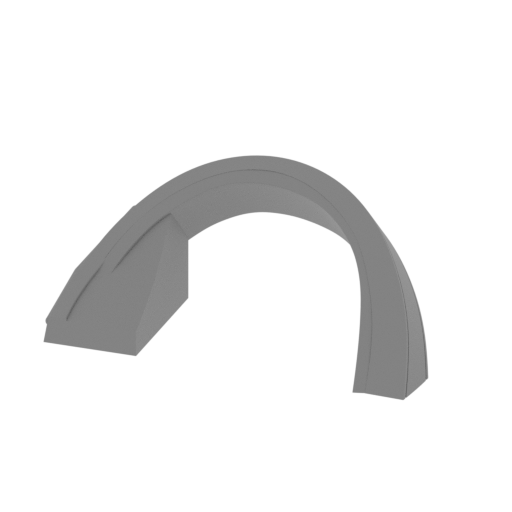

_82_armor_gold_pelvis_R ( repaired).stl
1.48 MiB 1 h 17 min 1 m 59 x 29 x 26 Download

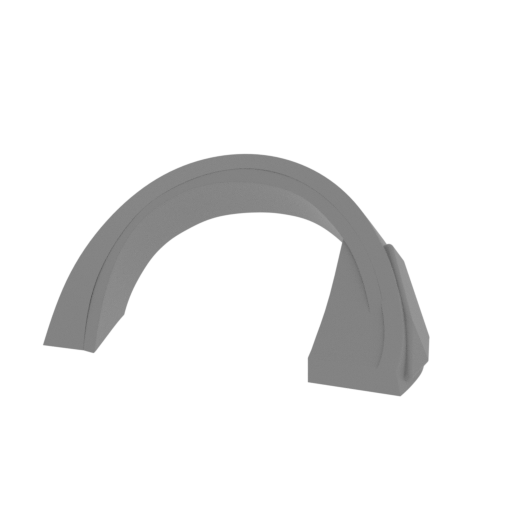

_83_armor_gold_pelvis_L ( repaired).stl
1.48 MiB 1 h 17 min 1 m 59 x 29 x 26 Download

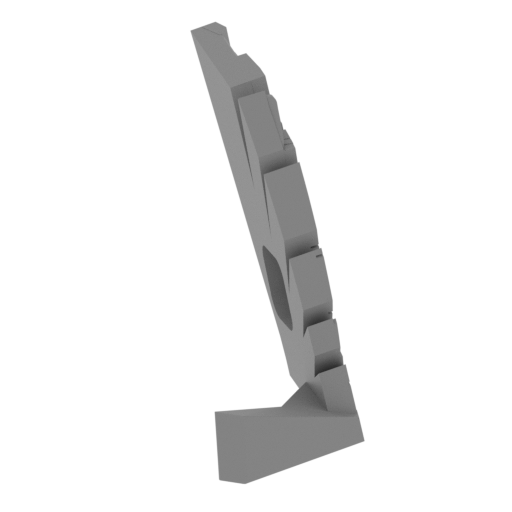

_84_armor_gold_body_1_R ( repaired).stl
0.17 MiB 53 min <1 m 32 x 46 x 37 Download

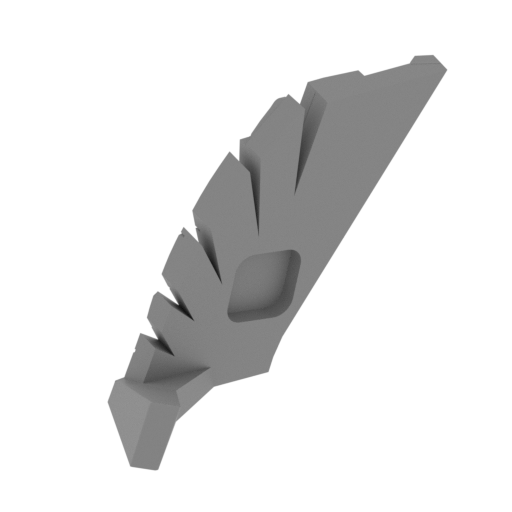

_85_armor_gold_body_2_R ( repaired).stl
0.17 MiB 53 min <1 m 32 x 46 x 37 Download

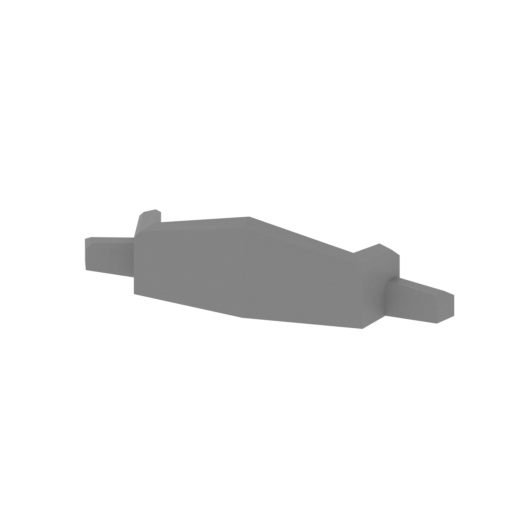

_86_armor_gold_body_3 (re paired).stl
0.01 MiB 5 min <1 m 25 x 5 x 6 Download

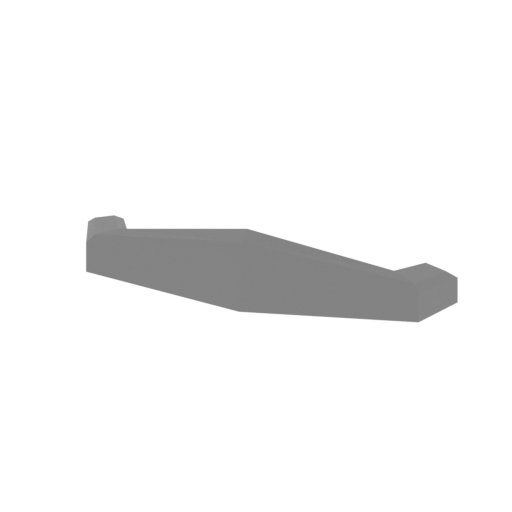

_87_armor_gold_body_4 (re paired).stl
0.01 MiB 3 min <1 m 21 x 5 x 4 Download

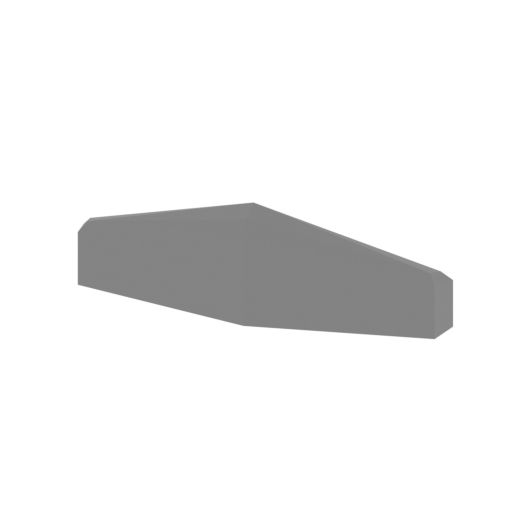

_88_armor_gold_body_5 (re paired).stl
0.00 MiB 3 min <1 m 15 x 3 x 5 Download

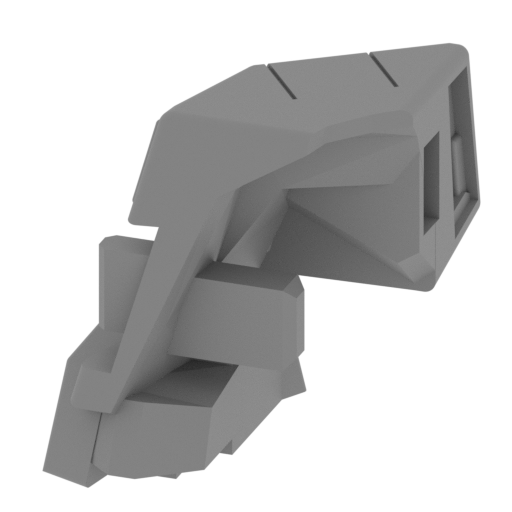

_89_armor_gold_back_R (re paired).stl
0.78 MiB 2 h 12 min 1 m 32 x 35 x 36 Download

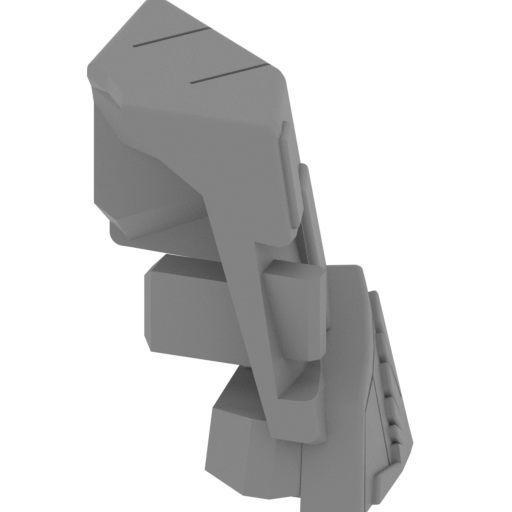

_90_armor_gold_back_L (re paired).stl
0.78 MiB 2 h 12 min 1 m 32 x 35 x 36 Download

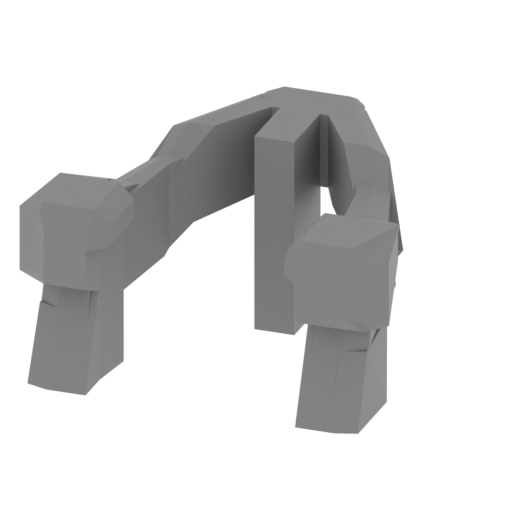

_91_armor_gold_head_1 (re paired).stl
0.06 MiB 44 min <1 m 28 x 27 x 15 Download
_92_armor_gold_head_2 (re paired).stl
0.86 MiB 55 min 1 m 26 x 42 x 13 Download

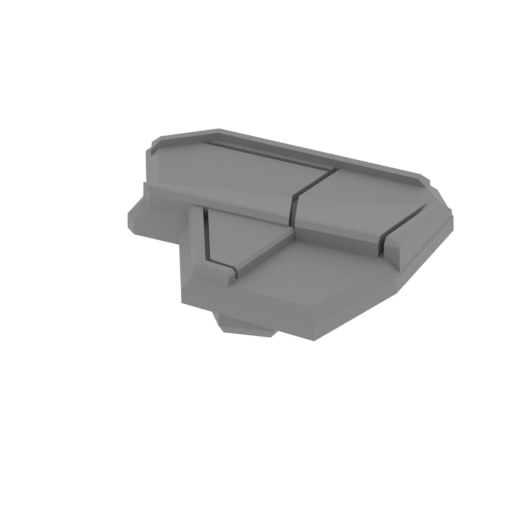

_93_armor_gold_shoulder_1 _R (repaired).stl
0.05 MiB 1 h 9 min 1 m 35 x 40 x 12 Download
_94_armor_gold_shoulder_2 _R (repaired).stl
0.05 MiB 50 min <1 m 12 x 40 x 35 Download

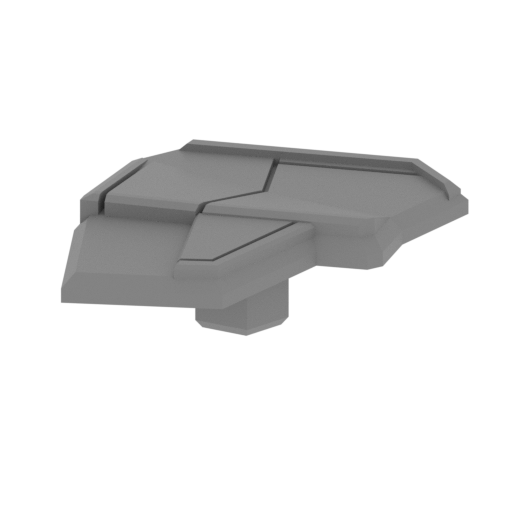

_95_armor_gold_shoulder_1 _L (repaired).stl
0.05 MiB 1 h 10 min 1 m 35 x 40 x 12 Download

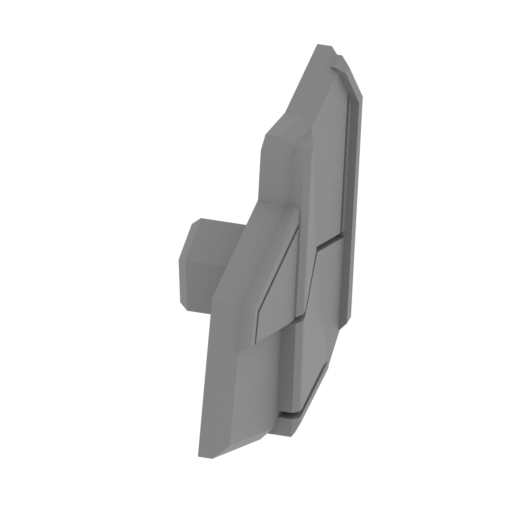

_96_armor_gold_shoulder_2 _L (repaired).stl
0.05 MiB 50 min <1 m 12 x 40 x 35 Download

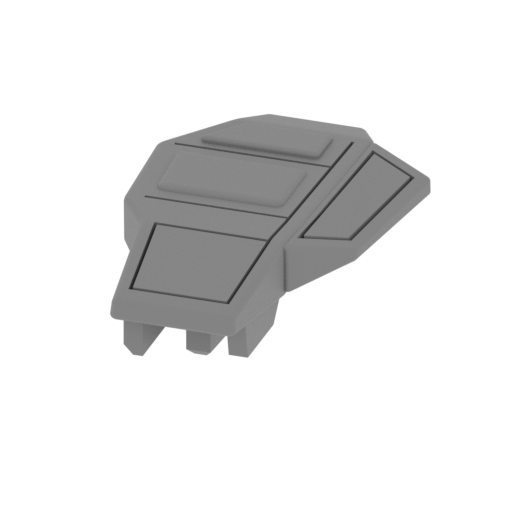

_97_armor_gold_arm_R (rep aired).stl
0.60 MiB 1 h 38 min 1 m 31 x 44 x 17 Download
_98_armor_gold_arm_L (rep aired).stl
0.61 MiB 1 h 37 min 1 m 31 x 44 x 17 Download

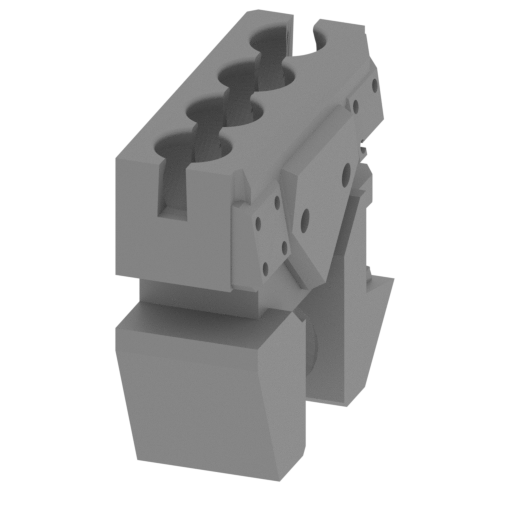

_99_wrist_R (repaired).st l
1.04 MiB 33 min <1 m 8 x 20 x 18 Download

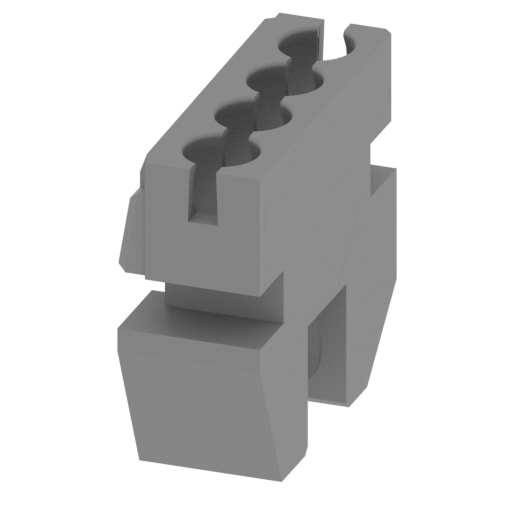

_100_wrist_L (repaired).s tl
1.04 MiB 33 min <1 m 8 x 20 x 18 Download

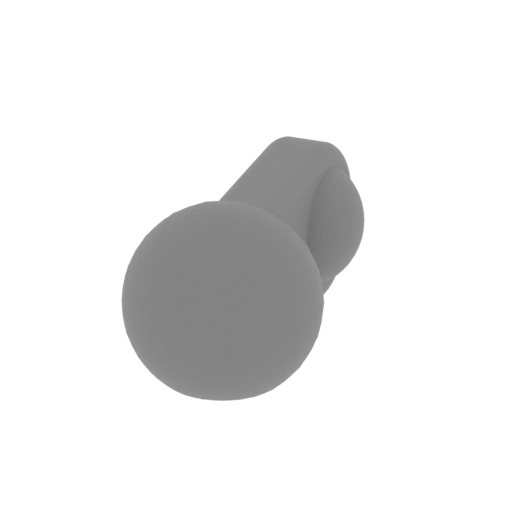

_101_wrist_finger_joint_x 10 (repaired).stl
0.57 MiB 2 min <1 m 5 x 9 x 4 Download
_102_wrist_finger_big_x2 (repaired).stl
0.33 MiB 6 min <1 m 5 x 13 x 6 Download

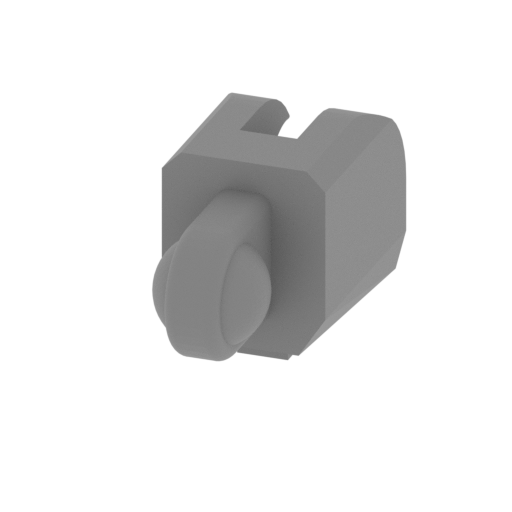

_103_wrist_finger_a_x16 ( repaired).stl
0.33 MiB 5 min <1 m 5 x 10 x 6 Download

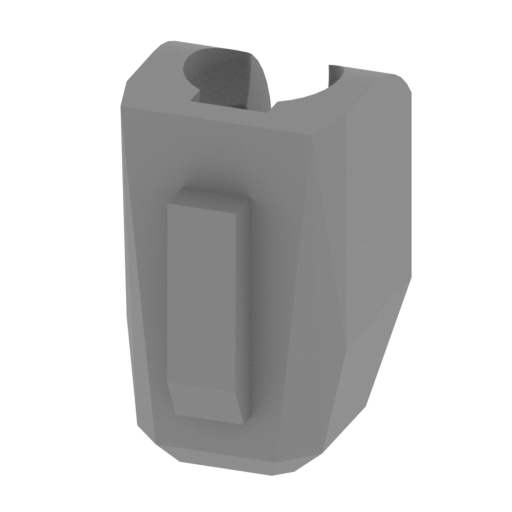

_104_wrist_finger_b_x10 ( repaired).stl
0.21 MiB 6 min <1 m 5 x 6 x 8 Download

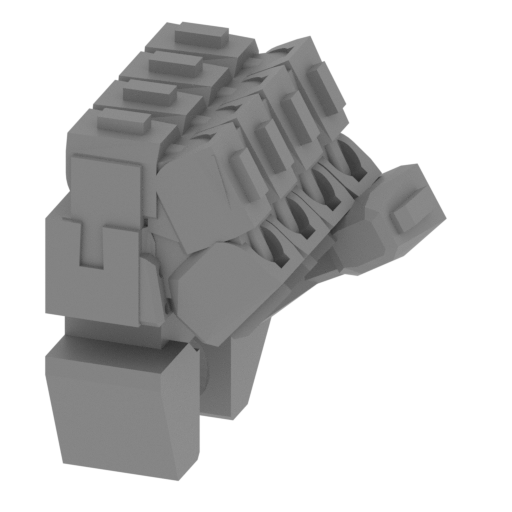

_105_wrist_static_a_R (re paired).stl
2.13 MiB 1 h 14 min 1 m 20 x 23 x 25 Download

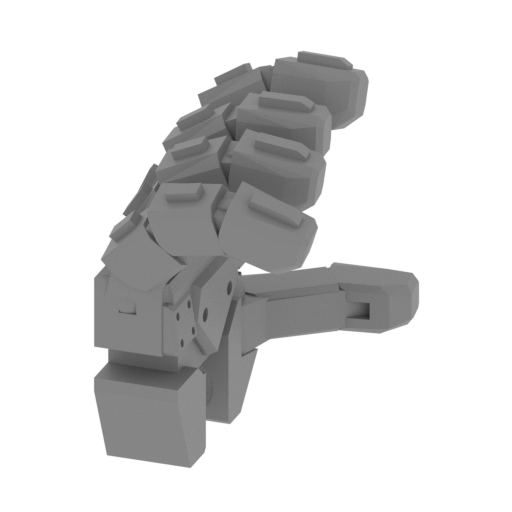

_106_wrist_static_b_R (re paired).stl
1.23 MiB 1 h 43 min 1 m 22 x 35 x 32 Download

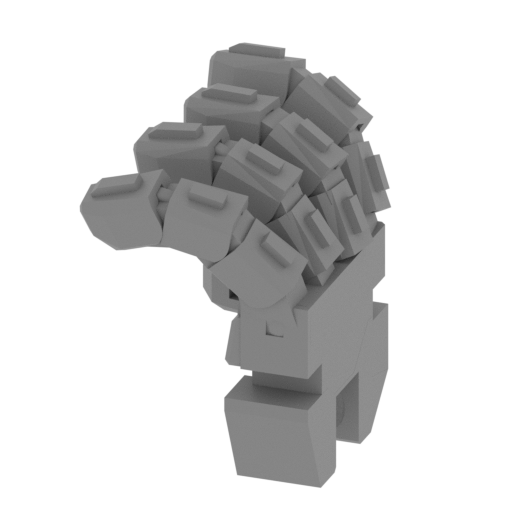

_107_wrist_static_b_L (re paired).stl
1.23 MiB 1 h 43 min 1 m 22 x 35 x 32 Download

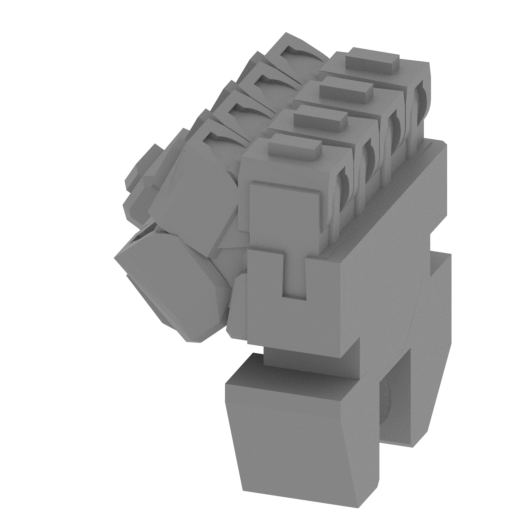

_108_wrist_static_a_L (re paired).stl
2.12 MiB 1 h 10 min 1 m 20 x 23 x 25 Download

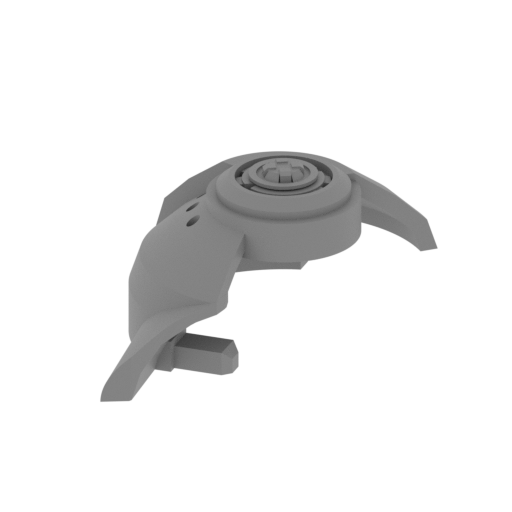

_109_aa_shoulder_armor_1 (repaired).stl
3.07 MiB 2 h 18 min 2 m 41 x 57 x 27 Download

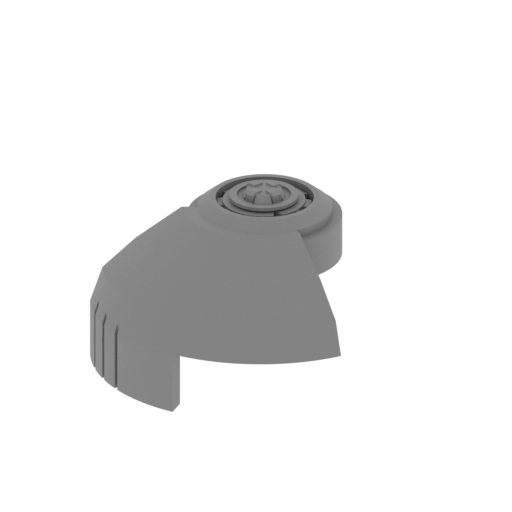

_110_aa_shoulder_armor_2 (repaired).stl
3.08 MiB 2 h 18 min 2 m 41 x 57 x 27 Download

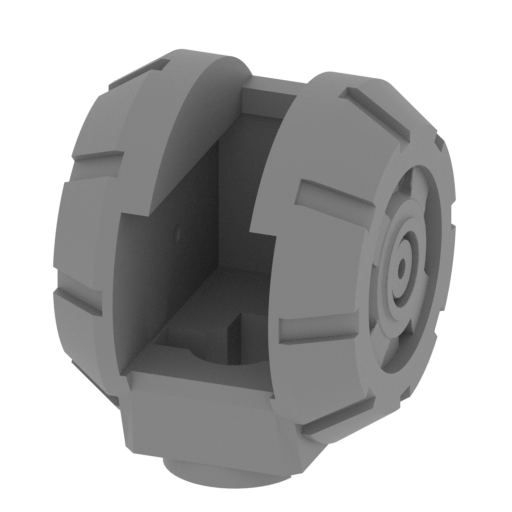

_111_aa_shoulder (repaire d).stl
2.53 MiB 3 h 27 min 2 m 30 x 35 x 37 Download

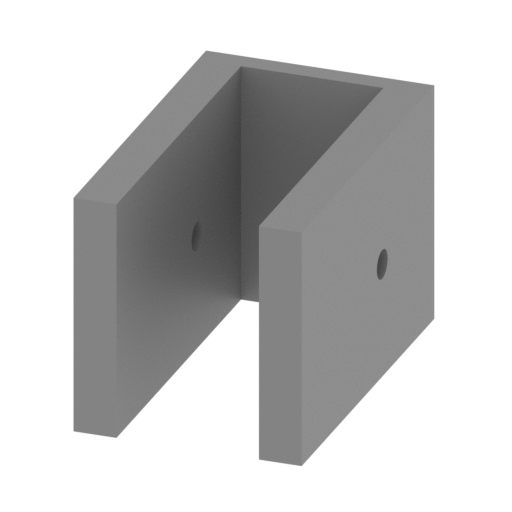

_112_aa_clip_1 (repaired) .stl
0.05 MiB 32 min <1 m 15 x 25 x 16 Download

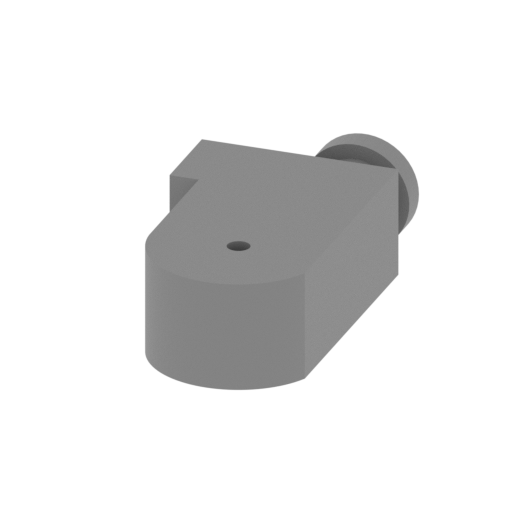

_113_aa_clip_2 (repaired) .stl
0.20 MiB 33 min <1 m 17 x 33 x 10 Download

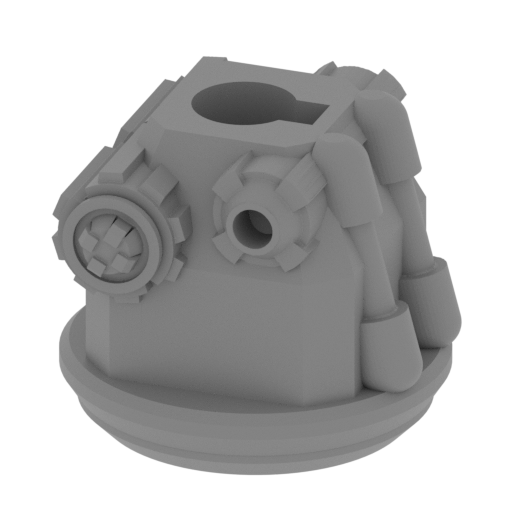

_114_aa_arm_1 (repaired). stl
7.27 MiB 1 h 19 min 1 m 24 x 24 x 21 Download
_115_aa_arm_1_corrige_1 ( repaired).stl
0.02 MiB 11 min <1 m 13 x 6 x 10 Download
_116_aa_arm_1_corrige_2 ( repaired).stl
0.02 MiB 11 min <1 m 13 x 6 x 10 Download
_117_aa_elbow_1 (repaired ).stl
5.95 MiB 1 h 2 min 1 m 23 x 29 x 17 Download

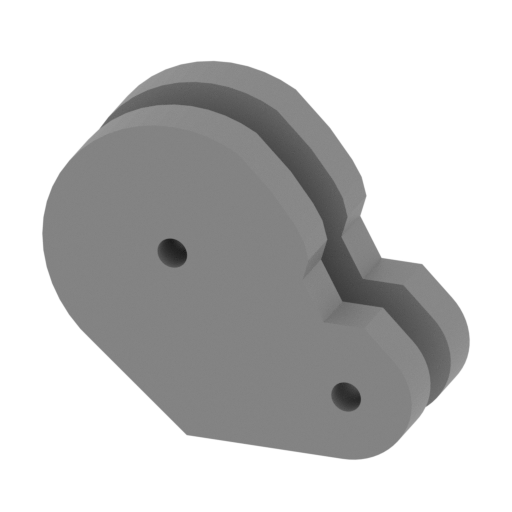

_118_aa_elbow_2 (repaired ).stl
0.14 MiB 36 min <1 m 25 x 10 x 21 Download

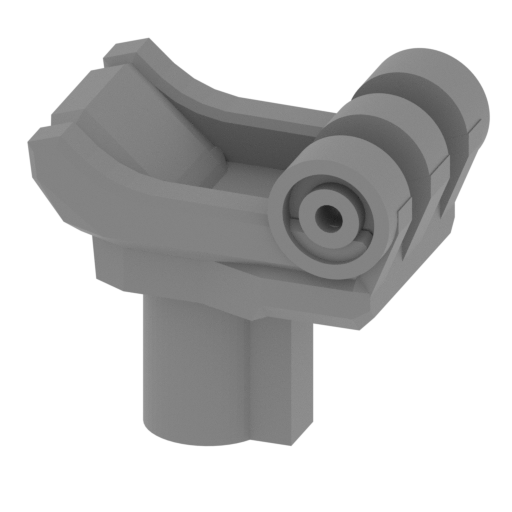

_119_aa_elbow_3 (repaired ).stl
0.42 MiB 1 h 5 min 1 m 26 x 19 x 25 Download

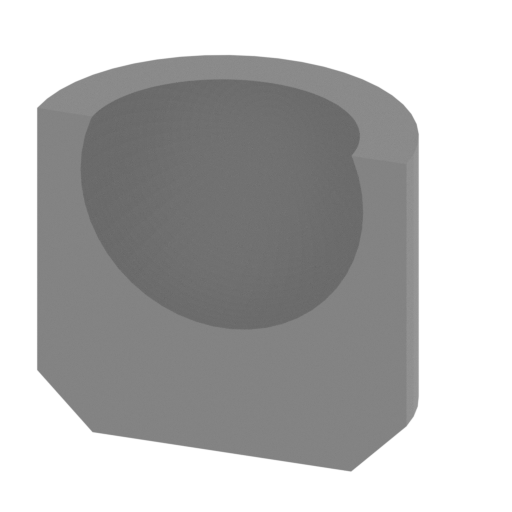

_120_aa_joint_hand_1 (rep aired).stl
0.11 MiB 10 min <1 m 12 x 6 x 11 Download

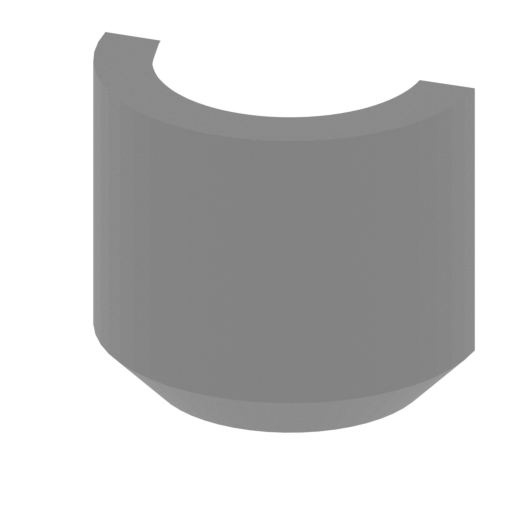

_121_aa_joint_hand_2 (rep aired).stl
0.11 MiB 10 min <1 m 12 x 6 x 11 Download
_122_aa_joint_hand_3 (rep aired).stl
0.22 MiB 10 min <1 m 10 x 17 x 9 Download

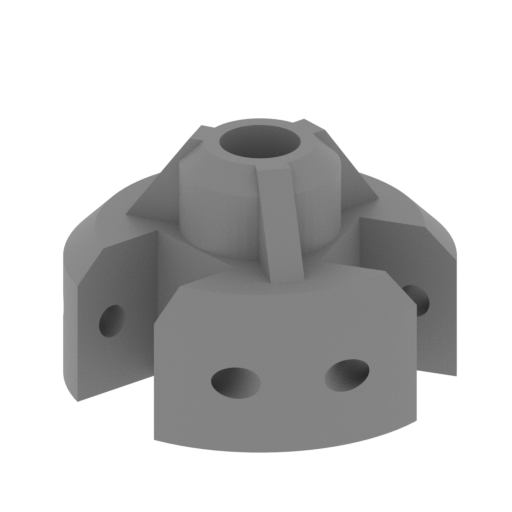

_123_aa_hand (repaired).s tl
0.20 MiB 35 min <1 m 22 x 23 x 15 Download

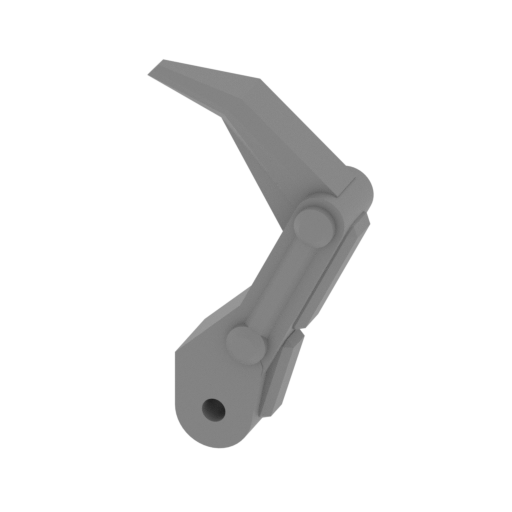

_124_aa_claw_1 (repaired) .stl
0.12 MiB 33 min <1 m 18 x 9 x 31 Download

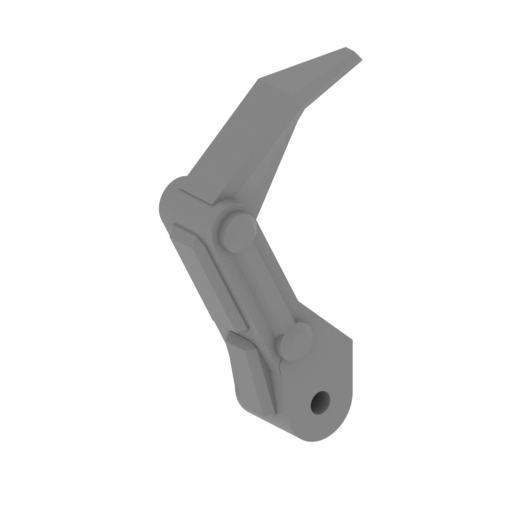

_125_aa_claw_2 (repaired) .stl
0.12 MiB 33 min <1 m 14 x 17 x 31 Download

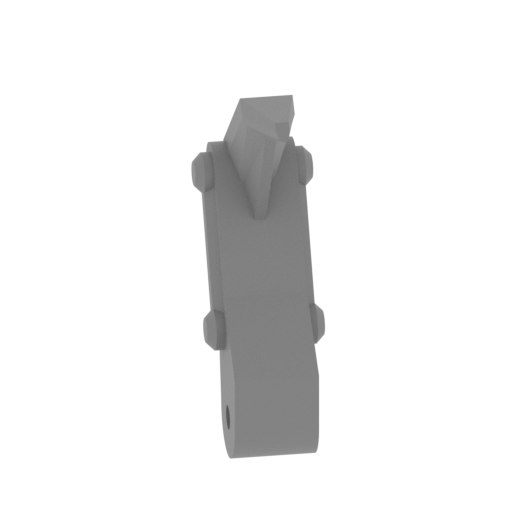

_126_aa_claw_3 (repaired) .stl
0.12 MiB 33 min <1 m 13 x 17 x 31 Download

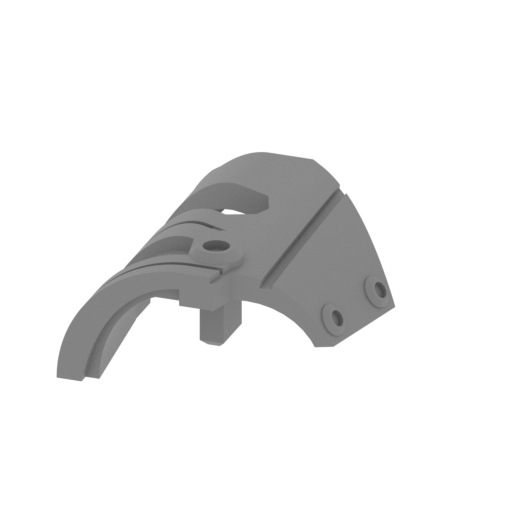

_127_aa_arm_armor_1 (repa ired).stl
0.62 MiB 2 h 28 min 2 m 44 x 57 x 21 Download

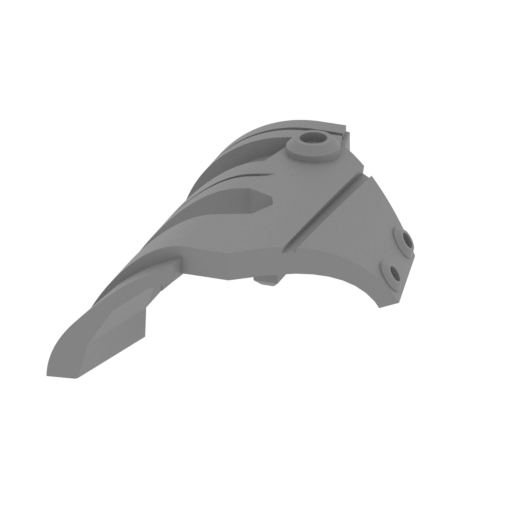

_128_aa_arm_armor_2 (repa ired).stl
0.62 MiB 2 h 29 min 2 m 44 x 57 x 21 Download
_129_aa_arm_2 (repaired). stl
10.66 MiB 3 h 24 min 2 m 35 x 27 x 37 Download

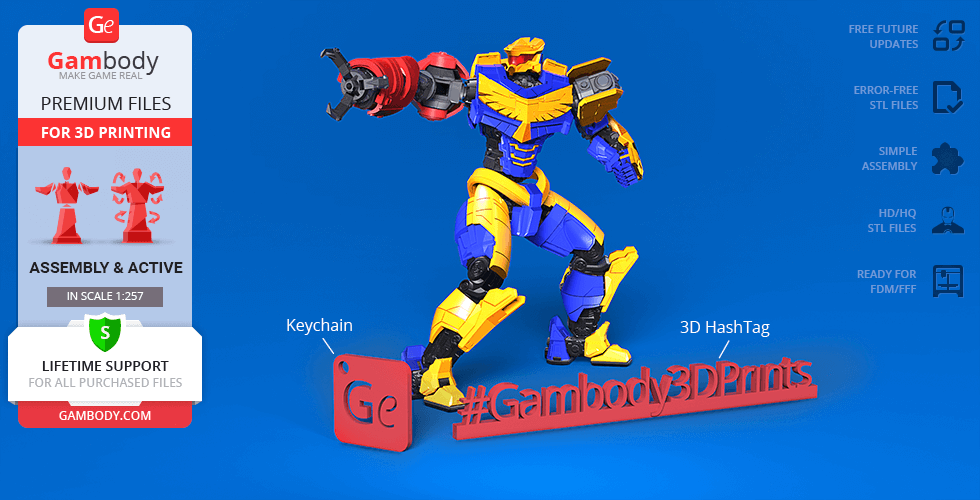

Tag (repaired).stl
1.70 MiB 1 h 18 min 1 m 150 x 18 x 5 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
...

ABOUT THIS 3D MODEL

A new hero Jaeger rises!

Today we are representing you the Atlas Destroyer from the Netflix series Pacific Rim: The Black!

Despite the existence of simulation rigs, the PPDC still needed a higher number of skilled pilots to compensate for their losses. Atlas Destroyer was one answer to this problem. Atlas is a Mark-3 Jaeger subsequently retired from active combat and reassigned as a training Jaeger. It underwent a refit at the Brisbane Shatterdome where it was stripped of its weaponry. By giving new pilots a chance to pilot a real Jaeger instead of a simulation before their graduation, the PPDC hoped to dramatically speed up the training of pilots.

Another great contribution from our 3D artist! The author created the Atlas Destroyer figurine with high-level detailing, articulated parts, and removable armor dress! Atlas Destroyer's right arm with a weaponized upgrade is also included. The claws and elbow on this arm are movable as well. Make it real now, right on your 3D printer!

ADAPTATION FOR 3D PRINTING

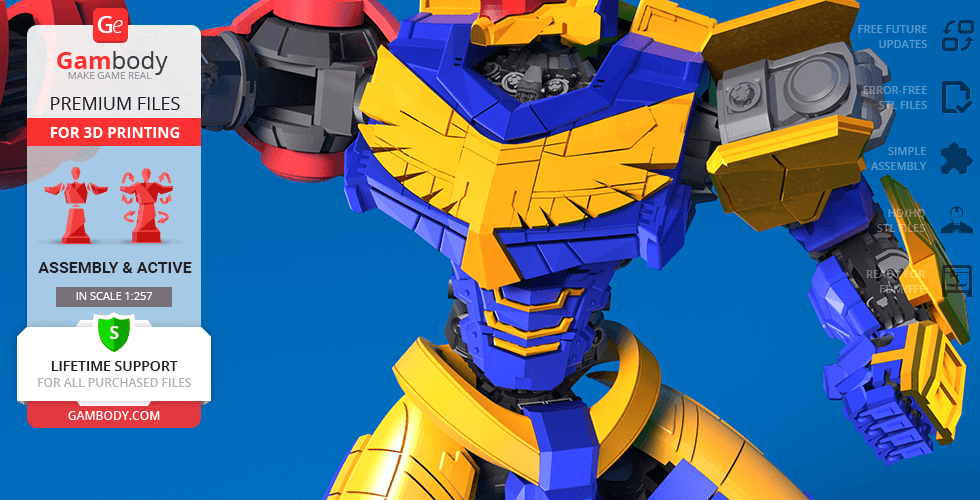

Atlas Destroyer 3D model for 3D printing is a fully articulated assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 43 hours in total.

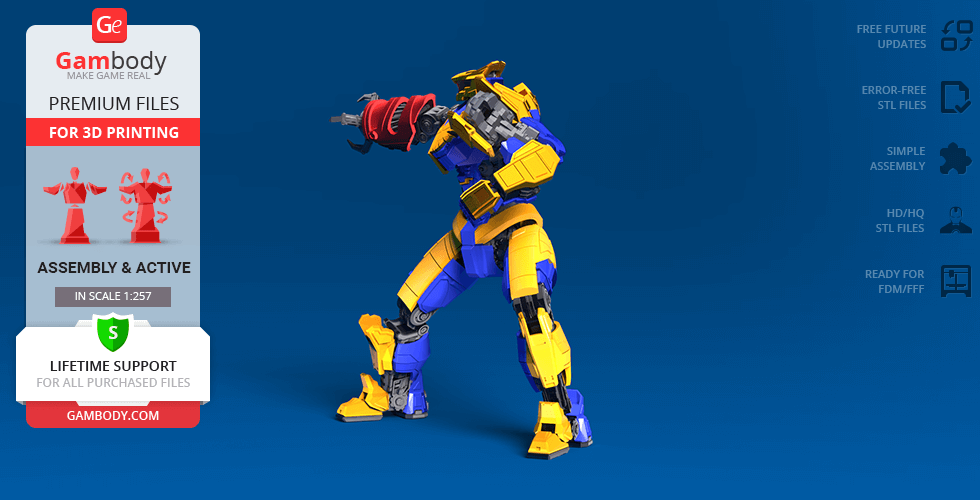

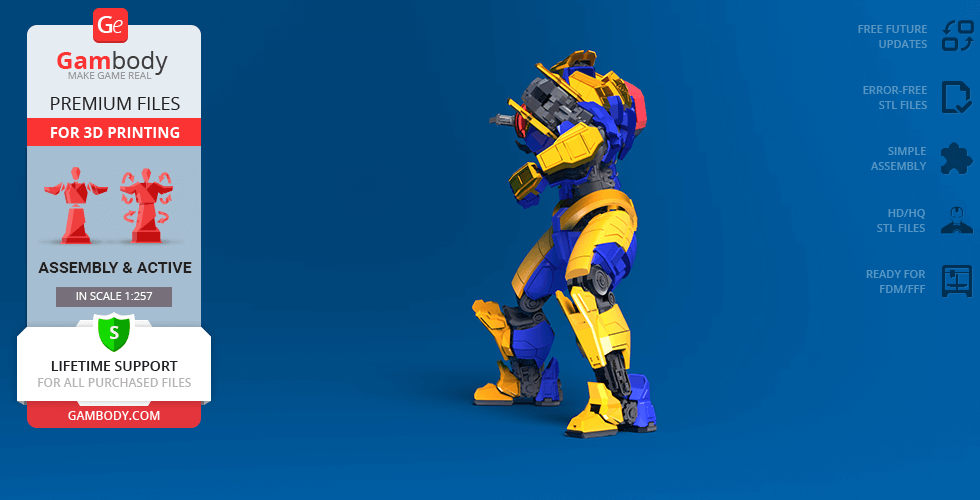

For you to have an opportunity to display your Atlas Destroyer in various positions, robot’s neck, shoulders, elbows, wrists, fingers, knee and feet were made articulated. You can display the Mechanical Skeleton of the Atlas or modify it with Armour pieces. Atlas has two right arm options - Standard and Chaos Nemesis’ arm.

The model can be assembled without glue or screws but you will need additional “pins” to secure the parts.

These pins do not come in STL files but can be made out of short pieces of regular 1.75 PLA.

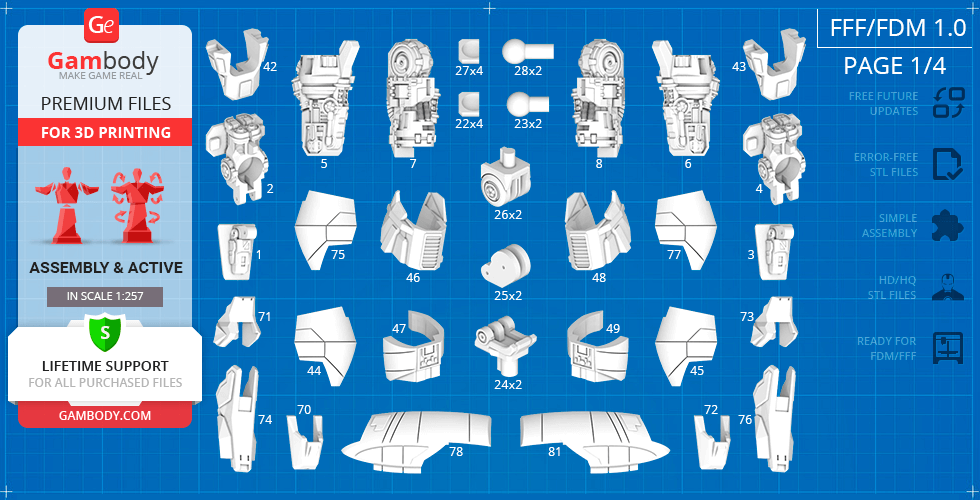

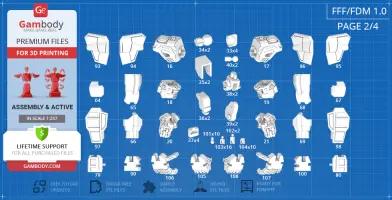

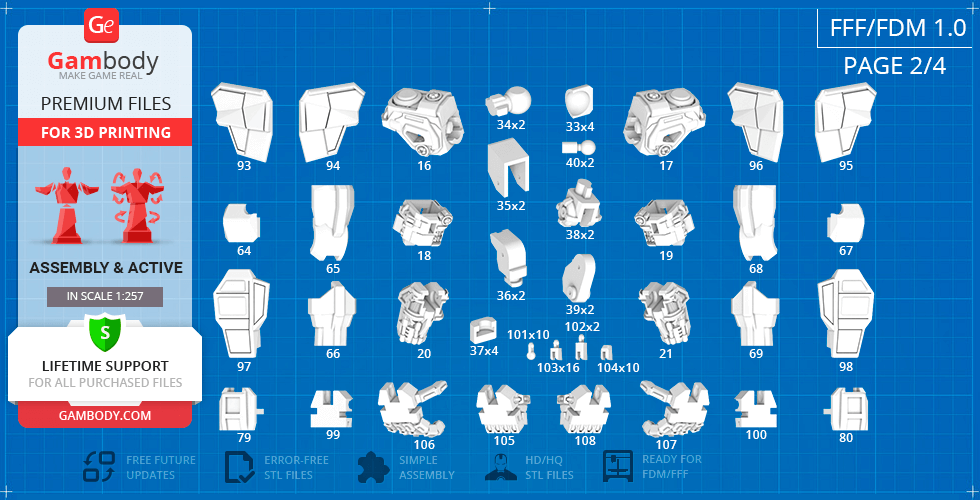

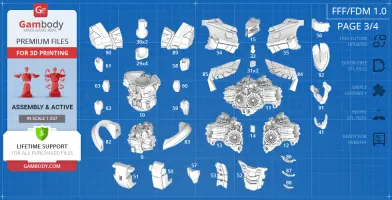

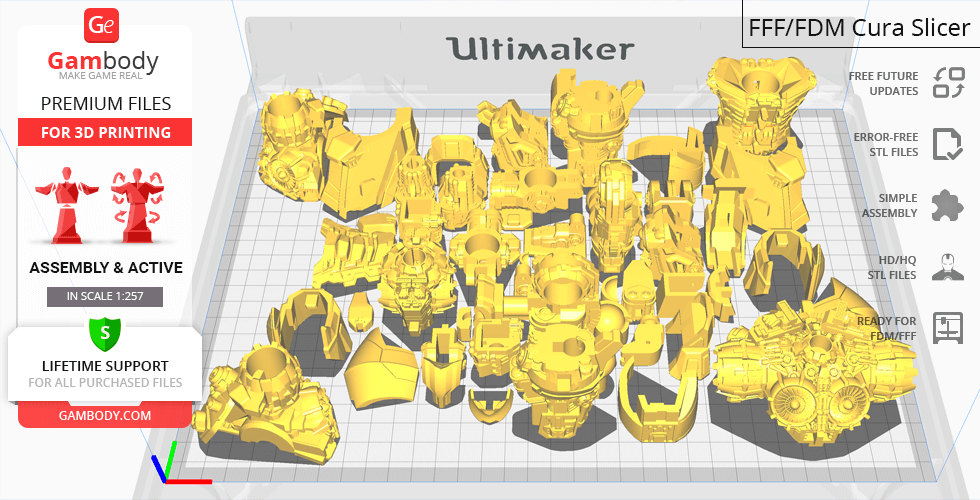

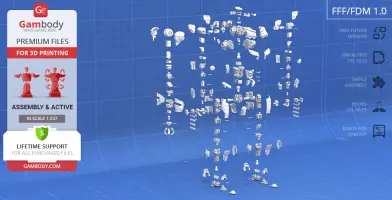

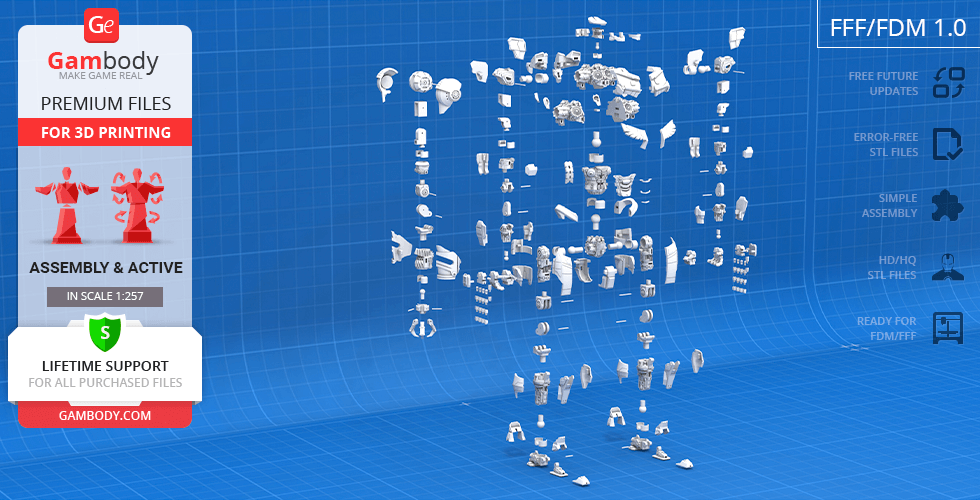

All the assembly parts are provided in STL files in recommended positions that were worked out to ensure the smoothness of the details’ surfaces after printing and to make sure that the 3D printing beginners won't face difficulties when placing the parts on a build plate. When downloading any model's file you will also receive "Assembly Manual" for FFF/FDM 1.0 version in PDF format. Make sure to watch "Assembly video" in the photo preview section and read the "Assembly Manual" before getting down to the Atlas Destroyer 3D model.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from the height of the Atlas Destroyer 3D model which is 76200 mm. The 3D printing model's chosen scale is 1:257 for the FFF/FDM version.

VERSION'S SPECIFICATIONS

FFF/FDM 1.0 version features:
- Contains 129 parts;
- The printed model stands 295 mm tall, 173 mm wide, 85 mm deep;

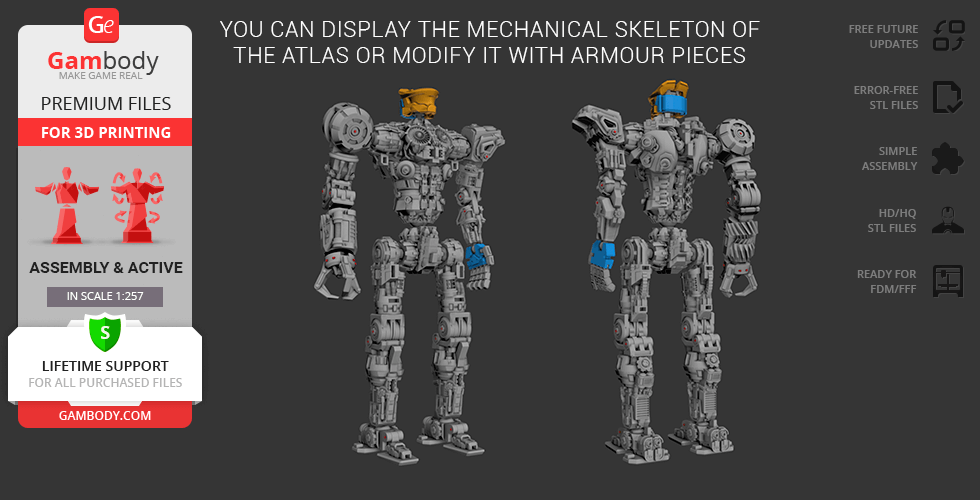

- You can display the Mechanical Skeleton of the Atlas or modify it with Armour pieces;

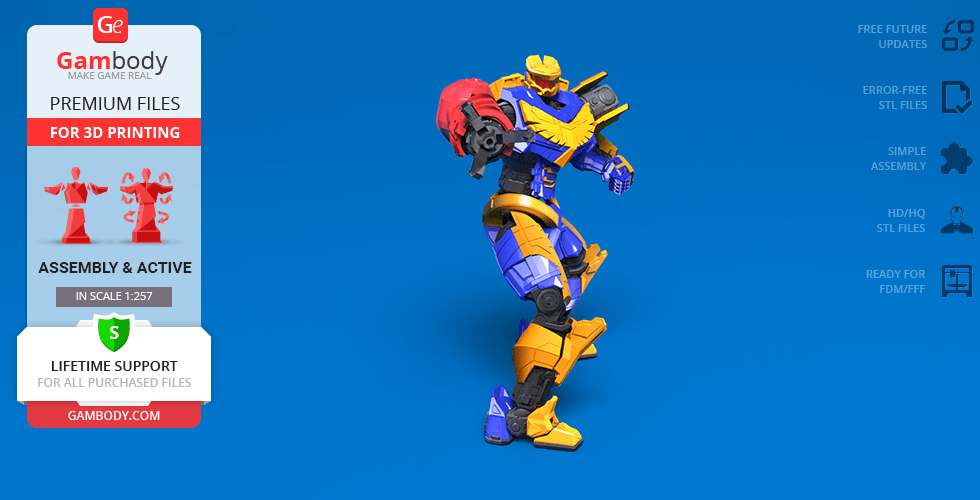

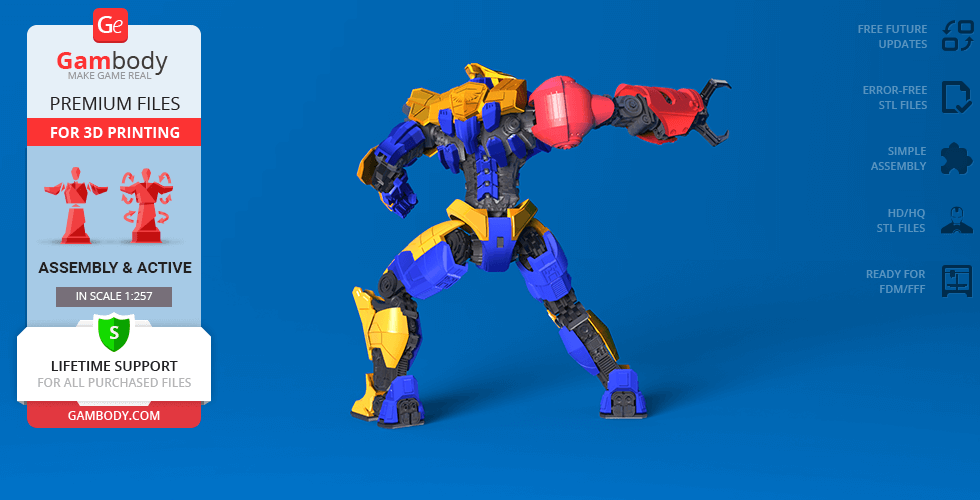

- Atlas has two right arm options - Standard and Chaos Nemesis’ arm;

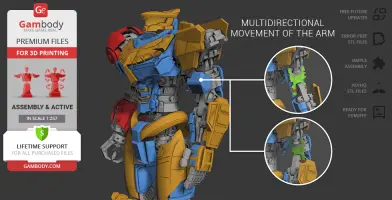

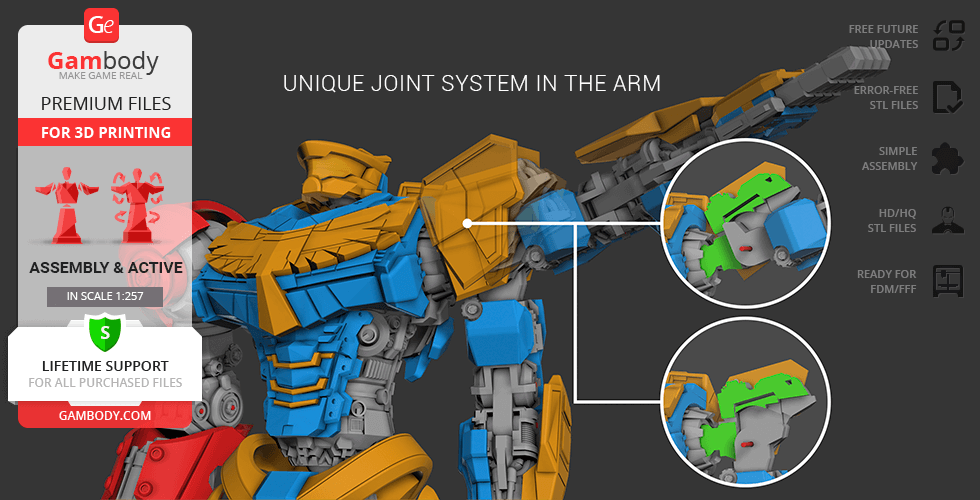

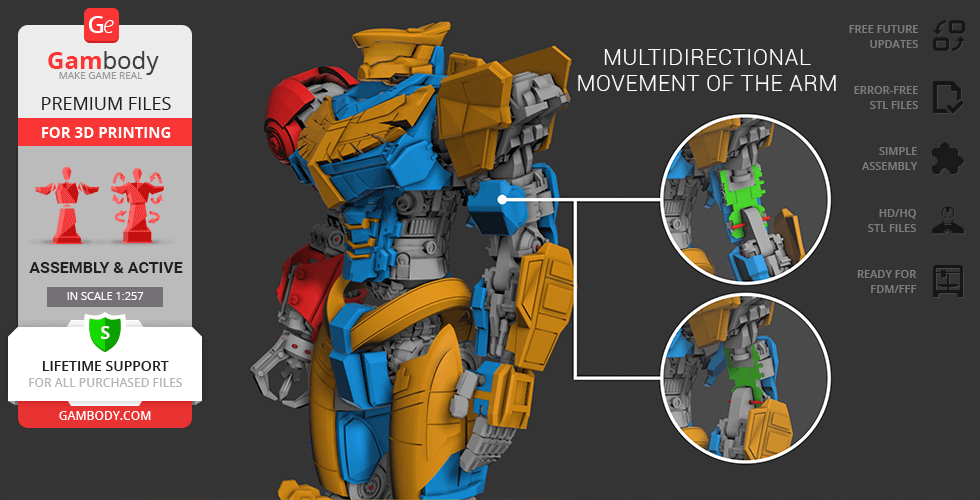

- Unique joint system in the arm that allows multidirectional movement;

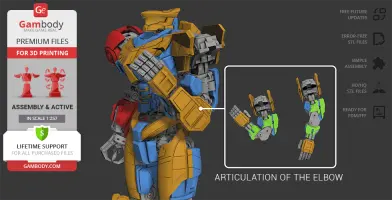

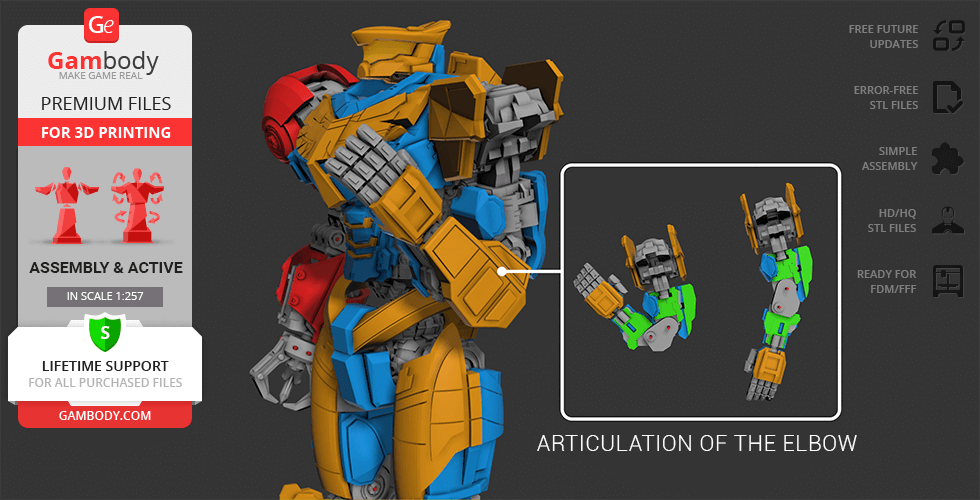

- Articulation of the elbow;

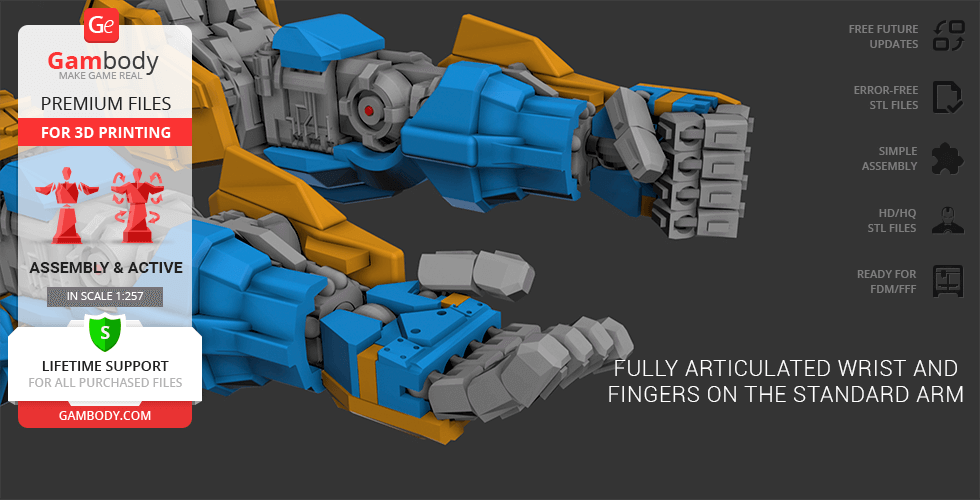

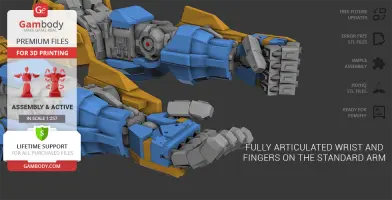

- Fully articulated wrist and fingers on the Standard arm;

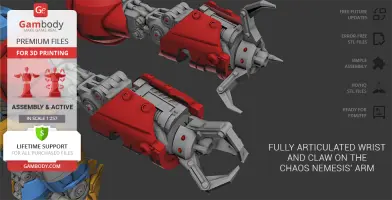

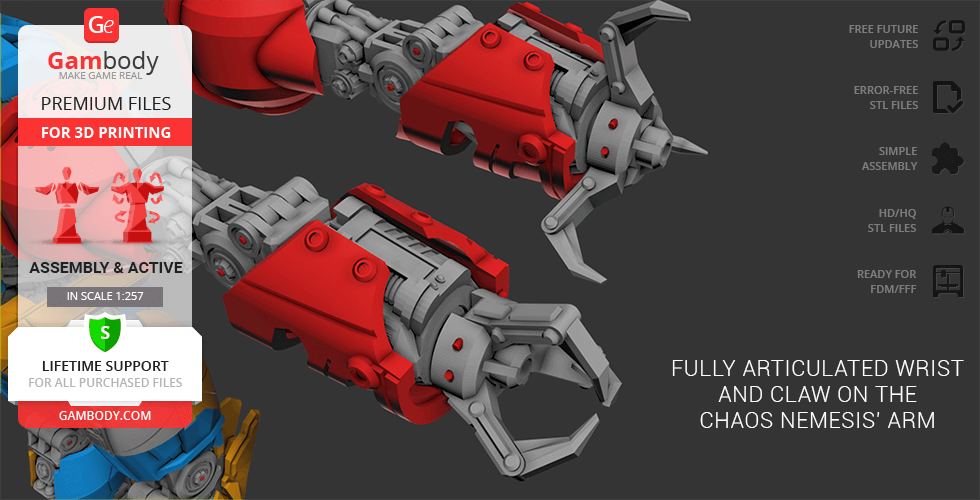

- Fully articulated wrist and claw on the Chaos Nemesis’ arm;

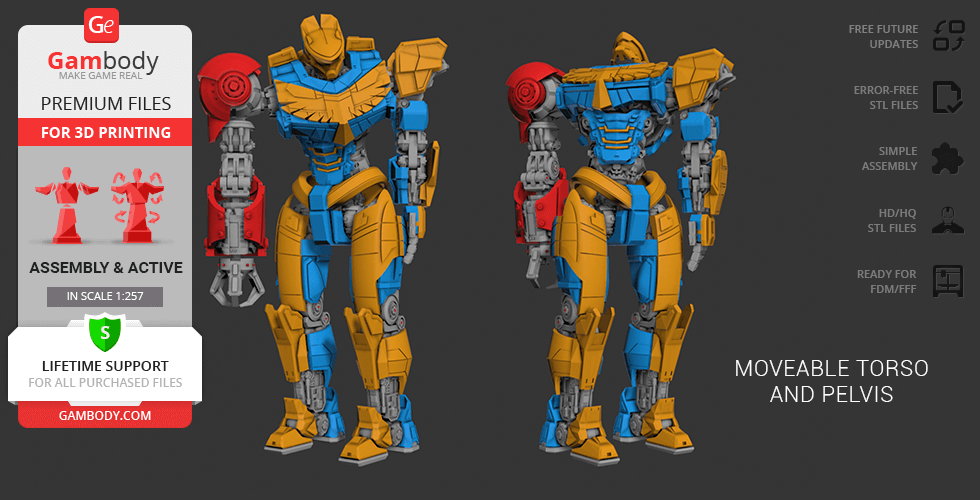

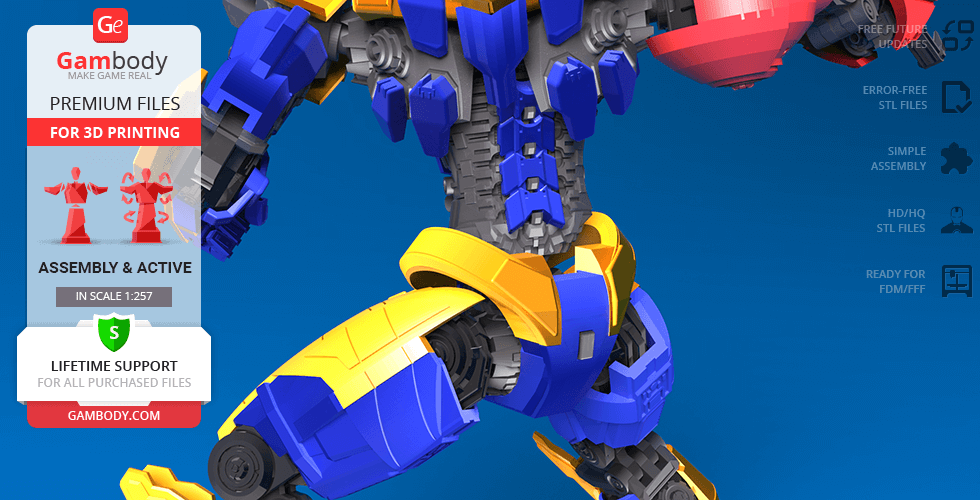

- Moveable torso and pelvis;

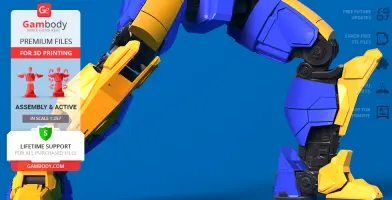

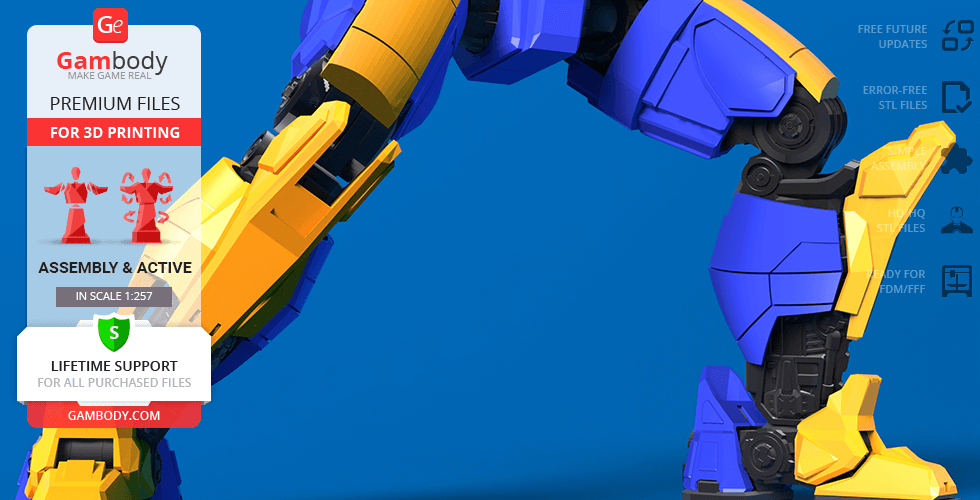

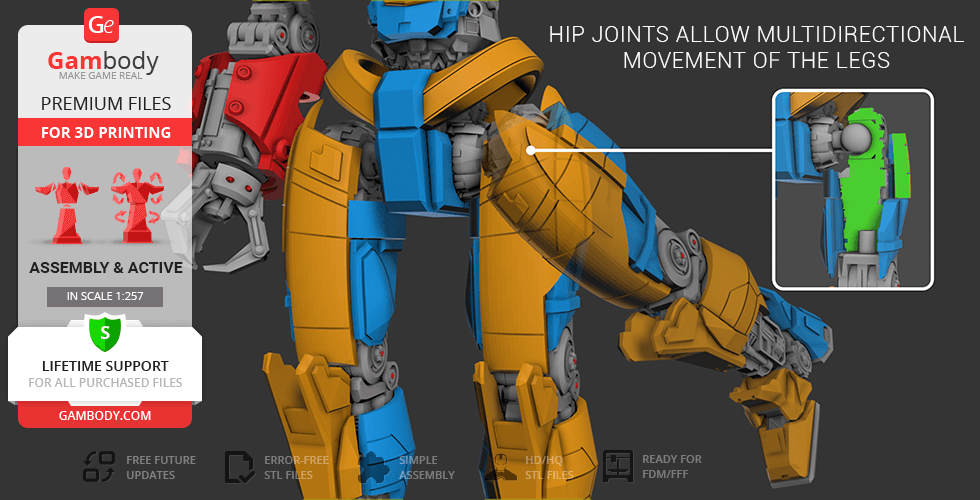

- Hip joints allow multidirectional movement of the legs;

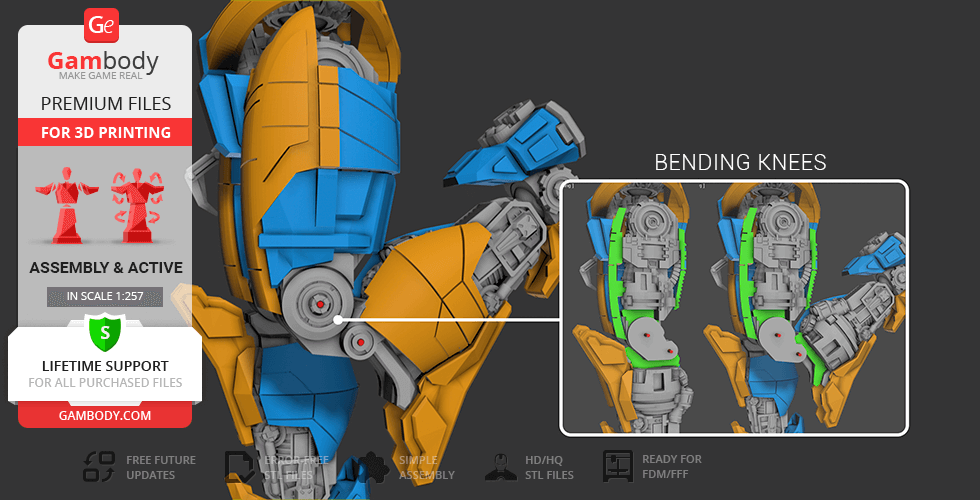

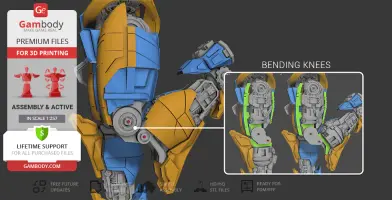

- Bending knees;

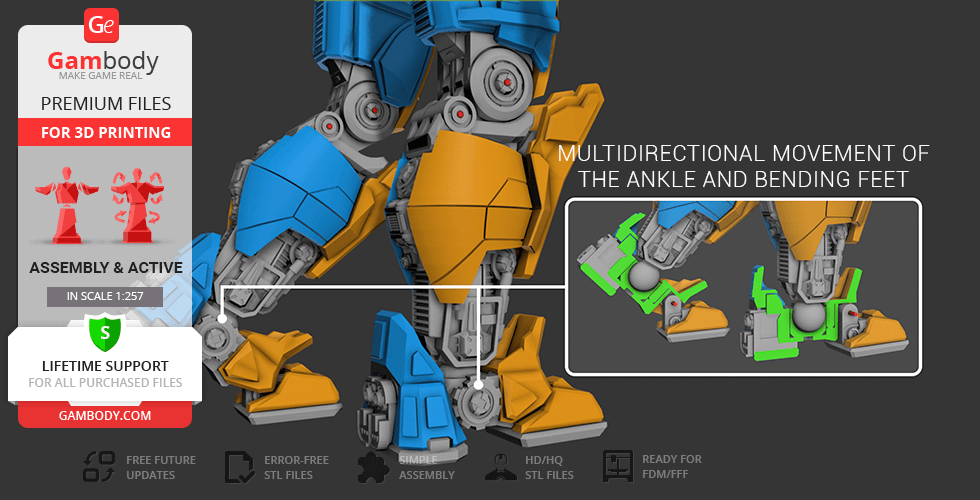

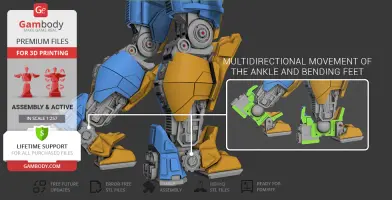

- Multidirectional movement of the ankle and bending feet;

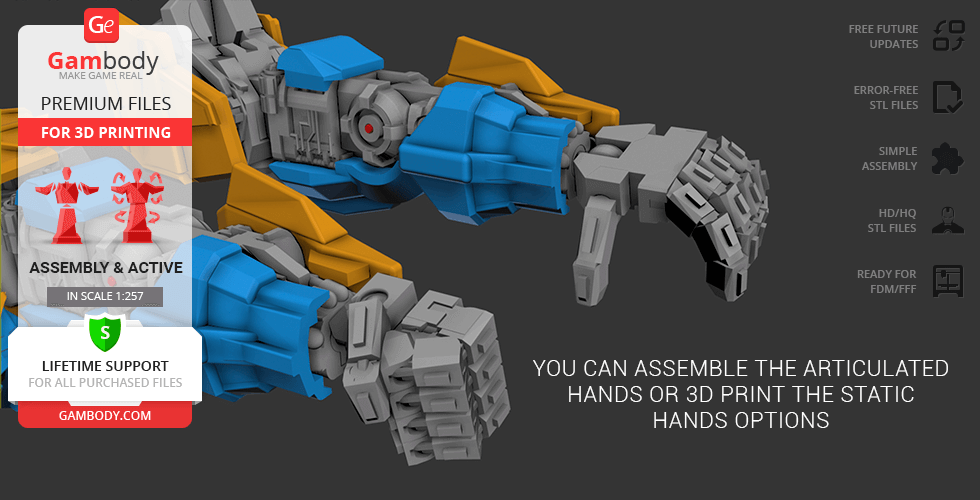

- You can assemble the articulated hands or 3D print the static hand options;
- The model's assembly requires pins that can be made out of 1.75 mm PLA filament (watch "Assembly video" to see the pins coloured red);
- All parts are divided in such a way that you will print them with the smallest number of support structures.

You can get the model of Atlas Destroyer for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble Voltes V 3D Printing Model at Gambody YouTube channel.

Also, you may like other Robot 3D Printing Models as well as other Anime 3D Printing Figurines.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

Below you can find printing recommendations for CuraSimplify3DSlic3r and PrusaSlicer software.

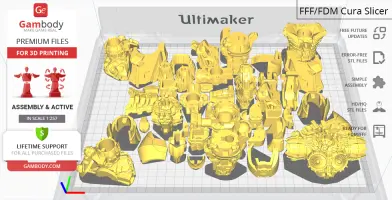

Cura printing recommendations:

These are basic settings that were tested in Cura 4.8.0 slicer.

The test models were printed on Ultimaker 2, Creality Ender 3, Creality CR-10S Pro V2, Anycubic I3 Mega, Anycubic I3 MegaS 3D printers with PLA and PETG filaments.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use and especially the particular assembly part at hand. Each part that any model comprises often needs preliminary review and you are free to tweak the settings the way you find suitable.

Note:
- You can scale up the model (downscaling is not recommended!);
- All connectors should be printed at 100% Infill;
- For all parts of locks (“ge_lock” in “Source files”) you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

Quality
Layer Height: 0.12 mm (you can also set Layer Height at 0.16 or 0.2mm for 0.4mm nozzles)
Initial Layer Height: 0.2 mm (carefully level the print bed and keep your Initial Layer Height the same as the main Layer Height)

Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2

Outer Wall Wipe Distance: 0.3 mm
Top Surface Skin Layers: 0

Top/Bottom Thickness: 0.6 mm
Top Thickness: 0.6 mm
Top Layers: 5
Bottom Thickness: 0.6 mm
Bottom Layers: 5
Initial Bottom Layers: 5

Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Optimize Wall Printing Order: Check

Compensate Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check

Minimum Wall Flow: 0%
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Hole horizontal expansion: 0

Z Seam Alignment: User Specified
Z Seam Position: Back
Z Seam X: Average length of your printer’s plate (e.g.”150” if your plate is 300mm on the X-axis)
Z Seam Y: A value higher than the length of your plate on the Y-axis (e.g. 700)

Seam Corner Preference: Hide Seam
Extra Skin Wall Count: 1
Skin Overlap Percentage: 10%
Skin Overlap 0.04 mm

Infill
Infill Density: 20% (for all smaller parts and for all parts of connectors use 100% Infill)
Infill Pattern: Triangles
Connect Infill Lines: Check
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Line Multiplier: 1
Extra Infill Wall Count: 0

Infill Overlap Percentage: 10-20%
Infill Overlap: 0.04 mm

Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm

Infill Wipe Distance: 0 mm
Infill Layer Thickness: 0.24 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm

Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8

Maximum Skin Angle for Expansion: 90˚
Minimum Skin Width for Expansion: 0.0
Skin Edge Support Thickness: 0
Skin Edge Support Layers: 0

Material
Initial Layer Flow: 100%
Printing Temperature: See your filament settings
Initial Printing Temperature: Your filament settings
Final Printing Temperature: Your filament settings
Build Plate Temperature: Your filament settings
Build Plate Temperature Initial Layer: Your filament settings + 5°
Flow: 100% (Important! If you face difficulty printing the model, you may need to adjust the Flow parameter. You may research the topic using the Internet or seek assistance at our Customer Support Team at support@gambody.com)

Speed

You can increase the printing Speed by 20% when you print simple objects. For small/thin parts you need to decrease the Speed by 25% - 50%.

Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 25 mm/s
          Outer Wall Speed:25 mm/s
          Inner Wall Speed: 50 mm/s

Top/Bottom Speed: 25mm/s
Support Speed: 25 mm/s
          Support Infill Speed: 45 mm/s
          Support Interface Speed: 25 mm/s
                Support Roof Speed: 25 mm/s
                Support Floor Speed: 25 mm/s

Travel Speed: 80 mm/s
Initial Layer Speed: 80 mm/s
Initial Layer Print Speed: 20 mm/s
Initial Layer Travel Speed: 80 mm/s

Skirt/Brim Speed: 20 mm/s
Z  Hop Speed: 5 mm/s
Number of Slower Layers: 2
Enable Acceleration Control: Check

When printing simple objects, you need to set all Acceleration parameters at 500 mm/s. For small/thin parts you need to decrease the Acceleration by 50% - 70%.

Travel
Enable Retraction: Check
Retraction Distance: 4-8 mm, 1-3 mm for Direct Extruder (This is the most important retraction parameter. You can find your optimal value of Retraction Distance by printing any test object, e.g. bridges, towers etc.)

Retraction Speed: 25mm/s
Retraction Retract Speed: 25 mm/s
Retraction Prime Speed: 25 mm/s

Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 1.5 mm
Maximum Retraction Count: 100
Minimum Extrusion Distance Window: 6,5 - 10 mm
Limit Support Retractions: Check
Combing Mode: All
Max Comb Distance With No Retract: 30 mm
Retract Before Outer Wall: Check
Avoid Printed Parts When Travelling: Check
Avoid Supports When Travelling: Check
Travel Avoid Distance: 1 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm
Z Hop When Retracted: Check
Z Hop Height: 0,3 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%

Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.36 mm
Regular Fan Speed at Layer: 3

Minimum Layer Time: 10 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Structure: Normal (you can try using Tree Support Structure if you have difficulty printing any particular assembly part)
Support Placement: Everywhere
Support Overhang Angle: 60° (this parameter can range from 30° to 70° depending on the part at hand)
Support Pattern: Zig Zag
Support Wall Line Count: 1 (stronger support that might be more difficult to remove) 0 (less strong support but is easier to remove)

Support Density: 15%
Support Line Distance: 2.6667 mm
Initial layer support line distance: 2.667 mm

Support Z Distance: 0.12 mm
Support Top Distance: 0.12 mm
Support Bottom Distance: 0.12 mm

Support X/Y Distance: 0.8-1 mm
Support Distance Priority: Z overrides X/Y
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Stair Step Minimum Slope Angle: 10°
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.2 mm
Gradual Support Infill Steps: 0
Minimum Support Area: 2 mm

Enable Support Interface: Check (generates additional “pillow” on the support structure that leads to a more even surface, but can be difficult to remove in hard-to-reach areas)
Enable Support Roof: Check
Enable Support Floor: Check

Support Interface Thickness: 0.8 mm
Support Roof Thickness: 0.8 mm
Support Floor Thickness: 0.8 mm

Support Interface Resolution 0.2 mm
Support Interface Density: 50-100%
        Support Roof Density: 50-100%
Support Roof Line Distance: 0.8 mm
        Support Floor Density: 50-100%
Support Floor line Distance:  0.4mm

Support Interface Pattern: Grid
Support Roof Pattern: Grid (this parameter should differ from Bottom Pattern Initial Layer in “Shell” section)
Support Floor Pattern: Grid

Minimum Support Interface Area: 10mm
Minimum Support Roof Area: 10 mm
Minimum Support Floor Area: 10 mm

Support Interface Horizontal Expansion: 0.0 mm
Support Roof Horizontal Expansion: 0.0 mm
Support Floor Horizontal Expansion: 0.0 mm

Fan Speed Override: Check
Supported Skin Fan Speed: 100%
Use Towers: Check
Tower Diameter: 4 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Skirt/Brim (For unsteady parts, and those parts that may come unstuck use “Brim”. For bigger assembly parts that have large adhesion area and for all parts of locks and claws that you want to come out clean use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
       Brim Line Count: 10
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

These basic 3D printing settings recommendations for beginners were tested in Slic3r 1.3.0 software. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PetG filaments.

Note:

- You can upscale your 3D printing models. Downscaling is not recommended - it can make smaller parts of the model unprintable, distort the model’s level of detail and result in assembly issues.
- All connectors should be printed at 100% Infill.
- When printing Lock connectors, we recommend setting the “Brim width” parameter to 0 in the "Skirt and Brim" print settings. In that way, the Locks will be 3D printed with a Skirt only.

Print Settings Tab

Layers and perimeters
Layer height:
Layer Height: 0.1-0.2
First layer height: 0.2-0.3
Vertical shells:
Perimeters: 2-3
Spiral vase: OFF
Horizontal shells:
Solid layers: 8 (For 0.1 Layer Height) or 4 (For 0.2 Layer Height)
Quality (slow slicing)
Extra perimeters if needed: CHECK
Avoid crossing perimeters:  CHECK
Detect thin walls: -//-
Detect bridging perimeters:  CHECK

Advanced:
Seam position: Aligned
External perimeters first: -//-

Infill
Fill Density: 10%
Fill Pattern: Rectilinear
Top Fill Pattern: Rectilinear
Bottom fill pattern: Rectilinear

Reducing printing time:
Combine infill every: 1
Only infill where needed: -//-

Advanced:
Fill gaps: CHECK
Solid Infill every: 0
Fill angle: 45
Solid Infill threshold area: 70
Bridging angle: 0
Only retract when crossing perimeters: CHECK
Infill before perimeters: -//-

Skirt and brim
Skirt
Loops (minimum): 3
Distance from Object: 5
Skirt Height: 1 ( for pla and petg)
Minimal Filament extrusion length: 50

Brim
Brim width: (5-8 mm is optional for small prints that have bad adhesion to the build plate)

Support material
Support Material:
Generate Support material: -//- (enable this parameter if your model requires supports)
Overhang threshold: 40-60
Enforce support for the first: 0

Raft:
Raft Layers: 0
Options for Support material and Raft:
Contact Z distance: 0.2
Pattern: Rectilinear
Pattern spacing: 2.5
Pattern angle: 0
Interface Layers: 3
Interface pattern spacing: 0.2
Support on build plate only: -//-
Don’t support bridges: CHECK

Speed

Speed for print movies
(We recommend that you try printing with the parameters listed below and then adjust the print speed until the printing quality is optimal for you)
Perimeters: 20 mm/s
Small perimeters: 20 mm/s
External perimeters: 20 mm/s
Infill: 50 mm/s
Solid: 30 mm/s
Top solid :  20 mm/s
Gaps: 20 mm/s
Bridges: 20 mm/s
Support material: 50 mm/s

Speed for non print movies
Travel: 100 mm/s

Modifiers
First layer speed: 10 mm/s

Acceleration control (Settings for advanced users, change these parameters only if you have sufficient 3D printing expertise)
Perimeters: 400 mm/s2
Infill: 400 mm/s2
Bridge: 400 mm/s2
First layer: 300 mm/s2
Default: 400 mm/s2

Auto speed (advanced)
Max print speed: 100 mm/s
Max volumetric speed: 0 mm3/s

Multiple Extruders
These settings only work for 3D printers with multiple extruders (not recommended for beginners)

Advanced
Extrusion width
You can try setting all parameters in this section, except the First layer, to values between 0.75% of your nozzle diameter and 1.25% of your nozzle diameter. Adjusting them will help you work out the optimal parameters for the best quality for your print. As for the First layer, you can set it to 150% of the diameter of your nozzle for better adhesion to the build plate (for a nozzle with a diameter of 0.4 mm, the First layer extrusion width can be from 0.3 mm to 0.5 mm)

Overlap
Infill/perimeters overlap: 25%

Flow
Bridge flow ratio: 0.7

Other
-//-
Output options
-//-
Notes
-//-
Shortcuts
-//-

Filament Settings Tab

Filament
Filament
Color: -//-
Diameter: 1.75
Extrusion multiplier: 1
Density: -//-
Cost: -//-
(You can set these parameters yourself if you need)

Cooling
Enable
Keep fan always on: CHECK
Enable auto cooling: -//-

Fan settings
Fan speed
Min: 100% (for PLA, PETG) or 30% (for ABS, SBS)
Max: -//-
Bridges fan speed: 100%
Disable fan for the first: 1

Cooling thresholds
Enable fan if layer print time is below: -//-
Slow down if layer print time is below: -//-
Min print Speed: -//-

Custom G-code
-//-
Notes
-//-

Printer Settings Tab

General
Size and coordinates
Bed shape: your 3D printer’s bed size
Z offset: 0
Capabilities
Extruders: 1
Has heated bed: CHECK
Firmware
G-code flavor: RepRap (Marlin/Sprinter)
Advanced
Use relative E distances: CHECK

Custom G-code
Use your 3D printer’s standard G-code. If you don't have it, you may use the example below.
Start G-code
M104 S(First_layer_temperature)
M140  S(First_layer_bed_temperature)
G28 S(Parking)
M109 S(waiting_for_warm-up_nozzle)
M190  S(waiting_for_warm-up_bed)
End G-code
M104 s0 ;turn off nozzle
M140 s0 ;turn off bed
G91
G1 Z1
G28 X0 Y0 ;park
M84 ;disable motors
M107 ;disable cooling

Extruder 1
Size
Nozzle diameter: 0.4 mm
Layer height limits
Min: 0.05
Max: 0.3
Position
Extruder offset: -//-
Retraction
Length: 5.5-6.5 mm (1mm for a direct extruder)
Lift Z: 0-0.3 mm
Speed: 30 - 40 mm/s
Extra length on restart: 0 mm
Minimum travel after retraction: 2 mm
Retract on layer change: -//- (you can try to enable this parameter)
Wipe while retracting: -//-  (you can try to enable this parameter)


PrusaSlicer printing recommendations:


These basic 3D printing settings recommendations for beginners were tested in PrusaSlicer 2.3.1. Test models were printed on Ultimaker 2, Creality Ender 3, Creality Cr-10S pro v2, Anycubic I3 Mega, Anycubic I3 MegaS, Anycubic Vyper with PLA and PETG filaments.

Note:
- You can upscale your 3D printing models. Downscaling is not recommended - it can make smaller parts of the model unprintable, distort the model’s level of detail and result in assembly issues.
- All connectors should be printed at 100% Infill.
- When printing Lock connectors, we recommend setting the “Brim width” parameter to 0 in the "Skirt and Brim" print settings. In that way, the Locks will be 3D printed with a Skirt only.

In order to see all the parameters listed below, you need to enable the Expert mode in the PrusaSlicer’s settings.

Print Settings Tab

Layers and perimeters
Layer height:
Layer Height: 0.1-0.2
First layer height: 0.2-0.3
Vertical shells:
Perimeters: 2-3
Spiral vase: OFF
Horizontal shells:
Solid layers: 8 (for 0.1 Layer Height) or 4 (for 0.2 Layer Height)
Minimum shell thickness: 0.8
Quality (slower slicing)
Extra perimeters if needed: CHECK
Ensure vertical shell thickness: -//-
Avoid crossing perimeters:  CHECK
Detect thin walls: -//-
Detect bridging perimeters:  CHECK
Advanced:
Seam position: Aligned
External perimeters first: -//-

Infill
Infill
Fill Density: 10%
Fill Pattern: Rectilinear
Top Fill Pattern: Monotonic
Bottom fill pattern: Monotonic
Reducing printing time:
Combine infill every: 1
Only infill where needed: -//-
Advanced:
Solid Infill every: 0
Fill angle: 45
Solid Infill threshold area: 70
Bridging angle: 0
Only retract when crossing perimeters: CHECK
Infill before perimeters: -//-

Skirt and brim
Skirt
Loops (minimum): 3
Distance from Object: 5
Skirt Height: 1 (for PLA and PETG)
Draft Shield: -//-
Minimal filament extrusion length: 50
Brim
Brim width: (5-8 mm is optional for small prints that have bad adhesion to the build plate)

Support material
Support Material:
Generate Support material: -//- (enable this parameter if your model requires supports)
Auto generated supports: CHECK
Overhang threshold: 40-60
Enforce support for the first: 0
Raft:
Raft Layers: 0
Options for Support material and Raft:
Contact Z distance: 0.2
Pattern: Rectilinear
With sheath around the support: CHECK
Pattern spacing: 2.5
Pattern angle: 0
Interface Layers: 3
Interface pattern spacing: 0.2
Interface loops: -//-
Support on build plate only: -//-
XY separation between an object and its support: 50%
Don’t support bridges: CHECK
Synchronize with object layers: -//-

Speed
Speed for print moves
(We recommend that you try printing with the parameters listed below and then adjust the print speed until the printing quality is optimal for you)
Perimeters: 20 mm/s
Small perimeters: 20 mm/s
External perimeters: 20 mm/s
Infill: 50 mm/s
Solid infill: 30 mm/s
Top solid infill:  20 mm/s
Support material: 50 mm/s
Support material interface: 20 mm/s
Bridges: 20 mm/s
Gap fill: 20 mm/s
Ironing: 15 mm/s

Speed for non-print moves
Travel: 100 mm/s

Modifiers
First layer speed: 10 mm/s

Acceleration control (Settings for advanced users, change these parameters only if you have sufficient 3D printing expertise)
Perimeters: 400 mm/s2
Infill: 400 mm/s2
Bridge: 400 mm/s2
First layer: 400 mm/s2
Default: 400 mm/s2

Auto speed (advanced)
Max print speed: 100 mm/s
Max volumetric speed: 0 mm3/s

Multiple Extruders
These settings only work for 3D printers with multiple extruders (not recommended for beginners)

Advanced
Extrusion width

You can try setting all parameters in this section, except the First layer, to values between 0.75% of your nozzle diameter and 1.25% of your nozzle diameter. Adjusting them will help you work out the optimal parameters for the best quality for your print. As for the First layer, you can set it to 150% of the diameter of your nozzle for better adhesion to the build plate (for a nozzle with a diameter of 0.4 mm, the First layer extrusion width can be from 0.3 mm to 0.5 mm)

Overlap
Infill/perimeter overlap: 25%

Flow
Bridge flow ratio: 0.7

Slicing
-//-
Other
Clip multi-part objects: CHECK
Output options
-//-
Notes
-//-
Dependencies
-//-

Filament Settings Tab
Filament
Filament
Color: -//-
Diameter: 1.75
Extrusion multiplier: 1
Density: -//-
Cost: -//-
Spool weight: -//-
(You can set these parameters yourself if you need)
Temperature
Сheck your filament manufacturer's temperature recommendations on the spool.

Cooling
Enable
Keep fan always on: CHECK
Enable auto cooling: -//-
Fan settings
Fan speed
Min: 100% (for PLA, PETG) or 30% (for ABS, SBS)
Max: -//-
Bridges fan speed: 100%
Disable fan for the first: 1
Full fan speed at layer: 3-4
Cooling thresholds
Enable fan if layer print time is below: -//-
Slow down if layer print time is below: -//-
Min print speed: -//-

Advanced
Print speed override
Max volumetric speed:
PLA: 14 MM3/S
ABS:  10 MM3/S
PETG:  14 MM3/S
HIPS: 10 MM3/S
(If you use the Volcano extruder for your printer, all parameters need to be increased x2)

Filament Overrides
-//-
Custom G-code
-//-
Notes
-//-
Dependencies
-//-

Printer Settings Tab

General
Size and coordinates
Bed shape: your 3D printer’s bed size
Max print height: your 3D printer’s height
Z offset: 0
Capabilities
Extruders: 1
Single Extruder Multi Material: -//-
Firmware
G-code flavor: RepRap/Sprinter
G-code thumbnails: -//-
Supports stealth mode: -//-
Supports remaining times: -//-
Advanced
Use relative E distances: CHECK
Use firmware retraction: -//- (needs to be enabled in the firmware of your printer)
Use volumetric E: -//-
Enable variable layer height feature: CHECK

Custom G-code
Use your 3D printer’s standard G-code. If you don't have it, you may use the example below.
Start G-code
M104 S(First_layer_temperature)
M140  S(First_layer_bed_temperature)
G28 S(Parking)
M109 S(waiting_for_warm-up_nozzle)
M190  S(waiting_for_warm-up_bed)
End G-code
M104 s0 ;turn off nozzle
M140 s0 ;turn off bed
G91
G1 Z1
G28 X0 Y0 ;park
M84 ;disable motors
M107 ;disable cooling

Extruder 1
Size
Nozzle diameter: 0.4 mm
Layer height limits
Min: 0.05
Max: 0.3
Position
Extruder offset: -//-
Retraction
Length: 5.5-6.5 mm (1 mm for a direct extruder)
Lift Z: 0-0.3 mm
Retraction Speed: 30 - 40 mm/s
Deretraction Speed: 0 mm/s
Extra length on restart: 0 mm
Minimum travel after retraction: 2 mm
Retract on layer change: -//- (you can try to enable this parameter)
Wipe while retracting: -//-  (you can try to enable this parameter)
Retract amount before wipe:
Notes
-//-
Dependencies
-//-

Comments
