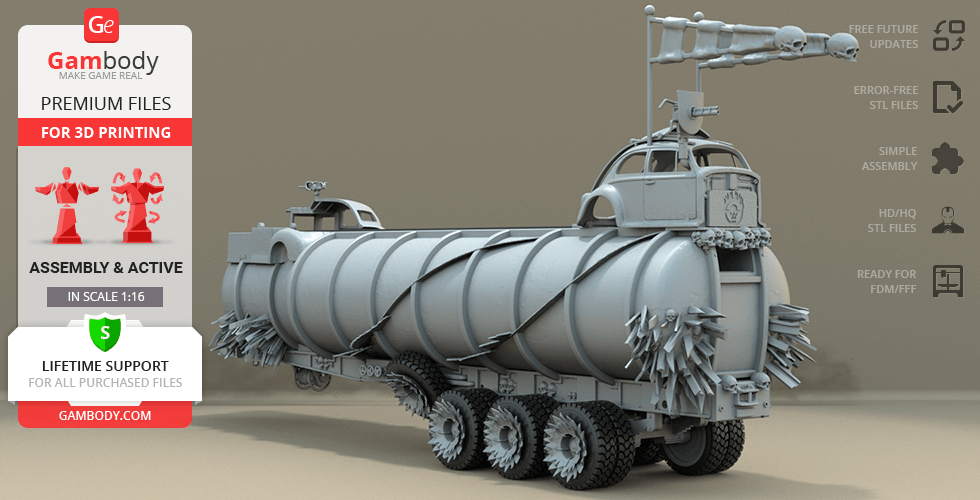

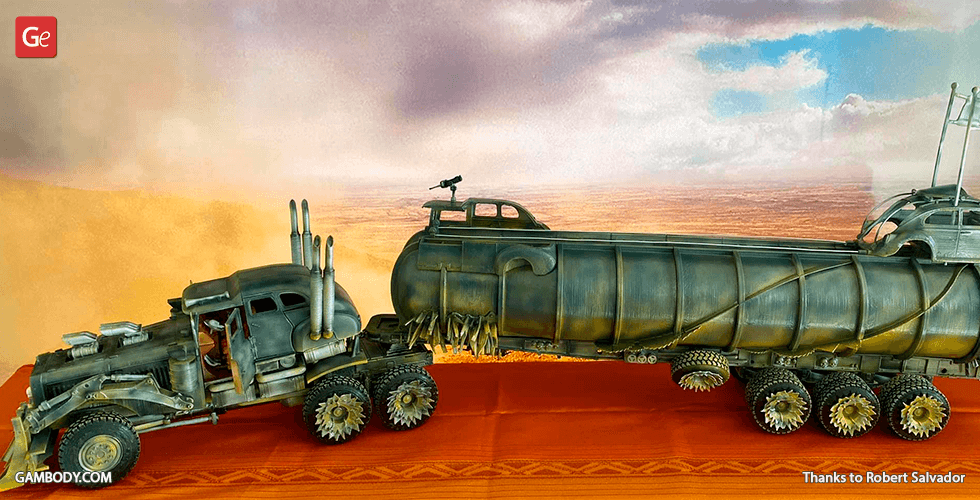

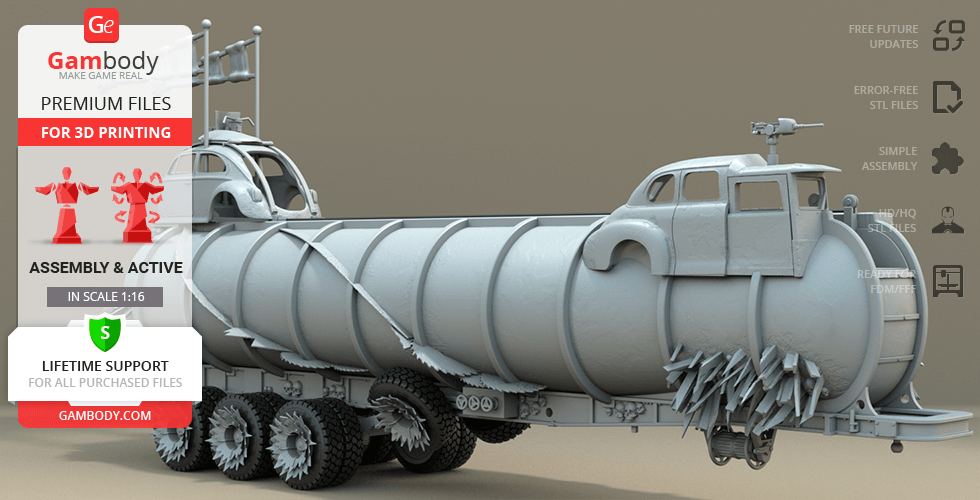

War Rig Tanker 3D Printing Model | Assembly + Action

(11)
cm: 16.9 w x 75 d x 33 h
in: 6.654 w x 29.528 d x 12.992 h

Source Files

|

Description

|

Printing Details

This 3D Model consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.

Before printing the files, we strongly recommend reading the PRINTING DETAILS section.

War Rig Tanker 3D Printing Model comes in 1 version for FFF/FDM 3D printers. STL files of the version are available for download after the purchase.

Detailed information about this 3D printing model is available in the DESCRIPTION section.

File Name File Size Time / Filament Object Size
(x/y/z mm)
1_Ge_lock_10H_x131 (repai red).stl
0.03 MiB 4 min <1 m 10 x 18 x 2 Download

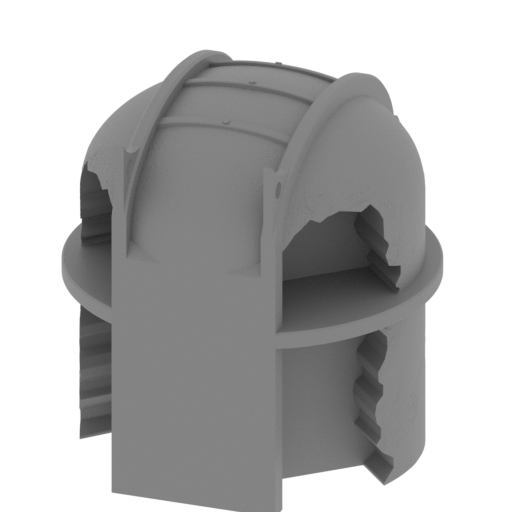

2_tanker_a (repaired).stl
14.78 MiB 54 h 33 min 36 m 111 x 105 x 115 Download

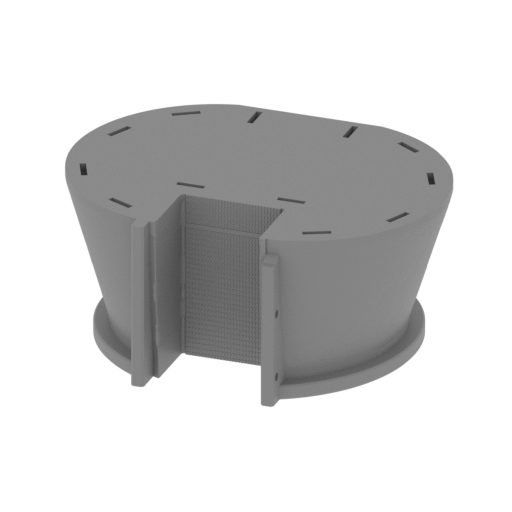

3_tanker_b (repaired).stl
6.90 MiB 32 h 58 min 19 m 132 x 105 x 59 Download
4_tanker_c (repaired).stl
12.30 MiB 39 h 26 min 23 m 143 x 110 x 59 Download

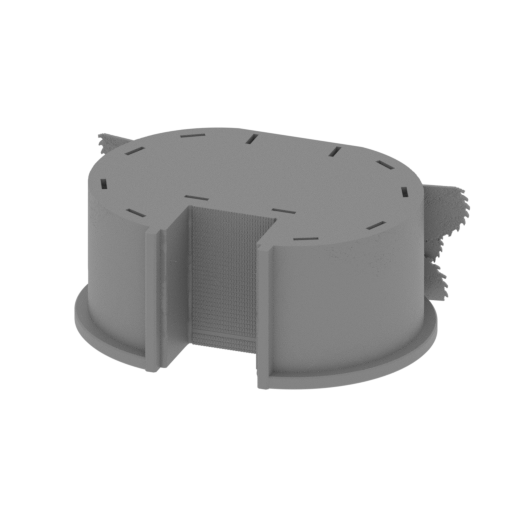

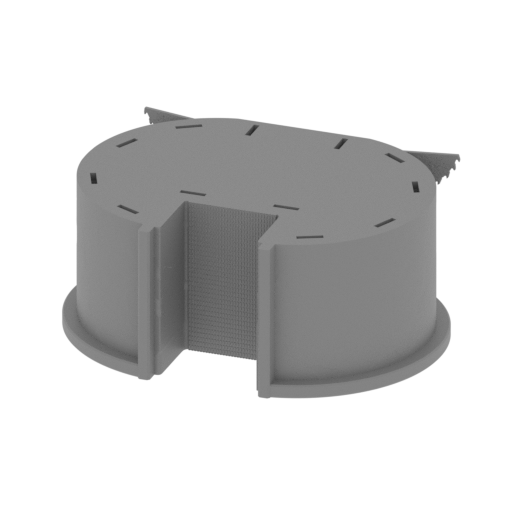

5_tanker_d (repaired).stl
26.06 MiB 42 h 4 min 24 m 153 x 111 x 59 Download

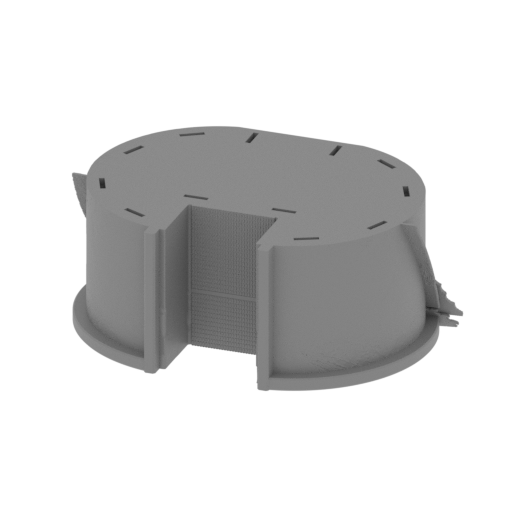

6_tanker_e (repaired).stl
16.15 MiB 39 h 20 min 23 m 151 x 111 x 59 Download

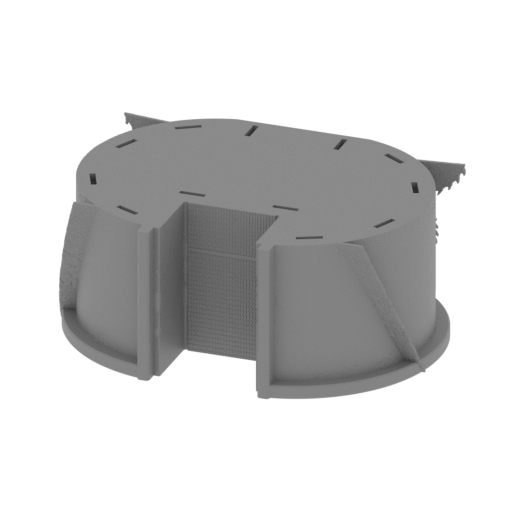

7_tanker_f (repaired).stl
19.39 MiB 40 h 50 min 23 m 143 x 112 x 59 Download

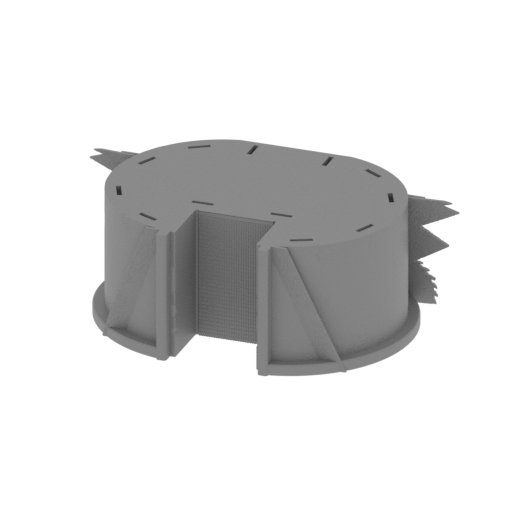

8_tanker_g (repaired).stl
20.09 MiB 42 h 15 min 24 m 169 x 110 x 59 Download

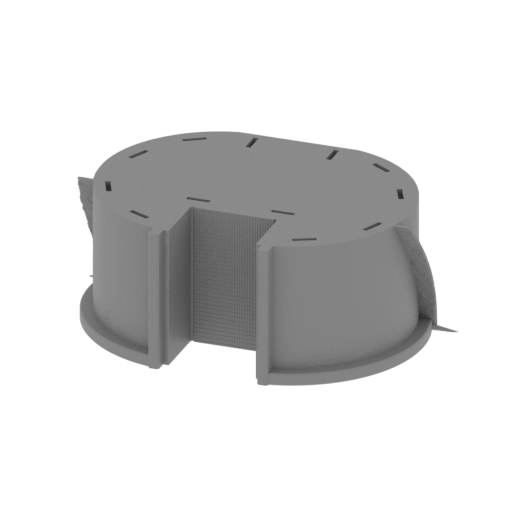

9_tanker_h (repaired).stl
17.71 MiB 40 h 11 min 23 m 158 x 112 x 59 Download

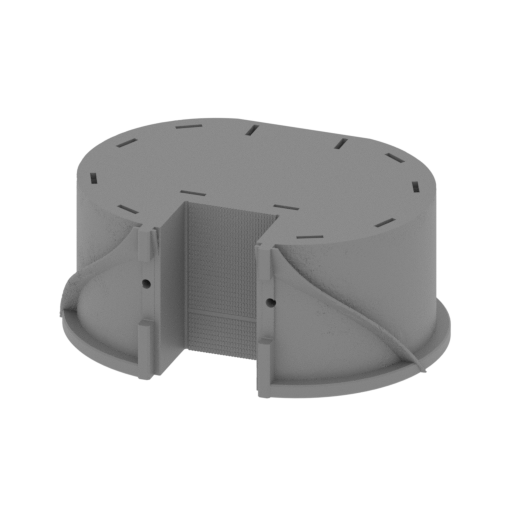

10_tanker_i (repaired).st l
8.98 MiB 39 h 18 min 23 m 143 x 110 x 59 Download

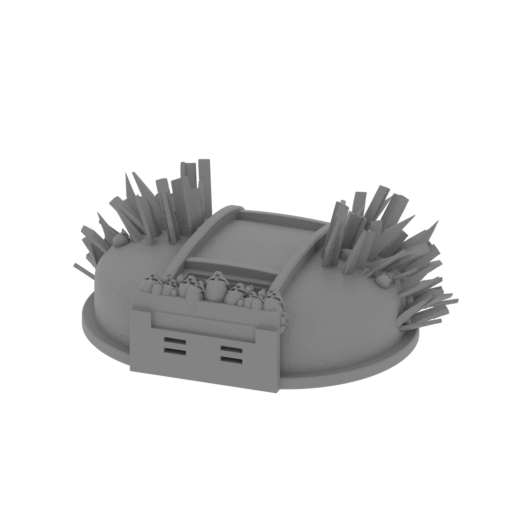

11_tanker_j (repaired).st l
62.42 MiB 37 h 18 min 20 m 164 x 127 x 62 Download
12_tanker_back_car_flag_a _L (repaired).stl
0.11 MiB 26 min <1 m 8 x 175 x 3 Download

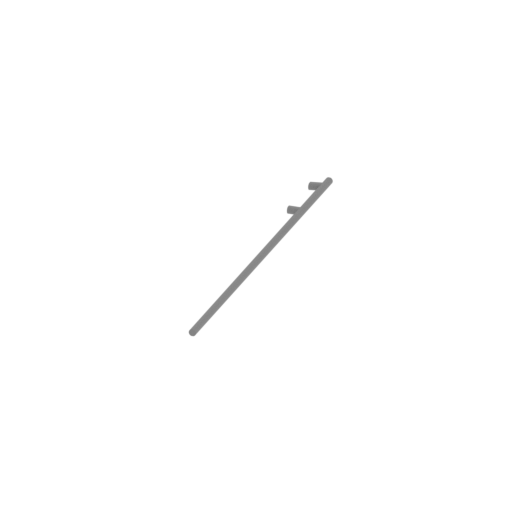

13_tanker_back_car_flag_a _R (repaired).stl
0.11 MiB 26 min <1 m 8 x 175 x 3 Download

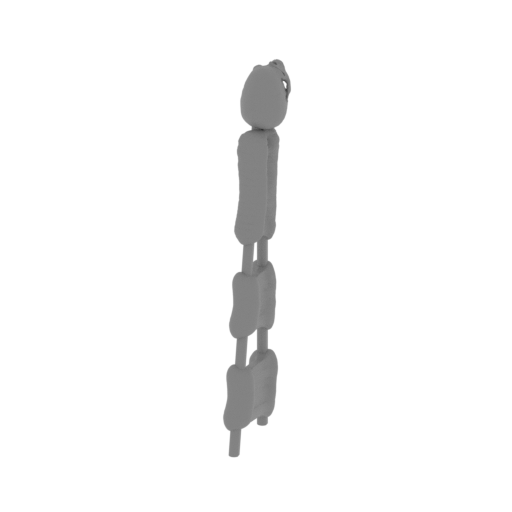

14_tanker_back_car_flag_b _L (repaired).stl
3.01 MiB 4 h 19 min 3 m 15 x 38 x 131 Download

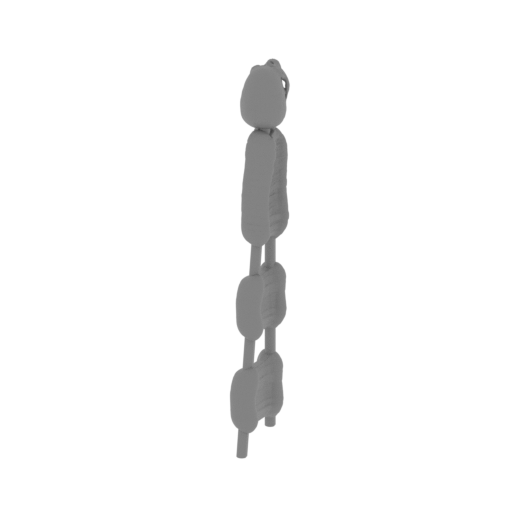

15_tanker_back_car_flag_b _R (repaired).stl
3.01 MiB 4 h 32 min 3 m 15 x 38 x 131 Download

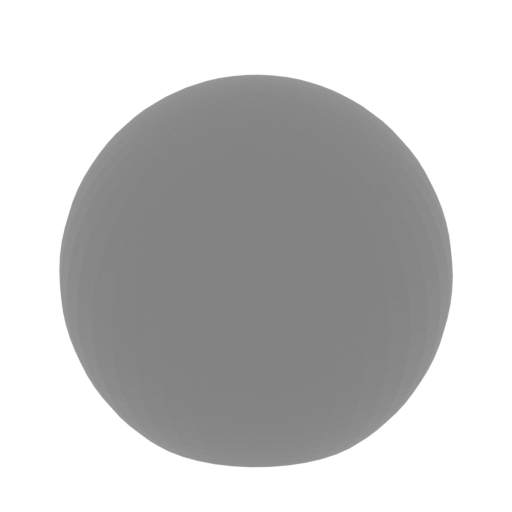

16_tanker_back_car_flag_c _L (repaired).stl
0.16 MiB 6 min <1 m 7 x 7 x 7 Download

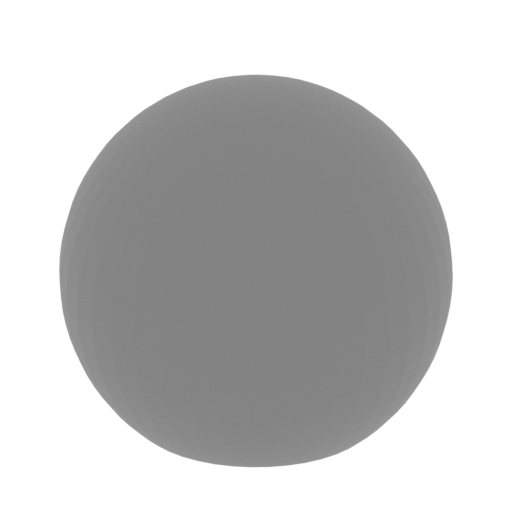

17_tanker_back_car_flag_c _R (repaired).stl
0.16 MiB 6 min <1 m 7 x 7 x 7 Download

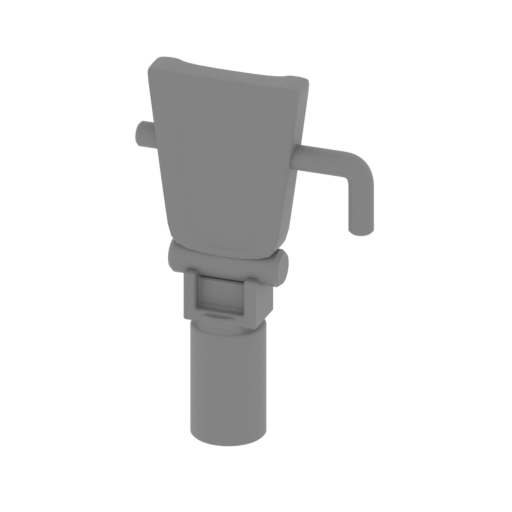

18_tanker_back_car_gun_2 (repaired).stl
0.31 MiB 31 min <1 m 20 x 6 x 31 Download

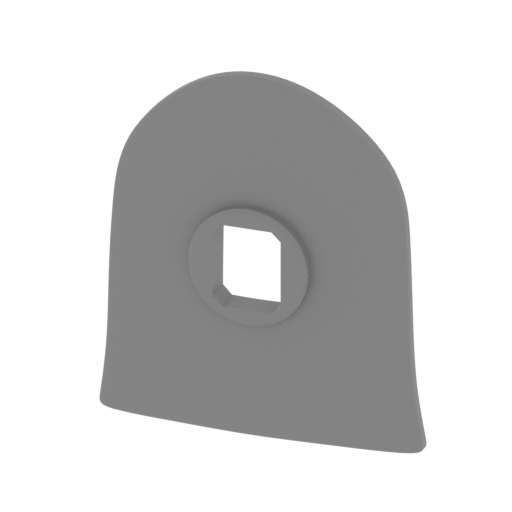

19_tanker_back_car_gun_3 (repaired).stl
0.62 MiB 26 min <1 m 25 x 4 x 28 Download

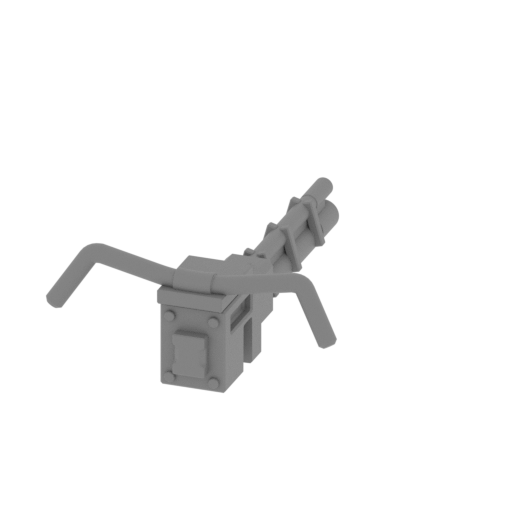

20_tanker_back_car_gun_4 (repaired).stl
0.46 MiB 30 min <1 m 31 x 40 x 14 Download

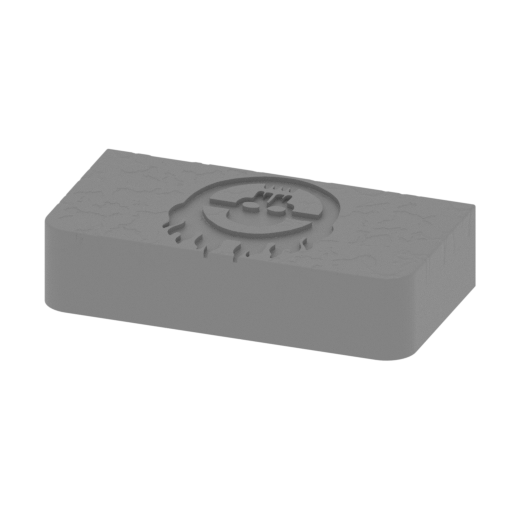

21_tanker_car_back_cap_a (repaired).stl
5.97 MiB 1 h 9 min 1 m 46 x 24 x 10 Download

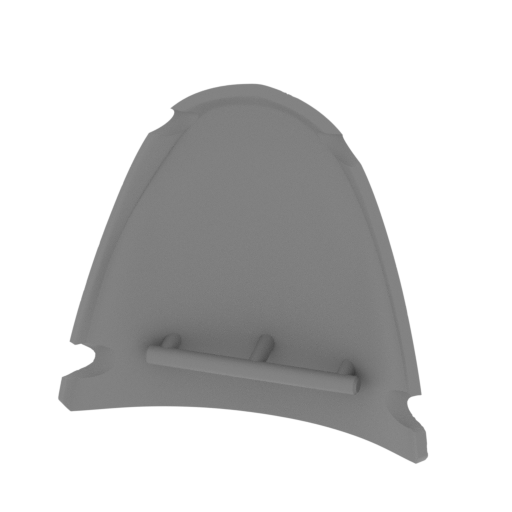

22_tanker_car_back_cap_b (repaired).stl
5.14 MiB 51 min <1 m 44 x 10 x 41 Download

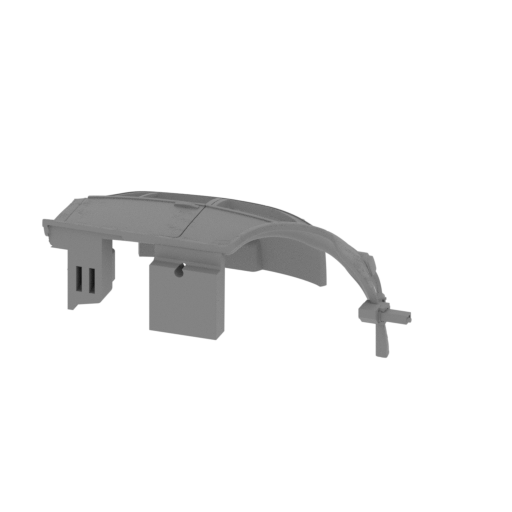

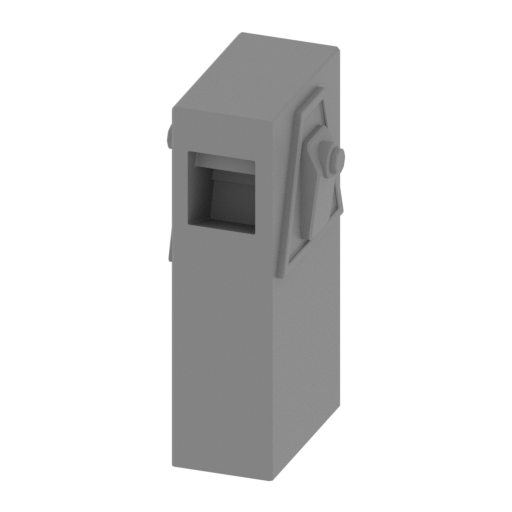

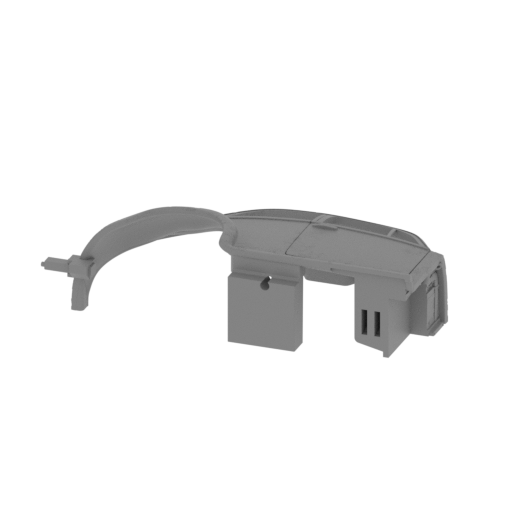

23_tanker_car_back_L (rep aired).stl
33.59 MiB 13 h 33 min 10 m 141 x 69 x 37 Download
24_tanker_car_back_R (rep aired).stl
32.64 MiB 13 h 28 min 10 m 140 x 69 x 37 Download

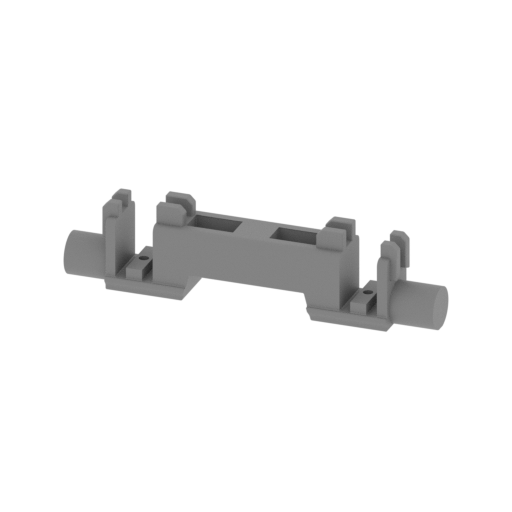

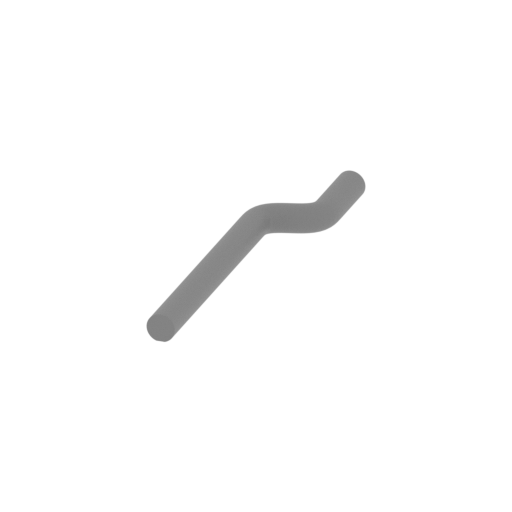

25_tanker_back_car_gun_1 (repaired).stl
0.17 MiB 9 min <1 m 11 x 50 x 4 Download

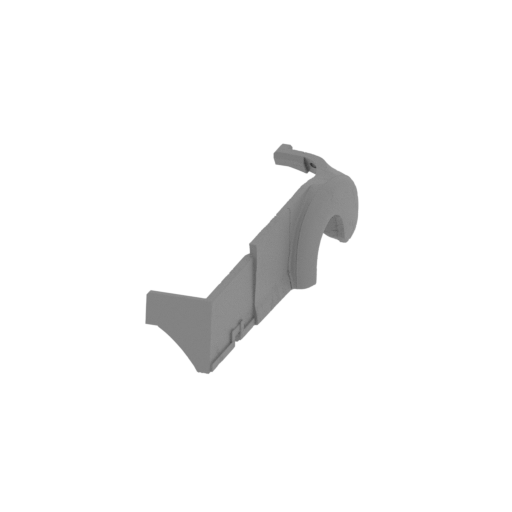

26_tanker_left_car (repai red).stl
28.47 MiB 4 h 39 min 3 m 34 x 143 x 33 Download

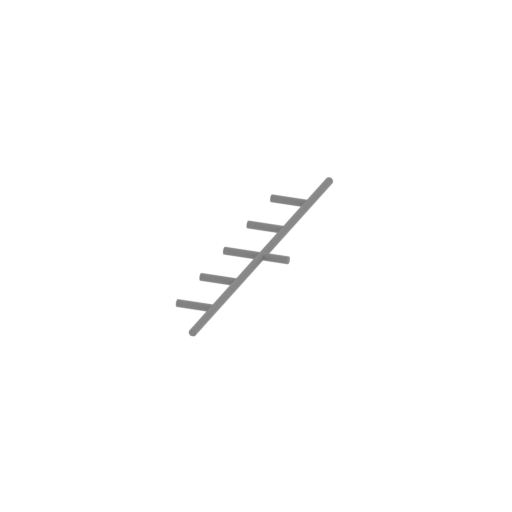

27_tanker_rail_L (repaire d).stl
0.11 MiB 21 min <1 m 23 x 134 x 3 Download

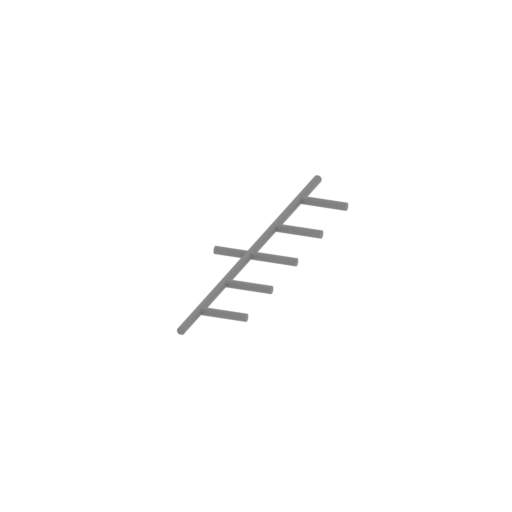

28_tanker_rail_R (repaire d).stl
0.11 MiB 22 min <1 m 28 x 127 x 3 Download

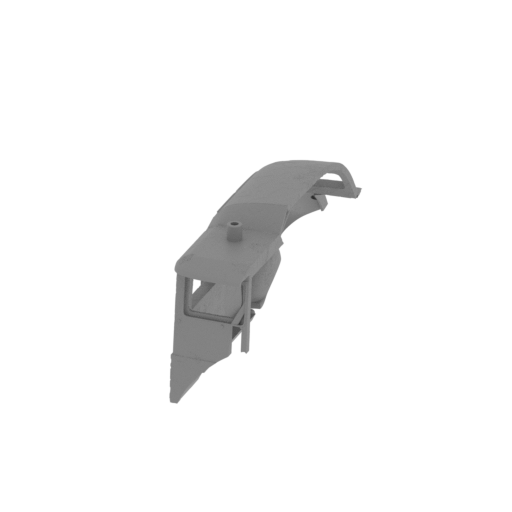

29_tanker_right_car (repa ired).stl
36.53 MiB 19 h 14 min 16 m 41 x 147 x 66 Download

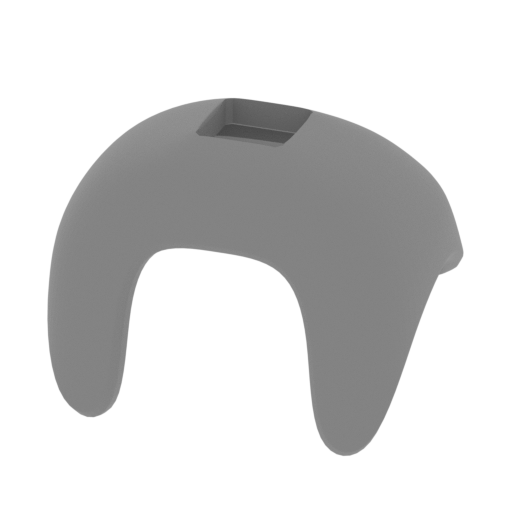

30_tanker_right_car_gun_1 (repaired).stl
1.62 MiB 11 min <1 m 13 x 9 x 10 Download

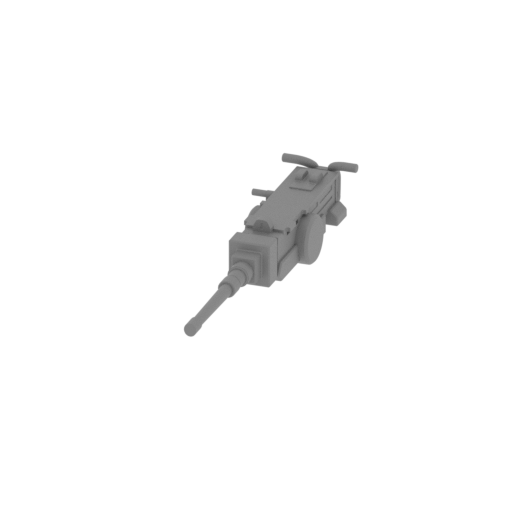

31_tanker_right_car_gun_2 (repaired).stl
0.80 MiB 21 min <1 m 10 x 44 x 8 Download

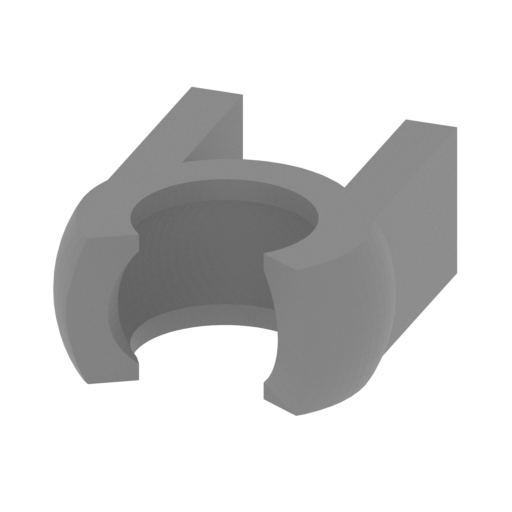

32_tanker_right_car_gun_3 (repaired).stl
0.16 MiB 4 min <1 m 7 x 8 x 3 Download

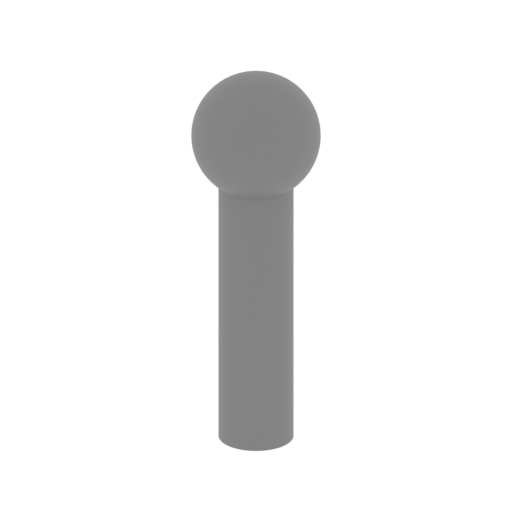

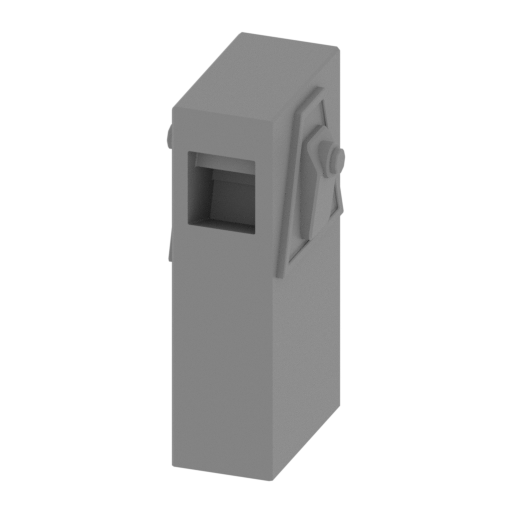

33_tanker_right_car_gun_4 (repaired).stl
0.36 MiB 5 min <1 m 5 x 5 x 16 Download

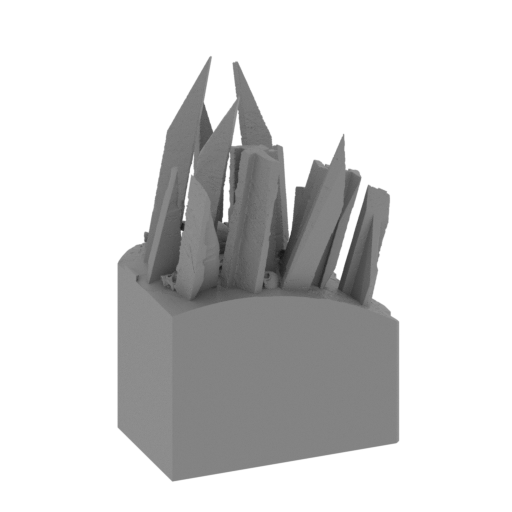

34_tanker_thorns_a_L (rep aired).stl
13.18 MiB 4 h 13 min 2 m 45 x 54 x 64 Download

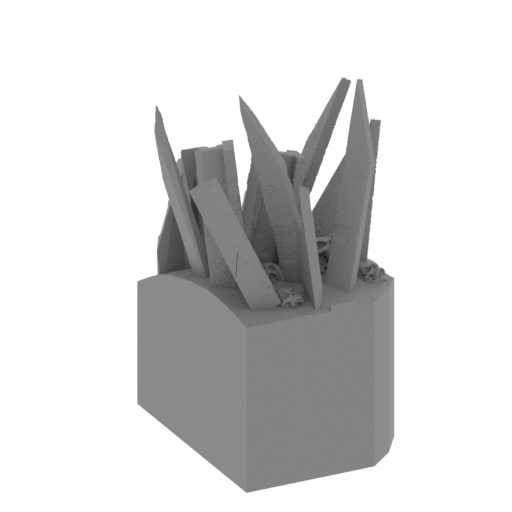

35_tanker_thorns_a_R (rep aired).stl
13.19 MiB 4 h 7 min 2 m 45 x 54 x 64 Download

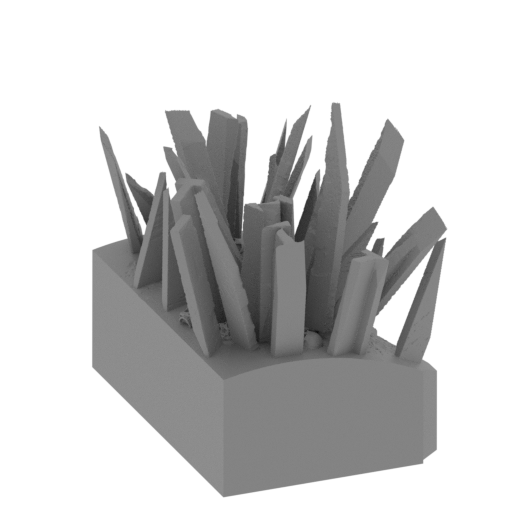

36_tanker_thorns_b_L (rep aired).stl
22.17 MiB 5 h 29 min 2 m 62 x 60 x 56 Download
37_tanker_thorns_b_R (rep aired).stl
22.16 MiB 5 h 27 min 2 m 61 x 60 x 56 Download

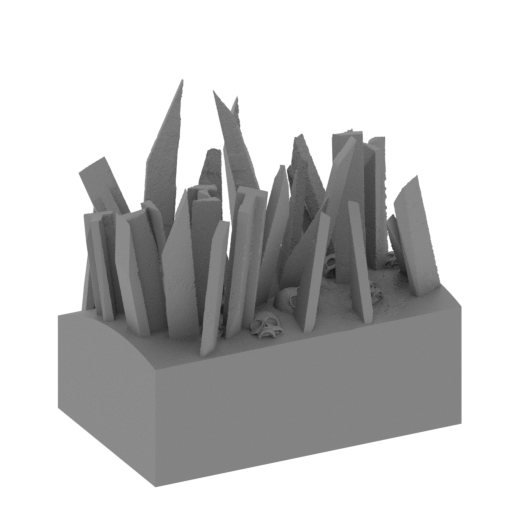

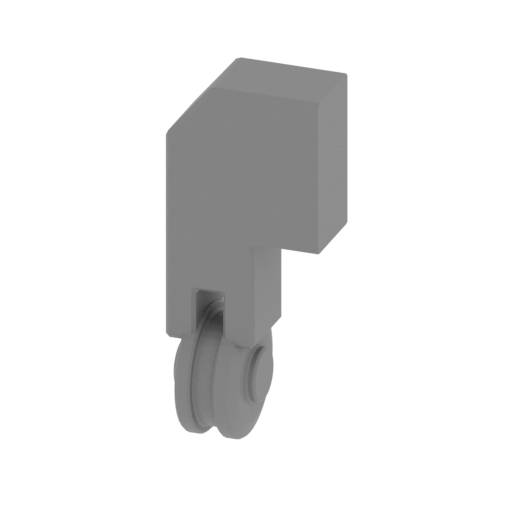

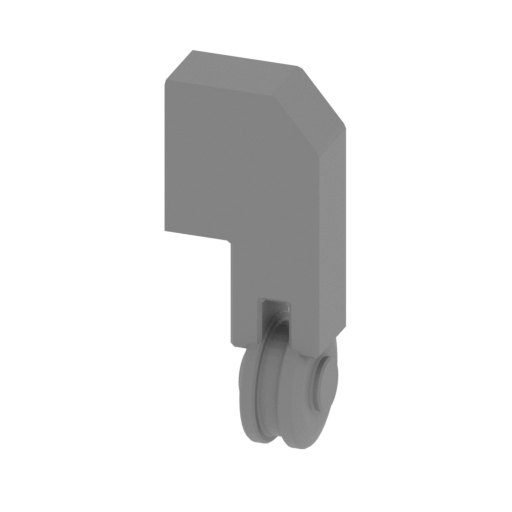

38_tanker_winch_L (repair ed).stl
0.11 MiB 22 min <1 m 10 x 8 x 24 Download
39_tanker_winch_R (repair ed).stl
0.11 MiB 22 min <1 m 10 x 8 x 24 Download

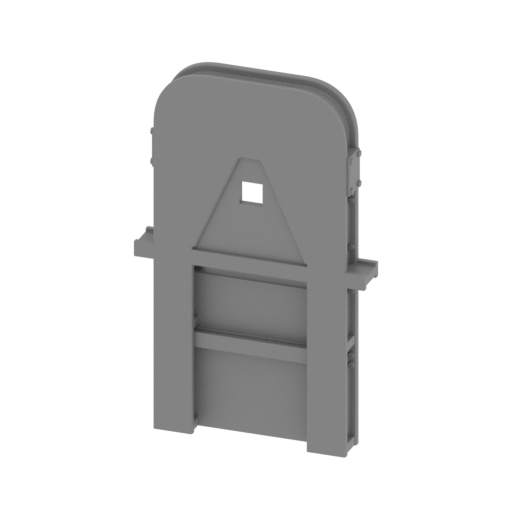

40_frame_a (repaired).stl
1.08 MiB 8 h 18 min 5 m 68 x 11 x 109 Download

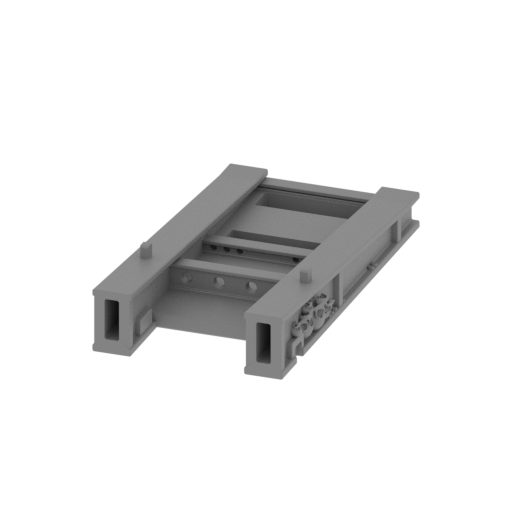

41_frame_b (repaired).stl
2.49 MiB 7 h 47 min 4 m 61 x 110 x 21 Download

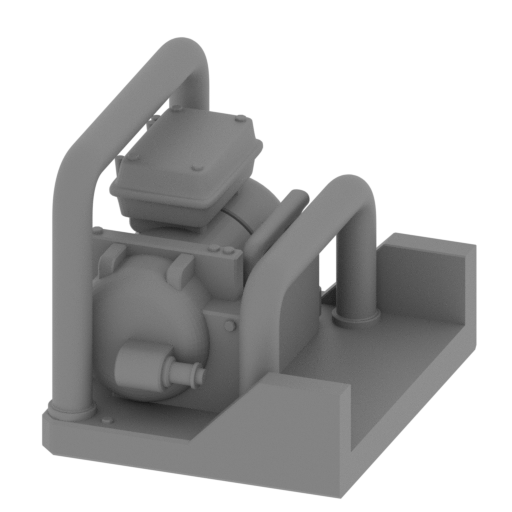

42_frame_back_side_engine (repaired).stl
2.88 MiB 55 min <1 m 20 x 24 x 20 Download

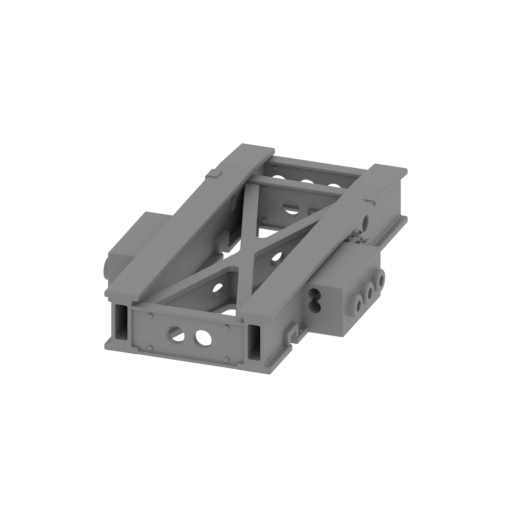

43_frame_c (repaired).stl
3.39 MiB 13 h 58 min 7 m 86 x 126 x 21 Download

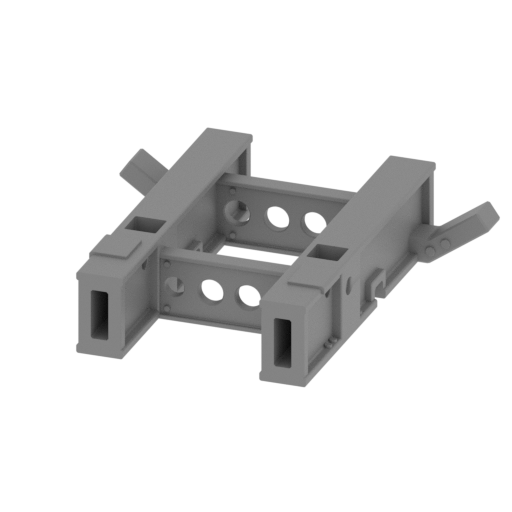

44_frame_d (repaired).stl
1.02 MiB 7 h 26 min 4 m 92 x 87 x 21 Download

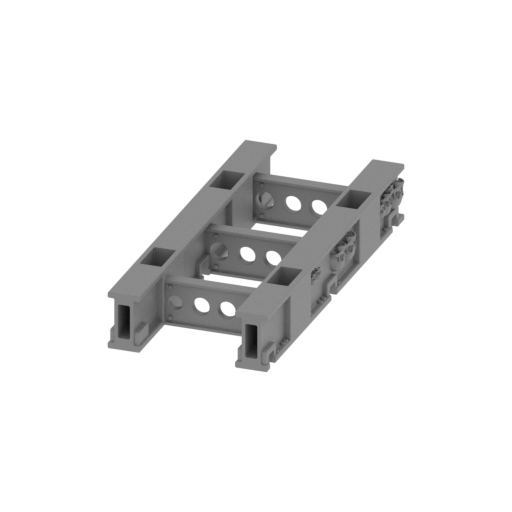

45_frame_e (repaired).stl
4.48 MiB 10 h 28 min 5 m 61 x 131 x 21 Download

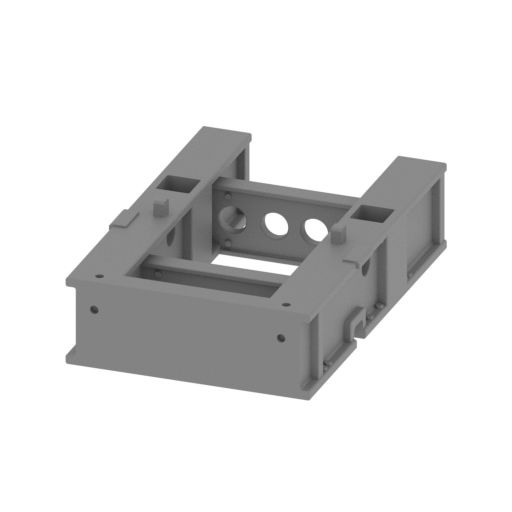

46_frame_f (repaired).stl
0.96 MiB 7 h 36 min 4 m 58 x 86 x 24 Download

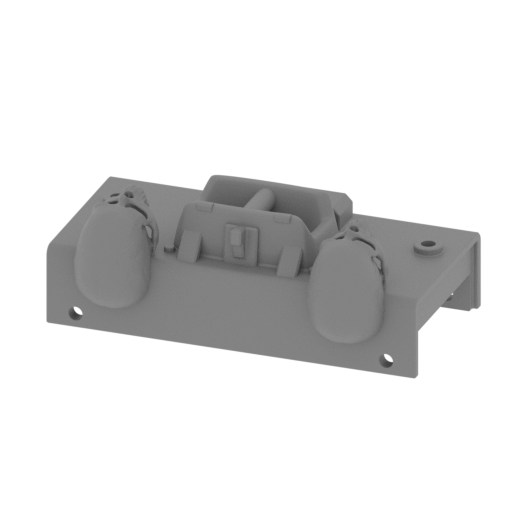

47_frame_g (repaired).stl
0.87 MiB 2 h 7 min 1 m 52 x 31 x 19 Download

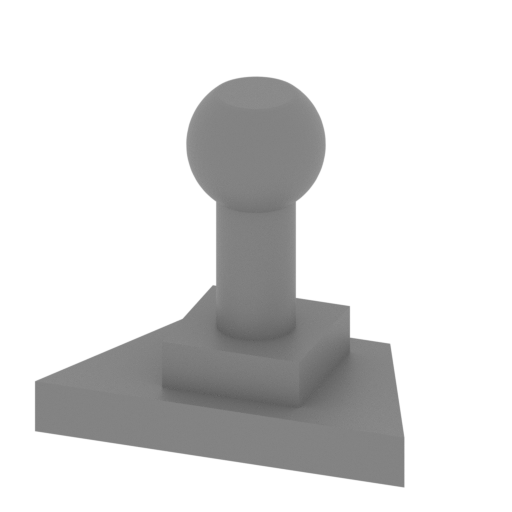

48_frame_hook (repaired). stl
0.32 MiB 11 min <1 m 18 x 10 x 16 Download
49_frame_locks_a_x2 (repa ired).stl
0.01 MiB 11 min <1 m 35 x 7 x 4 Download

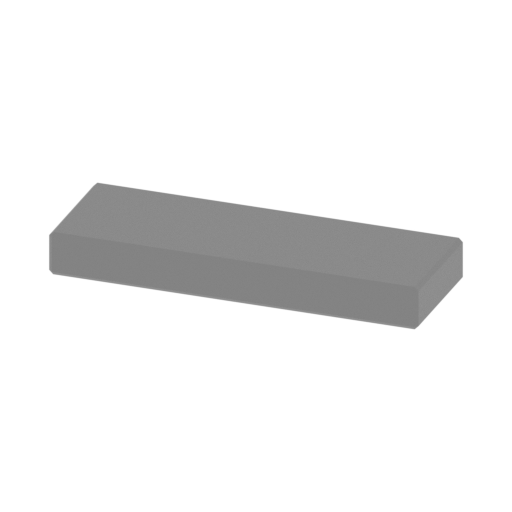

50_frame_locks_b_x8 (repa ired).stl
0.01 MiB 16 min <1 m 35 x 12 x 4 Download
51_frame_pipe_a_L (repair ed).stl
0.23 MiB 17 min <1 m 91 x 4 x 8 Download

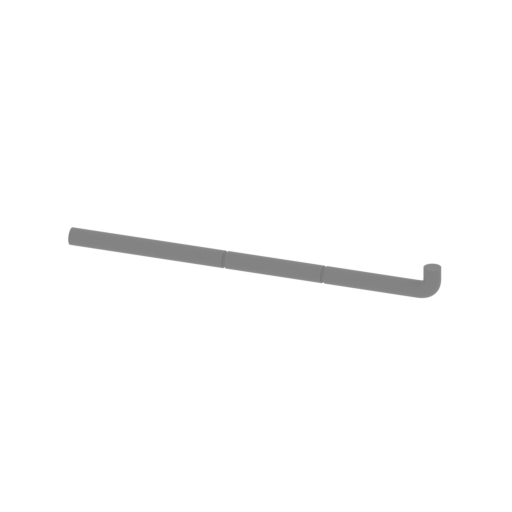

52_frame_pipe_a_R (repair ed).stl
0.23 MiB 17 min <1 m 91 x 4 x 8 Download

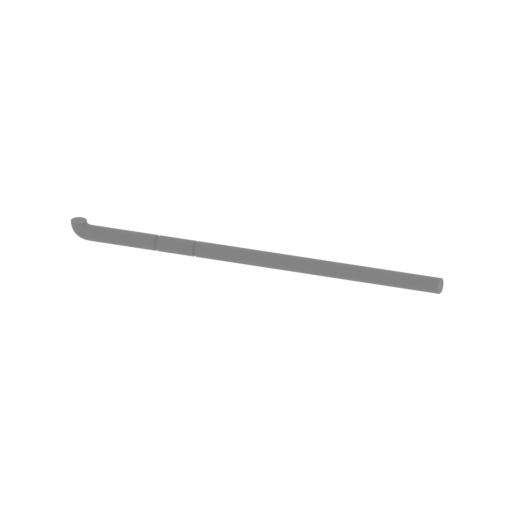

53_frame_pipe_b_L (repair ed).stl
0.26 MiB 18 min <1 m 102 x 4 x 5 Download

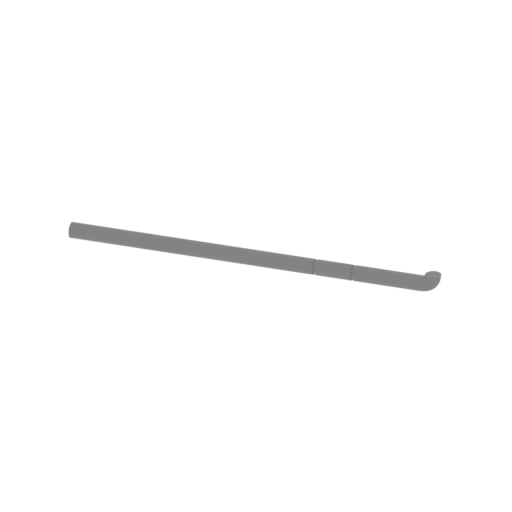

54_frame_pipe_b_R (repair ed).stl
0.26 MiB 18 min <1 m 102 x 4 x 5 Download

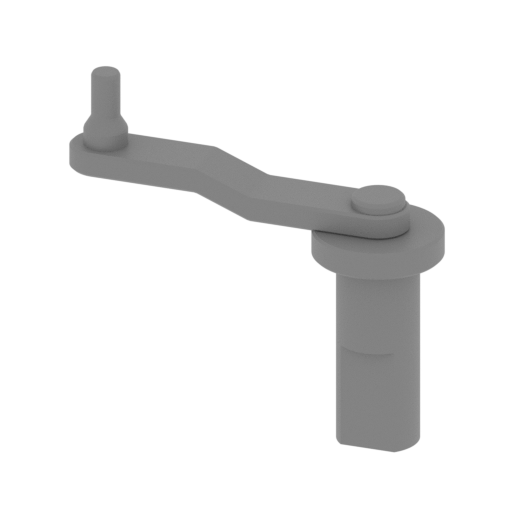

55_frame_spool_cap_a (rep aired).stl
0.34 MiB 16 min <1 m 21 x 7 x 19 Download

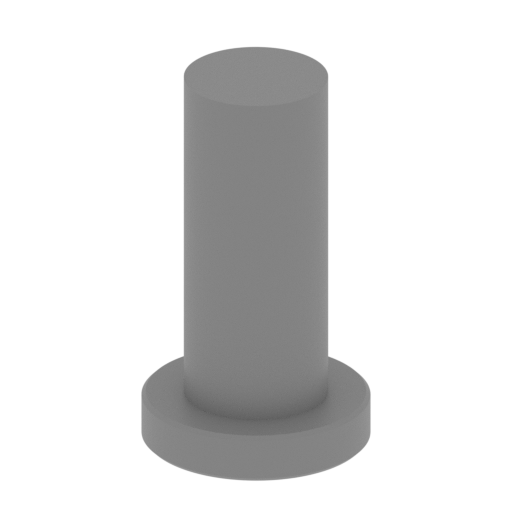

56_frame_spool_cap_b (rep aired).stl
0.21 MiB 6 min <1 m 7 x 7 x 12 Download

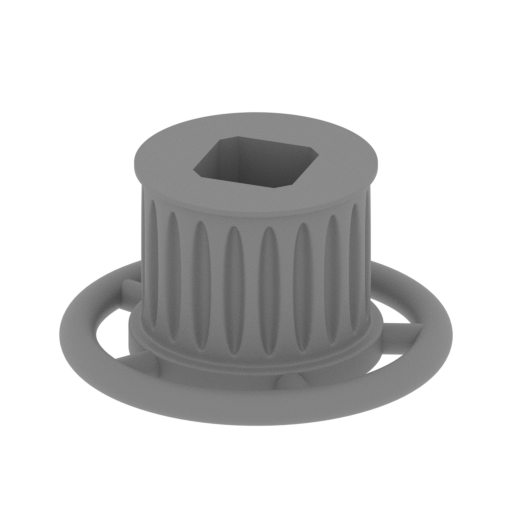

57_frame_spool_drum_a (re paired).stl
3.20 MiB 26 min <1 m 25 x 25 x 13 Download

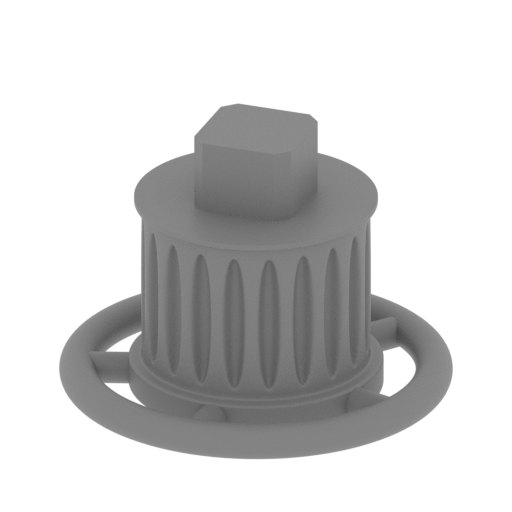

58_frame_spool_drum_b (re paired).stl
3.21 MiB 29 min <1 m 25 x 25 x 18 Download

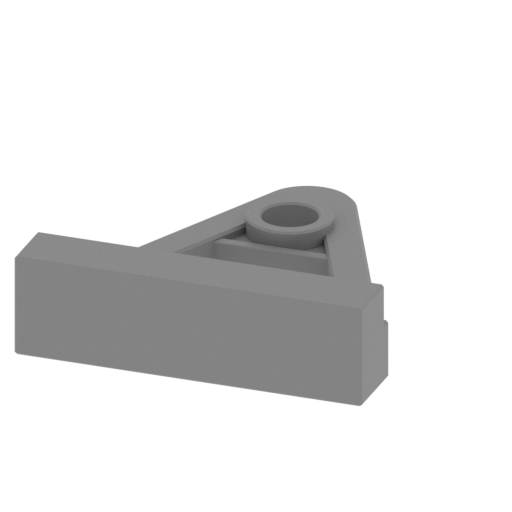

59_frame_spool_leg_1 (rep aired).stl
0.47 MiB 26 min <1 m 31 x 33 x 9 Download

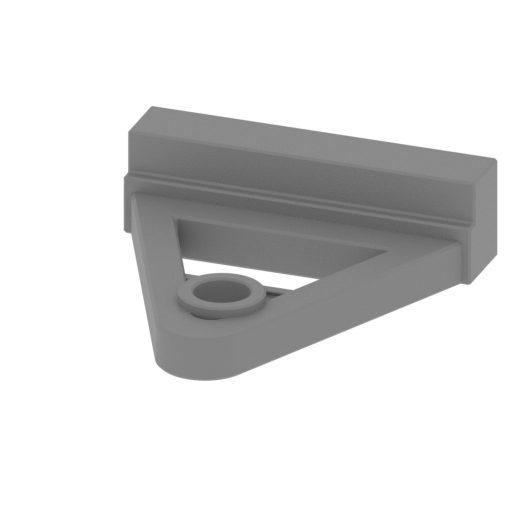

60_frame_spool_leg_2 (rep aired).stl
0.48 MiB 26 min <1 m 31 x 33 x 9 Download
61_frame_valve_x3_R (repa ired).stl
0.35 MiB 6 min <1 m 10 x 10 x 14 Download

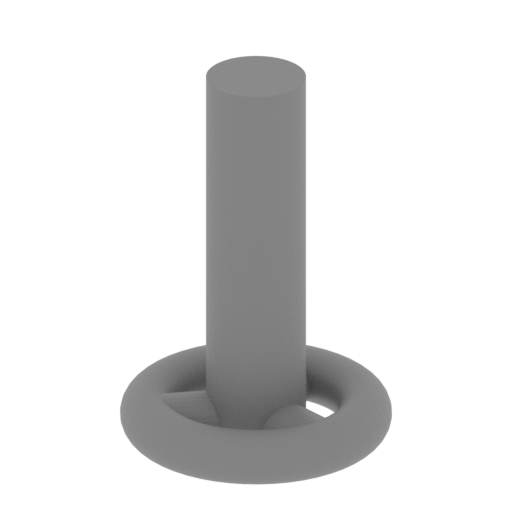

62_frame_valve_x3_L (repa ired).stl
0.35 MiB 6 min <1 m 10 x 10 x 14 Download

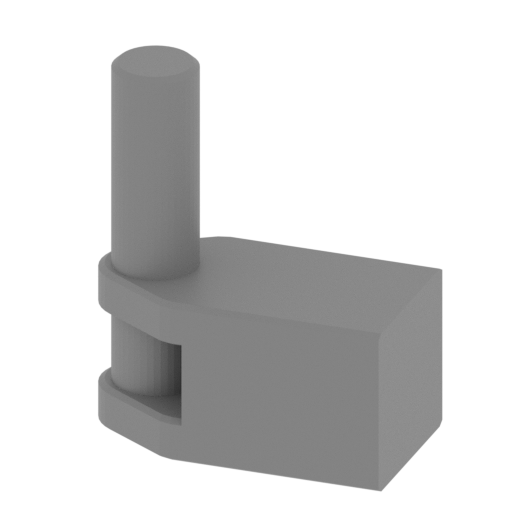

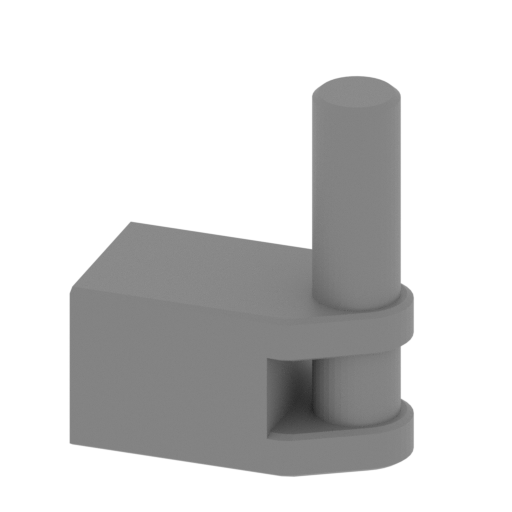

63_frame_ware_L (repaired ).stl
0.12 MiB 7 min <1 m 9 x 5 x 11 Download
64_frame_ware_R (repaired ).stl
0.12 MiB 6 min <1 m 9 x 5 x 11 Download

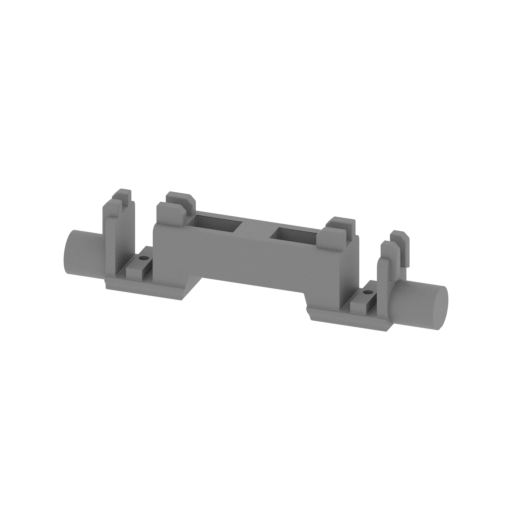

65_suspension_axis_1 (rep aired).stl
0.22 MiB 1 h 23 min 1 m 74 x 12 x 18 Download
66_suspension_axis_2 (rep aired).stl
0.22 MiB 1 h 23 min 1 m 74 x 12 x 18 Download
67_suspension_axis_3 (rep aired).stl
0.22 MiB 1 h 23 min 1 m 74 x 12 x 18 Download

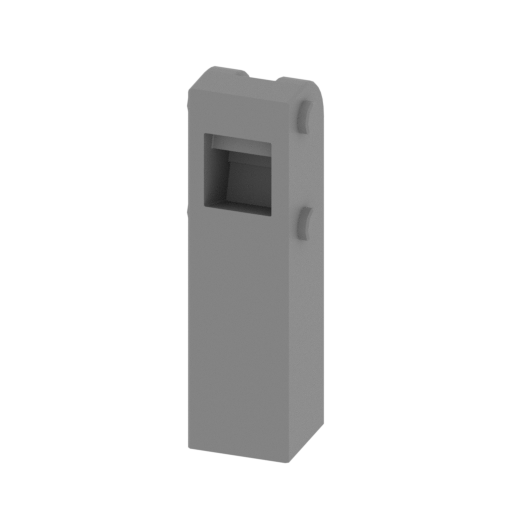

68_suspension_box_1_L (re paired).stl
0.15 MiB 31 min <1 m 9 x 8 x 28 Download
69_suspension_box_1_R (re paired).stl
0.15 MiB 30 min <1 m 9 x 8 x 28 Download
70_suspension_box_2_L (re paired).stl
0.30 MiB 43 min <1 m 13 x 14 x 28 Download
71_suspension_box_2_R (re paired).stl
0.29 MiB 43 min <1 m 13 x 14 x 28 Download

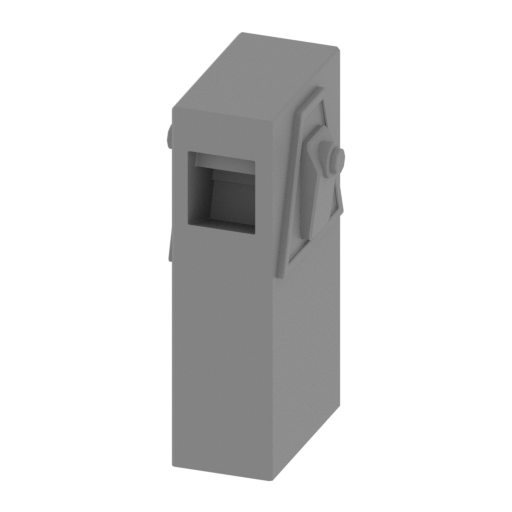

72_suspension_box_3_L (re paired).stl
0.29 MiB 43 min <1 m 13 x 14 x 28 Download
73_suspension_box_3_R (re paired).stl
0.29 MiB 43 min <1 m 13 x 14 x 28 Download

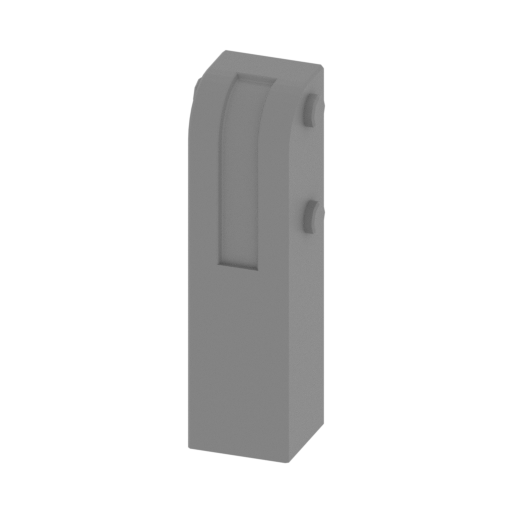

74_suspension_box_4_L (re paired).stl
0.15 MiB 30 min <1 m 9 x 8 x 28 Download
75_suspension_box_4_R (re paired).stl
0.15 MiB 30 min <1 m 9 x 8 x 28 Download
76_suspension_brake_1_L ( repaired).stl
0.31 MiB 17 min <1 m 10 x 12 x 17 Download
77_suspension_brake_1_R ( repaired).stl
0.31 MiB 16 min <1 m 10 x 12 x 17 Download
78_suspension_brake_2_L ( repaired).stl
0.31 MiB 17 min <1 m 10 x 12 x 17 Download
79_suspension_brake_2_R ( repaired).stl
0.31 MiB 16 min <1 m 10 x 12 x 17 Download

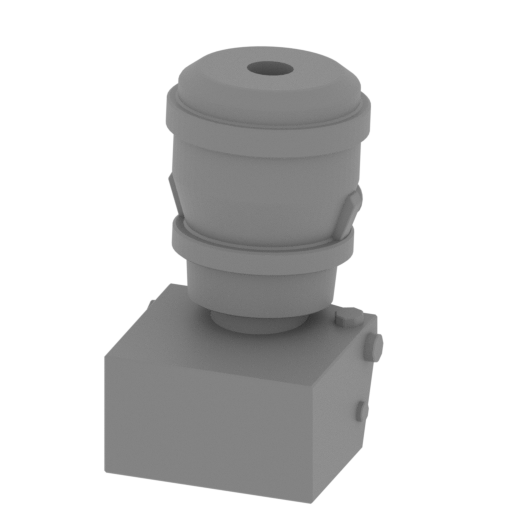

80_suspension_brake_3_L ( repaired).stl
0.31 MiB 17 min <1 m 10 x 12 x 17 Download
81_suspension_brake_3_R ( repaired).stl
0.31 MiB 16 min <1 m 10 x 12 x 17 Download

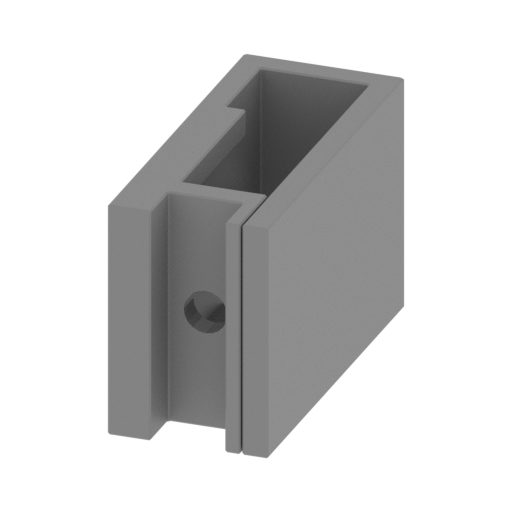

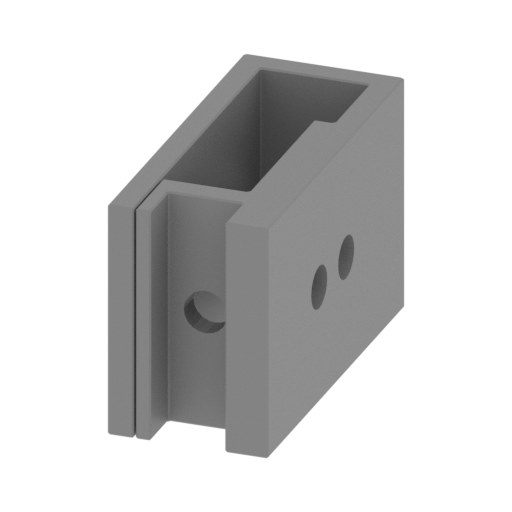

82_suspension_ressors_loc k_1_L (repaired).stl
0.05 MiB 17 min <1 m 7 x 17 x 11 Download
83_suspension_ressors_loc k_1_R (repaired).stl
0.05 MiB 18 min <1 m 7 x 17 x 11 Download

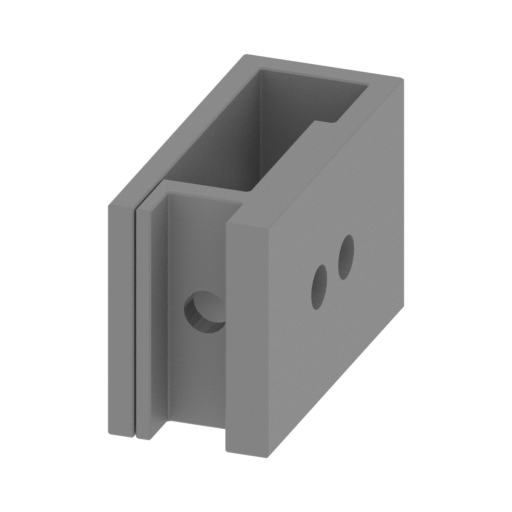

84_suspension_ressors_loc k_2_L (repaired).stl
0.05 MiB 16 min <1 m 7 x 17 x 11 Download

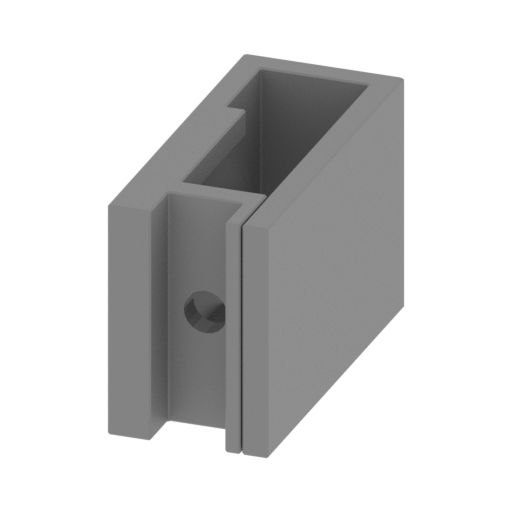

85_suspension_ressors_loc k_2_R (repaired).stl
0.05 MiB 18 min <1 m 7 x 17 x 11 Download
86_suspension_ressors_loc k_3_L (repaired).stl
0.05 MiB 17 min <1 m 7 x 17 x 11 Download
87_suspension_ressors_loc k_3_R (repaired).stl
0.05 MiB 17 min <1 m 7 x 17 x 11 Download

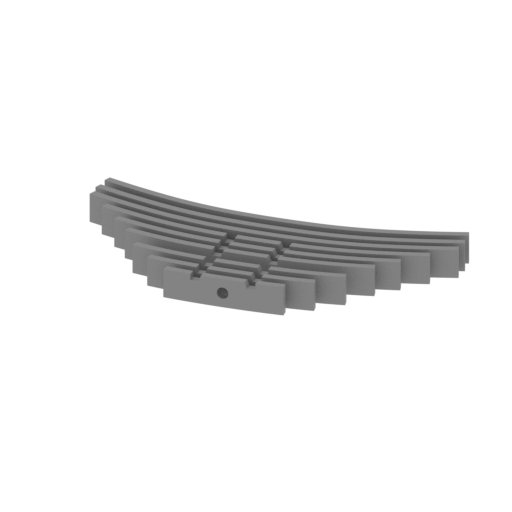

88_suspension_ressors_x6 (repaired).stl
2.60 MiB 46 min <1 m 63 x 31 x 5 Download

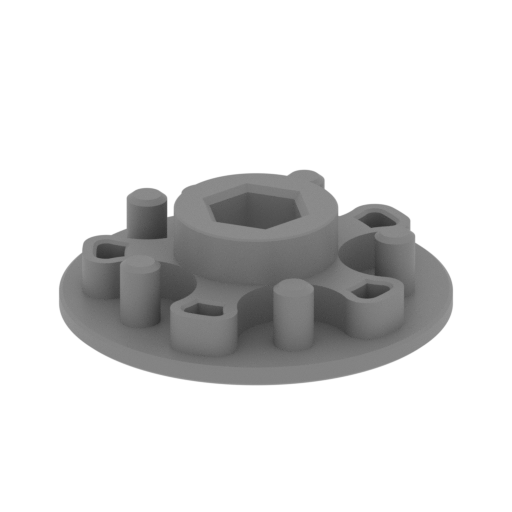

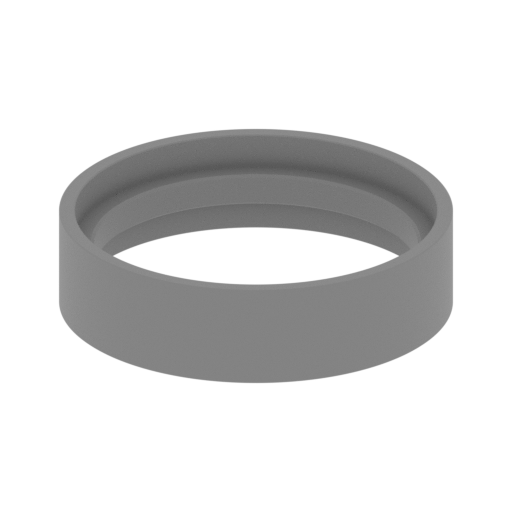

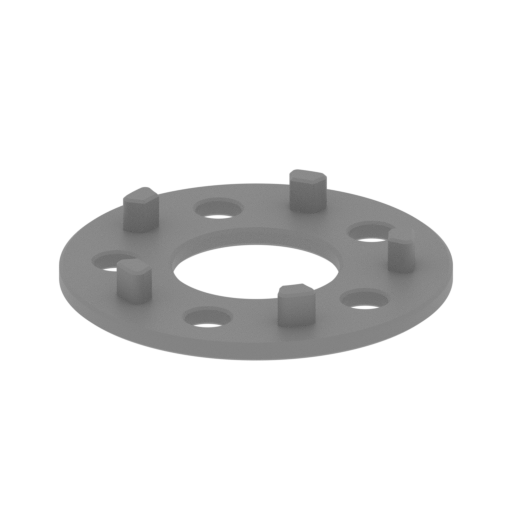

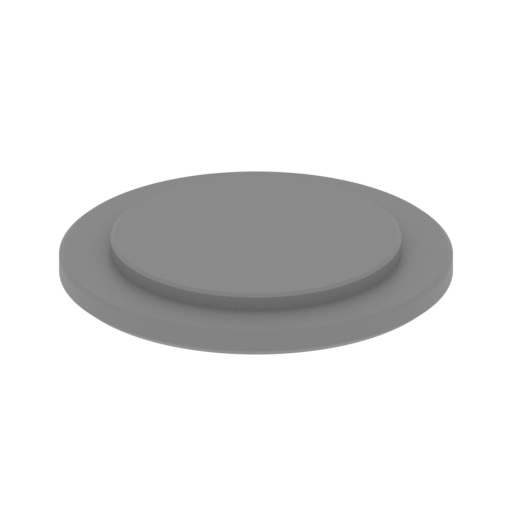

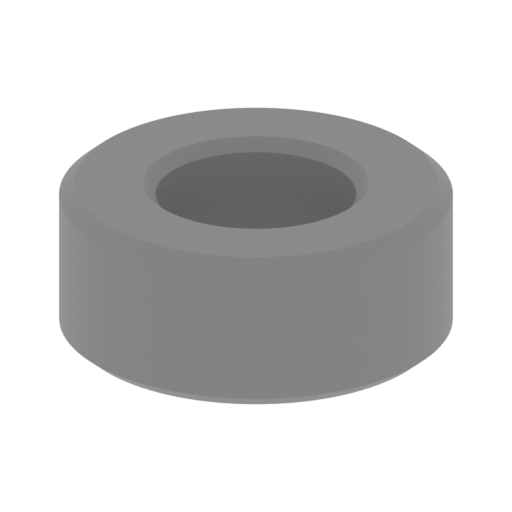

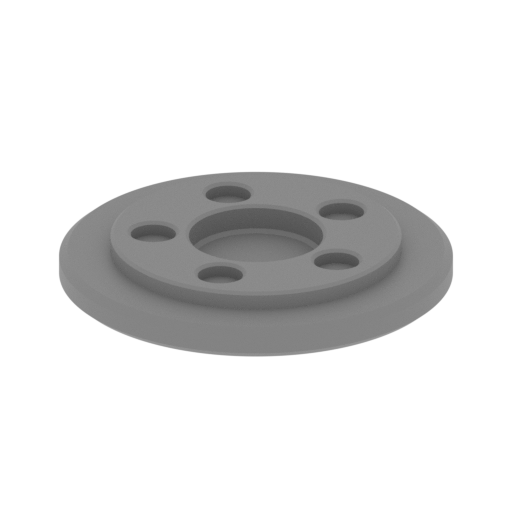

89_wheel_bearing_1_x6 (re paired).stl
0.95 MiB 1 h 43 min 1 m 39 x 39 x 10 Download
90_wheel_bearing_2_x6 (re paired).stl
0.95 MiB 1 h 43 min 1 m 39 x 39 x 10 Download

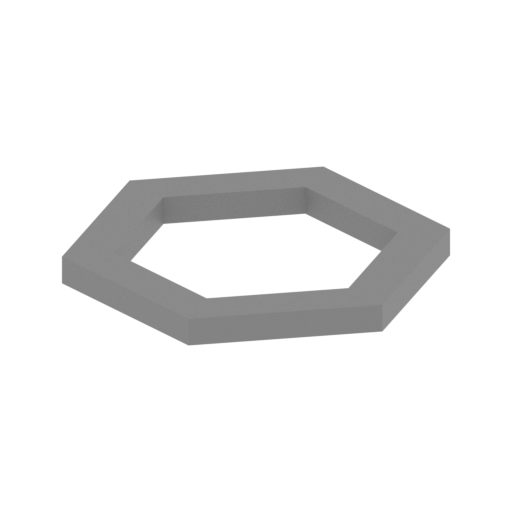

91_wheel_cap_a_x6 (repair ed).stl
0.01 MiB 1 min <1 m 10 x 12 x 1 Download
92_wheel_cap_b_x6 (repair ed).stl
0.01 MiB 1 min <1 m 10 x 12 x 1 Download

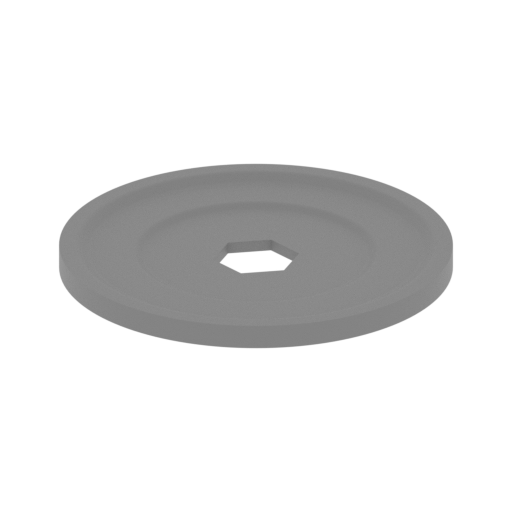

93_wheel_cap_c_x6 (repair ed).stl
0.31 MiB 28 min <1 m 38 x 38 x 2 Download

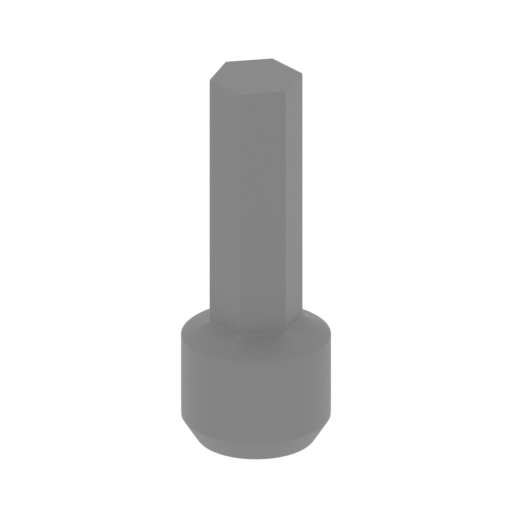

94_wheel_connector_back_x 6 (repaired).stl
0.46 MiB 34 min <1 m 13 x 13 x 35 Download

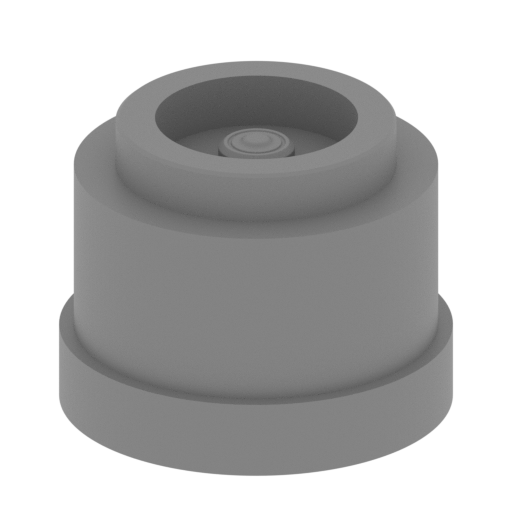

95_wheel_disk_a_x6 (repai red).stl
0.89 MiB 3 h 48 min 3 m 45 x 45 x 35 Download

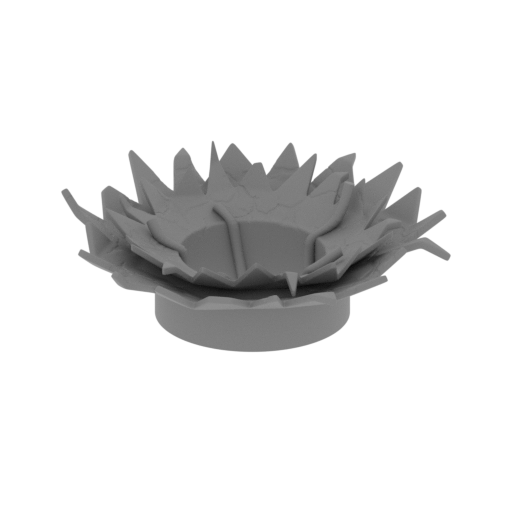

96_wheel_disk_b_x8 (repai red).stl
9.57 MiB 1 h 42 min 1 m 47 x 47 x 15 Download
97_wheel_disk_spare_a_x2 (repaired).stl
0.90 MiB 2 h 1 min 1 m 42 x 42 x 17 Download

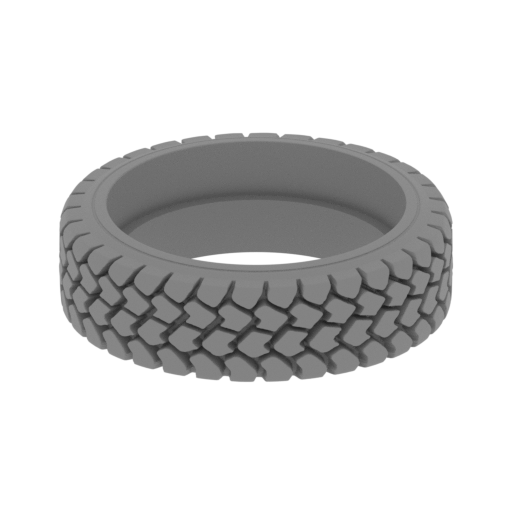

98_wheel_tire_a_x6 (repai red).stl
6.58 MiB 3 h 33 min 2 m 60 x 60 x 18 Download

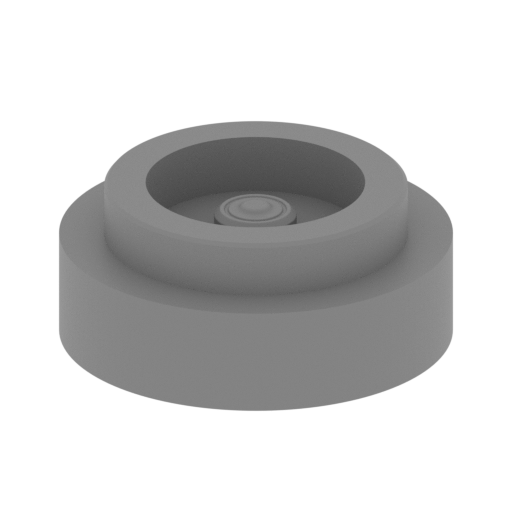

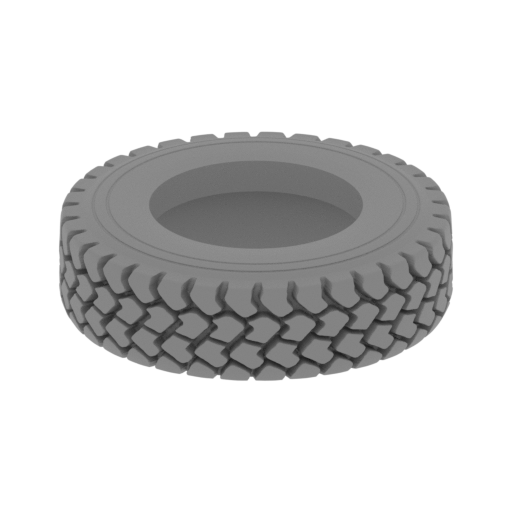

99_wheel_tire_b_x8 (repai red).stl
6.78 MiB 4 h 22 min 2 m 60 x 60 x 18 Download
Keychain (repaired).stl
0.35 MiB 23 min <1 m 30 x 30 x 2 Download
...

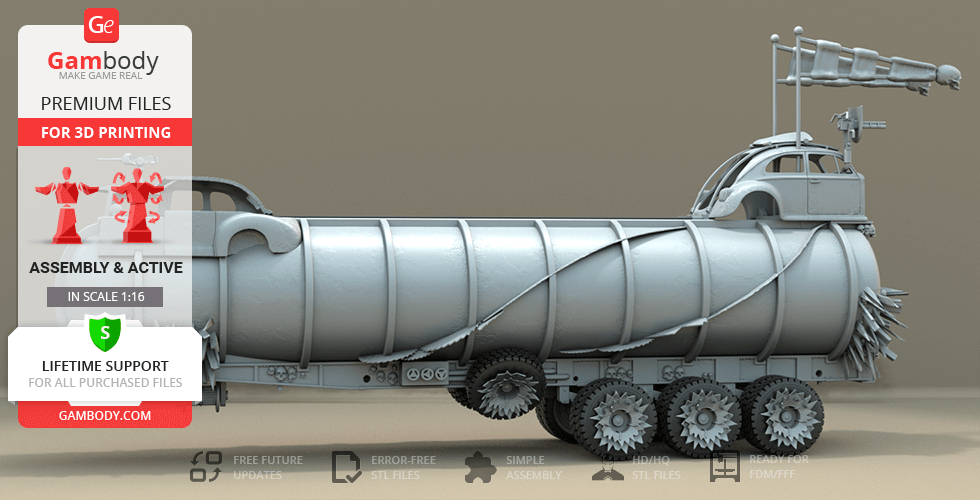

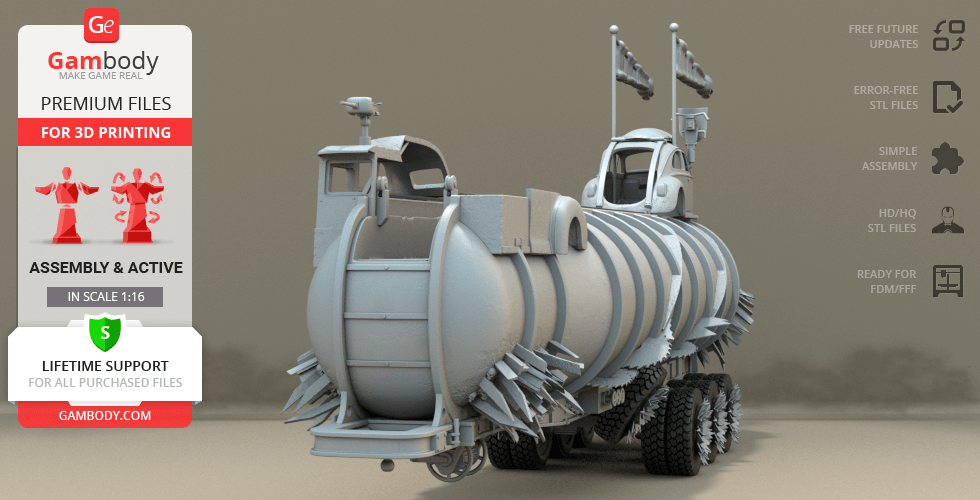

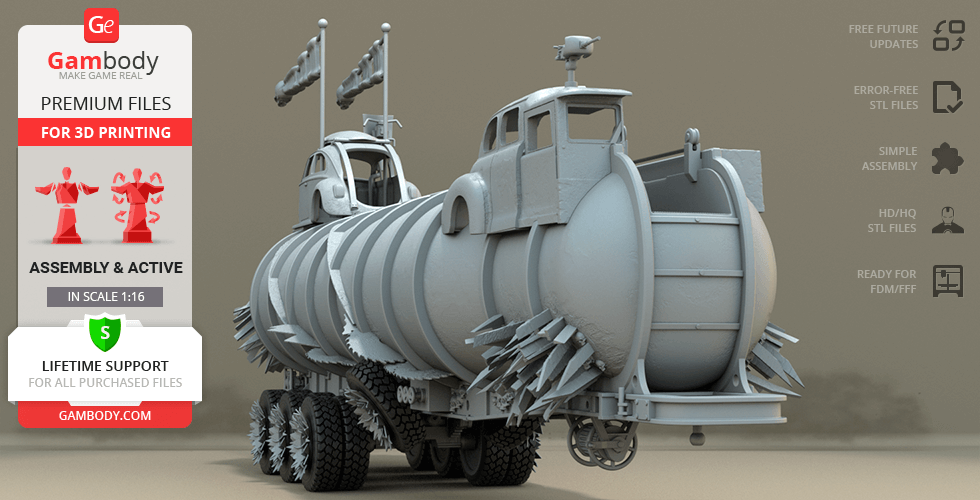

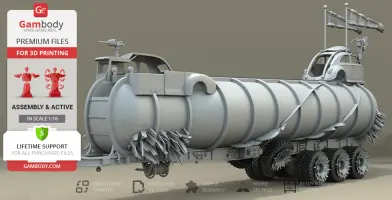

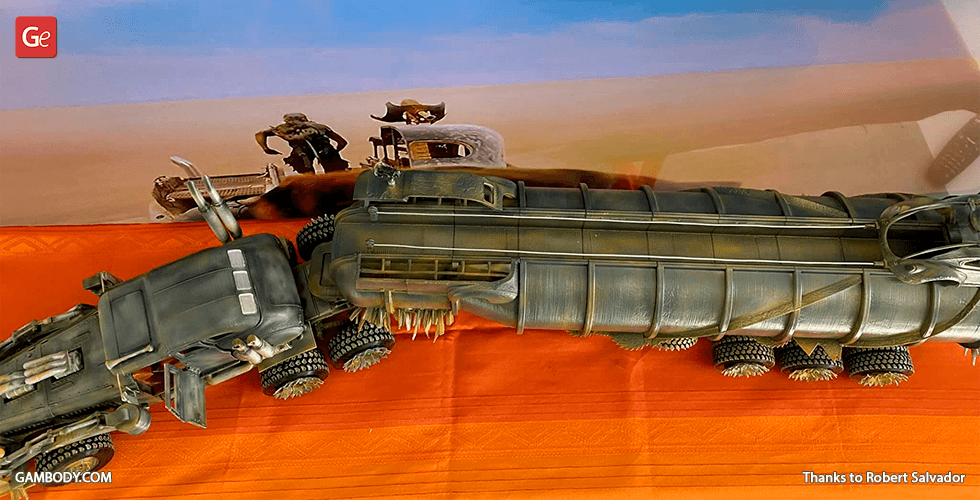

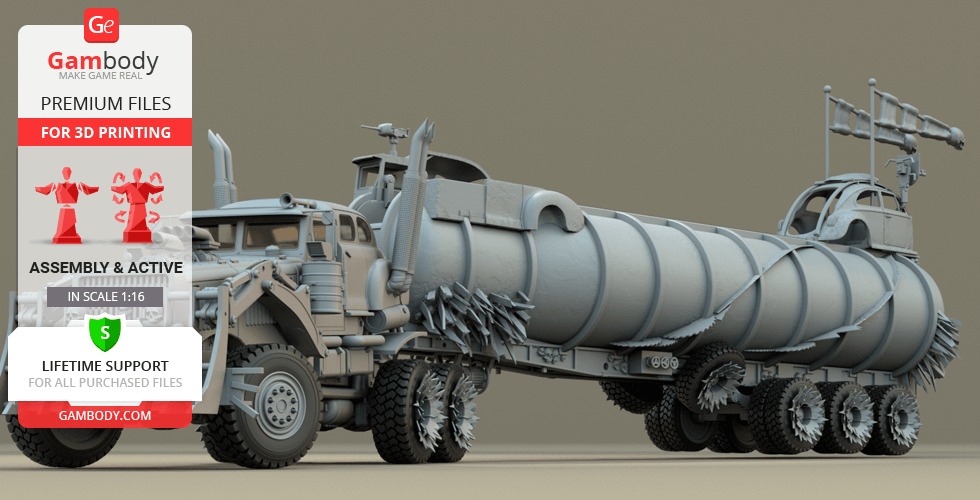

ABOUT THIS 3D MODEL

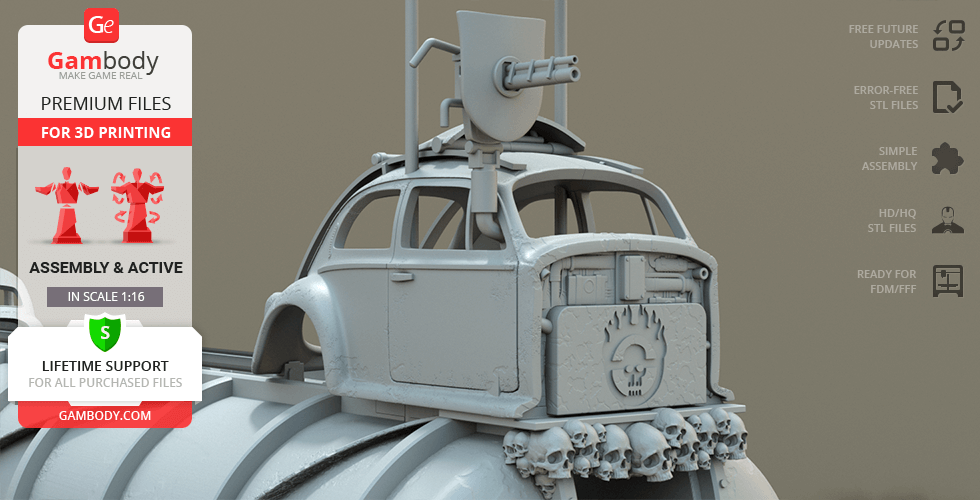

The star of the Mad Max: Fury Road movie, the War Rig truck is a mutant monster vehicle that is impossible to imagine without its giant trailer. That’s why our contributing 3D artist decided to spend another 110 hours to recreate the War Rig Tanker in the form of a 3D model to go along with the spectacular War Rig Truck and Fuel Pod for 3D printing. The modified tanker is not just a reservoir to transport various liquid and gaseous commodities, but also an integral part of the fully armored war machine. The tanker’s rooftop serves as a platform that is perfect for launching attacks on the enemy forces and defending the vehicle against them. Specifically for that, two turrets made out of old cabin shells are welded onto the rooftop, the rear one being designed from a chopped Volkswagen Beetle. Twin flag poles adorned with chilling skulls are sticking out of the Beetle's roof. In the middle of a heated road war, the harpoon guns mounted on both turrets always come in handy. Protruding from the sides of the tanker, multiple acute circular saw blades serve as additional defensive constructions that can cut through the bodies of colliding vehicles. The hubs of the tanker, as well as the front and rear sides of its container, are armored with razor-sharp and slanted pieces of metal. The savage ways of the post-apocalyptic desert warriors are mirrored in the countless human skulls decorating the tanker’s exterior. The burning skull motif forged on the metal plate in the front part of the VW turret is the logo of the truck’s former owner - Immortan Joe. But now, with the help of a 3D printer, the beast-like vehicle can become your very own possession. Hurry up, the chase across the Wasteland promises to be mind-blowing!

ADAPTATION FOR 3D PRINTING

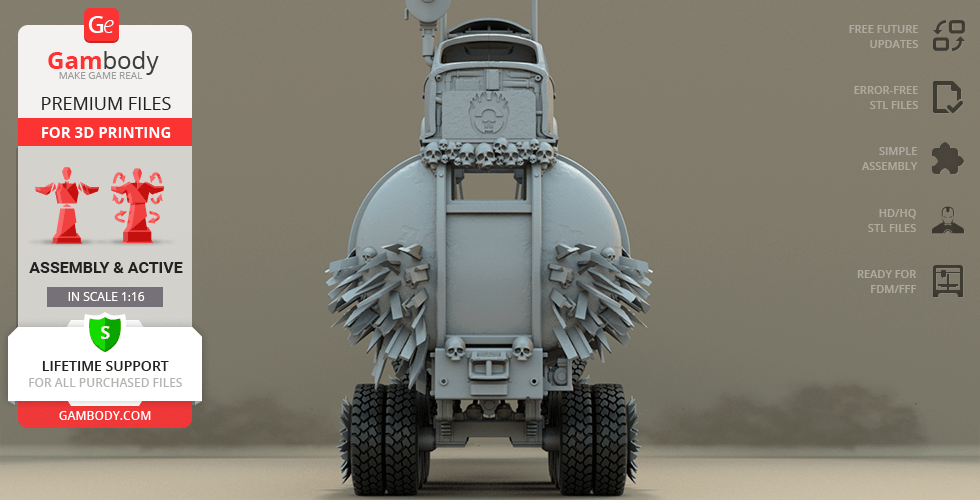

War Rig Tanker 3D printing model is a highly-detailed assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 125 hours in total. In order to preserve the accurate likeness of the real-life tanker, as well as the modified movie War Rig Tanker, the model was divided into many parts that are to be assembled as if a real vehicle. To make sure that our customers’ War Rig 3D printing projects will be as true to life as possible, Gambody team equipped the model with an authentic active suspension. Thus, various special mechanisms were introduced into the Tanker to make sure that the parts comprising the suspension, as well as the details of the chassis and the wheels, are both realistic and highly functional (please, see "Versions' specifications", "Assembly video" and photo preview slider). Moreover, in order to stay true to the massive size of the Furiosa vehicle's main tanker, the model was divided into as many assembly parts as needed to ensure that it will fit any 3D printer's build plate. The cutting of the model was chosen to ensure the cleanest 3D printing result possible and to minimize the amount of material needed to print the generated support, e.g. Tanker’s water hose reel, flagpole parts, harpoon guns, decorative skulls and spikes, various elements of car-like turrets, spiky hubcaps, and many many more parts come as separate STL files. All assembly parts are provided in STL files in recommended positions that were worked out in order to ensure the smoothness of the details’ surfaces after printing and so that the 3D printing beginners won't face difficulties when placing the parts on a build plate. The model's assembly requires additional "pins" to secure the parts of the 3D printed Tanker. These pins do not come in STL files but can be made out of short pieces of regular 1.75 PLA. We highly recommend that you watch the "Assembly video" in the photo preview section before assembling the War Rig Tanker.

The model is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.

The model's scale was calculated from the actual length of the War Rig truck + main tanker which is 20432 mm. The 3D printing model's chosen scale is 1/16 for the FFF/FDM version.

VERSIONS SPECIFICATIONS

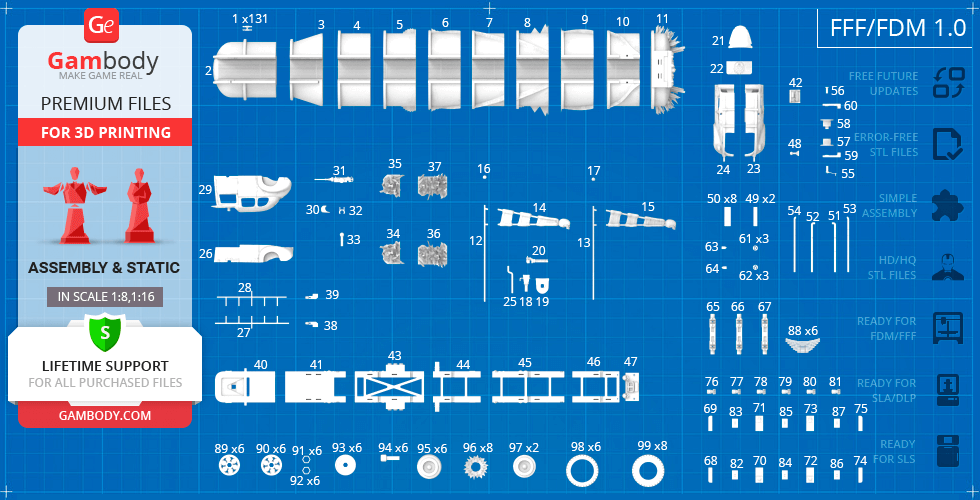

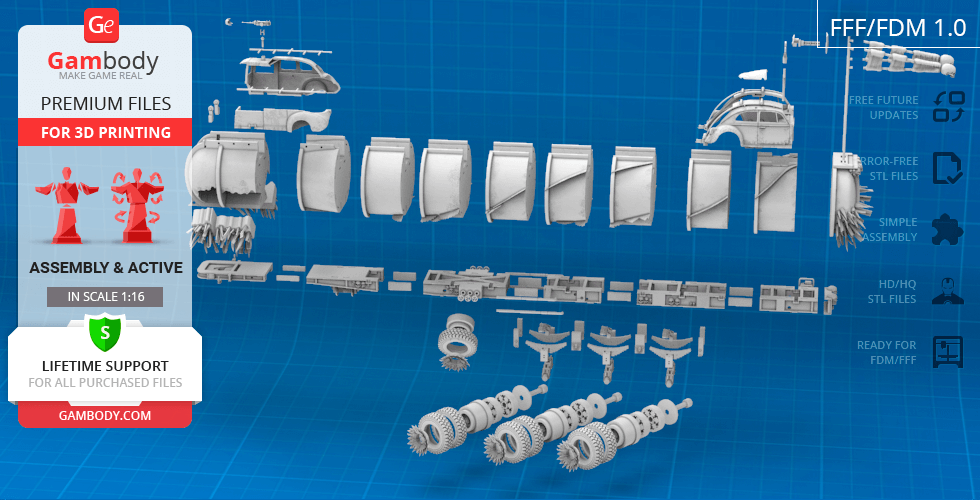

FFF/FDM 1.0 version features:
- Contains 99 parts;

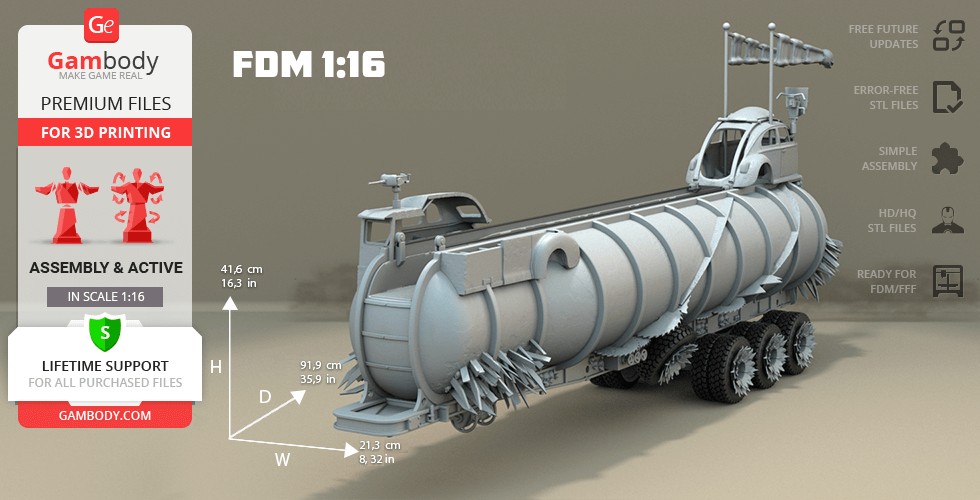

- When printed the model stands 416 mm tall, 213 mm wide, 919 mm deep;
- Minimal recommended 3D printer build volume is 220 x 220 x 250 mm;
- Assembly kit includes lock 1_Ge_lock_10H_x131 to attach the model's parts securely without glue that needs to be printed 131 times;
- There are some assembly parts that need to be printed multiple times - the number of required copies (x2, x4 etc.) is indicated in the title of the file in "Source files", e.g. file "99_wheel_tire_b_x8" needs to be printed 8 times;

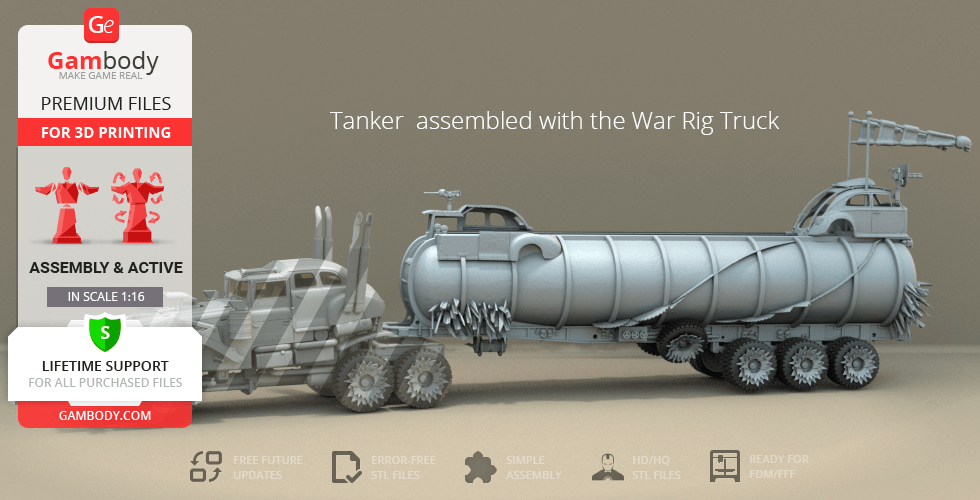

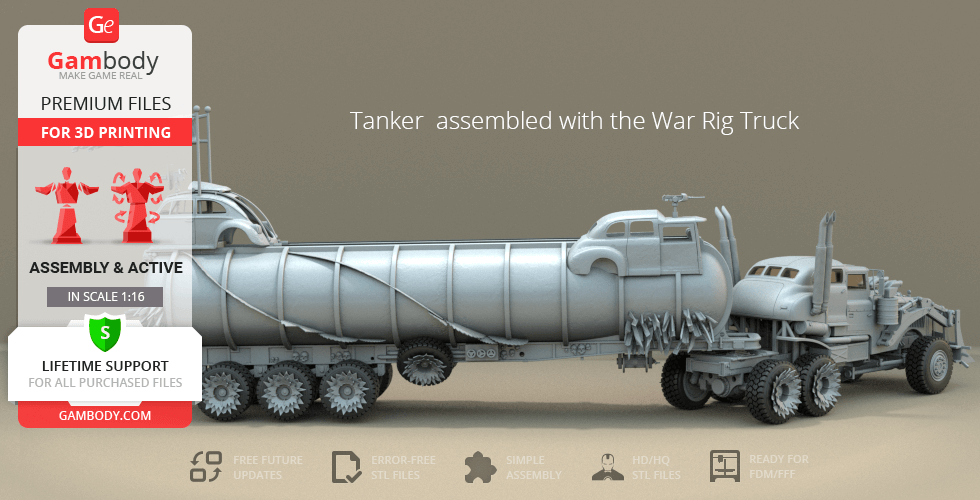

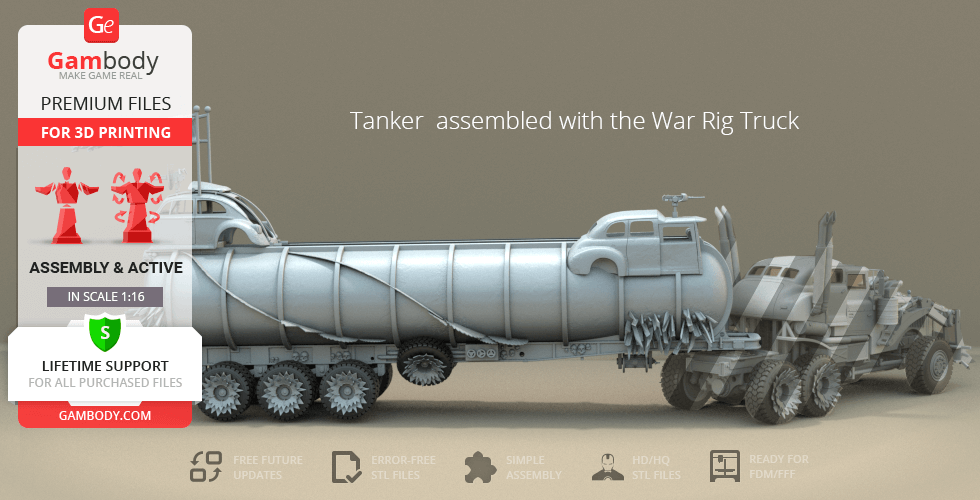

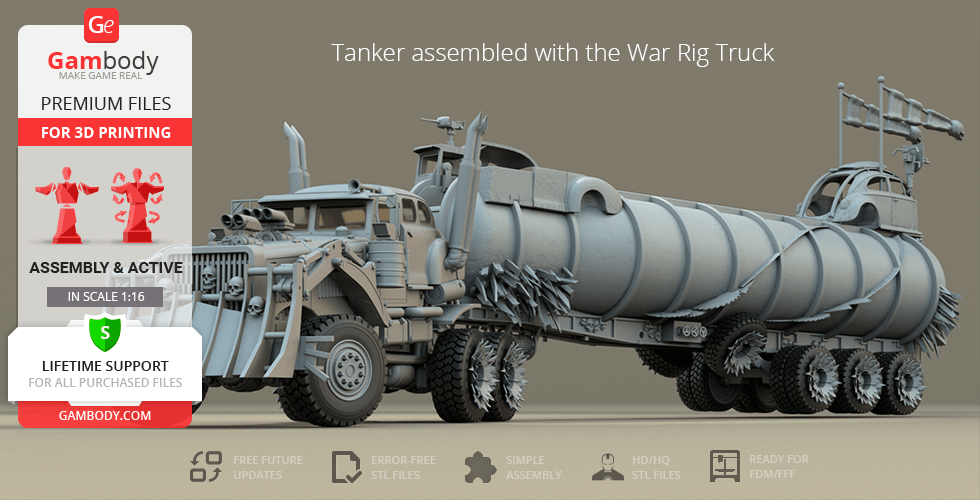

- A connector to couple up the Tanker to the War Rig Truck via the fifth wheel;

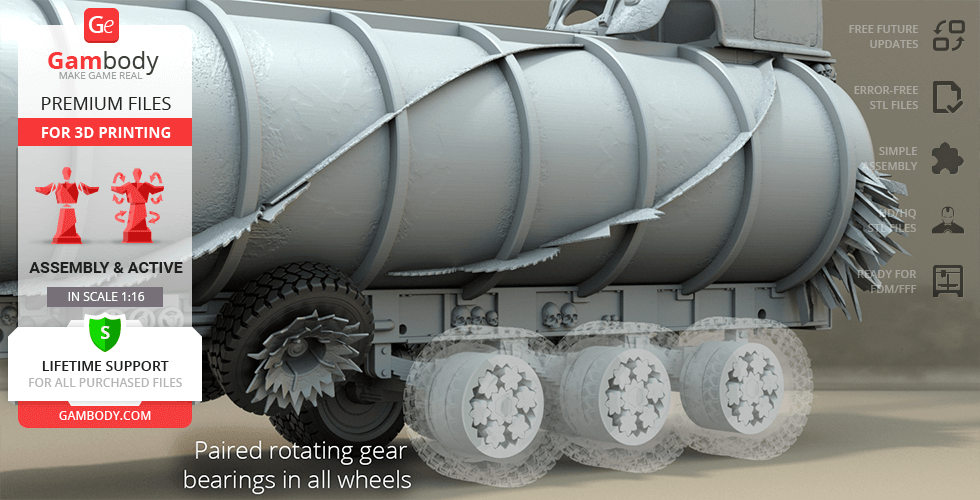

- Rotating gear bearings in all wheels;
Two variants of wheel tyre to choose from: one is meant for plastic filament, the other is hollow for flexible material;

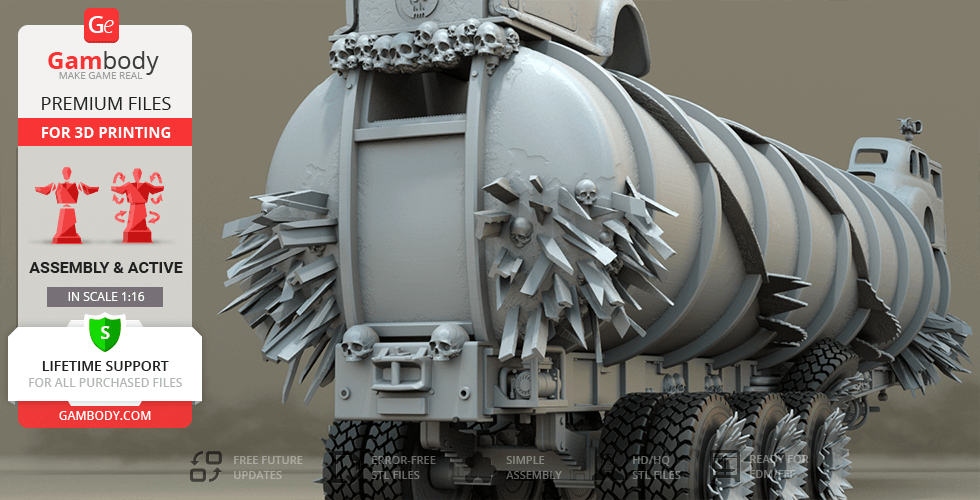

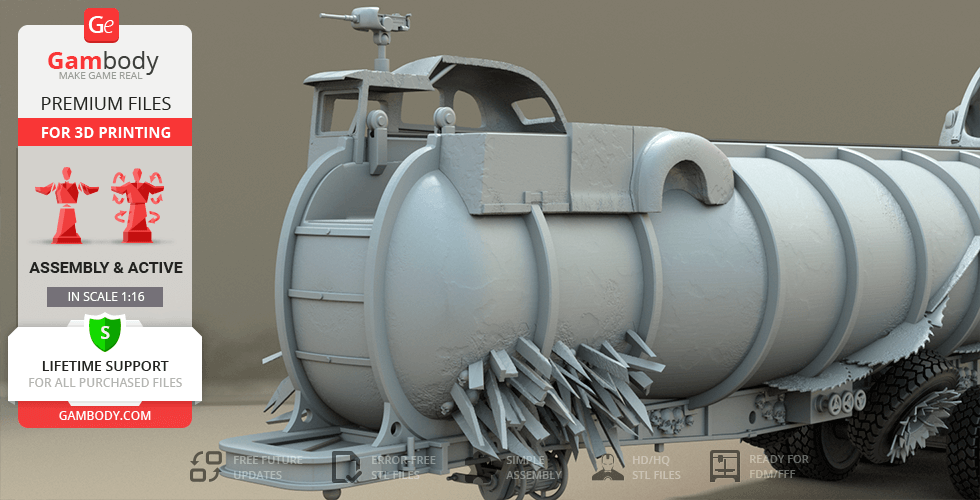

- Highly detailed tanker, decorated with spikes, slanted sharp pieces of "metal", circular saw blades, skulls, a doll, rust effect, etc.;

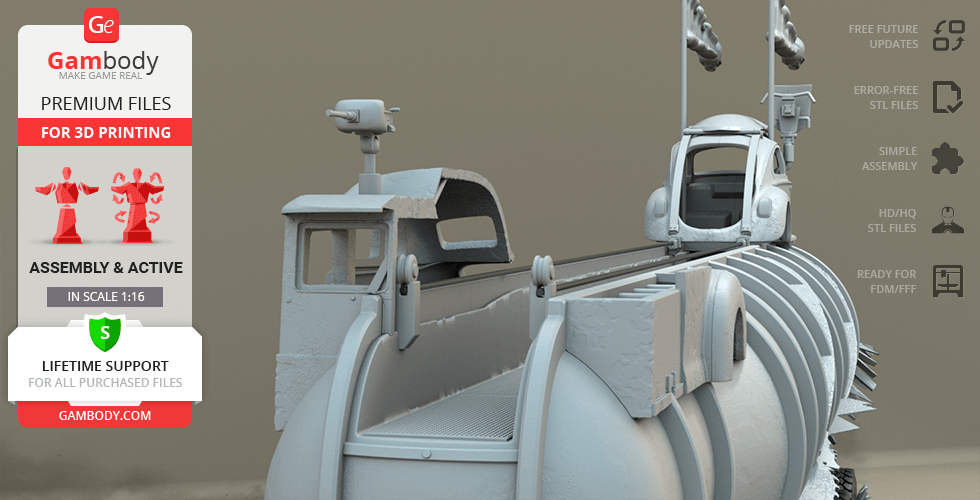

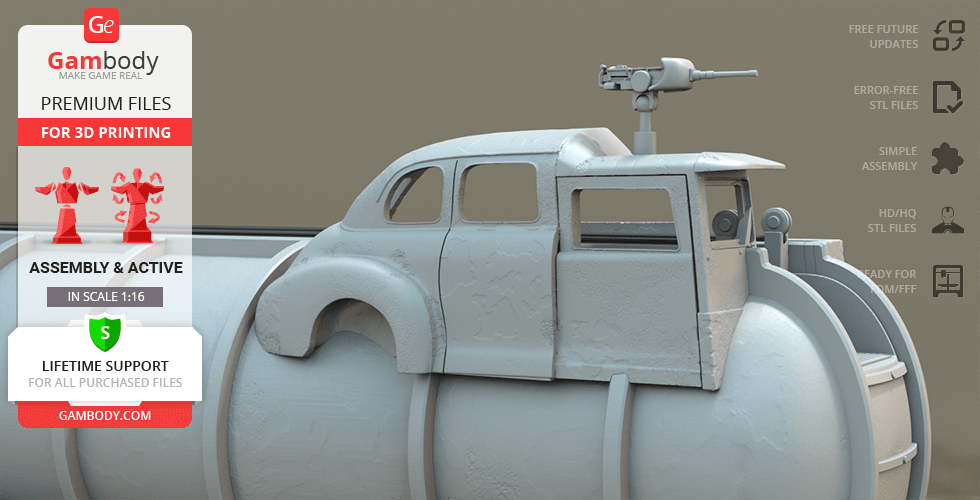

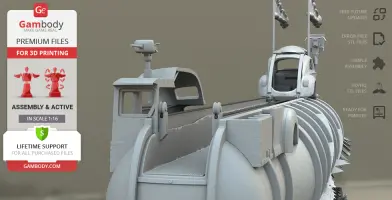

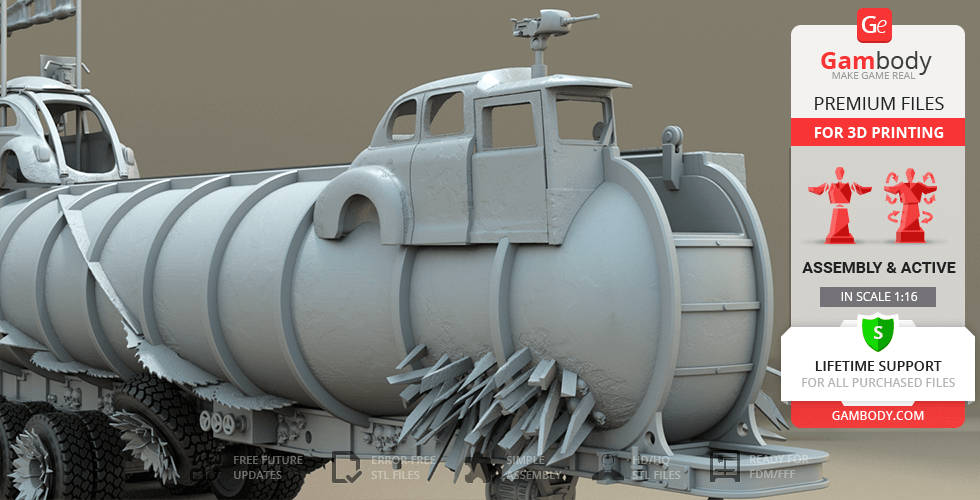

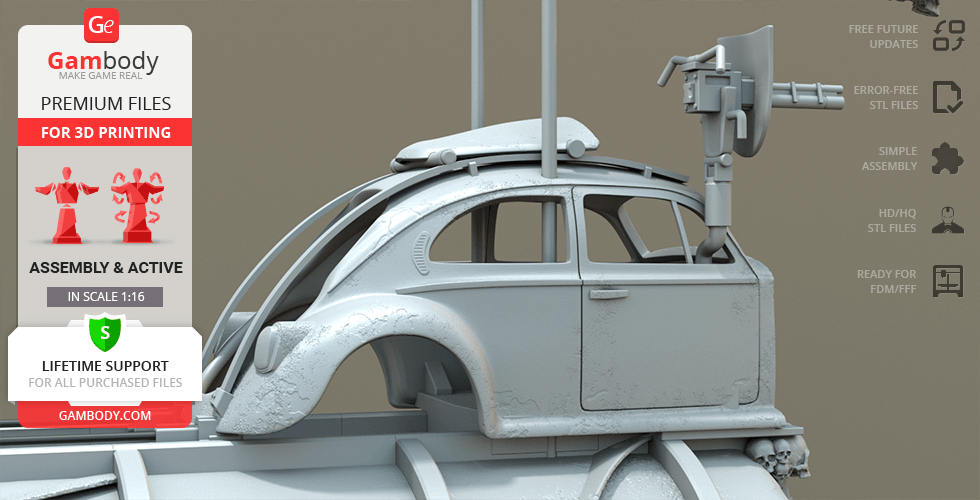

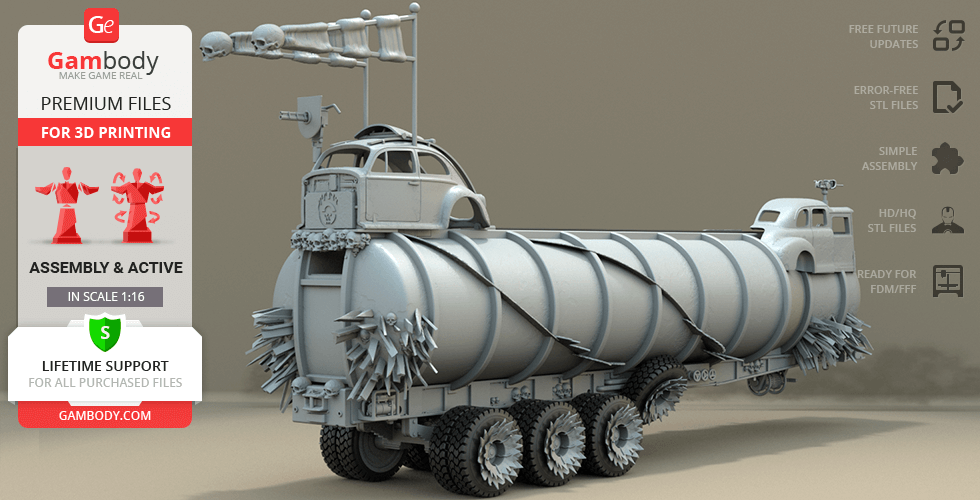

- Two armored turrets are mounted on top of the tanker, the rear one is based on chopped VW Beetle;

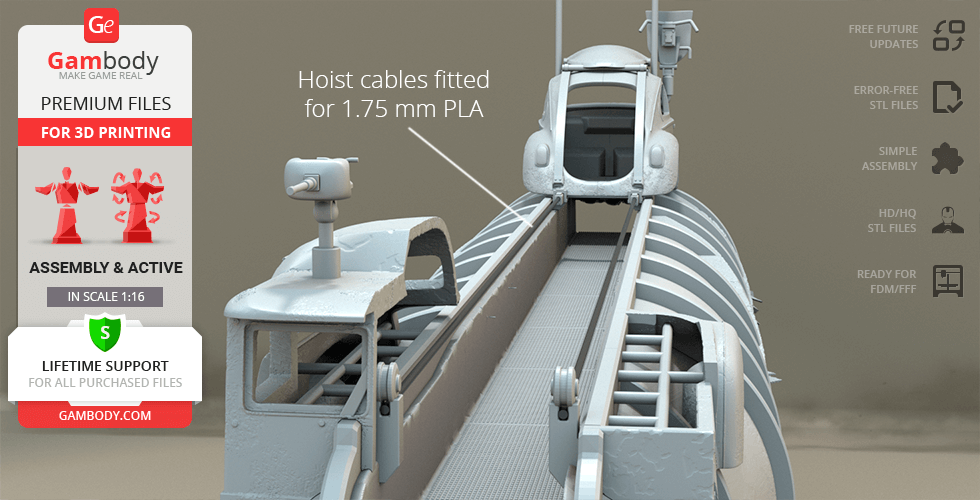

- Hoist cables that run along the top of the tanker are fitted for 1.75mm PLA;

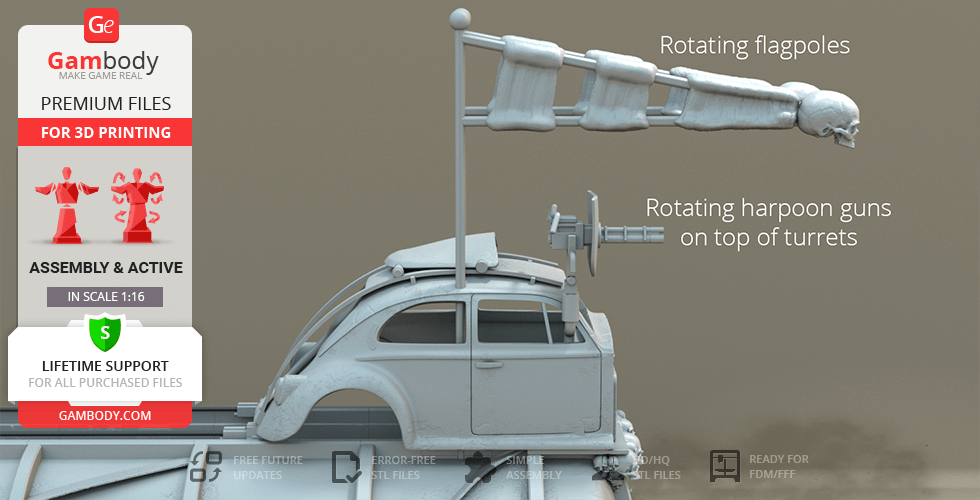

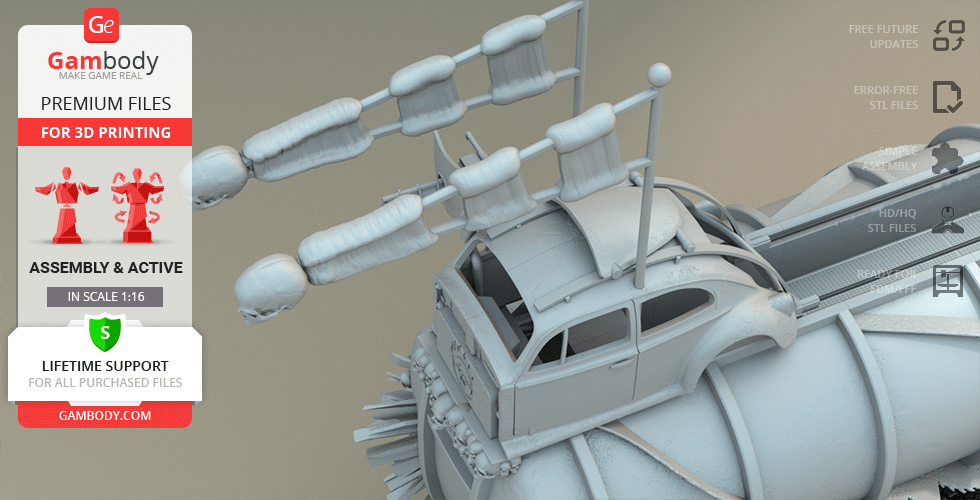

- The harpoon guns mounted on each turret, as well as flagpoles, are rotating;

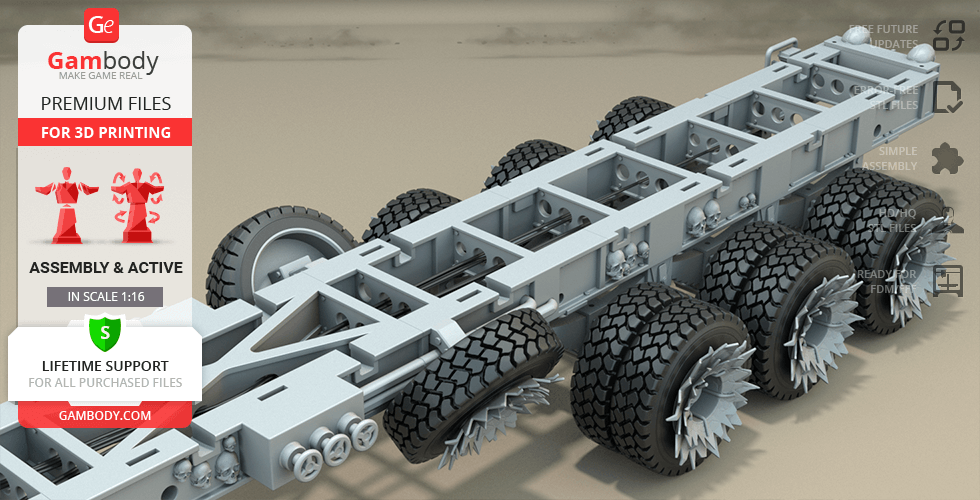

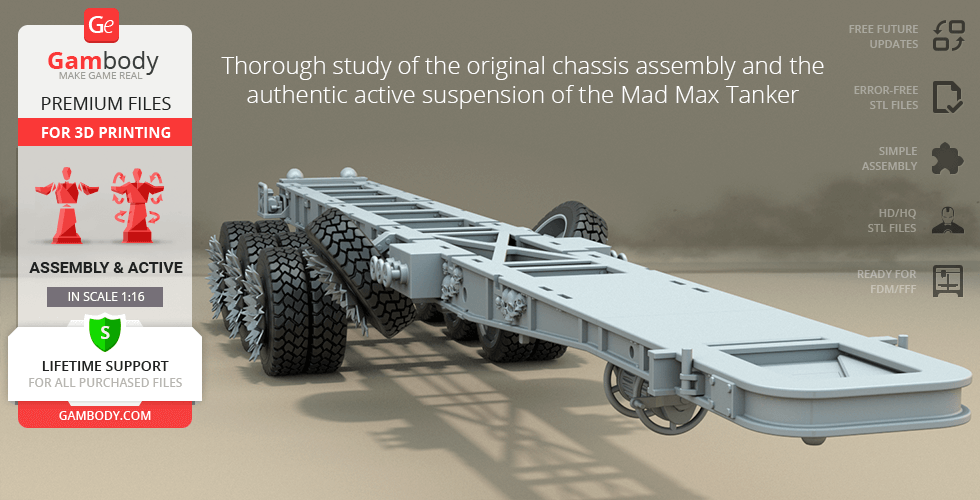

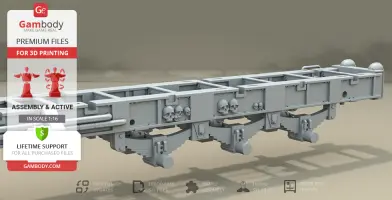

- A thorough study of the original chassis (frame) assembly and the authentic active suspension of the Mad Max Tanker;
Brake pipe fasteners fitted for 1.75mm PLA (the brake pipe does not come with STL files);

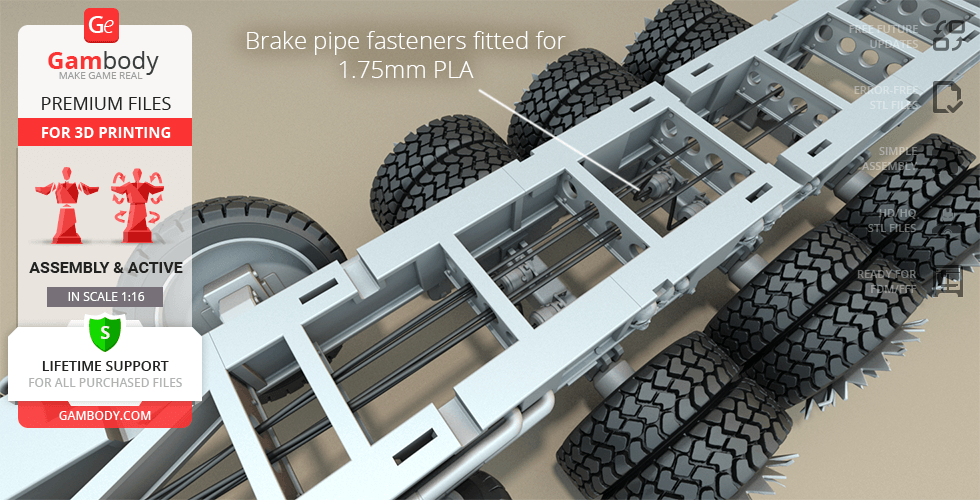

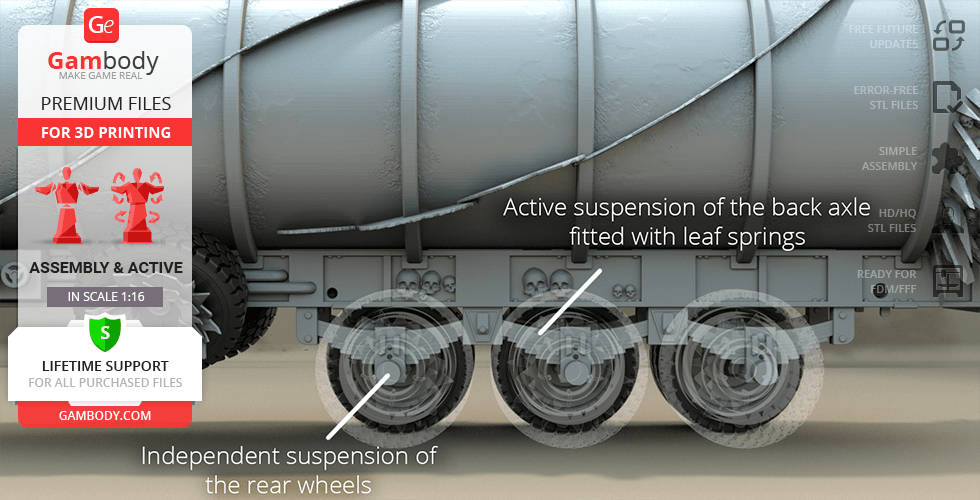

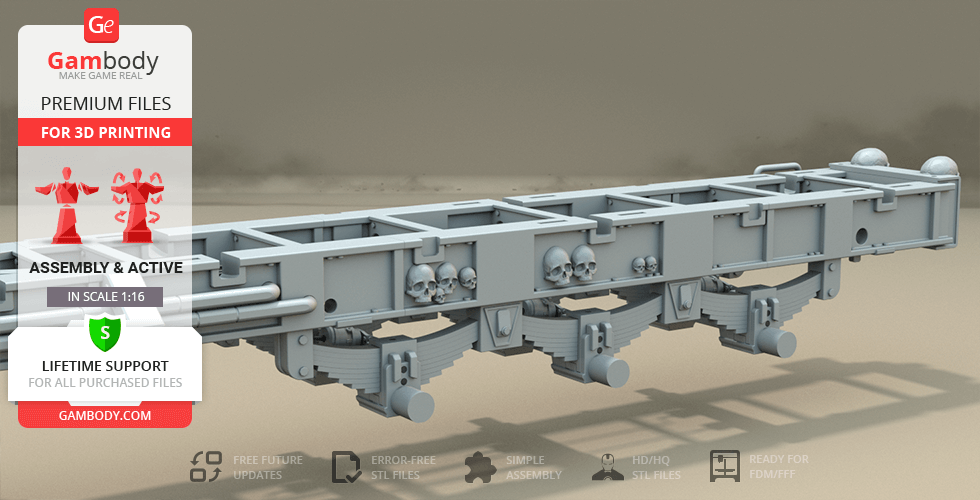

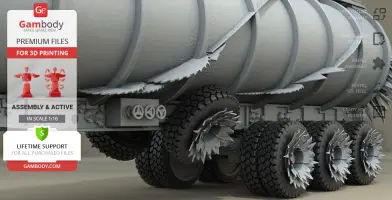

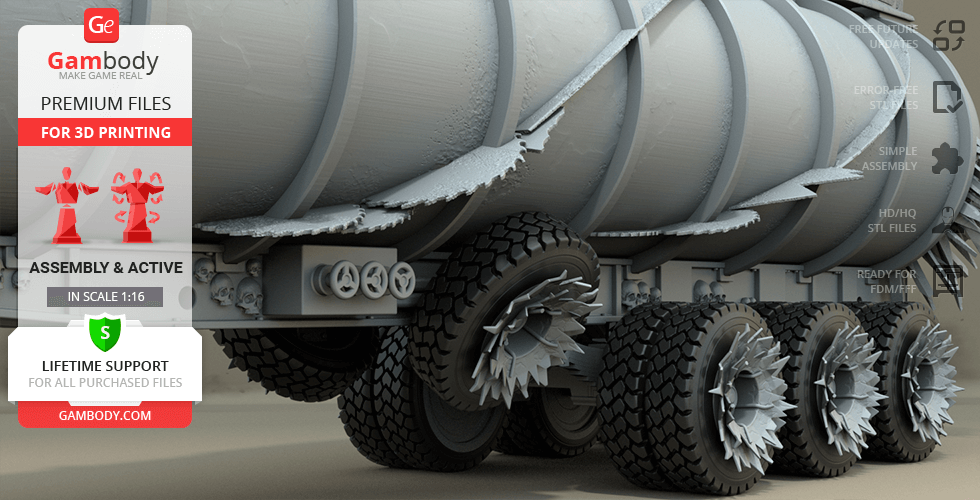

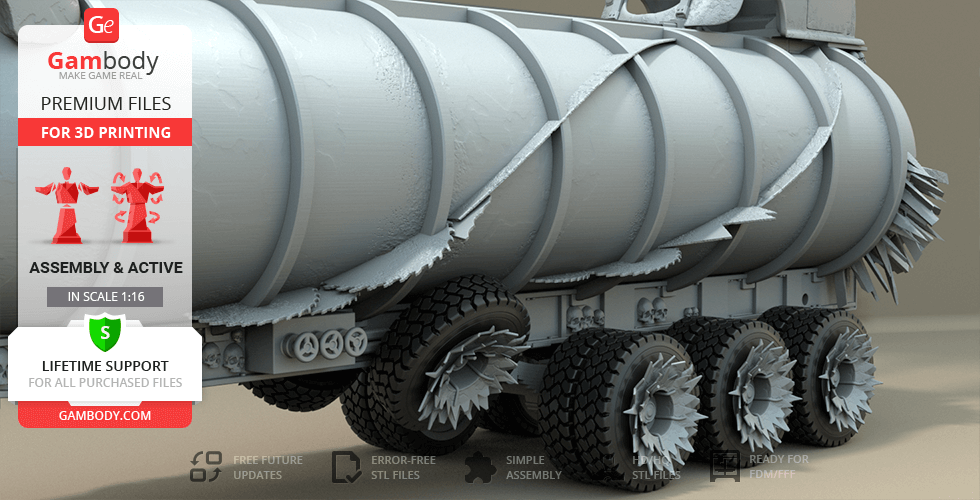

- Active suspension of the back axle fitted with leaf springs + independent suspension of the rear wheels;

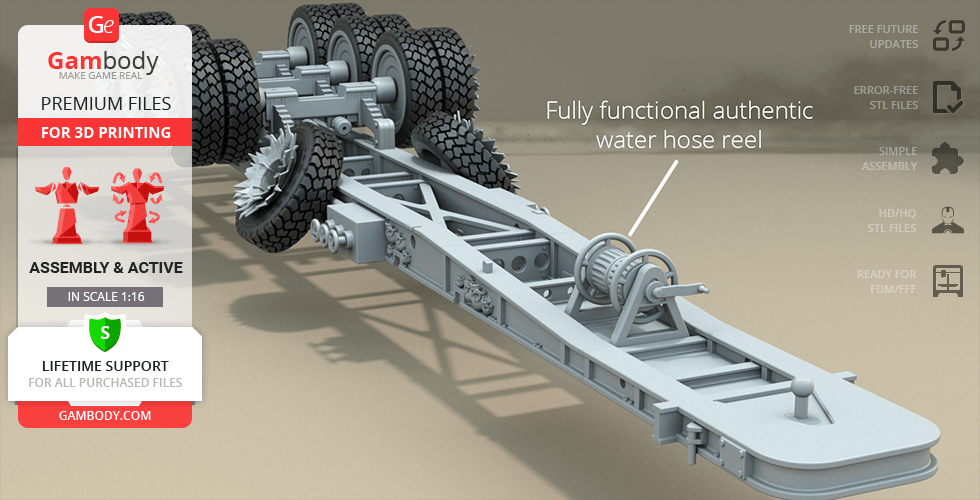

- Fully functional authentic water hose reel located underneath the chassis;
- We recommend that you watch the "Assembly video" before assembling the War Rig Tanker;
- All parts are divided in such a way that you will print them with the smallest number of support structures.

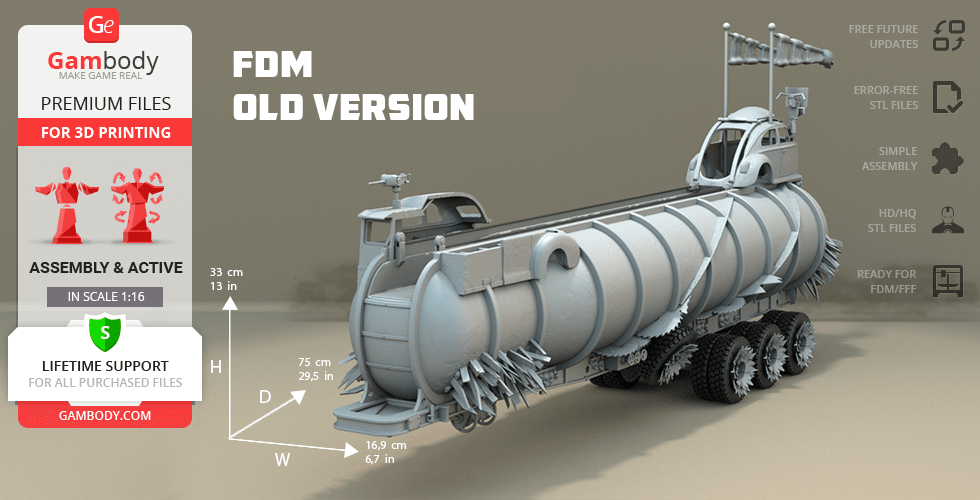

FFF/FDM (Old) version features:
- Comes in approximately 1:20 scale;
- Contains 99 parts;
- When printed stands 330 mm tall, 169 mm wide, 750 mm deep;
- The initial version of the War Rig model that was uploaded in an incorrect scale;
- These versions' features correspond with the ones of the FFF/FDM 1.0 version.

WHAT WILL YOU GET AFTER PURCHASE?

- STL files of War Rig Tanker Model for 3D printing which consist of 99 parts;
1 version of files for this model for FFF/FDM;
- High-poly detailed model of War Rig Tanker;

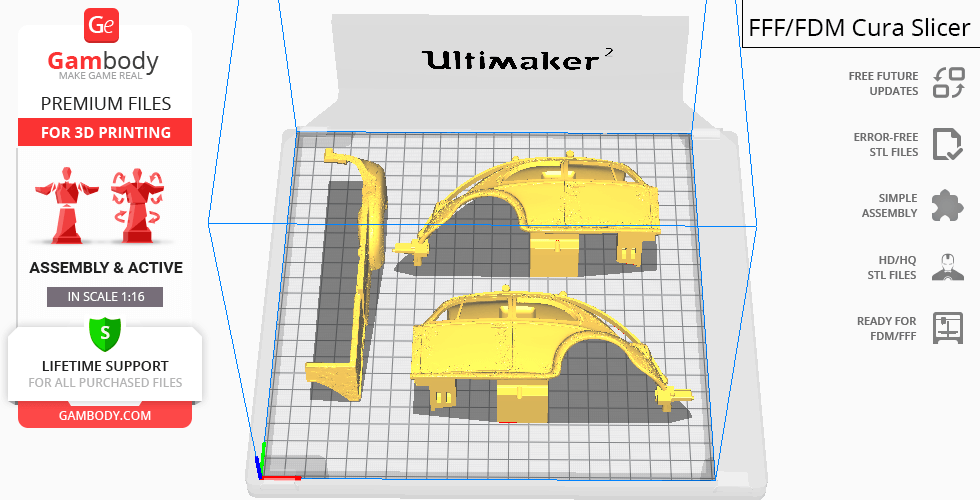

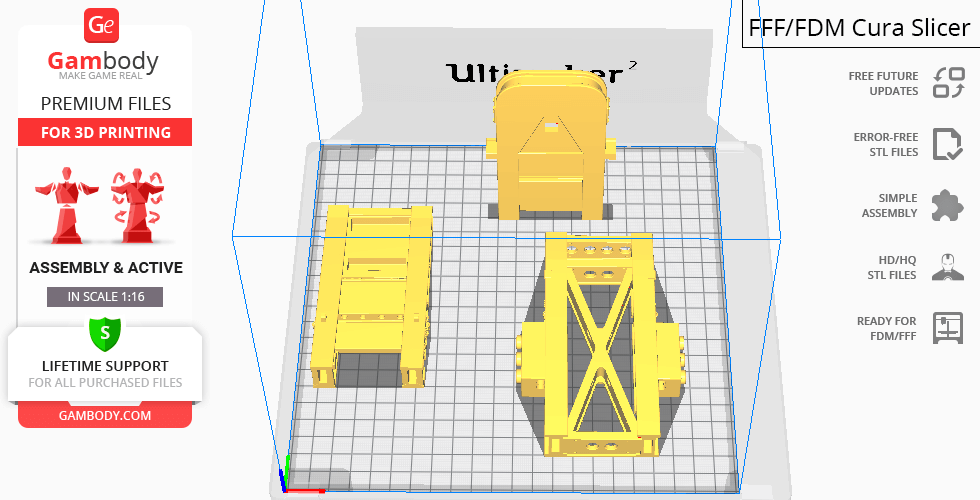

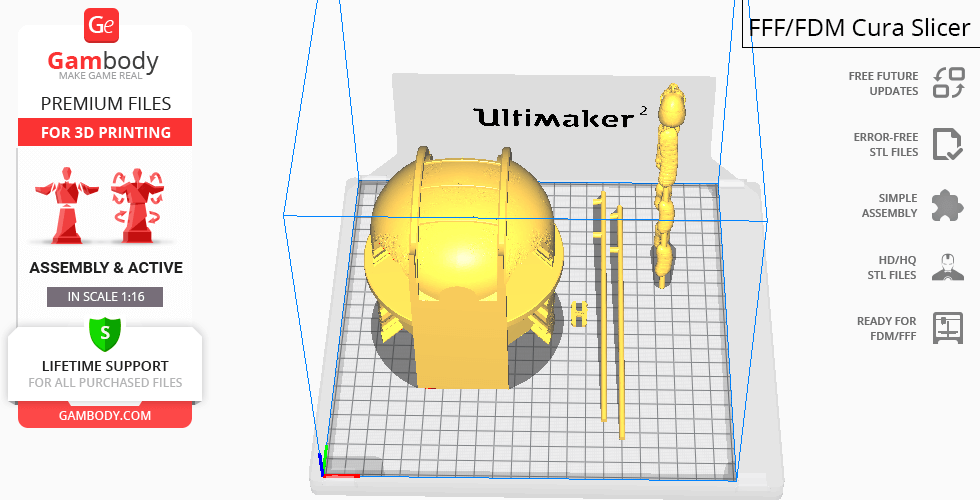

- Detailed settings that we provide as a recommendation for Cura , Simplify3D and Slic3r for the best print;
- Full technical support from the Gambody Support Team.

You can get the model of War Rig Tanker for 3D Printing immediately after the purchase! Just click the green Buy button in the top-right corner of the model’s page. You can pay with PayPal or your credit card.

Watch the tutorial on how to assemble War Rig Tanker 3D Printing Model at Gambody YouTube channel.

Also, you may like the War Rig Truck and War Rig Fuel Pod 3D Printing Models, as well as other Vehicle 3D Printing Models.

_______
FAQ:

Where can I print a model if I have no printer?
How to get started with 3D printing?
How to set up my 3D printer?
How to choose right 3D model print bed positioning?
How to paint printed figurine?

Generic

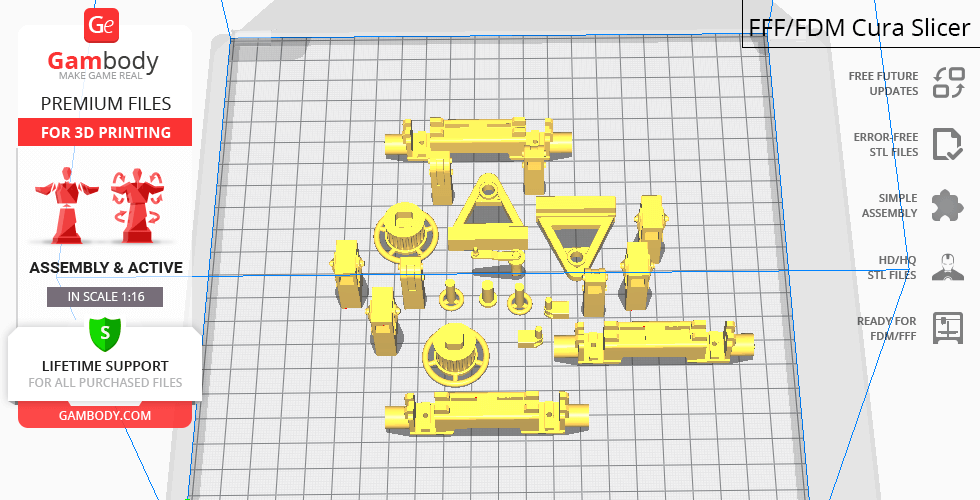

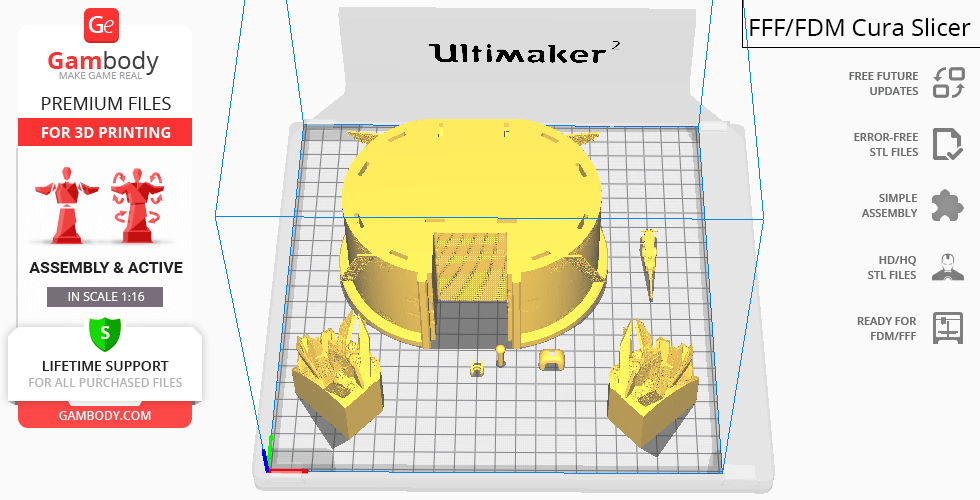

Below you can find printing recommendations for CuraSimplify3D and Slic3r software.

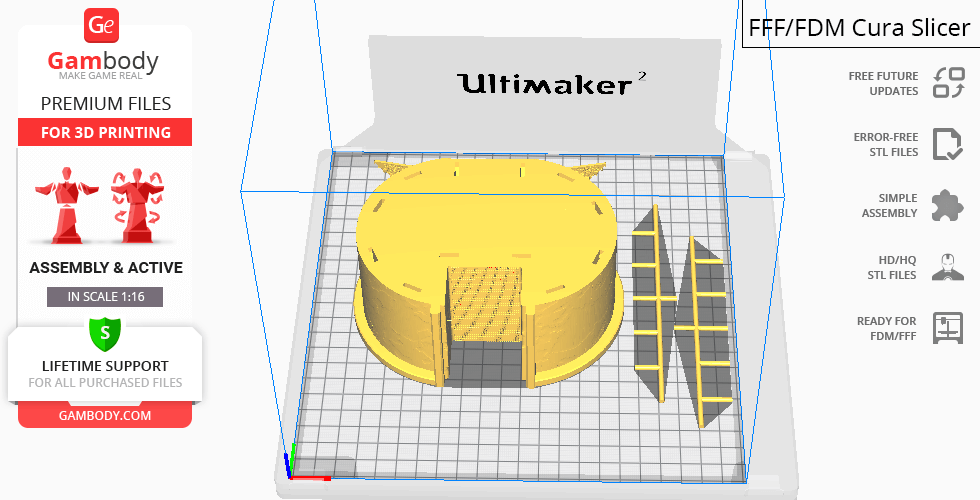

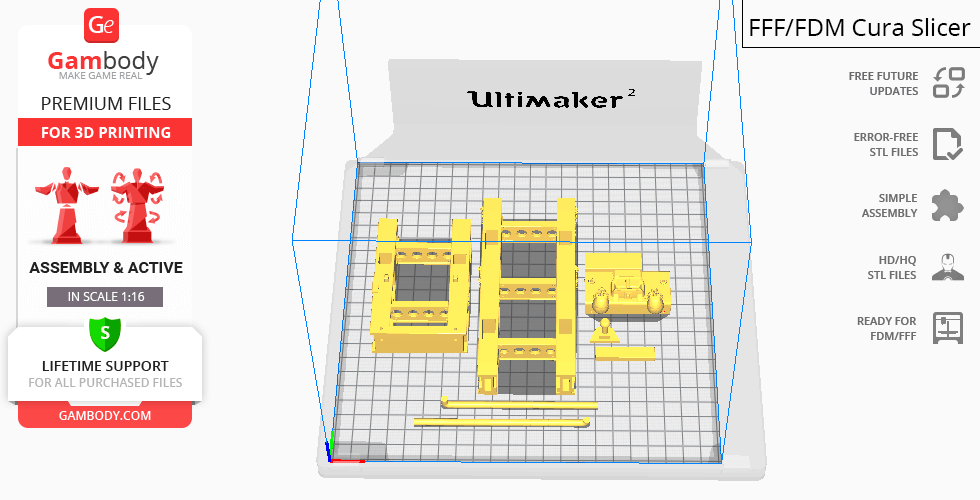

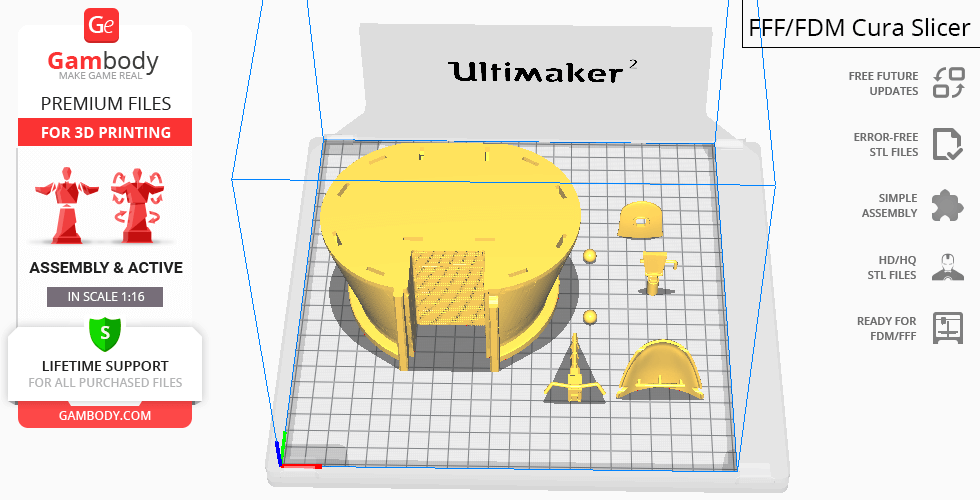

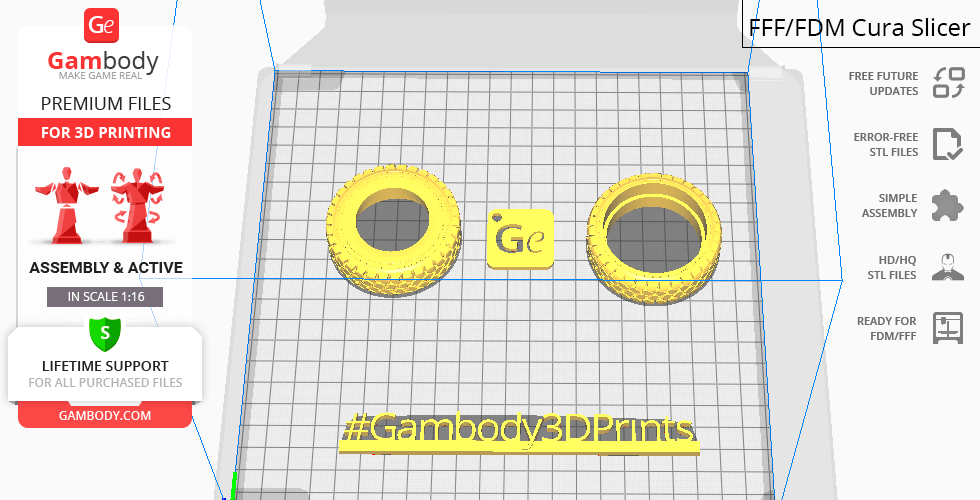

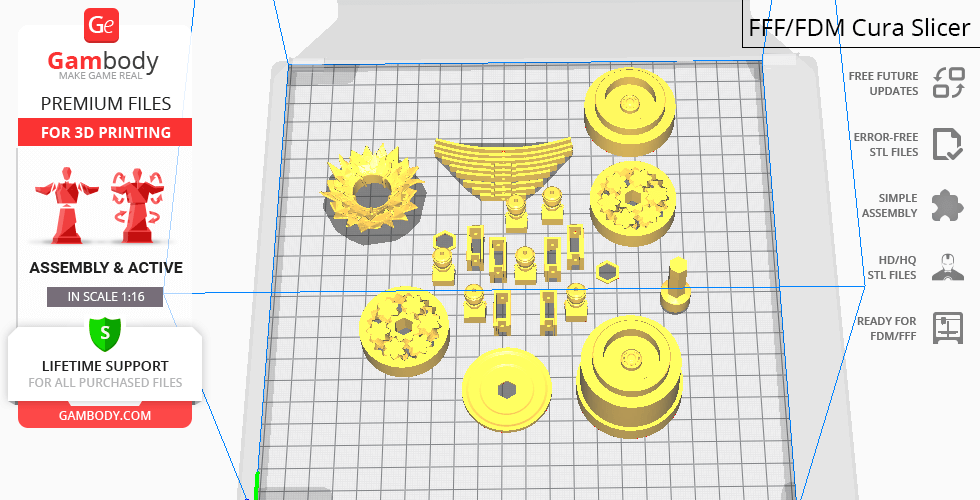

Cura printing recommendations:

These are basic settings that were tested in Cura 4.8.0 slicer.

The test models were printed on Ultimaker 2, Creality Ender 3, Creality CR-10S Pro V2, Anycubic I3 Mega, Anycubic I3 MegaS 3D printers with PLA and PETG filaments.

Disclaimer: The following printing settings are a recommendation, not an obligation. The parameters can vary depending on the peculiarities of your 3D printer, the material you use and especially the particular assembly part at hand. Each part that any model comprises often needs preliminary review and you are free to tweak the settings the way you find suitable.

Note:
- You can scale up the model (downscaling is not recommended!);
- All connectors should be printed at 100% Infill;
- For all parts of locks (“ge_lock” in “Source files”) you need to change "Brim" type to "Skirt" in Build Plate Adhesion section.

Quality
Layer Height: 0.12 mm (you can also set Layer Height at 0.16 or 0.2mm for 0.4mm nozzles)
Initial Layer Height: 0.2 mm (carefully level the print bed and keep your Initial Layer Height the same as the main Layer Height)

Line Width: 0.4 mm
Wall Line Width: 0.4 mm
Outer Wall Line Width: 0.4 mm
Inner Wall(s) Line Width: 0.4 mm
Top/Bottom Line Width: 0.4 mm
Infill Line Width: 0.4 mm
Skirt/Brim Line Width: 0.4 mm
Support Line Width: 0.4 mm

Initial Layer Line Width: 100%

Shell
Wall Thickness: 0.8 mm
Wall Line Count: 2

Outer Wall Wipe Distance: 0.3 mm
Top Surface Skin Layers: 0

Top/Bottom Thickness: 0.6 mm
Top Thickness: 0.6 mm
Top Layers: 5
Bottom Thickness: 0.6 mm
Bottom Layers: 5
Initial Bottom Layers: 5

Top/Bottom Pattern: Lines
Bottom Pattern Initial Layer: Lines
Top/Bottom Line Directions: [ ]
Outer Wall Inset: 0 mm
Optimize Wall Printing Order: Check

Compensate Wall Overlaps: Check
Compensate Inner Wall Overlaps: Check

Minimum Wall Flow: 0%
Fill Gaps Between Walls: Everywhere
Filter Out Tiny Gaps: Check
Horizontal Expansion: 0 mm
Initial Layer Horizontal Expansion: 0 mm
Hole horizontal expansion: 0

Z Seam Alignment: User Specified
Z Seam Position: Back
Z Seam X: Average length of your printer’s plate (e.g.”150” if your plate is 300mm on the X-axis)
Z Seam Y: A value higher than the length of your plate on the Y-axis (e.g. 700)

Seam Corner Preference: Hide Seam
Extra Skin Wall Count: 1
Skin Overlap Percentage: 10%
Skin Overlap 0.04 mm

Infill
Infill Density: 20% (for all smaller parts and for all parts of connectors use 100% Infill)
Infill Pattern: Triangles
Connect Infill Lines: Check
Infill Line Directions: [ ]
Infill X Offset: 0 mm
Infill Y Offset: 0 mm
Infill Line Multiplier: 1
Extra Infill Wall Count: 0

Infill Overlap Percentage: 10-20%
Infill Overlap: 0.04 mm

Skin Overlap Percentage: 5%
Skin Overlap: 0.02 mm

Infill Wipe Distance: 0 mm
Infill Layer Thickness: 0.24 mm
Gradual Infill Steps: 0
Infill Before Walls: Check
Minimum Infill Area: 0 mm2

Skin Removal Width: 0.8 mm
Top Skin Removal Width: 0.8 mm
Bottom Skin Removal Width: 0.8 mm

Skin Expand Distance: 0.8
Top Skin Expand Distance: 0.8
Bottom Skin Expand Distance: 0.8

Maximum Skin Angle for Expansion: 90Ëš
Minimum Skin Width for Expansion: 0.0
Skin Edge Support Thickness: 0
Skin Edge Support Layers: 0

Material
Initial Layer Flow: 100%
Printing Temperature: See your filament settings
Initial Printing Temperature: Your filament settings
Final Printing Temperature: Your filament settings
Build Plate Temperature: Your filament settings
Build Plate Temperature Initial Layer: Your filament settings + 5°
Flow: 100% (Important! If you face difficulty printing the model, you may need to adjust the Flow parameter. You may research the topic using the Internet or seek assistance at our Customer Support Team at support@gambody.com)

Speed

You can increase the printing Speed by 20% when you print simple objects. For small/thin parts you need to decrease the Speed by 25% - 50%.

Print Speed: 50 mm/s
    Infill Speed: 50 mm/s
    Wall Speed: 25 mm/s
          Outer Wall Speed:25 mm/s
          Inner Wall Speed: 50 mm/s

Top/Bottom Speed: 25mm/s
Support Speed: 25 mm/s
          Support Infill Speed: 45 mm/s
          Support Interface Speed: 25 mm/s
                Support Roof Speed: 25 mm/s
                Support Floor Speed: 25 mm/s

Travel Speed: 80 mm/s
Initial Layer Speed: 80 mm/s
Initial Layer Print Speed: 20 mm/s
Initial Layer Travel Speed: 80 mm/s

Skirt/Brim Speed: 20 mm/s
Z  Hop Speed: 5 mm/s
Number of Slower Layers: 2
Enable Acceleration Control: Check

When printing simple objects, you need to set all Acceleration parameters at 500 mm/s. For small/thin parts you need to decrease the Acceleration by 50% - 70%.

Travel
Enable Retraction: Check
Retraction Distance: 4-8 mm, 1-3 mm for Direct Extruder (This is the most important retraction parameter. You can find your optimal value of Retraction Distance by printing any test object, e.g. bridges, towers etc.)

Retraction Speed: 25mm/s
Retraction Retract Speed: 25 mm/s
Retraction Prime Speed: 25 mm/s

Retraction Extra Prime Amount: 0 mm3
Retraction Minimum Travel: 1.5 mm
Maximum Retraction Count: 100
Minimum Extrusion Distance Window: 6,5 - 10 mm
Limit Support Retractions: Check
Combing Mode: All
Max Comb Distance With No Retract: 30 mm
Retract Before Outer Wall: Check
Avoid Printed Parts When Travelling: Check
Avoid Supports When Travelling: Check
Travel Avoid Distance: 1 mm
Layer Start X: 0.0 mm
Layer Start Y: 0.0 mm
Z Hop When Retracted: Check
Z Hop Height: 0,3 mm

Cooling
Enable Print Cooling: Check
Fan Speed: 100%
Regular Fan Speed: 100%
Maximum Fan Speed: 100%

Regular/Maximum Fan Speed Threshold: 10 s
Initial Fan Speed: 0%
Regular Fan Speed at Height: 0.36 mm
Regular Fan Speed at Layer: 3

Minimum Layer Time: 10 s
Minimum Speed: 10 mm/s

Support
Generate Support: Check
Support Structure: Normal (you can try using Tree Support Structure if you have difficulty printing any particular assembly part)
Support Placement: Everywhere
Support Overhang Angle: 60° (this parameter can range from 30° to 70° depending on the part at hand)
Support Pattern: Zig Zag
Support Wall Line Count: 1 (stronger support that might be more difficult to remove) 0 (less strong support but is easier to remove)

Support Density: 15%
Support Line Distance: 2.6667 mm
Initial layer support line distance: 2.667 mm

Support Z Distance: 0.12 mm
Support Top Distance: 0.12 mm
Support Bottom Distance: 0.12 mm

Support X/Y Distance: 0.8-1 mm
Support Distance Priority: Z overrides X/Y
Support Stair Step Height: 0.3 mm
Support Stair Step Maximum Width: 5.0 mm
Support Stair Step Minimum Slope Angle: 10°
Support Join Distance: 2.0 mm
Support Horizontal Expansion: 0.2 mm
Support Infill Layer Thickness: 0.2 mm
Gradual Support Infill Steps: 0
Minimum Support Area: 2 mm

Enable Support Interface: Check (generates additional “pillow” on the support structure that leads to a more even surface, but can be difficult to remove in hard-to-reach areas)
Enable Support Roof: Check
Enable Support Floor: Check

Support Interface Thickness: 0.8 mm
Support Roof Thickness: 0.8 mm
Support Floor Thickness: 0.8 mm

Support Interface Resolution 0.2 mm
Support Interface Density: 50-100%
        Support Roof Density: 50-100%
Support Roof Line Distance: 0.8 mm
        Support Floor Density: 50-100%
Support Floor line Distance:  0.4mm

Support Interface Pattern: Grid
Support Roof Pattern: Grid (this parameter should differ from Bottom Pattern Initial Layer in “Shell” section)
Support Floor Pattern: Grid

Minimum Support Interface Area: 10mm
Minimum Support Roof Area: 10 mm
Minimum Support Floor Area: 10 mm

Support Interface Horizontal Expansion: 0.0 mm
Support Roof Horizontal Expansion: 0.0 mm
Support Floor Horizontal Expansion: 0.0 mm

Fan Speed Override: Check
Supported Skin Fan Speed: 100%
Use Towers: Check
Tower Diameter: 4 mm
Minimum Diameter: 3.0 mm
Tower Roof Angle: 65°

Build Plate Adhesion
Build Plate Adhesion Type: Skirt/Brim (For unsteady parts, and those parts that may come unstuck use “Brim”. For bigger assembly parts that have large adhesion area and for all parts of locks and claws that you want to come out clean use "Skirt")
Skirt/Brim Minimum Length: 250 mm
Brim Width: 8.0 mm
       Brim Line Count: 10
Brim Only on Outside: Check

Mesh Fixes
Union Overlapping Volumes: Check
Merged Meshes Overlap: 0.15 mm

Special Modes
Print Sequence: All at Once
Surface Mode: Normal

Experimental
Slicing Tolerance: Middle
Maximum Resolution: 0.01 mm
Flow rate compensation max extrusion offset: 0 mm
Flow rate compensation factor: 100%

Simplify3D printing recommendations:

This model was tested with PLA material.

To avoid printing problems, we recommend the following settings:

Extruder
Nozzle Diameter: 0.4 mm
Extrusion Multiplier: 0.97
Extrusion Width: Auto

Retraction Distance: 5.00 mm
Extra Restart Distance: 0.00 mm
Retraction Vertical Lift: 0.08 mm
Retraction Speed: 5400.0 mm/min

Wipe Distance: 5.00 mm

Layer
Primary Layer Height: 0.2 mm
Top Solid Layers: 8
Bottom Solid Layers: 5
Outline/Perimeter Shells: 2
Outline Direction: Inside-Out

First Layer Height: 90%
First Layer Width: 100%
First Layer Speed: 20%

Additions
Use Skirt/Brim: Check
Skirt Layers: 1
Skirt Offset from Part: 6.00 mm
Skirt Outlines: 5

Infill
Internal Fill Pattern: Fast Honeycomb
External Fill Patern: Rectilinear
Interior Fill Percentage: 10%
Outline Overlap: 22%
Infill Extrusion Width: 100%
Minimum Infill Length: 5.00 mm
Combine Infill Every: 1 layers

External Infill Angle Offsets: 45/-45 deg

Support
Generate Support Material: Check
Support Infill Percentage: 15%
Extra Inflation Distance: 1.00 mm
Support Base Layers: 0
Combine Support Every: 1 layers

Dense Support Layers: 0
Dense Infill Percentage: 70%

Support Type: Normal
Support Pillar Resolution: 5.00 mm
Max Overhang Angle: 60 deg

Horizontal Offset From Part: 0.50 mm
Upper Vertical Separation Layers: 1
Lower Vertical Separation Layers: 1

Support Infill Angles: 45 deg

Temperature
Extruder 1 Temperature: 210
Heated Bed: 60

Cooling
Increase fan speed for layers below: 45.0 sec
  Maximum Cooling fan speed: 50%
Bridging fan speed override: 100%

Speeds
Default Printing Speed: 4800.0 mm/min
Outline Underspeed: 50%
Solid Infill Underspeed: 80%
Support Structure Underspeed: 80%
X/Y Axis Movement Speed: 10800.0 mm/min
Z Axis Movemen Speed: 1002.0 mm/min

Adjust printing speed for layers below: 15.0 sec
  Allow speed reduction down to: 20%

Other
Unsupported area threshold: 20.0 sq m

Slic3r printing recommendations:

Layer height
  Layer height: 0.1 mm
  First layer height: 90%
Vertical shells
  Perimeters: 2
Horizontal shells
  Soid layers:
              Top: 8
              Bottom: 5
Quality
  Detect thin walls: Check
  Detect bridging perimeters: Check
Advanced
  Seam position: Random
Infill
  Fill desity: 20%
  Fill pattern: Honeycomb
  Top/bottom fill pattern: Rectilinear
Reducing printing time
  Combine infill every: 1 layers
Advanced
  Solid infill every: 0 layers
  Fill angle: 25 deg
  Solid infill threshold area: 0mm
Skirt
  Loops: 2
  Distance from object: 6 mm
  Skirt height: 1 layers
  Minimum extrusion length: 4 mm
Brim
  Brim width: 10 mm
Support material
  Generate support material: Check
  Overhang threshold: 45 deg
  Enforce support for the first: 3 layers
Raft
  Raft layers: 0 layers
Options for support material and raft
  Contact Z distance: 0.1 mm
  Pattern: Rectilinear
  Patter spacing: 2 mm
  Pattern angle: 0 deg
  Interface layers: 2 layers
  Interface pattern spacing: 0.2 mm
Speed for print moves
  Perimeters: 60 mm/s
  Small perimeters: 20 mm/s
  External perimeters: 20 mm/s
  Infill: 60 mm/s
  Solid infill: 60 mm/s
  Top solid infill: 30 mm/s
  Support material: 50 mm/s
  Support material interface: 100%
  Bridges: 30 mm/s
  Gap fill: 50 mm/s
Speed for non-print moves
  Travel: 60 mm/s
Modifiers
  First layer speed: 30 mm/s
Acceleration control
  Perimeters: 800 mm/s
  Infill: 1500 mm/s
  Bridge: 1000 mm/s
  First layer: 1000 mm/s
  Default: 1000 mm/s
Autospeed
  Max print speed: 100 mm/s
  Max volumetrix speed: 0 mm/s
Extrusion width
  Default extrusion width: 0.42 mm
  First layer: 0.42 mm
  Perimeters: 0.42 mm
  External perimeters: 0.42 mm
  Infill: 0.42 mm
  Solid infill: 0.42 mm
  Top solid infill: 0.42 mm
  Support material: 0.42 mm
Overlap
  Infill/Perimeters overlap: 20%
Flow
  Bridge flow ratio: 0.95
Other
  XY Size Compensation: 0 mm
  Threds: 8
  Resolution: 0 mm

Comments
